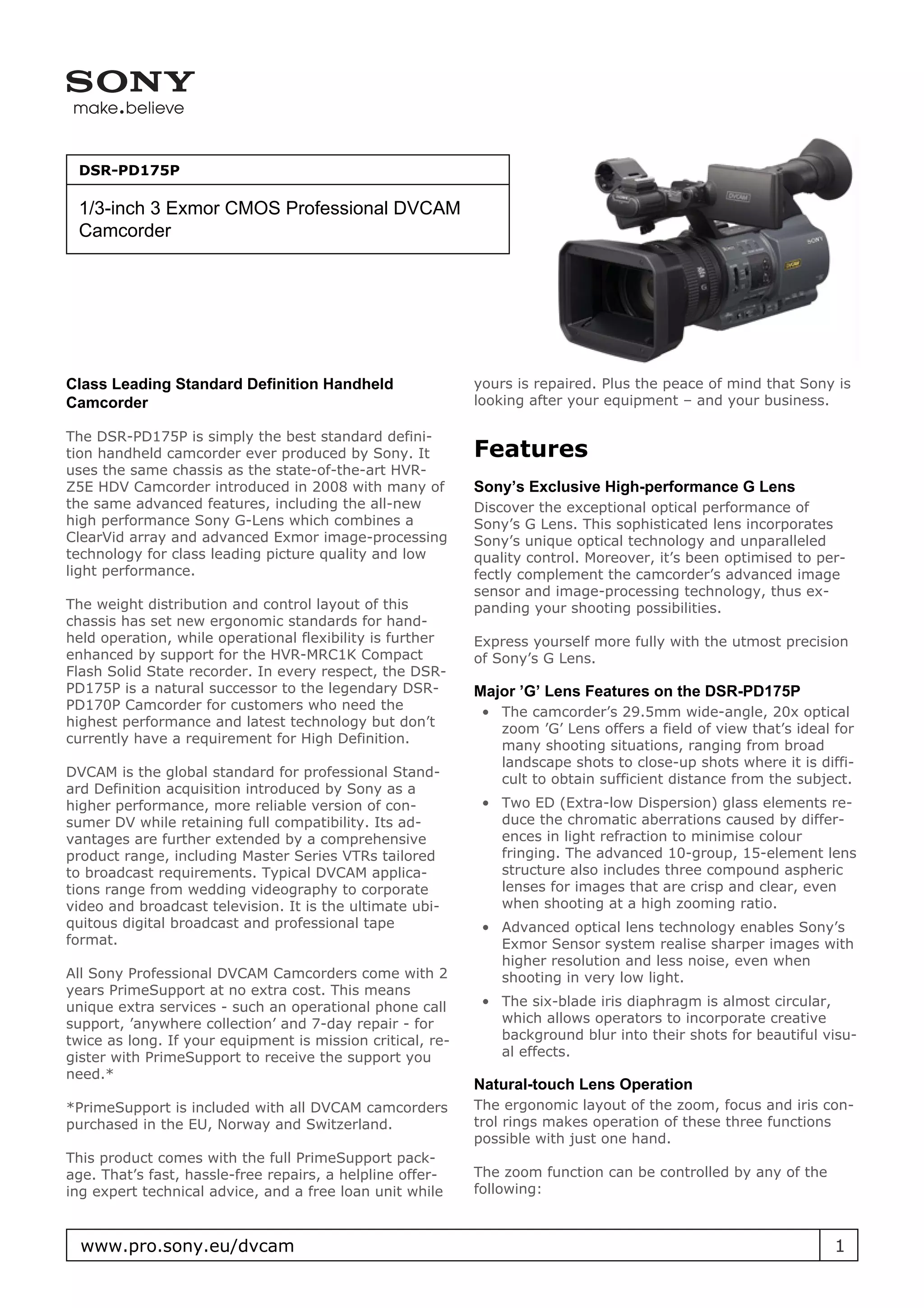

This document provides specifications and details for the Sony DSR-PD175P 1/3-inch 3 Exmor CMOS Professional DVCAM Camcorder. Key features include a 20x optical zoom Sony G Lens, Exmor CMOS sensor for low-light performance, 25p progressive scan mode, and six assignable function buttons. The camcorder records to DVCAM or DV format and has enhanced ergonomics for handheld use.

1. DSR-PD175P
1/3-inch 3 Exmor CMOS Professional DVCAM
Camcorder
Class Leading Standard Definition Handheld yours is repaired. Plus the peace of mind that Sony is
Camcorder looking after your equipment – and your business.
The DSR-PD175P is simply the best standard defini-
tion handheld camcorder ever produced by Sony. It Features
uses the same chassis as the state-of-the-art HVR-
Z5E HDV Camcorder introduced in 2008 with many of Sony’s Exclusive High-performance G Lens
the same advanced features, including the all-new Discover the exceptional optical performance of
high performance Sony G-Lens which combines a Sony’s G Lens. This sophisticated lens incorporates
ClearVid array and advanced Exmor image-processing Sony’s unique optical technology and unparalleled
technology for class leading picture quality and low quality control. Moreover, it’s been optimised to per-
light performance. fectly complement the camcorder’s advanced image
sensor and image-processing technology, thus ex-
The weight distribution and control layout of this panding your shooting possibilities.
chassis has set new ergonomic standards for hand-
held operation, while operational flexibility is further Express yourself more fully with the utmost precision
enhanced by support for the HVR-MRC1K Compact of Sony’s G Lens.
Flash Solid State recorder. In every respect, the DSR-
PD175P is a natural successor to the legendary DSR- Major ’G’ Lens Features on the DSR-PD175P
PD170P Camcorder for customers who need the • The camcorder’s 29.5mm wide-angle, 20x optical
highest performance and latest technology but don’t zoom ’G’ Lens offers a field of view that’s ideal for
currently have a requirement for High Definition. many shooting situations, ranging from broad
landscape shots to close-up shots where it is diffi-
DVCAM is the global standard for professional Stand- cult to obtain sufficient distance from the subject.
ard Definition acquisition introduced by Sony as a
higher performance, more reliable version of con- • Two ED (Extra-low Dispersion) glass elements re-
sumer DV while retaining full compatibility. Its ad- duce the chromatic aberrations caused by differ-
vantages are further extended by a comprehensive ences in light refraction to minimise colour
product range, including Master Series VTRs tailored fringing. The advanced 10-group, 15-element lens
to broadcast requirements. Typical DVCAM applica- structure also includes three compound aspheric
tions range from wedding videography to corporate lenses for images that are crisp and clear, even
video and broadcast television. It is the ultimate ubi- when shooting at a high zooming ratio.
quitous digital broadcast and professional tape • Advanced optical lens technology enables Sony’s
format. Exmor Sensor system realise sharper images with
higher resolution and less noise, even when
All Sony Professional DVCAM Camcorders come with 2 shooting in very low light.
years PrimeSupport at no extra cost. This means
unique extra services - such an operational phone call • The six-blade iris diaphragm is almost circular,
support, ’anywhere collection’ and 7-day repair - for which allows operators to incorporate creative
twice as long. If your equipment is mission critical, re- background blur into their shots for beautiful visu-
gister with PrimeSupport to receive the support you al effects.
need.*
Natural-touch Lens Operation
*PrimeSupport is included with all DVCAM camcorders The ergonomic layout of the zoom, focus and iris con-
purchased in the EU, Norway and Switzerland. trol rings makes operation of these three functions
possible with just one hand.
This product comes with the full PrimeSupport pack-
age. That’s fast, hassle-free repairs, a helpline offer- The zoom function can be controlled by any of the
ing expert technical advice, and a free loan unit while following:
www.pro.sony.eu/dvcam 1

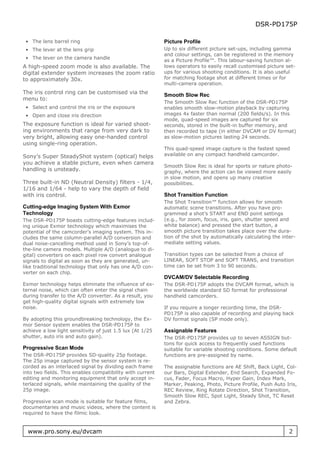

2. DSR-PD175P
• The lens barrel ring Picture Profile
• The lever at the lens grip Up to six different picture set-ups, including gamma
and colour settings, can be registered in the memory
• The lever on the camera handle
as a Picture Profile™. This labour-saving function al-
A high-speed zoom mode is also available. The lows operators to easily recall customised picture set-
digital extender system increases the zoom ratio ups for various shooting conditions. It is also useful
to approximately 30x. for matching footage shot at different times or for
multi-camera operation.
The iris control ring can be customised via the Smooth Slow Rec
menu to:
The Smooth Slow Rec function of the DSR-PD175P
• Select and control the iris or the exposure enables smooth slow-motion playback by capturing
• Open and close iris direction images 4x faster than normal (200 fields/s). In this
mode, quad-speed images are captured for six
The exposure function is ideal for varied shoot- seconds, stored in the built-in buffer memory, and
ing environments that range from very dark to then recorded to tape (in either DVCAM or DV format)
very bright, allowing easy one-handed control as slow-motion pictures lasting 24 seconds.
using single-ring operation.
This quad-speed image capture is the fastest speed
Sony’s Super SteadyShot system (optical) helps available on any compact handheld camcorder.
you achieve a stable picture, even when camera
Smooth Slow Rec is ideal for sports or nature photo-
handling is unsteady. graphy, where the action can be viewed more easily
in slow motion, and opens up many creative
Three built-in ND (Neutral Density) filters - 1/4, possibilities.
1/16 and 1/64 - help to vary the depth of field
with iris control. Shot Transition Function
The Shot Transition™ function allows for smooth
Cutting-edge Imaging System With Exmor automatic scene transitions. After you have pro-
Technology grammed a shot’s START and END point settings
The DSR-PD175P boasts cutting-edge features includ- (e.g., for zoom, focus, iris, gain, shutter speed and
ing unique Exmor technology which maximises the white balance) and pressed the start button, a
potential of the camcorder’s imaging system. This in- smooth picture transition takes place over the dura-
cludes the same column-parallel A/D conversion and tion of the shot by automatically calculating the inter-
dual noise-cancelling method used in Sony’s top-of- mediate setting values.
the-line camera models. Multiple A/D (analogue to di-
gital) converters on each pixel row convert analogue Transition types can be selected from a choice of
signals to digital as soon as they are generated, un- LINEAR, SOFT STOP and SOFT TRANS, and transition
like traditional technology that only has one A/D con- time can be set from 3 to 90 seconds.
verter on each chip.
DVCAM/DV Selectable Recording
Exmor technology helps eliminate the influence of ex- The DSR-PD175P adopts the DVCAM format, which is
ternal noise, which can often enter the signal chain the worldwide standard SD format for professional
during transfer to the A/D converter. As a result, you handheld camcorders.
get high-quality digital signals with extremely low
noise. If you require a longer recording time, the DSR-
PD175P is also capable of recording and playing back
By adopting this groundbreaking technology, the Ex- DV format signals (SP mode only).
mor Sensor system enables the DSR-PD175P to
achieve a low light sensitivity of just 1.5 lux (At 1/25 Assignable Features
shutter, auto iris and auto gain). The DSR-PD175P provides up to seven ASSIGN but-
tons for quick access to frequently used functions
Progressive Scan Mode suitable for variable shooting conditions. Some default
The DSR-PD175P provides SD-quality 25p footage. functions are pre-assigned by name.
The 25p image captured by the sensor system is re-
corded as an interlaced signal by dividing each frame The assignable functions are AE Shift, Back Light, Col-
into two fields. This enables compatibility with current our Bars, Digital Extender, End Search, Expanded Fo-
editing and monitoring equipment that only accept in- cus, Fader, Focus Macro, Hyper Gain, Index Mark,
terlaced signals, while maintaining the quality of the Marker, Peaking, Photo, Picture Profile, Push Auto Iris,
25p image. REC Review, Ring Rotate Direction, Shot Transition,
Smooth Slow REC, Spot Light, Steady Shot, TC Reset
Progressive scan mode is suitable for feature films, and Zebra.
documentaries and music videos, where the content is
required to have the filmic look.
www.pro.sony.eu/dvcam 2

3. DSR-PD175P
XtraFine LCD Panel mode, zoom speed can be adjusted manually using
The DSR-PD175P is equipped with a 3.2-inch-type wi- the zoom lever.
descreen XtraFine™ LCD panel on the front of its
handle. This has a high resolution of approximately HYBRID Solution With HVR-MRC1K
921,000 pixels, which allows for easier focus adjust- The DSR-PD175P is ready for HYBRID DVCAM/DV op-
ments. It can also display virtually 100% of the recor- eration, when connected to the optional HVR-MRC1K
ded picture area at a colour temperature of approxim- Memory Recording Unit via an i.LINK connector. In
ately 6500K. HYBRID operation, you can simultaneously record
video footage to both a tape and a standard Com-
XtraFine EVF pactFlash (CF) card.
The 0.45-inch-type XtraFine EVF (Electronic View
Finder) has approximately 1,227,000 pixels and three Three recording options:
independent LEDs for red, green and blue colours.
This technology allows users to monitor objects with • Synchronous recording
remarkable colour reproduction accuracy and high • Relay recording
resolution*.
• HVR-MRC1K-only recording
The EVF has a choice of colour or black-and-white dis- For user convenience, the DSR-PD175P can dis-
play modes. It also displays virtually 100% of the pic- play status information of the HVR-MRC1K on its
ture area at a colour temperature of approximately LCD. This status information includes:
6500K.
• Connection status
* When the camcorder is panned quickly, or when an • REC status
object on the screen moves quickly, the R/G/B
• Remaining CF recording time
primary colours may be seen on the object in the EVF
momentarily The recording time on a 16-GB CF card* in
DVCAM and DV format is approximately 72
InfoLITHIUM L Series Battery Compatibility minutes.
The DSR-PD175P uses the same L series batteries as
the DSR-PD170P, so you can use your existing char- * At least 133x speed and 2-GB capacity is
gers and batteries required.
Versatile Audio Input Selection One-touch Clip-type Microphone Holder
The DSR-PD175P offers a versatile choice of audio in- A one-touch clip-type microphone holder makes it
puts. It features a newly designed high-quality built-in easy to attach and remove the microphone for quick
stereo microphone, as well as two XLR audio input storage.
channels for connecting to either professional micro-
phones or an external-line audio source. A 48V micro- Digital Still Camera Function With Memory Stick
phone power source can also be supplied.
Duo
By adjusting the INPUT ASSIGN switch located on the The Memory Photo function allows the camera to be
side panel of the DSR-PD175P, you can easily assign switched to progressive scan mode for capturing still
the two audio input channels to either the built-in ste- images. Files can be recorded on Memory Stick Duo™
reo microphone or an external-line audio source, or media in a choice of two sizes: 1080x810 pixels (4:3)
dedicate one channel to each and record them separ- or 1440x810 pixels (16:9).
ately or mixed.
When assigned to one channel, the built-in stereo mi-
crophone acts as a wide-directional monaural
microphone.
On-handle Zoom Lever and Rec. Start/Stop Button Benefits
In order to facilitate zoom control and recording oper-
ation during low-angle shooting, an additional zoom Class-leading picture quality
lever and a rec. start/stop button have been added to Sony’s ’G’ Lens features unique optical technology,
the carrying handle. The rec. start/stop button has a precisely optimised to complement the camcorder’s
hold function to prevent accidental operation. advanced image-processing technology to deliver ex-
ceptional performance and expand your shooting pos-
The three-position slide switch located on the side of sibilities. Set yourself apart from the competition with
the handle lets users select the zoom control type this exceptional camcorder.
from FIX, VAR and OFF. In FIX mode, zoom speed is
determined by the speed setting selected in the Enhanced Creativity
menu, where eight speeds are available. In VAR The DSR-PD175P sets new standards for Standard
Definition handheld camcorders with advanced
www.pro.sony.eu/dvcam 3

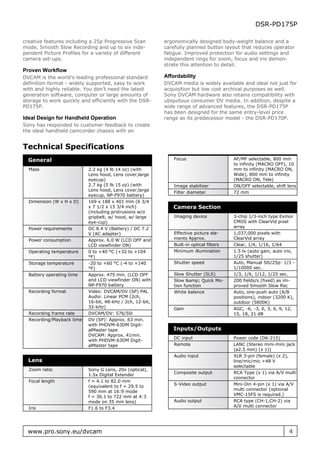

4. DSR-PD175P
creative features including a 25p Progressive Scan ergonomically designed body-weight balance and a
mode, Smooth Slow Recording and up to six inde- carefully planned button layout that reduces operator
pendent Picture Profiles for a variety of different fatigue. Improved protection for audio settings and
camera set-ups. independent rings for zoom, focus and iris demon-
strate this attention to detail.
Proven Workflow
DVCAM is the world’s leading professional standard Affordability
definition format - widely supported, easy to work DVCAM media is widely available and ideal not just for
with and highly reliable. You don’t need the latest acquisition but low cost archival purposes as well.
generation software, computer or large amounts of Sony DVCAM hardware also retains compatibility with
storage to work quickly and efficiently with the DSR- ubiquitous consumer DV media. In addition, despite a
PD175P. wide range of advanced features, the DSR-PD175P
has been designed for the same entry-level price
Ideal Design for Handheld Operation range as its predecessor model - the DSR-PD170P.
Sony has responded to customer feedback to create
the ideal handheld camcorder chassis with an
Technical Specifications
General Focus AF/MF selectable, 800 mm
to infinity (MACRO OFF), 10
Mass 2.2 kg (4 lb 14 oz) (with mm to infinity (MACRO ON,
Lens hood, Lens cover,large Wide), 800 mm to infinity
eyecup) (MACRO ON, Tele)
2.7 kg (5 lb 15 oz) (with Image stabilizer ON/OFF selectable, shift lens
Lens hood, Lens cover,large
Filter diameter 72 mm
eyecup, NP-F970 battery)
Dimension (W x H x D) 169 x 188 x 401 mm (6 3/4
x 7 1/2 x 15 3/4 inch) Camera Section
(including protrusions w/o
gripbelt, w/ hood, w/ large Imaging device 3-chip 1/3-inch type Exmor
eye-cup) CMOS with ClearVid pixel
Power requirements DC 8.4 V (Battery) / DC 7.2 array
V (AC adapter) Effective picture ele- 1,037,000 pixels with
Power consumption Approx. 6.0 W (LCD OFF and ments Approx. ClearVid array
LCD viewfinder ON) Built-in optical filters Clear, 1/4, 1/16, 1/64
Operating temperature 0 to +40 °C (+32 to +104 Minimum illumination 1.5 lx (auto gain, auto iris,
°F) 1/25 shutter)
Storage temperature -20 to +60 °C (-4 to +140 Shutter speed Auto, Manual 50i/25p: 1/3 -
°F) 1/10000 sec.
Battery operating time Approx. 475 min. (LCD OFF Slow Shutter (SLS) 1/3, 1/6, 1/12, 1/25 sec.
and LCD viewfinder ON) with Slow & Quick Mo- 200 fields/s (fixed) as im-
NP-F970 battery tion function proved Smooth Slow Rec
Recording format Video: DVCAM/DV (SP) PAL White balance Auto, one-push auto (A/B
Audio: Linear PCM (2ch, positions), indoor (3200 K),
16-bit, 48-kHz / 2ch, 12-bit, outdoor (5800K)
32-kHz) Gain AGC, -6, -3, 0, 3, 6, 9, 12,
Recording frame rate DVCAM/DV: 576/50i 15, 18, 21 dB
Recording/Playback time DV (SP): Approx. 63 min.
with PHDVM-63DM Digit-
alMaster tape Inputs/Outputs
DVCAM: Approx. 41min.
DC input Power code (DK-215)
with PHDVM-63DM Digit-
alMaster tape Remote LANC (Stereo mini-mini jack
(ø2.5 mm) (x 1))
Audio input XLR 3-pin (female) (x 2),
Lens line/mic/mic +48 V
selectable
Zoom ratio Sony G Lens, 20x (optical),
Composite output RCA Type (x 1) via A/V multi
1.5x Digital Extender
connector
Focal length f = 4.1 to 82.0 mm
S-Video output Mini-Din 4-pin (x 1) via A/V
(equivalent to f = 29.5 to
multi connector (optional
590 mm at 16:9 mode
VMC-15FS is required.)
f = 36.1 to 722 mm at 4:3
mode on 35 mm lens) Audio output RCA type (CH-1,CH-2) via
A/V multi connector
Iris F1.6 to F3.4
www.pro.sony.eu/dvcam 4

5. DSR-PD175P

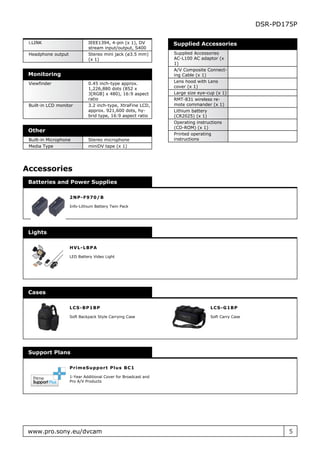

i.LINK IEEE1394, 4-pin (x 1), DV Supplied Accessories
stream input/output, S400
Headphone output Stereo mini jack (ø3.5 mm) Supplied Accessories
(x 1) AC-L100 AC adaptor (x
1)
A/V Composite Connect-
Monitoring ing Cable (x 1)
Viewfinder 0.45 inch-type approx. Lens hood with Lens
1,226,880 dots (852 x cover (x 1)
3[RGB] x 480), 16:9 aspect Large size eye-cup (x 1)
ratio RMT-831 wireless re-
Built-in LCD monitor 3.2 inch-type, XtraFine LCD, mote commander (x 1)
approx. 921,600 dots, hy- Lithium battery
brid type, 16:9 aspect ratio (CR2025) (x 1)
Operating instructions
(CD-ROM) (x 1)
Other
Printed operating
Built-in Microphone Stereo microphone instructions
Media Type miniDV tape (x 1)
Accessories
Batteries and Power Supplies
2N P - F 970/ B
Info-Lithium Battery Twin Pack
Lights
H VL- LB P A
LED Battery Video Light
Cases
LC S- B P 1B P L C S - G 1 BP
Soft Backpack Style Carrying Case Soft Carry Case
Support Plans
P r im eSu ppo r t P lu s B C 1
1-Year Additional Cover for Broadcast and
Pro A/V Products
www.pro.sony.eu/dvcam 5

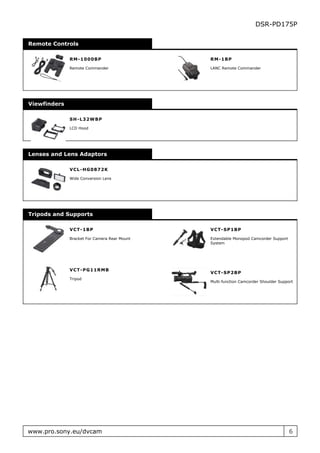

6. DSR-PD175P
Remote Controls
R M - 1000B P RM- 1 BP
Remote Commander LANC Remote Commander
Viewfinders
SH - L32W B P
LCD Hood
Lenses and Lens Adaptors
VC L- H G 0872K
Wide Conversion Lens
Tripods and Supports
VC T- 1B P V C T - S P 1 BP
Bracket For Camera Rear Mount Extendable Monopod Camcorder Support
System
VC T- P G 11R M B
V C T - S P 2 BP
Tripod
Multi-function Camcorder Shoulder Support
www.pro.sony.eu/dvcam 6
