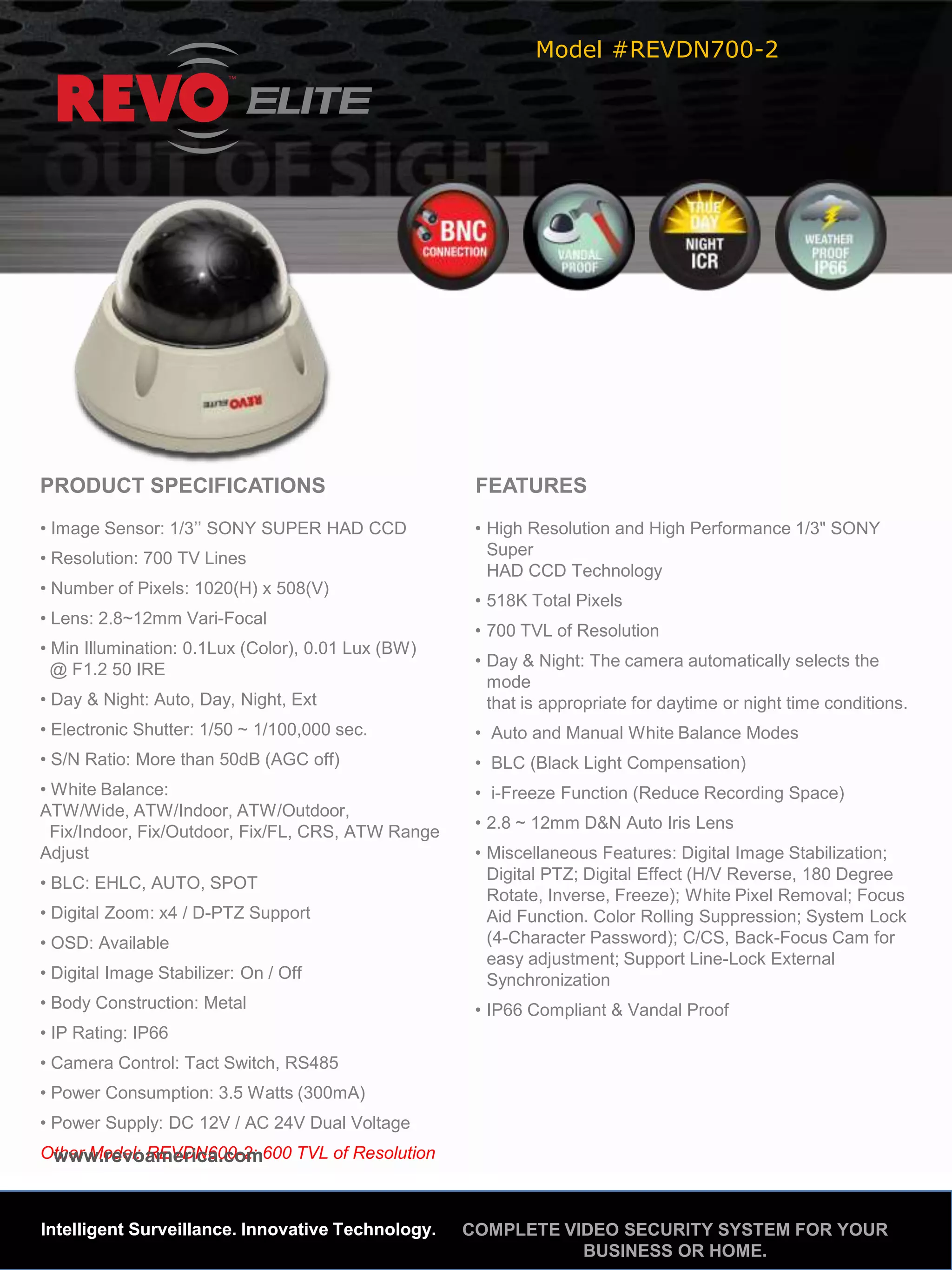

1. Model #REVDN700-2
PRODUCT SPECIFICATIONS FEATURES
• Image Sensor: 1/3’’ SONY SUPER HAD CCD • High Resolution and High Performance 1/3" SONY
• Resolution: 700 TV Lines Super
HAD CCD Technology
• Number of Pixels: 1020(H) x 508(V)
• 518K Total Pixels
• Lens: 2.8~12mm Vari-Focal
• 700 TVL of Resolution
• Min Illumination: 0.1Lux (Color), 0.01 Lux (BW)
@ F1.2 50 IRE • Day & Night: The camera automatically selects the
mode
• Day & Night: Auto, Day, Night, Ext that is appropriate for daytime or night time conditions.
• Electronic Shutter: 1/50 ~ 1/100,000 sec. • Auto and Manual White Balance Modes
• S/N Ratio: More than 50dB (AGC off) • BLC (Black Light Compensation)
• White Balance: • i-Freeze Function (Reduce Recording Space)
ATW/Wide, ATW/Indoor, ATW/Outdoor,
• 2.8 ~ 12mm D&N Auto Iris Lens
Fix/Indoor, Fix/Outdoor, Fix/FL, CRS, ATW Range
Adjust • Miscellaneous Features: Digital Image Stabilization;
Digital PTZ; Digital Effect (H/V Reverse, 180 Degree
• BLC: EHLC, AUTO, SPOT
Rotate, Inverse, Freeze); White Pixel Removal; Focus
• Digital Zoom: x4 / D-PTZ Support Aid Function. Color Rolling Suppression; System Lock
• OSD: Available (4-Character Password); C/CS, Back-Focus Cam for
easy adjustment; Support Line-Lock External
• Digital Image Stabilizer: On / Off Synchronization
• Body Construction: Metal • IP66 Compliant & Vandal Proof
• IP Rating: IP66
• Camera Control: Tact Switch, RS485
• Power Consumption: 3.5 Watts (300mA)
• Power Supply: DC 12V / AC 24V Dual Voltage
Other Model: REVDN600-2: 600 TVL of Resolution
