VB vibrating bin aerators combine product aeration under pressure up to 6 bar with slight vibration on silo walls. The aerators improve mass flow of powders and granular materials without damaging silos. Compressed air is introduced through a silicon lip adhered to the silo wall. Varying operating pressure from 2 to 6 bar changes the vibration intensity of the silicon lip. Air consumption is low due to interval operation up to 5 seconds.

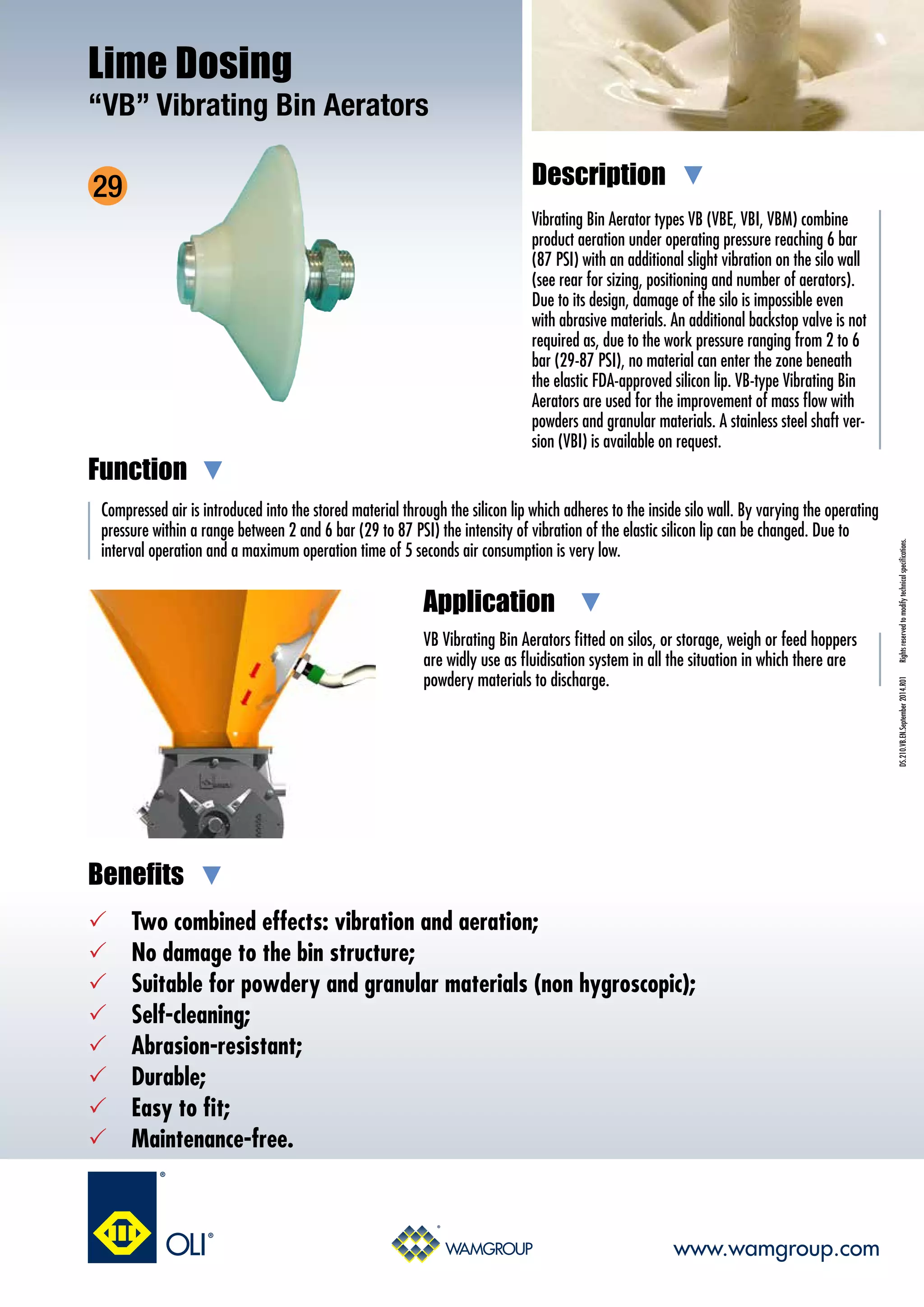

1. Vibrating Bin Aerator types VB (VBE, VBI, VBM) combine
product aeration under operating pressure reaching 6 bar
(87 PSI) with an additional slight vibration on the silo wall
(see rear for sizing, positioning and number of aerators).
Due to its design, damage of the silo is impossible even
with abrasive materials. An additional backstop valve is not
required as, due to the work pressure ranging from 2 to 6
bar (29-87 PSI), no material can enter the zone beneath
the elastic FDA-approved silicon lip. VB-type Vibrating Bin
Aerators are used for the improvement of mass flow with
powders and granular materials. A stainless steel shaft ver-
sion (VBI) is available on request.
Compressed air is introduced into the stored material through the silicon lip which adheres to the inside silo wall. By varying the operating
pressure within a range between 2 and 6 bar (29 to 87 PSI) the intensity of vibration of the elastic silicon lip can be changed. Due to
interval operation and a maximum operation time of 5 seconds air consumption is very low.
Description
Function
Benefits
DS.210.VB.EN.September2014.R01Rightsreservedtomodifytechnicalspecifications.
VB Vibrating Bin Aerators fitted on silos, or storage, weigh or feed hoppers
are widly use as fluidisation system in all the situation in which there are
powdery materials to discharge.
Application
 Two combined effects: vibration and aeration;
 No damage to the bin structure;
 Suitable for powdery and granular materials (non hygroscopic);
 Self-cleaning;
 Abrasion-resistant;
 Durable;
 Easy to fit;
 Maintenance-free.
Lime Dosing
“VB” Vibrating Bin Aerators
www.wamgroup.com
29

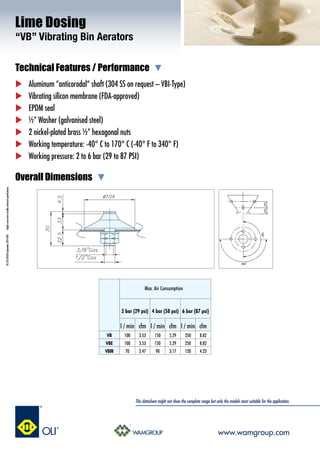

2. Technical Features / Performance
DS.210.VB.EN.September2014.R01Rightsreservedtomodifytechnicalspecifications.
Overall Dimensions
Lime Dosing
“VB” Vibrating Bin Aerators
 Aluminum “anticorodal“ shaft (304 SS on request – VBI-Type)
 Vibrating silicon membrane (FDA-approved)
 EPDM seal
 ½” Washer (galvanised steel)
 2 nickel-plated brass ½” hexagonal nuts
 Working temperature: -40° C to 170° C (-40° F to 340° F)
 Working pressure: 2 to 6 bar (29 to 87 PSI)
l / min cfm l / min cfm l / min cfm
VB 100 3.53 150 5.29 250 8.82
VBE 100 3.53 150 5.29 250 8.82
VBM 70 2.47 90 3.17 120 4.23
2 bar (29 psi) 4 bar (58 psi)
Max. Air Consumption
6 bar (87 psi)
www.wamgroup.com
This datasheet might not show the complete range but only the models most suitable for the application.
