1. 1
Mario-Leander Reimer
mario-leander.reimer@qaware.de
@LeanderReimer #gernperDude
#CloudNativeNerd #qaware
qaware.de
Photo by CHUTTERSNAP on Unsplash
kubectl apply -f cloud-Infrastructure.yaml
mit Crossplane et al.

2. 2
Mario-Leander Reimer
Principal Software Architect
@LeanderReimer
#cloudnativenerd #qaware
#gernperDude

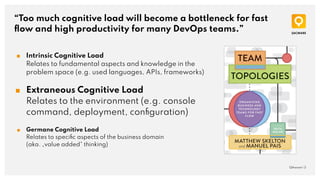

3. “Too much cognitive load will become a bottleneck for fast
flow and high productivity for many DevOps teams.”
QAware | 3
■ Intrinsic Cognitive Load
Relates to fundamental aspects and knowledge in the
problem space (e.g. used languages, APIs, frameworks)
■ Extraneous Cognitive Load
Relates to the environment (e.g. console
command, deployment, configuration)
■ Germane Cognitive Load
Relates to specific aspects of the business domain
(aka. „value added“ thinking)

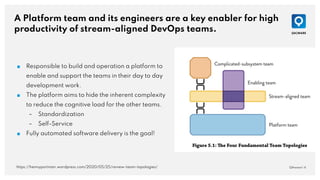

4. A Platform team and its engineers are a key enabler for high
productivity of stream-aligned DevOps teams.
QAware | 4
■ Responsible to build and operation a platform to
enable and support the teams in their day to day
development work.
■ The platform aims to hide the inherent complexity
to reduce the cognitive load for the other teams.
– Standardization
– Self-Service
■ Fully automated software delivery is the goal!
https://hennyportman.wordpress.com/2020/05/25/review-team-topologies/

5. QAware | 5
You have to
work in layers!

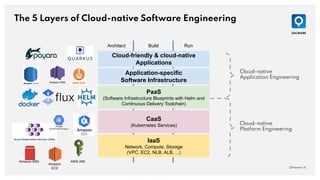

6. Cloud-native
Application Engineering
Cloud-native
Platform Engineering
The 5 Layers of Cloud-native Software Engineering
QAware | 6
IaaS
Network, Compute, Storage
(VPC, EC2, NLB, ALB, ...)
CaaS
(Kubernetes Services)
PaaS
(Software Infrastructure Blueprints with Helm and
Continuous Delivery Toolchain)
Application-specific
Software Infrastructure
Cloud-friendly & cloud-native
Applications
Architect Build Run
Amazon SNS
AWS IAM
Amazon
EC2
Amazon EBS

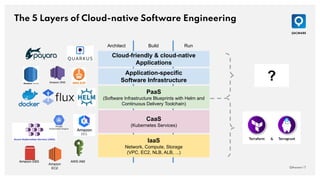

7. The 5 Layers of Cloud-native Software Engineering
QAware | 7
IaaS
Network, Compute, Storage
(VPC, EC2, NLB, ALB, ...)
CaaS
(Kubernetes Services)
PaaS
(Software Infrastructure Blueprints with Helm and
Continuous Delivery Toolchain)
Application-specific
Software Infrastructure
Cloud-friendly & cloud-native
Applications
Architect Build Run
Amazon SNS
AWS IAM
Amazon
EC2
Amazon EBS
?

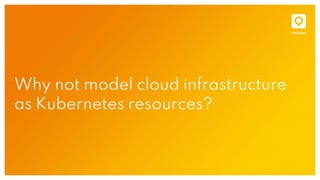

8. Why not model cloud infrastructure
as Kubernetes resources?

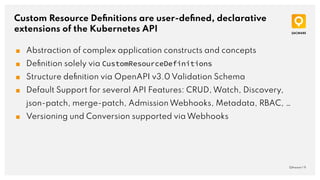

9. Custom Resource Definitions are user-defined, declarative
extensions of the Kubernetes API
QAware | 9
■ Abstraction of complex application constructs and concepts
■ Definition solely via CustomResourceDefinitions
■ Structure definition via OpenAPI v3.0 Validation Schema
■ Default Support for several API Features: CRUD, Watch, Discovery,
json-patch, merge-patch, Admission Webhooks, Metadata, RBAC, …
■ Versioning und Conversion supported via Webhooks

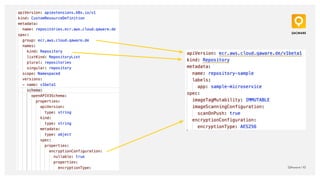

10. QAware | 10

11. QAware | 11
Operator.
- Do stuff with my CRDs.

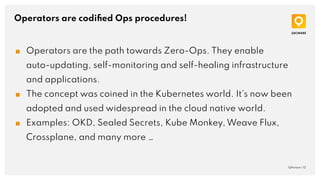

12. Operators are codified Ops procedures!
QAware | 12
■ Operators are the path towards Zero-Ops. They enable
auto-updating, self-monitoring and self-healing infrastructure
and applications.
■ The concept was coined in the Kubernetes world. It’s now been
adopted and used widespread in the cloud native world.
■ Examples: OKD, Sealed Secrets, Kube Monkey, Weave Flux,
Crossplane, and many more …

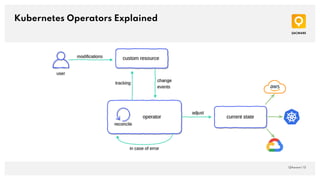

13. Kubernetes Operators Explained
QAware | 13

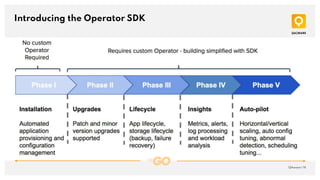

14. Introducing the Operator SDK
QAware | 14

15. lreimer/aws-ecr-operator

16. QAware | 16
https://intl.startrek.com/sites/default/files/styles/amp_metadata_content_image_min_696px_wide/public/images/2020-05/memes_002.png
Are you serious?!

17. qaware/k8s-native-iac
qaware/cloud-native-explab

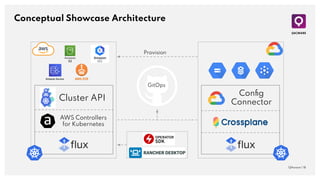

18. Conceptual Showcase Architecture
QAware | 18
Provision
GitOps
Cluster API
AWS Controllers
for Kubernetes
Config
Connector

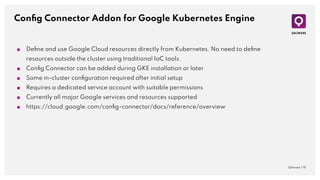

19. Config Connector Addon for Google Kubernetes Engine
QAware | 19
■ Define and use Google Cloud resources directly from Kubernetes. No need to define
resources outside the cluster using traditional IaC tools.
■ Config Connector can be added during GKE installation or later
■ Some in-cluster configuration required after initial setup
■ Requires a dedicated service account with suitable permissions
■ Currently all major Google services and resources supported
■ https://cloud.google.com/config-connector/docs/reference/overview

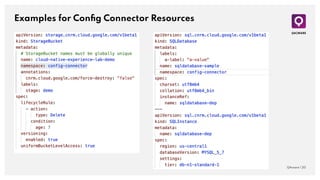

20. Examples for Config Connector Resources
QAware | 20

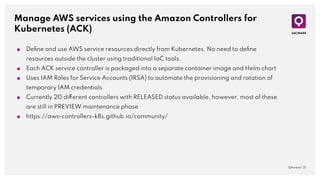

21. Manage AWS services using the Amazon Controllers for
Kubernetes (ACK)
QAware | 21
■ Define and use AWS service resources directly from Kubernetes. No need to define
resources outside the cluster using traditional IaC tools.
■ Each ACK service controller is packaged into a separate container image and Helm chart
■ Uses IAM Roles for Service Accounts (IRSA) to automate the provisioning and rotation of
temporary IAM credentials
■ Currently 20 different controllers with RELEASED status available, however, most of these
are still in PREVIEW maintenance phase
■ https://aws-controllers-k8s.github.io/community/

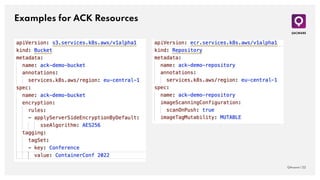

22. Examples for ACK Resources
QAware | 22

23. Crossplane in a Nutshell
QAware | 23
■ Open Source Kubernetes Add-on. Universal Control Plane for Cloud Infrastructure.
■ Cloud Infrastructure Services can be defined declaratively by application teams
■ Platform teams can provide relevant cloud infrastructure services via high level
self-services APIs
■ Individual Provider bundle a set of Managed Resources with their controllers. All major
cloud providers are supported, e.g. AWS, GCP, Azure, Alibaba, …
■ Managed Resources are fine granular representations of external cloud resources
■ Composite Resource Definitions or XRDs enable the definition and creation of new
abstractions for composite managed resources
■ https://crossplane.io

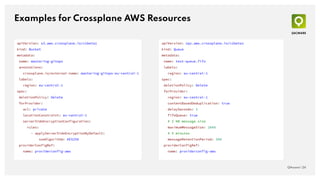

24. Examples for Crossplane AWS Resources
QAware | 24
apiVersion: sqs.aws.crossplane.io/v1beta1
kind: Queue
metadata:
name: test-queue.fifo
labels:
region: eu-central-1
spec:
deletionPolicy: Delete
forProvider:
region: eu-central-1
contentBasedDeduplication: true
delaySeconds: 3
fifoQueue: true
# 2 KB message size
maximumMessageSize: 2048
# 5 minutes
messageRetentionPeriod: 300
providerConfigRef:
name: providerconfig-aws
apiVersion: s3.aws.crossplane.io/v1beta1
kind: Bucket
metadata:
name: mastering-gitops
annotations:
crossplane.io/external-name: mastering-gitops-eu-central-1
labels:
region: eu-central-1
spec:
deletionPolicy: Delete
forProvider:
acl: private
locationConstraint: eu-central-1
serverSideEncryptionConfiguration:
rules:
- applyServerSideEncryptionByDefault:
sseAlgorithm: AES256
providerConfigRef:
name: providerconfig-aws

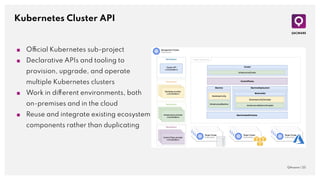

25. Kubernetes Cluster API
QAware | 25
■ Official Kubernetes sub-project
■ Declarative APIs and tooling to
provision, upgrade, and operate
multiple Kubernetes clusters
■ Work in different environments, both
on-premises and in the cloud
■ Reuse and integrate existing ecosystem
components rather than duplicating

26. More Talks to come …
QAware | 26
6.12.
online!
