Microtek miniature circuit breakers (MCBs) enhance electrical distribution safety in residential, commercial, and industrial sectors, featuring state-of-the-art design and exceptional endurance. Key attributes include a trip-free mechanism, energy-limiting capabilities, and ISI/CE certification, ensuring high safety and reliability. Various MCB models are available to meet different requirements, including single pole, double pole, and three pole configurations.

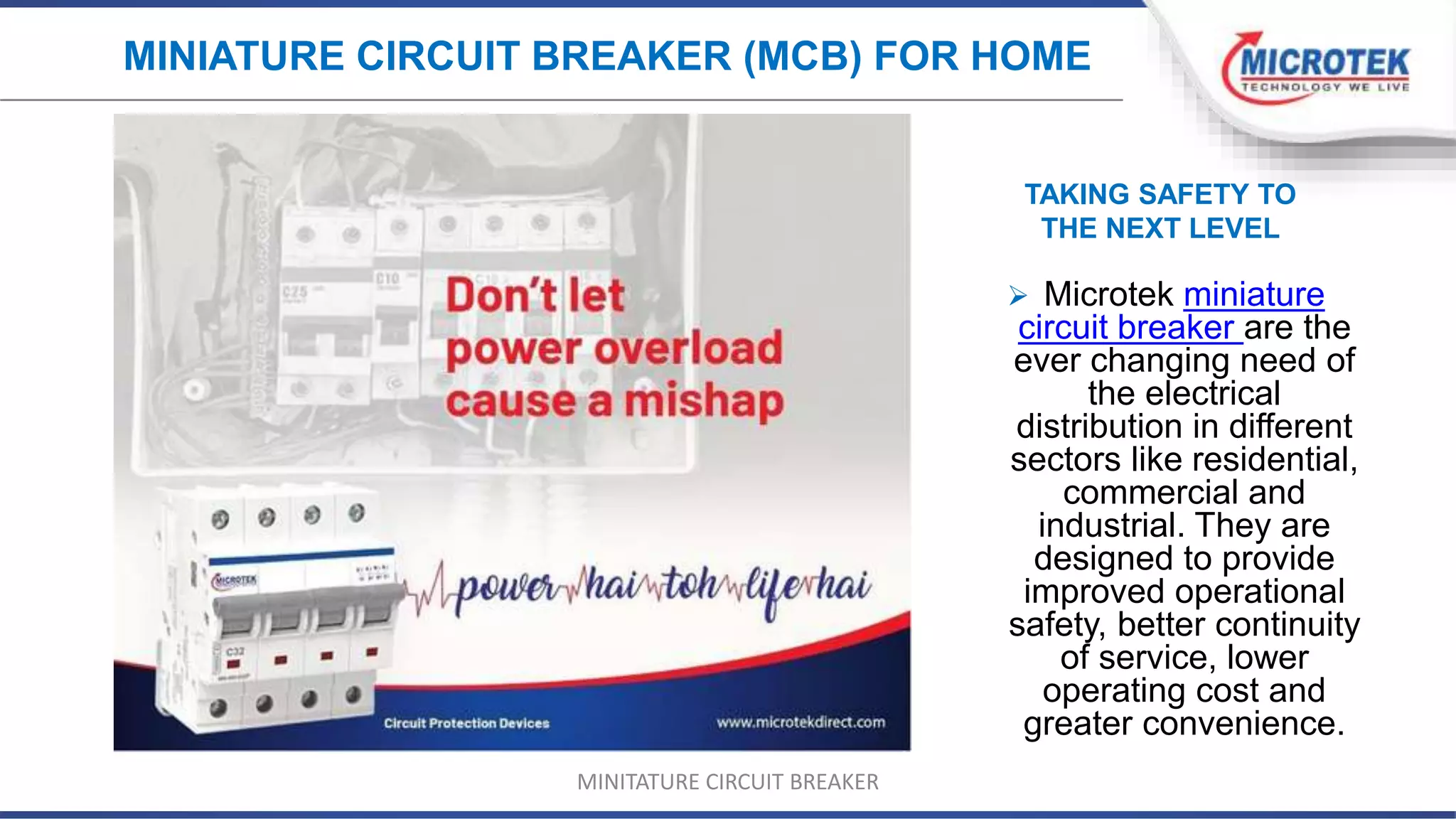

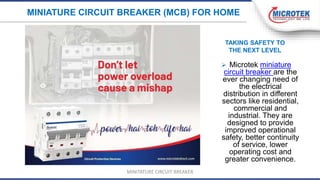

1. TAKING SAFETY TO
THE NEXT LEVEL
MINITATURE CIRCUIT BREAKER
 Microtek miniature
circuit breaker are the
ever changing need of
the electrical
distribution in different
sectors like residential,
commercial and
industrial. They are
designed to provide
improved operational
safety, better continuity
of service, lower
operating cost and
greater convenience.
MINIATURE CIRCUIT BREAKER (MCB) FOR HOME

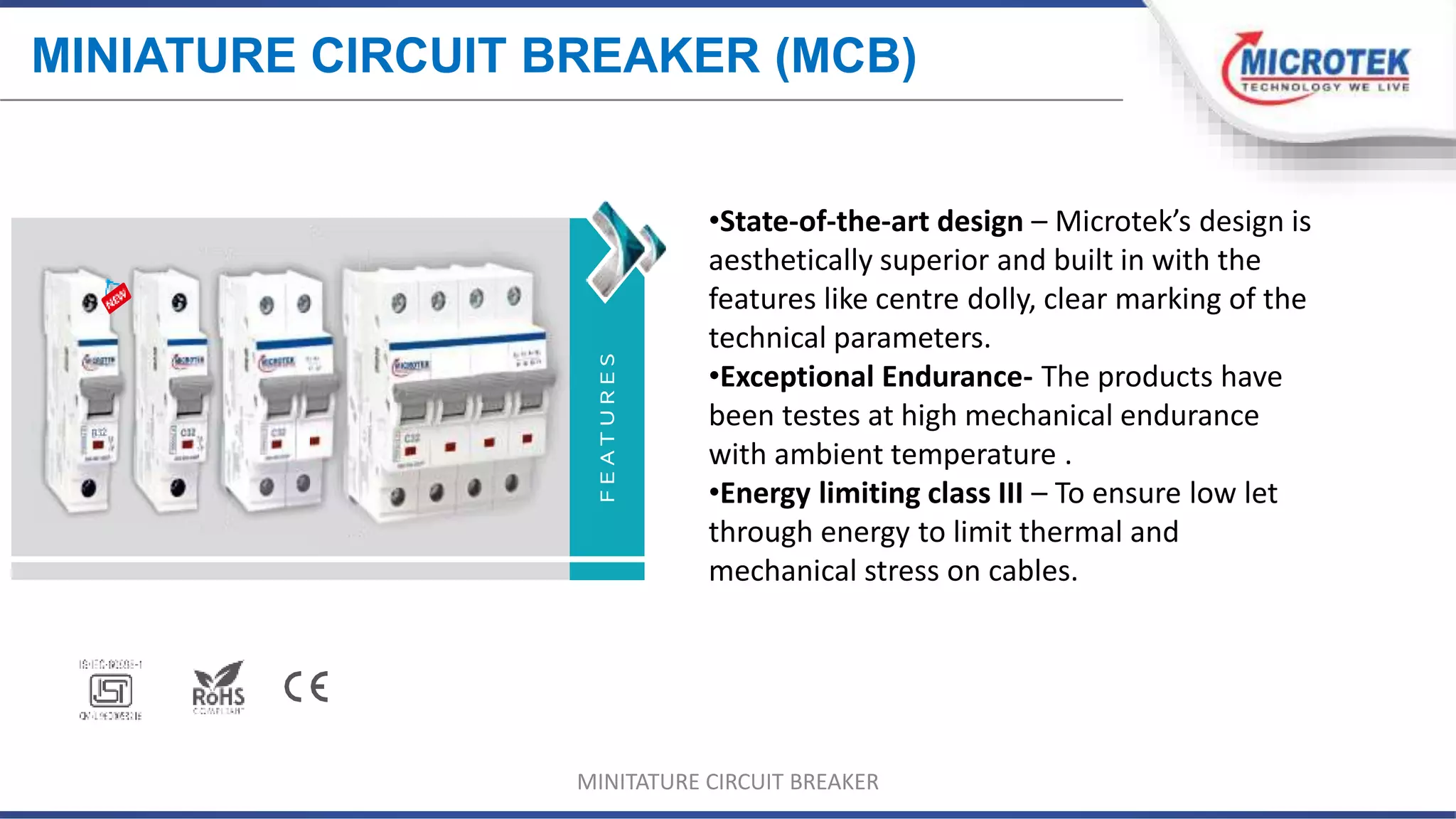

2. MINIATURE CIRCUIT BREAKER (MCB)
•State-of-the-art design – Microtek’s design is
aesthetically superior and built in with the
features like centre dolly, clear marking of the
technical parameters.
•Exceptional Endurance- The products have
been testes at high mechanical endurance
with ambient temperature .
•Energy limiting class III – To ensure low let
through energy to limit thermal and
mechanical stress on cables.
MINITATURE CIRCUIT BREAKER

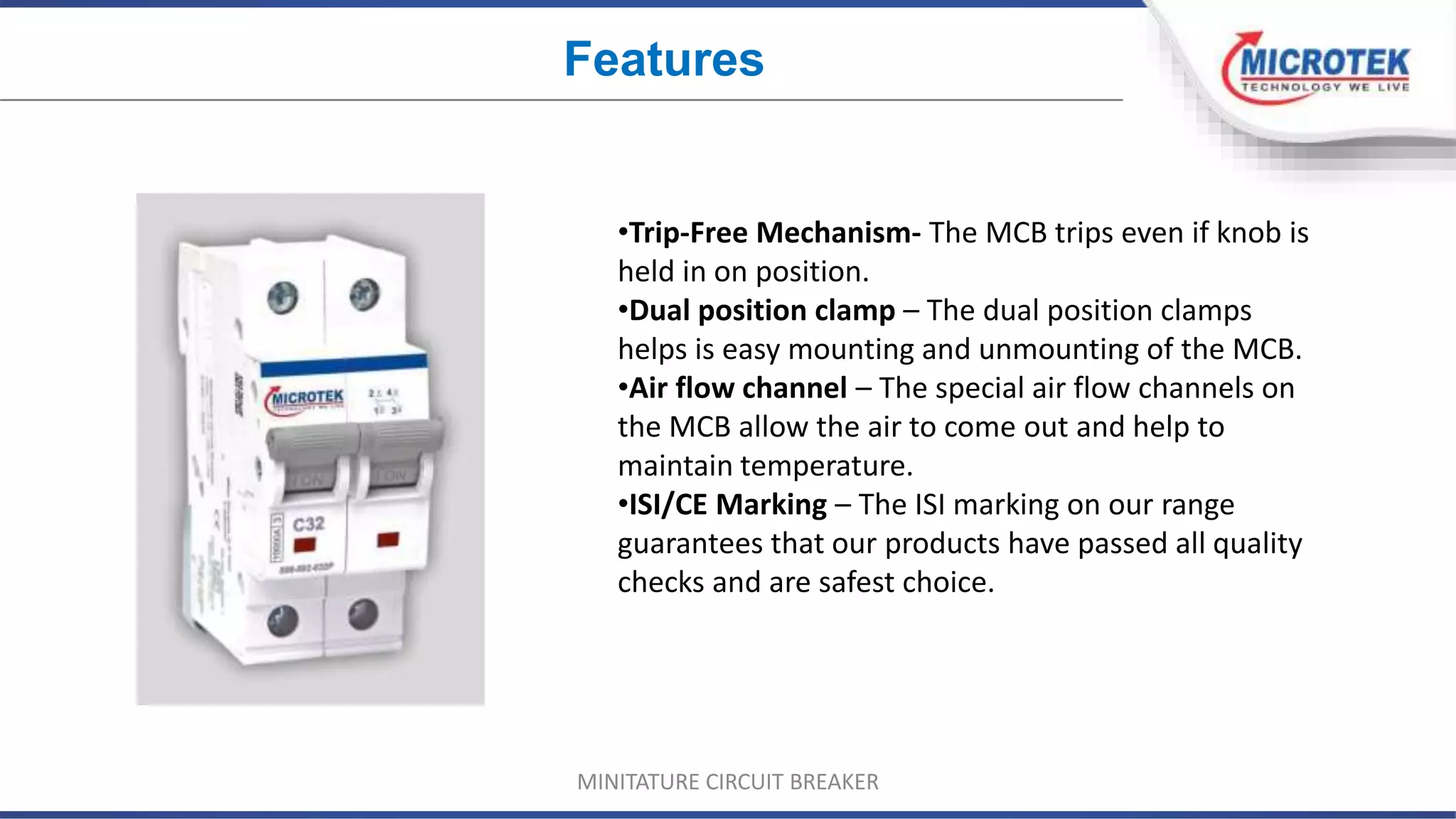

3. •Trip-Free Mechanism- The MCB trips even if knob is
held in on position.
•Dual position clamp – The dual position clamps
helps is easy mounting and unmounting of the MCB.
•Air flow channel – The special air flow channels on
the MCB allow the air to come out and help to
maintain temperature.
•ISI/CE Marking – The ISI marking on our range
guarantees that our products have passed all quality
checks and are safest choice.
Features
MINITATURE CIRCUIT BREAKER

4. • Protection IO-20 – we realize the
importance of safety keeping no live parts
exposed to human contact.
• Breaking capacity – The devices in the
range have a breaking capacity stress on
cables.
• Contact Indication Window – the
products are designed by considering user
friendliness into mind.
• Bi Connect Testimonials – The terminal
size in devices add convenience and
flexibility while wiring.
• Specially Designed Arc Chamber- 13
plates are chute for effective arc quenching.
MINITATURE CIRCUIT BREAKER
Features

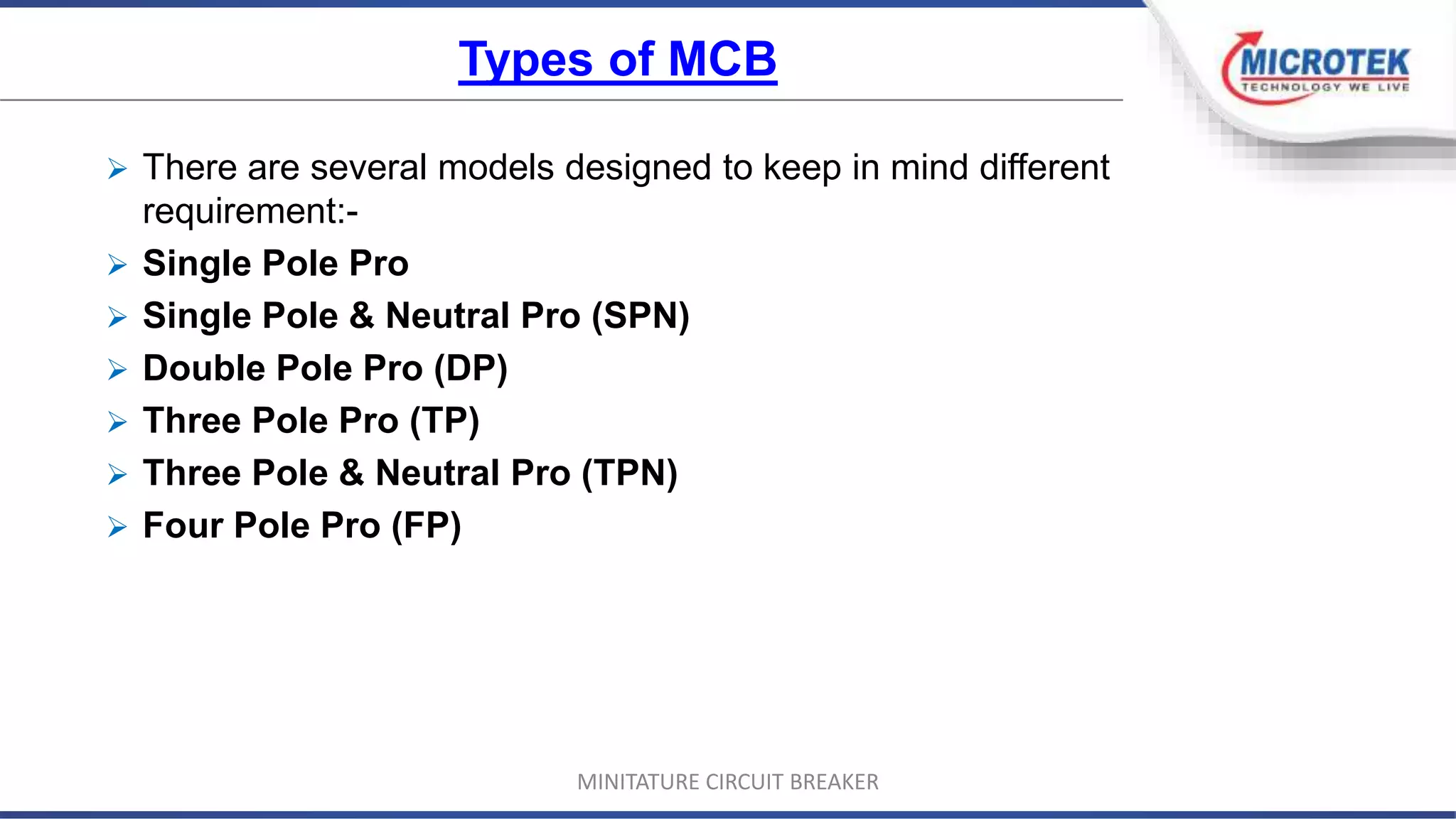

5. Types of MCB
 There are several models designed to keep in mind different
requirement:-
 Single Pole Pro
 Single Pole & Neutral Pro (SPN)
 Double Pole Pro (DP)
 Three Pole Pro (TP)
 Three Pole & Neutral Pro (TPN)
 Four Pole Pro (FP)
MINITATURE CIRCUIT BREAKER

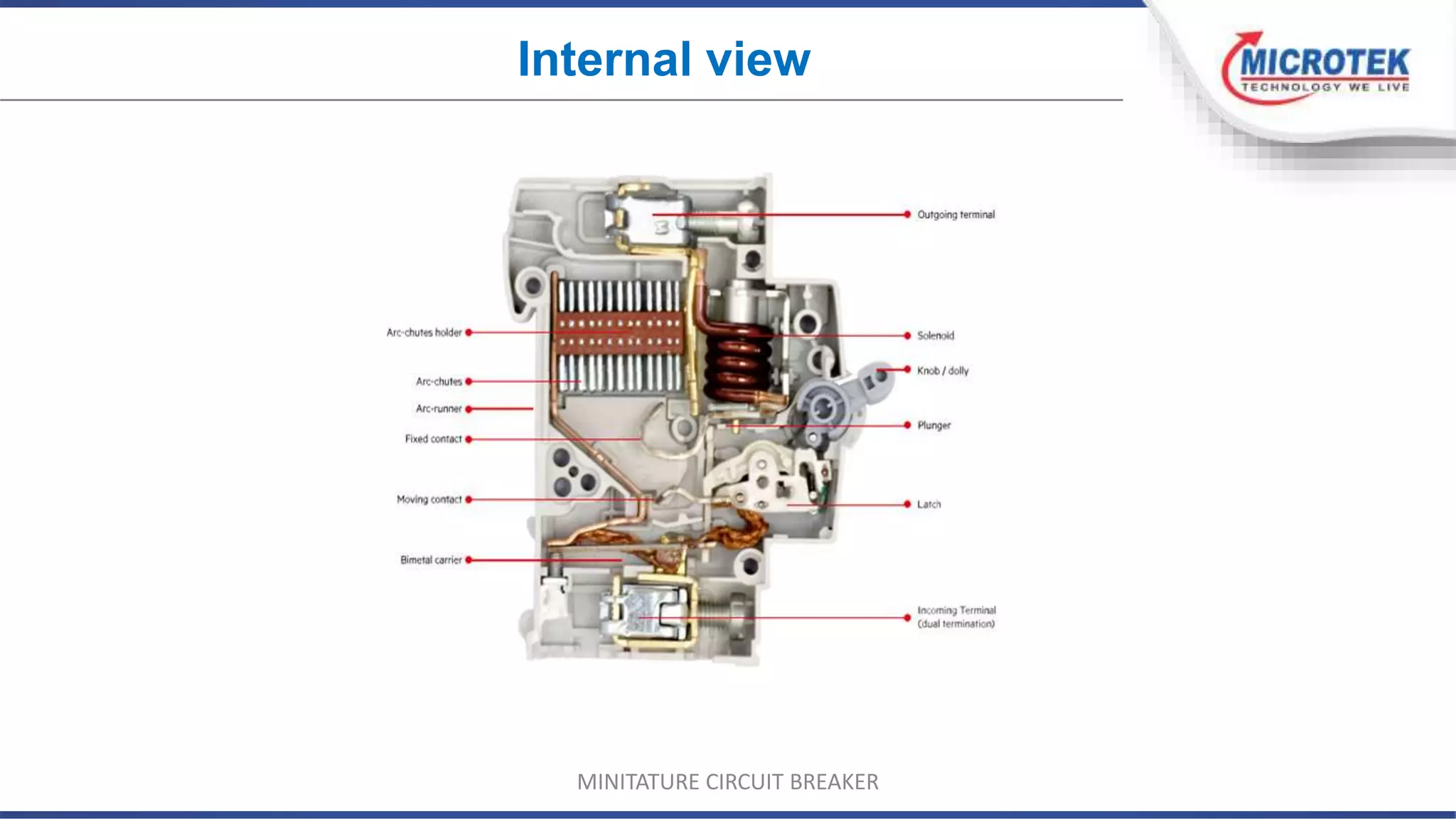

6. Internal view
MINITATURE CIRCUIT BREAKER

7. Thank you
MINITATURE CIRCUIT BREAKER
