Doing the Refactor Dance - Making Your Puppet Modules More Modular - PuppetConf 2014

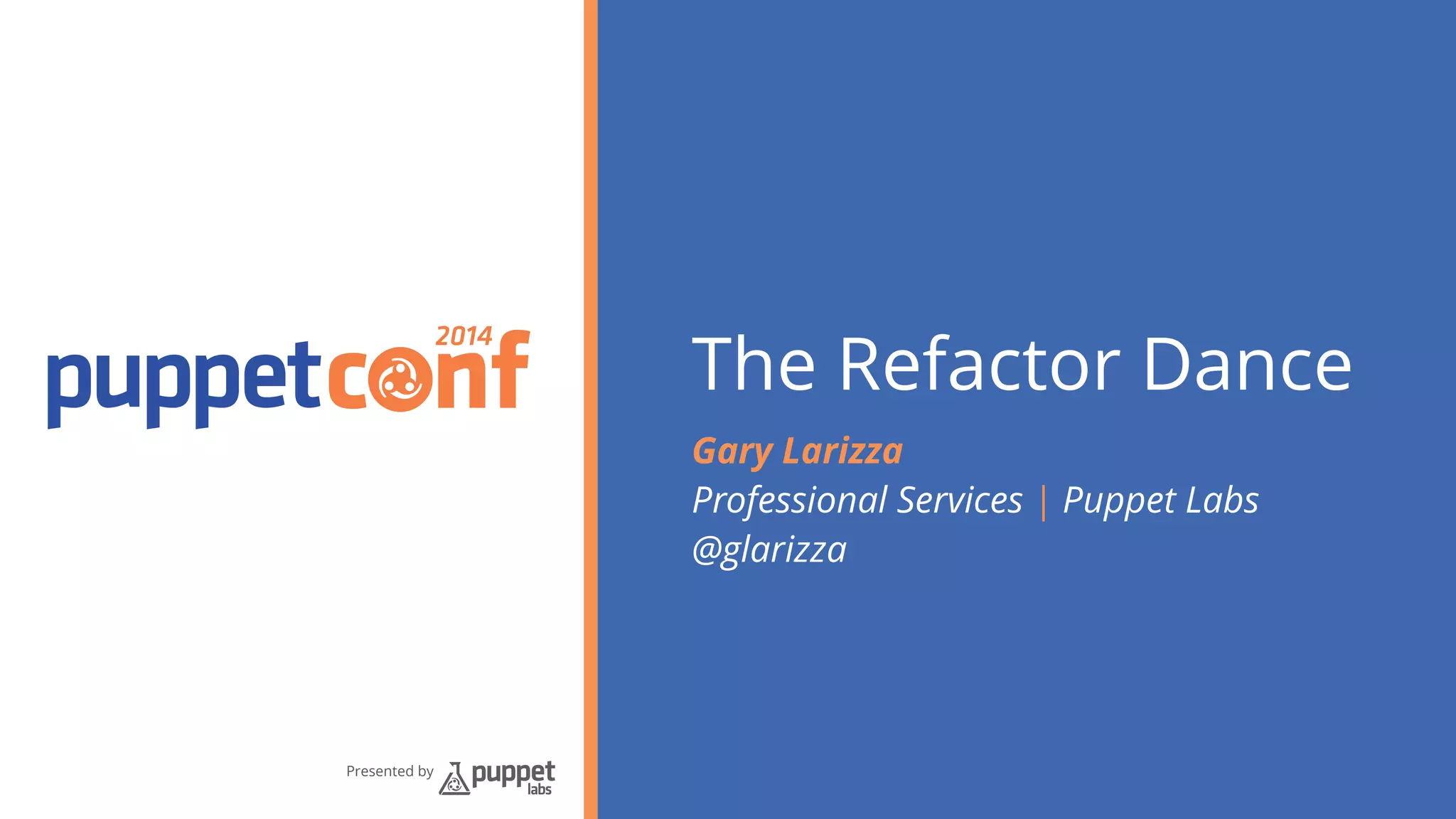

- 1. 2014 Presented by The Refactor Dance Gary Larizza Professional Services | Puppet Labs @glarizza
- 3. Presented by
- 4. Worst. Hands-on. Ever Presented by
- 5. Presented by • Abstraction and data separation • Data Hierarchy • Classification • Workflow
- 6. Presented by Classification Implementation Implementation
- 7. Presented by Role Hiera Profile Profile Component Modules
- 8. Presented by roles::application_server Hiera profiles::java profiles::tomcat Component Modules
- 10. Stop writing custom goddamn component Presented by modules
- 11. Presented by $httpd_root = "/opt/corp/data/http" package { ‘httpd’: ensure => latest, } file { “/opt/corp/data/http/conf.d”: owner => "httpd", ensure => directory; “/opt/corp/data/http/conf.d/corp.conf”: owner => "httpd", ensure => file; }
- 12. Stop writing component modules Presented by • Too many ‘okay’ modules • Maintenance & upkeep • You are not unique • You are entirely too lazy
- 13. Parameterize your classes Presented by
- 14. Presented by class apache {! case $::osfamily {! 'RedHat': {! $confdir = ‘/etc/httpd/conf‘! $conffile = “${confdir}/httpd.conf”! }! 'Debian': {! $confdir = ‘/etc/apache2/conf‘! $conffile = “${confdir}/apache2.conf”! }! }! }
- 15. Presented by class apache (! $confdir = $apache::params::confdir,! $conffile = $apache::params::conffile,! ) inherits apache::params {! file { $confdir:! ensure => directory,! }! file { $conffile:! ensure => file,! content => template(’apache/apache.conf.erb’),! }! }
- 16. Presented by Parameterize classes • Parameters = API • Single-entry classes • The ‘Forge test’
- 17. Params & shareable data Presented by
- 18. Presented by class apache::params {! case $::osfamily {! 'RedHat': {! $confdir = ‘/etc/httpd/conf‘! $conffile = “${confdir}/httpd.conf”! }! 'Debian': {! $confdir = ‘/etc/apache2/conf‘! $conffile = “${confdir}/apache2.conf”! }! }! }
- 19. Presented by Shareable data • OS-specific data != private data • Sane defaults • Validation…
- 21. Presented by class xinetd (! $confdir = $apache::params::confdir,! $conffile = $apache::params::conffile,! ) inherits xinetd::params {! file { $confdir:! ensure => directory,! }! file { $conffile:! ensure => file,! content => template(’apache/apache.conf.erb’),! }! }
- 22. Presented by class xinetd (! $confdir = $apache::params::confdir,! $conffile = $apache::params::conffile,! ) inherits xinetd::params {! validate_absolute_path($confdir)! validate_absolute_path($conffile)! file { $confdir:! ensure => directory,! }! file { $conffile:! ensure => file,! content => template(’apache/apache.conf.erb’),! }! }
- 23. Presented by Validation • Functions in puppetlabs-stdlib • Never pass unvalidated data to resources
- 25. Presented by class mysql::server (! ## params here! ) inherits mysql::params {! ! include ::mysql::server::install! include ::mysql::server::config! include ::mysql::server::service! ! }
- 26. Presented by class mysql::server (! ## params here! ) inherits mysql::params {! ! include ::mysql::server::install! include ::mysql::server::config! include ::mysql::server::service! ! anchor { ‘mysql:start’: }! -> Class[‘mysql::server::install’]! -> Class[‘mysql::server::config’]! -> Class[‘mysql::server::service’]! -> anchor { ‘mysql:end’: }! }
- 27. Presented by class mysql::server (! ## params here! ) inherits mysql::params {! ! contain ::mysql::server::install! contain ::mysql::server::config! contain ::mysql::server::service! ! } * Puppet ≥ 3.4.0
- 28. Presented by Class containment • Before Puppet 3.4.0 - use anchors • After Puppet 3.4.0 - use contain
- 30. Presented by class data_in_code {! case $::application_tier {! 'dev': {! $java_version = '6.0.3'! $tomcat_version = '6.0'! }! ! 'test': {! $java_version = '7.0.1'! $tomcat_version = '7.0'! }! }! }
- 31. class data_in_code {! $java_version = hiera(’java_version’)! $tomcat_version = hiera(’tomcat_version’)! } Presented by
- 32. Presented by hiera.yaml --- :backends: - yaml :yaml: :datadir: /etc/puppetlabs/puppet/hieradata :hierarchy: - “nodes/%{::clientcert}” - “location/%{::location}" - “tier/%{::application_tier}" - common
- 33. Presented by --- java_version: 7.0 tomcat_version: 8.0 dev.yaml --- java_version: 6.0 tomcat_version: 7.0 prod.yaml
- 35. Presented by What’s an Application
- 36. ‘Application tier’ • Long lived • Data usually separate • ‘The Data’ Presented by ! ! ! ‘Environment’ • Short lived • Migration path to ‘production’ • ‘The Model’ ! ! !
- 37. Presented by Hierarchy structure? • How/where is data different? • Most -> least specific • Folders are your friends
- 39. Presented by But first…
- 40. Presented by include apache! vs.! class { ‘apache’: }!
- 41. Presented by include apache! include apache! include apache! include apache! include apache!
- 42. Presented by class { ‘apache’: }! include apache!
- 43. Presented by include apache! class { ‘apache’: }! include apache!
- 45. class data_in_code {! $java_version = hiera(’java_version’)! $tomcat_version = hiera(’tomcat_version’)! ! notify { “Java is: ${java_version}”: }! } Presented by
- 46. Presented by class data_in_code {! $java_version = hiera(’java_version’)! $tomcat_version = hiera(’tomcat_version’)! ! notify { “Java is: ${data_in_code::java_version}”: }! }
- 47. class profiles::jenkins {! include jenkins! } Presented by
- 48. class profiles::jenkins {! include ???????! } Presented by
- 49. class profiles::jenkins {! include ::jenkins! } Presented by
- 51. Presented by class data_in_code {! case $::application_tier {! 'dev': {! $java_version = '6.0.3'! $tomcat_version = '6.0'! }! ! 'test': {! $java_version = '7.0.1'! $tomcat_version = '7.0'! }! }! }
- 52. Presented by class profiles::tomcat {! $java_version = hiera(’java_version’)! $tomcat_version = hiera(’tomcat_version’)! ! class { ’::tomcat’:! version => $tomcat_version,! }! ! class { ’::java’:! version => $java_version,! }! }
- 53. Presented by class apache {! file { ‘/opt/custom/key.pem’:! ensure => file,! source => ’puppet:///modules/apache/key.pem'! }! ! file { ‘/things/that/dont/belong/in/apache’:! ensure => file,! source => ’puppet:///modules/apache/blargh'! } ! }
- 54. Presented by class profiles::apache {! include apache! $keypath = hiera(’apache_keypath’)! ! file { “${keypath}/key.pem”:! ensure => file,! source => ’puppet:///modules/profiles/key.pem'! }! ! file { ‘/things/that/dont/belong/in/apache’:! ensure => file,! source => ’puppet:///modules/profiles/blargh'! }! }
- 56. Presented by class tomcat {! class { ‘java’:! version => ‘6.0’,! }! ! Class[‘java’]! -> Class[‘tomcat’]! }
- 57. Presented by class profiles::tomcat {! $java_version = hiera(’java_version’)! $tomcat_version = hiera(’tomcat_version’)! ! class { ‘::java’:! version => $java_version,! }! class { ‘::tomcat’:! version => $tomcat_version,! }! ! Class[‘::java’]! -> Class[‘::tomcat’]! }
- 58. class profiles::tomcat {! include profiles::java! $tomcat_version = hiera(’tomcat_version’)! ! class { ‘::tomcat’:! Presented by version => $tomcat_version,! }! ! Class[‘profiles::java’]! -> Class[‘::tomcat’]! }
- 59. Presented by Profiles • Hiera for business-specific data • Proprietary resources • Inter-class dependencies and containment
- 62. Presented by denuatapp06p falcor
- 63. roles::app_server::pci Presented by roles::proxy
- 64. class roles {! include profiles::security::base! include profiles::mycorp::users! include profiles::mycorp::os_base! } Presented by
- 65. class roles::app_server inherits roles {! include profiles::tomcat! include profiles::our_app! include profiles::shibboleth! Presented by ! Class[‘profiles::tomcat’]! -> Class[‘profiles::our_app’]! -> Class[‘profiles::shibboleth’]! }
- 66. class roles::app_server::pci inherits roles::app_server {! include profiles::pci! } Presented by
- 67. Presented by class roles::app_server::pci {! include profiles::security::base! include profiles::mycorp::users! include profiles::mycorp::os_base! include profiles::pci! include profiles::tomcat! include profiles::our_app! include profiles::shibboleth! include profiles::pci! ! Class[‘profiles::java’]! -> Class[‘profiles::our_app’]! -> Class[‘profiles::shibboleth’]! }
- 68. Presented by Roles • Hostnames minus Hiera • Technology-independent • Inheritance makes sense (or not)
- 71. forge "http://forge.puppetlabs.com"! ! # Modules from the Puppet Forge! mod "puppetlabs/apache"! mod "puppetlabs/ntp"! ! # Modules from Github using various references! mod 'notifyme',! :git => 'git://github.com/glarizza/puppet-notifyme',! :ref => '50c01703b2e3e352520a9a2271ea4947fe17a51f'! ! mod 'profiles',! :git => 'git://github.com/glarizza/puppet-profiles',! :ref => '3611ae4253ff01762f9bda1d93620edf8f9a3b22' Presented by
- 72. R10k - Bad name, good robot 1. Ensuring modules based on a Puppetfile 2. Dynamically creating Puppet environments Presented by
- 73. Presented by Puppetfile Manifest Hieradata Control Repository
- 74. Presented by Puppetfile Manifest Hieradata Puppetfile Manifest Hieradata Puppetfile Manifest Hieradata
- 75. Presented by Puppetfile Manifest Hieradata Branch Branch Puppetfile Manifest Hieradata Puppetfile Manifest Hieradata Puppet Environment Puppet Environment
- 77. Presented by Summary • Simple, generic component modules • Extract company-specific data with Hiera • Layer implementation with Profiles • Classification with Profiles
