1. Model Driven SDLC
using Docker
Vinothini Raju
Founder & CEO
Bluemeric Technologies Pvt Ltd
@vinothiniraju
Bluemeric Technologies Pvt Ltd

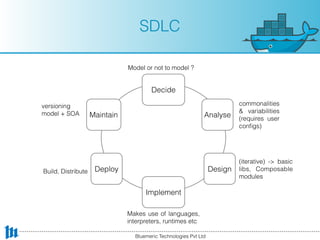

2. SDLC
Decide
Analyse
Design
Implement
Deploy
Maintain
Model or not to model ?
commonalities
& variabilities
(requires user
configs)
(iterative) -> basic
libs, Composable
modules
Makes use of languages,
interpreters, runtimes etc
versioning
model + SOA
Build, Distribute
Bluemeric Technologies Pvt Ltd

3. User
Requirement
model

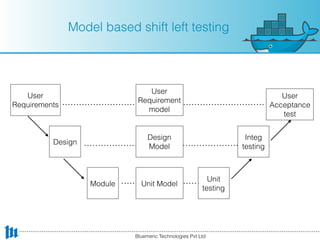

Model based shift left testing
Bluemeric Technologies Pvt Ltd
User
Requirements
Design
Module
Unit
testing
Integ
testing
User
Acceptance
test
Unit Model
Design
Model

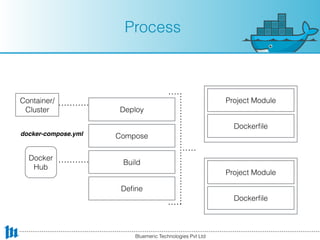

4. Process
Project Module
Dockerfile
Build
Docker
Hub
Compose
Deploy
Project Module
Dockerfile
Container/
Cluster
Define
Bluemeric Technologies Pvt Ltd
docker-compose.yml

5. Docker Model & Composition
payments:
build: our.repository.host/payments:prod
ports:
- "8081:8080"
postgres:
image: our.repository.host/postgres:prod
expose:
- "5432"
Docker hub
db:
type: external
host: 1.2.3.4
port: 5432
environment:
POSTGRES_USER:
produser
POSTGRES_PASSWORD:
prodpass
Future:
(add services run time)
named containers
—env / env-file
—link
catalog:
build: our.repository.host/catalog:prod
ports:
- "8082:8080"
links:
- postgres
web:
build: our.repository.host/web:prod
ports:
- "8080:8080"
links:
- postgres
- payments
- catalog
Bluemeric Technologies Pvt Ltd

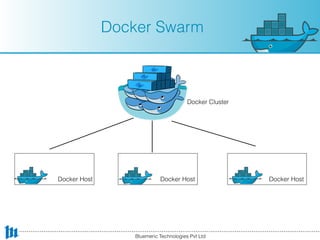

6. Docker Swarm
Docker Host Docker Host Docker Host
Docker Cluster
Bluemeric Technologies Pvt Ltd

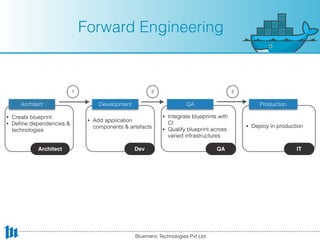

7. Forward Engineering
Bluemeric Technologies Pvt Ltd

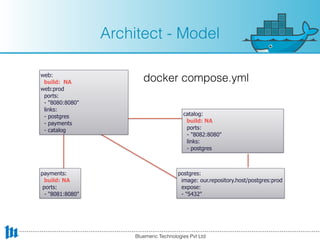

8. Architect - Model
payments:
build: NA
ports:
- "8081:8080"
postgres:
image: our.repository.host/postgres:prod
expose:
- "5432"
catalog:
build: NA
ports:
- "8082:8080"
links:
- postgres
web:
build: NA
web:prod
ports:
- "8080:8080"
links:
- postgres
- payments
- catalog
docker compose.yml
Bluemeric Technologies Pvt Ltd

9. Developer - Model
web:
build: DEFINE BUILD
web:prod
ports:
- "8080:8080"
links:
- postgres
- payments
- catalog
Install
UnInstall
Start
Stop
Application build
Base Image
Application Artifact - Dockerfile

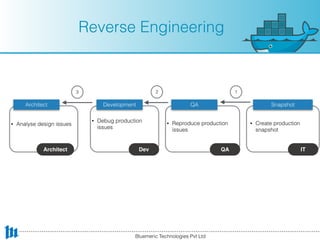

10. Reverse Engineering
•
Bluemeric Technologies Pvt Ltd

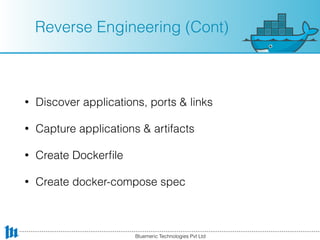

11. Reverse Engineering (Cont)
• Discover applications, ports & links
• Capture applications & artifacts
• Create Dockerfile
• Create docker-compose spec
Bluemeric Technologies Pvt Ltd

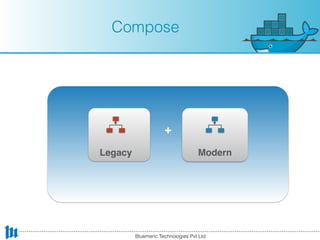

12. Compose
Bluemeric Technologies Pvt Ltd
+
ModernLegacy

13. goPaddle - Container based SDLC Platform
Bluemeric Technologies Pvt Ltd
Improve collaboration
Reproduce production issues
Port applications across cloud layers
Modernize legacy applications

14. goPaddle - Container based SDLC Platform
Bluemeric Technologies Pvt Ltd

15. Riddle Time (Generate Docker Model)
