Do more with less code in a serverless world

The document focuses on the principles of clean code within the context of serverless architecture, emphasizing the Single Responsibility Principle and the concept of 'you ain't gonna need it.' It discusses various AWS serverless services like Lambda, API Gateway, and EventBridge, highlighting best practices for function design and orchestration. The author advocates for simplification, recommending that developers avoid unnecessary functions to optimize performance and reduce complexity.

Embed presentation

Download to read offline
Less is more Do more with less code in a serverless world Jerome Van Der Linden Geneva Serverless Meetup - 26/05/2020
About me • In a previous life, ”Mr Cut Cut” (M. Coupe coupe) • Developer & software craftsman • And now, Solutions Architect @ AWS 2 linkedin.com/in/jeromevdl/ Jerome Van Der Linden
Few principles Clean Code

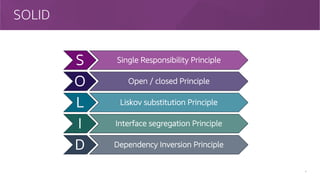

SOLID 4 S Single Responsibility Principle O Open / closed Principle L Liskov substitution Principle I Interface segregation Principle D Dependency Inversion Principle

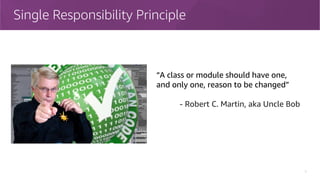

Single Responsibility Principle 5 “A class or module should have one, and only one, reason to be changed” - Robert C. Martin, aka Uncle Bob
YAGNI (You Ain’t Gonna Need It) 6 Just because you can, doesn’t mean you should…
KISS 7
8 And many more… Clean Code DRY Don’t Repeat Yourself Law of Demeter Broken window theory Boy scout rule Not invented here
How to apply those principles? In the serverless world
Serverless World? 10 Serverless == FAASFunction As A Service

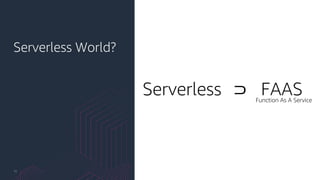

Serverless World? 11 Serverless ⊃ FAASFunction As A Service

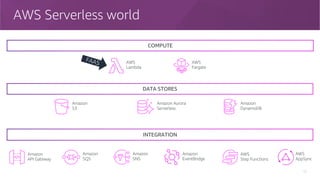

AWS Serverless world 12 AWS Lambda AWS Fargate Amazon API Gateway Amazon SNS Amazon SQS COMPUTE DATA STORES INTEGRATION Amazon Aurora Serverless Amazon S3 Amazon DynamoDB Amazon EventBridge FAAS AWS Step Functions AWS AppSync

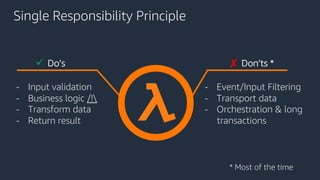

Single Responsibility Principle ü Do’s ✘ Don’ts * - Input validation - Business logic /! - Transform data - Return result - Event/Input Filtering - Transport data - Orchestration & long transactions - Retry/Failure handling * Most of the time
Event Filtering 15 SNS Topic Publisher if event_type == 'order_created’: lambda_client.invoke('OrderCreation', ...) elif event_type == 'order_placed’: lambda_client.invoke('OrderPlacement', ...) elif event_type == 'order_cancelled’: lambda_client.invoke('OrderCancelation', ...) OrderCreation OrderPlacement OrderCancellation { "event_type": "order_placed", "order": { "id": "232134", "amount": "2341,45", "stock_ref": "AMZN” } } the wrong way 𝝺 function code Input event OrderFiltering

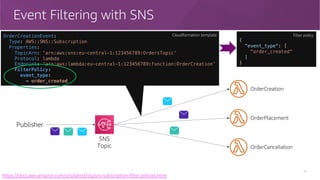

Event Filtering with SNS 16 OrderCreation OrderPlacement OrderCancellation Publisher OrderCreationEvent: Type: AWS::SNS::Subscription Properties: TopicArn: 'arn:aws:sns:eu-central-1:123456789:OrdersTopic’ Protocol: lambda Endpoint: 'arn:aws:lambda:eu-central-1:123456789:function:OrderCreation’ FilterPolicy: event_type: - order_created SNS Topic https://docs.aws.amazon.com/sns/latest/dg/sns-subscription-filter-policies.html Cloudformation template { "event_type": [ "order_created" ] } Filter policy

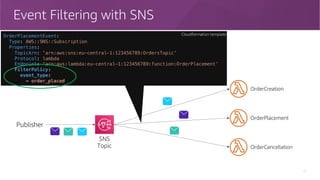

Event Filtering with SNS 17 OrderCreation OrderPlacement OrderCancellation Publisher OrderPlacementEvent: Type: AWS::SNS::Subscription Properties: TopicArn: 'arn:aws:sns:eu-central-1:123456789:OrdersTopic’ Protocol: lambda Endpoint: 'arn:aws:lambda:eu-central-1:123456789:function:OrderPlacement’ FilterPolicy: event_type: - order_placed SNS Topic Cloudformation template
Event Filtering with SNS 18 OrderCreation OrderPlacement OrderCancellation Publisher OrderCancellationEvent: Type: AWS::SNS::Subscription Properties: TopicArn: 'arn:aws:sns:eu-central-1:123456789:OrdersTopic’ Protocol: lambda Endpoint: 'arn:aws:lambda:eu-central-1:123456789:function:OrderCancellation’ FilterPolicy: event_type: - order_cancelled SNS Topic Cloudformation template

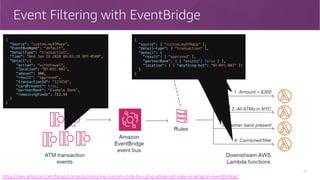

Event Filtering with EventBridge 19 https://aws.amazon.com/blogs/compute/reducing-custom-code-by-using-advanced-rules-in-amazon-eventbridge/ { "Source": "custom.myATMapp", "EventBusName": "default", "DetailType": "transaction", "Time": "Wed Jan 29 2020 08:03:18 GMT-0500", "Detail":{ "action": "withdrawal", "location": "NY-NYC-001", "amount": 300, "result": "approved", "transactionId": "123456", "cardPresent": true, "partnerBank": "Example Bank", "remainingFunds": 722.34 } } { "source": [ "custom.myATMapp" ], "detail-type": [ "transaction" ], "detail": { "amount": [ { "numeric": [ ">", 300 ] } ] } } { "source": [ "custom.myATMapp" ], "detail-type": [ "transaction" ], "detail": { "location": [ { "prefix": "NY-NYC-" } ] } } { "source": [ "custom.myATMapp" ], "detail-type": [ "transaction" ], "detail": { "partnerBank": [ { "exists": true } ] } } { "source": [ "custom.myATMapp" ], "detail-type": [ "transaction" ], "detail": { "result": [ "approved" ], "partnerBank": [ { "exists": false } ], "location": [ { "anything-but": "NY-NYC-002" }] } }

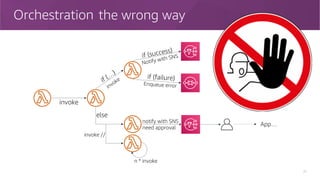

Orchestration 20 the wrong way invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App…

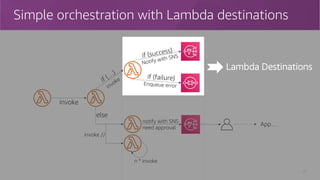

Simple orchestration with Lambda destinations 21 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… Lambda Destinations

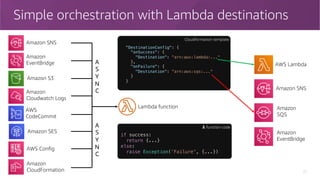

Simple orchestration with Lambda destinations 22 Amazon SNS Amazon EventBridge Amazon Cloudwatch Logs Amazon S3 Amazon SES AWS Config Amazon CloudFormation AWS CodeCommit A S Y N C "DestinationConfig": { "onSuccess": { "Destination": "arn:aws:lambda:..." }, "onFailure": { "Destination": "arn:aws:sqs:..." } } Cloudformation template Amazon SNS Amazon EventBridge Amazon SQS AWS Lambda if success: return {...} else: raise Exception(‘Failure', {...}) 𝝺 function code Lambda function A S Y N C

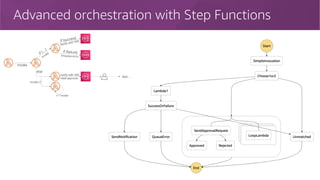

Advanced orchestration with Step Functions 23 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App…

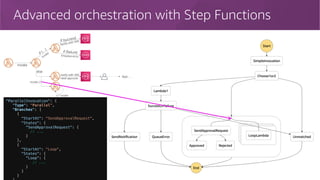

Advanced orchestration with Step Functions 24 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… { "StartAt": "SimpleInvocation", "States": { "SimpleInvocation": { "Type": "Task", "Resource": "arn:aws:lambda:eu-central- 1:123456789012:function:HelloFunction", "Next": "Choose1or2" },

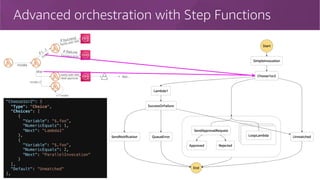

Advanced orchestration with Step Functions 25 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… "Choose1or2": { "Type": "Choice", "Choices": [ { "Variable": "$.foo”, "NumericEquals": 1, "Next": "Lambda1" }, { "Variable": "$.foo", "NumericEquals": 2, "Next": "ParallelInvocation" } ], "Default": "Unmatched" },

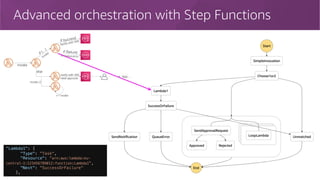

Advanced orchestration with Step Functions 26 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… "Lambda1": { "Type": "Task", "Resource": "arn:aws:lambda:eu- central-1:123456789012:function:Lambda1", "Next": "SuccessOrFailure" },
Advanced orchestration with Step Functions 27 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… "SuccessOrFailure": { "Type": "Choice", "Choices": [ { "Variable": "$.status", "StringEquals": "SUCCESS", "Next": "SendNotification" }, { "Variable": "$.status", "StringEquals": "FAILURE", "Next": "QueueError" } ], "Default": "Unmatched" }
Advanced orchestration with Step Functions 28 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… "SendNotification": { "Type": "Succeed" }, "QueueError": { "Type": "Fail" },
Advanced orchestration with Step Functions 29 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… "ParallelInvocation": { "Type": "Parallel", "Branches": [ { "StartAt": "SendApprovalRequest", "States": { "SendApprovalRequest": { // ... } }, { "StartAt": "Loop", "States": { "Loop": { // ... } } }

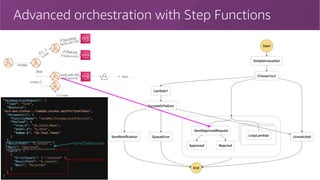

Advanced orchestration with Step Functions 30 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… "SendApprovalRequest": { "Type": "Task", "Resource": "arn:aws:states:::lambda:invoke.waitForTaskToken", "Parameters": { "FunctionName": "sendMailForApprovalFunction", "Payload": { "step.$": "$$.State.Name", "model.$": "$.data", "token.$": "$$.Task.Token" } }, "ResultPath": "$.output", "Next": "Approved", "Catch": [ { "ErrorEquals": [ "rejected" ], "ResultPath": "$.reason", "Next": "Rejected" } ] } SendTaskSuccess SendTaskFailure

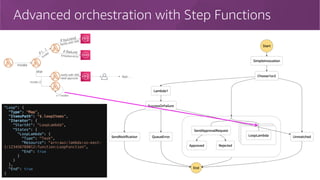

Advanced orchestration with Step Functions 31 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App… "Loop": { "Type": "Map", "ItemsPath": "$.loopItems", "Iterator": { "StartAt": "LoopLambda", "States": { "LoopLambda": { "Type": "Task", "Resource": "arn:aws:lambda:us-east- 1:123456789012:function:LoopFunction", "End": true } } }, "End": true }
Advanced orchestration with Step Functions 32 invoke invokeif (… ) invoke // else if (success) Notify with SNS n * invoke if (failure) Enqueue error notify with SNS need approval App…

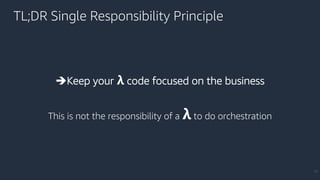

TL;DR Single Responsibility Principle 33 èKeep your 𝝺 code focused on the business This is not the responsibility of a 𝝺 to do orchestration
You ain’t gonna need it 34 Welcome in the “functionless” world !

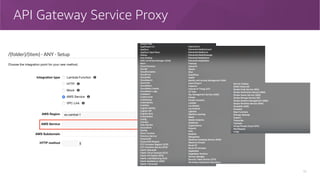

API Gateway Service Proxy 35
Ex: insert data in DynamoDB 36 Resource: /comments HTTP Method: POST HTTP Request Body: { "pageId": "example-page-id", "userName": "ExampleUserName", "message": "Example comment to be added." } Table: Comments commentId: String userName: String message: String pageId: String PK: commentIdAPI Gateway DynamoDBLambda var AWS = require('aws-sdk'); var ddb = new AWS.DynamoDB({apiVersion: '2012-08-10'}); exports.handler = async function(event, context) { var params = { TableName: 'Comments’, Item: { 'commentId' : { S: 'randomid’ }, 'pageId' : { S: event.pageId }, 'userName' : { S: event.userName }, 'message' : { S: event.message } } }; ddb.putItem(params, function(err, data) { if (err) { console.log("Error", err); } else { console.log("Success", data); } }); }

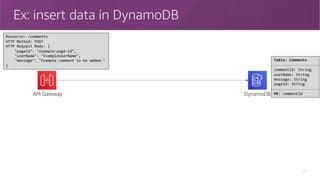

Ex: insert data in DynamoDB 37 Resource: /comments HTTP Method: POST HTTP Request Body: { "pageId": "example-page-id", "userName": "ExampleUserName", "message": "Example comment to be added." } Table: Comments commentId: String userName: String message: String pageId: String PK: commentIdAPI Gateway DynamoDB
Ex: insert data in DynamoDB 38 Resource: /comments HTTP Method: POST HTTP Request Body: { "pageId": "example-page-id", "userName": "ExampleUserName", "message": "Example comment to be added." } Table: Comments commentId: String userName: String message: String pageId: String PK: commentIdAPI Gateway DynamoDB
Ex: insert data in DynamoDB 39 Resource: /comments HTTP Method: POST HTTP Request Body: { "pageId": "example-page-id", "userName": "ExampleUserName", "message": "Example comment to be added." } Table: Comments commentId: String userName: String message: String pageId: String PK: commentIdAPI Gateway DynamoDB

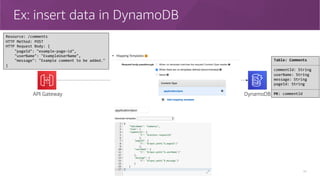

Ex: insert data in DynamoDB 40 Resource: /comments HTTP Method: POST HTTP Request Body: { "pageId": "example-page-id", "userName": "ExampleUserName", "message": "Example comment to be added." } Table: Comments commentId: String userName: String message: String pageId: String PK: commentIdAPI Gateway DynamoDB

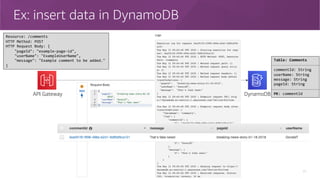

Ex: insert data in DynamoDB 41 Resource: /comments HTTP Method: POST HTTP Request Body: { "pageId": "example-page-id", "userName": "ExampleUserName", "message": "Example comment to be added." } Table: Comments commentId: String userName: String message: String pageId: String PK: commentIdAPI Gateway DynamoDB
Use with caution 42 • Not a generic design pattern, not always applicable • Apply when the lambda is a passthrough (no business code, just mapping) • Mapping can sometimes be complex (Velocity Template Language)

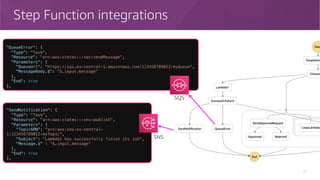

Step Function integrations 43 "QueueError": { "Type": "Task", "Resource": "arn:aws:states:::sqs:sendMessage", "Parameters": { "QueueUrl": "https://sqs.eu-central-1.amazonaws.com/123456789012/myQueue", "MessageBody.$": "$.input.message" }, "End": true }, "SendNotification": { "Type": "Task", "Resource": "arn:aws:states:::sns:publish", "Parameters": { "TopicARN": "arn:aws:sns:eu-central- 1:123456789012:myTopic", "Subject": "Lambda1 has successfully finish its job", "Message.$" : "$.input.message" }, "End": true }, SQS SNS

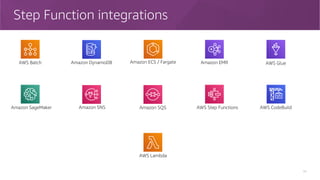

Step Function integrations 44 AWS Batch Amazon DynamoDB Amazon ECS / Fargate Amazon EMR AWS Glue Amazon SageMaker Amazon SNS Amazon SQS AWS Step Functions AWS Lambda AWS CodeBuild
TL;DR You Ain’t Gonna Need It 45 è 𝝺 is not always needed You can save costs and optimize performance when functions are just passthrough/mapping

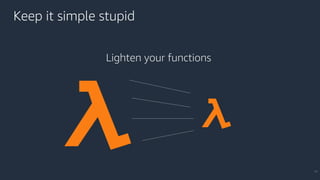

Keep it simple stupid 46 Lighten your functions

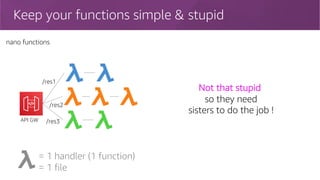

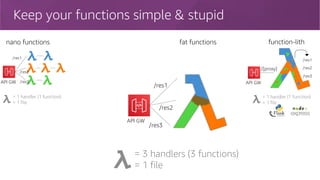

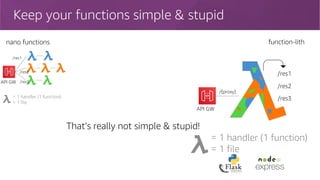

Keep your functions simple & stupid nano functions API GW /res1 /res2 /res3 = 1 handler (1 function) = 1 file Not that stupid so they need sisters to do the job !
Keep your functions simple & stupid nano functions API GW /res1 /res2 /res3 = 1 handler (1 function) = 1 file function-lith API GW /{proxy} /res1 /res2 /res3 That’s really not simple & stupid! = 1 handler (1 function) = 1 file
Keep your functions simple & stupid nano functions API GW /res1 /res2 /res3 function-lith API GW /{proxy} /res1 /res2 /res3 = 1 handler (1 function) = 1 file fat functions API GW /res1 /res2 /res3 = 3 handlers (3 functions) = 1 file = 1 handler (1 function) = 1 file

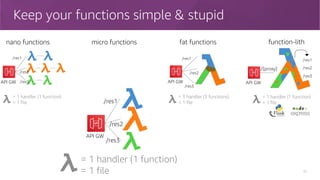

Keep your functions simple & stupid 50 nano functions API GW /res1 /res2 /res3 function-lith API GW /{proxy} /res1 /res2 /res3 fat functions = 1 handler (1 function) = 1 file API GW = 3 handler (3 functions) = 1 file micro functions API GW /res1 /res2 /res3 /res1 /res2 /res3 = 1 handler (1 function) = 1 file = 1 handler (1 function) = 1 file
Keep your functions simple & stupid https://github.com/cdk-patterns/serverless/tree/master/the-lambda-trilogy Potential duplicated code ++ Cognitive burden ++ Coupled functions Coupled deployments nano functions API GW /res1 /res2 /res3 function-lith API GW /{proxy} /res1 /res2 /res3 fat functions = 1 handler (1 function) = 1 file API GW = 3 handler (3 functions) = 1 file micro functions /res1 /res2 /res3 = 1 handler (1 function) = 1 file API GW /res1 /res2 /res3 = 1 handler (1 function) = 1 file Stupidity Complexity FAAS? Longer cold starts ++ Risk of blast radius Framework dependent Longer cold starts Risk of blast radius Potential duplicated code Cognitive burden
TL;DR Keep it simple stupid 52 Lighter functions = Easier to test and maintain Faster to start: less cold start More scalable: higher throughput More secure: less permission needed

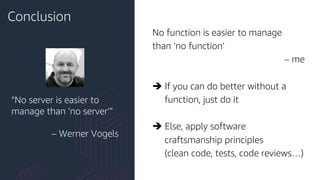

Conclusion No function is easier to manage than ‘no function’ – me è If you can do better without a function, just do it è Else, apply software craftsmanship principles (clean code, tests, code reviews…) “No server is easier to manage than ‘no server’” – Werner Vogels
Thank You @jeromevdl https://tinyurl.com/ydeowzut 2-minutes survey:
Appendix

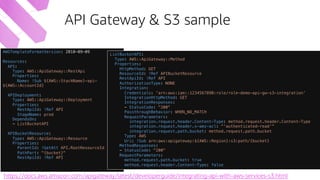

AWSTemplateFormatVersion: 2010-09-09 Resources: API: Type: AWS::ApiGateway::RestApi Properties: Name: !Sub ${AWS::StackName}-api- ${AWS::AccountId} APIDeployment: Type: AWS::ApiGateway::Deployment Properties: RestApiId: !Ref API StageName: prod DependsOn: - ListBucketAPI APIBucketResource: Type: AWS::ApiGateway::Resource Properties: ParentId: !GetAtt API.RootResourceId PathPart: "{bucket}" RestApiId: !Ref API ListBucketAPI: Type: AWS::ApiGateway::Method Properties: HttpMethod: GET ResourceId: !Ref APIBucketResource RestApiId: !Ref API AuthorizationType: NONE Integration: Credentials: 'arn:aws:iam::1234567890:role/role-demo-api-gw-s3-integration’ IntegrationHttpMethod: GET IntegrationResponses: - StatusCode: "200" PassthroughBehavior: WHEN_NO_MATCH RequestParameters: integration.request.header.Content-Type: method.request.header.Content-Type integration.request.header.x-amz-acl: "'authenticated-read’” integration.request.path.bucket: method.request.path.bucket Type: AWS Uri: !Sub arn:aws:apigateway:${AWS::Region}:s3:path/{bucket} MethodResponses: - StatusCode: "200" RequestParameters: method.request.path.bucket: true method.request.header.Content-Type: false API Gateway & S3 sample https://docs.aws.amazon.com/apigateway/latest/developerguide/integrating-api-with-aws-services-s3.html

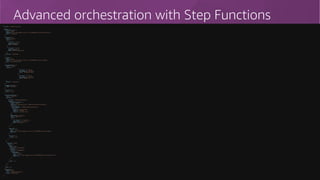

57 Advanced orchestration with Step Functions{ "StartAt": "SimpleInvocation", "States": { "SimpleInvocation": { "Type": "Task", "Resource": "arn:aws:lambda:eu-central-1:123456789012:function:HelloFunction", "Next": "Choose1or2" }, "Choose1or2": { "Type": "Choice", "Choices": [ { "Variable": "$.foo", "NumericEquals": 1, "Next": "Lambda1" }, { "Variable": "$.foo", "NumericEquals": 2, "Next": "ParallelInvocation" } ], "Default": "Unmatched" }, "Lambda1": { "Type": "Task", "Resource": "arn:aws:lambda:eu-central-1:123456789012:function:Lambda1", "Next": "SuccessOrFailure" }, "SuccessOrFailure": { "Type": "Choice", "Choices": [ { "Variable": "$.status", "StringEquals": "SUCCESS", "Next": "SendNotification" }, { "Variable": "$.status", "StringEquals": "FAILURE", "Next": "QueueError" } ], "Default": "Unmatched" }, "SendNotification": { "Type": "Succeed" }, "QueueError": { "Type": "Fail" }, "ParallelInvocation": { "Type": "Parallel", "Branches": [ { "StartAt": "SendApprovalRequest", "States": { "SendApprovalRequest": { "Type": "Task", "Resource": "arn:aws:states:::lambda:invoke.waitForTaskToken", "Parameters": { "FunctionName": "sendMailForApprovalFunction", "Payload": { "step.$": "$$.State.Name", "model.$": "$.data", "token.$": "$$.Task.Token" } }, "ResultPath": "$.output", "Next": "Approved", "Catch": [ { "ErrorEquals": [ "rejected" ], "ResultPath": "$.reason", "Next": "Rejected" } ] }, "Approved": { "Type": "Task", "Resource": "arn:aws:lambda:eu-central-1:123456789012:function:Lambda1", "End": true }, "Rejected": { "Type": "Fail" } } }, { "StartAt": "Loop", "States": { "Loop": { "Type": "Map", "ItemsPath": "$.loopItems", "Iterator": { "StartAt": "LoopLambda", "States": { "LoopLambda": { "Type": "Task", "Resource": "arn:aws:lambda:us-east-1:123456789012:function:LoopFunction", "End": true } } }, "End": true } } } ], "End": true }, "Unmatched": { "Type": "Fail", "Error": "DefaultStateError", "Cause": "No Matches!" } } }
