The document provides an overview of distributed computing and related technologies. It discusses the history of distributed computing including local, parallel, grid and distributed computing. It then discusses applications of distributed computing like web indexing and recommendations. The document introduces Hadoop and its core components HDFS and MapReduce. It also discusses related technologies like HBase, Mahout and challenges in designing distributed systems. It provides examples of using Mahout for machine learning tasks like classification, clustering and recommendations.

1. Distributed computingNov. 29th, 2010

2. AgendaWho am I?What am I talking about?Just a bit of history … repeatingApplications of distributed computingEnter GoogleDesigning a distributed computing system fallaciesMap-Reduce going public: HadoopHbaseMahoutQ&A2

3. Who am I?3Computer Scientist with Adobe Systems Inc. for 5 yearsWorked on desktop appWorked on scalable servicesExperimented with Hadoop > it turned into a product eventuallyNow doing researchivascucristian@twitter / http://facebook.com/ivascucristianContact at: civascu@adobe.com

4. Distributed computing?Run some code over lots of machines, over the networkWithout shared stateRun over a ton of dataShines only when data to process >> network capabilityRun it in reasonable timeNo, 1 week is not OKIt’s not new, contrary to popular belief.4

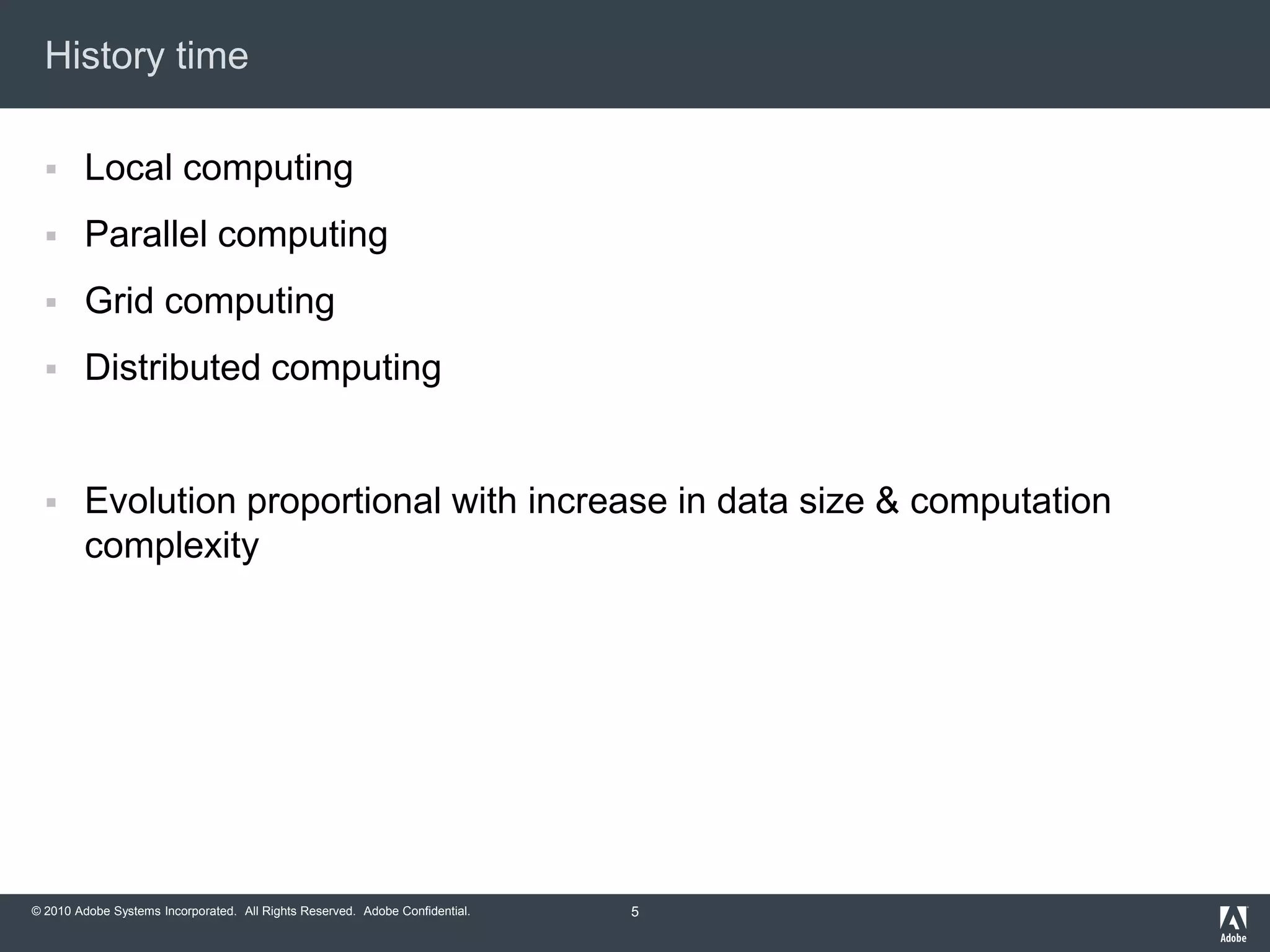

5. History timeLocal computingParallel computingGrid computingDistributed computingEvolution proportional with increase in data size & computation complexity5

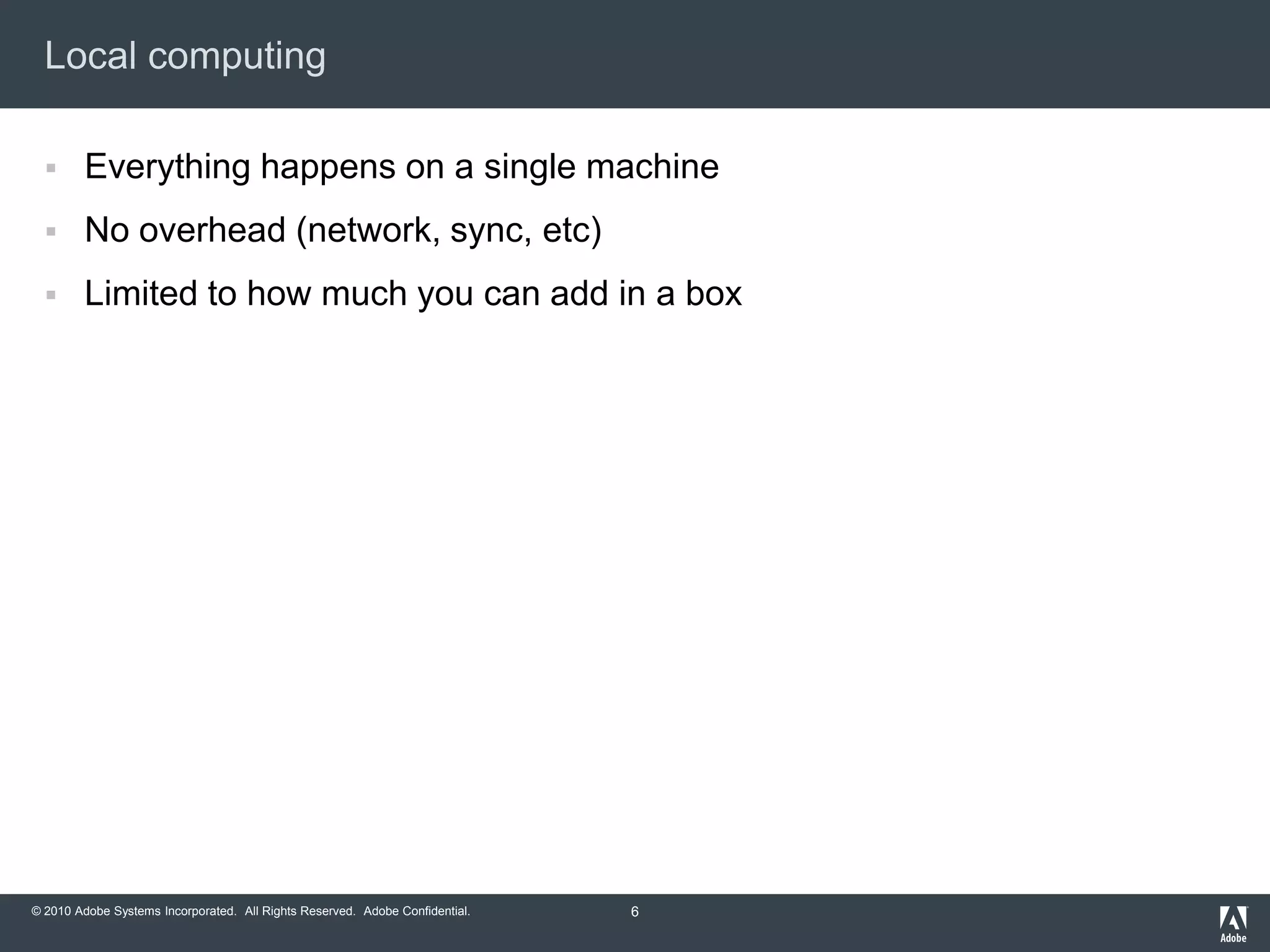

6. Local computingEverything happens on a single machineNo overhead (network, sync, etc)Limited to how much you can add in a box6

7. Parallel computingEverything happens on a single machineEnter overhead: multiple computation units fighting for memoryLimited to how much $$ you have and physical limitation (do you really need a CRAY?7

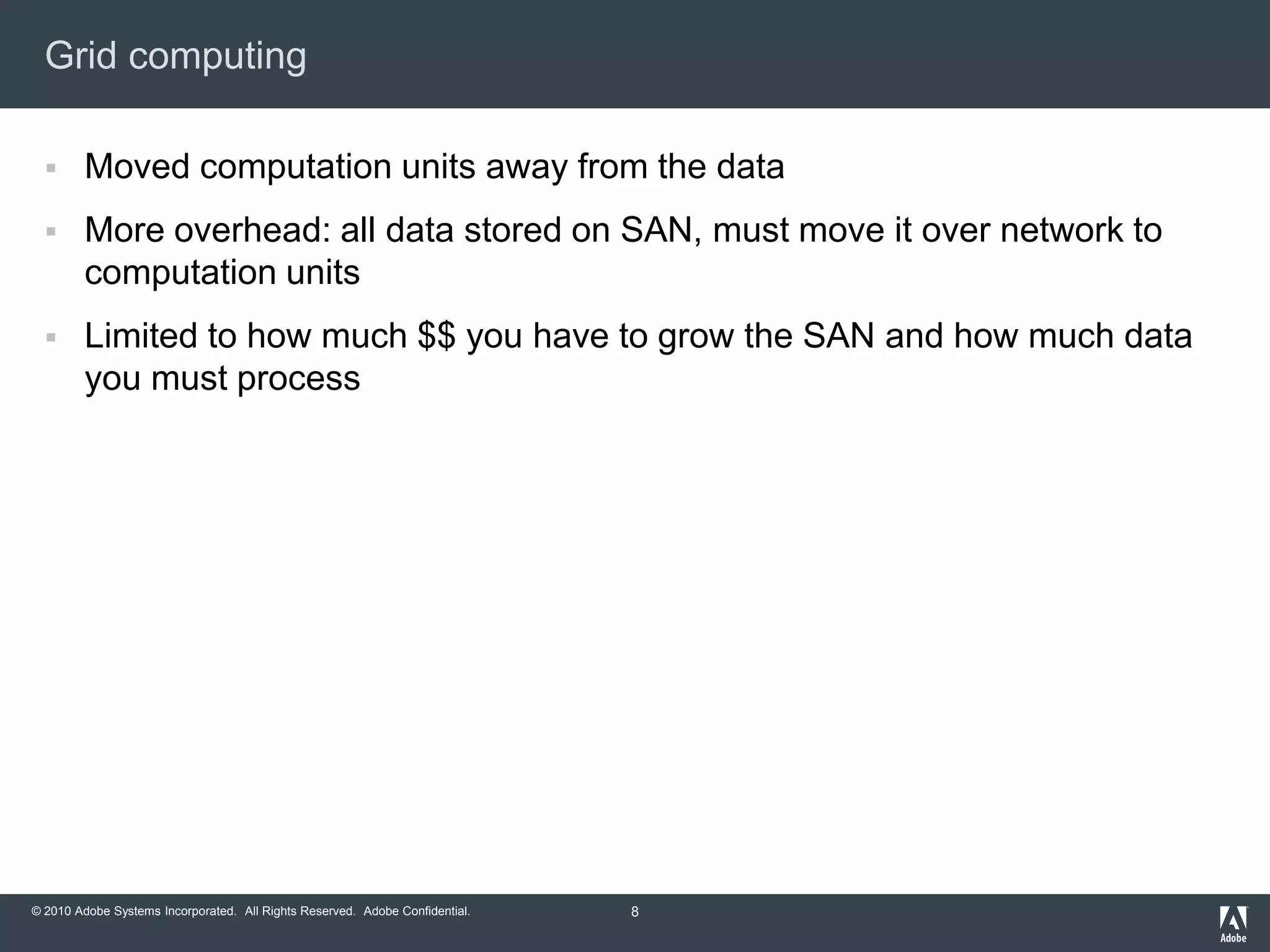

8. Grid computingMoved computation units away from the dataMore overhead: all data stored on SAN, must move it over network to computation unitsLimited to how much $$ you have to grow the SAN and how much data you must process8

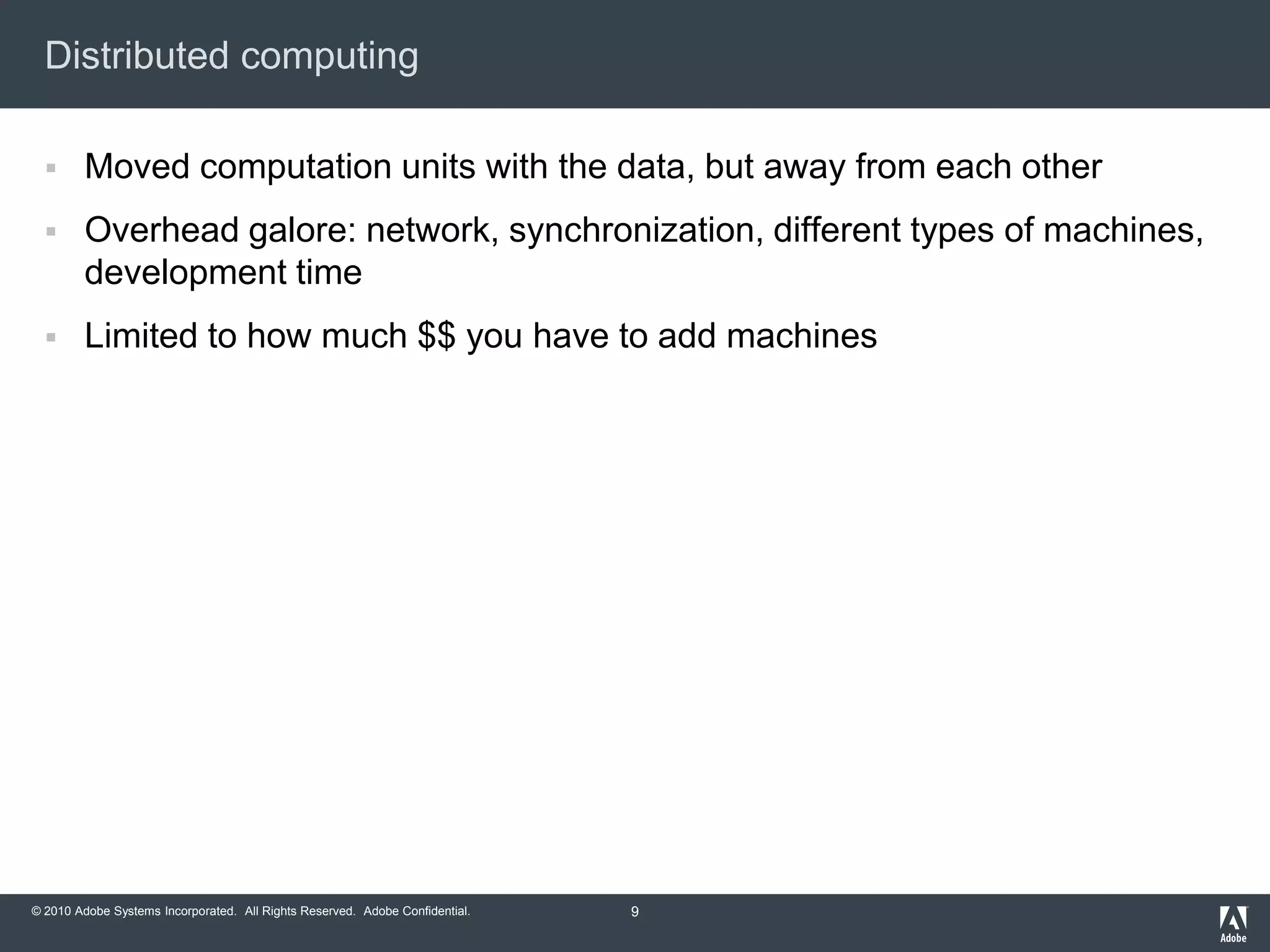

9. Distributed computingMoved computation units with the data, but away from each otherOverhead galore: network, synchronization, different types of machines, development timeLimited to how much $$ you have to add machines9

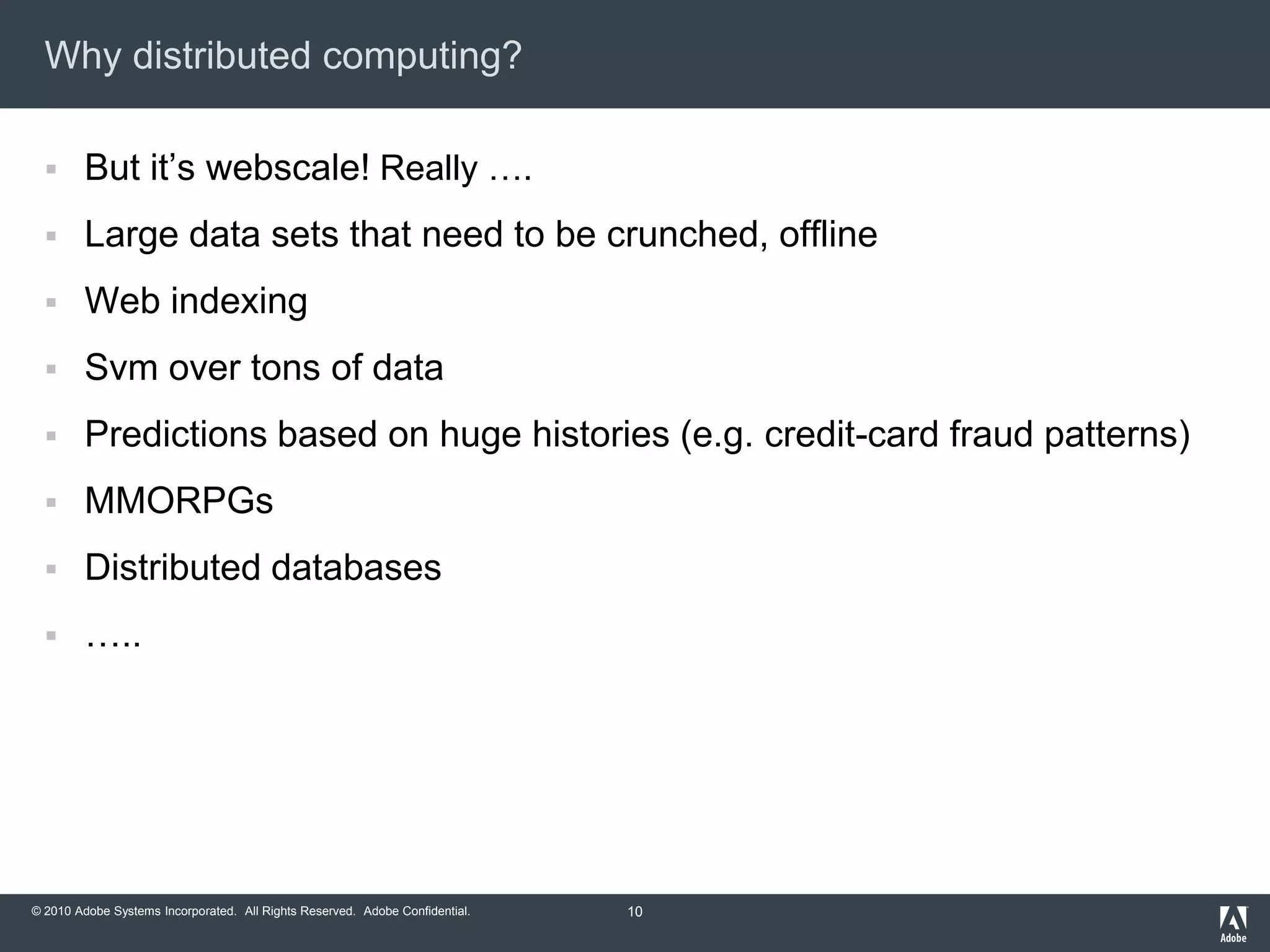

10. Why distributed computing?But it’s webscale!Really ….Large data sets that need to be crunched, offlineWeb indexingSvm over tons of dataPredictions based on huge histories (e.g. credit-card fraud patterns)MMORPGsDistributed databases…..10

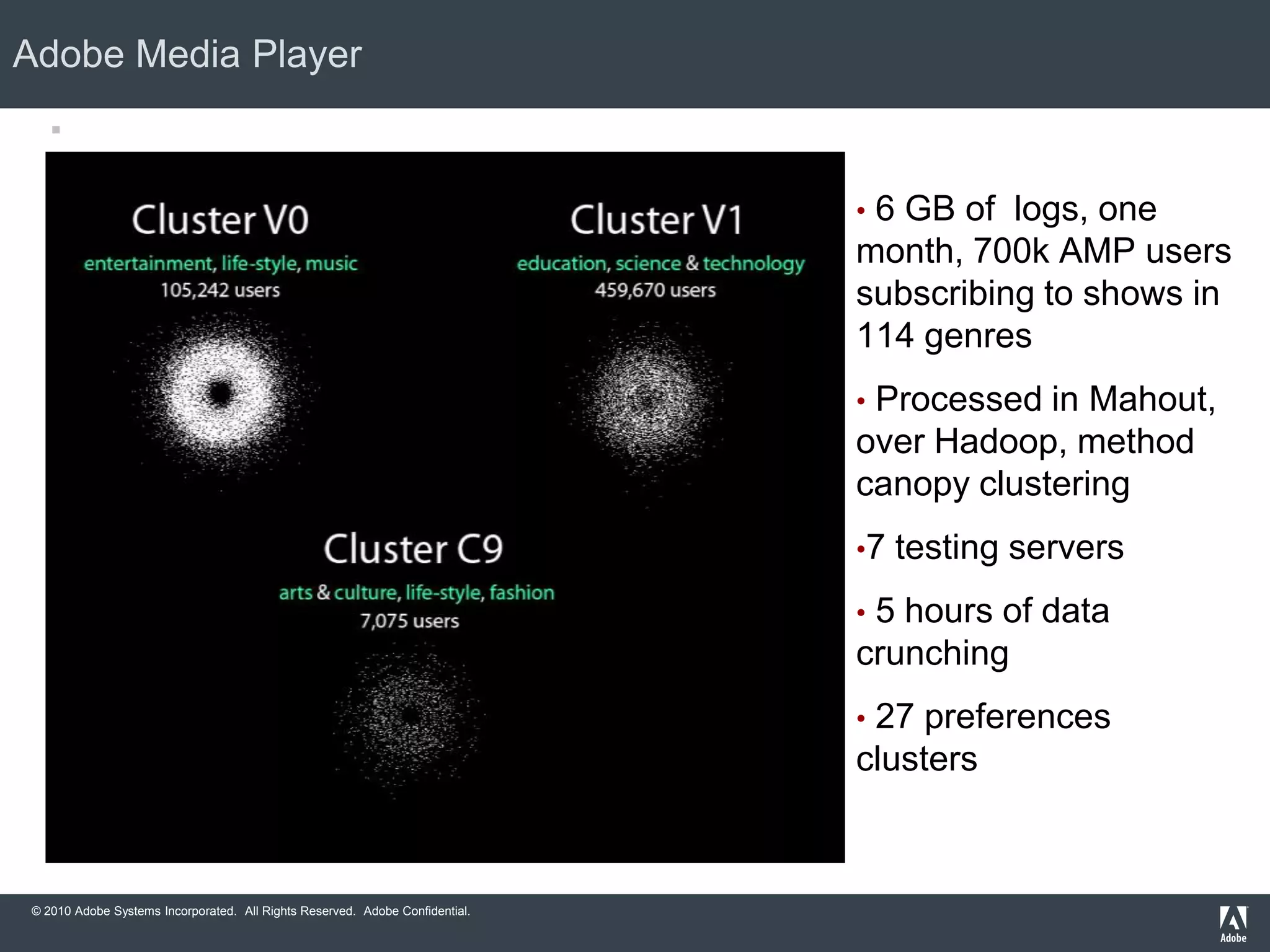

11. Adobe Media PlayerClusters with users with similar interests

12. 6 GB of logs, one month, 700k AMP users subscribing to shows in 114 genres

13. Processed in Mahout, over Hadoop, method canopy clustering

14. 7 testing servers

15. 5 hours of data crunching

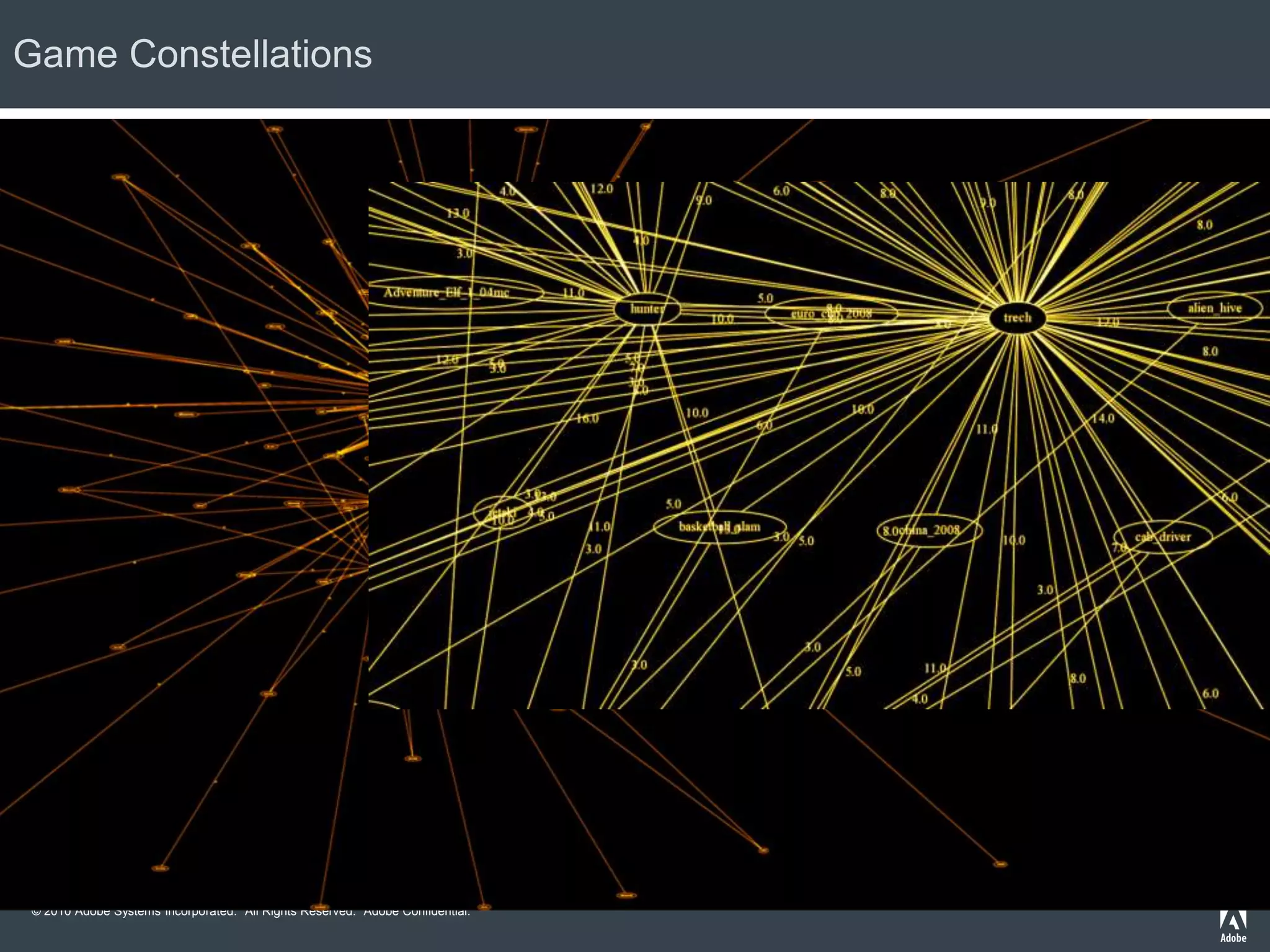

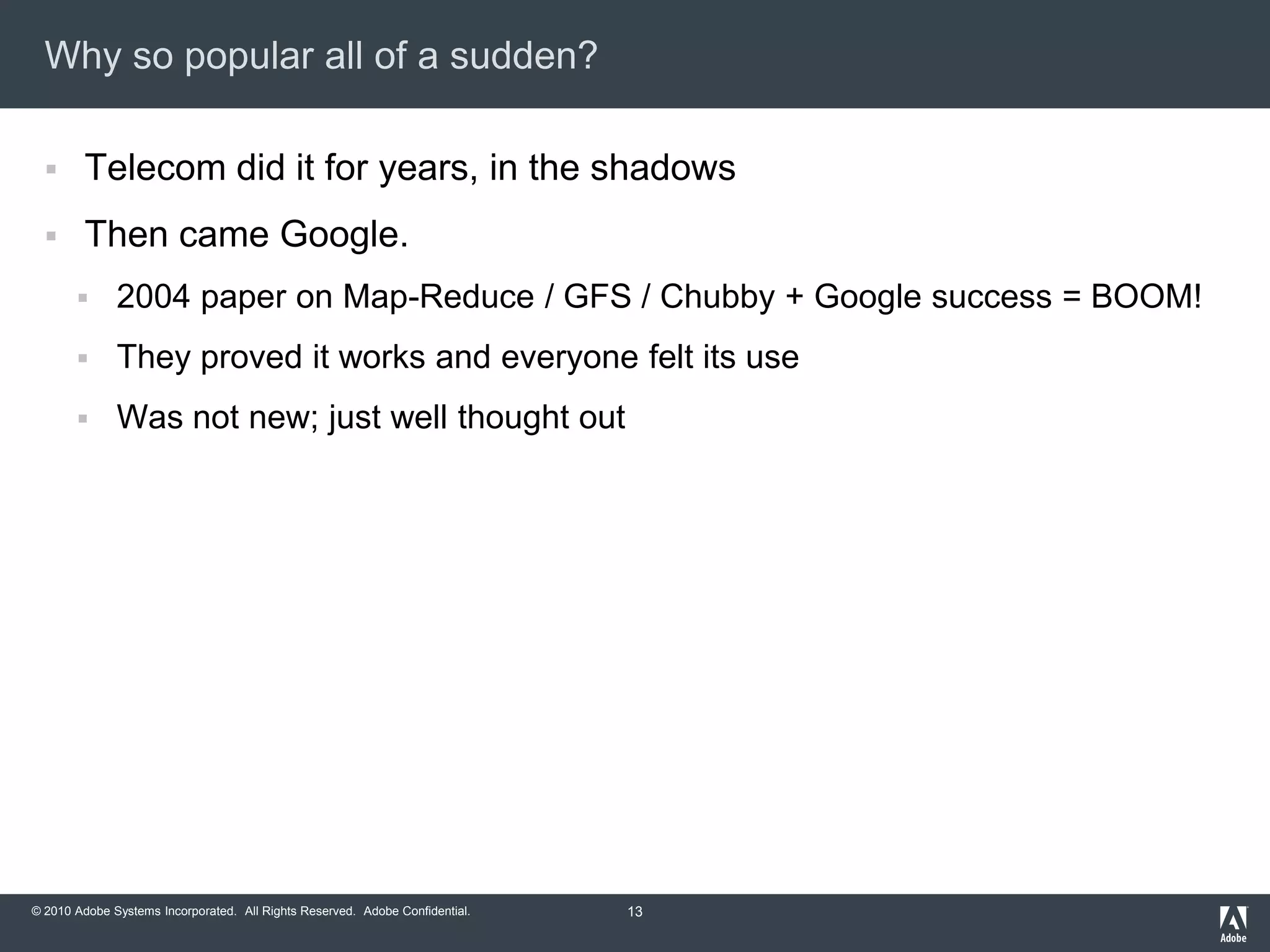

16. 27 preferences clustersGame ConstellationsProcessing Shockwave logsWhy so popular all of a sudden?Telecom did it for years, in the shadowsThen came Google.2004 paper on Map-Reduce / GFS / Chubby + Google success = BOOM!They proved it works and everyone felt its useWas not new; just well thought out13

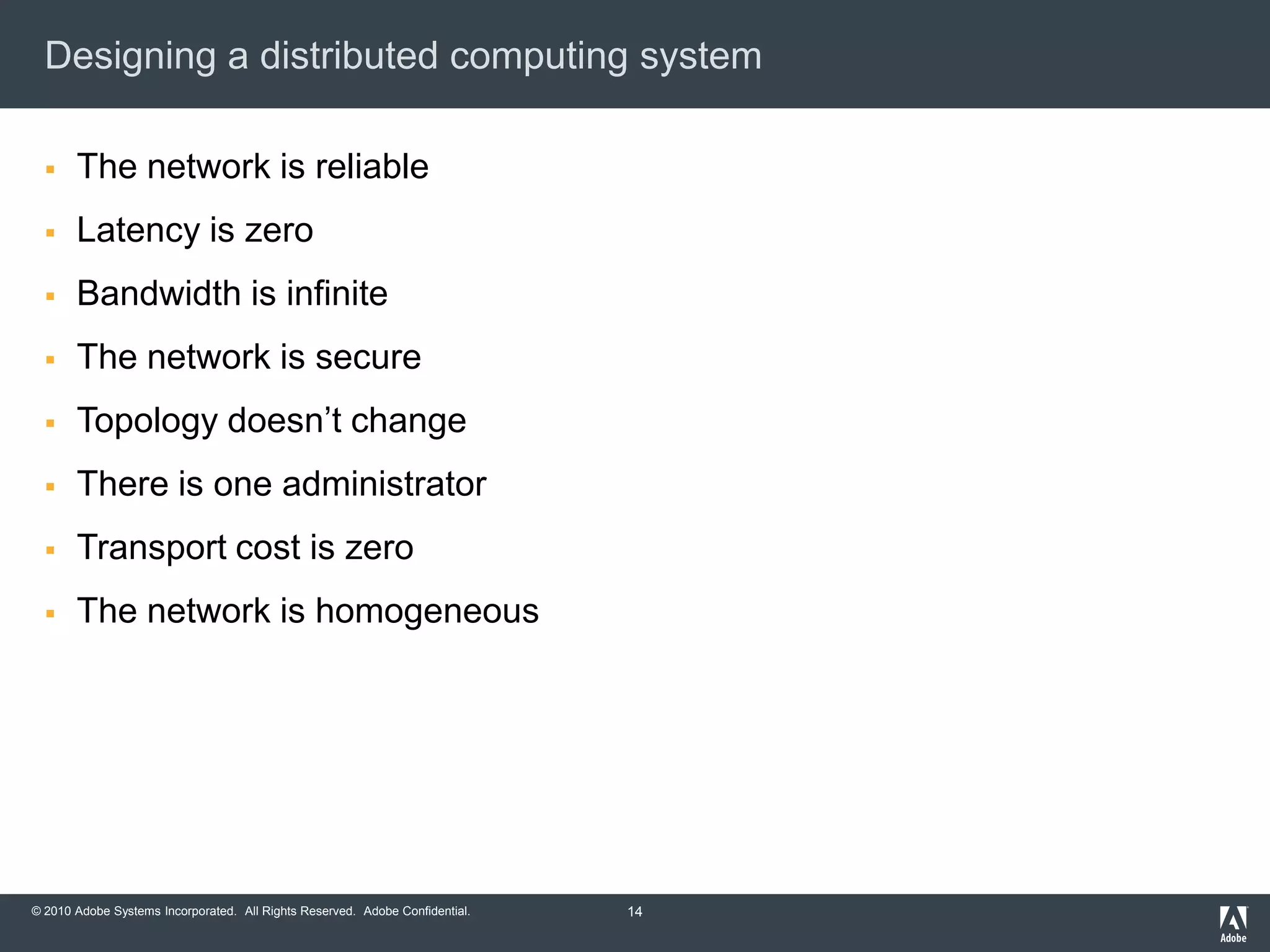

17. Designing a distributed computing systemThe network is reliableLatency is zeroBandwidth is infiniteThe network is secureTopology doesn’t changeThere is one administratorTransport cost is zeroThe network is homogeneous14

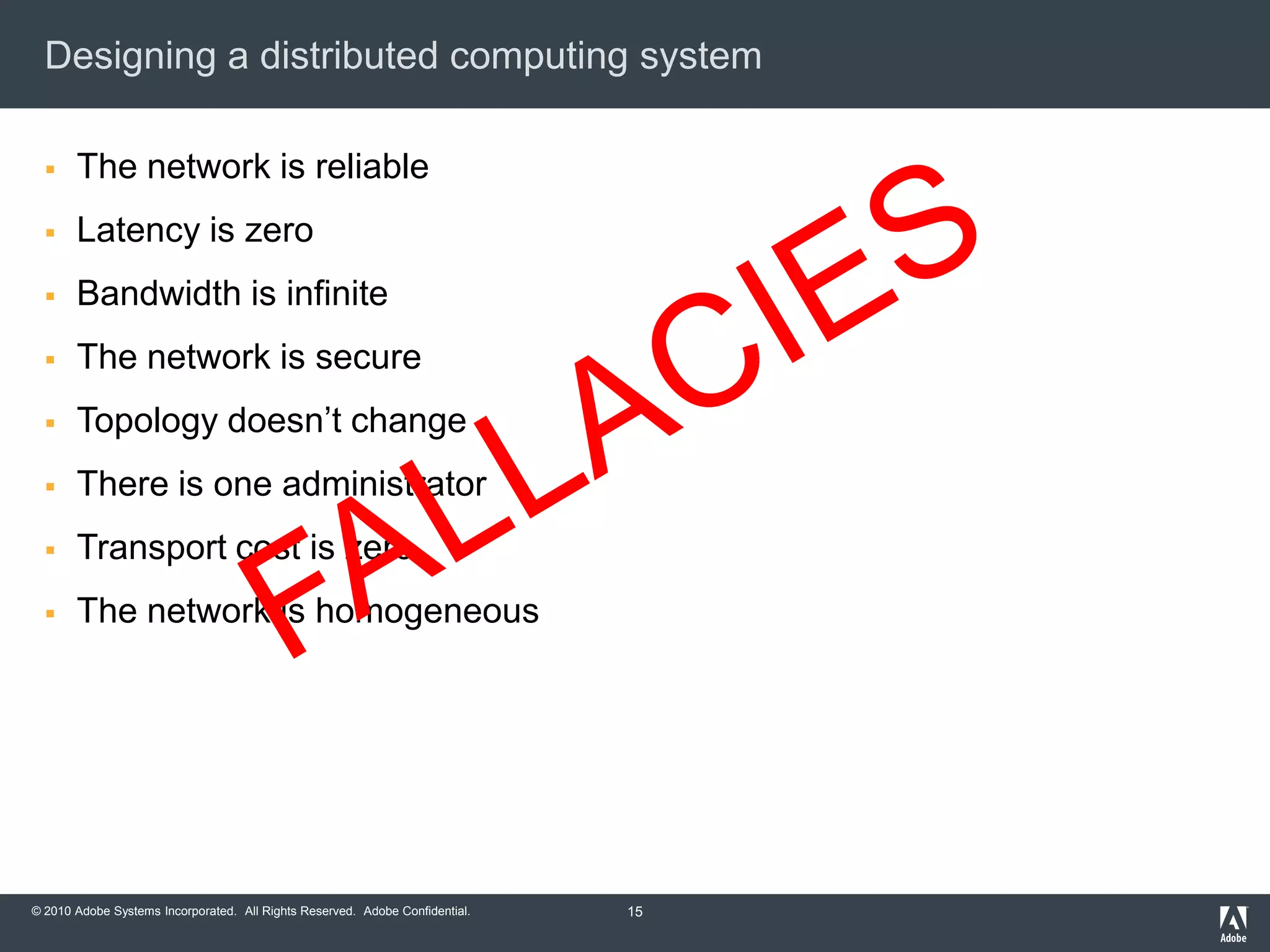

18. Designing a distributed computing systemThe network is reliableLatency is zeroBandwidth is infiniteThe network is secureTopology doesn’t changeThere is one administratorTransport cost is zeroThe network is homogeneous15FALLACIES

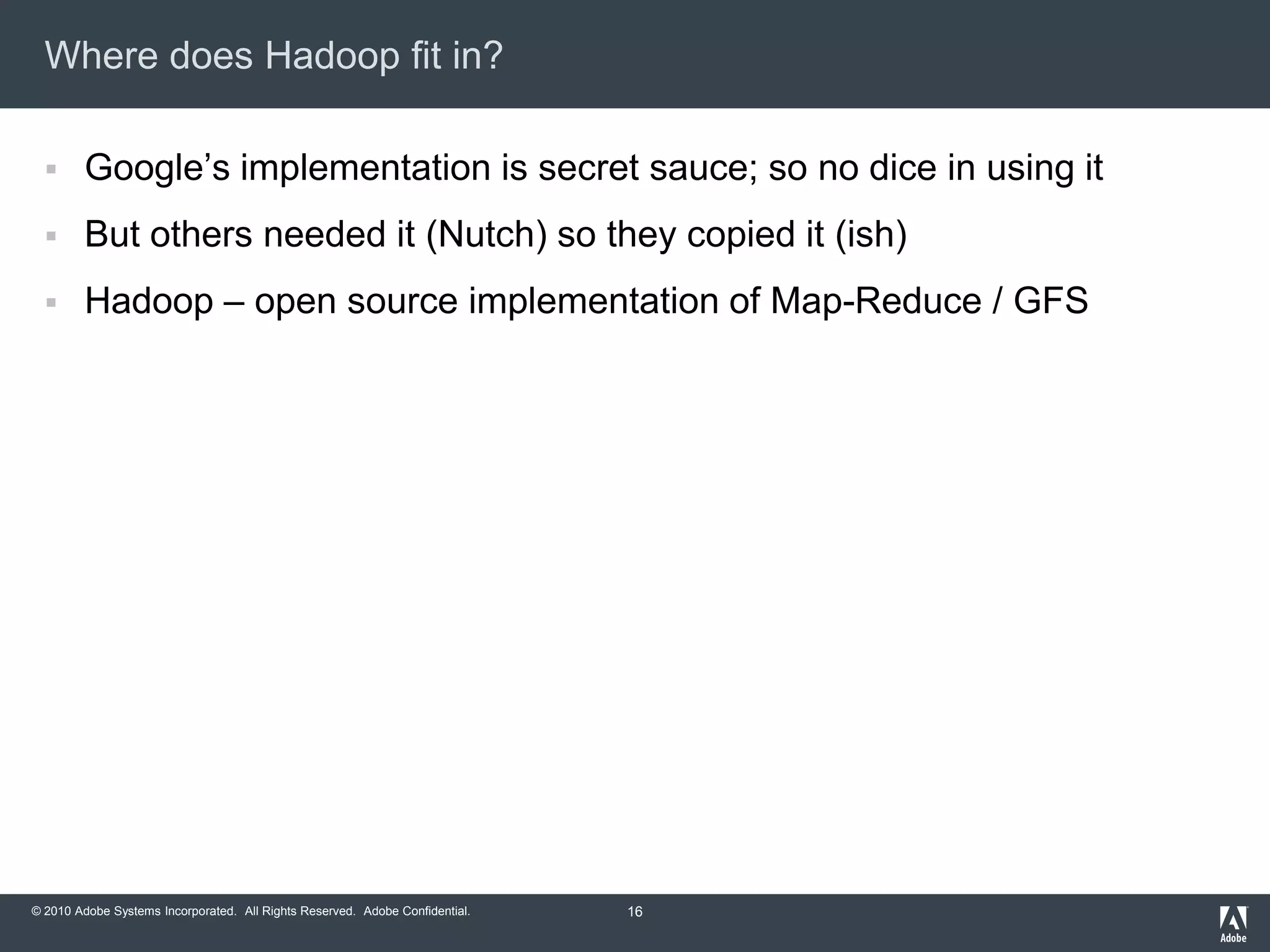

19. Where does Hadoop fit in?Google’s implementation is secret sauce; so no dice in using itBut others needed it (Nutch) so they copied it (ish)Hadoop – open source implementation of Map-Reduce / GFS16

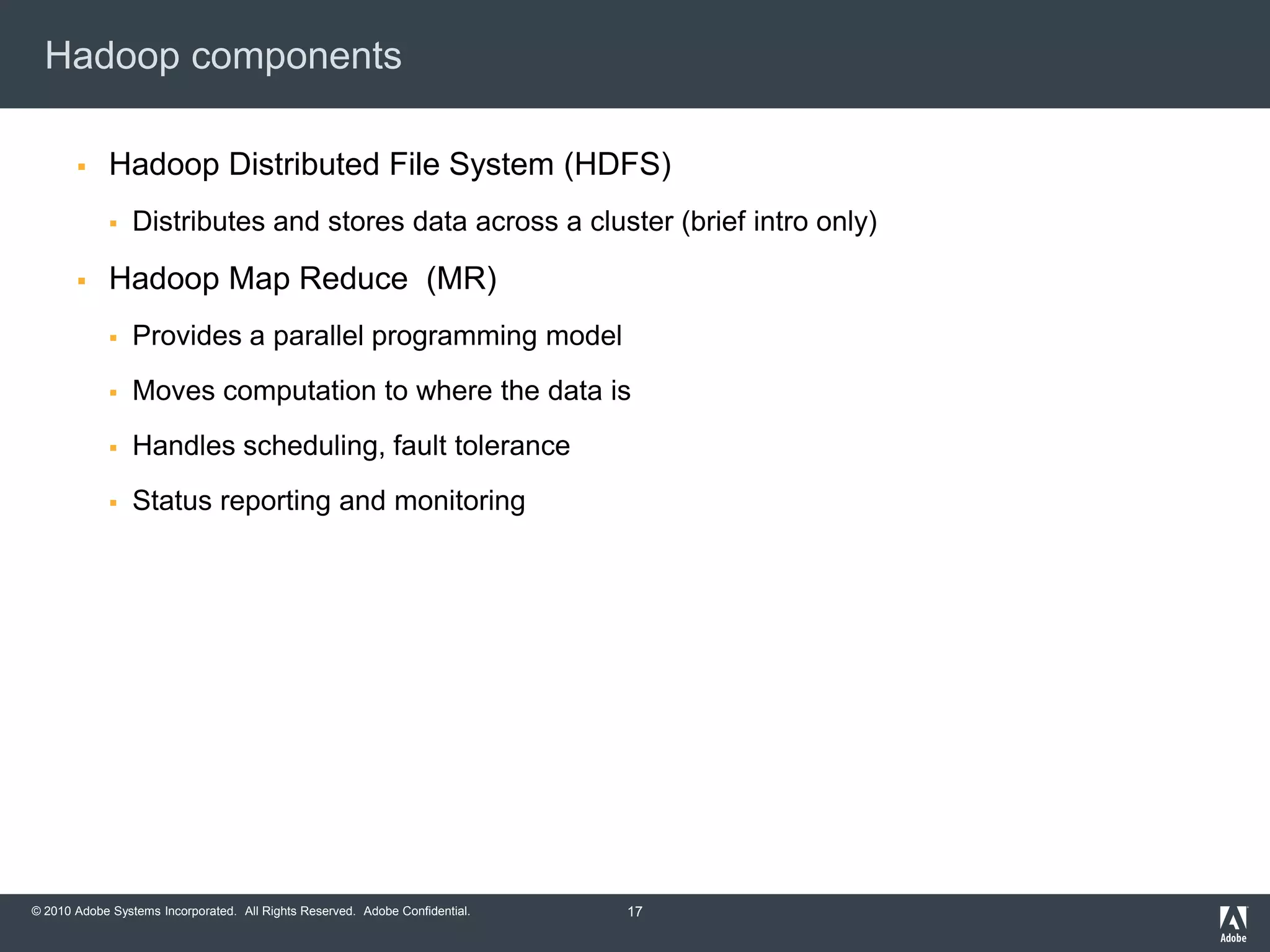

20. Hadoop componentsHadoop Distributed File System (HDFS)Distributes and stores data across a cluster (brief intro only)Hadoop Map Reduce (MR)Provides a parallel programming modelMoves computation to where the data isHandles scheduling, fault toleranceStatus reporting and monitoring17

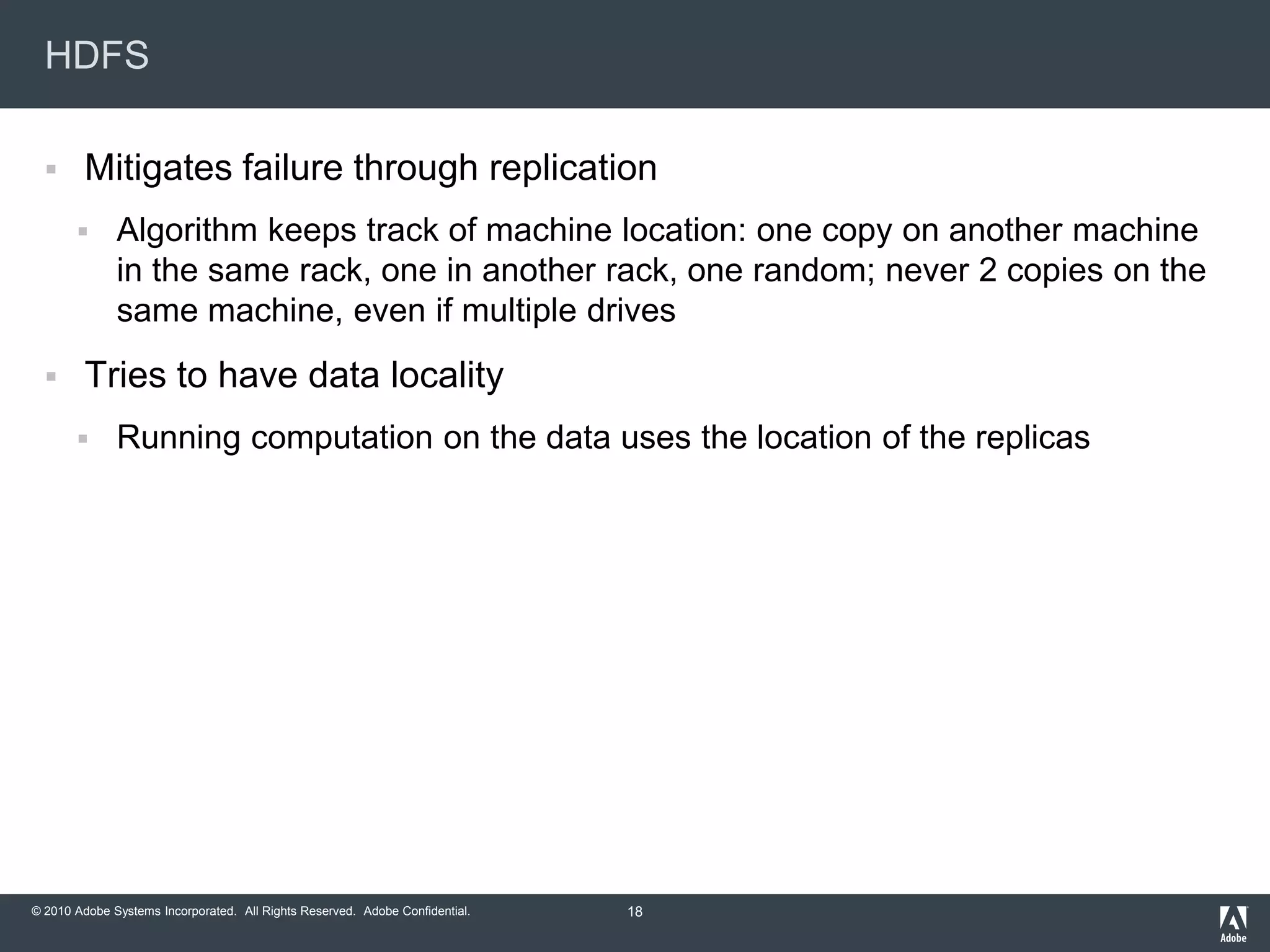

21. HDFSMitigates failure through replicationAlgorithm keeps track of machine location: one copy on another machine in the same rack, one in another rack, one random; never 2 copies on the same machine, even if multiple drivesTries to have data localityRunning computation on the data uses the location of the replicas18

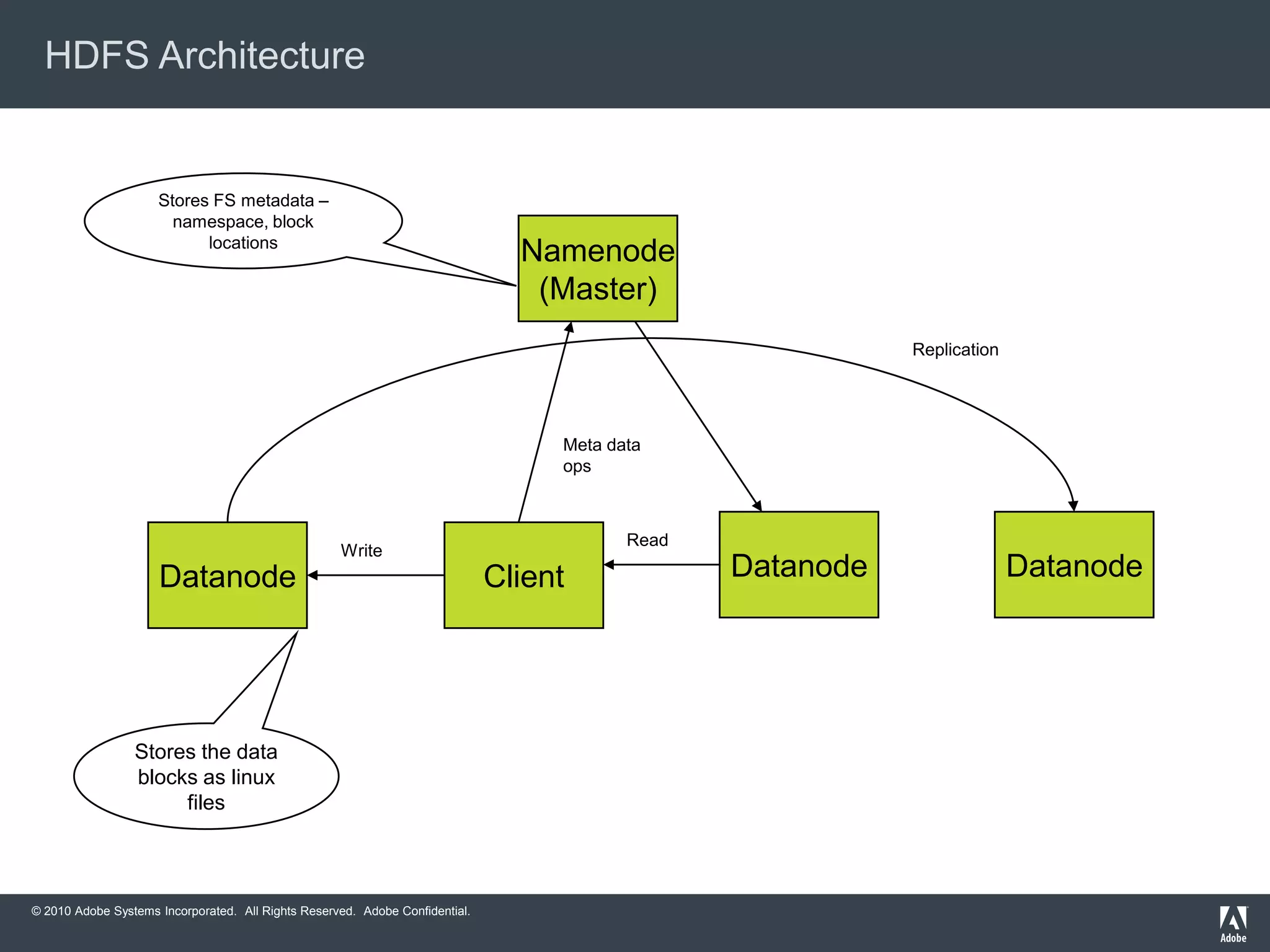

22. HDFS ArchitectureStores FS metadata – namespace, block locationsNamenode(Master)ReplicationMeta data opsDatanodeDatanodeClientDatanodeReadWriteStores the data blocks as linux files19

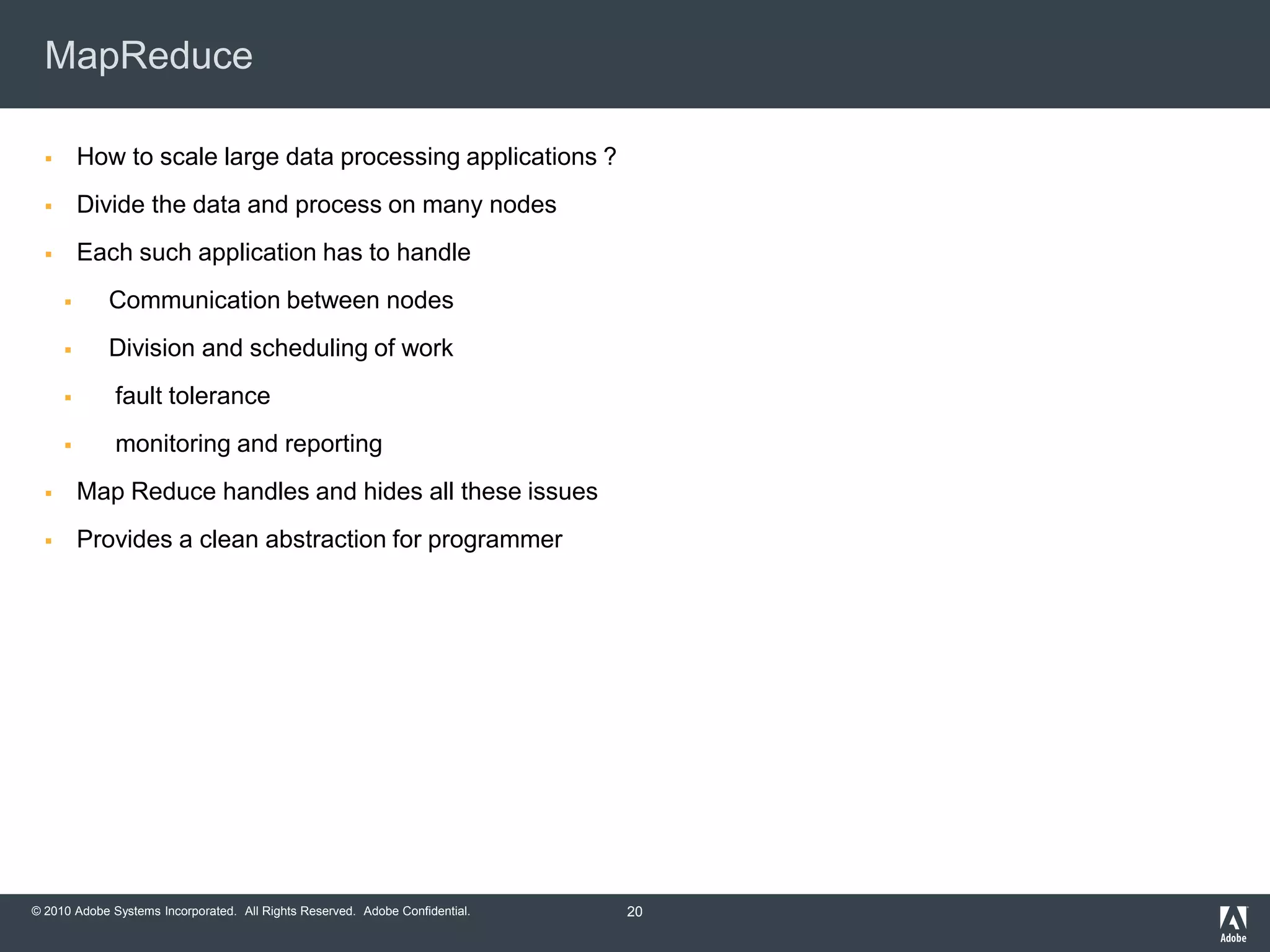

23. MapReduceHow to scale large data processing applications ?Divide the data and process on many nodesEach such application has to handleCommunication between nodesDivision and scheduling of work fault tolerance monitoring and reportingMap Reduce handles and hides all these issuesProvides a clean abstraction for programmer20

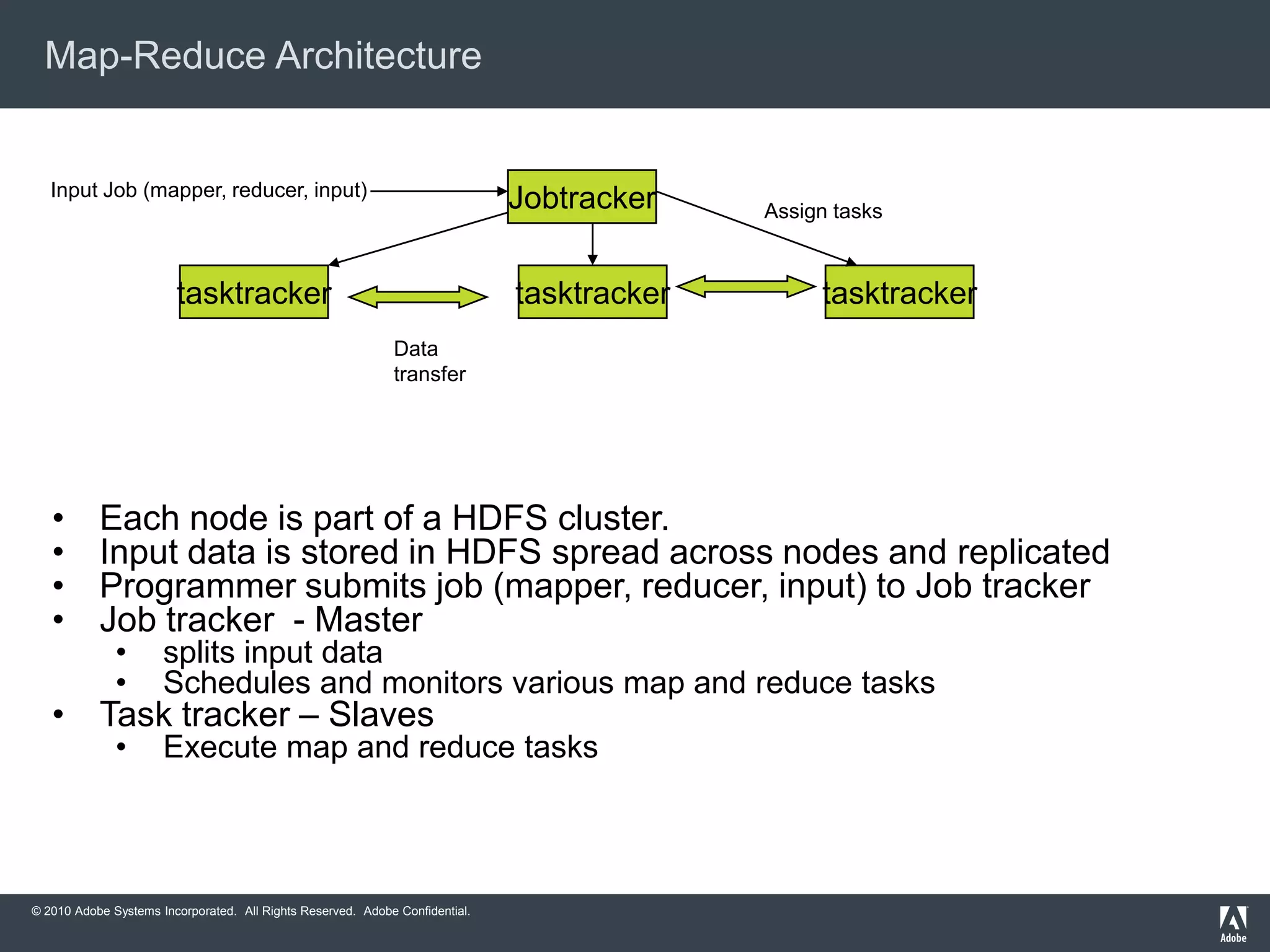

24. Map-Reduce ArchitectureJobtrackerInput Job (mapper, reducer, input)Assign taskstasktrackertasktrackertasktrackerData transferEach node is part of a HDFS cluster.

25. Input data is stored in HDFS spread across nodes and replicated

26. Programmer submits job (mapper, reducer, input) to Job tracker

27. Job tracker - Master

28. splits input data

29. Schedules and monitors various map and reduce tasks

30. Task tracker – Slaves

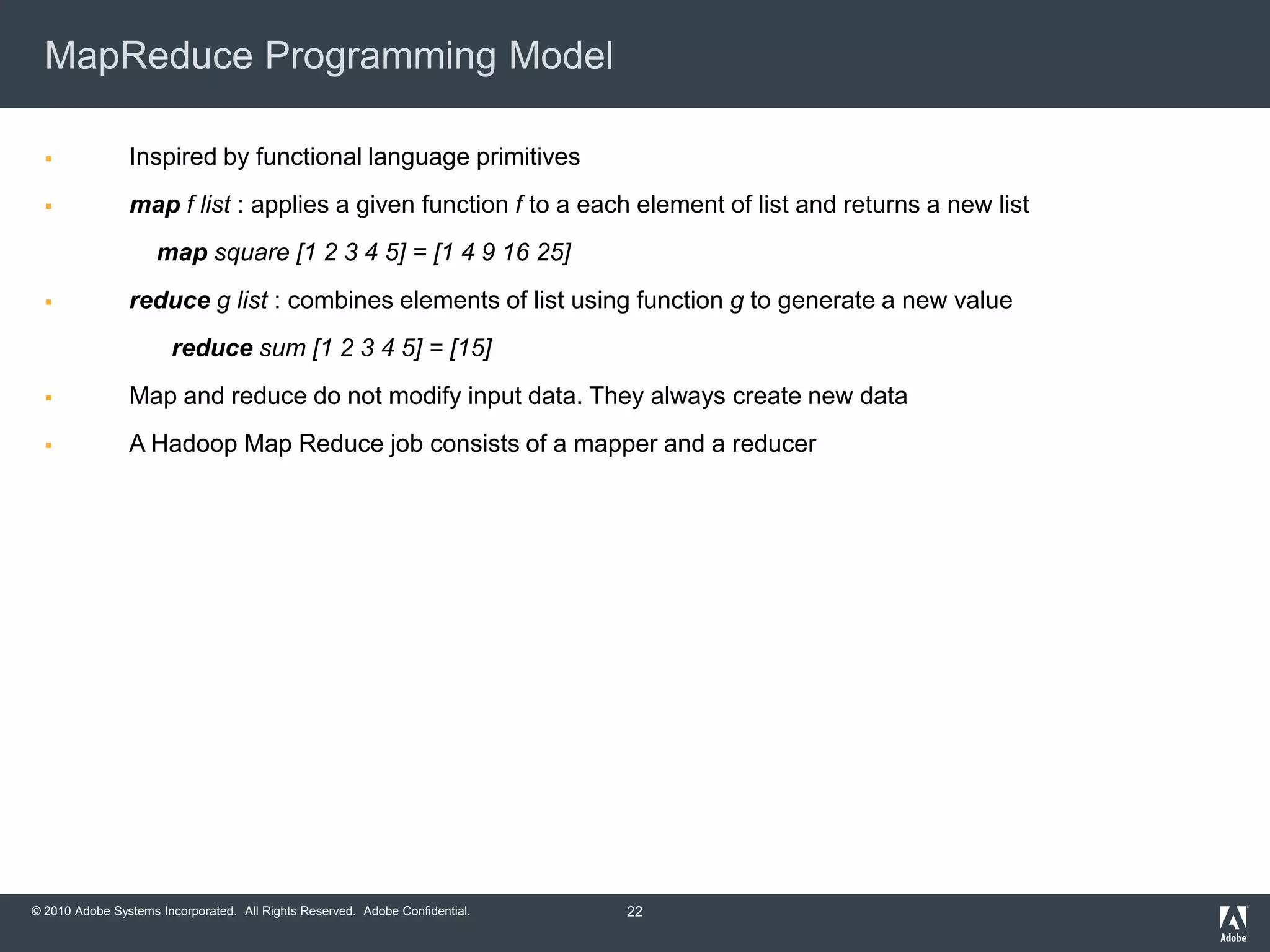

31. Execute map and reduce tasksMapReduce Programming ModelInspired by functional language primitivesmap f list : applies a given function f to a each element of list and returns a new list map square [1 2 3 4 5] = [1 4 9 16 25]reduce g list : combines elements of list using function g to generate a new value reduce sum [1 2 3 4 5] = [15]Map and reduce do not modify input data. They always create new data A Hadoop Map Reduce job consists of a mapper and a reducer22

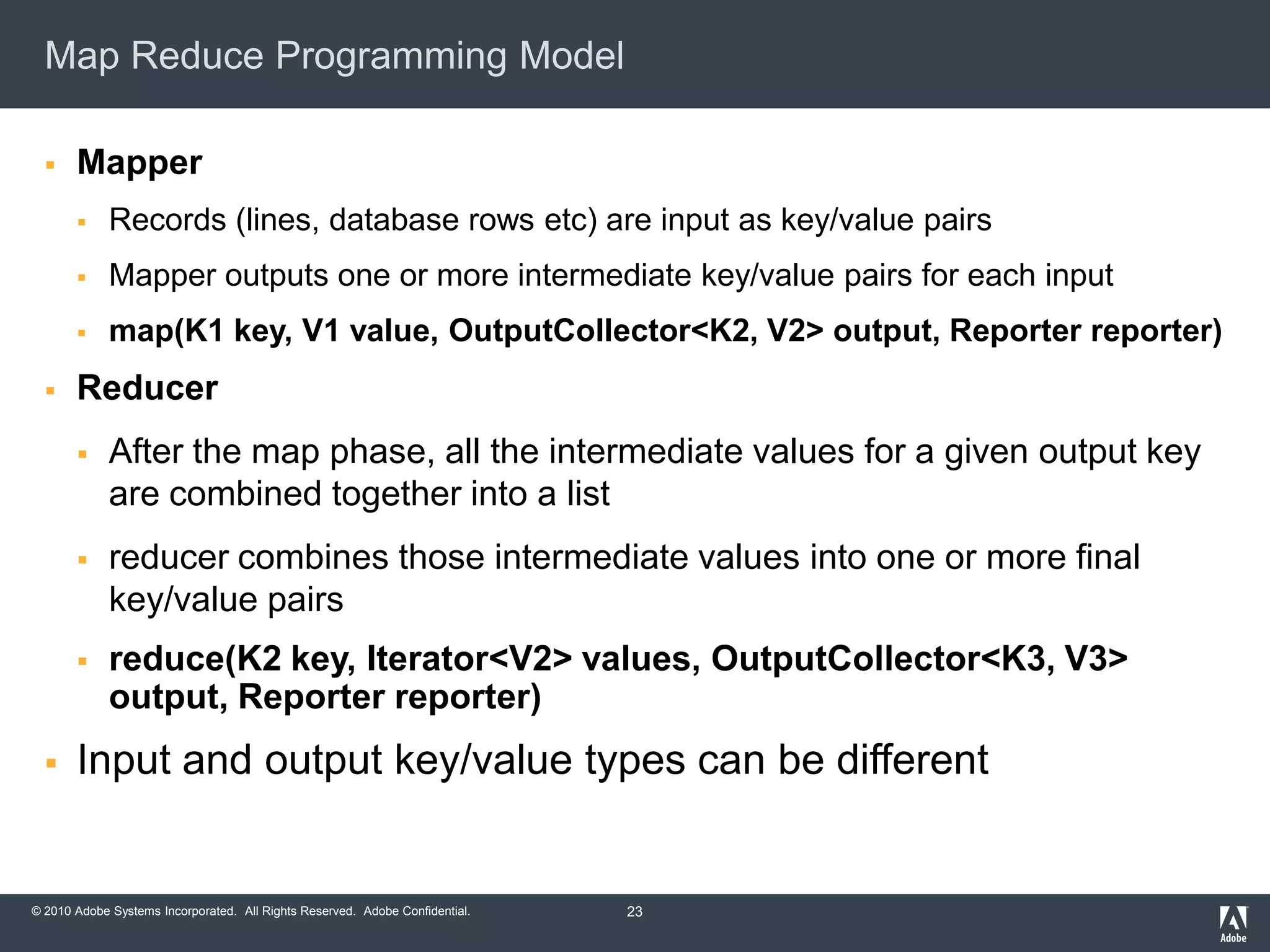

32. Map Reduce Programming ModelMapperRecords (lines, database rows etc) are input as key/value pairs Mapper outputs one or more intermediate key/value pairs for each inputmap(K1 key, V1 value, OutputCollector<K2, V2> output, Reporter reporter)ReducerAfter the map phase, all the intermediate values for a given output key are combined together into a listreducer combines those intermediate values into one or more final key/value pairsreduce(K2 key, Iterator<V2> values, OutputCollector<K3, V3> output, Reporter reporter)Input and output key/value types can be different23

33. Map Reduce Programming ModelMapperRecords (lines, database rows etc) are input as key/value pairs Mapper outputs one or more intermediate key/value pairs for each inputmap(K1 key, V1 value, OutputCollector<K2, V2> output, Reporter reporter)ReducerAfter the map phase, all the intermediate values for a given output key are combined together into a listreducer combines those intermediate values into one or more final key/value pairsreduce(K2 key, Iterator<V2> values, OutputCollector<K3, V3> output, Reporter reporter)Input and output key/value types can be different24

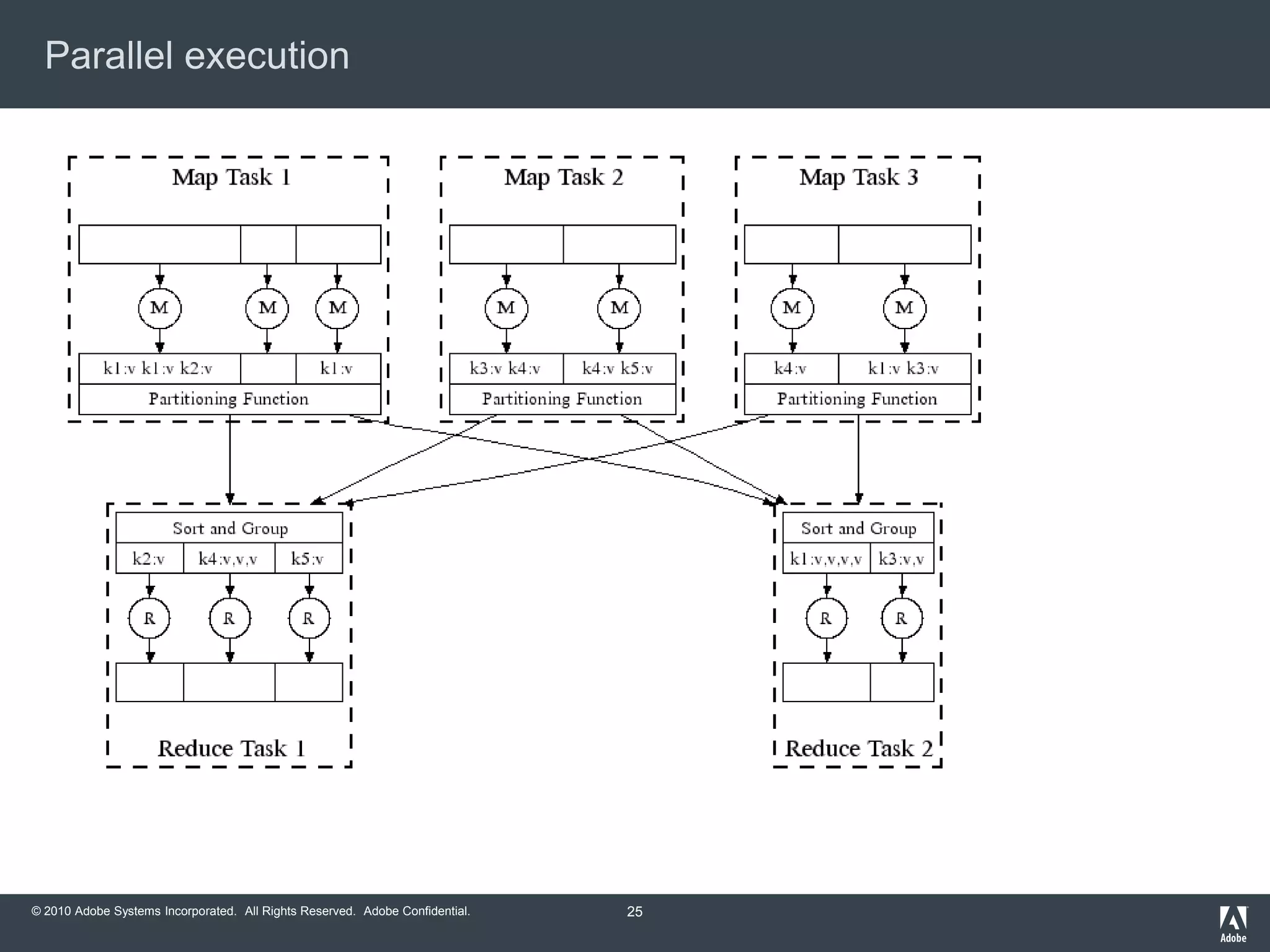

34. Parallel execution25

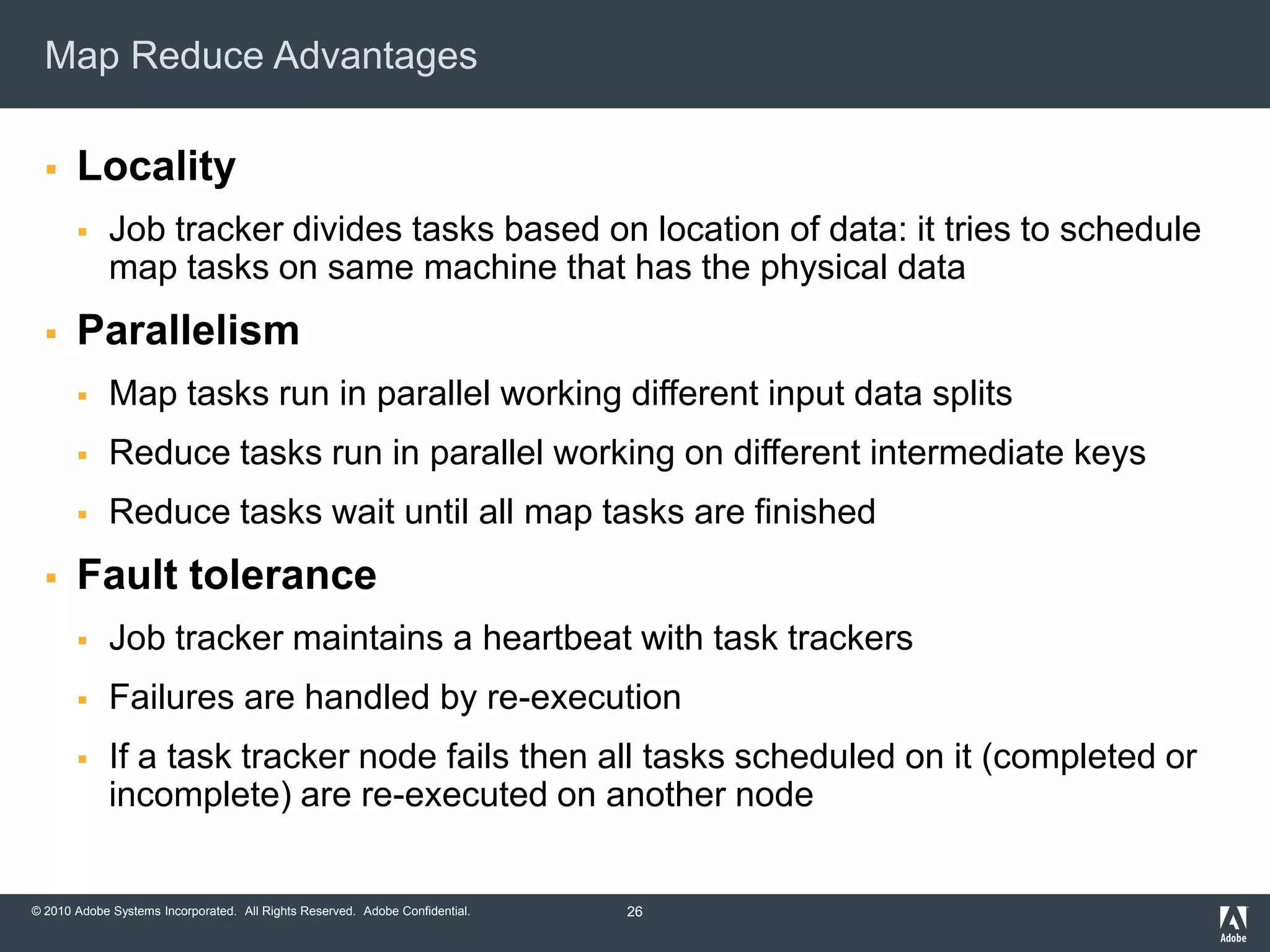

35. Map Reduce AdvantagesLocalityJob tracker divides tasks based on location of data: it tries to schedule map tasks on same machine that has the physical dataParallelismMap tasks run in parallel working different input data splitsReduce tasks run in parallel working on different intermediate keysReduce tasks wait until all map tasks are finishedFault toleranceJob tracker maintains a heartbeat with task trackersFailures are handled by re-executionIf a task tracker node fails then all tasks scheduled on it (completed or incomplete) are re-executed on another node26

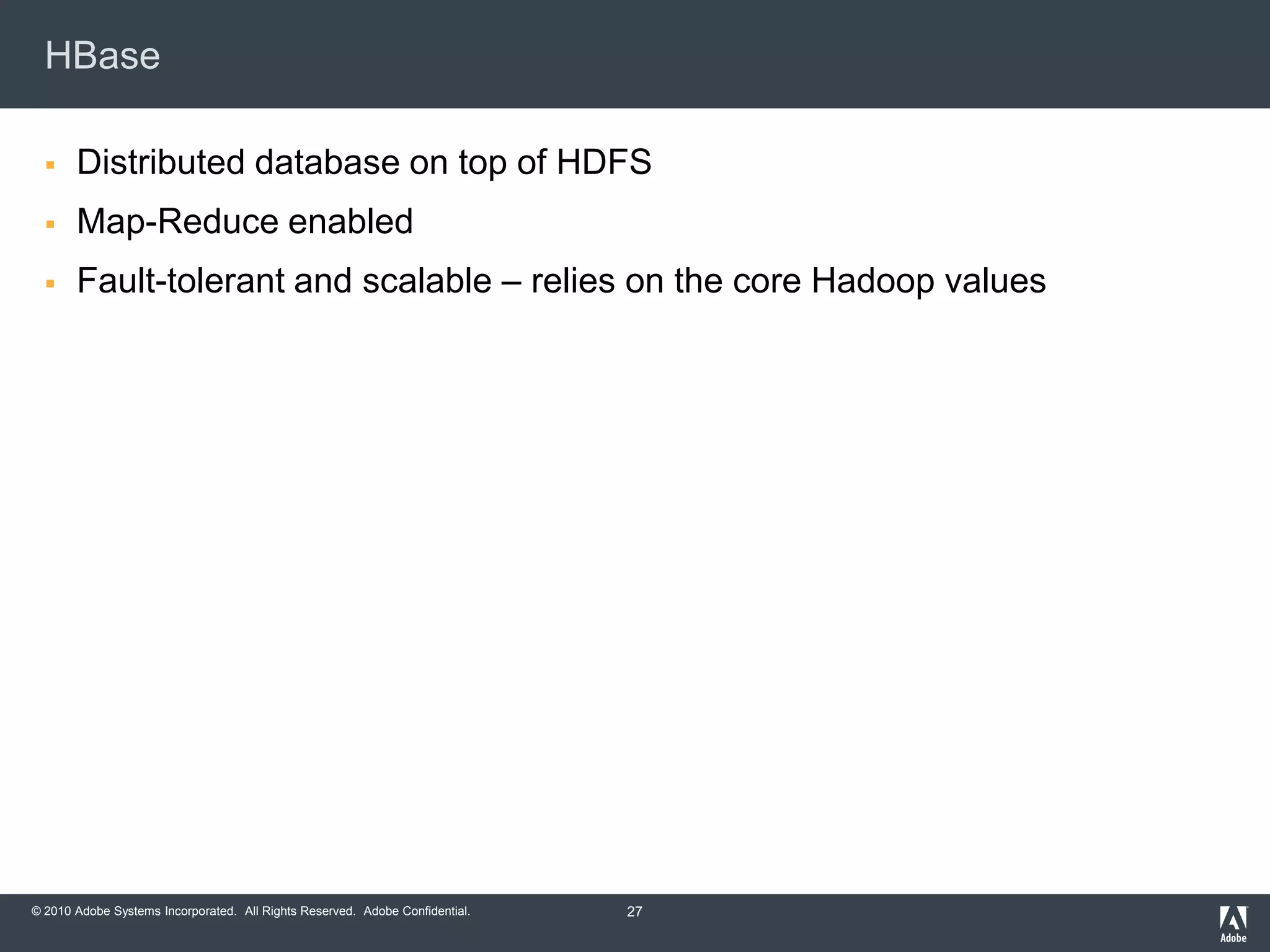

36. HBaseDistributed database on top of HDFSMap-Reduce enabledFault-tolerant and scalable – relies on the core Hadoop values27

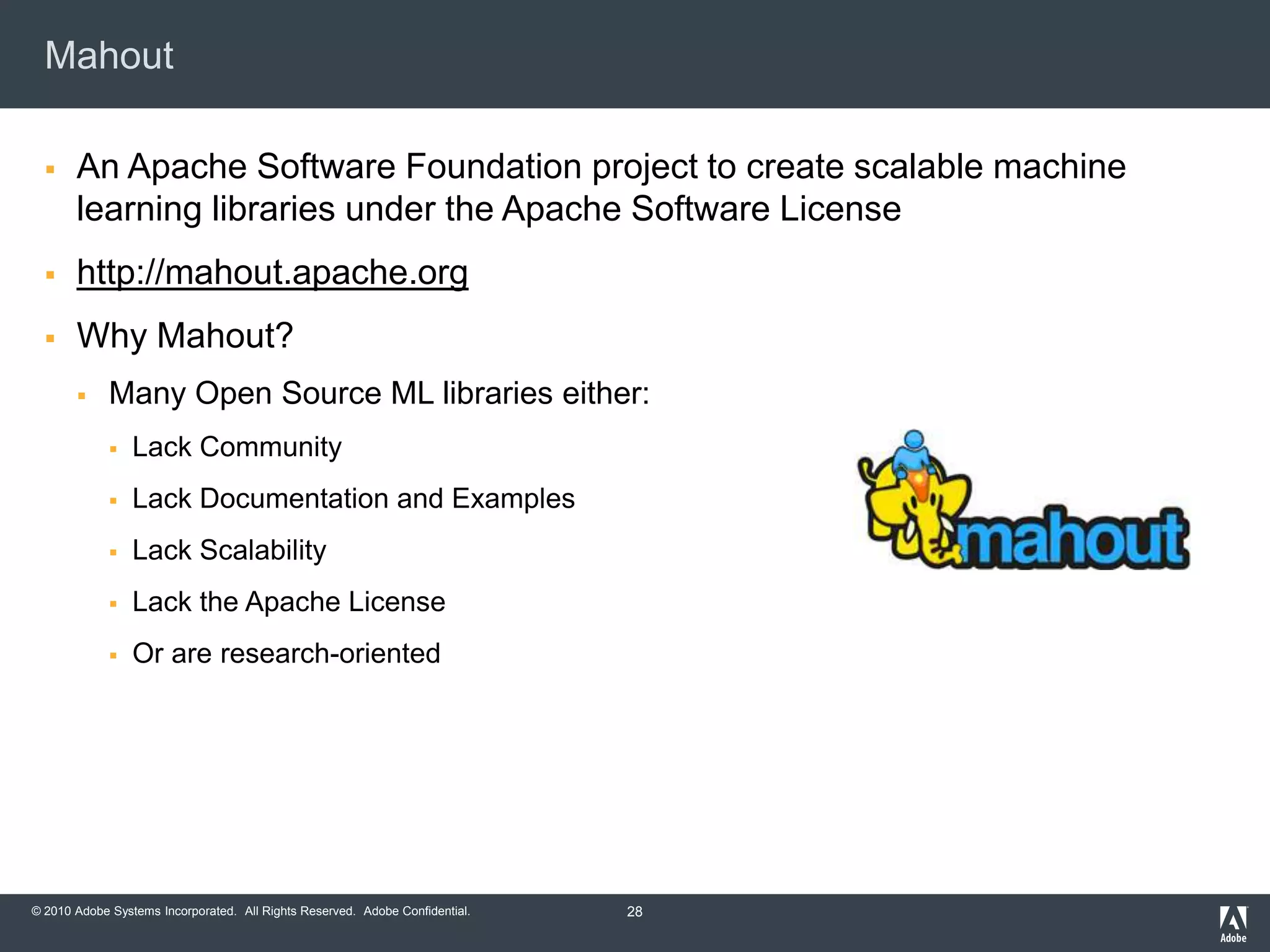

37. MahoutAn Apache Software Foundation project to create scalable machine learning libraries under the Apache Software Licensehttp://mahout.apache.orgWhy Mahout?Many Open Source ML libraries either:Lack CommunityLack Documentation and ExamplesLack ScalabilityLack the Apache LicenseOr are research-oriented28

38. Machine learning?29Amazon.comGoogle News

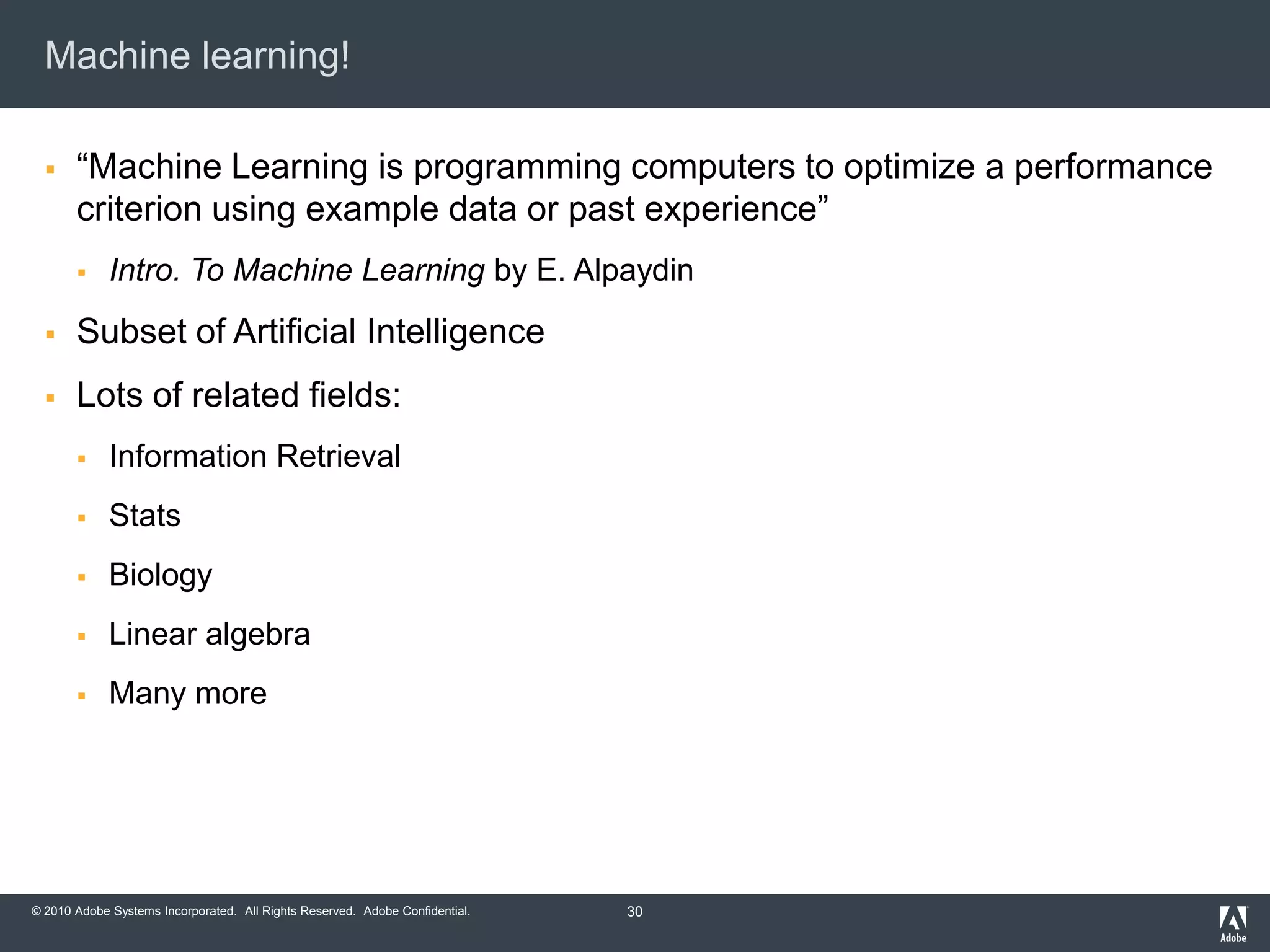

39. Machine learning!“Machine Learning is programming computers to optimize a performance criterion using example data or past experience”Intro. To Machine Learning by E. AlpaydinSubset of Artificial IntelligenceLots of related fields:Information RetrievalStatsBiologyLinear algebraMany more30

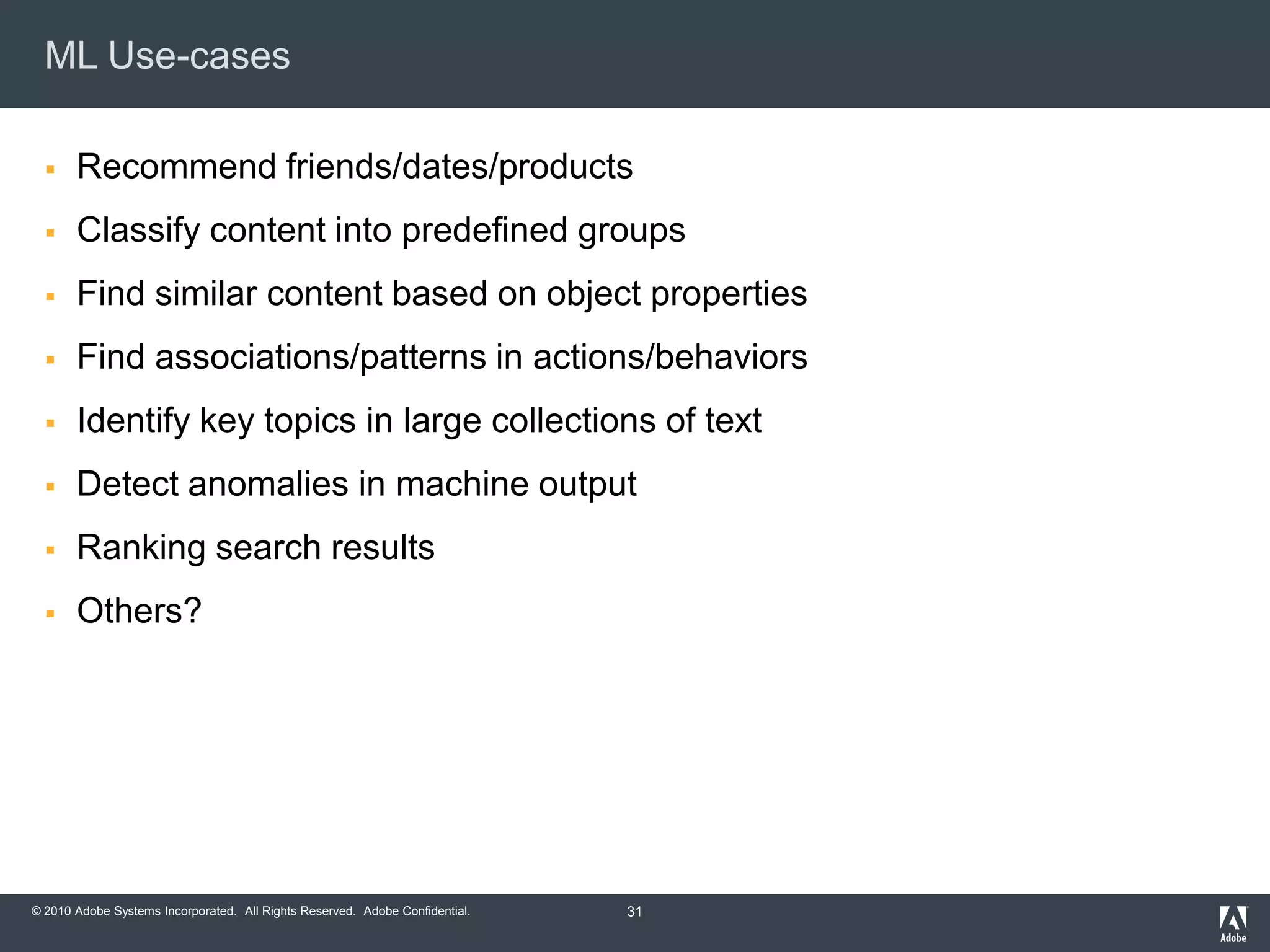

40. ML Use-casesRecommend friends/dates/productsClassify content into predefined groupsFind similar content based on object propertiesFind associations/patterns in actions/behaviorsIdentify key topics in large collections of textDetect anomalies in machine outputRanking search resultsOthers?31

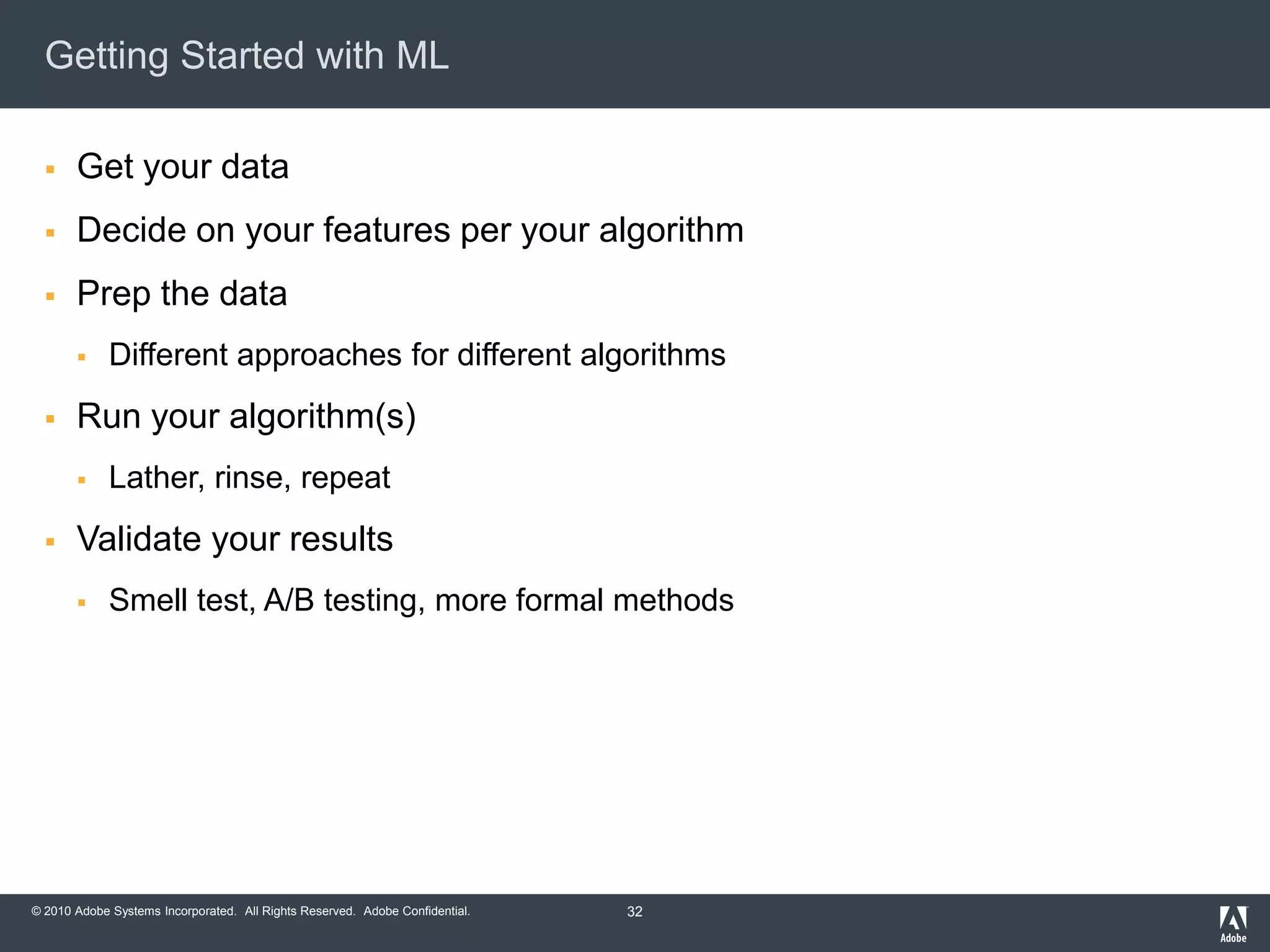

41. Getting Started with MLGet your dataDecide on your features per your algorithmPrep the dataDifferent approaches for different algorithmsRun your algorithm(s)Lather, rinse, repeatValidate your resultsSmell test, A/B testing, more formal methods32

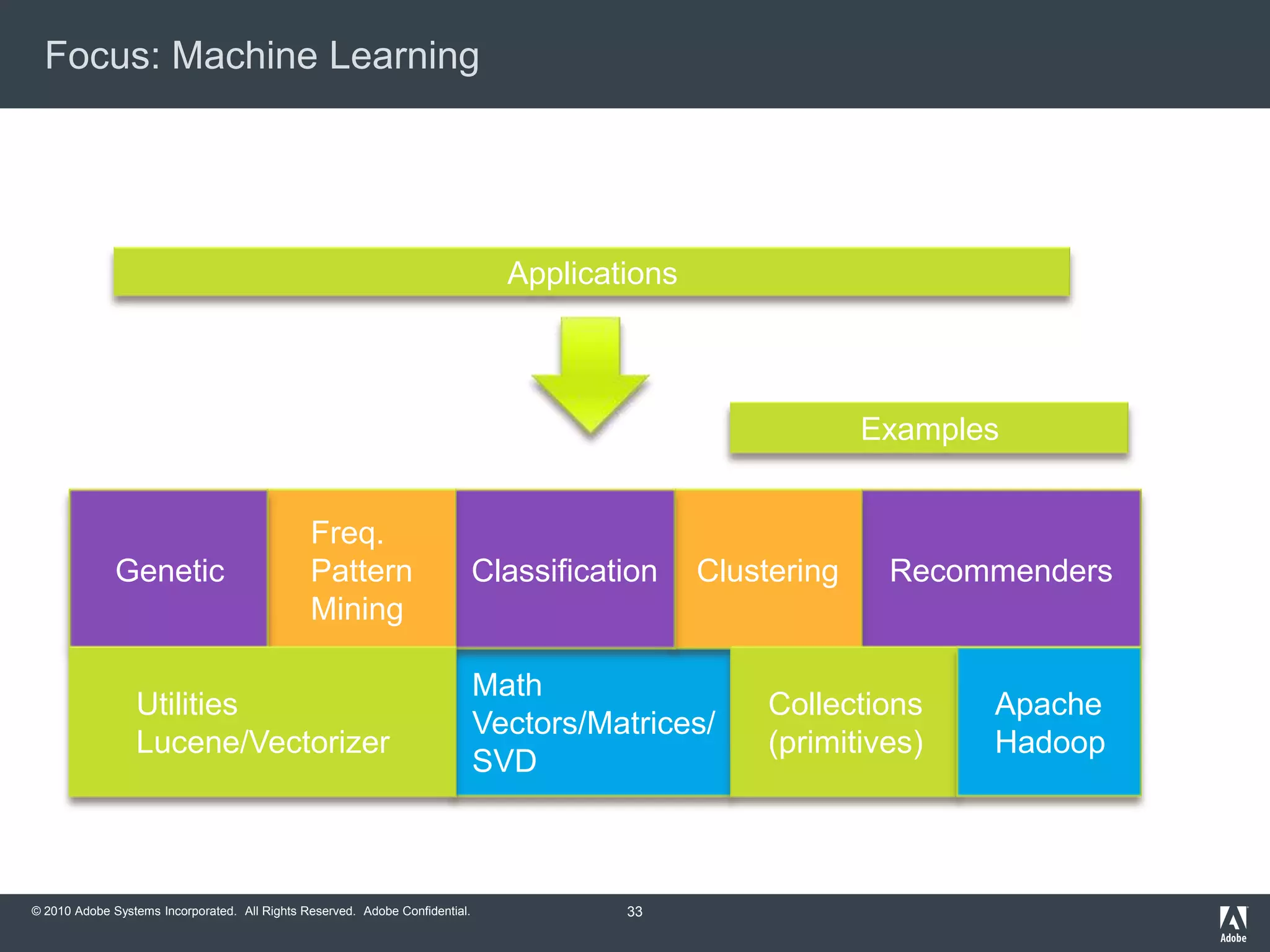

42. Focus: Machine Learning33ApplicationsExamplesRecommendersClusteringClassificationFreq. PatternMiningGeneticMathVectors/Matrices/SVDUtilitiesLucene/VectorizerCollections (primitives)Apache Hadoop

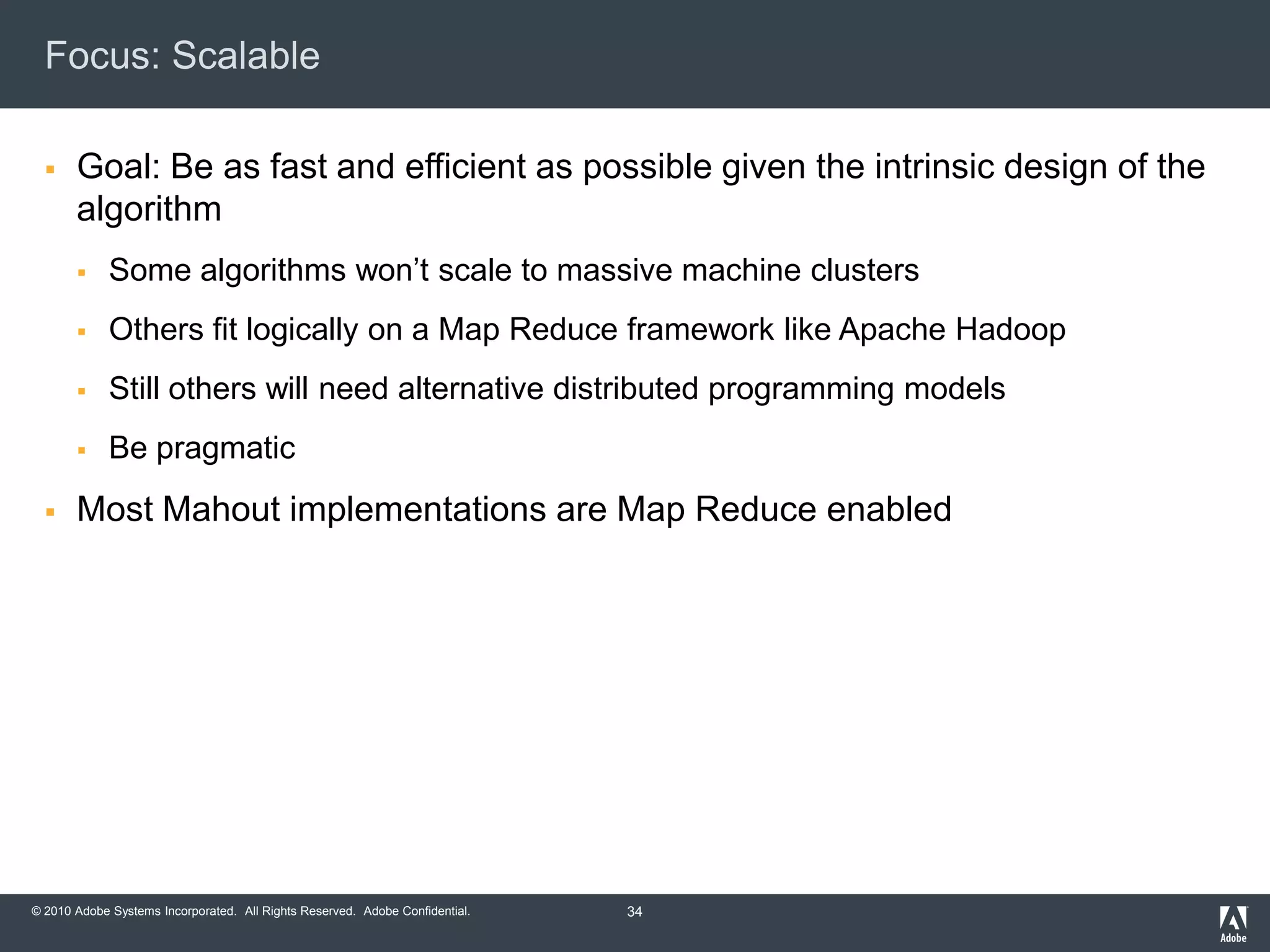

43. Focus: ScalableGoal: Be as fast and efficient as possible given the intrinsic design of the algorithmSome algorithms won’t scale to massive machine clustersOthers fit logically on a Map Reduce framework like Apache HadoopStill others will need alternative distributed programming modelsBe pragmaticMost Mahout implementations are Map Reduce enabled34

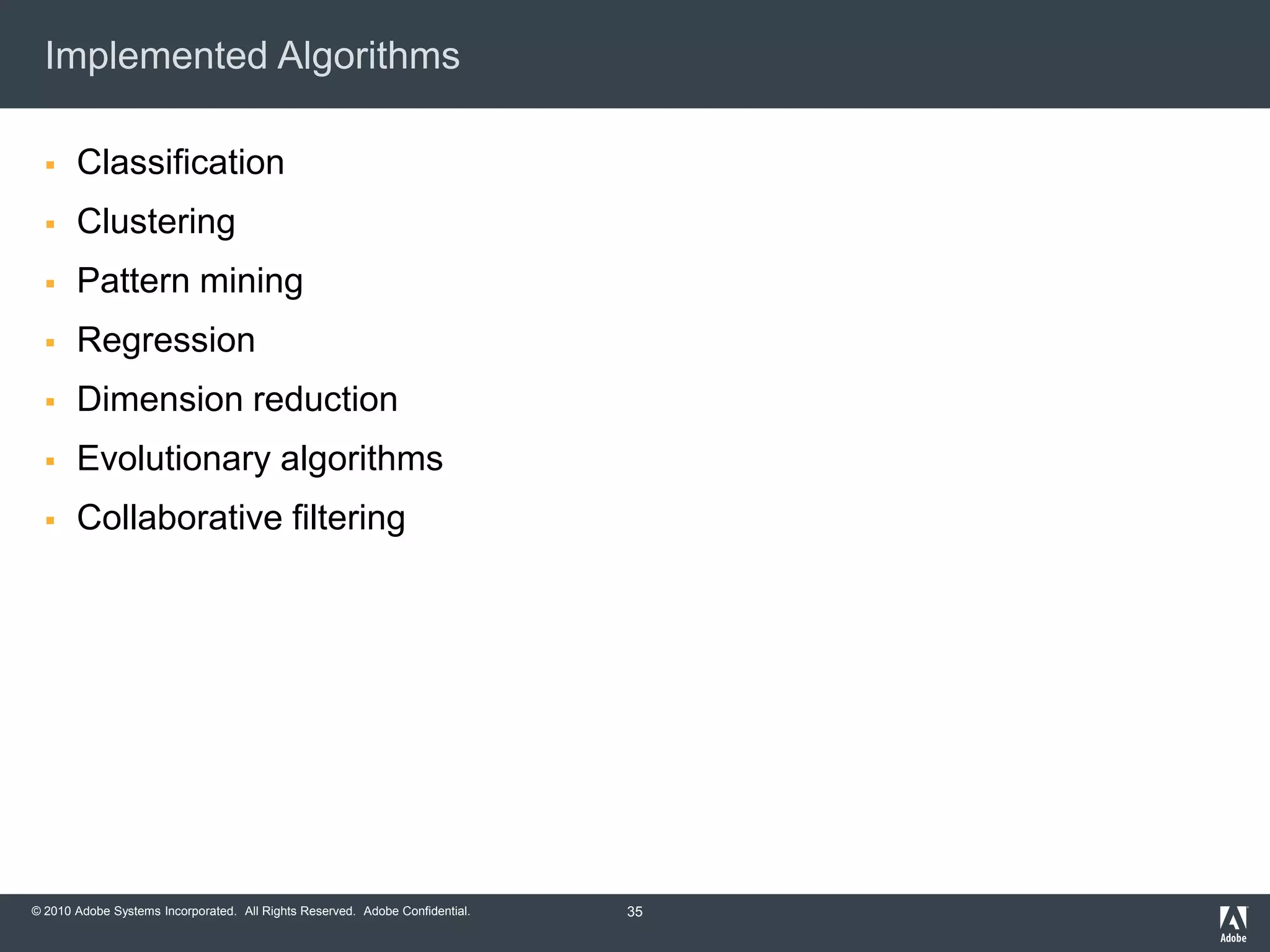

44. Implemented AlgorithmsClassificationClusteringPattern miningRegressionDimension reductionEvolutionary algorithmsCollaborative filtering35
