1. Distributed computing and
hyper-parameter tuning with Ray
Jan Margeta | |
November 17, 2018
jan@kardio.me @jmargeta

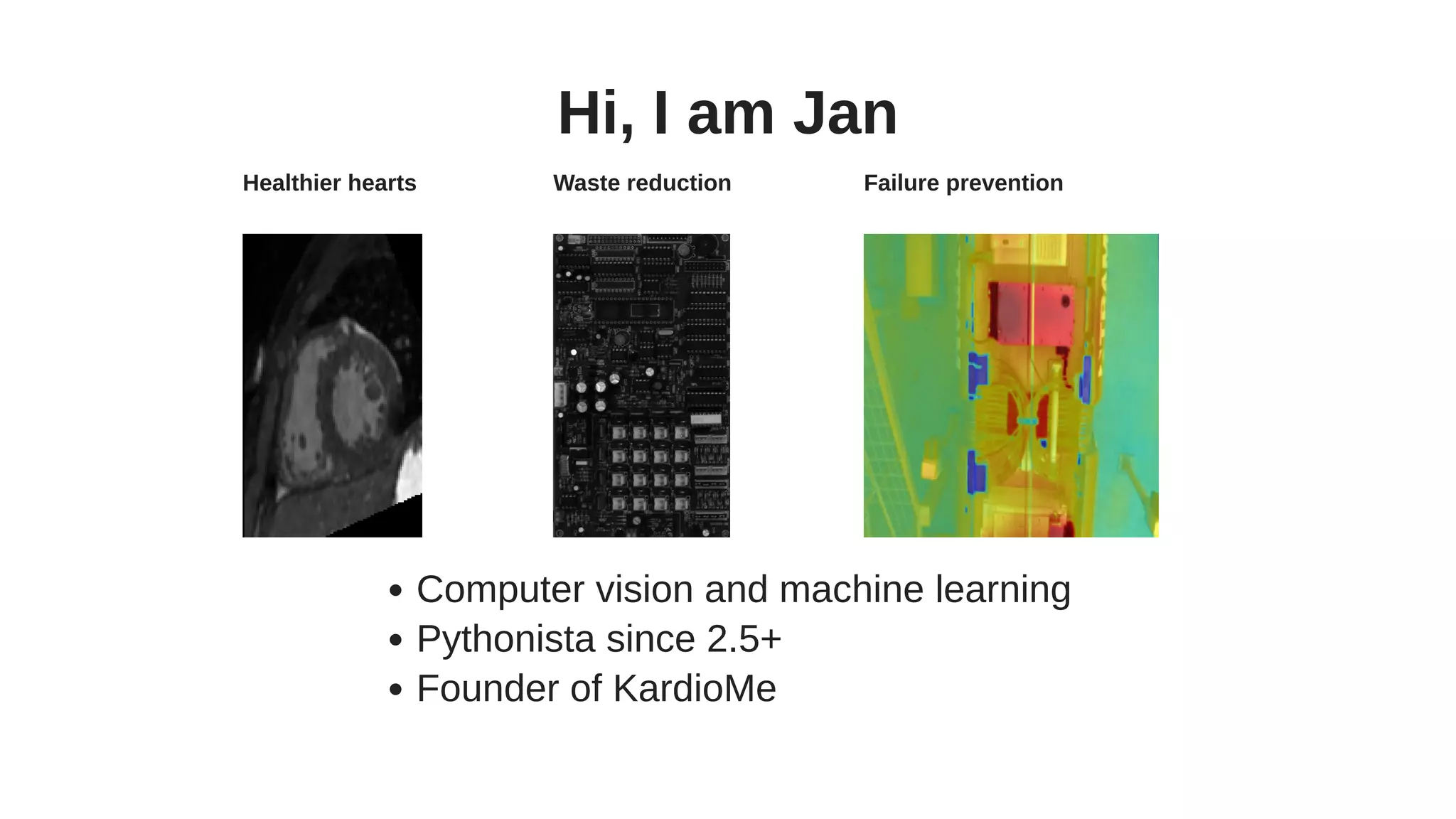

2. Healthier hearts Waste reduction Failure prevention
Hi, I am Jan
Computer vision and machine learning
Pythonista since 2.5+
Founder of KardioMe

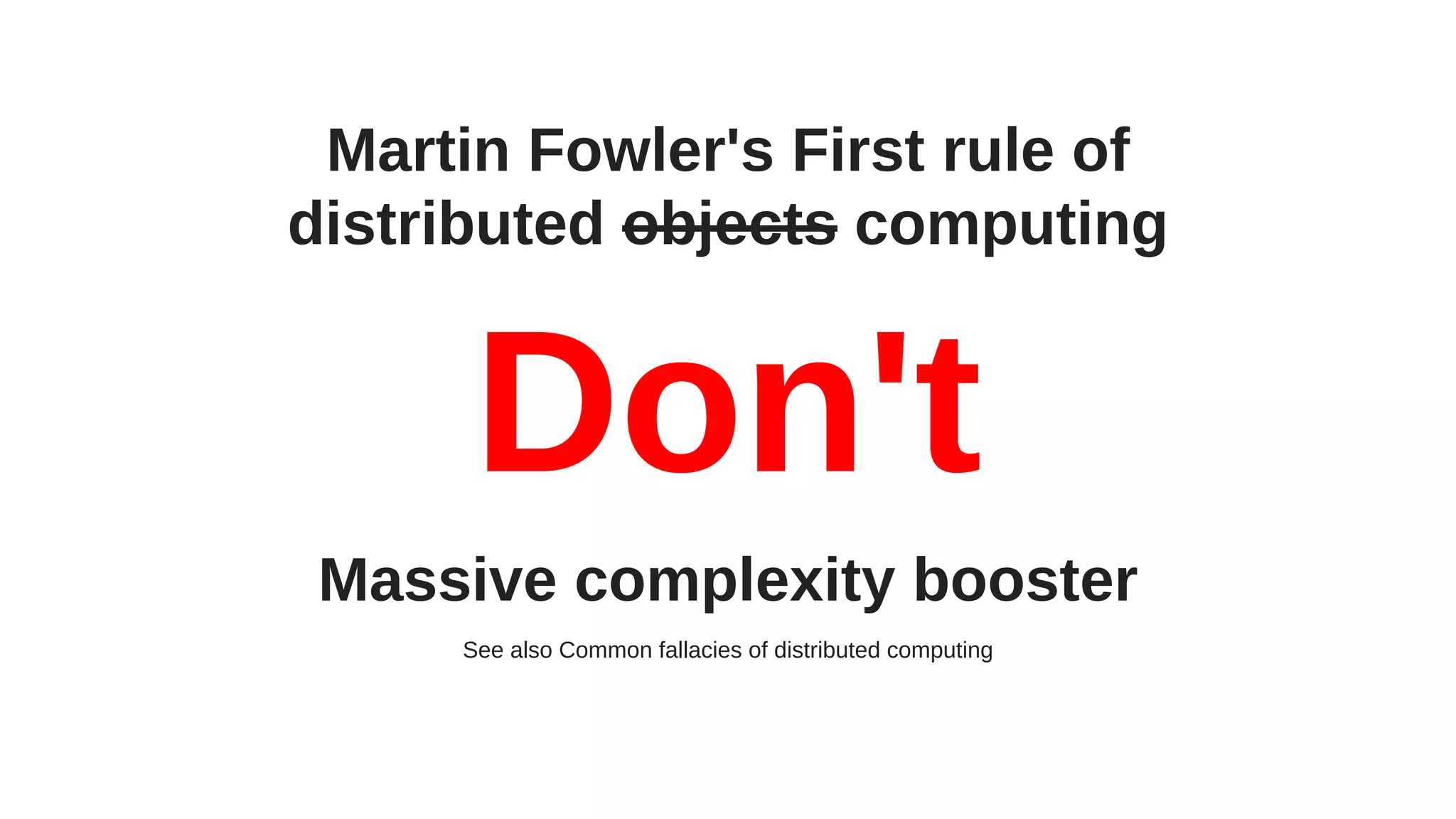

3. Martin Fowler's First rule of
distributed objects computing
Don't
Massive complexity booster
See also Common fallacies of distributed computing

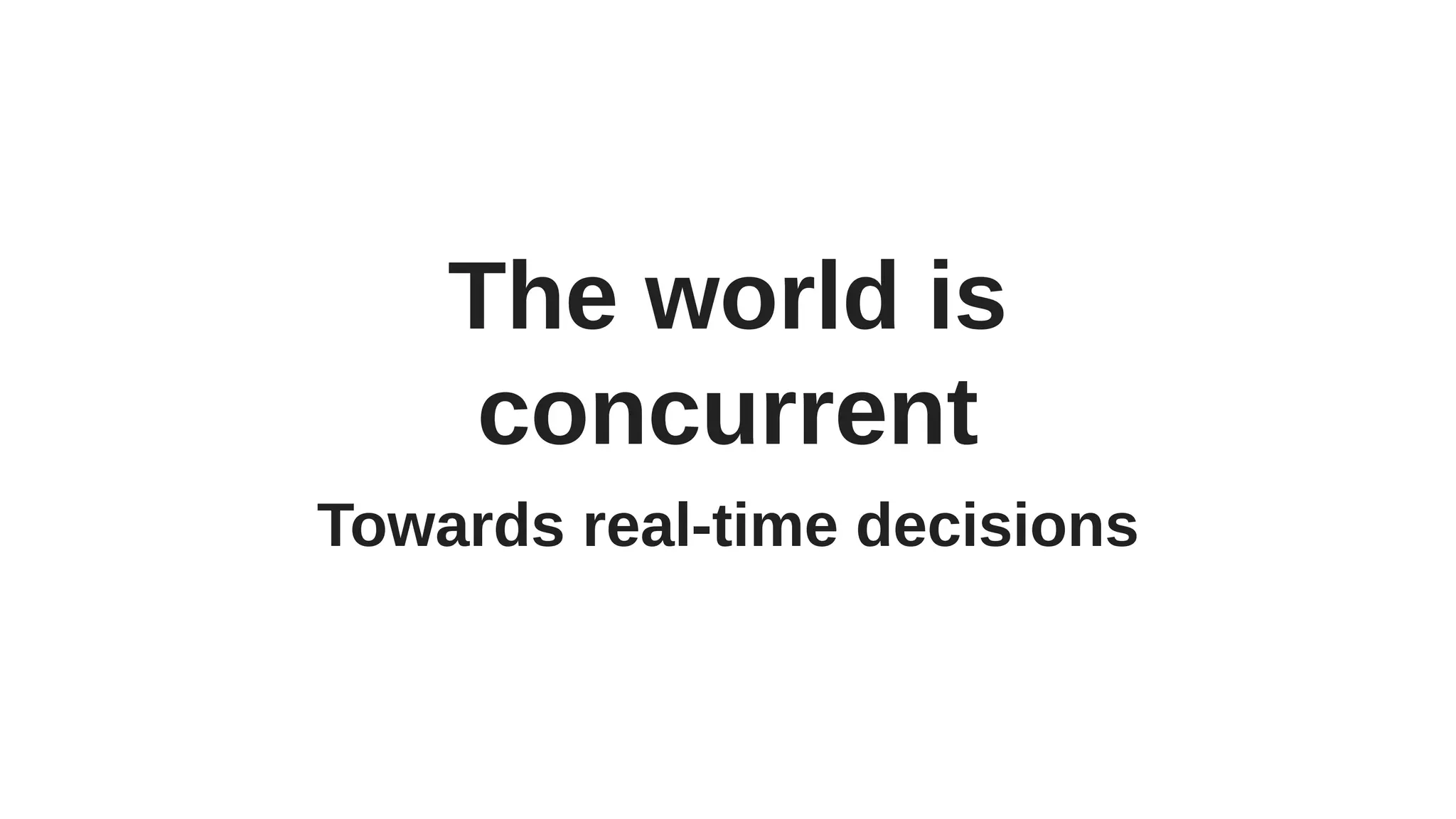

4. The world is
concurrent
Towards real-time decisions

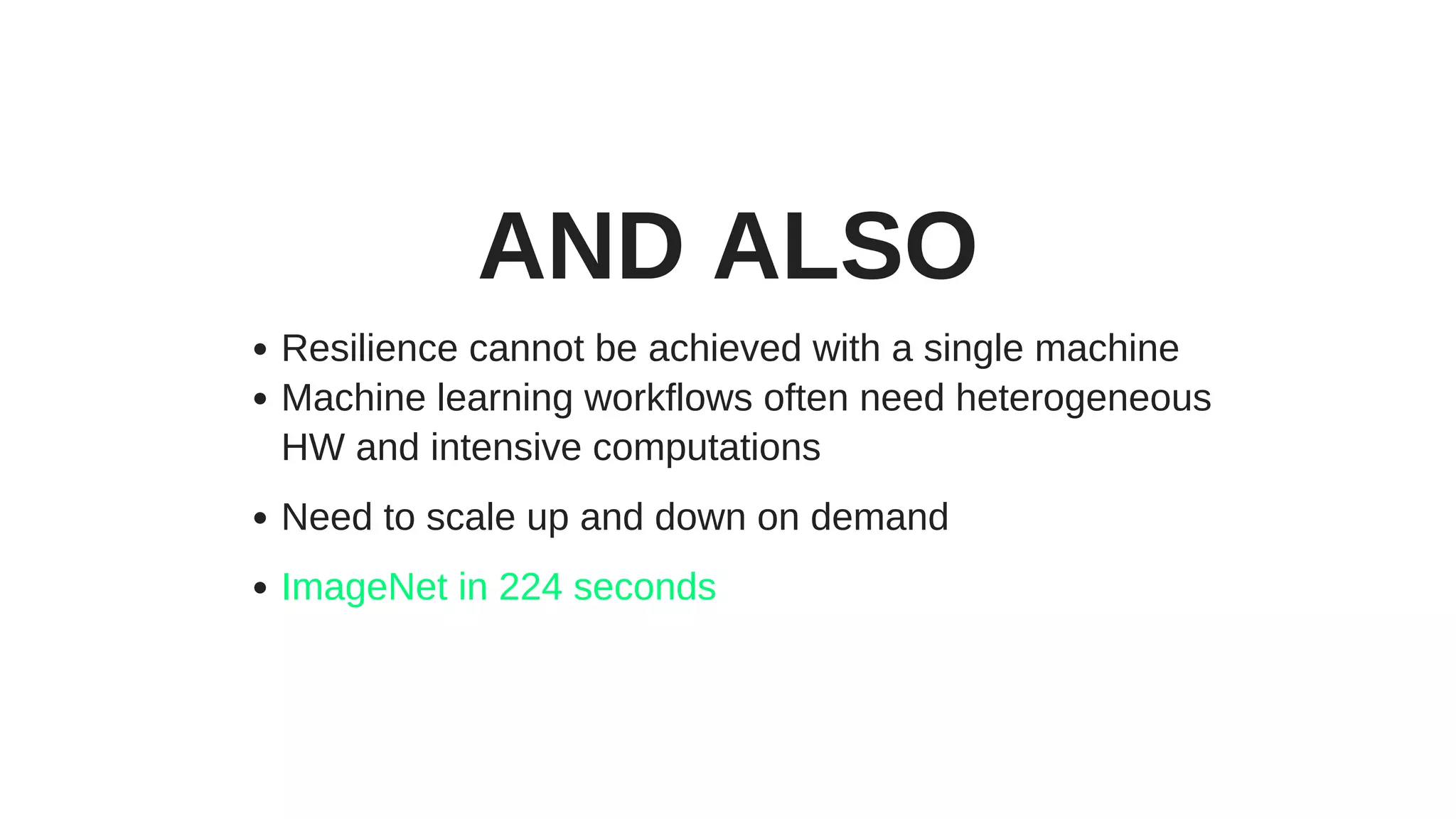

5. AND ALSO
Resilience cannot be achieved with a single machine
Machine learning workflows often need heterogeneous
HW and intensive computations
Need to scale up and down on demand
ImageNet in 224 seconds

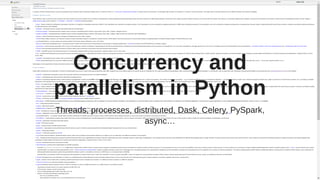

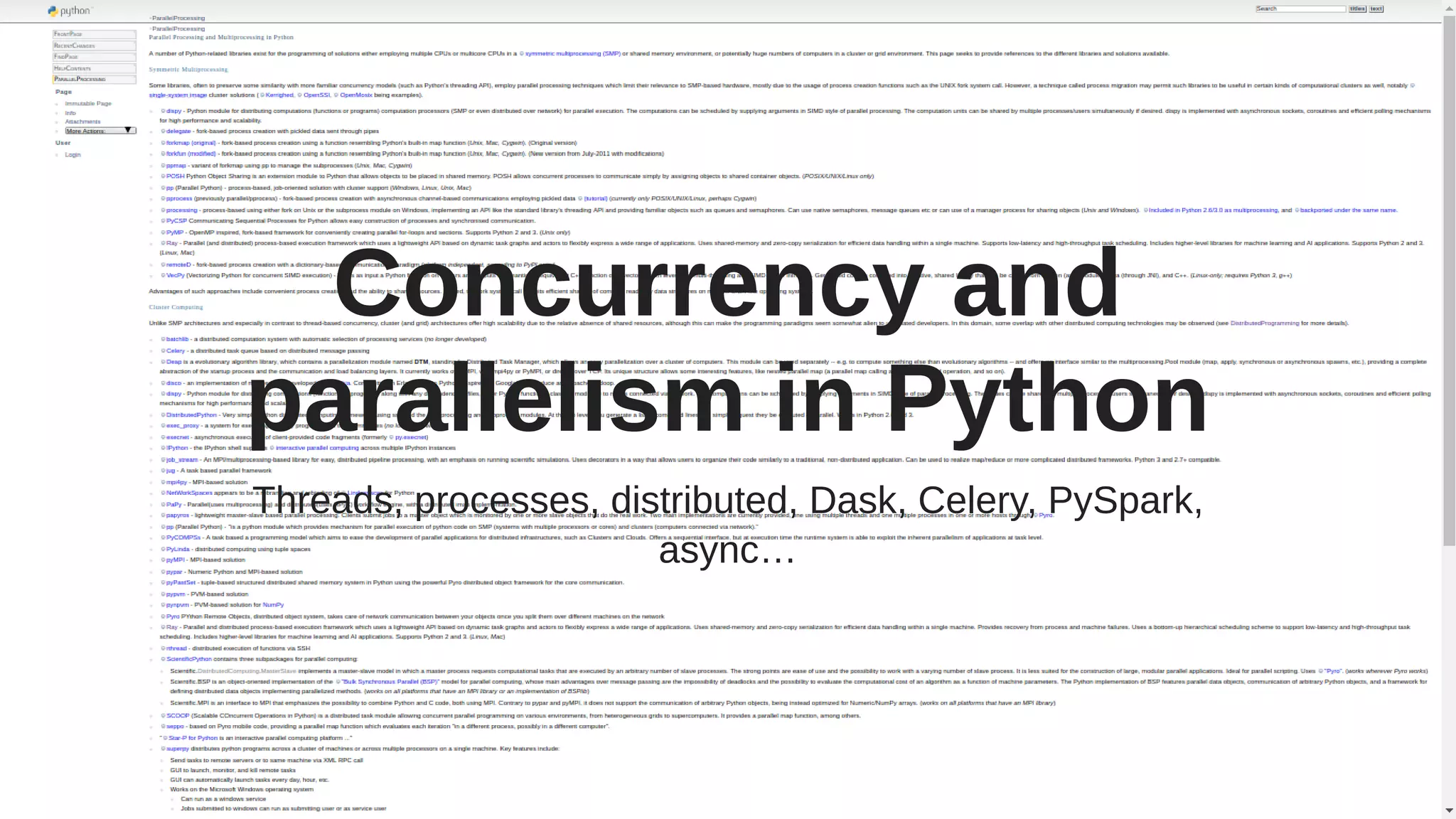

6. Concurrency and
parallelism in Python
Threads, processes, distributed, Dask, Celery, PySpark,
async…

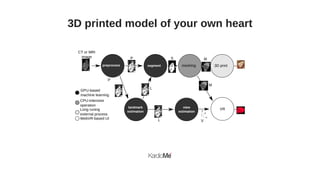

7. 3D printed model of your own heart
CT or MRI
segmentpreprocess
landmark
estimation
meshing
view
estimation
VR
L
L
P
P S
M
V
3D print
M
GPU-based
machine learning
CPU-intensive
operation
WebVR-based UI
-
Long runing
external process

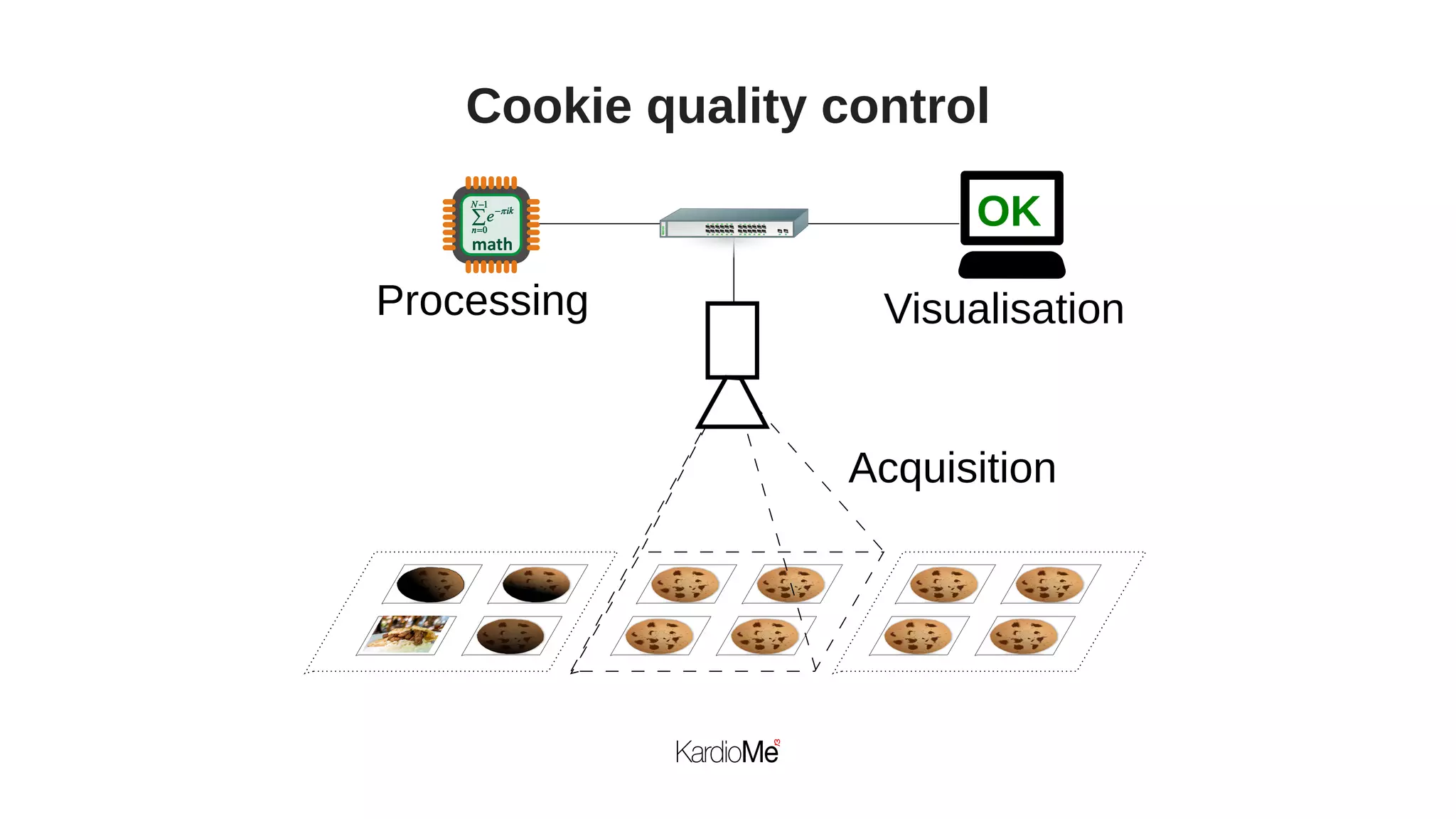

8. Cookie quality control
OK
Acquisition
VisualisationProcessing

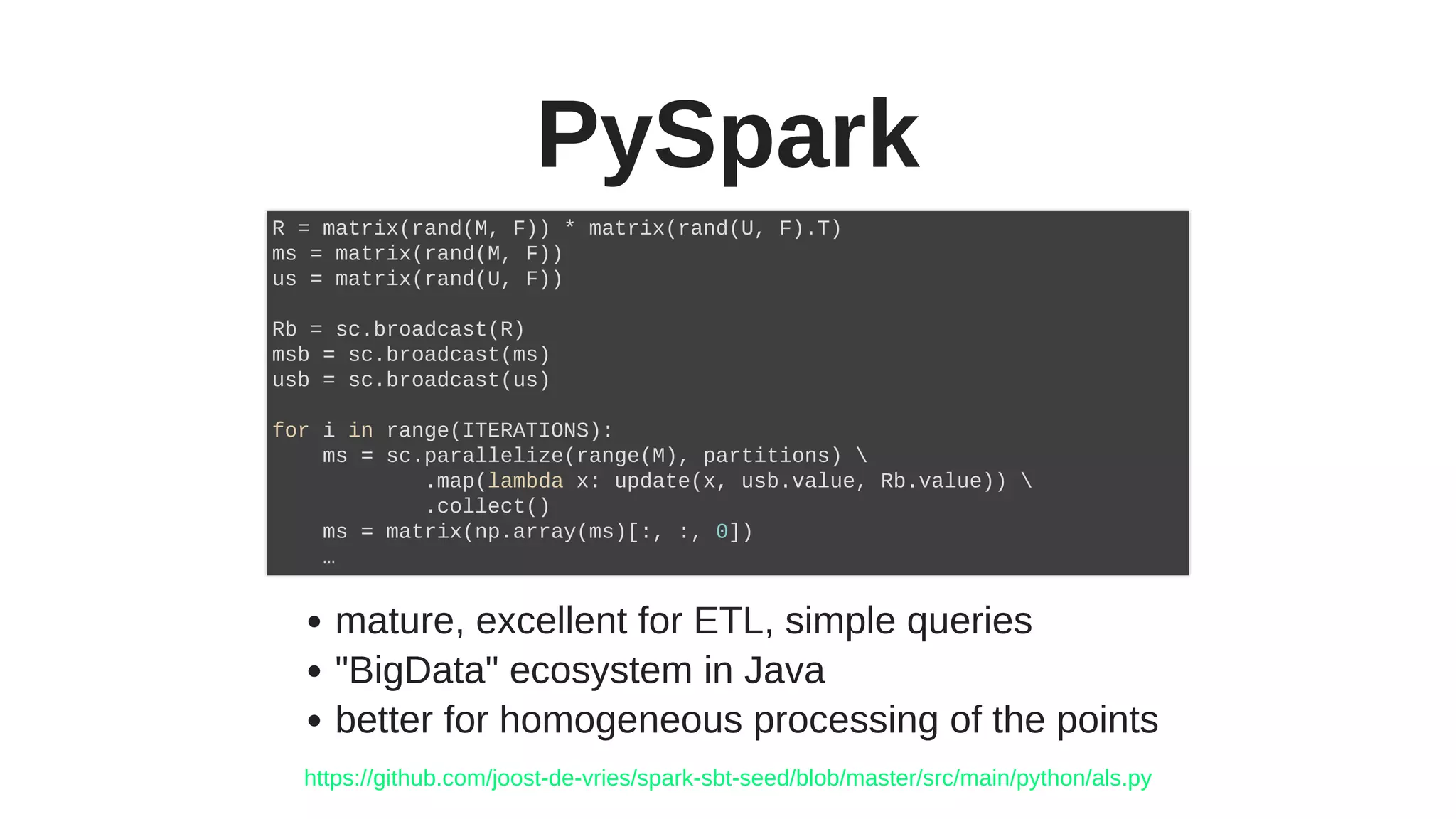

9. PySpark
mature, excellent for ETL, simple queries
"BigData" ecosystem in Java
better for homogeneous processing of the points
R = matrix(rand(M, F)) * matrix(rand(U, F).T)
ms = matrix(rand(M, F))
us = matrix(rand(U, F))
Rb = sc.broadcast(R)
msb = sc.broadcast(ms)
usb = sc.broadcast(us)
for i in range(ITERATIONS):
ms = sc.parallelize(range(M), partitions)
.map(lambda x: update(x, usb.value, Rb.value))
.collect()
ms = matrix(np.array(ms)[:, :, 0])
…
https://github.com/joost-de-vries/spark-sbt-seed/blob/master/src/main/python/als.py

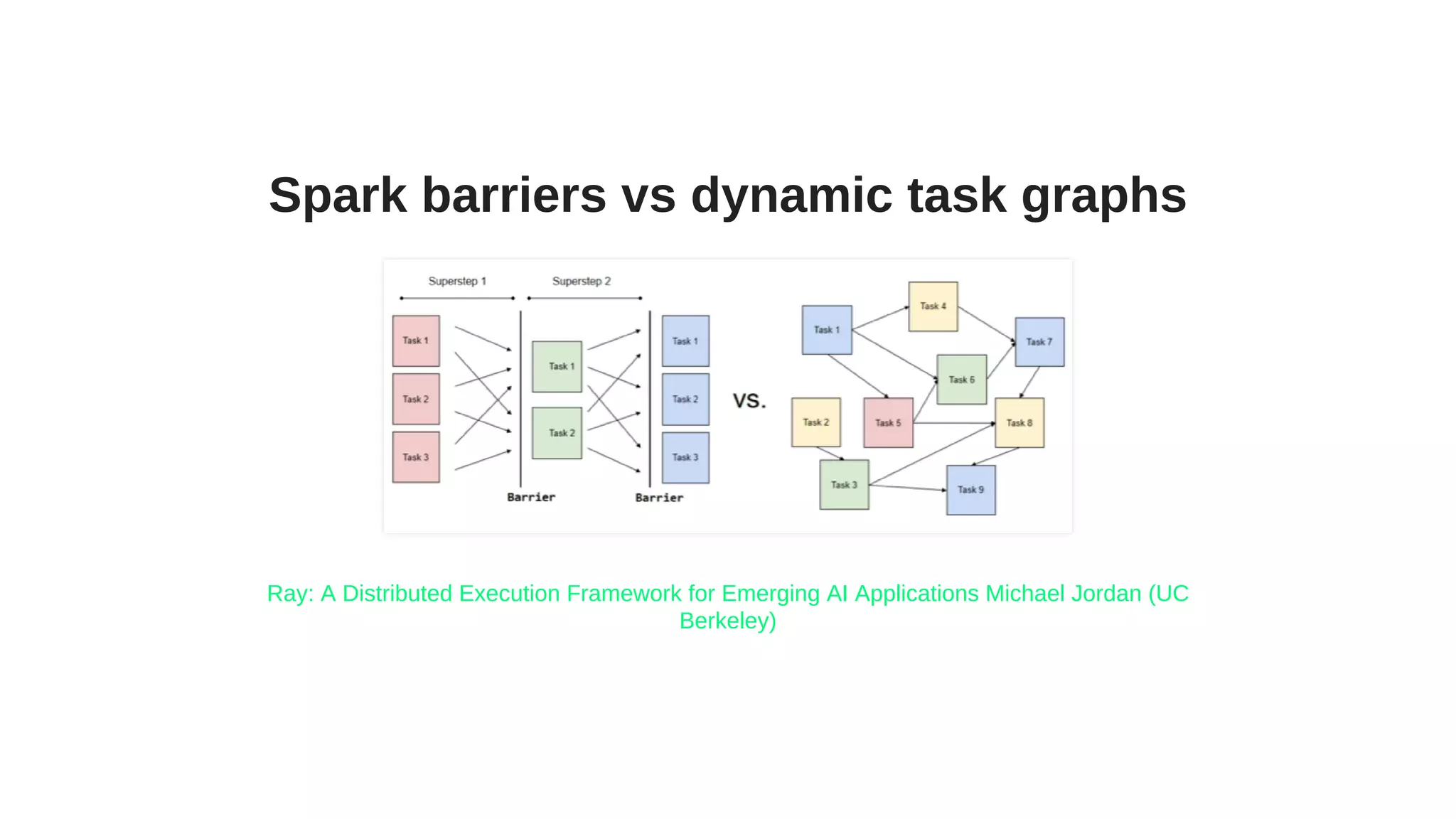

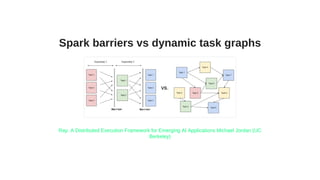

10. Spark barriers vs dynamic task graphs
Ray: A Distributed Execution Framework for Emerging AI Applications Michael Jordan (UC
Berkeley)

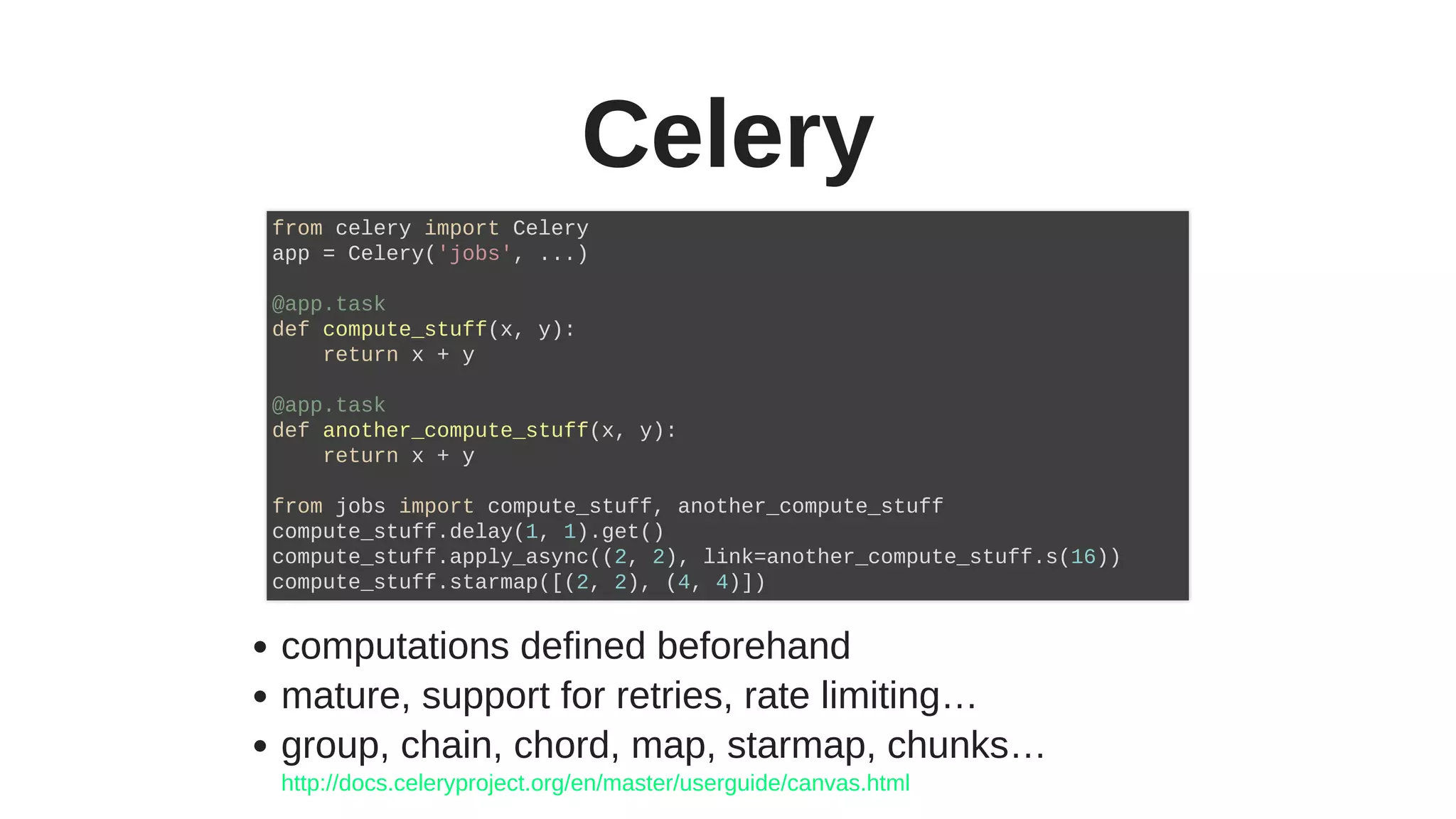

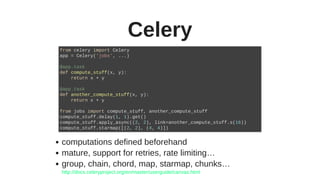

11. Celery
computations defined beforehand
mature, support for retries, rate limiting…
group, chain, chord, map, starmap, chunks…
from celery import Celery
app = Celery('jobs', ...)
@app.task
def compute_stuff(x, y):
return x + y
@app.task
def another_compute_stuff(x, y):
return x + y
from jobs import compute_stuff, another_compute_stuff
compute_stuff.delay(1, 1).get()
compute_stuff.apply_async((2, 2), link=another_compute_stuff.s(16))
compute_stuff.starmap([(2, 2), (4, 4)])
http://docs.celeryproject.org/en/master/userguide/canvas.html

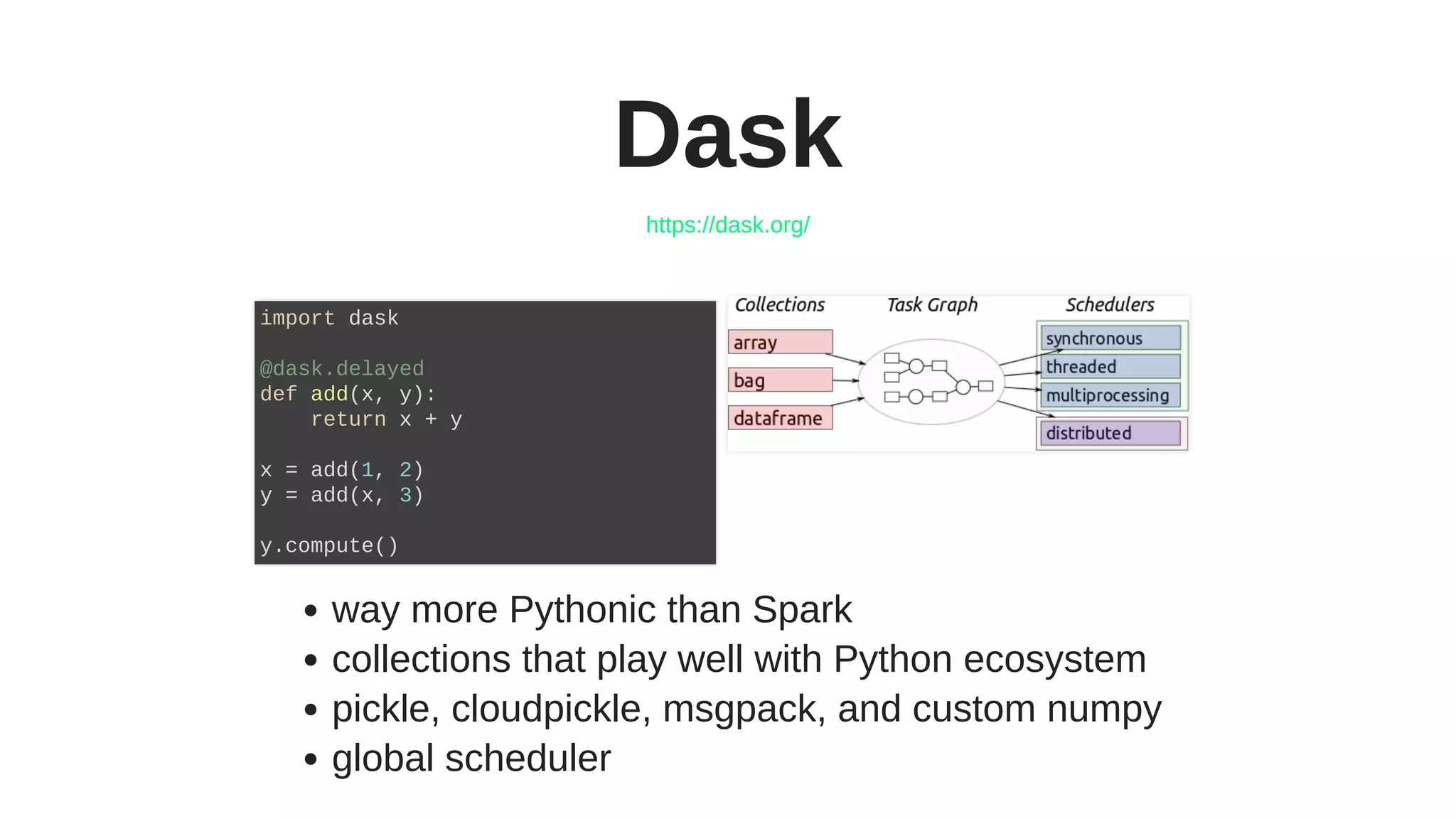

12. Dask
way more Pythonic than Spark
collections that play well with Python ecosystem
pickle, cloudpickle, msgpack, and custom numpy
global scheduler
https://dask.org/
import dask
@dask.delayed
def add(x, y):
return x + y
x = add(1, 2)
y = add(x, 3)
y.compute()

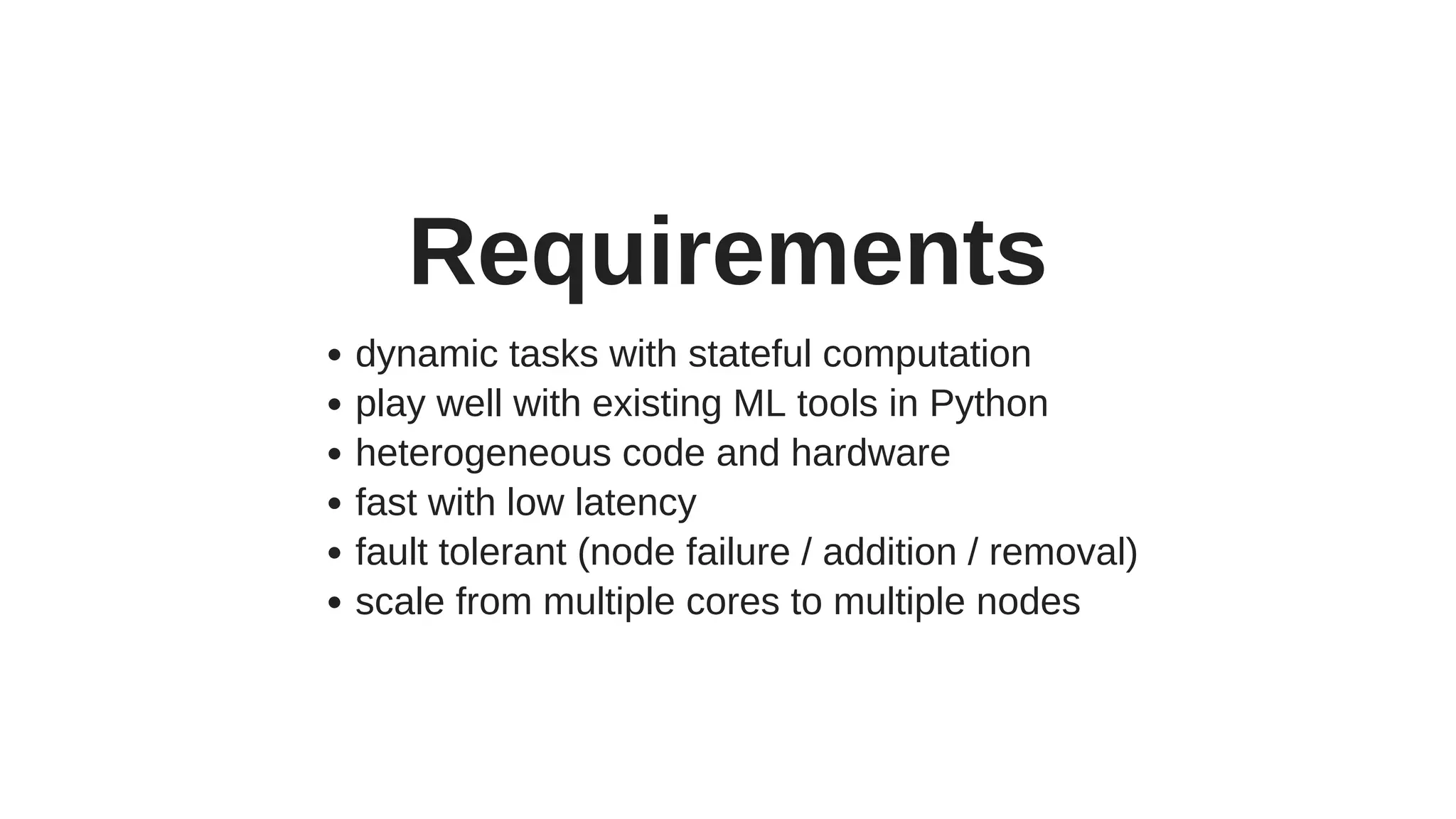

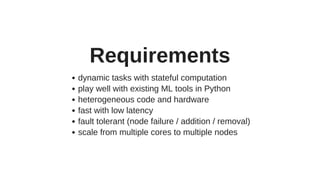

13. Requirements
dynamic tasks with stateful computation
play well with existing ML tools in Python
heterogeneous code and hardware
fast with low latency
fault tolerant (node failure / addition / removal)
scale from multiple cores to multiple nodes

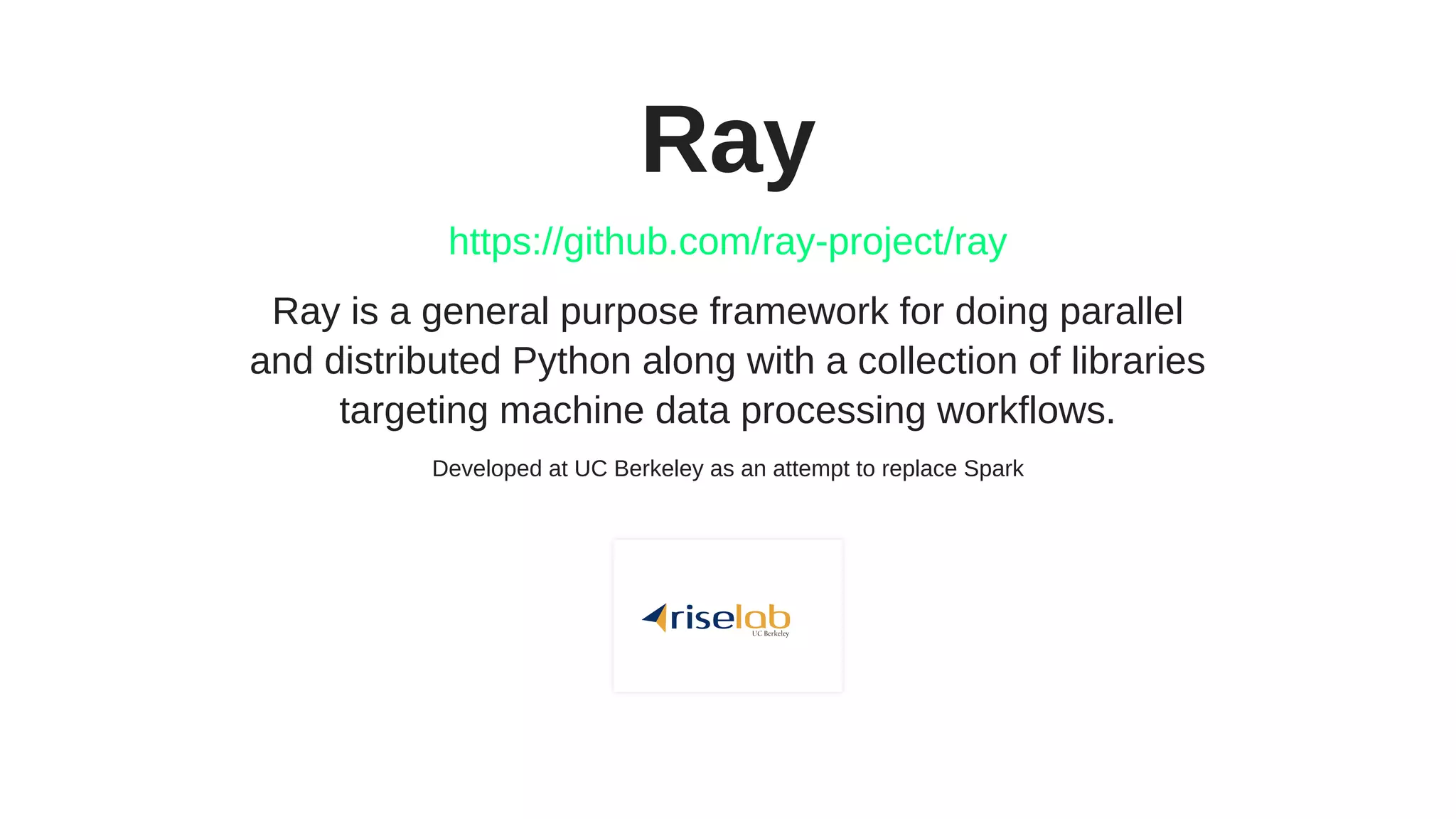

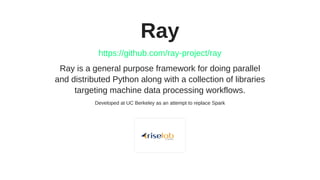

14. Ray
Ray is a general purpose framework for doing parallel
and distributed Python along with a collection of libraries
targeting machine data processing workflows.
Developed at UC Berkeley as an attempt to replace Spark
https://github.com/ray-project/ray

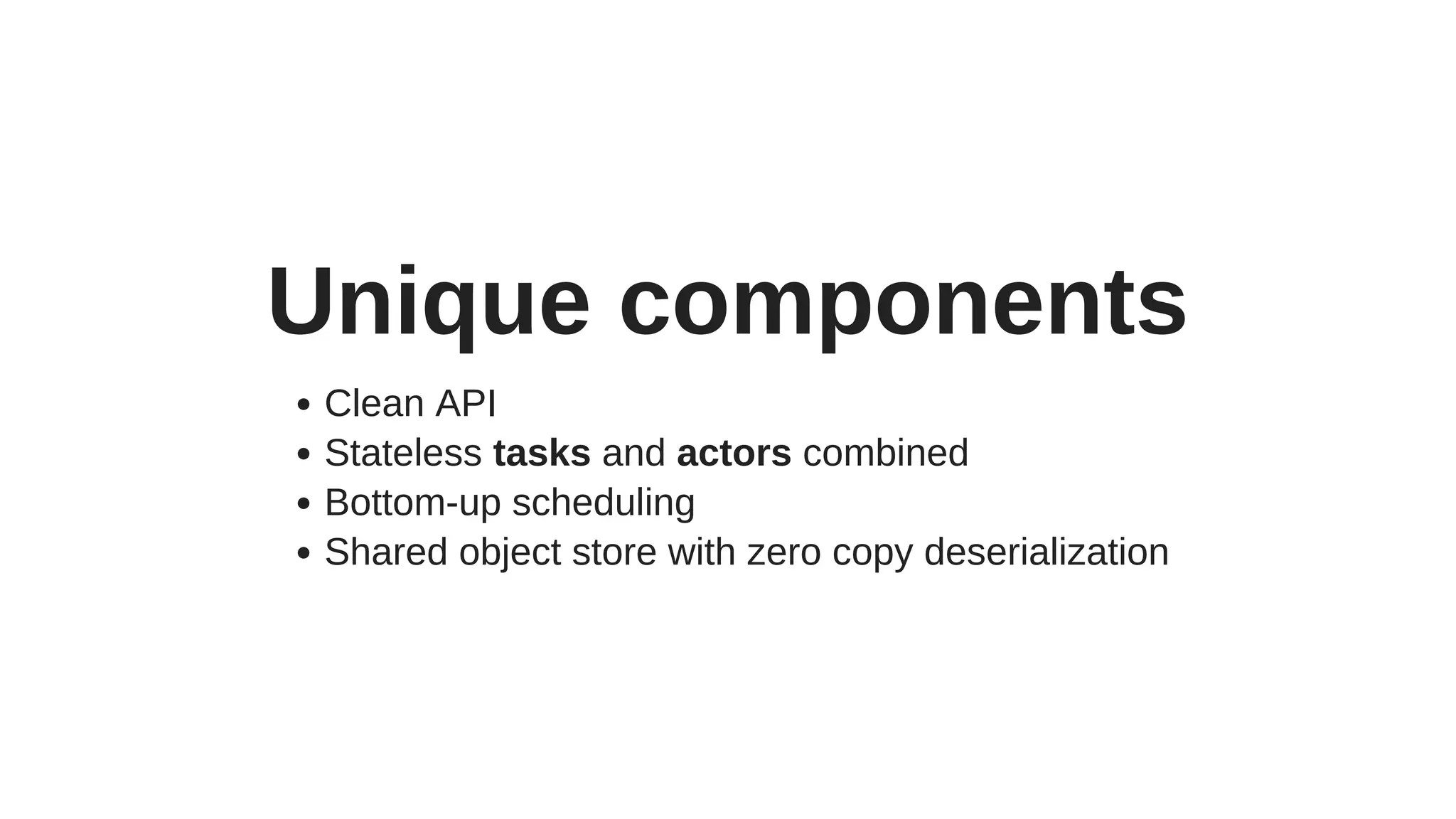

15. Unique components
Clean API
Stateless tasks and actors combined
Bottom-up scheduling
Shared object store with zero copy deserialization

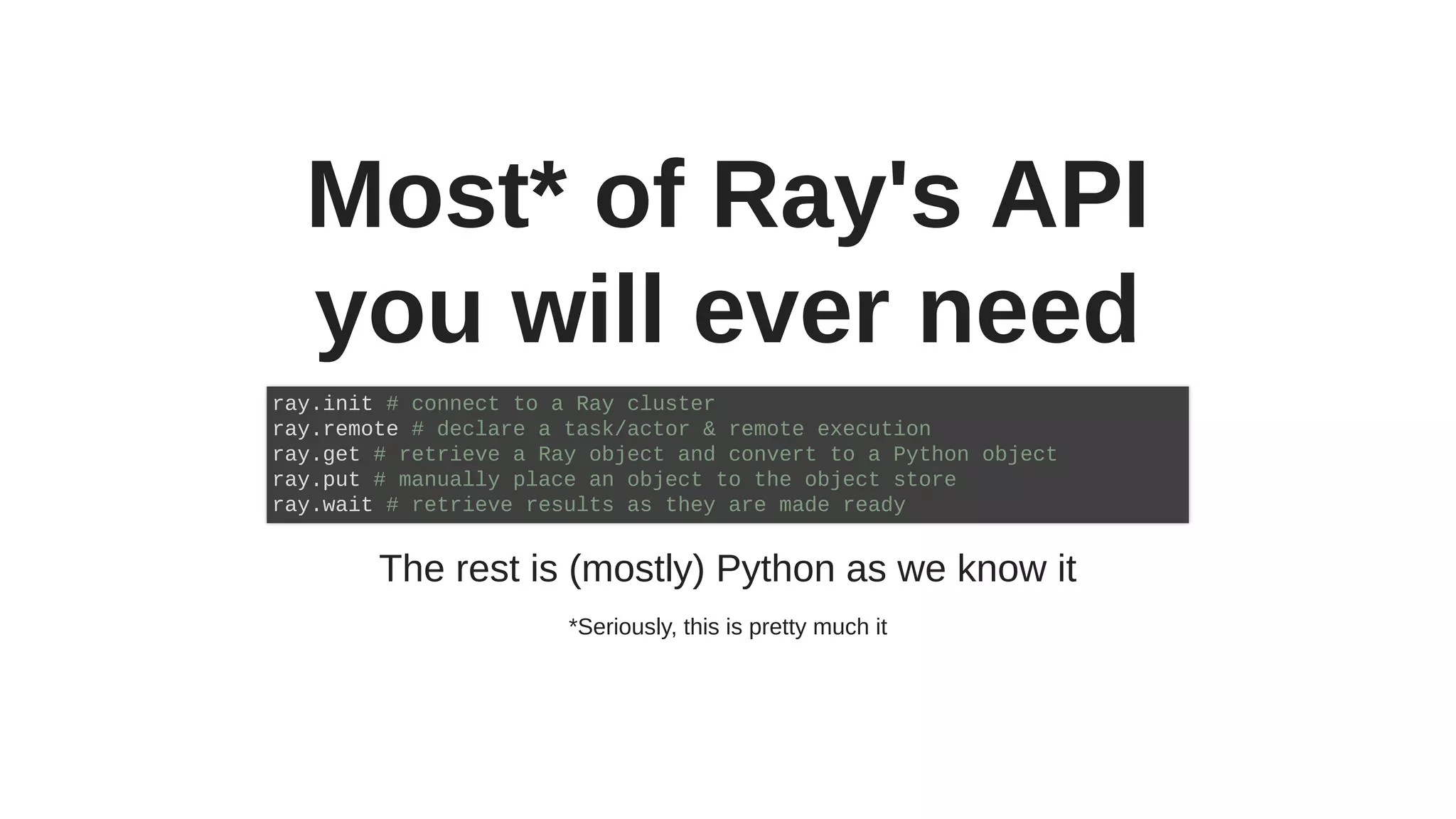

16. Most* of Ray's API
you will ever need
The rest is (mostly) Python as we know it
*Seriously, this is pretty much it
ray.init # connect to a Ray cluster
ray.remote # declare a task/actor & remote execution
ray.get # retrieve a Ray object and convert to a Python object
ray.put # manually place an object to the object store
ray.wait # retrieve results as they are made ready

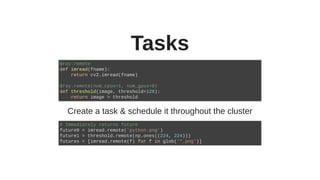

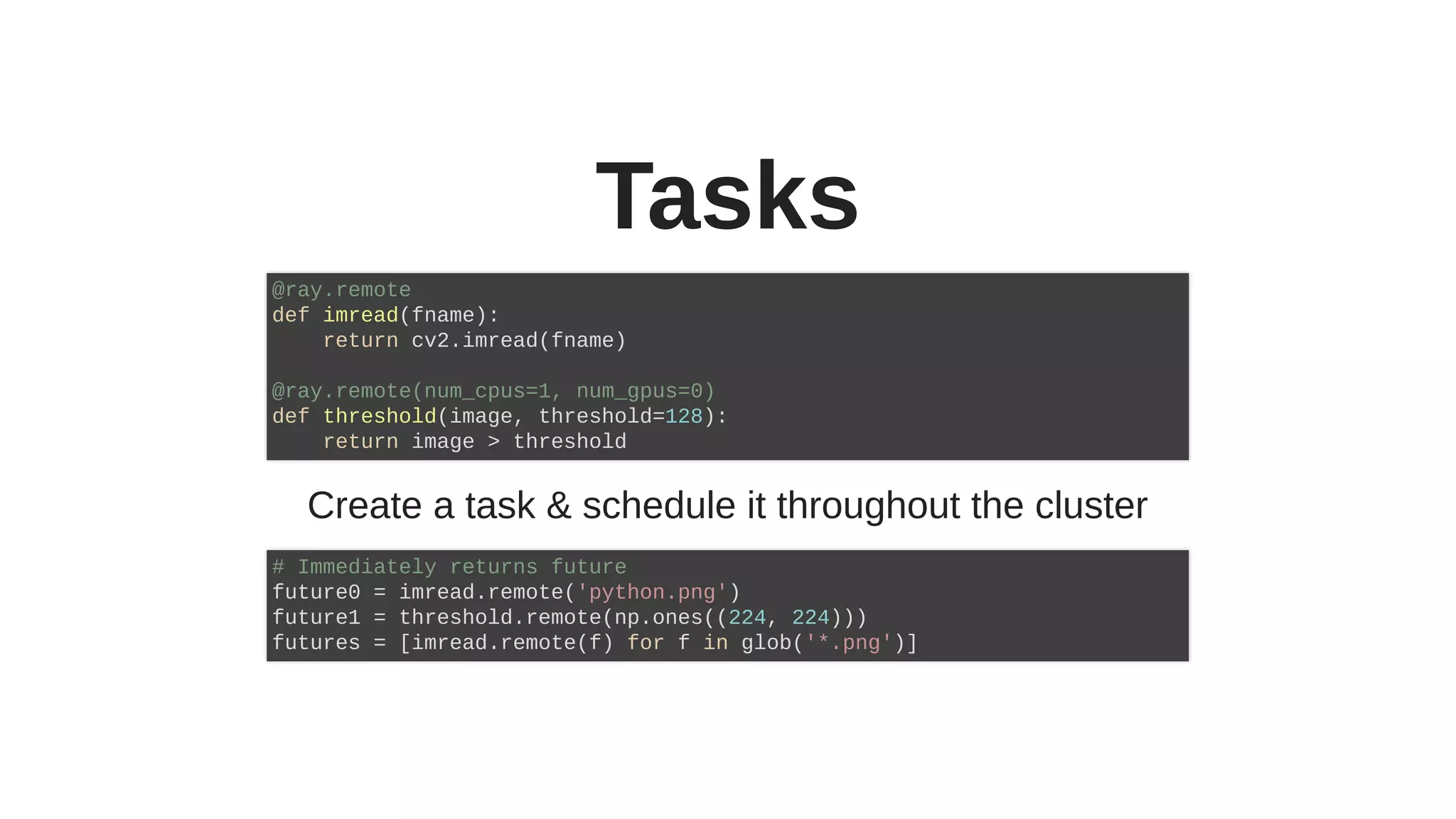

17. Tasks
Create a task & schedule it throughout the cluster
@ray.remote
def imread(fname):
return cv2.imread(fname)
@ray.remote(num_cpus=1, num_gpus=0)
def threshold(image, threshold=128):
return image > threshold
# Immediately returns future
future0 = imread.remote('python.png')
future1 = threshold.remote(np.ones((224, 224)))
futures = [imread.remote(f) for f in glob('*.png')]

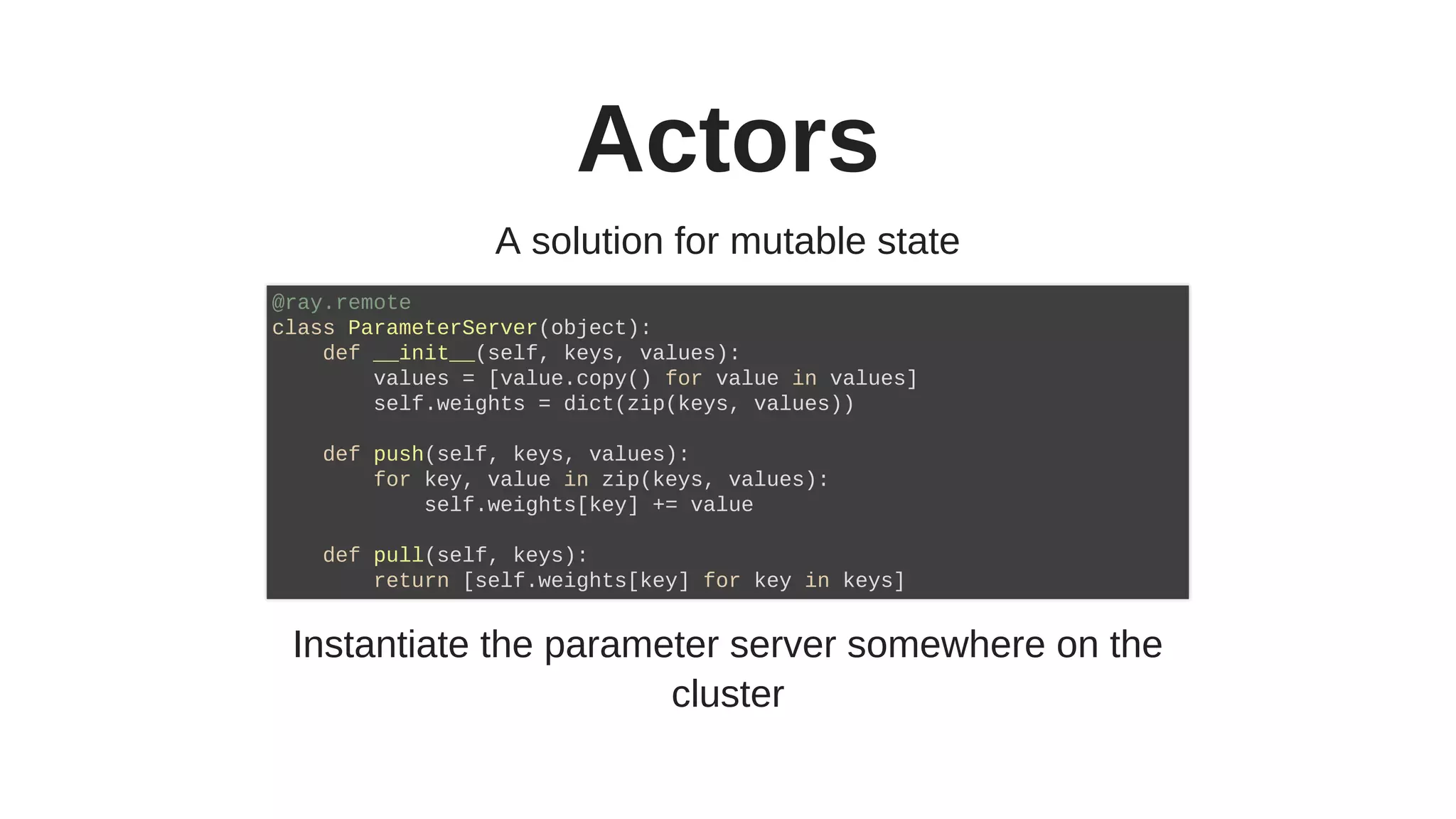

18. Actors
A solution for mutable state
Instantiate the parameter server somewhere on the
cluster
@ray.remote
class ParameterServer(object):
def __init__(self, keys, values):
values = [value.copy() for value in values]
self.weights = dict(zip(keys, values))
def push(self, keys, values):
for key, value in zip(keys, values):
self.weights[key] += value
def pull(self, keys):
return [self.weights[key] for key in keys]

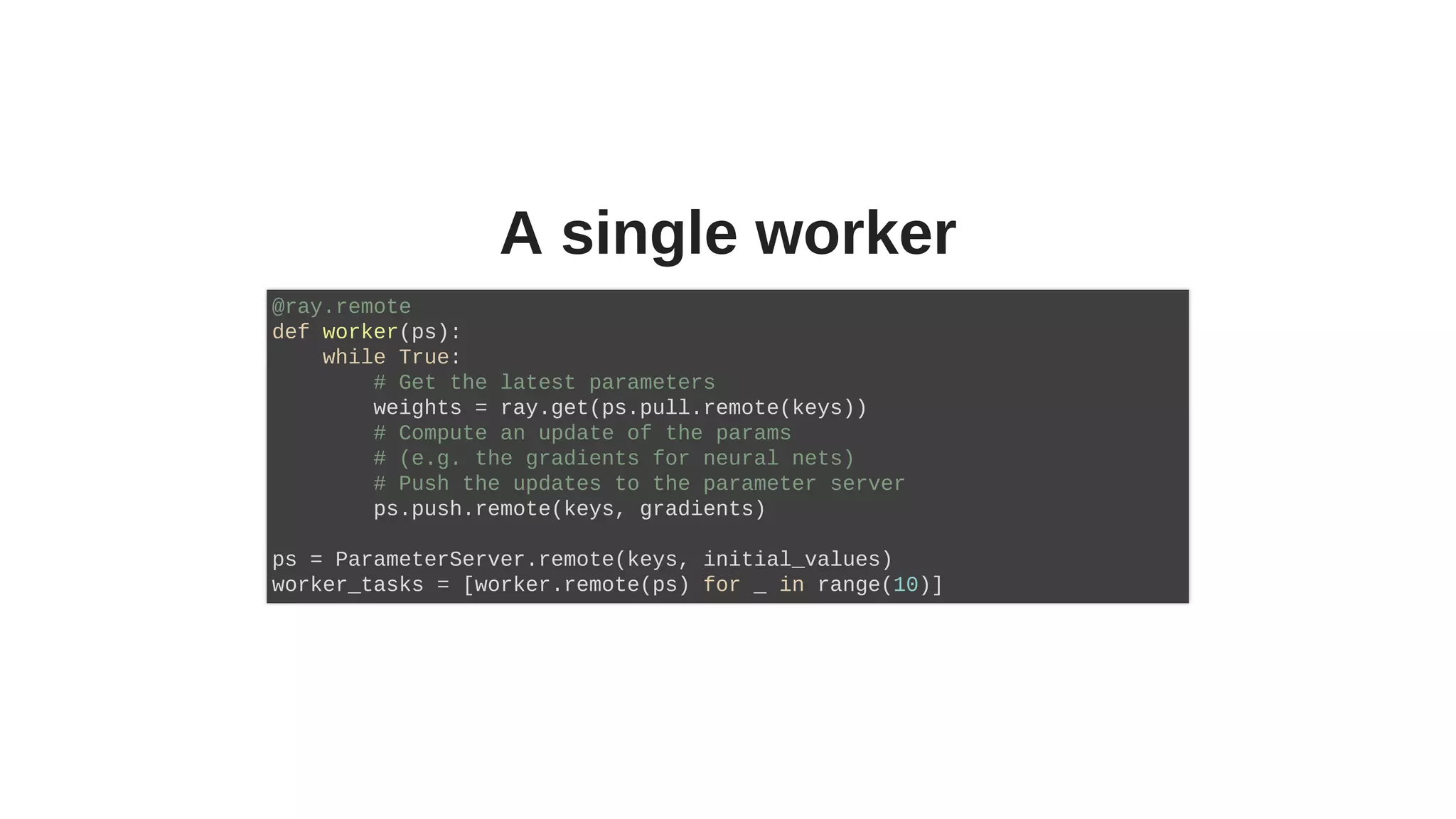

19. A single worker
@ray.remote
def worker(ps):
while True:
# Get the latest parameters
weights = ray.get(ps.pull.remote(keys))
# Compute an update of the params
# (e.g. the gradients for neural nets)
# Push the updates to the parameter server
ps.push.remote(keys, gradients)
ps = ParameterServer.remote(keys, initial_values)
worker_tasks = [worker.remote(ps) for _ in range(10)]

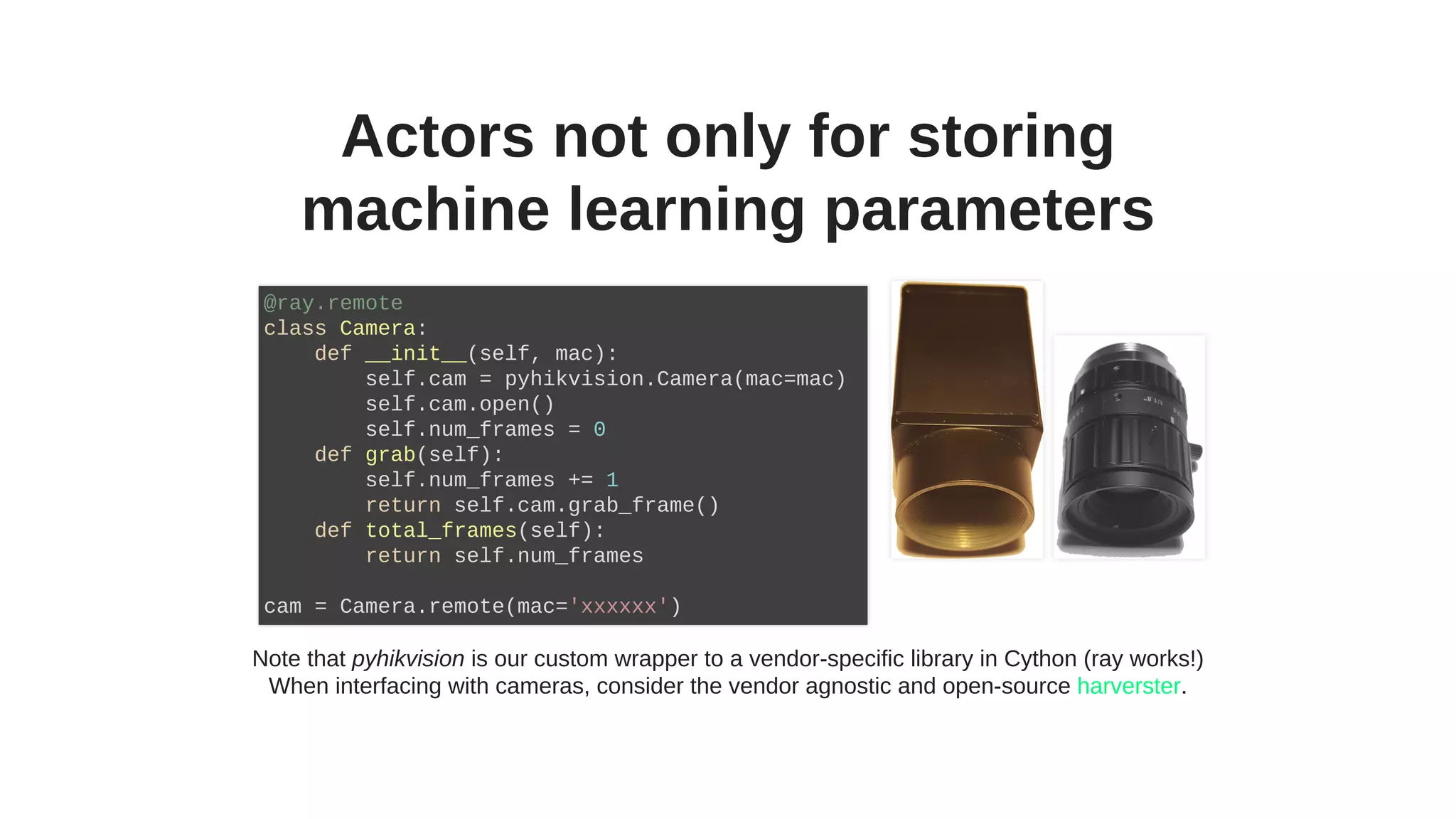

20. Actors not only for storing
machine learning parameters
Note that pyhikvision is our custom wrapper to a vendor-specific library in Cython (ray works!)
When interfacing with cameras, consider the vendor agnostic and open-source .
@ray.remote
class Camera:
def __init__(self, mac):
self.cam = pyhikvision.Camera(mac=mac)
self.cam.open()
self.num_frames = 0
def grab(self):
self.num_frames += 1
return self.cam.grab_frame()
def total_frames(self):
return self.num_frames
cam = Camera.remote(mac='xxxxxx')
harverster

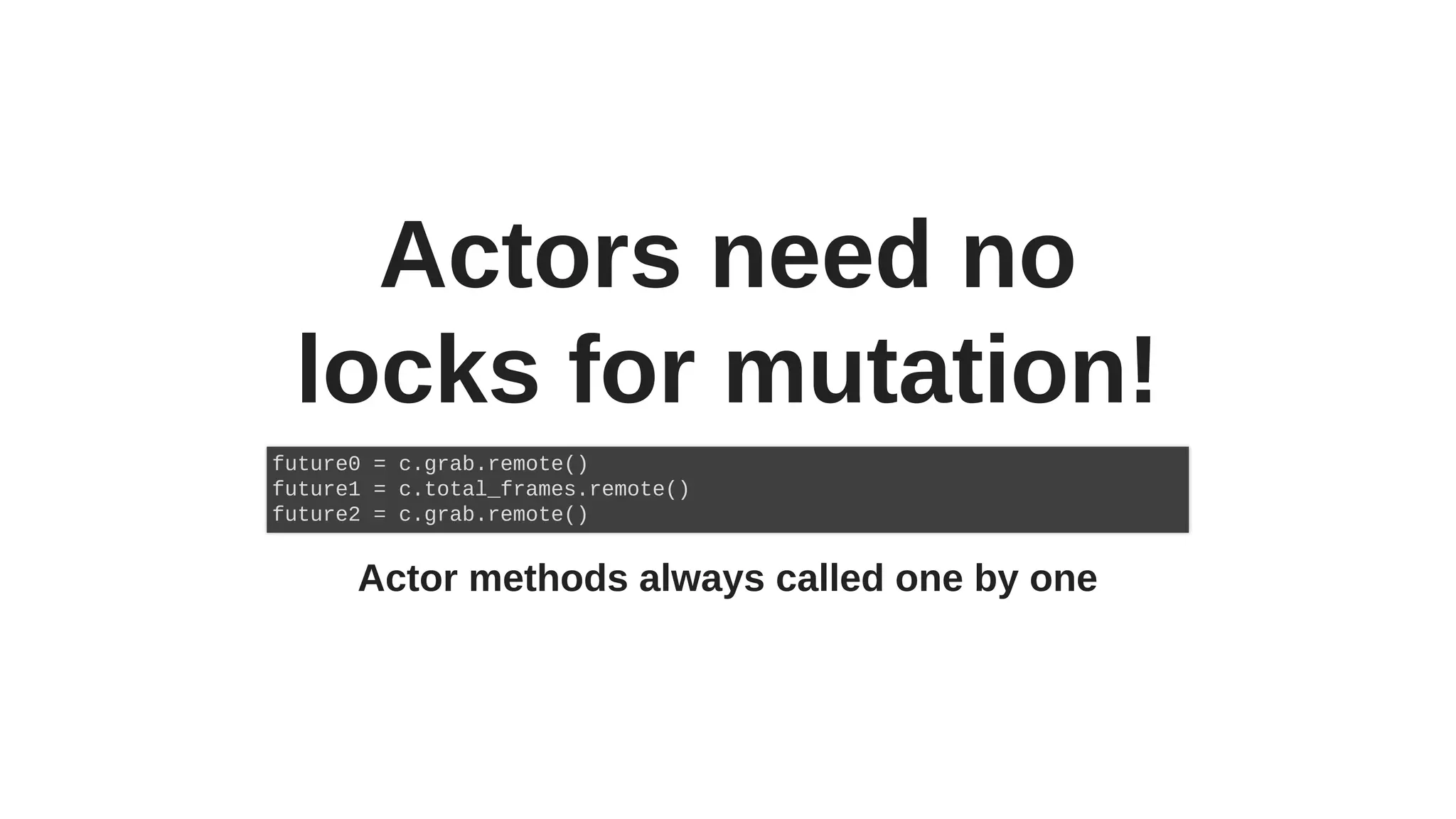

21. Actors need no
locks for mutation!
Actor methods always called one by one
future0 = c.grab.remote()
future1 = c.total_frames.remote()
future2 = c.grab.remote()

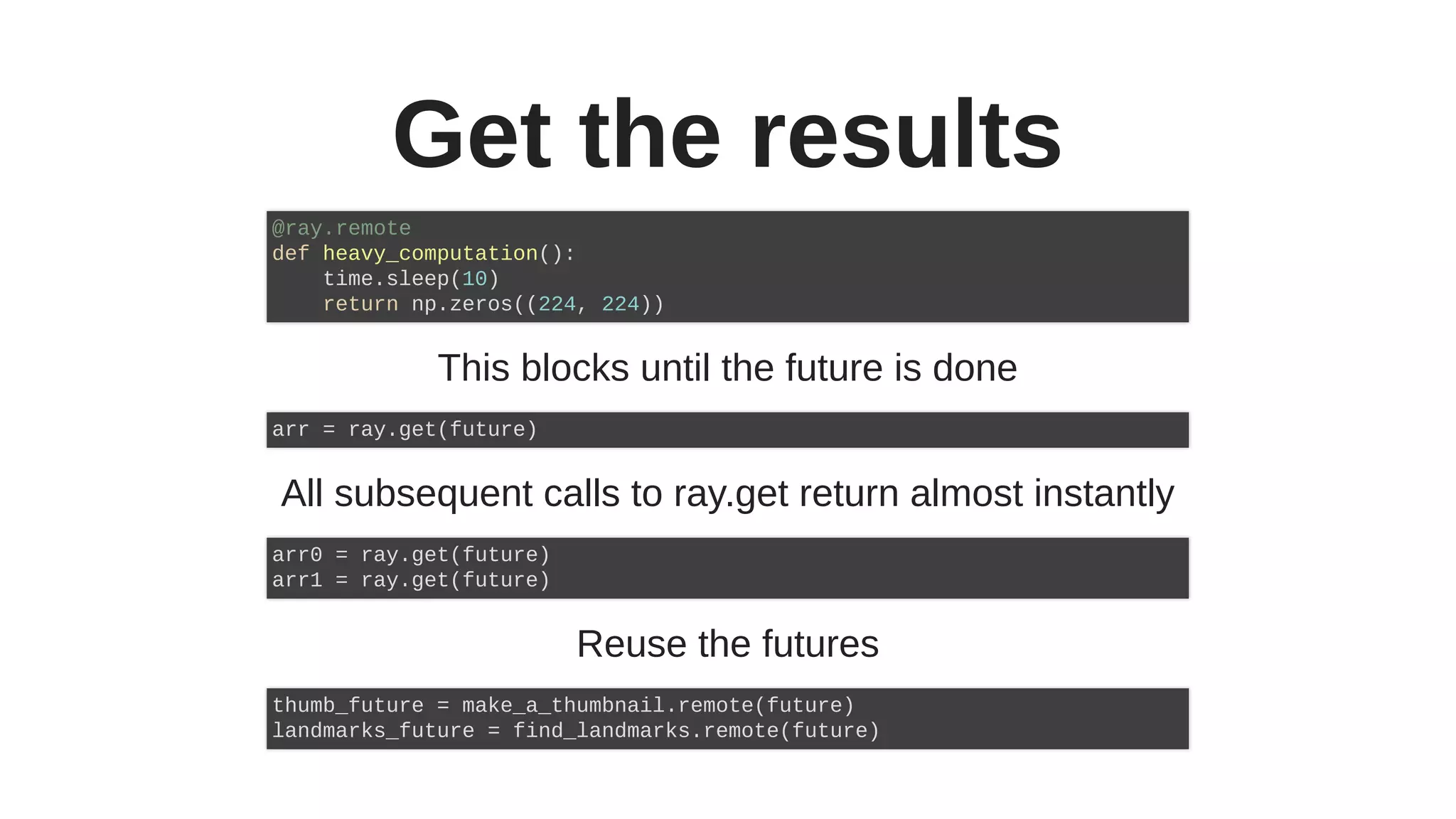

22. Get the results
This blocks until the future is done
All subsequent calls to ray.get return almost instantly
Reuse the futures
@ray.remote
def heavy_computation():
time.sleep(10)
return np.zeros((224, 224))
arr = ray.get(future)
arr0 = ray.get(future)
arr1 = ray.get(future)
thumb_future = make_a_thumbnail.remote(future)
landmarks_future = find_landmarks.remote(future)

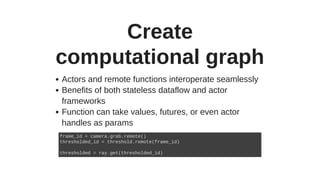

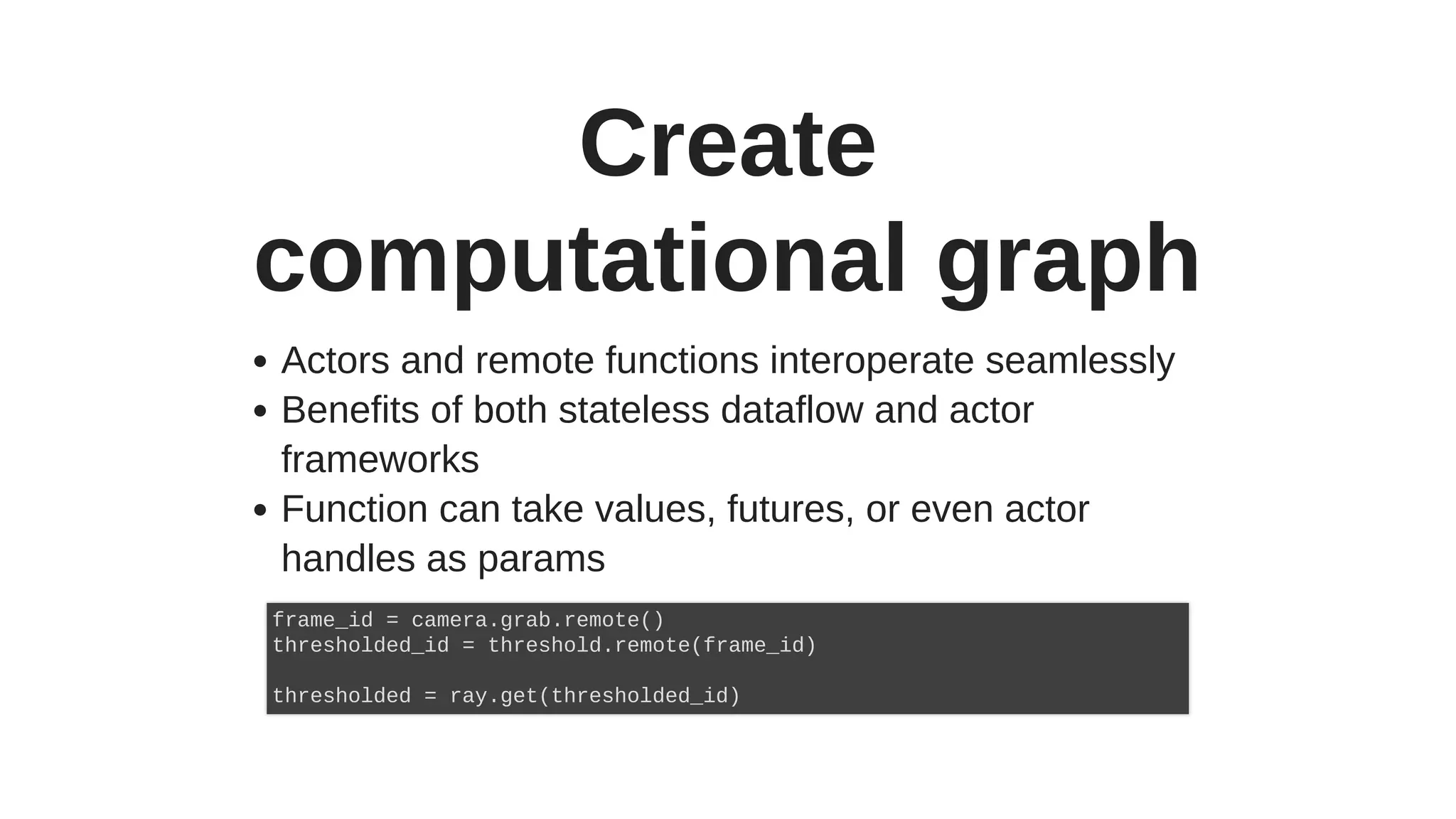

23. Create
computational graph
Actors and remote functions interoperate seamlessly
Benefits of both stateless dataflow and actor
frameworks
Function can take values, futures, or even actor
handles as params
frame_id = camera.grab.remote()
thresholded_id = threshold.remote(frame_id)
thresholded = ray.get(thresholded_id)

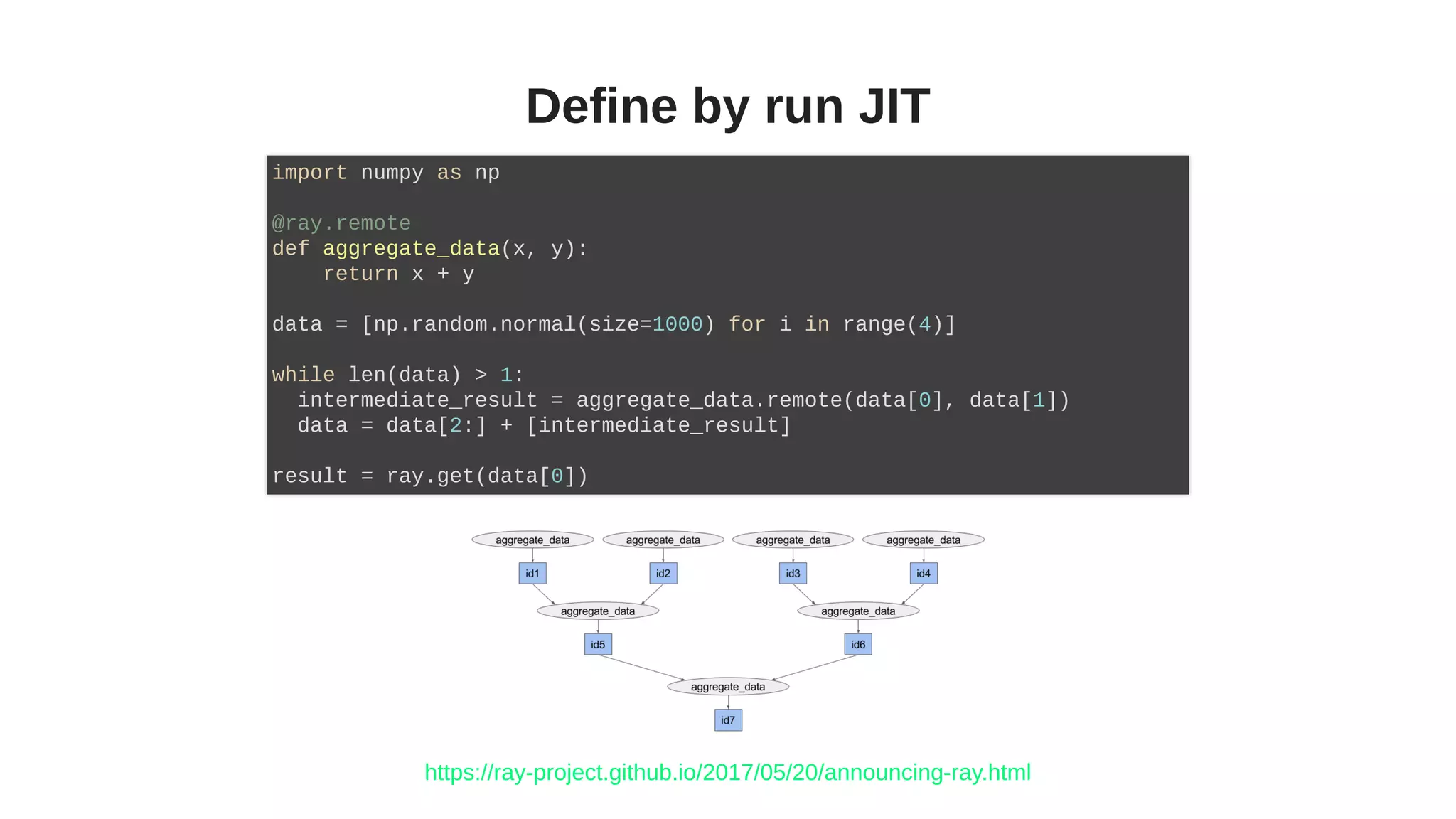

24. Define by run JIT
import numpy as np
@ray.remote
def aggregate_data(x, y):
return x + y
data = [np.random.normal(size=1000) for i in range(4)]
while len(data) > 1:
intermediate_result = aggregate_data.remote(data[0], data[1])
data = data[2:] + [intermediate_result]
result = ray.get(data[0])
https://ray-project.github.io/2017/05/20/announcing-ray.html

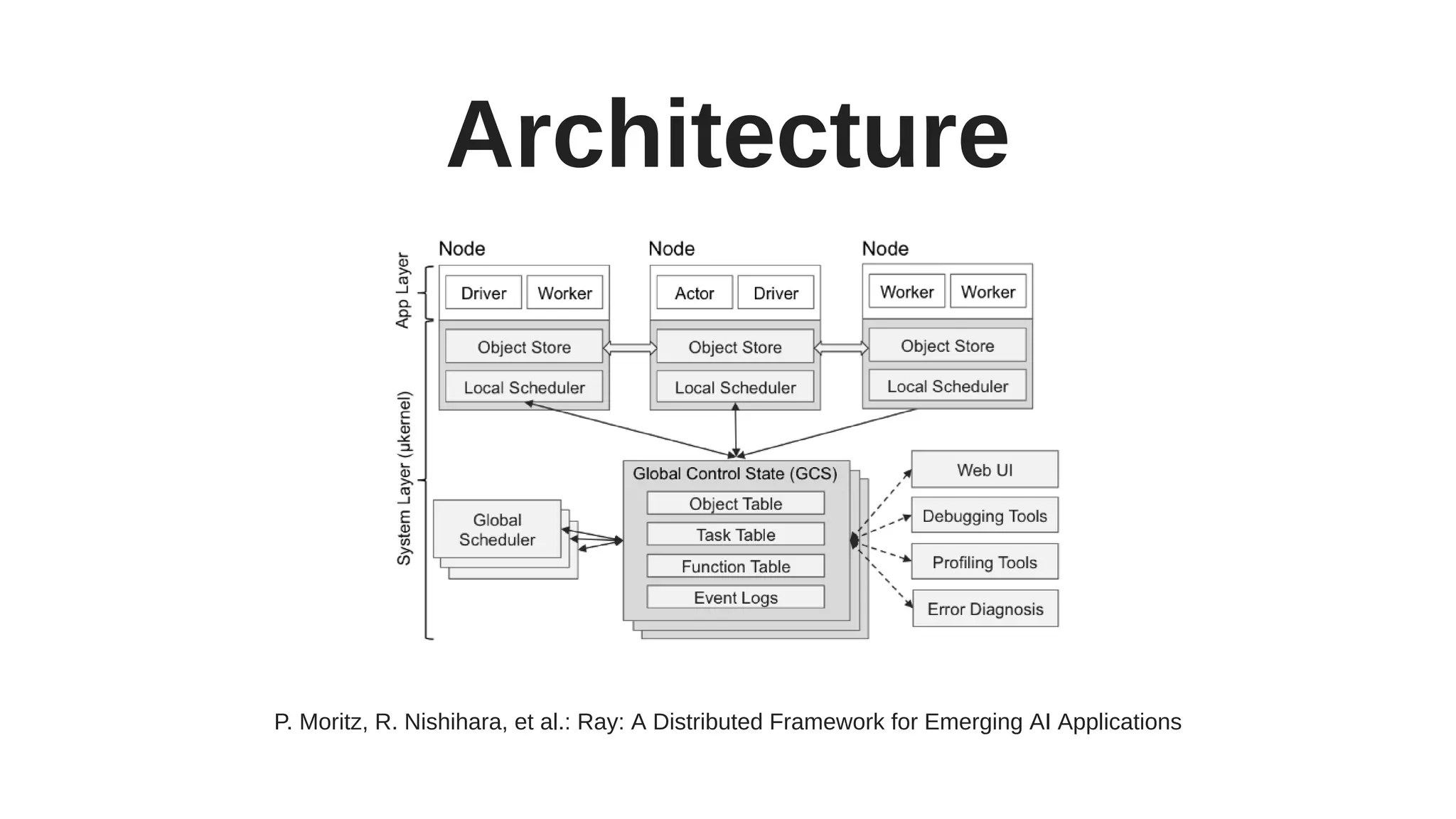

25. Architecture
P. Moritz, R. Nishihara, et al.: Ray: A Distributed Framework for Emerging AI Applications

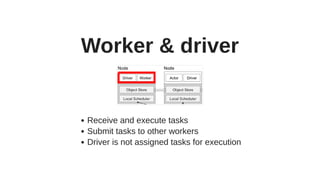

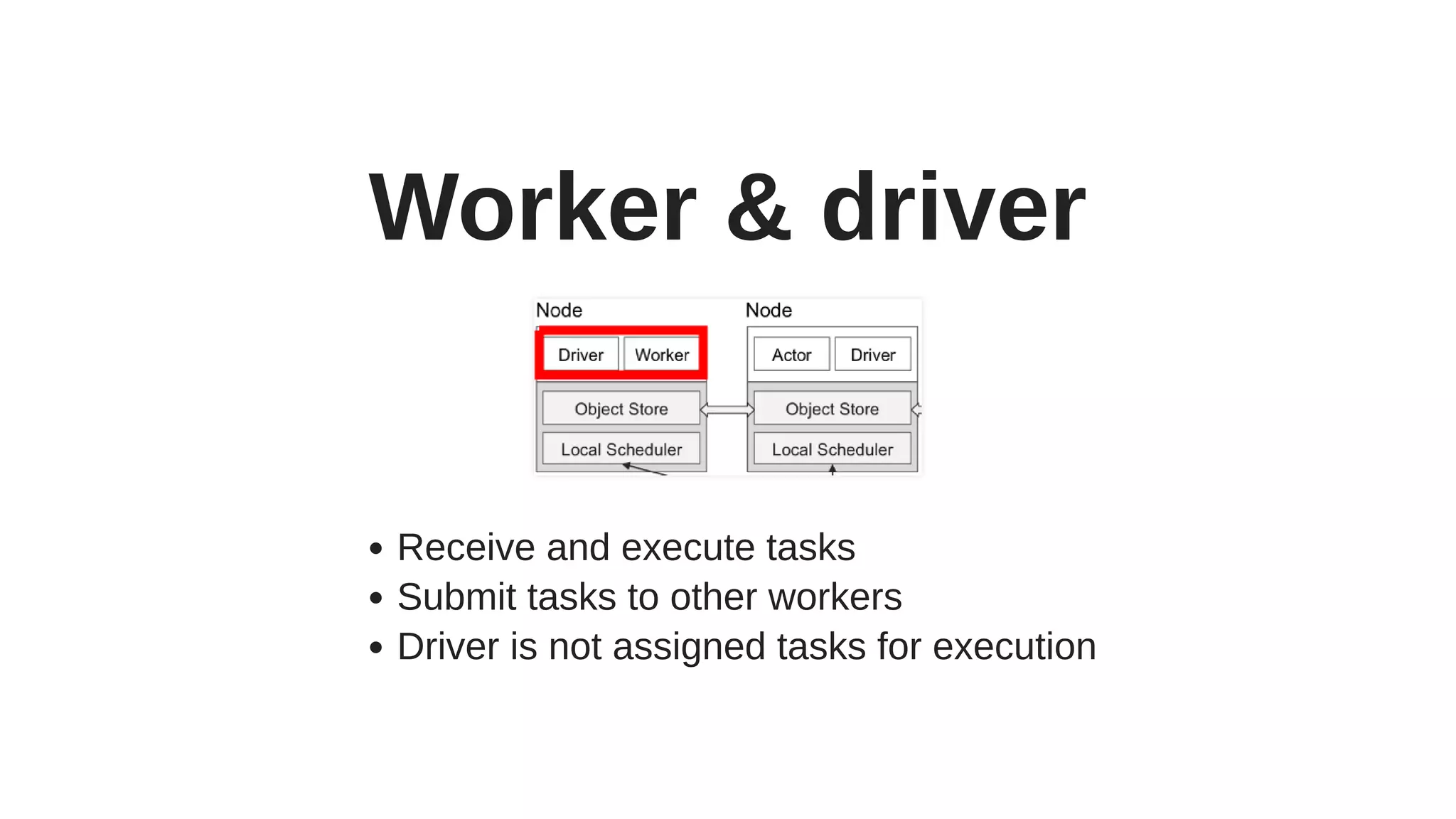

26. Worker & driver
Receive and execute tasks
Submit tasks to other workers
Driver is not assigned tasks for execution

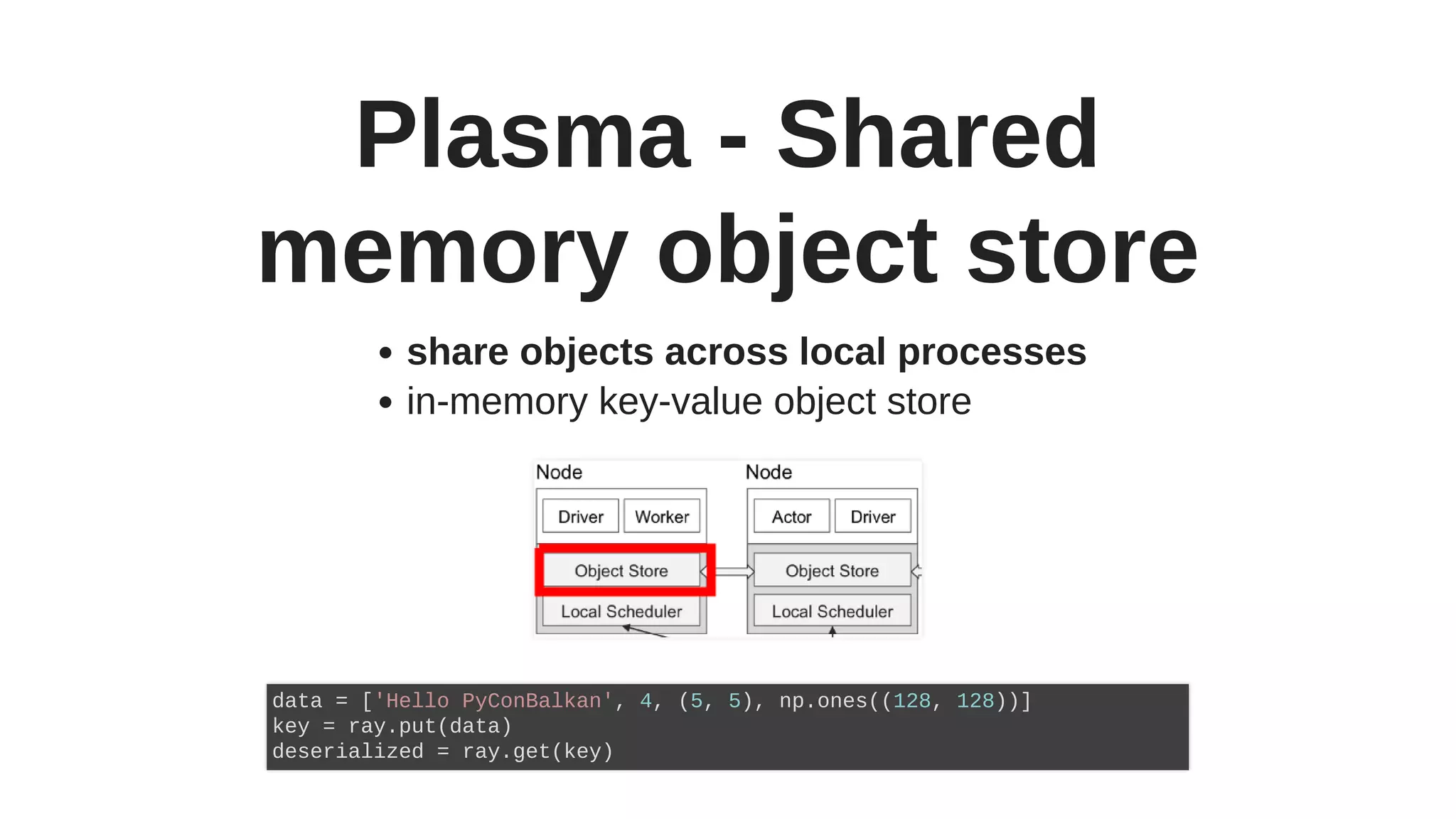

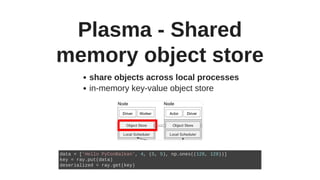

27. Plasma - Shared
memory object store
share objects across local processes
in-memory key-value object store
data = ['Hello PyConBalkan', 4, (5, 5), np.ones((128, 128))]
key = ray.put(data)
deserialized = ray.get(key)

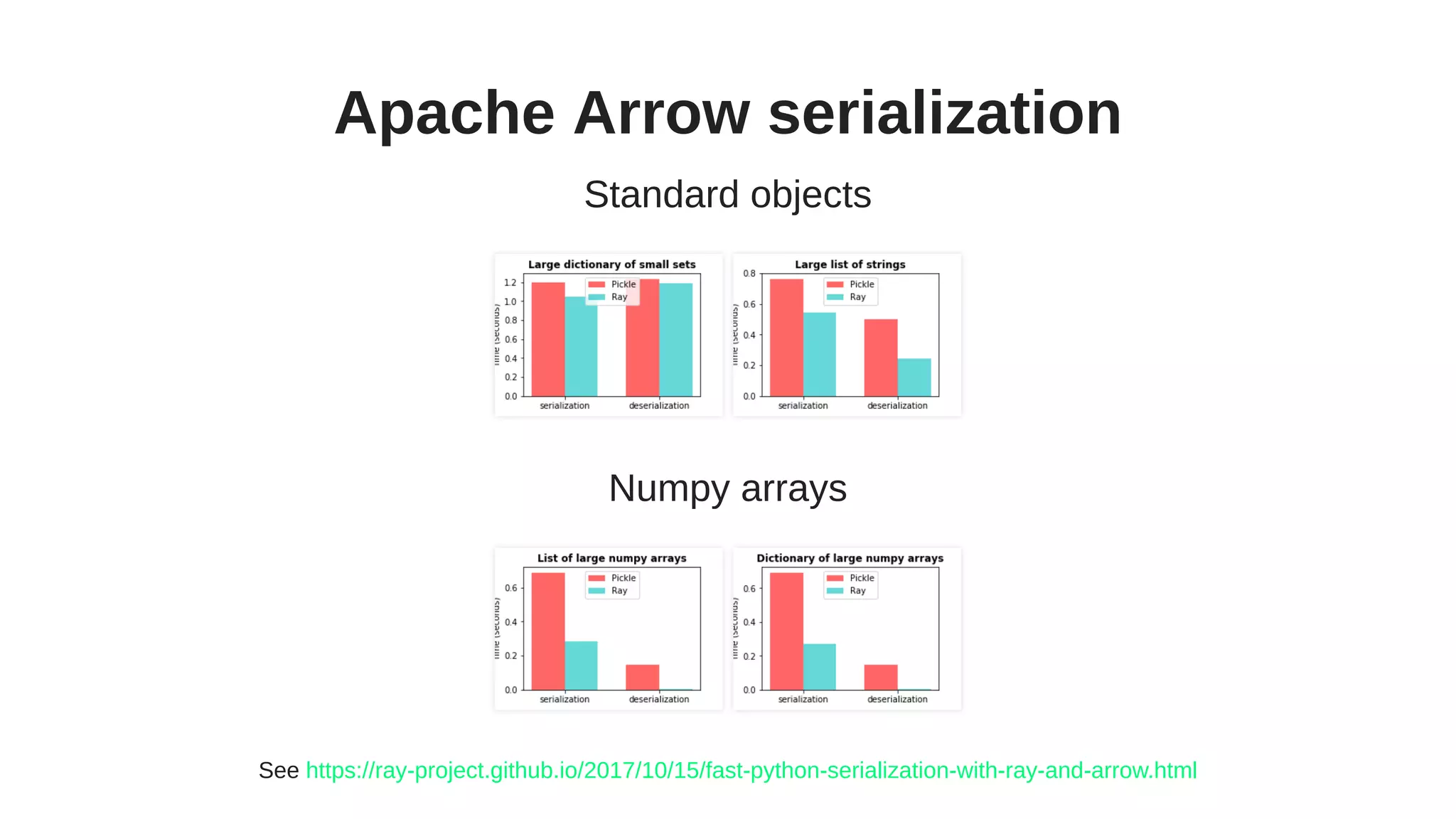

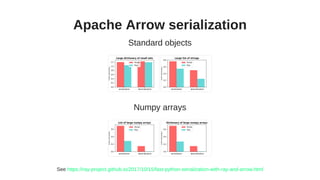

28. Apache Arrow serialization
Standard objects
Numpy arrays
See https://ray-project.github.io/2017/10/15/fast-python-serialization-with-ray-and-arrow.html

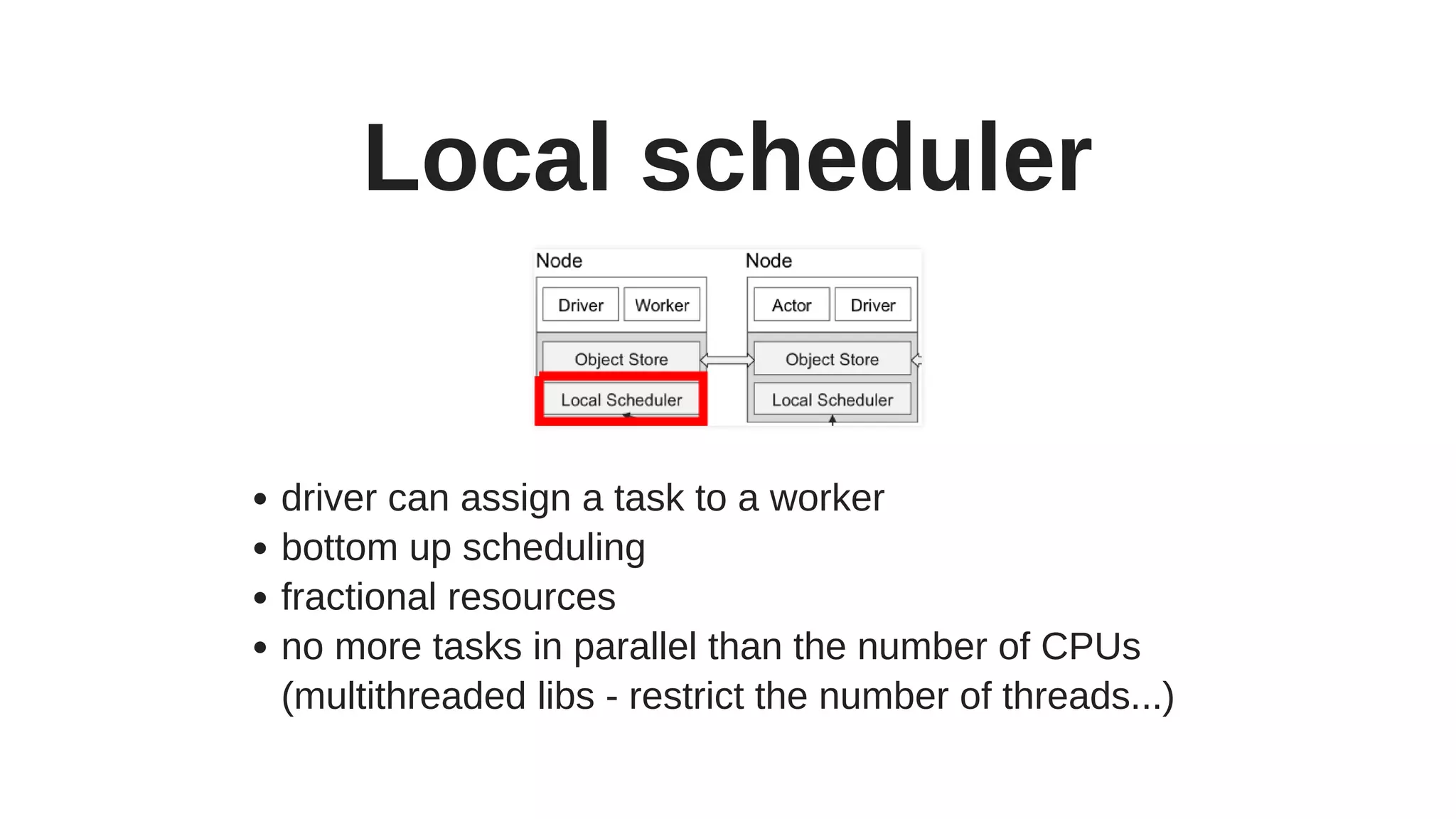

29. Local scheduler
driver can assign a task to a worker
bottom up scheduling
fractional resources
no more tasks in parallel than the number of CPUs
(multithreaded libs - restrict the number of threads...)

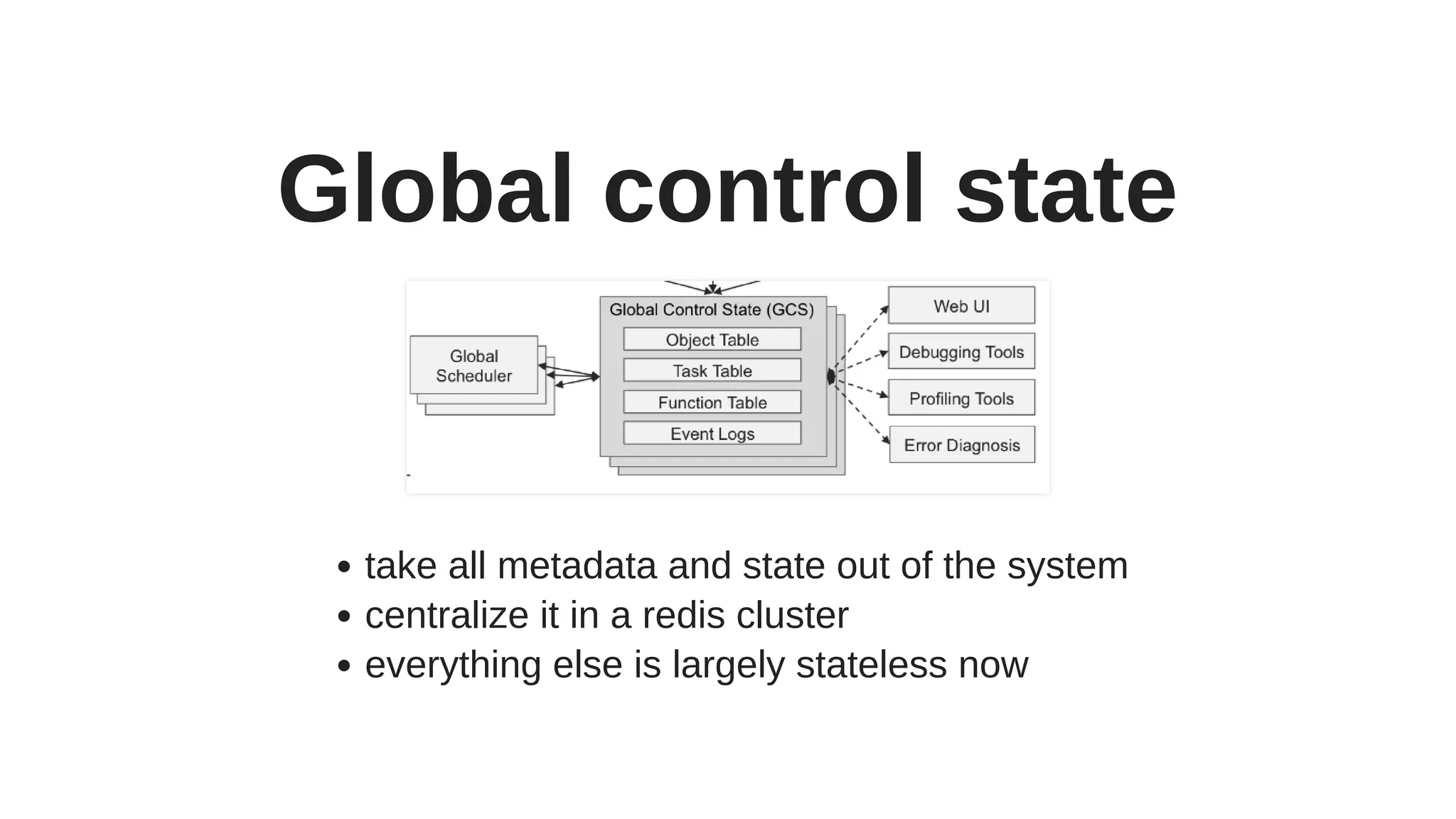

30. Global control state
take all metadata and state out of the system
centralize it in a redis cluster
everything else is largely stateless now

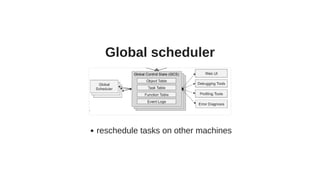

31. Global scheduler
reschedule tasks on other machines

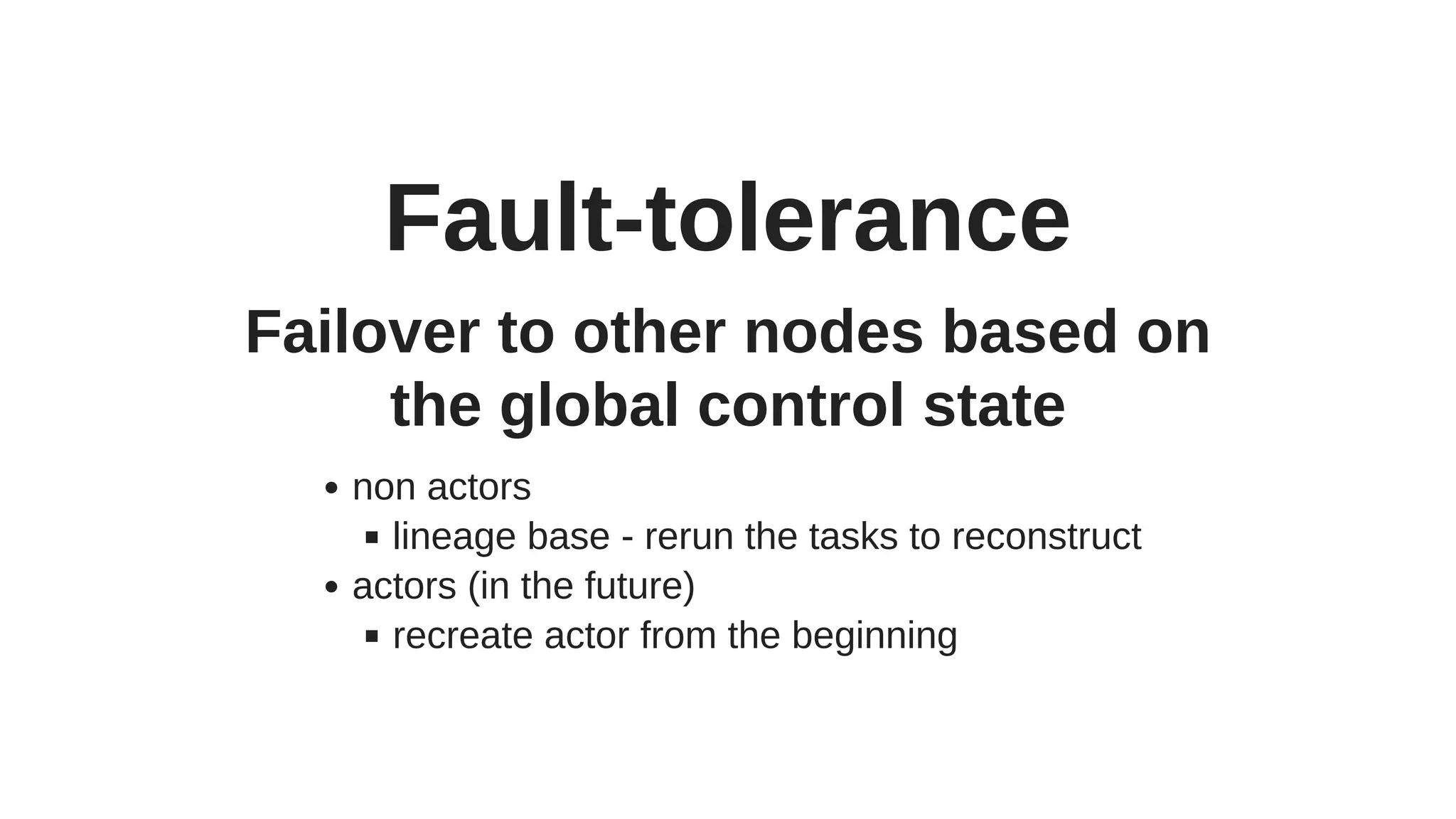

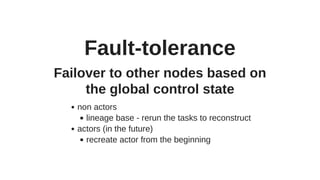

32. Fault-tolerance
Failover to other nodes based on
the global control state
non actors
lineage base - rerun the tasks to reconstruct
actors (in the future)
recreate actor from the beginning

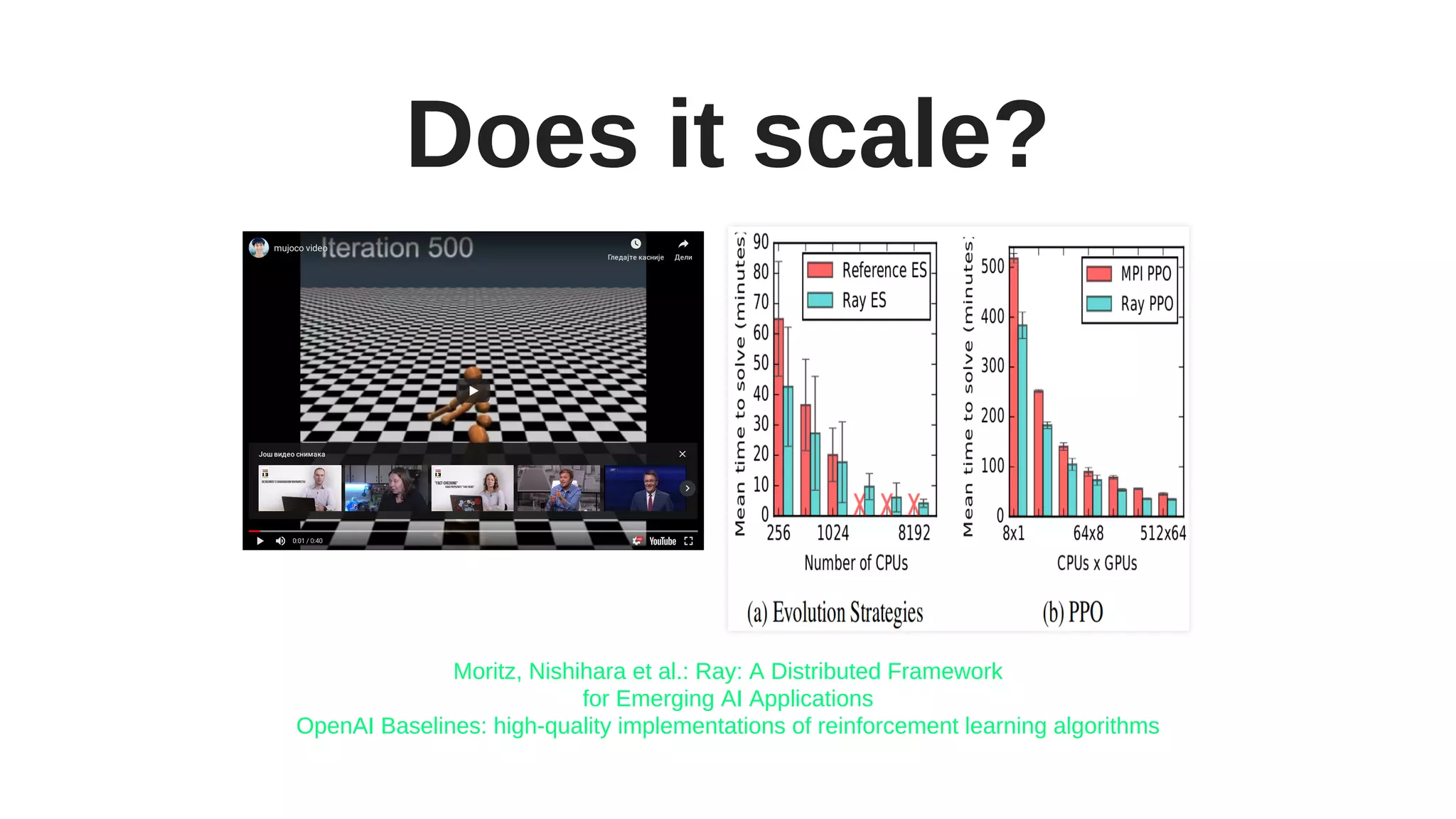

33. Does it scale?
Још видео снимака
mujoco video
Гледајте касније Дели
0:01 / 0:40
Moritz, Nishihara et al.: Ray: A Distributed Framework
for Emerging AI Applications
OpenAI Baselines: high-quality implementations of reinforcement learning algorithms

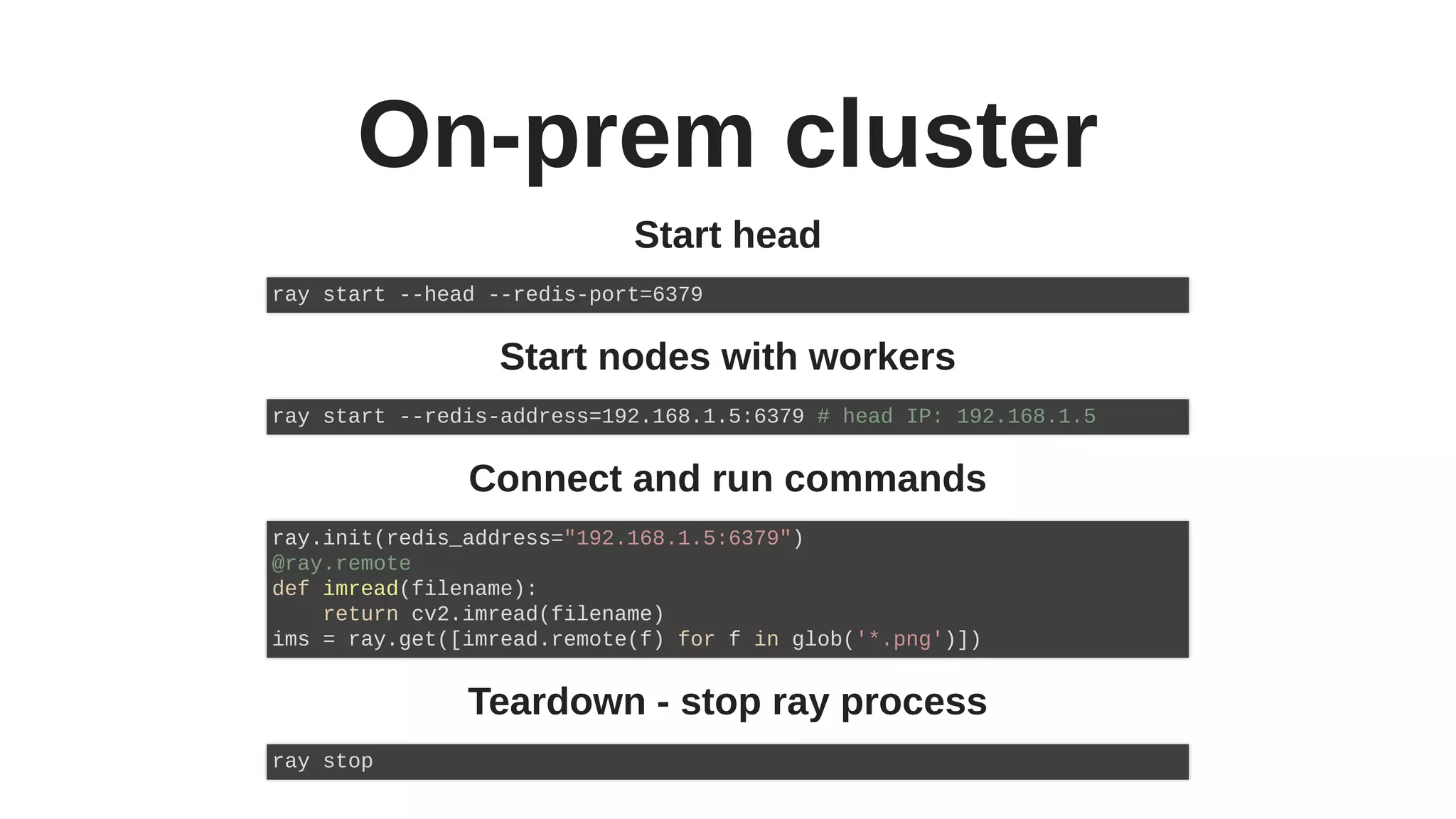

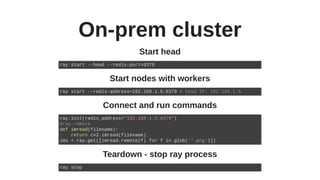

34. On-prem cluster
Start head
Start nodes with workers
Connect and run commands
Teardown - stop ray process
ray start --head --redis-port=6379
ray start --redis-address=192.168.1.5:6379 # head IP: 192.168.1.5
ray.init(redis_address="192.168.1.5:6379")
@ray.remote
def imread(filename):
return cv2.imread(filename)
ims = ray.get([imread.remote(f) for f in glob('*.png')])
ray stop

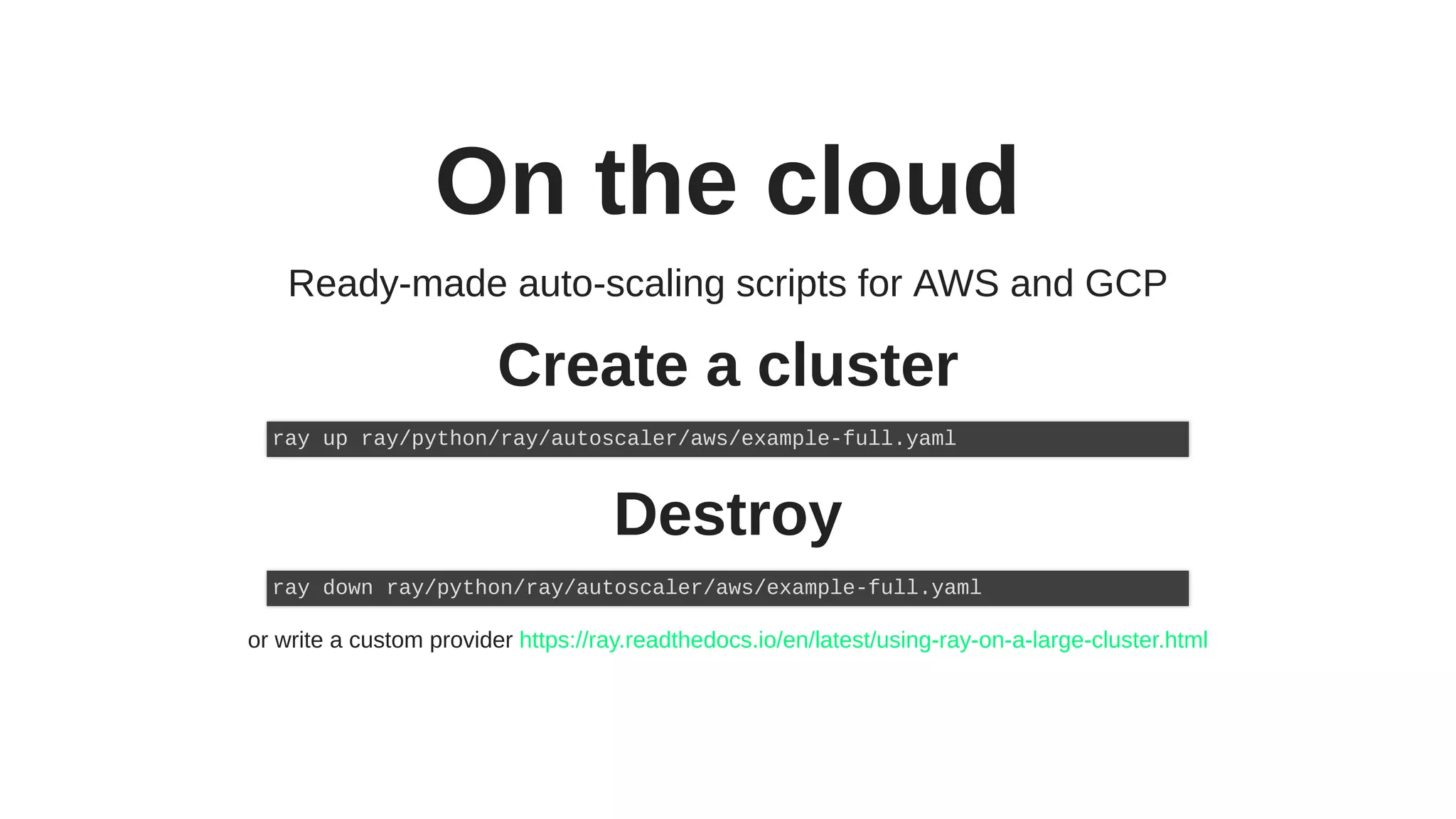

35. On the cloud
Ready-made auto-scaling scripts for AWS and GCP
Create a cluster
Destroy
or write a custom provider
ray up ray/python/ray/autoscaler/aws/example-full.yaml
ray down ray/python/ray/autoscaler/aws/example-full.yaml
https://ray.readthedocs.io/en/latest/using-ray-on-a-large-cluster.html

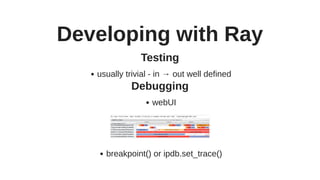

36. Developing with Ray
Testing
usually trivial - in → out well defined
Debugging
webUI
breakpoint() or ipdb.set_trace()

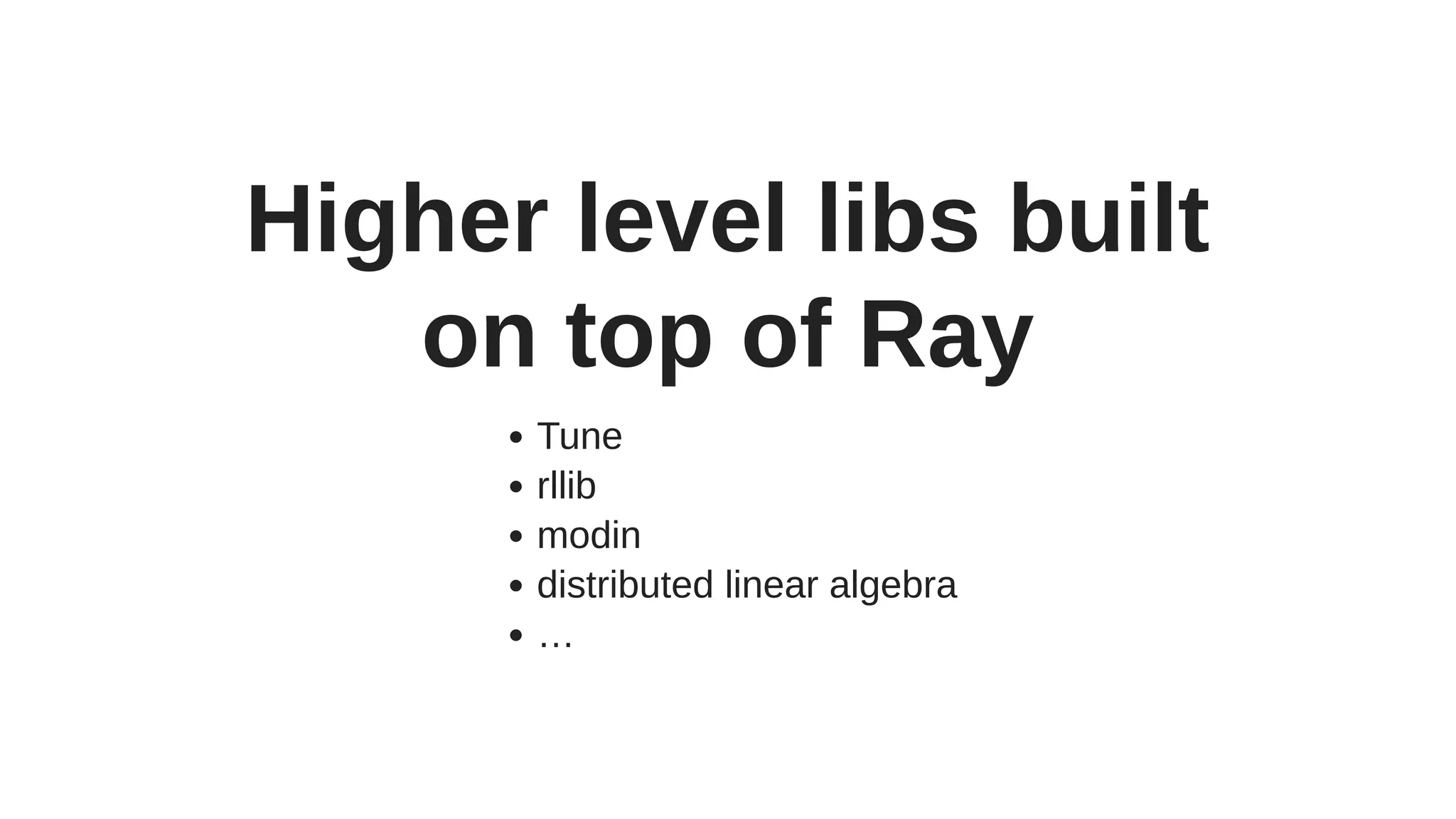

37. Higher level libs built
on top of Ray
Tune
rllib
modin
distributed linear algebra
…

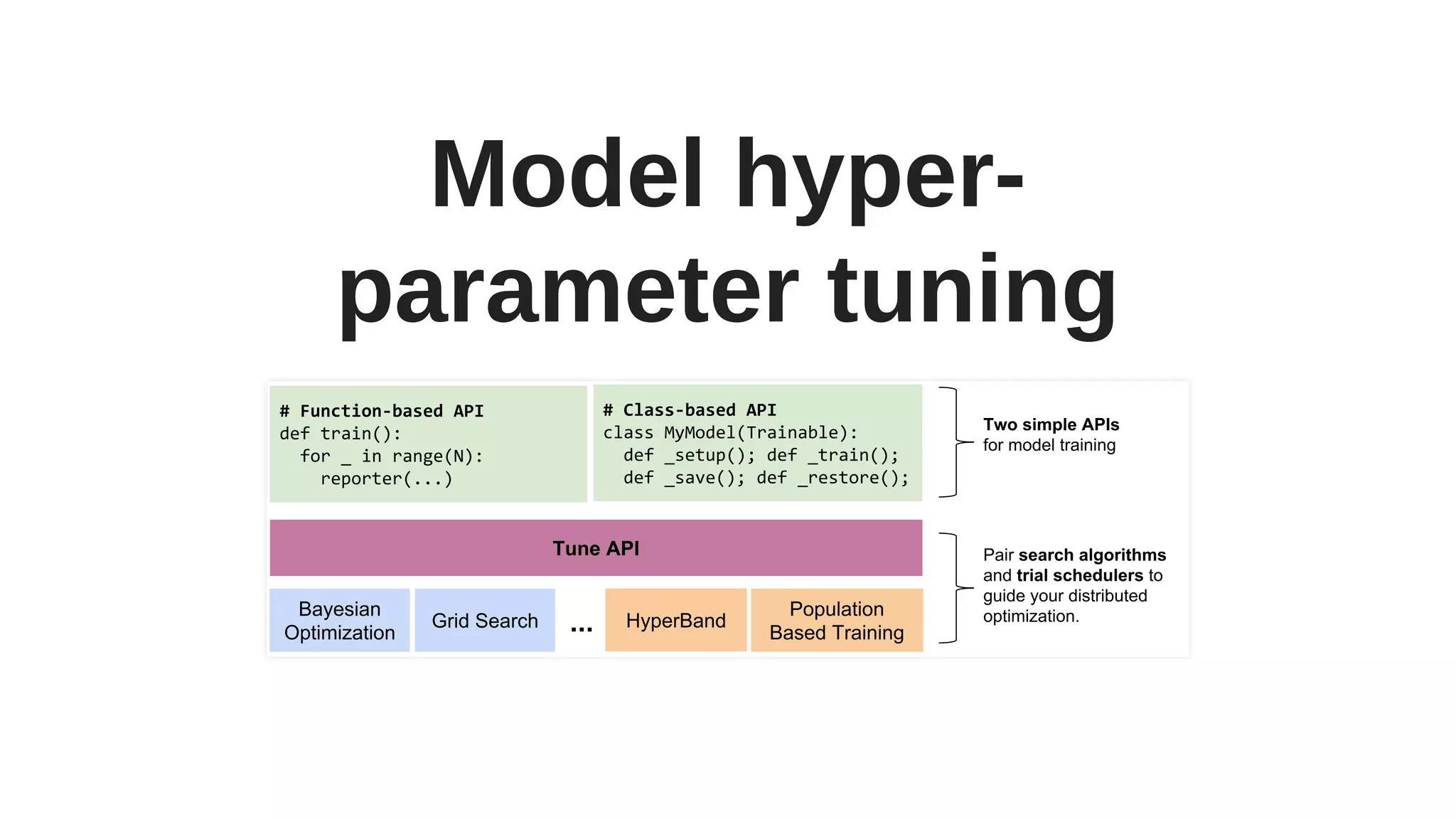

38. Model hyper-
parameter tuning

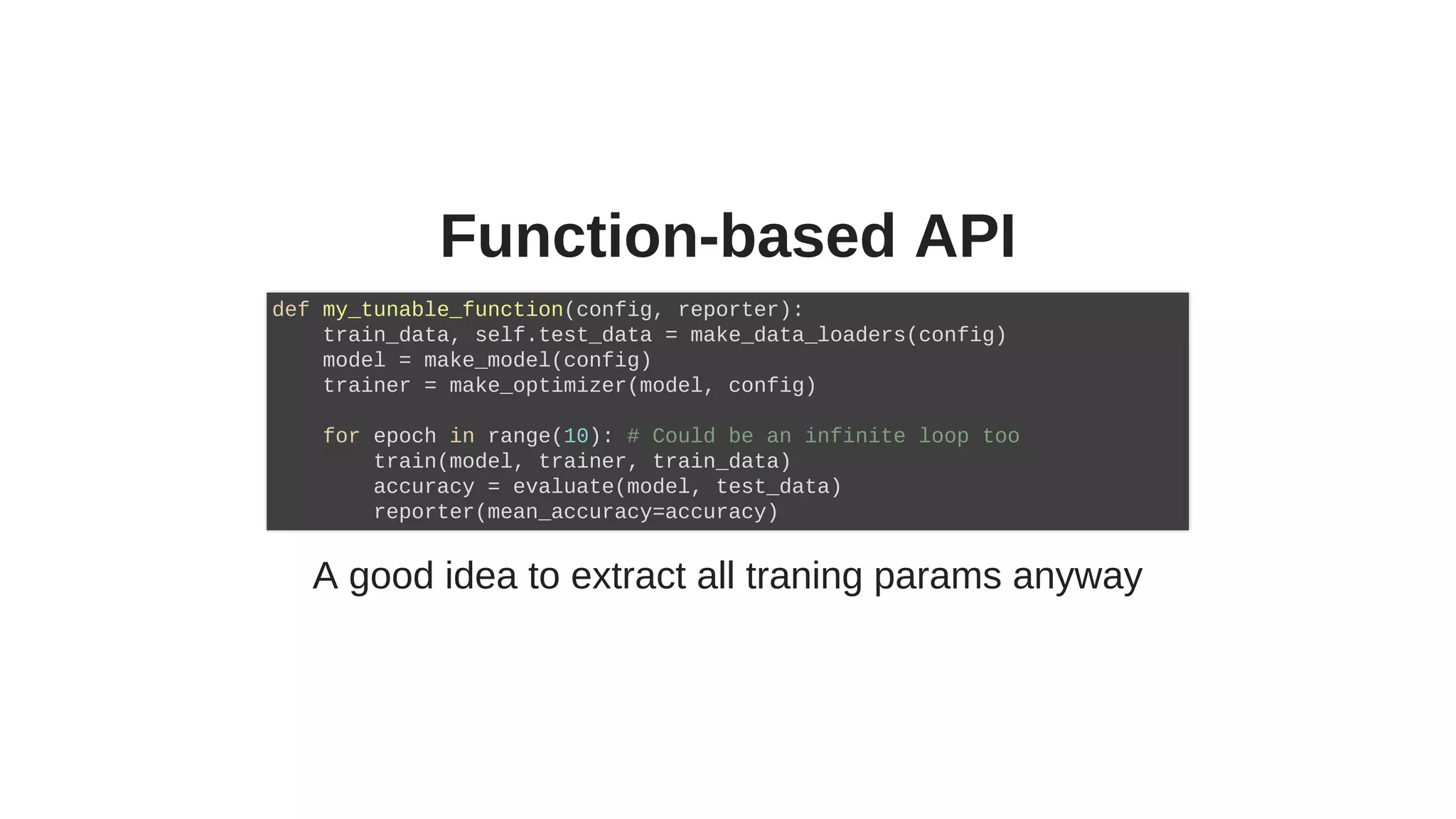

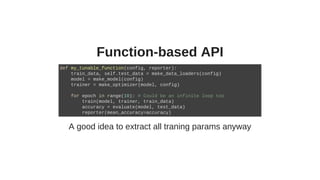

39. Function-based API
A good idea to extract all traning params anyway
def my_tunable_function(config, reporter):
train_data, self.test_data = make_data_loaders(config)
model = make_model(config)
trainer = make_optimizer(model, config)
for epoch in range(10): # Could be an infinite loop too
train(model, trainer, train_data)
accuracy = evaluate(model, test_data)
reporter(mean_accuracy=accuracy)

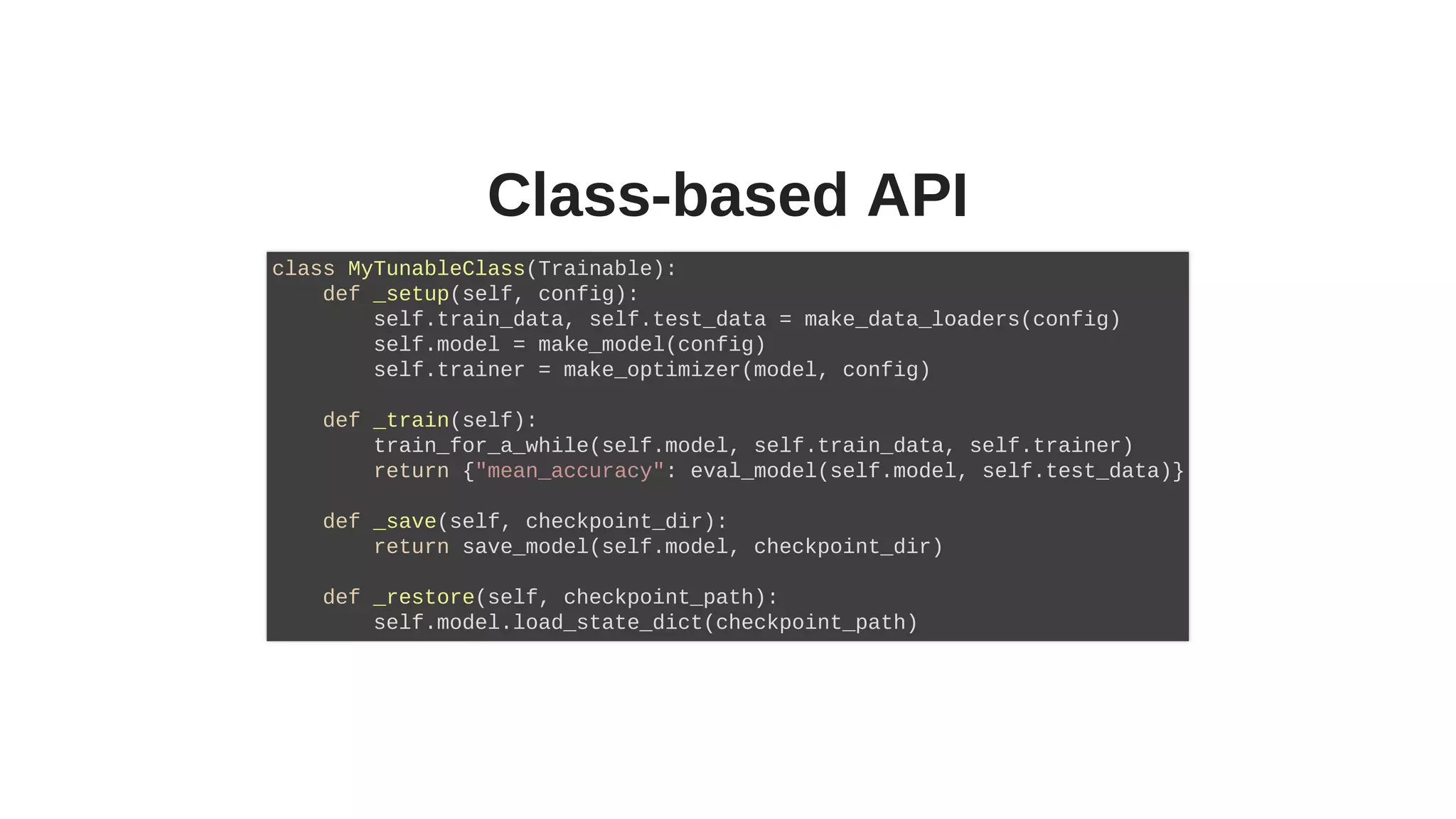

40. Class-based API
class MyTunableClass(Trainable):
def _setup(self, config):
self.train_data, self.test_data = make_data_loaders(config)
self.model = make_model(config)
self.trainer = make_optimizer(model, config)
def _train(self):
train_for_a_while(self.model, self.train_data, self.trainer)
return {"mean_accuracy": eval_model(self.model, self.test_data)}
def _save(self, checkpoint_dir):
return save_model(self.model, checkpoint_dir)
def _restore(self, checkpoint_path):
self.model.load_state_dict(checkpoint_path)

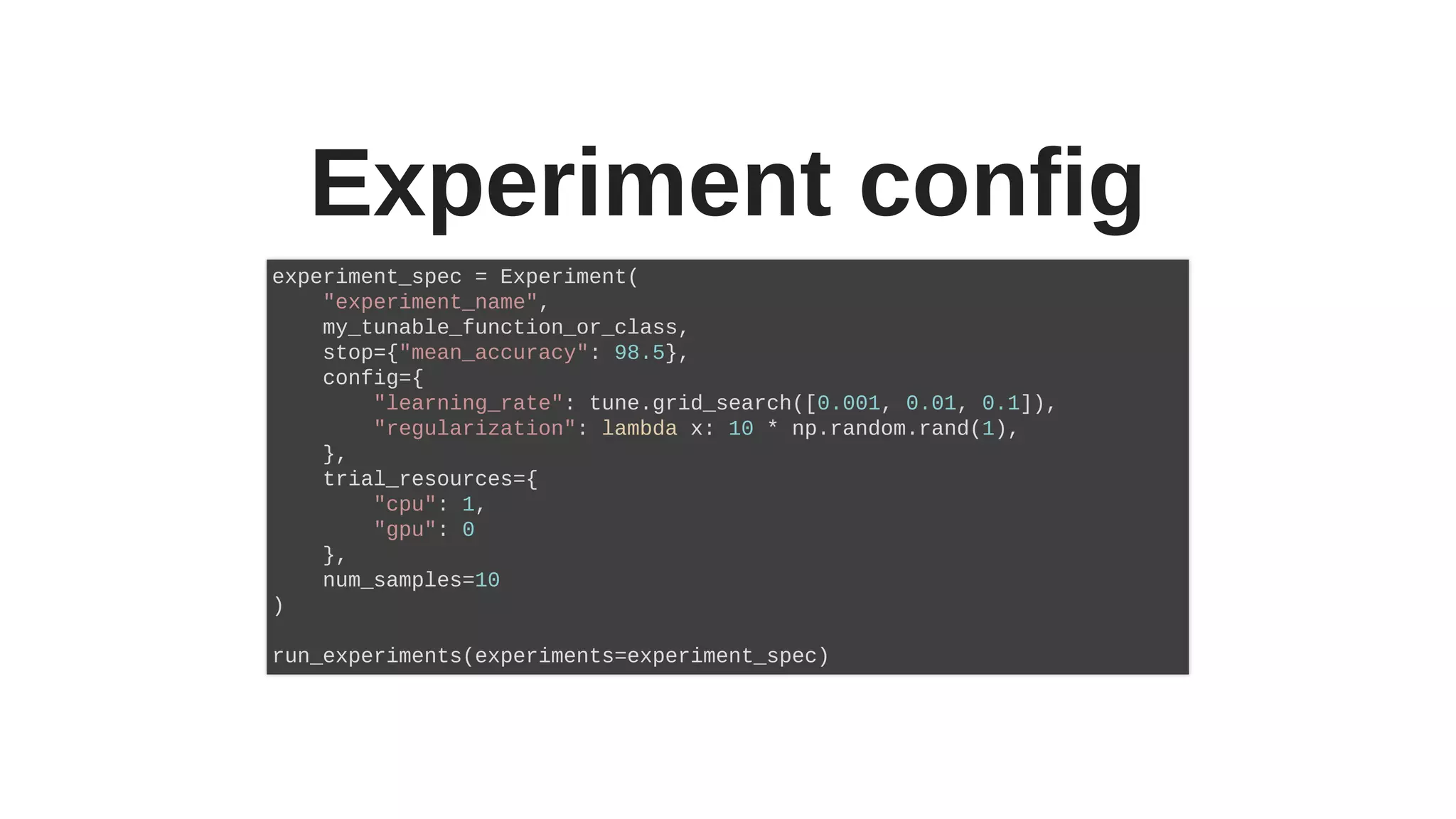

41. Experiment config
experiment_spec = Experiment(
"experiment_name",
my_tunable_function_or_class,
stop={"mean_accuracy": 98.5},
config={
"learning_rate": tune.grid_search([0.001, 0.01, 0.1]),
"regularization": lambda x: 10 * np.random.rand(1),
},
trial_resources={
"cpu": 1,
"gpu": 0
},
num_samples=10
)
run_experiments(experiments=experiment_spec)

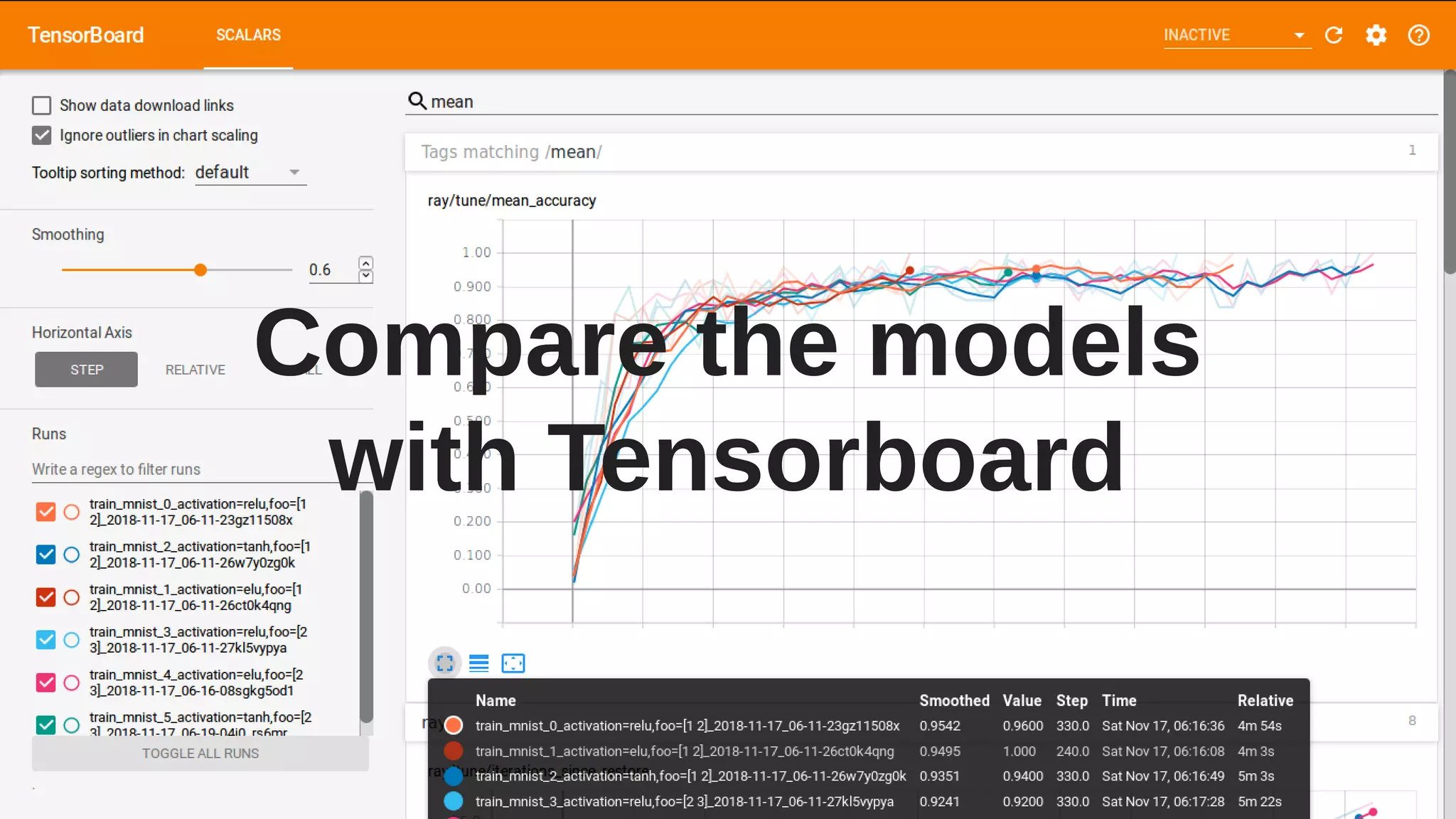

42. Compare the models
with Tensorboard

43. Reinforcement
learning
https://gym.openai.com/ https://ray.readthedocs.io/en/latest/rllib.html

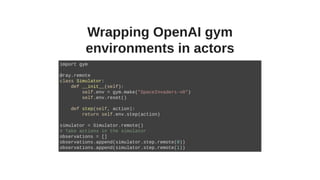

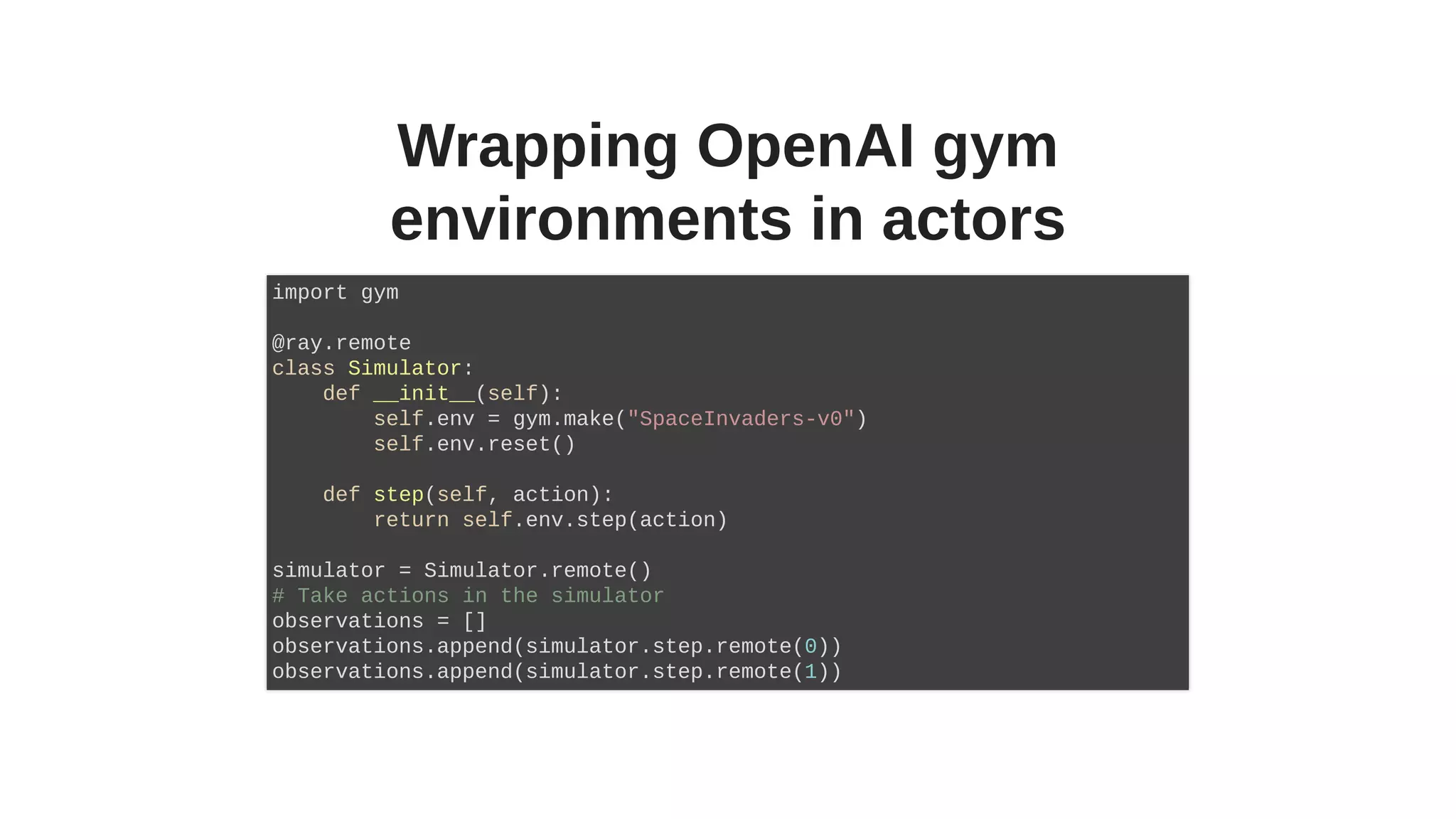

44. Wrapping OpenAI gym
environments in actors
import gym
@ray.remote
class Simulator:
def __init__(self):
self.env = gym.make("SpaceInvaders-v0")
self.env.reset()
def step(self, action):
return self.env.step(action)
simulator = Simulator.remote()
# Take actions in the simulator
observations = []
observations.append(simulator.step.remote(0))
observations.append(simulator.step.remote(1))

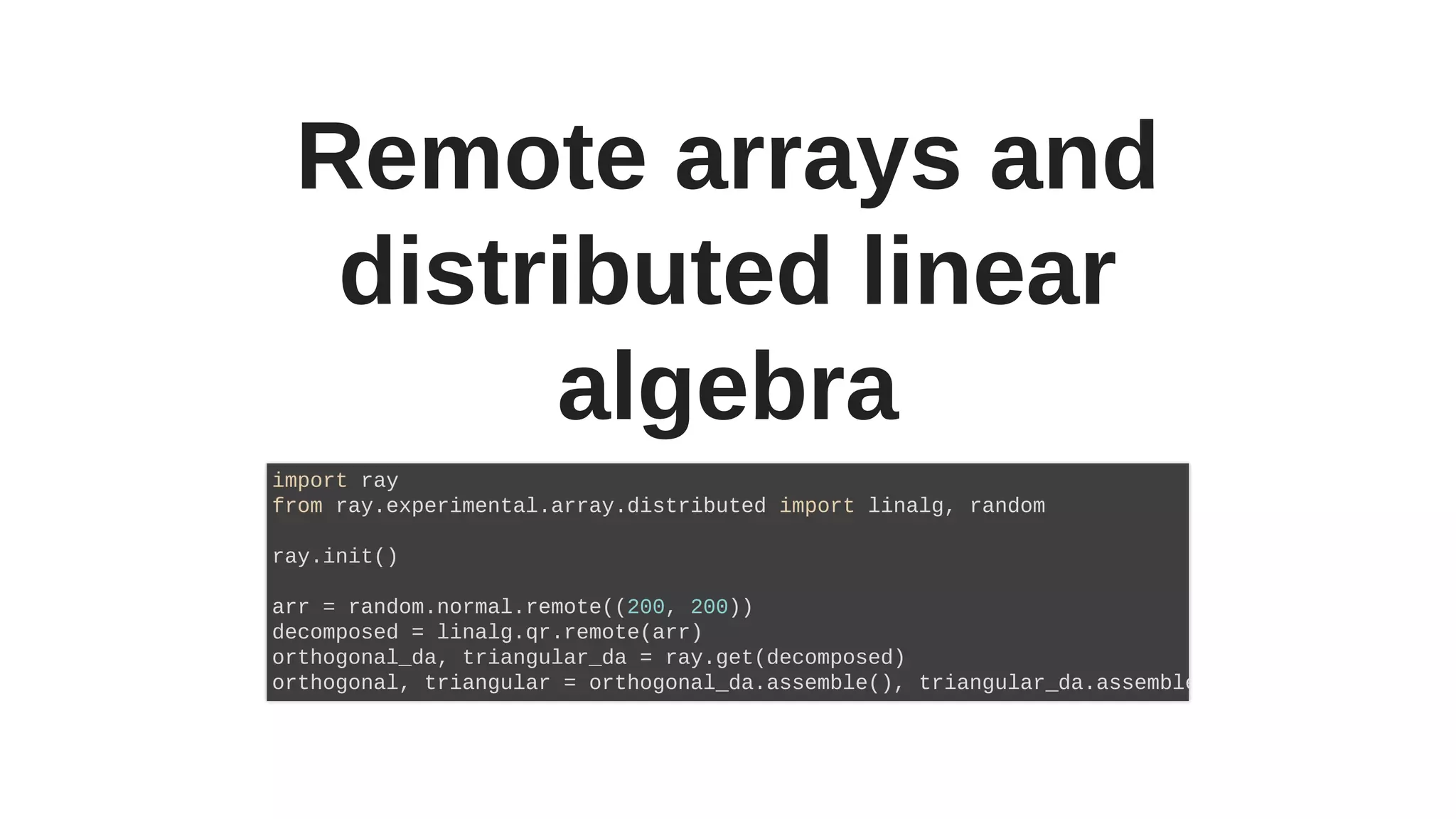

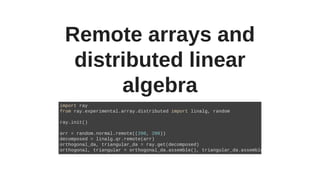

45. Remote arrays and
distributed linear
algebra
import ray
from ray.experimental.array.distributed import linalg, random
ray.init()
arr = random.normal.remote((200, 200))
decomposed = linalg.qr.remote(arr)
orthogonal_da, triangular_da = ray.get(decomposed)
orthogonal, triangular = orthogonal_da.assemble(), triangular_da.assemble

46. Speed-up your
Pandas pipelines
import modin.pandas as pd
https://github.com/modin-project/modin

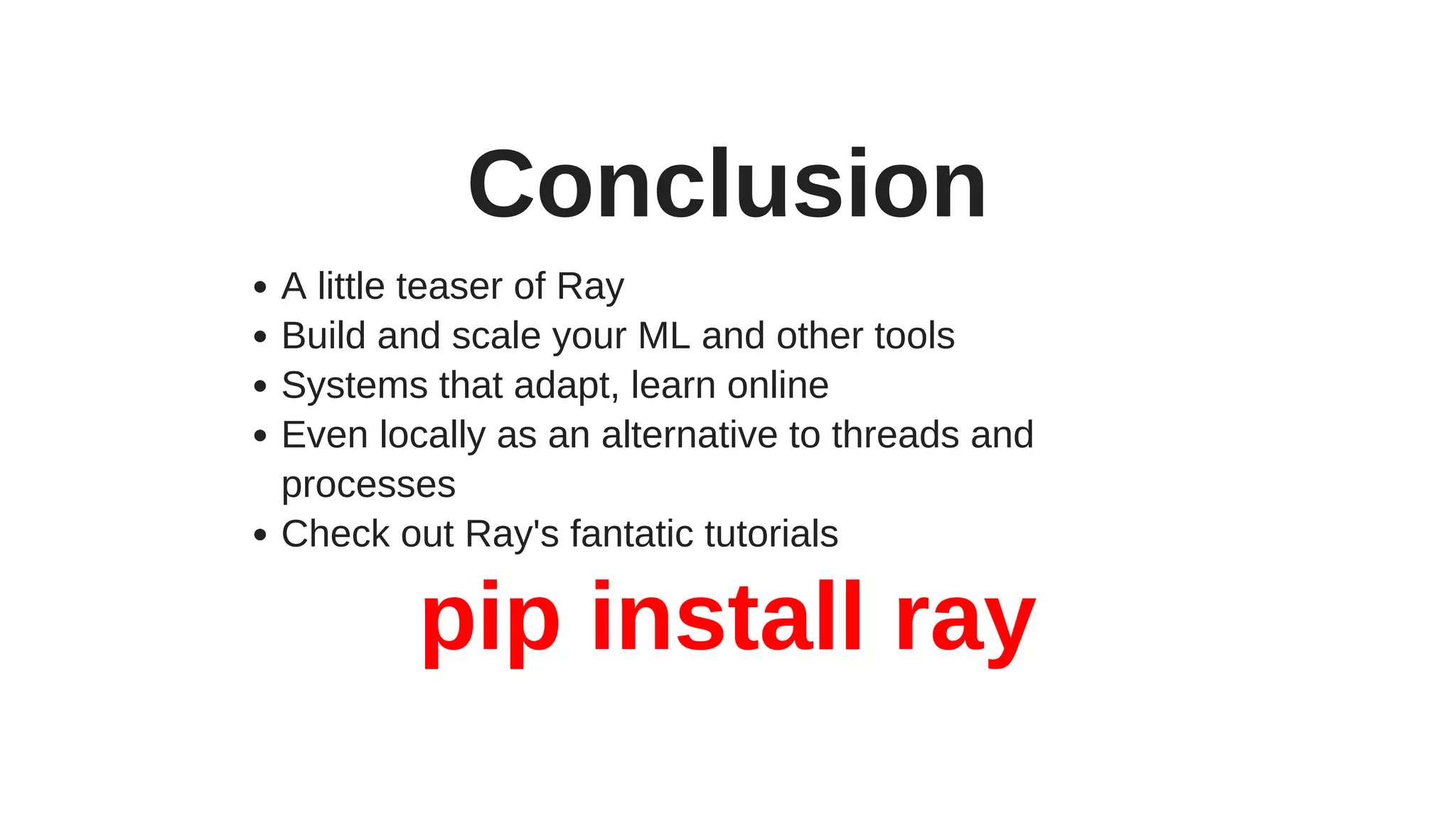

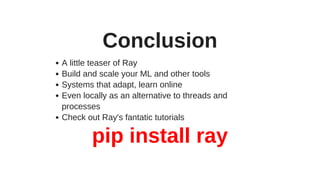

47. Conclusion
A little teaser of Ray
Build and scale your ML and other tools
Systems that adapt, learn online
Even locally as an alternative to threads and
processes
Check out Ray's fantatic tutorials
pip install ray

48. Thanks!
Distributed computing and
hyper-parameter tuning with Ray
Jan Margeta | |
November 17, 2018
jan@kardio.me @jmargeta

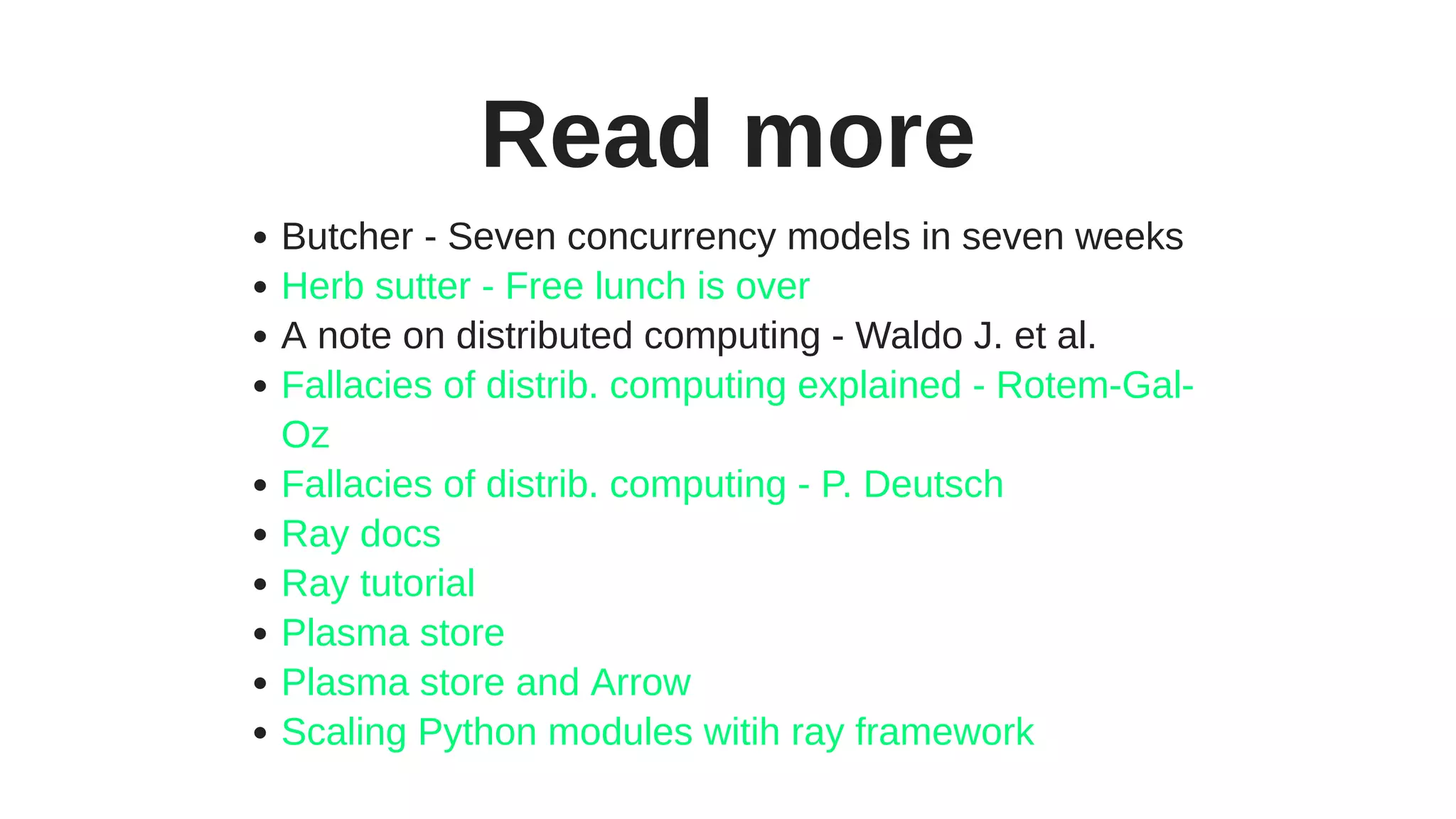

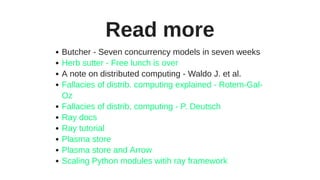

49. Read more
Butcher - Seven concurrency models in seven weeks
A note on distributed computing - Waldo J. et al.
Herb sutter - Free lunch is over
Fallacies of distrib. computing explained - Rotem-Gal-
Oz
Fallacies of distrib. computing - P. Deutsch
Ray docs
Ray tutorial
Plasma store
Plasma store and Arrow
Scaling Python modules witih ray framework

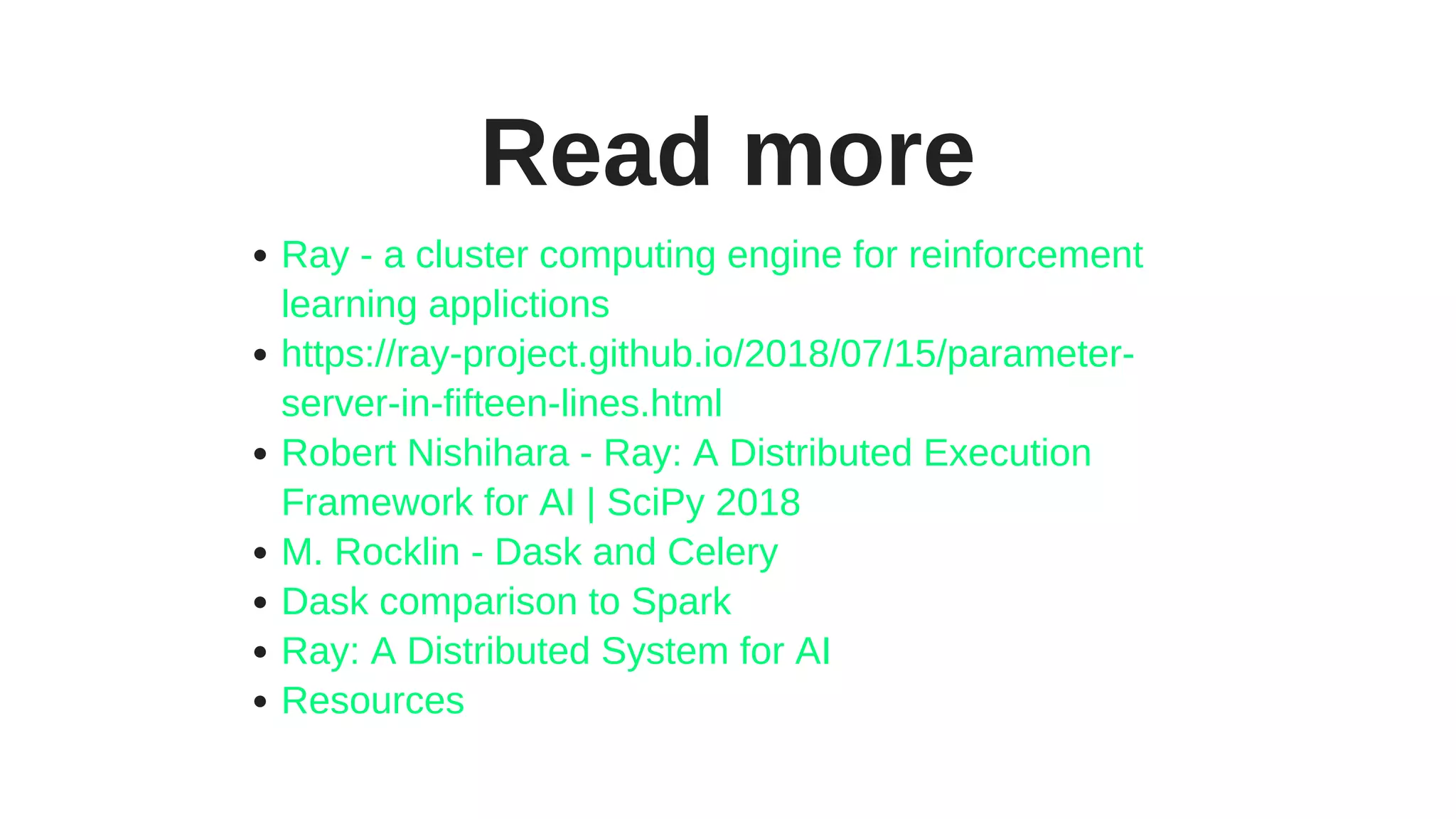

50. Read more
Ray - a cluster computing engine for reinforcement
learning applictions
https://ray-project.github.io/2018/07/15/parameter-
server-in-fifteen-lines.html
Robert Nishihara - Ray: A Distributed Execution
Framework for AI | SciPy 2018
M. Rocklin - Dask and Celery
Dask comparison to Spark
Ray: A Distributed System for AI
Resources
