These are the slides that were be presented at a GlobalSign customer event in Leuven on September 16, 2014. In my talk, I explained why digital signatures are important. I introduced the audience to the basic concepts used when signing documents and showed how these concepts are used in the context of PDF. Furthermore, I discussed different architectures to implement a digital signature solution, as well as how digital signatures can be used in a workflow and how we can create digital signatures for the long term.

1. Digital Signatures
How it’s done in PDF

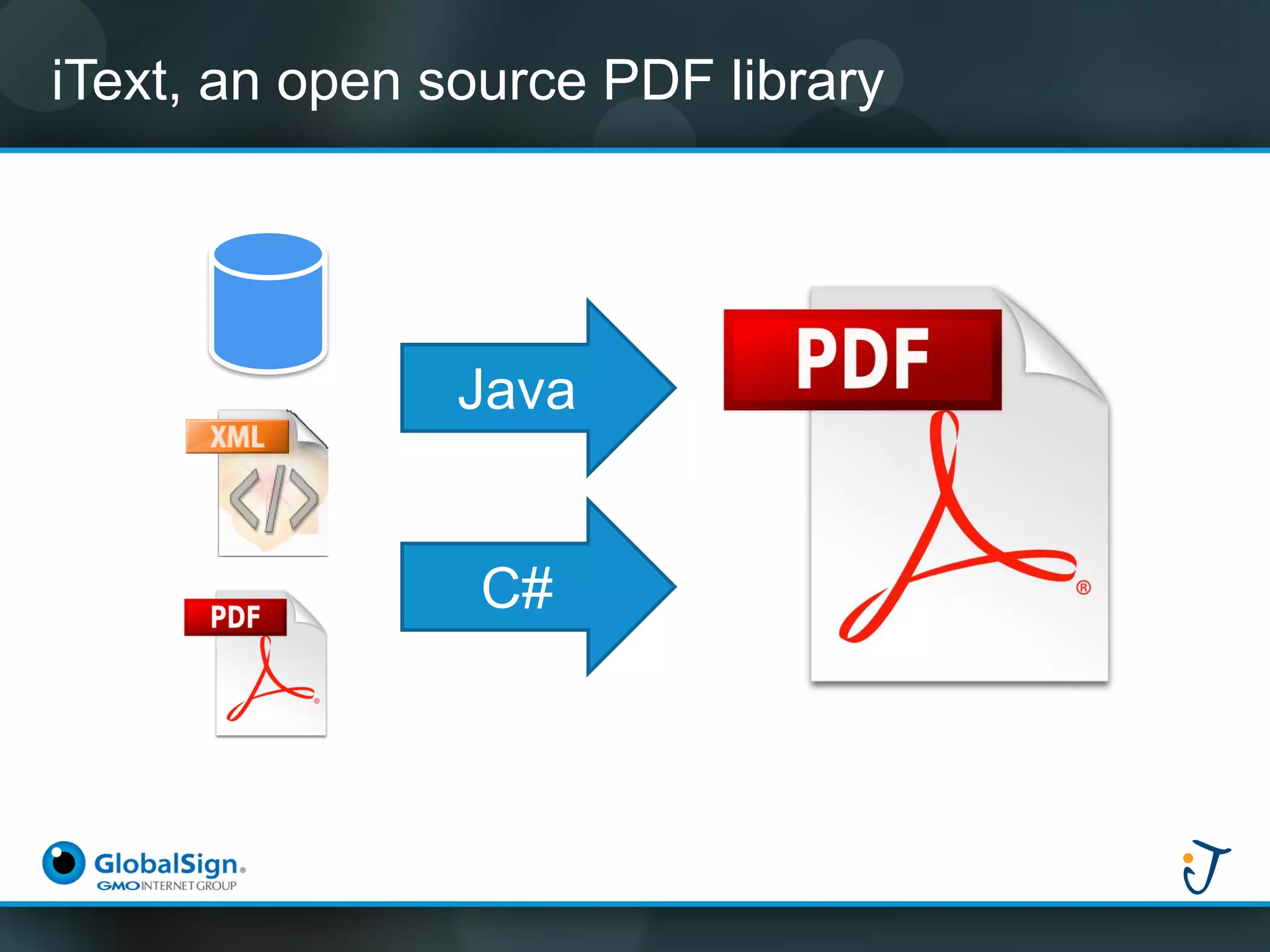

2. iText, an open source PDF library
Java
C#

3. Shareholders:
-Ingeborg Willaert (50%)
-Bruno Lowagie (50%)
iText Group NV
°2008 Belgium
IP, TM, Development
Marketing
iText Software BVBA
°2011 Belgium
Sales EMEA/Asia
iText Software Corp.
°2009 USA (CA/MA)
Sales Americas/Oceania
Board of Directors:
-Peter Camps (chairman)
-Ingeborg Willaert
-Bruno Lowagie
Advisory Board:
-Andrew Binstock
-Mark de Visser
-Bernard Slede
iTextGroup
Benelux: 10th place
Belgium: 3rd place

4. Agenda
•Why do we need digital signatures?
•Basic concepts…
•… applied to PDF
•Architectures: server-side vs. client-side
•Digital signatures and document workflow
•Long term validation

5. Introduction
Why do we need digital signatures?

6. Integrity
I paid a forged invoice
and lost 30K€!

7. Authenticity
Why am I, Emperor Constantine I, in this picture? I never transferred authority to the Pope!

8. Non-repudiation
I didn’t do it!

9. Three goals
•Integrity —we want assurance that the document hasn’t been changed somewhere in the workflow
•Authenticity —we want assurance that the author of the document is who we think it is (and not somebody else)
•Non-repudiation —we want assurance that the author can’t deny his authorship.

10. Part 1
Basic concepts…

11. Concept 1: Hashing
•Hashing algorithm:
•a cryptographic hash function to turn an arbitrary block of data into a fixed-size bit string.
•Available algorithms:
•MD5: Ron Rivest
•SHA:
•SHA-1: NSA (Being phased out!)
•SHA-2: NSA / NIST
•NEW: SHA-3 contest winner “Keccak”
•RIPEMD: KULeuven

12. Concept 1: Integrity check using hash
Document
Generate Hash
AF1B4C...D34E
Secure Server / Website
Retrieve Hash
AF1B4C...D34E
Compare!

13. Concept 2: encryption
•Assymetric key algorithms
•Encryption
•Digital signing

14. Some name dropping
•Public Key Cryptography Standards
•PKCS#1: RSA Cryptography Standard (Rivest, Shamir, Adleman)
•PKCS#7: Cryptographic Message Standard (CMS)
•PKCS#11: Cryptographic Token Interface
•PKCS#12: PersonalInformation Exchange SyntaxStandard
•PKCS#13: Elliptic Curve Cryptography Standard (ECDSA)
•Federal Information Processing Standards (FIPS)
•DSA: Digital Signature Algorithm (DSA)
•European Telecommunications Standards Institute (ETSI)
•CMS Advanced Electronic Signatures (CAdES)

15. Concept 1 + Concept 2
•Producer
•Provides data as-is
•Provides hash encrypted using private key
•Provides public key
•Consumer
•Creates hash from data: hash1
•Decrypts hash using public key: hash2
•If (hash1== hash2) document OK!

16. Goals met?
•Integrity:
•hashes are identical
•Authenticity:
•identity found along with public key
•Non-repudiation:
•if hash can be decrypted with public key, the document was signed with the corresponding private key

17. Differences between EU and US
•In the US, we make a distinction:
•Electronic signatures don’t necessarily involve PKI
•Digital signatures when a PKI infrastructure is involved
•In Europe, we speak of electronic signatures
•As a synonymfor digital signatures
•All laws and regulations take this wording
•There’s no sharp distinction between electronic and digital signatures (which leads to confusion)
•I always speak of digital signatures

18. Part 2
… applied to PDF

19. Standards
•ISO
•ISO-32000-1 (2008) based on PDF 1.7 (2006)
•ISO-32000-2 will define PDF 2.0 (2016)
•ETSI: TS 102 778 (2009 -2010)
•PAdES1: Overview
•PAdES2: Basic –CMS based (ISO-32000-1)
•PAdES3: Enhanced –CAdESbased (ISO-32000-2)
•PAdES4: LTV –Long Term Validation
•PAdES5: XAdESbased (XML content)
•PAdES6: Visual representation guidelines
•ETSI: TS 103 172 (2011 -2013)
•PAdESBaseline Profile

20. Signatures in PDF
•There are no bytes in the PDF that aren’t covered, other than the PDF signature itself. (*)
•The digital signature isn’t part of the ByteRange.
•The concept “to initial a document” doesn’t exist; you sign the complete document at once, not on a page per page basis. (*)

21. Some PDF terminology
•Signature field:
•Visualisation (onewidget annotation)
•Extra info about signature (Lock, SV)
•/V refers to the signature dictionary
•Signing:
•Creating an /APfor the widget annotation
•Creating a signature dictionary for /V

22. What’s inside the signature?
%PDF-1.x
...
/ByteRange ...
/Contents<
>...
%%EOF
DIGITAL SIGNATURE
•Signed Message Digest
•Certificatechain
•Revocation information
•Timestamp
ISO-32000-2:
At minimum the PKCS#7 object shall include the signer’s X.509 signing certificate. This certificate shall be used to verify the signature value in /Contents.
Best practices (“should” also have):
•Full certificate chain
•Revocation information (CRL / OCSP)
•Timestamp

23. Part 3
Architectures:
Server-side vs. client-side signing

24. Server-side signing
<</Type/Sig/
/Contents <
%PDF-1.x
...
...
%%EOF
>>>
Signed Message Digest
Application
Device
SERVER

25. Use cases server-side signing
•Company signature
•Invoices
•Contracts
•…
•Signing services in the Cloud
•Docusign
•Echosign
•…
•Security management responsibilities!

26. Client-side signing
<</Type/Sig/
/Contents <
%PDF-1.x
...
...
%%EOF
>>>
Signed Message Digest
Application
Device
CLIENT

27. Use cases client-side signing
•Desktop applications
•Adobe Acrobat Pro
•Adobe Reader (only for Reader-enabled documents)
•Home made, e.g. using iText
•In a web context
•The PDF software runs on the client, e.g. using Java Web Start
•Access to the token or smart card through
•MSCAPI
•PKCS#11
•Custom smart card library
•Security
•User has smart card and PIN or USB token and passphrase

28. Deferred signing
Signed Message Digest
App
Device
CLIENT
<</Type/Sig/
/Contents <
%PDF-1.x
...
...
%%EOF
>>>
Application
SERVER

29. Use cases deferred signing
•Signing on an iPad / Tablet
•App on the device has low footprint
•Easy to link to integrate into a document management system
•Disadvantage
•You need to trust the server that the hash you receive is actually the hash of the document you want to sign
•Common Criteria
•a framework in which computer system users can specifytheir security functionaland assurancerequirements (SFRs and SARs respectively) through the use of Protection Profiles (PPs), vendors can then implementand/or make claims about the security attributes of their products, and testing laboratories can evaluatethe products to determine if they actually meet the claims.

30. Part 4
Digital signatures
and document workflow

31. Digital signatures: types
•Certification (aka author) signature
•only possible for the first revision (*)
•involves modification detection permissions:
•No changes allowed
•Form filling and signing allowed
•Form filling, signing and commenting allowed
•Approval (aka recipient) signature
•workflow with subsequent signers
•New in PDF 2.0: modification detection permissions
•Usage Rights signature
•involving Adobe’s private key to Reader enable a PDF

32. Other possible icons
•Signer’s identity is unknown
•Document has been altered or corrupted

33. Serial signatures
%PDF-1.x
%Originaldocument
% Additional content 1
...
...
%%EOF
DIGITAL SIGNATURE 1
...
%%EOF
DIGITAL SIGNATURE 2
% Additional content 2
...
...
%%EOF
DIGITAL SIGNATURE 3
Rev1
Rev2
Rev3
A PDF document can be signed more than once, but parallel signatures aren’t supported, only serial signatures: additional signatures sign all previous signatures.

34. Certified by Alice

35. Read and approved by Bob

36. Signed by Bob

37. Bob’s signature invalidated by Chuck

38. Read, approved and signed by Carol

39. Read, approved, and signed by Dave

40. Signature and lock broken by Chuck

41. Part 5
Long-term validation

42. Certificates expire
Expiration date
2012
2013
2014

43. Certificates get revoked
Expiration date
Revocation date
2012
2013
2014

44. How to survive revocation / expiration?
2012
2013
2014
Expiration date
Revocation date

45. Timestamps

46. What to do when:
•There’s no CRL/OCSP/TS in the document?
•The certificate is about to expire in one of your documents?
•The hashing / encryption algorithm is about to be deprecated?

47. Document Security Store
%PDF-1.x
...
/ByteRange ...
/Contents<
>...
%%EOF
DIGITAL SIGNATURE
•Signed Message Digest
•Certificate
%PDF-1.x
...
/ByteRange ...
/Contents<
>...
%%EOF
DSS for DIGITAL SIGNATURE
•VRI, Certs, OCSPs, CRLs
DIGITAL SIGNATURE
•Signed Message Digest
•Certificate

48. Document-level timestamp
%PDF-1.x
...
/ByteRange ...
/Contents<
>...
%%EOF
DSS for DIGITAL SIGNATURE
•VRI, Certs, OCSPs, CRLs
%PDF-1.x
...
/ByteRange ...
/Contents<
>...
%%EOF
DSS for DIGITAL SIGNATURE
•VRI, Certs, OCSPs, CRLs
DOCUMENT TIMESTAMP TS1
ETSI.RFC3161
DIGITAL SIGNATURE
•Signed Message Digest
•Certificate
DIGITAL SIGNATURE
•Signed Message Digest
•Certificate

49. Repeat as soon as needed
%PDF-1.x
...
/ByteRange ...
/Contents<
>...
%%EOF
DSS for DIGITAL SIGNATURE
•VRI, Certs, OCSPs, CRLs
DOCUMENT TIMESTAMP TS1
%PDF-1.x
...
/ByteRange ...
/Contents<
>...
%%EOF
DSS for DIGITAL SIGNATURE
•VRI, Certs, OCSPs, CRLs
DOCUMENT TIMESTAMP TS1
DSS for TS1
DOCUMENT TIMESTAMP TS2
DIGITAL SIGNATURE
•Signed Message Digest
•Certificate
DIGITAL SIGNATURE
•Signed Message Digest
•Certificate

50. Q & A
