1. 1/3” Colour Pin Hole Camera
Model SP - 342 MP
Features:
• High Resolution : 420 TVL
• 1/3” Sony Super HAD CCD
• Auto Tracking White Balance
• Backlight Compensation
• Minimum Illumination : 0.1 Lux/ F2.0
• Various Lens Options
Model SP-342MP
Resolution 420 TV Lines
Imaging Device 1/3” Sony Super HAD CCD
Signal System PAL / NTSC
Backlight Compensation Auto
Camera Pixels NTSC 510(H) x 492(V)
PAL 500(H) x 582(V)
Sync System Internal
S/N Ratio More than 48dB
Electronic Shutter NTSC : 1/60~1/100,000
PAL : 1/50~1/110,000
Scanning Mode Interlaced
Minimum Illumination 0.1 Lux/F2.0
Gain Control Auto
Lens Furnished 3.6mm F2.0 (Option for 2.5/6/8/12/16 mm)
White Balance Auto Tracking White Balance
Video Output 1.0 Vp-p Analog Composite @ 75 ohm
Power Source DC + 12V
Power Consumption 90 mA Max.
Operating Temperature -10 to + 50 degree Centigrade
Dimensions (mm) 32 x 32
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.

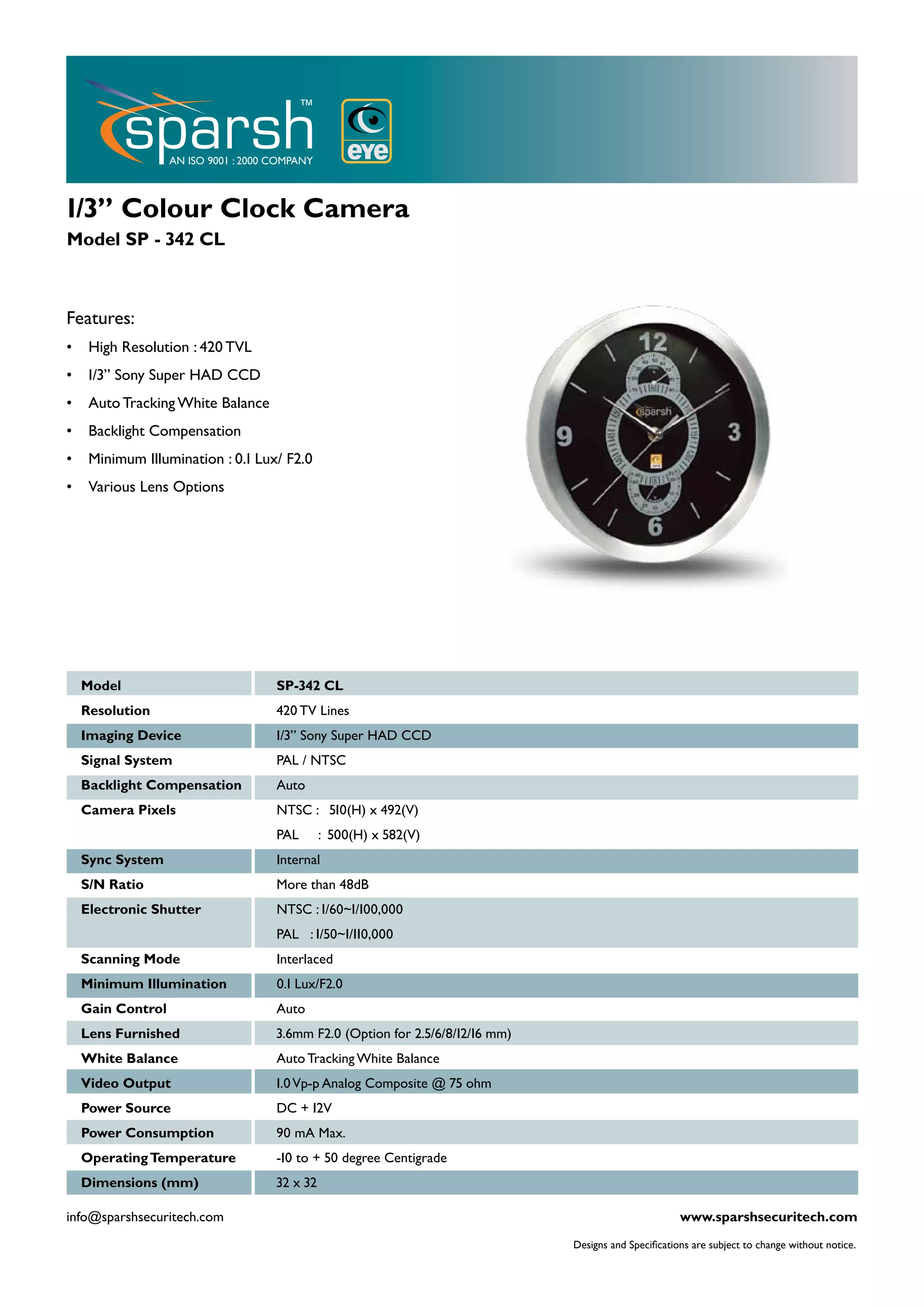

2. 1/3” Colour Clock Camera
Model SP - 342 CL
Features:
• High Resolution : 420 TVL
• 1/3” Sony Super HAD CCD
• Auto Tracking White Balance
• Backlight Compensation
• Minimum Illumination : 0.1 Lux/ F2.0
• Various Lens Options
Model SP-342 CL
Resolution 420 TV Lines
Imaging Device 1/3” Sony Super HAD CCD
Signal System PAL / NTSC
Backlight Compensation Auto
Camera Pixels NTSC : 510(H) x 492(V)
PAL : 500(H) x 582(V)
Sync System Internal
S/N Ratio More than 48dB
Electronic Shutter NTSC : 1/60~1/100,000
PAL : 1/50~1/110,000
Scanning Mode Interlaced
Minimum Illumination 0.1 Lux/F2.0
Gain Control Auto
Lens Furnished 3.6mm F2.0 (Option for 2.5/6/8/12/16 mm)
White Balance Auto Tracking White Balance
Video Output 1.0 Vp-p Analog Composite @ 75 ohm
Power Source DC + 12V
Power Consumption 90 mA Max.
Operating Temperature -10 to + 50 degree Centigrade
Dimensions (mm) 32 x 32
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.

3. Dummy Smoke Body Camera
Model SP - 342 SM
Features:
• 1/3” Sony Super HAD Colour CCD
• High Resolution (Minimum 420 TVL)
• Tropicalized MS Housing
• Various Lens size 2.5/3.6/6.0/8.0/12.0/16.0mm
• Built in IR-Cut Optical Filter
• Digital Day & Night Mode
• Optional-One Way
Model SP-342 SM
Particulars Video Video with 1 way Audio
Imaging Device 1/3” Sony Super HAD CCD
Resolution 420 TVL
Minimum Illumination 0.1 Lux / F2.0
Electronic Shutter 1/60~1/100,000 NTSC, 1/50~1/110,000 (PAL)
S/N Ratio More than 48dB (AGC Off)
White Balance Auto Tracking White Balance
Backlight Compensation Auto
Lens Furnished Board lens 3.6mm (Optional 2.5 / 6.0 / 8.0 / 12.0 / 16.0 mm)
Gain Control Auto
Video Output 1.0 Vp-p Composite 75 ohms
Power Source (Optional 12V DC)
Operating Temperature 0° to + 50° C
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.
