This document provides information about a high resolution infrared bullet camera. It has a 1/3" image sensor, 600 TVL resolution, and can capture quality images down to 0.01 lux with its 6mm lens. The camera has 63 infrared LEDs allowing it to see up to 50 meters in night vision mode. It features auto functions like gain, white balance, and backlight compensation, and is CE, FCC, and RoHS certified.

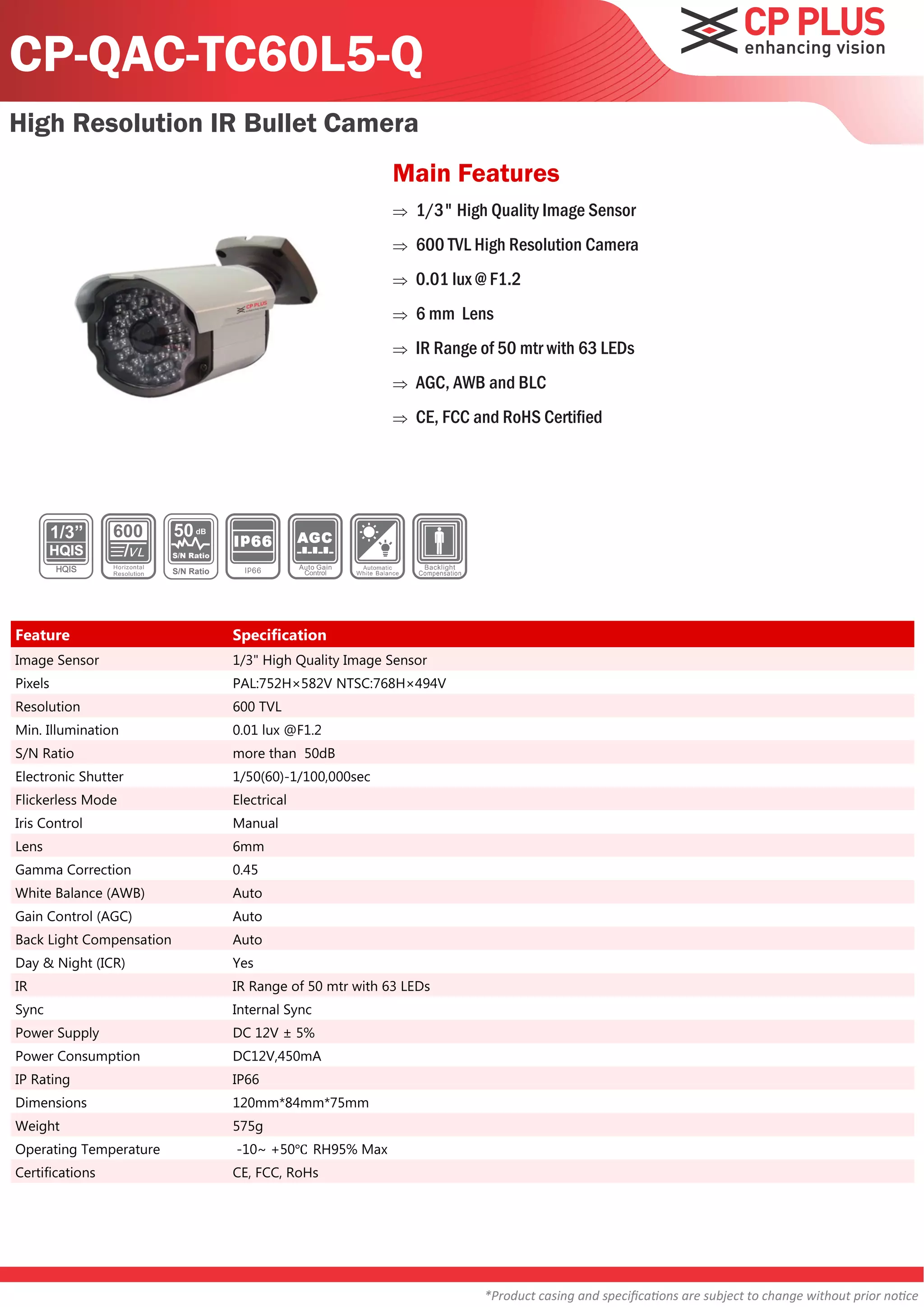

1. CP-QAC-TC60L5-Q
High Resolution IR Bullet Camera
Main Features
 1/3" High Quality Image Sensor
 600 TVL High Resolution Camera
 0.01 lux @ F1.2
 6 mm Lens
 IR Range of 50 mtr with 63 LEDs
 AGC, AWB and BLC
 CE, FCC and RoHS Certified
50
S/N Ratio
S/N Ratio
Feature Specification
Image Sensor 1/3" High Quality Image Sensor
Pixels PAL:752H×582V NTSC:768H×494V
Resolution 600 TVL
Min. Illumination 0.01 lux @F1.2
S/N Ratio more than 50dB
Electronic Shutter 1/50(60)-1/100,000sec
Flickerless Mode Electrical
Iris Control Manual
Lens 6mm
Gamma Correction 0.45
White Balance (AWB) Auto
Gain Control (AGC) Auto
Back Light Compensation Auto
Day & Night (ICR) Yes
IR IR Range of 50 mtr with 63 LEDs
Sync Internal Sync
Power Supply DC 12V ± 5%
Power Consumption DC12V,450mA
IP Rating IP66
Dimensions 120mm*84mm*75mm
Weight 575g
Operating Temperature -10~ +50℃ RH95% Max
Certifications CE, FCC, RoHs
*Product casing and specifications are subject to change without prior notice
