This document provides information about PVC windows manufactured by Deyplasa, including: - Deyplasa has over 35 years of experience in manufacturing PVC and aluminum windows and was the first Santander-based company to produce PVC windows. - They produce windows under the Decanor brand which offers energy efficiency, soundproofing, durability, and variety of designs. - The document goes on to describe how a Decanor PVC window is constructed, with details on the frame, leaf, seals, reinforcements, glass stops, and glazing. It also lists the different types of windows including fixed, casement, hopper, and turn and tilt.

1. PVC WINDOWS
A COMMITMENT TO
WORK WELL DONE

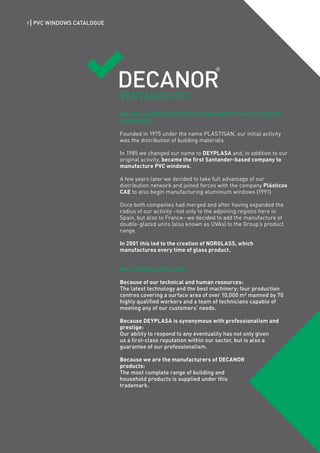

2. 2 PVC WINDOWS CATALOGUE
WE ARE A CORPORATE GROUP WITH MORE THAN 35 YEARS OF
EXPERIENCE
Founded in 1975 under the name PLASTISAN, our initial activity
was the distribution of building materials.
In 1985 we changed our name to DEYPLASA and, in addition to our
original activity, became the first Santander-based company to
manufacture PVC windows.
A few years later we decided to take full advantage of our
distribution network and joined forces with the company Plásticos
CAE to also begin manufacturing aluminium windows (1991).
Once both companies had merged and after having expanded the
radius of our activity –not only to the adjoining regions here in
Spain, but also to France– we decided to add the manufacture of
double-glazed units (also known as UVAs) to the Group’s product
range.
In 2001 this led to the creation of NORGLASS, which
manufactures every time of glass product.
WHY CHOOSE DEYPLASA?
Because of our technical and human resources:
The latest technology and the best machinery; four production
centres covering a surface area of over 10,000 m² manned by 70
highly qualified workers and a team of technicians capable of
meeting any of our customers’ needs.
Because DEYPLASA is synonymous with professionalism and
prestige:
Our ability to respond to any eventuality has not only given
us a first-class reputation within our sector, but is also a
guarantee of our professionalism.
Because we are the manufacturers of DECANOR
products:
The most complete range of building and
household products is supplied under this
trademark.

3. DEYPLASA 3
35 YEARS IN THE
MARKET PROVE THE
QUALITY OF OUR
JOIN US ON A JOURNEY
WORK
THROUGH THE WORLD OF PVC
WINDOWS AND DISCOVER THEIR
SHAPES, COLOURS, QUALITY
AND ENERGY EFFICIENCY
TABLE OF CONTENTS
Useful information 4
How is a DECANOR PVC window built? 5
Types of window and colours 6
The DECANOR product rang 7
Metallic parts 8

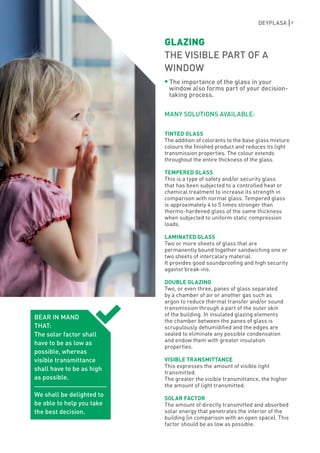

Glazing | the visible part of the window 9

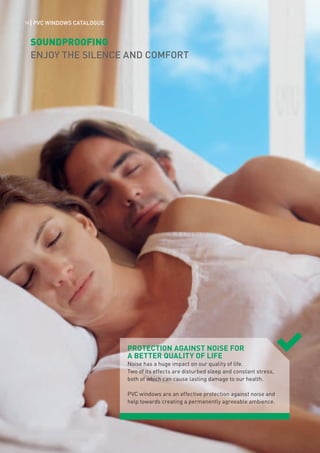

DECANOR Soundproofing 10

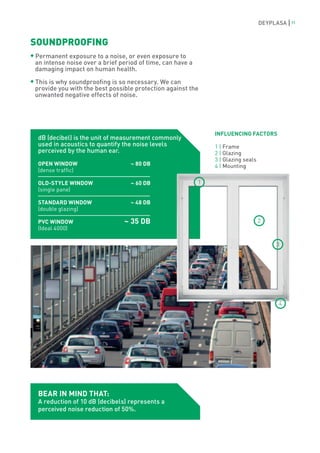

Acoustic insulation 11
DECANOR energy efficiency 12
Internal values 13

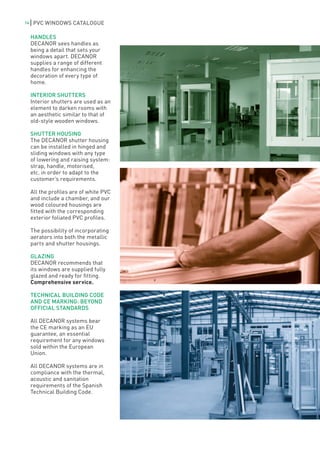

The DECANOR difference 14
The DECANOR pledge 15

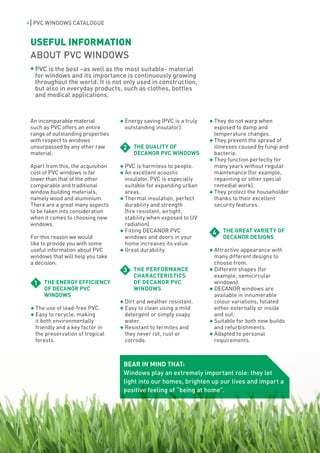

4. 4 PVC WINDOWS CATALOGUE
USEFUL INFORMATION
ABOUT PVC WINDOWS
PVC is the best –as well as the most suitable- material
for windows and its importance is continuously growing
throughout the world. It is not only used in construction,
but also in everyday products, such as clothes, bottles
and medical applications.
An incomparable material Energy saving (PVC is a truly They do not warp when
such as PVC offers an entire outstanding insulator). exposed to damp and
range of outstanding properties temperature changes.
with respect to windows They prevent the spread of
unsurpassed by any other raw 2 THE QUALITY OF illnesses caused by fungi and
material. DECANOR PVC WINDOWS bacteria.
They function perfectly for
Apart from this, the acquisition PVC is harmless to people. many years without regular
cost of PVC windows is far An excellent acoustic maintenance (for example,
lower than that of the other insulator, PVC is especially repainting or other special
comparable and traditional suitable for expanding urban remedial work).
window building materials, areas. They protect the householder
namely wood and aluminium. Thermal insulation, perfect thanks to their excellent
There are a great many aspects durability and strength security features.
to be taken into consideration (fire resistant, airtight,
when it comes to choosing new stability when exposed to UV
windows. radiation).
Fitting DECANOR PVC 4 THE GREAT VARIETY OF
For this reason we would windows and doors in your DECANOR DESIGNS
like to provide you with some home increases its value.
useful information about PVC Great durability. Attractive appearance with
windows that will help you take many different designs to
a decision: choose from.
3 THE PERFORMANCE Different shapes (for
CHARACTERISTICS example, semicircular
1 THE ENERGY EFFICIENCY OF DECANOR PVC windows).
OF DECANOR PVC WINDOWS DECANOR windows are
WINDOWS available in innumerable
Dirt and weather resistant. colour variations, foliated
The use of lead-free PVC. Easy to clean using a mild either externally or inside
Easy to recycle, making detergent or simply soapy and out.
it both environmentally water. Suitable for both new builds
friendly and a key factor in Resistant to termites and and refurbishments.
the preservation of tropical they never rot, rust or Adapted to personal
forests. corrode. requirements.
BEAR IN MIND THAT:
Windows play an extremely important role: they let
light into our homes, brighten up our lives and impart a
positive feeling of “being at home”.

5. DEYPLASA 5

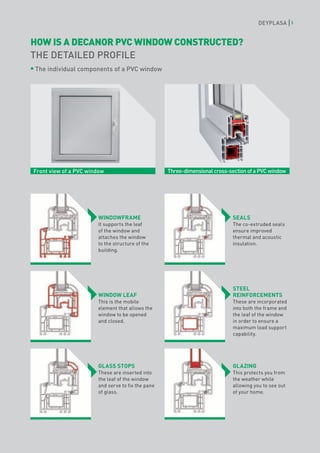

HOW IS A DECANOR PVC WINDOW CONSTRUCTED?
THE DETAILED PROFILE
The individual components of a PVC window
Front view of a PVC window Three-dimensional cross-section of a PVC window
WINDOWFRAME SEALS
It supports the leaf The co-extruded seals
of the window and ensure improved
attaches the window thermal and acoustic
to the structure of the insulation.
building.
STEEL
WINDOW LEAF REINFORCEMENTS
This is the mobile These are incorporated
element that allows the into both the frame and
window to be opened the leaf of the window
and closed. in order to ensure a
maximum load support
capability.
GLASS STOPS GLAZING
These are inserted into This protects you from
the leaf of the window the weather while
and serve to fix the pane allowing you to see out
of glass. of your home.

6. 6 PVC WINDOWS CATALOGUE

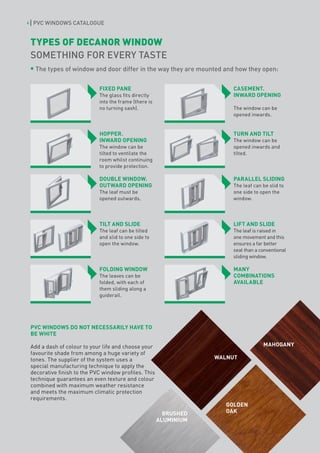

TYPES OF DECANOR WINDOW
SOMETHING FOR EVERY TASTE
The types of window and door differ in the way they are mounted and how they open:
FIXED PANE CASEMENT.
The glass fits directly INWARD OPENING
into the frame (there is
no turning sash). The window can be
opened inwards.
HOPPER. TURN AND TILT
INWARD OPENING The window can be
The window can be opened inwards and
tilted to ventilate the tilted.
room whilst continuing
to provide protection.
DOUBLE WINDOW. PARALLEL SLIDING
OUTWARD OPENING The leaf can be slid to
The leaf must be one side to open the
opened outwards. window.
TILT AND SLIDE LIFT AND SLIDE
The leaf can be tilted The leaf is raised in
and slid to one side to one movement and this
open the window. ensures a far better
seal than a conventional
sliding window.
FOLDING WINDOW MANY
The leaves can be COMBINATIONS
folded, with each of AVAILABLE
them sliding along a
guiderail.
PVC WINDOWS DO NOT NECESSARILY HAVE TO
BE WHITE
Add a dash of colour to your life and choose your MAHOGANY
favourite shade from among a huge variety of
tones. The supplier of the system uses a WALNUT
special manufacturing technique to apply the
decorative finish to the PVC window profiles. This
technique guarantees an even texture and colour
combined with maximum weather resistance
and meets the maximum climatic protection
requirements.
GOLDEN
BRUSHED OAK
ALUMINIUM

7. DEYPLASA 7

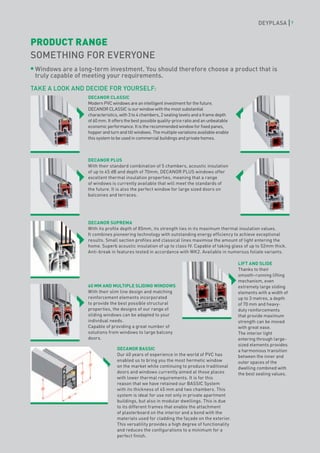

PRODUCT RANGE
SOMETHING FOR EVERYONE
Windows are a long-term investment. You should therefore choose a product that is
truly capable of meeting your requirements.
TAKE A LOOK AND DECIDE FOR YOURSELF:
DECANOR CLASSIC
Modern PVC windows are an intelligent investment for the future.
DECANOR CLASSIC is our window with the most substantial
characteristics, with 3 to 4 chambers, 2 sealing levels and a frame depth
of 60 mm. It offers the best possible quality-price ratio and an unbeatable
economic performance. It is the recommended window for fixed panes,
hopper and turn and tilt windows. The multiple variations available enable
this system to be used in commercial buildings and private homes.
DECANOR PLUS
With their standard combination of 5 chambers, acoustic insulation
of up to 45 dB and depth of 70mm, DECANOR PLUS windows offer
excellent thermal insulation properties, meaning that a range
of windows is currently available that will meet the standards of
the future. It is also the perfect window for large sized doors on
balconies and terraces.
DECANOR SUPREMA
With its profile depth of 85mm, its strength lies in its maximum thermal insulation values.
It combines pioneering technology with outstanding energy efficiency to achieve exceptional
results. Small section profiles and classical lines maximise the amount of light entering the
home. Superb acoustic insulation of up to class IV. Capable of taking glass of up to 52mm thick.
Anti-break in features tested in accordance with WK2. Available in numerous foliate variants.
LIFT AND SLIDE
Thanks to their
smooth-running lifting
mechanism, even
60 MM AND MULTIPLE SLIDING WINDOWS extremely large sliding
With their slim line design and matching elements with a width of
reinforcement elements incorporated up to 3 metres, a depth
to provide the best possible structural of 70 mm and heavy-
properties, the designs of our range of duty reinforcements
sliding windows can be adapted to your that provide maximum
individual needs. strength can be moved
Capable of providing a great number of with great ease.
solutions from windows to large balcony The interior light
doors. entering through large-
sized elements provides
DECANOR BASSIC a harmonious transition
Our 40 years of experience in the world of PVC has between the inner and
enabled us to bring you the most hermetic window outer spaces of the
on the market while continuing to produce traditional dwelling combined with
doors and windows currently aimed at those places the best sealing values.
with lower thermal requirements. It is for this
reason that we have retained our BASSIC System
with its thickness of 45 mm and two chambers. This
system is ideal for use not only in private apartment
buildings, but also in modular dwellings. This is due
to its different frames that enable the attachment
of plasterboard on the interior and a bond with the
materials used for cladding the façade on the exterior.
This versatility provides a high degree of functionality
and reduces the configurations to a minimum for a
perfect finish.

8. 8 PVC WINDOWS CATALOGUE

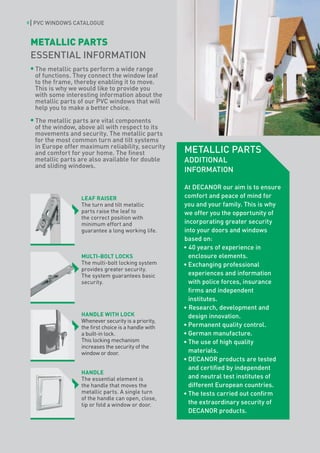

METALLIC PARTS
ESSENTIAL INFORMATION
The metallic parts perform a wide range
of functions. They connect the window leaf
to the frame, thereby enabling it to move.
This is why we would like to provide you
with some interesting information about the
metallic parts of our PVC windows that will
help you to make a better choice.
The metallic parts are vital components
of the window, above all with respect to its
movements and security. The metallic parts
for the most common turn and tilt systems
in Europe offer maximum reliability, security
and comfort for your home. The finest METALLIC PARTS
metallic parts are also available for double ADDITIONAL
and sliding windows.
INFORMATION
At DECANOR our aim is to ensure
LEAF RAISER comfort and peace of mind for
The turn and tilt metallic you and your family. This is why
parts raise the leaf to we offer you the opportunity of
the correct position with
minimum effort and incorporating greater security
guarantee a long working life. into your doors and windows
based on:
• 40 years of experience in
MULTI-BOLT LOCKS enclosure elements.
The multi-bolt locking system • Exchanging professional
provides greater security.
The system guarantees basic experiences and information
security. with police forces, insurance
firms and independent
institutes.
• Research, development and
HANDLE WITH LOCK design innovation.
Whenever security is a priority,
the first choice is a handle with • Permanent quality control.
a built-in lock. • German manufacture.
This locking mechanism • The use of high quality
increases the security of the
window or door. materials.
• DECANOR products are tested
and certified by independent
HANDLE
The essential element is and neutral test institutes of
the handle that moves the different European countries.
metallic parts. A single turn • The tests carried out confirm
of the handle can open, close,
tip or fold a window or door. the extraordinary security of
DECANOR products.

9. DEYPLASA 9
GLAZING
THE VISIBLE PART OF A
WINDOW
The importance of the glass in your
window also forms part of your decision-
taking process.
MANY SOLUTIONS AVAILABLE:
TINTED GLASS
The addition of colorants to the base glass mixture
colours the finished product and reduces its light
transmission properties. The colour extends
throughout the entire thickness of the glass.
TEMPERED GLASS
This is a type of safety and/or security glass
that has been subjected to a controlled heat or
chemical treatment to increase its strength in
comparison with normal glass. Tempered glass
is approximately 4 to 5 times stronger than
thermo-hardened glass of the same thickness
when subjected to uniform static compression
loads.
LAMINATED GLASS
Two or more sheets of glass that are
permanently bound together sandwiching one or
two sheets of intercalary material.
It provides good soundproofing and high security
against break-ins.
DOUBLE GLAZING
Two, or even three, panes of glass separated
by a chamber of air or another gas such as
argon to reduce thermal transfer and/or sound
transmission through a part of the outer skin
of the building. In insulated glazing elements
BEAR IN MAND
the chamber between the panes of glass is
THAT: scrupulously dehumidified and the edges are
The solar factor shall sealed to eliminate any possible condensation
and endow them with greater insulation
have to be as low as
properties.
possible, whereas
visible transmittance VISIBLE TRANSMITTANCE
This expresses the amount of visible light
shall have to be as high
transmitted.
as possible. The greater the visible transmittance, the higher
the amount of light transmitted.
We shall be delighted to
SOLAR FACTOR
be able to help you take The amount of directly transmitted and absorbed
the best decision. solar energy that penetrates the interior of the
building (in comparison with an open space). This
factor should be as low as possible.

10. 10 PVC WINDOWS CATALOGUE
SOUNDPROOFING
ENJOY THE SILENCE AND COMFORT
PROTECTION AGAINST NOISE FOR
A BETTER QUALITY OF LIFE
Noise has a huge impact on our quality of life.
Two of its effects are disturbed sleep and constant stress,
both of which can cause lasting damage to our health.
PVC windows are an effective protection against noise and
help towards creating a permanently agreeable ambience.

11. DEYPLASA 11
SOUNDPROOFING
Permanent exposure to a noise, or even exposure to
an intense noise over a brief period of time, can have a
damaging impact on human health.
This is why soundproofing is so necessary. We can
provide you with the best possible protection against the
unwanted negative effects of noise.
INFLUENCING FACTORS
dB (decibel) is the unit of measurement commonly
used in acoustics to quantify the noise levels 1 | Frame
perceived by the human ear. 2 | Glazing
3 | Glazing seals
OPEN WINDOW ~ 80 DB 4 | Mounting
(dense traffic)
OLD-STYLE WINDOW ~ 60 DB
(single pane)
STANDARD WINDOW ~ 48 DB
(double glazing)
PVC WINDOW ~ 35 DB
(Ideal 4000)
BEAR IN MIND THAT:
A reduction of 10 dB (decibels) represents a
perceived noise reduction of 50%.

12. 12 PVC WINDOWS CATALOGUE
ENERGY EFFICIENCY
COMFORT IN THE HOME AND
ENVIRONMENTAL PROTECTION
Innovative high quality DECANOR PVC
windows cut energy loss down to a minimum.
By fitting PVC windows you can contribute
towards the conservation of increasingly
scarce natural resources and the reduction of
contaminating emissions.
Insulating with DECANOR PVC windows will
combine environmental protection with a
comfortable home life.
U (Uw) Value
The U value of the glazing (Ug)
* glazed surface area (Ag) +
the U value of the frame (Uf)
*frame surface area (Af) +
Psi value (H*) * length of the
perimeter seal (I) / glazed
surface area (Ag) + frame
surface area (Af).
The U value determines
the thermal transference
coefficient of the material. The
subscript w of this value refers
to the window as a whole.
The calculation thereof is
based on the U values and the
dimensions of each individual
material of all the components,
in other words the glass, the
material of the frame, as
well as the psi value, which
describes the thermal flow
that occurs via the perimeter
seal with the spacer of the
insulating glass.
CONTACT US IF YOU HAVE ANY DOUBTS
Thanks to our wide experience and the fact that we
BEAR IN MIND
have our own high-end glass manufacturing plant, we
THAT THE LOWER at DECANOR shall be able to advise you as to the most
suitable glass for your windows in accordance with the
THE U VALUE THE
type of window chosen, the direction it faces, height
BETTER above sea level, etc.
We use many factors to determine the best choice.

13. DEYPLASA 13
INTERNAL VALUES
COST SAVINGS
Energy saving calculations (examples)
RIO DE JANEIRO (Brazil):
Saving (first year)*: €790.62 In order to save energy, the depth
Saving after 20 years: €26,142.64 of the profiles of the window is not
*Assumption: window surface area 30 m2, the only essential factor. Its “internal
€0.10/kWh, energy price increase: value” must also be convincing.
5% per year. The development of isotherms proves
MELBOURNE (Australia): the significant improvement of insulation
Saving (first year)*: €865.11 quality:
Saving after 20 years: €28,605.79
*Assumption: window surface area 50 m2,
€0.18/kWh, energy price increase:
5% per year.
DUBAI (United Arab Emirates):
Saving (first year)*: €1,130.61
Saving after 20 years: €37,384.78
*Assumption: window surface area 30 m2,
€0.07/kWh, energy price increase:
5% per year.
CAPE TOWN (South Africa):
Saving (first year)*: €416.90
Saving after 20 years: €13,785.23 Single pane window
*Assumption: window surface area 40 m2,
€0.12/kWh, energy price increase:
5% per year.
MUMBAI (lndia):
Saving (first year)*: €1,001.32
Saving after 20 years: €33,109.55
*Assumption: window surface area 25 m2,
€0.08/ kWh, energy price increase:
5% per year.
Comparison between a DECANOR PLUS
window (Uw = 1.1 W/m2K) and a single pane
aluminium window (Uw=5.2 W/m2K).
PVC DECANOR PLUS window system with
The resulting saving for you may vary with insulating glazing
respect to the examples given above in
terms of the local specifications, such as the
size of the rooms or the climatic conditions.
These examples assume climatic conditions and
frameworks taken from historical values, such as
the heating and cooling degree days. We cannot
guarantee the accuracy of the data provided as
examples.

14. 14 PVC WINDOWS CATALOGUE
HANDLES
DECANOR sees handles as
being a detail that sets your
windows apart. DECANOR
supplies a range of different
handles for enhancing the
decoration of every type of
home.
INTERIOR SHUTTERS
Interior shutters are used as an
element to darken rooms with
an aesthetic similar to that of
old-style wooden windows.
SHUTTER HOUSING
The DECANOR shutter housing
can be installed in hinged and
sliding windows with any type
of lowering and raising system:
strap, handle, motorised,
etc. in order to adapt to the
customer’s requirements.
All the profiles are of white PVC
and include a chamber, and our
wood coloured housings are
fitted with the corresponding
exterior foliated PVC profiles.
The possibility of incorporating
aerators into both the metallic
parts and shutter housings.
GLAZING
DECANOR recommends that
its windows are supplied fully
glazed and ready for fitting.
Comprehensive service.
TECHNICAL BUILDING CODE
AND CE MARKING: BEYOND
OFFICIAL STANDARDS
All DECANOR systems bear
the CE marking as an EU
guarantee, an essential
requirement for any windows
sold within the European
Union.
All DECANOR systems are in
compliance with the thermal,
acoustic and sanitation
requirements of the Spanish
Technical Building Code.

15. DEYPLASA 15
THE DECANOR PLEDGE
PERSONAL CUSTOMER CARE
DECANOR offers every one of its customers the services of
a personal technical team to advise them at all times and, if
necessary, pay personal visits to their worksites.
DIRECT PHONE LINE
DECANOR offers its customers a direct contact phone line
(+ 34 942 56 54 66) for resolving any doubt or problem that may arise.
A SKILLED WORKFORCE
More than 70 people all working to ensure that DECANOR products
continue being a reference point with respect to quality and safety.
OUR OWN LOGISTICS SYSTEM
Our logistics system consists of more than 25 distribution centres
in Spain and France.
TRANSPORT FLEET
A fleet of over 20 vehicles ready to transport any order to its
destination.
30-D SERVICE
Your order manufactured in 30 days.
IMMEDIATE DELIVERY SERVICE
Once your order has been manufactured, we immediately deliver it
to its destination.
QUALITY GUARANTEE
The quality of all DECANOR PVC, DECANOR ALUMINIUM and
DECANOR GLASS products is certified by the CE marking.
DECANOR RECYCLING
We are also fully committed to the environment and sustainability,
and this is why we recycle all PVC, aluminium and glass by-
products so that they can be reintegrated and converted into
materials ready for reuse.
WE TRADE IN SPAIN AND HAVE BEEN
DOING SO IN FRANCE FOR OVER 15
YEARS

16. SHOWROOM AND OFFICES
C/ Honduras, 27
39005 SANTANDER · SPAIN
Tel.: + 34 942 318 831 · Fax: + 34 942 318 832
info@deyplasa.com
FACTORY AND OFFICES
Parque Empresarial Morero, P1-1
39611 GUARNIZO - EL ASTILLERO (Cantabria)
SPAIN
Tel.: + 34 942 565 466 · Fax: + 34 942 565 465
info@ventanascae.com
comercial@ventanascae.com
Pol. Ind. Trascueto, Nave A6 - A7
39600 REVILLA DE CAMARGO (Cantabria)
SPAIN
Tel.: + 34 942 269 277 · Fax: + 34 942 269 273
comercial@norglass.es
