Event sourcing persists each entity as a sequence of state changing events. An entity’s current state is derived by replaying those events. Event sourcing is a great way to implement event-driven microservices. When one service updates an entity, the new events are consumed by other services, which then update their own state. In this talk we describe how to implement business logic using event sourcing. You will learn how to write functional, immutable domain models in Scala. We will compare and contrast a hybrid OO/FP design with a purely functional approach.

1. @crichardson

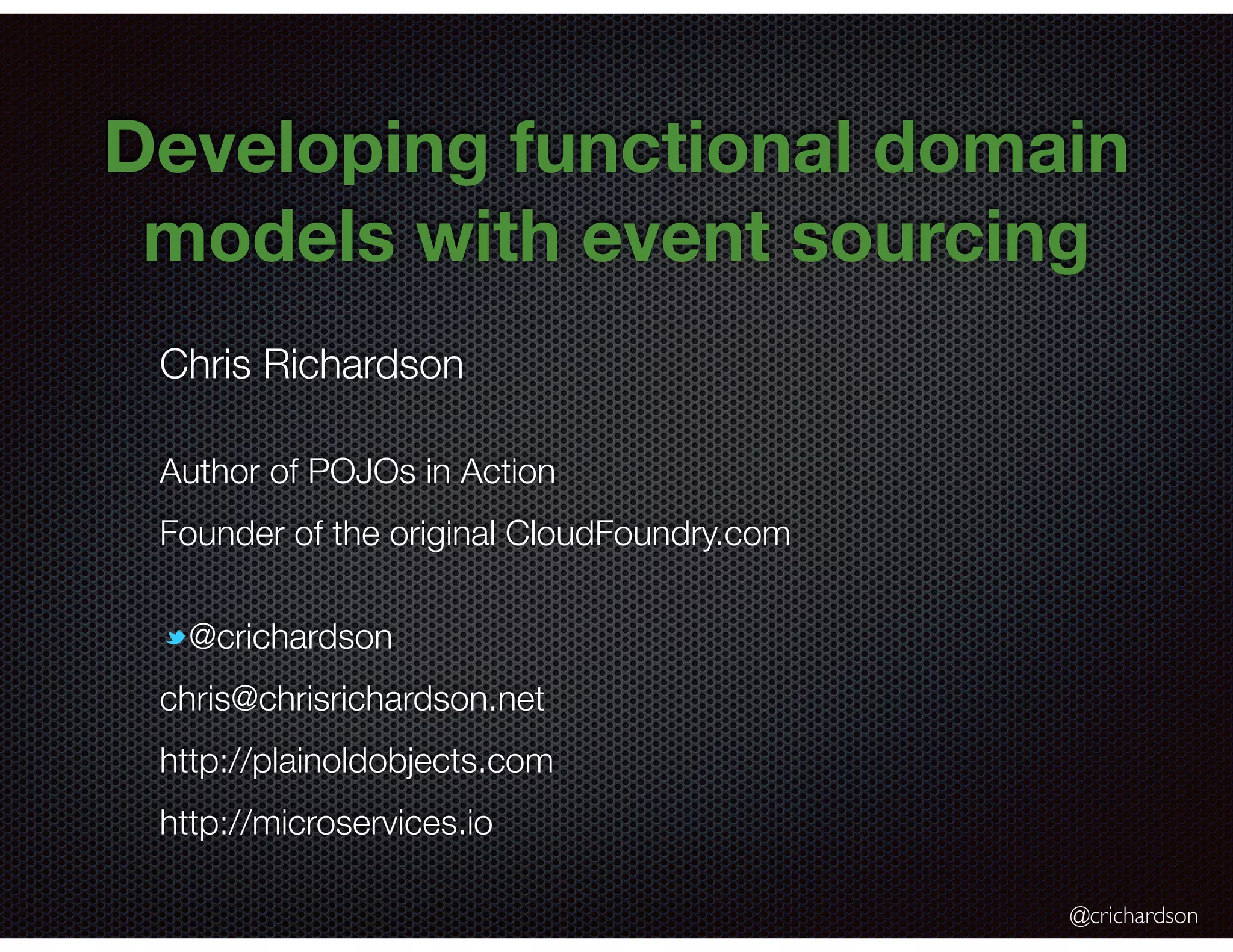

Developing functional domain
models with event sourcing
Chris Richardson
Author of POJOs in Action
Founder of the original CloudFoundry.com
@crichardson
chris@chrisrichardson.net
http://plainoldobjects.com
http://microservices.io

2. @crichardson

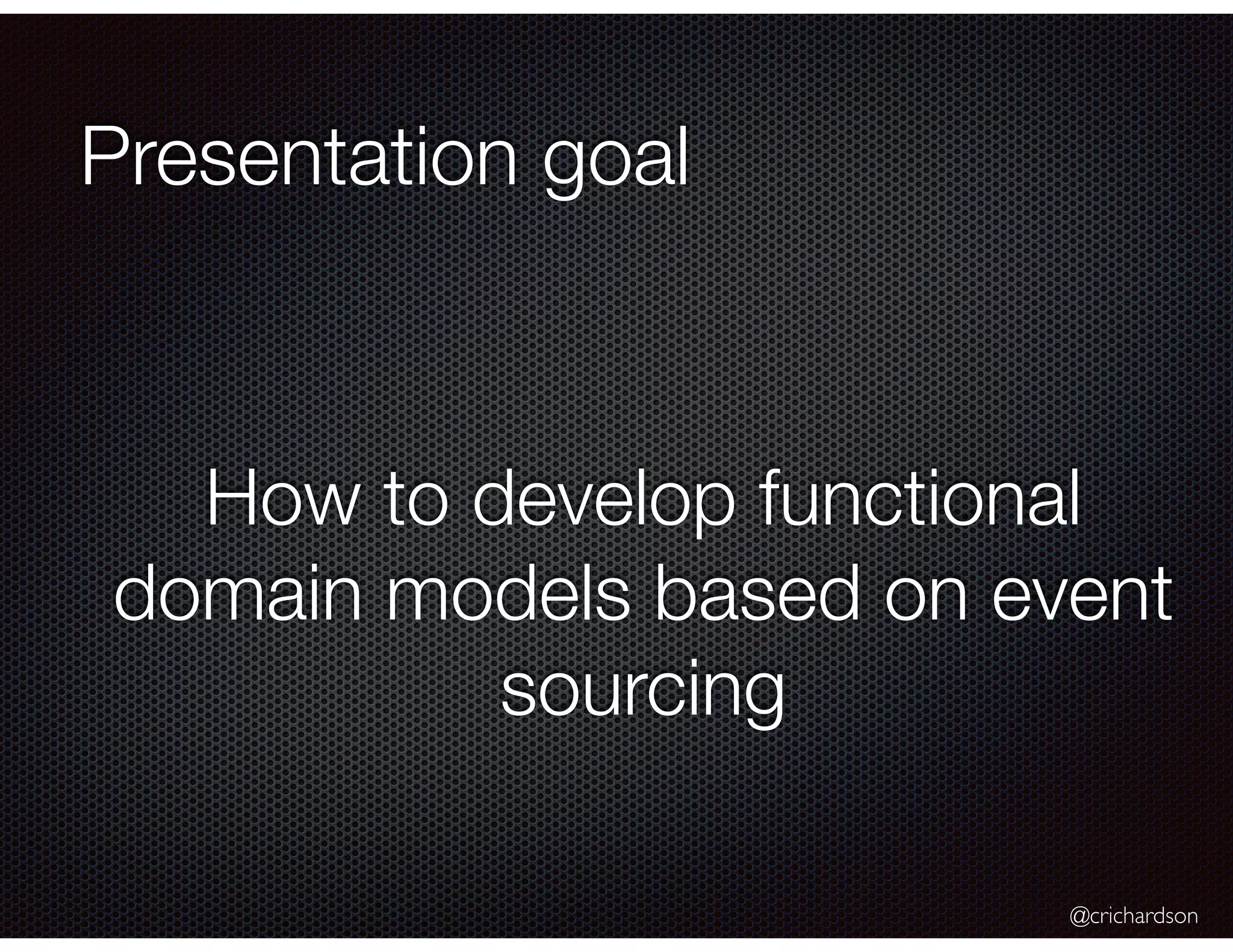

Presentation goal
How to develop functional
domain models based on event
sourcing

3. @crichardson
About Chris
Consultant
Startup Founder

4. @crichardson
For more information
https://github.com/cer/event-sourcing-examples
http://microservices.io
http://plainoldobjects.com/
https://twitter.com/crichardson

5. @crichardson
Agenda
Why event-sourcing?
Developing functional domain models with event sourcing

6. @crichardson
Money Transfer example
from 2007

7. An example domain model
debit(amount)
credit(amount)
balance
Account
amount
date
Banking
Transaction
BankingTransaction transfer(fromId, toId, amount)
MoneyTransferService
findAccount(id)
Account
Repository
<<interface>>
OverdraftPolicy
addTransaction(…)
BankingTransaction
Repository
NoOverdraft
Policy
limit
Limited
Overdraft
from
to
State +
Behavior
Behavior

8. Mutable domain objects
Entities persisted
in RDBMS using
Hibernate

9. Service invocation = transaction
Transactional
using Spring

10. @crichardson
But today we apply the
scale cube
X axis
- horizontal duplication
Z
axis
-data
partitioning
Y axis -
functional
decomposition
Scale
by
splitting
sim
ilar
things
Scale by
splitting
different things

11. @crichardson
Applying the scale cube
Y-axis splits/functional decomposition
Application = Set[Microservice] - each with its own
database
Monolithic database is functionally decomposed
Z-axis splits/sharding
Accounts partitioned across multiple databases

12. @crichardson
Account
MoneyTransfer
Account
Money
transfer DB
Account DB1
Account DB2
to
from
How to maintain
consistency without 2PC?

13. @crichardson
SQL + Text Search engine
example
Application
MySQL ElasticSearch
How to maintain consistency without 2PC?
Product #1 Product #1

14. @crichardson
Use an event-driven
architecture
Components (e.g. services) publish events when state
changes
Components subscribe to events
Maintains eventual consistency across multiple aggregates
(in multiple datastores)
Synchronize replicated data
But how to atomically update state
AND publish events without 2PC?

15. @crichardson
Event sourcing
For each aggregate:
Identify (state-changing) domain events
Define Event classes
For example,
Account: AccountOpenedEvent, AccountDebitedEvent,
AccountCreditedEvent
ShoppingCart: ItemAddedEvent, ItemRemovedEvent,
OrderPlacedEvent

16. @crichardson
Persists events
NOT current state
Account
balance
open(initial)
debit(amount)
credit(amount)
AccountOpened
Event table
AccountCredited
AccountDebited
101 450
Account table
X
101
101
101
901
902
903
500
250
300

17. @crichardson
Replay events to recreate
state
Account
balance
AccountOpenedEvent(balance)
AccountDebitedEvent(amount)
AccountCreditedEvent(amount)
Events

18. @crichardson
Before: update state + publish
events
Two actions that must be atomic
Single action that can
be done atomically
Now: persist (and publish)
events

19. @crichardson
Request handling in an event-sourced application
HTTP
Handler
Event
Store
pastEvents = findEvents(entityId)
Account
new()
applyEvents(pastEvents)
newEvents = processCmd(SomeCmd)
saveEvents(newEvents)
Microservice A
(optimistic locking)

20. @crichardson
Event Store publishes events -
consumed by other services
Event
Store
Event
Subscriber
subscribe(EventTypes)
publish(event)
publish(event)
Aggregate
NoSQL
materialized
view
update()
update()
Microservice B

21. @crichardson
Event store implementations
Home-grown/DIY
geteventstore.com by Greg Young
Talk to me about my project :-)

22. @crichardson
Business benefits of event
sourcing
Built-in, reliable audit log
Enables temporal queries
Publishes events needed by big data/predictive analytics etc.
Preserved history More easily implement future
requirements

23. @crichardson
Technical benefits of event
sourcing
Solves data consistency issues in a Microservice/NoSQL-
based architecture:
Atomically save and publish events
Event subscribers update other aggregates ensuring
eventual consistency
Event subscribers update materialized views in SQL and
NoSQL databases (more on that later)
Eliminates O/R mapping problem

24. @crichardson
Drawbacks of event sourcing
Weird and unfamiliar
Events = a historical record of your bad design decisions
Handling duplicate events can be tricky
Application must handle eventually consistent data
Event store only directly supports PK-based lookup (more on
that later)

25. @crichardson
Agenda
Why event-sourcing?
Developing functional domain models with event sourcing

26. @crichardson
Familiar building blocks
Entity
Value object
Aggregate: root entity + value objects

27. @crichardson
Aggregate root design
class Account {
var balance : Money;
def debit(amount : Money) {
balance = balance - amount
}
}
case class Account(balance : Money) {
def processCommand(cmd : Command) : Seq[Event] = ???
def applyEvent(event : Event) : Account = …
}
case class DebitCommand(amount : Money)
case class AccountDebitedEvent(amount : Money)
Classic,
mutable
domain model
Event centric,
immutable

28. @crichardson
Designing domain events
Naming
Past tense to reflect that something occurred
Ideally specific: AccountOpened/Debited/Credited
Sometimes vague: FooUpdated
Event attributes
Id - TimeUUID
Other attributes - from command, required to persist entity
Event enrichment
ProductAddedToCart(productId) vs. ProductAddedCart(productInfo)
Extra data to support event consumers

29. @crichardson
Hybrid OO/FP domain objects

30. @crichardson
Aggregate traits
Map Command to Events
Apply event returning
updated Aggregate

31. @crichardson
Account - command processing
Prevent
overdraft

32. @crichardson
Account - applying events
Immutable

33. @crichardson
Event Store API
trait EventStore {
def save[T <: Aggregate[T]](entity: T, events: Seq[Event],
assignedId : Option[EntityId] = None): Future[EntityWithIdAndVersion[T]]
def update[T <: Aggregate[T]](entityIdAndVersion : EntityIdAndVersion,
entity: T, events: Seq[Event]): Future[EntityWithIdAndVersion[T]]
def find[T <: Aggregate[T] : ClassTag](entityId: EntityId) :
Future[EntityWithIdAndVersion[T]]
def findOptional[T <: Aggregate[T] : ClassTag](entityId: EntityId)
Future[Option[EntityWithIdAndVersion[T]]]
def subscribe(subscriptionId: SubscriptionId):
Future[AcknowledgableEventStream]
}

34. @crichardson
AccountService
DSL concisely specifies:
1.Creates Account aggregate
2.Processes command
3.Applies events
4.Persists events

35. @crichardson
Event handling
1.Load Account aggregate
2.Processes command
3.Applies events
4.Persists events

36. @crichardson
FP-style domain objects

37. @crichardson
Aggregate type classes/implicits

38. @crichardson
Functional-style
MoneyTransfer Aggregate
State
Behavior

39. @crichardson
Events and Commands

40. @crichardson
FP-style event store
Enables inference of
T, and EV
Tells ES how to instantiate
aggregate and apply events

41. @crichardson
Summary
Event sourcing solves a variety of problems in modern
application architectures
Scala is a great language for implementing domain models:
Case classes
Pattern matching
Recreating state = functional fold over events

42. @crichardson
@crichardson chris@chrisrichardson.net
http://plainoldobjects.com http://microservices.io
