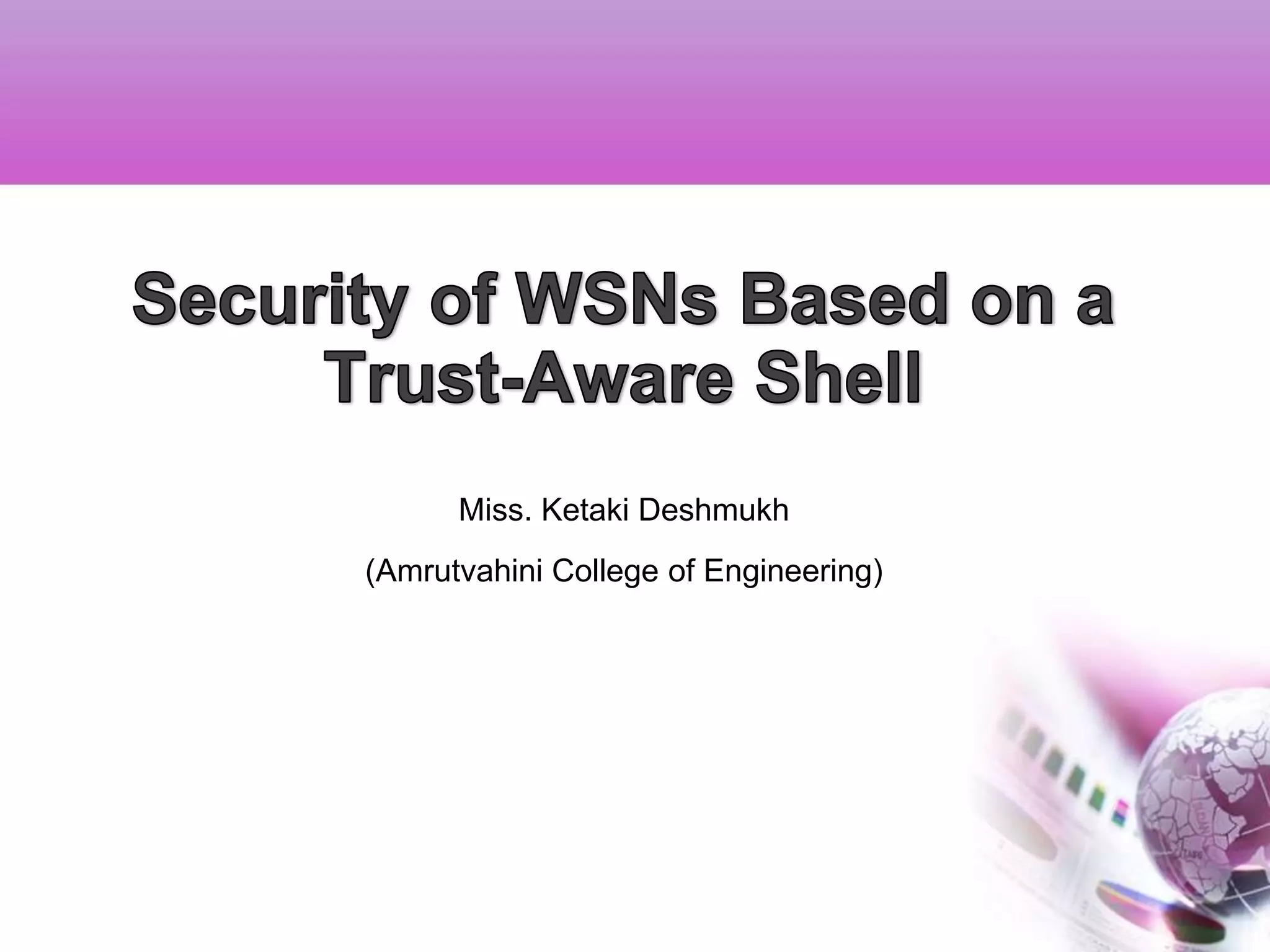

1. Miss. Ketaki Deshmukh
(Amrutvahini College of Engineering)

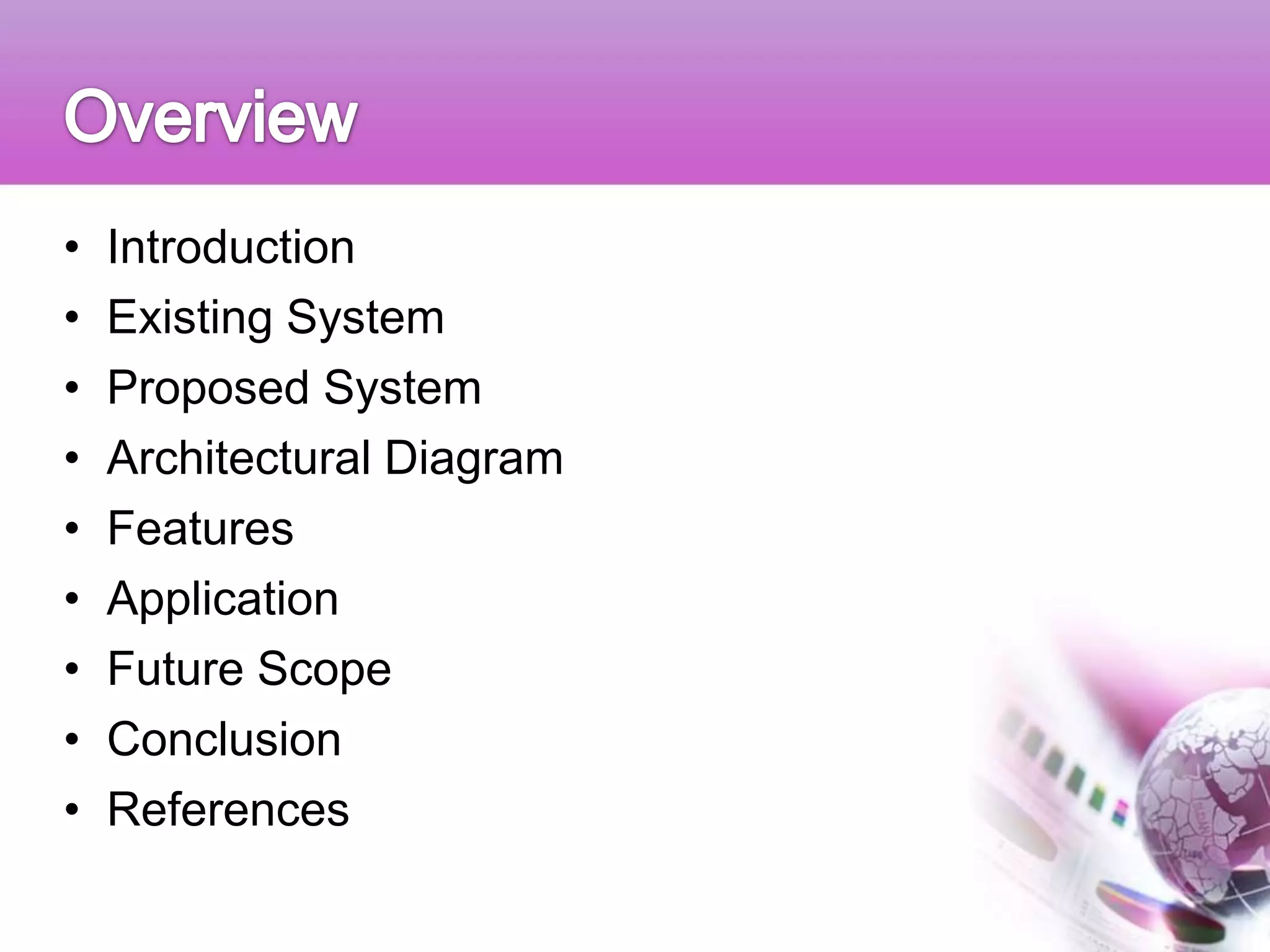

2. • Introduction
• Existing System
• Proposed System
• Architectural Diagram
• Features
• Application
• Future Scope
• Conclusion
• References

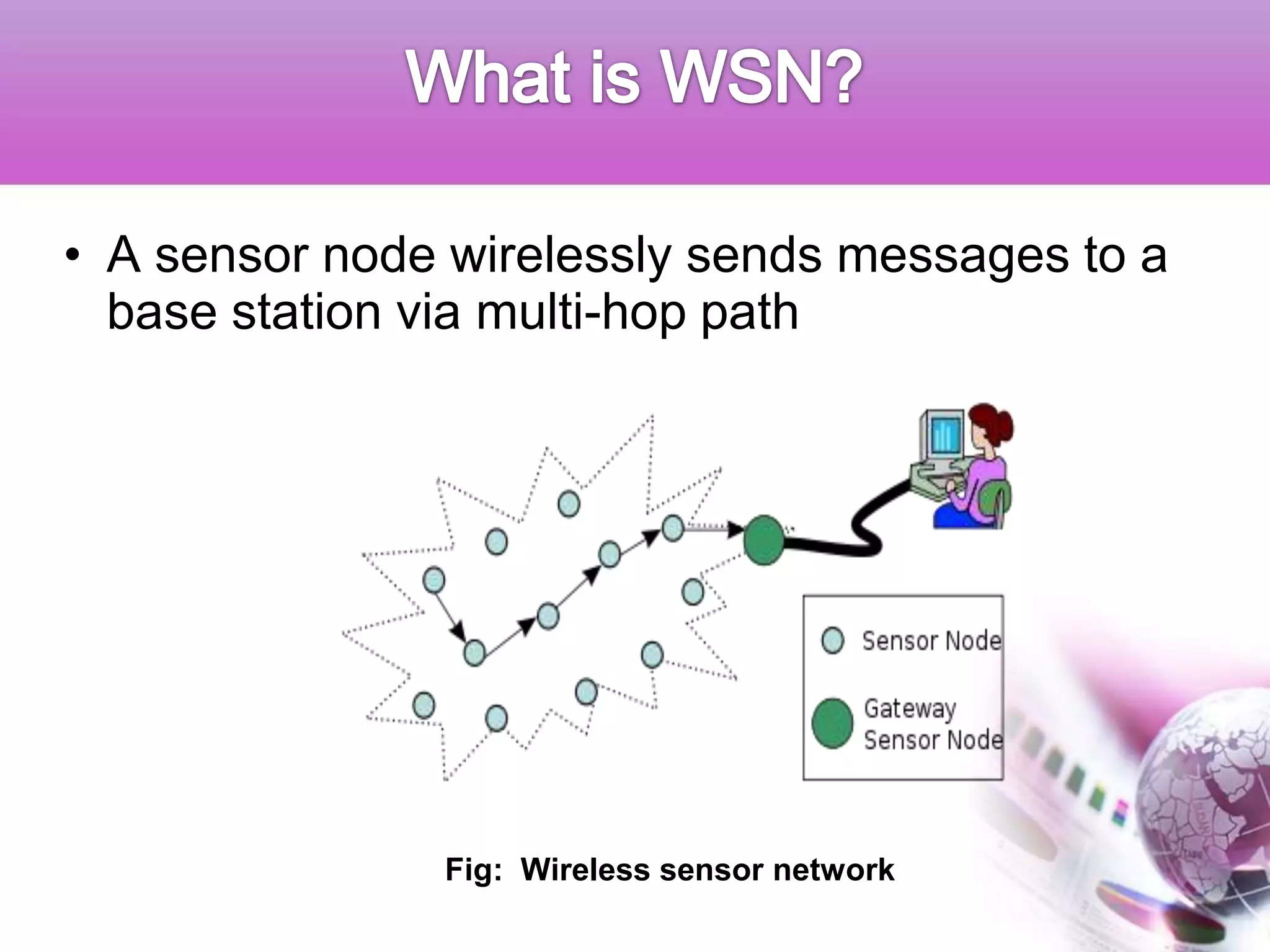

3. • A sensor node wirelessly sends messages to a
base station via multi-hop path
Fig: Wireless sensor network

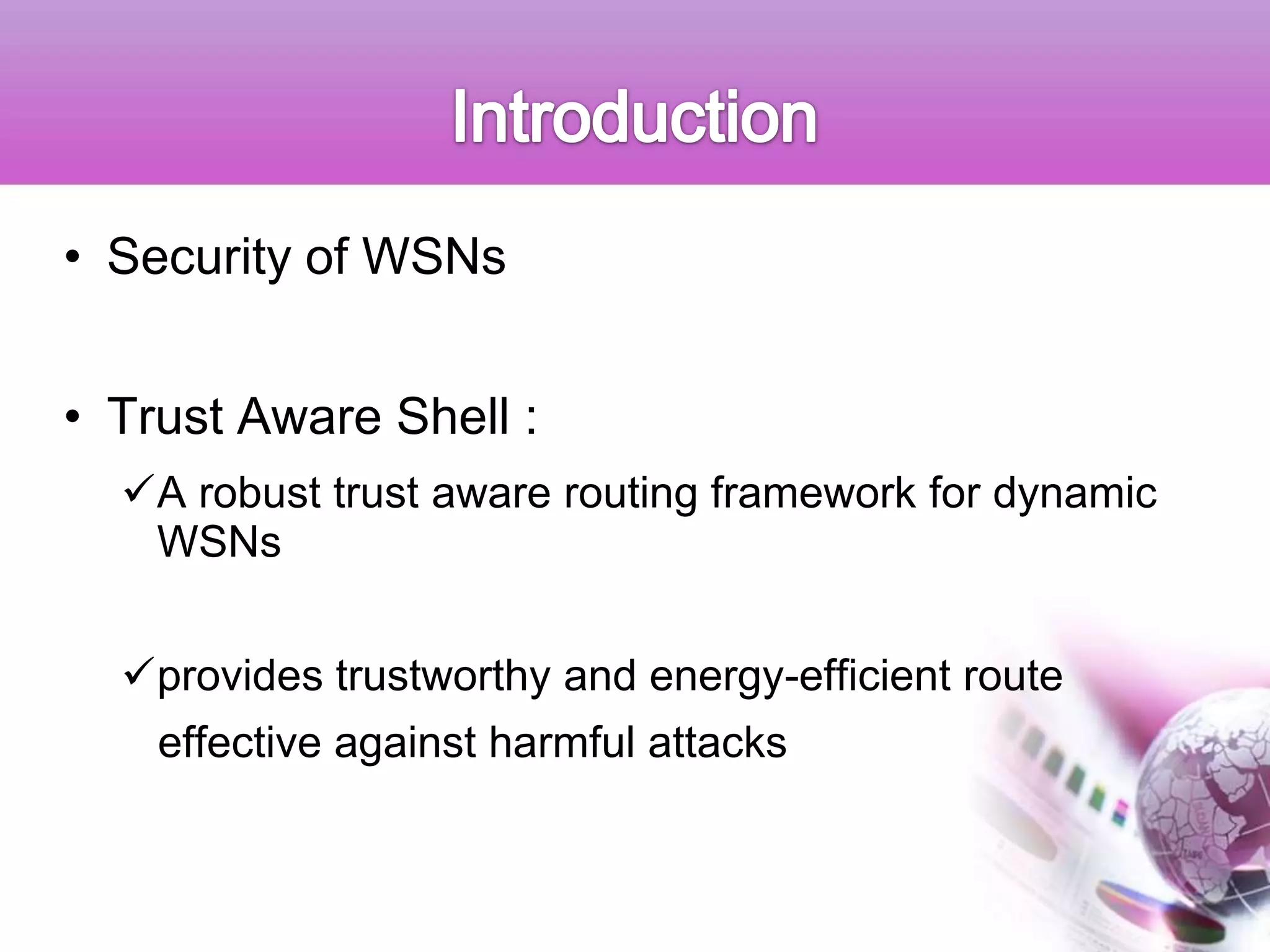

4. • Security of WSNs
• Trust Aware Shell :
A robust trust aware routing framework for dynamic
WSNs
provides trustworthy and energy-efficient route
effective against harmful attacks

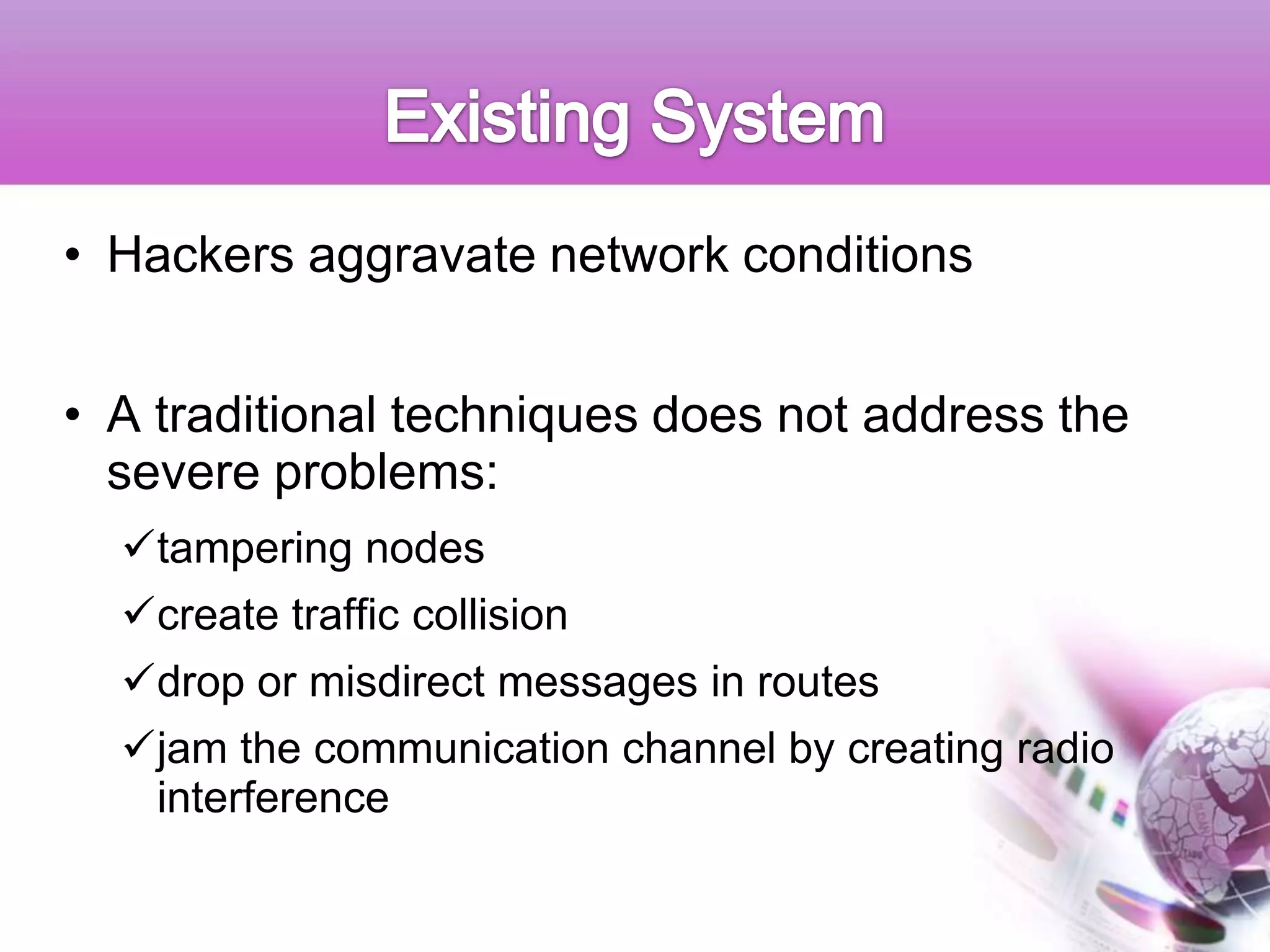

5. • Hackers aggravate network conditions
• A traditional techniques does not address the
severe problems:
tampering nodes
create traffic collision
drop or misdirect messages in routes
jam the communication channel by creating radio
interference

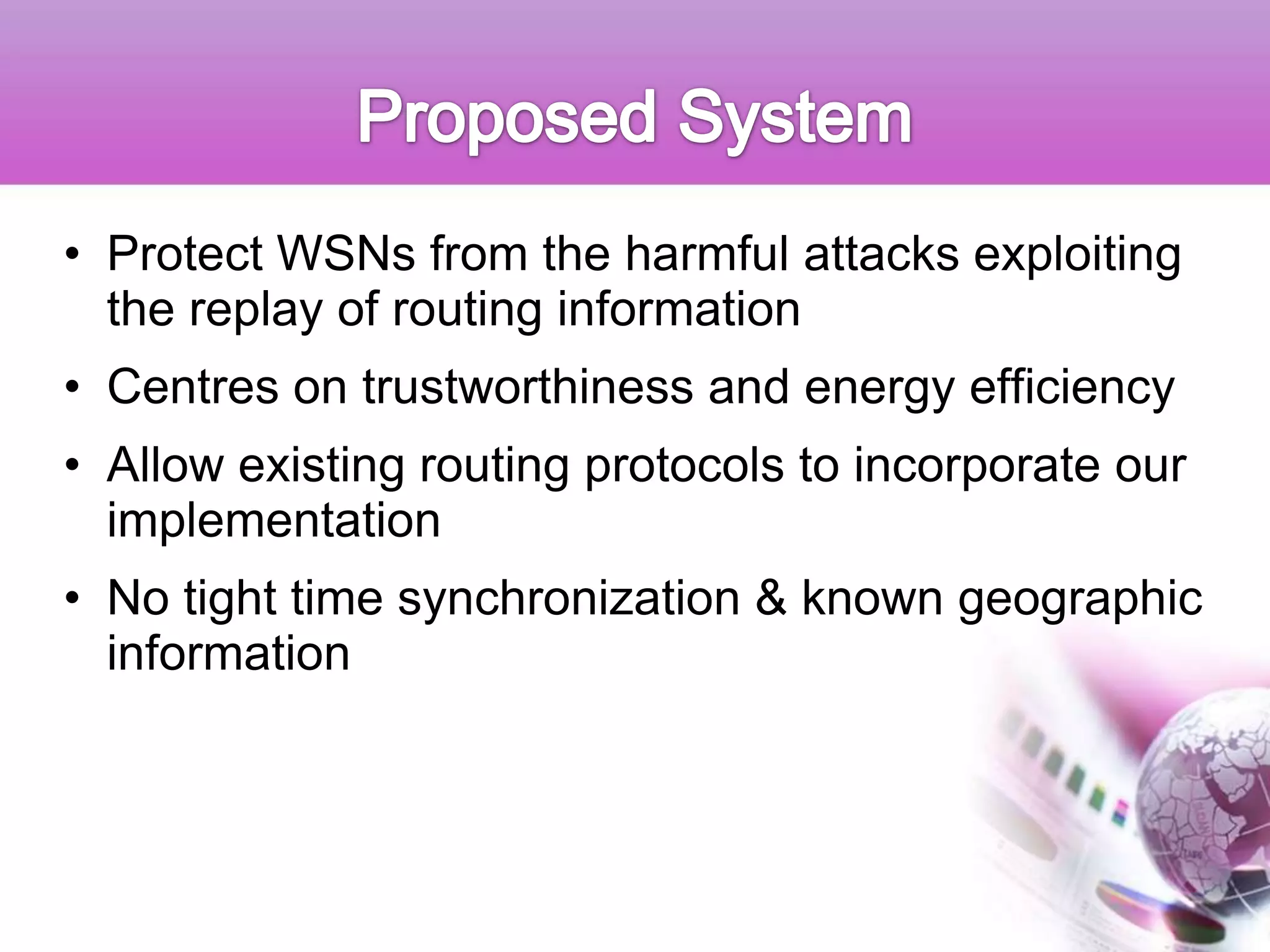

6. • Protect WSNs from the harmful attacks exploiting
the replay of routing information
• Centres on trustworthiness and energy efficiency
• Allow existing routing protocols to incorporate our
implementation
• No tight time synchronization & known geographic
information

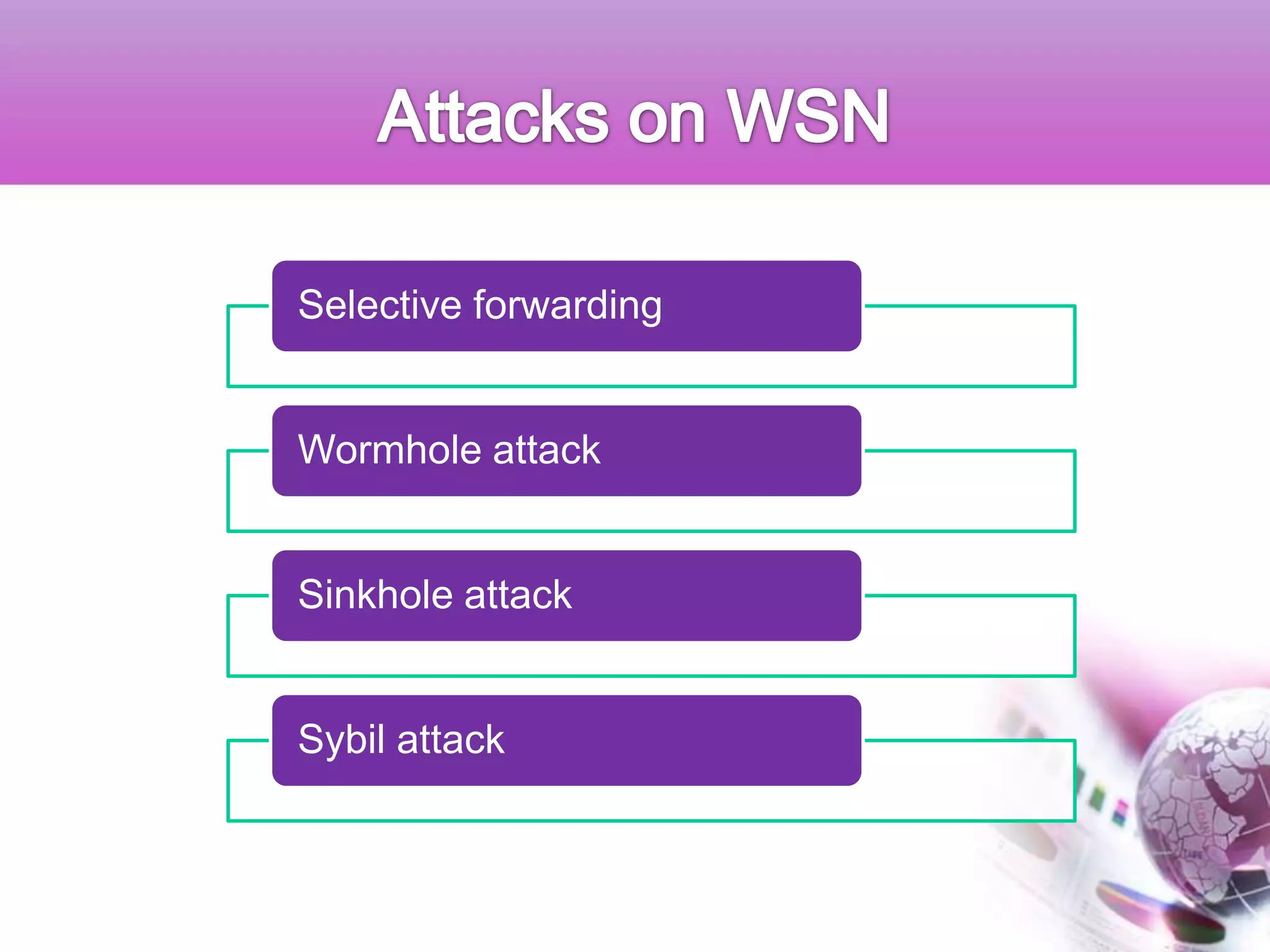

7. Selective forwarding
Wormhole attack
Sinkhole attack
Sybil attack

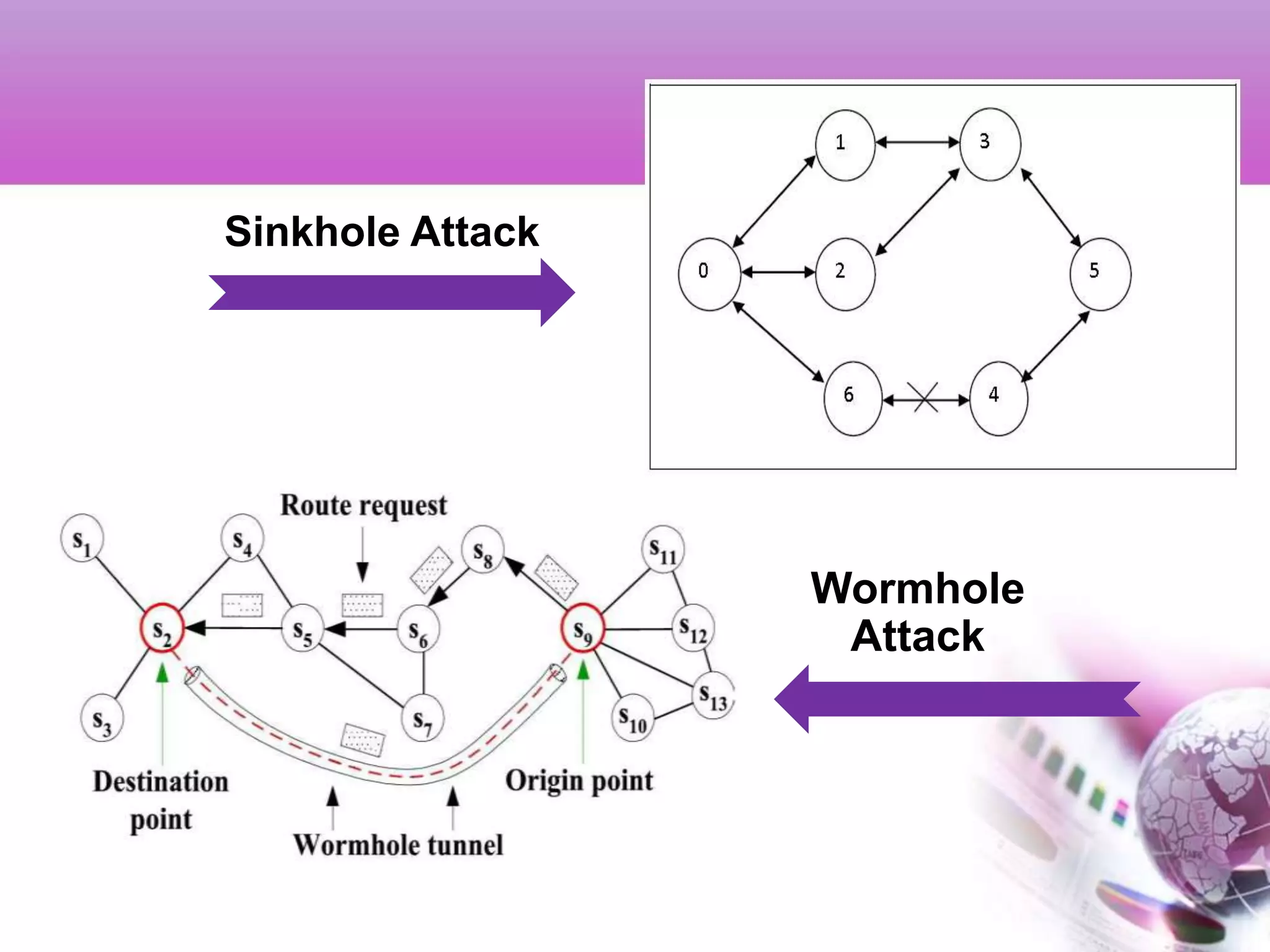

8. Sinkhole Attack
Wormhole
Attack

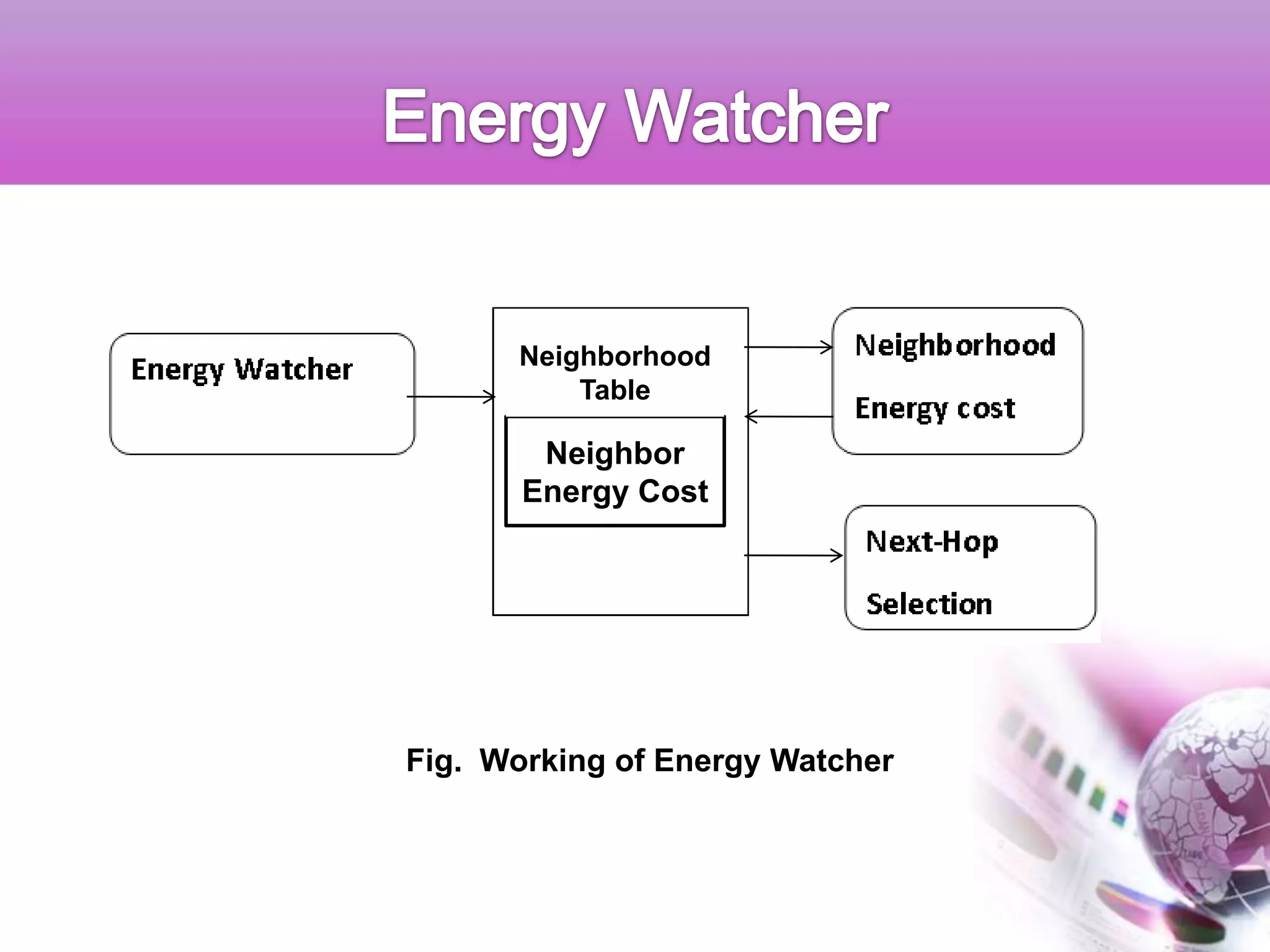

10. Neighborhood
Table
Neighbor
Energy Cost
Fig. Working of Energy Watcher

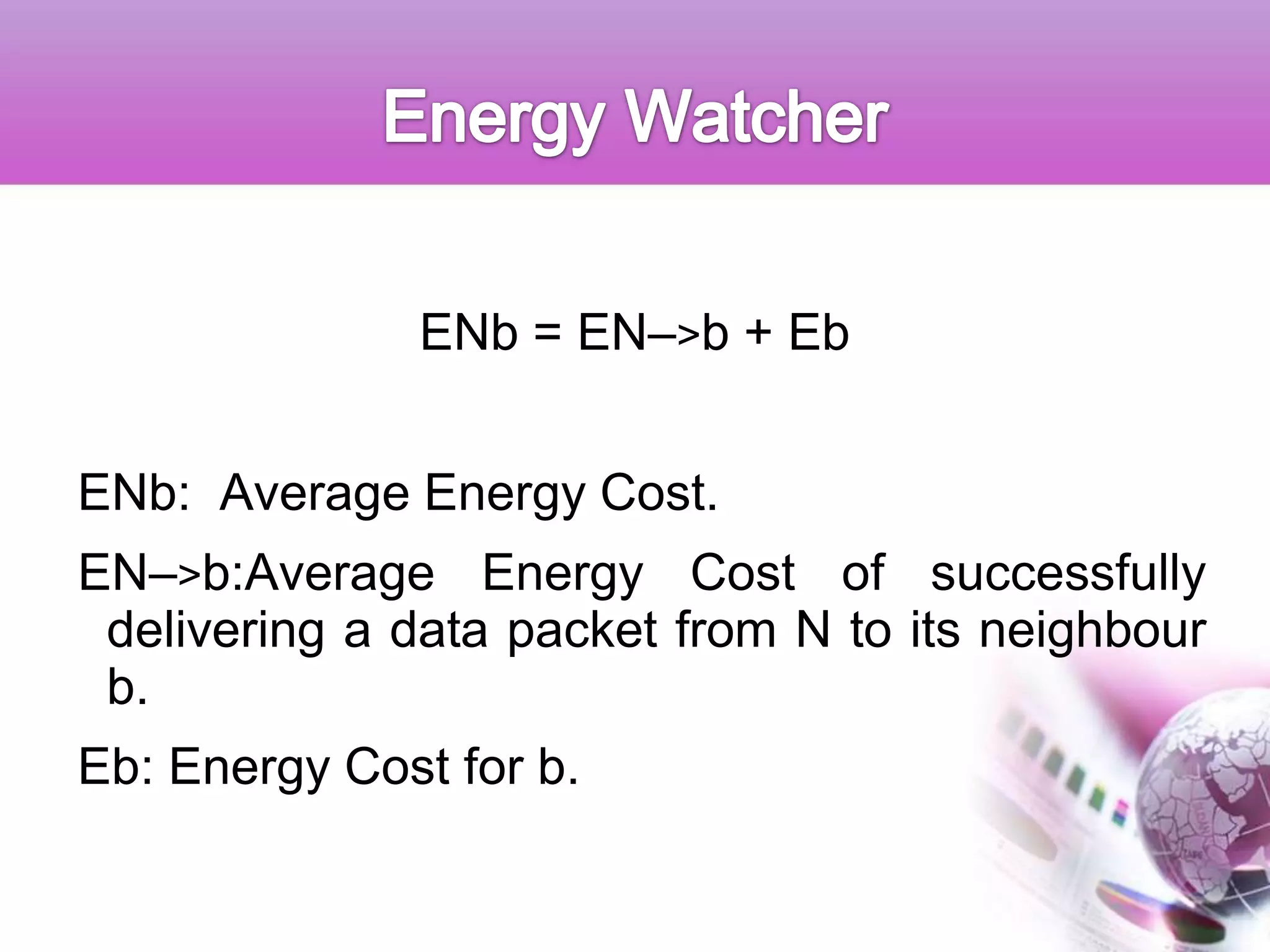

11. ENb = EN–>b + Eb
ENb: Average Energy Cost.
EN–>b:Average Energy Cost of successfully
delivering a data packet from N to its neighbour
b.
Eb: Energy Cost for b.

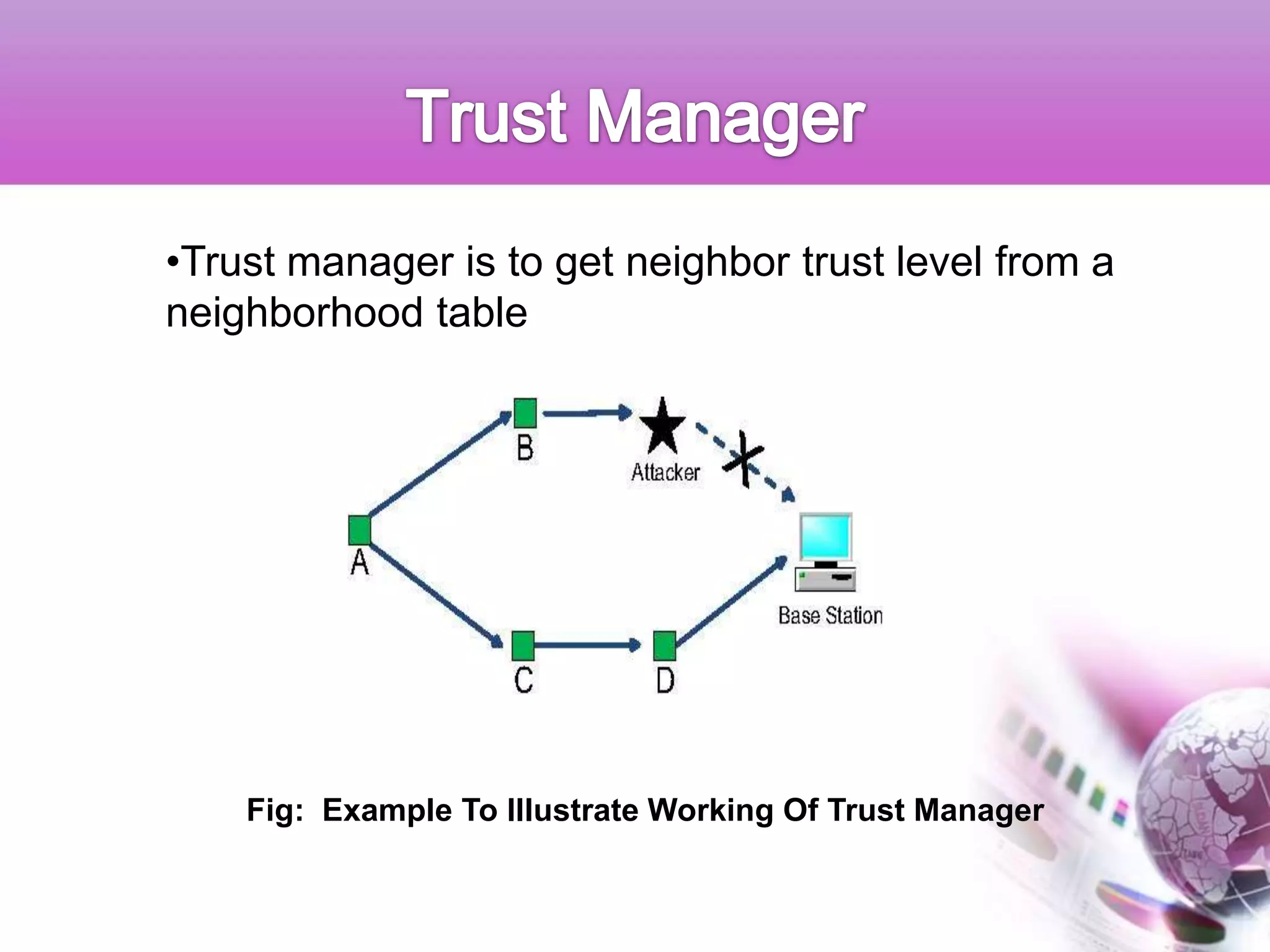

12. •Trust manager is to get neighbor trust level from a
neighborhood table
Fig: Example To Illustrate Working Of Trust Manager

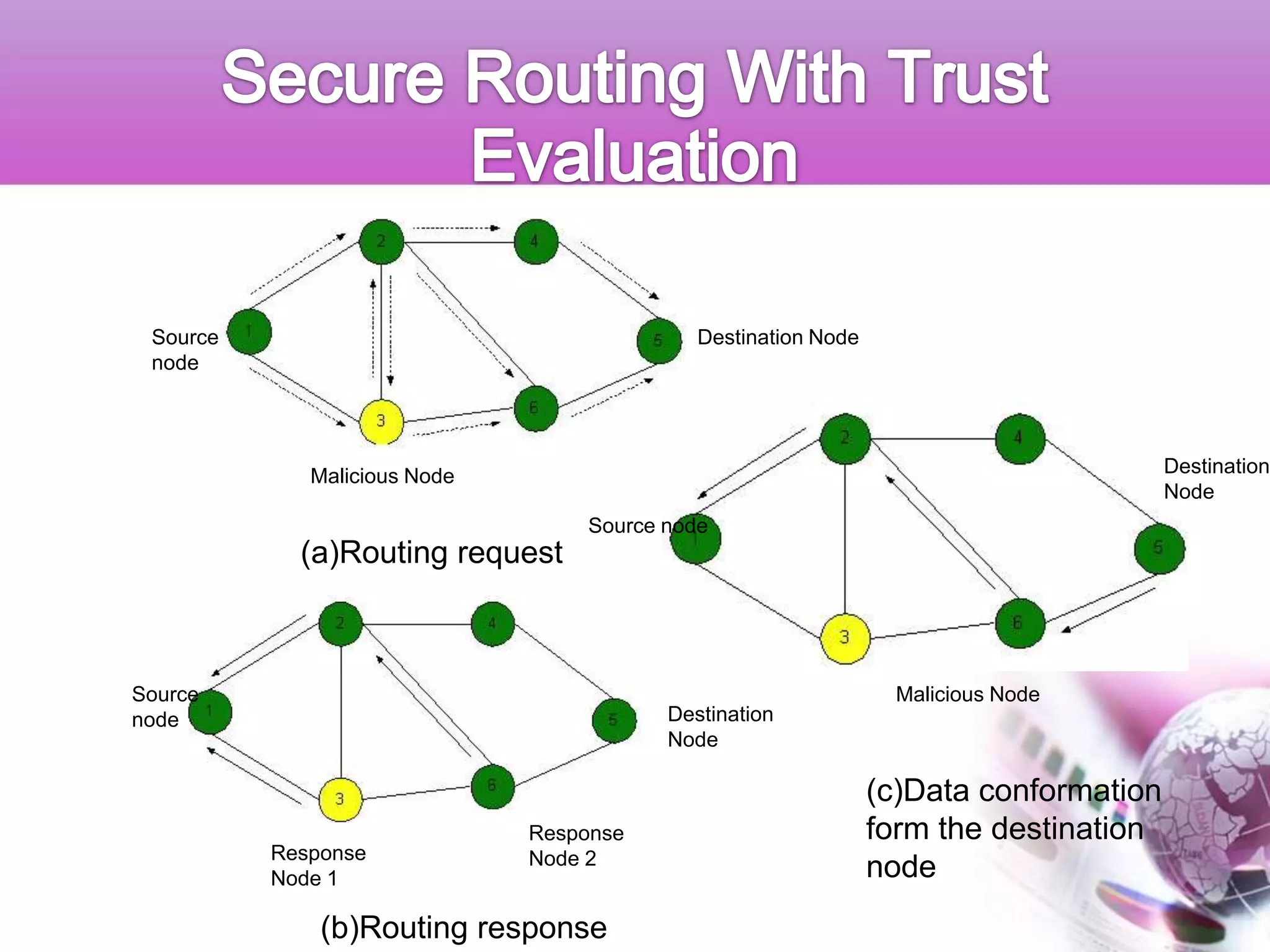

13. Source Destination Node
node
Malicious Node Destination
Node
Source node
(a)Routing request
Source Malicious Node
node Destination
Node
(c)Data conformation
Response form the destination
Response Node 2
Node 1 node
(b)Routing response

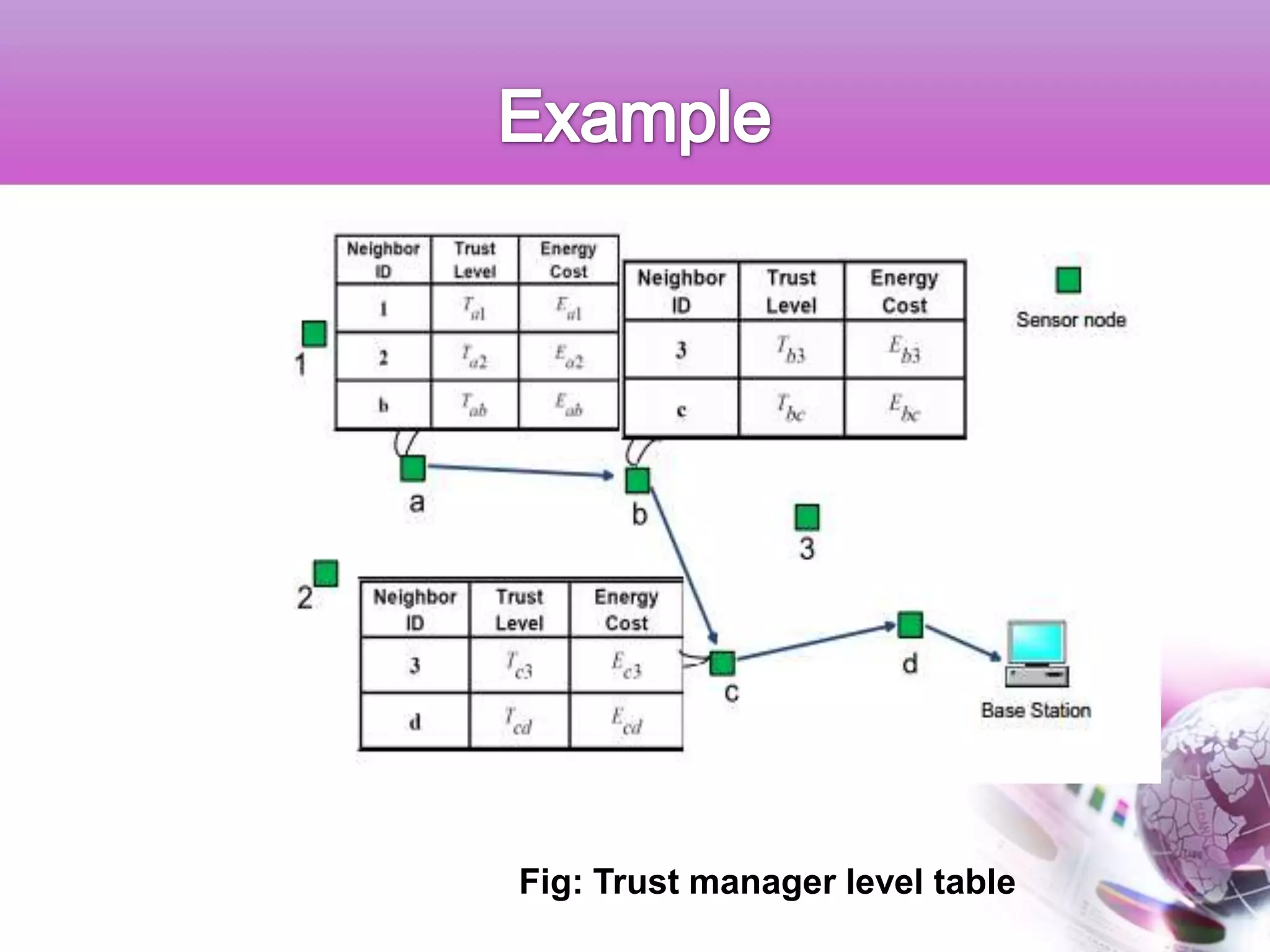

14. Fig: Trust manager level table

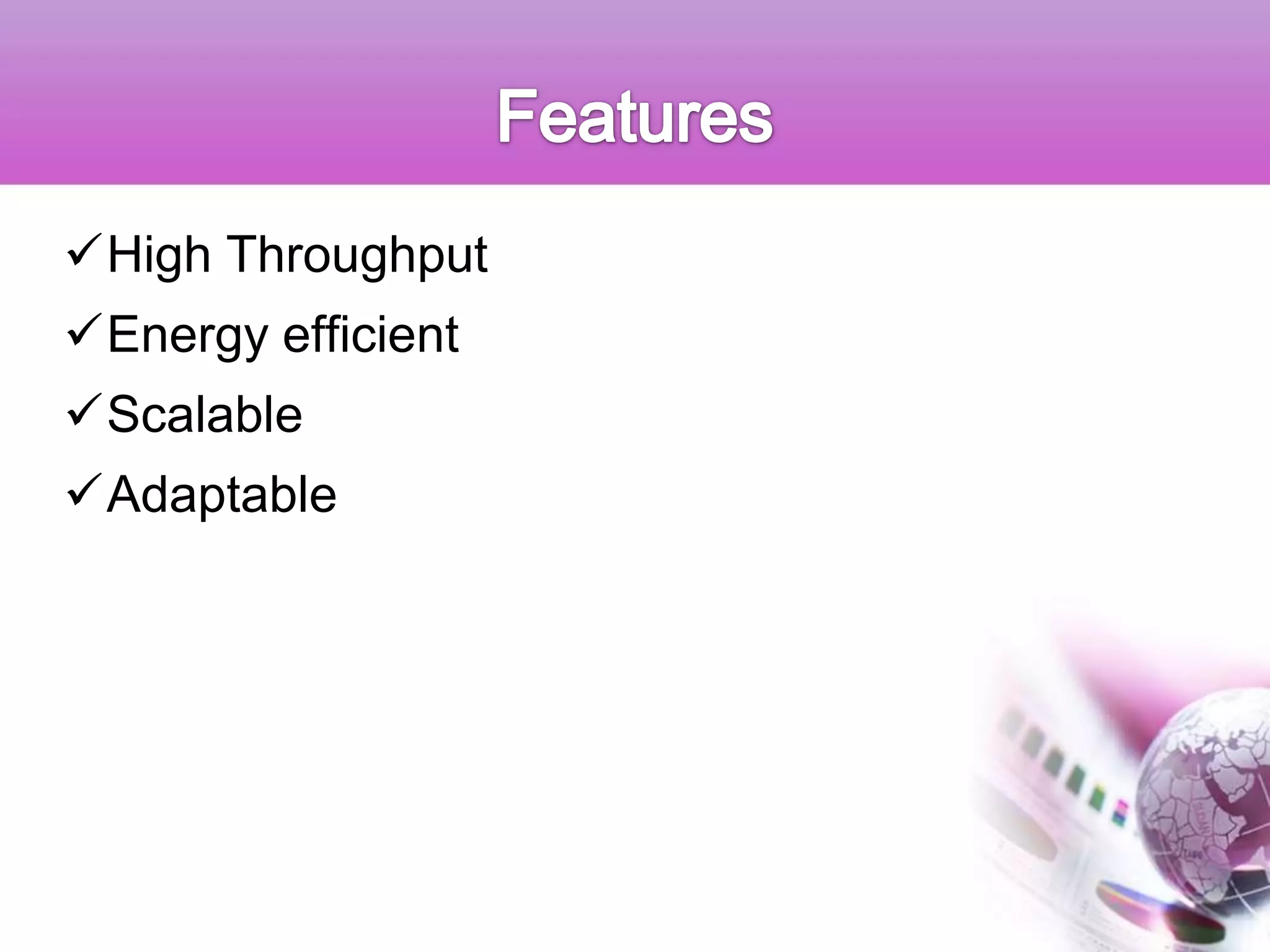

15. High Throughput
Energy efficient
Scalable
Adaptable

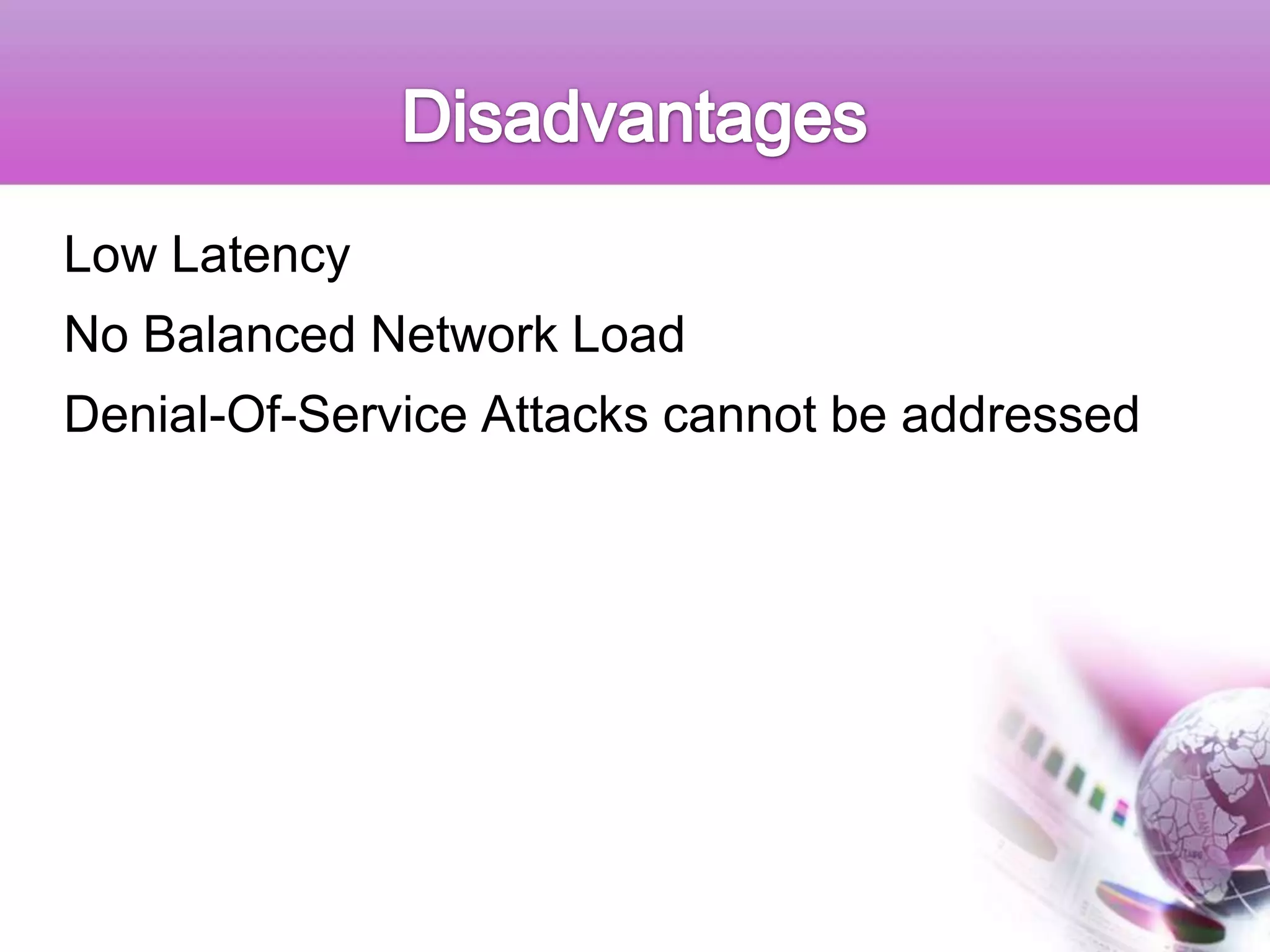

16. Low Latency
No Balanced Network Load
Denial-Of-Service Attacks cannot be addressed

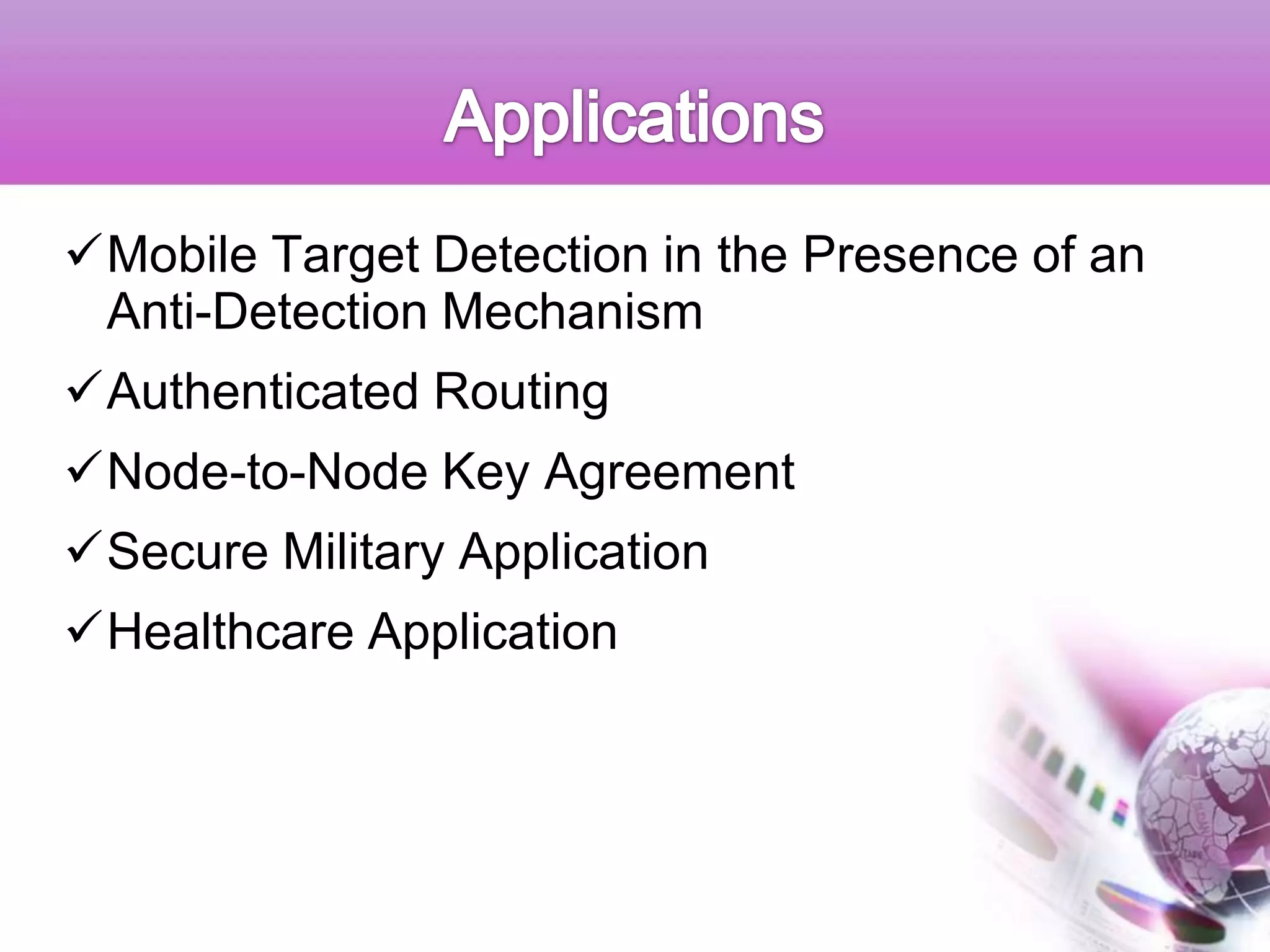

17. Mobile Target Detection in the Presence of an
Anti-Detection Mechanism
Authenticated Routing
Node-to-Node Key Agreement
Secure Military Application
Healthcare Application

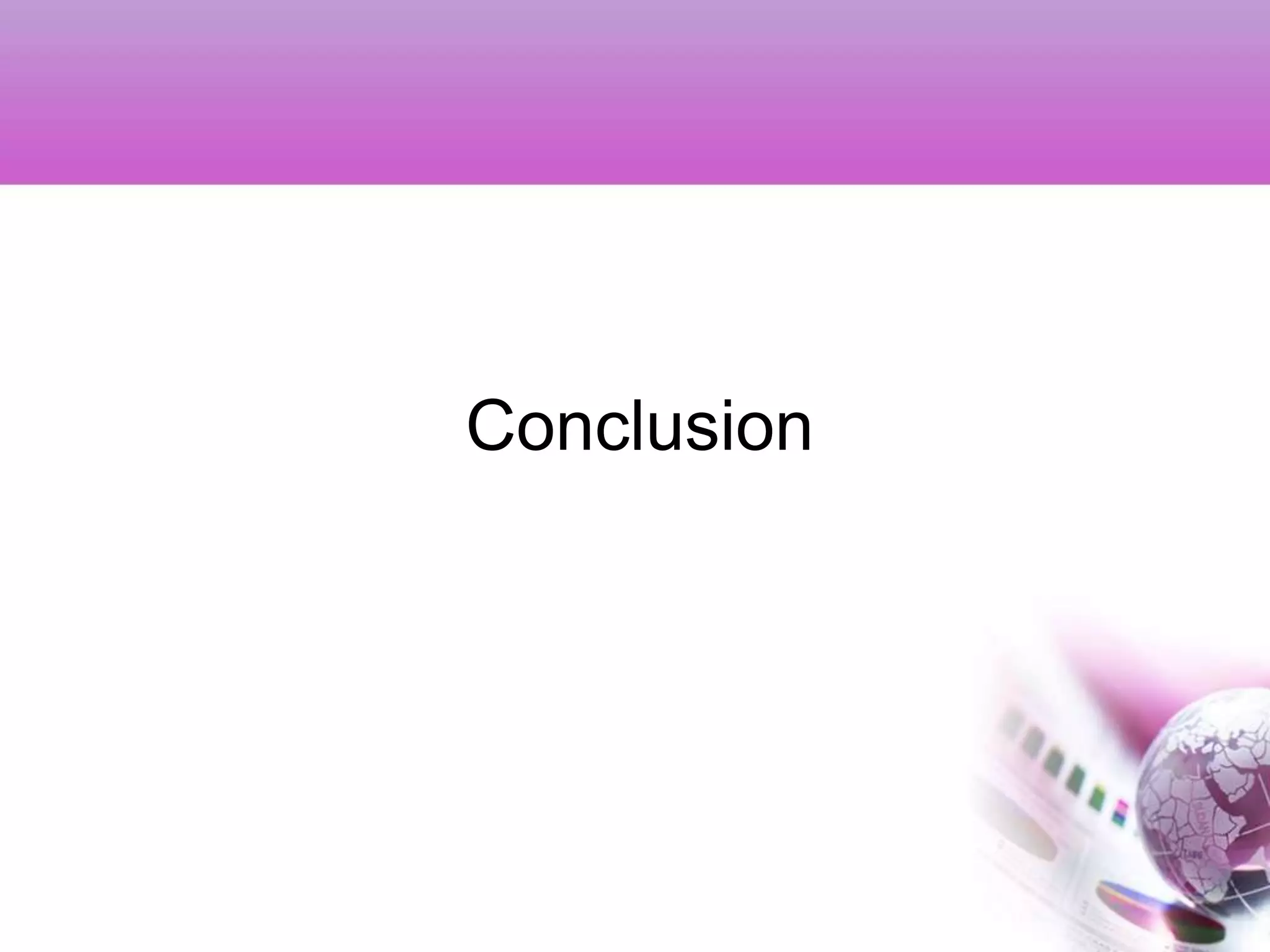

18. Conclusion

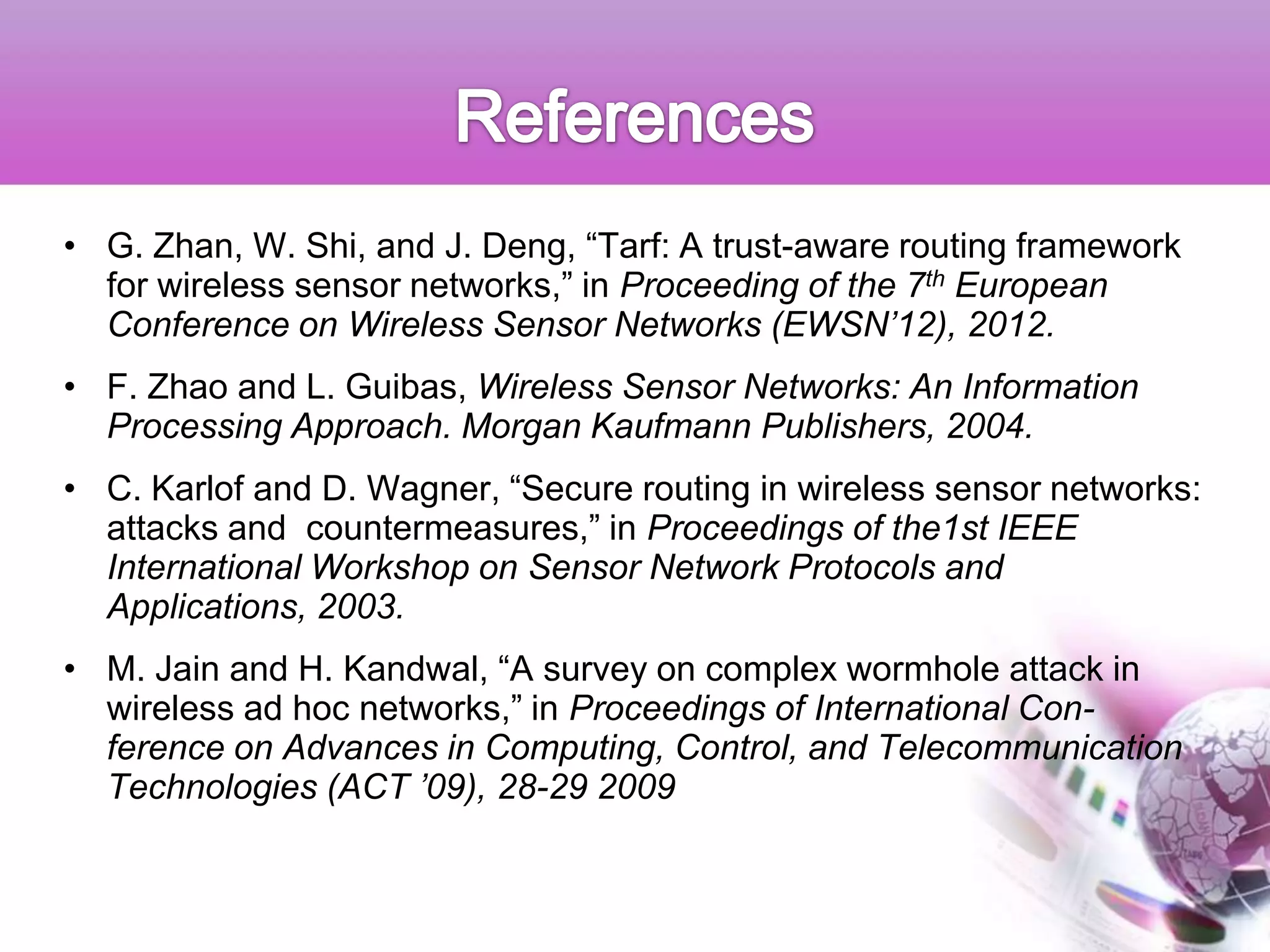

19. • G. Zhan, W. Shi, and J. Deng, “Tarf: A trust-aware routing framework
for wireless sensor networks,” in Proceeding of the 7th European
Conference on Wireless Sensor Networks (EWSN’12), 2012.
• F. Zhao and L. Guibas, Wireless Sensor Networks: An Information
Processing Approach. Morgan Kaufmann Publishers, 2004.
• C. Karlof and D. Wagner, “Secure routing in wireless sensor networks:
attacks and countermeasures,” in Proceedings of the1st IEEE
International Workshop on Sensor Network Protocols and
Applications, 2003.
• M. Jain and H. Kandwal, “A survey on complex wormhole attack in
wireless ad hoc networks,” in Proceedings of International Con-
ference on Advances in Computing, Control, and Telecommunication
Technologies (ACT ’09), 28-29 2009
