This document discusses deploying the DC/OS container management system on bare metal servers using Juju charms. It describes bootstrapping DC/OS masters and agents using Juju, relating them, and scaling agents. Additional charms can be deployed for monitoring with Nagios and logging with Logstash. Containers can then be deployed to DC/OS using the dcos-nginx charm. The current implementation supports deploying DC/OS masters and agents in a scalable way and deploying docker containers. Future work includes improving security, simplifying upgrades, and adding more actions.

1. Deploying DC/OS On Prem
(With a little help from your friends)

2. Who’s the guy at the front?
Tom Barber
NASA JPL Devops and Data Developer
Spicule & Meteorite BI
Data guy and open source hacker… erm developer.

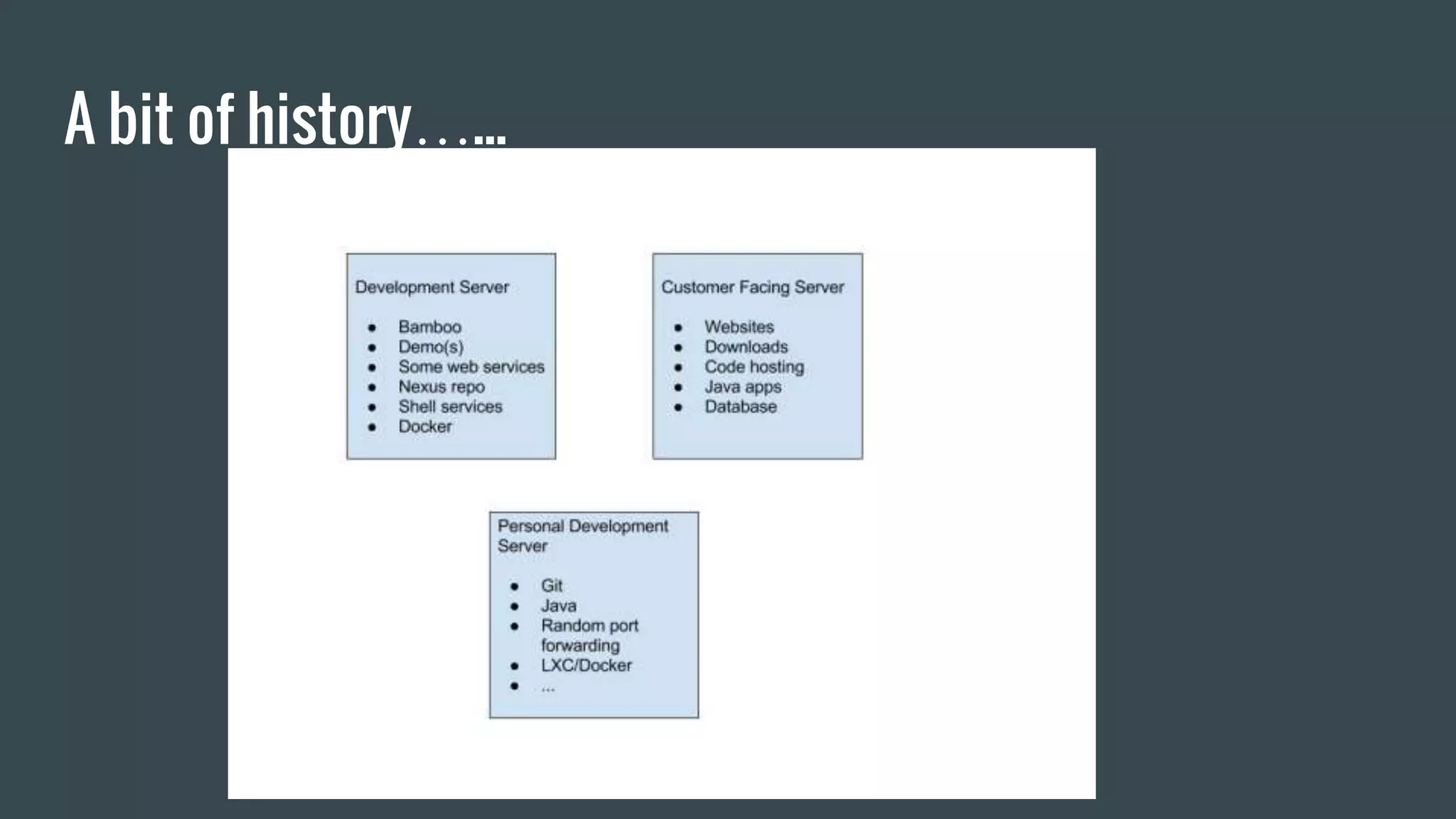

3. A bit of history…...

4. Caveat
We want to run our services on hardware supplied by
We also want to retain control of the underlying hardware to control costs, networking
and scalability.

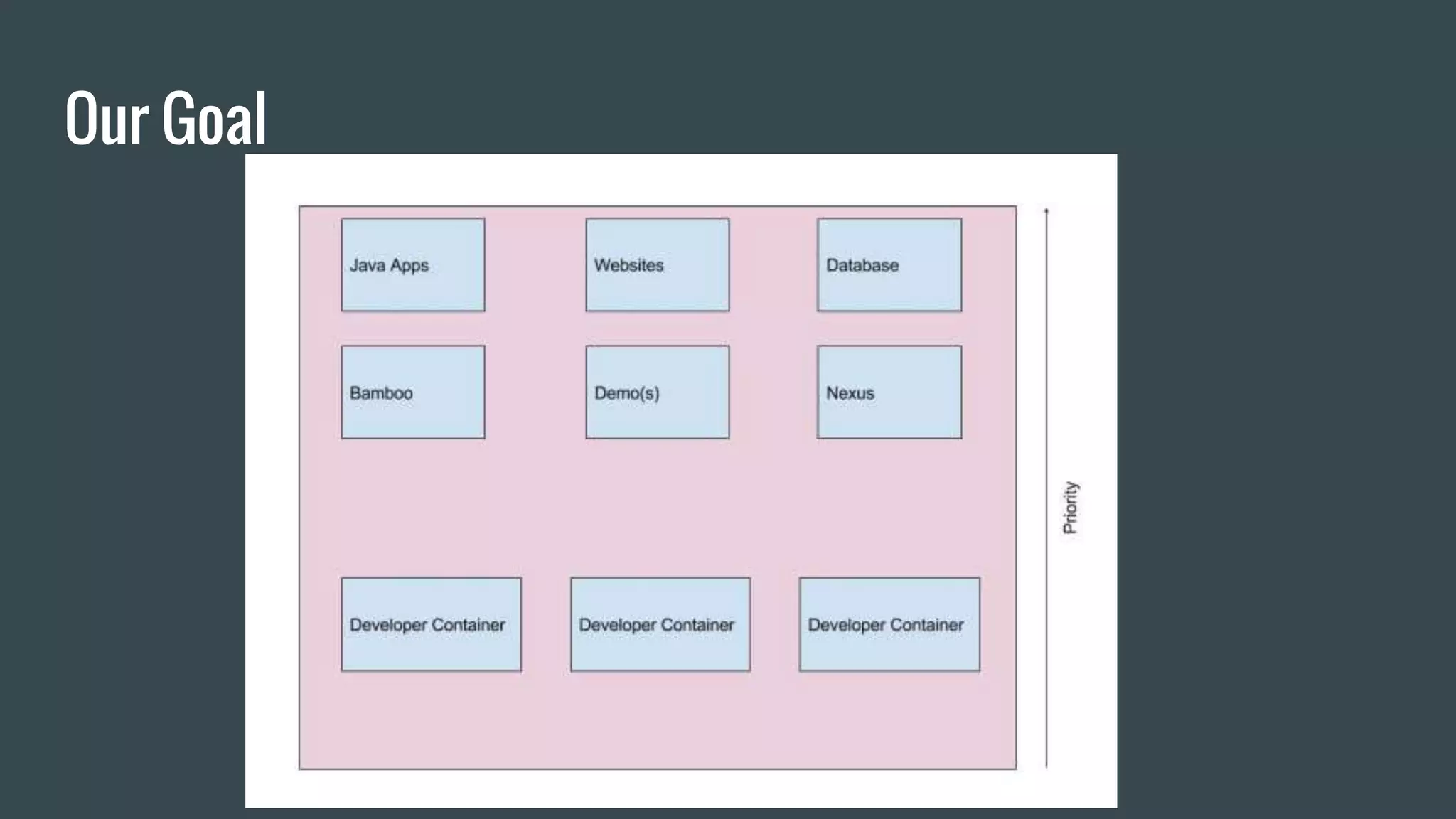

5. Our Goal

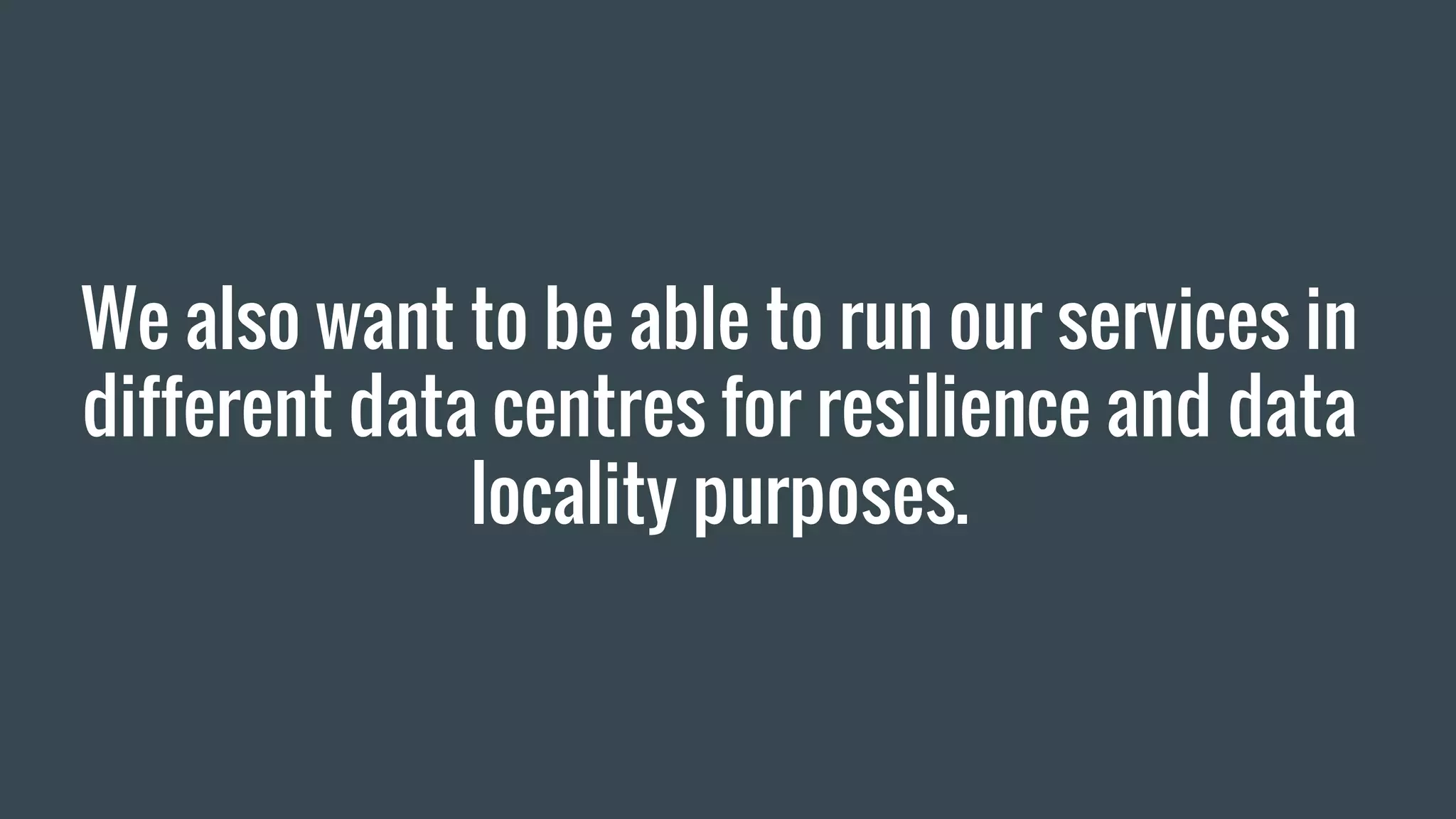

6. We also want to be able to run our services in
different data centres for resilience and data
locality purposes.

7. So how can we achieve our goals?

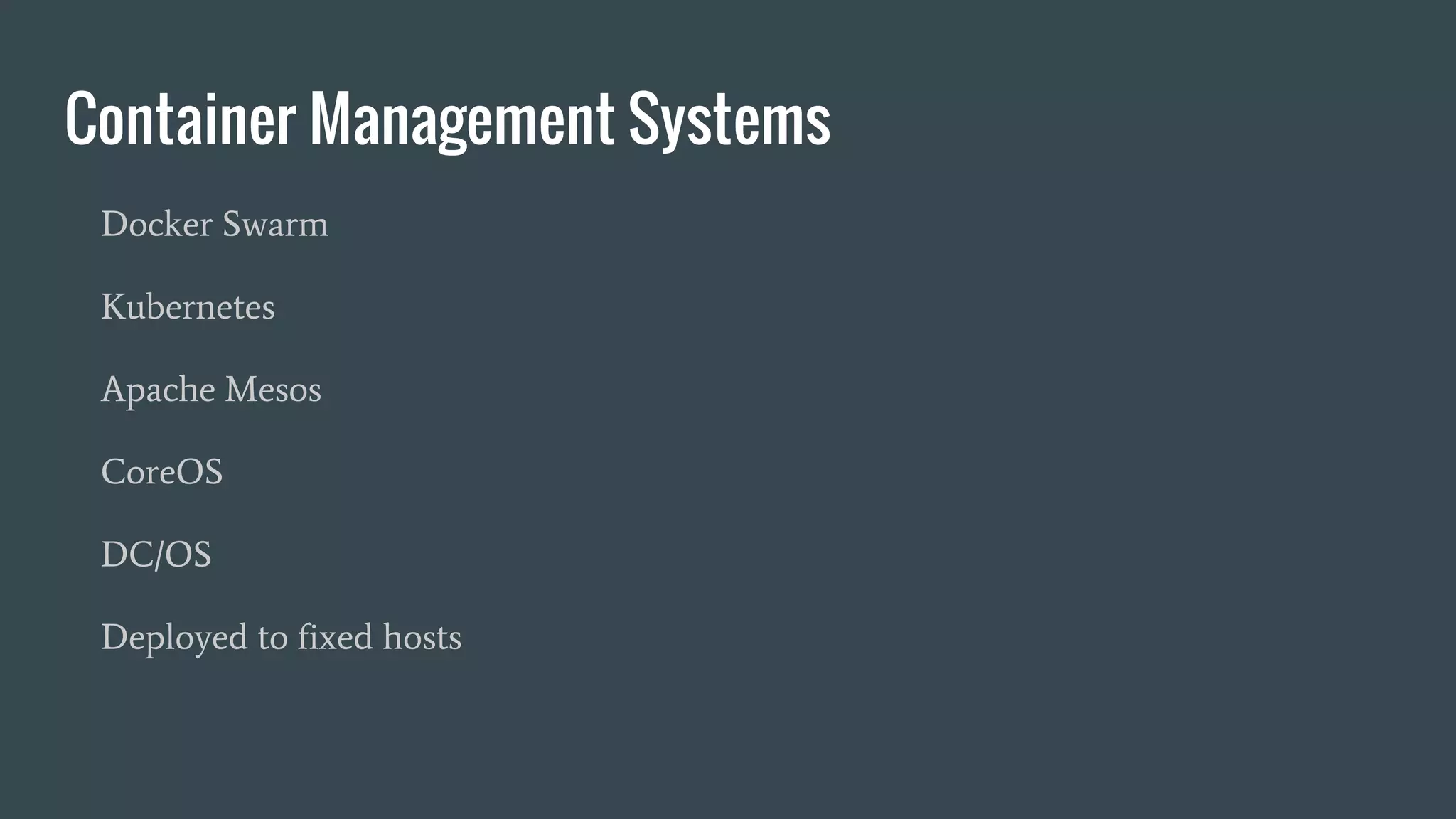

8. Container Management Systems
Docker Swarm
Kubernetes
Apache Mesos
CoreOS
DC/OS
Deployed to fixed hosts

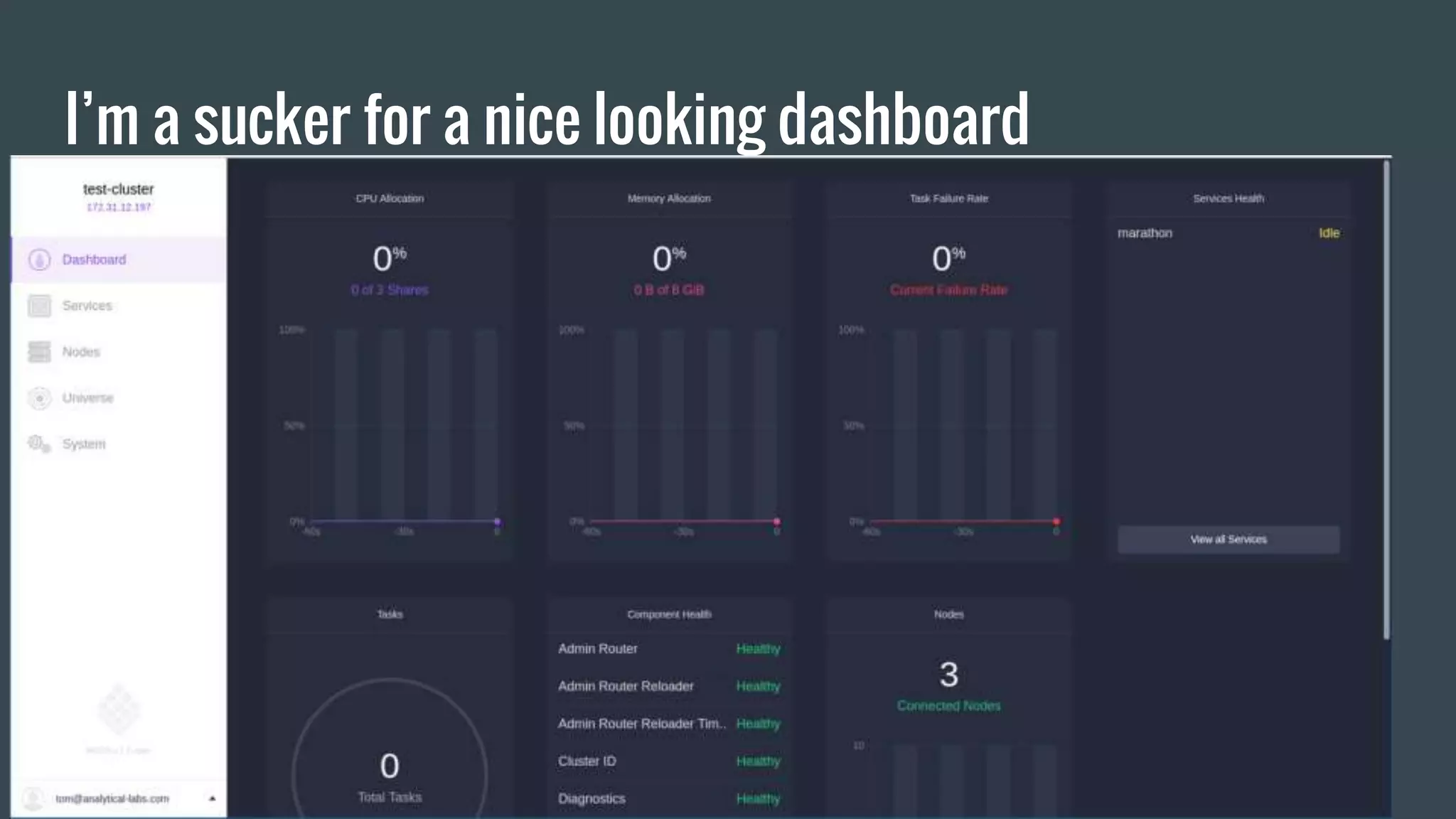

9. I’m a sucker for a nice looking dashboard

10. The next question we asked was:
“We have a bunch of Bigstep bare metal servers, what's
the most flexible way to manage them?”

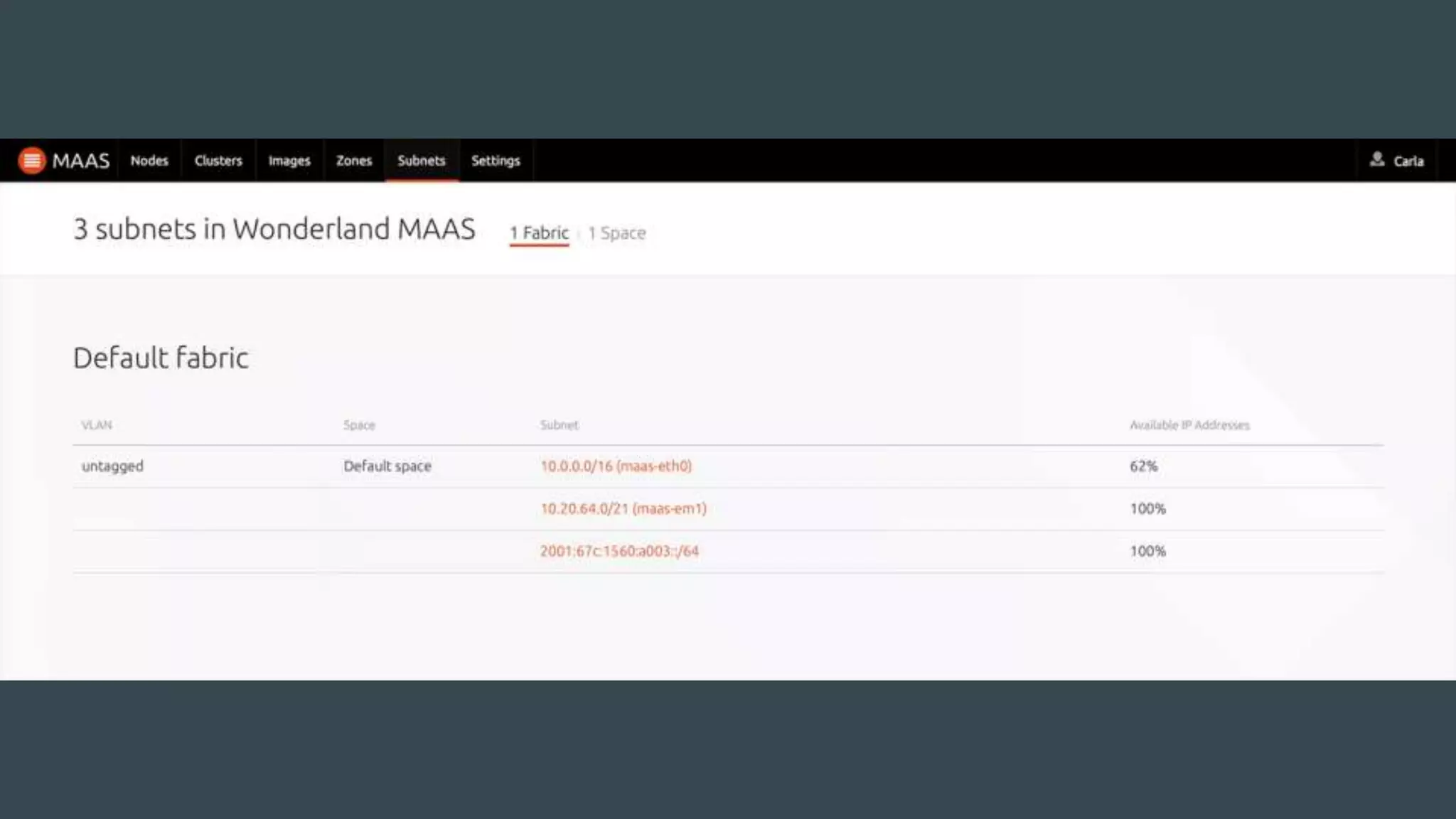

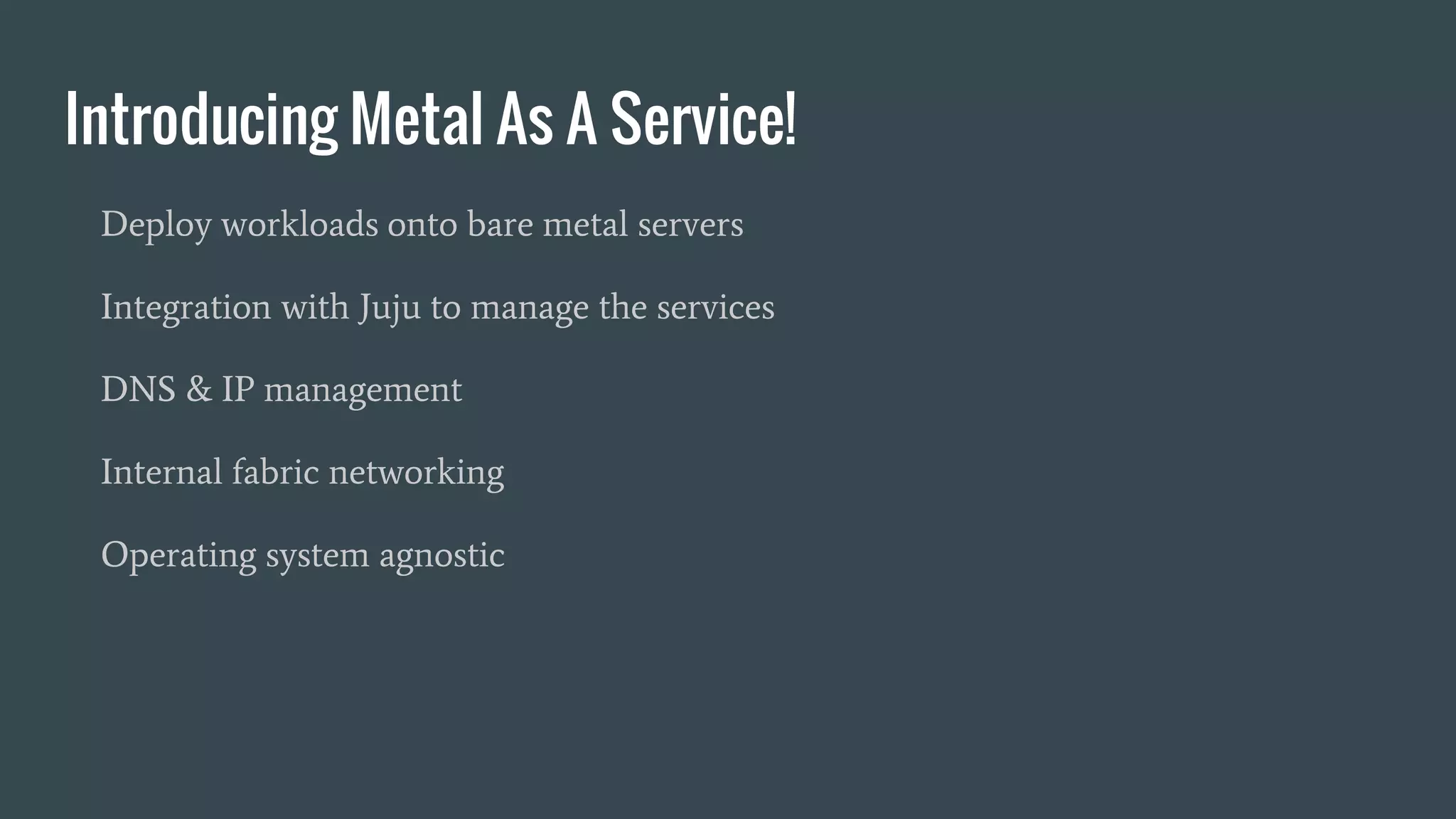

11. Introducing Metal As A Service!
Deploy workloads onto bare metal servers
Integration with Juju to manage the services
DNS & IP management
Internal fabric networking
Operating system agnostic

14. We already manage a lot of our services using Juju… so
could we make DC/OS work with Juju?

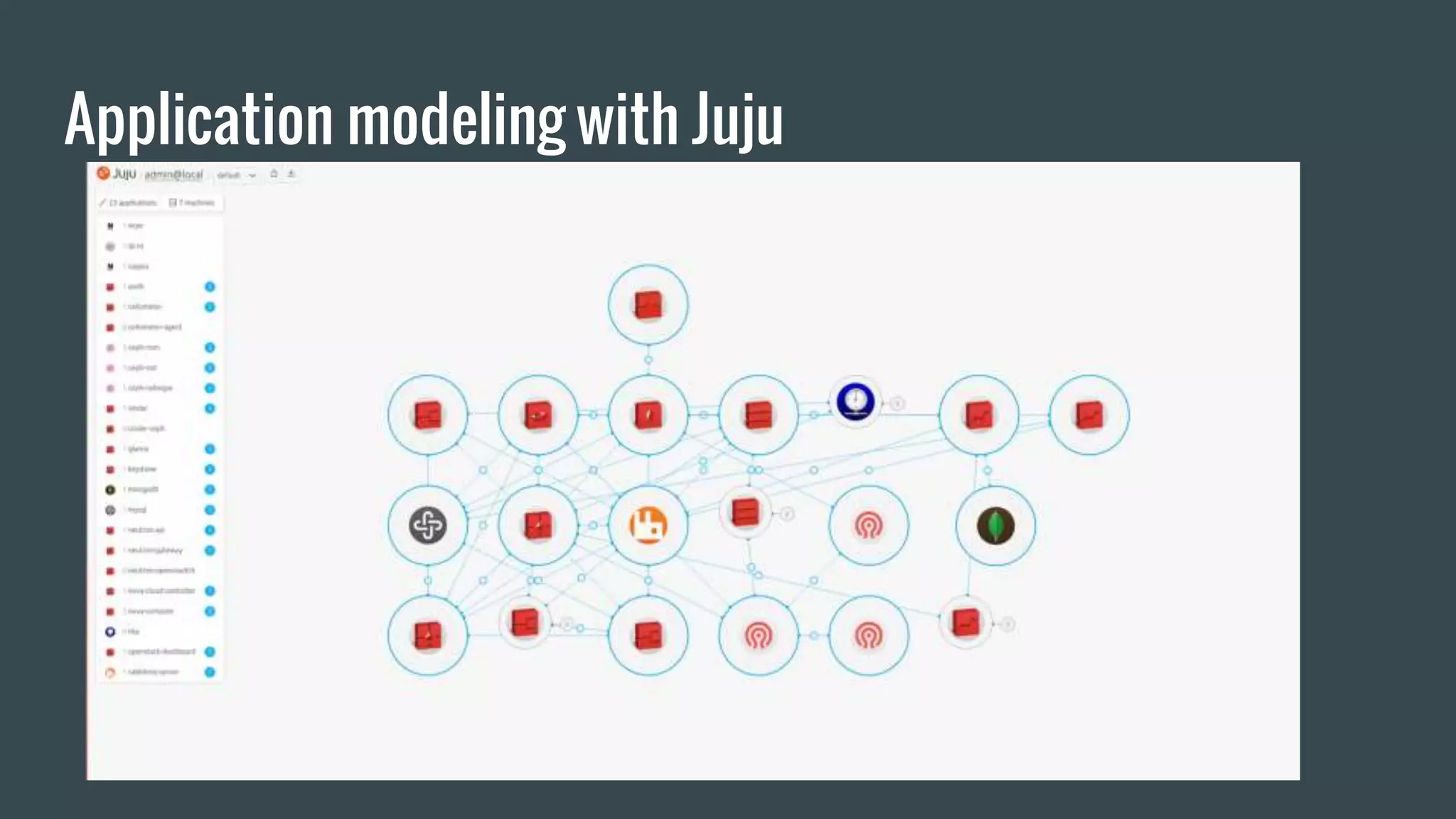

15. Application modeling with Juju

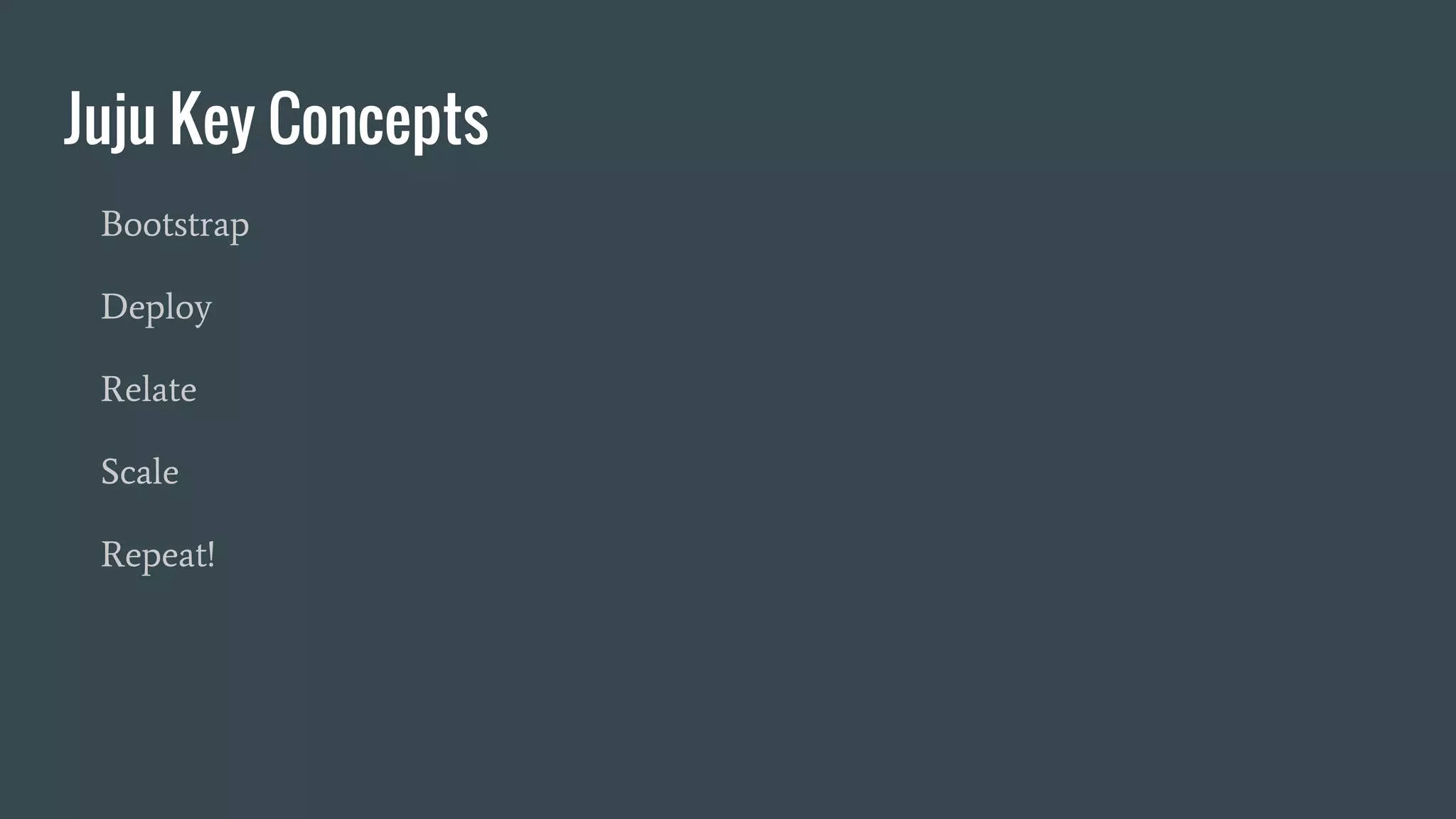

16. Juju Key Concepts
Bootstrap
Deploy
Relate
Scale
Repeat!

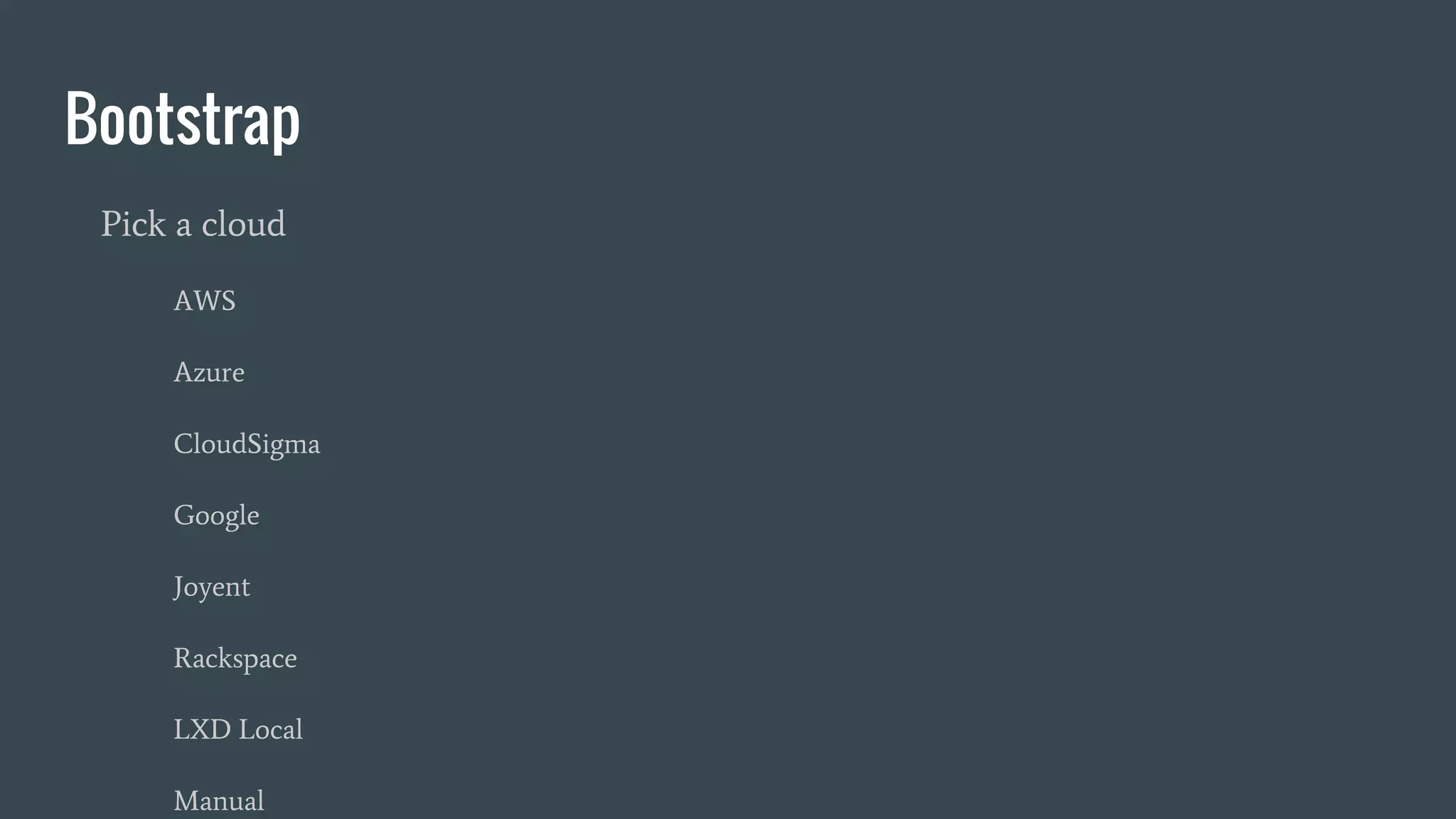

17. Bootstrap
Pick a cloud
AWS
Azure
CloudSigma
Google
Joyent
Rackspace
LXD Local
Manual

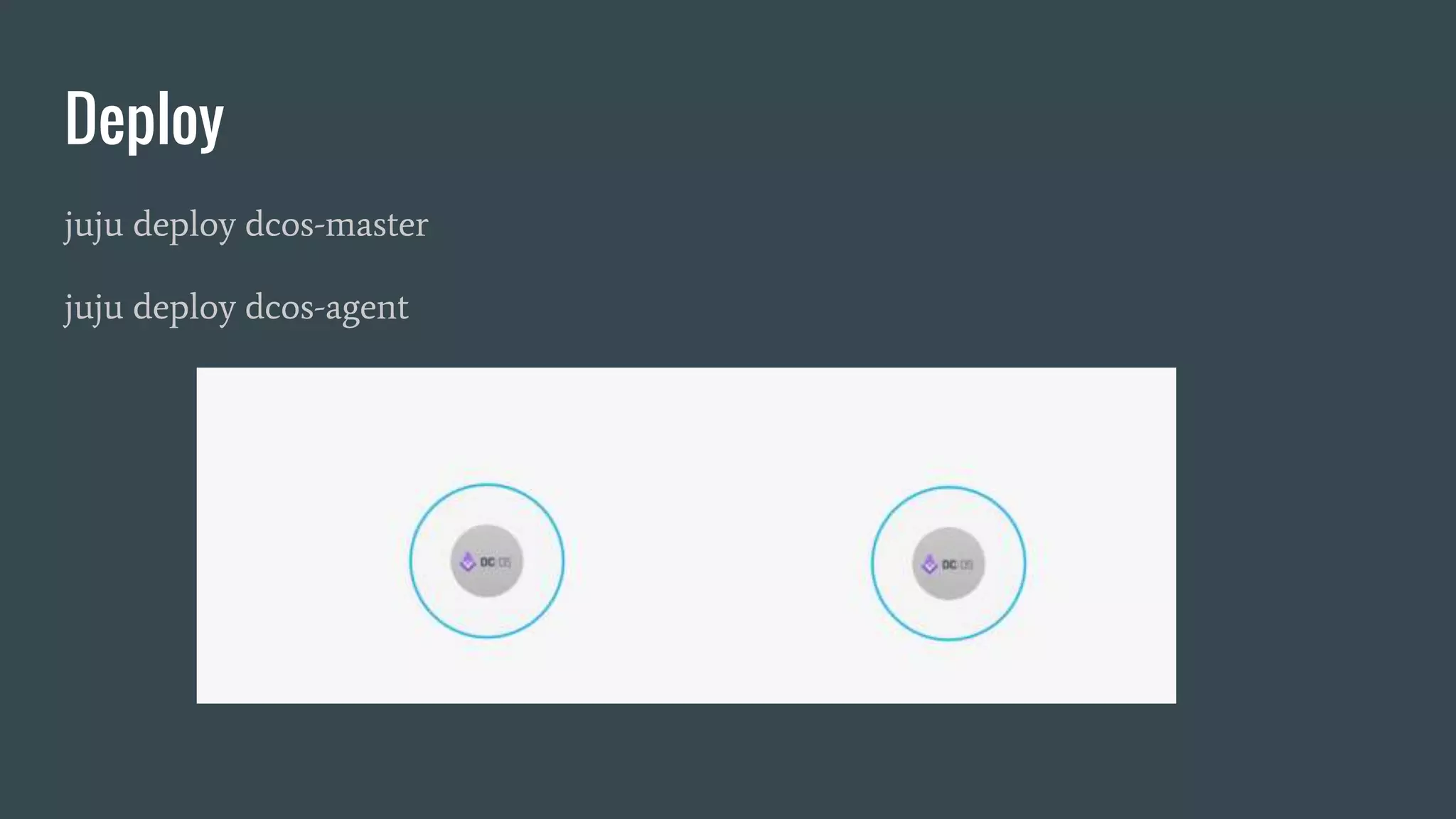

18. Deploy
juju deploy dcos-master
juju deploy dcos-agent

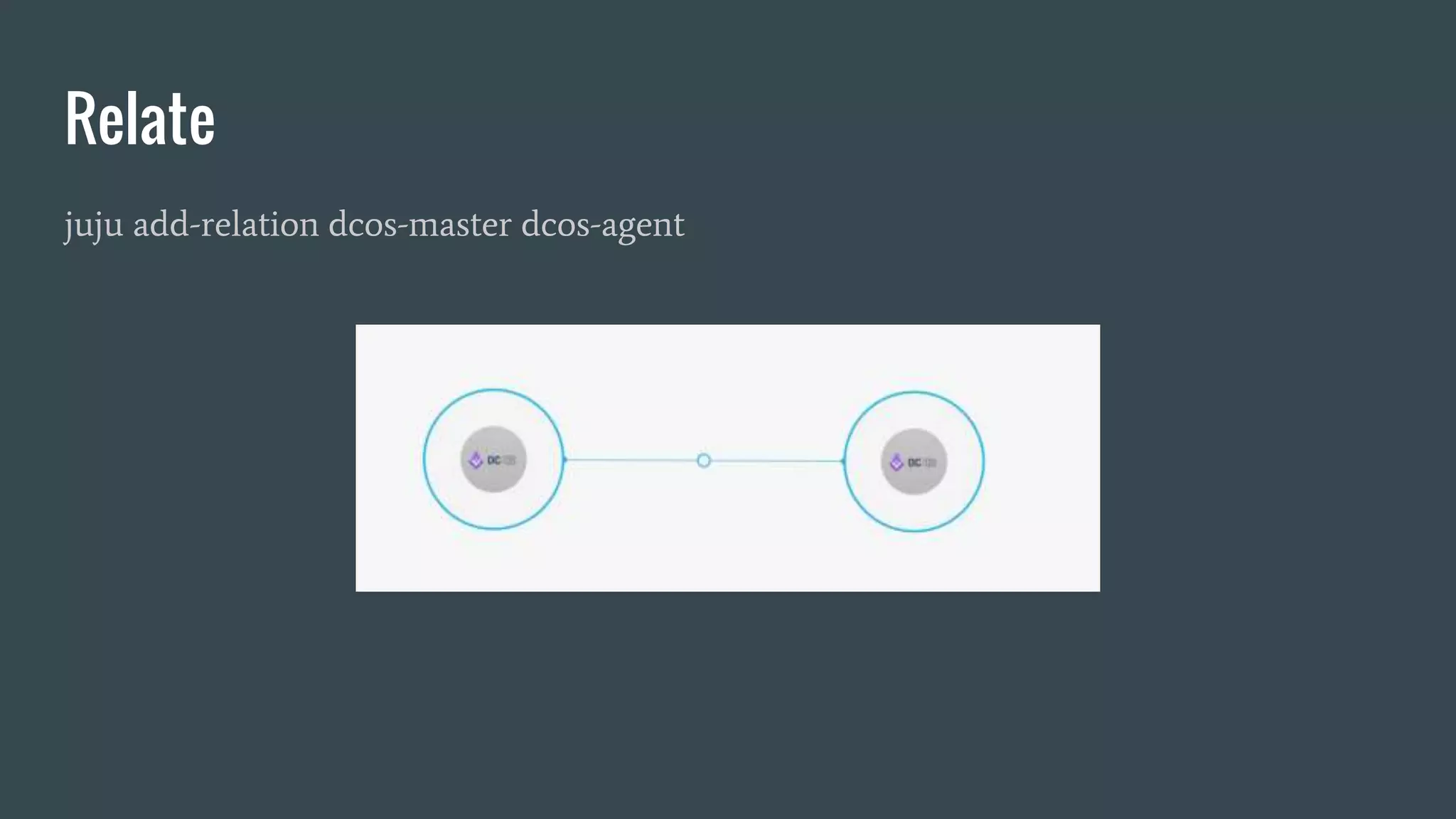

19. Relate
juju add-relation dcos-master dcos-agent

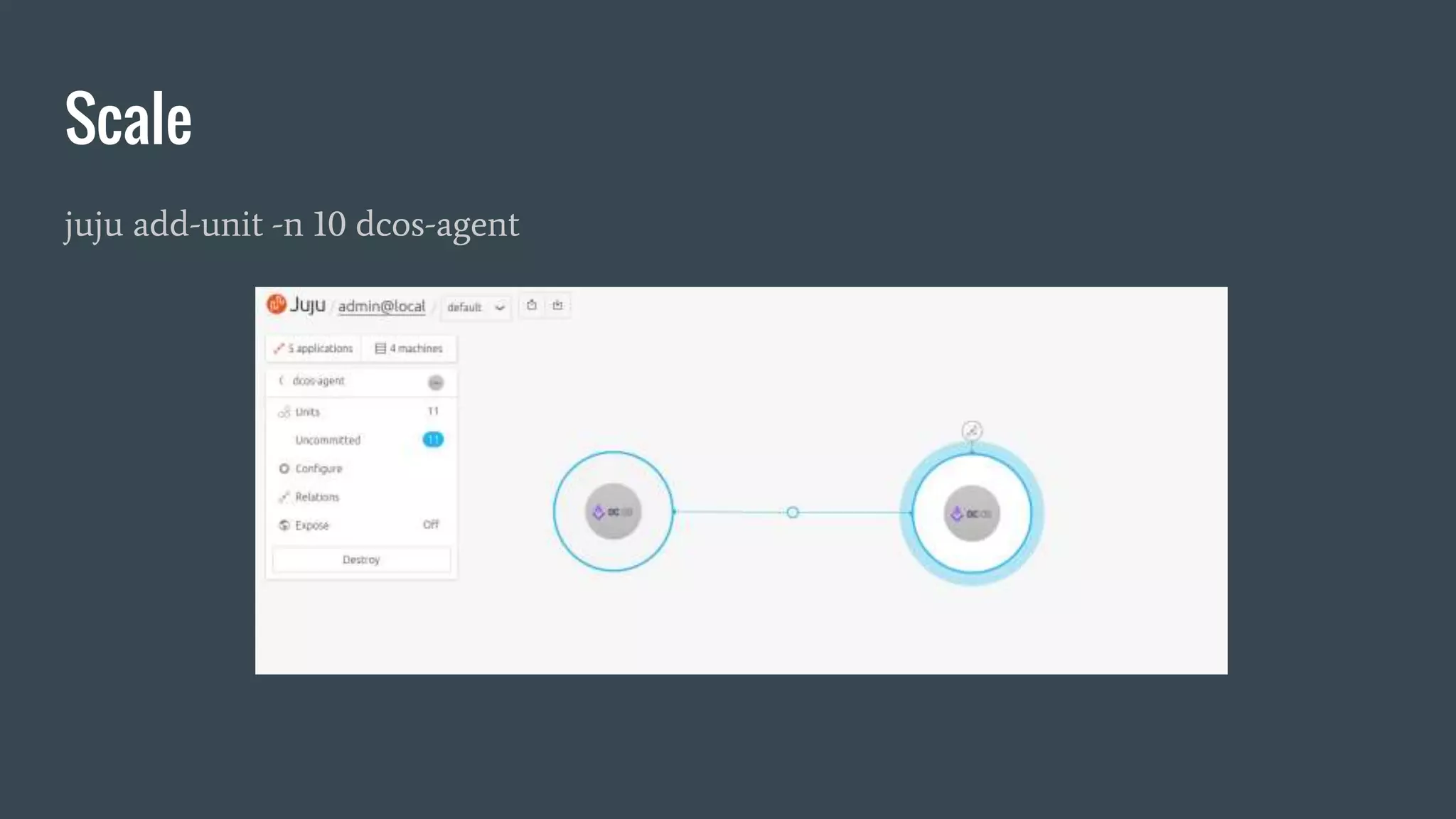

20. Scale
juju add-unit -n 10 dcos-agent

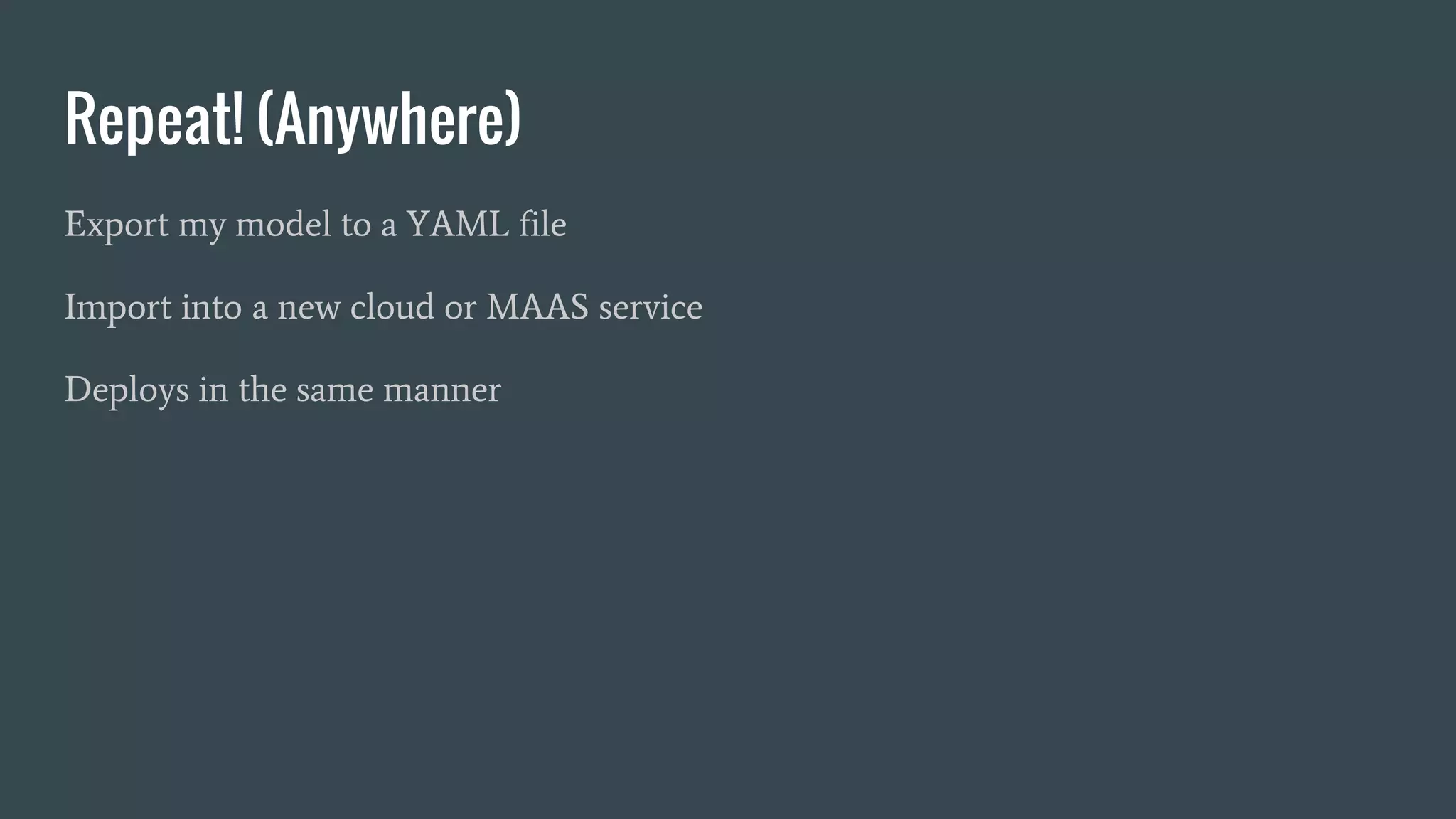

21. Repeat! (Anywhere)
Export my model to a YAML file
Import into a new cloud or MAAS service
Deploys in the same manner

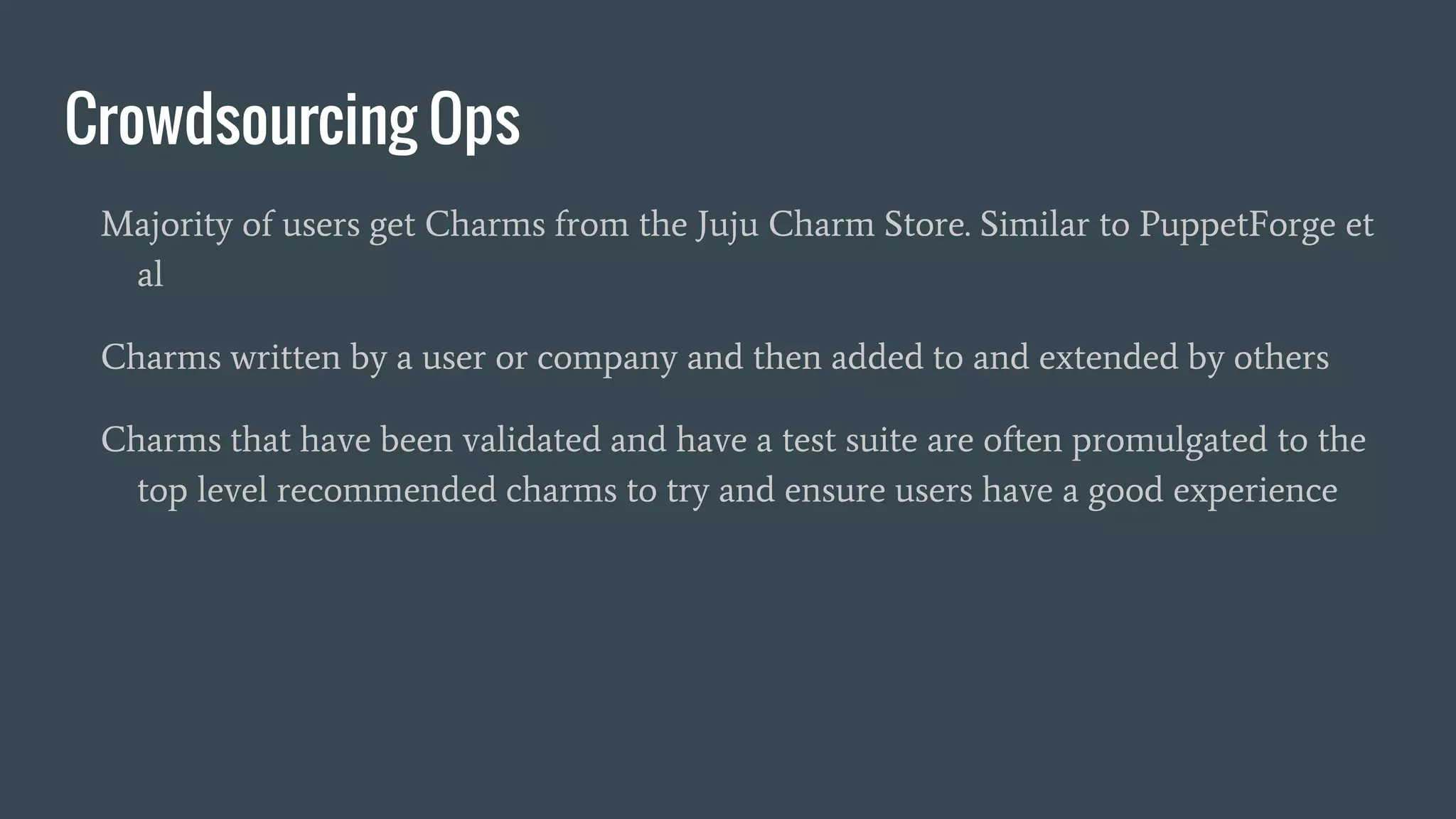

22. Crowdsourcing Ops
Majority of users get Charms from the Juju Charm Store. Similar to PuppetForge et
al
Charms written by a user or company and then added to and extended by others
Charms that have been validated and have a test suite are often promulgated to the
top level recommended charms to try and ensure users have a good experience

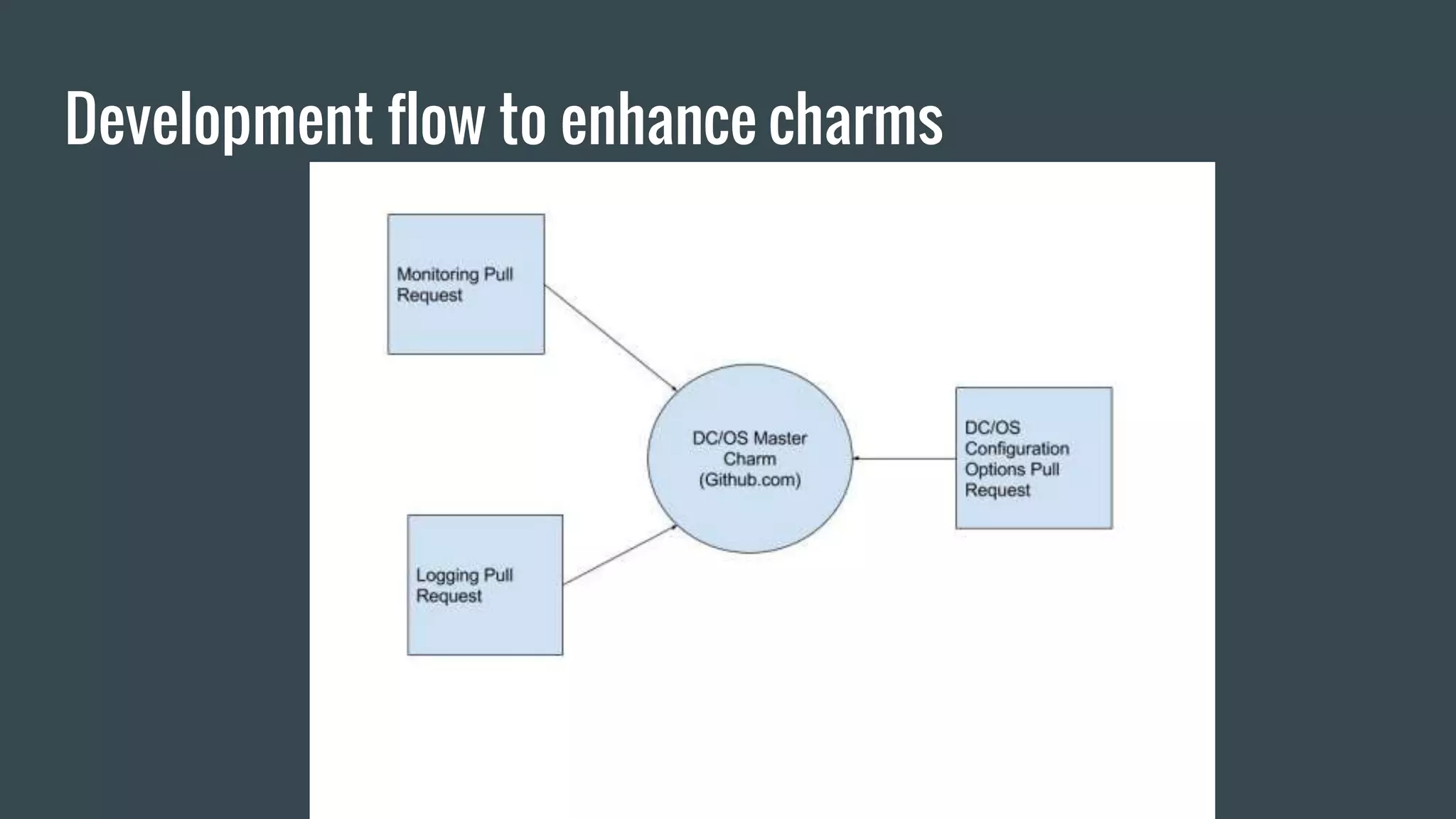

23. Development flow to enhance charms

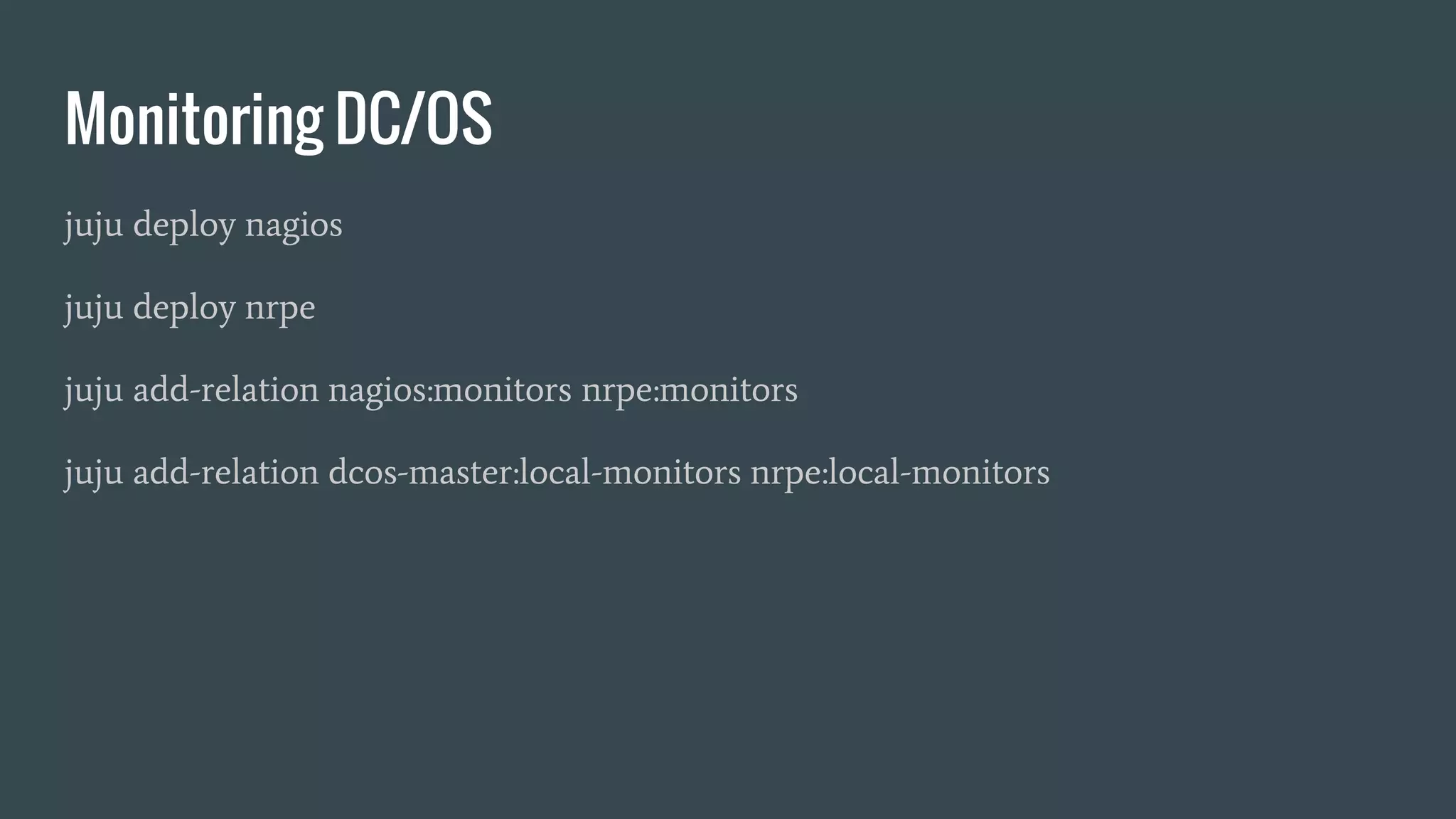

24. Monitoring DC/OS
juju deploy nagios
juju deploy nrpe
juju add-relation nagios:monitors nrpe:monitors
juju add-relation dcos-master:local-monitors nrpe:local-monitors

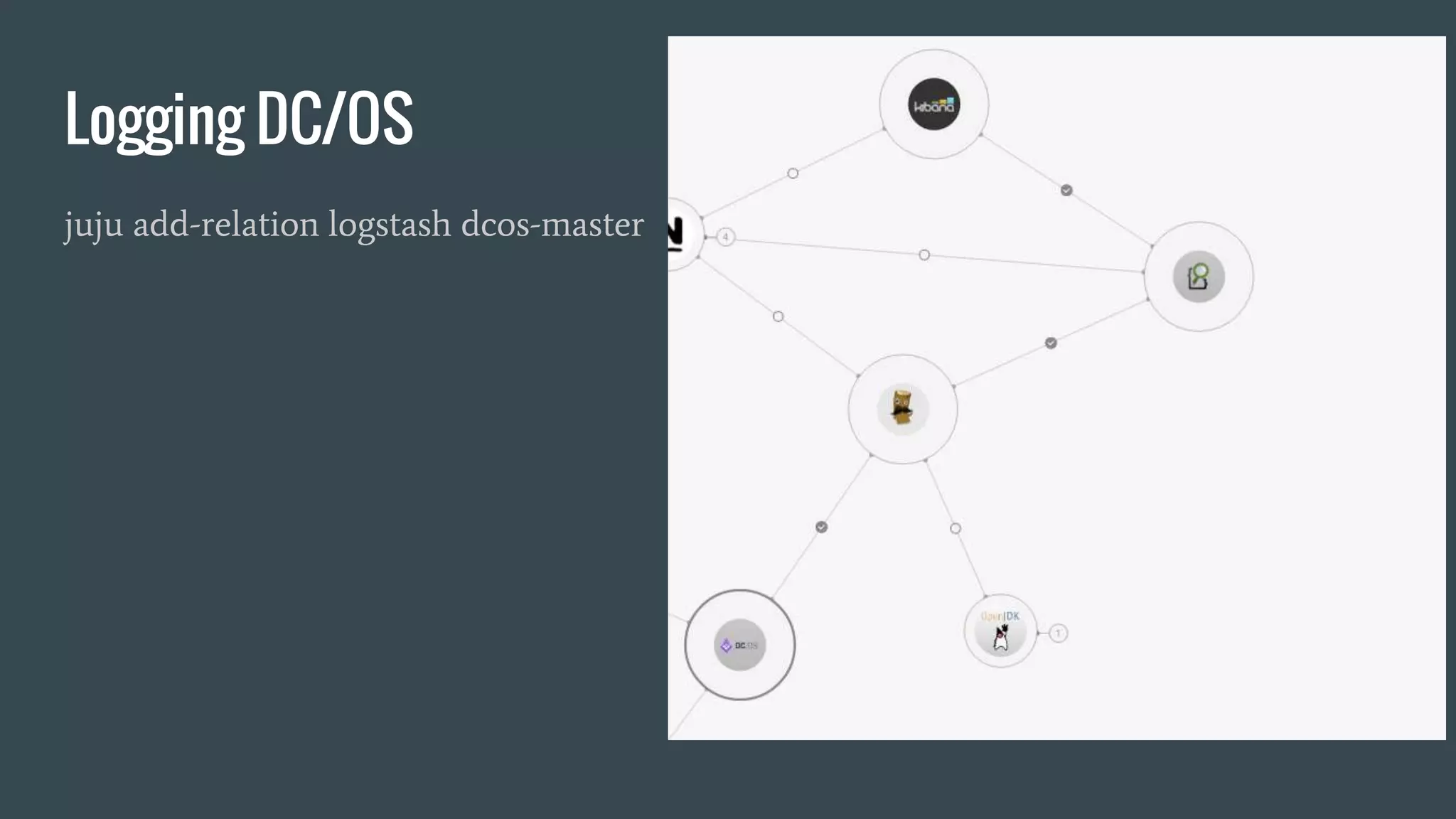

25. Logging DC/OS
juju add-relation logstash dcos-master

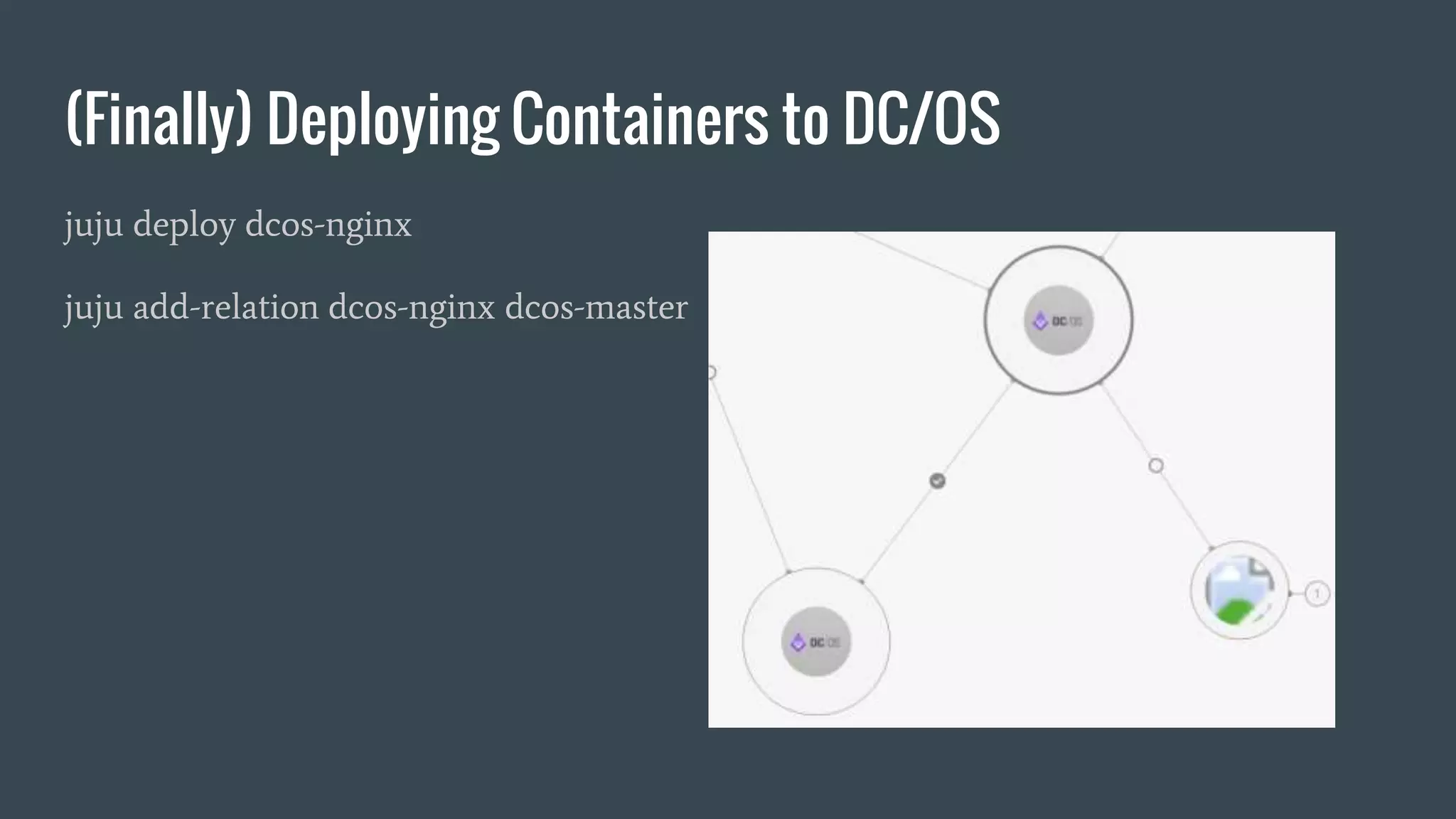

26. (Finally) Deploying Containers to DC/OS
juju deploy dcos-nginx
juju add-relation dcos-nginx dcos-master

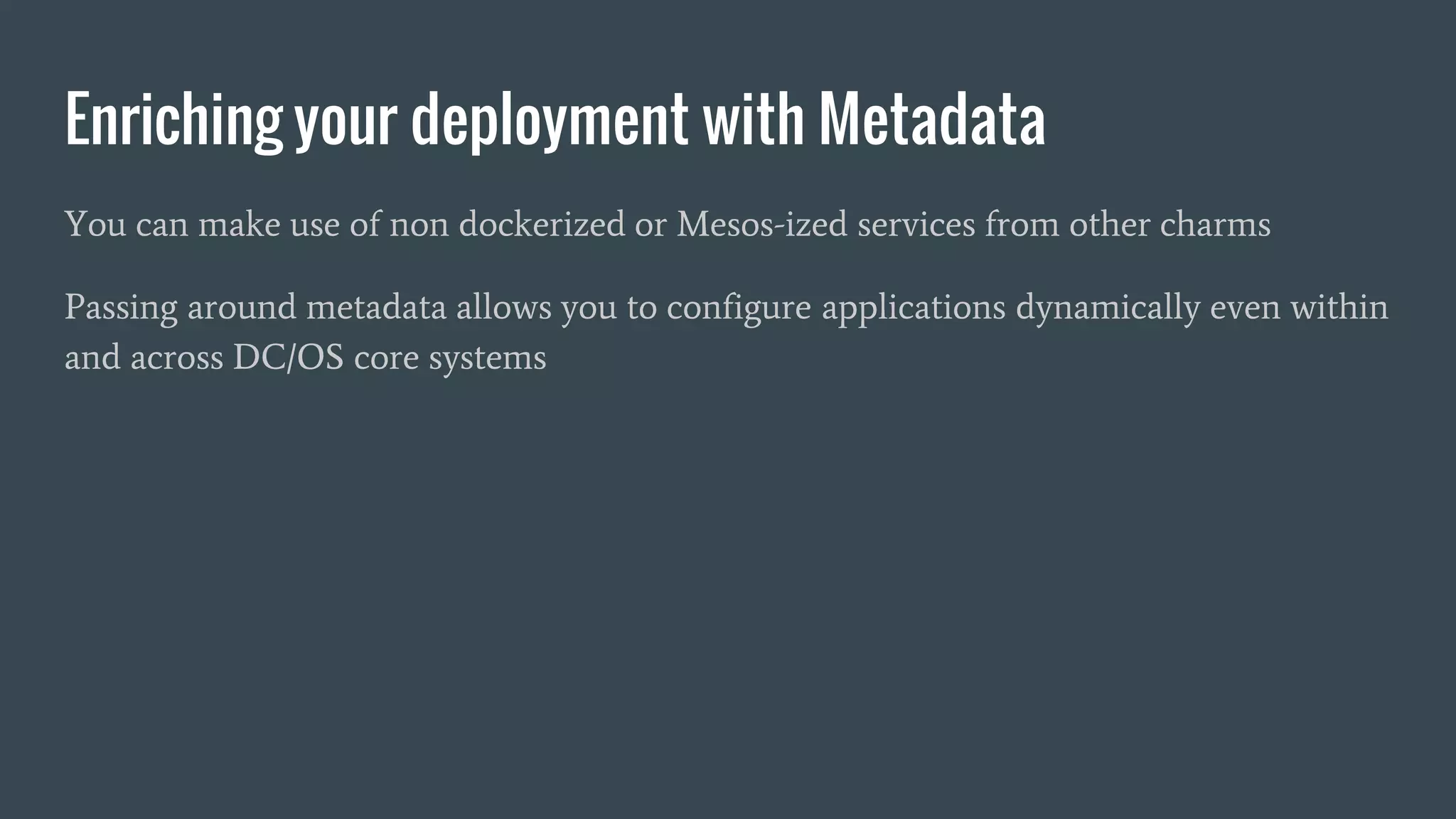

27. Enriching your deployment with Metadata
You can make use of non dockerized or Mesos-ized services from other charms
Passing around metadata allows you to configure applications dynamically even within
and across DC/OS core systems

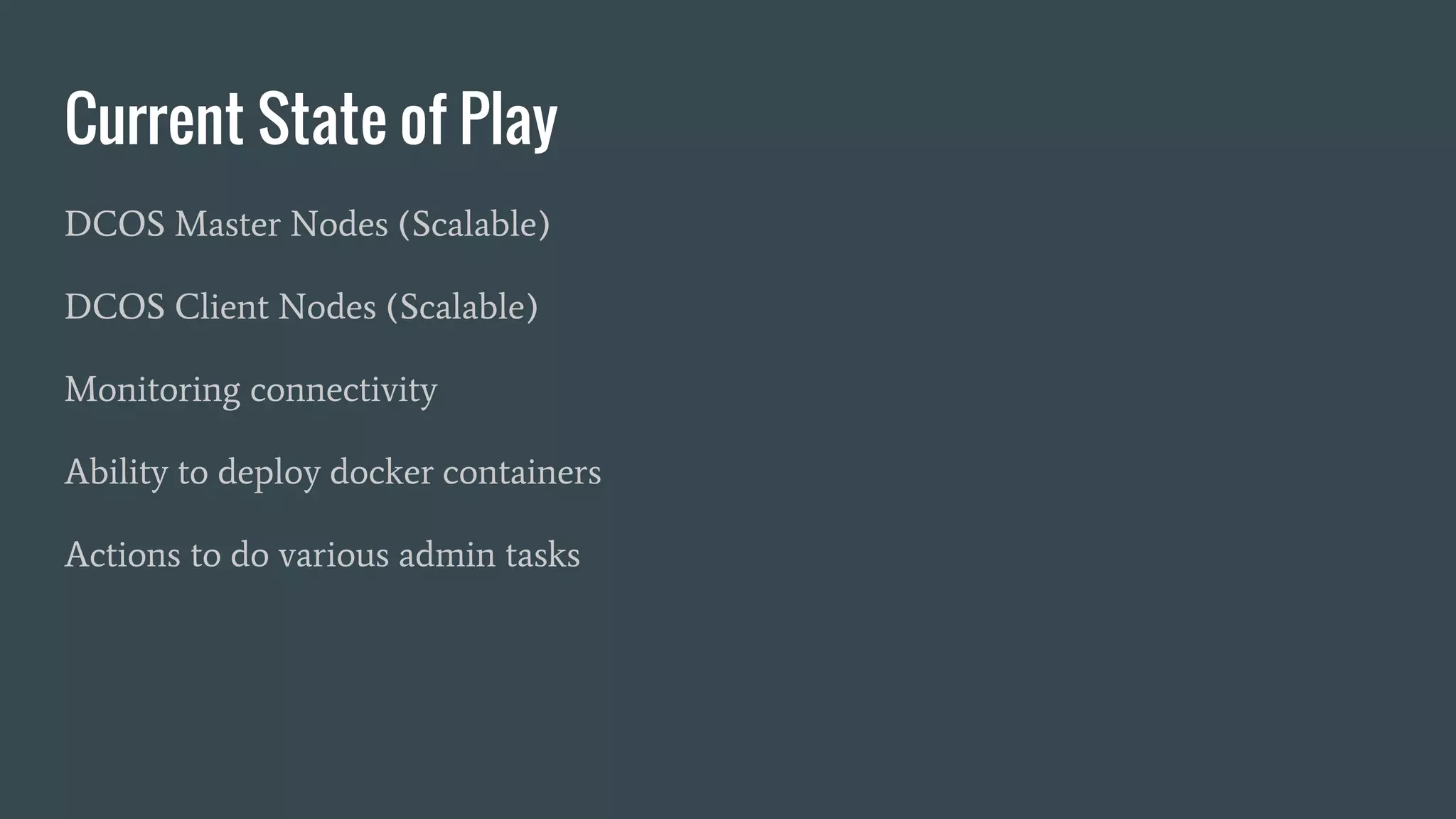

28. Current State of Play
DCOS Master Nodes (Scalable)
DCOS Client Nodes (Scalable)
Monitoring connectivity
Ability to deploy docker containers
Actions to do various admin tasks

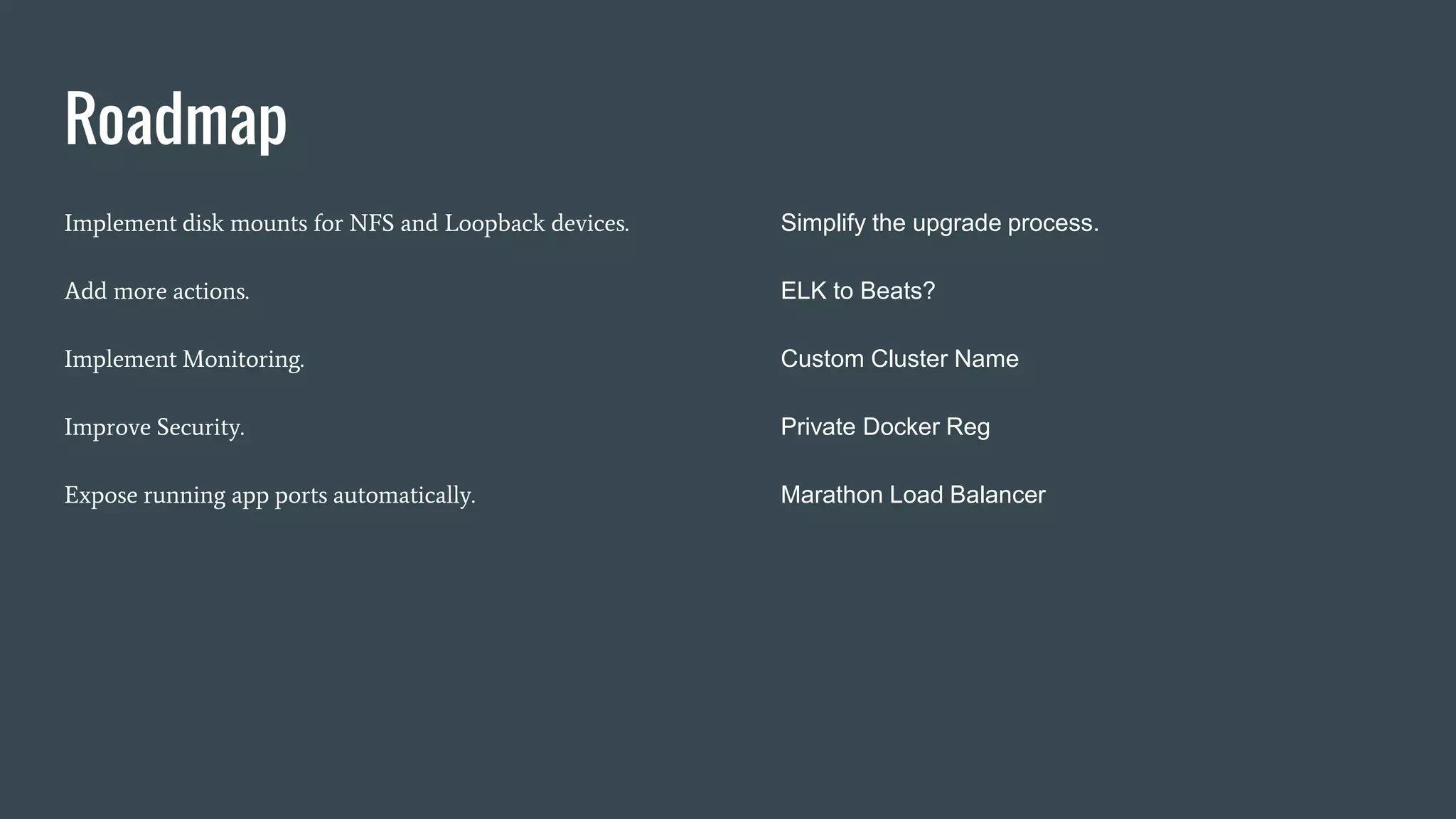

29. Roadmap
Implement disk mounts for NFS and Loopback devices.
Add more actions.
Implement Monitoring.
Improve Security.
Expose running app ports automatically.
Simplify the upgrade process.
ELK to Beats?
Custom Cluster Name
Private Docker Reg
Marathon Load Balancer

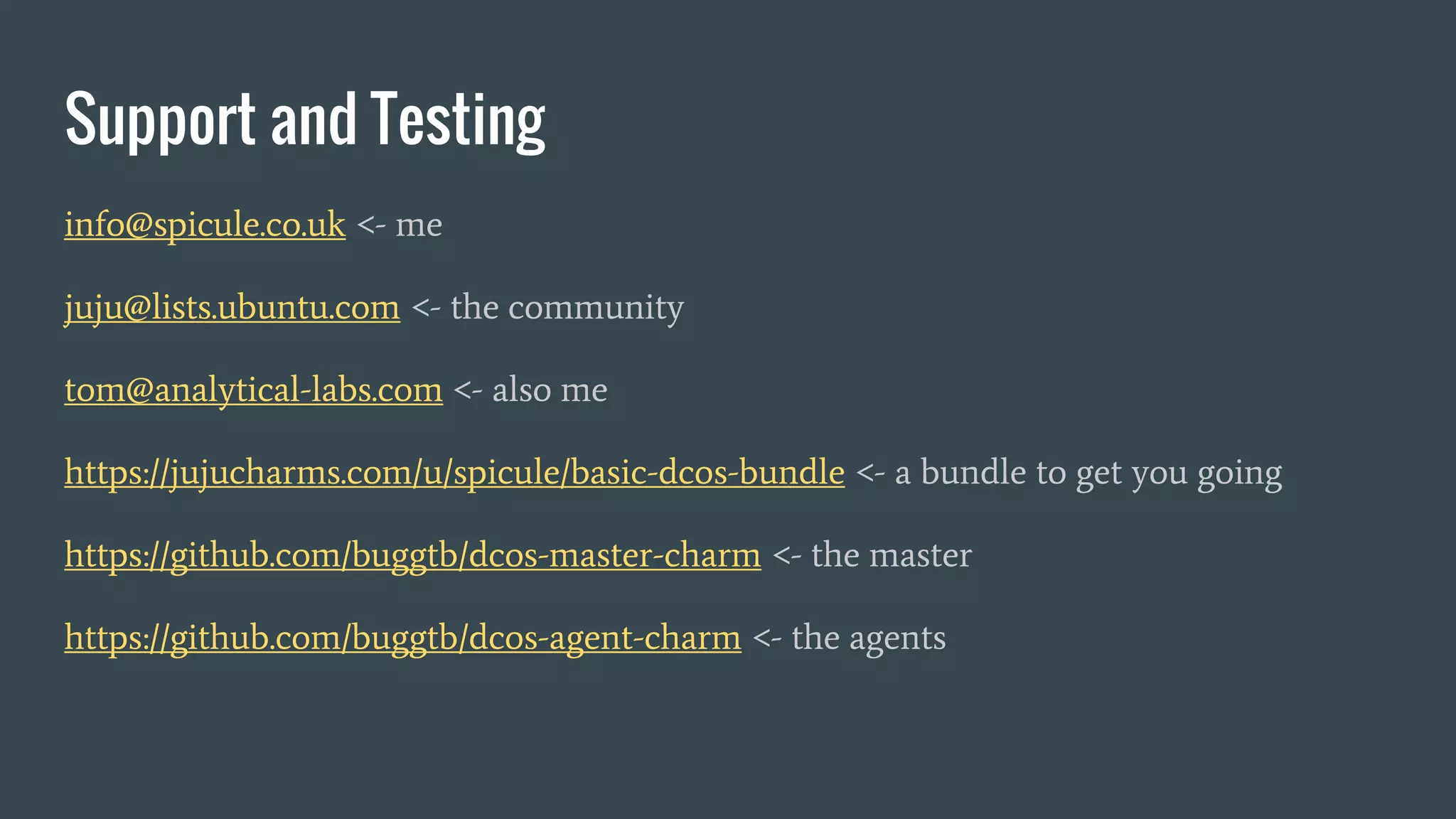

30. Support and Testing
info@spicule.co.uk <- me
juju@lists.ubuntu.com <- the community
tom@analytical-labs.com <- also me
https://jujucharms.com/u/spicule/basic-dcos-bundle <- a bundle to get you going
https://github.com/buggtb/dcos-master-charm <- the master
https://github.com/buggtb/dcos-agent-charm <- the agents

31. But it doesn’t end there…..

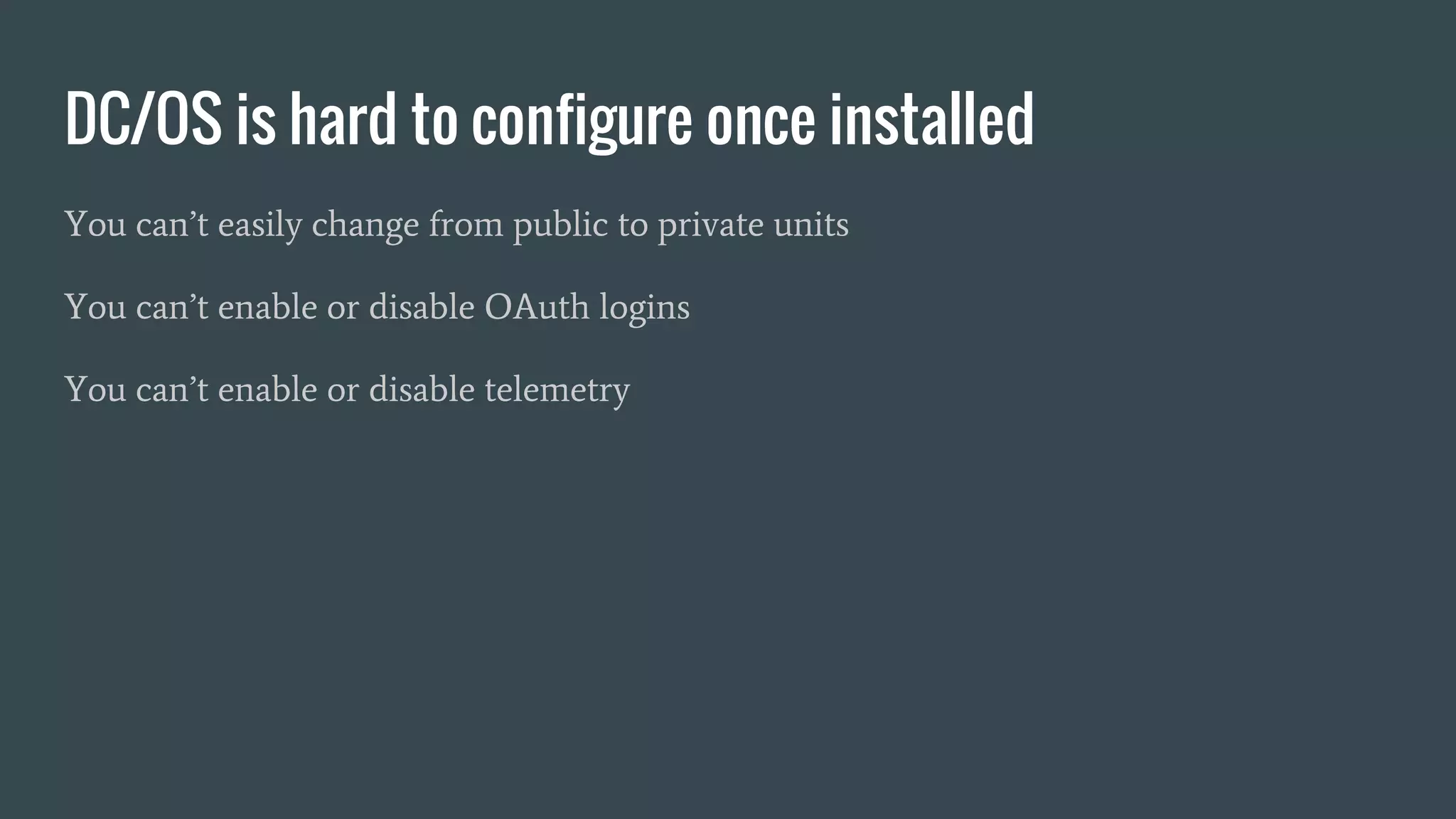

32. DC/OS is hard to configure once installed
You can’t easily change from public to private units
You can’t enable or disable OAuth logins
You can’t enable or disable telemetry

33. Layered Mesos
Mesos master and slaves
Marathon support for Docker deployment
Utilise the Zookeeper charm
SSL Communication
HA support
SDN support
