This document proposes a facility building at the Dematagoda Running Shed premises. The 158 square meter building will house changing rooms, offices, and a library for railway workers. It will have solid exterior walls with interior greenery and void spaces. Sustainable strategies include cross ventilation, solar power generation, and rainwater protection. Construction will use bricks, concrete, zinc roofing and aluminum doors. The estimated total cost is approximately 5 million Sri Lankan rupees.

1. Proposed Facility building for
Dematagoda Running Shed

2. Architectural Consultancy
G.G.L. Galagoda [B.Arch] & F.R. Arooz [B.Arch]
*

3. Site Extend for Building
17m x 9.3m (158 Sq m)
Project
Facility Building For Workers

4. Site Extend for Building
17m x 9.3m (158 Sq m)
Project
Facility Building For Workers
Site
Dematagoda Running Shed Premises

5. Client’s Requirements
Changing Room - 60_Mechanical Staff
Shunters Room - 3 Persons
Shunting Engine
Drivers Room - 4 Persons
Shop 36 - 3 Persons
Gaungers Room - 3 Persons
Engineers Room
Institute
Library

6. Inspirations
Greenery

7. Inspirations
Greenery Function

8. Inspirations
Greenery Function Gathering

9. Inspirations
Greenery Function Gathering Shapes and Forms

10. Inspirations
Greenery Function Gathering Shapes and Forms Architecture

11. The Open School _ South KoreaThe Box Office _ Rhode Island. USATechnicsHousings
Precedence

12. Building form
Solid Buildings

13. Building form
Solid BuildingsGreenery (Void Space)

14. Building form
Solid BuildingsGreenery (Void Space) Solid to void

15. Solid BuildingsGreenery (Void Space) Solid to void
Building form

20. Ground Floor Plan

21. First Floor Plan

22. Section Through Engineer’s Room Section Through Mechanical Staff Room
Cross Sections

23. Longitudinal Sections

24. Sustainable Strategies
Views to Open Areas

25. Sustainable Strategies
Sun Direction

26. Sustainable Strategies
Protection From Sun

27. Sustainable Strategies
Shade in Building

28. Sustainable Strategies
Natural Ventilation/ Cross Ventilation

29. Sustainable Strategies
Solar Power Generation

30. Sustainable Strategies
Solar Power Generation

31. Sustainable Strategies
Rain Direction

32. Sustainable Strategies
Rain Direction

33. Sustainable Strategies
Protection From Rain

34. Built Process

35. Built Process

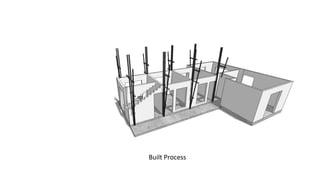

36. Built Process

37. Built Process

38. Built Process

39. Built Process

40. Built Process

41. Built Process

42. Built Process

43. Built Process

44. Built Process

45. Built Process

46. Built Process

47. Built Process

48. Built Process

49. Built Materials

64. Specifications
01. Foundations As per engineers instructions
02. Anti-termite treatment (with a 10 year warranty)
03. Walls
Brick in cement sand mortar, 9” or 4 ½” thick where applicable.
04. Slab and part of the Staircase
Reinforced concrete 5” thick with Grade 25 concrete.
05. Steel stair case
06. Roof
• Zn/AL Roofing sheets.
• 3"x2" 'GI' box bar at 3'-0" c/c
• 2"x2" 'C' purlings
• Supplying & fixing of 8"x8" colour bonded moulded Zn/Al
gutters with necessary accessories.
• Supplying & fixing of 4" x 4" Zn/Al square Rain water down
pipes with necessary accessories as per detail drawing.
07. Aluminum doors and windows – at First floor
All windows and door-win; powder coated aluminum
08. All Timber doors – at Ground floor
Doors - 3”x4” timber framed paneled doors
Windows –Timber framed Glazed windows.
09. Internal Finish & Plaster
Painted over two coats of emulsion paint (Standard colours) on
smoothed putty over rough cement sand plaster

65. 10. External Finish &Plaster
Two coats of paint over filler coat on rough plaster
11. Finishes
All internal floor areas - tiles valued Rs.150/- per Sqft
All bath rooms
Floor - non slip tiles. Value Rs.150/- per Sqft.
Walls - up to 3’ H in average - Tile value Rs.150/- per Sqft.
12. Electrical
Socket outlets
5 amp - 20
15 amp - 05
Lamp points- 35 (Point Only) + 3 for garden
Fans - 08 (Including Fan) Indian/Chinese make)
(Connection charges to CEB by client)
13. Plumbing
WC’S - 02 nos,(Fittings; Chinese make)
Wash Basin (with tap)Chinese make
• Vanity - 01 no in GF
• Vanity - 01 no in FF
Septic tank
Soakage pit
14.External work
Solar panel - approx. Rs125,000/- direct payment to supplier by client

66. Estimated Cost Summery
Toal Ground floor area = 1002.25 Sq.ft
Total Cost for Ground floor = 1002.25 Sq.ft x LKR.3400
= approx. LKR. 3,407,650
Total Upper floor area = 921.50 Sq.ft
Total Cost for Ground floor = appox. LKR. 1,000,000
Total Cost = LKR. 3,407,650 + LKR. 1,000,000
= LKR. 4,407,650
Added Provisional Sum [10%] = appox. LKR. 5,000,000
Total Cost of the project = appox. LKR. 5,000,000/=
