The widespread location-based social networks (LBSNs) have immersed into our daily life. As an open platform, LBSNs typically allow all kinds of users to register accounts. Malicious attackers can easily join and post misleading information, often with the intention of influencing the users' decision in urban computing environments. To provide reliable information and improve the experience for legitimate users, we design and implement DeepScan, a malicious account detection system for LBSNs. Different from existing approaches, DeepScan leverages emerging deep learning technologies to learn users' dynamic behavior. In particular, we introduce the long short-term memory (LSTM) neural network to conduct time series analysis of user activities. DeepScan combines newly introduced time series features and a set of conventional features extracted from user activities, and exploits a supervised machine learning-based model for detection. Using the real traces collected from Dianping, a representative LBSN, we demonstrate that DeepScan can achieve an excellent prediction performance with an F1-score of 0.964. We also find that the time series features play a critical role in the detection system.

1. DeepScan: Exploiting Deep Learning for
Malicious Account Detection in
Location-Based Social Networks
Yang Chen
School of Computer Science
Fudan University
chenyang@fudan.edu.cn

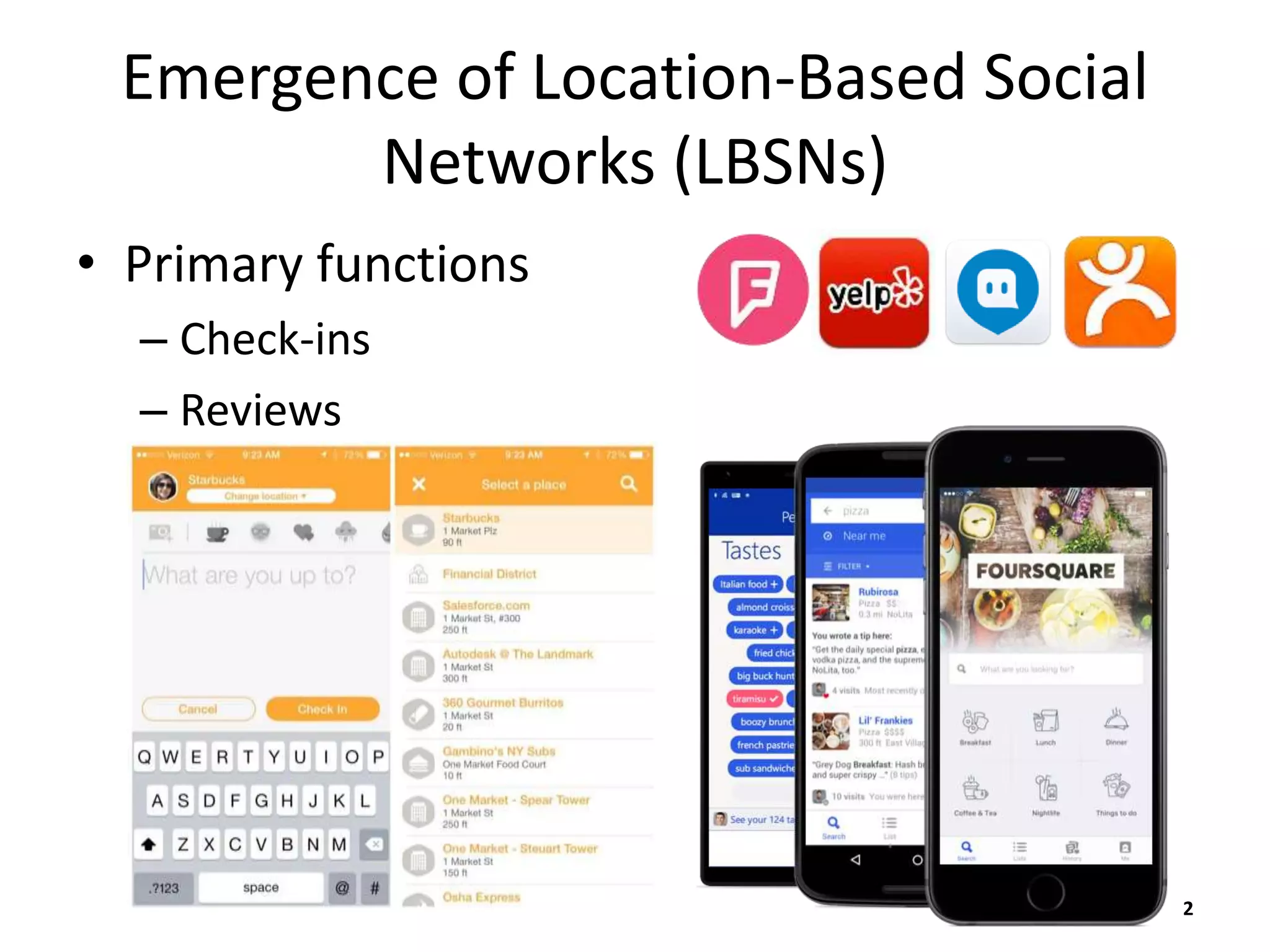

2. Emergence of Location-Based Social
Networks (LBSNs)
• Primary functions
– Check-ins
– Reviews
2

3. LBSN Data for Urban Computing
• Rich spatiotemporal information of massive users
• Understand human behaviors in the context of urban
computing
• Prospective applications
– Life style modeling and analysis [Yuan et al., ACM
COSN’13]
– City dynamic studying [Silva et al., ACM TOIT’14]
– Venue recommendation [Zhao et al., ACM TIST’14]
– Retail business survival [D’Silva et al., ACM IMWUT’18]
3

4. Malicious Accounts in LBSNs
• Incentive for the attackers
– Winning awards (virtual coins, badges, …)
– Promoting some selected venues
Ensure LBSN users to access reliable information 4

5. The Dianping Service
Review Check-in
http://www.dianping.com/member/UID
Followings
Followers
Location
Nickname
5

6. Data Collection
• Crawling
– Time period: Mar. 11, 2017 – Apr. 16, 2017
– Tool: a Python-based crawler using the Selenium webdriver
library
• Amount: 107,616 randomly selected Dianping users
– Focus on those who have conducted at least 5 check-ins and
published at least 5 tips
• Data entry format
– Demographic information (user ID, gender, registration date,
birthday, number of followings, number of followers)
– A sequence of check-in records
– A sequence of posted reviews
– Favorited venues
6

7. Account Annotation
• 14 undergraduate students as volunteers
• 30 USD per 2000 annotations
• Each Dianping user is examined by at least 2 volunteers
– If the two volunteers have different opinions, we ask the third volunteer to
break the tie
3930 malicious users 9928 legitimate users
Ground-truth dataset
7

8. Drawbacks of Previous Solutions
• Supervised machine learning-based approaches
– Feature selection is critical
– Most of the proposed features rely on an aggregate
view of user activities
• Example: total number of check-ins, total number of visited
cities, average travel speed
• However, such a view cannot reflect the dynamics
of the fine-grained activities
– Example: the number of venues she has visited within
each interval along the timeline
8

9. Usefulness of Time Series Information
 The fine-grained activity sequences of a user can be extracted as time series
features to distinguish between legitimate and malicious users
Legitimate Malicious
3:10pm
3:11pm
3:12pm
7:10am
7:35am
8:40am
Each user has a total number of 3 check-ins
9

10. Recurrent Neural Networks (RNN)
 A chain-like architecture, i.e., an array of recurrently connected
cells (neurons)
 Elements of a time sequence will be fed into this array sequentially
 Each cell memorizes the information has been calculated so far
The hidden state that memorizes the information until
the t-th time interval
The input vector of
the t-th time interval
ℎ 𝑡 = 𝑓(𝑊 ∙ 𝑥 𝑡, ℎ 𝑡−1 + 𝑏)
10

11. Problems of the Standard RNNs
Example: I grew up in France… I speak fluent French.
 In standard RNNs, the inputs are processed in temporal
order, current hidden state of the cell tends to be largely
based on the latest inputs
 The current hidden state might still be correlated to long-
distance pieces of information in the inputs 11

12. Long Short-Term Memory (LSTM)
 LSTMs are able to remember their inputs over a long period of
time
 LSTMs contain their information in a memory, that is much like
the memory of a computer because the LSTM can read, write
and delete information from its memory.
12

13. A LSTM Cell
 Each cell in LSTM has three gates, i.e., the input, output and forget gates
 With the help of these gates, the memory cell can control the fraction of
information to get into or out of the cell, and generate a hidden state at
each time interval accordingly 13

14. Bidirectional LSTM
 Bi-LSTM network comprises two parallel LSTM layers, which are the
backward LSTM and the forward LSTM
 For every element in a given sequence, the bidirectional LSTM has the
information about all elements before and after it
 Make use of past and future information 14

15. DeepScan System
• Time series features
– Bi-LSTM network to handle the time series information
• Conventional features
– Spatiotemporal features, social connectivity features, UGC features,
demographic features
• The decision maker
– A supervised machine learning-based classifier
Time Series User Activity Modeling
…
Fully
Connected
…
𝒙 𝟐 𝒙 𝒕 𝒙 𝒏
…
Decision Maker
…
𝒙 𝟏
…
…
…
…
Forward LSTM……
Backward LSTM
Concat
Softmax
xt represents
activities within
the t-th time
interval Conventional
Features
15

16. Training and Test
• Training (and validation) dataset
– Pick a machine learning algorithm
– Apply grid search by sweeping a grid of parameters
• Find the parameters that could achieve the highest prediction
performance (“best” parameters)
• Test dataset
– Evaluate the trained model
Original dataset
Features Labels
Training Set
Test Set
ML Algorithm
Trained Model
Parameter tuning
Predicted
Labels
16

17. Implementation
• LSTM-based time series analysis
– TensorFlow
• Decision maker
– XGBoost
– Weka
17

18. Metrics
• Precision
– The fraction of predicted malicious accounts who
are really harmful
• Recall
– The fraction of malicious users who are detected
accurately
• F1-score
– The harmonic mean of precision and recall
𝐹1 =
2 ∙ 𝑃𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛 ∙ 𝑅𝑒𝑐𝑎𝑙𝑙
𝑃𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛 + 𝑅𝑒𝑐𝑎𝑙𝑙
18

19. Evaluation Outline
• Performance comparison between Bi-LSTM
and Uni-LSTM
• Comparison of different supervised machine
learning algorithms for the decision maker
• Feature importance
• Contribution of each subset of features
• Comparison between DeepScan and an
existing SVM-based approach
19

20. Performance Comparison Between
Bi-LSTM and Uni-LSTM
 Bi-LSTM achieves a better prediction performance than Uni-LSTM
consistently
 We obtain the best results when setting the interval length as one day
20

21. Comparison of Different Supervised Machine
Learning Algorithms for the Decision Maker
Algorithm Precision Recall F1-score
XGBoost 0.950 0.978 0.964
RF 0.942 0.982 0.962
J48 0.941 0.982 0.961
SVMr 0.940 0.970 0.955
SVMp 0.940 0.955 0.948
BN 0.757 0.829 0.791
 XGBoost performs the best
 We adopt XGBoost as the default algorithm of DeepScan
21

22. Feature Importance
 The two most influential features are the two LSTM-based time series features
22

23. Contribution of Each Subset of Features
Feature sets Precision Recall F1-score
DeepScan 0.950 0.978 0.964
-Time series features 0.863 0.864 0.864
-Spatiotemporal features 0.941 0.981 0.961
-UGC features 0.943 0.980 0.963
-Social features 0.942 0.977 0.959
-Demographic features 0.943 0.977 0.960
Excluding the set of time series features reduces the
prediction performance the most
23

24. Contribution of Each Subset of
Features (cont.)
 Starting from a random guess classifier, we add one subset of
features at a time
 Adding the set of LSTM-based time series features could increase
the F1-score the most
Feature sets Precision Recall F1-score
Random Guess 0.390 0.500 0.438
+Time series features 0.941 0.982 0.961
+Spatiotemporal features 0.872 0.876 0.874
+UGC features 0.741 0.932 0.825
+Social features 0.723 0.930 0.832
+Demographic features 0.724 0.961 0.826
24

25. Comparison with an Existing SVM-Based Approach
Feature sets Precision Recall F1-score
DeepScan 0.950 0.978 0.964
Zhang et al. 0.912 0.924 0.918
Zhang et al. + Time series features 0.941 0.981 0.961
 DeepScan yields a better performance
 Adding the time series features can also improve Zhang et al.’s approach
25

26. Observations
• We consider the users’ activities from a dynamic view
• Time series features: more discriminative and informative
than conventional features
Solution: DeepScan
• A deep learning-based malicious account detection system
• Can be leveraged by third-party vendors conveniently
Evaluation
• Using the real data collected from Dianping
• Achieving an excellent prediction performance with an F1-
score of 0.964
Conclusion
26

27. Future Work for DeepScan
• Deep learning-based user classification
– Discovery of malicious accounts, opinion leaders,
outliers…
• New deep learning algorithms
– Clockwork RNN [Koutník et al., ICML’14], Phased LSTM
[Neil et al., NIPS’16], Dilated RNN [Chang et al., NIPS’17]
• Data-driven urban computing
– Human mobility modeling and analysis
– Social-aware venue recommendation
27

28. Thank you!
