1. Debugging Effectively
Colin O’Dell
@colinodell

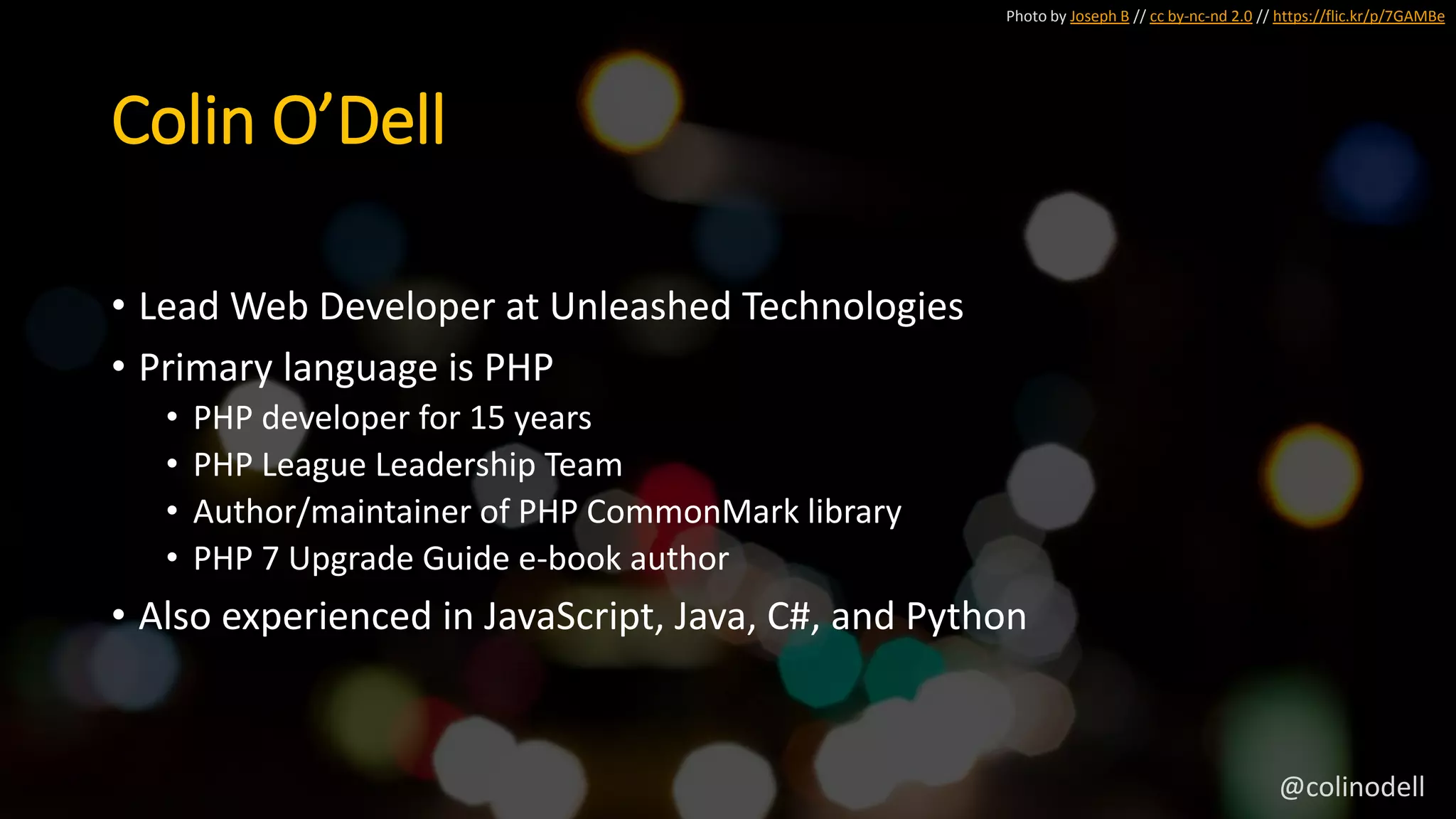

2. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe

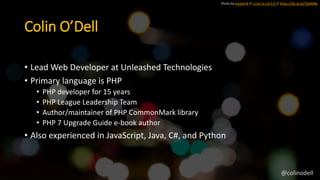

Colin O’Dell
• Lead Web Developer at Unleashed Technologies
• Primary language is PHP
• PHP developer for 15 years
• PHP League Leadership Team
• Author/maintainer of PHP CommonMark library
• PHP 7 Upgrade Guide e-book author
• Also experienced in JavaScript, Java, C#, and Python
@colinodell

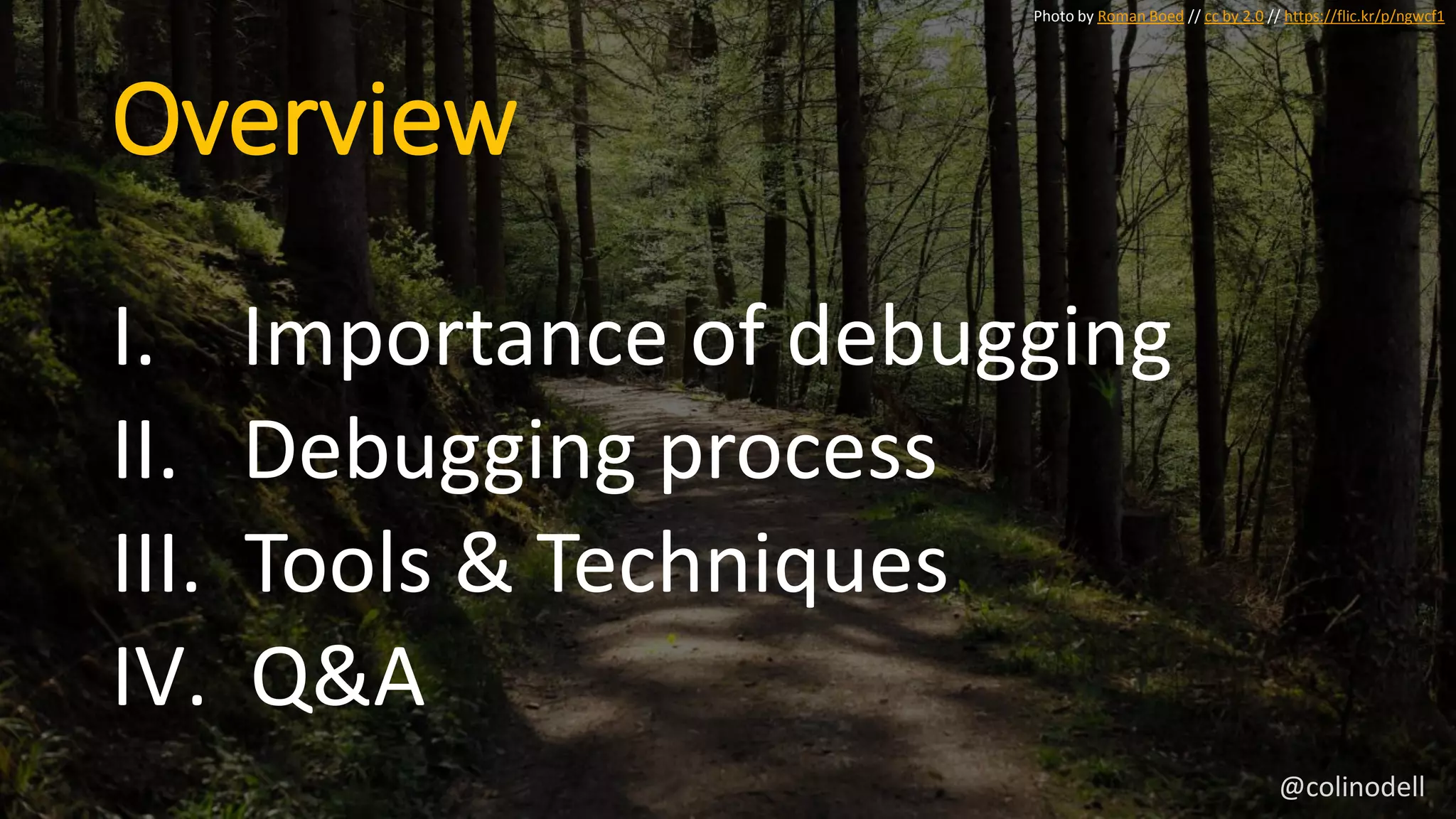

3. Overview
I. Importance of debugging
II. Debugging process
III. Tools & Techniques
IV. Q&A
Photo by Roman Boed // cc by 2.0 // https://flic.kr/p/ngwcf1
@colinodell

4. Debugging is...
Photo by Ewan Cross // cc by-nc-nd 2.0 // https://flic.kr/p/7MCt3m
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
(adjective)
@colinodell

5. Debugging is...
Photo by Ewan Cross // cc by-nc-nd 2.0 // https://flic.kr/p/7MCt3m
important
@colinodell

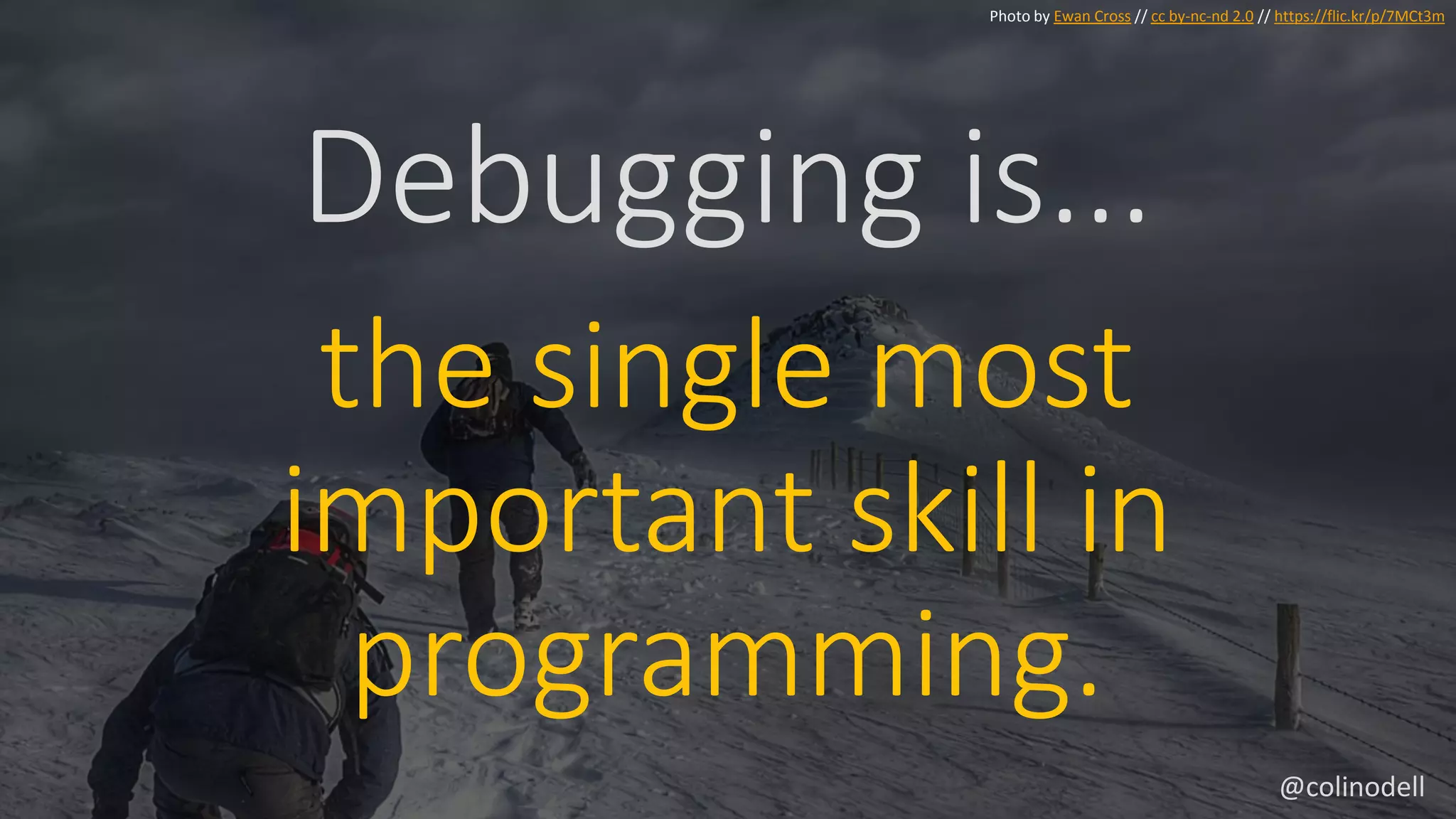

6. Debugging is...
Photo by Ewan Cross // cc by-nc-nd 2.0 // https://flic.kr/p/7MCt3m
the single most
important skill in
programming.
@colinodell

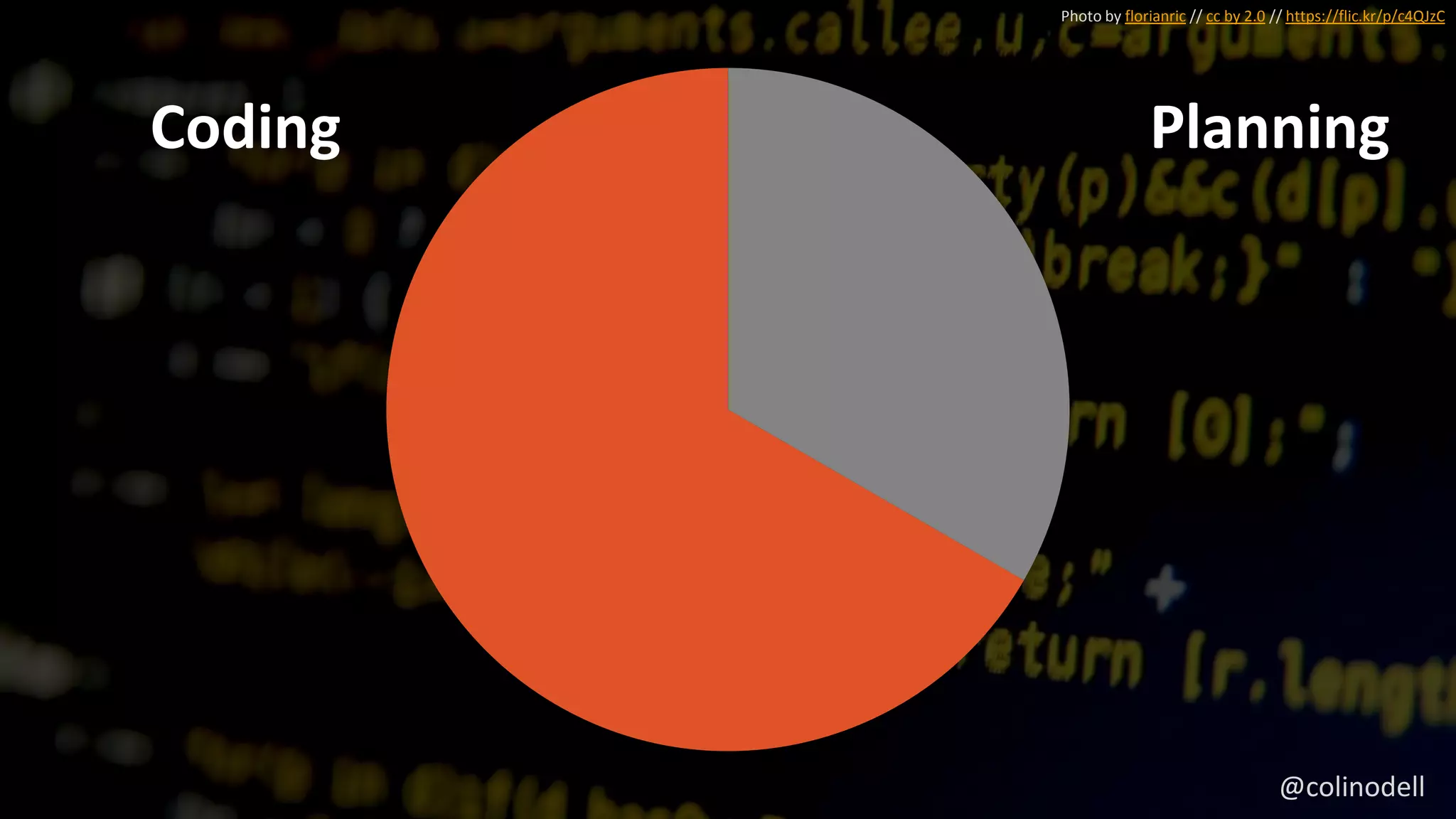

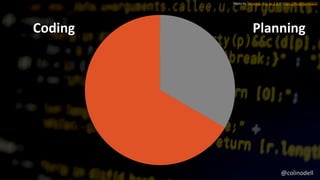

7. Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC
PlanningCoding
@colinodell

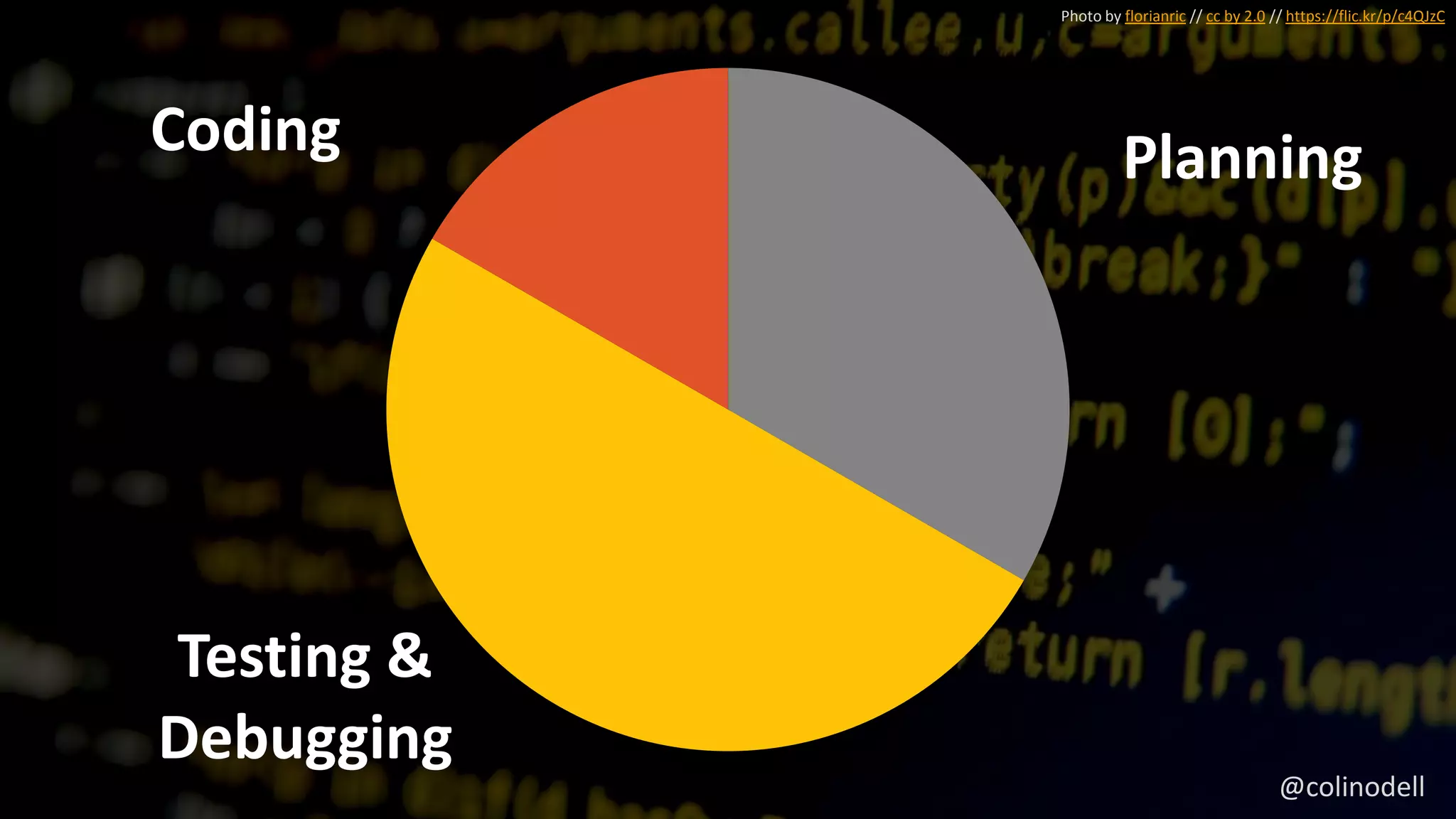

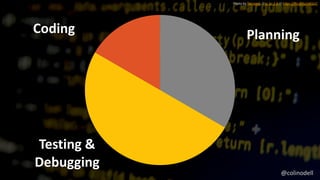

8. Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC
Planning
Testing &
Debugging
Coding
@colinodell

9. Debugging is the process of finding and resolving bugs
or defects that prevent correct operation of computer
software or a system.
– Wikipedia
Photo by Stephen Dyrgas // cc by-nc-nd 2.0 // https://flic.kr/p/3eTfWU

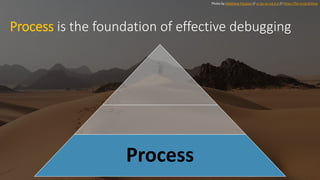

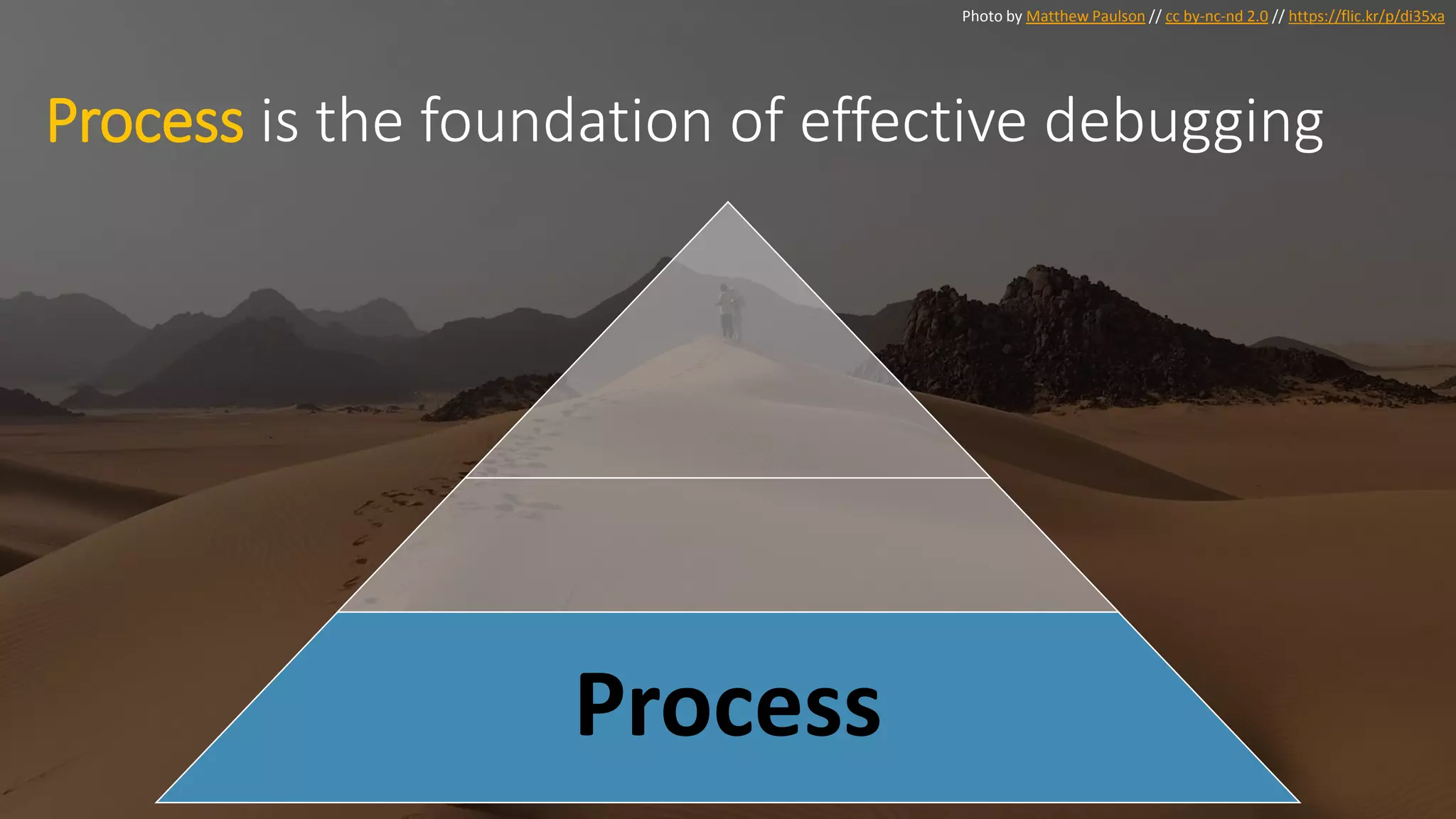

10. Process is the foundation of effective debugging
Process
Photo by Matthew Paulson // cc by-nc-nd 2.0 // https://flic.kr/p/di35xa

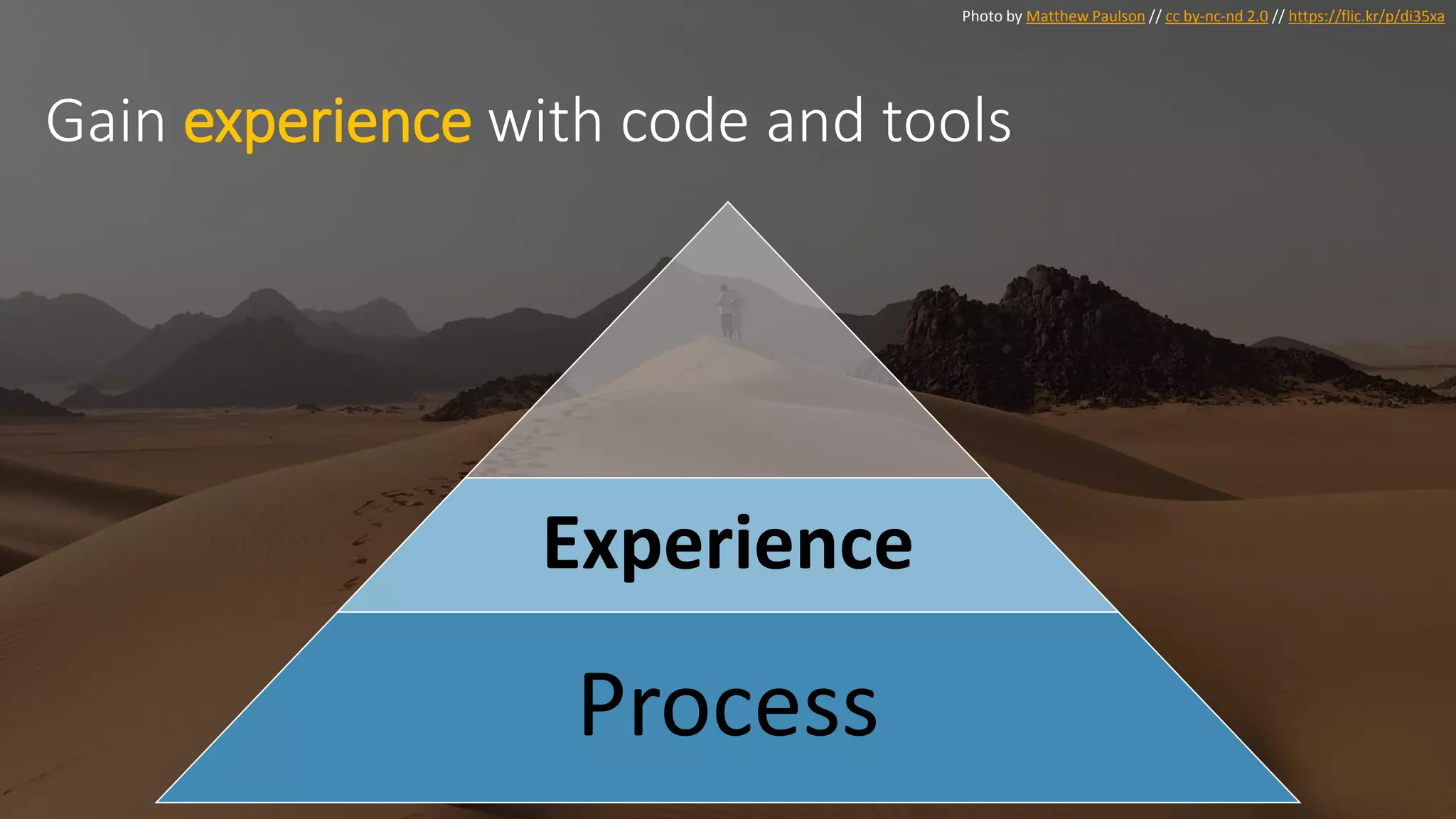

11. Photo by Matthew Paulson // cc by-nc-nd 2.0 // https://flic.kr/p/di35xa
Gain experience with code and tools
Experience
Process

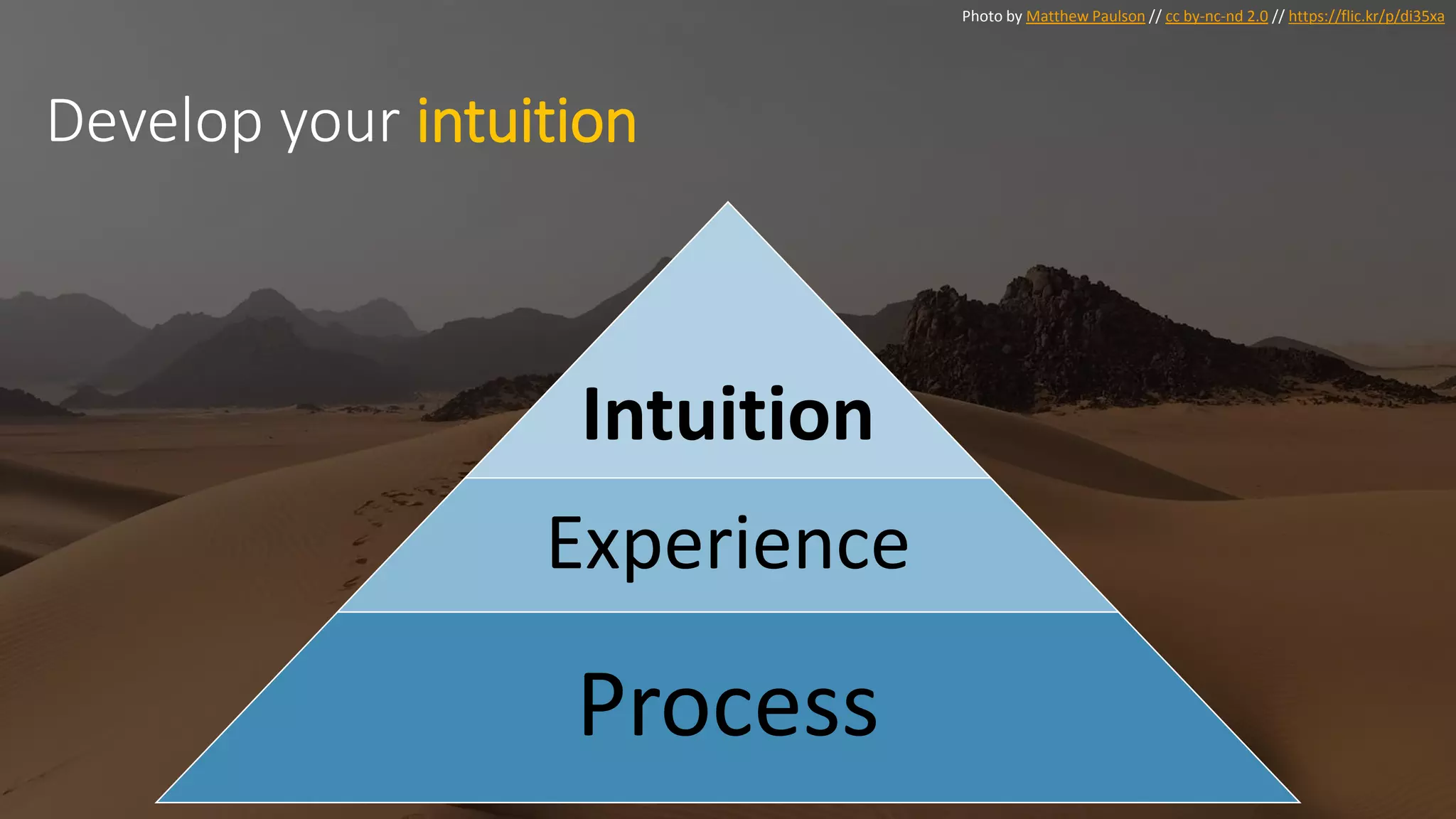

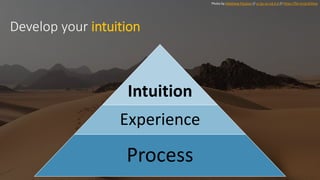

12. Photo by Matthew Paulson // cc by-nc-nd 2.0 // https://flic.kr/p/di35xa
Develop your intuition
Intuition
Experience
Process

13. Junior Developers
• Try the “usual” steps
• Clear caches
• Re-install dependencies
• chmod –R 777 *
• Ask somebody else
• Co-worker
• Google
• StackOverflow post
Photo by Yoel Ben-Avraham, with changes // cc by--nd 2.0 // https://flic.kr/p/6pmtQL
@colinodell

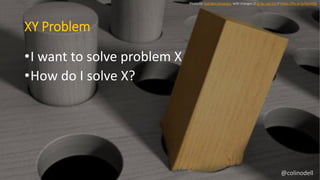

14. XY Problem
Photo by Yoel Ben-Avraham, with changes // cc by--nd 2.0 // https://flic.kr/p/6pmtQL
•I want to solve problem X
•How do I solve X?
@colinodell

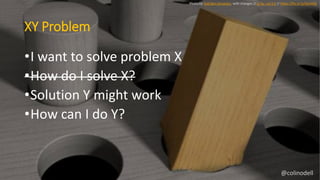

15. XY Problem
Photo by Yoel Ben-Avraham, with changes // cc by--nd 2.0 // https://flic.kr/p/6pmtQL
•I want to solve problem X
•How do I solve X?
•Solution Y might work
•How can I do Y?
@colinodell

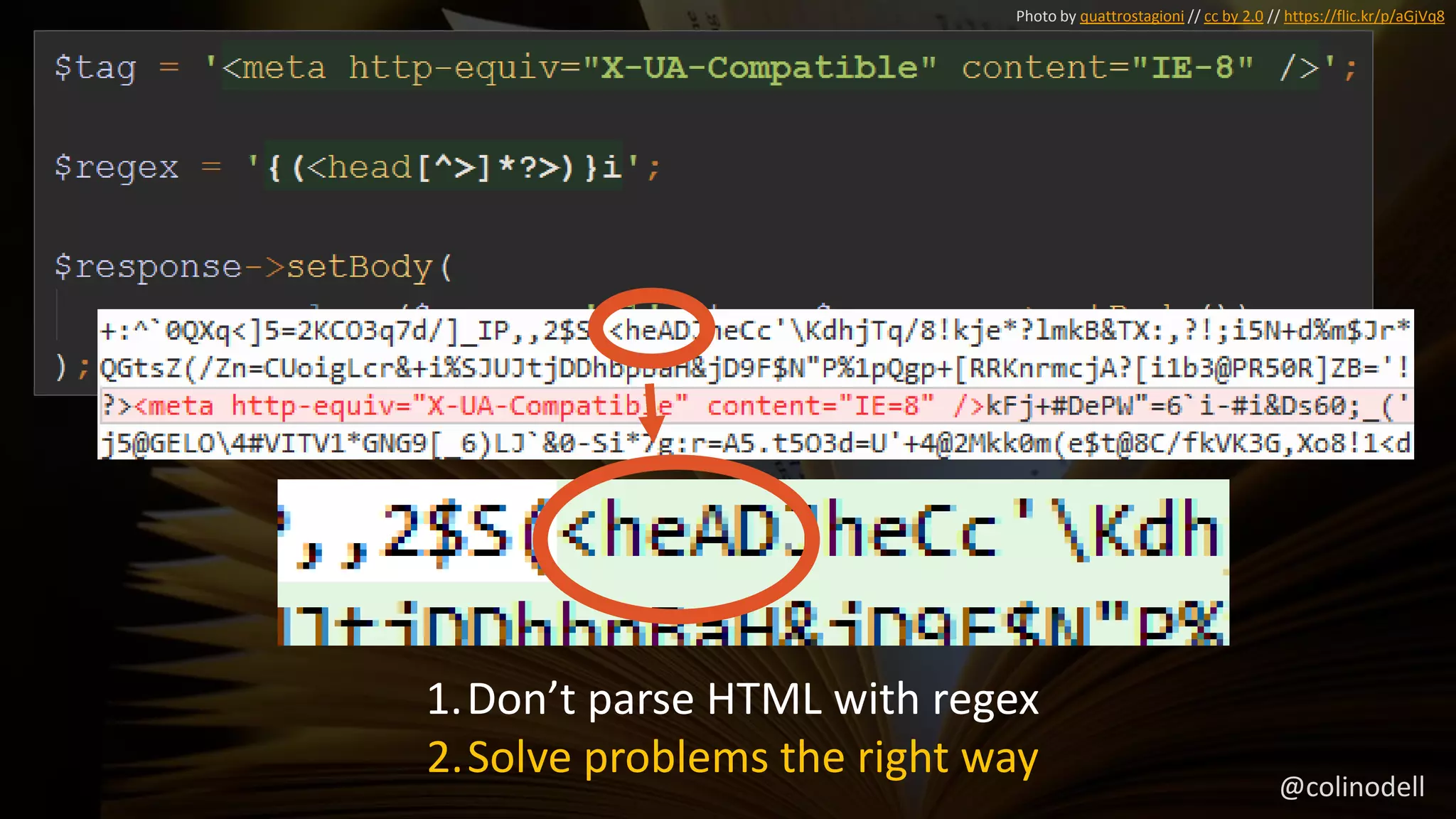

16. Photo by quattrostagioni // cc by 2.0 // https://flic.kr/p/aGjVq8
1.Don’t parse HTML with regex
2.Solve problems the right way @colinodell

17. “I don’t know why”
“For some reason”
“Doesn’t make sense”
Photo by Stanley Yuu // cc by-nc-nd 2.0 // https://flic.kr/p/pMnfNu
@colinodell

18. Bugs are logical
Photo by Photofest
@colinodell

19. “The bug is not moving around in your code,
trying to trick or evade you. It is just siting in
one place, doing the wrong thing in the same
way every time.” – Nick Parlante, Debugging Zen
Photo by GrahamC57 // cc by-nc-nd 2.0 // https://flic.kr/p/cwJi9Q
@colinodell

20. Assume your
code is the
problem
Photo by Sergio Flores Rosales // cc by-nc-nd 2.0 // https://flic.kr/p/5UHkaW
@colinodell

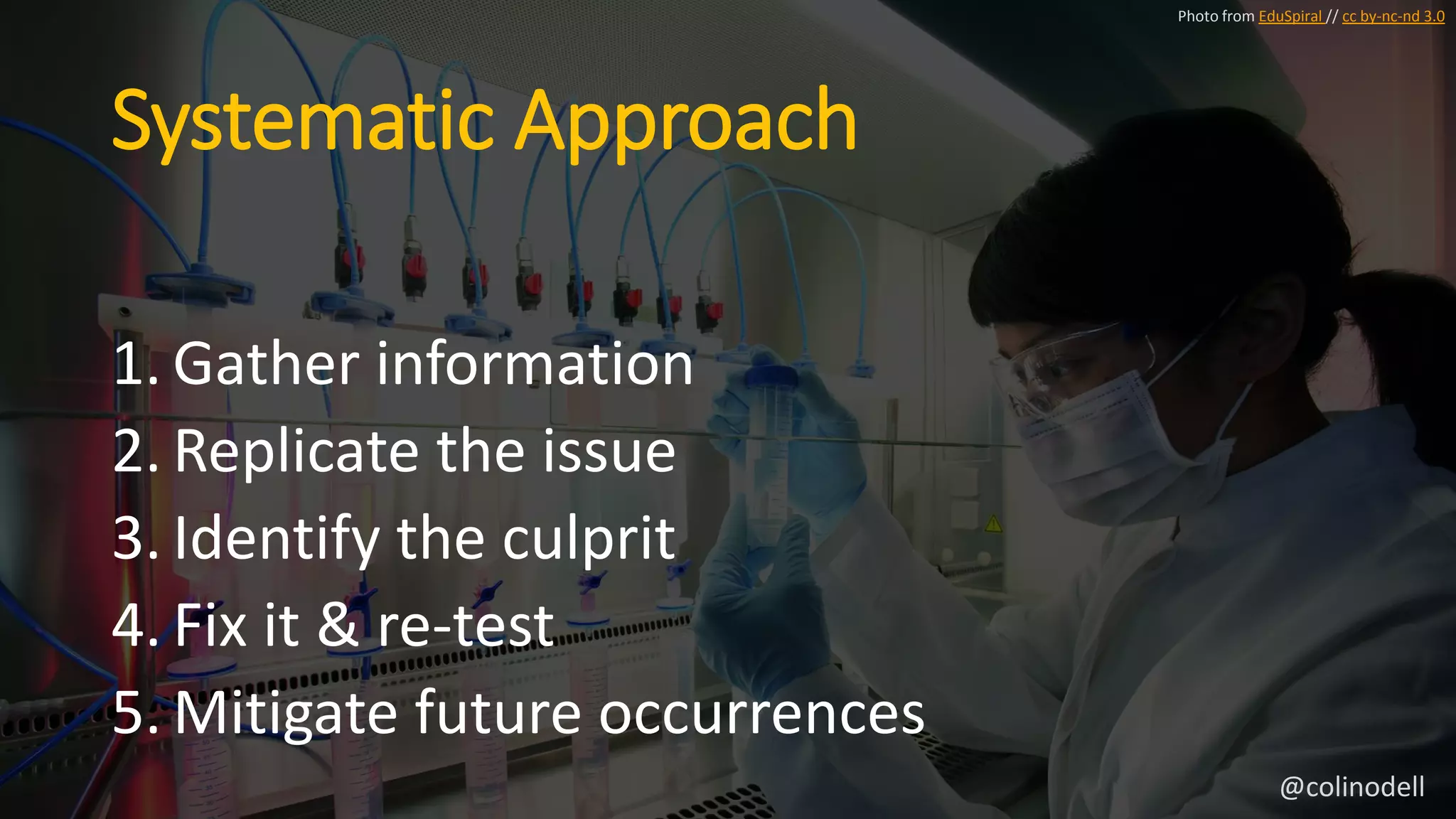

21. Systematic Approach
1. Gather information
2. Replicate the issue
3. Identify the culprit
4. Fix it & re-test
5. Mitigate future occurrences
Photo from EduSpiral // cc by-nc-nd 3.0
@colinodell

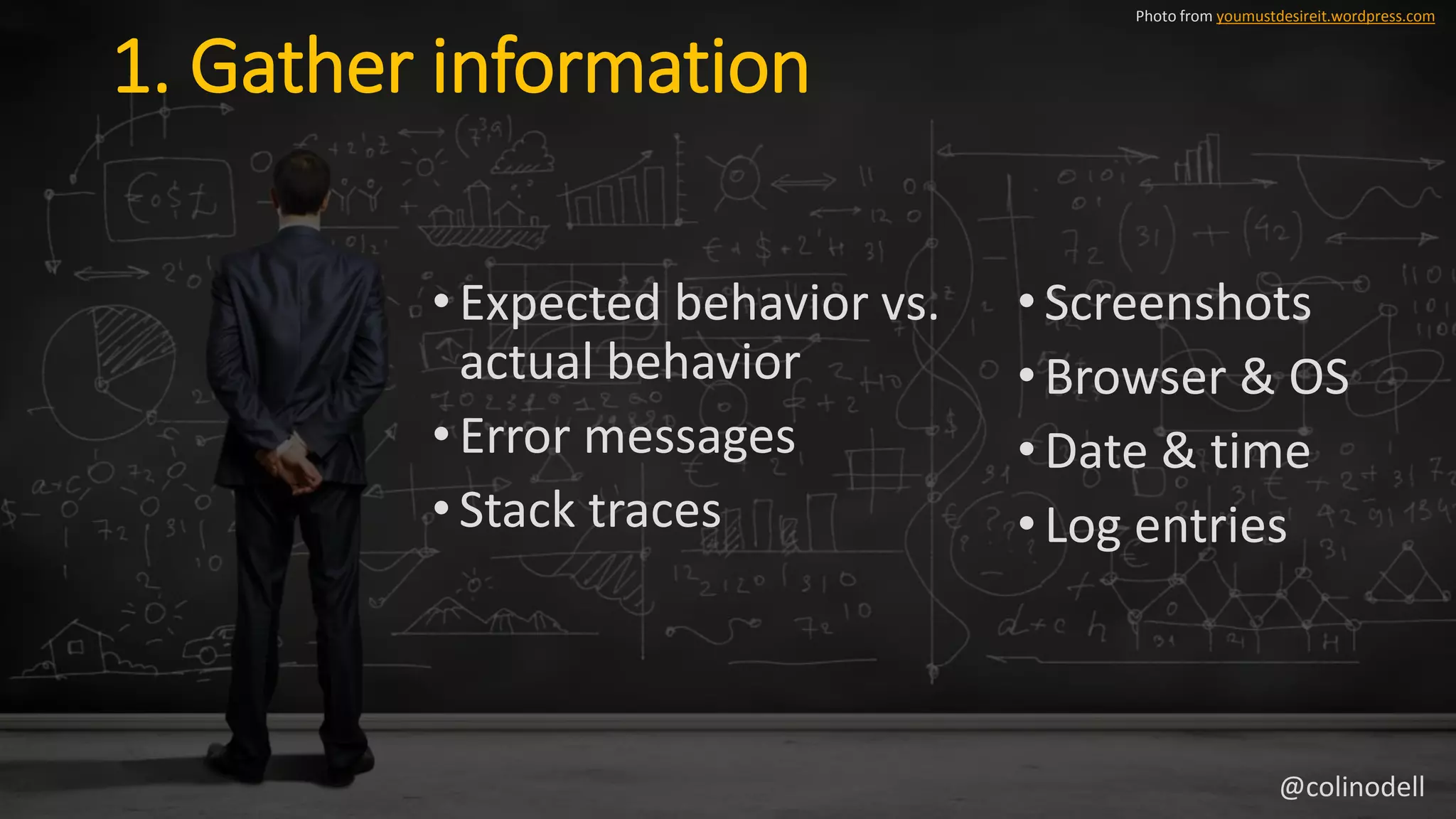

22. 1. Gather information
• Expected behavior vs.
actual behavior
• Error messages
• Stack traces
Photo from youmustdesireit.wordpress.com
•Screenshots
•Browser & OS
•Date & time
•Log entries
@colinodell

23. 2. Replicate the Issue
Be able to replicate with 100% certainty
Photo by Nick Royer // cc by-sa // https://flic.kr/p/d41ASC
@colinodell

24. 3. Identify the Culprit
Photo by U.S. Navy // cc 2.0 // https://flic.kr/p/n6Wgks
• Be methodical
• Make no assumptions
• Understand the bug @colinodell

25. 4. Fix it & Re-test
• Attempt to replicate again
• Avoid XY problem
• No temporary workarounds!
• Add technical debt
• May introduce other issues
• Never get replaced with true solutions
Photo by Jeff Eaton // cc by-sa 2.0 // https://flic.kr/p/b33rSx
@colinodell

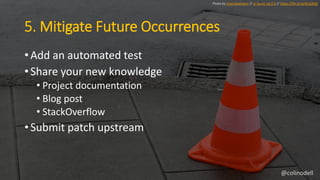

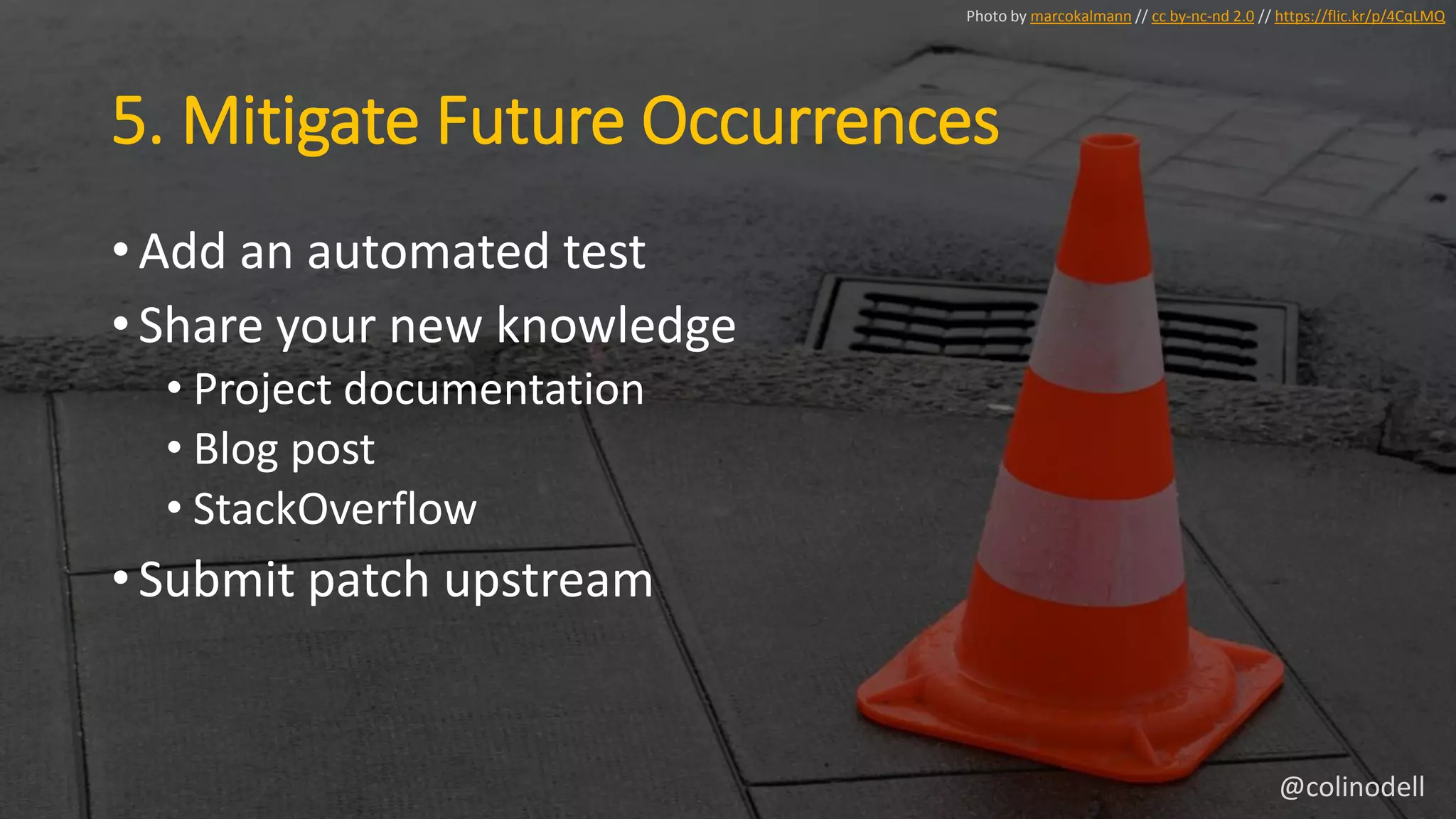

26. 5. Mitigate Future Occurrences
• Add an automated test
• Share your new knowledge
• Project documentation
• Blog post
• StackOverflow
• Submit patch upstream
Photo by marcokalmann // cc by-nc-nd 2.0 // https://flic.kr/p/4CqLMQ
@colinodell

27. Recap
1. Gather information
2. Replicate the issue
3. Identify the culprit
4. Fix it & re-test
5. Mitigate future occurrences
Photo from EduSpiral // cc by-nc-nd 3.0
@colinodell

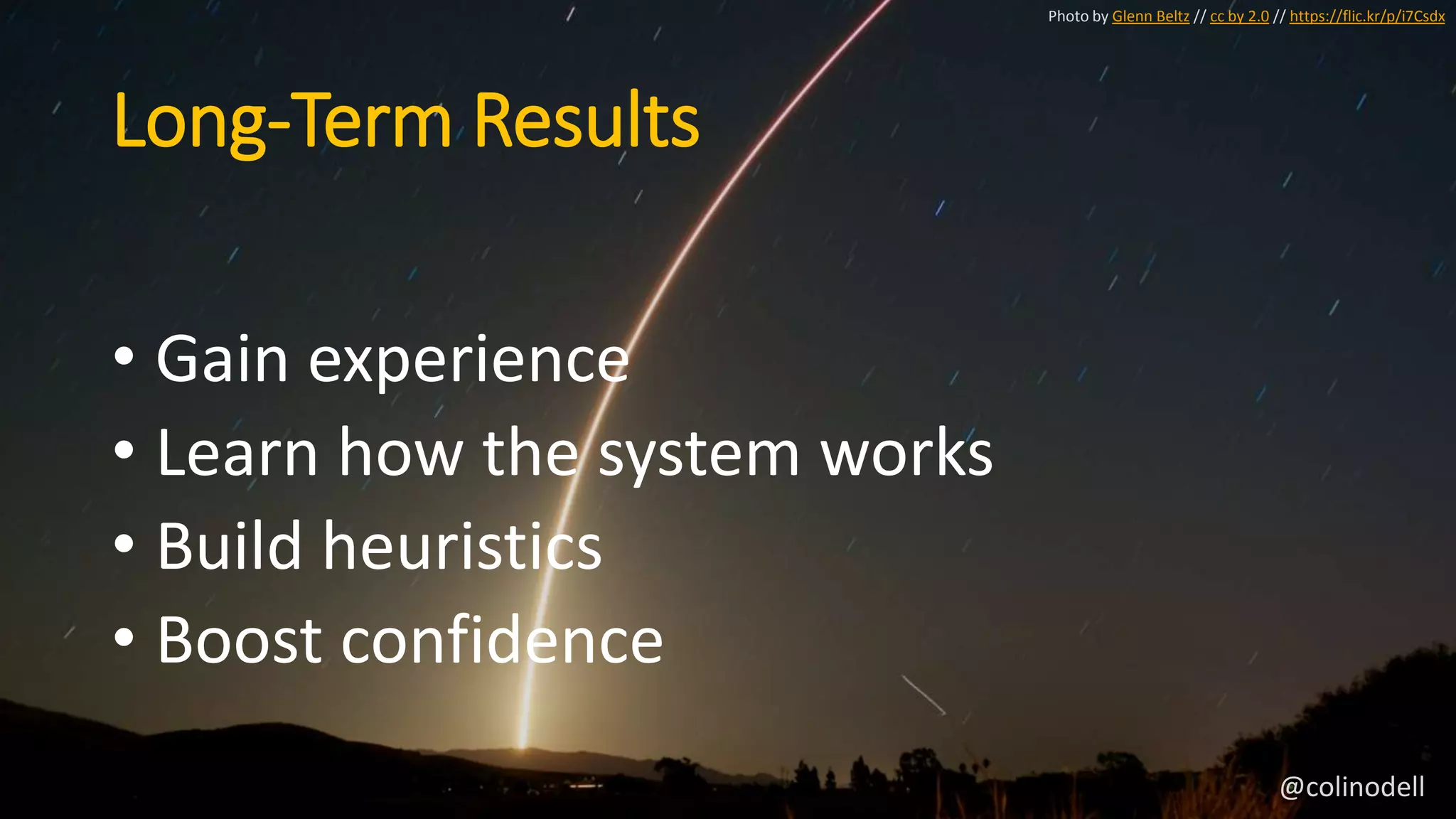

28. Long-Term Results
• Gain experience
• Learn how the system works
• Build heuristics
• Boost confidence
Photo by Glenn Beltz // cc by 2.0 // https://flic.kr/p/i7Csdx
@colinodell

29. Tools & Techniques
Photo by Alan // cc by-nc-sa 2.0 // https://flic.kr/p/9azLii
@colinodell

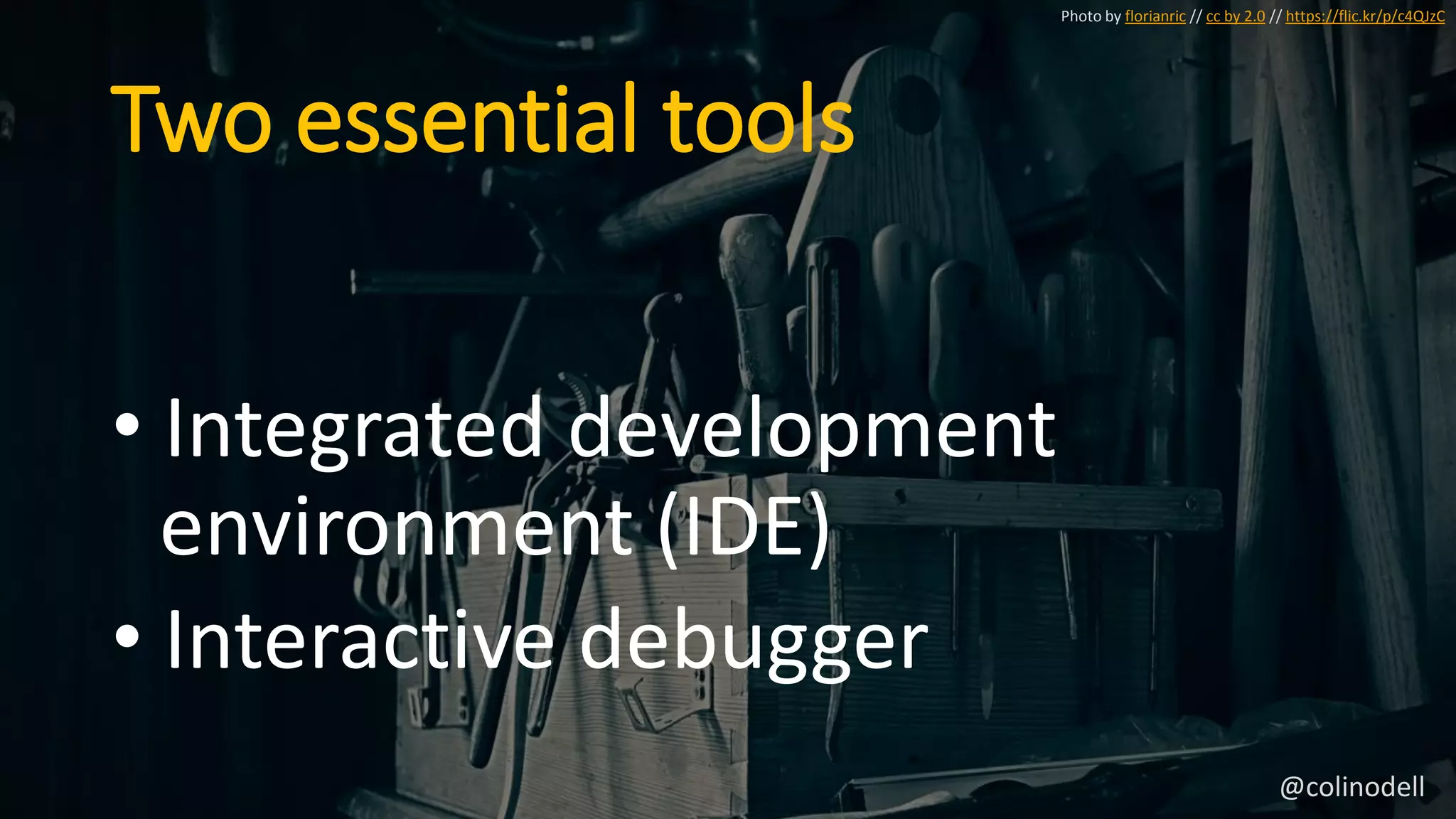

30. Two essential tools
• Integrated development
environment (IDE)
• Interactive debugger
Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC
@colinodell

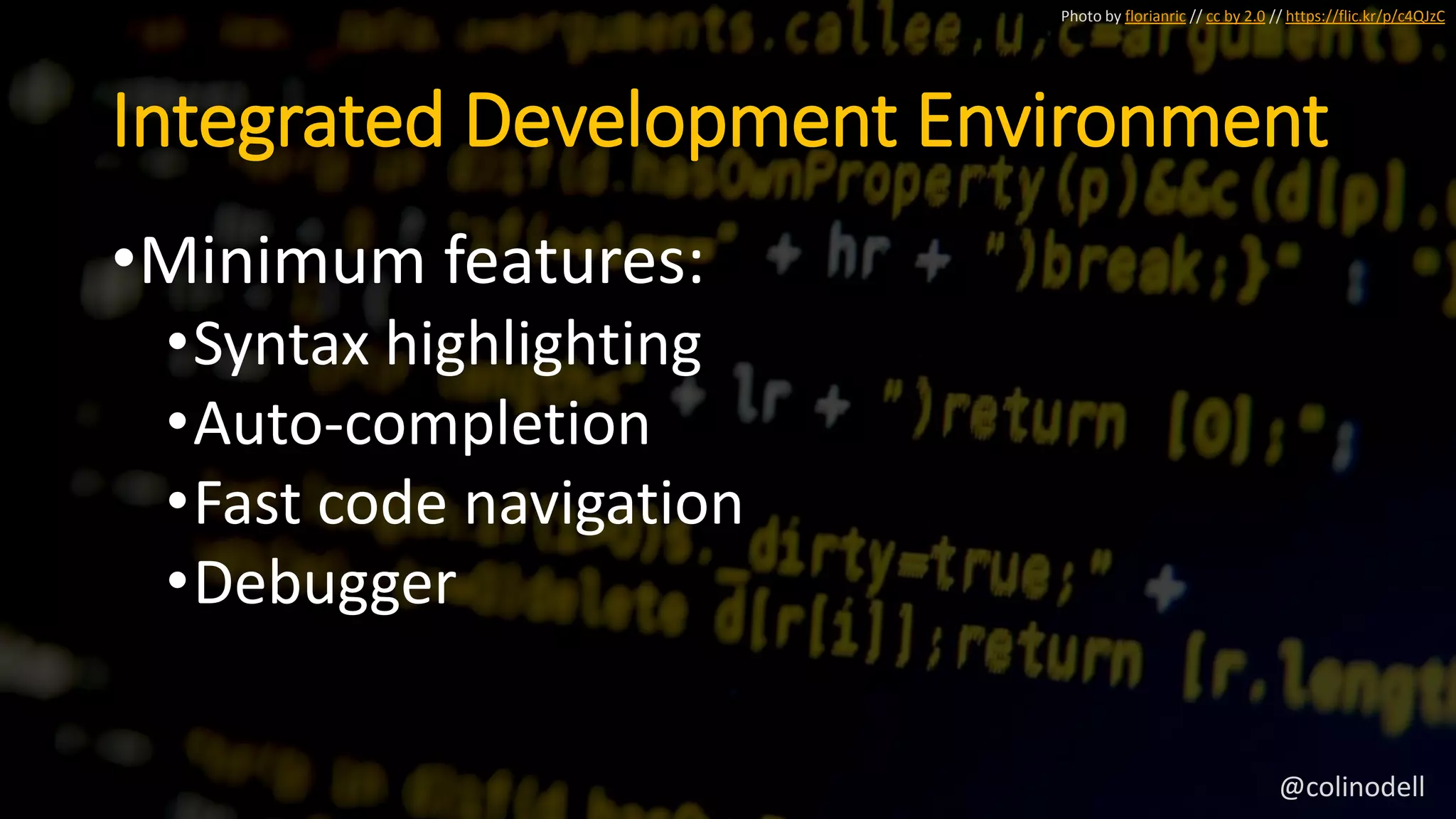

31. Integrated Development Environment
•Minimum features:
•Syntax highlighting
•Auto-completion
•Fast code navigation
•Debugger
Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC
@colinodell

32. Interactive Debugger
•Pause code execution
•Step through execution
•Examine variables
•Explore call stack
Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC
@colinodell

33. Techniques
1. Trace backwards from known issue
2. Trace forwards from start
3. Binary search
4. Use tools
5. Get help
6. Take a break
Photo by Massmo Relsig // cc by-nc-nd 2.0 // https://flic.kr/p/pFrJCe
@colinodell

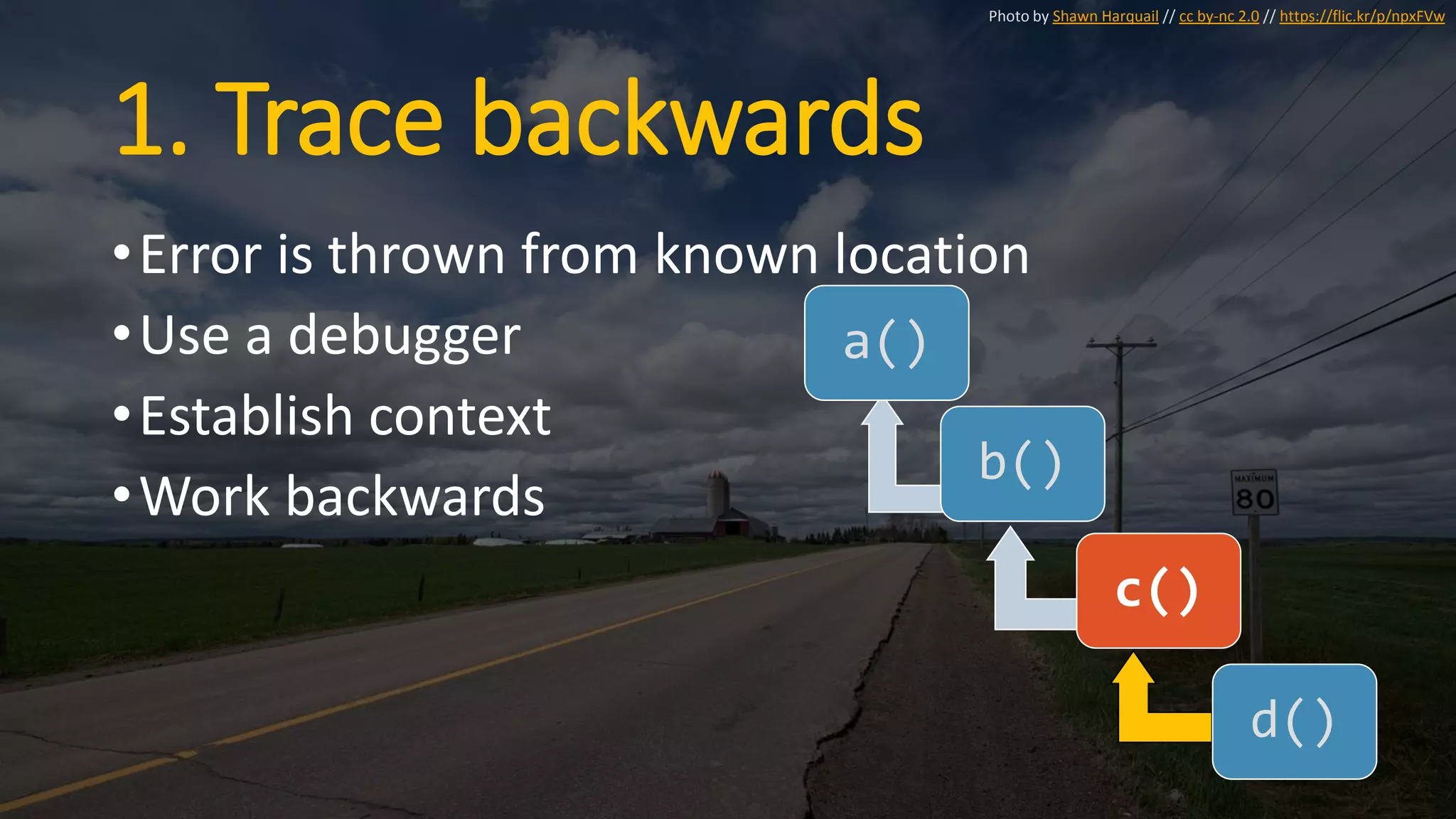

34. 1. Trace backwards
•Error is thrown from known location
•Use a debugger
•Establish context
•Work backwards
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw
@colinodell

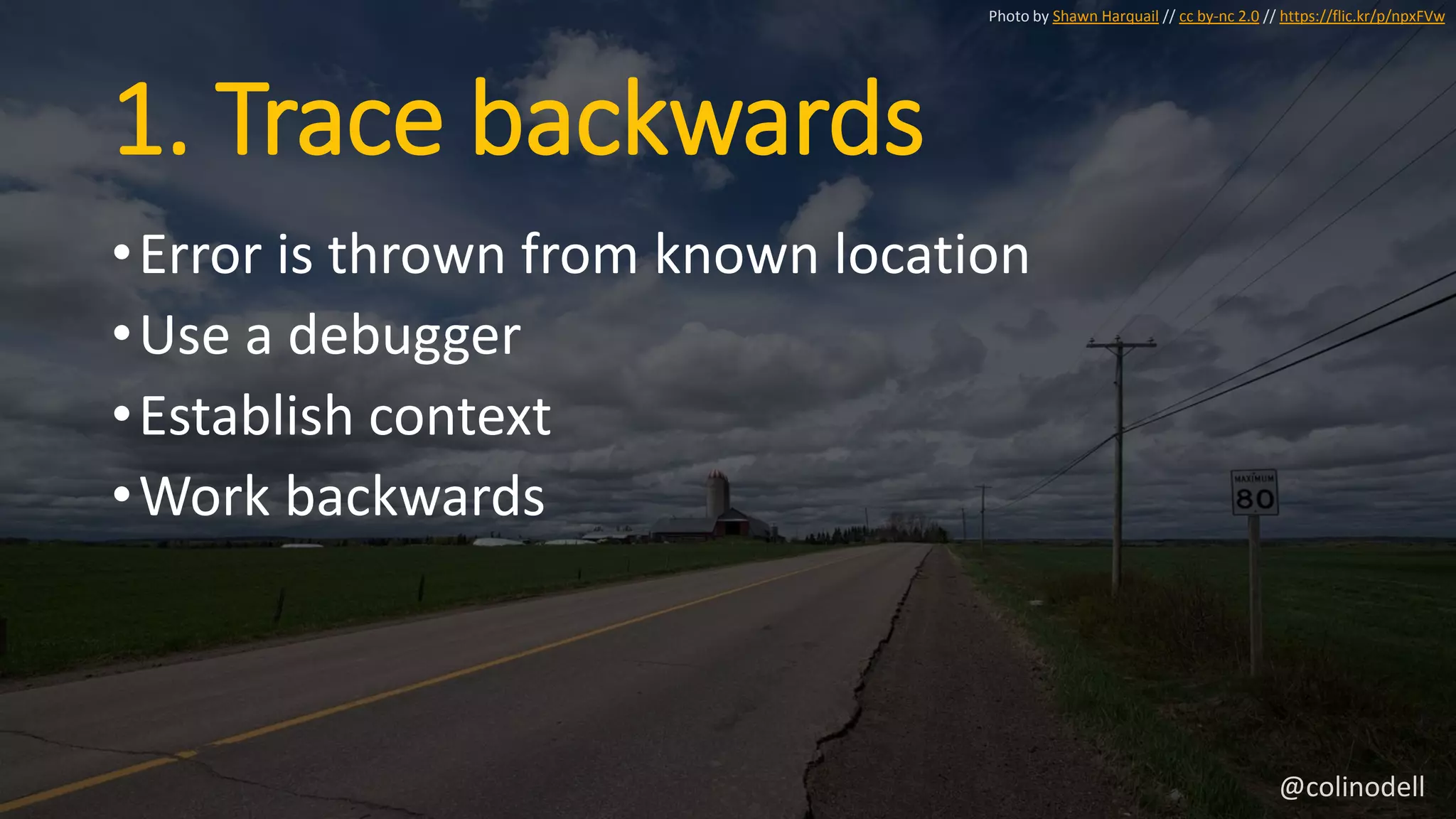

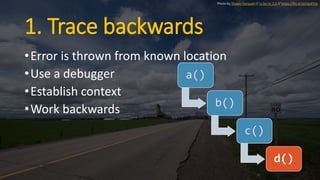

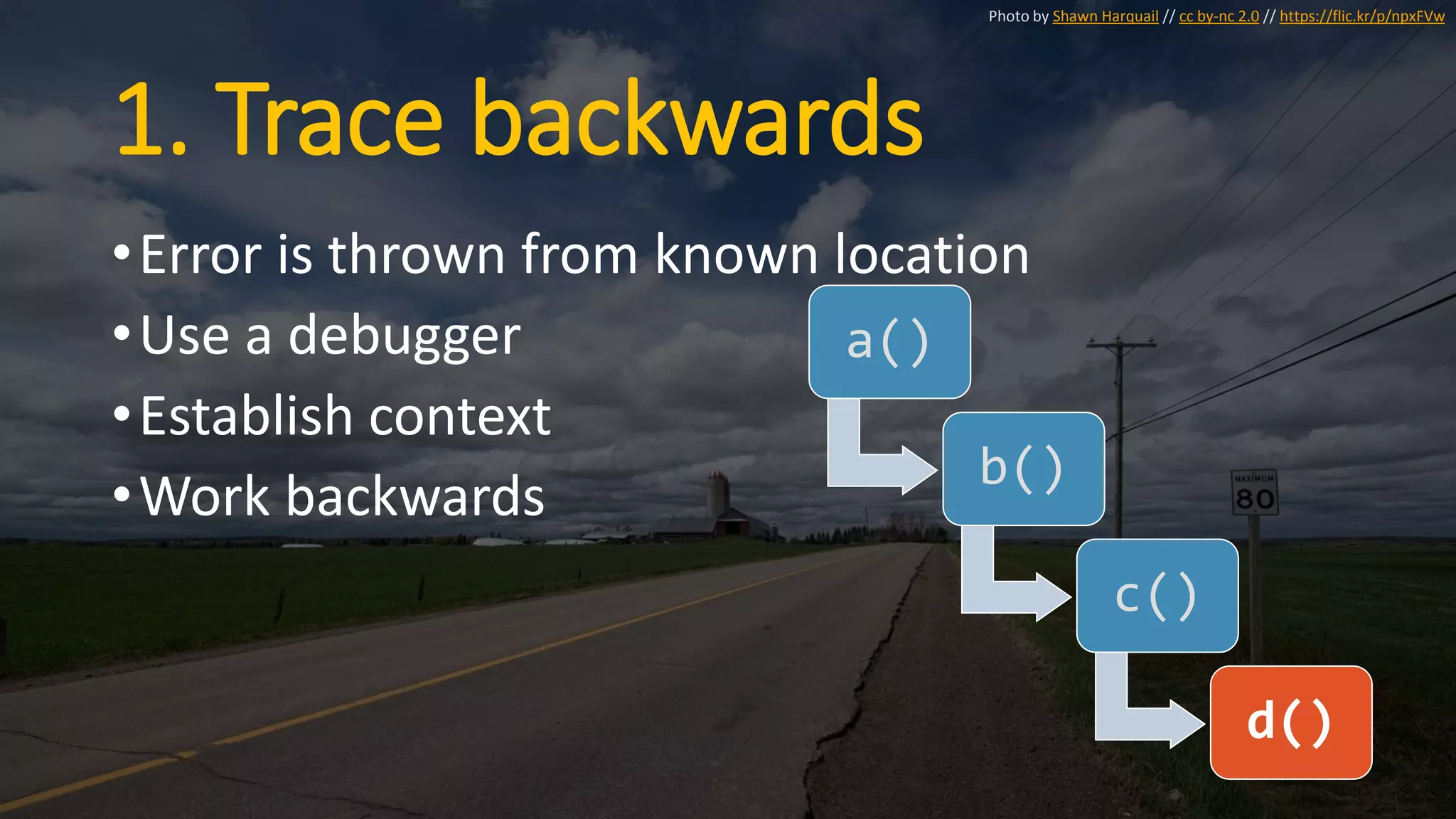

35. 1. Trace backwards
•Error is thrown from known location
•Use a debugger
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

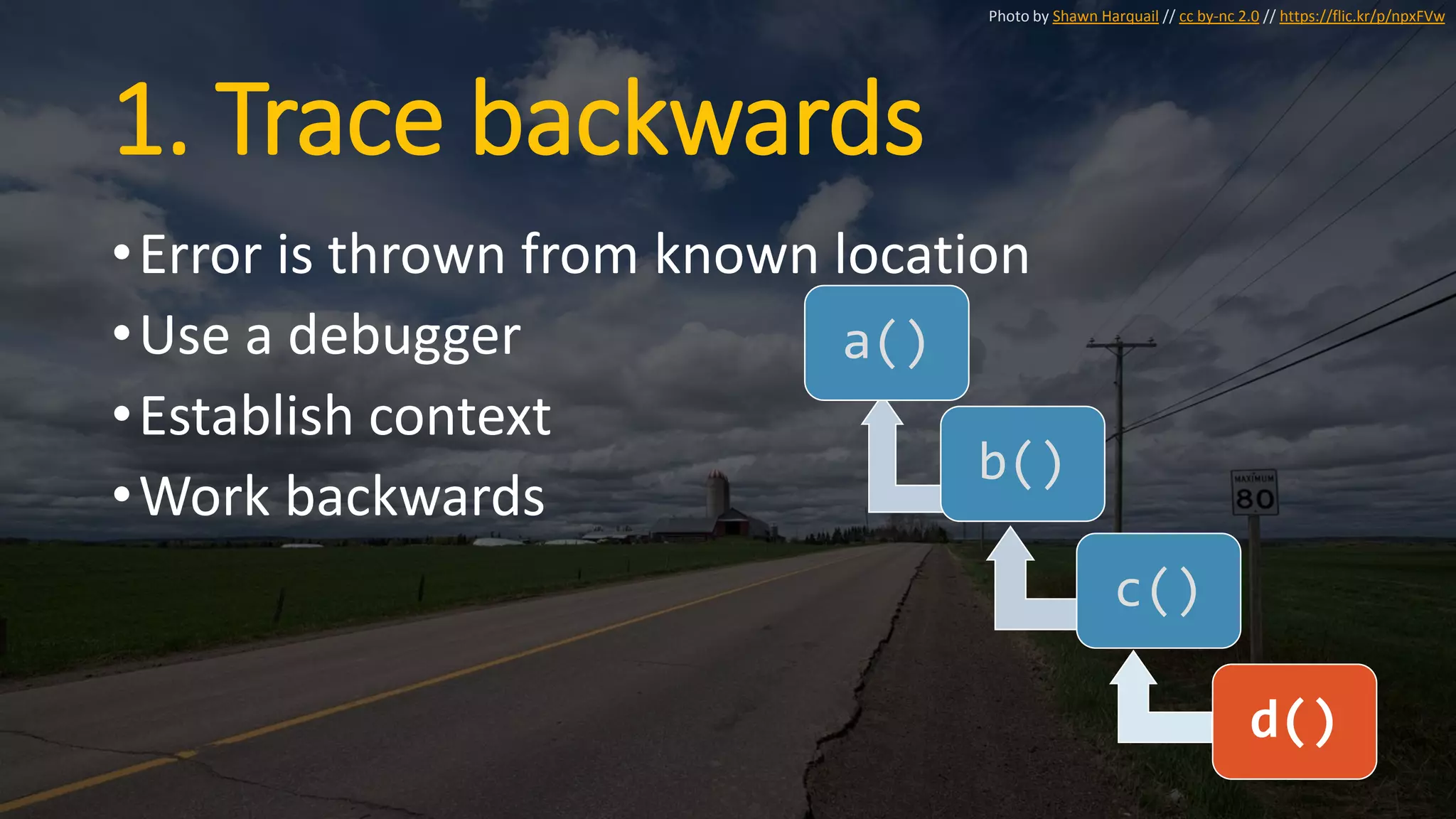

36. 1. Trace backwards
•Error is thrown from known location
•Use a debugger
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

37. 1. Trace backwards
•Error is thrown from known location
•Use a debugger
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

38. 1. Trace backwards
•Error is thrown from known location
•Use a debugger
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

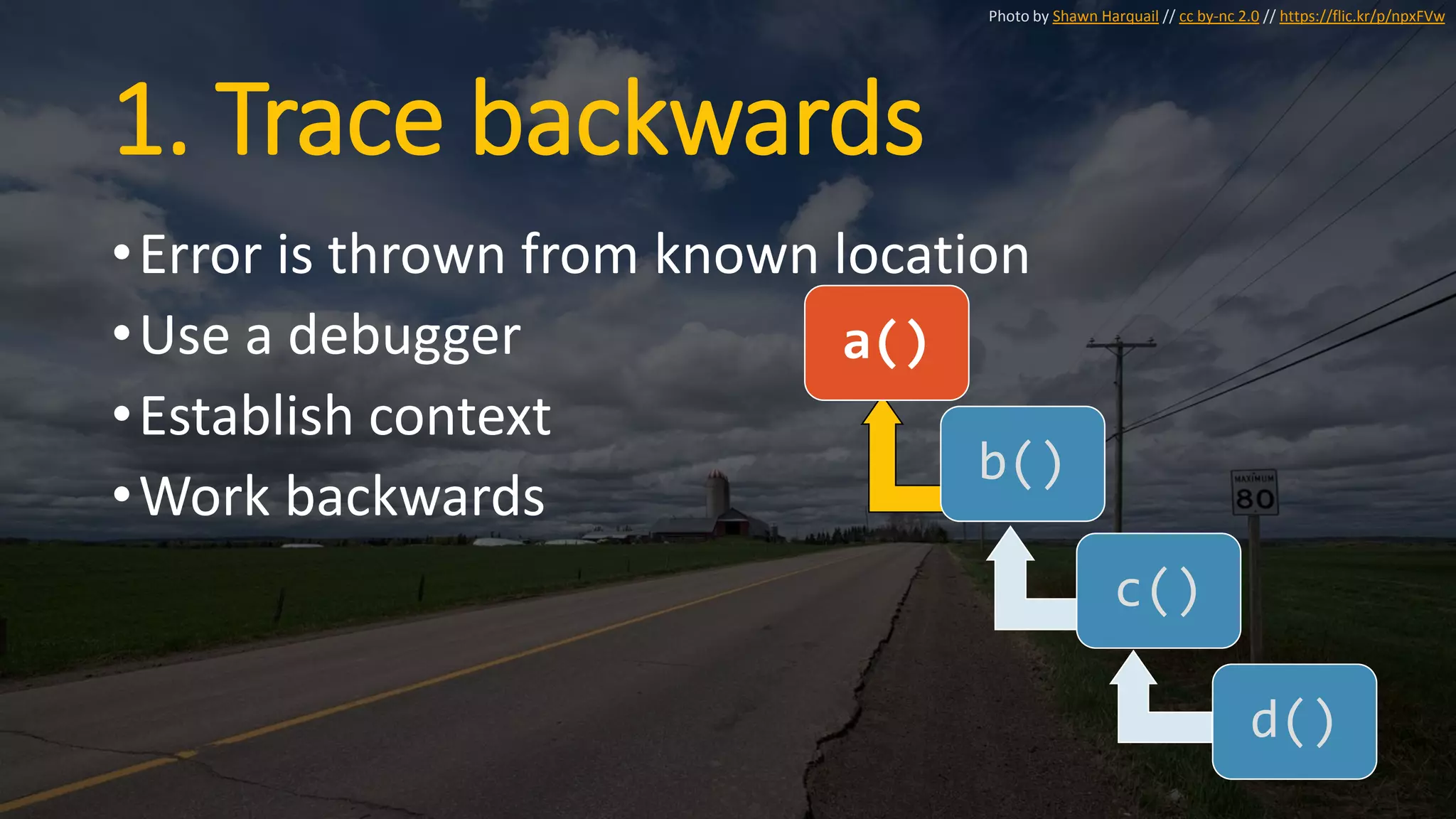

39. 1. Trace backwards
•Error is thrown from known location
•Use a debugger
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

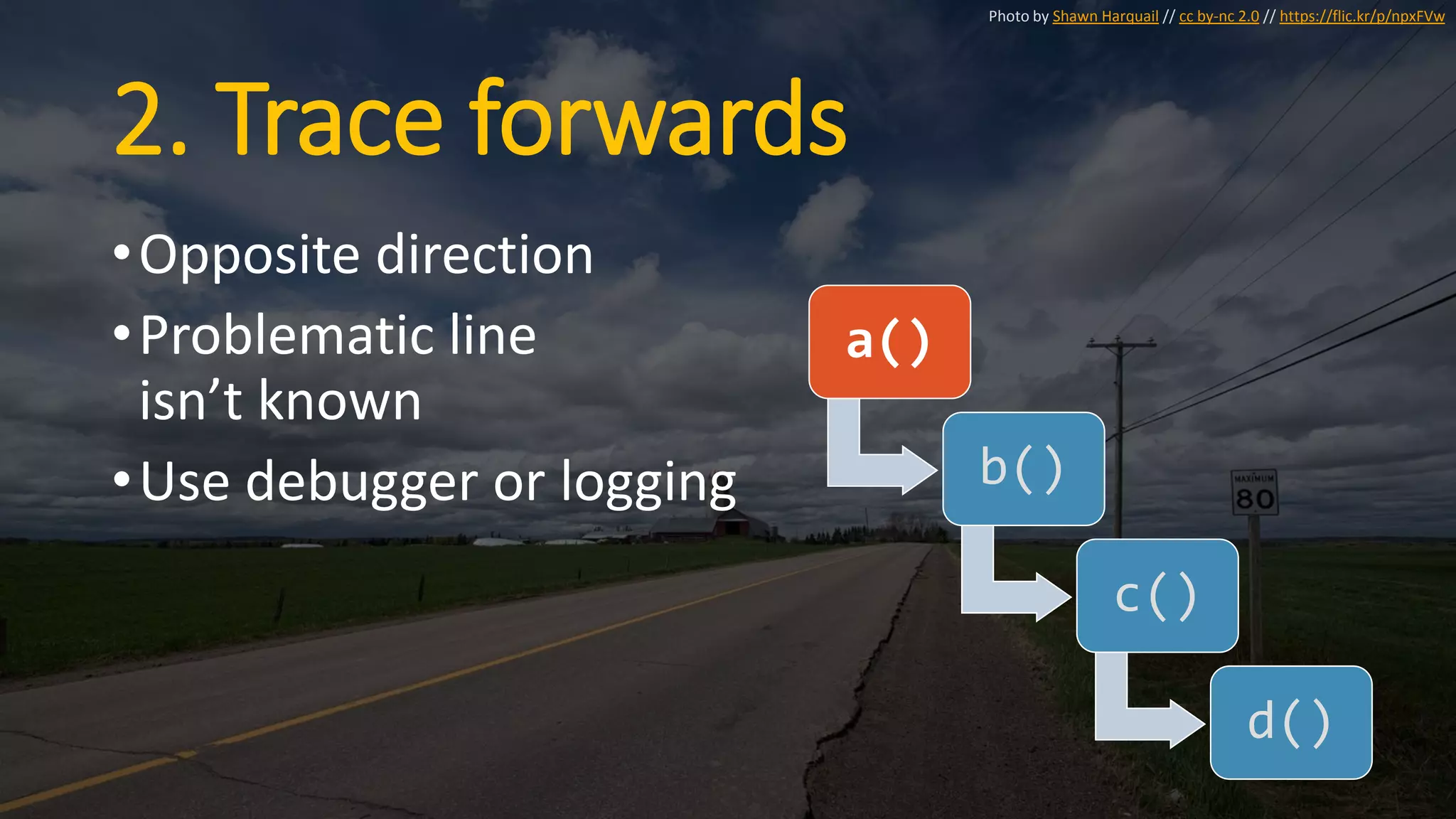

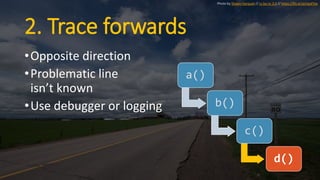

40. 2. Trace forwards
•Opposite direction
•Problematic line
isn’t known
•Use debugger or logging
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

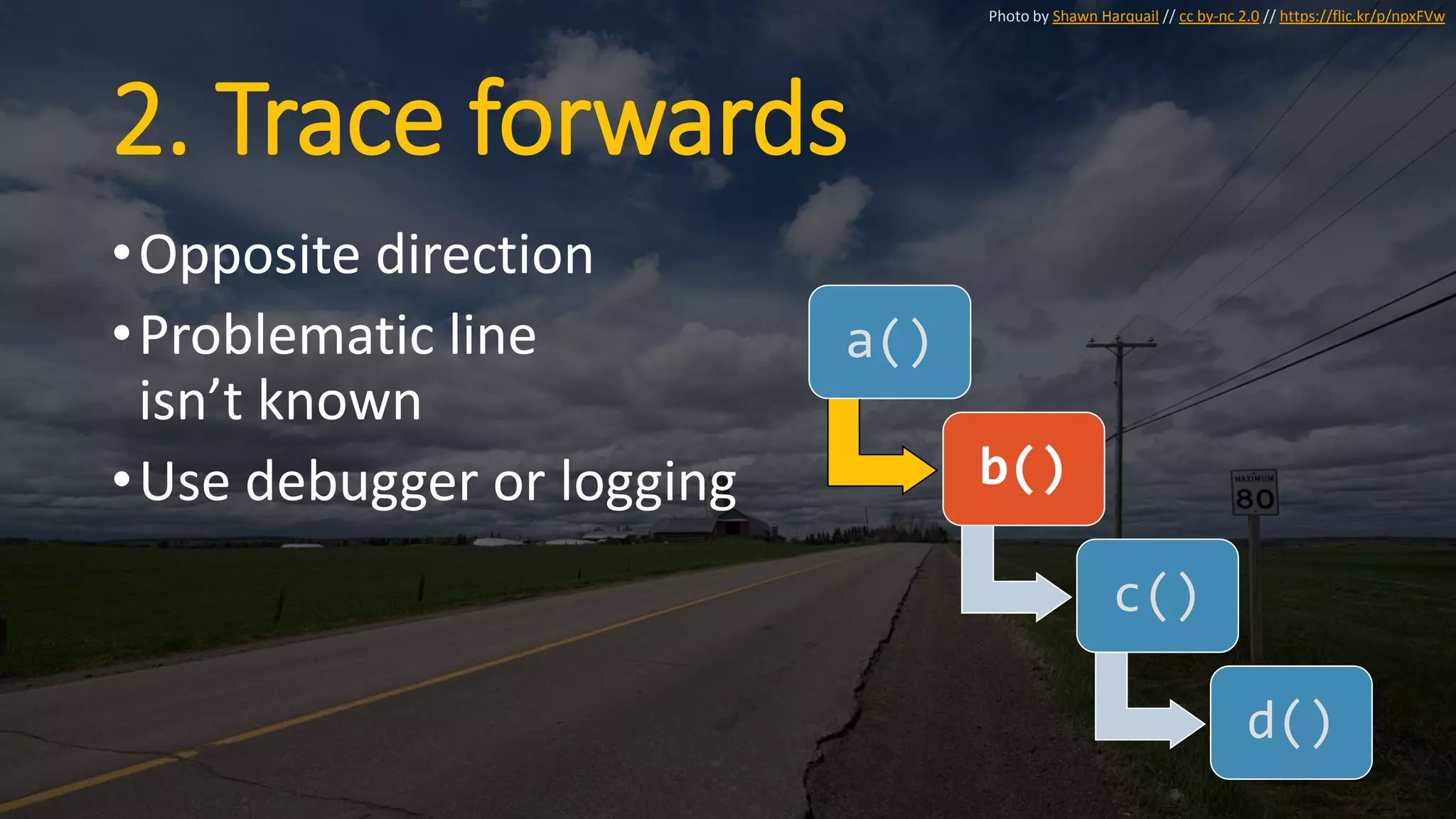

41. 2. Trace forwards
•Opposite direction
•Problematic line
isn’t known
•Use debugger or logging
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

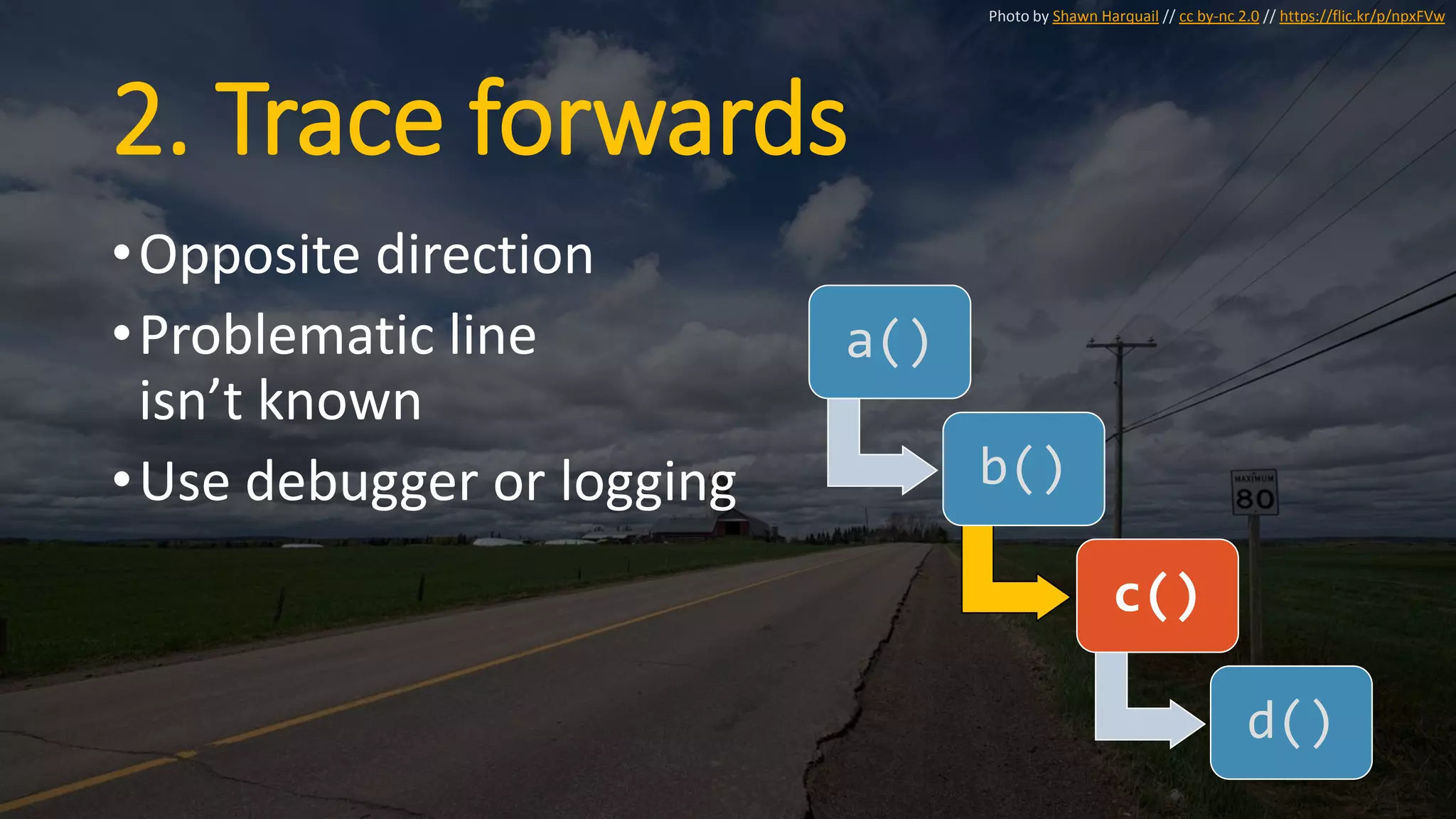

42. 2. Trace forwards
•Opposite direction
•Problematic line
isn’t known
•Use debugger or logging
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

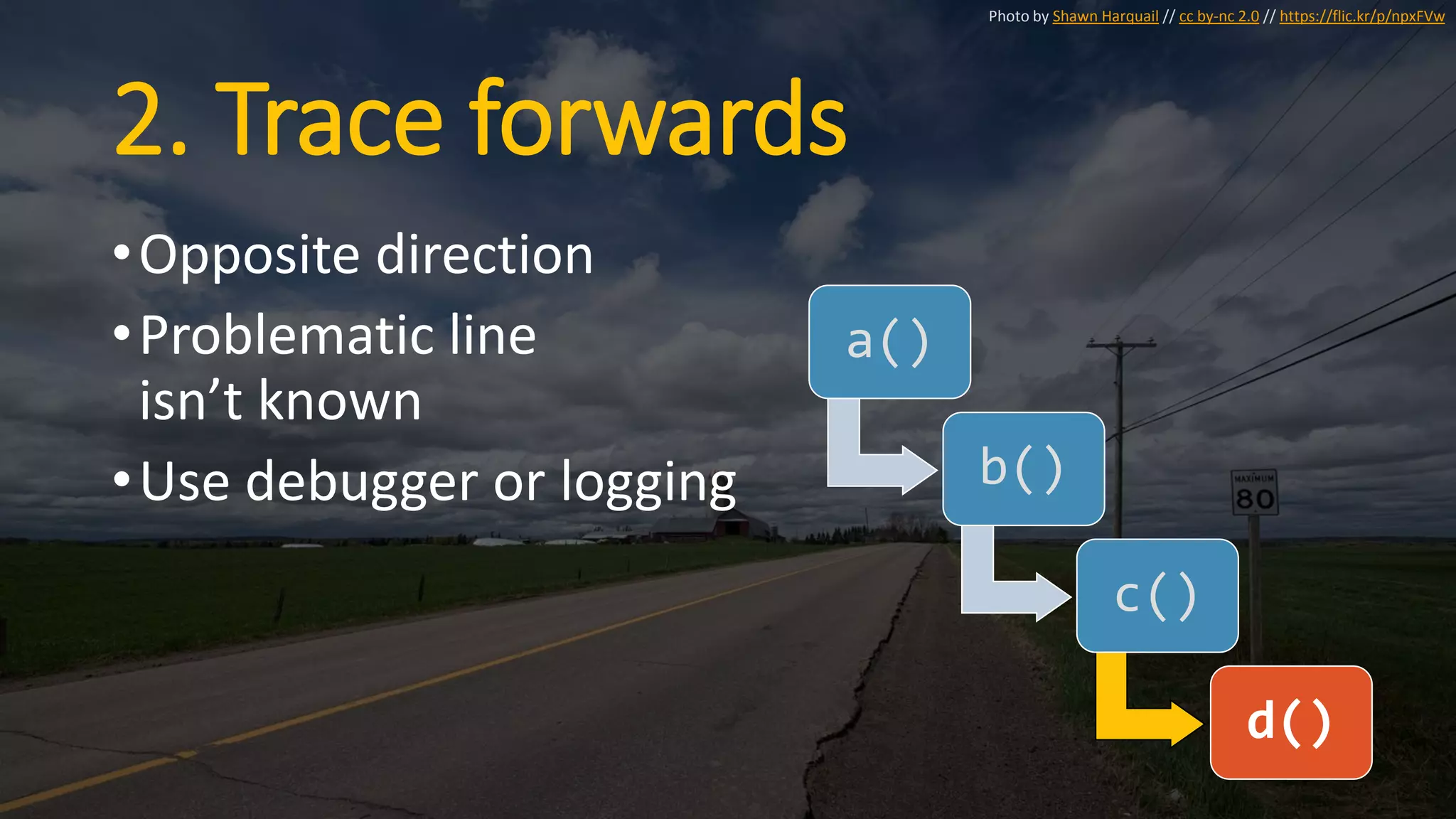

43. 2. Trace forwards
•Opposite direction
•Problematic line
isn’t known
•Use debugger or logging
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

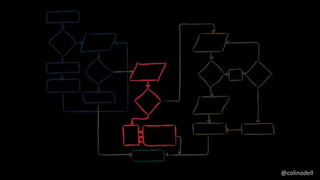

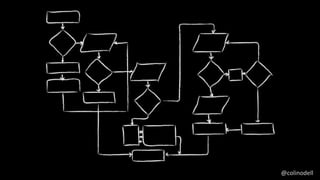

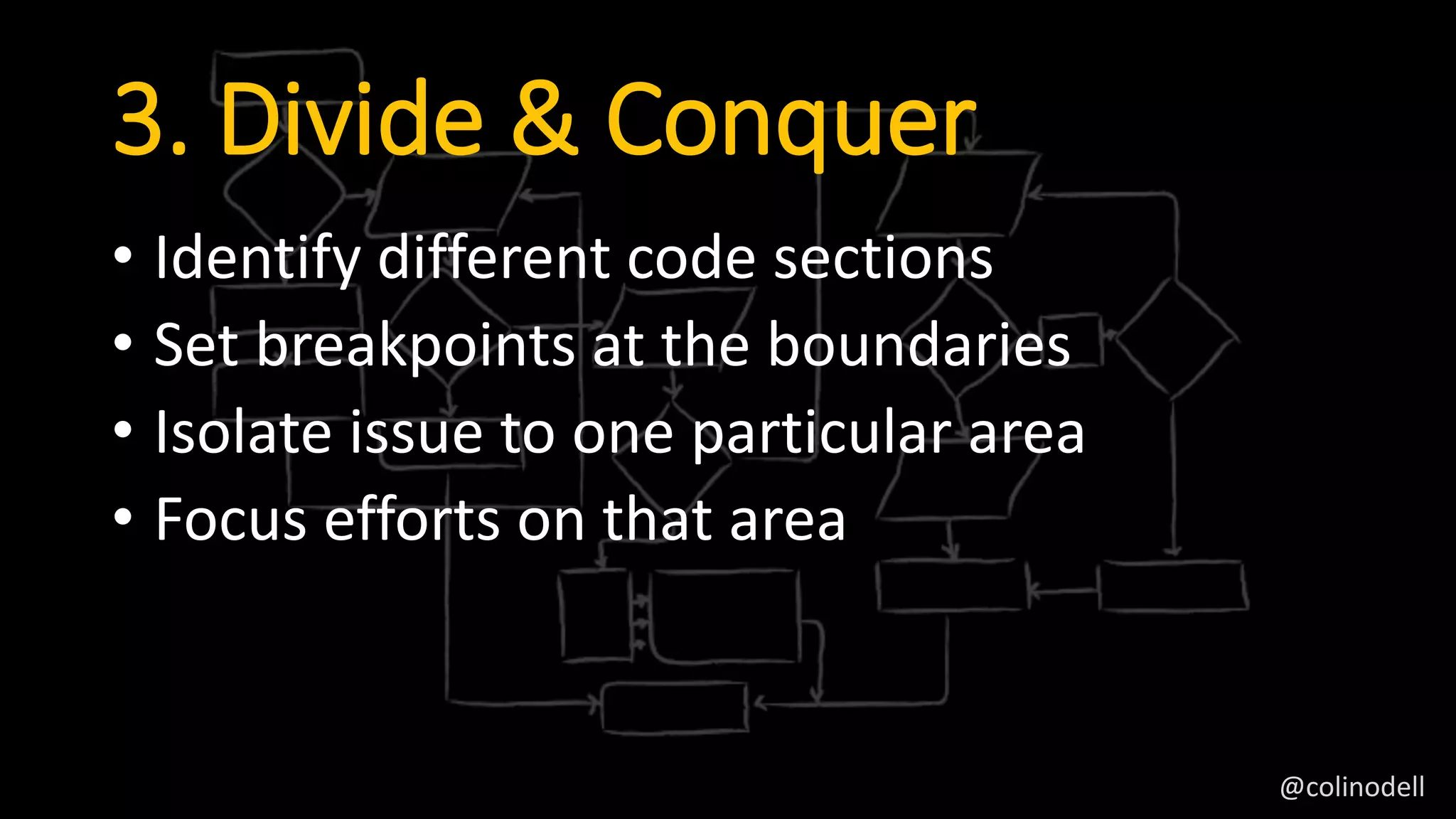

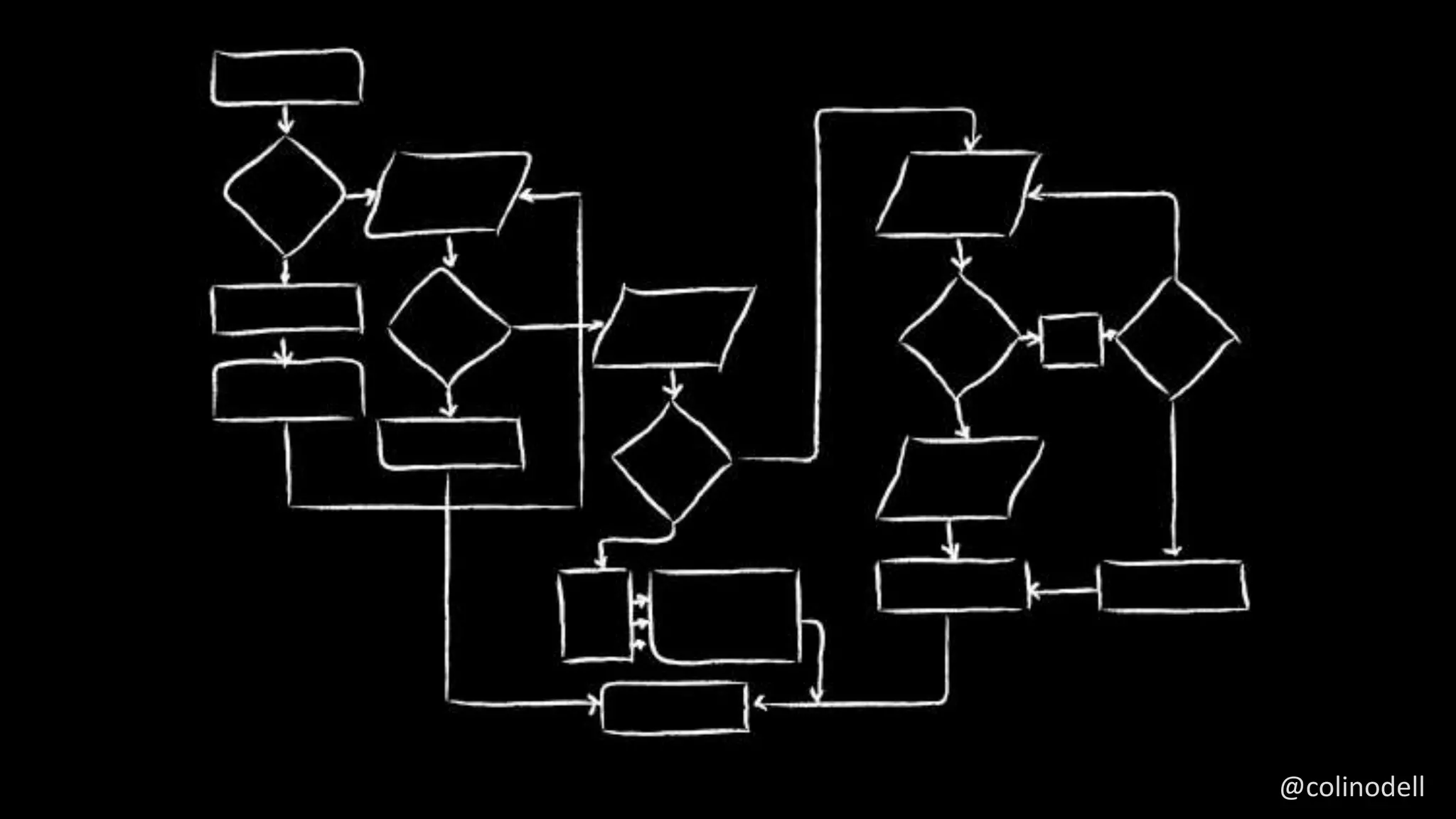

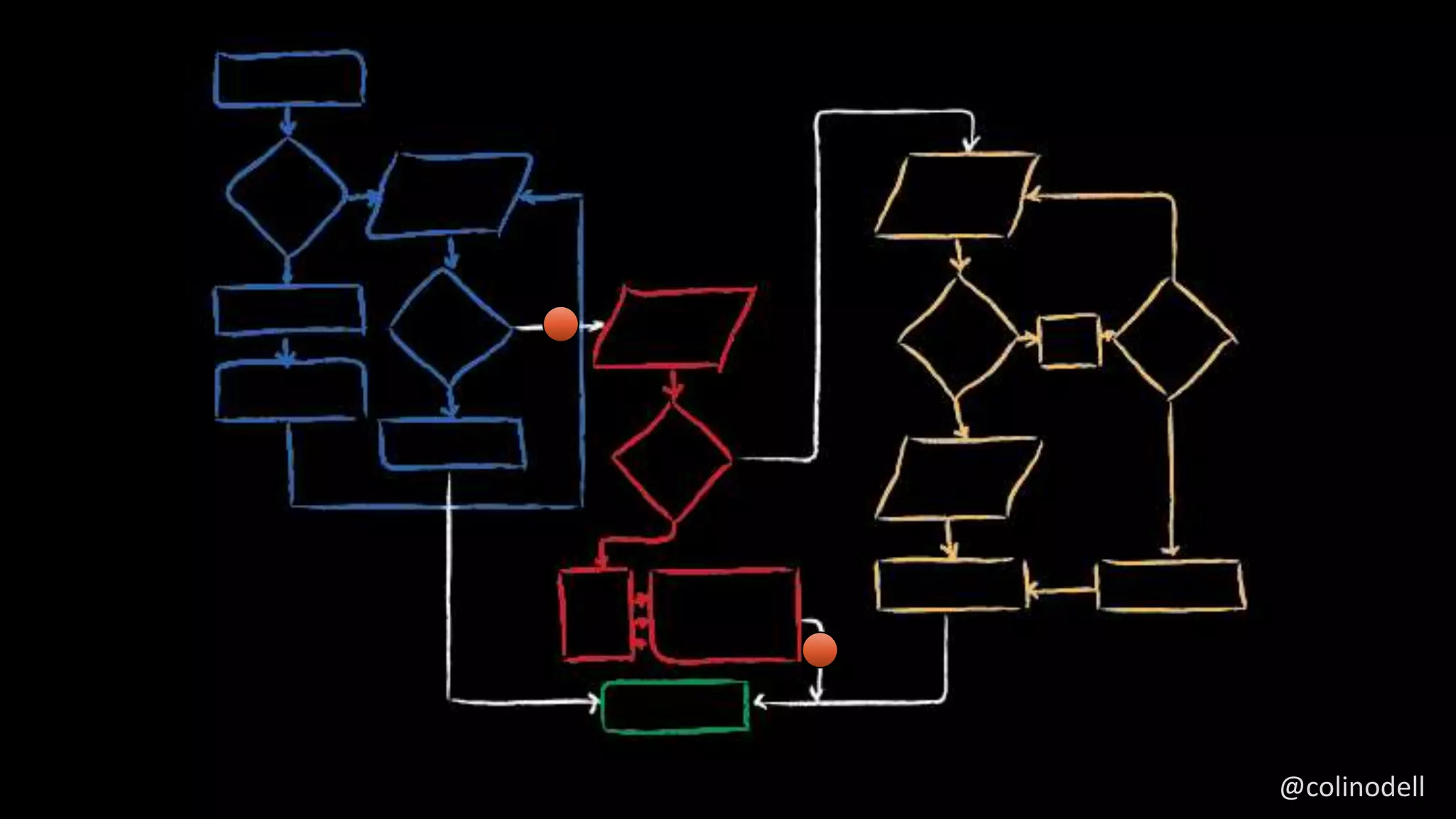

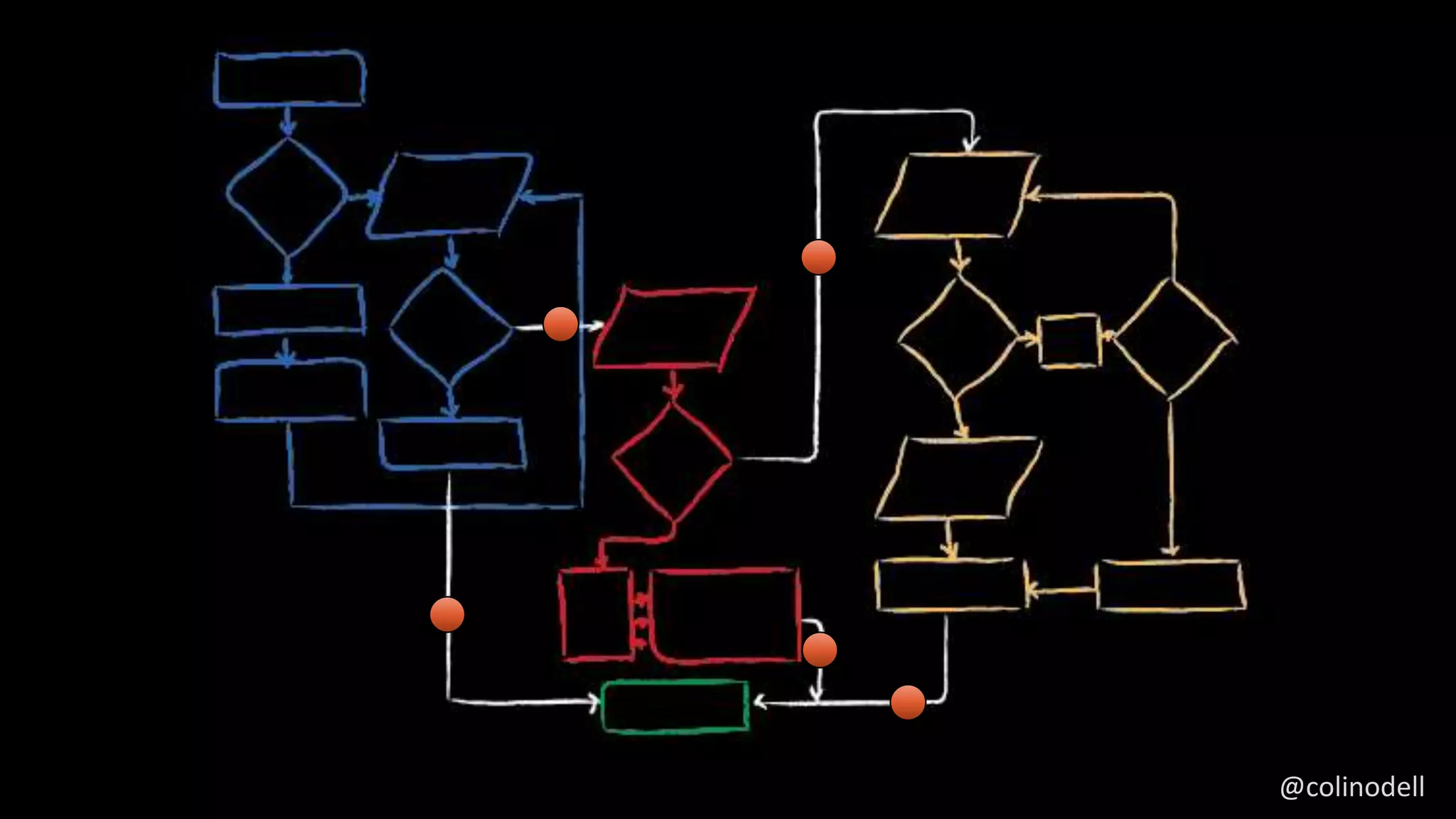

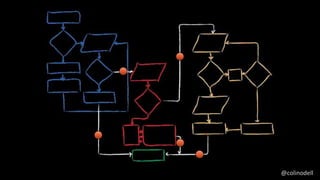

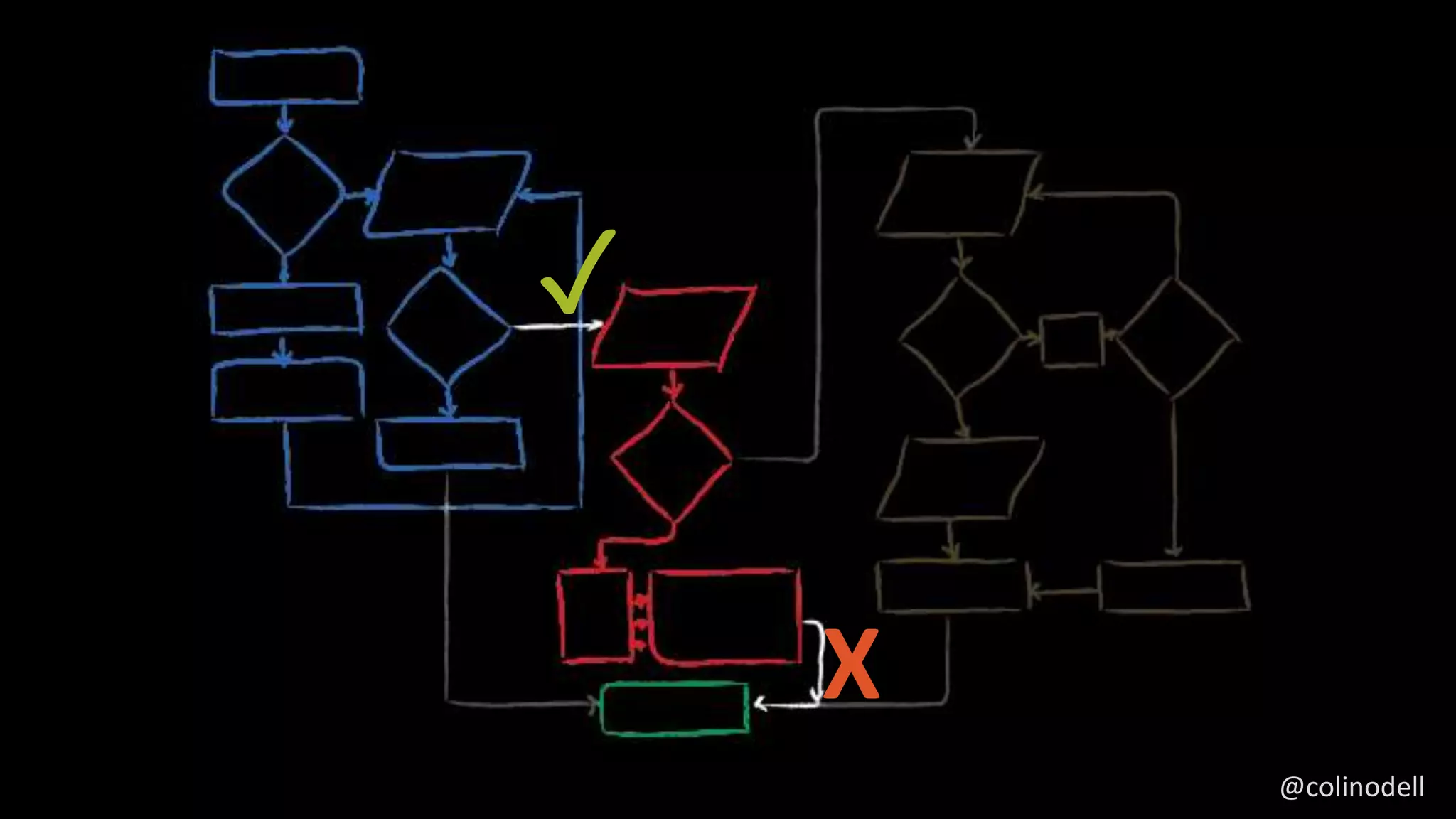

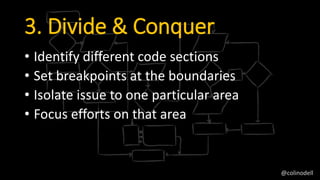

44. 3. Divide & Conquer
• Identify different code sections
• Set breakpoints at the boundaries
• Isolate issue to one particular area
• Focus efforts on that area
@colinodell

45. @colinodell

46. @colinodell

47. @colinodell

48. ✓
X
@colinodell

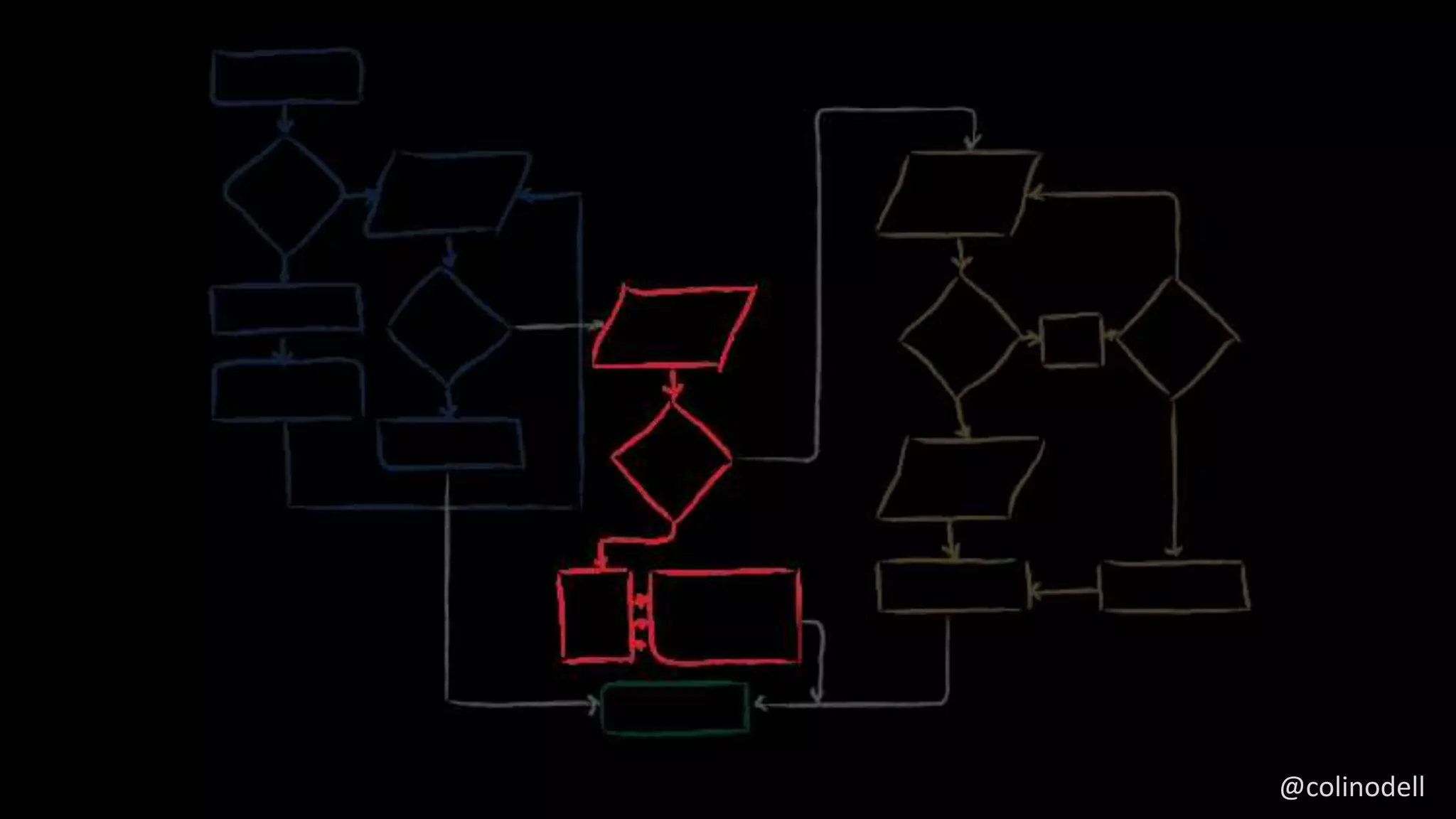

49. @colinodell

50. 4. Use tools
•Variable dumps
•Debug toolbars
•Console utility
•Profilers
•git bisect
•netcat
•curl
•strace
•etc.
Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC
@colinodell

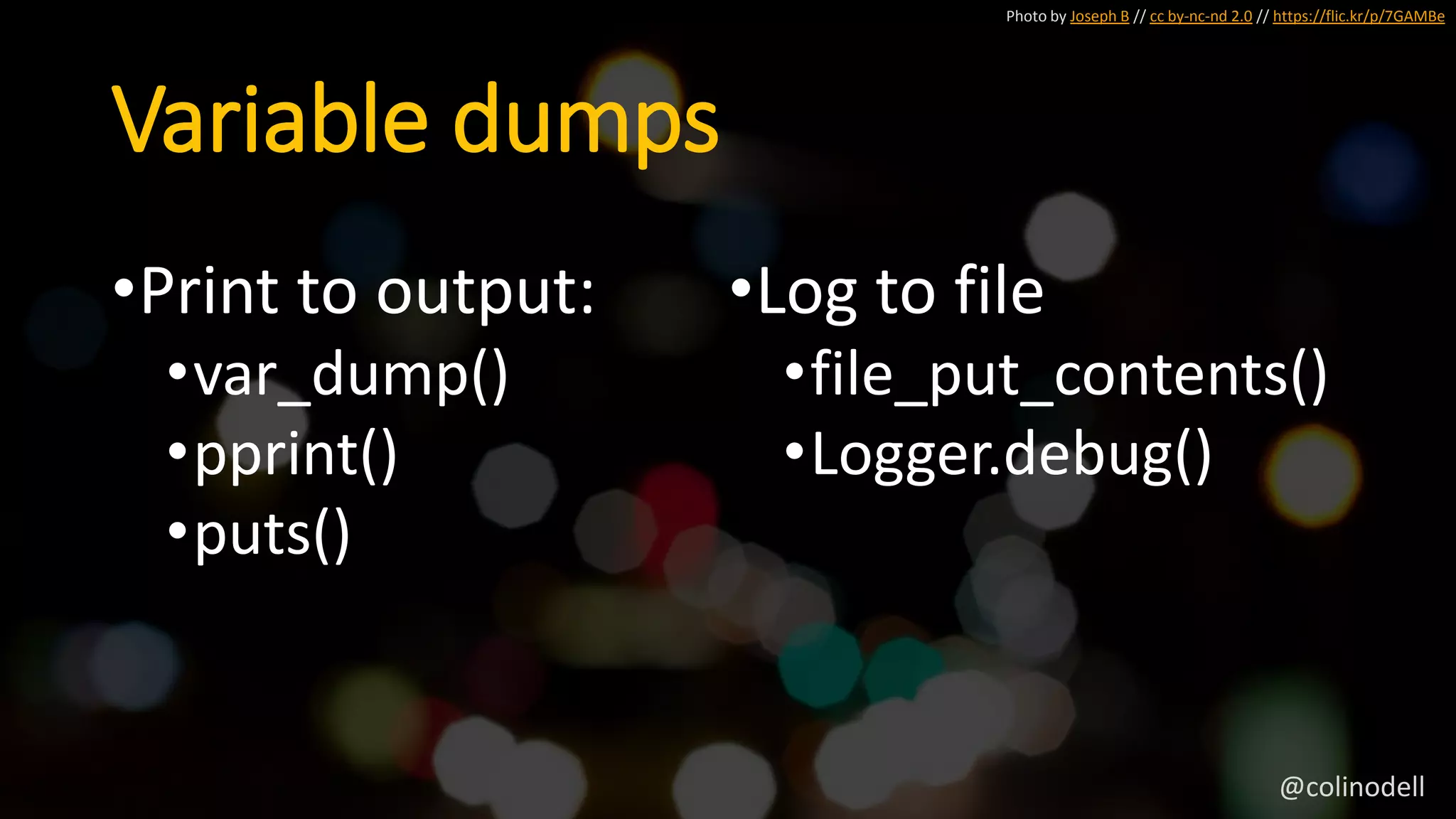

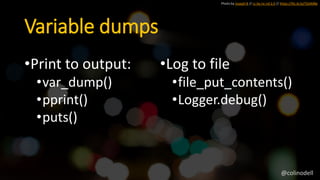

51. Variable dumps
Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
•Print to output:
•var_dump()
•pprint()
•puts()
•Log to file
•file_put_contents()
•Logger.debug()
@colinodell

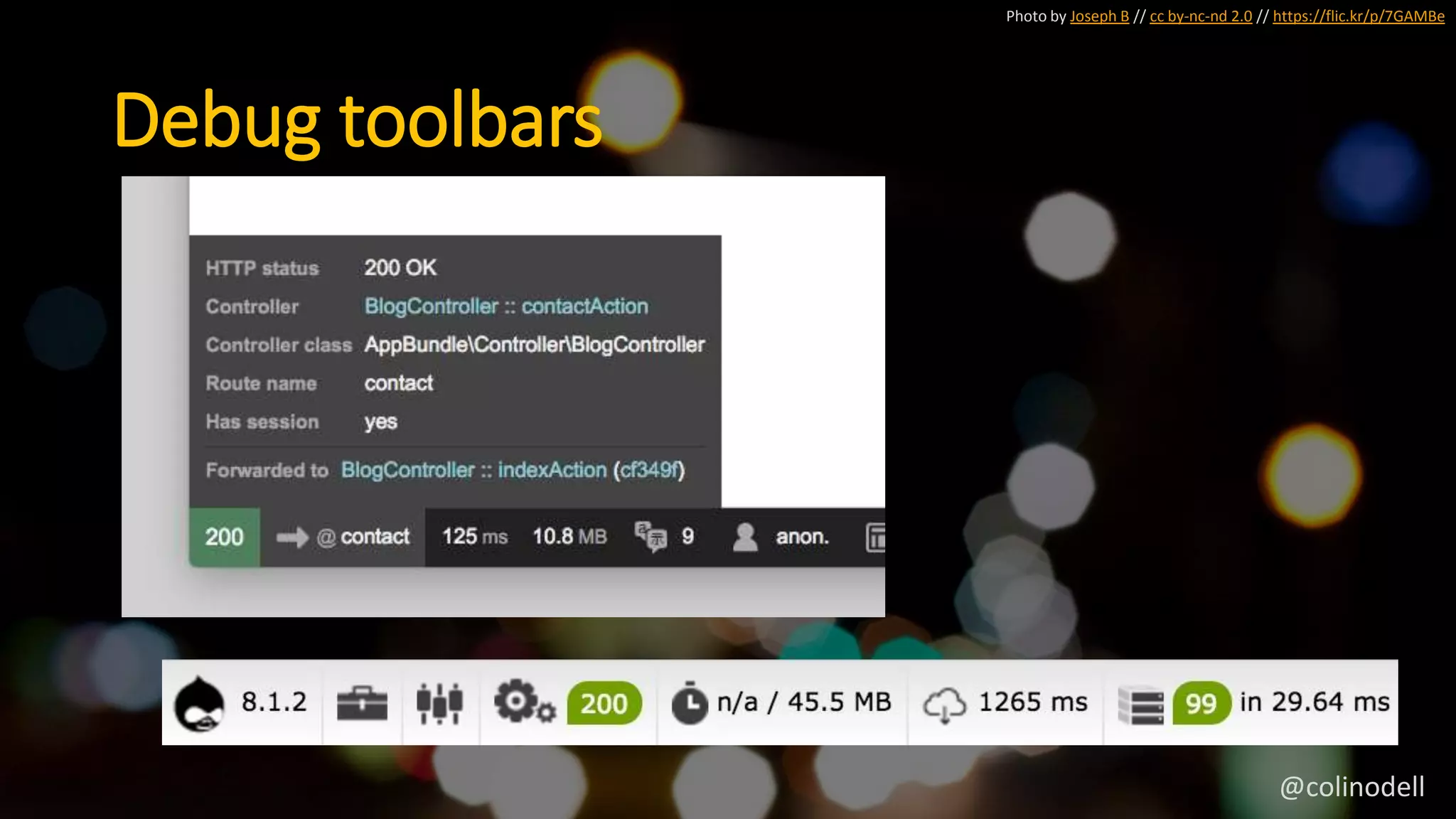

52. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
Debug toolbars
@colinodell

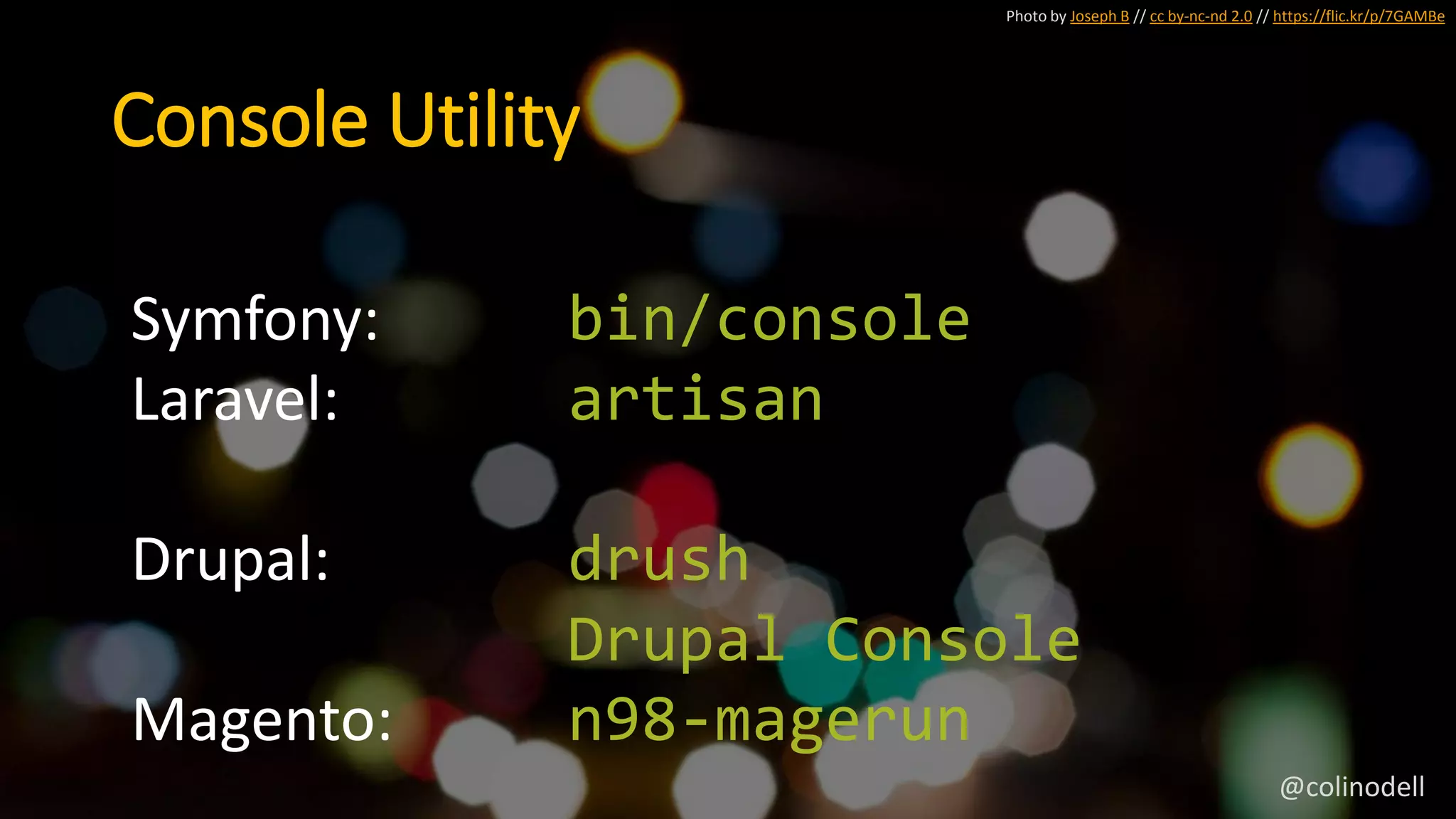

53. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
Console Utility
Symfony: bin/console
Laravel: artisan
Drupal: drush
Drupal Console
Magento: n98-magerun
@colinodell

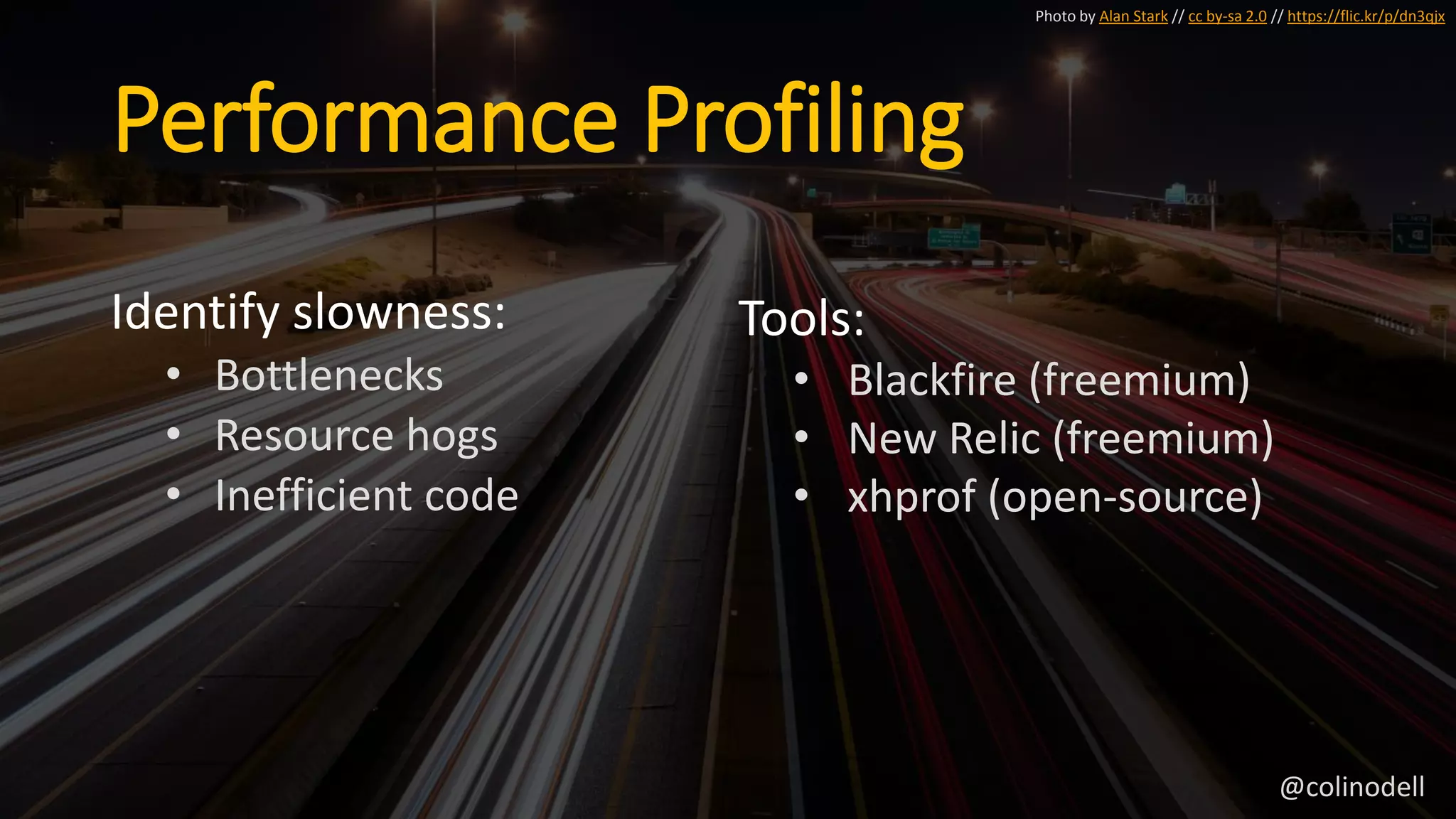

54. Performance Profiling
Identify slowness:
• Bottlenecks
• Resource hogs
• Inefficient code
Photo by Alan Stark // cc by-sa 2.0 // https://flic.kr/p/dn3qjx
Tools:
• Blackfire (freemium)
• New Relic (freemium)
• xhprof (open-source)
@colinodell

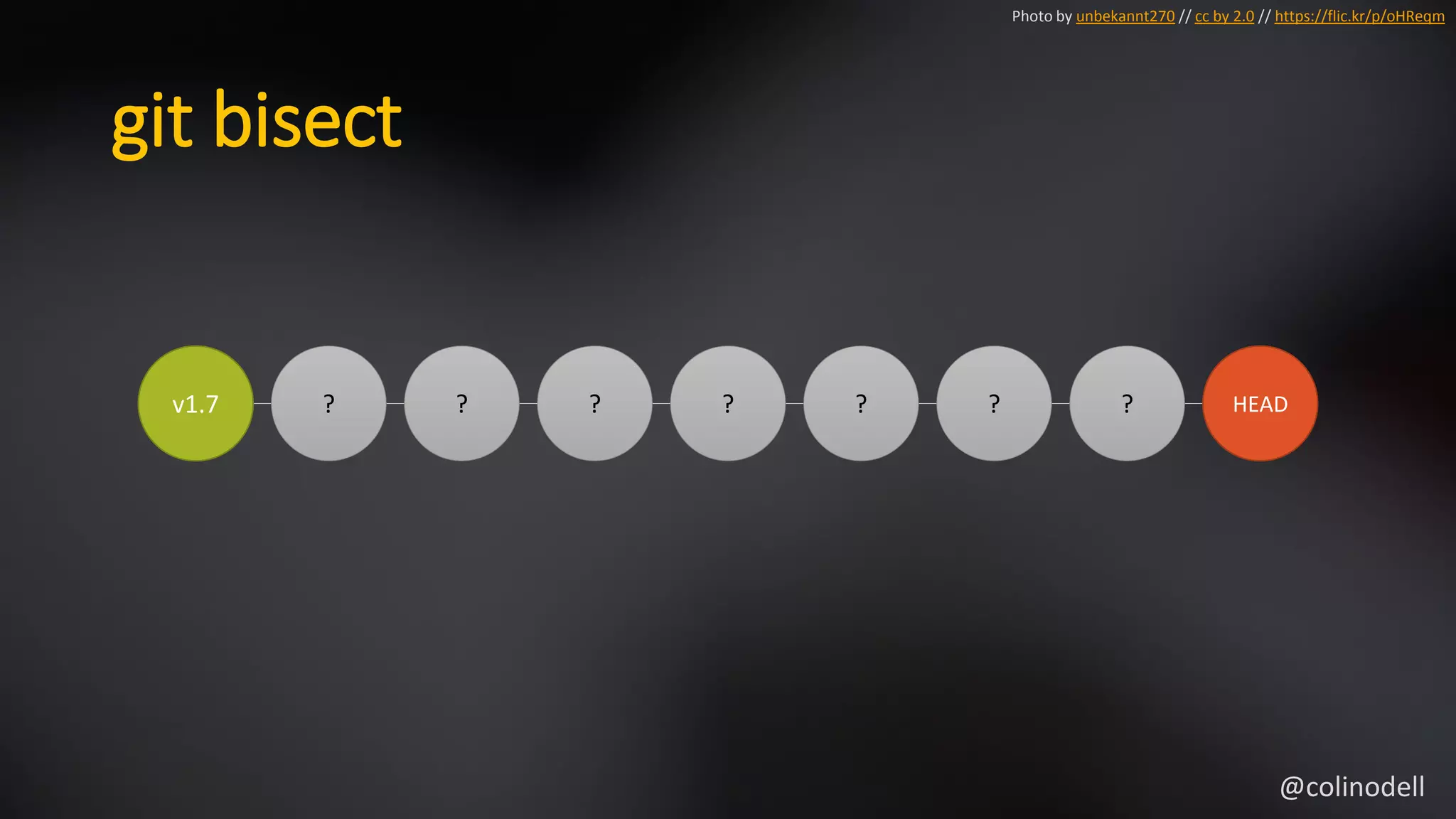

55. git bisect
v1.7 ? ? ? ? ? ? ? HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
@colinodell

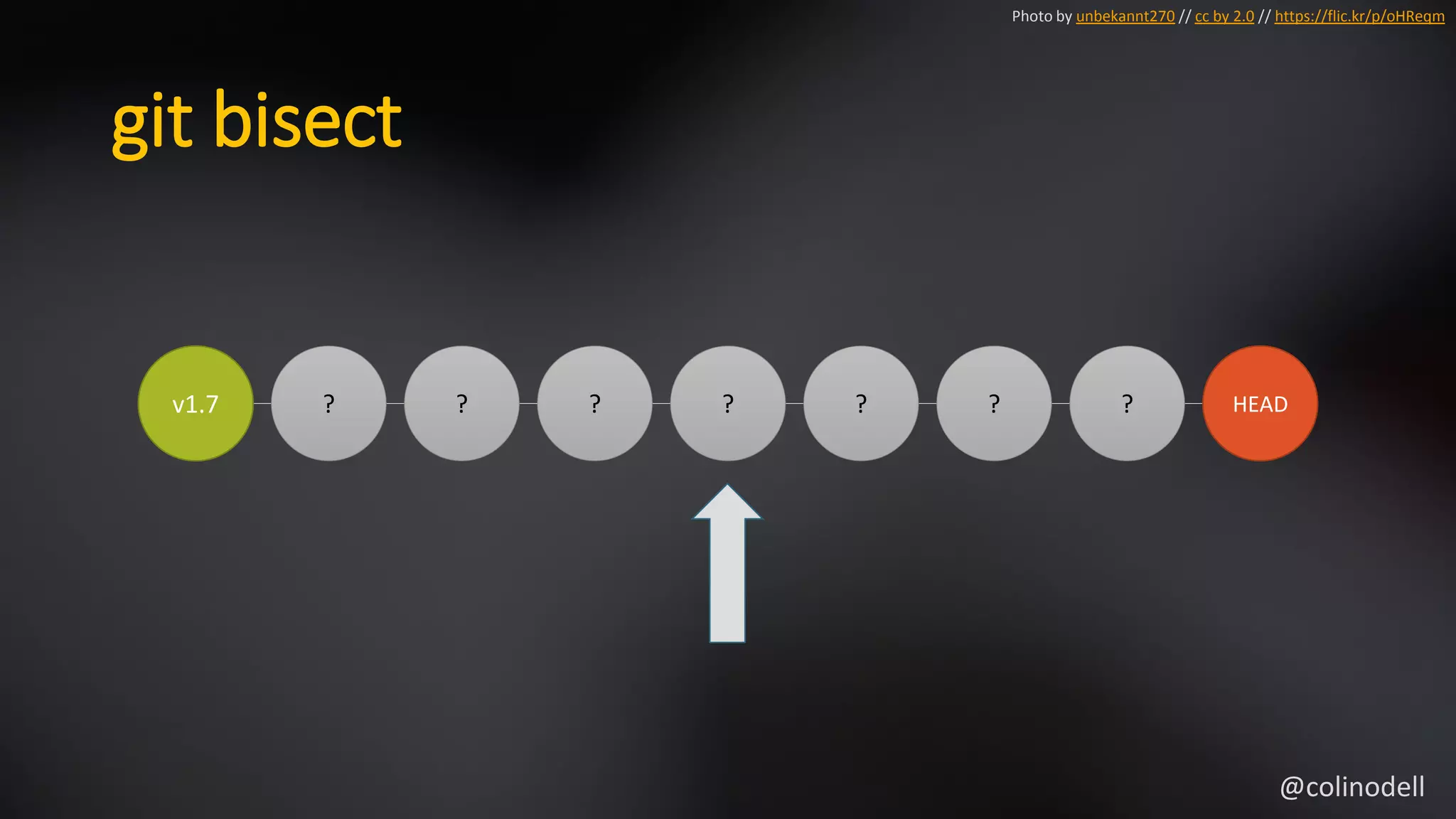

56. git bisect
v1.7 ? ? ? ? ? ? ? HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
@colinodell

57. git bisect
v1.7 ? ? ? BAD ? ? ? HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
@colinodell

58. git bisect
v1.7 ? ? ? BAD BAD BAD BAD HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
@colinodell

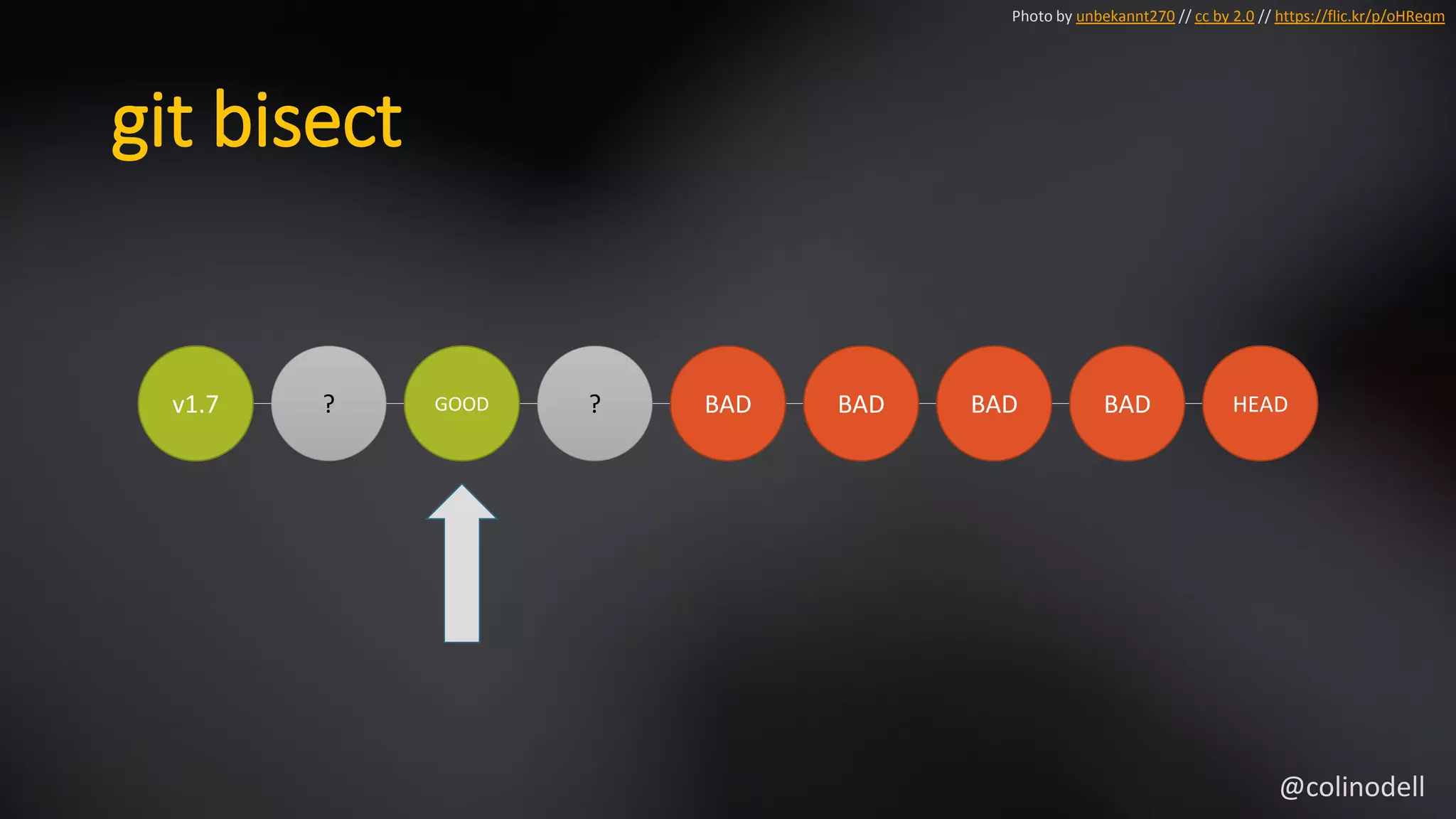

59. git bisect
v1.7 ? GOOD ? BAD BAD BAD BAD HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
@colinodell

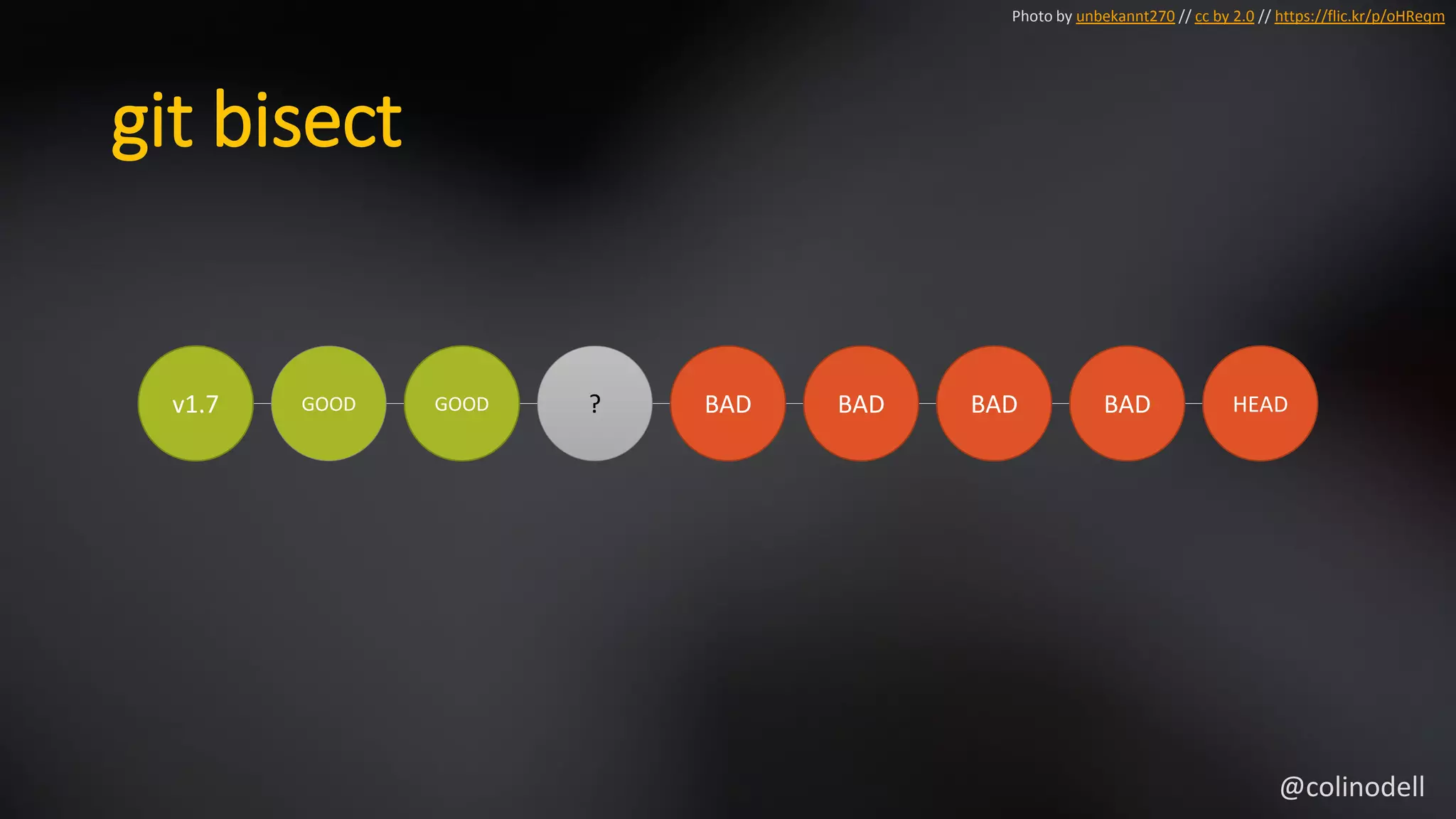

60. git bisect
v1.7 GOOD GOOD ? BAD BAD BAD BAD HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
@colinodell

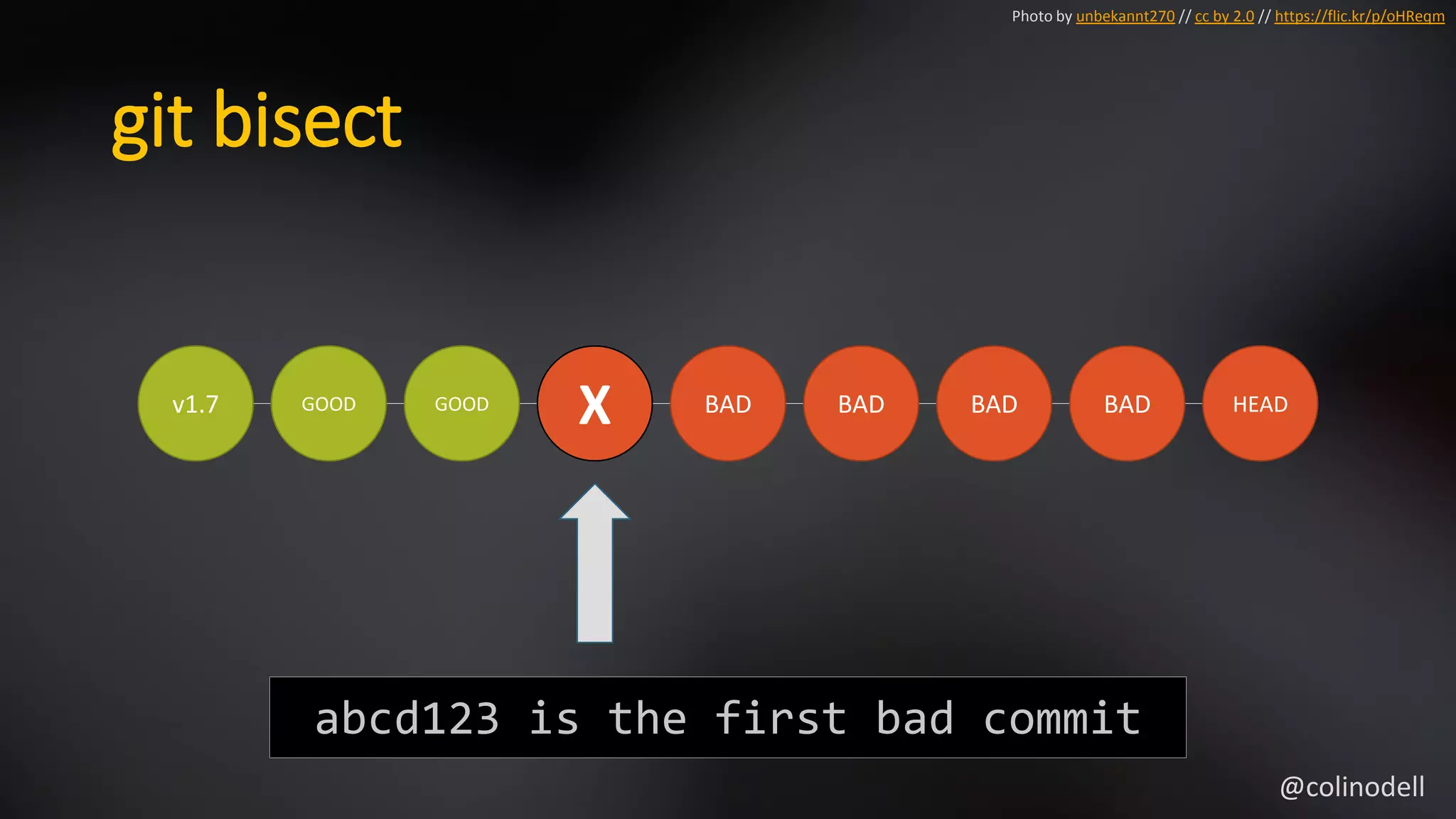

61. git bisect
v1.7 GOOD GOOD
X BAD BAD BAD BAD HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
abcd123 is the first bad commit
@colinodell

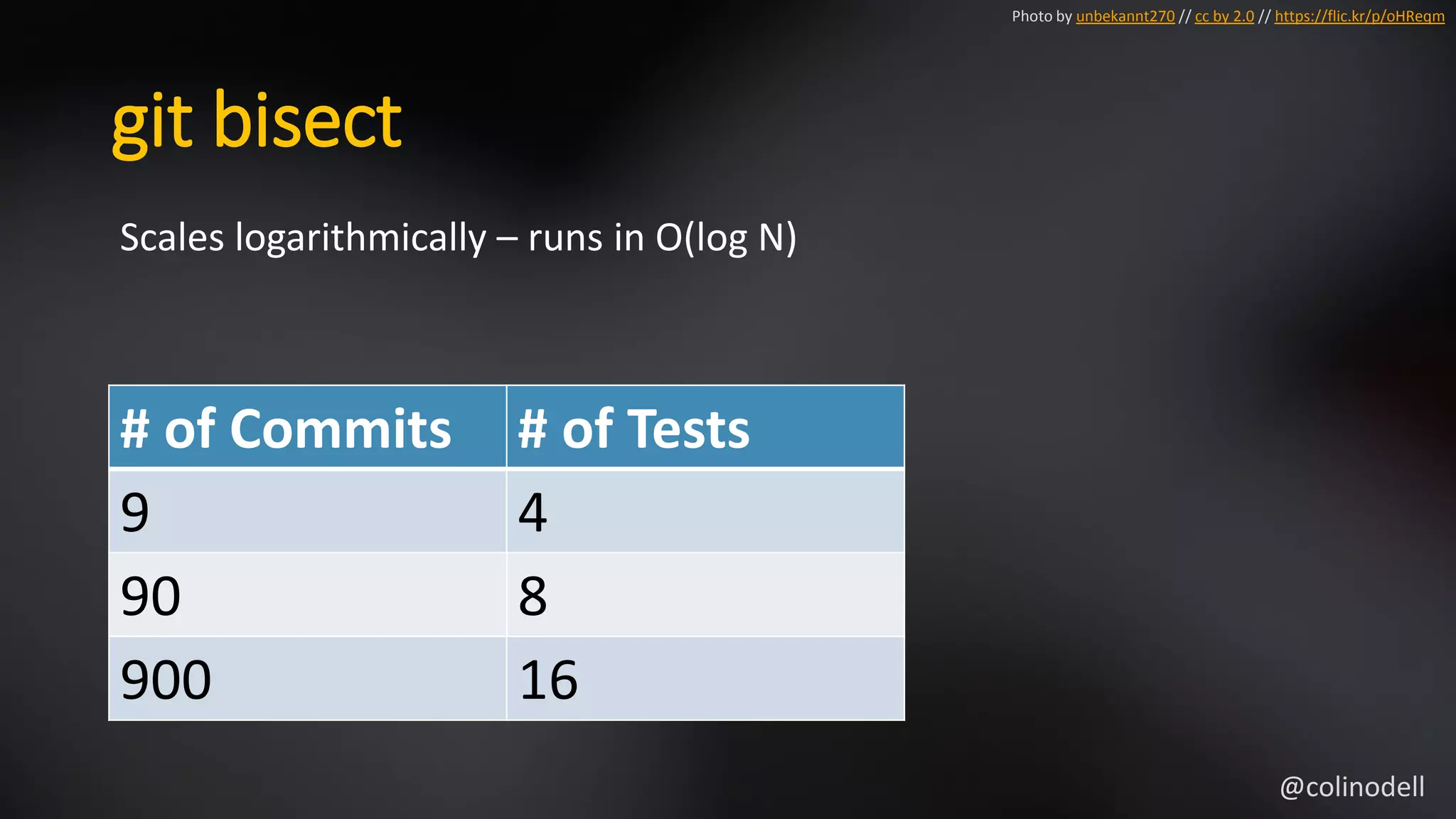

62. git bisect
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
@colinodell
# of Commits # of Tests
9 4
90 8
900 16
Scales logarithmically – runs in O(log N)

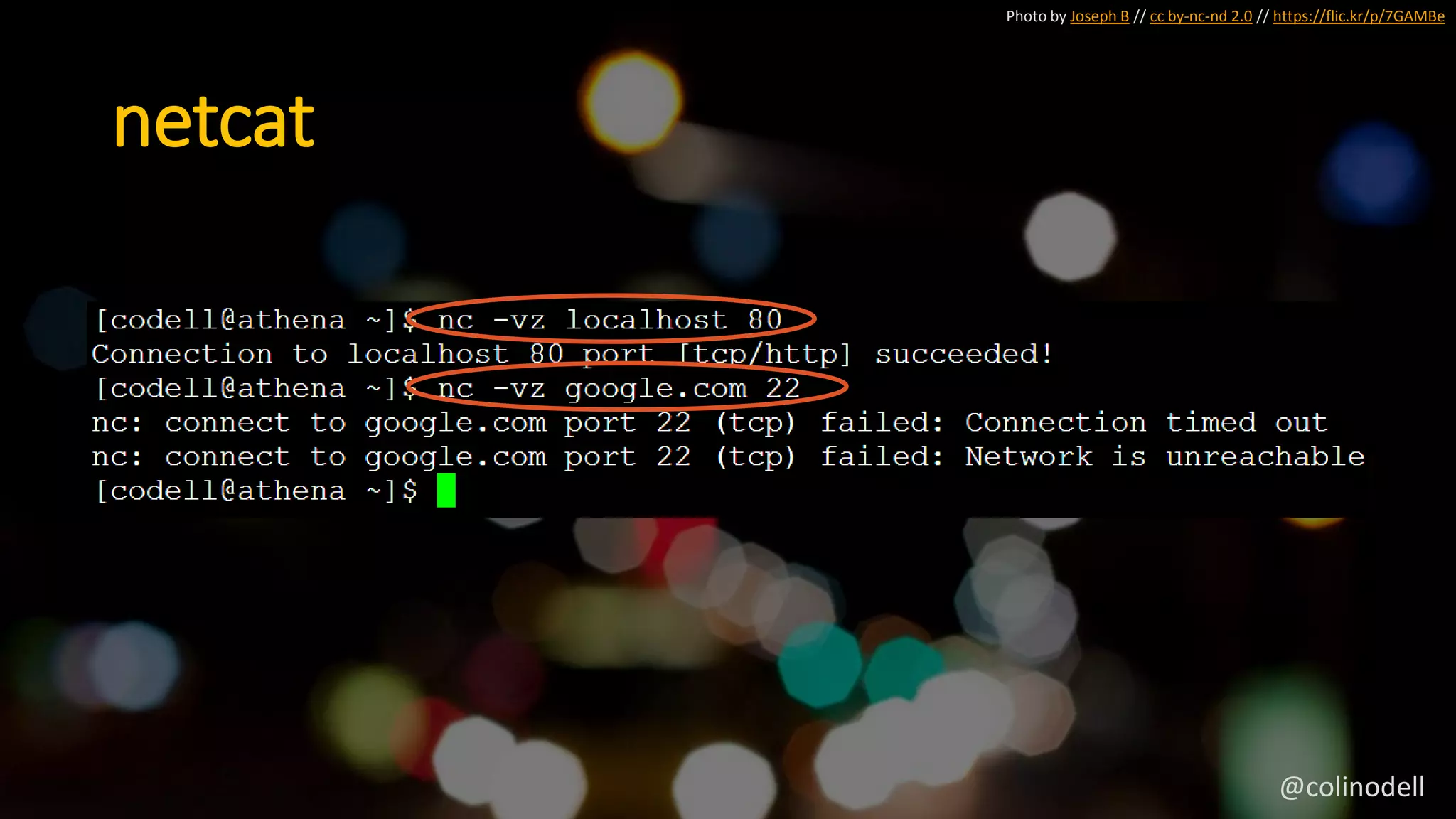

63. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
netcat
@colinodell

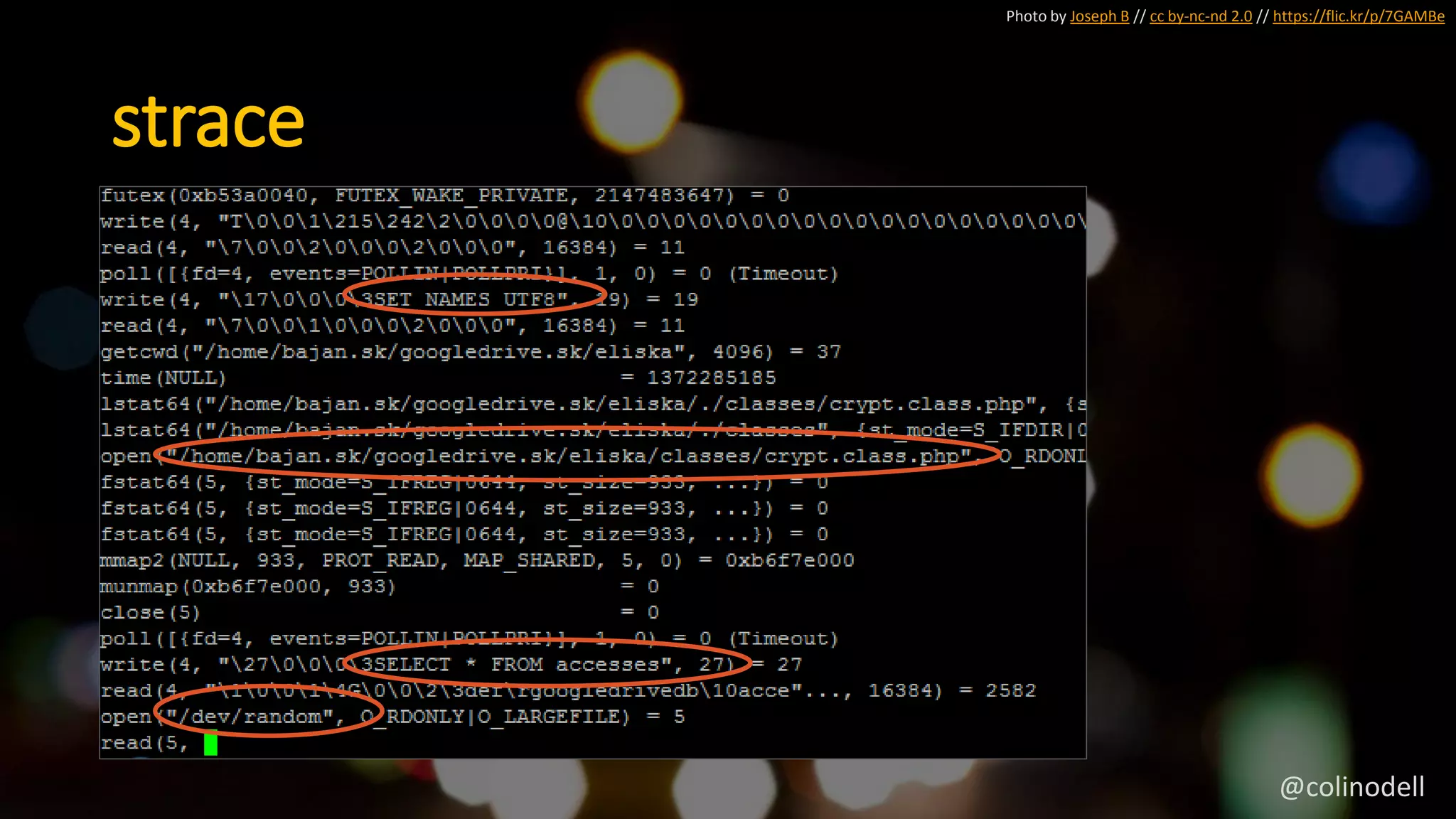

64. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe

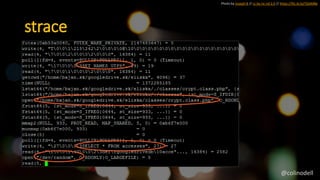

strace
@colinodell

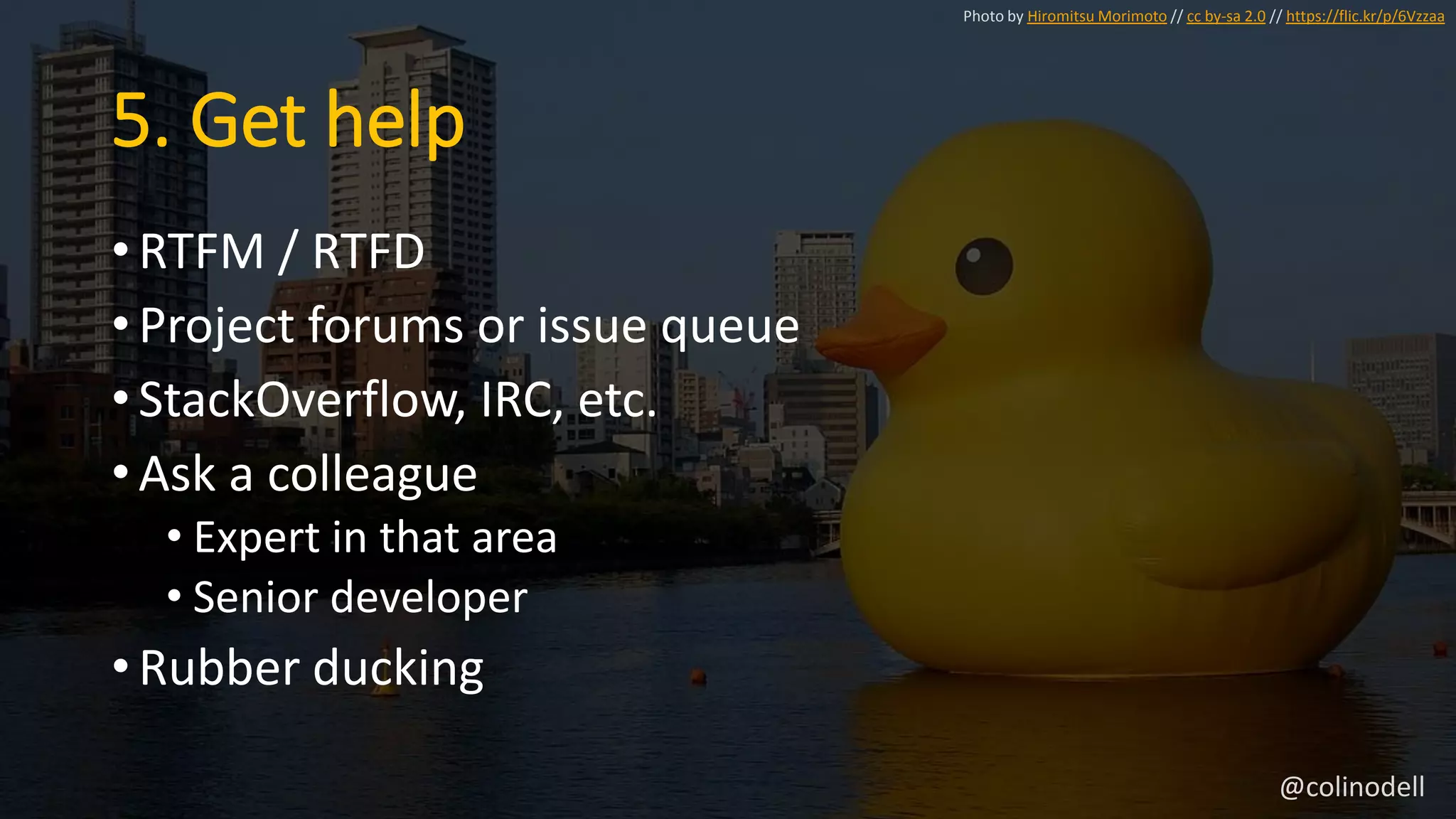

65. 5. Get help
• RTFM / RTFD
• Project forums or issue queue
• StackOverflow, IRC, etc.
• Ask a colleague
• Expert in that area
• Senior developer
• Rubber ducking
Photo by Hiromitsu Morimoto // cc by-sa 2.0 // https://flic.kr/p/6Vzzaa
@colinodell

66. 6. Take a break
Photo by Kristina Alexadnerson // cc by-nc-nd 2.0 // https://flic.kr/p/cFEcDC
• Clear your mind; start fresh
• Forget invalid assumptions
• Recharge your batteries
• Let your subconscious work on it
@colinodell

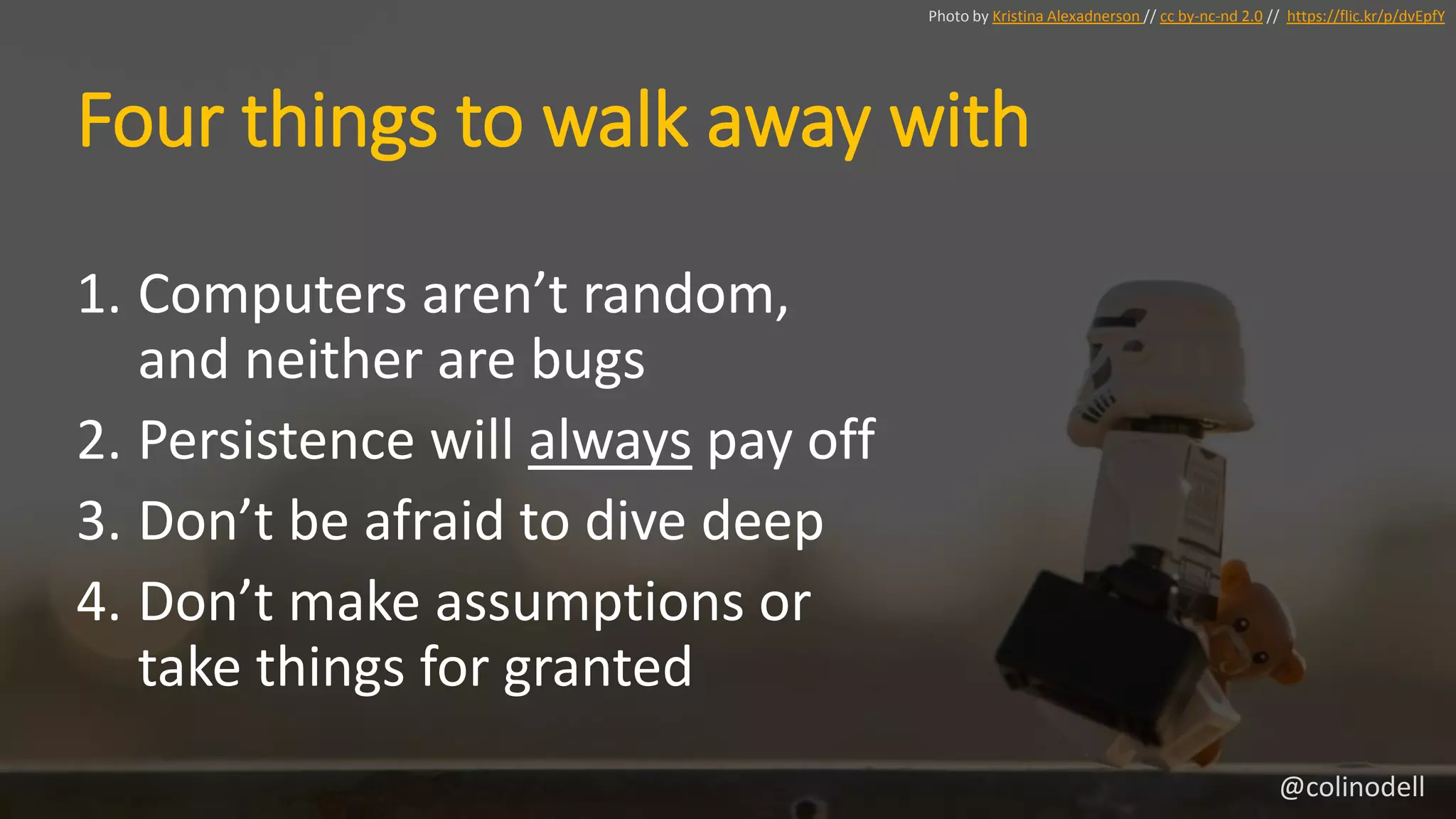

67. Four things to walk away with
1. Computers aren’t random,
and neither are bugs
2. Persistence will always pay off
3. Don’t be afraid to dive deep
4. Don’t make assumptions or
take things for granted
Photo by Kristina Alexadnerson // cc by-nc-nd 2.0 // https://flic.kr/p/dvEpfY
@colinodell

68. Questions?
Photo by Marcello Maria Perongini // cc by-nc-nd 2.0 // https://flic.kr/p/6KDtm
@colinodell

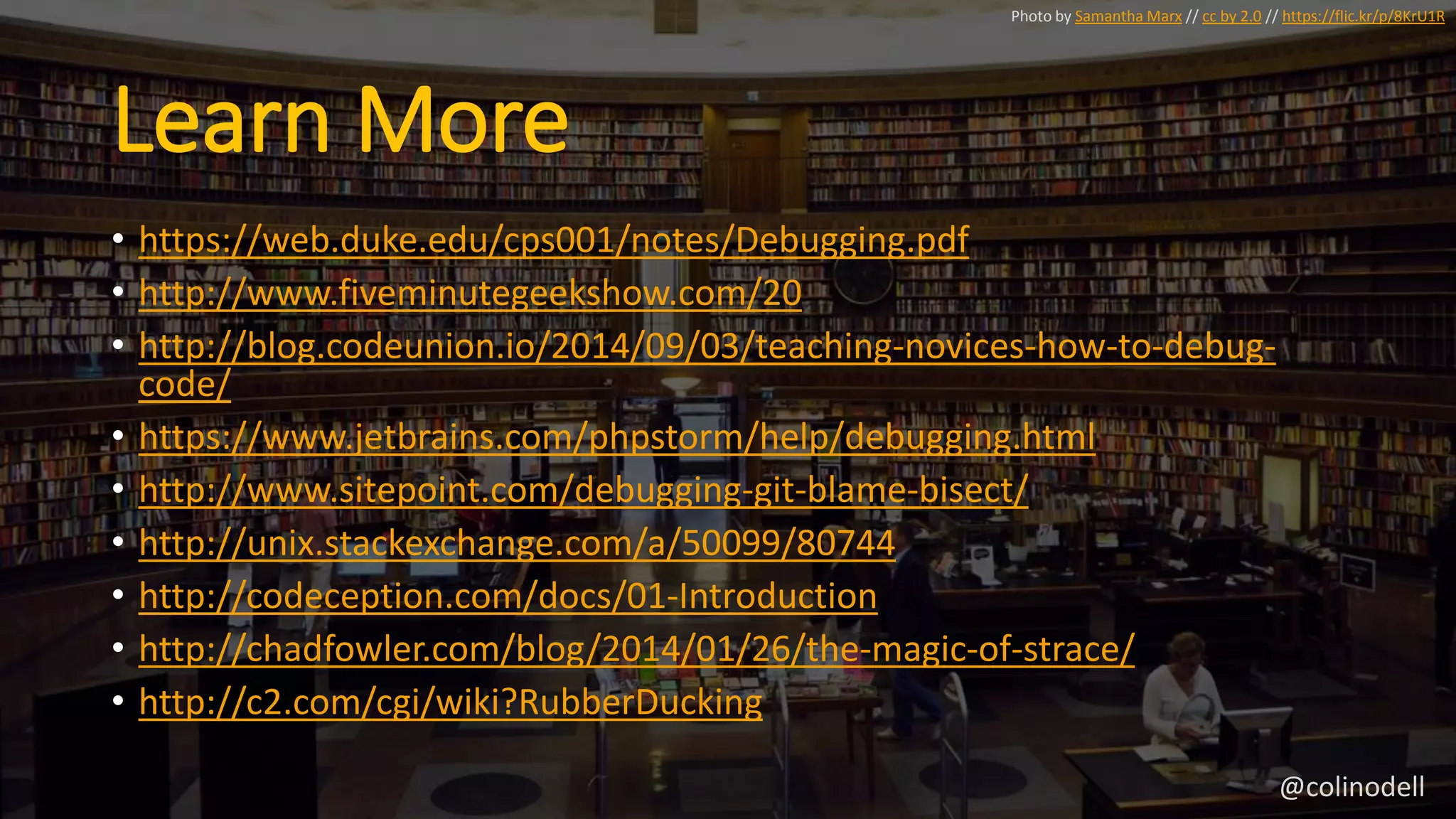

69. Learn More
• https://web.duke.edu/cps001/notes/Debugging.pdf
• http://www.fiveminutegeekshow.com/20
• http://blog.codeunion.io/2014/09/03/teaching-novices-how-to-debug-
code/
• https://www.jetbrains.com/phpstorm/help/debugging.html
• http://www.sitepoint.com/debugging-git-blame-bisect/
• http://unix.stackexchange.com/a/50099/80744
• http://codeception.com/docs/01-Introduction
• http://chadfowler.com/blog/2014/01/26/the-magic-of-strace/
• http://c2.com/cgi/wiki?RubberDucking
Photo by Samantha Marx // cc by 2.0 // https://flic.kr/p/8KrU1R
@colinodell

70. Thanks!
@colinodell / colinodell@gmail.com
Photo by Steve Rotman // cc by-nc-nd 2.0 // https://flic.kr/p/xiBK
