Debugging Effectively
Colin O’Dell

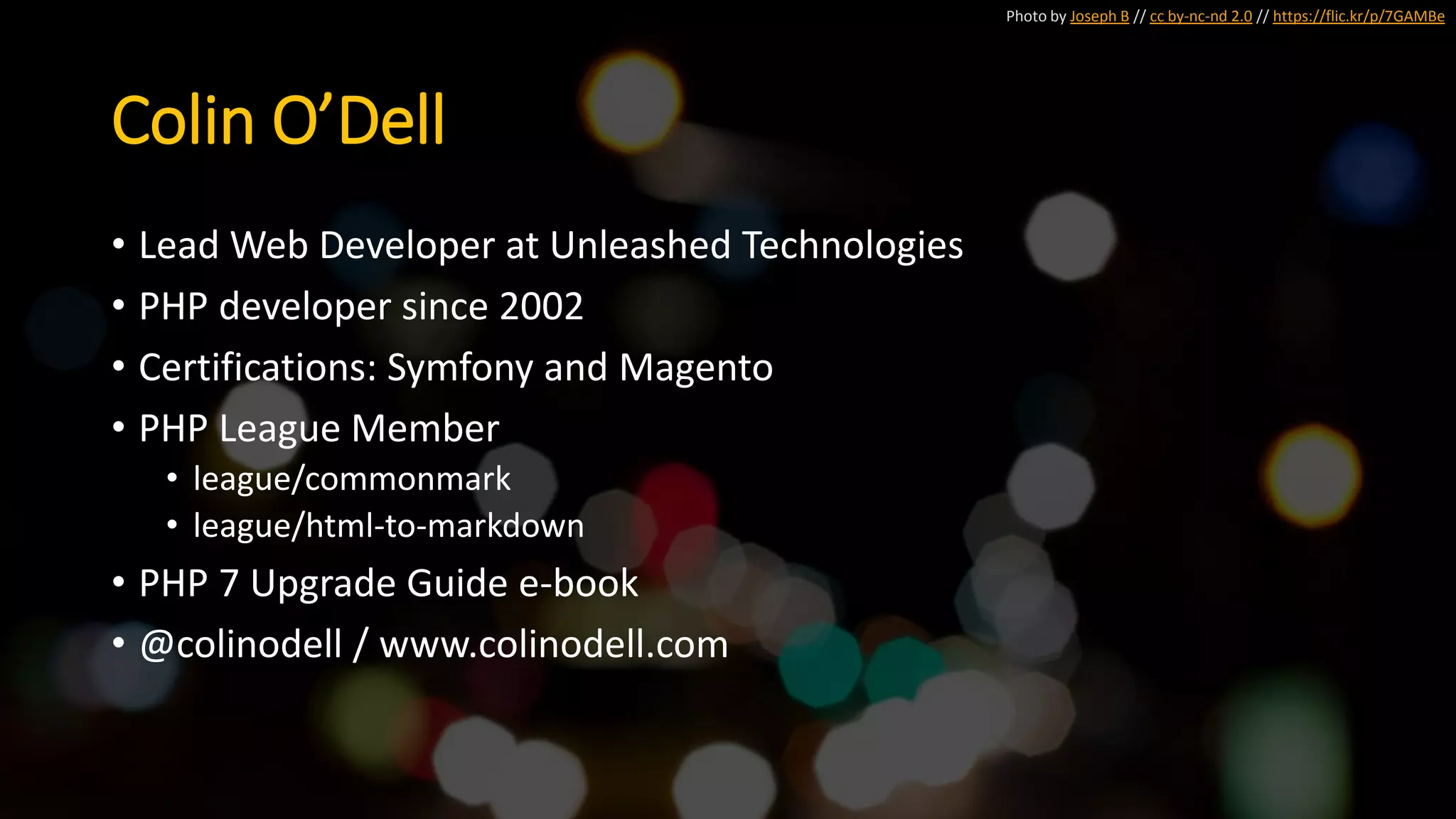

2. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
Colin O’Dell
• Lead Web Developer at Unleashed Technologies
• PHP developer since 2002
• Certifications: Symfony and Magento
• PHP League Member
• league/commonmark
• league/html-to-markdown
• PHP 7 Upgrade Guide e-book
• @colinodell / www.colinodell.com

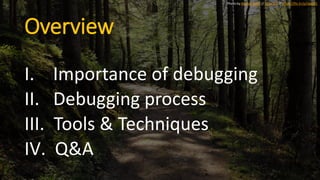

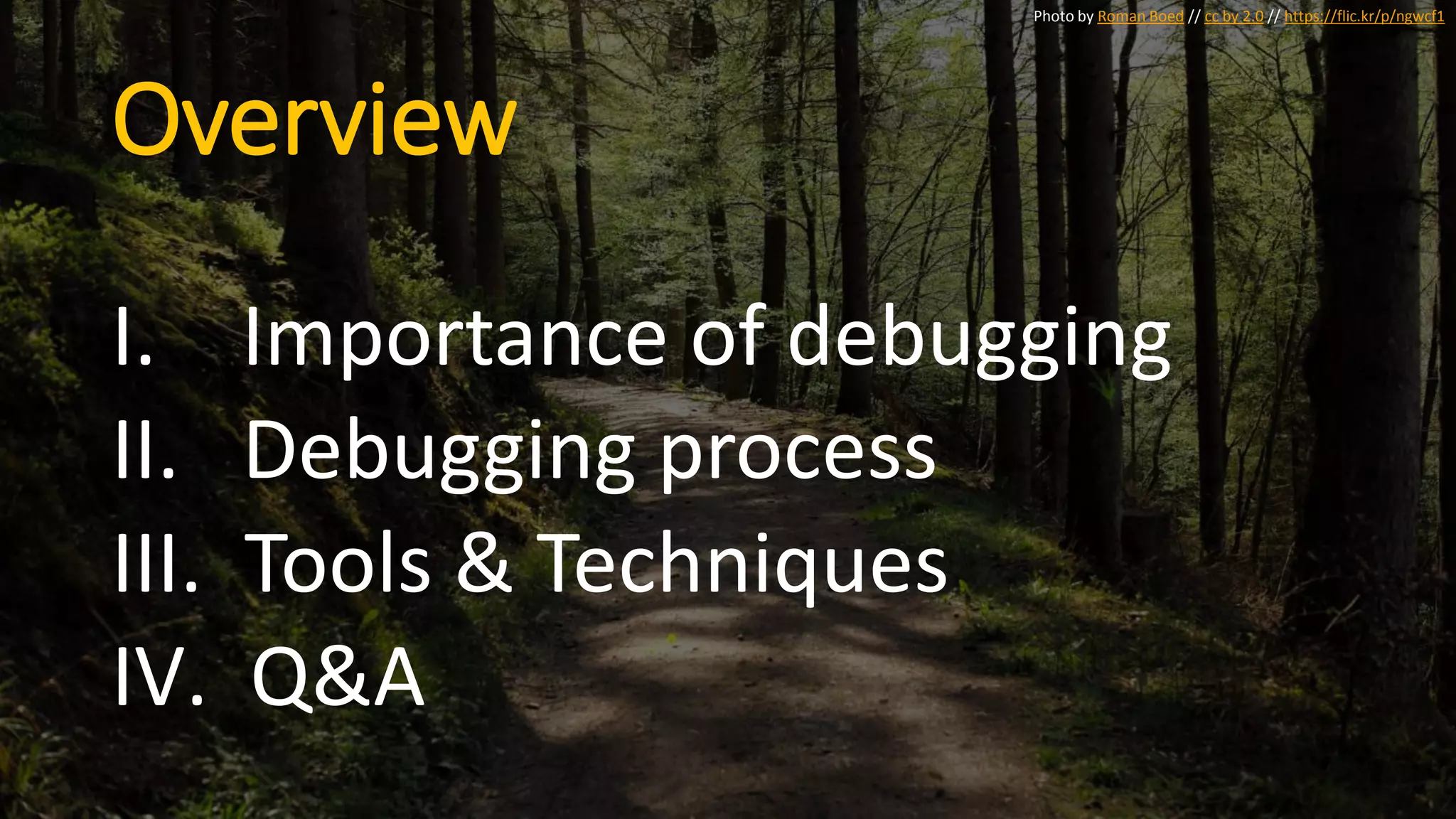

3. Overview
I. Importance of debugging
II. Debugging process
III. Tools & Techniques
IV. Q&A
Photo by Roman Boed // cc by 2.0 // https://flic.kr/p/ngwcf1

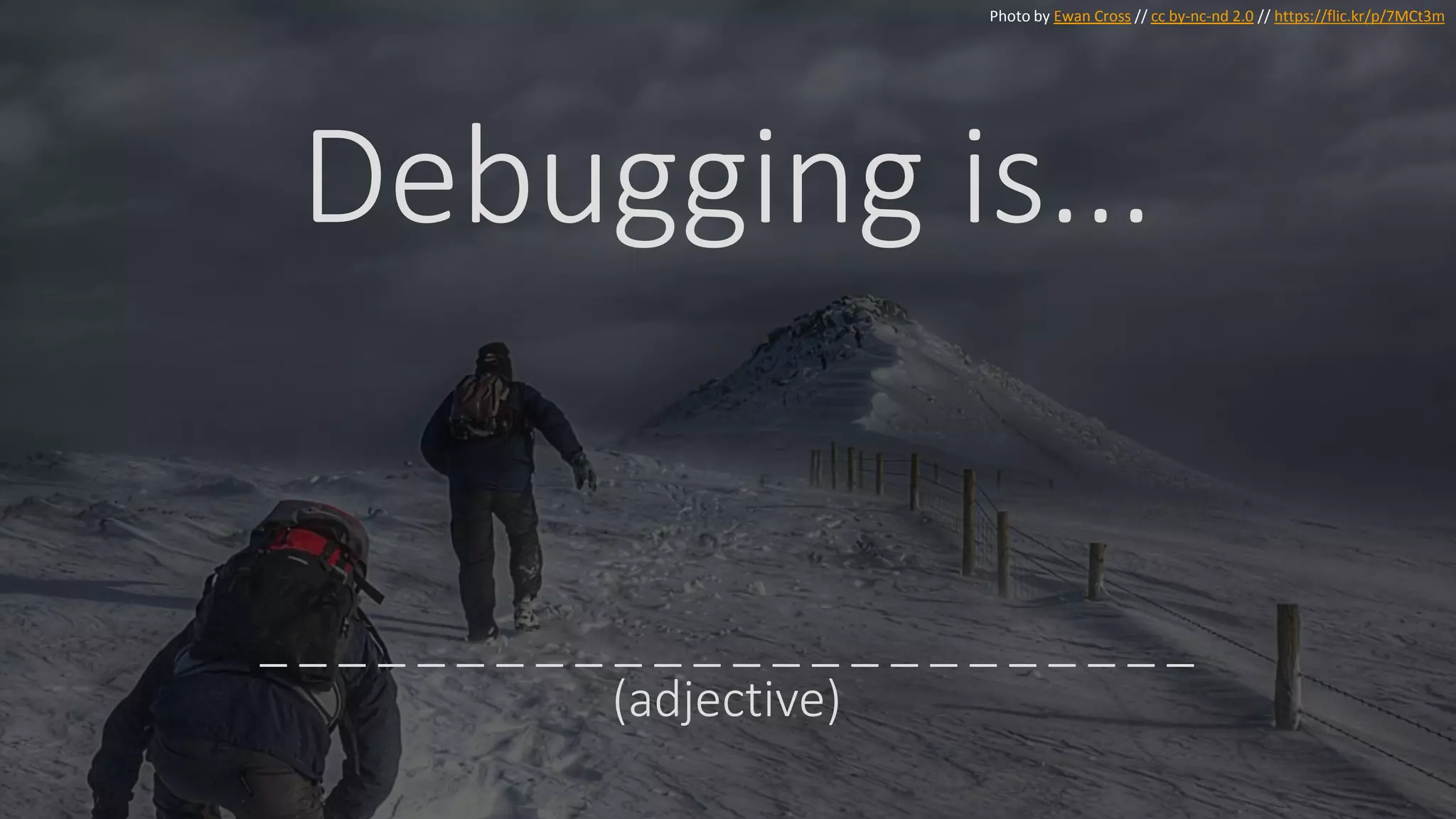

4. Debugging is...
Photo by Ewan Cross // cc by-nc-nd 2.0 // https://flic.kr/p/7MCt3m
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
(adjective)

5. Debugging is...
Photo by Ewan Cross // cc by-nc-nd 2.0 // https://flic.kr/p/7MCt3m
important

6. Debugging is...
Photo by Ewan Cross // cc by-nc-nd 2.0 // https://flic.kr/p/7MCt3m
the single most
important skill in
programming.

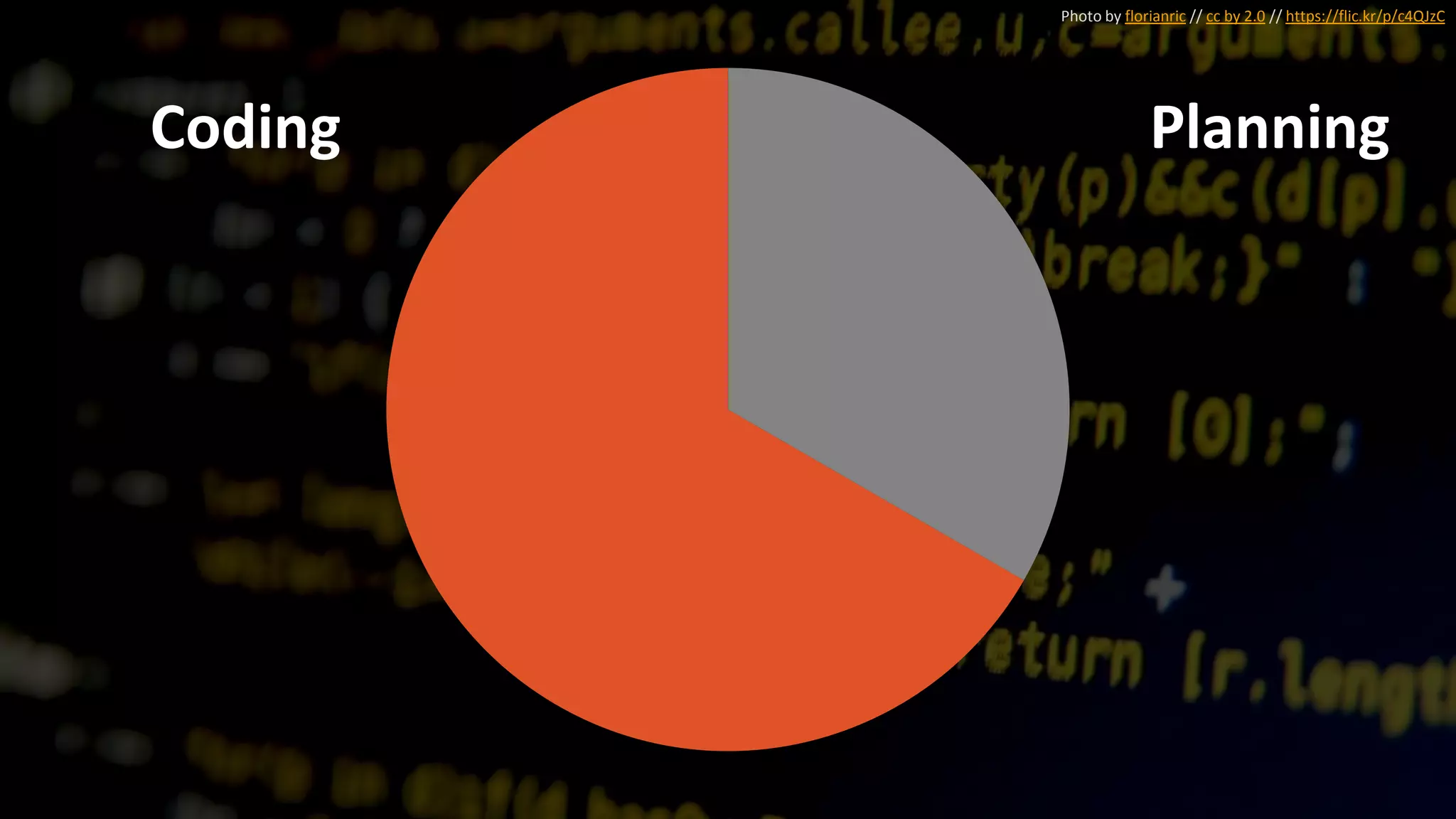

7. Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC
PlanningCoding

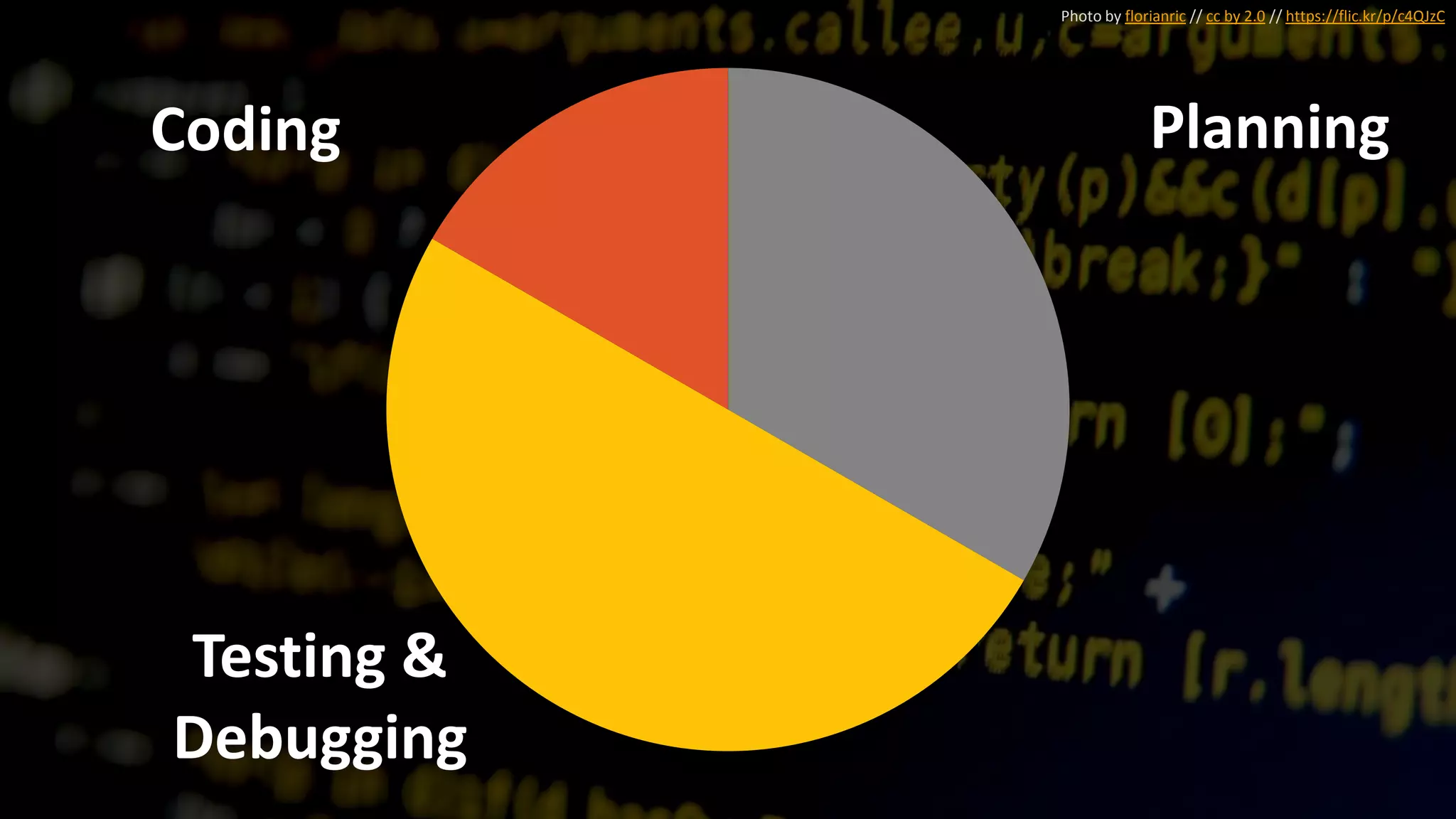

8. Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC
Planning
Testing &
Debugging
Coding

9. Debugging is the process of finding and resolving bugs
or defects that prevent correct operation of computer
software or a system.
– Wikipedia
Photo by Stephen Dyrgas // cc by-nc-nd 2.0 // https://flic.kr/p/3eTfWU

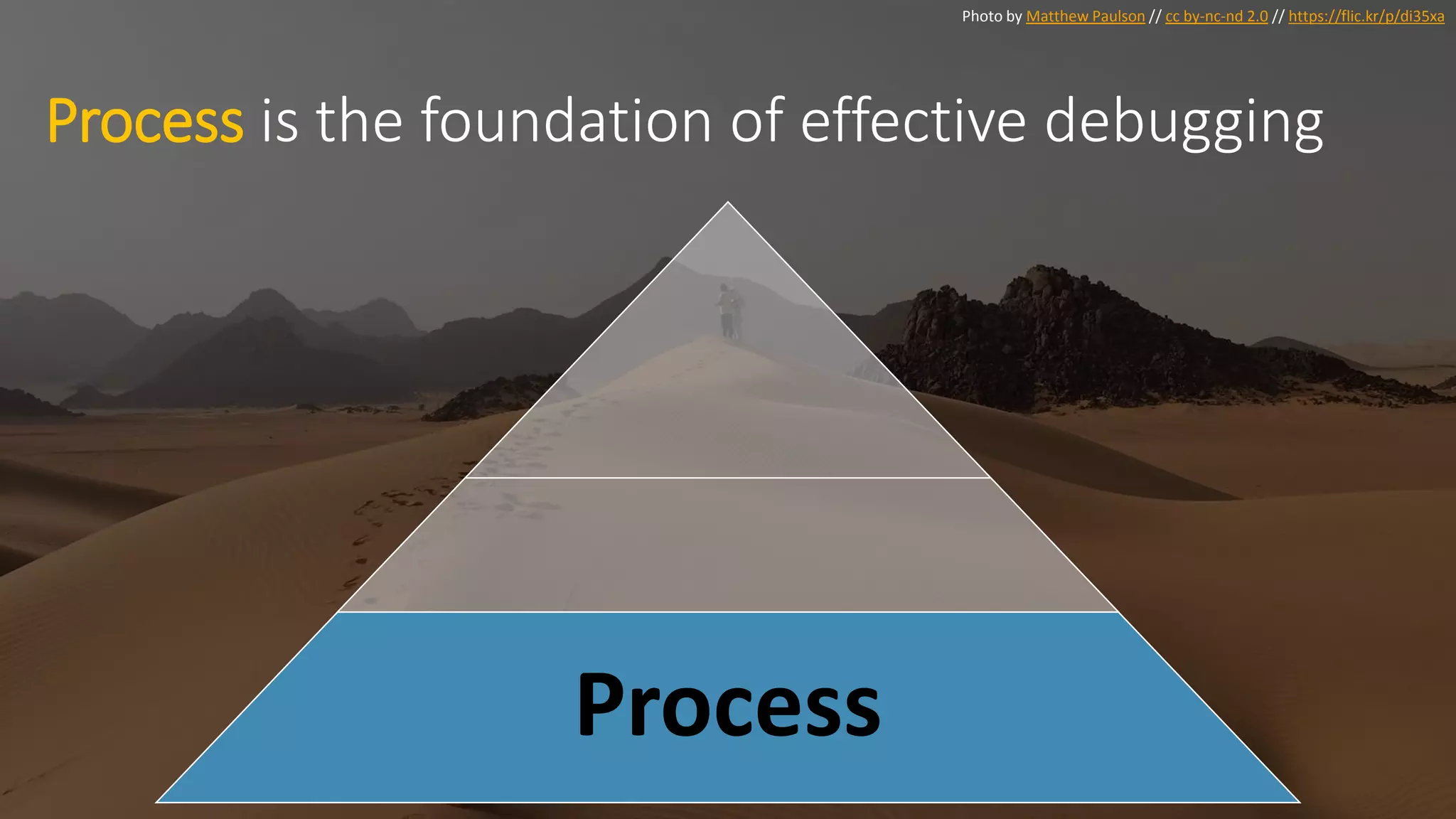

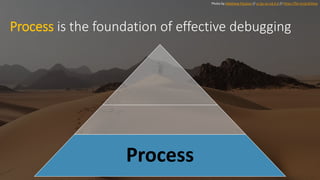

10. Process is the foundation of effective debugging
Process
Photo by Matthew Paulson // cc by-nc-nd 2.0 // https://flic.kr/p/di35xa

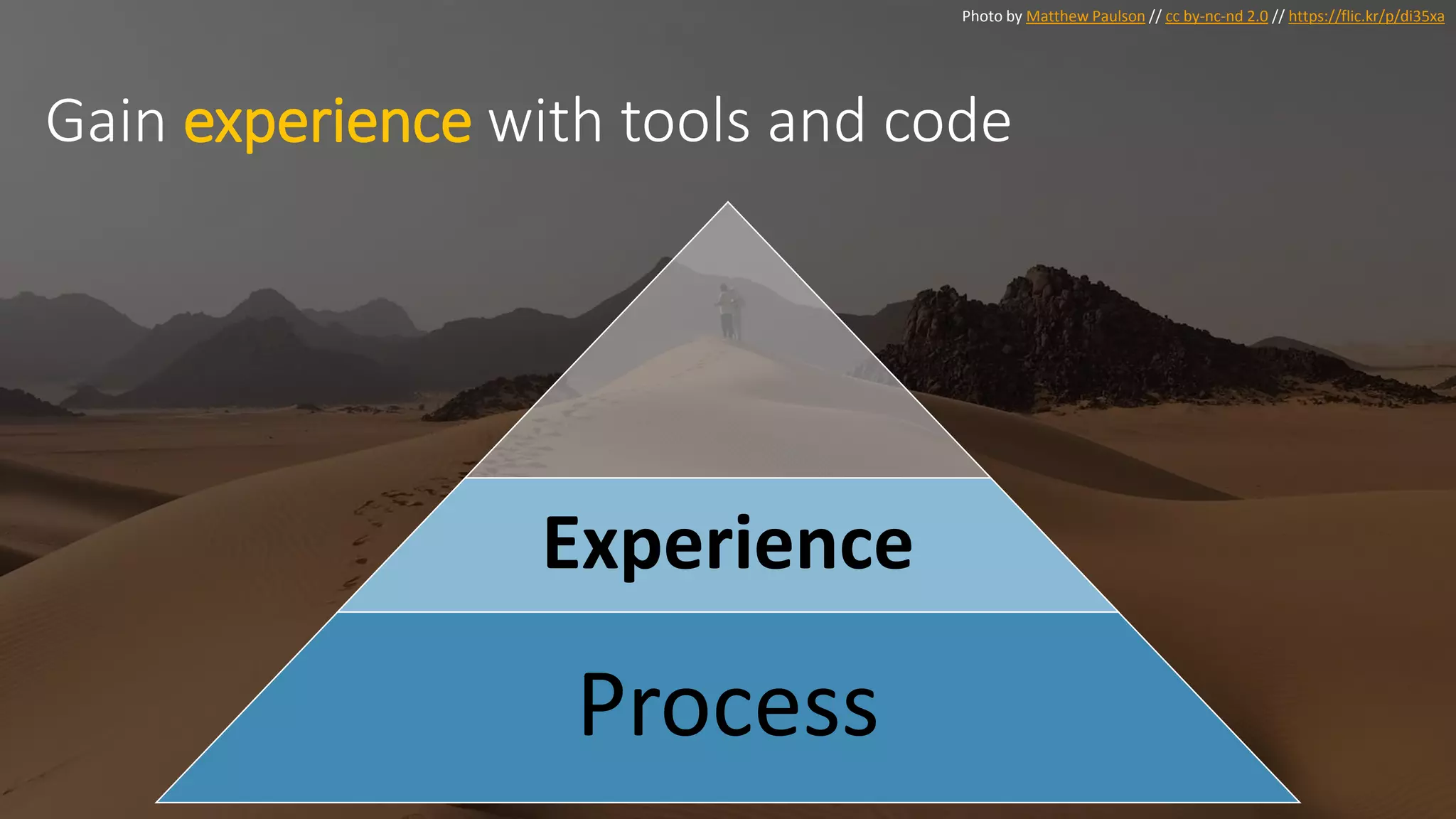

11. Photo by Matthew Paulson // cc by-nc-nd 2.0 // https://flic.kr/p/di35xa
Gain experience with tools and code
Experience
Process

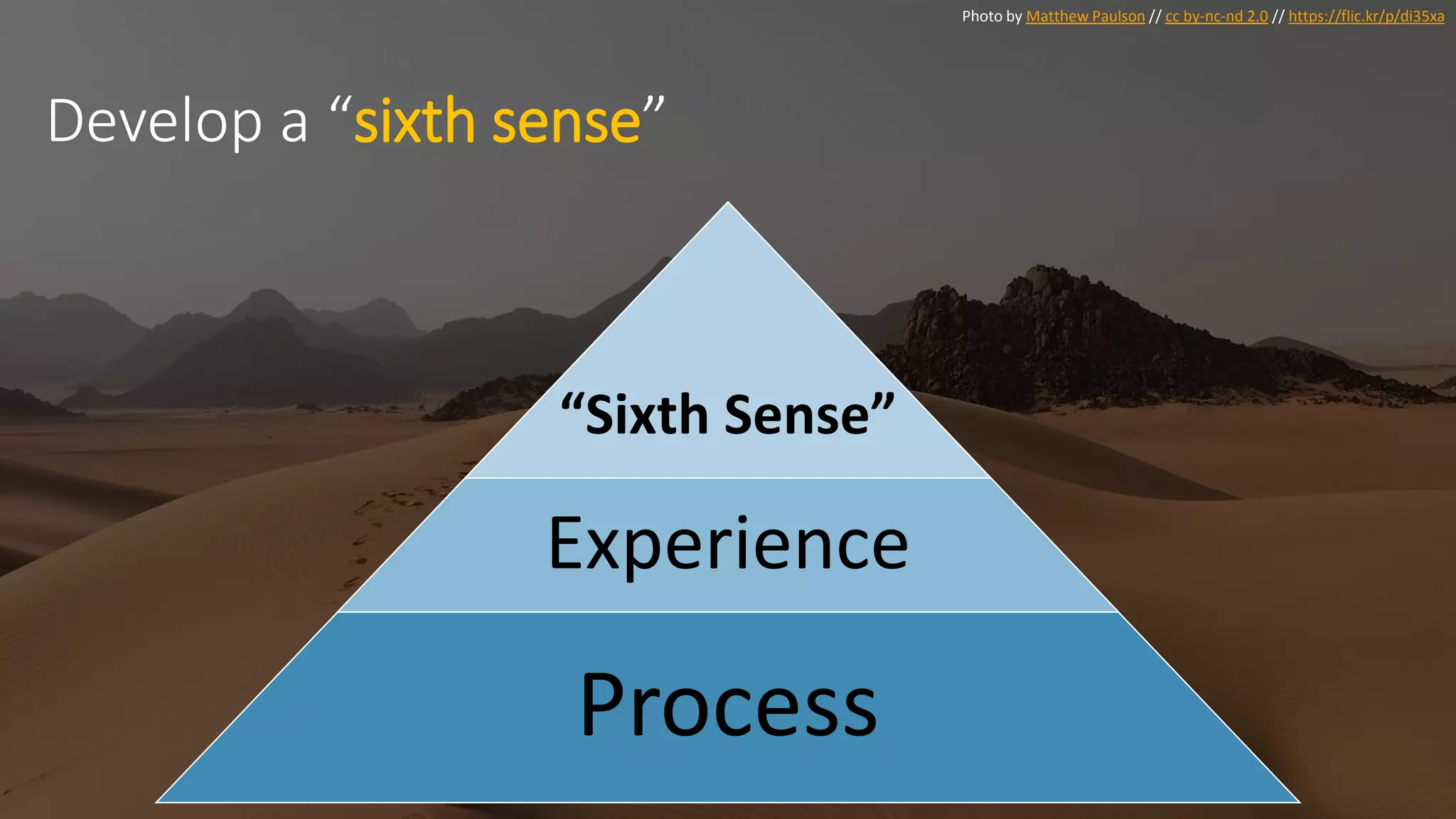

12. Photo by Matthew Paulson // cc by-nc-nd 2.0 // https://flic.kr/p/di35xa
Develop a “sixth sense”
“Sixth Sense”
Experience
Process

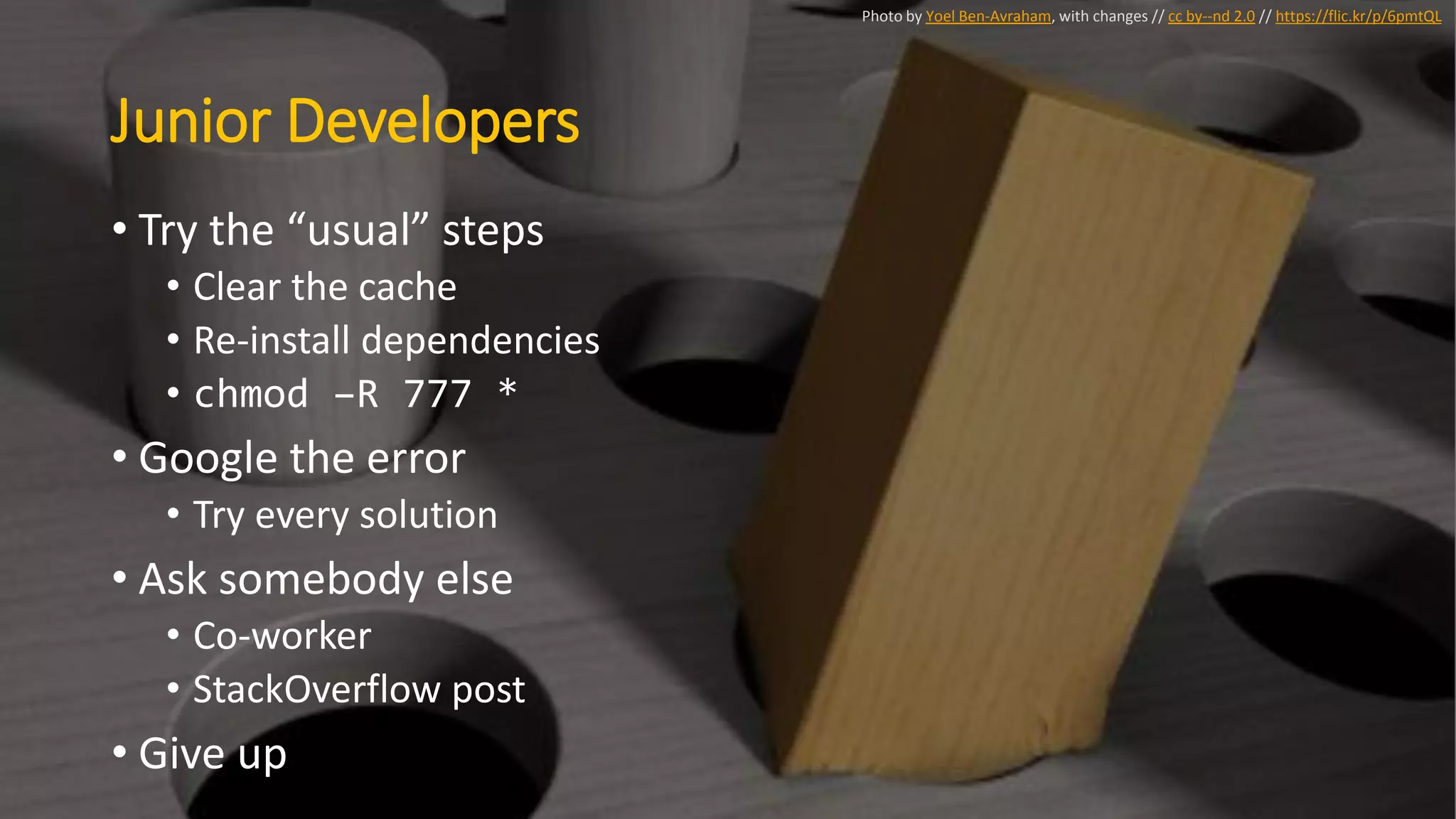

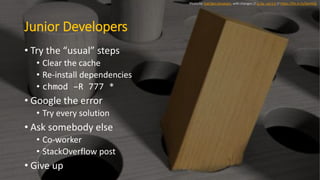

13. Junior Developers
• Try the “usual” steps
• Clear the cache
• Re-install dependencies
• chmod –R 777 *
• Google the error
• Try every solution
• Ask somebody else
• Co-worker
• StackOverflow post
• Give up
Photo by Yoel Ben-Avraham, with changes // cc by--nd 2.0 // https://flic.kr/p/6pmtQL

14. XY Problem
Photo by Yoel Ben-Avraham, with changes // cc by--nd 2.0 // https://flic.kr/p/6pmtQL
•I want to solve problem X
•How do I solve X?

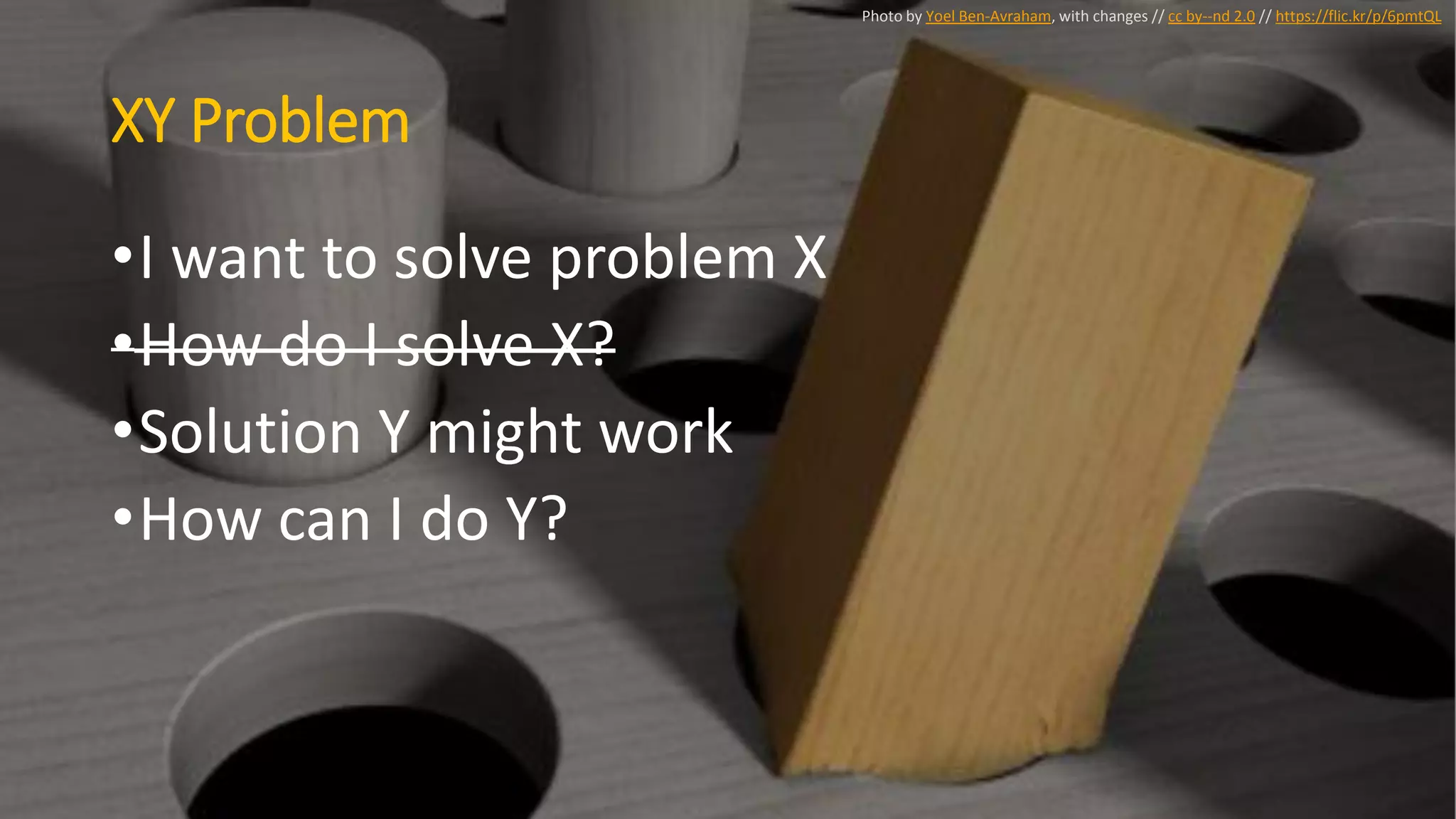

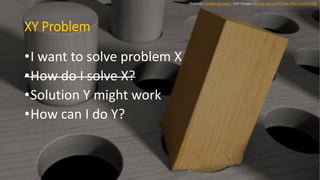

15. XY Problem
Photo by Yoel Ben-Avraham, with changes // cc by--nd 2.0 // https://flic.kr/p/6pmtQL
•I want to solve problem X
•How do I solve X?
•Solution Y might work
•How can I do Y?

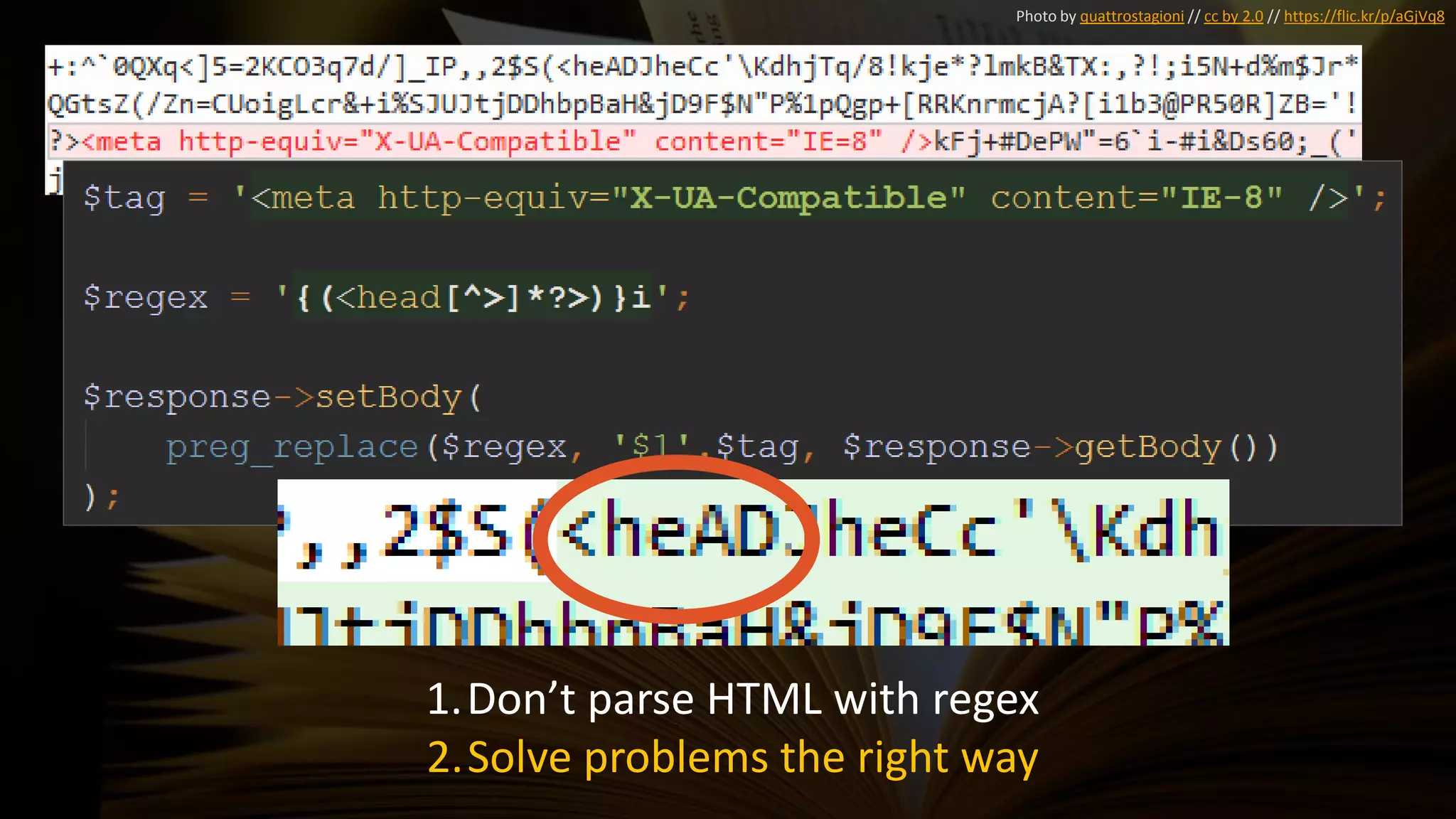

16. Photo by quattrostagioni // cc by 2.0 // https://flic.kr/p/aGjVq8
1.Don’t parse HTML with regex
2.Solve problems the right way

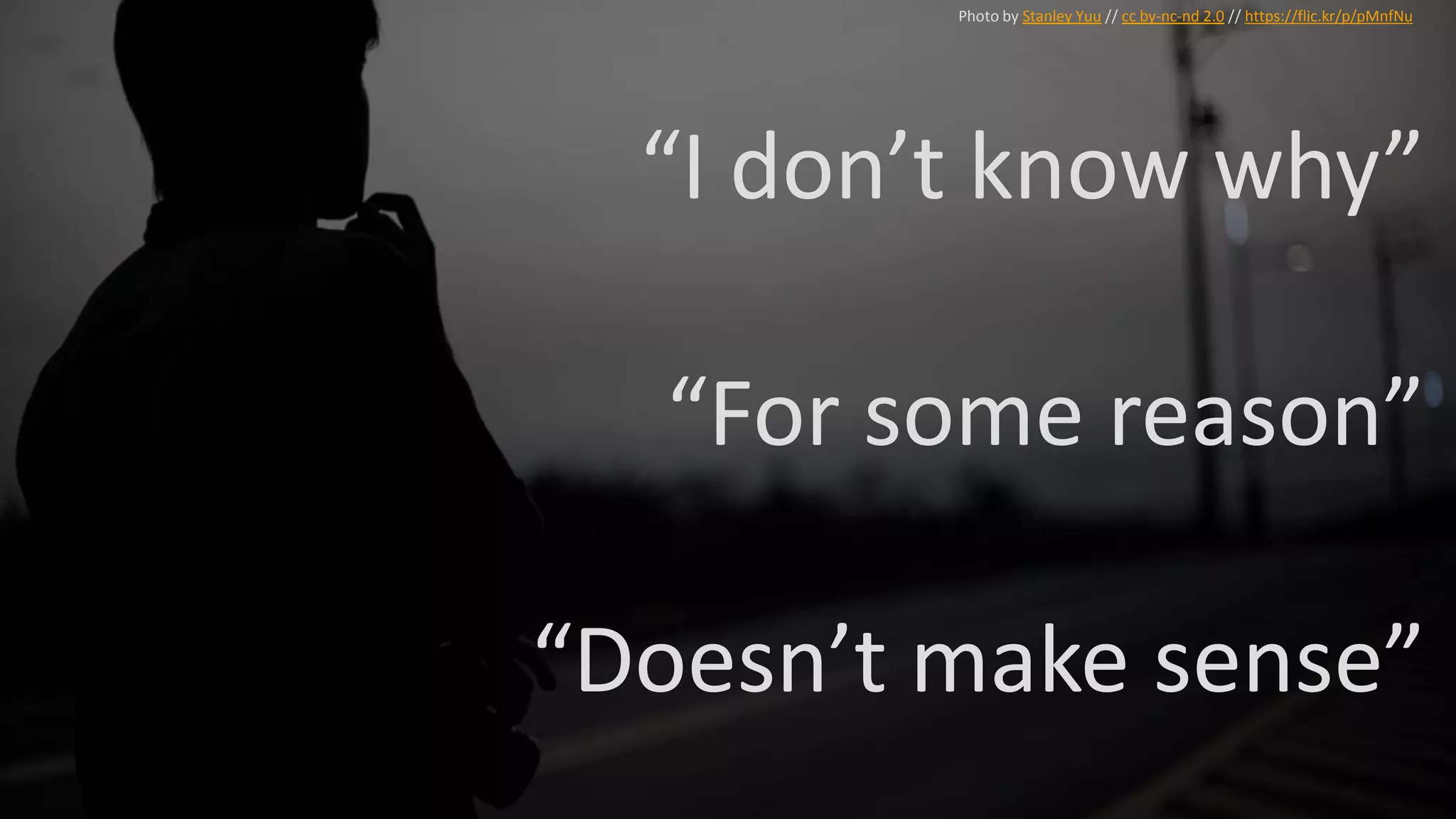

17. “I don’t know why”
“For some reason”
“Doesn’t make sense”
Photo by Stanley Yuu // cc by-nc-nd 2.0 // https://flic.kr/p/pMnfNu

18. Bugs are logical
Photo by Photofest

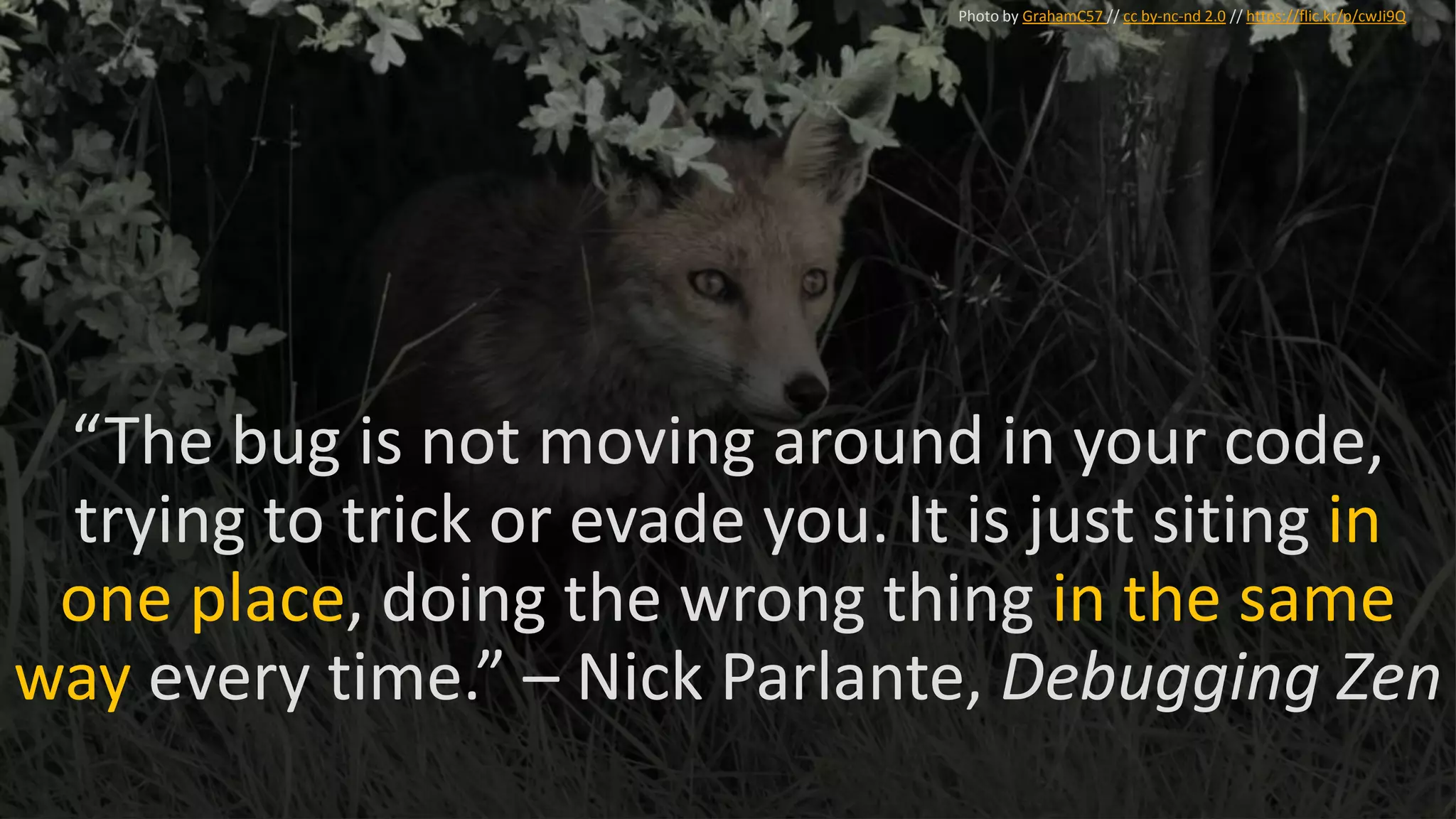

19. “The bug is not moving around in your code,
trying to trick or evade you. It is just siting in
one place, doing the wrong thing in the same
way every time.” – Nick Parlante, Debugging Zen
Photo by GrahamC57 // cc by-nc-nd 2.0 // https://flic.kr/p/cwJi9Q

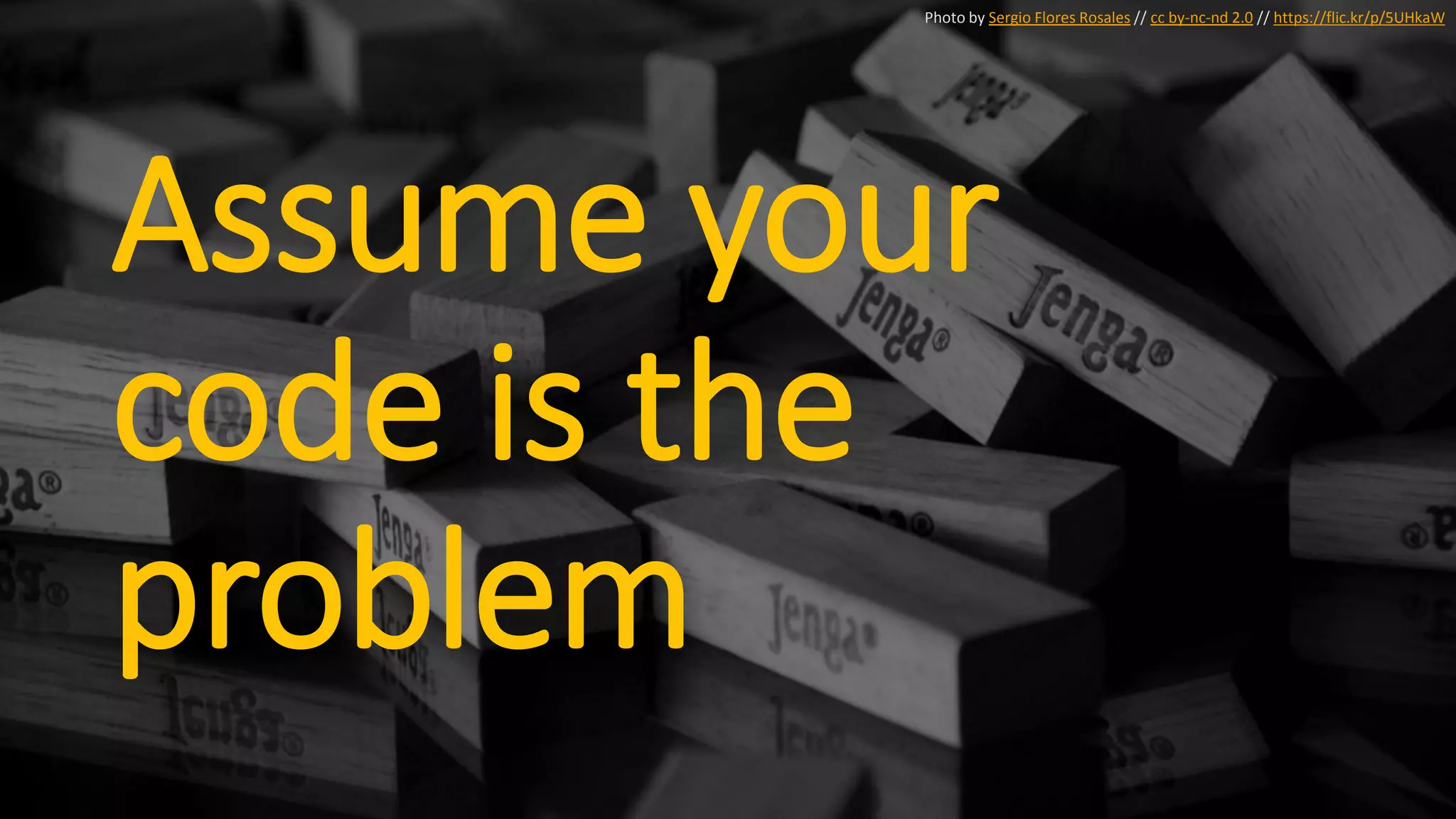

20. Assume your
code is the
problem
Photo by Sergio Flores Rosales // cc by-nc-nd 2.0 // https://flic.kr/p/5UHkaW

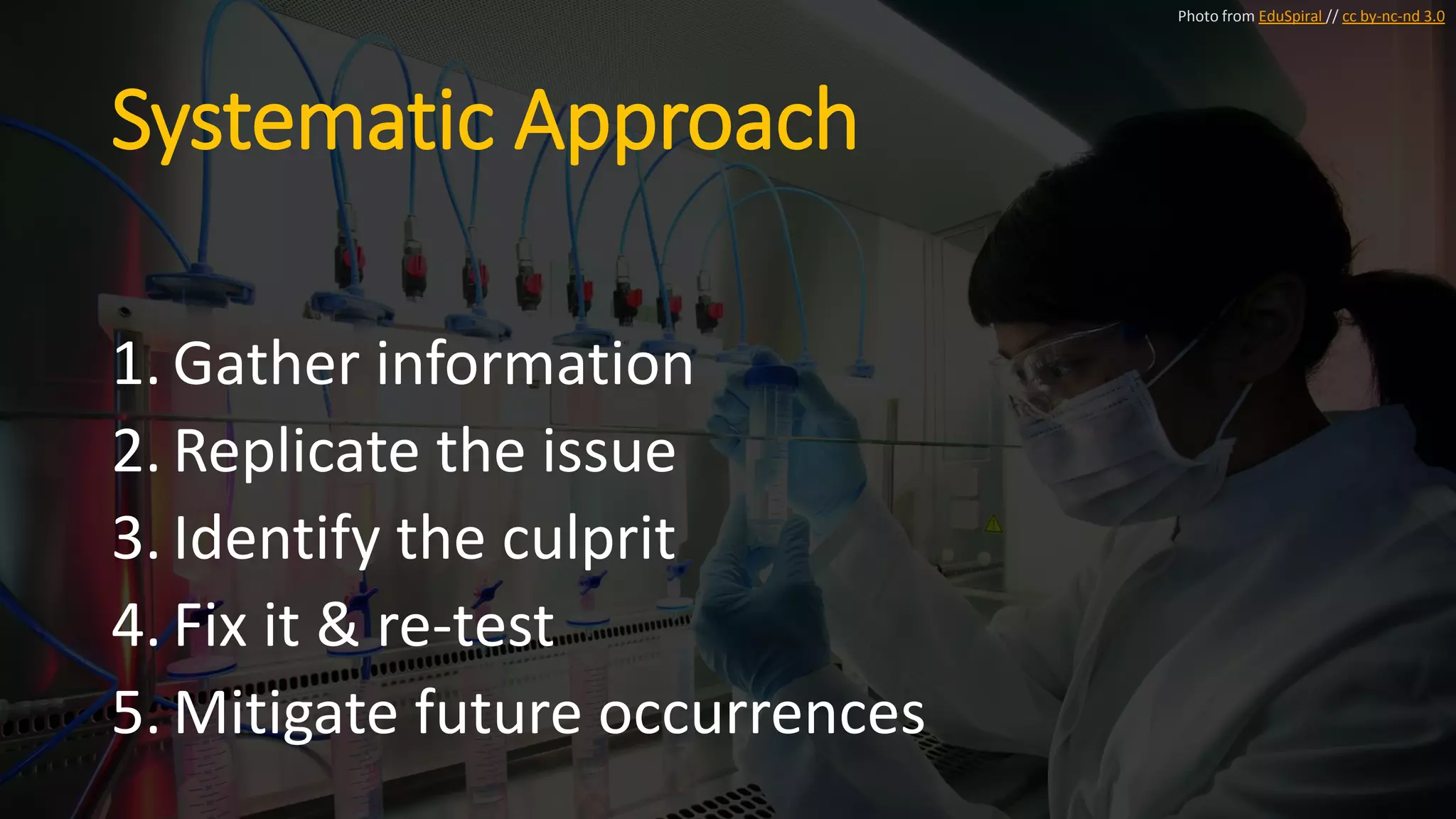

21. Systematic Approach
1. Gather information
2. Replicate the issue
3. Identify the culprit
4. Fix it & re-test
5. Mitigate future occurrences
Photo from EduSpiral // cc by-nc-nd 3.0

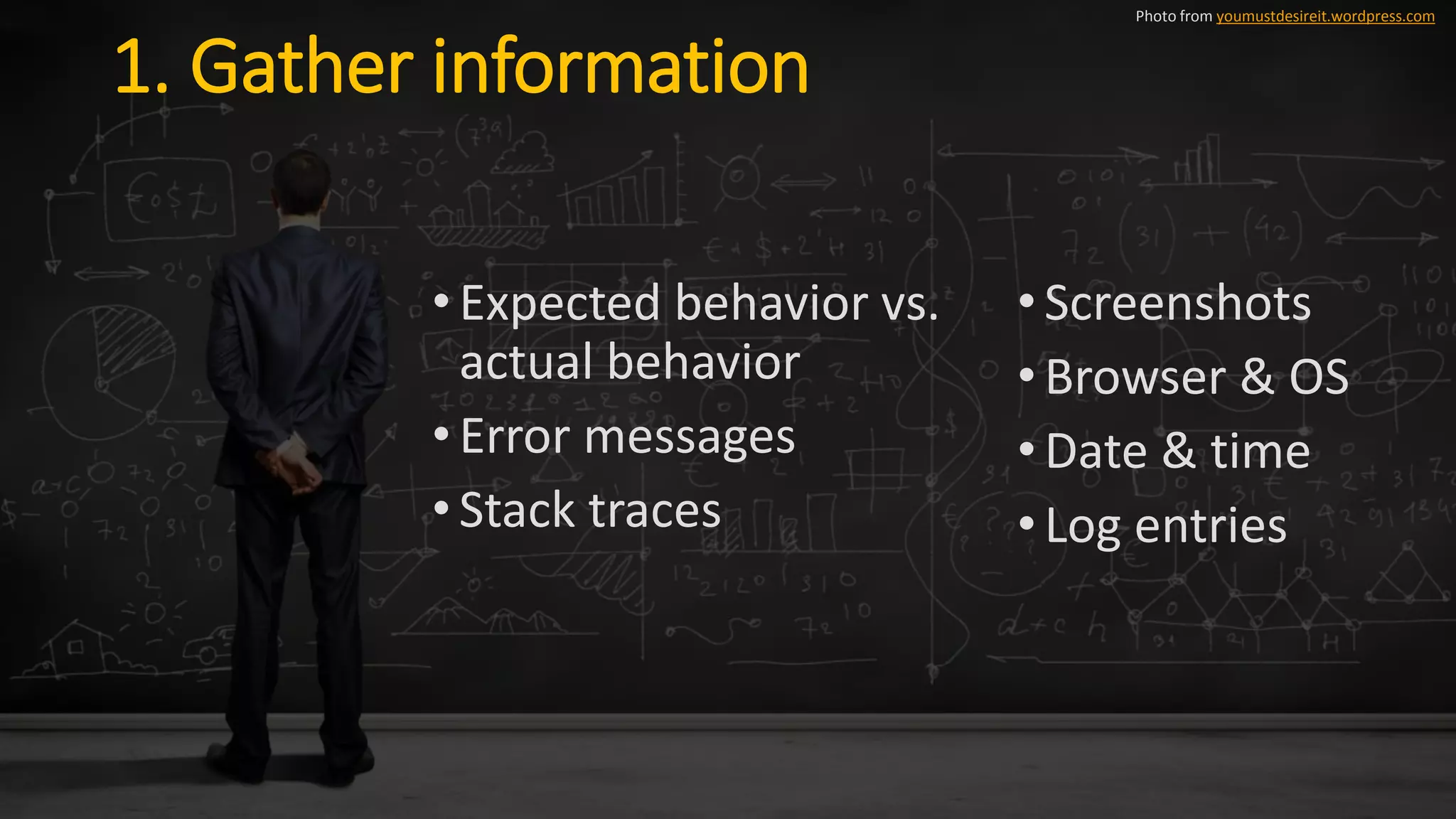

22. 1. Gather information
• Expected behavior vs.
actual behavior
• Error messages
• Stack traces
Photo from youmustdesireit.wordpress.com
•Screenshots
•Browser & OS
•Date & time
•Log entries

23. 2. Replicate the Issue
Be able to replicate with 100% certainty
Photo by Nick Royer // cc by-sa // https://flic.kr/p/d41ASC

24. 3. Identify the Culprit
Photo by U.S. Navy // cc 2.0 // https://flic.kr/p/n6Wgks
• Be methodical
• Make no assumptions
• Understand the bug

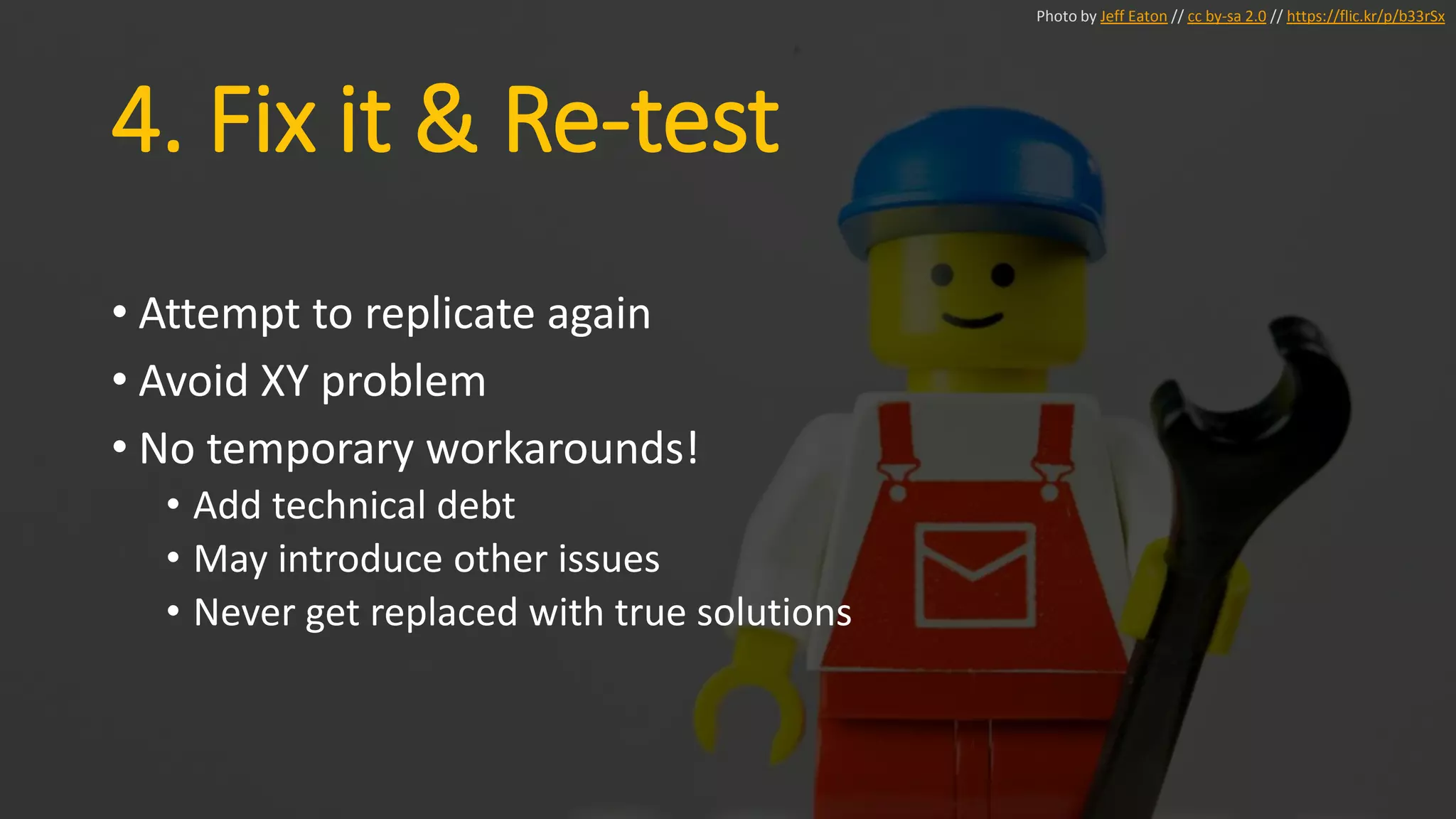

25. 4. Fix it & Re-test
• Attempt to replicate again
• Avoid XY problem
• No temporary workarounds!
• Add technical debt
• May introduce other issues
• Never get replaced with true solutions
Photo by Jeff Eaton // cc by-sa 2.0 // https://flic.kr/p/b33rSx

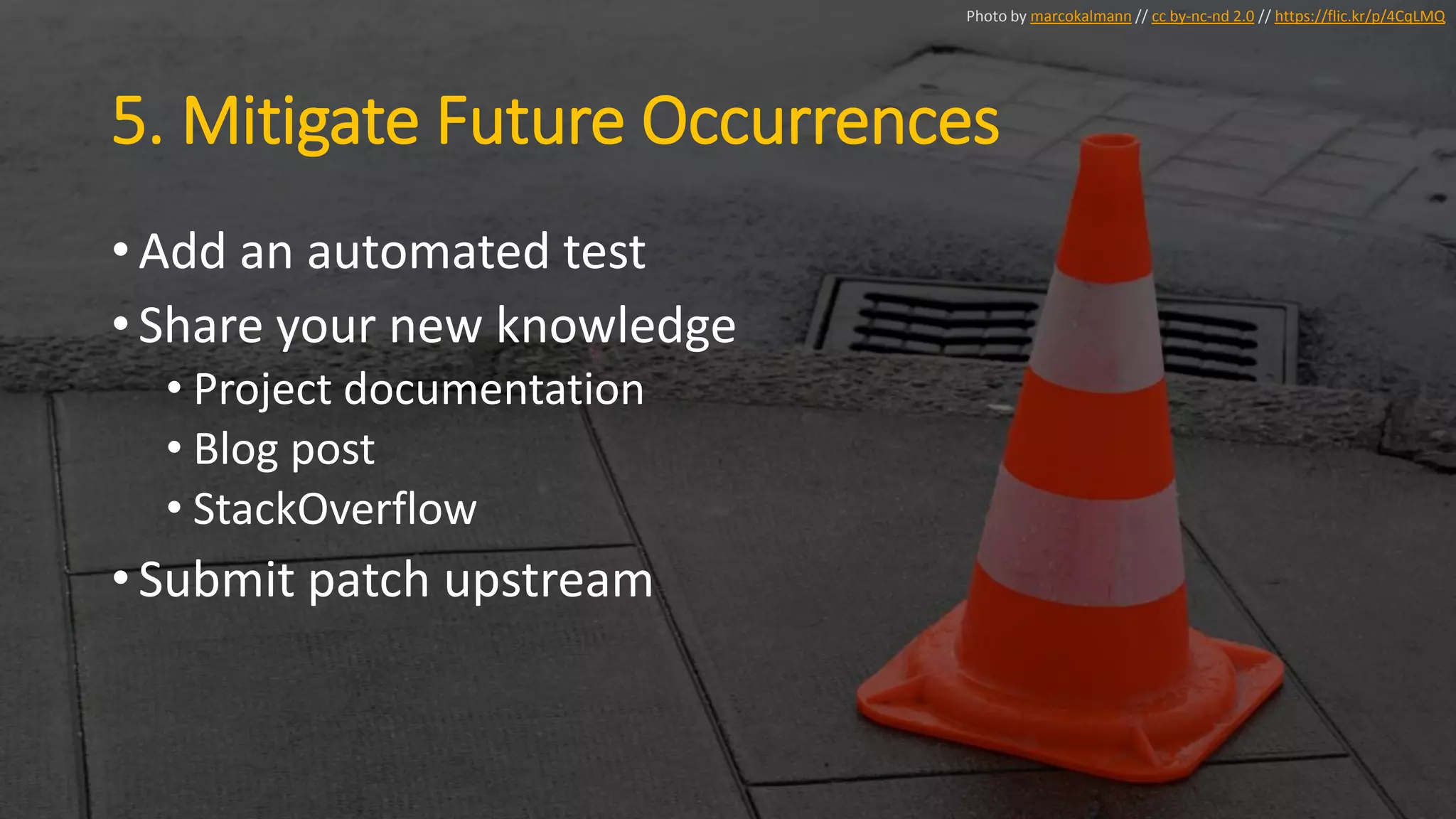

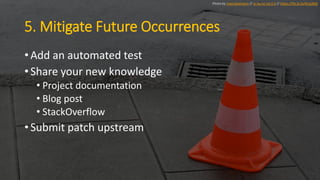

26. 5. Mitigate Future Occurrences
• Add an automated test
• Share your new knowledge
• Project documentation
• Blog post
• StackOverflow
• Submit patch upstream
Photo by marcokalmann // cc by-nc-nd 2.0 // https://flic.kr/p/4CqLMQ

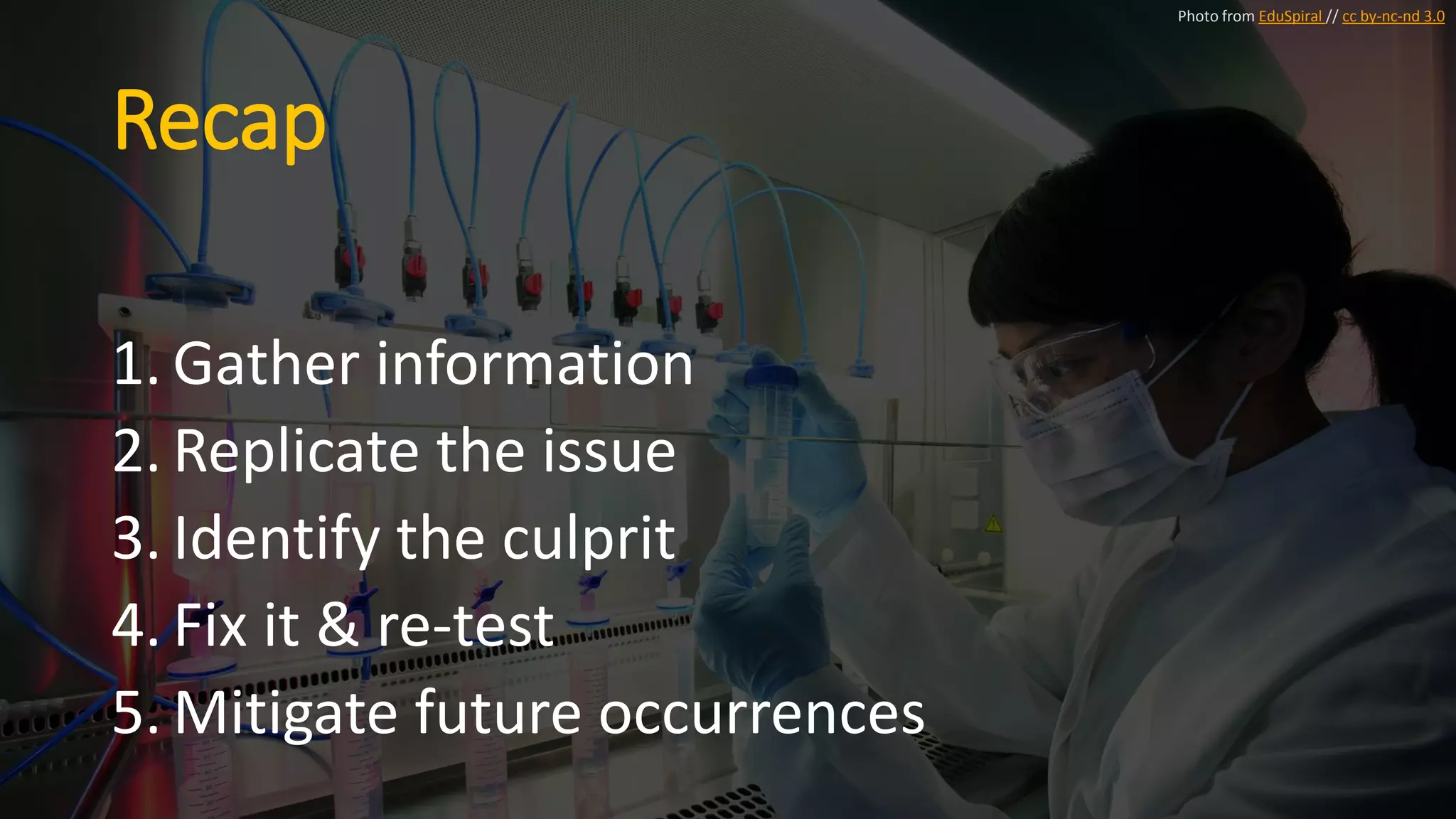

27. Recap
1. Gather information
2. Replicate the issue
3. Identify the culprit
4. Fix it & re-test
5. Mitigate future occurrences
Photo from EduSpiral // cc by-nc-nd 3.0

28. Long-Term Results
• Gain experience
• Learn how the system works
• Build heuristics
• Boost confidence
Photo by Glenn Beltz // cc by 2.0 // https://flic.kr/p/i7Csdx

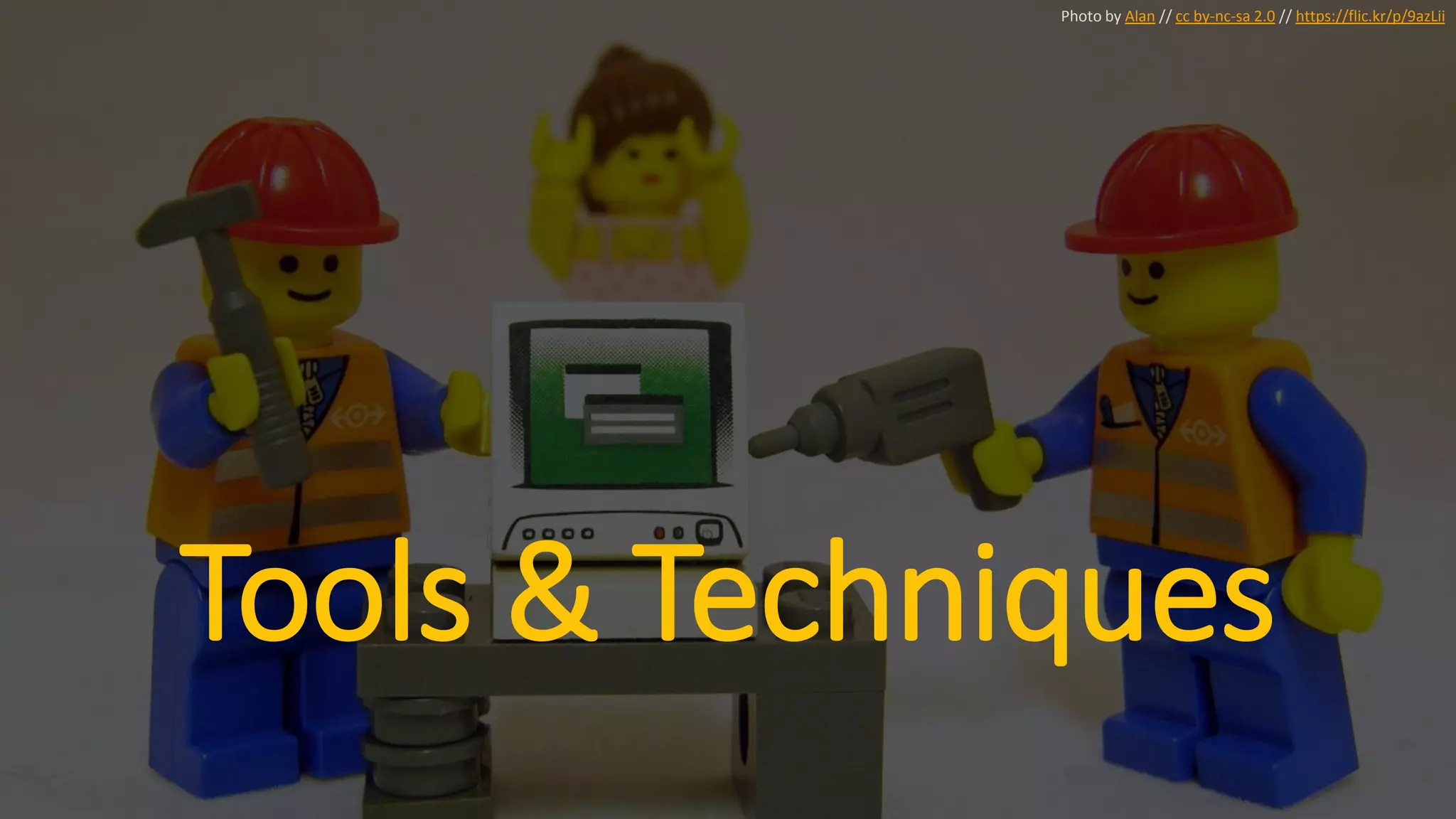

29. Tools & Techniques
Photo by Alan // cc by-nc-sa 2.0 // https://flic.kr/p/9azLii

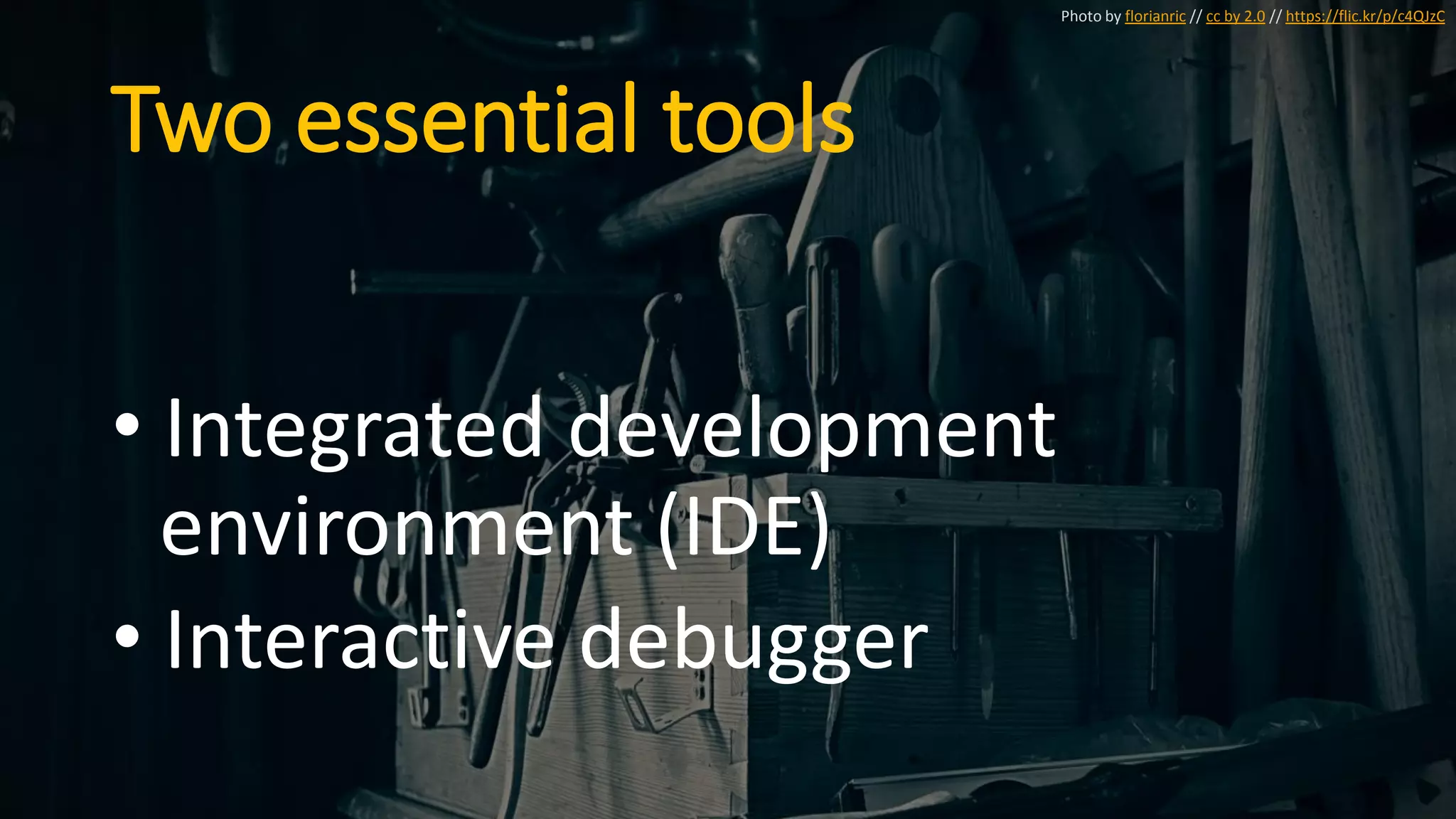

30. Two essential tools
• Integrated development
environment (IDE)
• Interactive debugger
Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC

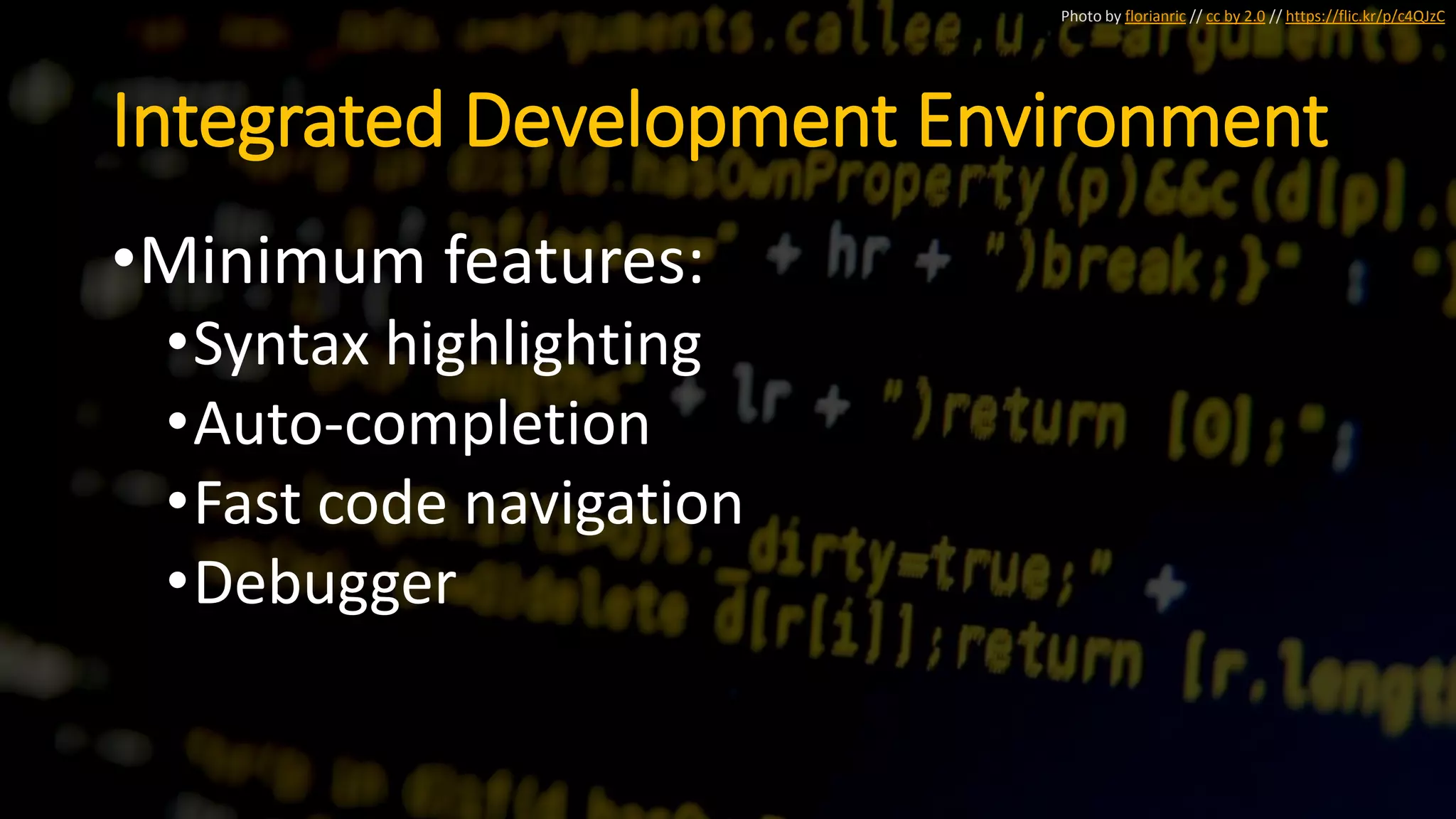

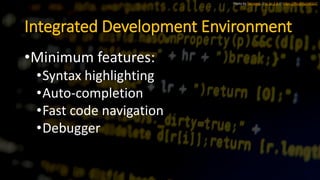

31. Integrated Development Environment
•Minimum features:
•Syntax highlighting
•Auto-completion
•Fast code navigation
•Debugger
Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC

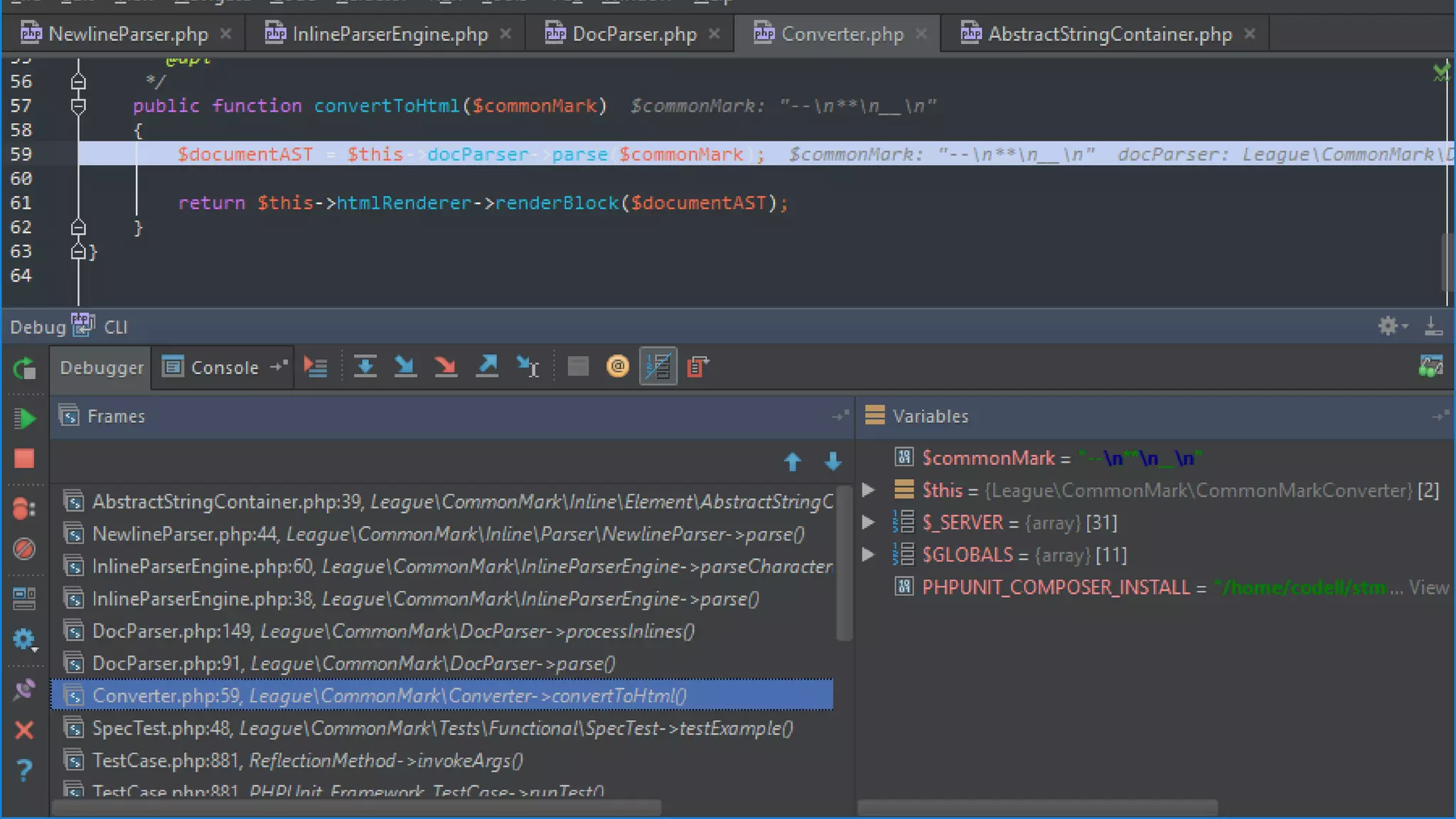

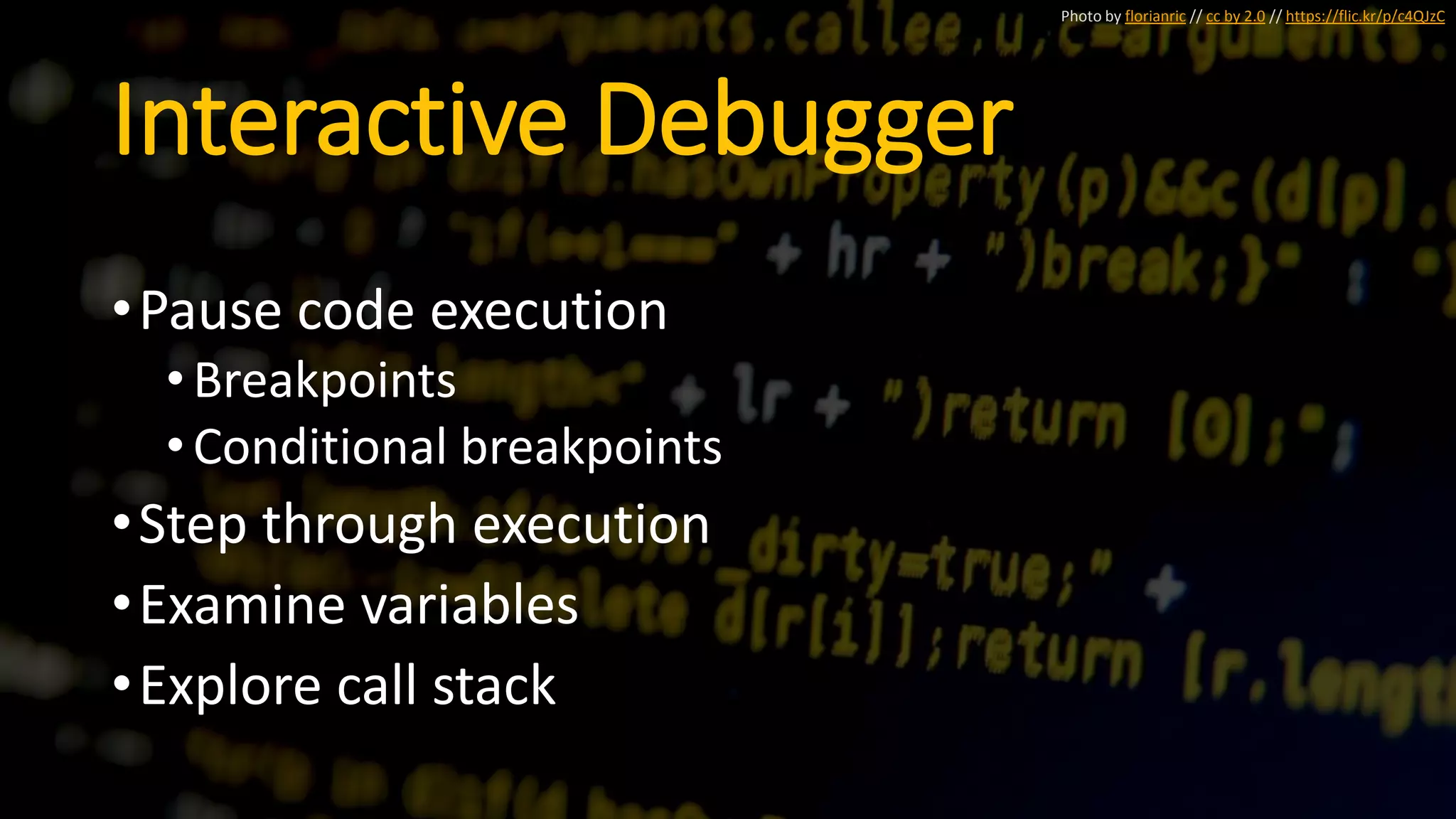

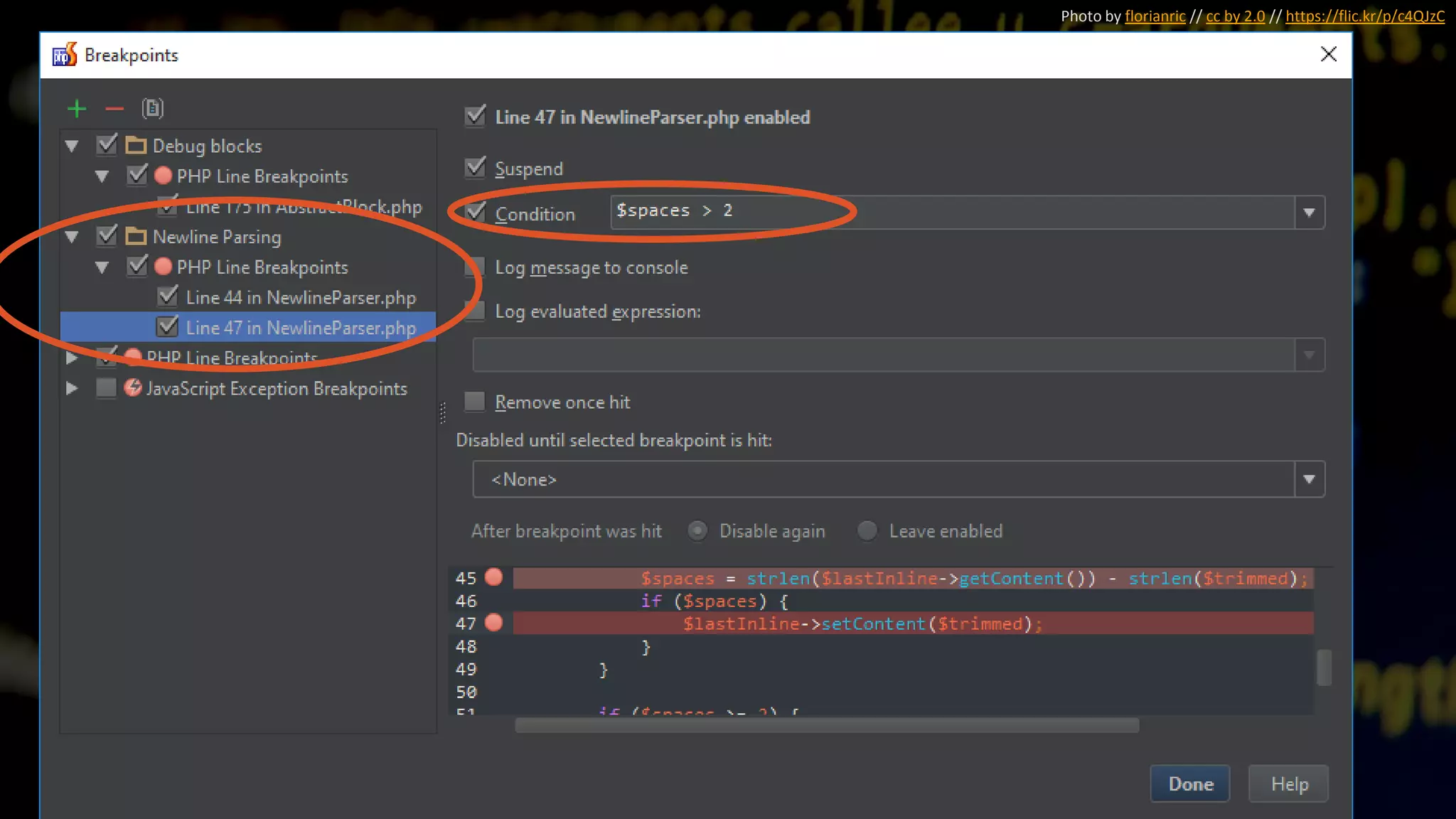

32. Interactive Debugger
•Pause code execution
•Breakpoints
•Conditional breakpoints
•Step through execution
•Examine variables
•Explore call stack
Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC

34. Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC

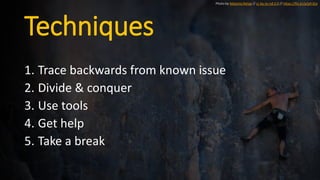

35. Techniques
1. Trace backwards from known issue
2. Divide & conquer
3. Use tools
4. Get help
5. Take a break
Photo by Massmo Relsig // cc by-nc-nd 2.0 // https://flic.kr/p/pFrJCe

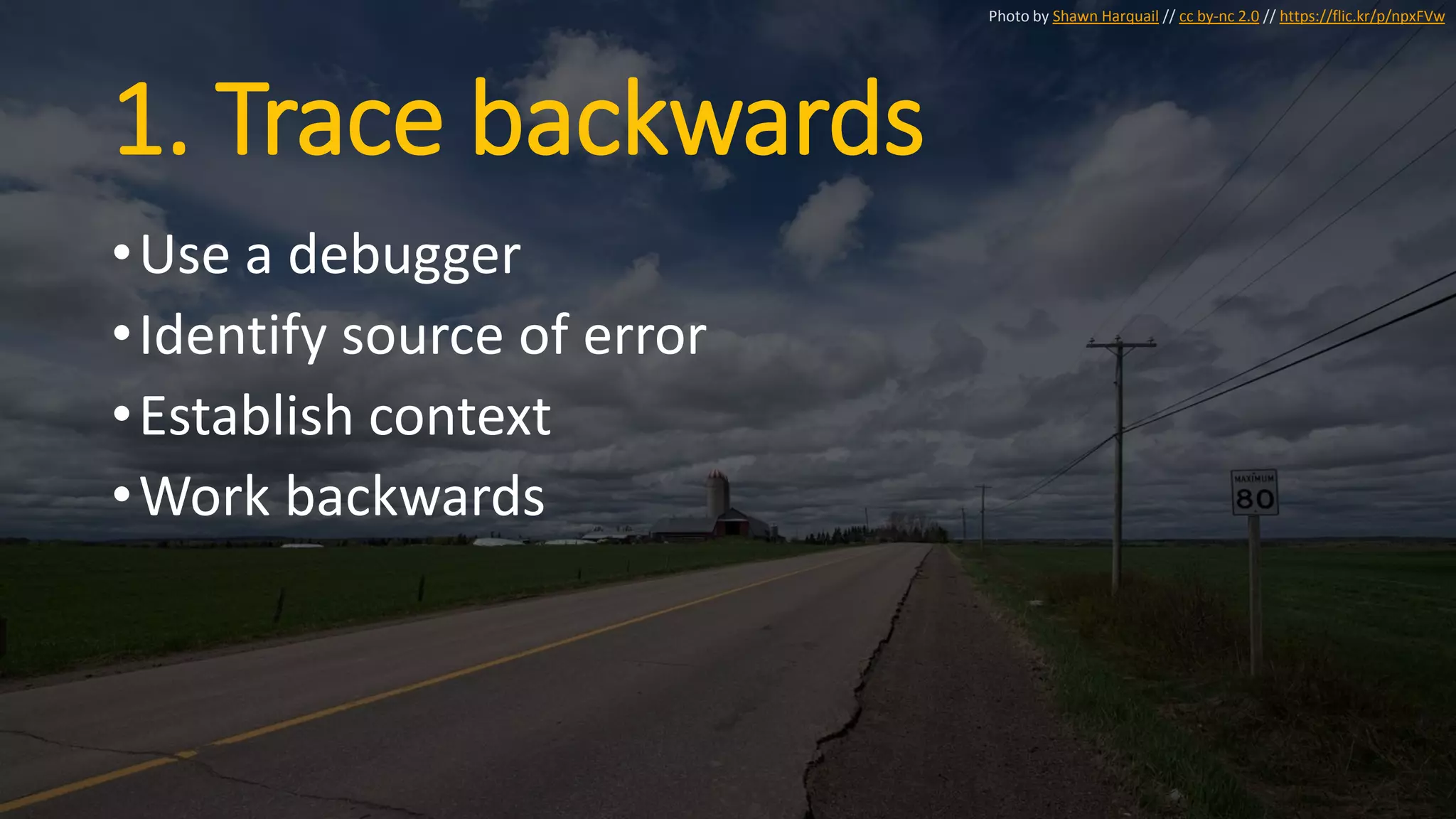

36. 1. Trace backwards
•Use a debugger
•Identify source of error
•Establish context
•Work backwards
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

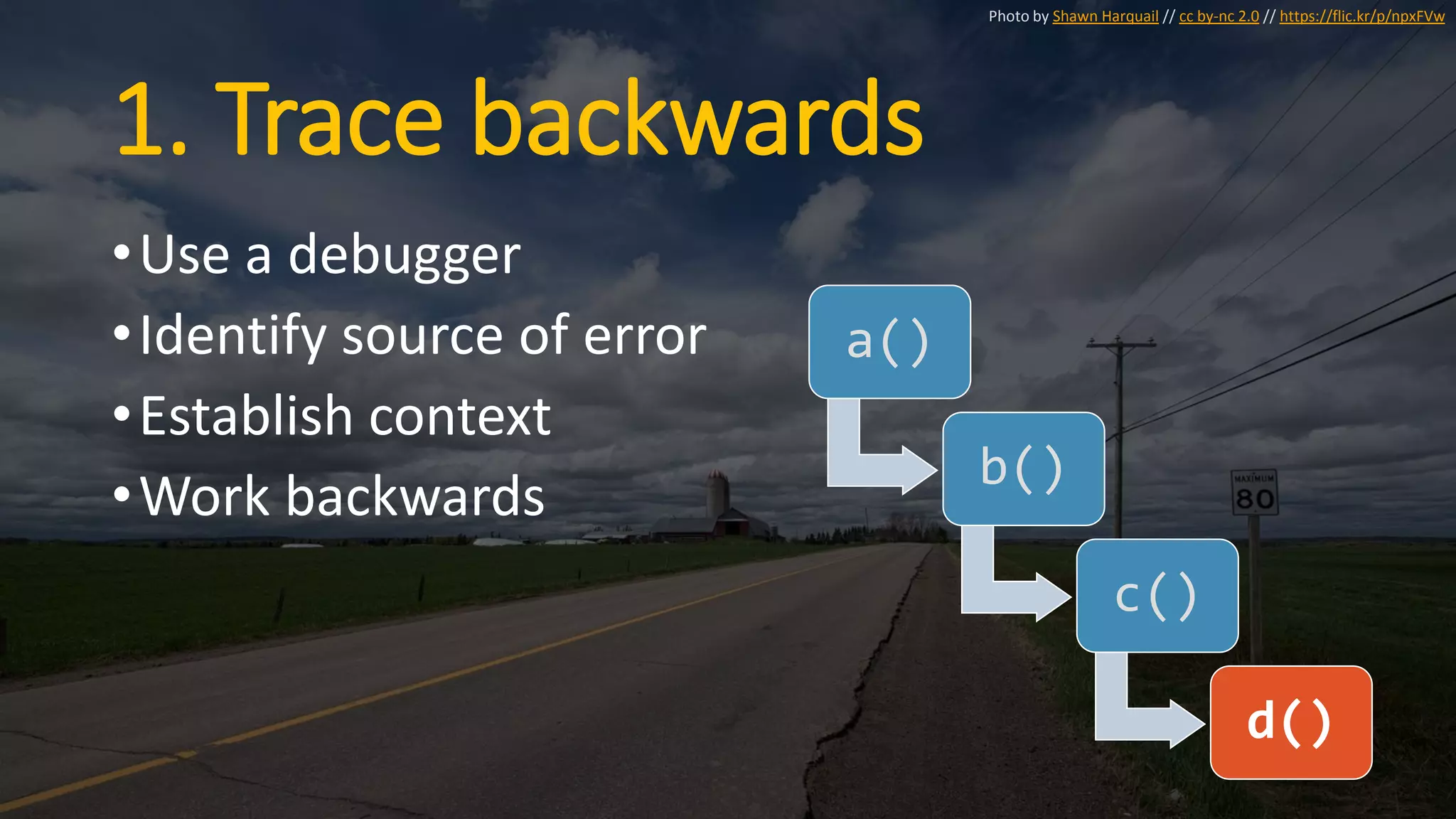

37. 1. Trace backwards
•Use a debugger
•Identify source of error
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

38. 1. Trace backwards
•Use a debugger
•Identify source of error
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

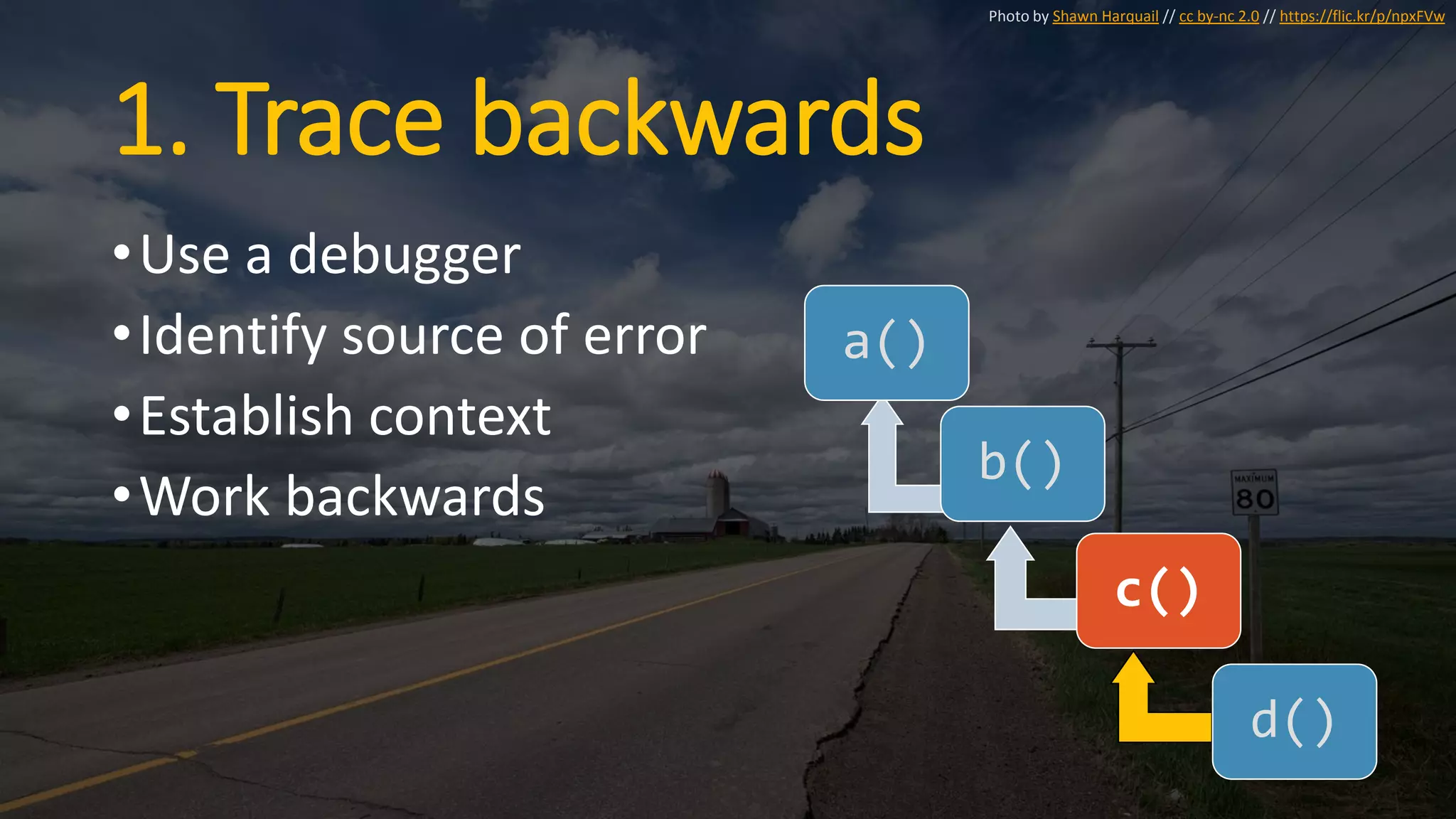

39. 1. Trace backwards
•Use a debugger
•Identify source of error
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

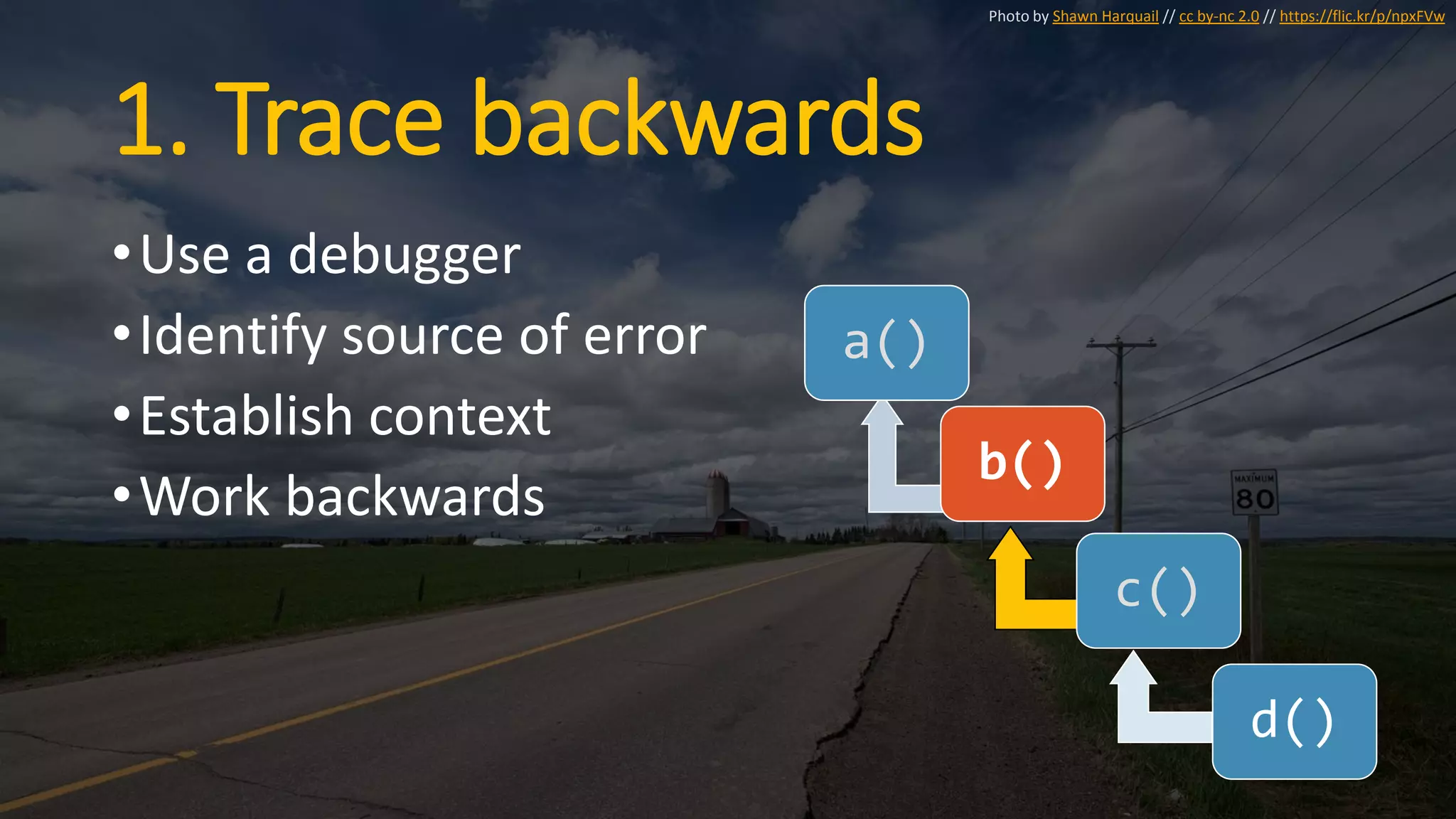

40. 1. Trace backwards
•Use a debugger
•Identify source of error
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

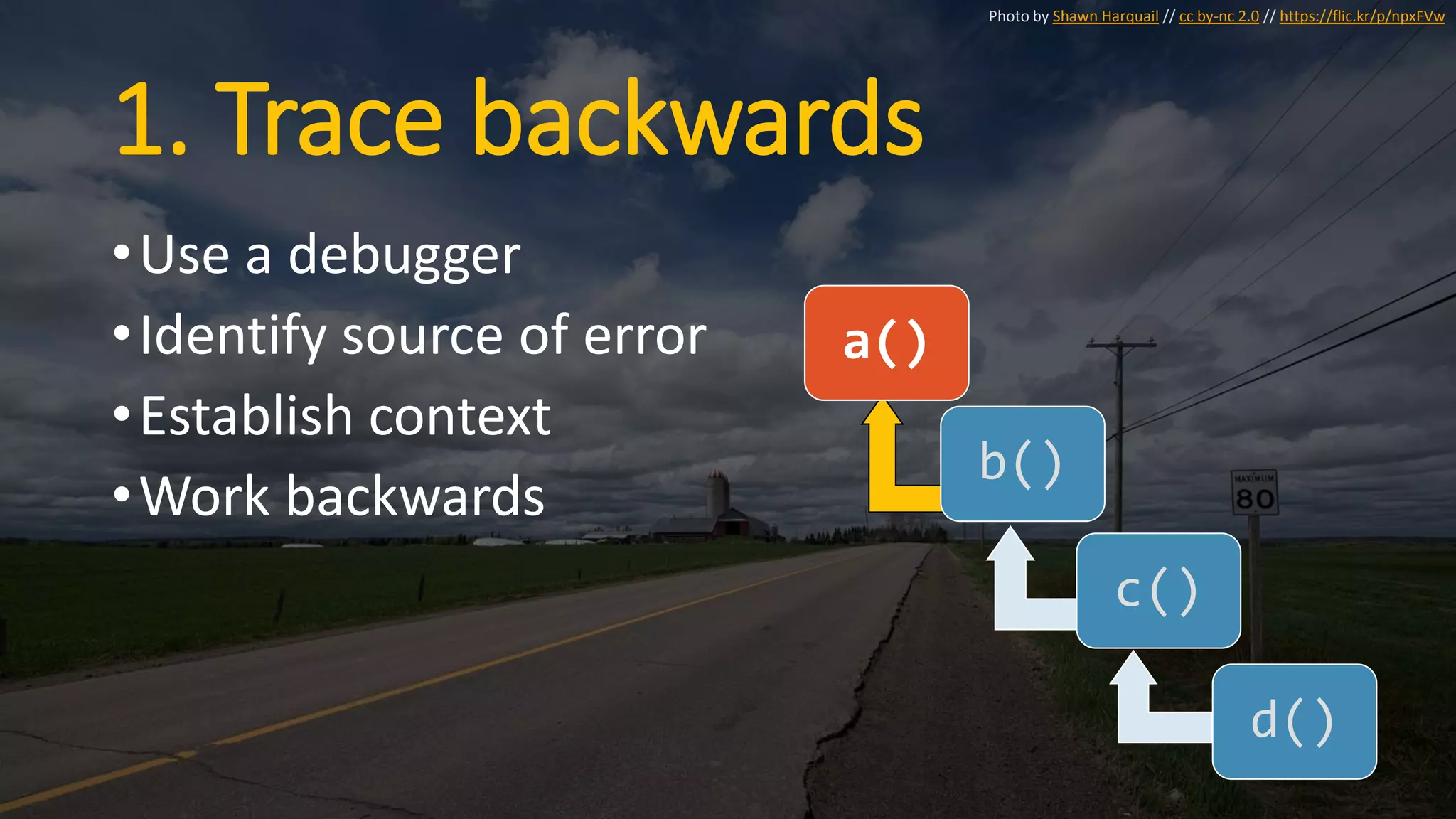

41. 1. Trace backwards
•Use a debugger
•Identify source of error
•Establish context
•Work backwards
a()
b()
c()
d()
Photo by Shawn Harquail // cc by-nc 2.0 // https://flic.kr/p/npxFVw

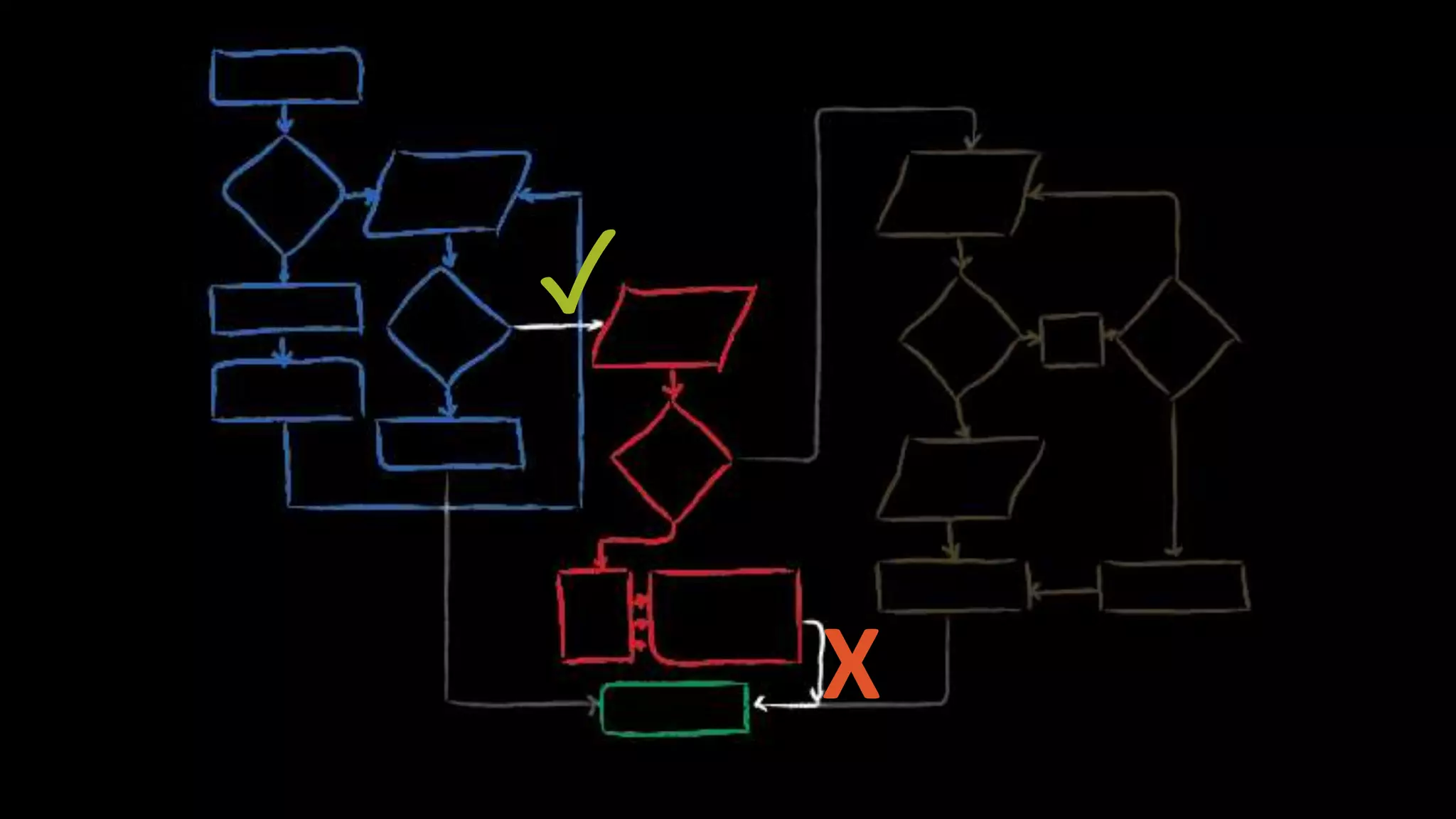

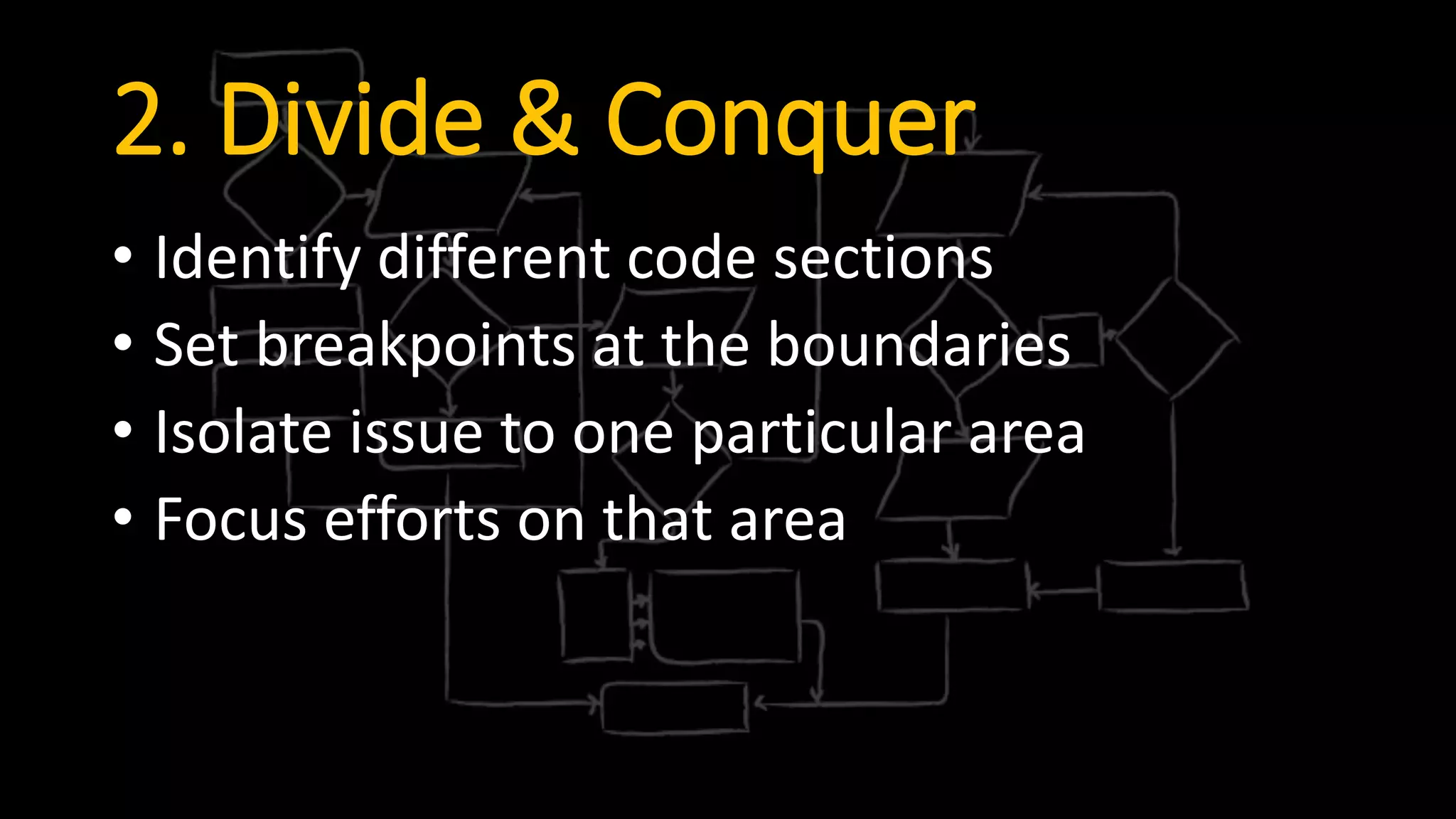

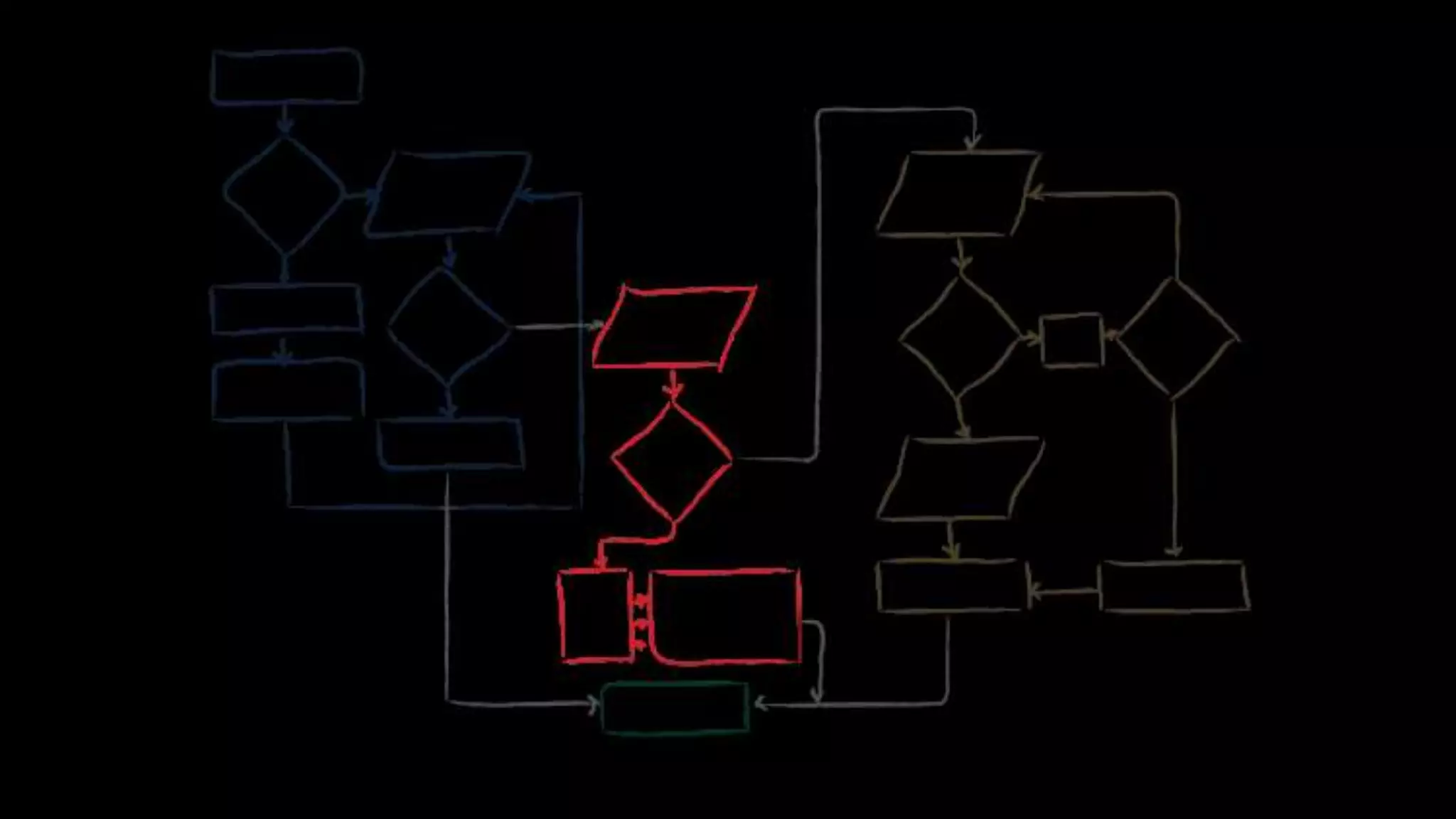

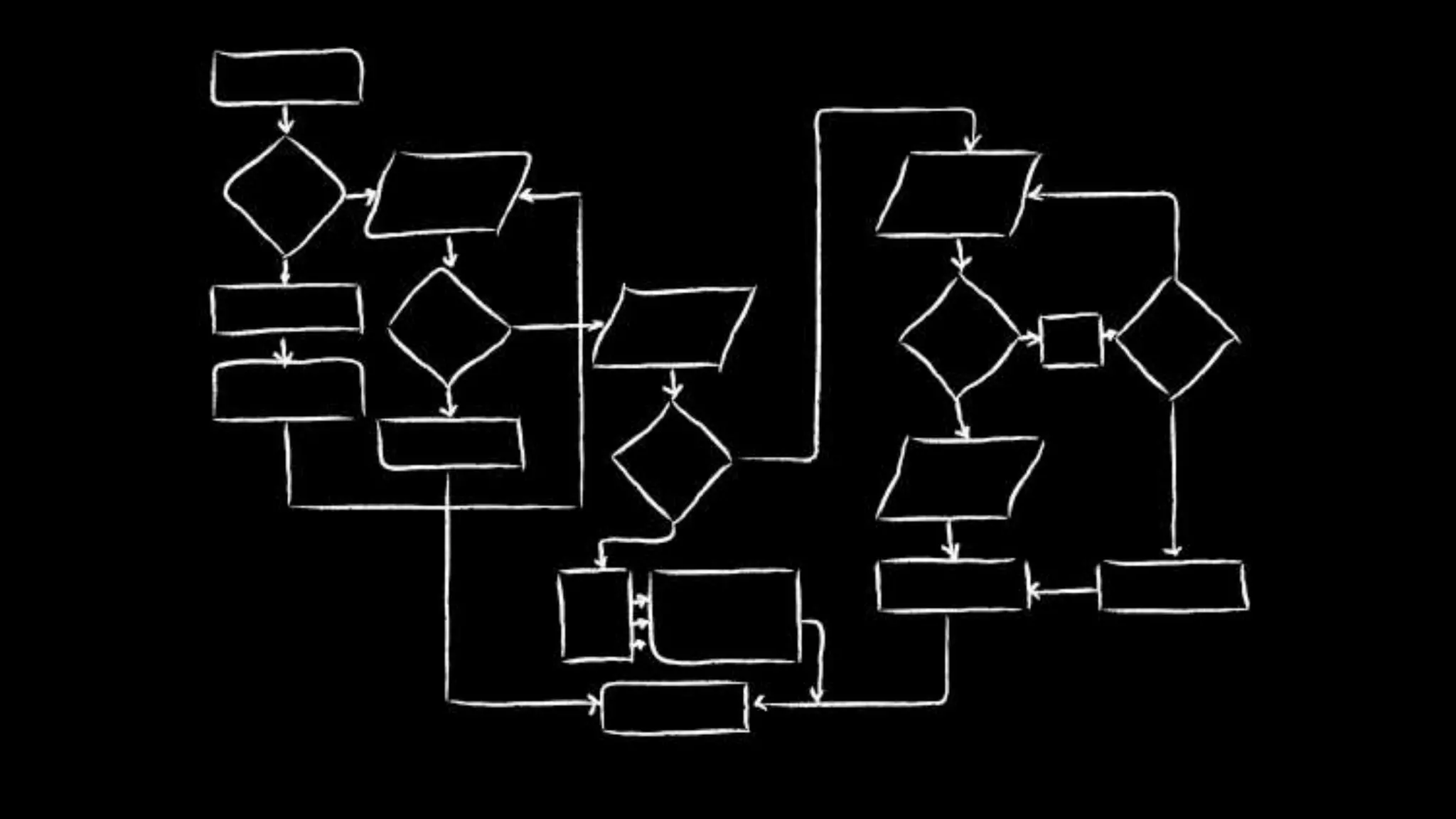

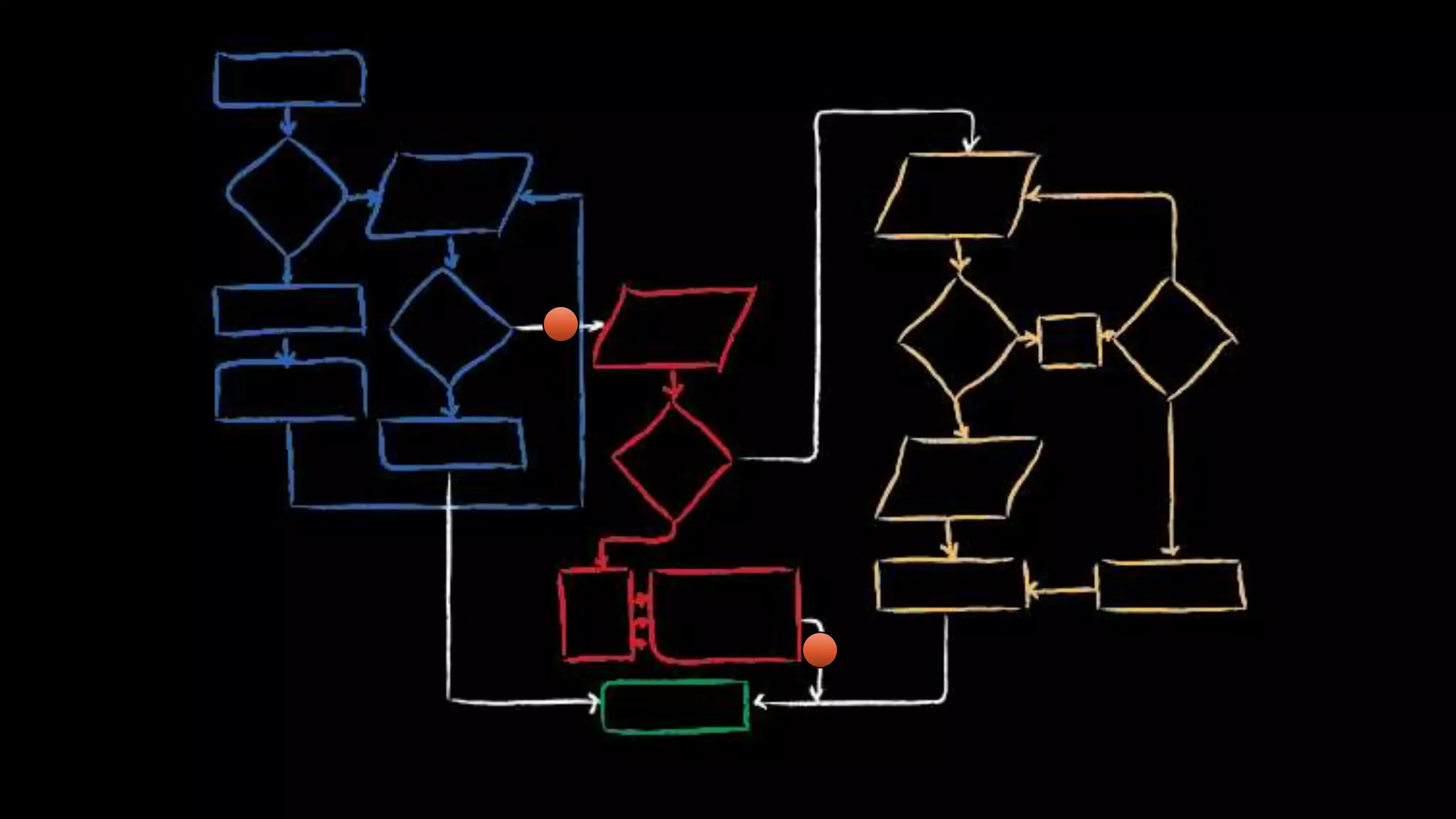

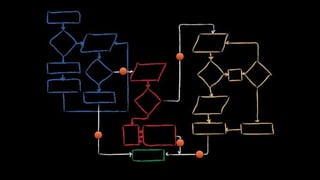

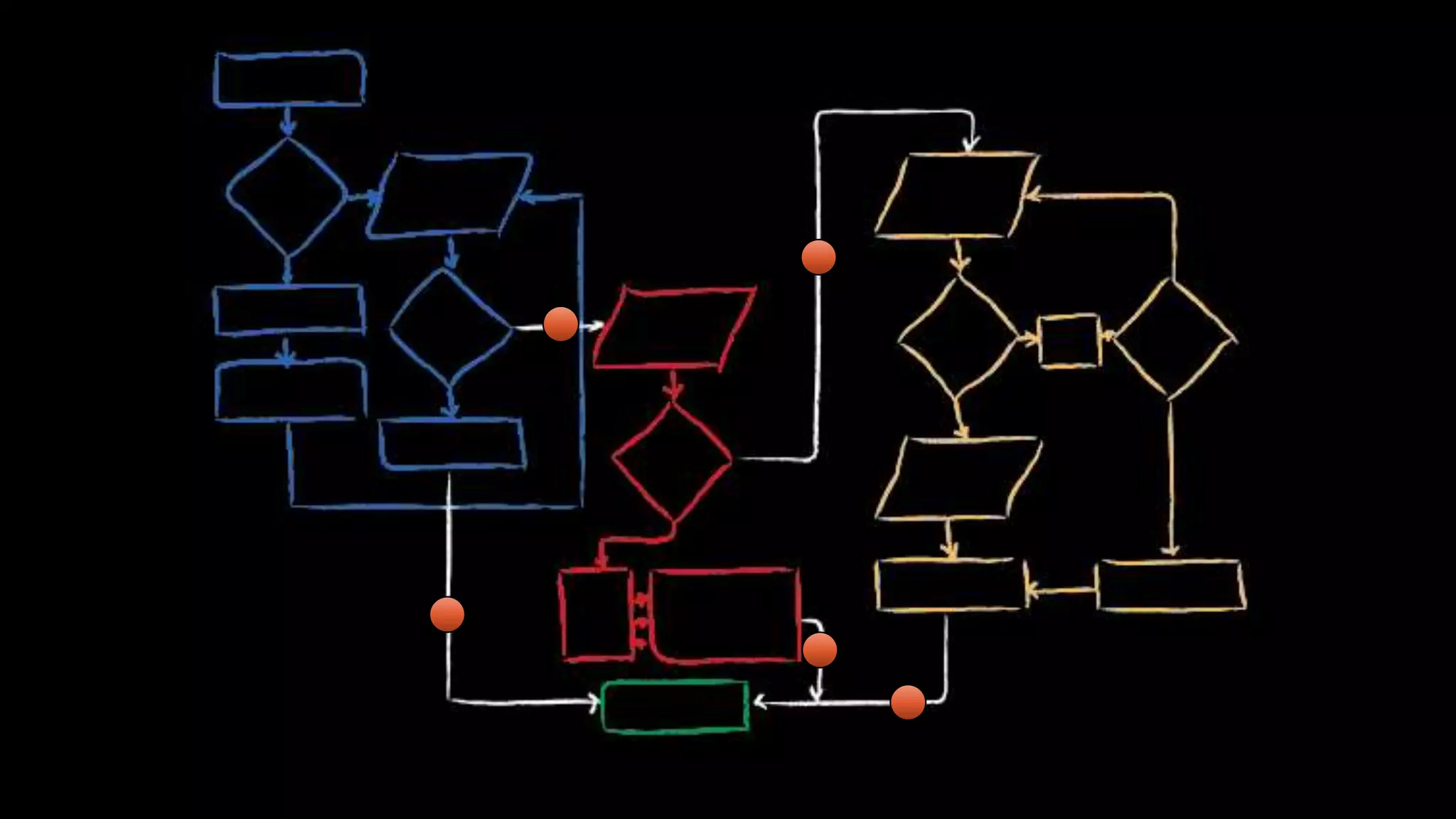

42. 2. Divide & Conquer
• Identify different code sections
• Set breakpoints at the boundaries
• Isolate issue to one particular area
• Focus efforts on that area

46. ✓
X

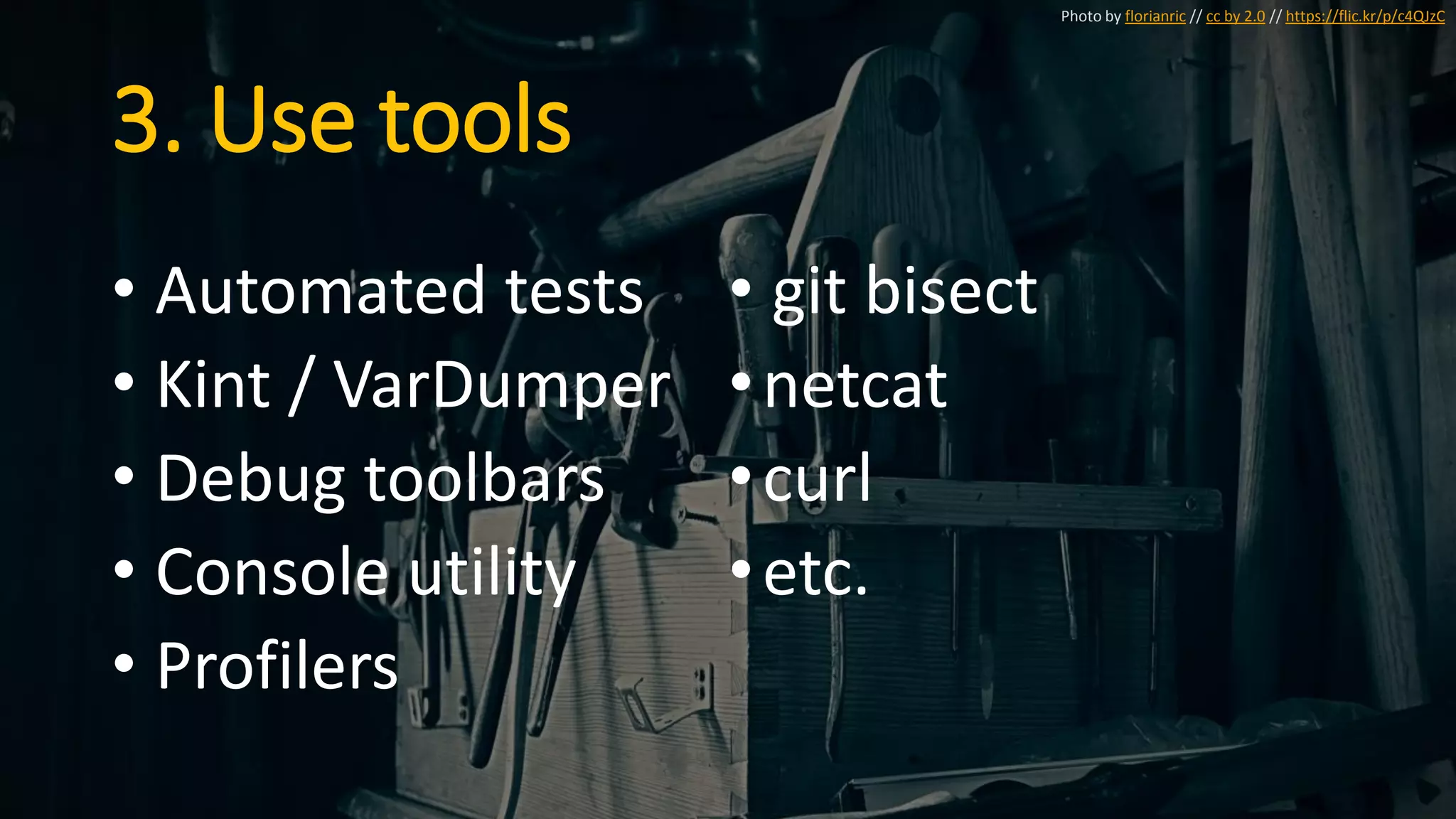

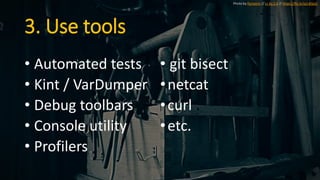

48. 3. Use tools
• Automated tests
• Kint / VarDumper
• Debug toolbars
• Console utility
• Profilers
• git bisect
•netcat
•curl
•etc.
Photo by florianric // cc by 2.0 // https://flic.kr/p/c4QJzC

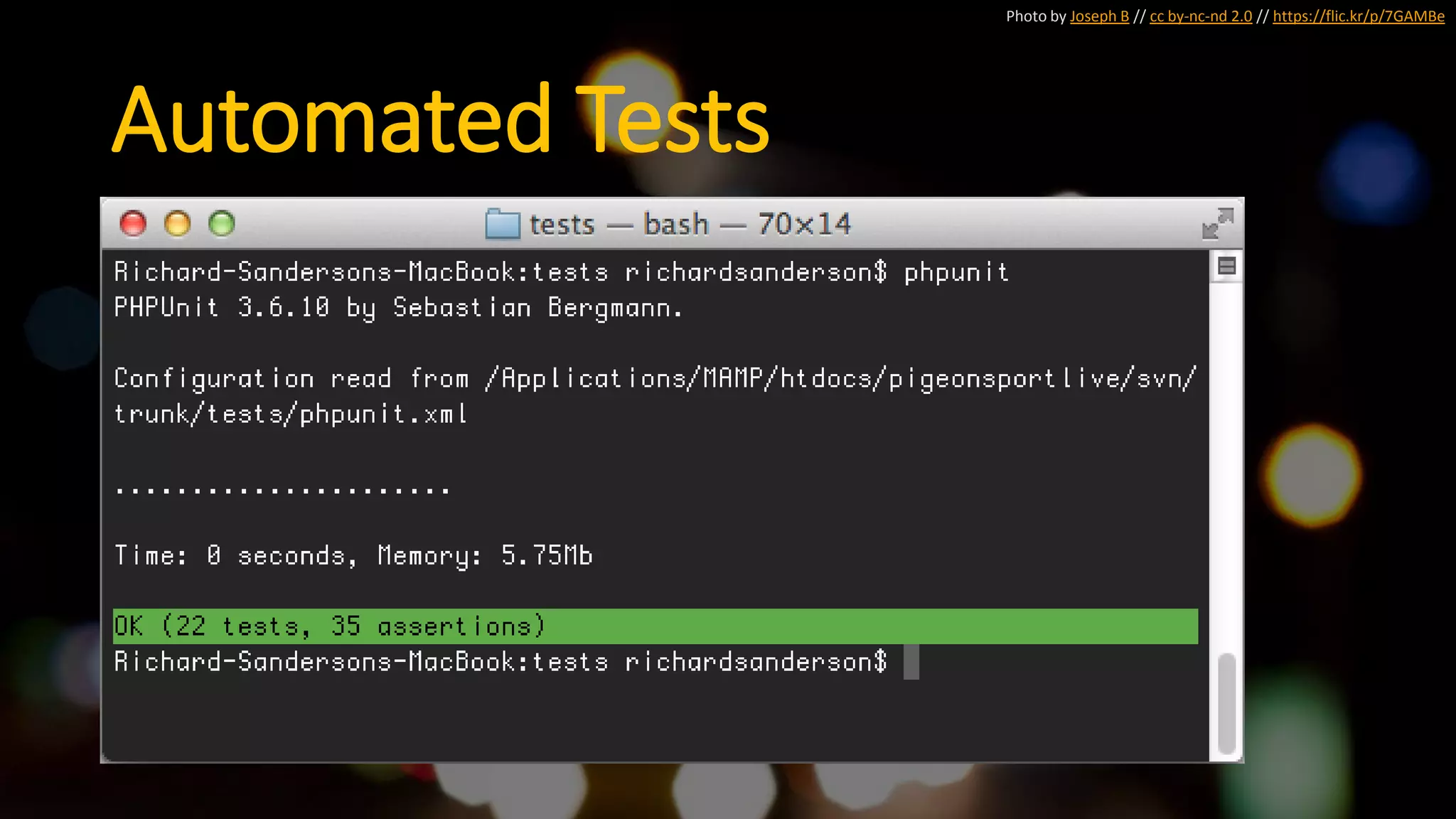

49. Automated Tests
Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe

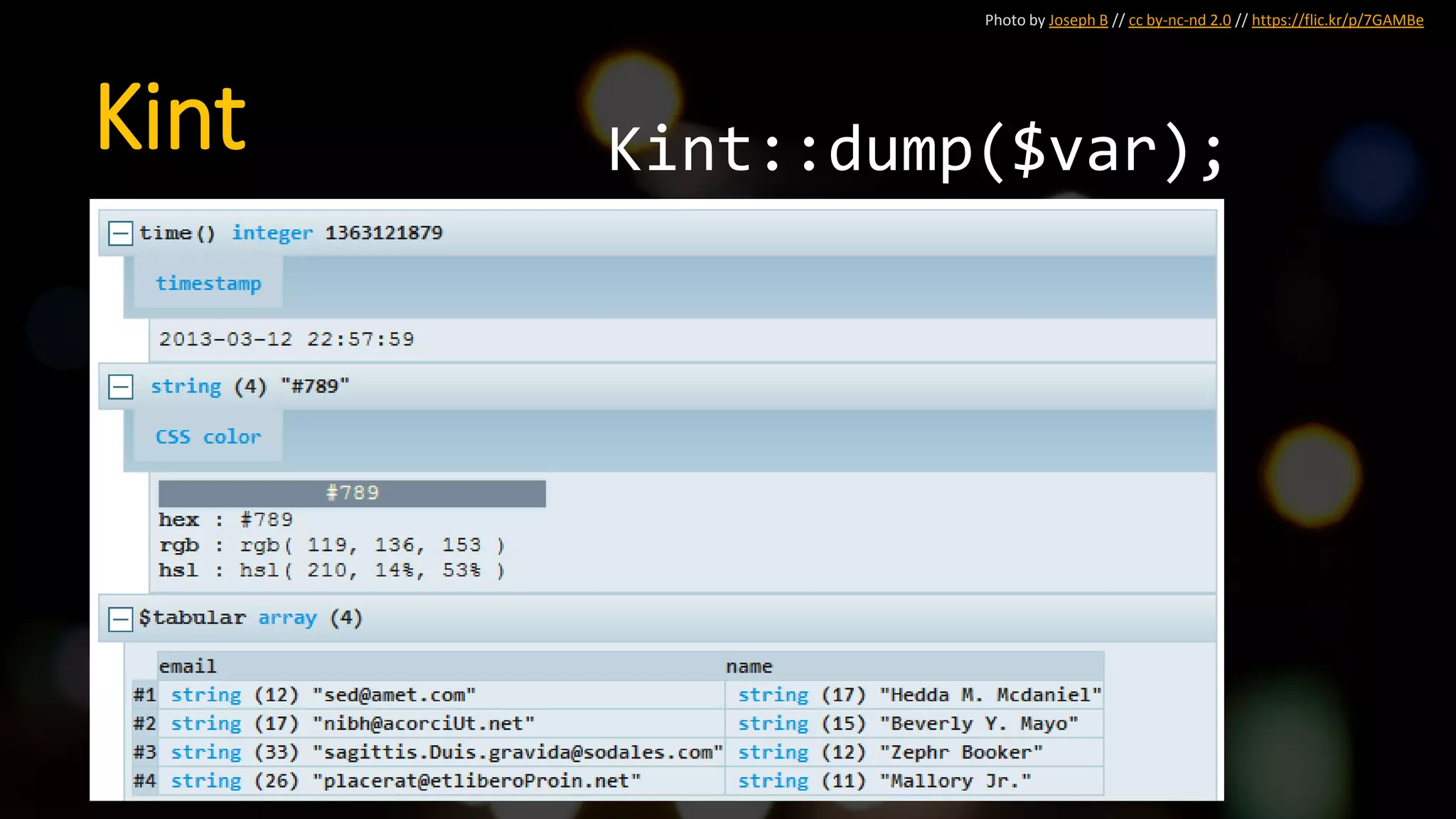

50. Kint
Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
Kint::dump($var);

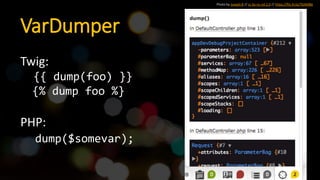

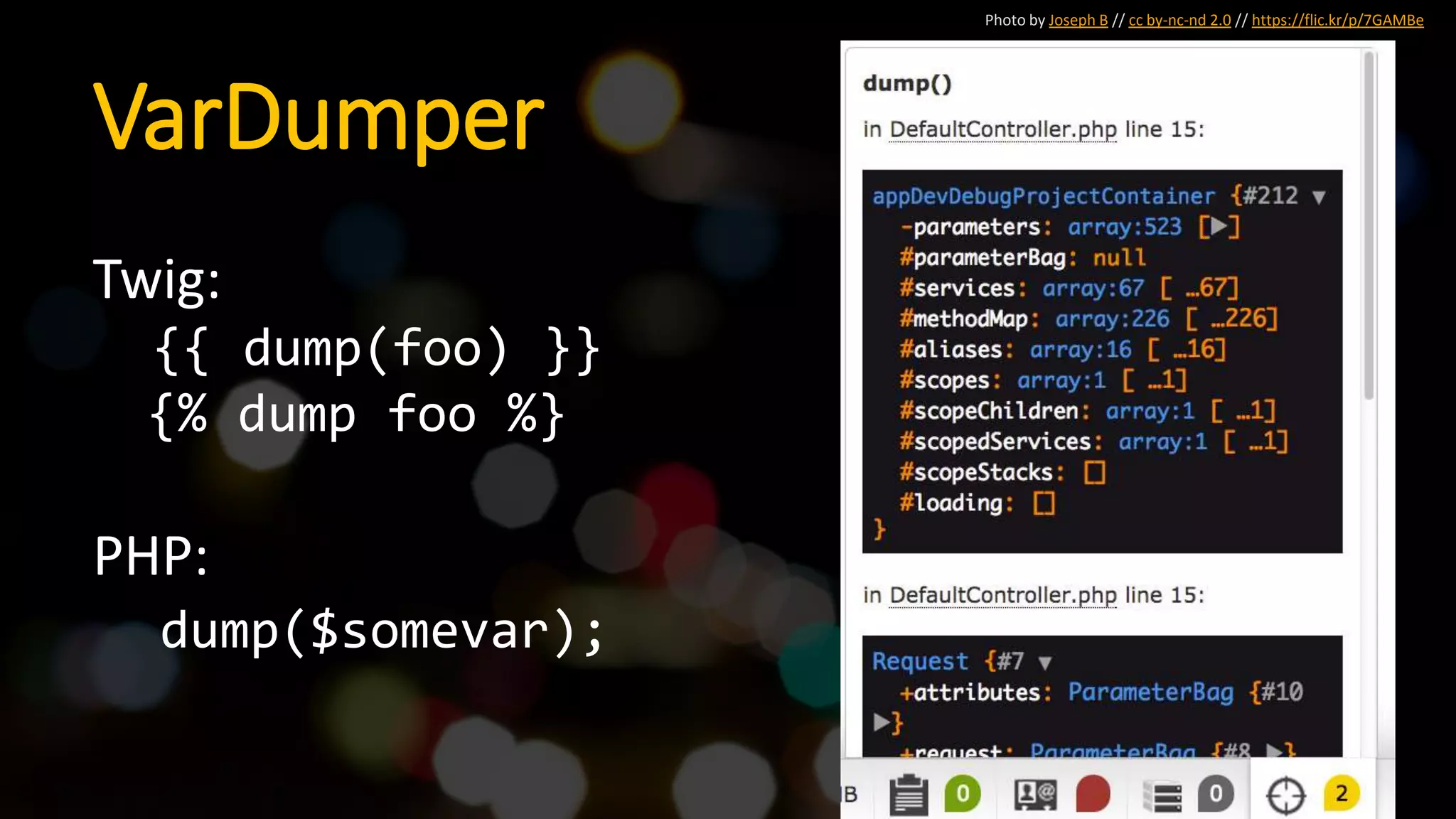

51. VarDumper
Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
Twig:
{{ dump(foo) }}
{% dump foo %}
PHP:
dump($somevar);

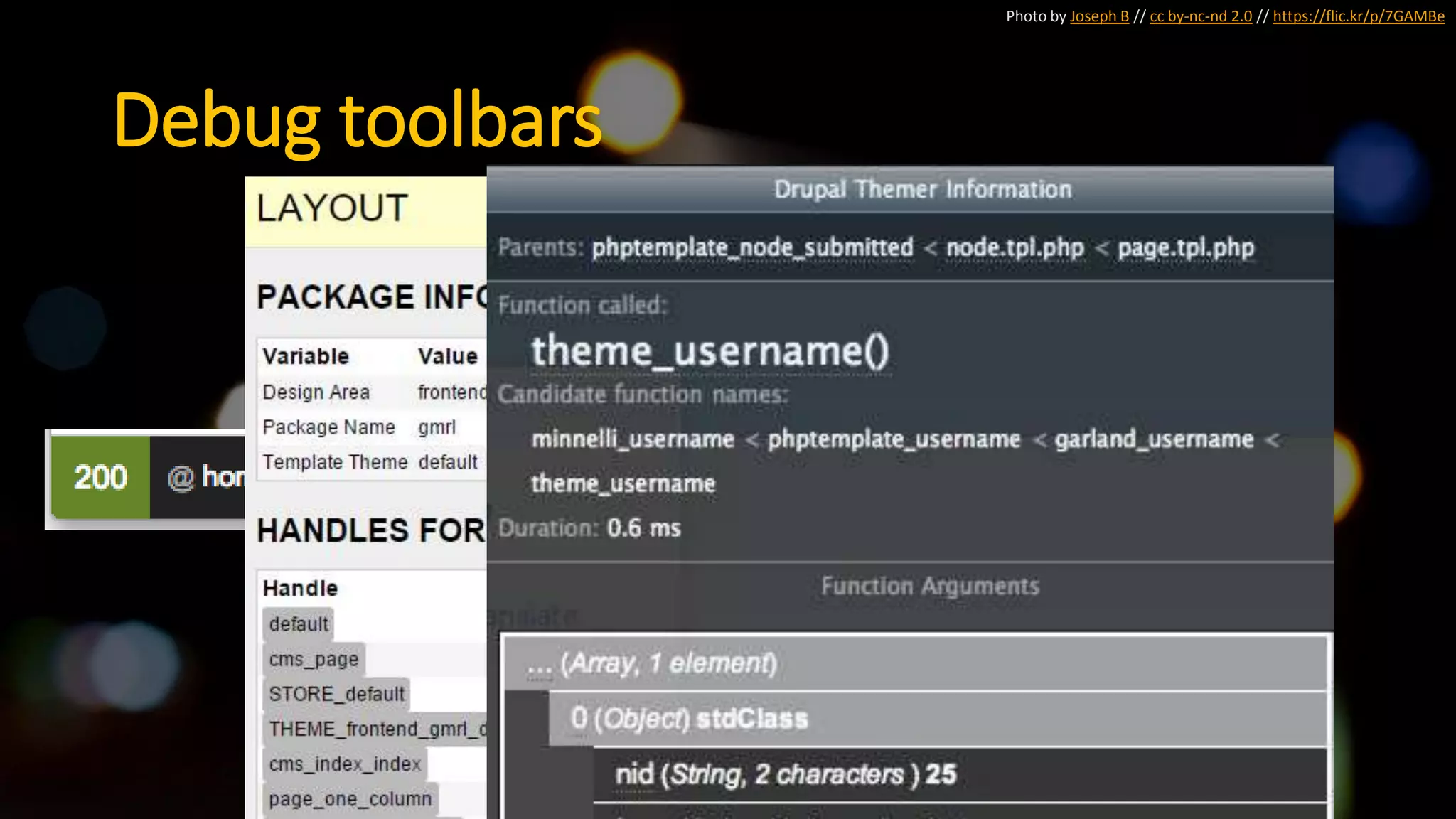

52. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
Debug toolbars

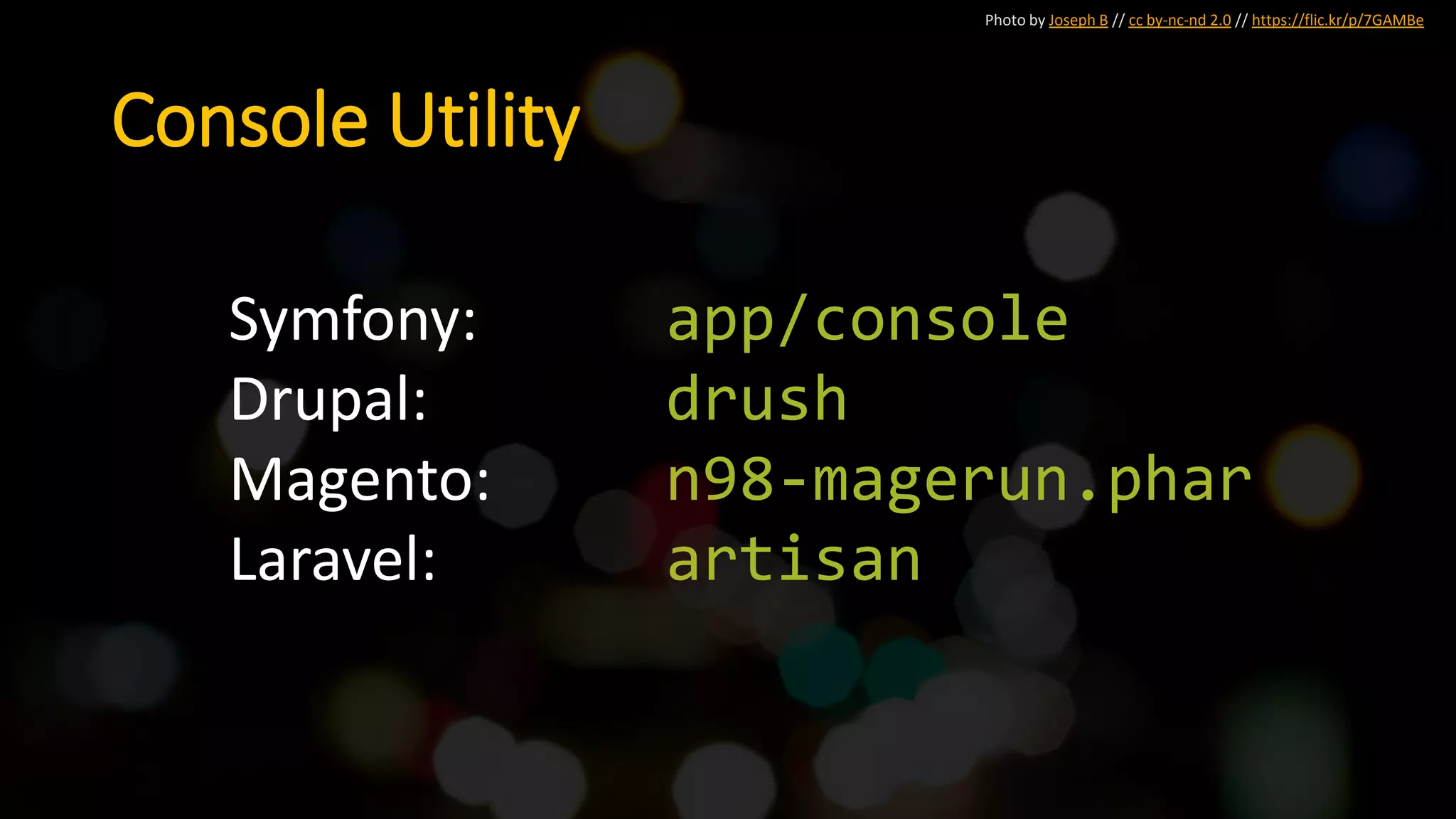

53. Console Utility
Symfony: app/console
Drupal: drush
Magento: n98-magerun.phar
Laravel: artisan
Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe

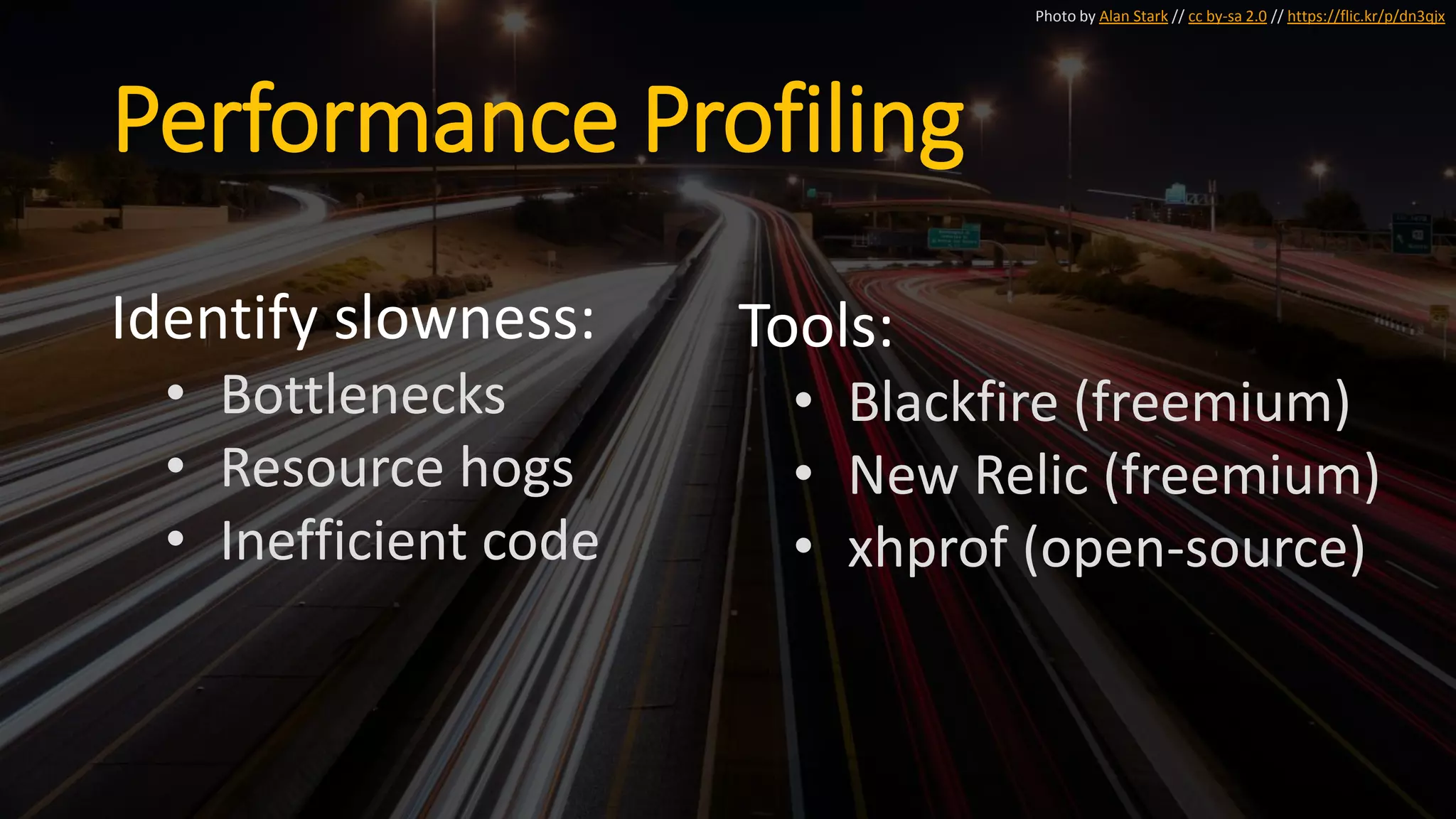

54. Performance Profiling
Identify slowness:
• Bottlenecks
• Resource hogs
• Inefficient code
Photo by Alan Stark // cc by-sa 2.0 // https://flic.kr/p/dn3qjx
Tools:
• Blackfire (freemium)
• New Relic (freemium)
• xhprof (open-source)

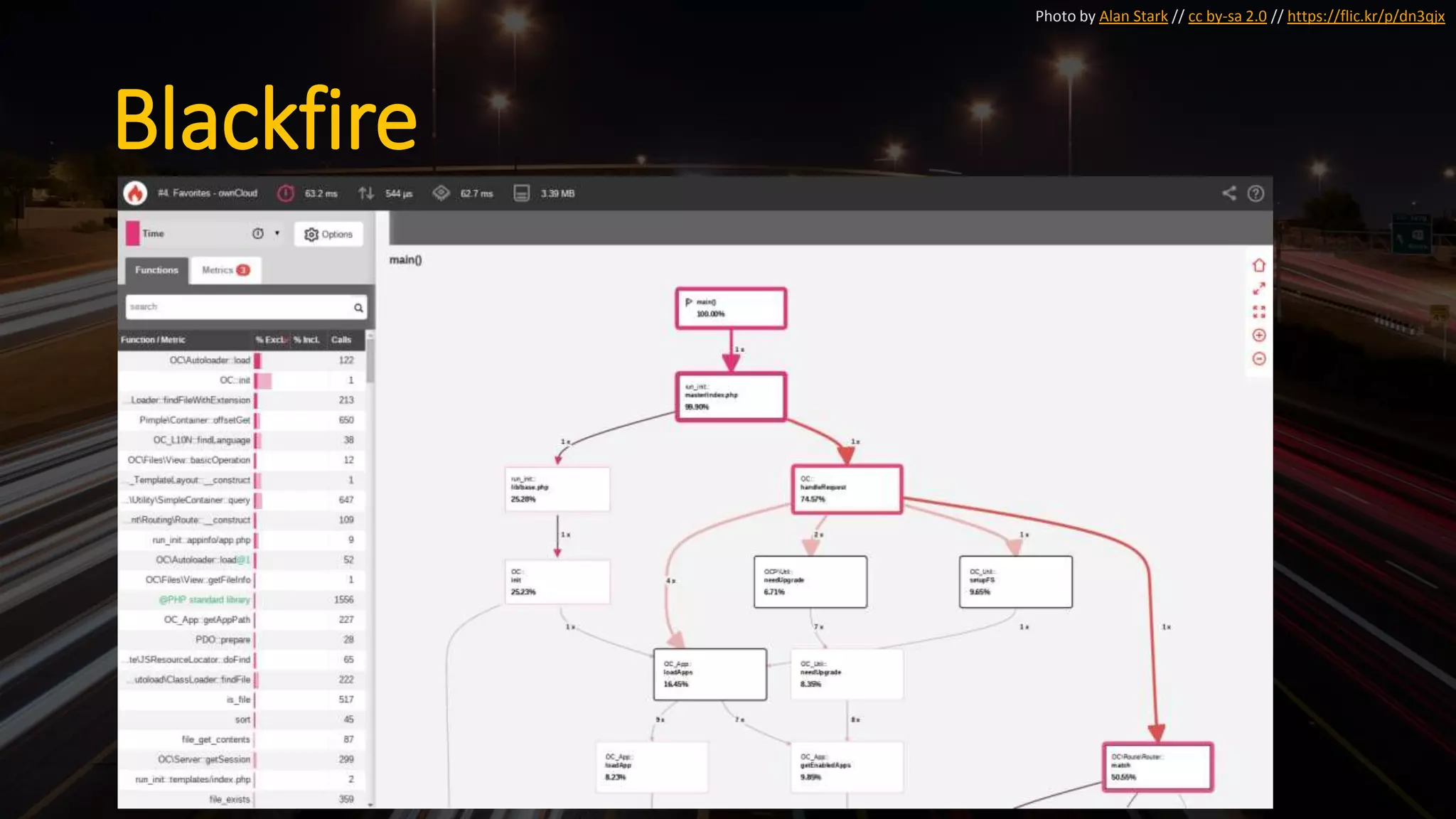

55. Blackfire
Photo by Alan Stark // cc by-sa 2.0 // https://flic.kr/p/dn3qjx

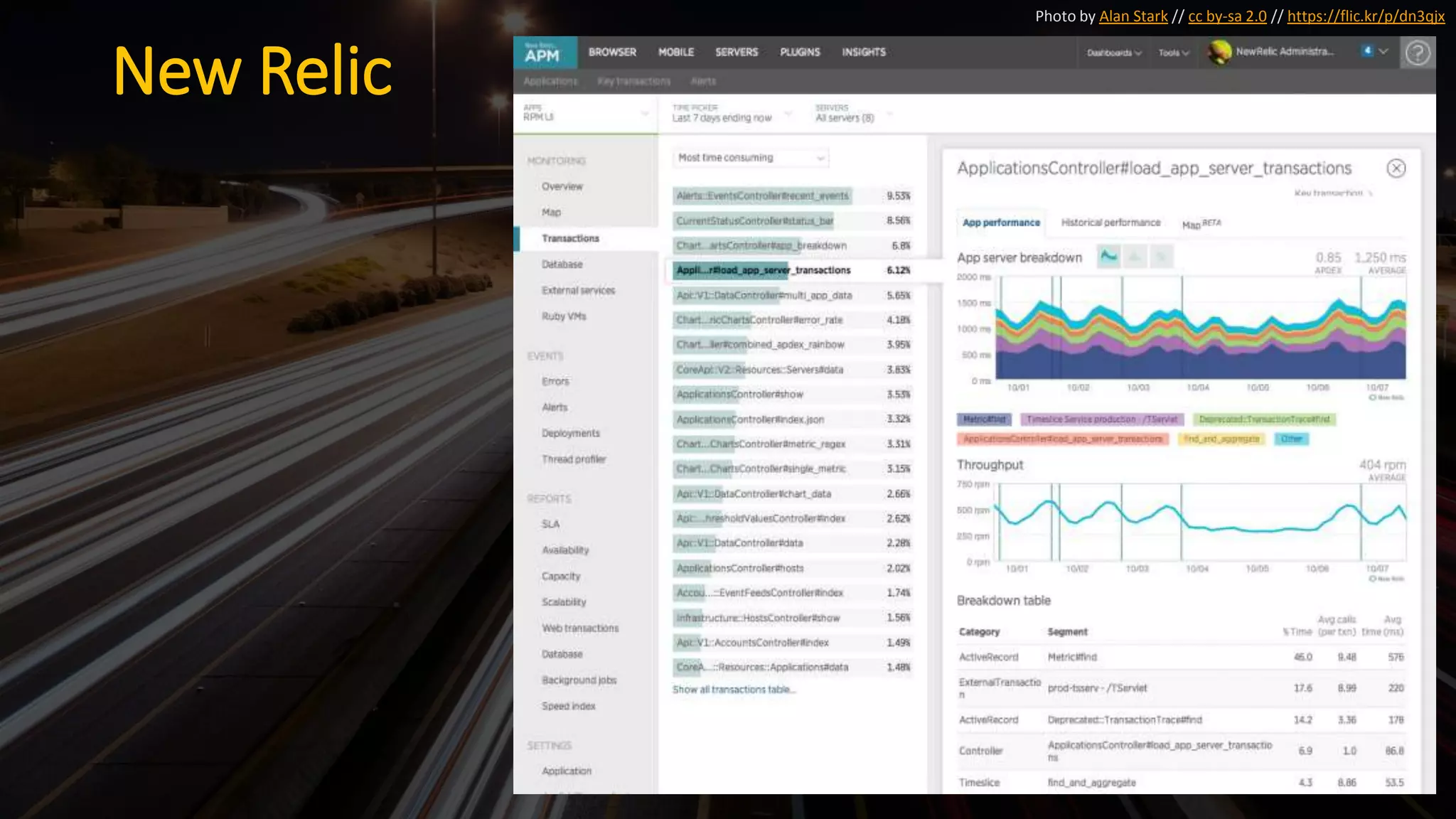

56. New Relic
Photo by Alan Stark // cc by-sa 2.0 // https://flic.kr/p/dn3qjx

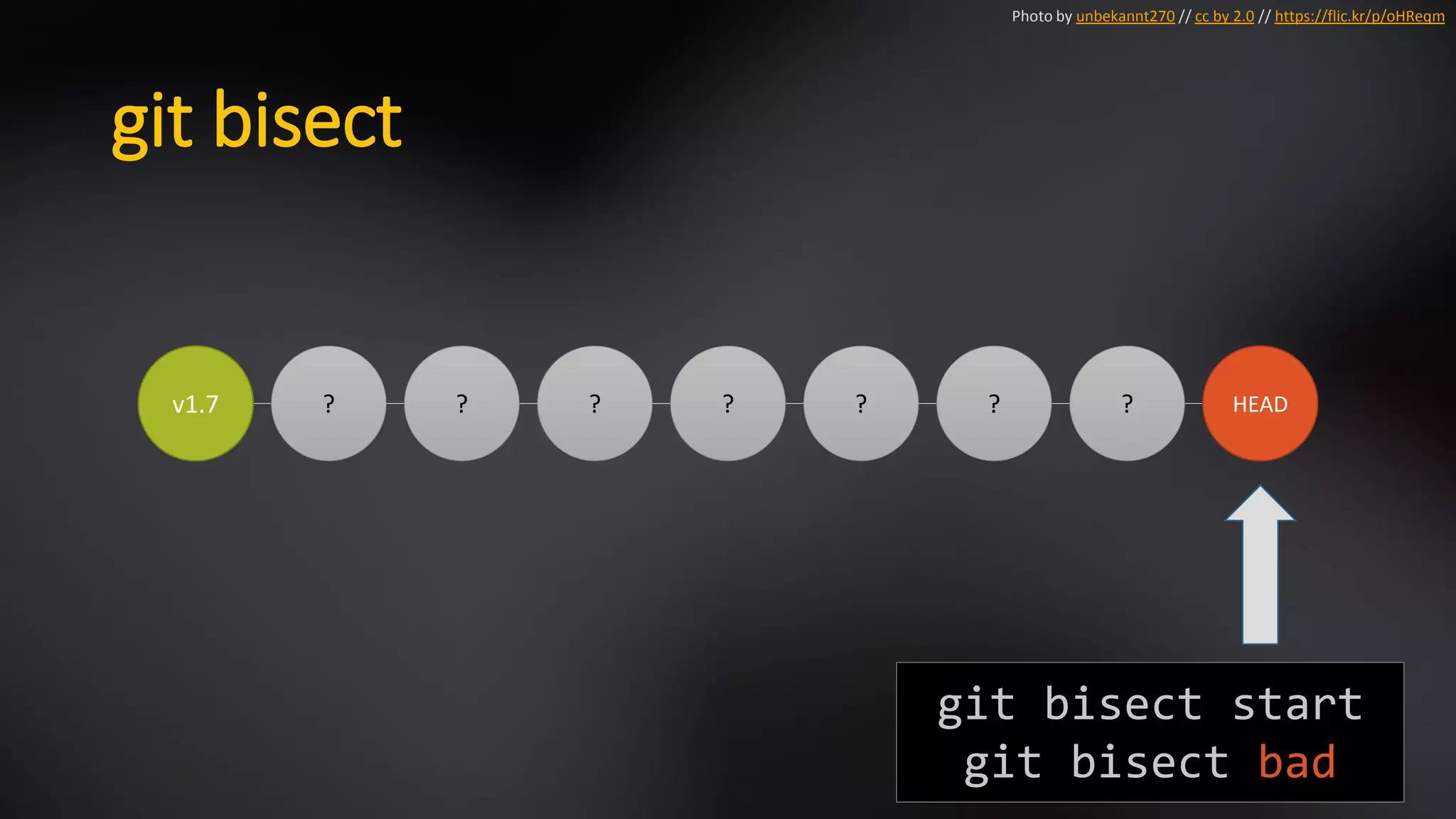

57. git bisect
v1.7 ? ? ? ? ? ? ? HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
git bisect start
git bisect bad

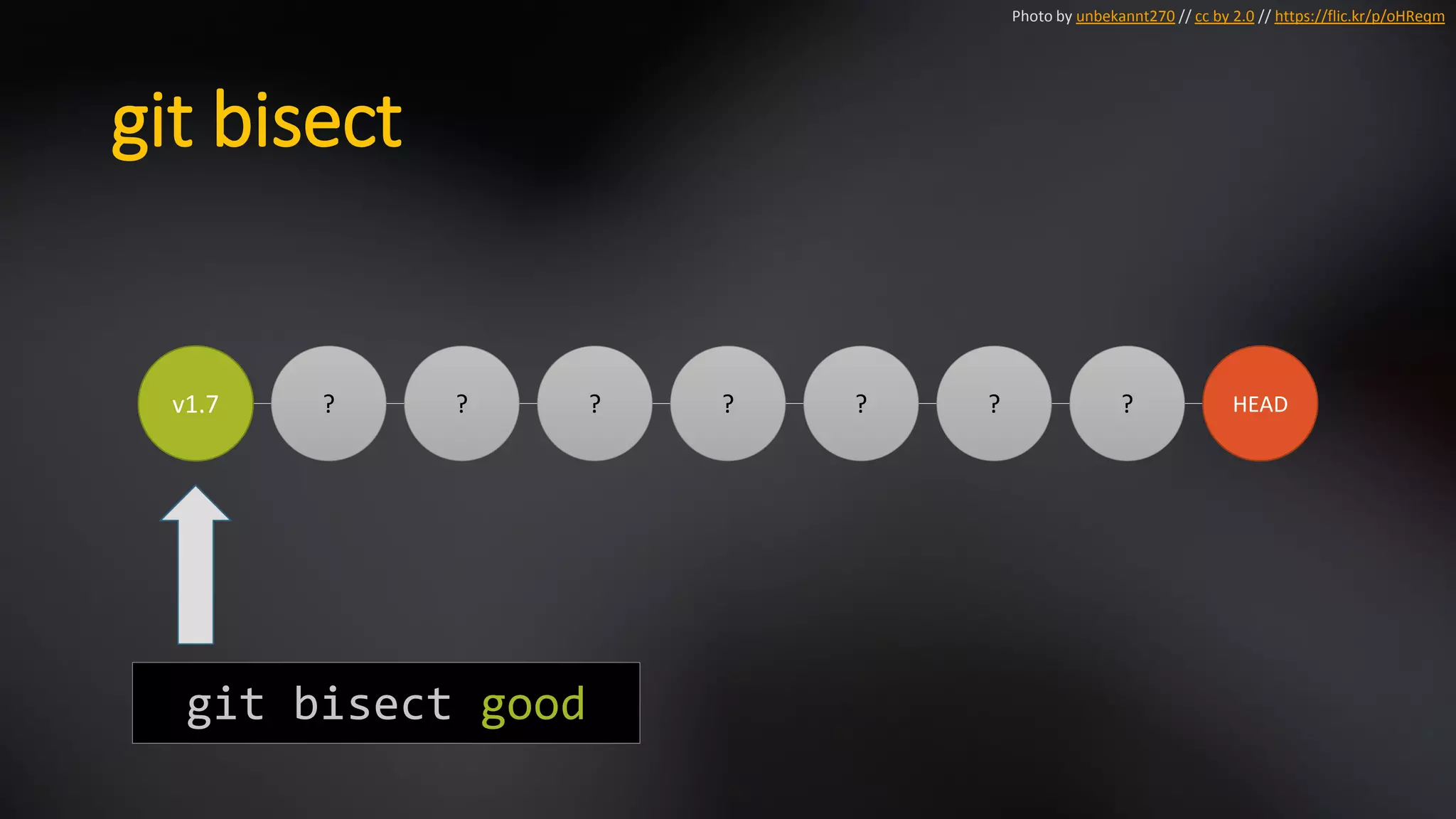

58. git bisect
v1.7 ? ? ? ? ? ? ? HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
git bisect good

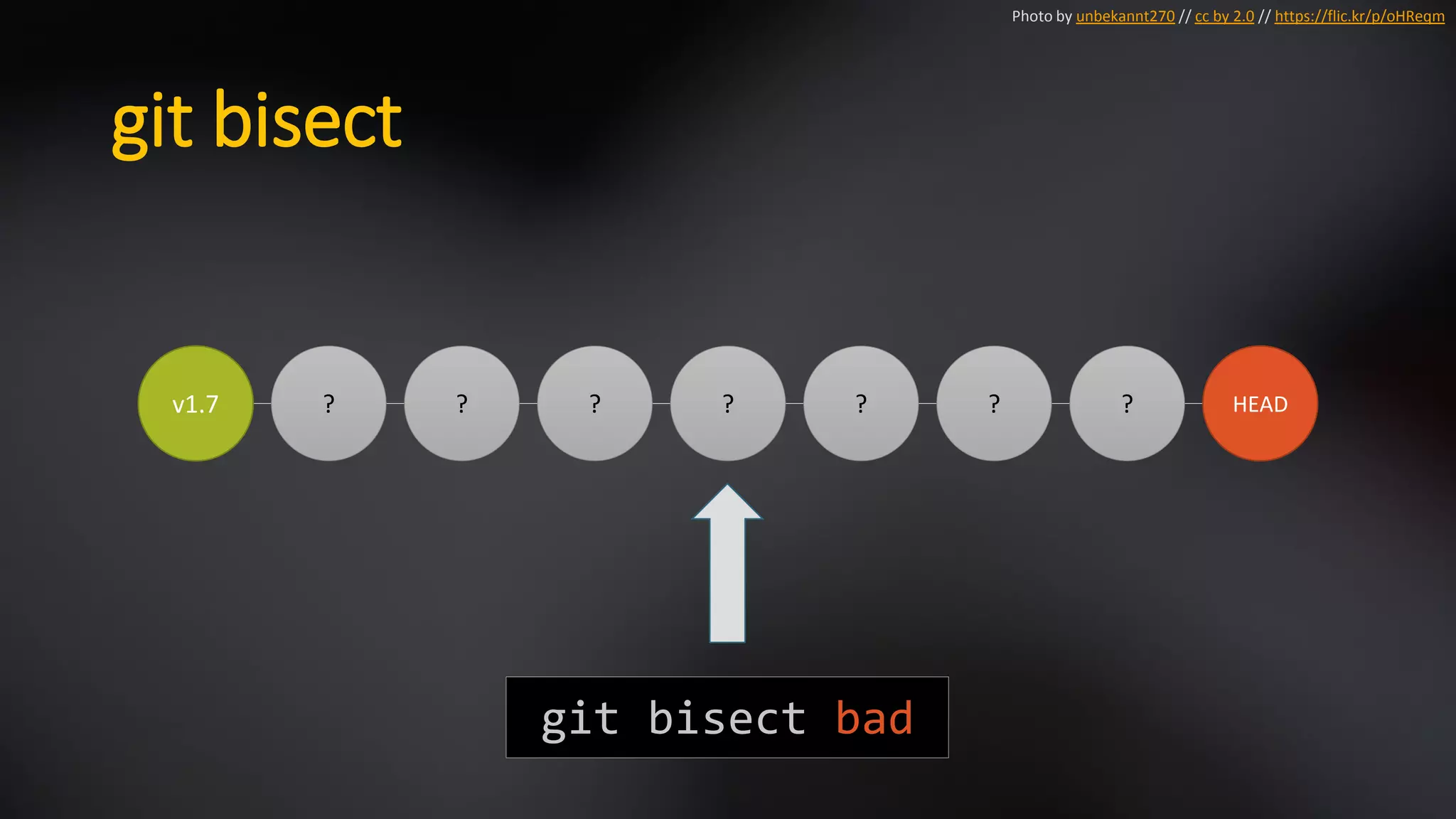

59. git bisect
v1.7 ? ? ? ? ? ? ? HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
git bisect bad

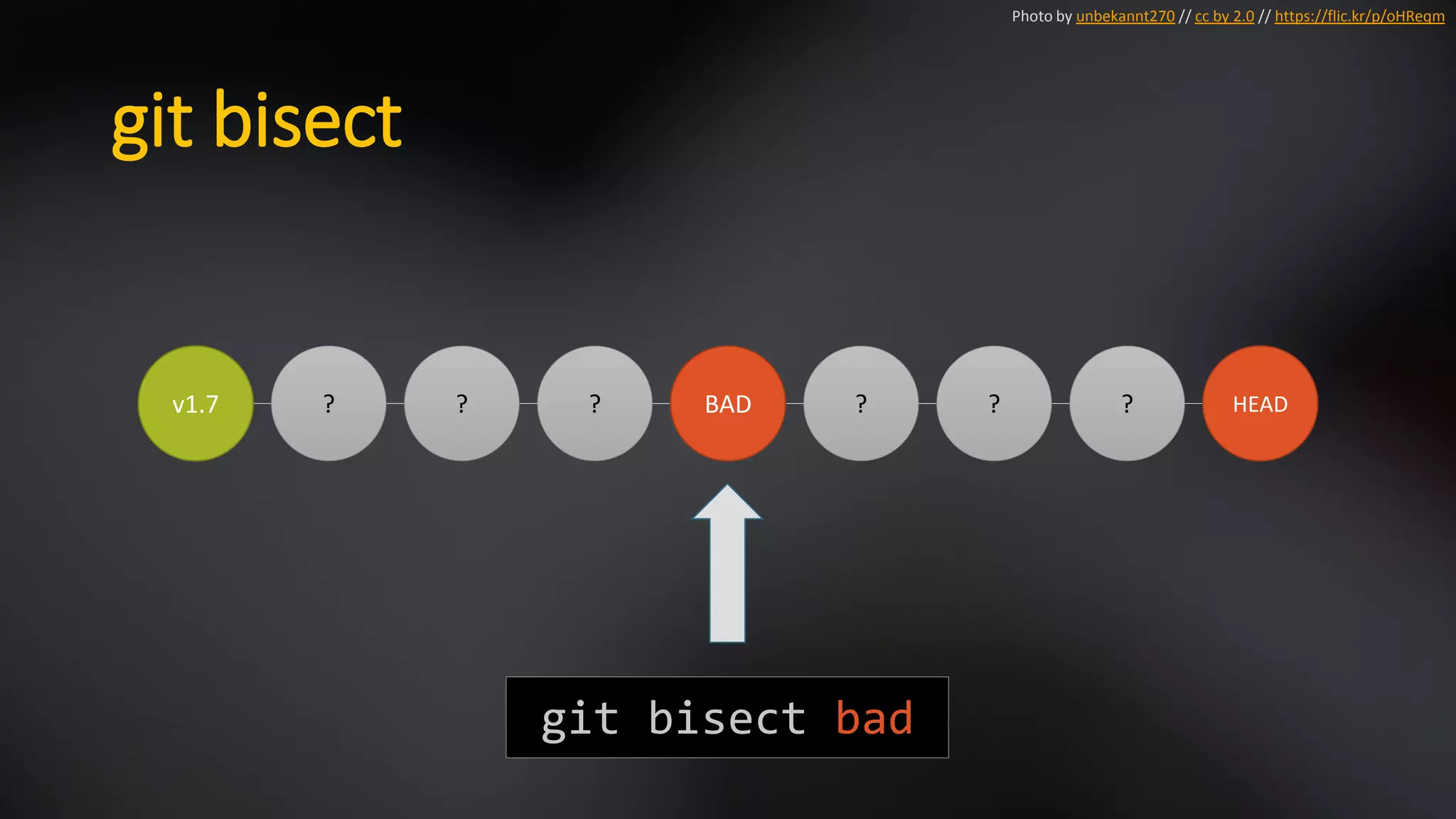

60. git bisect
v1.7 ? ? ? BAD ? ? ? HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
git bisect bad

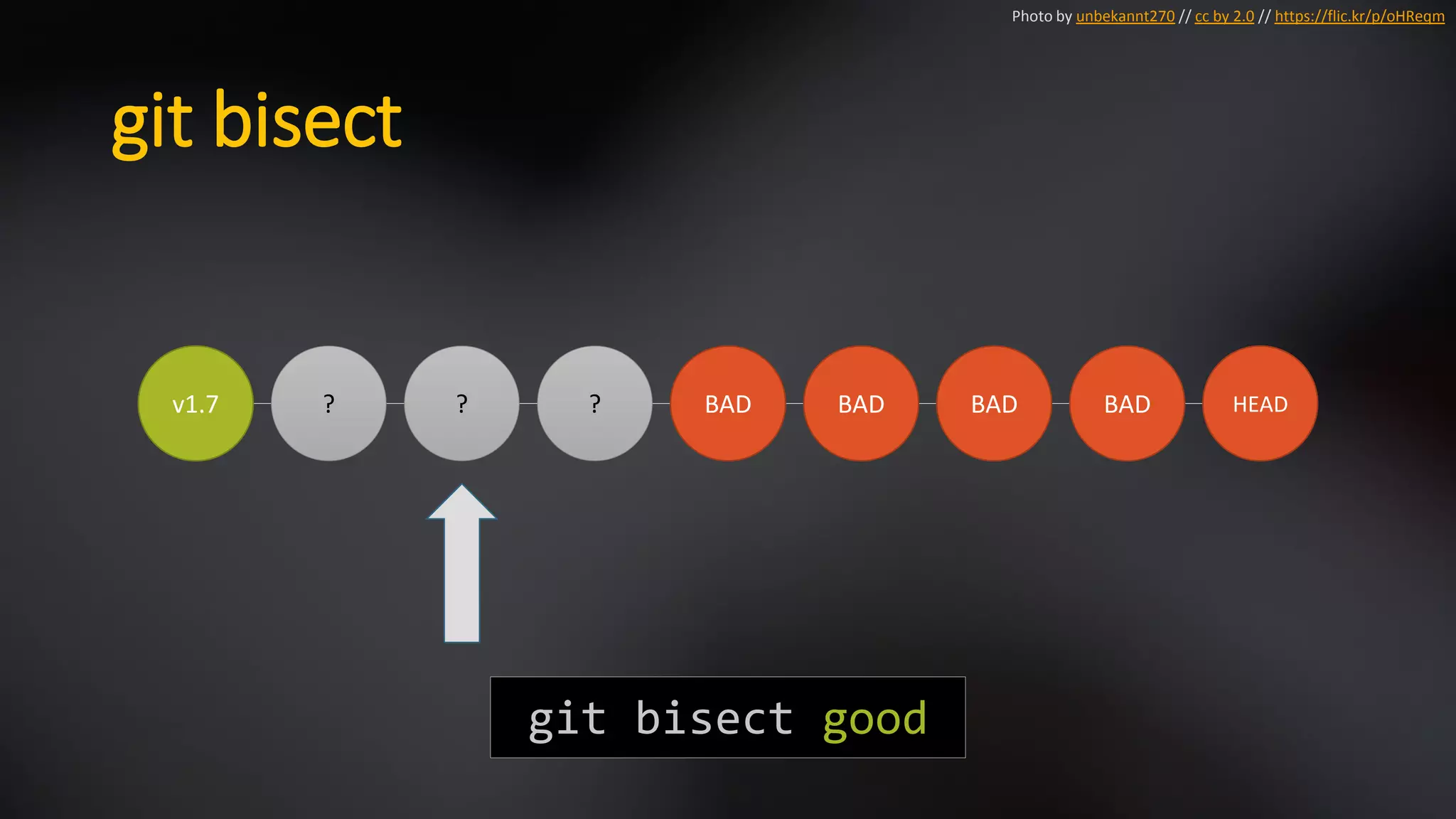

61. git bisect
v1.7 ? ? ? BAD BAD BAD BAD HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
git bisect good

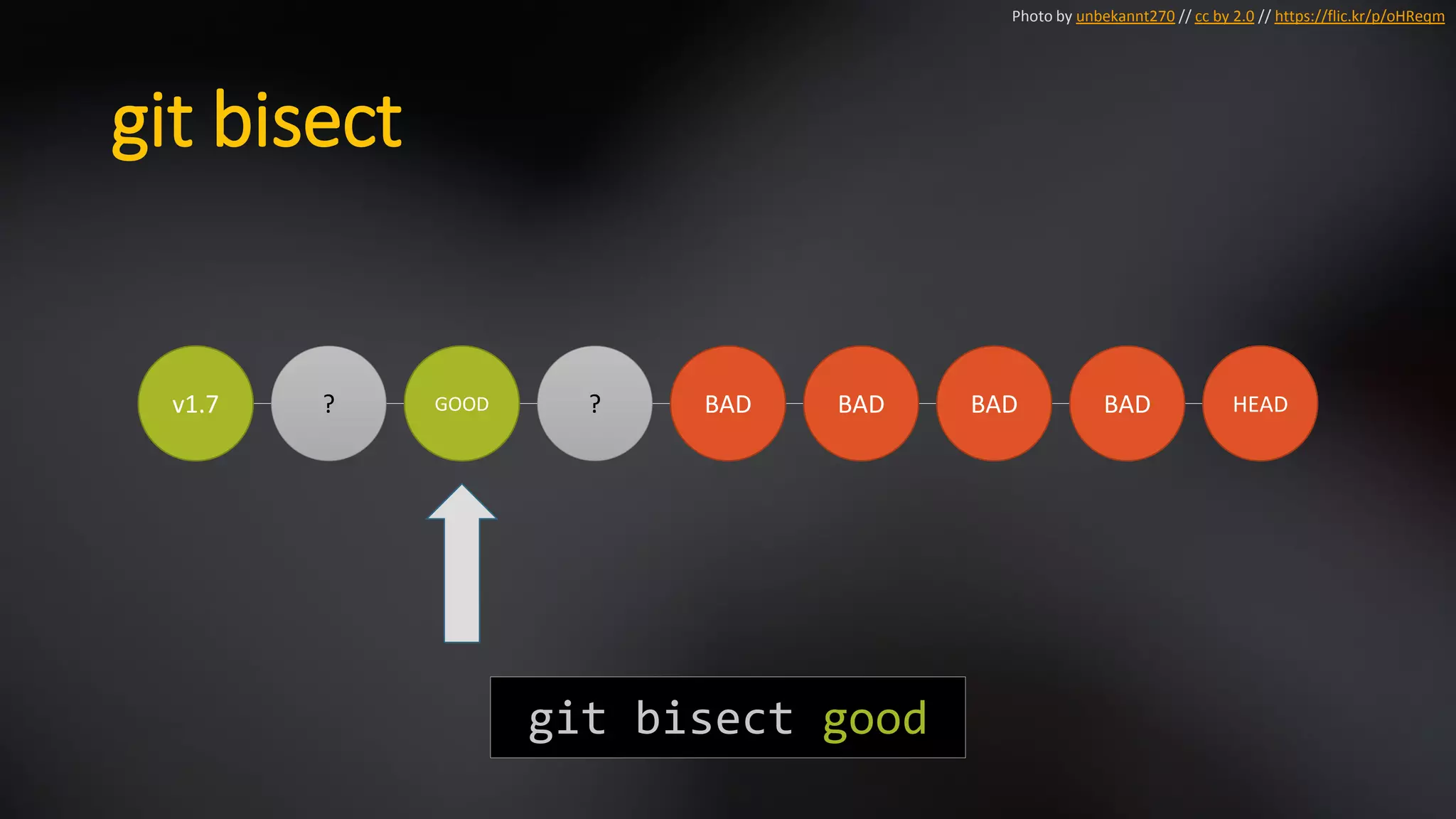

62. git bisect
v1.7 ? GOOD ? BAD BAD BAD BAD HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
git bisect good

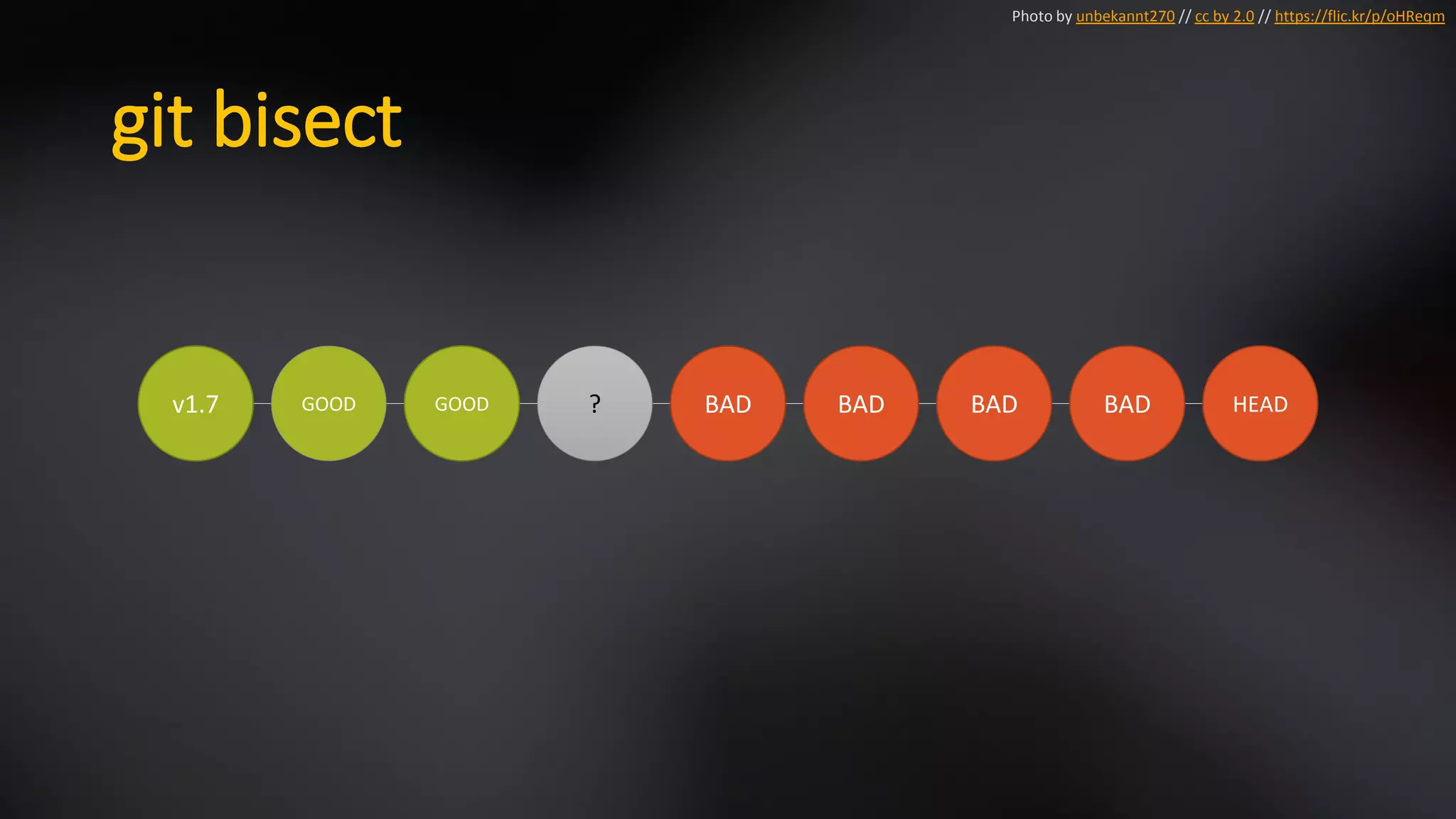

63. git bisect
v1.7 GOOD GOOD ? BAD BAD BAD BAD HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm

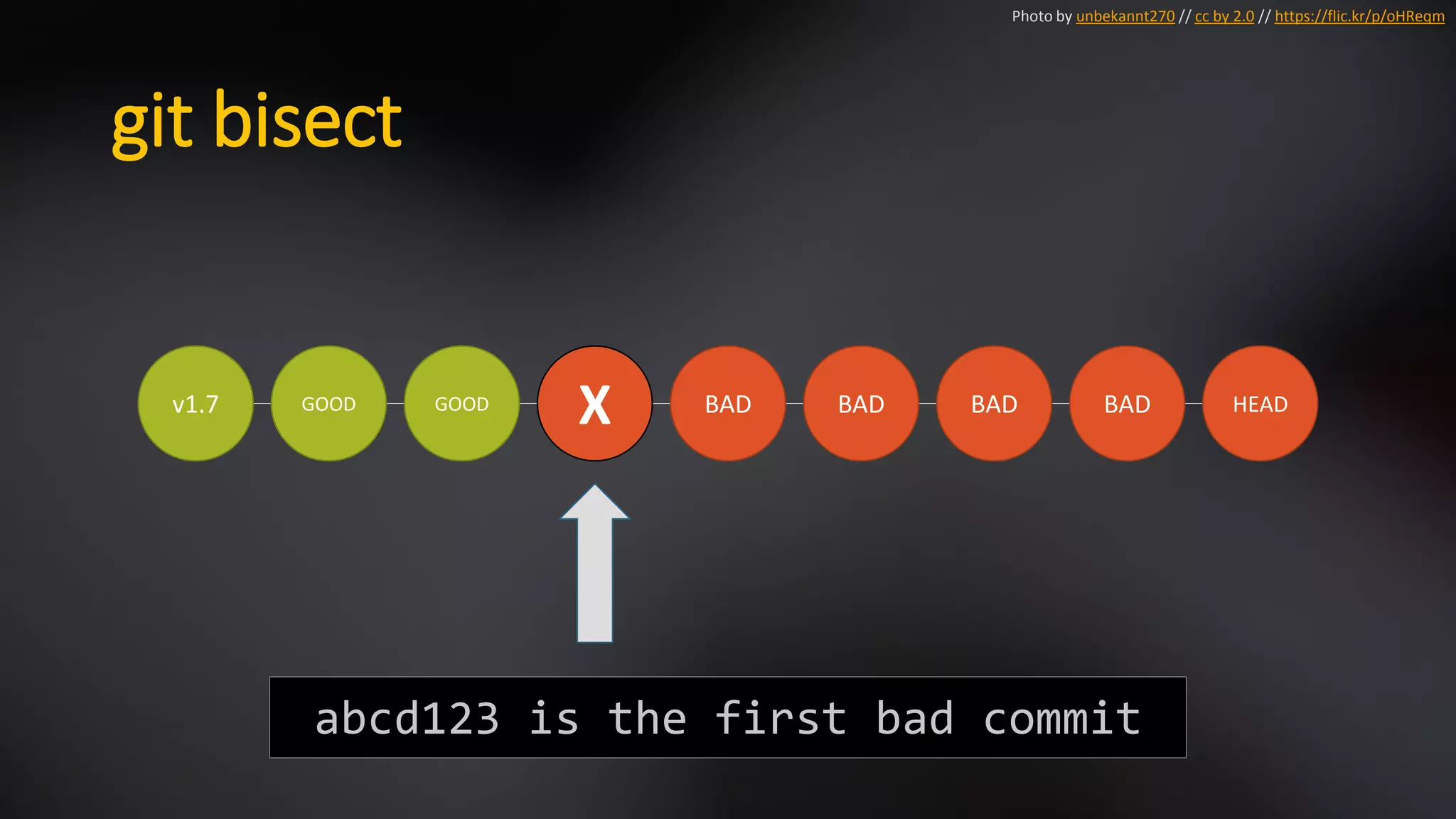

64. git bisect
v1.7 GOOD GOOD
X BAD BAD BAD BAD HEAD
Photo by unbekannt270 // cc by 2.0 // https://flic.kr/p/oHReqm
abcd123 is the first bad commit

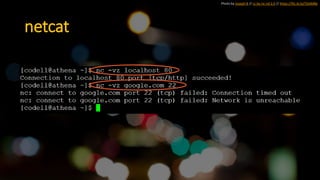

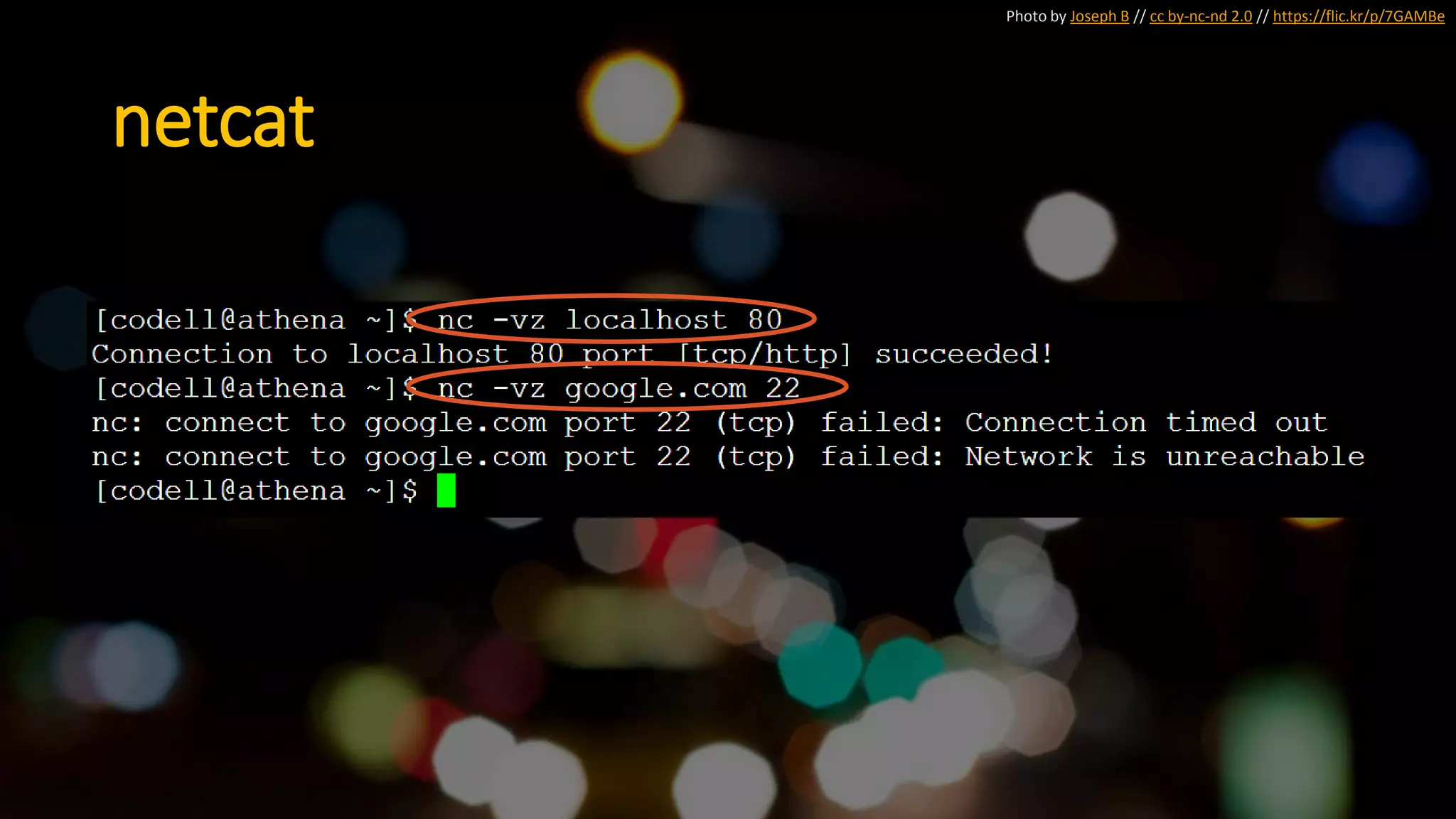

65. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe
netcat

66. Photo by Joseph B // cc by-nc-nd 2.0 // https://flic.kr/p/7GAMBe

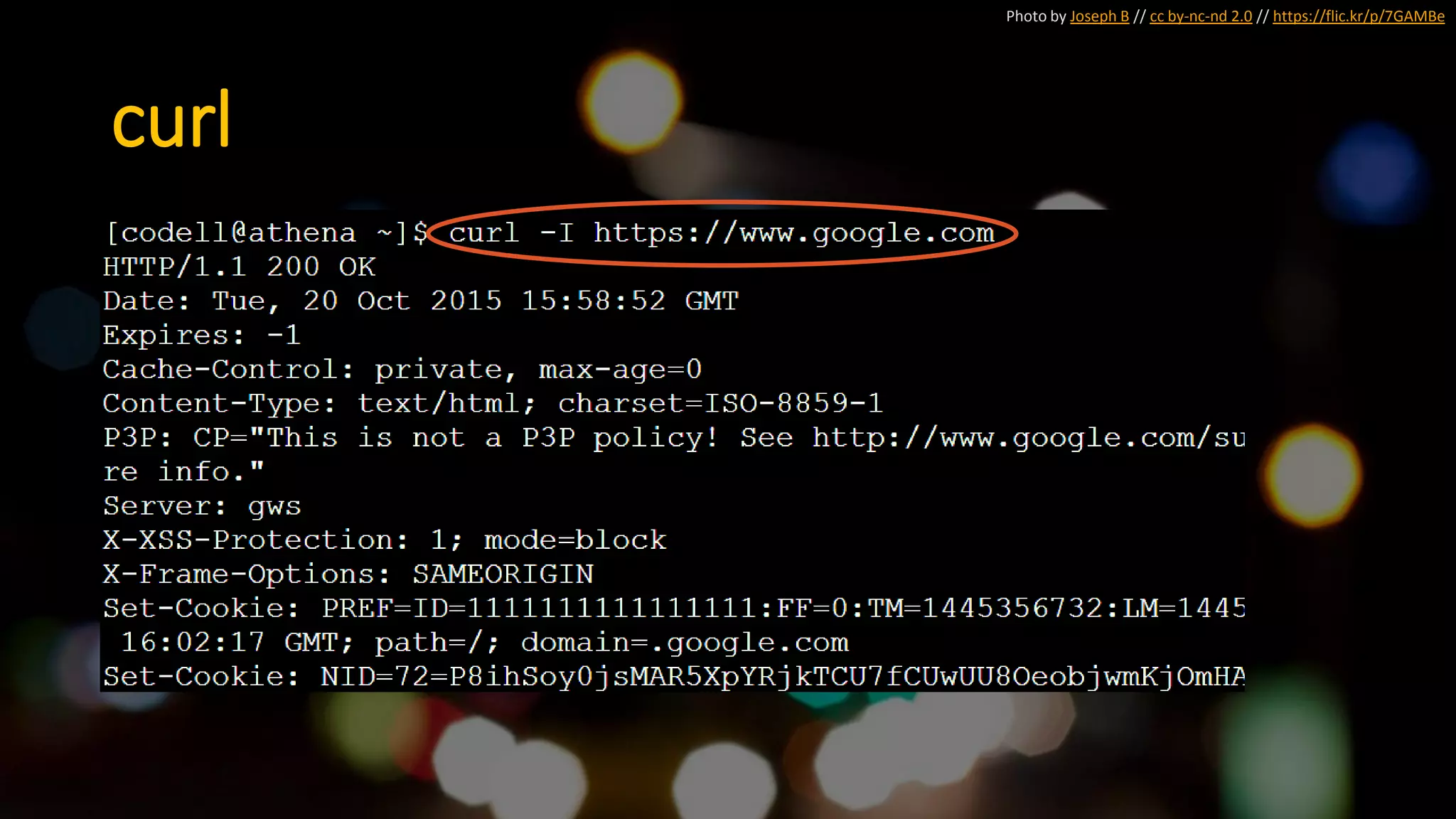

curl

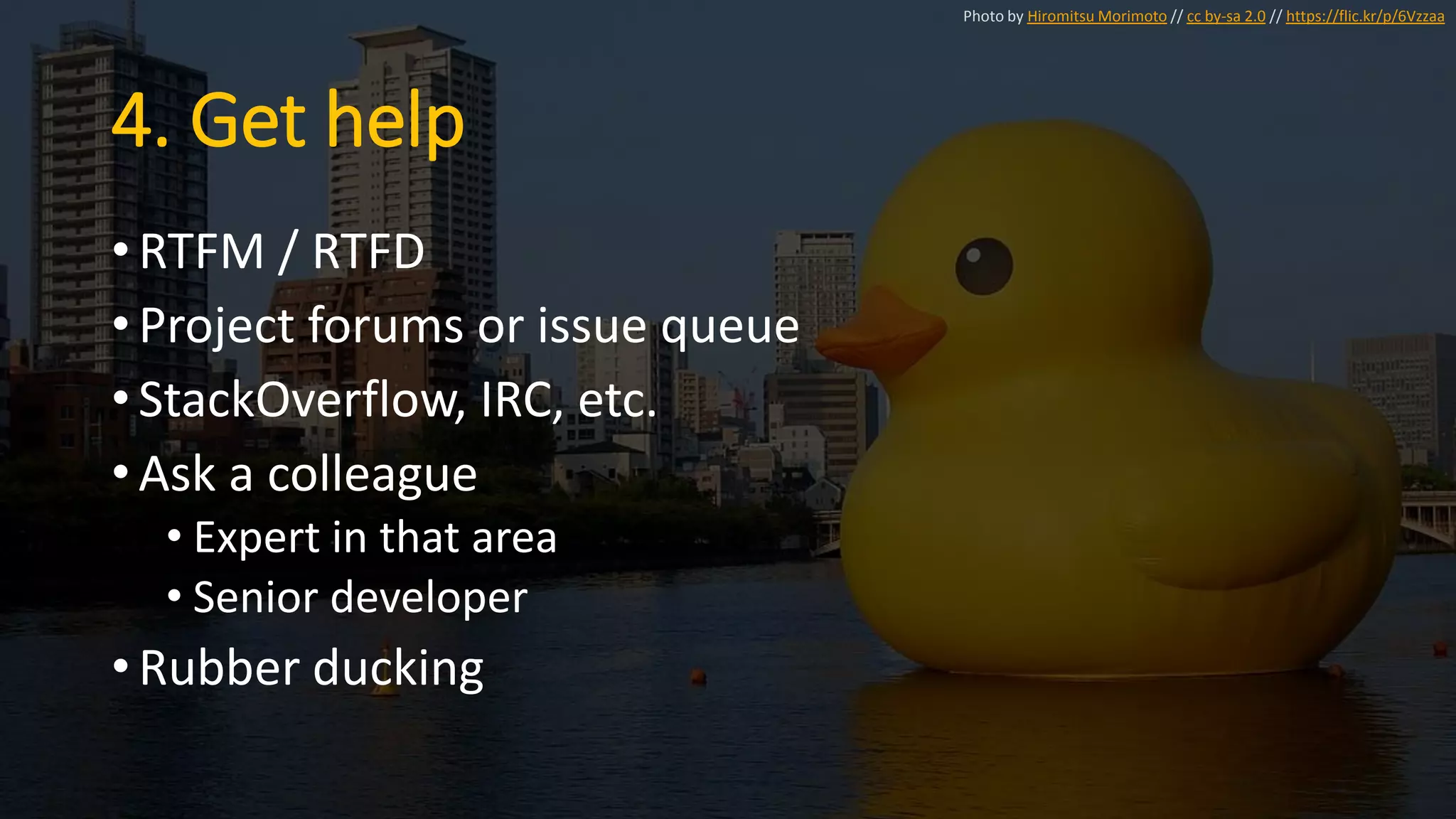

67. 4. Get help
• RTFM / RTFD
• Project forums or issue queue
• StackOverflow, IRC, etc.
• Ask a colleague
• Expert in that area
• Senior developer
• Rubber ducking
Photo by Hiromitsu Morimoto // cc by-sa 2.0 // https://flic.kr/p/6Vzzaa

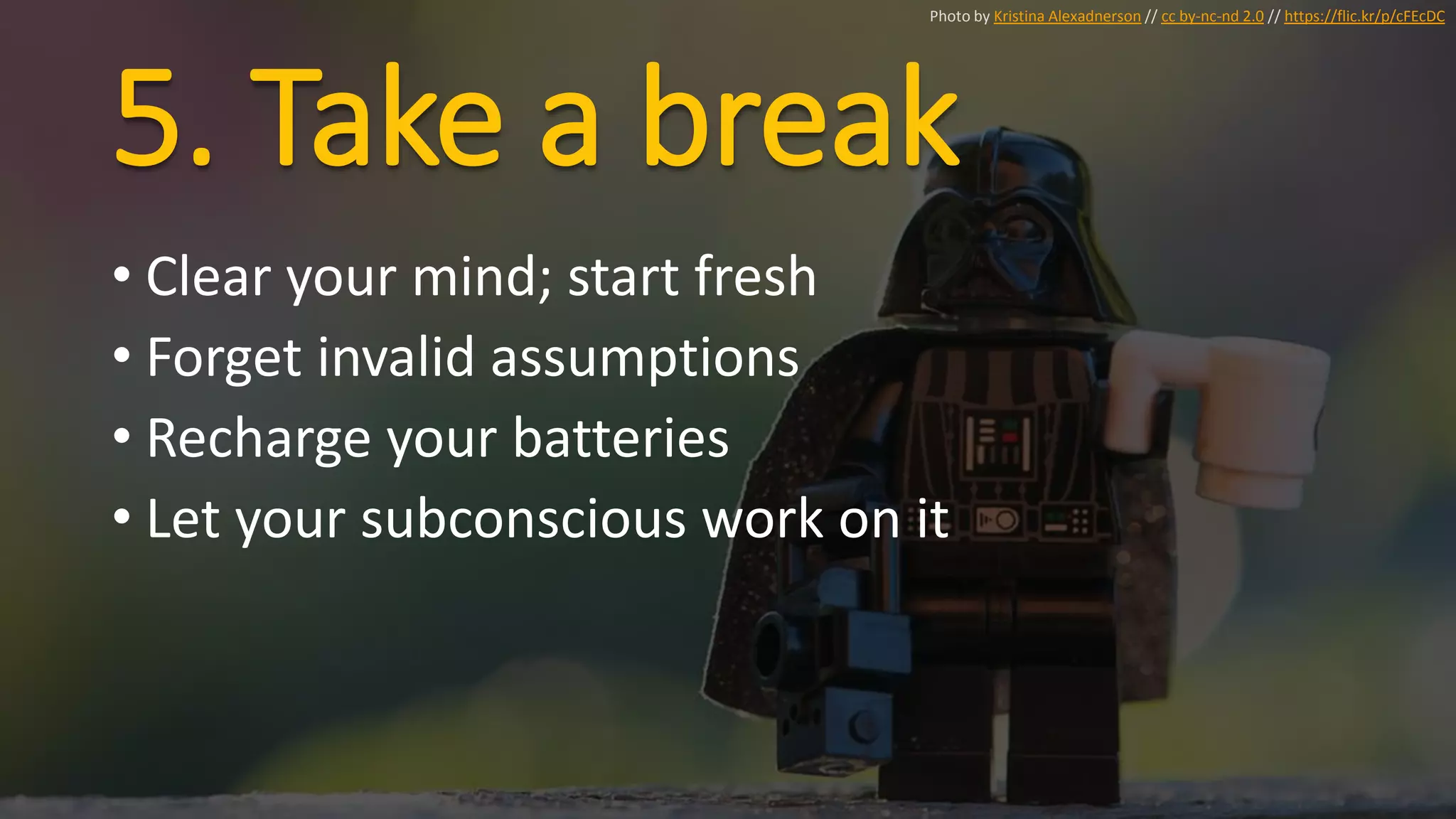

68. 5. Take a break
Photo by Kristina Alexadnerson // cc by-nc-nd 2.0 // https://flic.kr/p/cFEcDC
• Clear your mind; start fresh
• Forget invalid assumptions
• Recharge your batteries
• Let your subconscious work on it

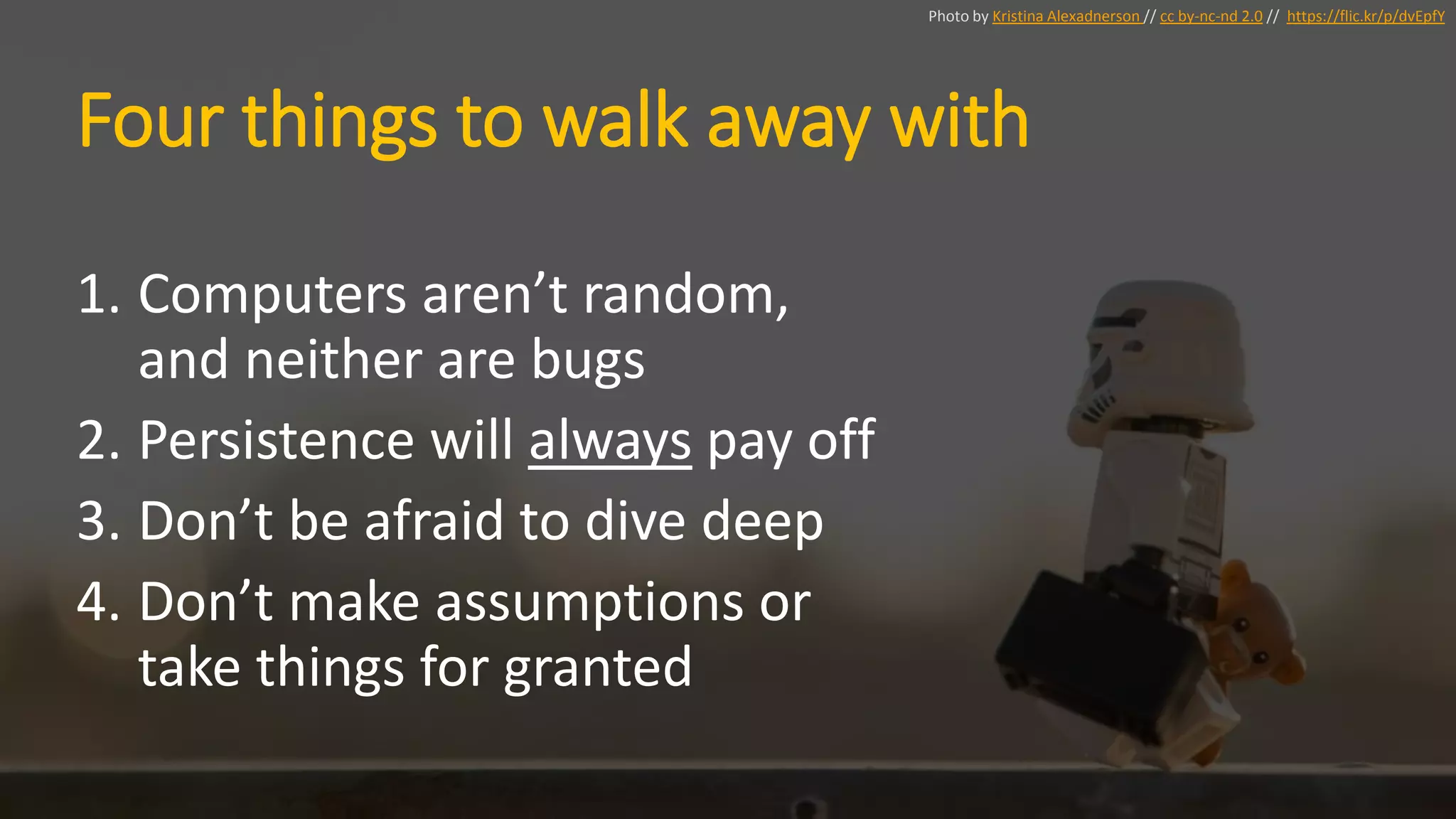

69. Four things to walk away with
1. Computers aren’t random,
and neither are bugs
2. Persistence will always pay off
3. Don’t be afraid to dive deep
4. Don’t make assumptions or
take things for granted
Photo by Kristina Alexadnerson // cc by-nc-nd 2.0 // https://flic.kr/p/dvEpfY

70. Questions?
Photo by Marcello Maria Perongini // cc by-nc-nd 2.0 // https://flic.kr/p/6KDtm

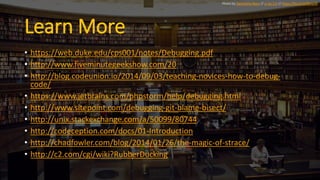

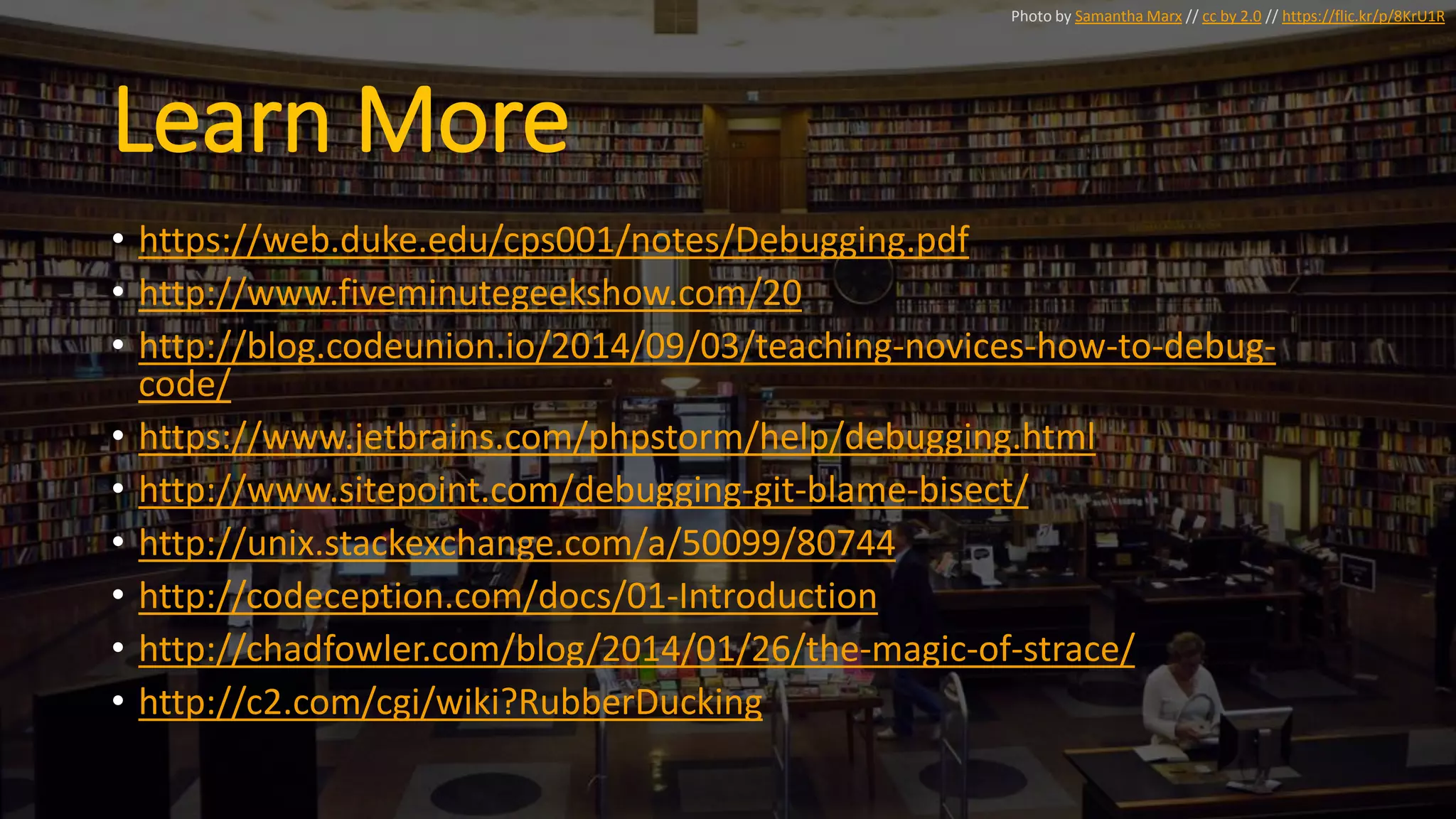

71. Learn More
• https://web.duke.edu/cps001/notes/Debugging.pdf
• http://www.fiveminutegeekshow.com/20
• http://blog.codeunion.io/2014/09/03/teaching-novices-how-to-debug-
code/
• https://www.jetbrains.com/phpstorm/help/debugging.html
• http://www.sitepoint.com/debugging-git-blame-bisect/
• http://unix.stackexchange.com/a/50099/80744
• http://codeception.com/docs/01-Introduction
• http://chadfowler.com/blog/2014/01/26/the-magic-of-strace/
• http://c2.com/cgi/wiki?RubberDucking
Photo by Samantha Marx // cc by 2.0 // https://flic.kr/p/8KrU1R

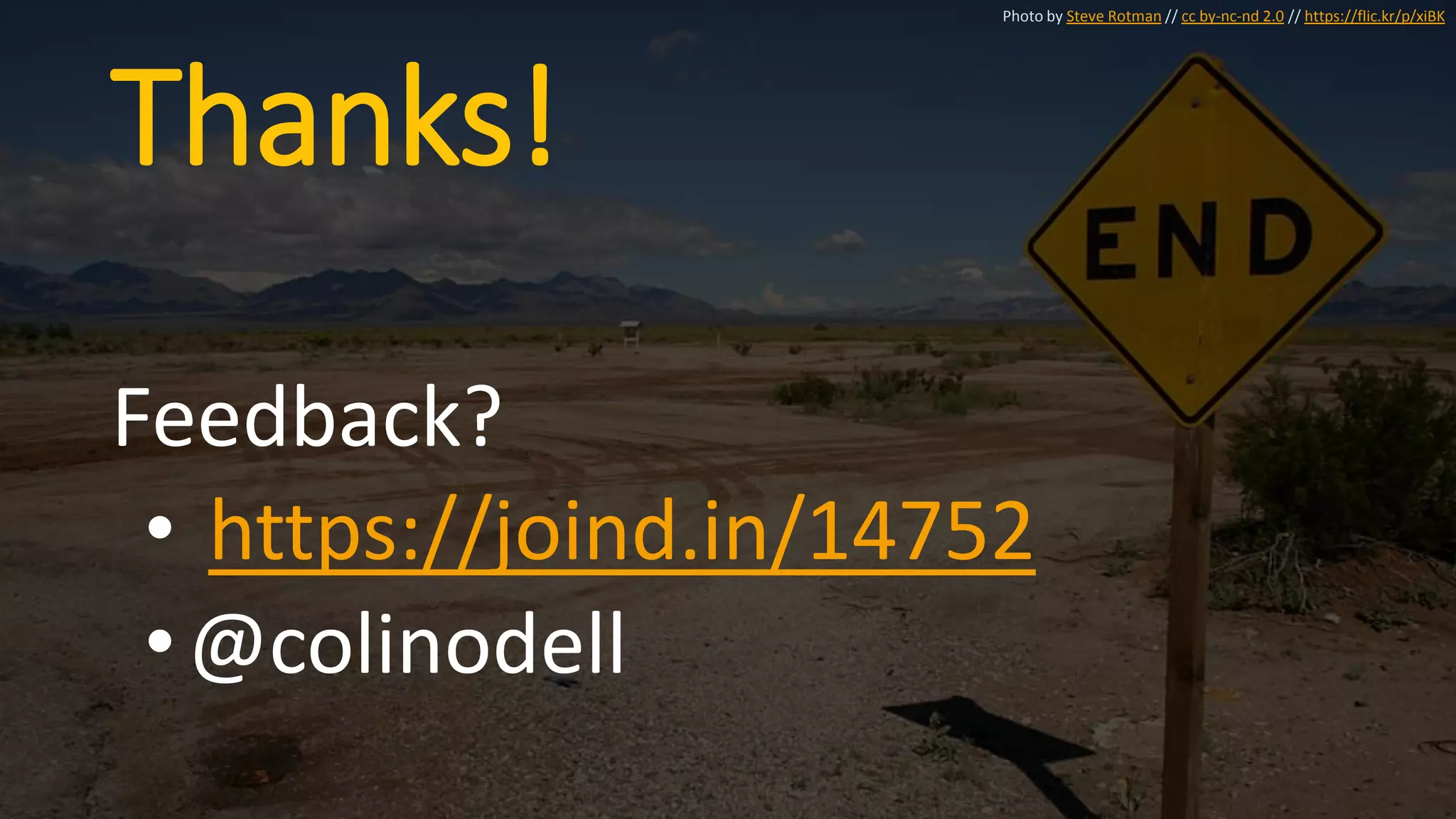

72. Thanks!
