- 1. A Tale ofTwo Cities Kristen Aura Del Pozo ID333 Spring 2015 Interior Design Studio V K. Ryan & G. Ebbini 22 April, 2015 Design Development Av. Das Naçoes Unidas, São Paulo, Brazil
- 2. Concept developmentA Taleof Two Cities innovative - Contrast - division A Tale of Two Cities creates the beginning conceptual process of a work office in Sao Paulo, Brazil. The work place in Sao Paulo is set to be developed in 5 years from now, this should be kept in mind while designing the space. The business that will be occupying the workspace has a great commitment in being innovative, hard workers, and having individuality which needs to be seen in the space. The core values of the business should tie into the surrounding location, in this case Sao Paulo, Brazil. Sao Paulo, Brazil is known for its large skyscrapers, vibrancy, and growing economy but when one takes a good look into the city one will see that it has a lot more to offer. Sao Paulo is divided into two sections the lower income areas and the wealthy areas, these areas show a contrast within the city. This division gives the impression that Sao Paulo could be two completely different cities. To design this workplace the concepts of both the city and business shall be combined. These concepts can be seen in the floor plan of the space. The idea of hard work is shown with the glass partitions around the workstations, this allows for all to see the hard work that is done by the employees. Division is created with separation of spaces from workstations to private offices and so on, it also is created with the use dividing spaces with curved and straight lines. Using new materials with reclaimed materials in the spaces represent contrast with reclaimed wood, rustic metals, concrete, metal, and glass. Innovation relates to both the workplace and Sao Paulo and can be seen in the design of the space with the use of reclaimed items like palettes, crates, and taking advantage of resources. The workplace designed takes on the concept explored by the idea of a “Tale of Two Cities.”
- 3. Programming objectives problem statement Program -20,000 Total square feet for main floor and mezzanine - 15,000 SF for main floor this includes the core - 5,000 SF for the mezzanine - 80 Shared workstations - 2 Large team rooms, 10 - 12 people - 1 Phone Booth accomadate 4 people - 5 Casual Conference, seats 4 - 3 Small Conference, seats 4 -6 people - 2 Large Conference, seats 10- 12 people - 2 Large Conference AV, seats 10 - 12 people - 1 Comm. Center (Copy/Mail) - 1 Storage Area - Reception with waiting areas - 1 Kitchenette with Lunch room - Break out area - 2 Single Occupant Private Office - 7 Private offices - Working Nook - Retreat and Quiet Areas - 20% Circulation - Mezzanine floor with vertical access A growing business has given the opportunity to design a new workplace set to be built 5 years from now for their hard working employees. This company’s ideal workspace should incorporate their core values, beliefs, and bring in the community of Sao Paulo, Brazil. global context Site Description Av. Das Naçoes Unidas, São Paulo, Brazil

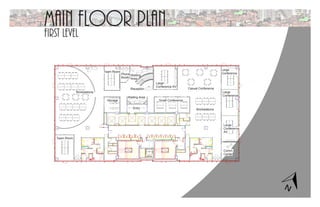

- 4. main floor planfirstlevel UP Botoeira Workstations Team Room Team Room Storage Waiting Area Waiting Area Reception Entry Small Conference Workstations Large Conference AV Large Conference Comm. Center Casual Conference Large Conference Large Conference AV Phone Booth

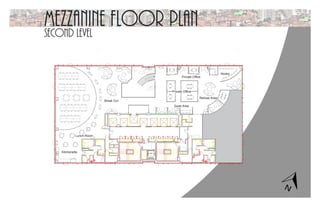

- 5. second level DN Botoeira Private Office PrivateOffice Break Out Kitchenette Quiet Area Nooks Retreat Area Lunch Room mezzanine floor plan

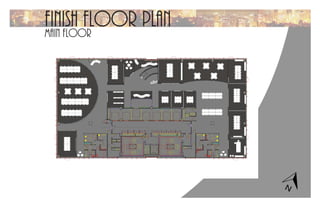

- 6.

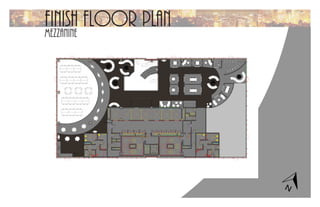

- 7.

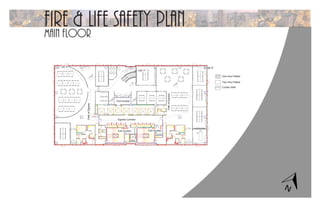

- 8. Fire & Lifesafety planMain Floor Botoeira UP 5'-95/16" 6' - 9 9/16" 6'-85/16" 8' - 2 9/16" 5'Turnaround 5'Turnaround 5' Turnaround 5' Turnaround 98'-0" 145'-7" 130'-2" Exit Access Exit Access Exit Access AreaofRefuge Area of Refuge Egress Corridor PathofEgress PathofEgress One Hour Rated Two Hour Rated Curtain Wall

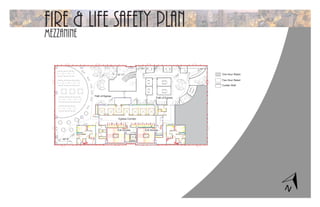

- 9. Mezzanine Botoeira DN 81'-0"101'-2" 92'-6" 112'-11" 4'-827/32" 5' - 0" 6'-21/2"7'-41/16" ExitAccessExit Access 6'-119/16" 5'Turnaround 5'Turnaround 5'Turnaround 5'Turnaround 5'Turnaround 4'-103/32" 6'-031/32" Area of Refuge Area of Refuge Area of Refuge Egress Corridor Path of Egress Path of Egress One Hour Rated Two Hour Rated Curtain Wall Fire & Life safety plan

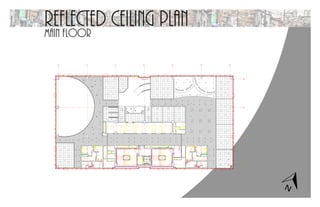

- 10. Reflected ceiling planMainFloor Y2 Z2 A3 B3 C3 D3 E3 18B19B20B21B Botoeira Botoeira

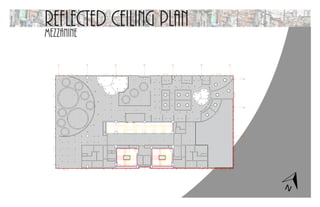

- 11.

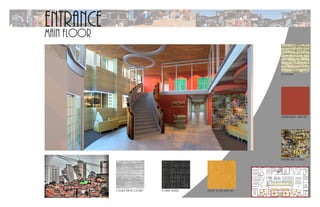

- 12. main floor UP Botoeira Workstations Team Room TeamRoom Storage Waiting Area Waiting Area Reception Entry Small Conference Workstations Large Conference AV Large Conference Comm. Center Casual Conference Large Conference Large Conference AV Phone Booth Entrance Sherwin williams: chinese red Steelcase: royale butter rummohawk: midnightConcrete with wood print Adobe brick Newspaper wall covering

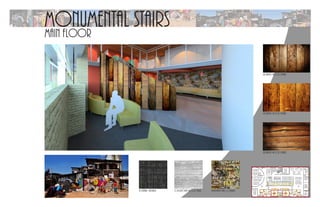

- 13. Monumental stairsmain floor UP Botoeira Workstations TeamRoom Team Room Storage Waiting Area Waiting Area Reception Entry Small Conference Workstations Large Conference AV Large Conference Comm. Center Casual Conference Large Conference Large Conference AV Phone Booth mohawk: midnight Concrete with wood print Newspaper wall covering reclaimed wood planks reclaimed wood planks reclaimed wood planks

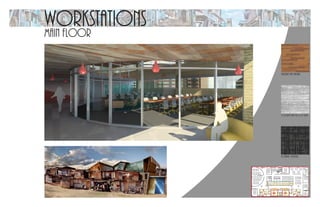

- 14. main floor UP Botoeira Workstations Team Room TeamRoom Storage Waiting Area Waiting Area Reception Entry Small Conference Workstations Large Conference AV Large Conference Comm. Center Casual Conference Large Conference Large Conference AV Phone Booth Workstations Concrete with wood print mohawk: midnight brazilian teak natural

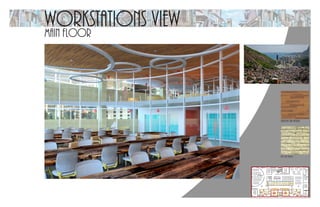

- 15. main floor UP Botoeira Workstations Team Room TeamRoom Storage Waiting Area Waiting Area Reception Entry Small Conference Workstations Large Conference AV Large Conference Comm. Center Casual Conference Large Conference Large Conference AV Phone Booth Workstations view brazilian teak natural adobe brick

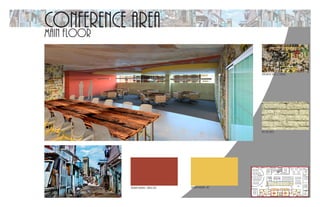

- 16. main floor UP Botoeira Workstations Team Room TeamRoom Storage Waiting Area Waiting Area Reception Entry Small Conference Workstations Large Conference AV Large Conference Comm. Center Casual Conference Large Conference Large Conference AV Phone Booth Conference area newspaper wall covering adobe brick sherwin williams: chinese red sherwin williams: Bee

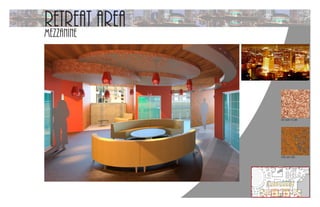

- 17. retreat areamezzanine DN Botoeira Private Office PrivateOffice Break Out Kitchenette Quiet Area Nooks Retreat Area Lunch Room metal rust plate red blend mosaic

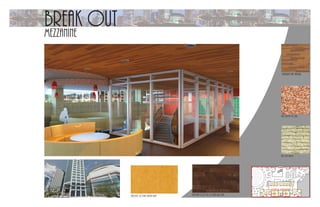

- 18. mezzanine DN Botoeira Private Office Private Office BreakOut Kitchenette Quiet Area Nooks Retreat Area Lunch Room break out steelcase: royale butter rum brazilian teak natural red blend mosaic adobe brick beechwood chocolate brown
- 19. mezzanine DN Botoeira Private Office Private Office BreakOut Kitchenette Quiet Area Nooks Retreat Area Lunch Room breakout view beechwood chocolate brown brazilian teak naturalregal taupe: cermic tile

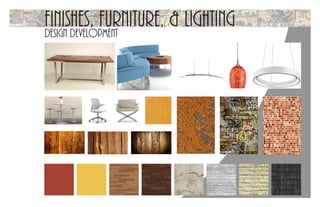

- 20. Finishes, furniture, &LightingDesign Development
