1. SQL- Operators and
Functions
HKPATEL

2. HKPATEL 2

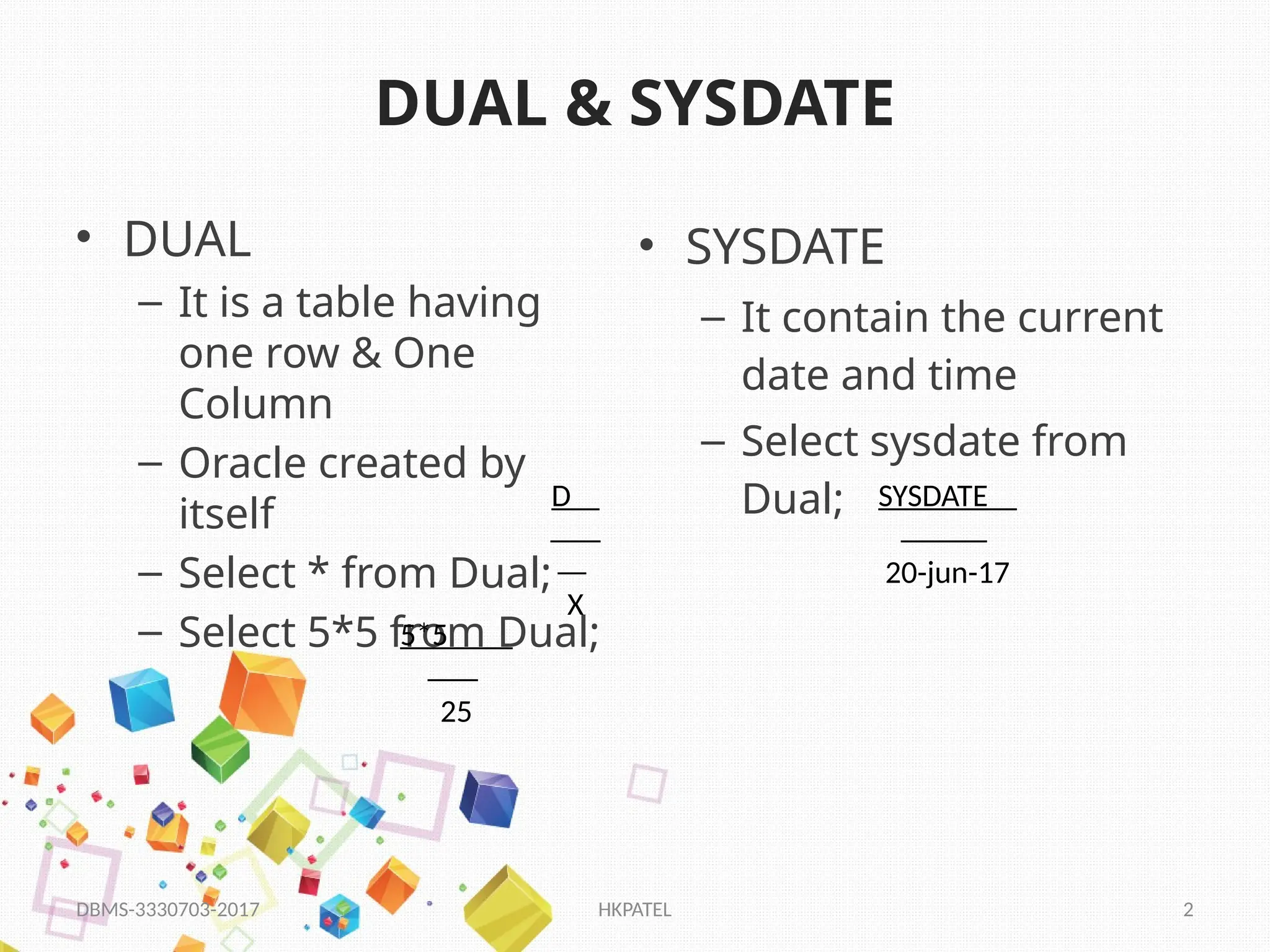

DUAL & SYSDATE
• DUAL
– It is a table having
one row & One
Column
– Oracle created by
itself
– Select * from Dual;
– Select 5*5 from Dual;
DBMS-3330703-2017
D
X
5*5
25
• SYSDATE
– It contain the current
date and time
– Select sysdate from
Dual; SYSDATE
20-jun-17

3. HKPATEL 3

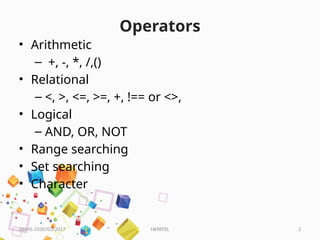

Operators
• Arithmetic
– +, -, *, /,()
• Relational
– <, >, <=, >=, +, !== or <>,
• Logical
– AND, OR, NOT
• Range searching
• Set searching
• Character
DBMS-3330703-2017

4. HKPATEL 4
Range Searching Operator-
BETWEEN
• Syntax
– Column_name BETWEEN lower limit and upper limit;
• Ex.
– Select* from EMP where sal BETWEEN 500 and 1500;
• Add NOT in this Operator
– Select* from EMP where sal NOT BETWEEN 500 and
1500;
DBMS-3330703-2017

5. HKPATEL 5

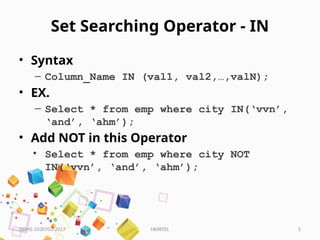

Set Searching Operator - IN
• Syntax
– Column_Name IN (val1, val2,…,valN);
• EX.
– Select * from emp where city IN(‘vvn’,
‘and’, ‘ahm’);
• Add NOT in this Operator
• Select * from emp where city NOT
IN(‘vvn’, ‘and’, ‘ahm’);
DBMS-3330703-2017

6. HKPATEL 6

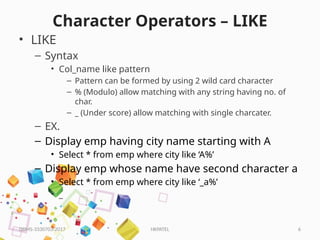

Character Operators – LIKE
• LIKE
– Syntax
• Col_name like pattern
– Pattern can be formed by using 2 wild card character
– % (Modulo) allow matching with any string having no. of
char.
– _ (Under score) allow matching with single charcater.
– EX.
– Display emp having city name starting with A
• Select * from emp where city like ‘A%’
– Display emp whose name have second character a
• Select * from emp where city like ‘_a%’
• _
DBMS-3330703-2017

7. HKPATEL 7

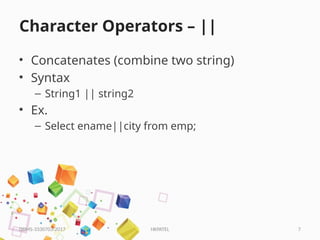

Character Operators – ||
• Concatenates (combine two string)
• Syntax
– String1 || string2
• Ex.
– Select ename||city from emp;
DBMS-3330703-2017

8. HKPATEL 8
SQL Functions
• Aggregate Functions
• Scalar Functions
– Numeric
– Character
– Date
– Conversion
– Miscalleous
DBMS-3330703-2017

9. HKPATEL 9

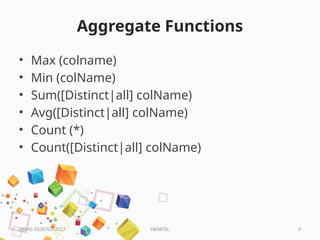

Aggregate Functions
• Max (colname)
• Min (colName)
• Sum([Distinct|all] colName)
• Avg([Distinct|all] colName)
• Count (*)
• Count([Distinct|all] colName)
DBMS-3330703-2017

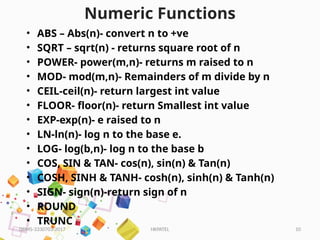

10. HKPATEL 10
Numeric Functions
• ABS – Abs(n)- convert n to +ve
• SQRT – sqrt(n) - returns square root of n
• POWER- power(m,n)- returns m raised to n
• MOD- mod(m,n)- Remainders of m divide by n
• CEIL-ceil(n)- return largest int value
• FLOOR- floor(n)- return Smallest int value
• EXP-exp(n)- e raised to n
• LN-ln(n)- log n to the base e.
• LOG- log(b,n)- log n to the base b
• COS, SIN & TAN- cos(n), sin(n) & Tan(n)
• COSH, SINH & TANH- cosh(n), sinh(n) & Tanh(n)
• SIGN- sign(n)-return sign of n
• ROUND
• TRUNC
DBMS-3330703-2017

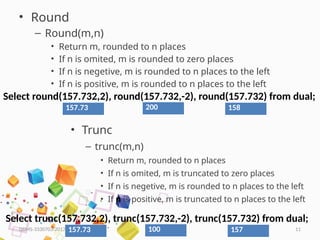

11. HKPATEL 11
• Round
– Round(m,n)
• Return m, rounded to n places
• If n is omited, m is rounded to zero places
• If n is negetive, m is rounded to n places to the left
• If n is positive, m is rounded to n places to the left
DBMS-3330703-2017
Select round(157.732,2), round(157.732,-2), round(157.732) from dual;
157.73 200 158
• Trunc
– trunc(m,n)
• Return m, rounded to n places
• If n is omited, m is truncated to zero places
• If n is negetive, m is rounded to n places to the left
• If n is positive, m is truncated to n places to the left
Select trunc(157.732,2), trunc(157.732,-2), trunc(157.732) from dual;
157.73 100 157

12. HKPATEL 12
Character functions
• Length(str)
• Lower(str)
• Upper(str)
• Initcap(str)
• Ascii(char)
• Lpad(str,n,str2)
– Rerurn str, left padded with str2 up to length n
– lpad(‘ind’,5,’*’)- **ind
• Rpad (str,n,str2)
– Rerurn str, right padded with str2 up to length
n
– - rpad(‘ind’,5,’*’)- ind**
DBMS-3330703-2017

13. HKPATEL 13

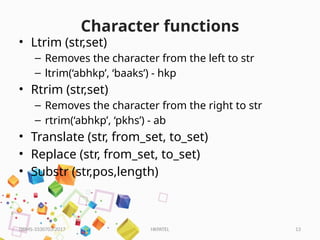

Character functions
• Ltrim (str,set)
– Removes the character from the left to str
– ltrim(‘abhkp’, ‘baaks’) - hkp
• Rtrim (str,set)
– Removes the character from the right to str
– rtrim(‘abhkp’, ‘pkhs’) - ab
• Translate (str, from_set, to_set)
• Replace (str, from_set, to_set)
• Substr (str,pos,length)
DBMS-3330703-2017

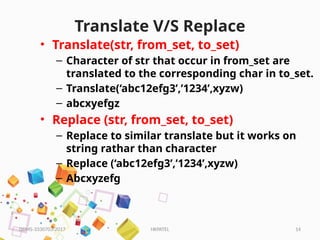

14. HKPATEL 14
Translate V/S Replace
• Translate(str, from_set, to_set)
– Character of str that occur in from_set are
translated to the corresponding char in to_set.
– Translate(‘abc12efg3’,’1234’,xyzw)
– abcxyefgz
• Replace (str, from_set, to_set)
– Replace to similar translate but it works on
string rathar than character
– Replace (‘abc12efg3’,’1234’,xyzw)
– Abcxyzefg
DBMS-3330703-2017

15. HKPATEL 15
SUBSTRING
• Substr(str,pos,length)
• Returns a portion of str, beginning at pos and
going up to length charcters
• SUBSTR(‘KARM HARDIK PATEL’,6,4)
– HARD
DBMS-3330703-2017

16. HKPATEL 16

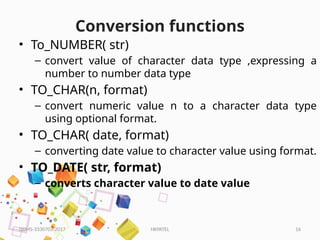

Conversion functions
• To_NUMBER( str)
– convert value of character data type ,expressing a
number to number data type
• TO_CHAR(n, format)
– convert numeric value n to a character data type
using optional format.
• TO_CHAR( date, format)
– converting date value to character value using format.
• TO_DATE( str, format)
– converts character value to date value
DBMS-3330703-2017

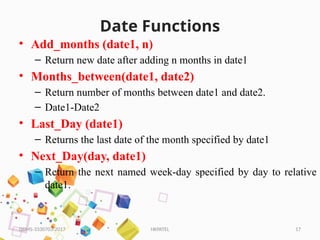

17. HKPATEL 17
Date Functions
• Add_months (date1, n)
– Return new date after adding n months in date1
• Months_between(date1, date2)
– Return number of months between date1 and date2.
– Date1-Date2
• Last_Day (date1)
– Returns the last date of the month specified by date1
• Next_Day(day, date1)
– Return the next named week-day specified by day to relative
date1.
DBMS-3330703-2017

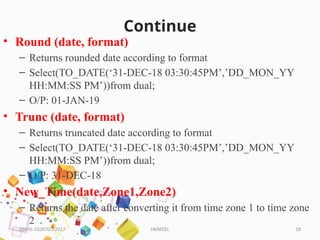

18. HKPATEL 18
Continue
• Round (date, format)
– Returns rounded date according to format
– Select(TO_DATE(‘31-DEC-18 03:30:45PM’,’DD_MON_YY
HH:MM:SS PM’))from dual;
– O/P: 01-JAN-19
• Trunc (date, format)
– Returns truncated date according to format
– Select(TO_DATE(‘31-DEC-18 03:30:45PM’,’DD_MON_YY
HH:MM:SS PM’))from dual;
– O/P: 31-DEC-18
• New_Time(date,Zone1,Zone2)
– Returns the date after converting it from time zone 1 to time zone
2
DBMS-3330703-2017

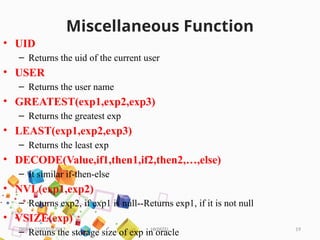

19. HKPATEL 19
Miscellaneous Function
• UID
– Returns the uid of the current user
• USER
– Returns the user name
• GREATEST(exp1,exp2,exp3)
– Returns the greatest exp
• LEAST(exp1,exp2,exp3)
– Returns the least exp
• DECODE(Value,if1,then1,if2,then2,…,else)
– It similar if-then-else
• NVL(exp1,exp2)
– Returns exp2, if exp1 is null--Returns exp1, if it is not null
• VSIZE(exp)
– Retuns the storage size of exp in oracle
DBMS-3330703-2017

20. HKPATEL 20
Thank You
DBMS-3330703-2017
