DB2 commands are used to execute database administration functions and control the DB2 operational environment. The document discusses different types of DB2 commands, including DSN commands, DB2 commands, IMS commands, and CICS attachment facility commands. It also describes the structure of DB2 commands and the scopes of different commands, such as member, group, or both depending on options.

1. © 2003 IBM Corporation
Introduction to DB2
Utilities
Mmanish kumar
Rajarshi Das / S.N.
Moitra
Santosh Patel
28th June 2017

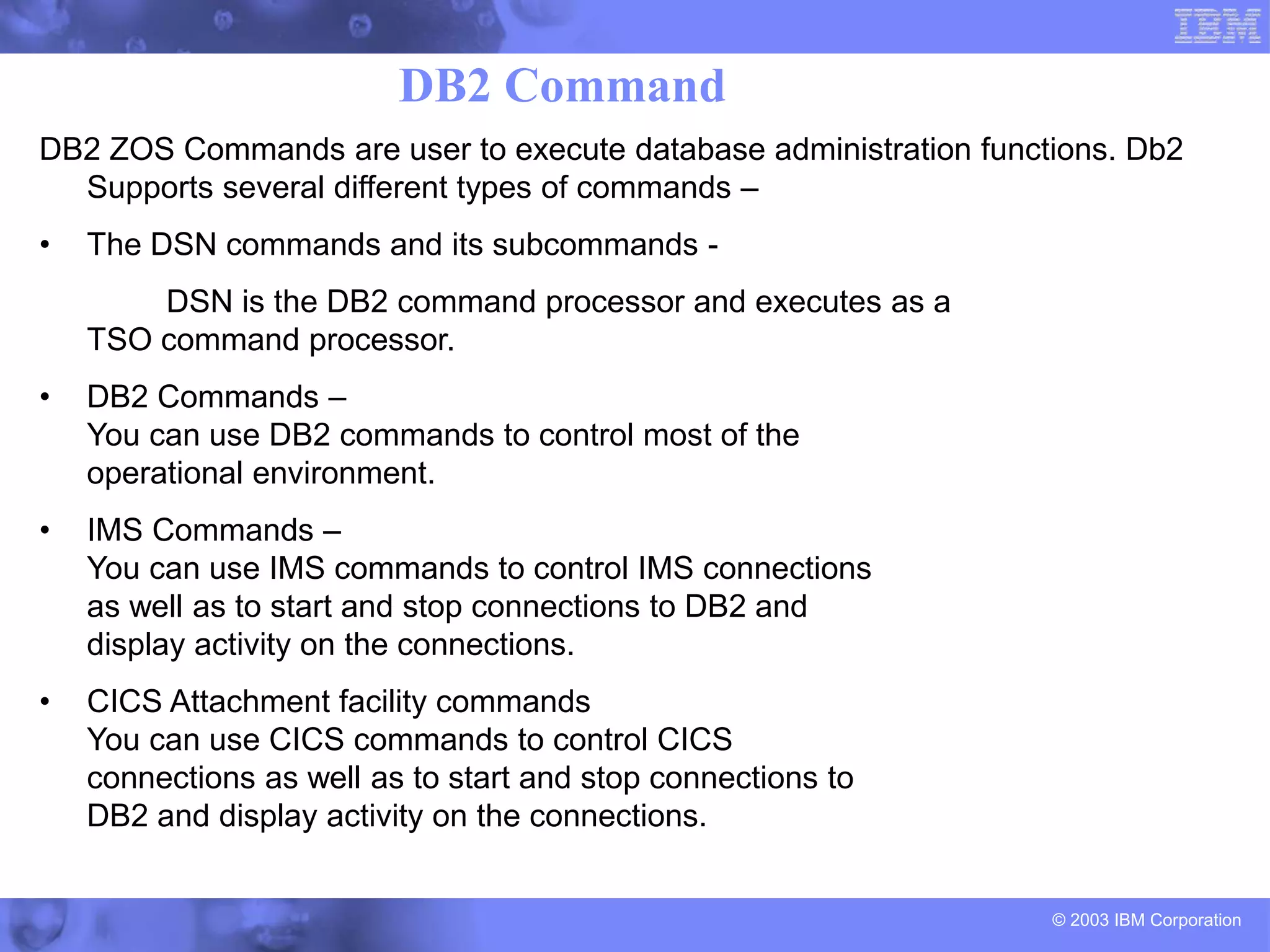

2. DB2 Command
© 2003 IBM Corporation
DB2 ZOS Commands are user to execute database administration functions. Db2
Supports several different types of commands –
• The DSN commands and its subcommands -
DSN is the DB2 command processor and executes as a
TSO command processor.
• DB2 Commands –
You can use DB2 commands to control most of the
operational environment.
• IMS Commands –
You can use IMS commands to control IMS connections
as well as to start and stop connections to DB2 and
display activity on the connections.
• CICS Attachment facility commands
You can use CICS commands to control CICS
connections as well as to start and stop connections to
DB2 and display activity on the connections.

3. The DSN command and its subcommands
© 2003 IBM Corporation
Environment: All of the DSN subcommands, except SPUFI, run under DSN in
either the foreground or background, and all, except END, also run under DB2
Interactive (DB2I). SPUFI runs only in the foreground under ISPF.
BIND PACKAGE (DSN) The DSN subcommand BIND PACKAGE builds an
application package. DB2 records the description of the
package in the catalog tables and saves the prepared
package in the directory.
BIND PLAN (DSN) The DSN subcommand BIND PLAN builds an application
plan. All DB2 programs require an application plan to
allocate DB2 resources and support SQL requests made at
run time.
DSN (TSO) The TSO command DSN starts a DSN session.
END (DSN) The DSN subcommand END is used to end the DSN
session and return to TSO.

4. DB2 commands
© 2003 IBM Corporation
Environment: The command START DB2 can be issued only from a z/OS
console.
All other DB2 commands can be issued from the following environments:
• A z/OS console or application program
• A DSN session
• A DB2I panel
• An IMS terminal
• A CICS terminal
• An application program, using the DB2 instrumentation facility interface
(IFI)
DB2 commands that are issued from a logged-on z/OS console or TSO
SDSF can
be checked by DB2 authorization using primary and secondary authorization
IDs.

5. DB2 command parsing
© 2003 IBM Corporation
All of the DB2 and related commands have a similar structure that is
necessary to execute valid commands.
The following figure illustrates the pattern of DB2 commands.
-DISPLAY DATABASE(J64DBASE),SPACENAM(PROJ32)
Recognition character - (-)
Command -- DISPLAY
Primary keyword-- DATABASE
Value - J64DBASE
Value -- PROJ32
Keyword - SPACENAM
Separators -- (,)

6. Scope of DB2 and related
commands
All commands have one of the following scopes:
Member or Local
Many commands used in a data sharing environment have member (or
local) scope because they affect only the DB2 subsystem for which they are
issued. For example, a CANCEL THREAD command cancels the specified
threads for the member that is identified by the command prefix.
Group
Other commands have group scope because they affect an object in such a
Way that affects all members of the group. For example, a STOP
DATABASE command issued from any member of the group stops that
database for all members of the group.
© 2003 IBM Corporation

7. Scope of DB2 Commands Cont..-
© 2003 IBM Corporation
The following commands have group scope:
ALTER GROUPBUFFERPOOL (DB2)
BIND PACKAGE (DSN)
BIND PLAN (DSN)
DCLGEN (DSN)
DISPLAY DATABASE (DB2)
DISPLAY GROUP (DB2)
DISPLAY GROUPBUFFERPOOL (DB2)
FREE PACKAGE (DSN)
FREE PLAN (DSN)
MODIFY irlmproc,DIAG (z/OS IRLM)
REBIND PACKAGE (DSN)
REBIND PLAN (DSN)
REBIND TRIGGER PACKAGE (DSN)
START DATABASE (DB2)
STOP DATABASE (DB2)

8. © 2003 IBM Corporation
The following commands have either group or member scope, depending on
which options you specify with them:
ARCHIVE LOG (DB2)
DISPLAY FUNCTION SPECIFIC (DB2)
DISPLAY PROCEDURE (DB2)
DISPLAY THREAD (DB2)
DISPLAY TRACE (DB2)
DISPLAY UTILITY (DB2)
MODIFY irlmproc,SET (z/OS IRLM)
MODIFY irlmproc,STATUS (z/OS IRLM)
START FUNCTION SPECIFIC (DB2)
START PROCEDURE (DB2)
START TRACE (DB2)
STOP FUNCTION SPECIFIC (DB2)
STOP PROCEDURE (DB2)
STOP TRACE (DB2)
TERM UTILITY (DB2)
Scope of DB2 Commands Cont …-

9. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
9

10. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
10
Login using IBMUSER and SYS1

11. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
11
How to check – DB2 up and running

12. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
12

13. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
13
Select DB9G

14. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
14
These Jobs shows that Db2 is up and running

15. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
15
How to execute Db2 Commands

16. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
16
Check for SSID

17. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
17
SSID should be DB9G

18. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
18
Change DB8G to DB9G, hit enter twice

19. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
19
Now SSID would be DB9G

20. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
20
DB2 Command Line

21. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
21
This is DB2 Command Line processor

22. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
22
Access Command

23. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
23
Normal Completion

24. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
24
Non group buffer pool dependent MODE(ngbpdep)

25. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
25
Alter Bufferpool Command

26. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
26
Successful Completion

27. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
27
Alter GBP

28. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
28

29. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
29
Archive Log

30. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
30
Archive Log offload

31. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
31

32. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
32

33. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
33
Display Archive

34. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
34
Display Archive Log

35. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
35
Display bufferpool

36. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
36
Display Bufferpool

37. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
37
Display * will show all inactive BP as well

38. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
38
Display GBPOOL

39. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
39
Only valid for Data sharing

40. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
40
Display Database

41. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
41

42. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
42
Display a particular database

43. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
43

44. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
44
Display Claimers Information

45. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
45

46. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
46
Display Claimers of a Tablespace

47. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
47

48. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
48
Display DDF ( Distributed Data Facilities )

49. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
49

50. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
50
Deisplay DDF detailed report

51. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
51

52. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
52
Display Function Specific

53. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
53
Display Group

54. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
54

55. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
55
Display Location

56. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
56

57. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
57
DISPLAY LOG

58. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
58

59. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
59
Display Proc

60. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
60

61. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
61
Display Thread

62. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
62

63. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
63
Display utility

64. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
64

65. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
65
Recover INDOUBT thread

66. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
66

67. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
67
Recover Postponed

68. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
68

69. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
69
Set Archive

70. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
70
Set Archive

71. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
71
Set Log

72. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
72
Set Log

73. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
73
Set Sysparm

74. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
74

75. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
75
Stop Database

76. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
76

77. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
77
Start Database

78. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
78
Start Database

79. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
79
Start Db2

80. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
80
Start Db2

81. Business Unit or Product Name
Presentation Title | Presentation Subtitle | Confidential © 2002 IBM Corporation
81
Stop Db2

82. Business Unit or Product Name
Confidential | Date | Other Information, if necessary © 2002 IBM Corporation
© 2003 IBM Corporation
Thank you
