1. Your systems. Working as one.
Data-centric Invocable Services
Workshop on Real-Time, Embedded and Rick Warren
Enterprise-Scale Time-Critical Systems rick.warren@rti.com
Rajive Joshi
April 2012; Paris rajive@rti.com

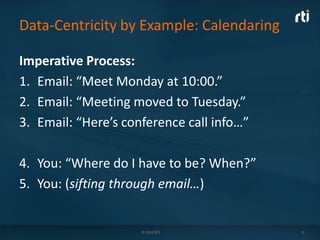

2. Data-Centricity by Example: Calendaring
Imperative Process:
1. Email: “Meet Monday at 10:00.”
2. Email: “Meeting moved to Tuesday.”
3. Email: “Here’s conference call info…”
4. You: “Where do I have to be? When?”
5. You: (sifting through email…)
© 2012 RTI 2

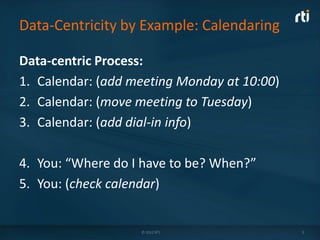

3. Data-Centricity by Example: Calendaring
Data-centric Process:
1. Calendar: (add meeting Monday at 10:00)
2. Calendar: (move meeting to Tuesday)
3. Calendar: (add dial-in info)
4. You: “Where do I have to be? When?”
5. You: (check calendar)
© 2012 RTI 3

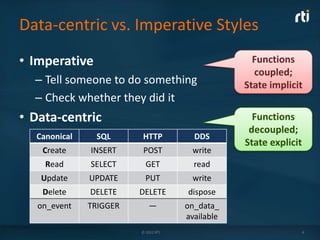

4. Data-centric vs. Imperative Styles
• Imperative Functions
coupled;
– Tell someone to do something State implicit
– Check whether they did it
• Data-centric Functions
decoupled;
Canonical SQL HTTP DDS
State explicit
Create INSERT POST write
Read SELECT GET read
Update UPDATE PUT write
Delete DELETE DELETE dispose
on_event TRIGGER — on_data_
available
© 2012 RTI 4

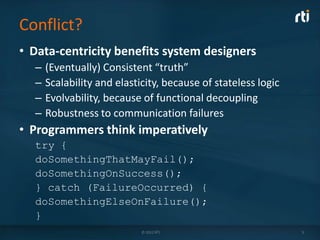

5. Conflict?
• Data-centricity benefits system designers
– (Eventually) Consistent “truth”
– Scalability and elasticity, because of stateless logic
– Evolvability, because of functional decoupling
– Robustness to communication failures
• Programmers think imperatively
try {
doSomethingThatMayFail();
doSomethingOnSuccess();
} catch (FailureOccurred) {
doSomethingElseOnFailure();
}
© 2012 RTI 5

6. Conflict?
Are these models fundamentally
in conflict?
No.
© 2012 RTI 6

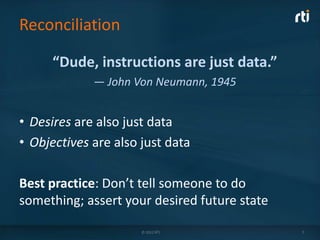

7. Reconciliation
“Dude, instructions are just data.”
— John Von Neumann, 1945
• Desires are also just data
• Objectives are also just data
Best practice: Don’t tell someone to do
something; assert your desired future state
© 2012 RTI 7

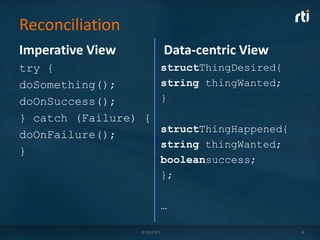

8. Reconciliation
Imperative View Data-centric View
try { structThingDesired{
doSomething(); string thingWanted;
doOnSuccess(); }
} catch (Failure) {
structThingHappened{
doOnFailure();
string thingWanted;
}
booleansuccess;
};
…
© 2012 RTI 8

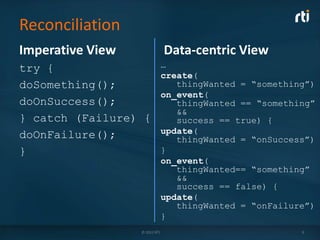

9. Reconciliation
Imperative View Data-centric View
try { …
create(
doSomething(); thingWanted = “something”)
on_event(
doOnSuccess(); thingWanted == “something”
&&
} catch (Failure) { success == true) {
doOnFailure(); update(
thingWanted = “onSuccess”)
} }
on_event(
thingWanted== “something”
&&
success == false) {
update(
thingWanted = “onFailure”)
}
© 2012 RTI 9

10. Reconciliation
Imperative View Data-centric View
This way is easier This way is easier
…to write the first time …to scale out
…to understand top- …to extend
down, sequentially …to maintain incrementally
…to understand bottom-
up, causally
© 2012 RTI 10

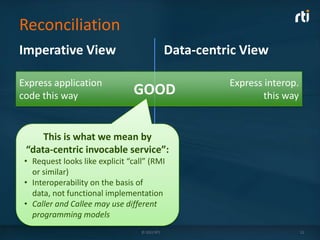

11. Reconciliation
Imperative View Data-centric View
Express application Express interop.
code this way GOOD this way
This is what we mean by
“data-centric invocable service”:
• Request looks like explicit “call” (RMI
or similar)
• Interoperability on the basis of
data, not functional implementation
• Caller and Callee may use different
programming models
© 2012 RTI 11

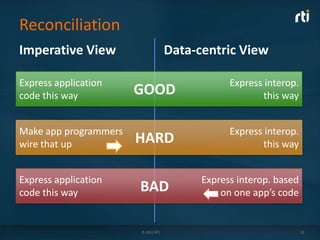

12. Reconciliation
Imperative View Data-centric View
Express application Express interop.
code this way GOOD this way
Make app programmers Express interop.
wire that up HARD this way
Express application Express interop. based
code this way BAD on one app’s code
© 2012 RTI 12

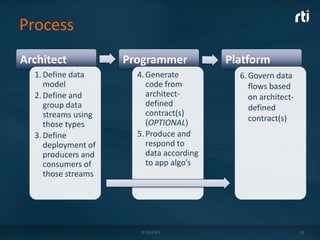

13. Process
Architect Programmer Platform
1. Define data 4. Generate 6. Govern data
model code from flows based
2. Define and architect- on architect-
group data defined defined
streams using contract(s)
(OPTIONAL) contract(s)
those types
3. Define 5. Produce and
deployment of respond to
producers and data according
consumers of to app algo’s
those streams
© 2012 RTI 13

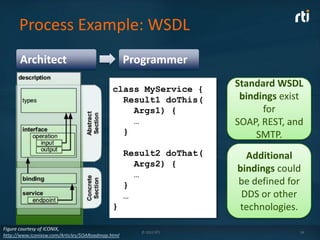

14. Process Example: WSDL
Architect Programmer
class MyService {
Standard WSDL
Result1 doThis( bindings exist
Args1) { for
… SOAP, REST, and
} SMTP.
Result2 doThat( Additional
Args2) {
bindings could
…
} be defined for
… DDS or other
} technologies.
Figure courtesy of ICONIX,
© 2012 RTI 14
http://www.iconixsw.com/Articles/SOARoadmap.html

15. Hypothetical DDS IDL Example
structFoo { local interface Svc {
@Key long id; @InTopic("FooTpc")
long x; @OutTopic("BarTpc")
double y; Bar doFoo(in Foo f);
}; };
structBar {
@Key string who; Control binding to topics for
easy subscription, filtering,
short baz; and QoS control
};
© 2012 RTI 15

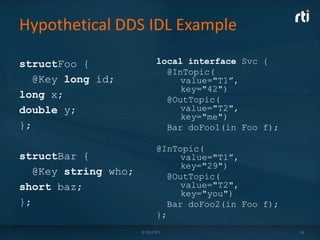

16. Hypothetical DDS IDL Example
structFoo { local interface Svc {
@InTopic(
@Key long id; value="T1”,
key="42")
long x; @OutTopic(
double y; value="T2",
key="me")
}; Bar doFoo1(in Foo f);
@InTopic(
structBar { value="T1”,
key="29")
@Key string who; @OutTopic(
short baz; value="T2",
key="you")
}; Bar doFoo2(in Foo f);
};
© 2012 RTI 16

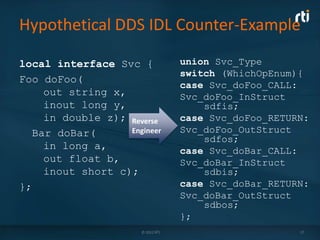

17. Hypothetical DDS IDL Counter-Example
local interface Svc { union Svc_Type
switch (WhichOpEnum){
Foo doFoo(
case Svc_doFoo_CALL:
out string x, Svc_doFoo_InStruct
inout long y, sdfis;
in double z); Reverse case Svc_doFoo_RETURN:
Bar doBar( Engineer Svc_doFoo_OutStruct
sdfos;
in long a, case Svc_doBar_CALL:
out float b, Svc_doBar_InStruct
inout short c); sdbis;
}; case Svc_doBar_RETURN:
Svc_doBar_OutStruct
sdbos;
};
© 2012 RTI 17

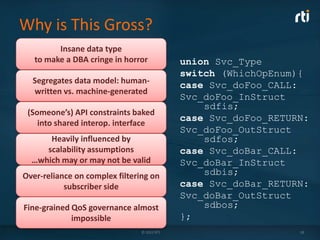

18. Why is This Gross?
Insane data type
to make a DBA cringe in horror union Svc_Type
switch (WhichOpEnum){
Segregates data model: human-
case Svc_doFoo_CALL:
written vs. machine-generated
Svc_doFoo_InStruct
sdfis;
(Someone’s) API constraints baked
case Svc_doFoo_RETURN:
into shared interop. interface
Svc_doFoo_OutStruct
Heavily influenced by sdfos;
scalability assumptions case Svc_doBar_CALL:
…which may or may not be valid Svc_doBar_InStruct
Over-reliance on complex filtering on sdbis;
subscriber side case Svc_doBar_RETURN:
Svc_doBar_OutStruct
Fine-grained QoS governance almost sdbos;
impossible };
© 2012 RTI 18

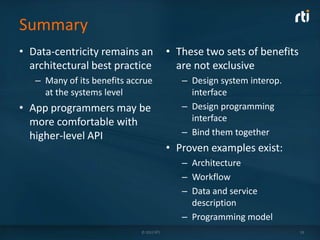

19. Summary
• Data-centricity remains an • These two sets of benefits
architectural best practice are not exclusive
– Many of its benefits accrue – Design system interop.
at the systems level interface
• App programmers may be – Design programming
more comfortable with interface
higher-level API – Bind them together
• Proven examples exist:
– Architecture
– Workflow
– Data and service
description
– Programming model
© 2012 RTI 19
