Custom post-framworks
- 1.

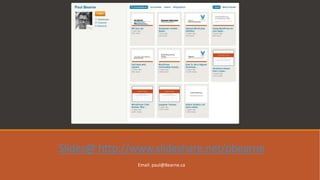

- 2. Custom Meta Box Frameworks ANOVERVIEW AND HOW TO EXTEND THEM Slides @ http://www.slideshare.net/pbearne
- 3. Paul Bearne @pbearne FreelanceSenior Full Stack WordPress Developer, Core contribs in WordPress versions 3.9, 4.0, 4.2, 4.4, 4.5, 4.6, 4.7 and 4.8
- 4. Bearne.ca Plugin author of: AuthorAvatars List ( https://wordpress.org/plugins/author-avatars/ ) WP Bullhorn Job Listing ( https://wordpress.org/plugins/bh-staffing-job-listing-and-cv-upload-for-wp/ ) WP Vote (https:// wp-vote.com )
- 5. Real-time Publishing forWordPress Livepress.com

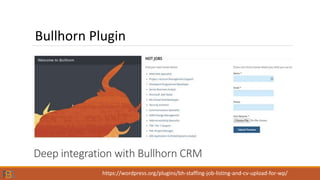

- 6. Deep integration withBullhorn CRM Bullhorn Plugin https://wordpress.org/plugins/bh-staffing-job-listing-and-cv-upload-for-wp/
- 7. #1 Outsourcing ServiceFor WordPress Codeable.io $10 credit : https://codeable.io?coupon_code=WSQWI1
- 8. Custom Meta Box Frameworks HOWTO ADD EXTRA DATA TO A POST AND DISPLAY IT

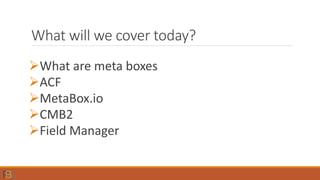

- 9. What will wecover today? What are meta boxes ACF MetaBox.io CMB2 Field Manager

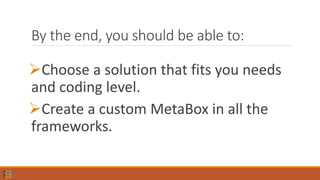

- 10. By the end,you should be able to: Choose a solution that fits you needs and coding level. Create a custom MetaBox in all the frameworks.

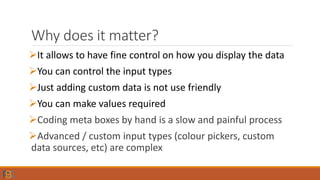

- 12. Why does itmatter? It allows to have fine control on how you display the data You can control the input types Just adding custom data is not use friendly You can make values required Coding meta boxes by hand is a slow and painful process Advanced / custom input types (colour pickers, custom data sources, etc) are complex
- 13.
- 14.

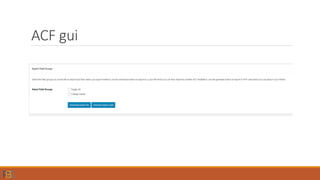

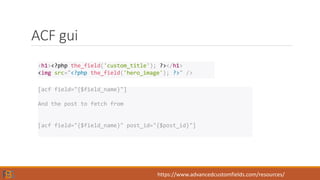

- 15. ACF gui <h1><?php the_field('custom_title');?></h1> <img src="<?php the_field('hero_image'); ?>" /> [acf field="{$field_name}"] And the post to fetch from [acf field="{$field_name}" post_id="{$post_id}"] https://www.advancedcustomfields.com/resources/
- 16.

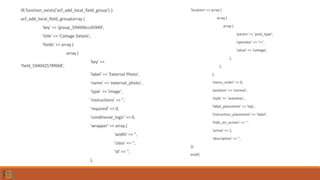

- 17. if( function_exists('acf_add_local_field_group') ): acf_add_local_field_group(array( 'key' => 'group_594046ccd5949', 'title' => 'Cottage Details', 'fields' => array ( array ( 'key' => 'field_594042578f068', 'label' => 'External Photo', 'name' => 'external_photo', 'type' => 'image', 'instructions' => '', 'required' => 0, 'conditional_logic' => 0, 'wrapper' => array ( 'width' => '', 'class' => '', 'id' => '', ), 'location' => array ( array ( array ( 'param' => 'post_type', 'operator' => '==', 'value' => 'cottage’, ), ), ), 'menu_order' => 0, 'position' => 'normal', 'style' => 'seamless', 'label_placement' => 'top', 'instruction_placement' => 'label', 'hide_on_screen' => '', 'active' => 1, 'description' => '', )); endif;

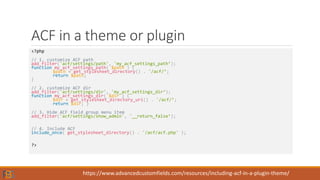

- 18. ACF in atheme or plugin <?php // 1. customize ACF path add_filter('acf/settings/path', 'my_acf_settings_path’); function my_acf_settings_path( $path ) { $path = get_stylesheet_directory() . '/acf/’; return $path; } // 2. customize ACF dir add_filter('acf/settings/dir', 'my_acf_settings_dir’); function my_acf_settings_dir( $dir ) { $dir = get_stylesheet_directory_uri() . '/acf/’; return $dir; } // 3. Hide ACF field group menu item add_filter('acf/settings/show_admin', '__return_false’); // 4. Include ACF include_once( get_stylesheet_directory() . '/acf/acf.php' ); ?> https://www.advancedcustomfields.com/resources/including-acf-in-a-plugin-theme/

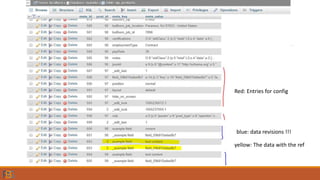

- 19. ACF in atheme or plugin Red: Entries for config yellow: The data with the ref blue: data revisions !!!
- 20. ACF PRO’S End users canedit fields Easy for non-coders Lots of field types Fully featured Good for templating Supported CON’S End users can edit fields Stored in DB ( slows the site ) / Not in source control Relies on custom output functions (for all types rendering) Hard to extend: https://github.com/elliotcondon/acf-field-type-template Need PRO version for advance stuff ACF can output fields to PHP, eliminating the DB. It is possible to remove ACF from wp-admin so fields won’t be changed by users 2 rows in DB per entry

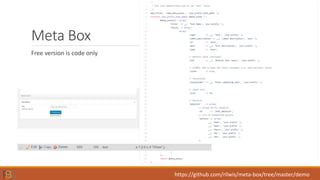

- 21. Meta Box Free versionis code only https://github.com/rilwis/meta-box/tree/master/demo
- 22.

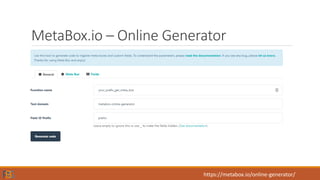

- 23. MetaBox.io – OnlineGenerator https://metabox.io/online-generator/

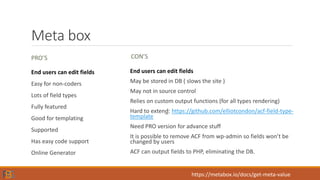

- 24. Meta box PRO’S End userscan edit fields Easy for non-coders Lots of field types Fully featured Good for templating Supported Has easy code support Online Generator CON’S End users can edit fields May be stored in DB ( slows the site ) May not in source control Relies on custom output functions (for all types rendering) Hard to extend: https://github.com/elliotcondon/acf-field-type- template Need PRO version for advance stuff It is possible to remove ACF from wp-admin so fields won’t be changed by users ACF can output fields to PHP, eliminating the DB. https://metabox.io/docs/get-meta-value
- 25.
- 26.
- 27.
- 28.
- 29.

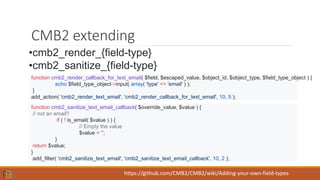

- 30. CMB2 extending •cmb2_render_{field-type} •cmb2_sanitize_{field-type} function cmb2_render_callback_for_text_email($field, $escaped_value, $object_id, $object_type, $field_type_object ) { echo $field_type_object->input( array( 'type' => 'email' ) ); } add_action( 'cmb2_render_text_email', 'cmb2_render_callback_for_text_email', 10, 5 ); function cmb2_sanitize_text_email_callback( $override_value, $value ) { // not an email? if ( ! is_email( $value ) ) { // Empty the value $value = ‘’; } return $value; } add_filter( 'cmb2_sanitize_text_email', 'cmb2_sanitize_text_email_callback', 10, 2 ); https://github.com/CMB2/CMB2/wiki/Adding-your-own-field-types
- 31.

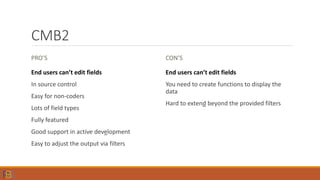

- 32. CMB2 PRO’S End users can’tedit fields In source control Easy for non-coders Lots of field types Fully featured Good support in active development Easy to adjust the output via filters CON’S End users can’t edit fields You need to create functions to display the data Hard to extend beyond the provided filters
- 33.
- 34.
- 35.
- 36.

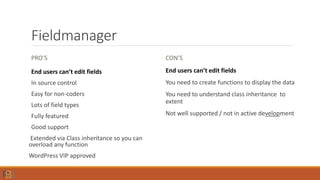

- 37. Fieldmanager PRO’S End users can’tedit fields In source control Easy for non-coders Lots of field types Fully featured Good support Extended via Class inheritance so you can overload any function WordPress VIP approved CON’S End users can’t edit fields You need to create functions to display the data You need to understand class inheritance to extent Not well supported / not in active development

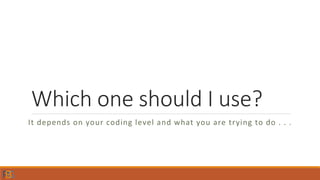

- 38. Which one shouldI use? It depends on your coding level and what you are trying to do . . .
- 39.
- 40.
- 41.
Editor's Notes
- #4 Some of smallest patches
- #5 I am freelance so I need clients that will pay me to allow me to talk at WordCamp! These are some of my clients that I help with their complex problems whose products you may find useful LivePress is real time microblogging that is native on WordPress. It is available as part of WordPress.com VIP platform.
- #6 I am freelance so I need clients that will pay me to allow me to talk at WordCamp! These are some of my clients that I help with their complex problems whose products you may find useful LivePress is real time microblogging that is native on WordPress. It is available as part of WordPress.com VIP platform.
- #7 Uncanny Owl are eLearning experts that can help you and your clients provide eLearning solutions
- #8 We know it's hard to find a reliable WordPress expert when you need one, which is why we've set on a mission to bring them all to one place: here. Join us and benefit from: a steady income with a guaranteed minimum hourly rate working with great, loyal clients being a part of our reputable expert community
- #10 In this talk, I will show you how to use frameworks to create and handle custom meta boxes
- #21 End users can edit fields: someone could change the identifier and break your implementation. It encourages a front-end dependency: the get_field( $key ) function adds some convenience with formatted fields but functionally is just a wrapper for get_post_meta( $post_id, $key, true ) and if you’ve made the mistake of buying into it you’ll have some work to do if you ever want to leave. API is developer-unfriendly: no documentation for writing field definitions by hand (using register_field_group()), the syntax for its parametised array isn’t bad but it’s far too verbose to write by guessing and every time you make a change you have to re-export the code and update your plugin. Impractical to use as a front-end dependency: you’d have to either check whether ACF is loaded before registering fields or use something like the TGM Plugin Activation library to ensure it’s available. Either way, in one way or another, you’re delegating responsibility for the dependency to the user which is one of those WordPress-specific practices that makes the wider PHP community scratch their heads. Painful to use as a back-end dependency: there isn’t a clean way to add custom fields without unintended side-effects.
