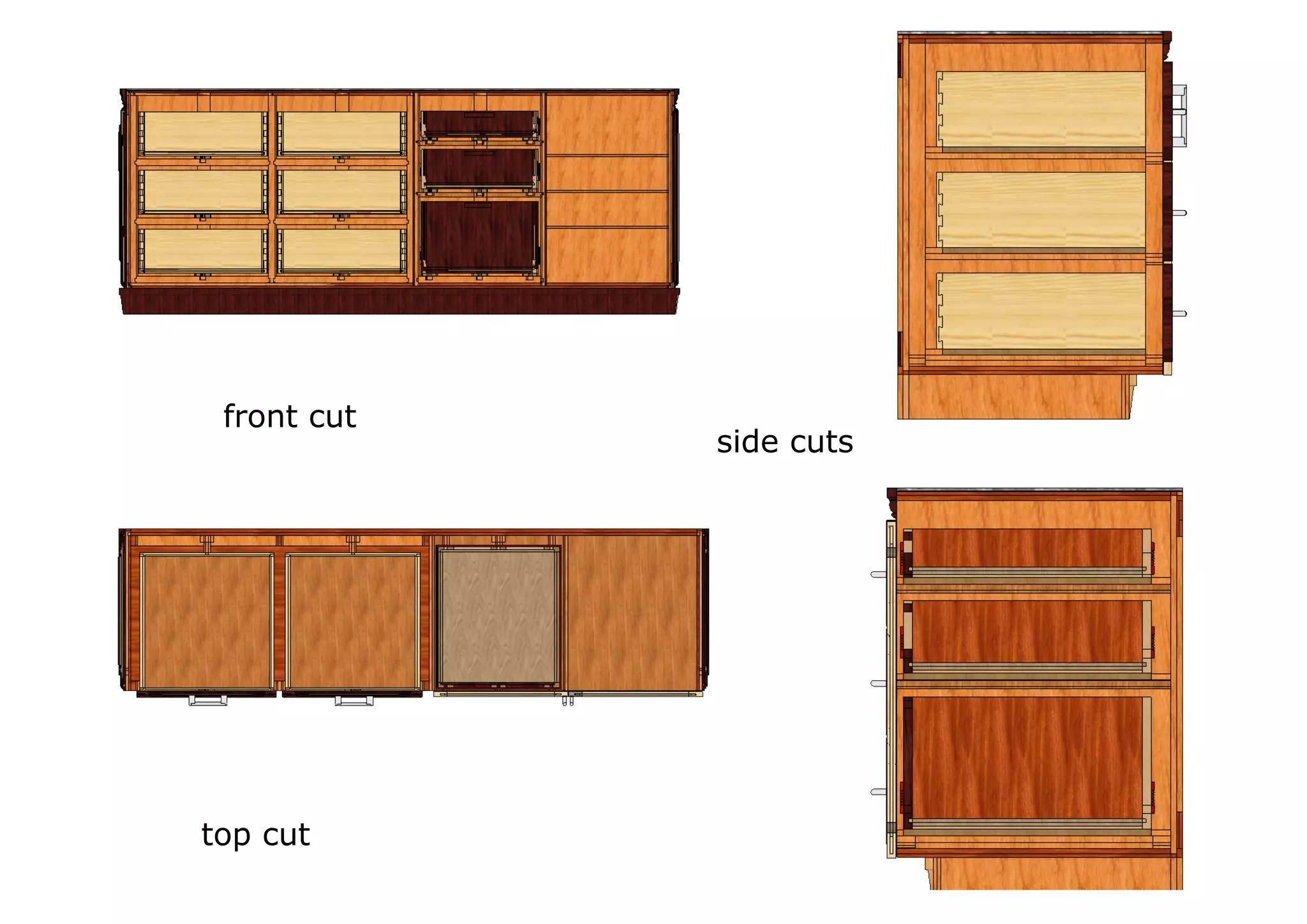

1. CUSTOM WOODWORKING ASSEMBLY DRESSER PLAN
ORIGINAL DESIGN BY MIGUEL ZAMARRIPA 2017

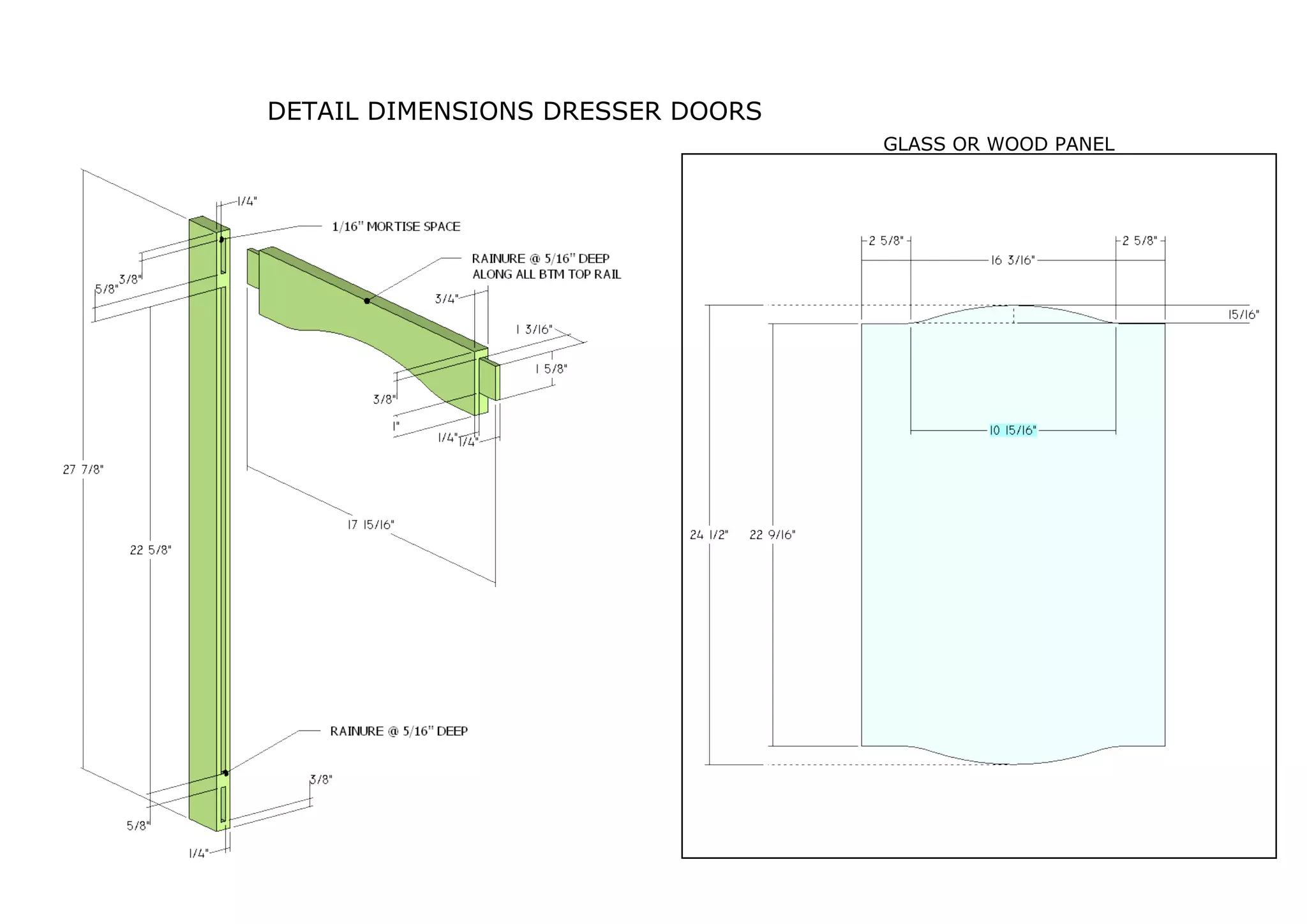

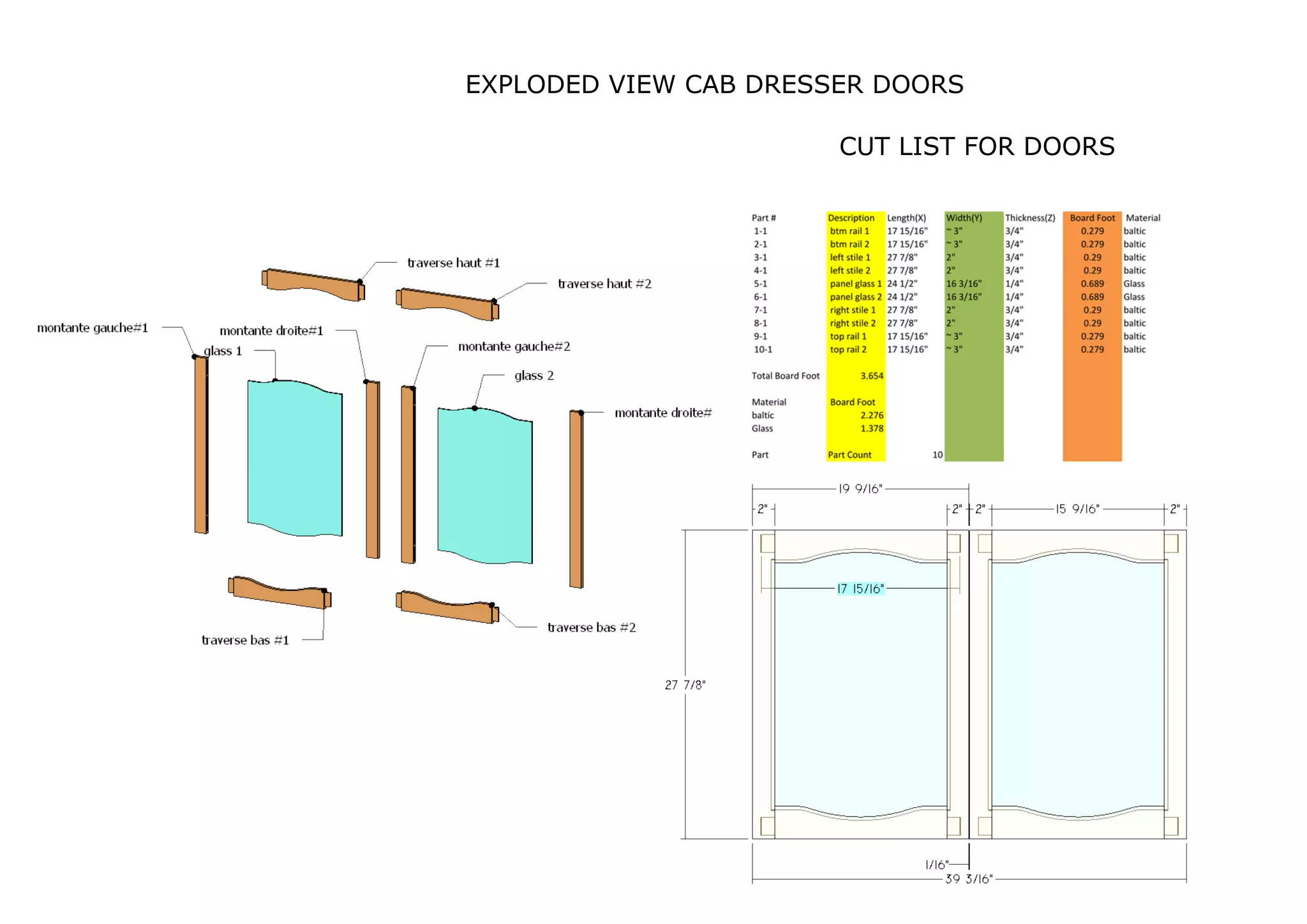

6 DRAWER WITH 3 PULL OUTS / 2 DOORS(OPTIONAL GLASS OR WOOD FINISH) & ADJUSTABLE SHELVES
5. DADO GROOVE CUTS FOR TOP
5-1 Top#1 83 1/8" 23 5/8" 3/4" 10.228 akb-jatoba
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
DADO GROOVE DEEP @ 7/16'' AS PER RED DIM. LOCATION
BACK SIDE
FRONT SIDE
BLACK DIM FOR GENERAL REFERENCE

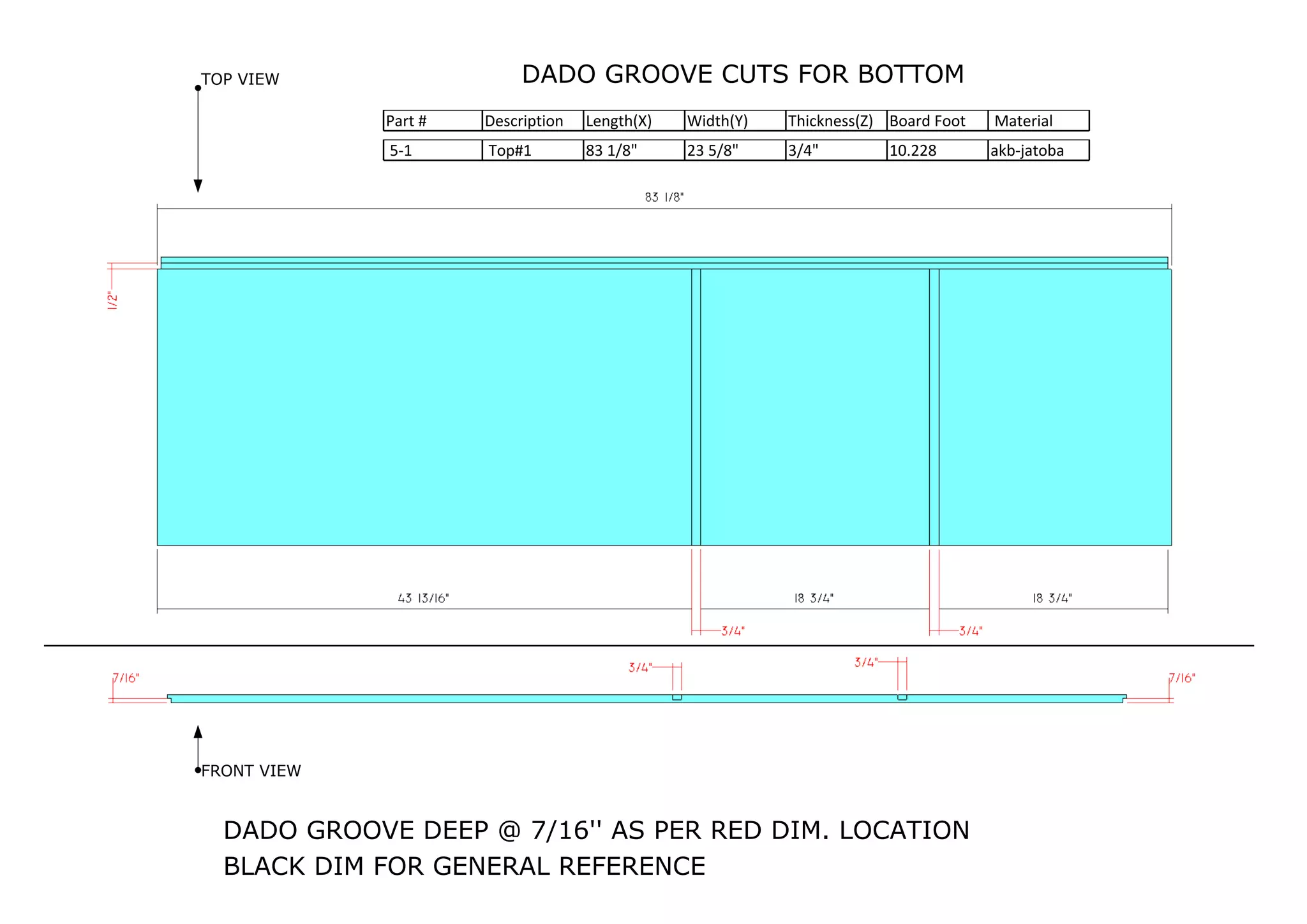

6. DADO GROOVE CUTS FOR BOTTOM
5-1 Top#1 83 1/8" 23 5/8" 3/4" 10.228 akb-jatoba
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
TOP VIEW
FRONT VIEW
DADO GROOVE DEEP @ 7/16'' AS PER RED DIM. LOCATION
BLACK DIM FOR GENERAL REFERENCE

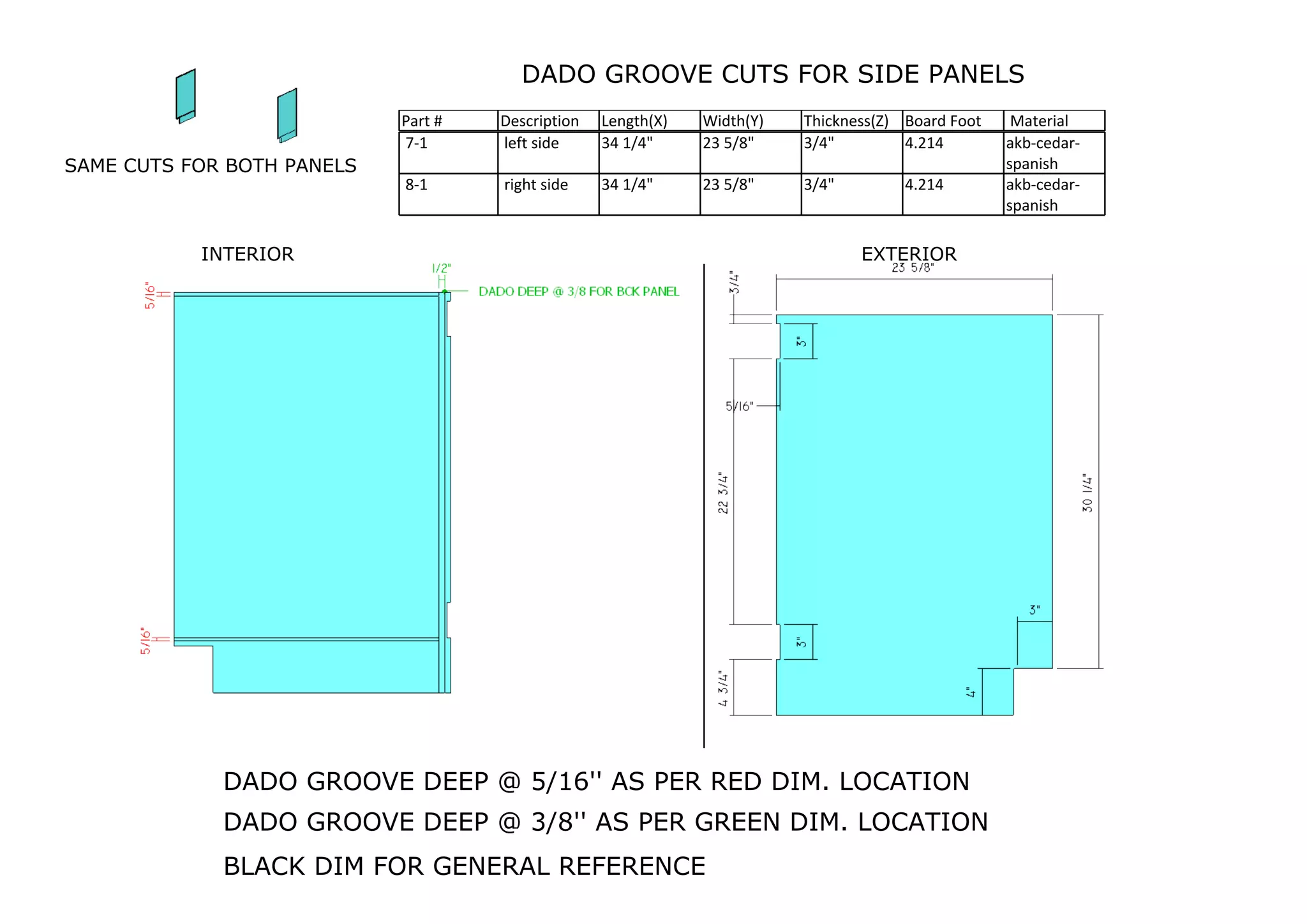

7. DADO GROOVE CUTS FOR SIDE PANELS
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
DADO GROOVE DEEP @ 5/16'' AS PER RED DIM. LOCATION
7-1 left side 34 1/4" 23 5/8" 3/4" 4.214 akb-cedar-
spanish
8-1 right side 34 1/4" 23 5/8" 3/4" 4.214 akb-cedar-
spanish
DADO GROOVE DEEP @ 3/8'' AS PER GREEN DIM. LOCATION
SAME CUTS FOR BOTH PANELS
INTERIOR EXTERIOR
BLACK DIM FOR GENERAL REFERENCE
8. DADO GROOVE CUTS FOR HANGERS AND KICK and BACK PANEL
DADO GROOVE DEEP @ 5/16'' FOR KICK AND 3/16'' FOR HANGERS
TOP VIEW
back panel as per cut list (no CUT OUTS necessary)
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
1-1 Back#1 83 1/4" 29 9/16" 1/2" 8.545 akb-cedar-spanish
3-1 Hanger 1#1 84" 3" 1/2" 0.875 akb-jatoba
4-1 Hanger 2#2 84" 3" 1/2" 0.875 akb-jatoba
6-1 front Kick#1 84" 4" 5/8" 1.458 akb-cedar-spanish
KICK
HANGERS

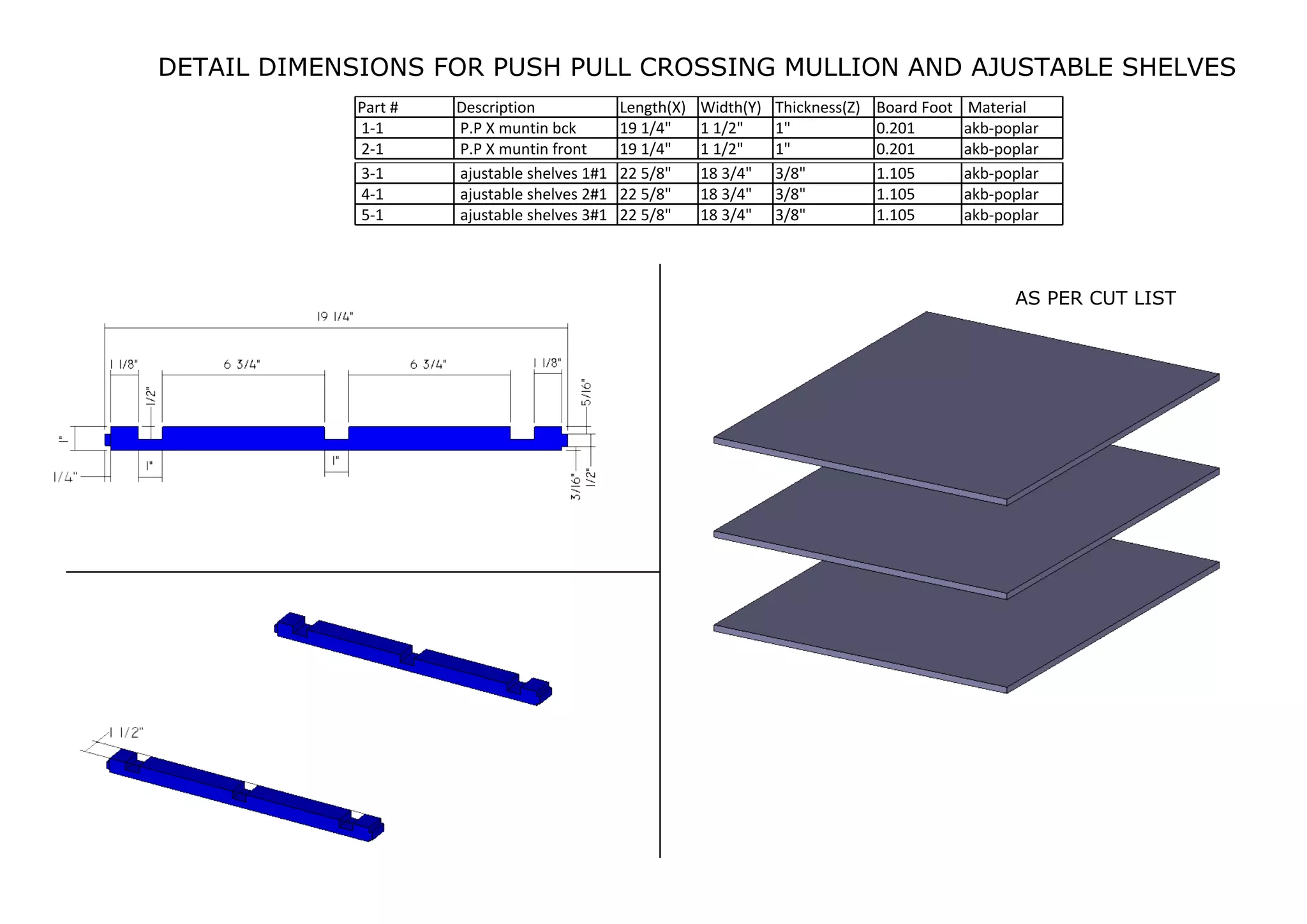

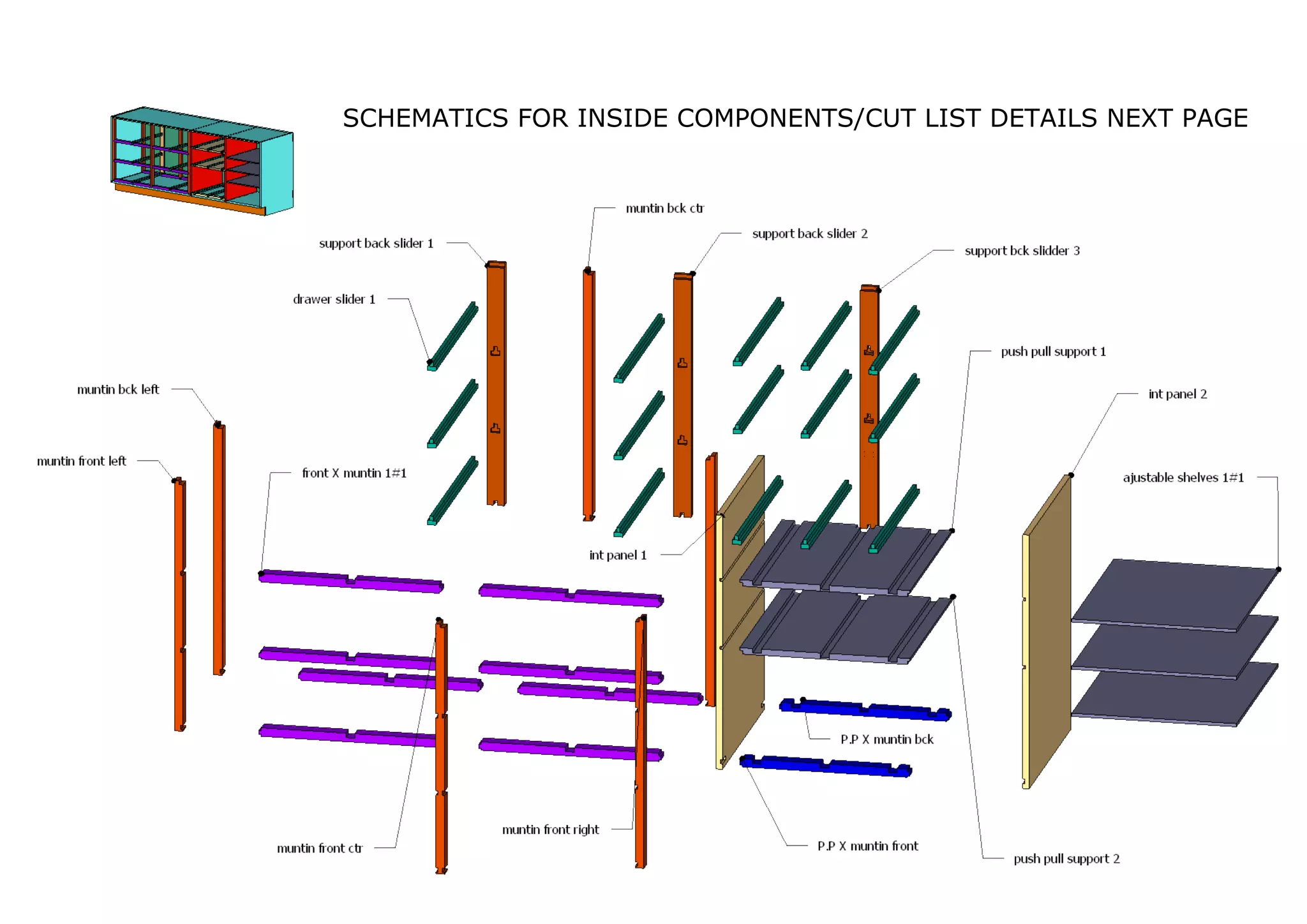

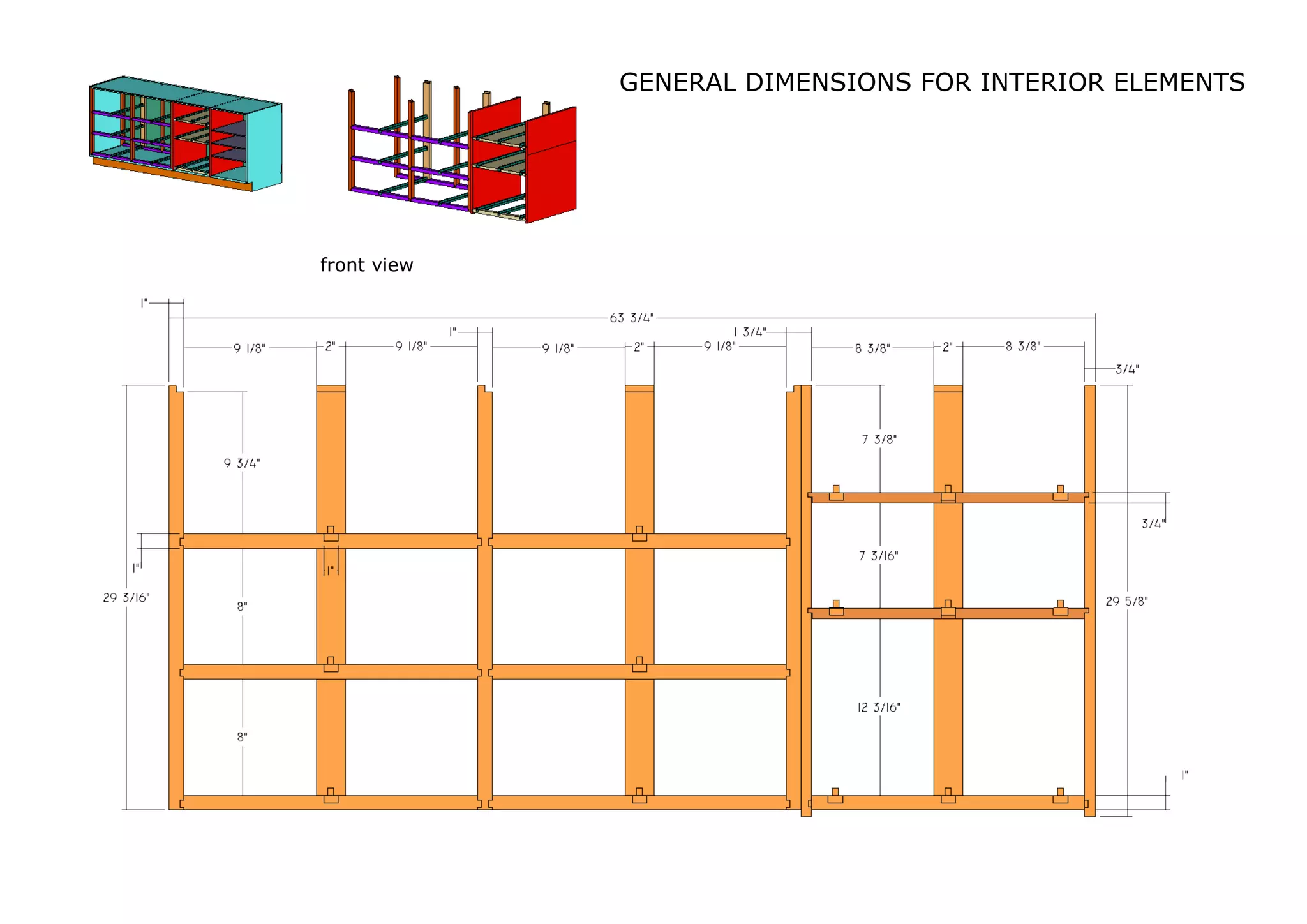

12. DETAIL DIMENSIONS FOR PUSH PULL CROSSING MULLION AND AJUSTABLE SHELVES
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
1-1 P.P X muntin bck 19 1/4" 1 1/2" 1" 0.201 akb-poplar
2-1 P.P X muntin front 19 1/4" 1 1/2" 1" 0.201 akb-poplar
3-1 ajustable shelves 1#1 22 5/8" 18 3/4" 3/8" 1.105 akb-poplar
4-1 ajustable shelves 2#1 22 5/8" 18 3/4" 3/8" 1.105 akb-poplar
5-1 ajustable shelves 3#1 22 5/8" 18 3/4" 3/8" 1.105 akb-poplar
AS PER CUT LIST

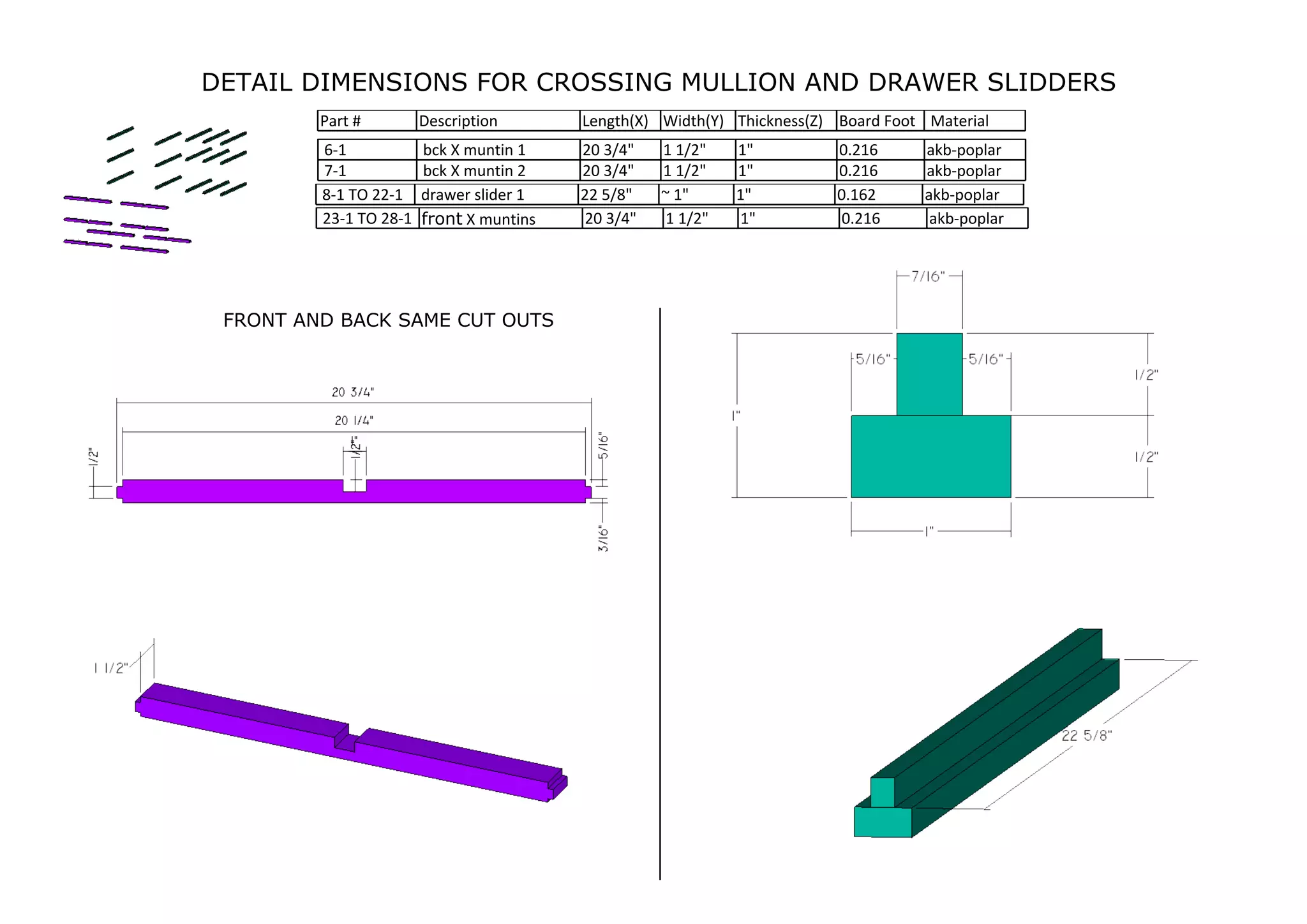

13. DETAIL DIMENSIONS FOR CROSSING MULLION AND DRAWER SLIDDERS
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
6-1 bck X muntin 1 20 3/4" 1 1/2" 1" 0.216 akb-poplar
7-1 bck X muntin 2 20 3/4" 1 1/2" 1" 0.216 akb-poplar
8-1 TO 22-1 drawer slider 1 22 5/8" ~ 1" 1" 0.162 akb-poplar
23-1 TO 28-1 front X muntins 20 3/4" 1 1/2" 1" 0.216 akb-poplar
FRONT AND BACK SAME CUT OUTS
14. DETAIL DIMENSIONS FOR INTERIOR PANELS
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
29-1 int panel 1 29 5/8" 22 5/8" 3/4" 3.576 akb-poplar
30-1 int panel 2 29 5/8" 22 5/8" 3/4" 3.576 akb-poplar

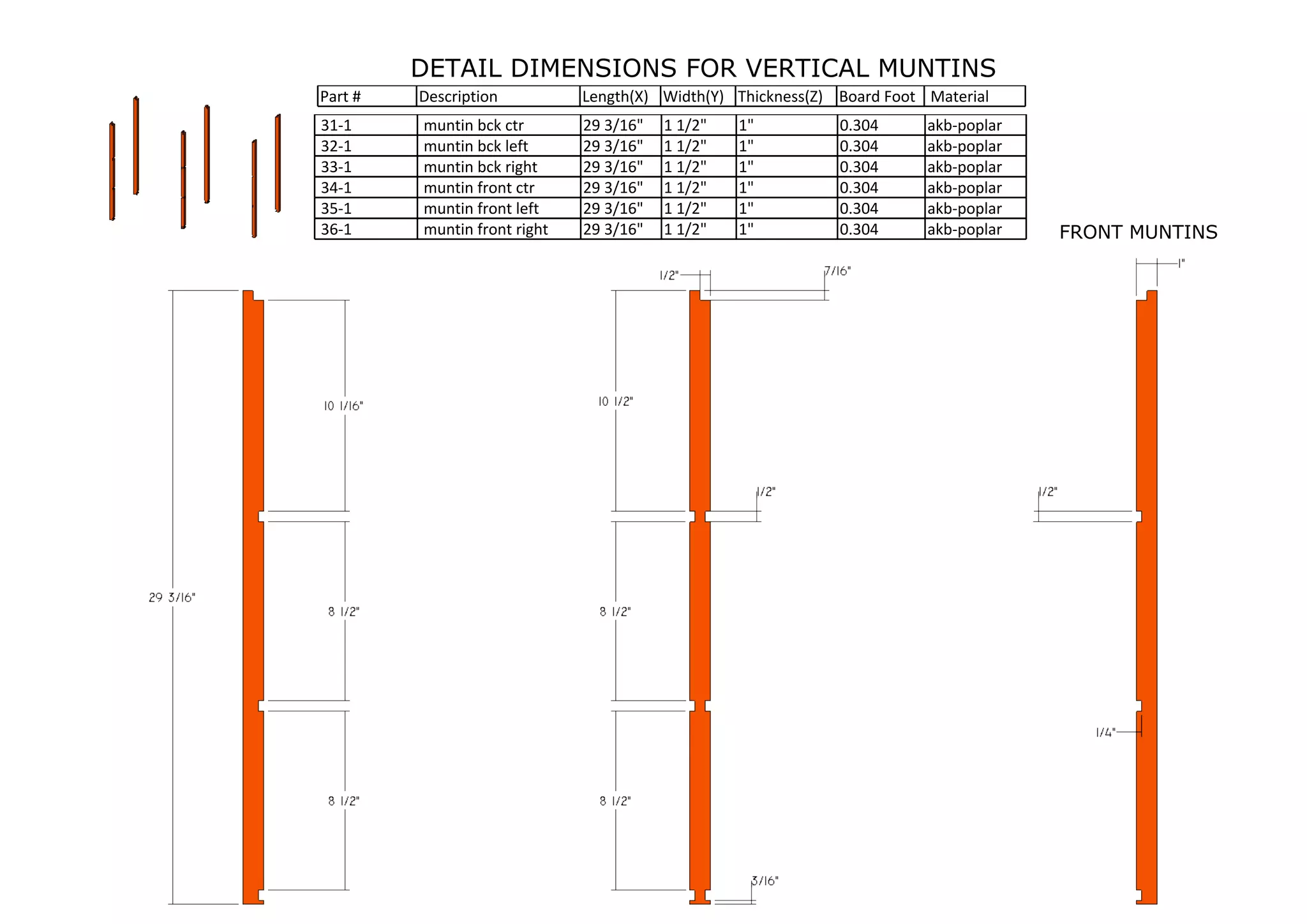

15. DETAIL DIMENSIONS FOR VERTICAL MUNTINS
31-1 muntin bck ctr 29 3/16" 1 1/2" 1" 0.304 akb-poplar
32-1 muntin bck left 29 3/16" 1 1/2" 1" 0.304 akb-poplar
33-1 muntin bck right 29 3/16" 1 1/2" 1" 0.304 akb-poplar
34-1 muntin front ctr 29 3/16" 1 1/2" 1" 0.304 akb-poplar
35-1 muntin front left 29 3/16" 1 1/2" 1" 0.304 akb-poplar
36-1 muntin front right 29 3/16" 1 1/2" 1" 0.304 akb-poplar
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
FRONT MUNTINS
16. DETAIL DIMENSIONS FOR VERTICAL MUNTINS
31-1 muntin bck ctr 29 3/16" 1 1/2" 1" 0.304 akb-poplar
32-1 muntin bck left 29 3/16" 1 1/2" 1" 0.304 akb-poplar
33-1 muntin bck right 29 3/16" 1 1/2" 1" 0.304 akb-poplar
34-1 muntin front ctr 29 3/16" 1 1/2" 1" 0.304 akb-poplar
35-1 muntin front left 29 3/16" 1 1/2" 1" 0.304 akb-poplar
36-1 muntin front right 29 3/16" 1 1/2" 1" 0.304 akb-poplar
Part # Description Length(X) Width(Y) Thickness(Z) Board Foot Material
BACK MUNTINS
17. DETAIL DIMENSIONS FOR PUSH PULL SUPPORT SHELVES
37-1 push pull support 1 22 5/8" 19 3/8" 3/4" 2.234 akb-poplar
38-1 push pull support 2 22 5/8" 19 3/8" 3/4" 2.234 akb-poplar
Part # Description Length(X) Width(Y) Thickness(Z) Board Foo t Material
18. DETAIL DIMENSIONS FOR SUPPORT BACK MUNTIN FOR DRAWER SLIDDERS
Part # Description Length(X) Width(Y) Thickness(Z) Board Foo t Material
39-1 support back slider 1 28 3/16" 2" 1" 0.391 akb-poplar
40-1 support back slider 2 28 3/16" 2" 1" 0.391 akb-poplar
41-1 support back slider 3 28 3/16" 2" 1" 0.391 akb-poplar
FRONT VIEW

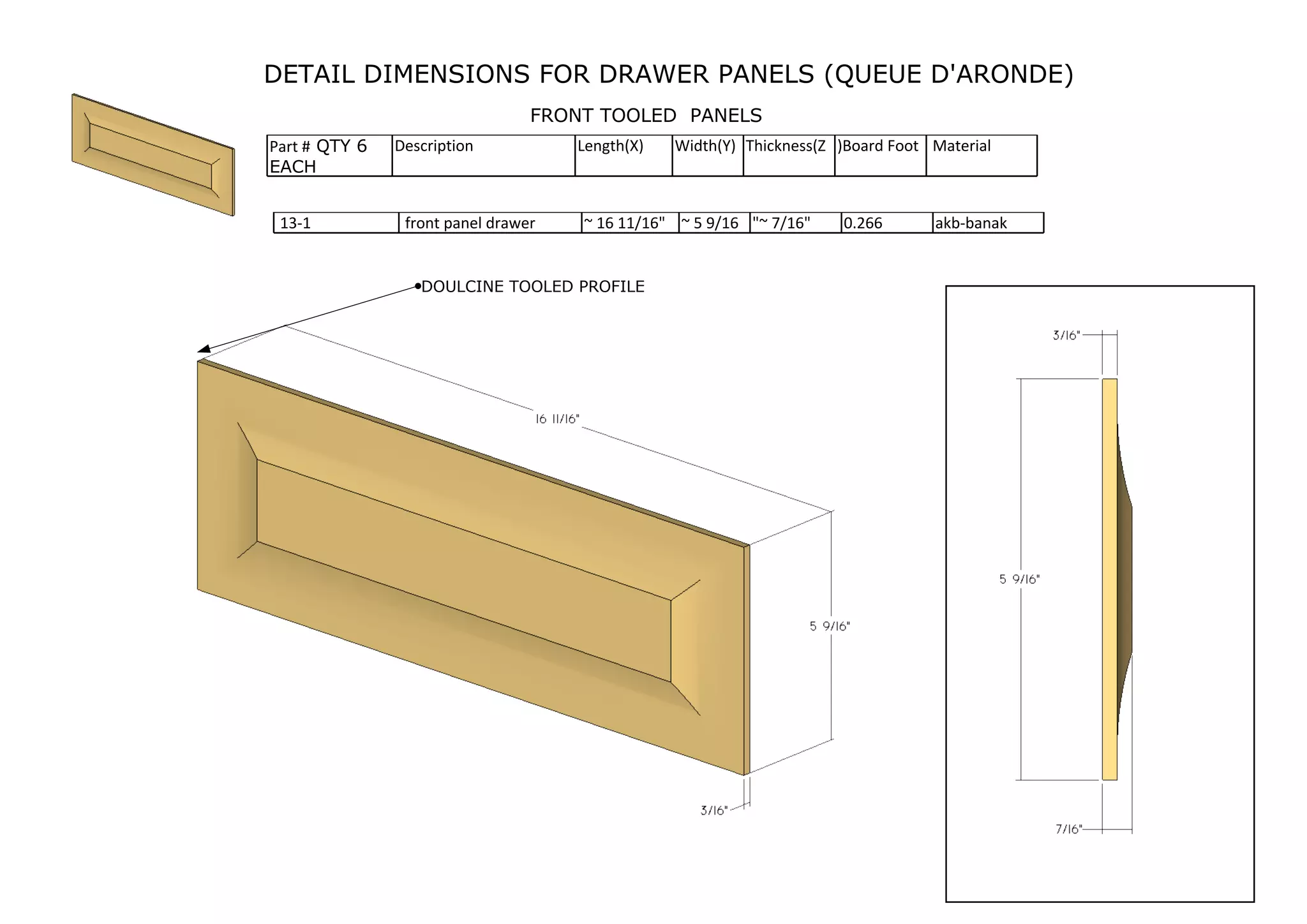

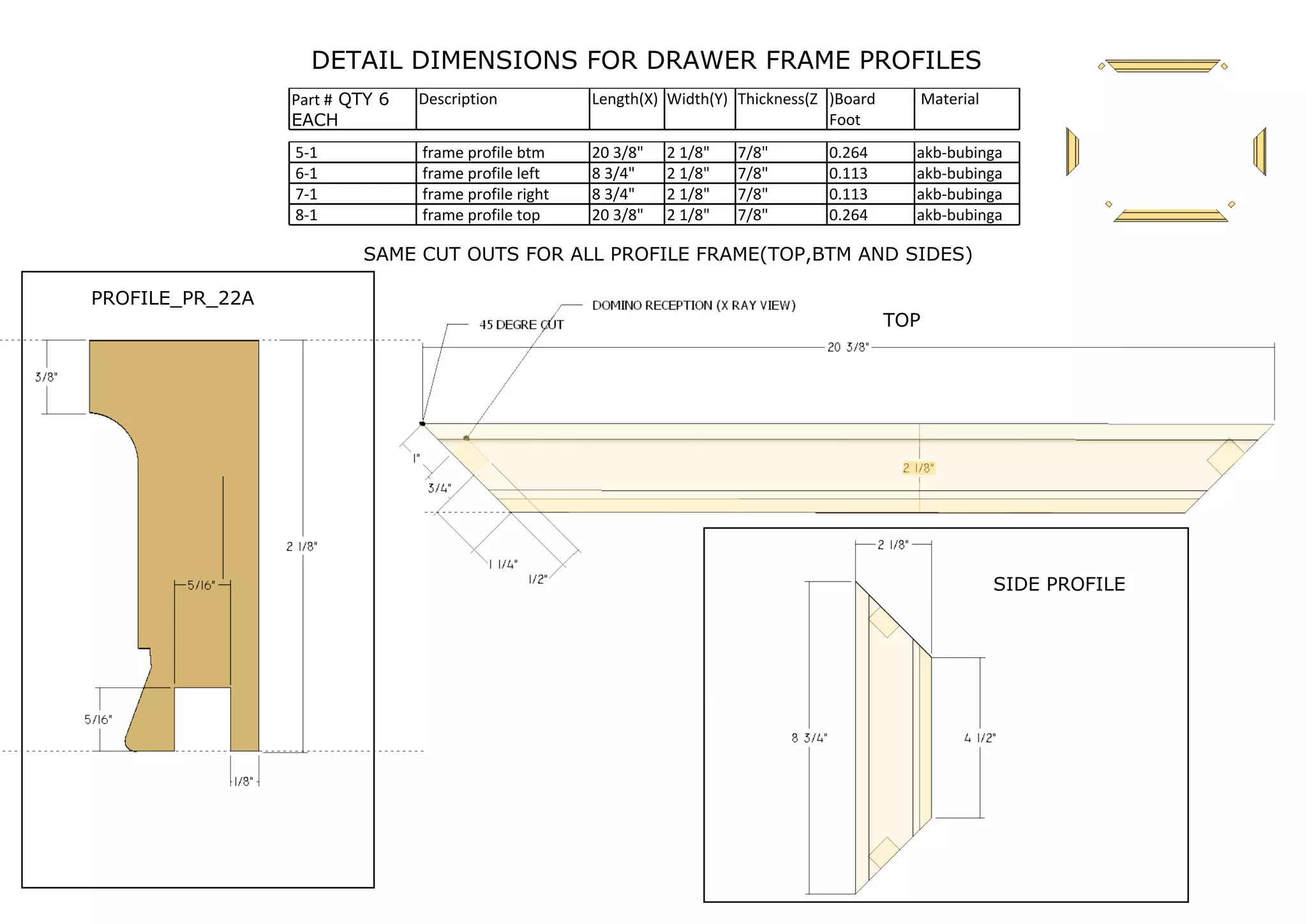

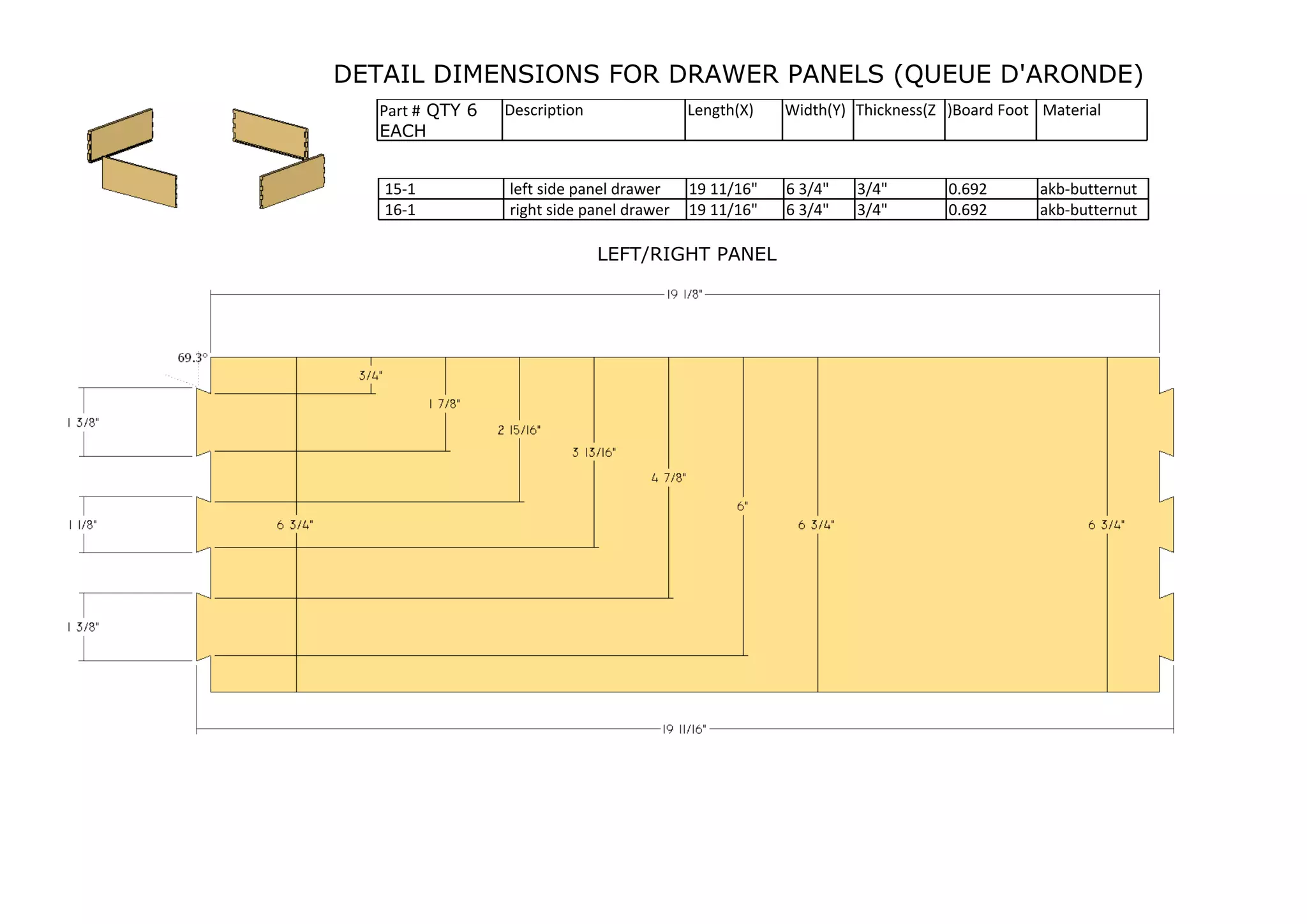

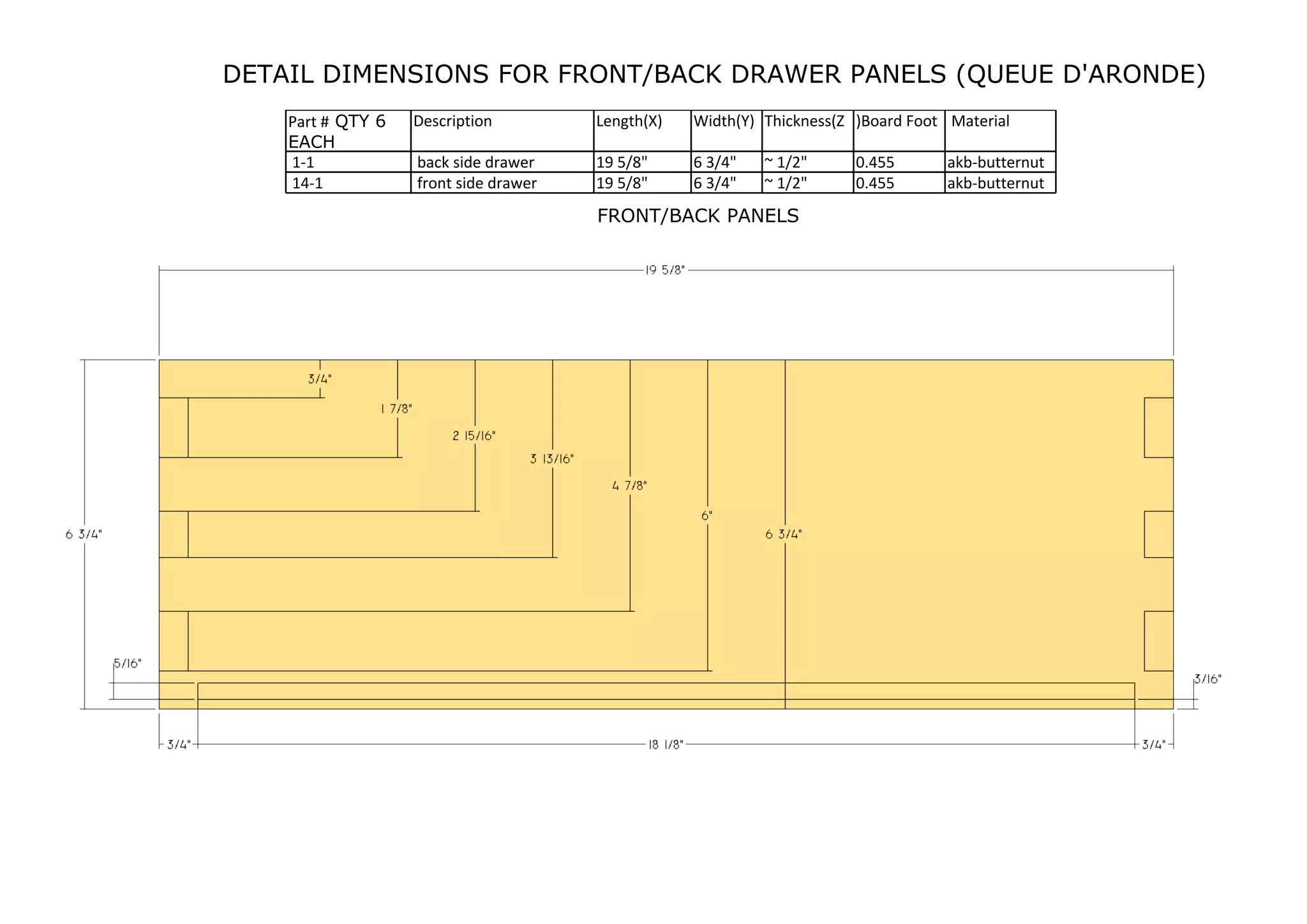

31. DETAIL DIMENSIONS FOR PULL OUT DRAWERS
TENON RENFORCER
ALL PULL OUT DRAWERS WITH SAME
CUTS
TENON'S SHOULD HAVE 2'' INCHES FROM
THE BOTTOM OF THE SIDE PANEL
THIS FOR THE 4'' PUSH PULL AND
THE 10 15/16 DRAWER.
AS PER CUT LIST
ASSEMBLY SUPERGLUED
ON EACH PANELD AND
WOOD NAILS
