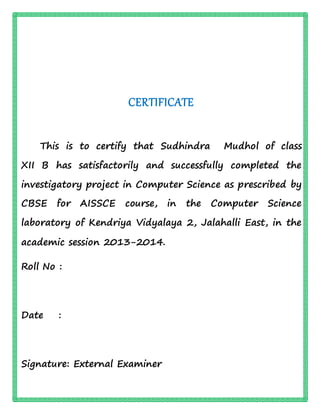

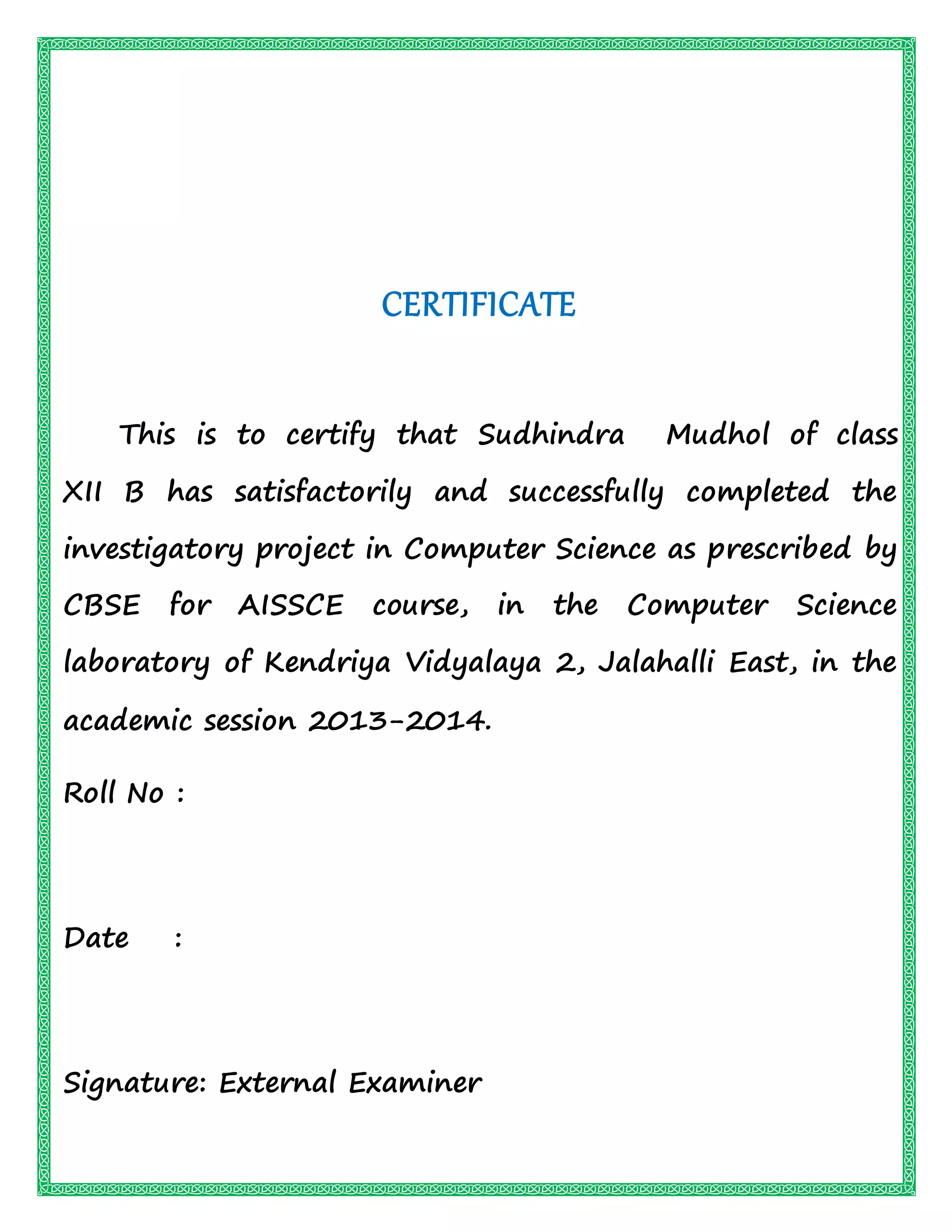

2. CERTIFICATE
This is to certify that Sudhindra Mudhol of class
XII B has satisfactorily and successfully completed the
investigatory project in Computer Science as prescribed by
CBSE for AISSCE course, in the Computer Science
laboratory of Kendriya Vidyalaya 2, Jalahalli East, in the
academic session 2013-2014.
Roll No :
Date :
Signature: External Examiner

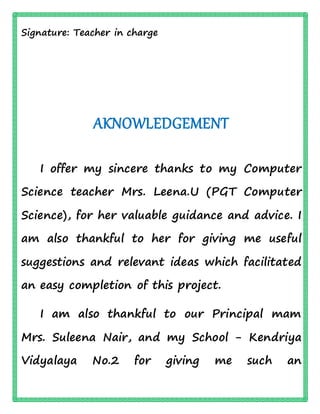

3. Signature: Teacher in charge

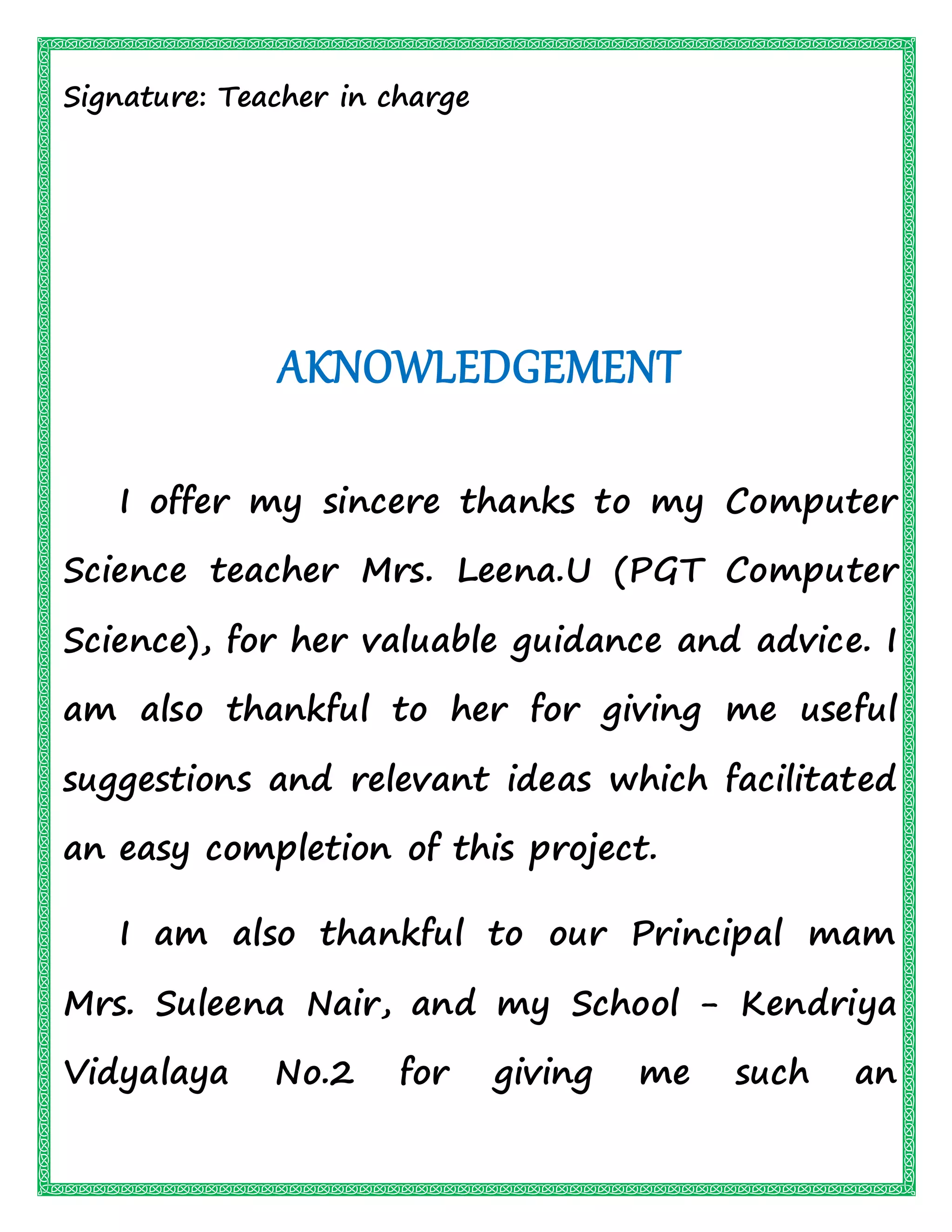

AKNOWLEDGEMENT
I offer my sincere thanks to my Computer
Science teacher Mrs. Leena.U (PGT Computer
Science), for her valuable guidance and advice. I
am also thankful to her for giving me useful
suggestions and relevant ideas which facilitated
an easy completion of this project.
I am also thankful to our Principal mam
Mrs. Suleena Nair, and my School - Kendriya
Vidyalaya No.2 for giving me such an

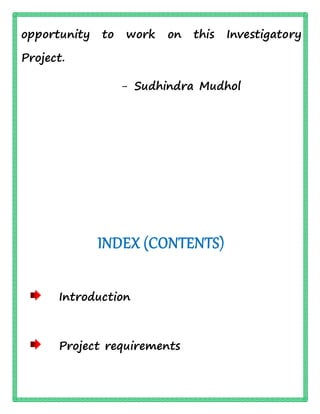

4. opportunity to work on this Investigatory
Project.
- Sudhindra Mudhol

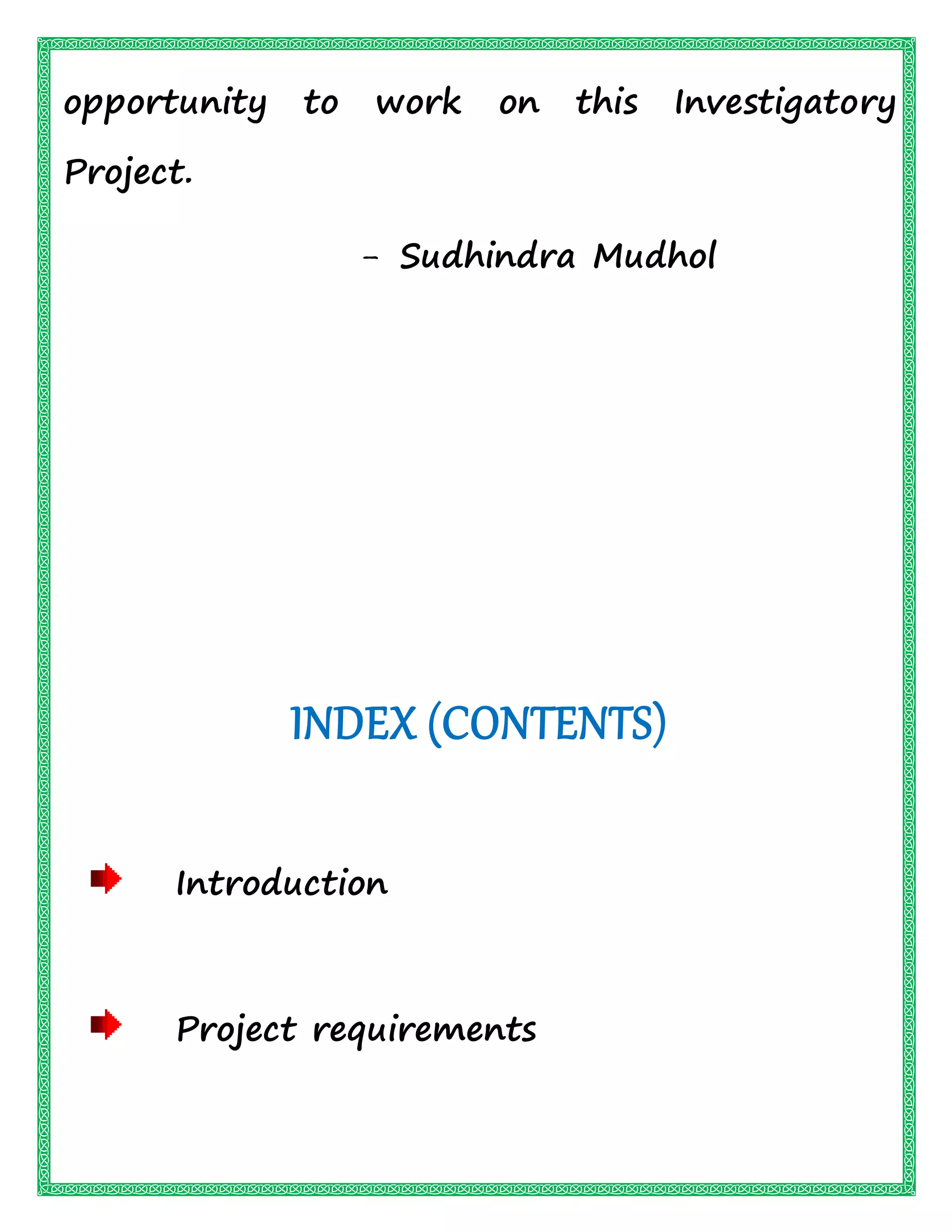

INDEX (CONTENTS)
Introduction
Project requirements

5. Source code
Output gallery
Bibliography

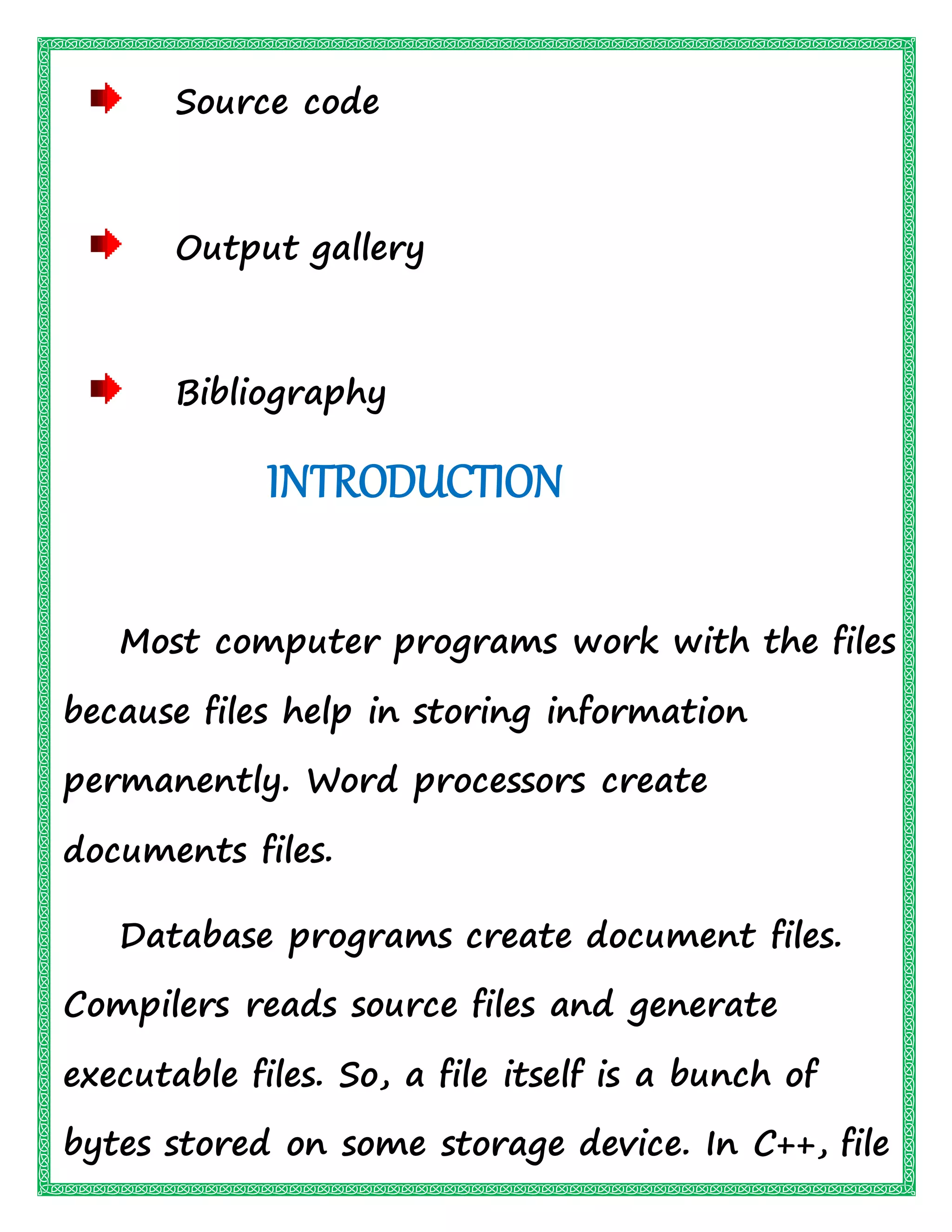

INTRODUCTION
Most computer programs work with the files
because files help in storing information
permanently. Word processors create
documents files.
Database programs create document files.
Compilers reads source files and generate
executable files. So, a file itself is a bunch of
bytes stored on some storage device. In C++, file

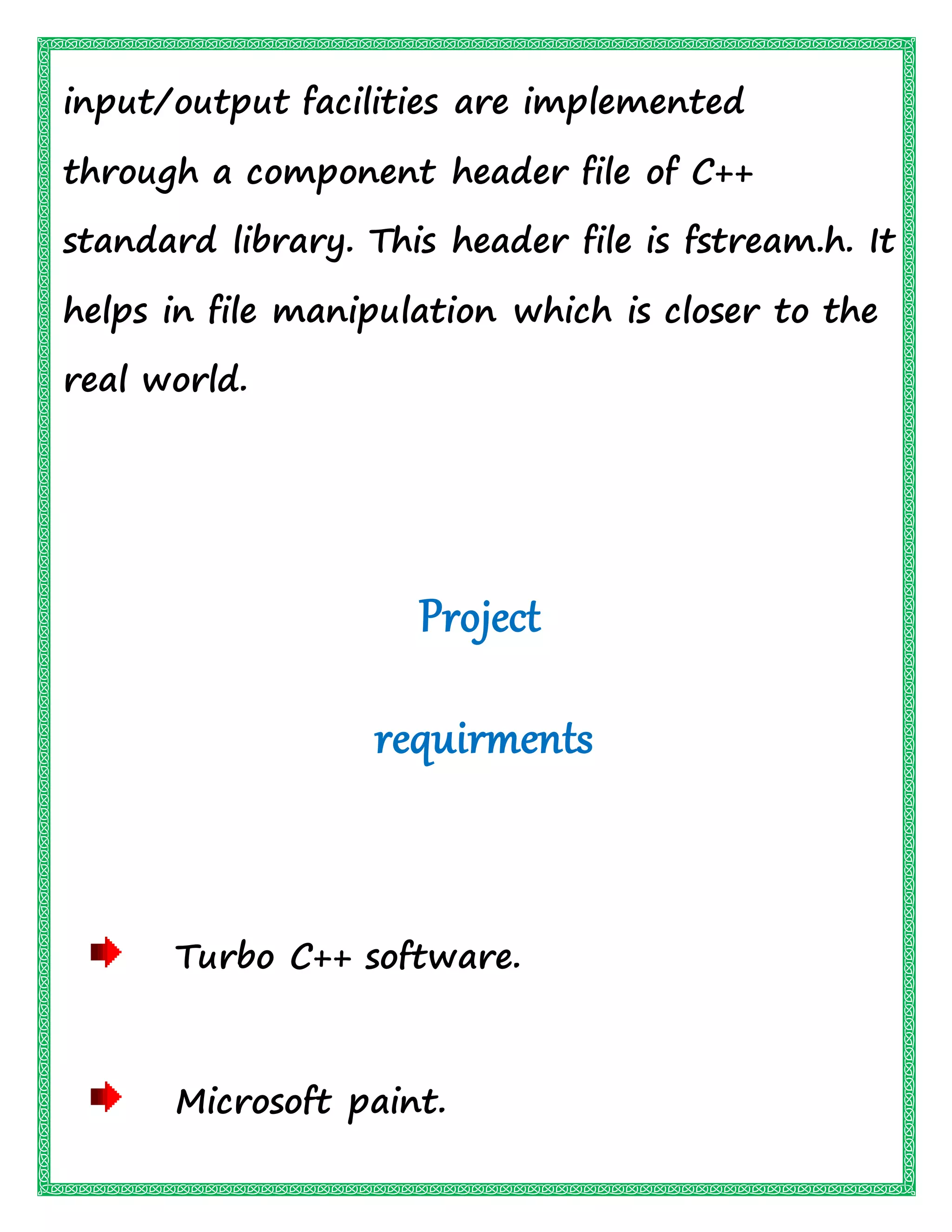

6. input/output facilities are implemented
through a component header file of C++
standard library. This header file is fstream.h. It
helps in file manipulation which is closer to the
real world.
Project
requirments
Turbo C++ software.
Microsoft paint.

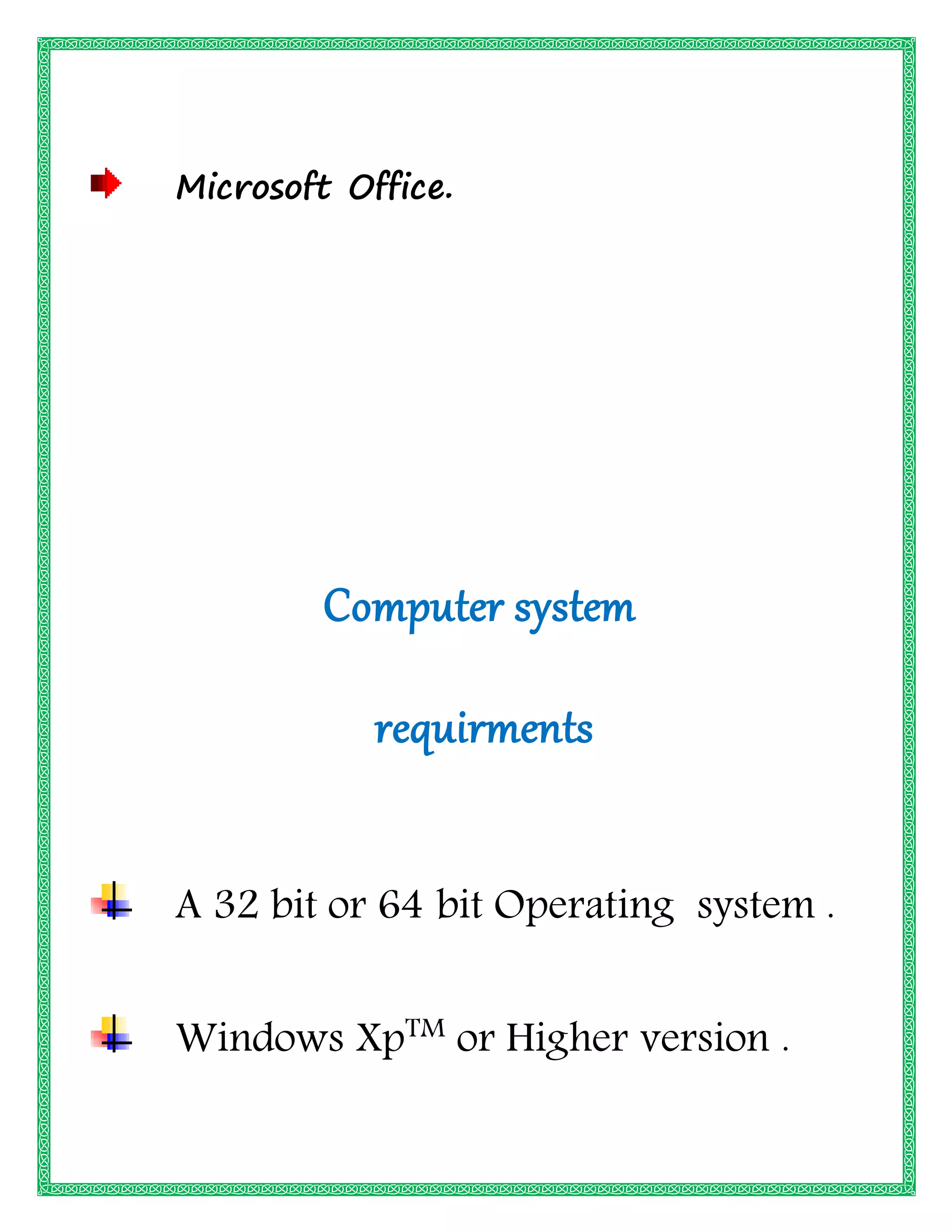

7. Microsoft Office.
Computer system
requirments
A 32 bit or 64 bit Operating system .
Windows XpTM
or Higher version .

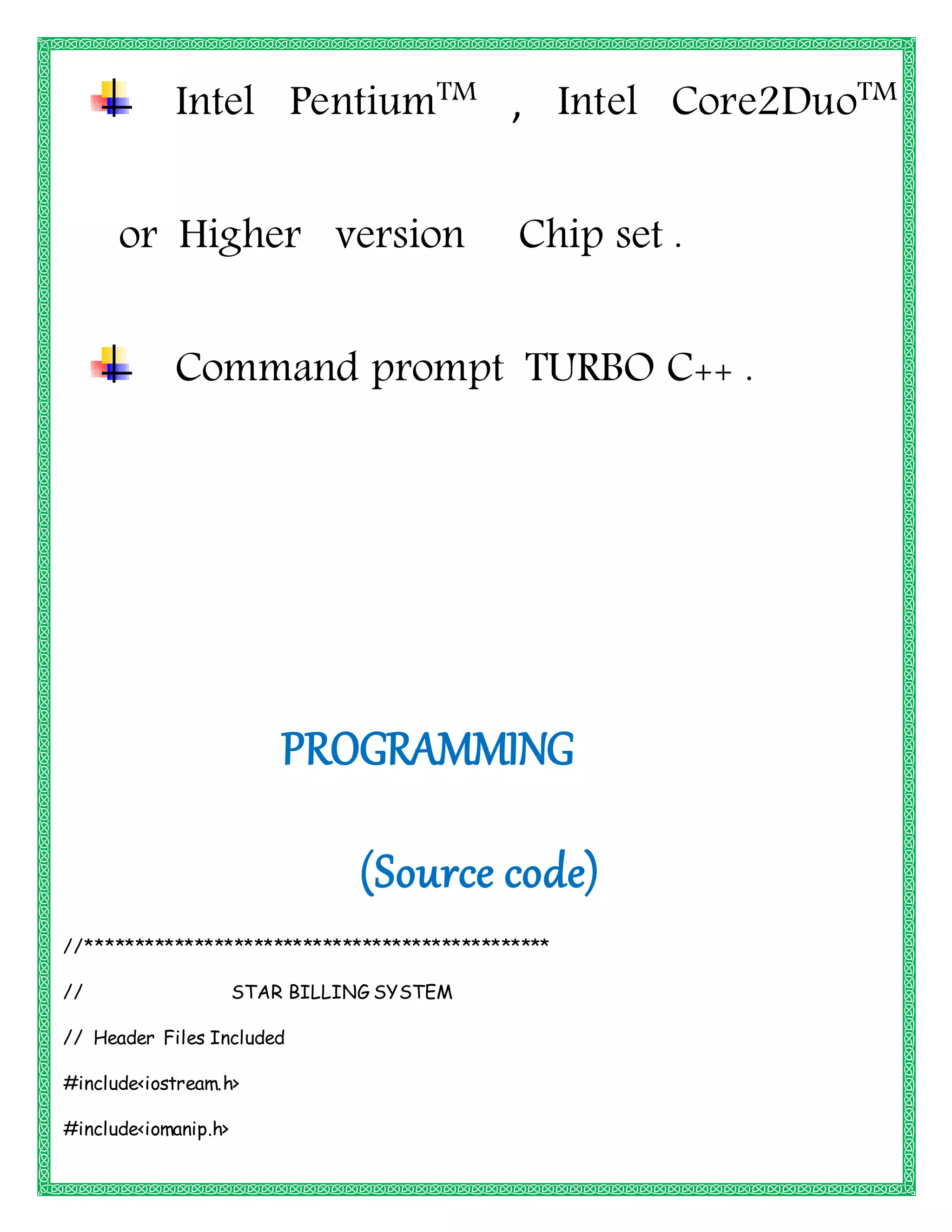

8. Intel PentiumTM
, Intel Core2DuoTM
or Higher version Chip set .
Command prompt TURBO C++ .
PROGRAMMING
(Source code)
//***********************************************
// STAR BILLING SYSTEM
// Header Files Included
#include<iostream.h>
#include<iomanip.h>

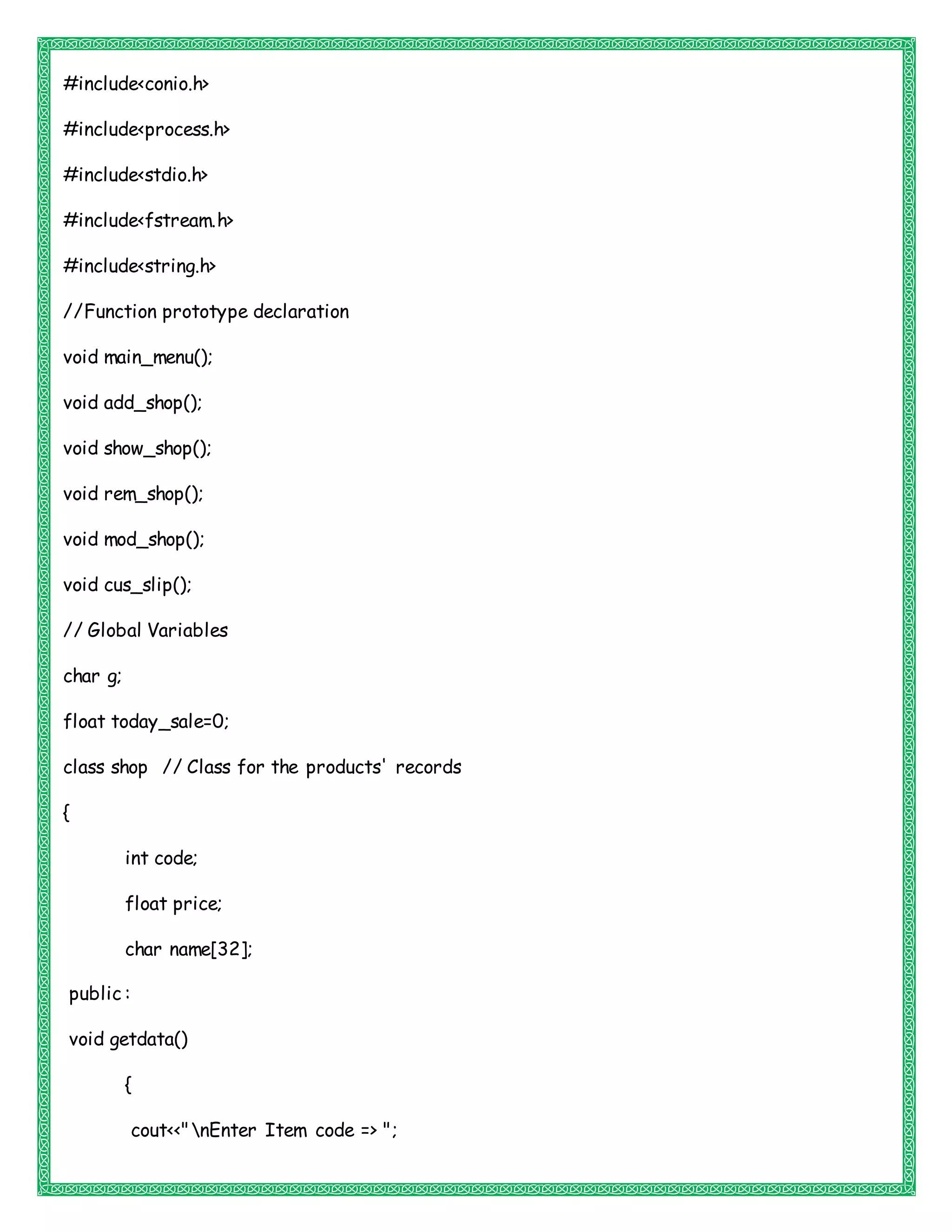

9. #include<conio.h>
#include<process.h>
#include<stdio.h>
#include<fstream.h>
#include<string.h>
//Function prototype declaration
void main_menu();
void add_shop();
void show_shop();
void rem_shop();
void mod_shop();
void cus_slip();
// Global Variables
char g;
float today_sale=0;
class shop // Class for the products' records
{
int code;
float price;
char name[32];
public :
void getdata()
{
cout<<"nEnter Item code => ";

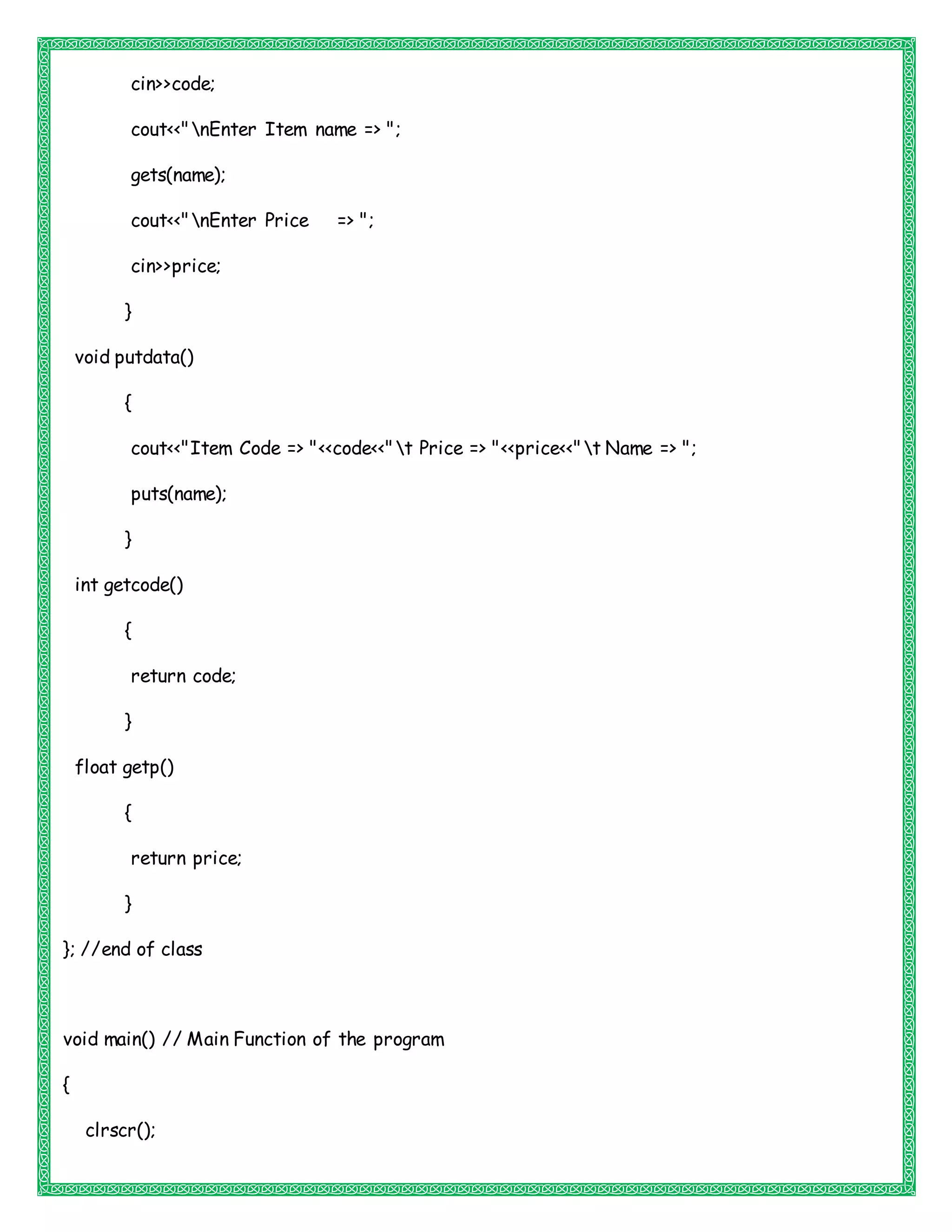

10. cin>>code;
cout<<"nEnter Item name => ";
gets(name);
cout<<"nEnter Price => ";
cin>>price;
}
void putdata()
{
cout<<"Item Code => "<<code<<"t Price => "<<price<<"t Name => ";
puts(name);
}
int getcode()
{
return code;
}
float getp()
{
return price;
}
}; //end of class
void main() // Main Function of the program
{
clrscr();

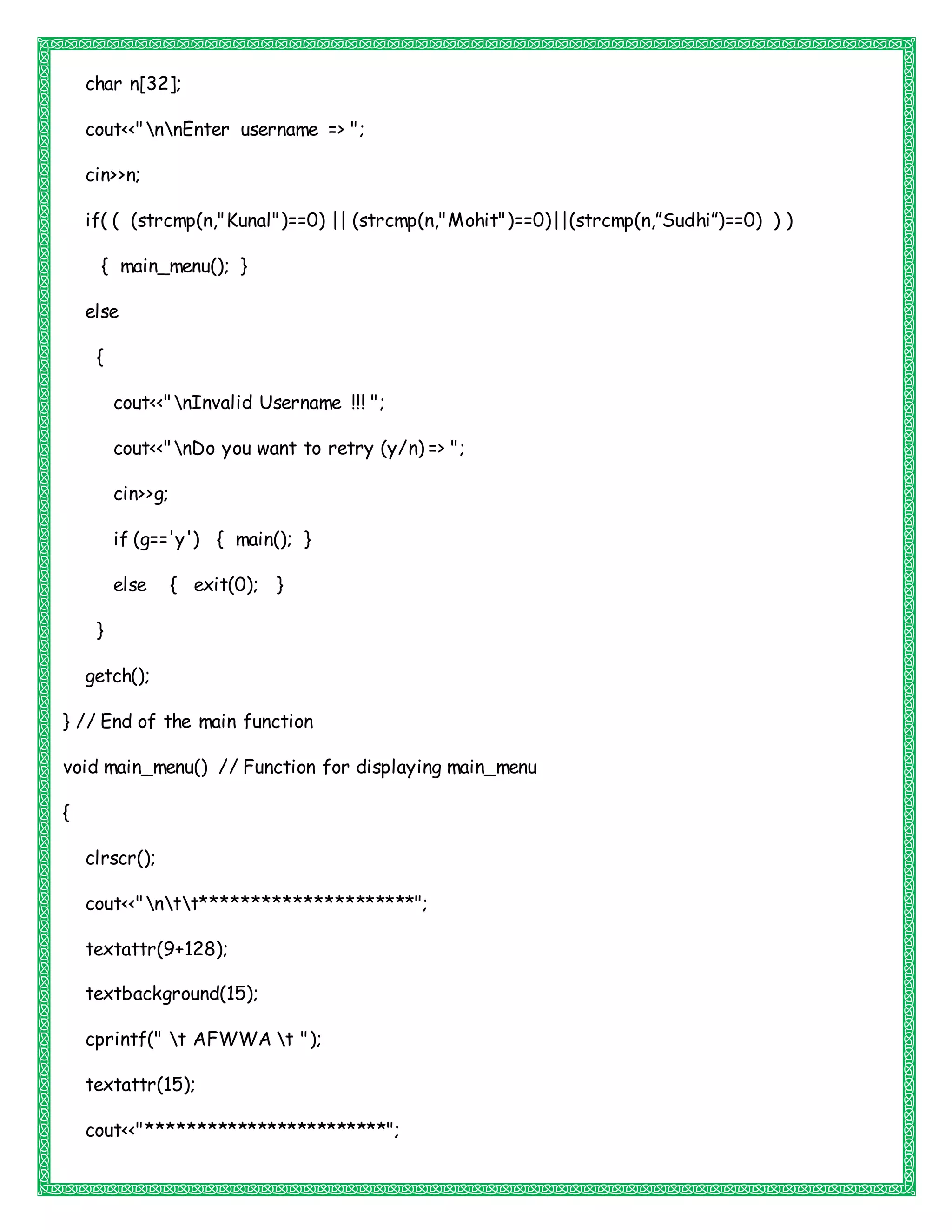

11. char n[32];
cout<<"nnEnter username => ";
cin>>n;
if( ( (strcmp(n,"Kunal")==0) || (strcmp(n,"Mohit")==0)||(strcmp(n,”Sudhi”)==0) ) )
{ main_menu(); }
else
{
cout<<"nInvalid Username !!! ";
cout<<"nDo you want to retry (y/n) => ";
cin>>g;
if (g=='y') { main(); }
else { exit(0); }
}
getch();
} // End of the main function
void main_menu() // Function for displaying main_menu
{
clrscr();
cout<<"ntt*********************";
textattr(9+128);
textbackground(15);
cprintf(" t AFWWA t ");
textattr(15);
cout<<"************************";

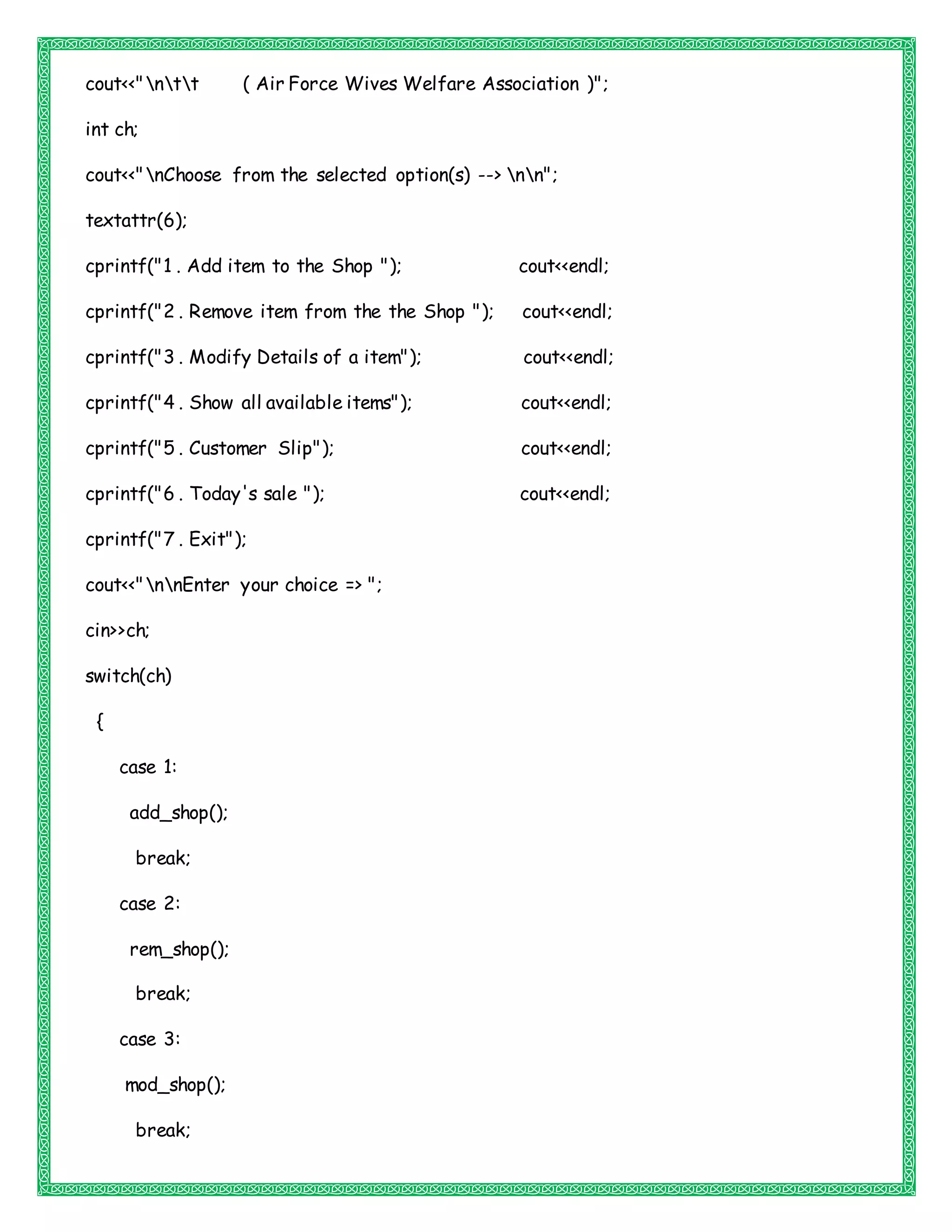

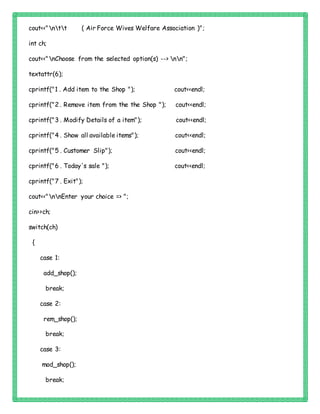

12. cout<<"ntt ( Air Force Wives Welfare Association )";
int ch;
cout<<"nChoose from the selected option(s) --> nn";
textattr(6);
cprintf("1 . Add item to the Shop "); cout<<endl;
cprintf("2 . Remove item from the the Shop "); cout<<endl;
cprintf("3 . Modify Details of a item"); cout<<endl;
cprintf("4 . Show all available items"); cout<<endl;
cprintf("5 . Customer Slip"); cout<<endl;
cprintf("6 . Today's sale "); cout<<endl;
cprintf("7 . Exit");
cout<<"nnEnter your choice => ";
cin>>ch;
switch(ch)
{
case 1:
add_shop();
break;
case 2:
rem_shop();
break;
case 3:
mod_shop();
break;

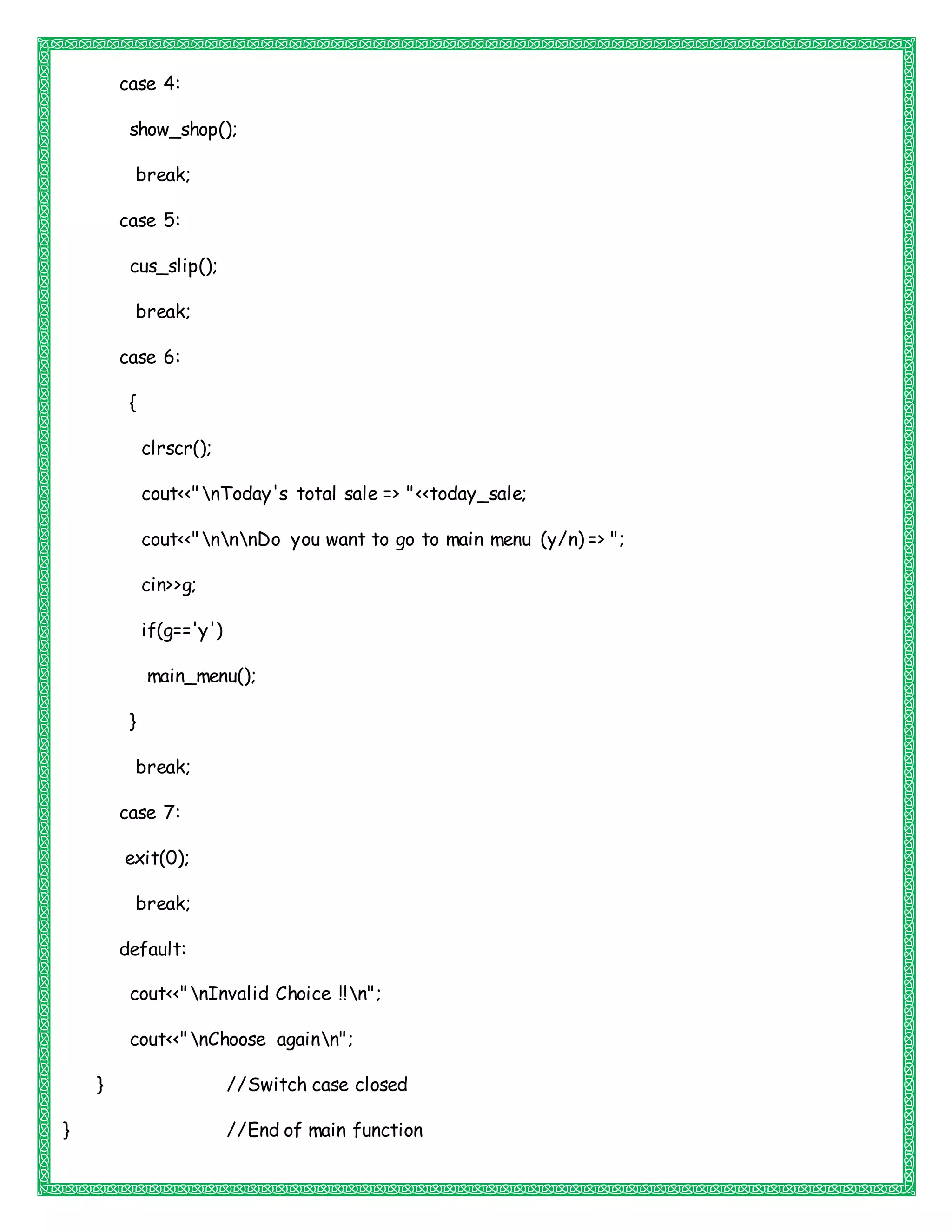

13. case 4:
show_shop();
break;
case 5:
cus_slip();
break;
case 6:
{
clrscr();
cout<<"nToday's total sale => "<<today_sale;
cout<<"nnnDo you want to go to main menu (y/n) => ";
cin>>g;
if(g=='y')
main_menu();
}
break;
case 7:
exit(0);
break;
default:
cout<<"nInvalid Choice !!n";
cout<<"nChoose againn";
} //Switch case closed
} //End of main function

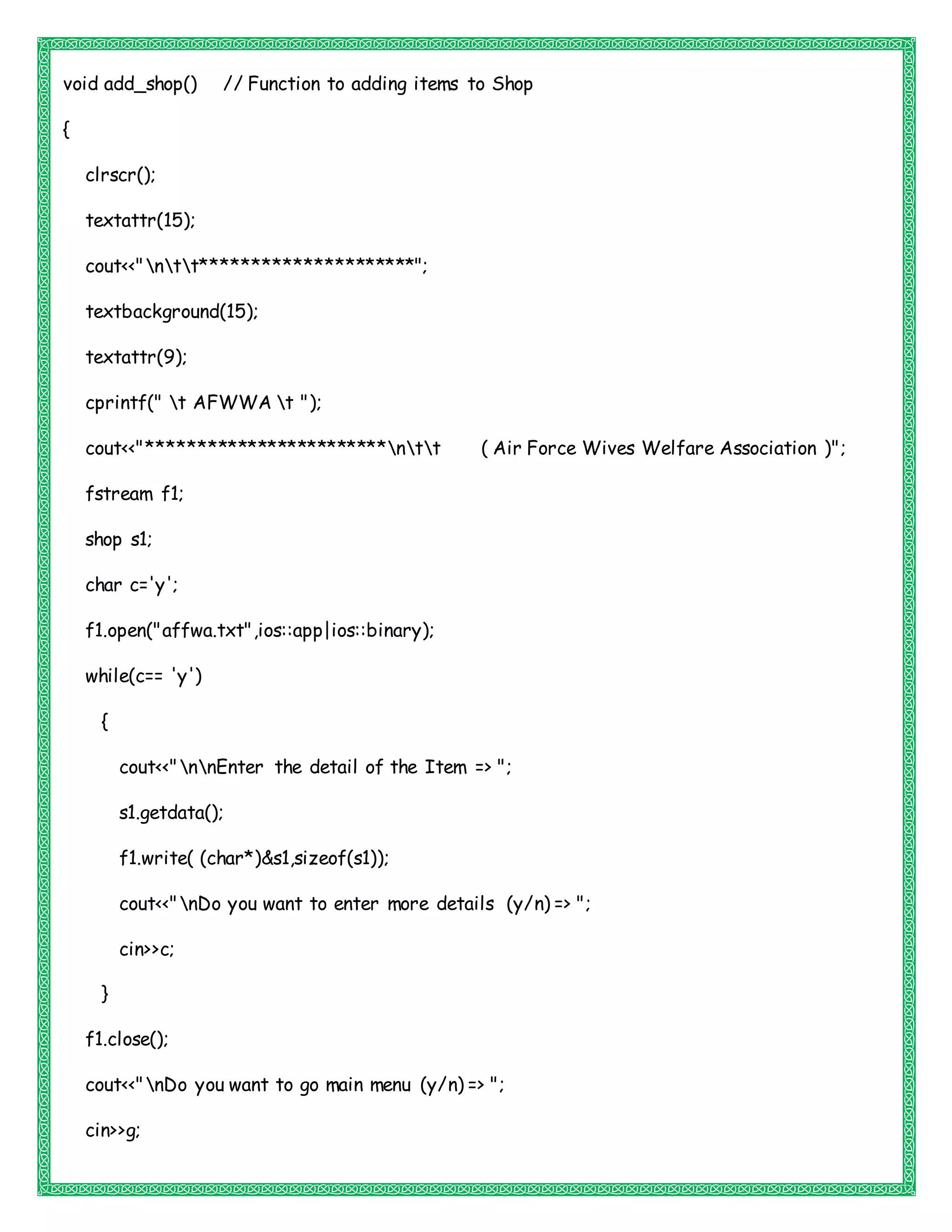

14. void add_shop() // Function to adding items to Shop
{
clrscr();
textattr(15);
cout<<"ntt*********************";
textbackground(15);
textattr(9);
cprintf(" t AFWWA t ");
cout<<"************************ntt ( Air Force Wives Welfare Association )";
fstream f1;
shop s1;
char c='y';
f1.open("affwa.txt",ios::app|ios::binary);
while(c== 'y')
{
cout<<"nnEnter the detail of the Item => ";
s1.getdata();
f1.write( (char*)&s1,sizeof(s1));
cout<<"nDo you want to enter more details (y/n) => ";
cin>>c;
}
f1.close();
cout<<"nDo you want to go main menu (y/n) => ";
cin>>g;

15. if(g=='y')
{
clrscr();
main_menu();
}
else
{ exit(0); }
} // End of add_shop() function
void show_shop() // Function to show all available items
{
clrscr();
fstream f1;
shop s1;
cout<<"nt**** Item list ****n";
f1.open("affwa.txt",ios::in|ios::binary);
f1.seekg(0,ios::beg);
while(!f1.eof())
{
f1.read((char*)&s1,sizeof(s1));
cout<<"n";
s1.putdata();
}
f1.close();
cout<<"nDo you want to go to main menu (y/n) => ";

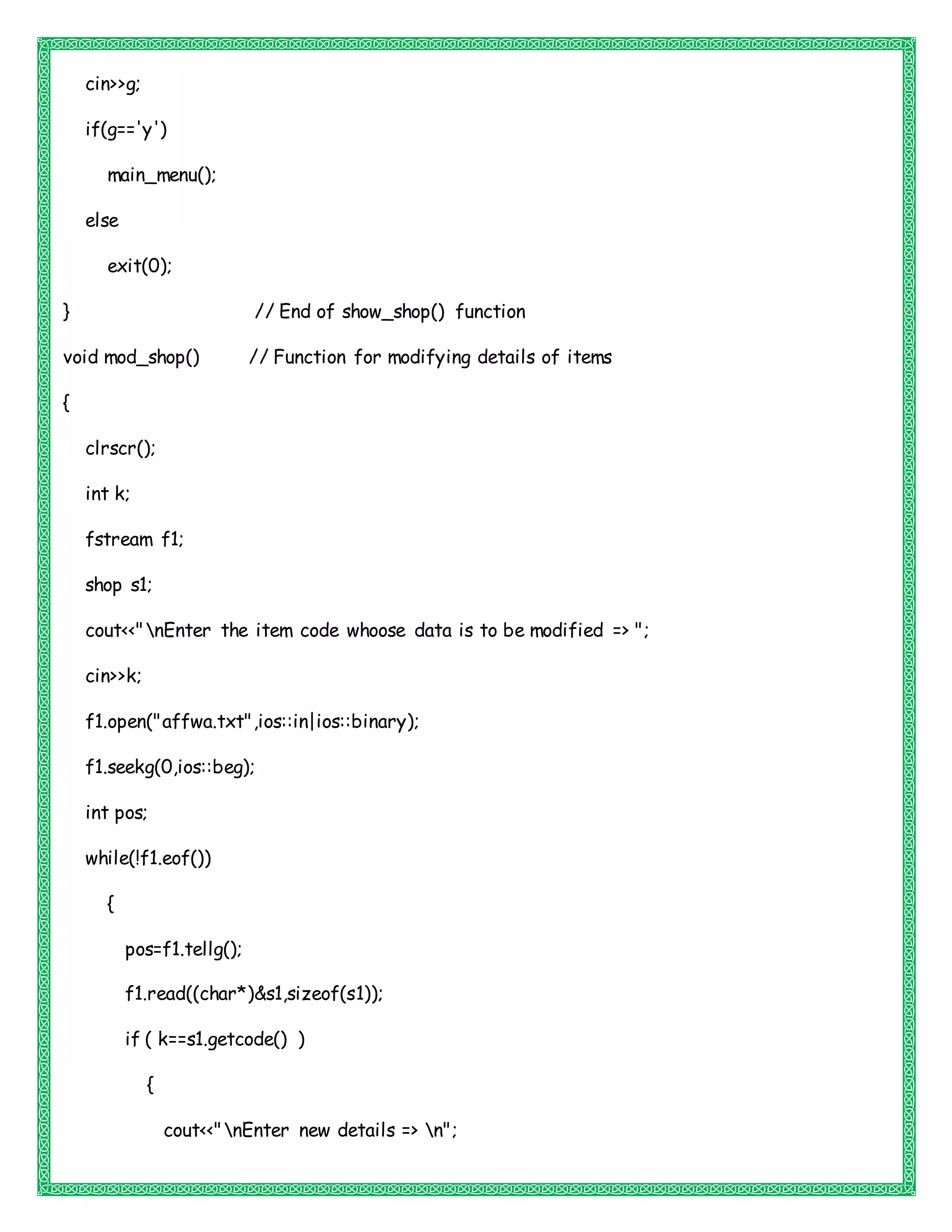

16. cin>>g;
if(g=='y')
main_menu();
else
exit(0);
} // End of show_shop() function
void mod_shop() // Function for modifying details of items
{
clrscr();
int k;
fstream f1;
shop s1;
cout<<"nEnter the item code whoose data is to be modified => ";
cin>>k;
f1.open("affwa.txt",ios::in|ios::binary);
f1.seekg(0,ios::beg);
int pos;
while(!f1.eof())
{
pos=f1.tellg();
f1.read((char*)&s1,sizeof(s1));
if ( k==s1.getcode() )
{
cout<<"nEnter new details => n";

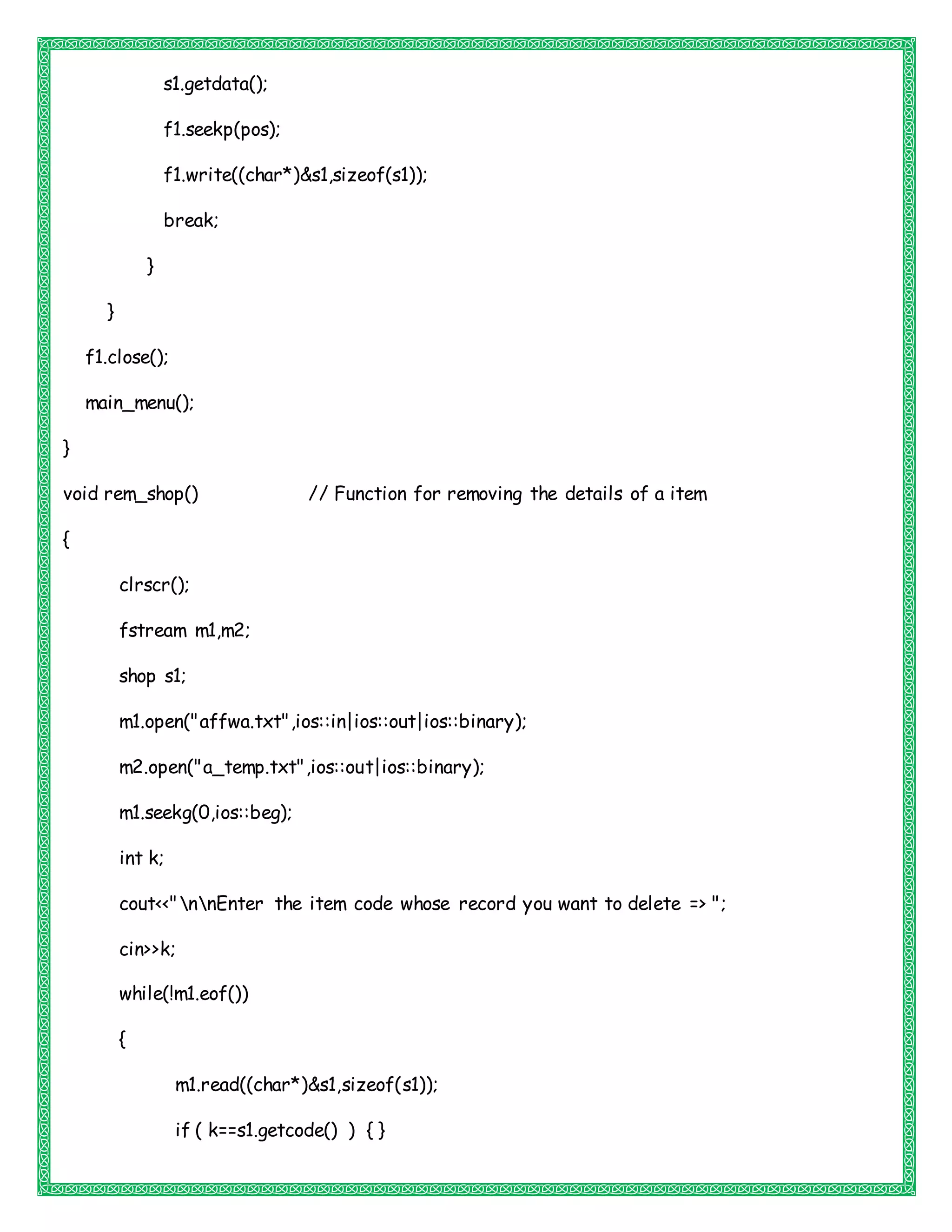

17. s1.getdata();
f1.seekp(pos);
f1.write((char*)&s1,sizeof(s1));
break;
}
}
f1.close();
main_menu();
}
void rem_shop() // Function for removing the details of a item
{
clrscr();
fstream m1,m2;
shop s1;
m1.open("affwa.txt",ios::in|ios::out|ios::binary);
m2.open("a_temp.txt",ios::out|ios::binary);
m1.seekg(0,ios::beg);
int k;
cout<<"nnEnter the item code whose record you want to delete => ";
cin>>k;
while(!m1.eof())
{
m1.read((char*)&s1,sizeof(s1));
if ( k==s1.getcode() ) { }

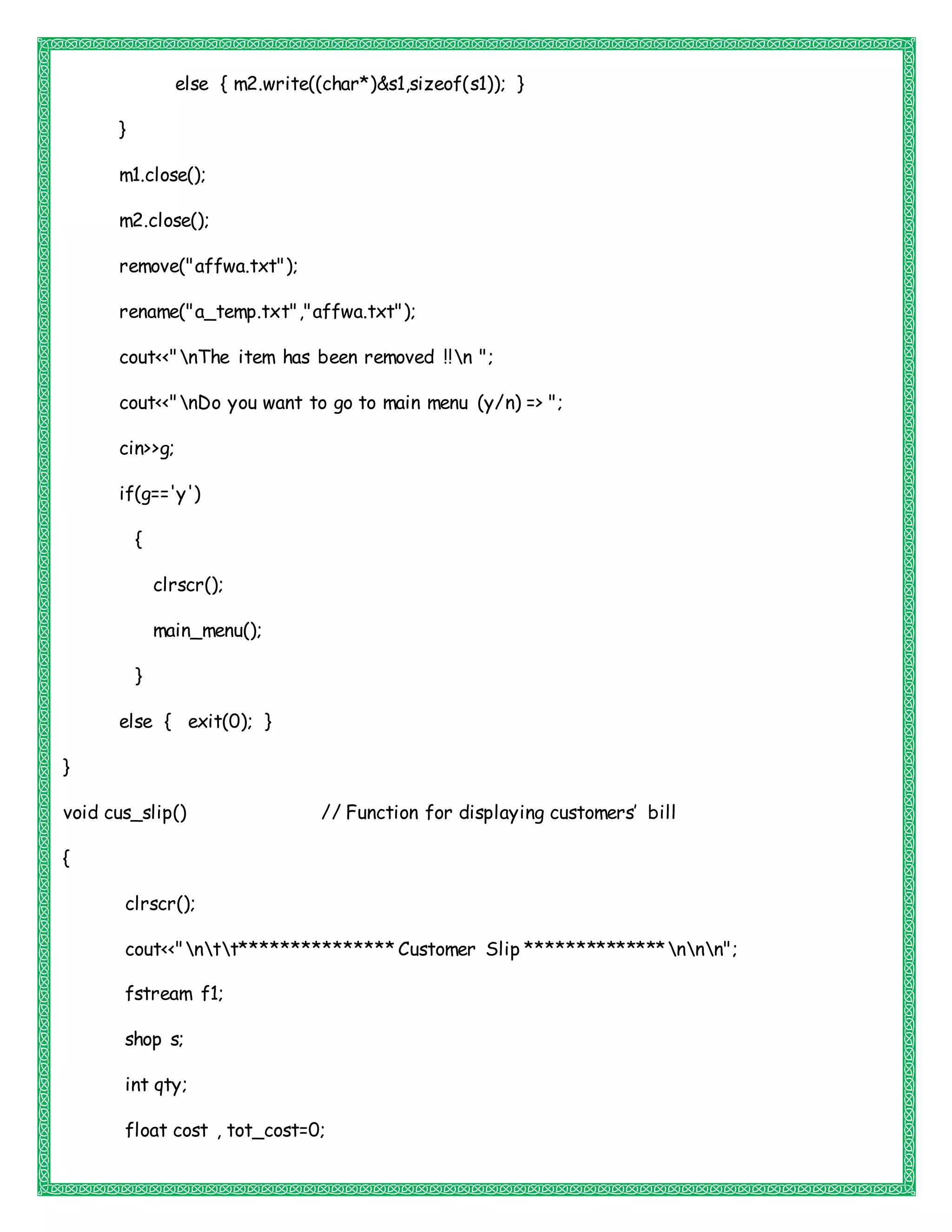

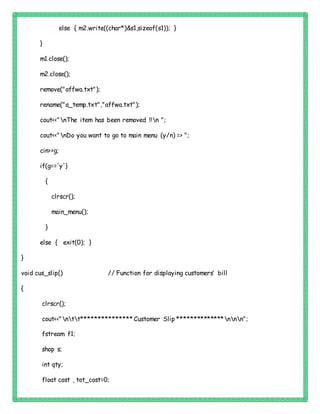

18. else { m2.write((char*)&s1,sizeof(s1)); }
}
m1.close();
m2.close();
remove("affwa.txt");
rename("a_temp.txt","affwa.txt");
cout<<"nThe item has been removed !!n ";
cout<<"nDo you want to go to main menu (y/n) => ";
cin>>g;
if(g=='y')
{
clrscr();
main_menu();
}
else { exit(0); }
}
void cus_slip() // Function for displaying customers’ bill
{
clrscr();
cout<<"ntt*************** Customer Slip **************nnn";
fstream f1;
shop s;
int qty;
float cost , tot_cost=0;

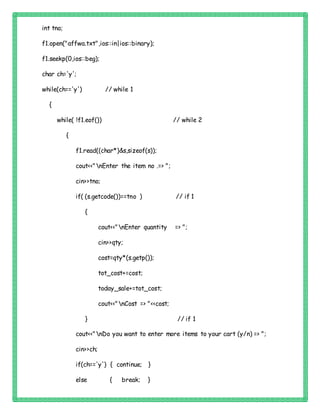

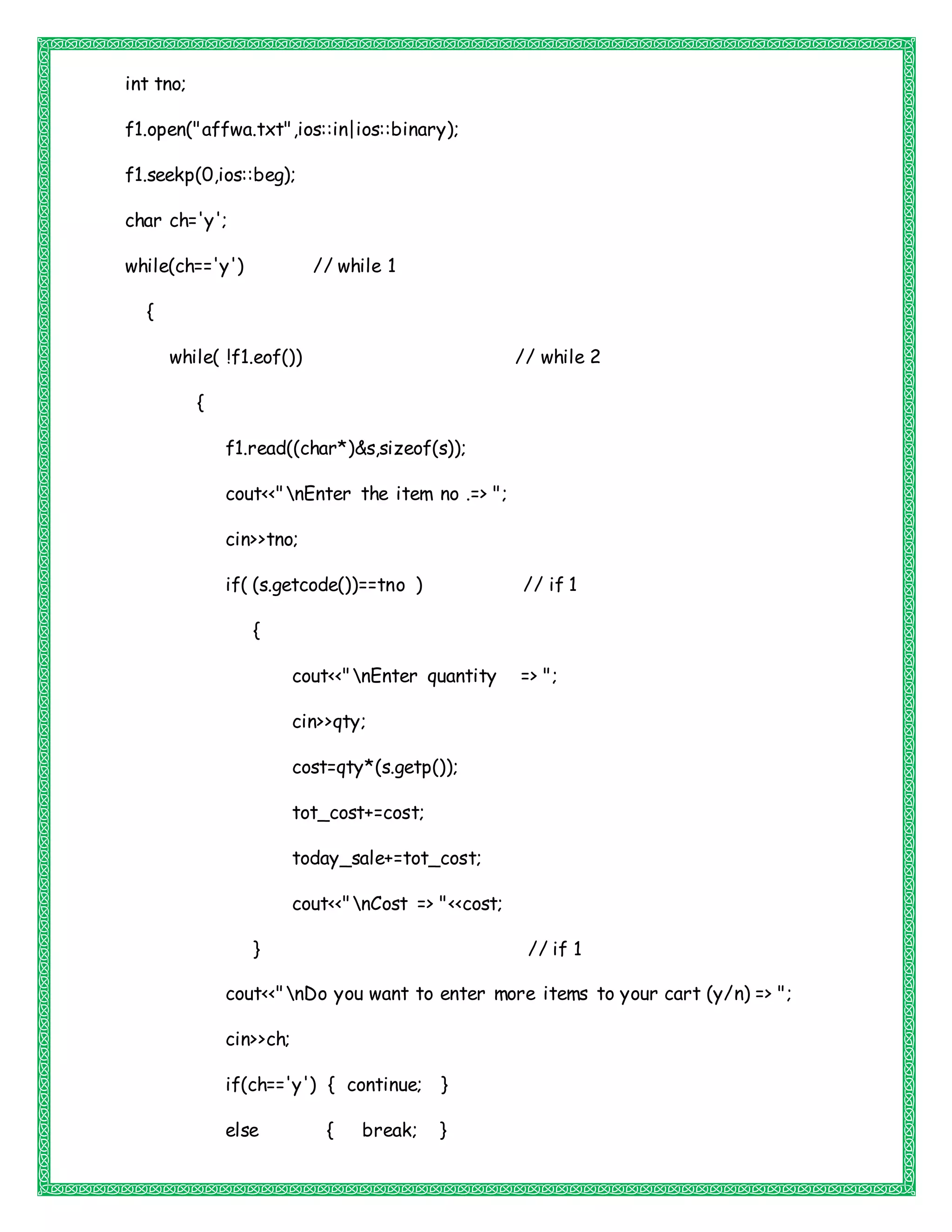

19. int tno;
f1.open("affwa.txt",ios::in|ios::binary);
f1.seekp(0,ios::beg);
char ch='y';
while(ch=='y') // while 1
{
while( !f1.eof()) // while 2
{
f1.read((char*)&s,sizeof(s));
cout<<"nEnter the item no .=> ";
cin>>tno;
if( (s.getcode())==tno ) // if 1
{
cout<<"nEnter quantity => ";
cin>>qty;
cost=qty*(s.getp());
tot_cost+=cost;
today_sale+=tot_cost;
cout<<"nCost => "<<cost;
} // if 1
cout<<"nDo you want to enter more items to your cart (y/n) => ";
cin>>ch;
if(ch=='y') { continue; }
else { break; }

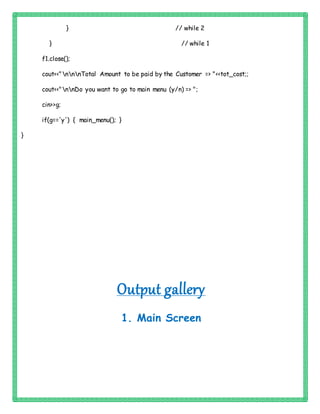

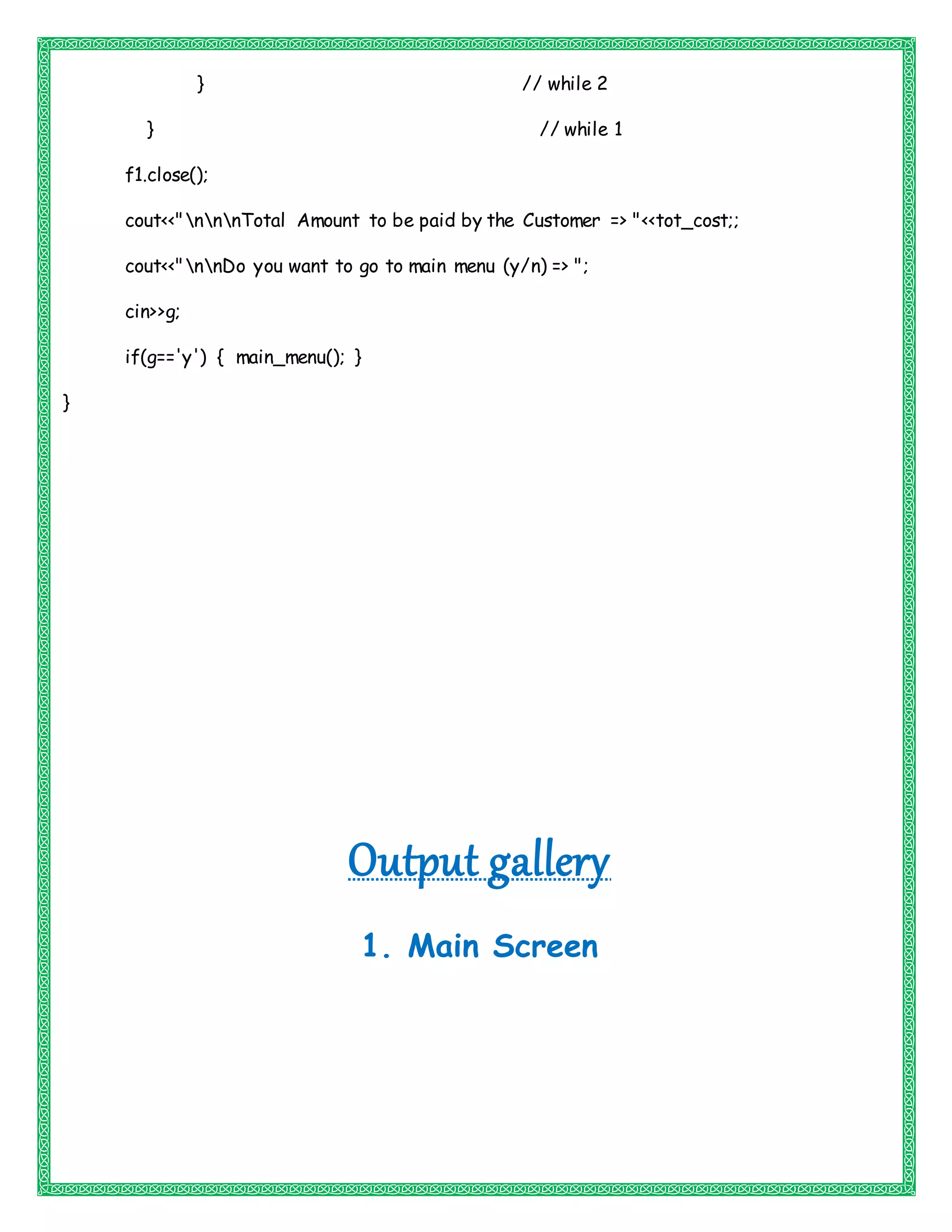

20. } // while 2
} // while 1
f1.close();
cout<<"nnnTotal Amount to be paid by the Customer => "<<tot_cost;;
cout<<"nnDo you want to go to main menu (y/n) => ";
cin>>g;
if(g=='y') { main_menu(); }
}
Output gallery

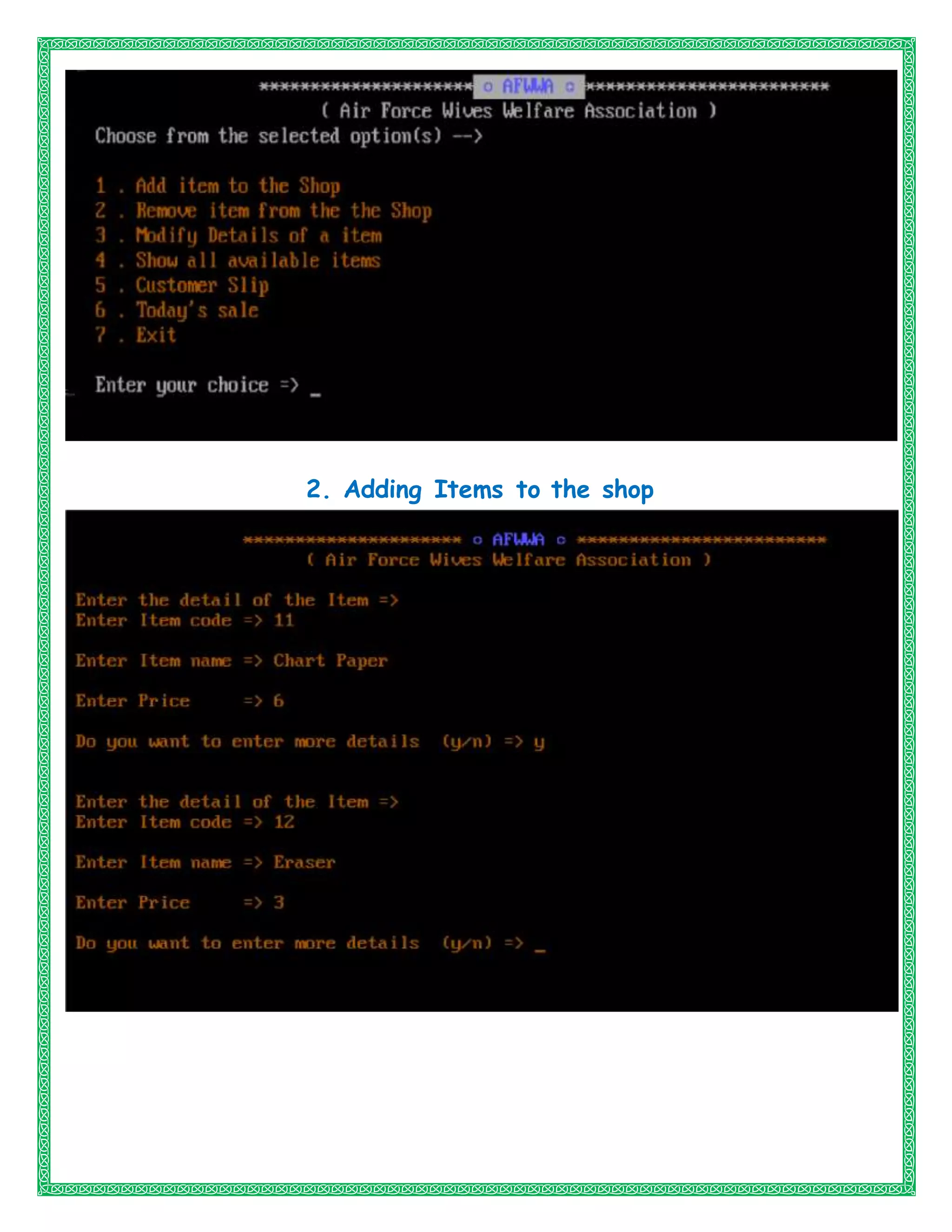

1. Main Screen

21. 2. Adding Items to the shop

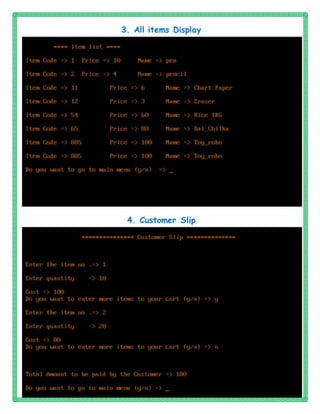

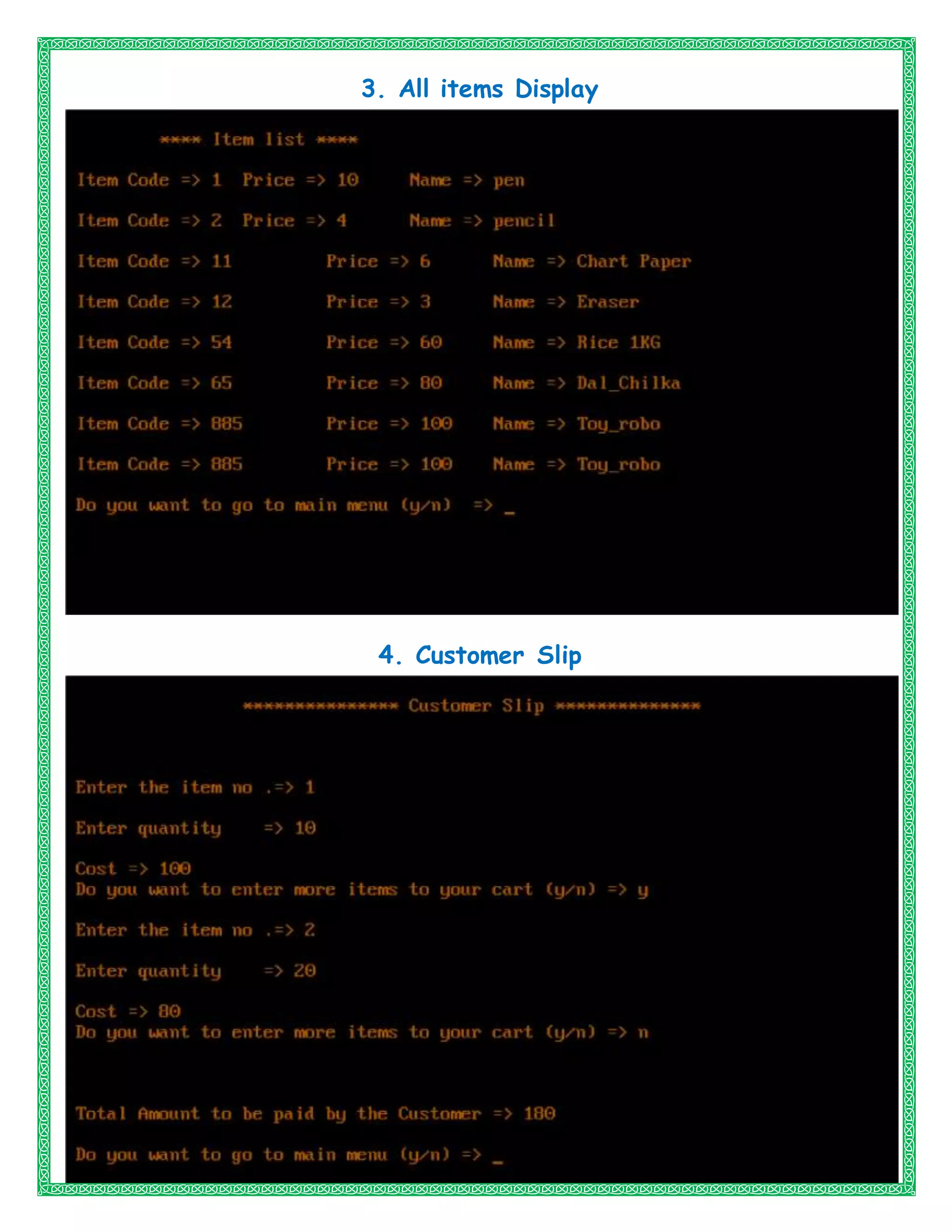

22. 3. All items Display
4. Customer Slip

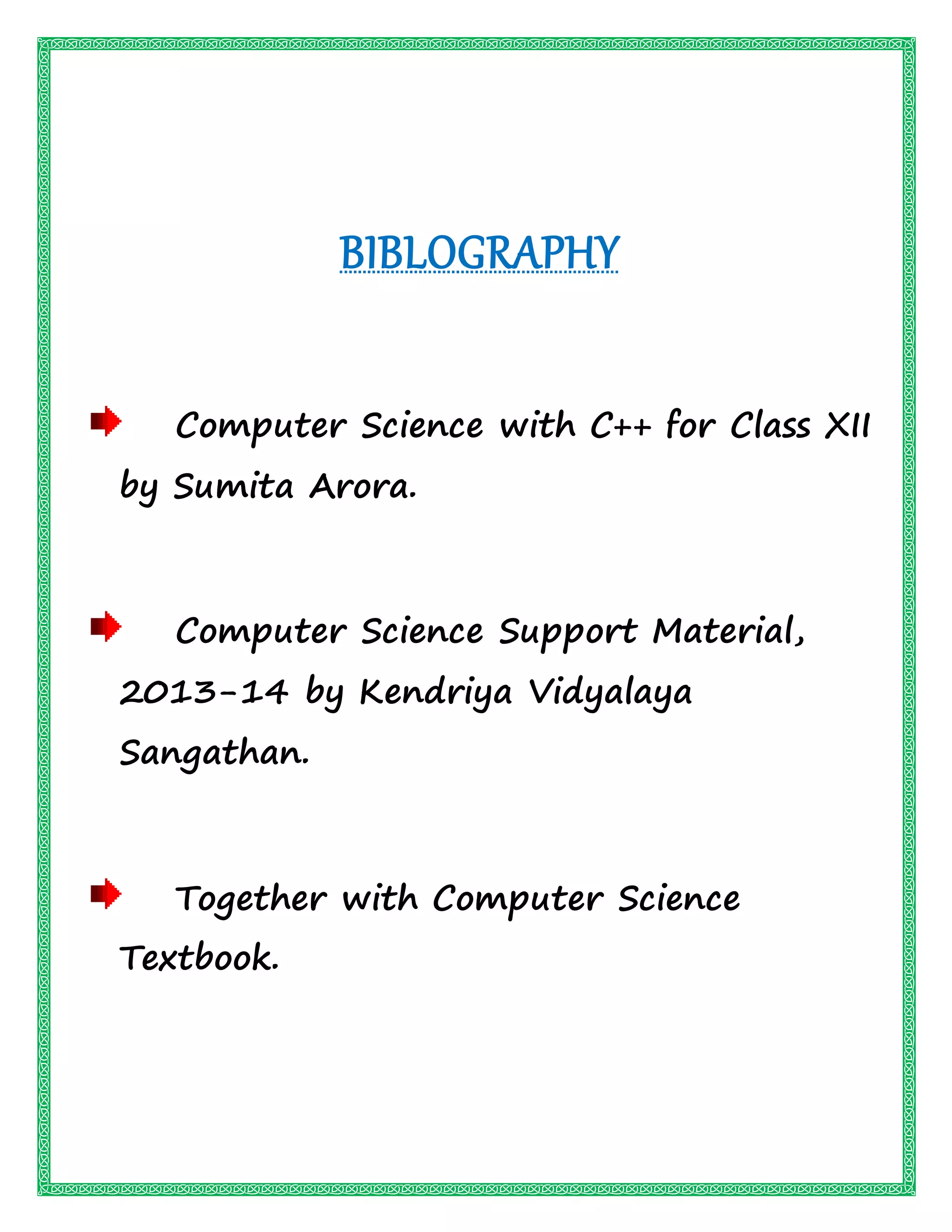

23. BIBLOGRAPHY
Computer Science with C++ for Class XII
by Sumita Arora.
Computer Science Support Material,
2013-14 by Kendriya Vidyalaya
Sangathan.
Together with Computer Science
Textbook.
