1. Be a Good Citizen:
!
Develop Maintainable Apps

2. “…a high probability of determining the cause of
a problem in a timely manner… and a high
probability of being able to modify the program
without causing an error in some other part…”
— IEEE

3. Why Care?

9. What’s involved…
@brwngrldev

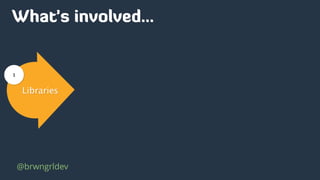

10. What’s involved…
Libraries
1
@brwngrldev

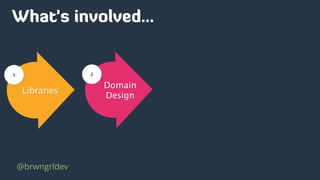

11. What’s involved…
Libraries
1
Domain
Design
2
@brwngrldev

12. What’s involved…
Libraries
1
Domain
Design
2
Code
Quality
3
@brwngrldev

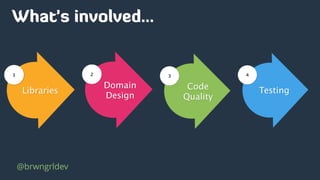

13. What’s involved…
Libraries
1
Domain
Design
2
Code
Quality
3
Testing
4
@brwngrldev

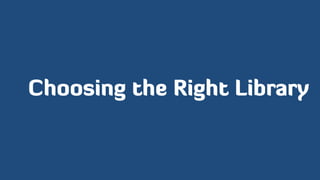

14. Choosing the Right Library

15. So many options

16. So many options

17. What to consider
@brwngrldev

18. What to consider
Documentation
@brwngrldev

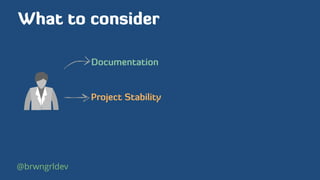

19. What to consider
Documentation
Project Stability
@brwngrldev

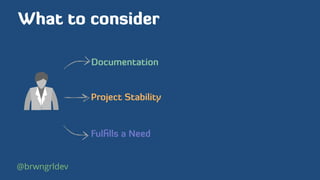

20. What to consider
Documentation
Project Stability
Fulfills a Need
@brwngrldev

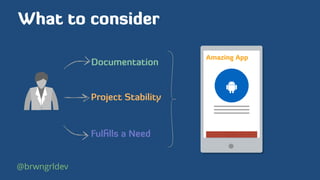

21. What to consider
Amazing App
!
Documentation
Project Stability
Fulfills a Need
@brwngrldev

22. Example

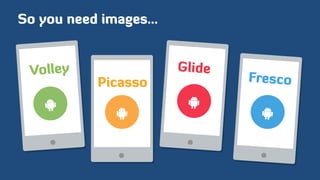

23. So you need images…

24. So you need images…
Volley
!
Fresco
!
Glide
!
Picasso
!

25. Volley
!

26. Documentation
s
Volley
!

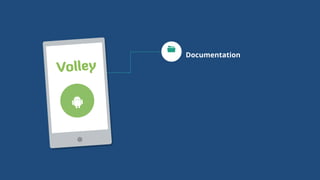

29. Documentation
s
Volley
!

30. Documentation
s
W Project Stability
Volley
!

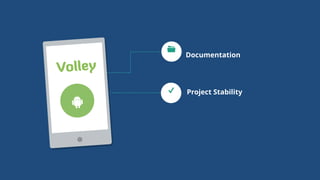

32. Documentation
s
W Project Stability
Volley
!

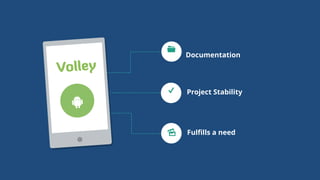

33. Documentation
s
W Project Stability
p Fulfills a need
Volley
!

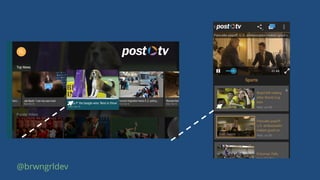

34. @brwngrldev

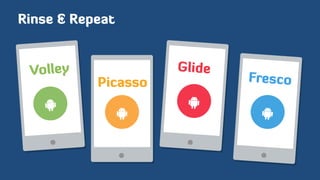

35. Rinse & Repeat
Volley
!
Fresco
!
Glide
!
Picasso
!

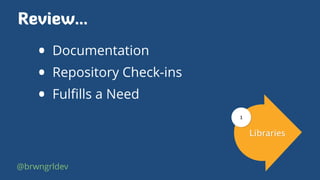

36. Review…
• Documentation
• Repository Check-ins
• Fulfills a Need
Libraries
1
@brwngrldev

37. Domain Design

38. Doing too much

39. Doing too much

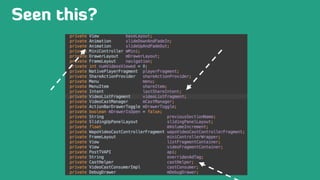

40. Seen this?

41. Seen this?

42. Seen this?

43. Seen this?

44. How to fix this

45. Clean
It Up!
How to fix this

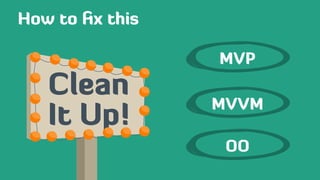

46. Clean
It Up!
How to fix this
MVP
MVVM
OO

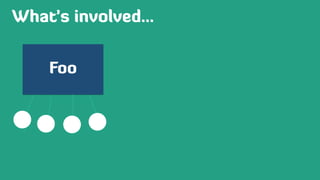

47. Foo
What’s involved…

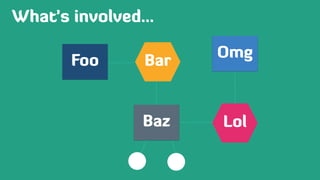

48. What’s involved…
Foo Bar
Baz Lol
Omg

49. Example

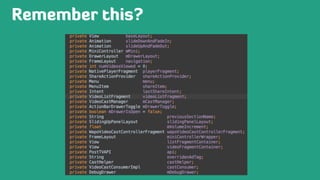

50. Remember this?

51. We need tests

52. We need tests

53. We need tests

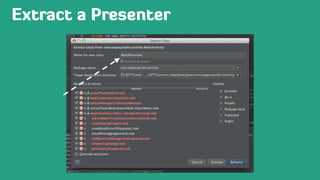

54. Extract a Presenter

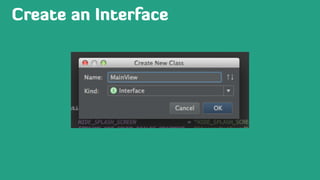

55. Create an Interface

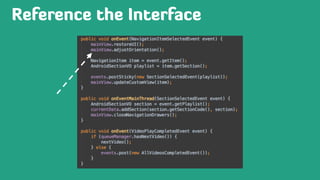

56. Reference the Interface

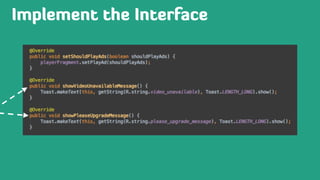

57. Implement the Interface

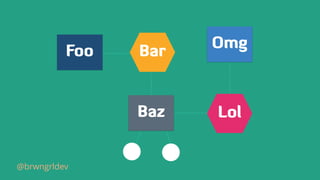

58. Foo Bar
Baz Lol
Omg
@brwngrldev

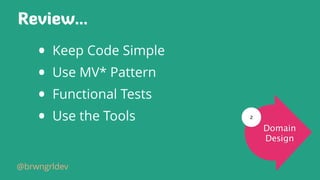

59. Review…
• Keep Code Simple
• Use MV* Pattern
• Functional Tests
• Use the Tools
@brwngrldev
Domain
Design
2

60. Code Quality

61. Poor Readability

62. Poor Readability

63. Increase Readability?

64. Increase Readability?
“Checkstyle is a development tool to
help programmers write Java code
that adheres to a coding standard.”

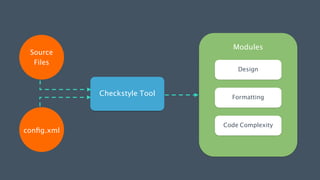

65. Source
Files
config.xml
Checkstyle Tool
!
Modules
Design
Formatting
Code Complexity

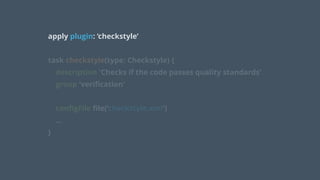

66. apply plugin: ‘checkstyle’
!
task checkstyle(type: Checkstyle) {
description 'Checks if the code passes quality standards'
group 'verification'
configFile file(‘checkstyle.xml')
…
}

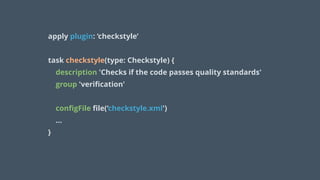

67. apply plugin: ‘checkstyle’
!
task checkstyle(type: Checkstyle) {
description 'Checks if the code passes quality standards'
group 'verification'
configFile file(‘checkstyle.xml')
…
}

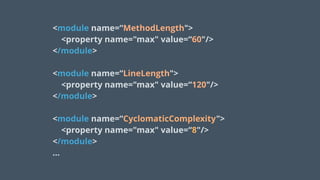

68. <module name=“MethodLength">
<property name="max" value=“60"/>
</module>
<module name=“LineLength">
<property name="max" value=“120"/>
</module>
<module name=“CyclomaticComplexity">
<property name="max" value=“8"/>
</module>
…

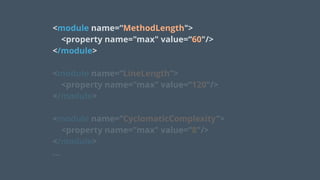

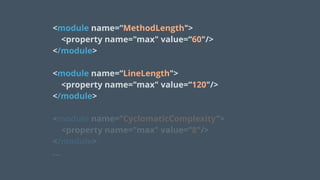

69. <module name=“MethodLength">
<property name="max" value=“60"/>
</module>
<module name=“LineLength">
<property name="max" value=“120"/>
</module>
<module name=“CyclomaticComplexity">
<property name="max" value=“8"/>
</module>
…

70. <module name=“MethodLength">
<property name="max" value=“60"/>
</module>
<module name=“LineLength">
<property name="max" value=“120"/>
</module>
<module name=“CyclomaticComplexity">
<property name="max" value=“8"/>
</module>
…
playerControlConfig.setShowClosedCaptionsButton(a.getBo
!

71. <module name=“MethodLength">
<property name="max" value=“60"/>
</module>
<module name=“LineLength">
<property name="max" value=“120"/>
</module>
<module name=“CyclomaticComplexity">
<property name="max" value=“8"/>
</module>
…
leable.WapoVideoView_showClosedCaptionsButton, false));

72. <module name=“MethodLength">
<property name="max" value=“60"/>
</module>
<module name=“LineLength">
<property name="max" value=“120"/>
</module>
<module name=“CyclomaticComplexity">
<property name="max" value=“8"/>
</module>
…

73. <module name=“MethodLength">
<property name="max" value=“60"/>
</module>
<module name=“LineLength">
<property name="max" value=“120"/>
</module>
<module name=“CyclomaticComplexity">
<property name="max" value=“8"/>
</module>
…

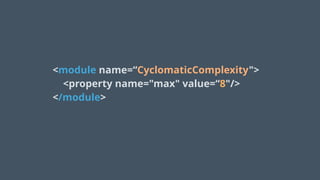

74.
<module name=“CyclomaticComplexity">
<property name="max" value=“8"/>
</module>
!

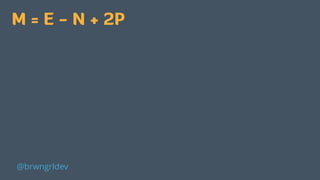

75. M = E − N + 2P
@brwngrldev

76. M = E − N + 2P
@brwngrldev

77. Example

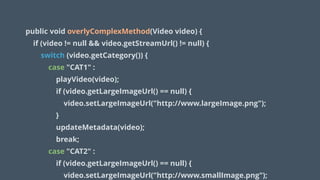

78. public void overlyComplexMethod(Video video) {
if (video != null && video.getStreamUrl() != null) {
switch (video.getCategory()) {
case "CAT1" :
playVideo(video);
if (video.getLargeImageUrl() == null) {
video.setLargeImageUrl("http://www.largeImage.png");
}
updateMetadata(video);
break;
case "CAT2" :
if (video.getLargeImageUrl() == null) {
video.setLargeImageUrl("http://www.smallImage.png");

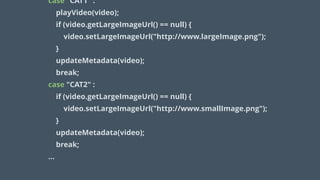

79. case "CAT1" :
playVideo(video);
if (video.getLargeImageUrl() == null) {
video.setLargeImageUrl("http://www.largeImage.png");
}
updateMetadata(video);
break;
case "CAT2" :
if (video.getLargeImageUrl() == null) {
video.setLargeImageUrl("http://www.smallImage.png");
}
updateMetadata(video);
break;
…

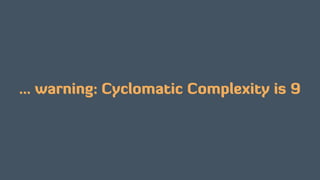

80. … warning: Cyclomatic Complexity is 9

81. public void overlyComplexMethod(Video video) {
if (video != null && video.getStreamUrl() != null) {
updateVideoBasedOnCategory(video);
}
}
!
private void updateVideoBasedOnCategory(Video video) {
switch (video.getCategory()) {
case "CAT1" :
playVideo(video);
if (video.getLargeImageUrl() == null) {
video.setLargeImageUrl("http://www.largeImage.png");
}
updateMetadata(video);
break;

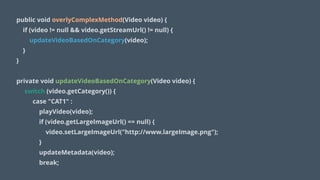

82. public void overlyComplexMethod(Video video) {
if (video != null && video.getStreamUrl() != null) {
updateVideoBasedOnCategory(video);
}
}
!
private void updateVideoBasedOnCategory(Video video) {
switch (video.getCategory()) {
case "CAT1" :
playVideo(video);
if (video.getLargeImageUrl() == null) {
video.setLargeImageUrl("http://www.largeImage.png");
}
updateMetadata(video);
break;

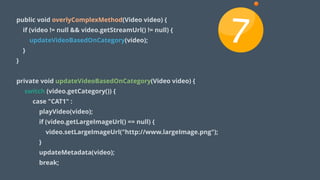

83. public void overlyComplexMethod(Video video) {
if (video != null && video.getStreamUrl() != null) {
updateVideoBasedOnCategory(video);
}
}
!
private void updateVideoBasedOnCategory(Video video) {
switch (video.getCategory()) {
case "CAT1" :
playVideo(video);
if (video.getLargeImageUrl() == null) {
video.setLargeImageUrl("http://www.largeImage.png");
}
updateMetadata(video);
break;
7

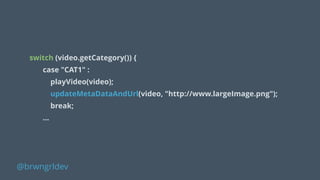

84. !
switch (video.getCategory()) {
case "CAT1" :
playVideo(video);
updateMetaDataAndUrl(video, "http://www.largeImage.png");
break;
…
@brwngrldev

85. !
switch (video.getCategory()) {
case "CAT1" :
playVideo(video);
updateMetaDataAndUrl(video, "http://www.largeImage.png");
break;
…
4
@brwngrldev

86. Review…
• Readability Matters
• Use Checkstyle
• Refactor Gradually
@brwngrldev
Code
Quality
3

87. Unit Testing

88. Untested Code

89. Untested Code

90. “Every single line of code that you
write should be tested. Period.”
— Robert Martin

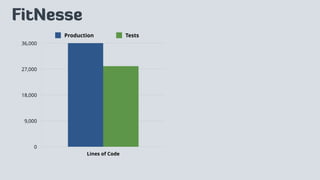

92. 0
9,000
18,000
27,000
36,000
Lines of Code
Production Tests
FitNesse

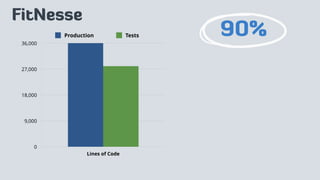

93. 0
9,000
18,000
27,000
36,000
Lines of Code
Production Tests 90%
FitNesse

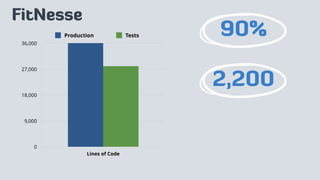

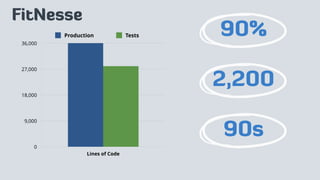

94. 0
9,000
18,000
27,000
36,000
Lines of Code
Production Tests 90%
2,200
FitNesse

95. 0
9,000
18,000
27,000
36,000
Lines of Code
Production Tests 90%
2,200
90s
FitNesse

99. Example

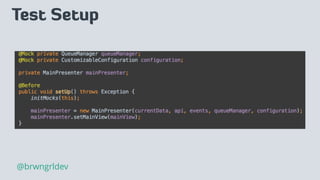

100. Test Setup
@brwngrldev

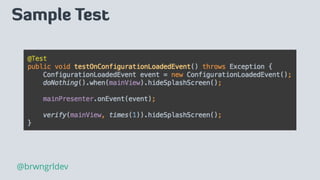

101. Sample Test
@brwngrldev

102. Test Report

103. Continuous Integration
@brwngrldev

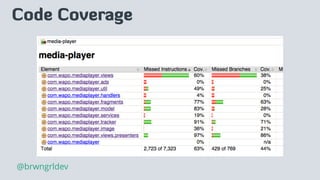

104. Code Coverage
@brwngrldev

105. Makes You Powerful

106. Review
• Listen to Robert Martin!
• JUnit + Mockito
• Continuous Integration
• Code Coverage
Testing
4
@brwngrldev

107. Summary

108. Summary
Choose the right library

109. Summary
Choose the right library
Don’t do too much

110. Summary
Ensure code quality
Choose the right library
Don’t do too much

111. Summary
Ensure code quality
Choose the right library
Don’t do too much
Write unit tests

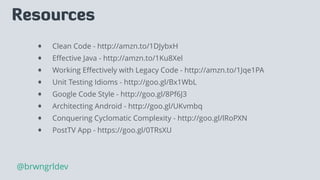

112. Resources
• Clean Code - http://amzn.to/1DJybxH
• Effective Java - http://amzn.to/1Ku8Xel
• Working Effectively with Legacy Code - http://amzn.to/1Jqe1PA
• Unit Testing Idioms - http://goo.gl/Bx1WbL
• Google Code Style - http://goo.gl/8Pf6J3
• Architecting Android - http://goo.gl/UKvmbq
• Conquering Cyclomatic Complexity - http://goo.gl/lRoPXN
• PostTV App - https://goo.gl/0TRsXU
@brwngrldev

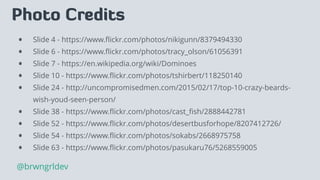

113. Photo Credits
