1. Practical guide to Oracle
Virtual environments
ODC Tour Latin America – August 2018
Nelson Calero

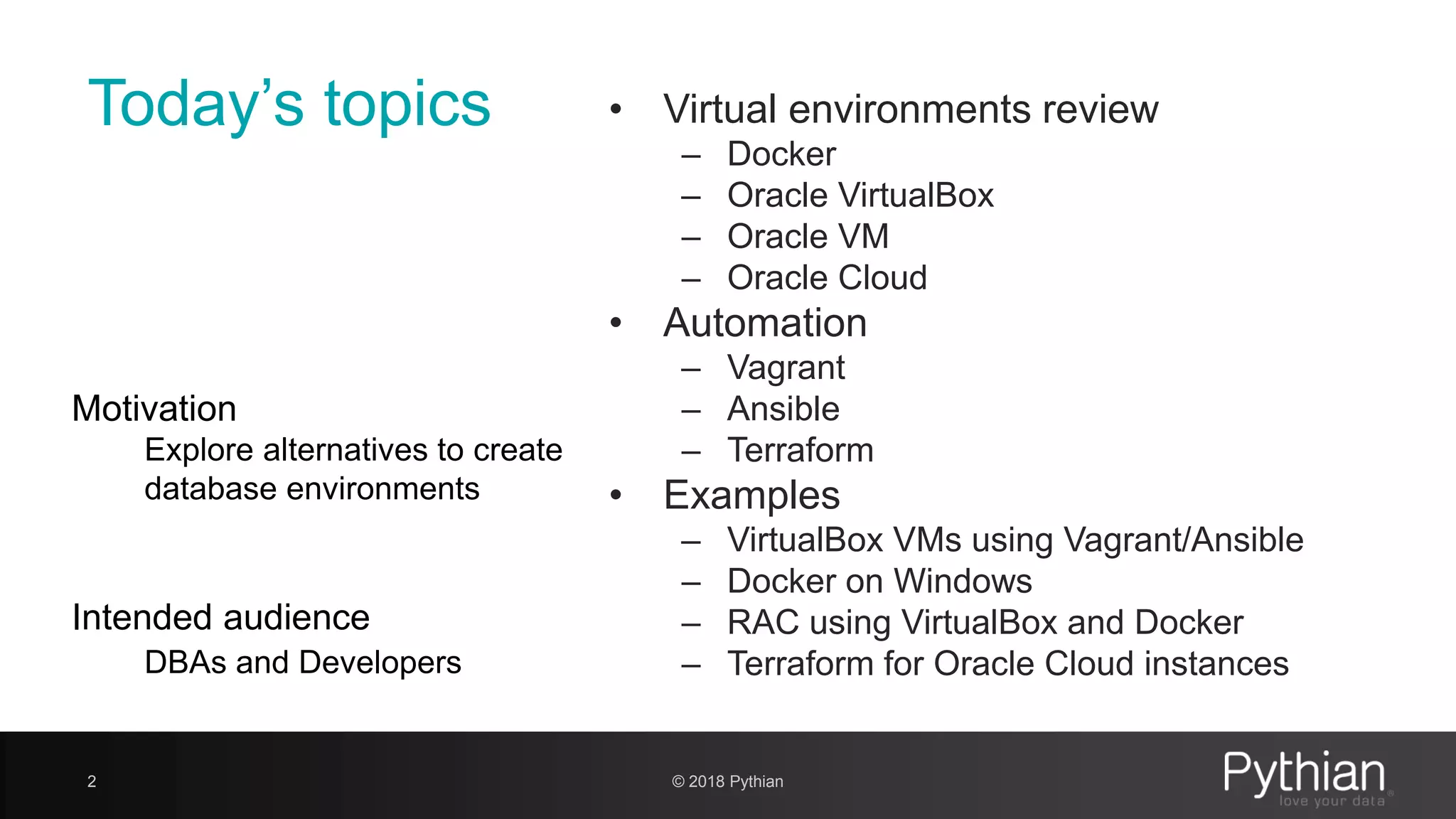

2. Today’s topics • Virtual environments review
– Docker
– Oracle VirtualBox
– Oracle VM
– Oracle Cloud
• Automation
– Vagrant
– Ansible
– Terraform
• Examples
– VirtualBox VMs using Vagrant/Ansible
– Docker on Windows
– RAC using VirtualBox and Docker
– Terraform for Oracle Cloud instances
2 © 2018 Pythian
Motivation
Explore alternatives to create
database environments
Intended audience
DBAs and Developers

3. • Database Consultant at Pythian since 2014
• Working with Oracle tools and Linux environments since 1996
• DBA Oracle (2001) & MySQL (2005)
• Co-founder and President of the Oracle user Group of Uruguay (2009)
• LAOUC Director of events (2013)
• Computer Engineer (1998)
• Oracle ACE (2014), Oracle ACE Director (2017)
• Oracle Certified Professional 10g/11g/12c, OCE, Cloud DB & Infra
• Amazon Solutions Architect – Associate (2016)
• Google Cloud Architect (2017), Google Cloud Data Engineer (2017)
• Oracle University Instructor (2011)
• Blogger and speaker: Oracle Open World, Collaborate, OTN Tour, Regional conferences
About me
3 © 2018 Pythian
http://www.linkedin.com/in/ncalero @ncalerouy

4. Pythian overview
© 2015 Pythian Confidential4
• 22 Years of data infrastructure management consulting
• 250+ Top brands
• 11800+ Systems under management
• 400+ employees in 35 countries
• 10 Oracle ACEs, 4 ACED,
3 OakTable members, 2 OCM, 6 Microsoft MVPs,
1 Cloudera Champion of Big Data,
AWS Certified Solutions Architect – 2 Professional, 12 Associate
• Oracle, Microsoft, MySQL, Hadoop, Cassandra, MongoDB, and more
• Infrastructure, Cloud, DevOps, and application expertise

5. 5 © 2018 Pythian

6. Introduction to Virtual environments
6
KVM, Oracle VM, VirtualBox, … LXC, WPAR, Docker, …
Sharing server resources isolating processes
https://docs.docker.com/get-started/

7. Introduction to Virtual environments
• Hypervisors (Server virtualization)
– Type 1: run directly in host’s hardware
• Xen, Oracle VM, Hyper-V, Vmware ESX, KVM, …
– Type 2: run on a OS (host)
• VMware Workstation, VirtualBox, QEMU, …
• Containers (OS virtualization)
– Share OS kernel and libraries
– LXC, Docker
– MOS 2216342.1 Oracle Support for Database Running on Docker
 Supported SI on Oracle Linux 7 with UEK4 (and later) or RHEL7
7 © 2018 Pythian

8. Not only server virtualization
• Data virtualization
– Delphix, …
• Storage snapshots (vendor based)
– SMO, NetAPP, Oracle ACFS, ..
– gDBClone – clone databases based on ACFS snapshots
http://www.oracle.com/technetwork/indexes/samplecode/gdbclone-download-2295388.html
• Cloud provisioning
– Compute instances – managed hypervisor
– Bare Metal – bring your own hypervisor (only on new OCI, not classic)
– Containers – as managed services or DIY in BM
8 © 2018 Pythian

9. Today’s focus: VMs and containers
9 © 2018 Pythian

10. Containers with Docker
10
• Creates process with access to same OS binaries and resources from the host,
executing programs in isolation as if they were inside a VM
• Runs on any OS
- Download latest binary from https://www.docker.com
- On Windows it creates a VirtualBox VM to execute containers inside it
 VM needs CPU, disk and RAM adjustments to be useful
• Commands:
- docker-machine: manage machines running Docker (Windows/Mac before v1.12)
- docker
o build: Build an image from a Dockerfile
o run: Run a command in a new container
o exec: Run a command in a running container
© 2018 Pythian

11. Docker – command line
Windows – control VM status
11
D:>docker-machine ls
NAME ACTIVE DRIVER STATE URL SWARM DOCKER ERRORS
default - virtualbox Running tcp://192.168.99.100:2376 v18.01.0-ce
Management Commands:
checkpoint Manage checkpoints
config Manage Docker configs
container Manage containers
image Manage images
network Manage networks
node Manage Swarm nodes
plugin Manage plugins
secret Manage Docker secrets
service Manage services
stack Manage Docker stacks
swarm Manage Swarm
system Manage Docker
volume Manage volumes
D:>docker Commands:
attach Attach local standard input, output, and error streams to a running contain
build Build an image from a Dockerfile
commit Create a new image from a container's changes
cp Copy files/folders between a container and the local filesystem
create Create a new container
deploy Deploy a new stack or update an existing stack
diff Inspect changes to files or directories on a container's filesystem
events Get real time events from the server
exec Run a command in a running container
export Export a container's filesystem as a tar archive
history Show the history of an image
images List images
import Import the contents from a tarball to create a filesystem image
info Display system-wide information
inspect Return low-level information on Docker objects
kill Kill one or more running containers
load Load an image from a tar archive or STDIN
login Log in to a Docker registry
logout Log out from a Docker registry
logs Fetch the logs of a container
pause Pause all processes within one or more containers
port List port mappings or a specific mapping for the container
ps List containers
...

12. Docker – configuration
12
Dockerfile – instructions to execute when a container starts
FROM oraclelinux:7-Slim # Pull base image
…
USER Oracle
RUN $INSTALL_DIR/$INSTALL_DB_BINARIES_FILE EE
…
CMD exec $ORACLE_BASE/$RUN_FILE
Base image usually are OS images, not including Oracle binaries (license restriction)
Exception: Oracle provided images:
- Docker Store: https://store.docker.com/images/oracle-database-enterprise-edition
- Oracle Container Registry: https://container-registry.oracle.com
Useful github repositories:
– https://github.com/oracle/docker-images/OracleDatabase - RAC and Single instance
– https://github.com/Seth-Miller/12c-rac-docker - pioneer RAC configuration
© 2018 Pythian

13. Docker – creating a container
13
Install github repository
D:GitHub>git clone https://github.com/oracle/docker-images.git
Cloning into 'docker-images'...
remote: Counting objects: 7740, done.
remote: Compressing objects: 100% (36/36), done.
rRemote: Total 7740 (delta 18), reused 45 (delta 16), pack-reused 7688
Receiving objects: 100% (7740/7740), 9.70 MiB | 870.00 KiB/s, done.
Resolving deltas: 100% (4286/4286), done.
Checking connectivity... done.
Checking out files: 100% (968/968), done.
Create the container (11.2.0.2 XE, 12.1.0.2 or 12.2.0.1 EE or SE as of March 2018):
D:GitHub12.1.0.2/…>docker build -t oracle/database:12.1.0.2-ee -f Dockerfile.ee .
Download Oracle installation files from OTN:
• http://www.oracle.com/technetwork/database/enterprise-edition/downloads/index.html
• Copy to directory D:GitHubdocker-imagesOracleDatabasedockerfiles12.1.0.2
© 2018 Pythian

14. Docker – creating a container
14
Start the container (Windows example):
D:>docker run --name ora121 -p 1521:1521 -p 5500:5500 -e ORACLE_SID=orcl -e
ORACLE_PDB=pdb1 -e ORACLE_PWD=Oracle_123 -e ORACLE_CHARACTERSET=AL32UTF8 -v
//c/users/calero/.docker/persistentdisk/ora121://opt/oracle/oradata
oracle/database:12.1.0.2-ee
Status of running containers
D:>docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS
PORTS NAMES
2c1afcad6a50 oracle/database:12.1.0.2-ee "/bin/sh -c 'exec $O…" 11 hours ago Up 11 hours
(healthy) 0.0.0.0:1521->1521/tcp, 0.0.0.0:5500->5500/tcp ora121
Status
D:>docker image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
oracle/database 12.1.0.2-ee c175ddb41772 4 minutes ago 10.6GB
oraclelinux 7-slim 9870bebfb1d5 2 months ago 118MB
© 2018 Pythian

15. Docker – connecting to Oracle
15
Using sqlplus binary from container
Connect to database running in container – using host Oracle client
D:>docker-machine ip
192.168.99.100
C:Userscalero>sqlplus system/Oracle_123@"192.168.99.100:1521/orcl"
SQL*Plus: Release 12.1.0.2.0 Production on Sun Feb 4 01:51:50 2018
...
Connected to:
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options
D:>docker exec -ti 2c1afcad6a50 sqlplus pdbadmin/Oracle_123@pdb1
SQL*Plus: Release 12.1.0.2.0 Production on Sun Feb 4 16:23:47 2018
...
Connected to:
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options
© 2018 Pythian

16. Docker - images from container-registry
Register in container-registry.oracle.com
Start session
Download image
Step by step guide:
16
D:>docker login container-registry.oracle.com
Username: nelson.calero@gmail.com
Password: xxx
Login Succeeded
D:>docker pull container-registry.oracle.com/database/enterprise:12.2.0.1
12.2.0.1: Pulling from database/enterprise
9bd4d110366e: Downloading [> ] 2.668MB/143MB
af8b29651e27: Download complete
http://databaseindex.blogspot.com/2018/04/oracle-12c-docker-windows-ocr.html
© 2018 Pythian

17. Example – Oracle DB using Docker Image
Check local images
17
D:>docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
container-registry.oracle.com/database/enterprise 12.2.0.1 12a359cd0528 5 months ago 3.44GB
Define image settings
D:>echo DB_MEMORY=1Gb >ora.conf
Start the container
D:>docker run -d -it --name ora122 -P --env-file ora.conf container-registry.oracle.com/database/enterprise:12.2.0.1
5896d37c1cae083c9ab82ec52cf9900a3b22a012b5257c1cb065a6093d7d55c5
Check running containers
D:>docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
5896d37c1cae container-registry.oracle.com/database/enterprise:12.2.0.1 "/bin/sh -c '/bin/ba…" 24 minutes ago Up
24 minutes (healthy) 0.0.0.0:32769->1521/tcp, 0.0.0.0:32768->5500/tcp ora122

18. Summary – Oracle DB using Docker
Using images with preinstalled Oracle binaries
- Docker Store
- Container registry
Step-by-step: http://databaseindex.blogspot.com/2018/04/oracle-12c-docker-windows-ocr.html
Using Oracle github repository, must download binaries from OTN
- Step-by-step example on Windows 10:
http://www.oracle.com/technetwork/es/articles/datawarehouse/oracle12c-docker-win10-4485487-esa.html
More examples:
- Standby: https://github.com/jamesattard/oracle-xe-docker
- RAC: https://github.com/Seth-Miller/12c-rac-docker
https://github.com/oracle/docker-images/tree/master/OracleDatabase/RAC
18 © 2018 Pythian

19. Docker - creating a container
19
Demo
© 2018 Pythian

20. Hypervisors – Oracle VM (type 1)
• Xen Kernel – UEK R4 as of July 2018 with OVM 3.4.4
• Server needs to boot with it (reinstall needed if other OS was used)
• Minimal resources used by OVM server (1 CPU 2Gg RAM)
• VMs uses free available server’s resources
– can be created from OVS using CLI (xm) or using OVM manager web client
– RAM/CPUs can be allocated dynamically without restarting VMs (up to max config)
– Only supported method to reduce license costs (hard partitioning)
– HA configuration allowed with clustered repositories (using SAN, not with local HDs)
– Windows, Linux and Solaris guests
• OVM Manager
– Needs to be installed in a different server
– Uses MySQL as metadata repository
20 © 2018 Pythian

21. Oracle VM - examples
21 © 2018 Pythian
[root@ovs ~]# xm list
Name ID Mem VCPUs State Time(s)
0004fb00000600001000d7829bf5a105 4 30723 4 -b---- 2415636.4
0004fb0000060000cf08a173c50efdc1 2 13063 4 r----- 784876.4
Domain-0 0 1958 20 r----- 1211462.2
[root@ovs /OVS/Repositories]# ls -l */VirtualMachines/*/vm.cfg
-rw------- 1 root root 1950 Apr 19 02:37
0004fb00000300005b800c75ea8932be/VirtualMachines/0004fb00000600001000d7829bf5a105/vm.cfg
-rw-r--r-- 1 root root 1946 Apr 19 02:36
0004fb00000300005b800c75ea8932be/VirtualMachines/0004fb0000060000cf08a173c50efdc1/vm.cfg
[root@ovs ~]# lscpu
Architecture: x86_64
CPU op-mode(s): 32-bit, 64-bit
Byte Order: Little Endian
CPU(s): 20
Hypervisor vendor: Xen
Virtualization type: none
[root@ovs ~]# cd
/OVS/Repositories/*/VirtualMachines
[root@ovs VirtualMachines]# grep cpus
0004fb0000060000cf08a173c50efdc1/vm.cfg
maxvcpus = 4
vcpus = 4
cpus = '0-3‘ # '2,3'

22. Oracle VM Manager console
22 © 2018 Pythian

23. VirtualBox VMs (type 2)
• Run on any OS (Linux, Windows, Mac)
• Download binaries for your platform
• How to create your Oracle VM?
– a) Download OS ISO+ Oracle binaries
Create VM, boot from ISO, install OS + DB, create DB
– b) Download VM template - all pre(installed/configured)
http://www.oracle.com/technetwork/community/developer-vm/index.html
– c) use tools to automate a)
• Several github repos available (details later)
• Allows to customize your VM and create your own template
23 © 2018 Pythian

24. Example – Oracle DB using Vbox
© 2015 Pythian Confidential24

25. 25

26. CLI tools
• VBox: VBoxManage
post creation steps?
• Docker: dockerfile
– ENTRYPOINT – commands to execute when container is run
– CMD – provide default parameters for ENTRYPOINTS or executing an ad-hoc command
26
C:Program FilesOracleVirtualBox> ./VBoxManage list vms
"Oracle DB Developer VM" {6f3d3706-a84d-4163-9bf7-14da26393179}
"oracle-OEL69" {2b835d64-f868-44d8-88e9-9f214dd2fb7d}
"oel68-asm2" {e4d7eb54-2159-4398-a49a-3c2ccfe3cc86}
"oel68-asm1" {bc5e8bc7-3e15-47a1-b81c-2d7bca77b7dd}
"ora12c-si-asm-oel682" {a7318e8a-5b6d-496f-992c-46f84108d345}
"ora12c-si-asm-oel681" {19e74473-bb07-423d-914c-354dc94d6b61}
"default" {fbe05e1e-3c50-4f8f-ba29-6a795a56bdc8}
© 2018 Pythian

27. Automation tools
Vagrant (from HashiCorp)
- Manage VMs with a standard workflow
- Out of the box with support for VirtualBox,
Hyper-V, and Docker
- Uses CLI (Vbox, Vmware, Docker) to
manage lifecycle
- Handles CLI parameters accordingly with
their different versions
- Automatic ssh setup, etc
- Configuration files, providers, plugins
- Use case: few local VMs
- Runs on any OS – Linux, Windows, Mac
27
Ansible (from RedHat)
• Automation tool using a simple configuration
language
• Agentless, uses OpenSSH and WinRM
• Provisioning, configuration management and
workload orchestration
• Available on Linux and Mac
Terraform (from HashiCorp)
• Build infrastructure, complex sets, local and
remote using simple language
• Runs on any OS
© 2018 Pythian

28. Vagrant
28
$ vagrant init hashicorp/precise64
$ vagrant up
Bringing machine 'default' up with 'virtualbox' provider...
==> default: Importing base box 'hashicorp/precise64'...
==> default: Forwarding ports...
default: 22 (guest) => 2222 (host) (adapter 1)
==> default: Waiting for machine to boot...
$ vagrant ssh
vagrant@precise64:~$ _
Install latest binaries: https://www.vagrantup.com/downloads.html
OS Images
- Called box: used to create your VM.
- Public catalog: https://app.vagrantup.com/boxes/search
- or create your own, or use from any URL
Vagrantfile
- Configuration and provisioning steps
- Ruby syntax
- Created with defaults using init
Simple example: creating a VM based
on precise64 image (Ubuntu 12.04 64-
bit) from their public catalog
© 2018 Pythian

29. Vagrant
Provisioning: execute steps after it is running
- part of initial up process, or called manually
- Built-in types: Shell, Ansible, Chef, Docker, Puppet, Salt, …
Sample Vagrantfile using a shell provisioner
Providers: virtual machine to manage
- Out of the box for: VirtualBox (default), Docker, Hyper-V
- More can be installed as plugins: Vmware, Custom
29 © 2018 Pythian
Vagrant.configure("2") do |config|
config.vm.provision "shell",
inline: "echo Hello, World"
end

30. Vagrant - commands
30
D:GitHub>vagrant box list
bento/oracle-6.9 (virtualbox, 201801.02.0)
kikitux/oracle6-racattack (virtualbox, 16.01.01)
oravirt/ol67 (virtualbox, 20170424)
oravirt/ol68 (virtualbox, 20170418)
oravirt/ol72 (virtualbox, 20170425)
D:GitHub>vagrant
Usage: vagrant [options] <command> [<args>]
box manages boxes: installation, removal, etc.
init initializes a new Vagrant environment by creating a Vagrantfile
validate validates the Vagrantfile
up starts and provisions the vagrant environment
provision provisions the vagrant machine
push deploys code in this environment to a configured destination
port displays information about guest port mappings
status outputs status of the vagrant machine
connect connect to a remotely shared Vagrant environment
suspend suspends the machine
resume resume a suspended vagrant machine
halt stops the vagrant machine
destroy stops and deletes all traces of the vagrant machine
reload restarts vagrant machine, loads new Vagrantfile configuration
snapshot manages snapshots: saving, restoring, etc.
ssh connects to machine via SSH
powershell connects to machine via powershell remoting
rdp connects to machine via RDP

31. Ansible
• Install binaries in a control machine (Windows not supported)
• No agent – uses ssh to connect to remote machines
• Inventory to define machines to use - /etc/ansible/hosts
• Playbook: language used for configuration, deployment, and orchestration
– YAML format
– tags and actions to execute
– conditional control: when, loop, until
– this is the main code to keep under source control
• Modules describing resources and desired state
– Created by us or built-in modules: http://docs.ansible.com/modules_by_category.html
– Can be executed directly or inside playbooks
31 © 2018 Pythian

32. Ansible playbooks
Sample playbook – playbook.yml
To execute it:
32
- hosts: webservers
remote_user: root
tasks:
- name: ensure apache is at the latest version
yum:
name: httpd
state: latest
- name: write the apache config file
template:
src: /srv/httpd.j2
dest: /etc/httpd.conf
$ ansible-playbook playbook.yml
© 2018 Pythian

33. Oracle VBox VMs using Vagrant/Ansible (1)
Repository with several configurations: https://github.com/oravirt/
Example for single instance: vagrant-vbox-si-asm
 Customization explained: ${INST_DIR}/README.md
 Code to change:
o vagrant-vbox-si-asmhosts.yml:
o vagrant-vbox-si-asmextra-provisionansible-oraclegroup_vars
 Copy binary files from OTN - ${INST_DIR}vagrant-vbox-si-asmswrepo
33
basename_vm: ora12c-si-asm-oel68
num_vm: 2
base_priv_ip: 172.16.56.30 # (your chosen IP)
oracle_install_version_gi: 12.1.0.2
oracle_version_db: 12.1.0.2
© 2018 Pythian

34. Oracle VBox VMs using Vagrant/Ansible (2)
To create the VM without installing Oracle:
To install Oracle after the VM is created:
All together:
34
D:GitHubvboxsi2vagrant-vbox-si-asm>vagrant provision
==> oel68-asm1: Running provisioner: ansible_local...
Vagrant has automatically selected the compatibility mode '2.0'
according to the Ansible version installed (2.2.1.0).
…
PLAY [all] *********************************************************************
TASK [setup] *******************************************************************
ok: [oel68-asm1]
TASK [init : Install packages] *************************************************
ok: [oel68-asm1] => (item=[u'ntp', u'dnsmasq'])
…
$ vagrant up
$ setup=true ; vagrant up
© 2018 Pythian

35. Oracle VBox VMs using Vagrant/Ansible
DEMO time
More step-by-step examples:
- Oracle Standby 12c using vagrant-vbox-si-asm:
http://databaseindex.blogspot.com/2018/02/crear-oracle-standby-12c-usando.html
- Oracle 12c VM on Windows 10 using ubuntu shell (WLS) and ansible:
http://databaseindex.blogspot.com/2018/03/oracle-12c-vagrant-windows-wls-ubuntu.html
35 © 2018 Pythian

36. Oracle RAC VBox VMs
• Similar approach: https://github.com/racattack/racattack-ansible-oracle
• Implements configuration described in RAC Attack handbook:
https://en.wikibooks.org/wiki/RAC_Attack_-_Oracle_Cluster_Database_at_Home/RAC_Attack_12c
• Customization explained
in project readme (README.md)
on Vagrantfile:
step-by-step example on Windows:
http://databaseindex.blogspot.com/2017/04/automatizar-instalacion-de-oracle-rac.html
36 © 2018 Pythian
#############################
##### BEGIN CUSTOMIZATION #####
#############################
#define number of nodes
num_APPLICATION = 0
num_LEAF_INSTANCES = 0
num_DB_INSTANCES = 1
#define number of cores for guest
num_CORE = 1
#define memory for each type of node in MBytes
memory_APPLICATION = 1500
memory_LEAF_INSTANCES = 2300
memory_DB_INSTANCES = 3072

37. Oracle RAC with Docker
As pointed earlier: https://github.com/oracle/docker-images/tree/master/OracleDatabase/RAC
Several containers needs to be created:
- OracleConnectionManager: bind single port to host and serve containers on different ports
- OracleRACStorageServer: Oracle ASM on NFS Server for RAC testing
- OracleRealApplicationClusters: RAC instance, minimum two
Several steps for each container.
37 © 2018 Pythian

38. VMs in Oracle Cloud
• Infrastructure services
– Database Cloud Service (DBCS): all managed, pre-built configurations
– Compute (OCI or OCI-C): install DB manually as in VirtualBox
– Bare Metal and BYOH (OCI): entire server, can install OVM or use as Compute
• Container services
• Automation
– Terraform for OCI and OCI-C
– Orchestration for OCI-C
– REST API
Upcoming example – already in my other session about that topic
38 © 2018 Pythian

39. Example: OCI Instance using Terraform
• Download Terraform binary (my example uses v0.11.3)
– https://www.terraform.io/downloads.html
• Download Terraform OCI-provider (using v2.1.0)
– https://github.com/oracle/terraform-provider-oci/releases
• Create .tf HCL Project (based on examples):
– https://github.com/oracle/terraform-provider-oci/tree/master/docs/examples
• Configure your account Access (env-vars.ps1)
– Tenancy and user OCIDs, fingerprint, private key, region
• Terraform Plan
• Terraform Apply
• Step by step guide: https://community.oracle.com/docs/DOC-1019936
39 © 2018 Pythian

40. ncalero@H6RMYZ1:/mnt/d/GitHub/terraform-OCI/$ ls
block.tf compute.tf env-vars.ps1 outputs.tf userdata
datasources.tf network.tf provider.tf remote-exec.tf variables.tf
ncalero@H6RMYZ1:/mnt/d/GitHub/terraform-OCI$ cat /mnt/c/users/calero/AppData/Roaming/terraform.rc
providers { oci = "d:softterraform-provider-oci_v2.1.0.exe" }
40 © 2018 Pythian
PS D:GitHubterraform-OCI> cat ./env-vars.ps1
$env:TF_VAR_tenancy_ocid="ocid1.tenancy.oc1..aaaaaaaaw5hodl4pajmymyo62bwkj4kokziowmjkvj7fvmgt4lqia3yg7km"
$env:TF_VAR_user_ocid="ocid1.user.oc1..aaaaaaaaiyhrscq7rhfiyhrscql4tb3ojto2ysw72l656yknkyqau2lxotqf"
$env:TF_VAR_compartment_ocid="ocid1.compartment.oc1.. aaaaaaaakdevdha7q7yjdheridcy63sgv2syefv7x46u67jk4hj"
$env:TF_VAR_region="us-ashburn-1“
$env:TF_VAR_fingerprint="db:a3:b8:59:ce:05:ff:78:c0:fb:aa:ca:d7:09:77:ad"
$env:TF_VAR_private_key_path="C:Userscalero.ocioci_api_key.pem"
### Public/private keys used on the instances
$env:TF_VAR_ssh_public_key = Get-Content C:Userscalero.sshid_rsa.pub -Raw
$env:TF_VAR_ssh_private_key = Get-Content C:Userscalero.sshid_rsa -Raw
PS D:GitHubterraform-OCI> ./env-vars.ps1

41. ncalero@H6RMYZ1:/mnt/d/GitHub/terraform-OCI$ cat compute.tf
resource "oci_core_instance" "DemoInstance" {
availability_domain =
"${lookup(data.oci_identity_availability_domains.ADs.availability_domains[0],"name")}"
compartment_id = "${var.compartment_ocid}"
display_name = "Demo-Instance"
image = "${lookup(data.oci_core_images.OLImageOCID.images[0], "id")}"
shape = "${var.InstanceShape}"
subnet_id = "${oci_core_subnet.SN-DemoSubnetAD1.id}"
metadata {
ssh_authorized_keys = "${var.ssh_public_key}"
user_data = "${base64encode(file(var.InstanceBootStrap))}"
}
}
ncalero@H6RMYZ1:/mnt/d/GitHub/terraform-OCI/demo$ cat provider.tf
provider "oci" {
tenancy_ocid = "${var.tenancy_ocid}"
user_ocid = "${var.user_ocid}"
fingerprint = "${var.fingerprint}"
private_key_path = "${var.private_key_path}“
region = "${var.region}"
}
41 © 2018 Pythian

42. 42 © 2018 Pythian

43. 43 © 2018 Pythian

44. © 2015 Pythian Confidential44
PS D:GitHubterraform-OCI> d:softterraform graph | dot -Tpng -o demo-graph.png

45. Terraform apply
© 2015 Pythian Confidential45

46. Summary
Comparing options to create an Oracle instance using dataguard (2 VMs)
Notes:
* host CPU can be shared among VMs but performance will be impacted. Use 1 CPU per VM for prod
** only as described in MOS 2216342.1 - SI on OEL7 with UEK4 or RHEL7 as of July 2018
*** once familiar with the tool and concepts
46
Solution Host OS Disk
space
CPU
min.
License Creation
effort
Production
support
OVM OVM 2xVM+ 1 (*) VM CPUs Medium yes
VirtualBox any 2xVM 1 (*) Entire host Easy (***) no
Docker any 1xVM+ 1 (*) Entire host Easy (***) yes (**)
Cloud any 2xVM 1 (*) VM shape Easiest yes
© 2018 Pythian

47. References - documentation
• Virtualization concepts: https://en.wikipedia.org/wiki/X86_virtualization
• Docker documentation: https://docs.docker.com/
• Oracle database on Docker – github project: https://github.com/oracle/docker-images
• VirtualBox user guide: https://www.virtualbox.org/manual/ch01.html
• Oracle VM documentation: https://www.oracle.com/technetwork/documentation/vm-096300.html
• Vagrant documentation: https://www.vagrantup.com/intro/index.html
• Ansible user guide: https://docs.ansible.com/ansible/latest/user_guide/index.html
• Terraform documentation: https://www.terraform.io/intro/index.html
47 © 2018 Pythian

48. THANK YOU
Questions?
48
calero@pythian.com
@ncalerouy
http://www.linkedin.com/in/ncalero
© 2017 Pythian
