Counting image views using redis cluster
The document discusses the implementation of a Redis cluster to count image views, addressing challenges faced with HBase and resulting in significant performance improvements. The new system, dubbed 'viewcount v2', achieved a 50ms reduction in response time and a 75% reduction in EC2 costs, simplifying operations by avoiding complex architectures. Future considerations for the system include potential enhancements and moving to different programming environments for scalability.
More Related Content
Similar to Counting image views using redis cluster
Counting image views using redis cluster
- 1. Counting Image Viewsusing Redis Cluster Seandon Mooy DevOps Engineer @erulabs

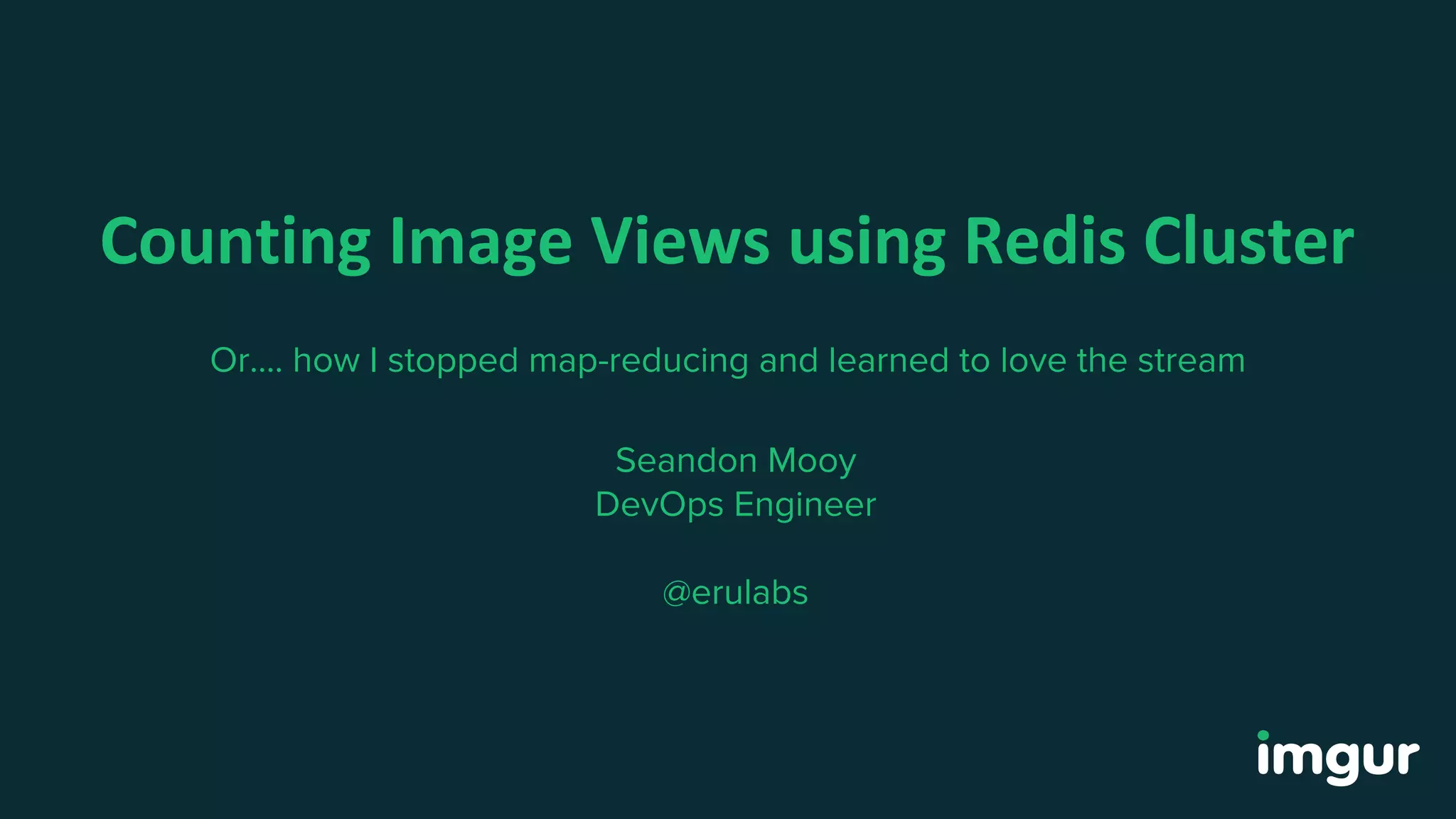

- 2. Counting Image Viewsusing Redis Cluster Or…. how I stopped map-reducing and learned to love the stream Seandon Mooy DevOps Engineer @erulabs
- 6.
- 8.

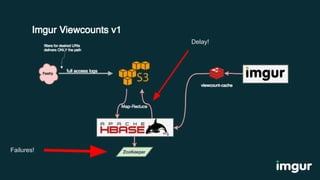

- 9.

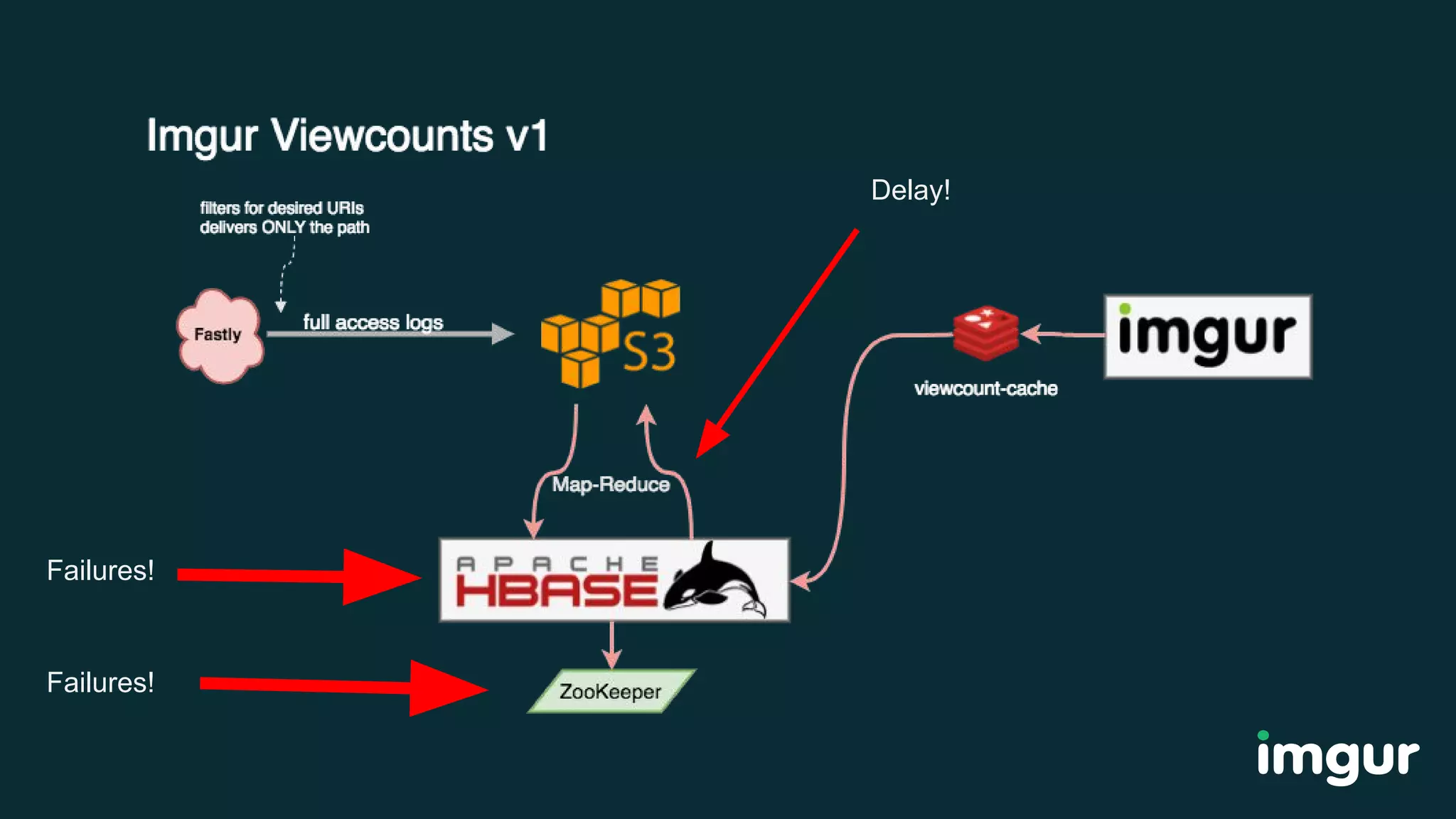

- 10.
- 11. Also… I maynot be the best zookeeper

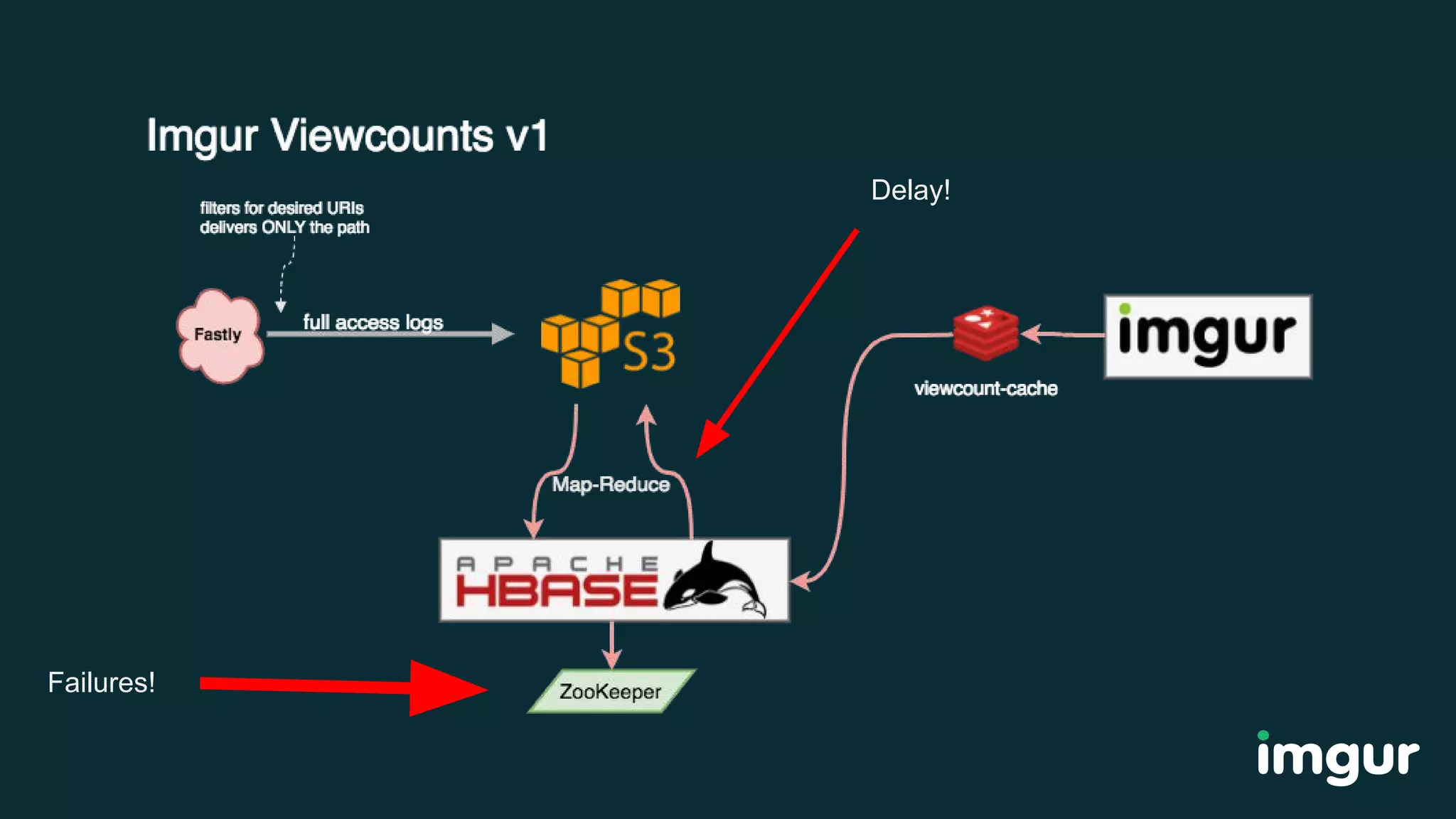

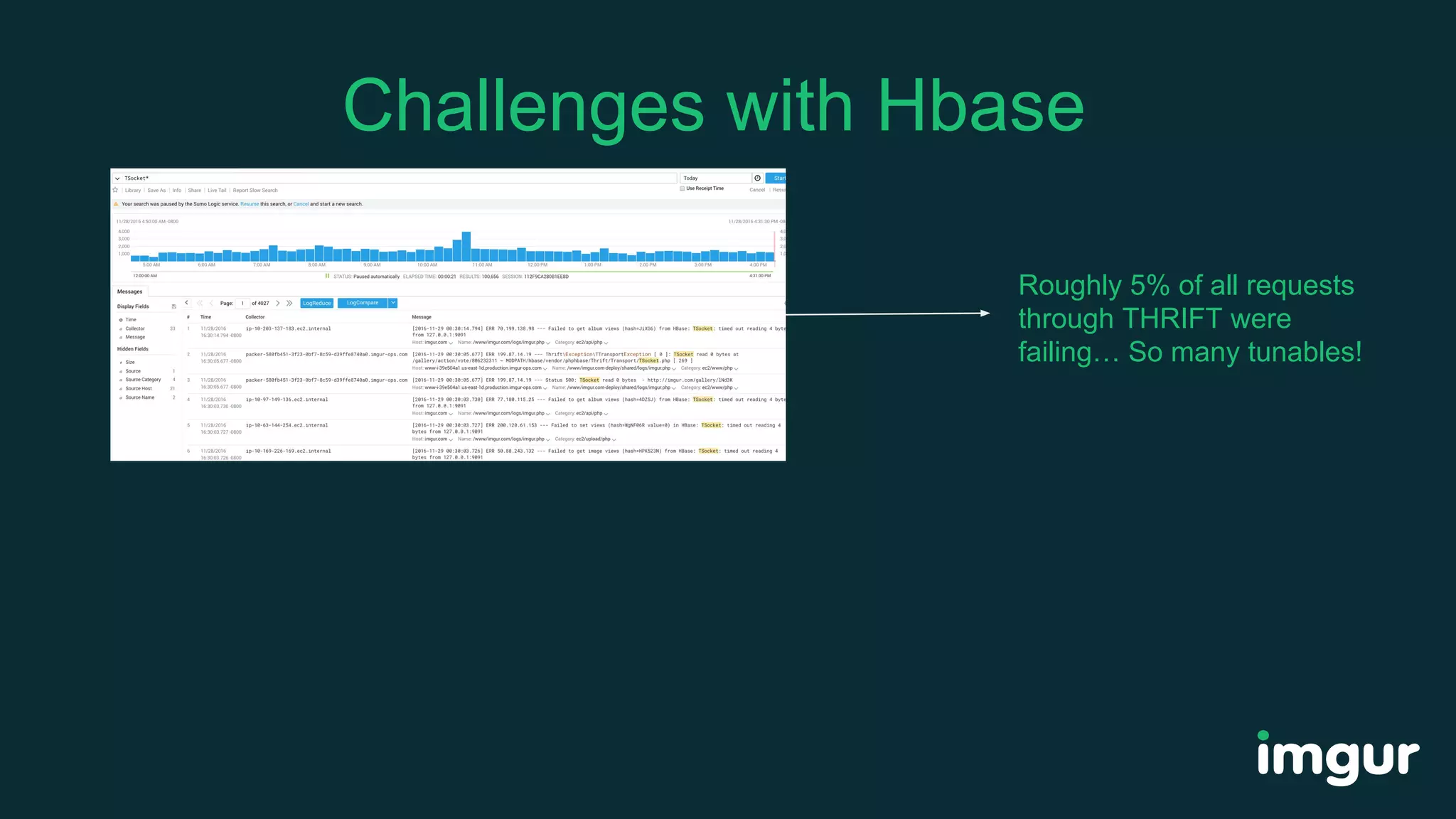

- 12. Challenges with Hbase Roughly5% of all requests through THRIFT were failing… So many tunables!

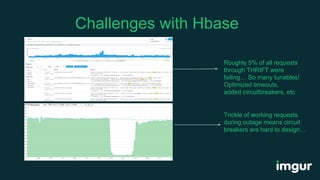

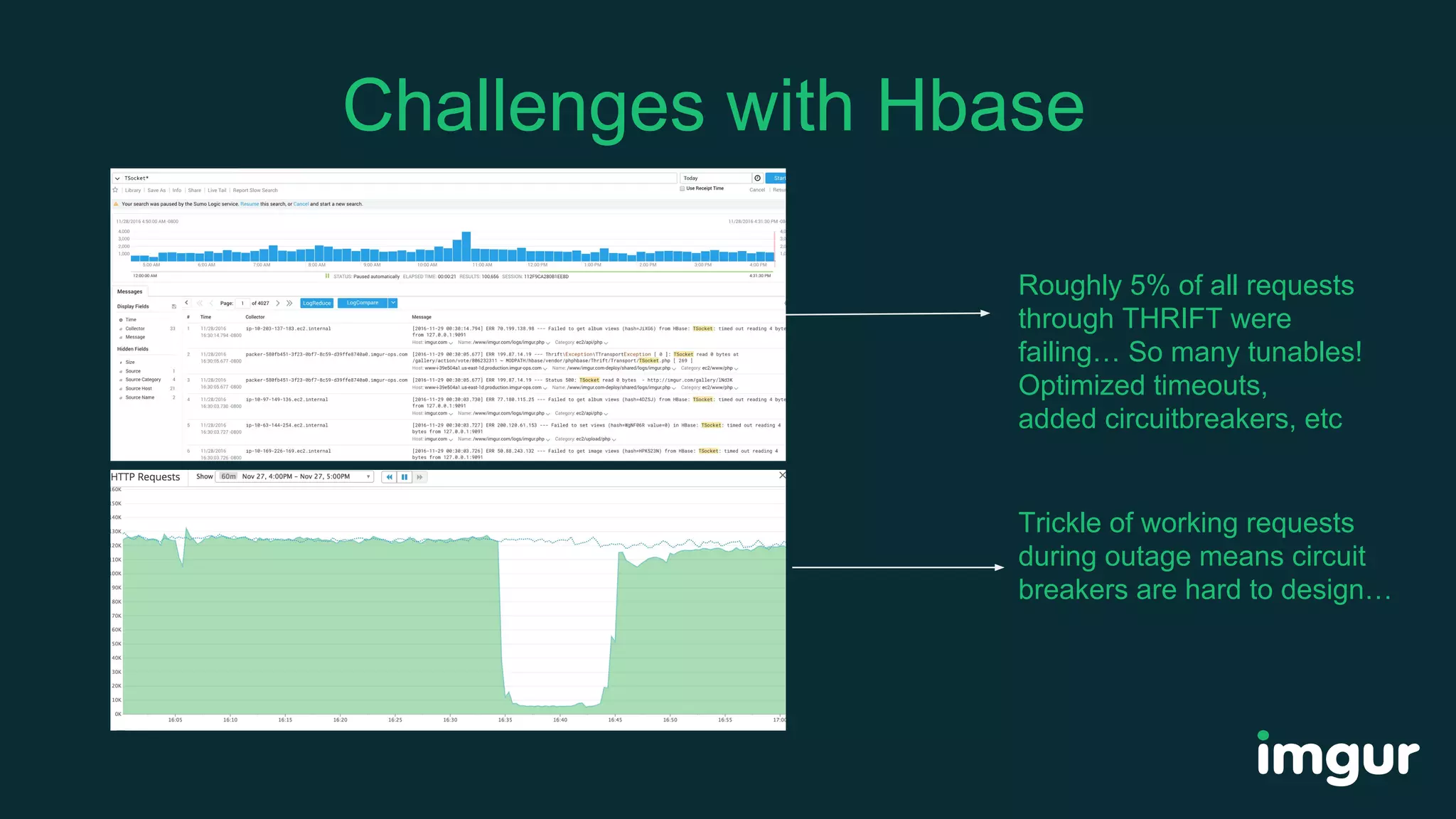

- 13. Challenges with Hbase Roughly5% of all requests through THRIFT were failing… So many tunables! Optimized timeouts, added circuitbreakers, etc Trickle of working requests during outage means circuit breakers are hard to design…

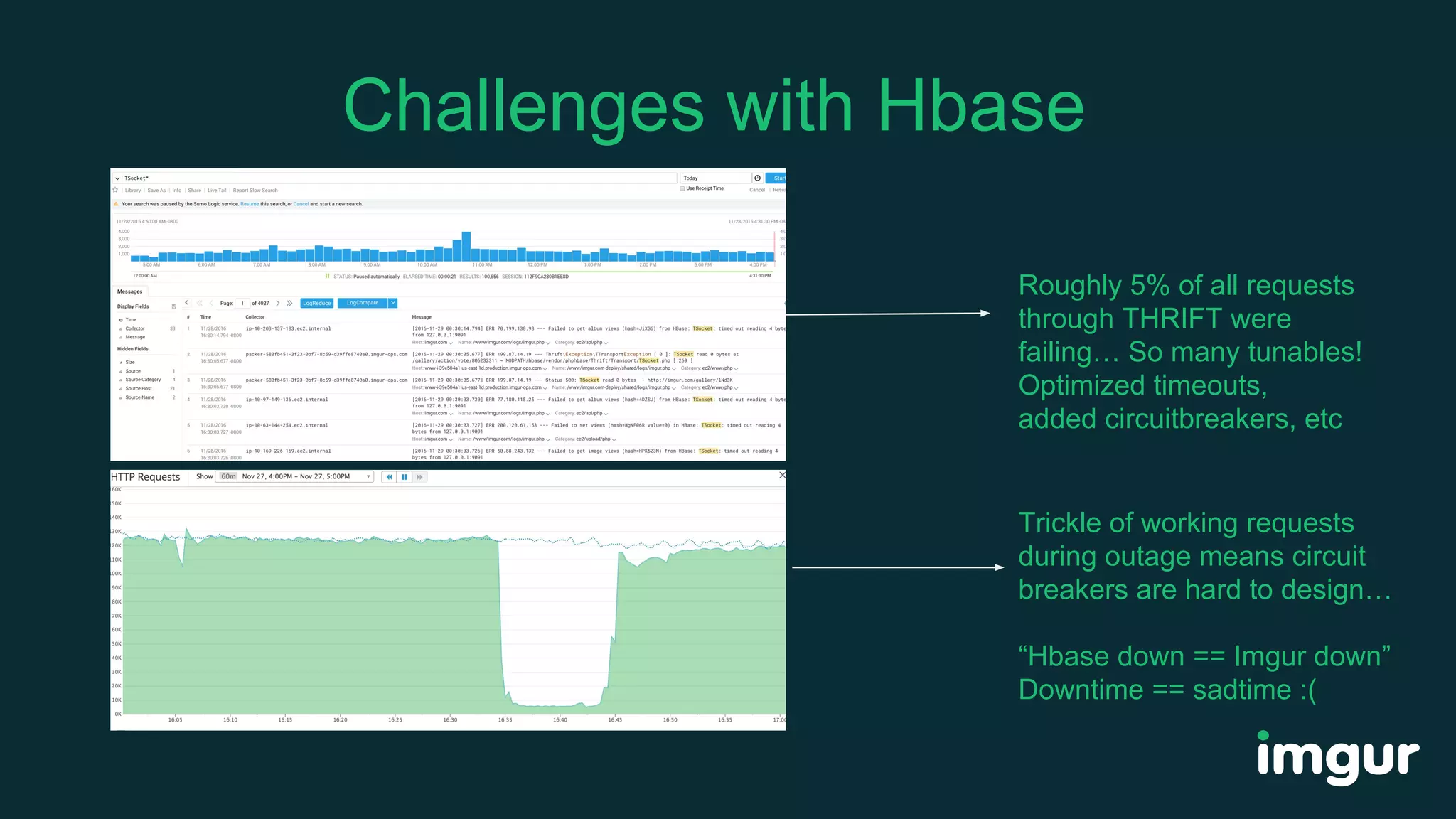

- 14. Challenges with Hbase Roughly5% of all requests through THRIFT were failing… So many tunables! Optimized timeouts, added circuitbreakers, etc Trickle of working requests during outage means circuit breakers are hard to design… “Hbase down == Imgur down” Downtime == sadtime :(
- 15.
- 16.

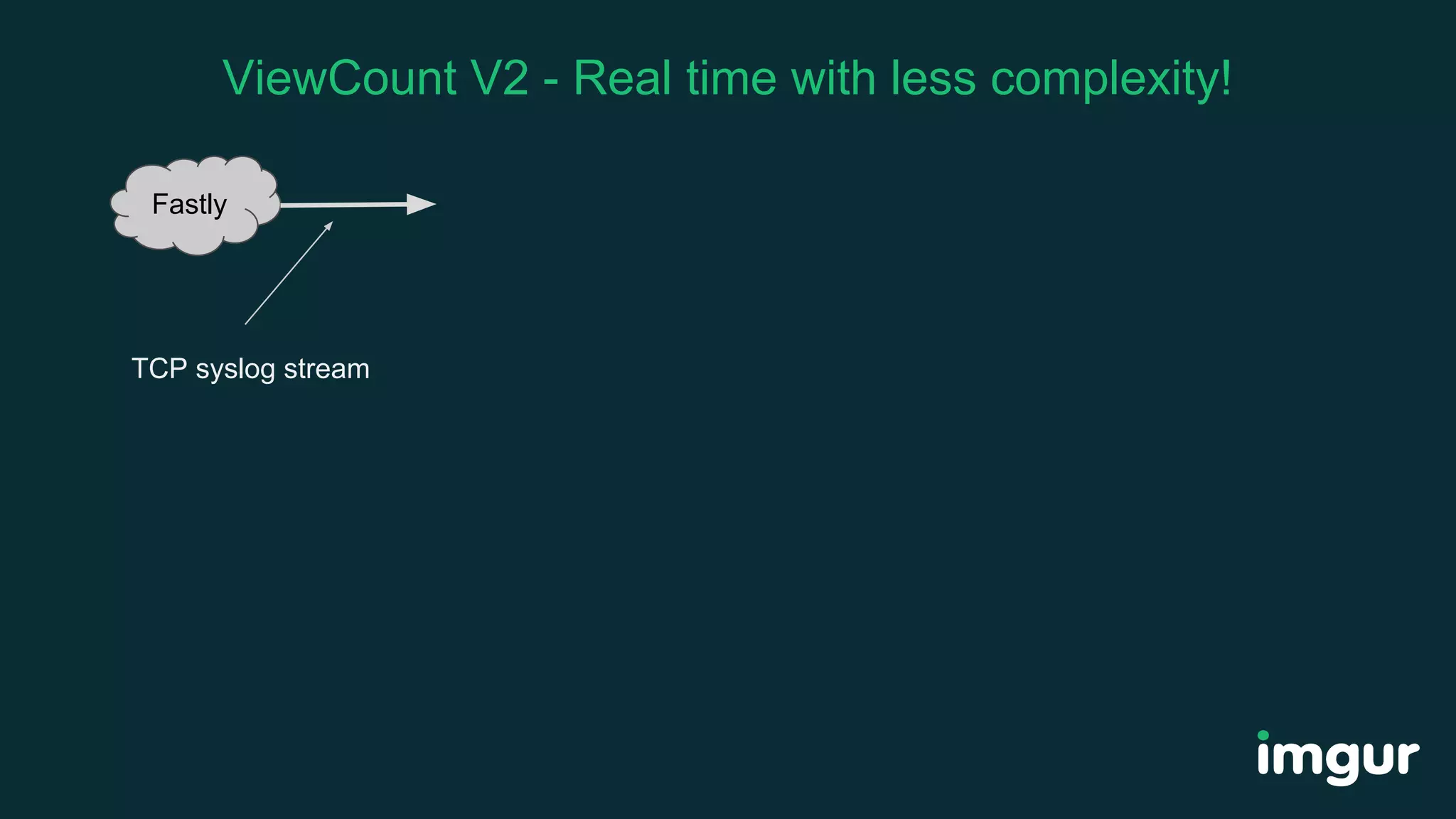

- 17. Fastly ViewCount V2 -Real time with less complexity! TCP syslog stream

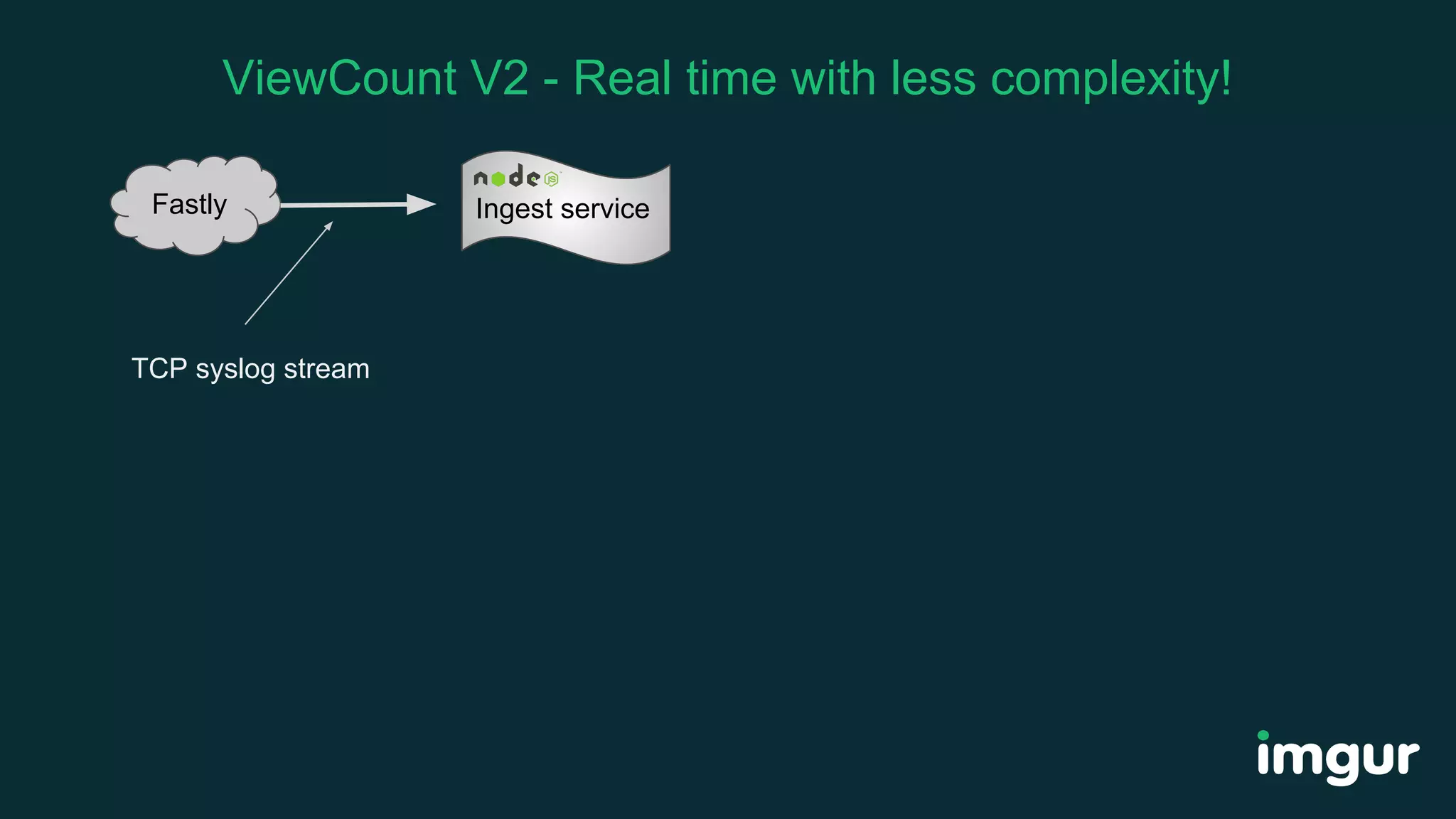

- 18. Fastly ViewCount V2 -Real time with less complexity! TCP syslog stream Ingest service

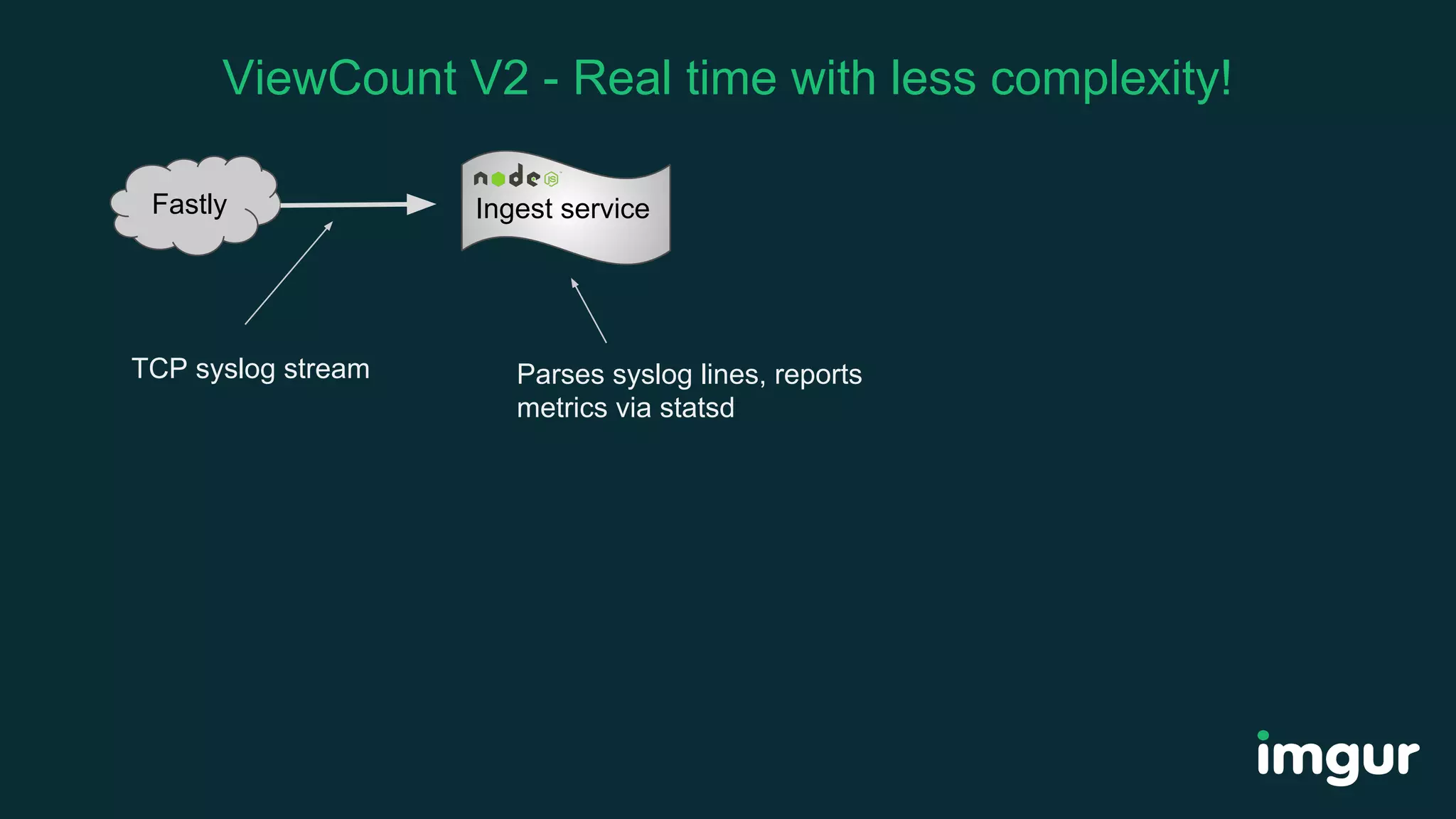

- 19. Fastly ViewCount V2 -Real time with less complexity! TCP syslog stream Ingest service Parses syslog lines, reports metrics via statsd

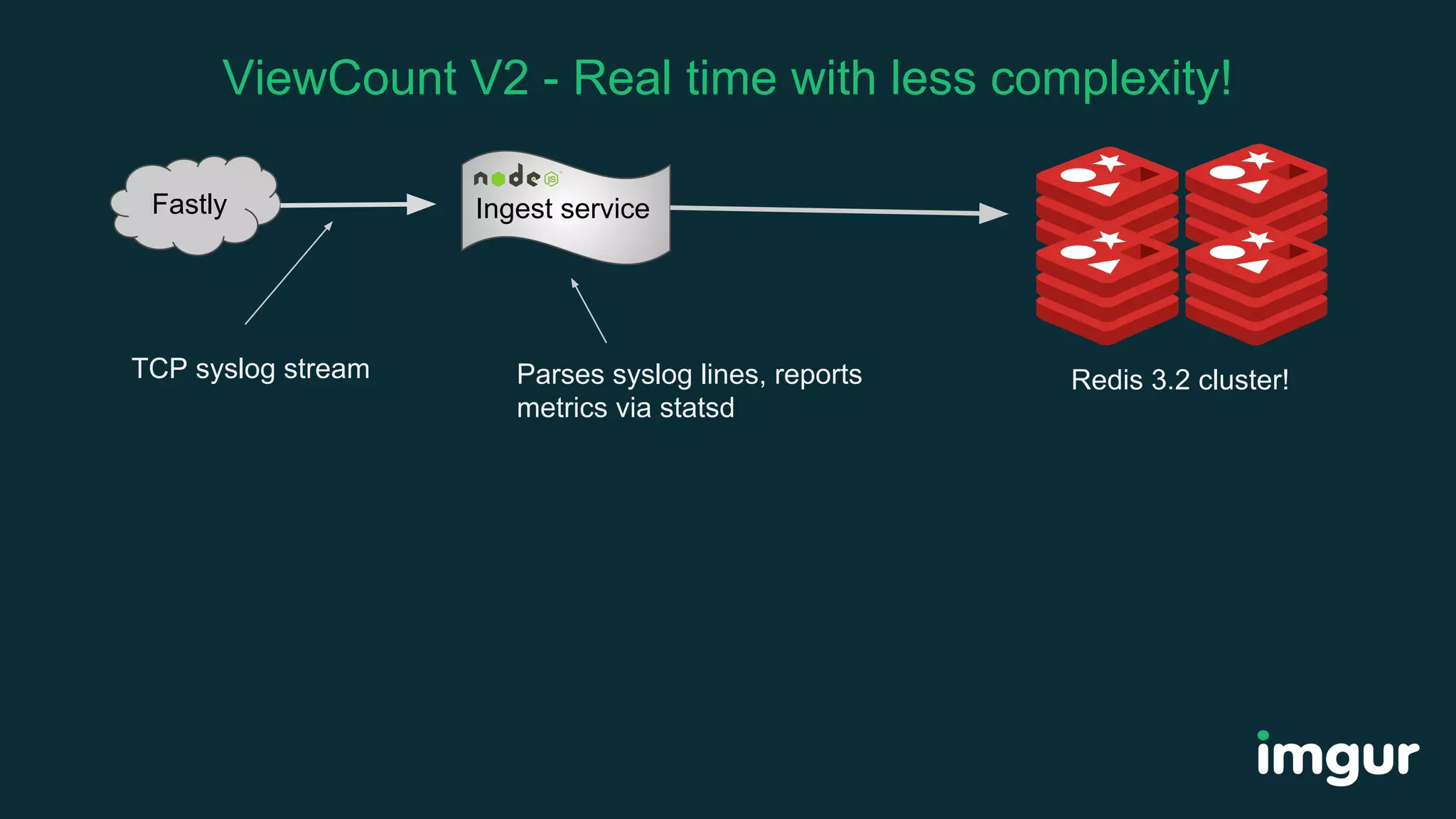

- 20. Fastly ViewCount V2 -Real time with less complexity! TCP syslog stream Ingest service Parses syslog lines, reports metrics via statsd Redis 3.2 cluster!

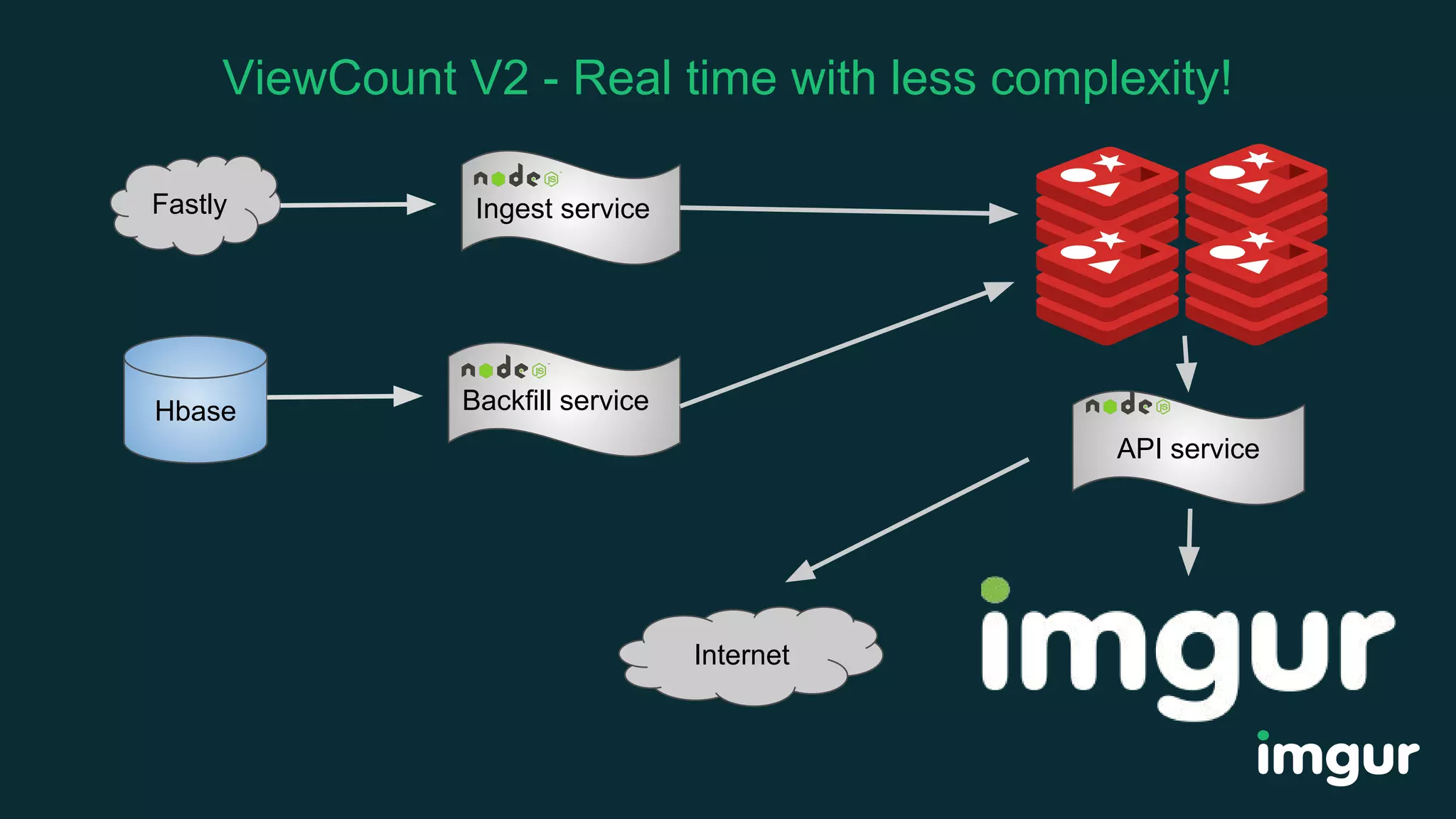

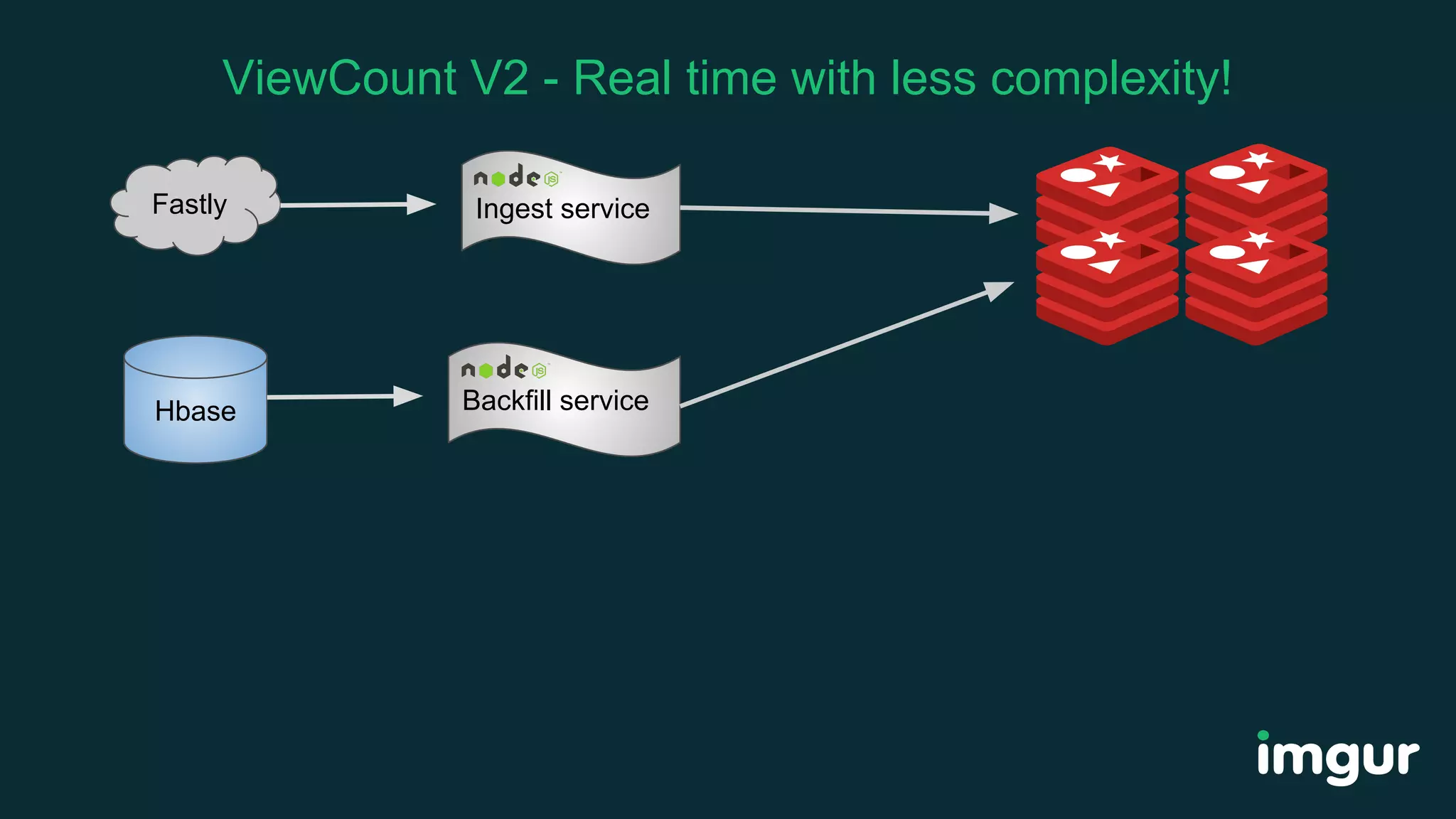

- 21. Fastly ViewCount V2 -Real time with less complexity! Ingest service Hbase Backfill service
- 22. Fastly ViewCount V2 -Real time with less complexity! Ingest service Hbase Backfill service Internet API service

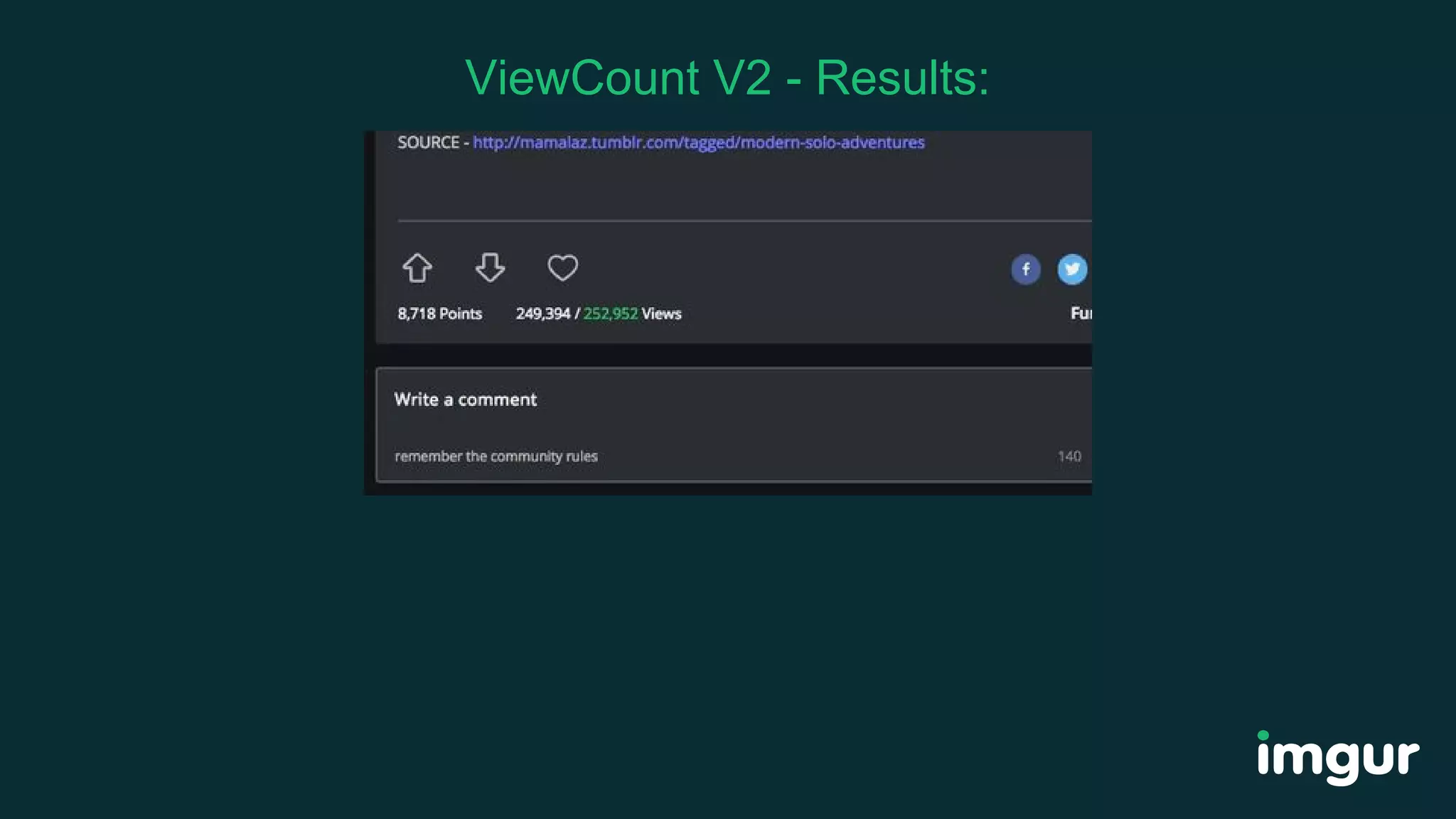

- 23. ViewCount V2 -Results:

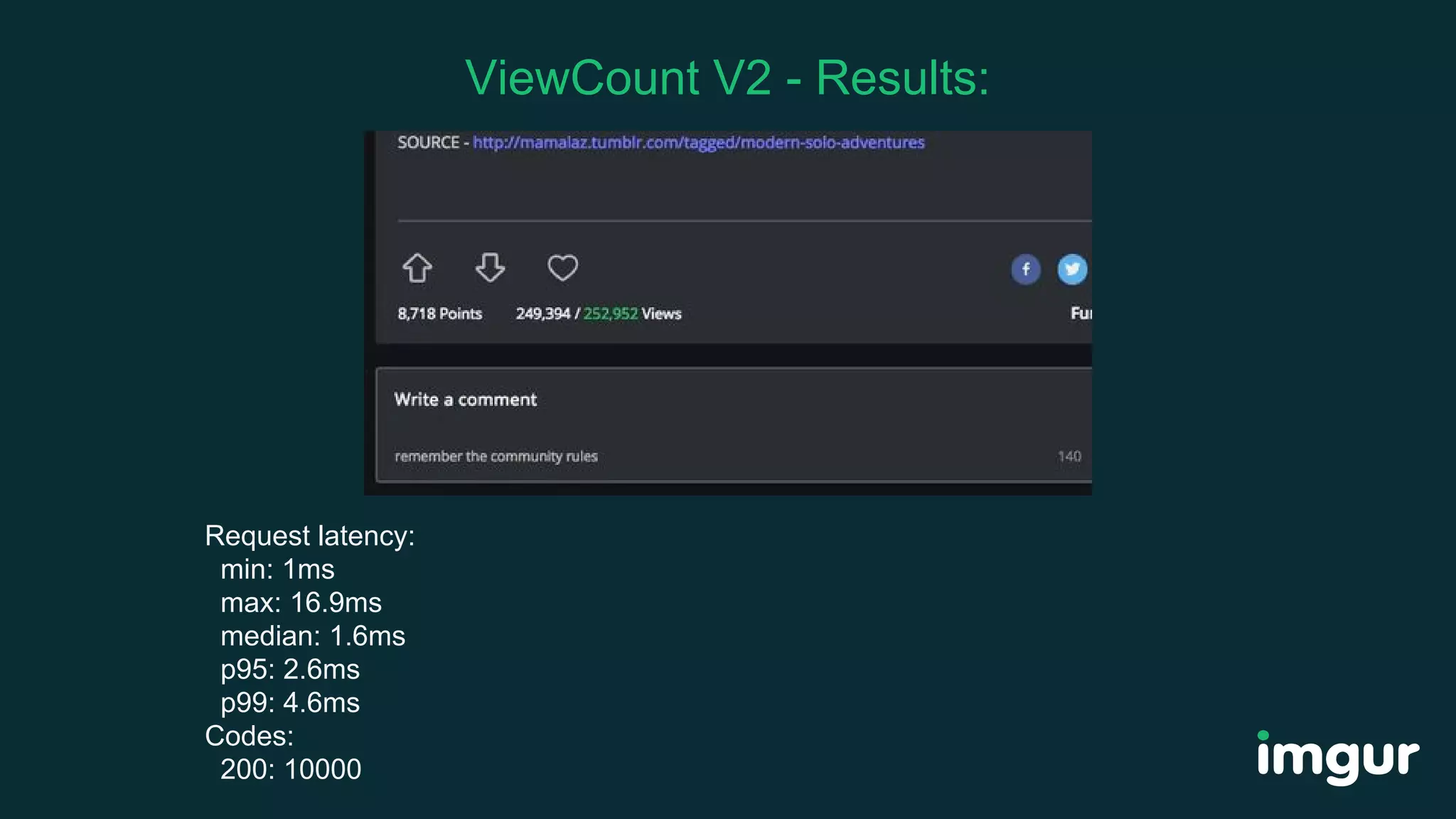

- 24. ViewCount V2 -Results: Request latency: min: 1ms max: 16.9ms median: 1.6ms p95: 2.6ms p99: 4.6ms Codes: 200: 10000

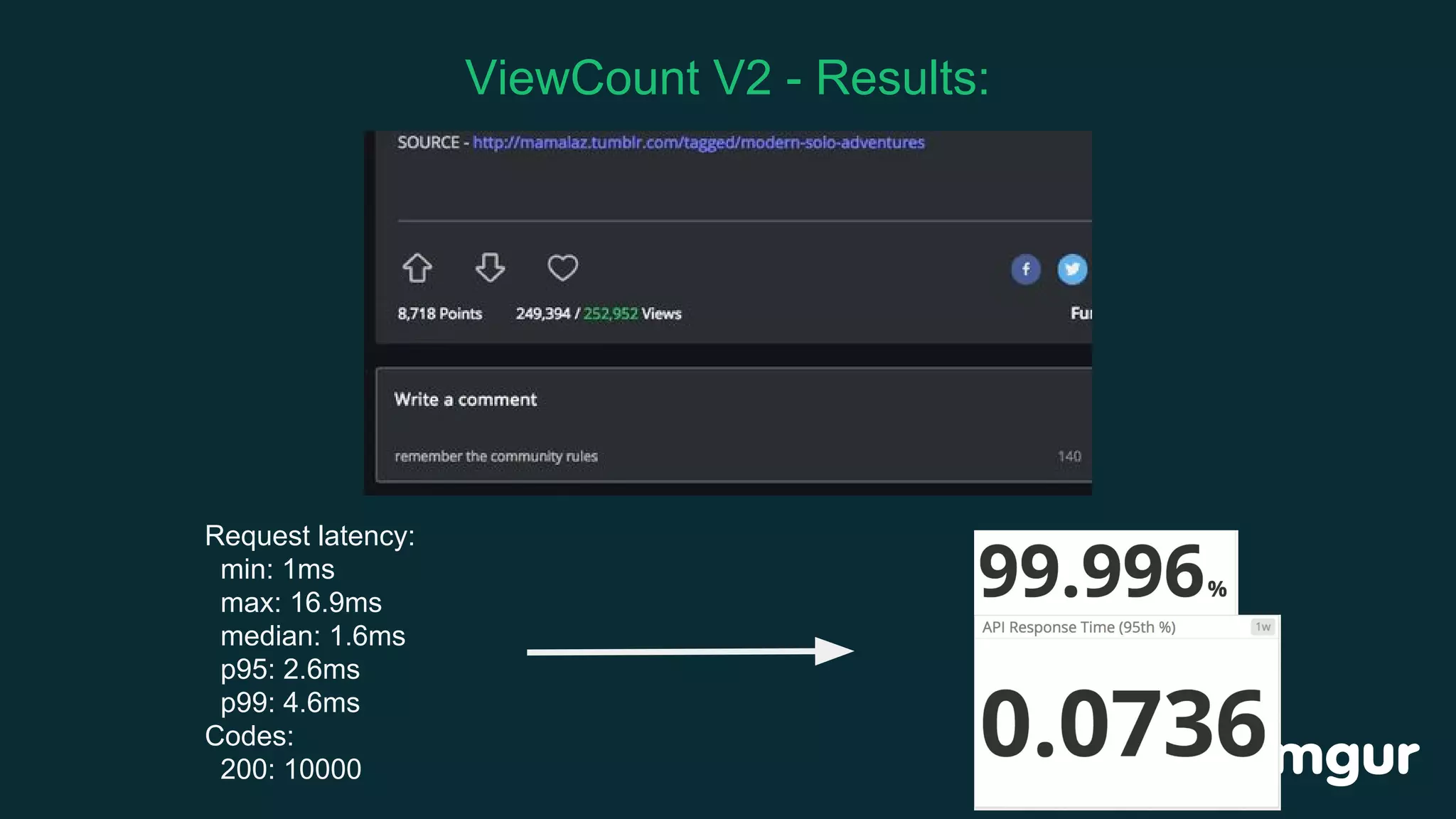

- 25. ViewCount V2 -Results: Request latency: min: 1ms max: 16.9ms median: 1.6ms p95: 2.6ms p99: 4.6ms Codes: 200: 10000

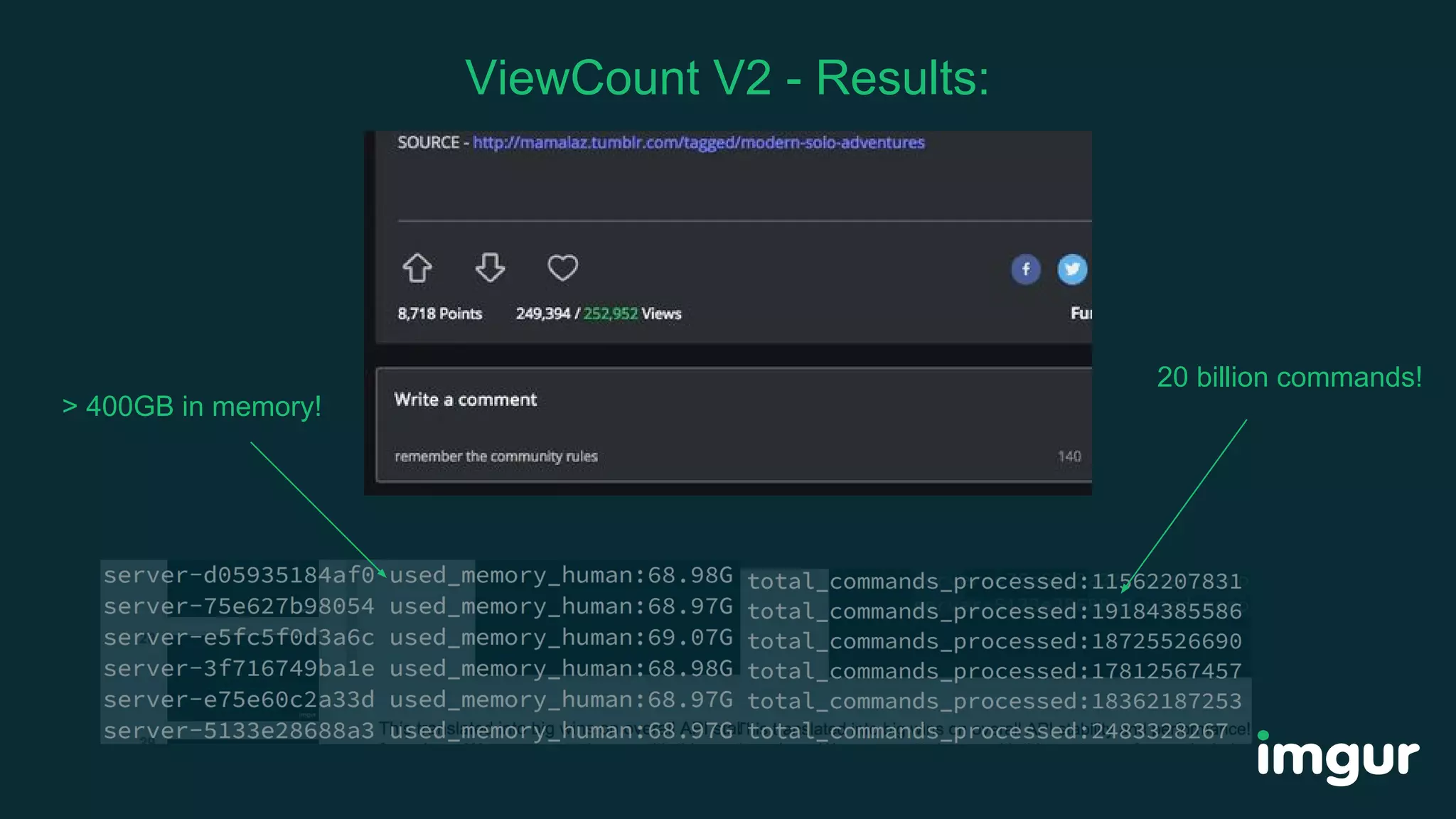

- 26. ViewCount V2 -Results: 20 billion commands! > 400GB in memory!

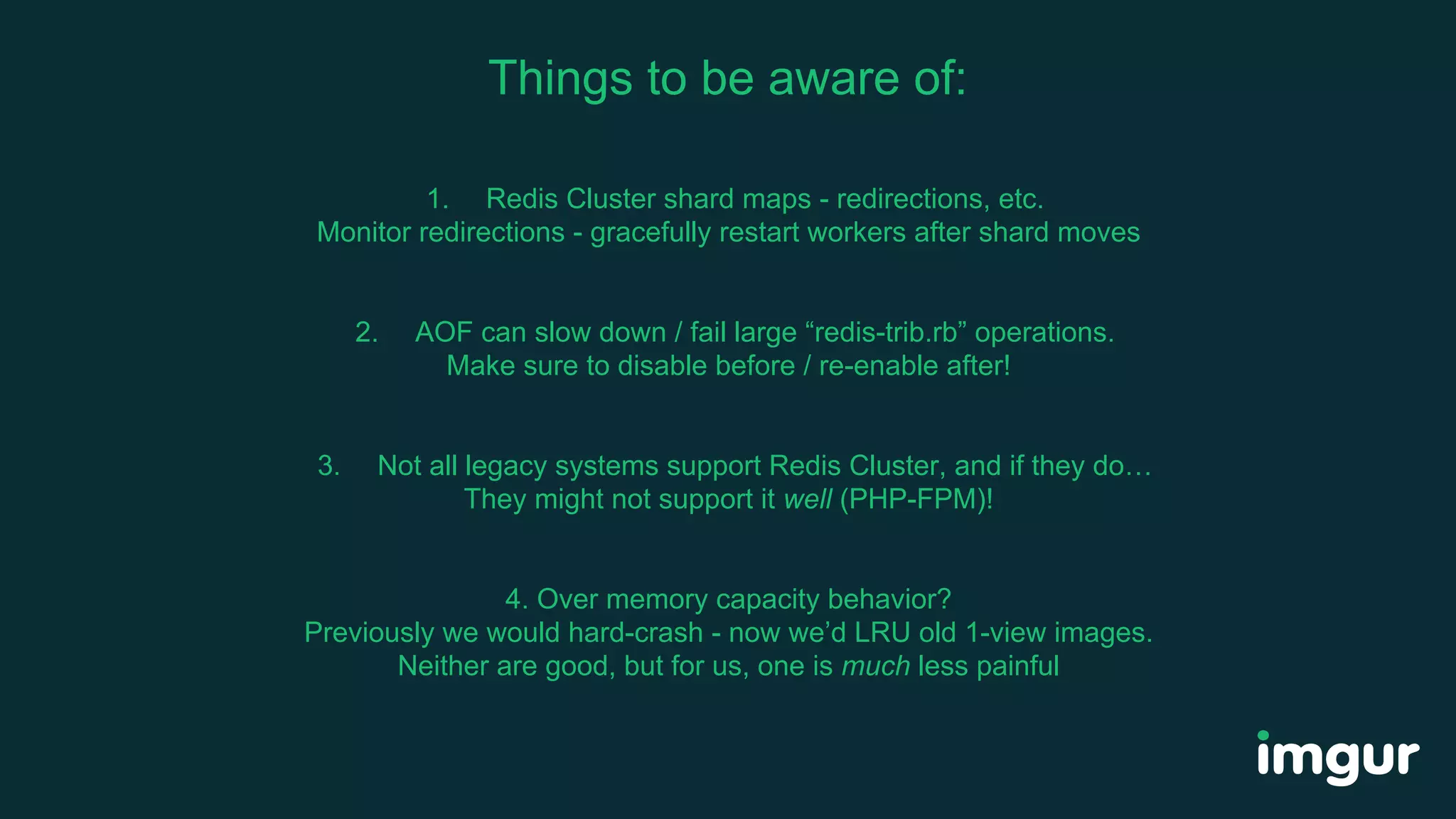

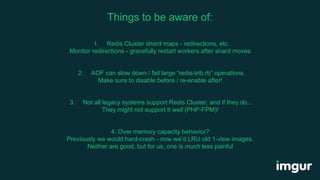

- 27. Things to beaware of: 1. Redis Cluster shard maps - redirections, etc. Monitor redirections - gracefully restart workers after shard moves 2. AOF can slow down / fail large “redis-trib.rb” operations. Make sure to disable before / re-enable after! 3. Not all legacy systems support Redis Cluster, and if they do… They might not support it well (PHP-FPM)! 4. Over memory capacity behavior? Previously we would hard-crash - now we’d LRU old 1-view images. Neither are good, but for us, one is much less painful

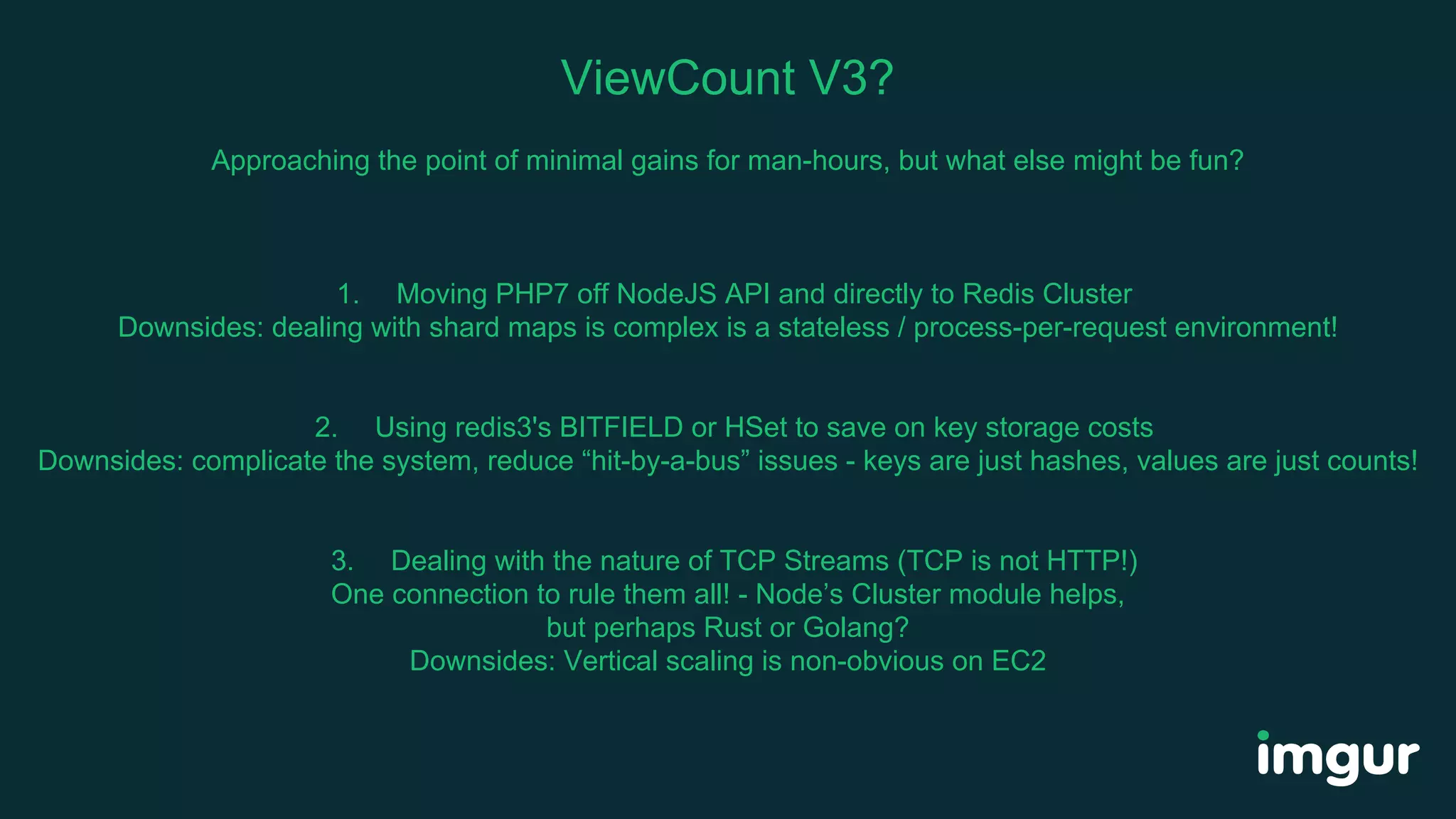

- 28. ViewCount V3? Approaching thepoint of minimal gains for man-hours, but what else might be fun? 1. Moving PHP7 off NodeJS API and directly to Redis Cluster Downsides: dealing with shard maps is complex is a stateless / process-per-request environment! 2. Using redis3's BITFIELD or HSet to save on key storage costs Downsides: complicate the system, reduce “hit-by-a-bus” issues - keys are just hashes, values are just counts! 3. Dealing with the nature of TCP Streams (TCP is not HTTP!) One connection to rule them all! - Node’s Cluster module helps, but perhaps Rust or Golang? Downsides: Vertical scaling is non-obvious on EC2

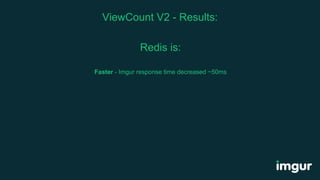

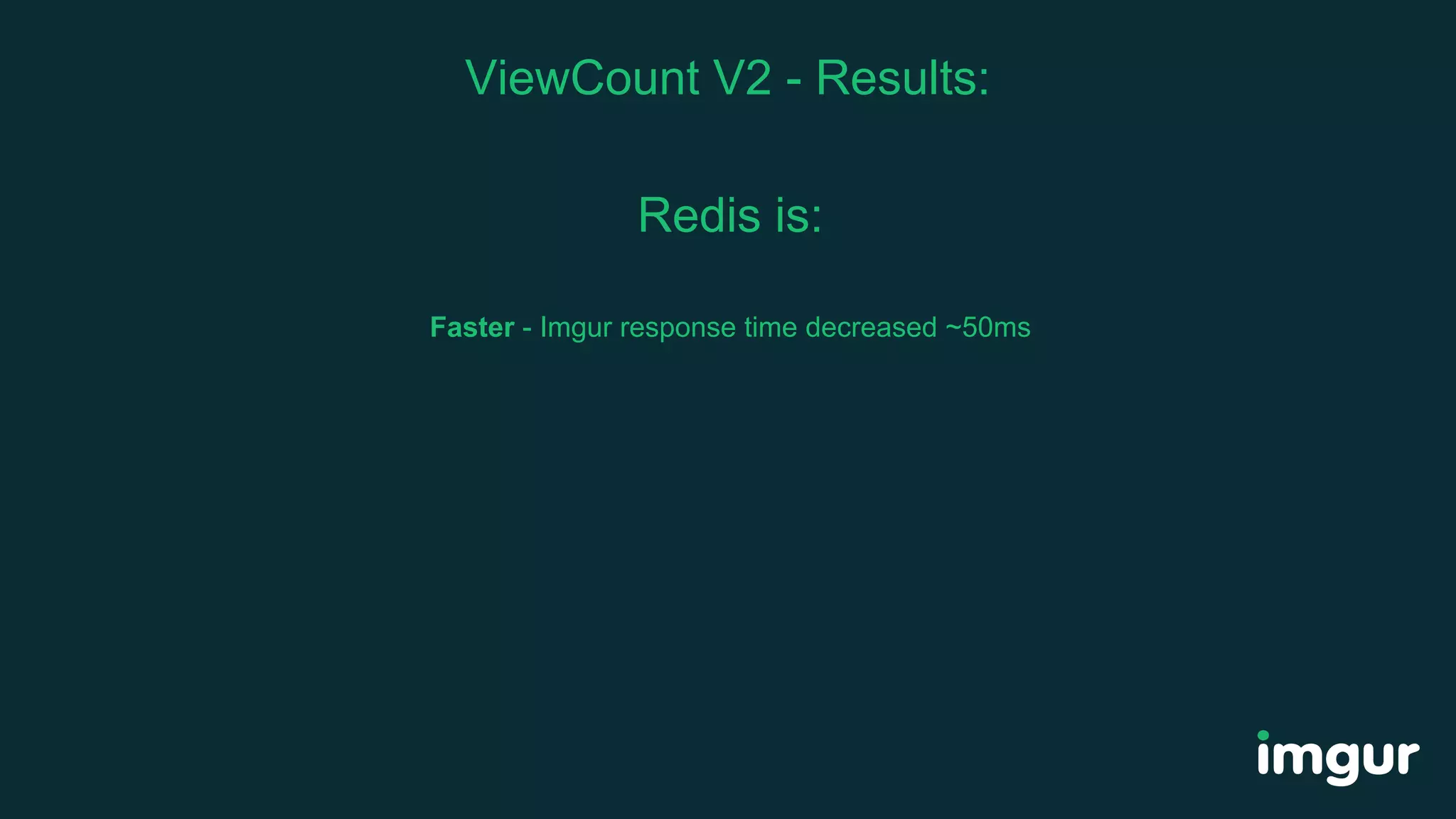

- 29. ViewCount V2 -Results: Redis is: Faster - Imgur response time decreased ~50ms

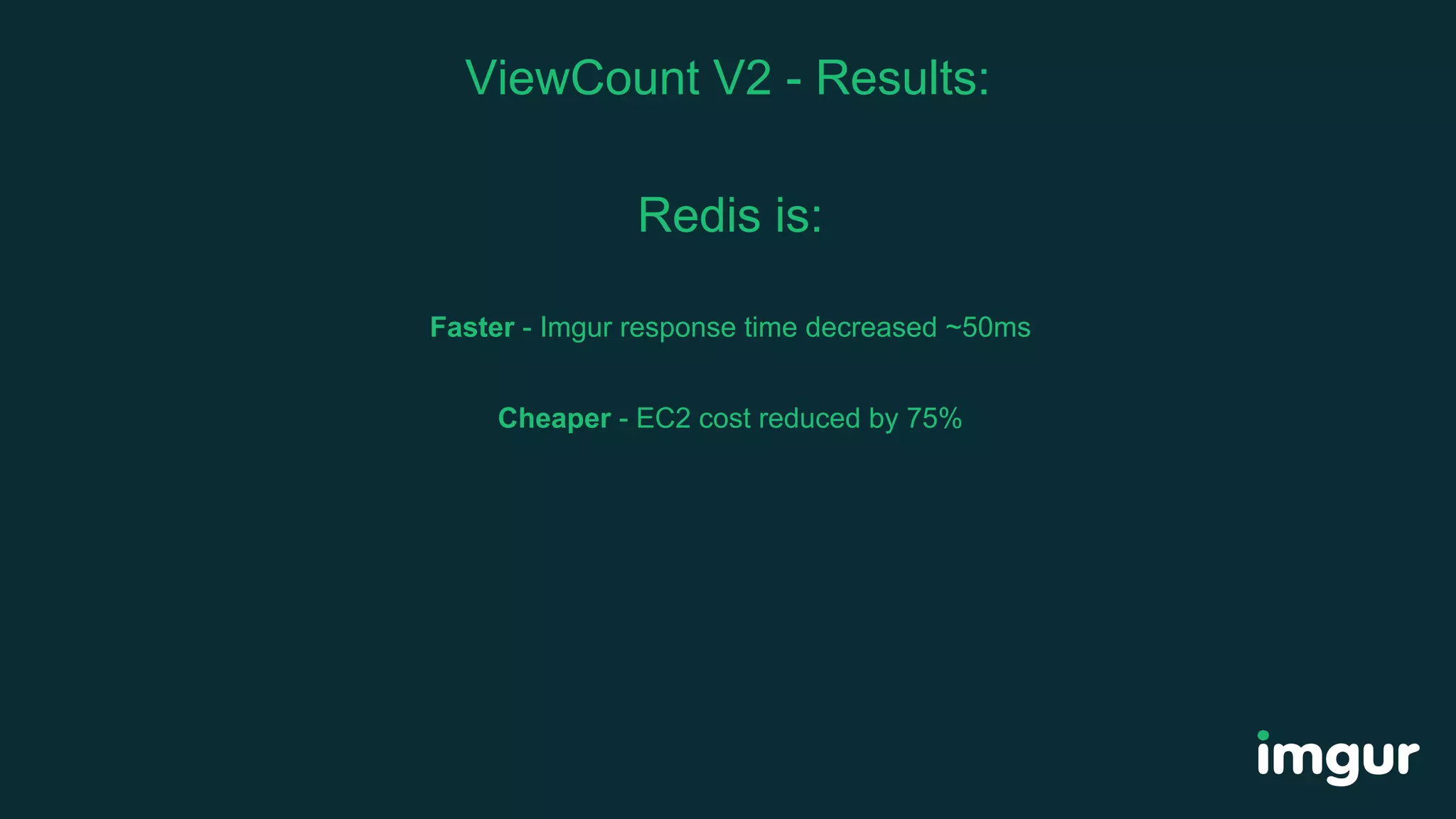

- 30. ViewCount V2 -Results: Redis is: Faster - Imgur response time decreased ~50ms Cheaper - EC2 cost reduced by 75%

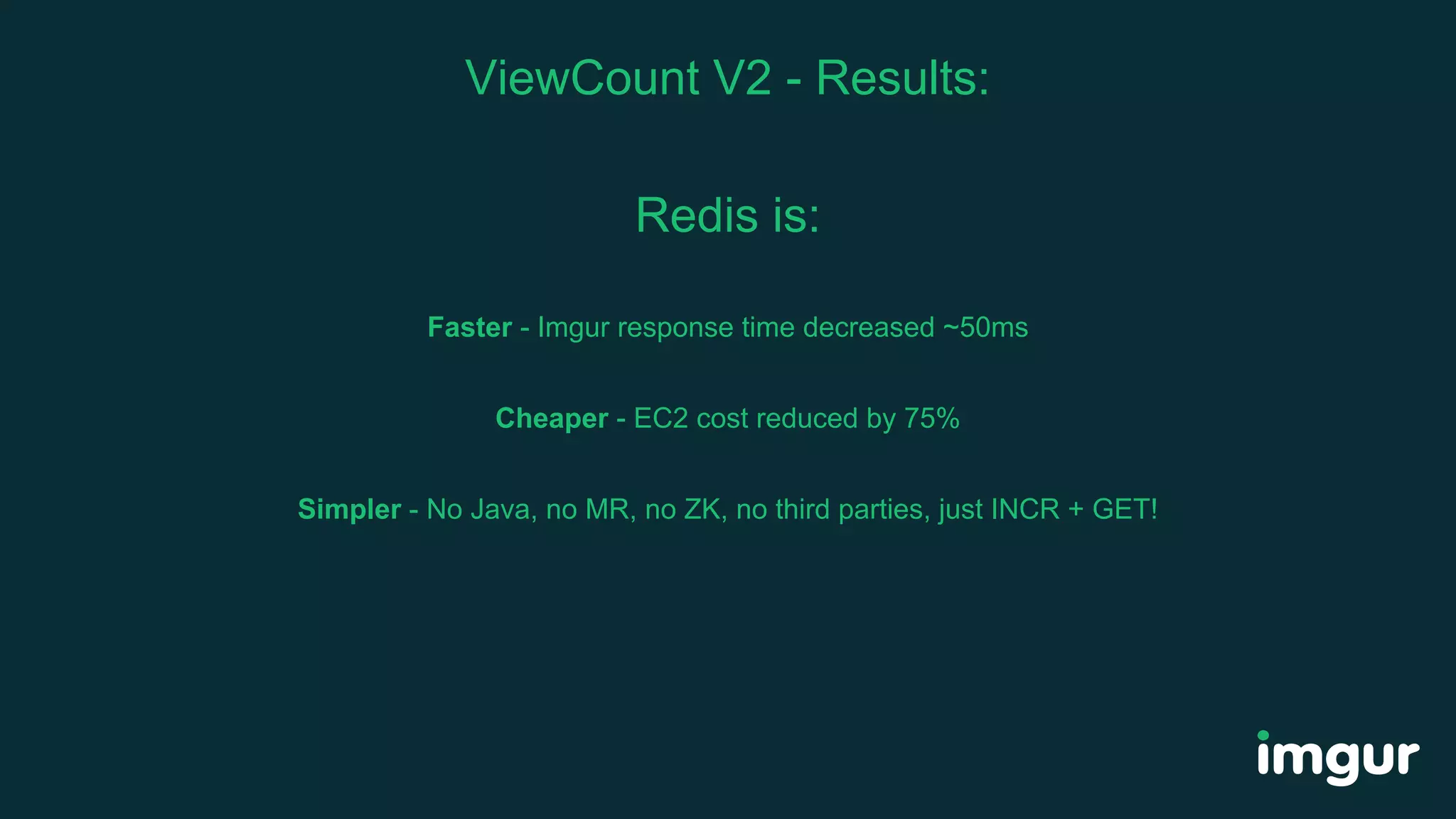

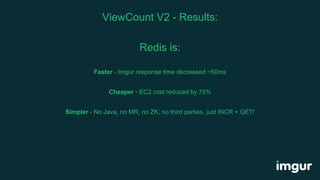

- 31. ViewCount V2 -Results: Redis is: Faster - Imgur response time decreased ~50ms Cheaper - EC2 cost reduced by 75% Simpler - No Java, no MR, no ZK, no third parties, just INCR + GET!

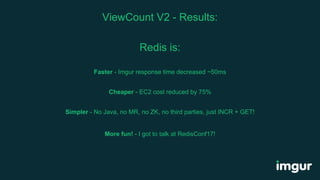

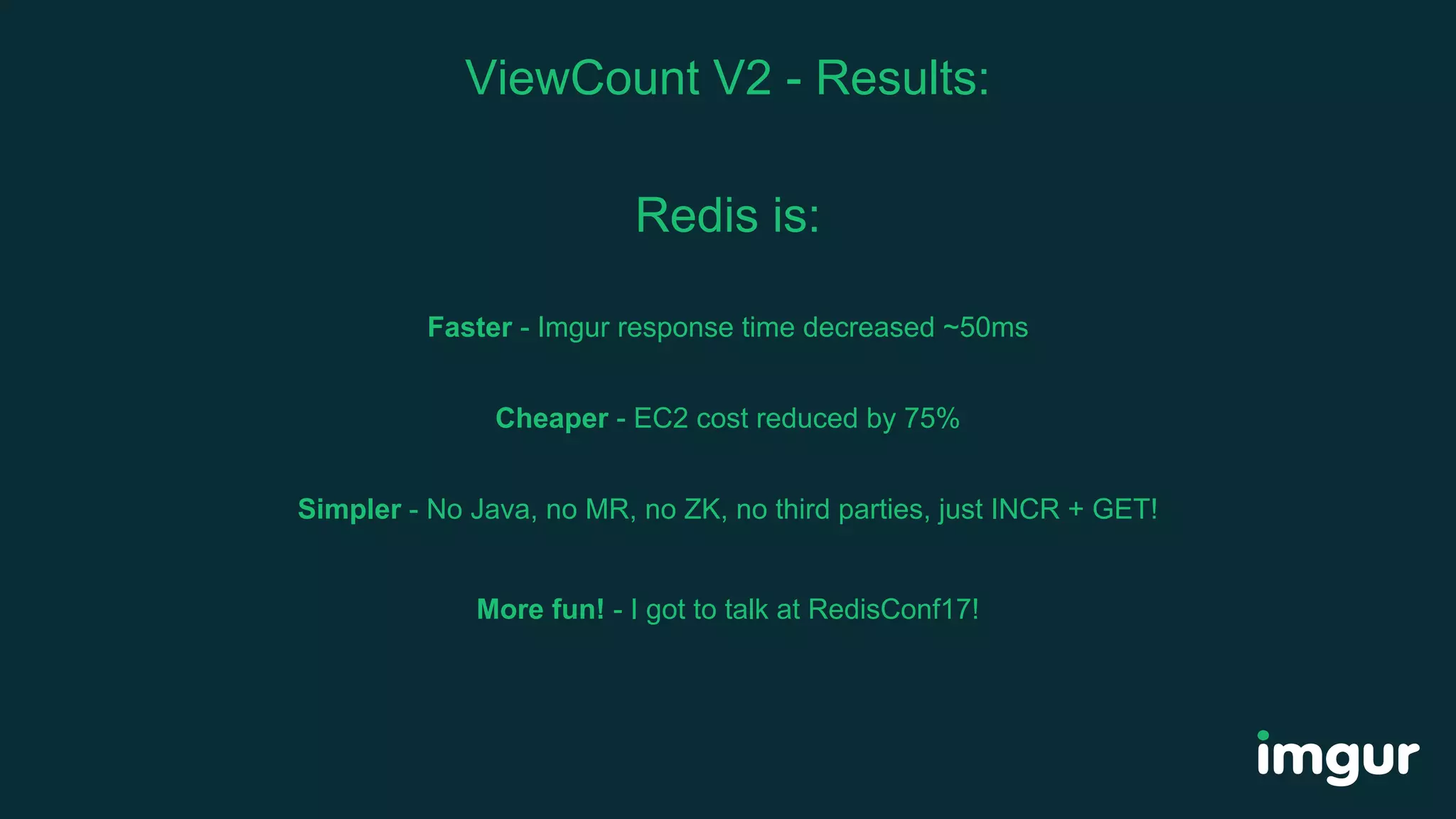

- 32. Redis is: Faster -Imgur response time decreased ~50ms Cheaper - EC2 cost reduced by 75% Simpler - No Java, no MR, no ZK, no third parties, just INCR + GET! More fun! - I got to talk at RedisConf17! ViewCount V2 - Results:

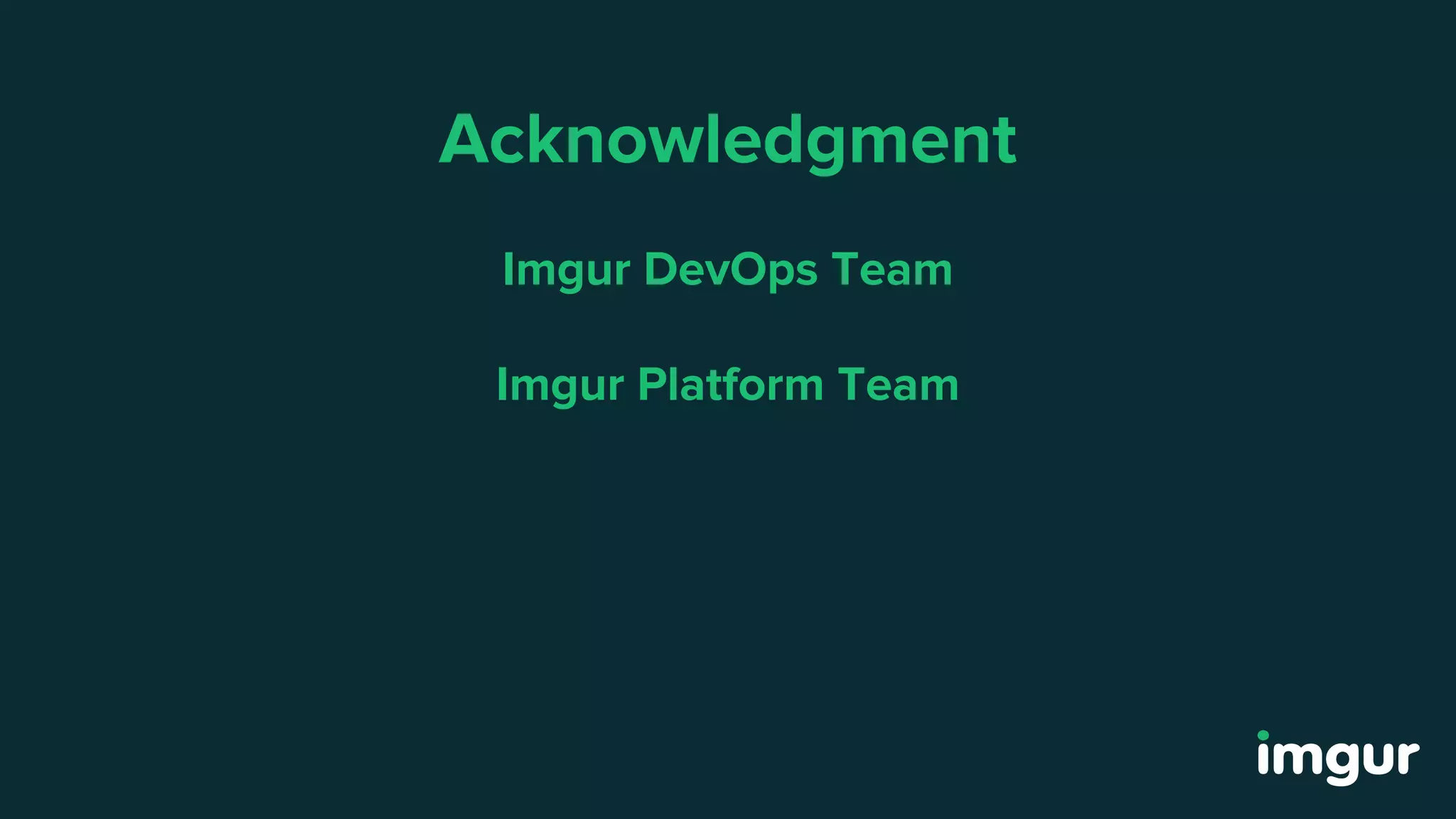

- 33. Acknowledgment Imgur DevOps Team ImgurPlatform Team
