Coroutines for Kotlin Multiplatform in Practise

Coroutines for Kotlin
Multiplatform in Practise
Christian Melchior | Lead Engineer | MongoDB Realm | @chrmelchior

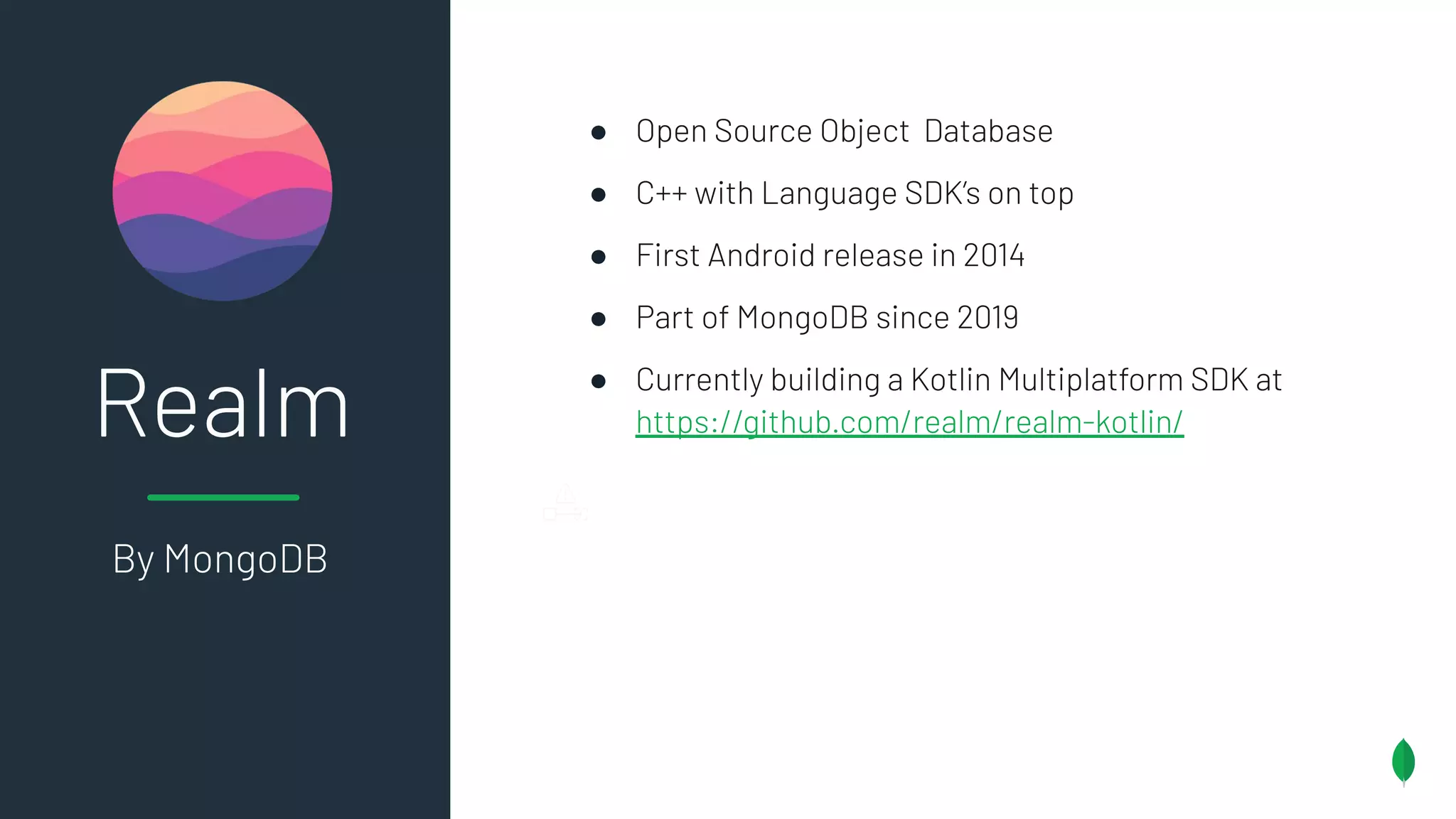

Realm
● Open Source Object Database
● C++ with Language SDK’s on top
● First Android release in 2014
● Part of MongoDB since 2019
● Currently building a Kotlin Multiplatform SDK at
https://github.com/realm/realm-kotlin/
By MongoDB

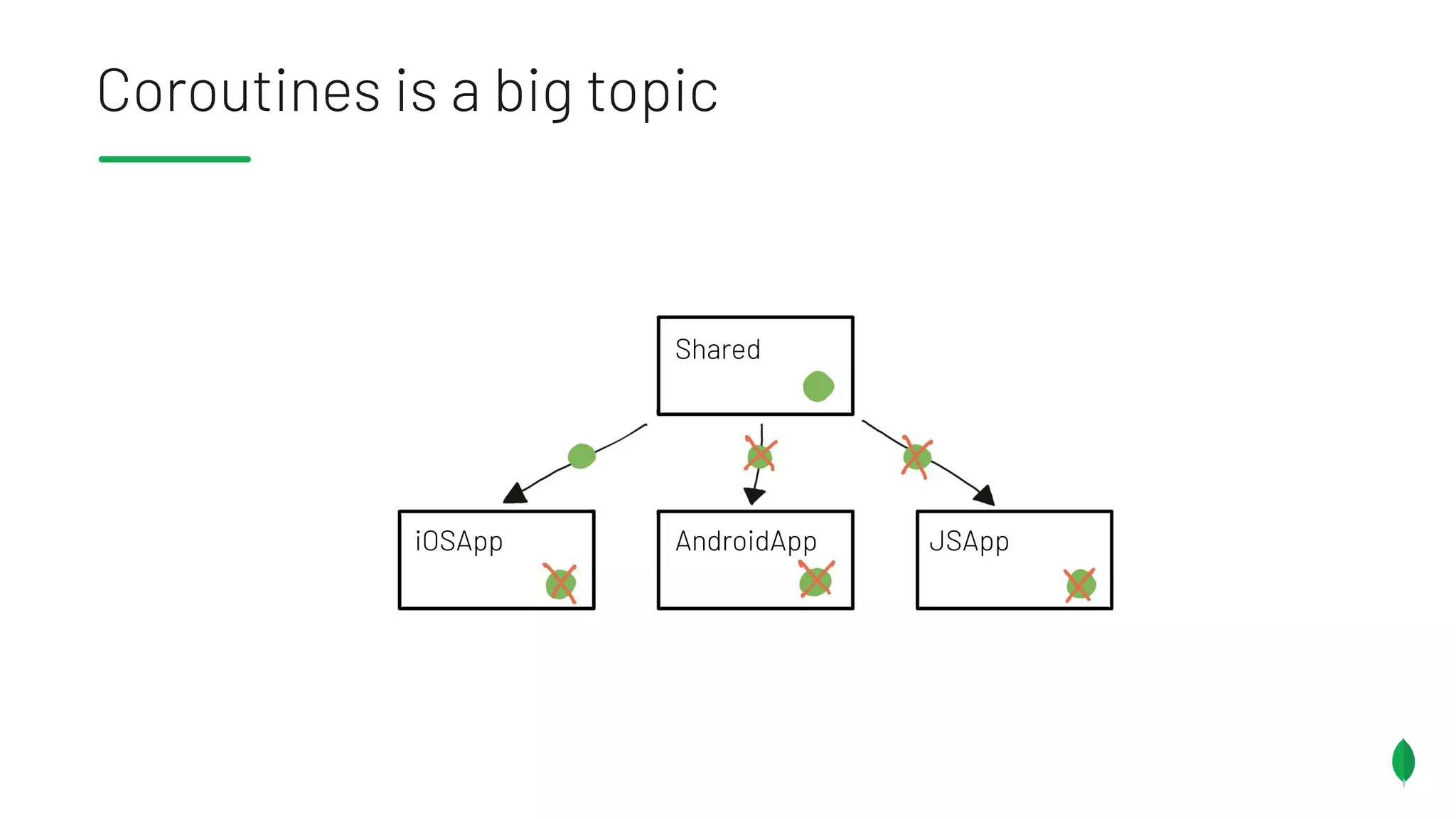

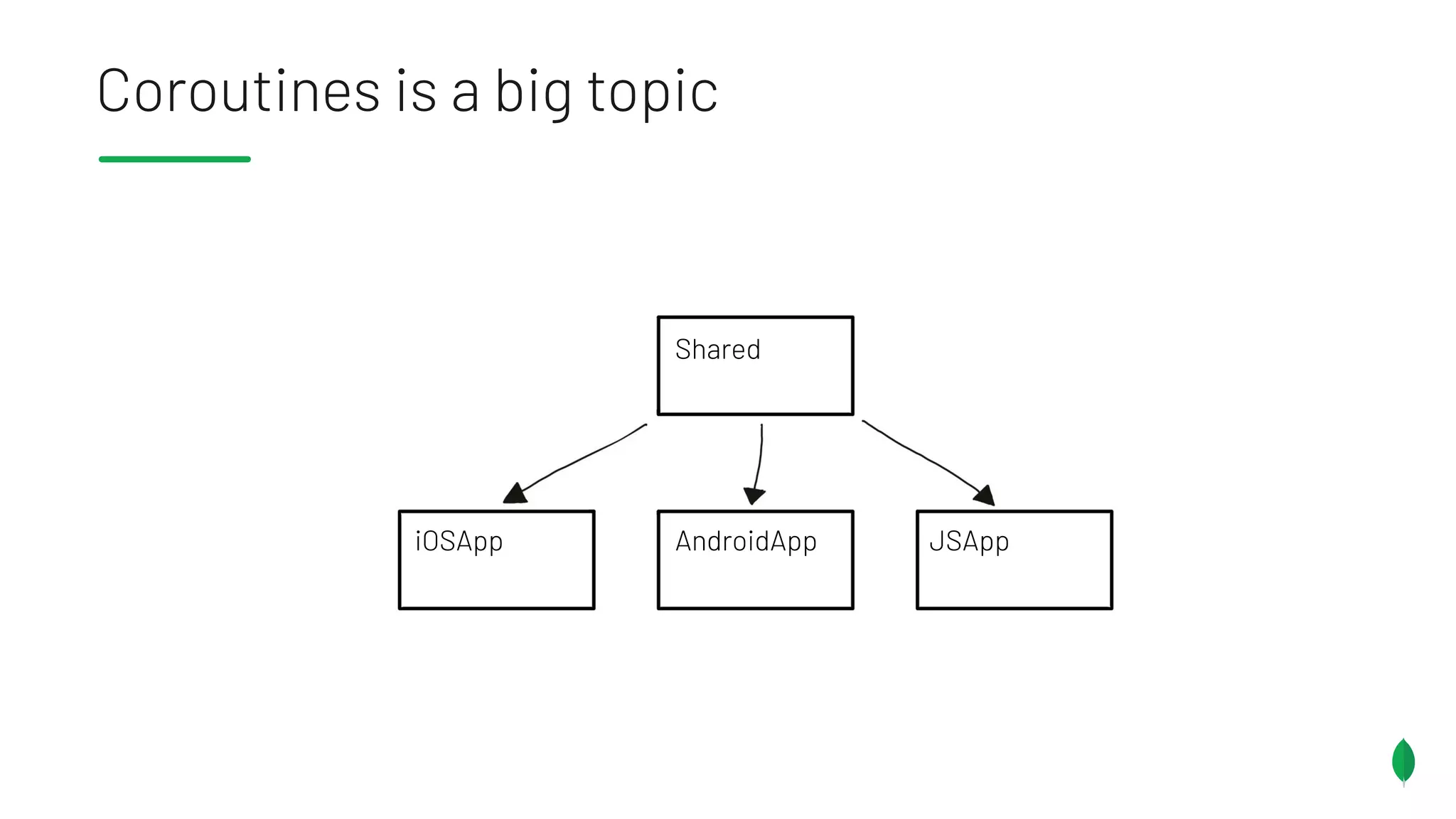

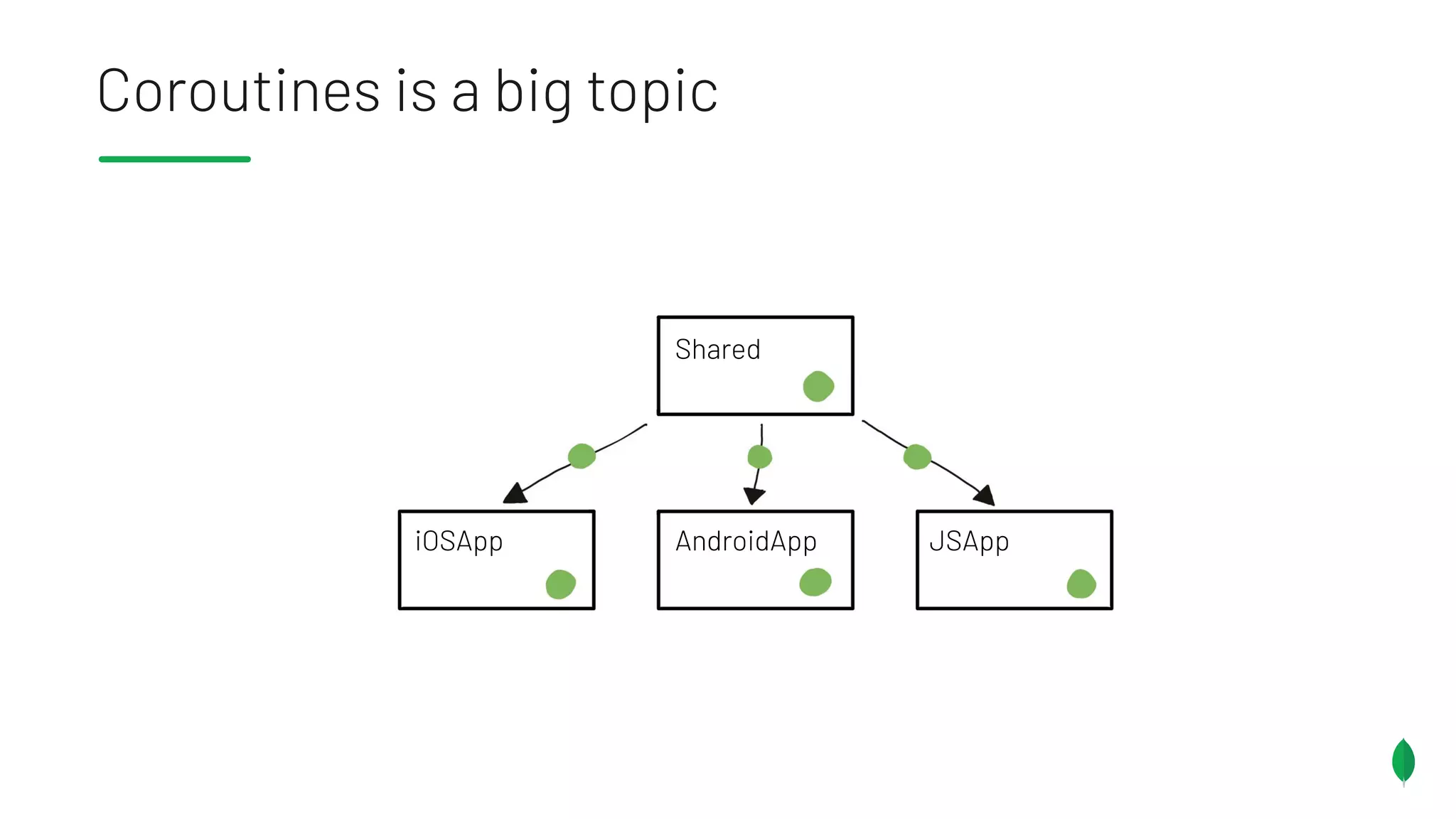

Coroutines is a big topic
Shared
iOSApp AndroidApp JSApp

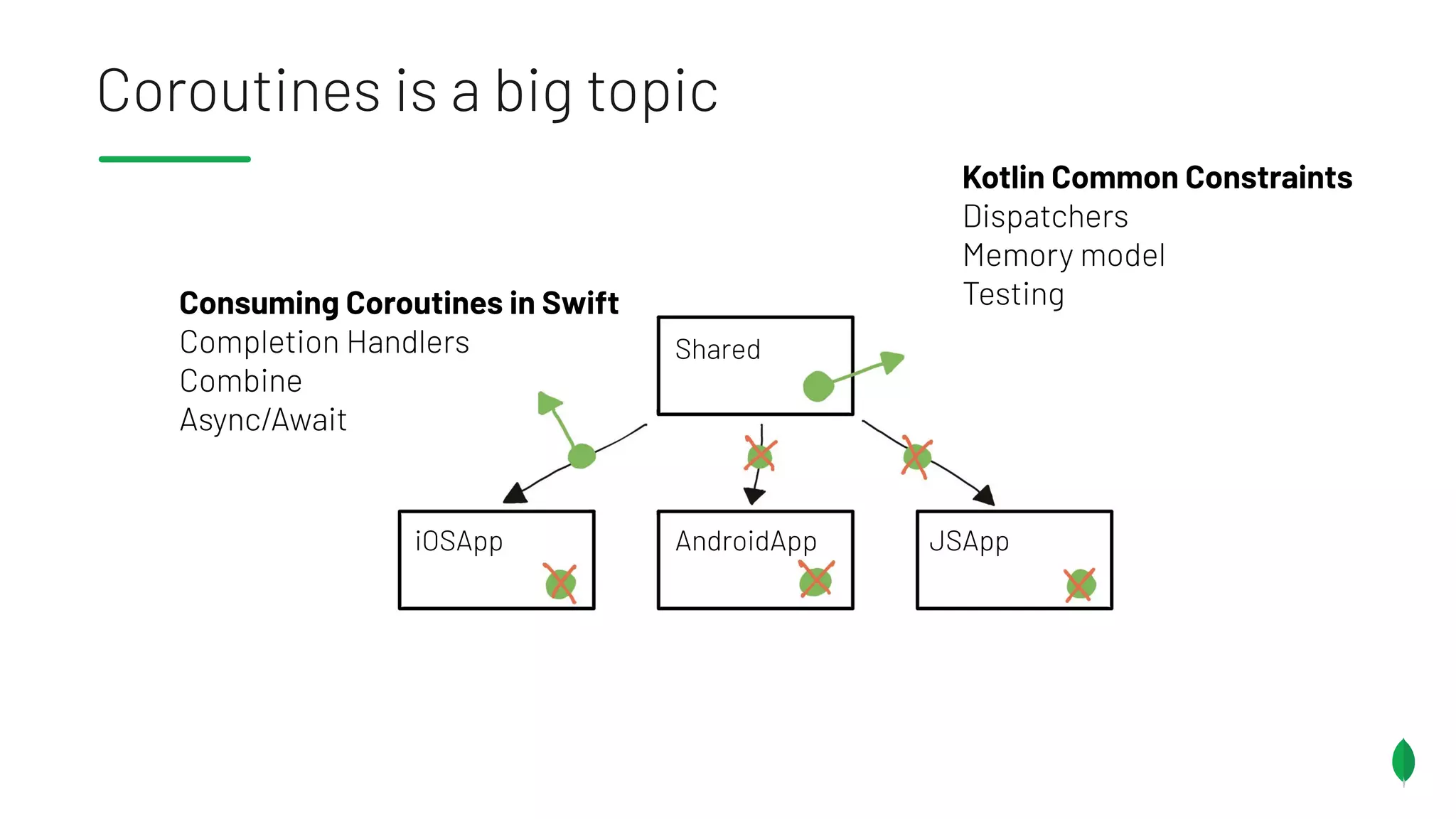

Coroutines is a big topic
Shared
iOSApp AndroidApp JSApp
Kotlin Common Constraints
Dispatchers
Memory model
Testing
Consuming Coroutines in Swift
Completion Handlers
Combine
Async/Await

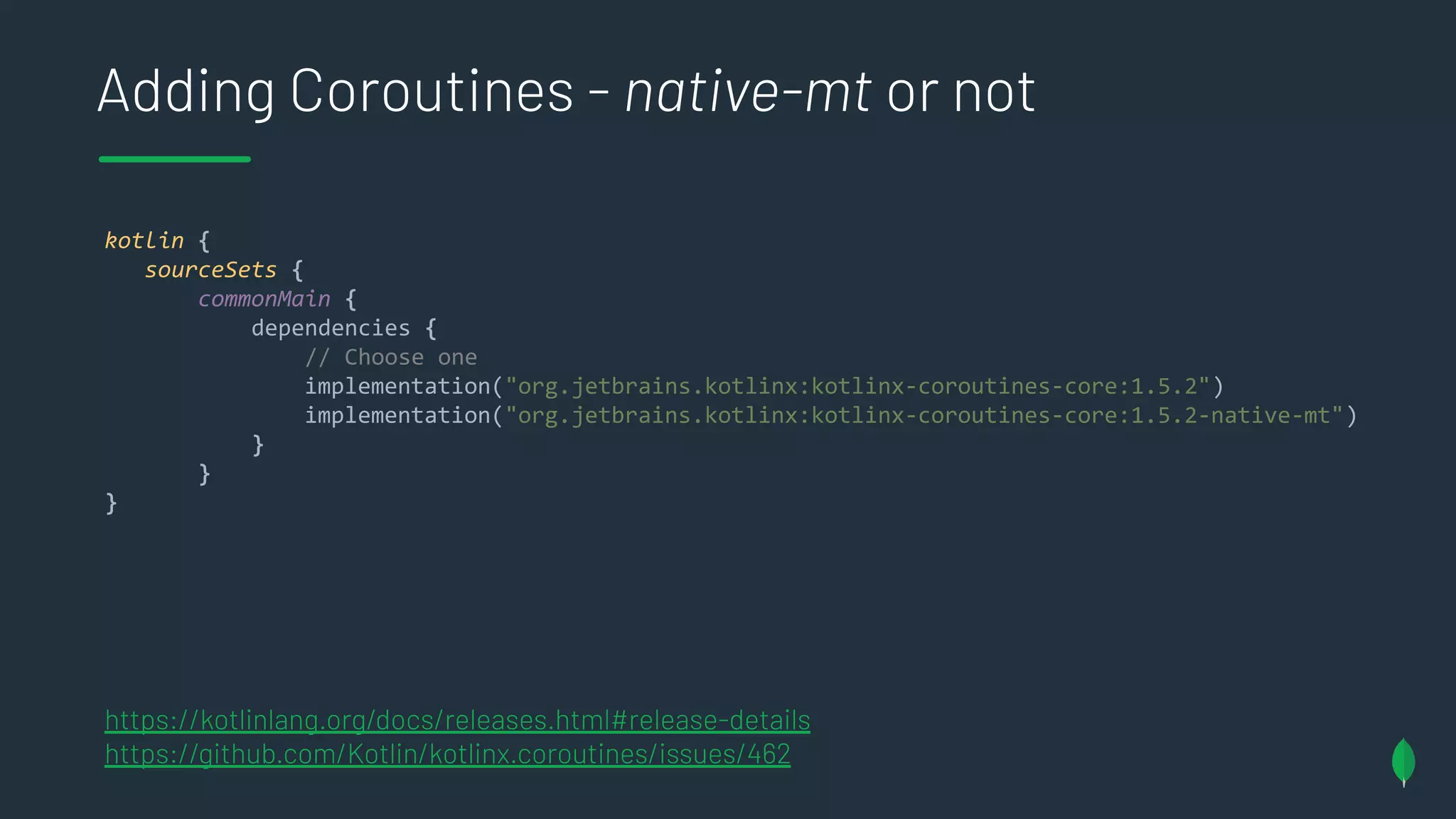

Adding Coroutines - native-mt or not
kotlin {
sourceSets {
commonMain {
dependencies {
// Choose one
implementation("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.5.2")
implementation("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.5.2-native-mt")
}
}
}
https://kotlinlang.org/docs/releases.html#release-details
https://github.com/Kotlin/kotlinx.coroutines/issues/462

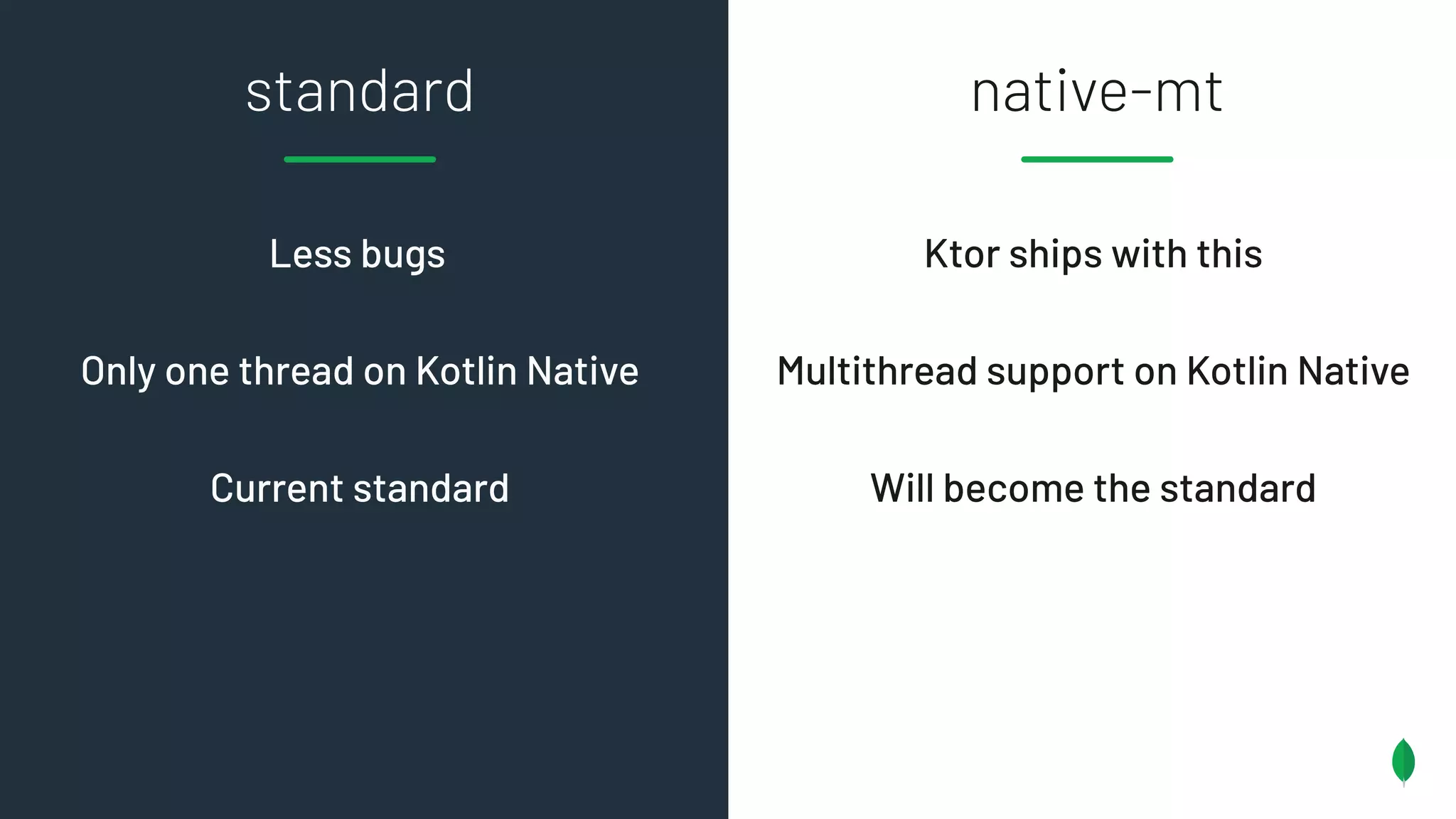

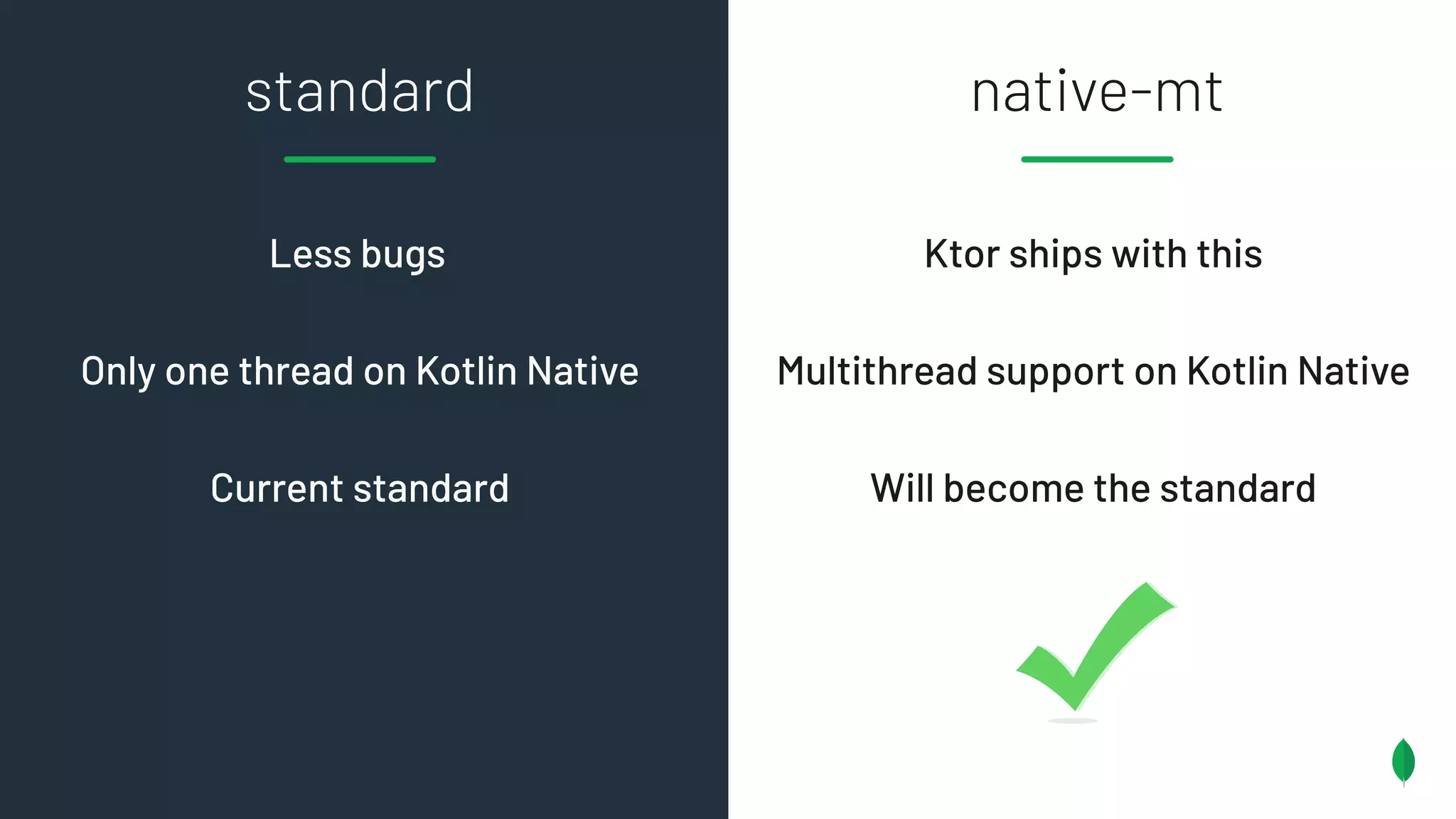

native-mt
standard
Less bugs
Only one thread on Kotlin Native
Current standard
Ktor ships with this
Multithread support on Kotlin Native
Will become the standard

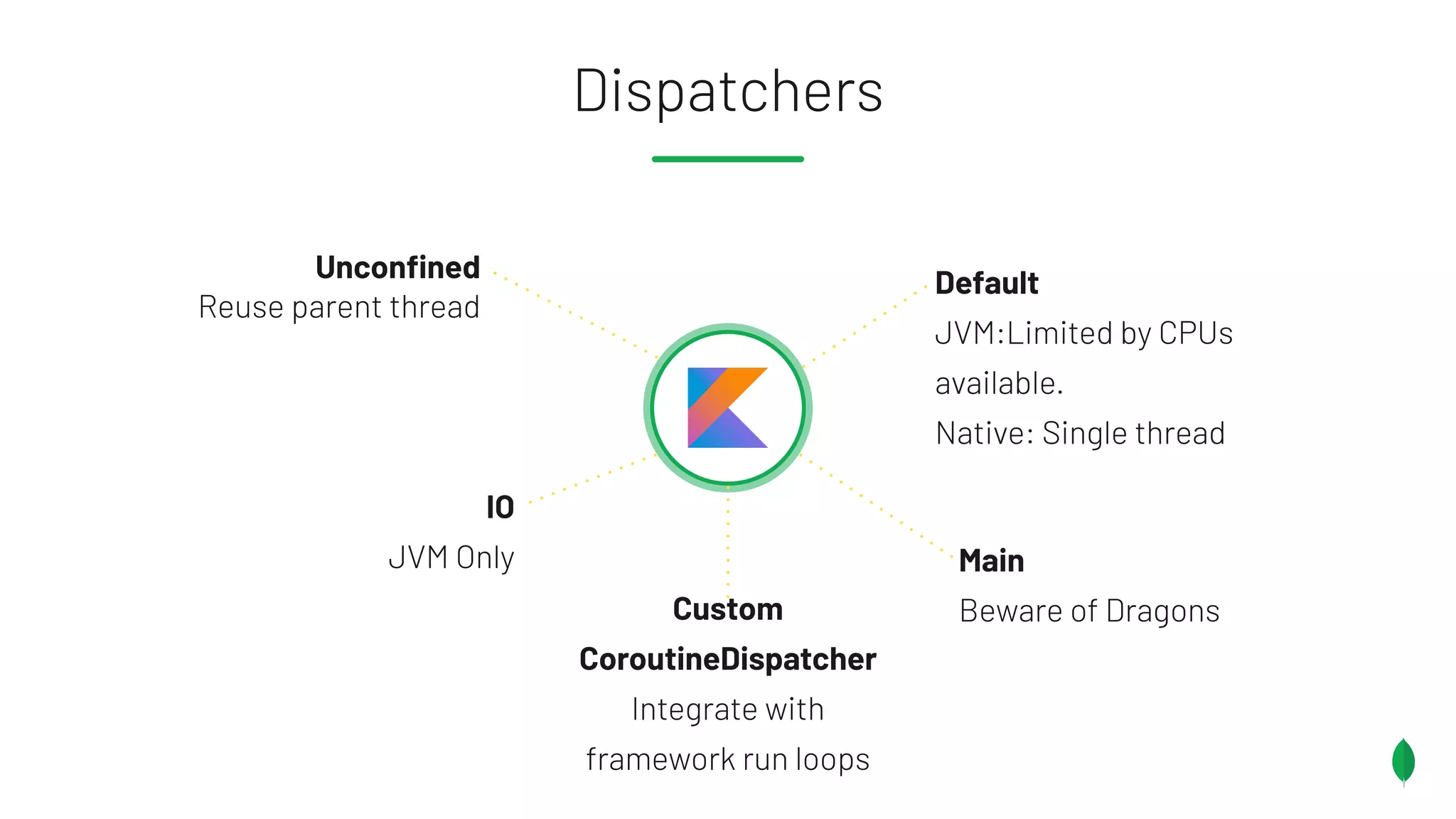

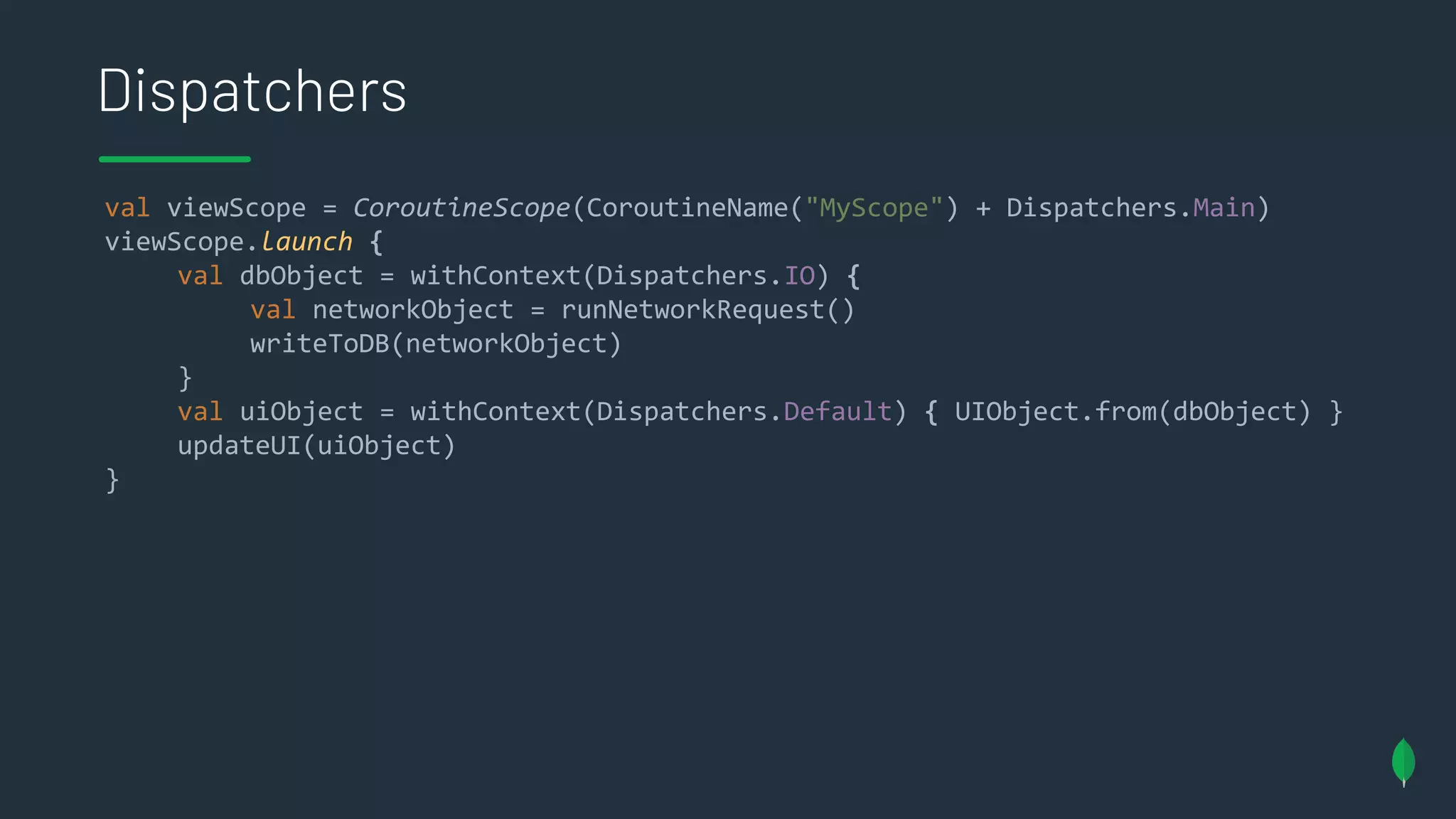

Dispatchers
val viewScope = CoroutineScope(CoroutineName("MyScope") + Dispatchers.Main)
viewScope.launch {
val dbObject = withContext(Dispatchers.IO) {
val networkObject = runNetworkRequest()
writeToDB(networkObject)
}
val uiObject = withContext(Dispatchers.Default) { UIObject.from(dbObject) }
updateUI(uiObject)
}

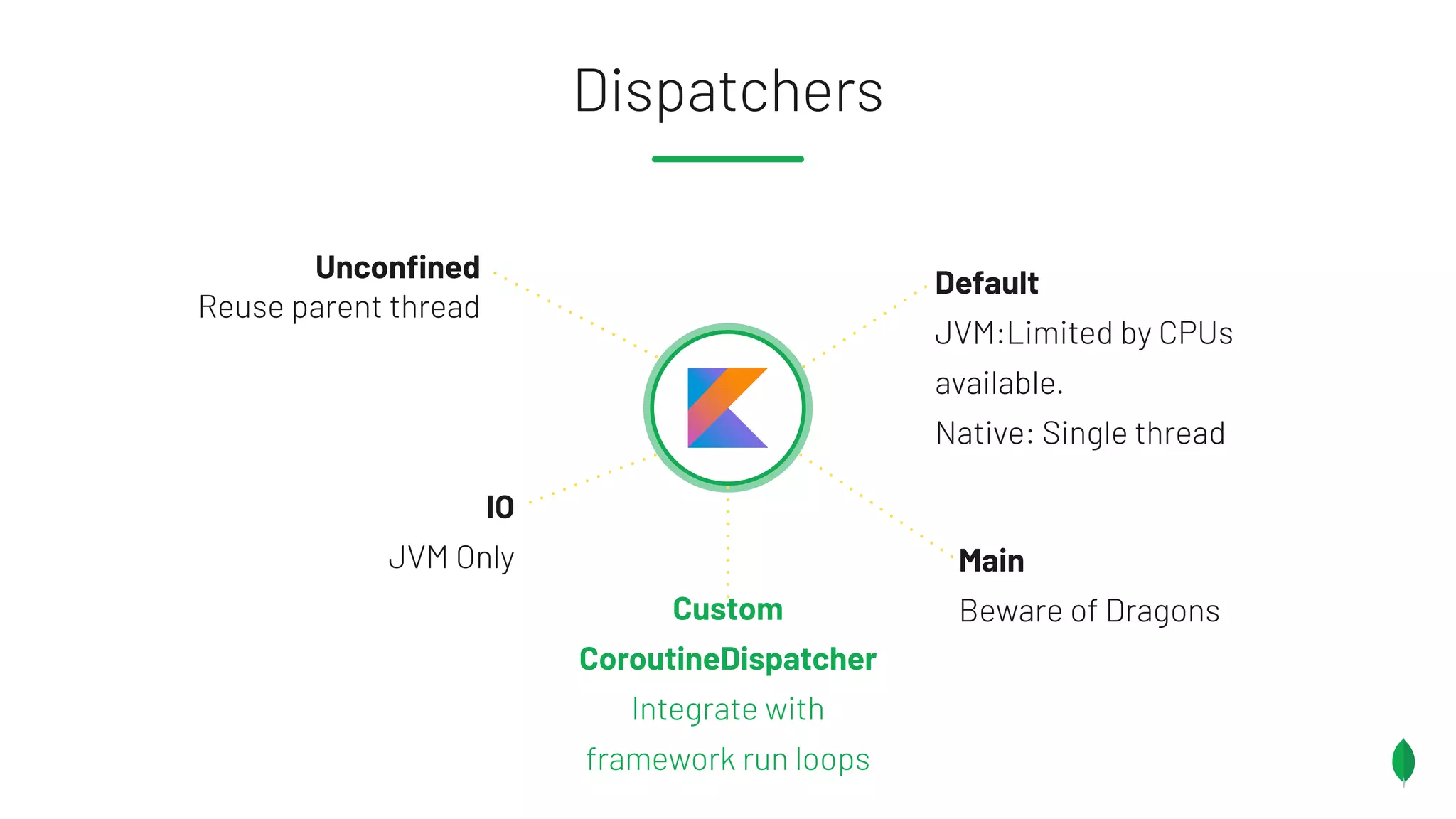

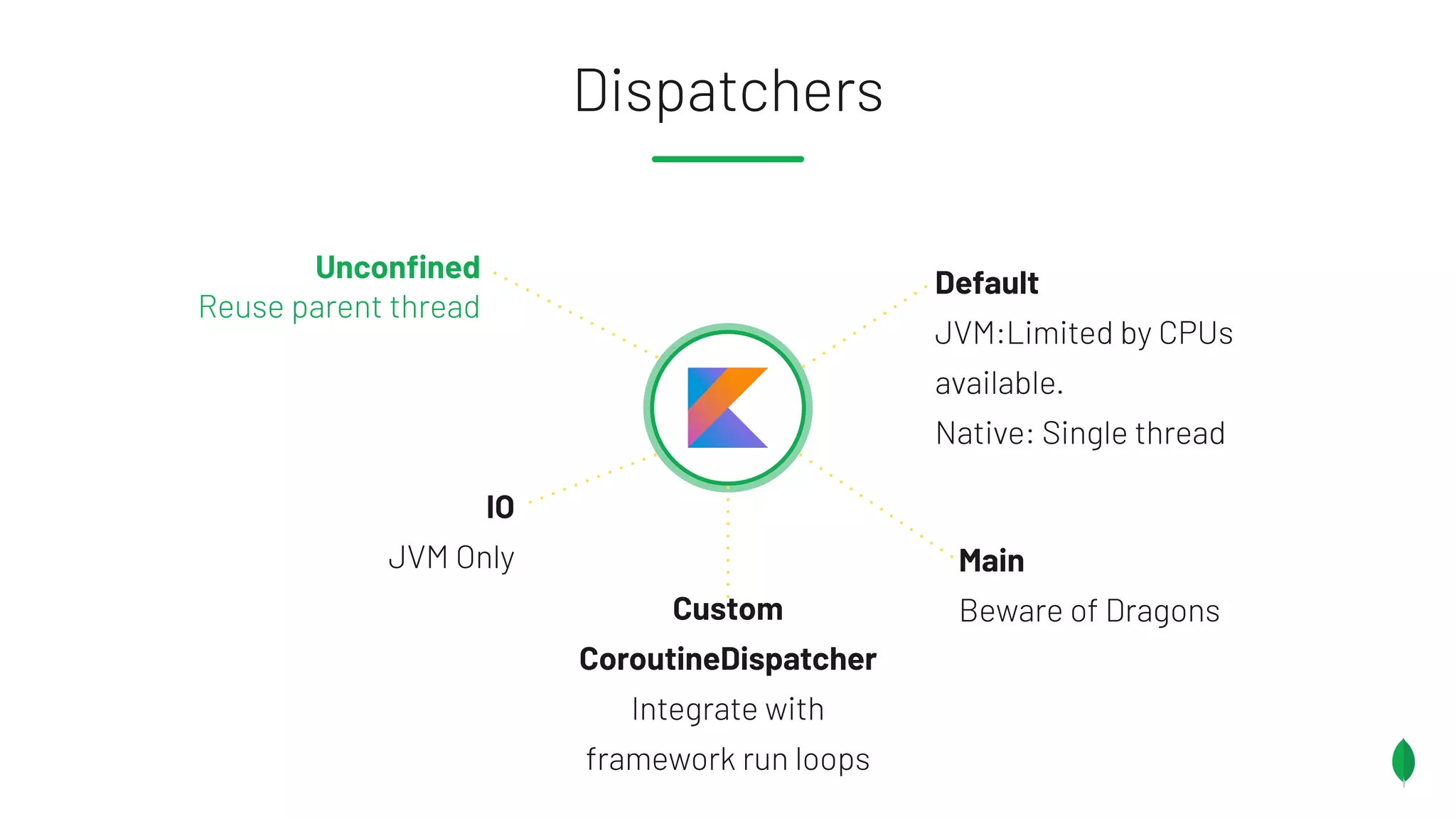

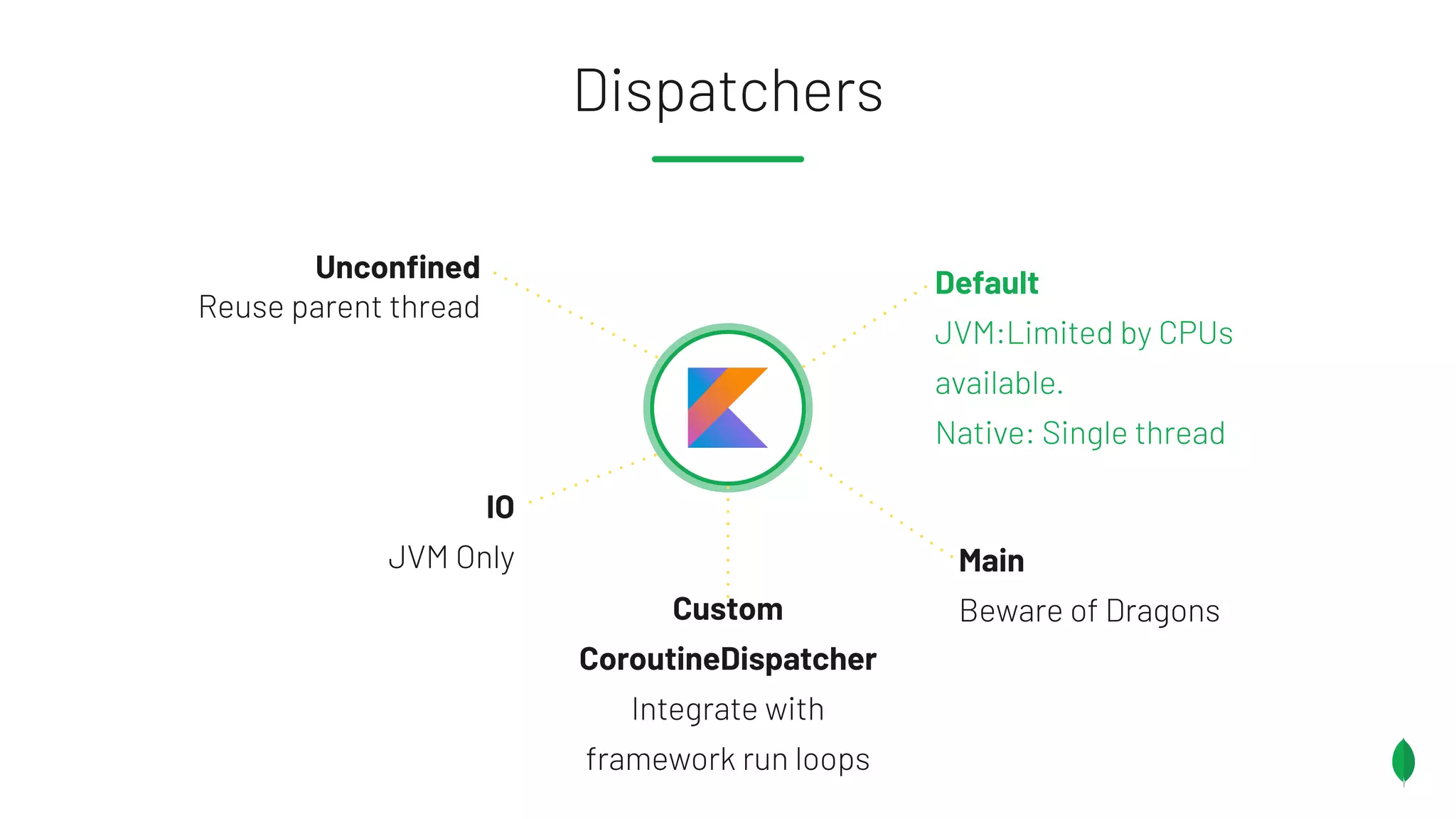

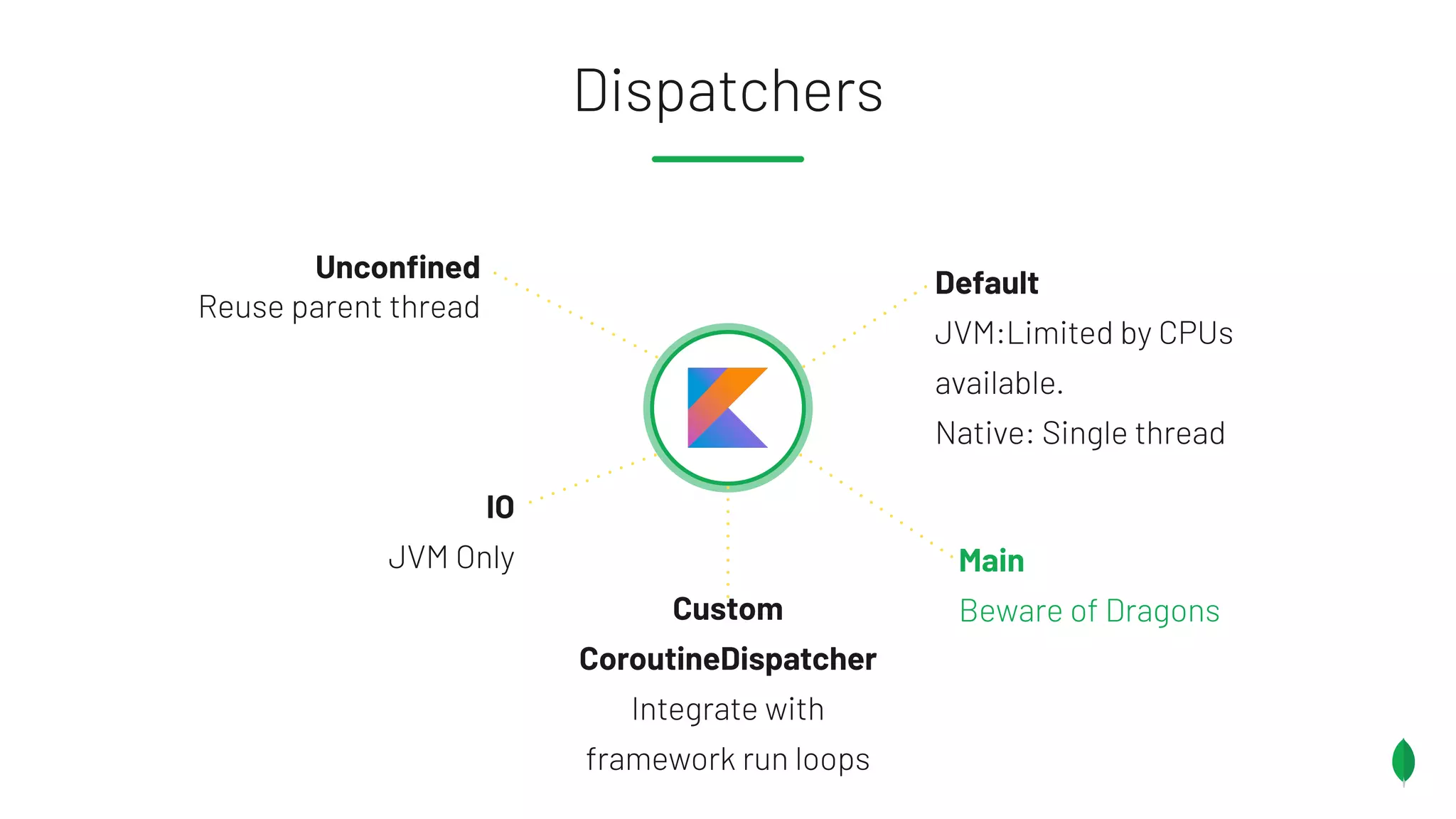

Unconﬁned
Reuse parent thread
Default
JVM:Limited by CPUs
available.
Native: Single thread
IO
JVM Only Main
Beware of Dragons
Dispatchers
Custom
CoroutineDispatcher
Integrate with
framework run loops

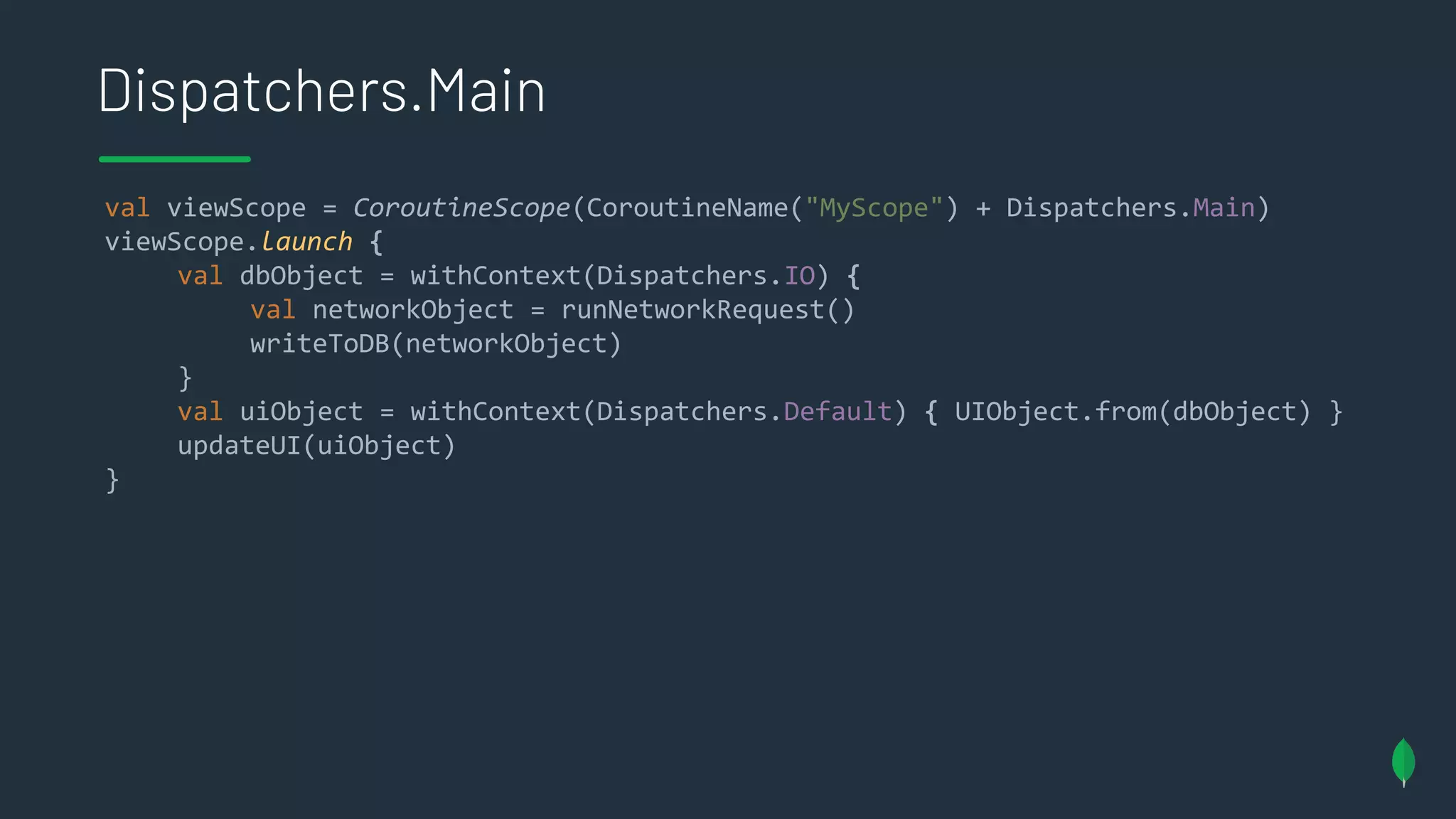

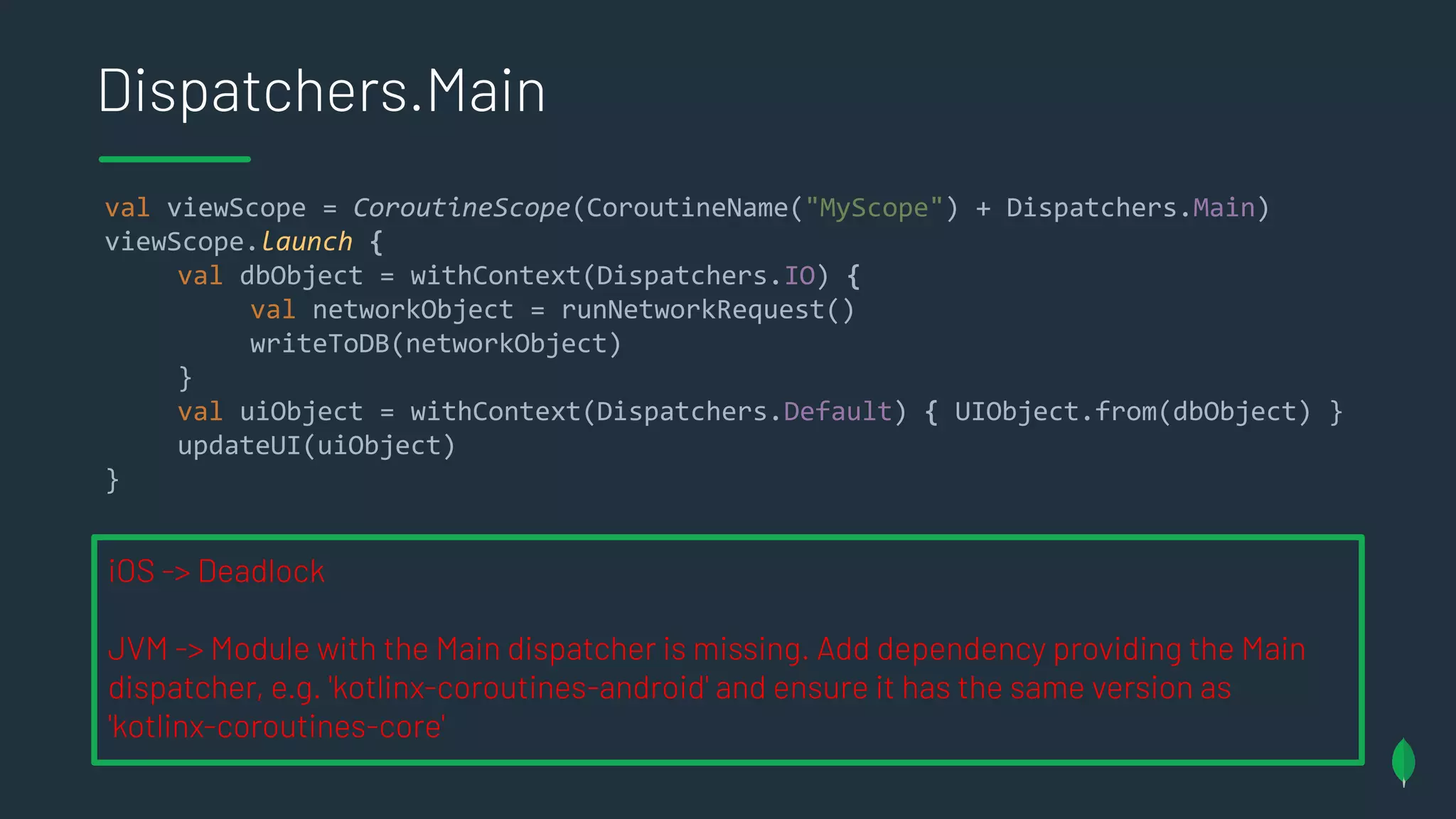

Dispatchers.Main
viewScope.launch {
}
updateUI(uiObject)
}

Dispatchers.Main
viewScope.launch {
}
updateUI(uiObject)
}
iOS -> Deadlock
JVM -> Module with the Main dispatcher is missing. Add dependency providing the Main
dispatcher, e.g. 'kotlinx-coroutines-android' and ensure it has the same version as
'kotlinx-coroutines-core'

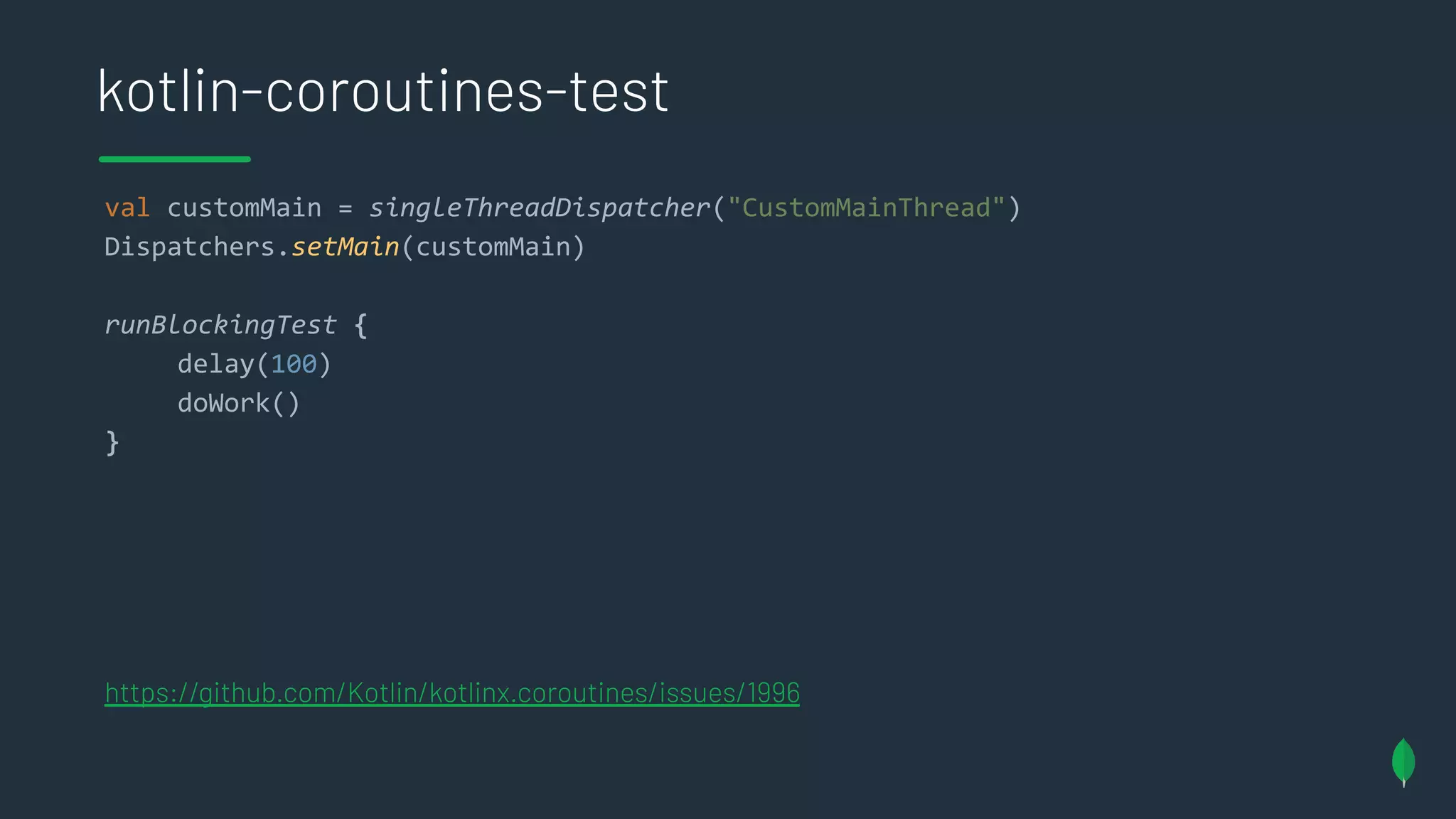

kotlin-coroutines-test
val customMain = singleThreadDispatcher("CustomMainThread")
Dispatchers.setMain(customMain)
runBlockingTest {
delay(100)
doWork()
}
https://github.com/Kotlin/kotlinx.coroutines/issues/1996

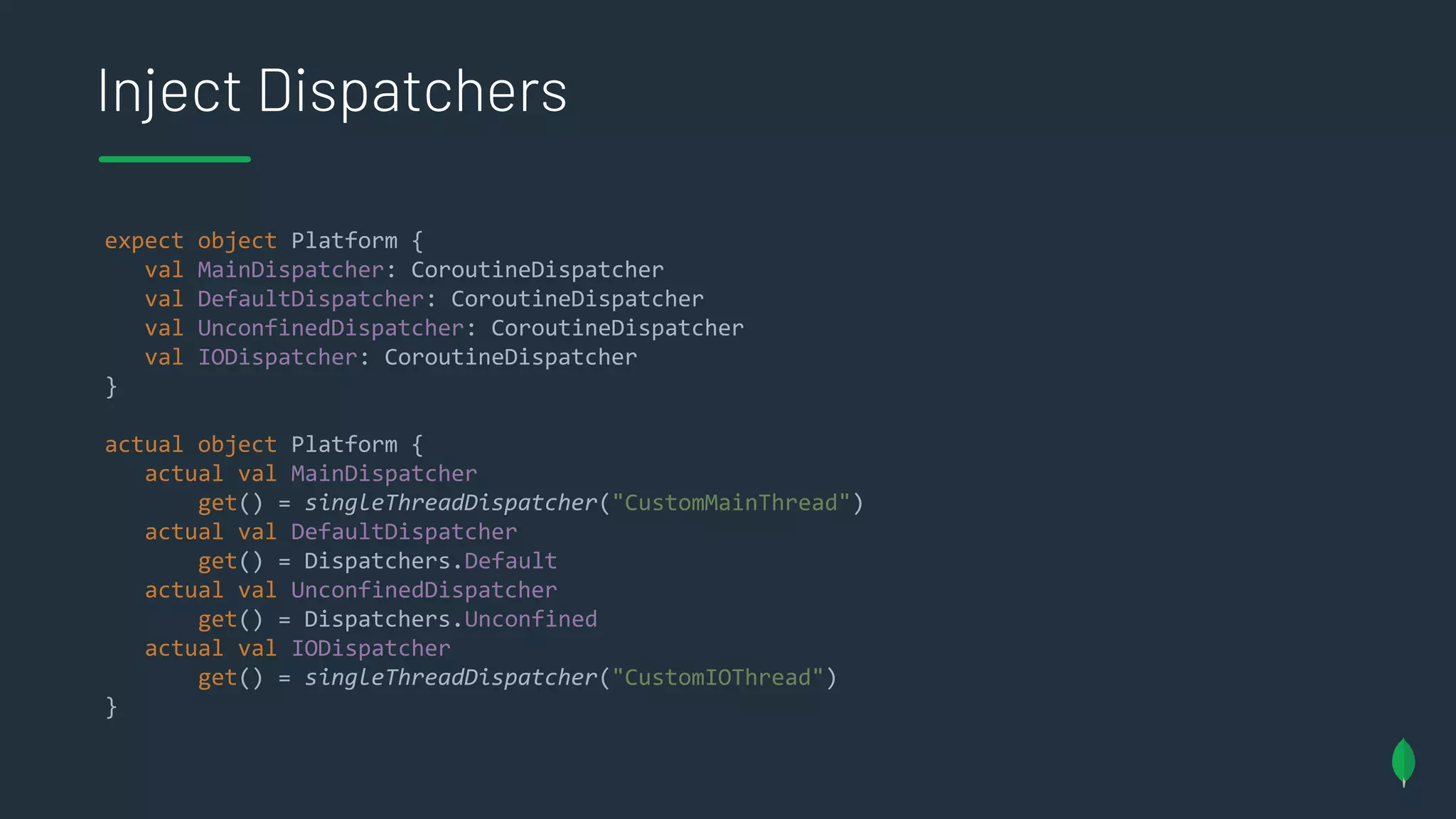

Inject Dispatchers
expect object Platform {
val MainDispatcher: CoroutineDispatcher
val DefaultDispatcher: CoroutineDispatcher
val UnconfinedDispatcher: CoroutineDispatcher
val IODispatcher: CoroutineDispatcher
}
actual object Platform {
actual val MainDispatcher
get() = singleThreadDispatcher("CustomMainThread")
actual val DefaultDispatcher
get() = Dispatchers.Default
actual val UnconfinedDispatcher
get() = Dispatchers.Unconfined
actual val IODispatcher
get() = singleThreadDispatcher("CustomIOThread")
}

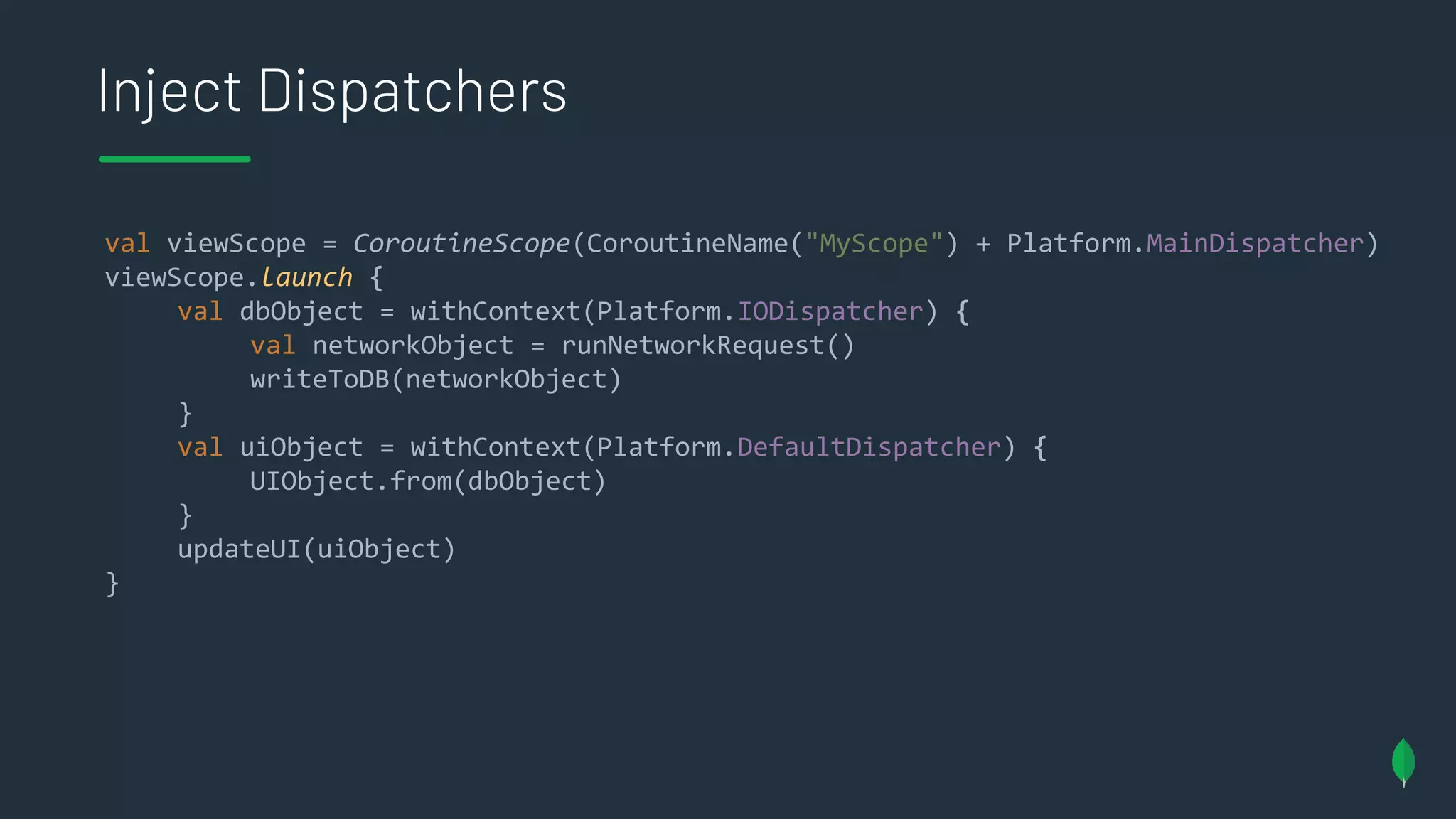

Inject Dispatchers
val viewScope = CoroutineScope(CoroutineName("MyScope") + Platform.MainDispatcher)
viewScope.launch {
val dbObject = withContext(Platform.IODispatcher) {
}
val uiObject = withContext(Platform.DefaultDispatcher) {
UIObject.from(dbObject)
}
updateUI(uiObject)
}

Advice #1: Always inject
Dispatchers

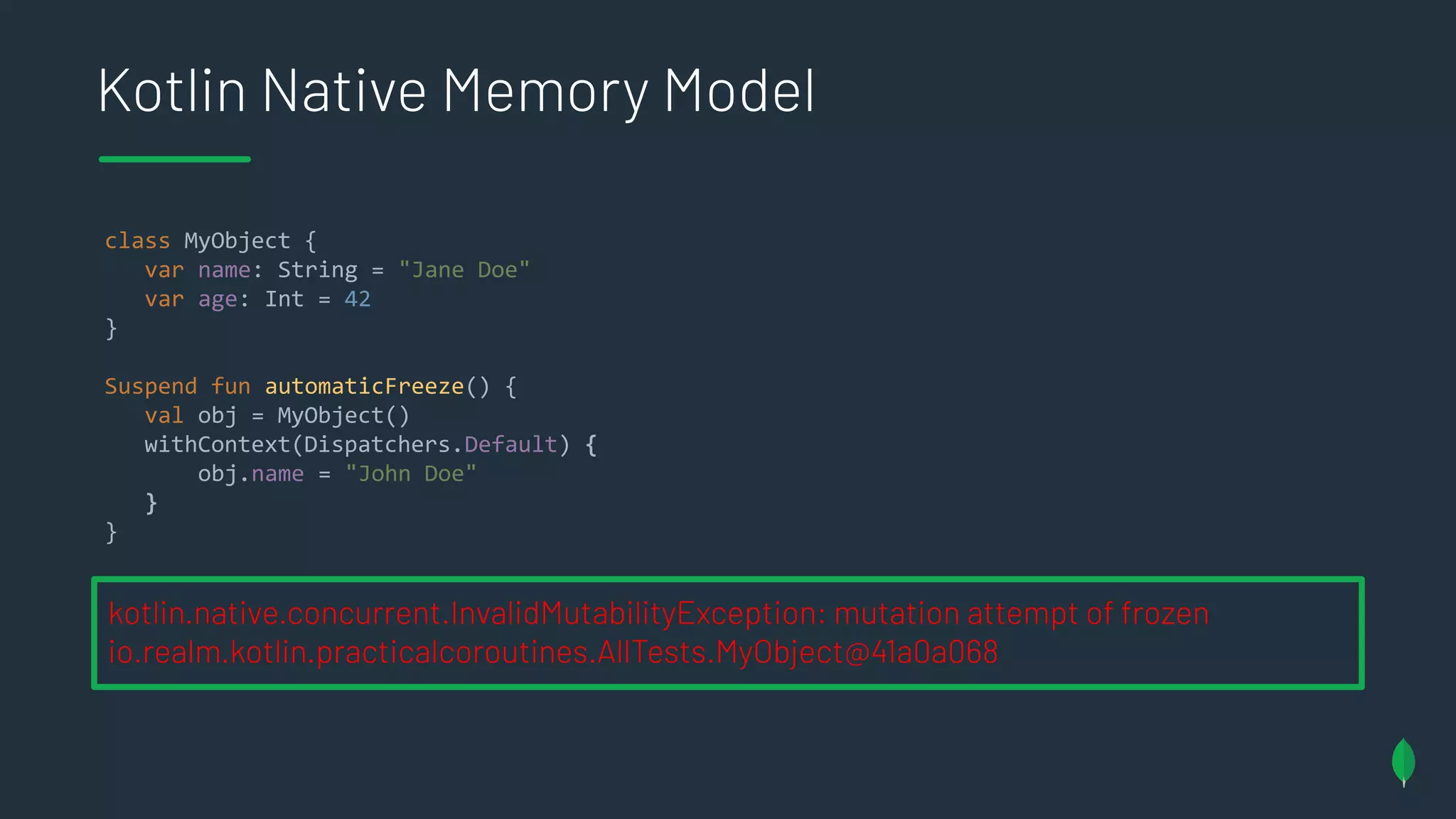

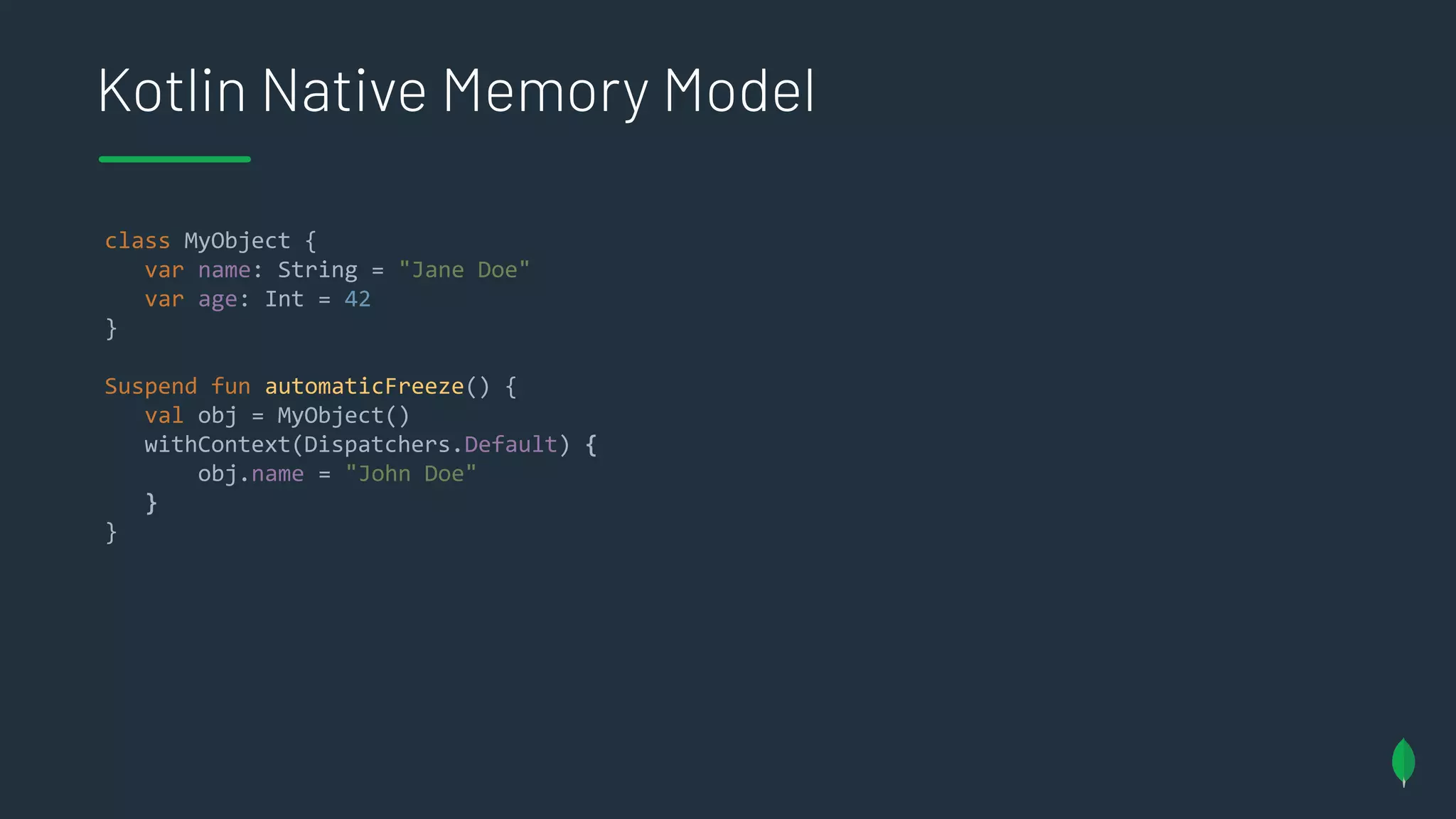

Kotlin Native Memory Model
class MyObject {
var name: String = "Jane Doe"
var age: Int = 42
}
Suspend fun automaticFreeze() {
val obj = MyObject()
withContext(Dispatchers.Default) {
obj.name = "John Doe"
}
}

class MyObject {
var name: String = "Jane Doe"
var age: Int = 42
}
Suspend fun automaticFreeze() {
val obj = MyObject()
withContext(Dispatchers.Default) {
obj.name = "John Doe"
}
}
kotlin.native.concurrent.InvalidMutabilityException: mutation attempt of frozen
io.realm.kotlin.practicalcoroutines.AllTests.MyObject@41a0a068

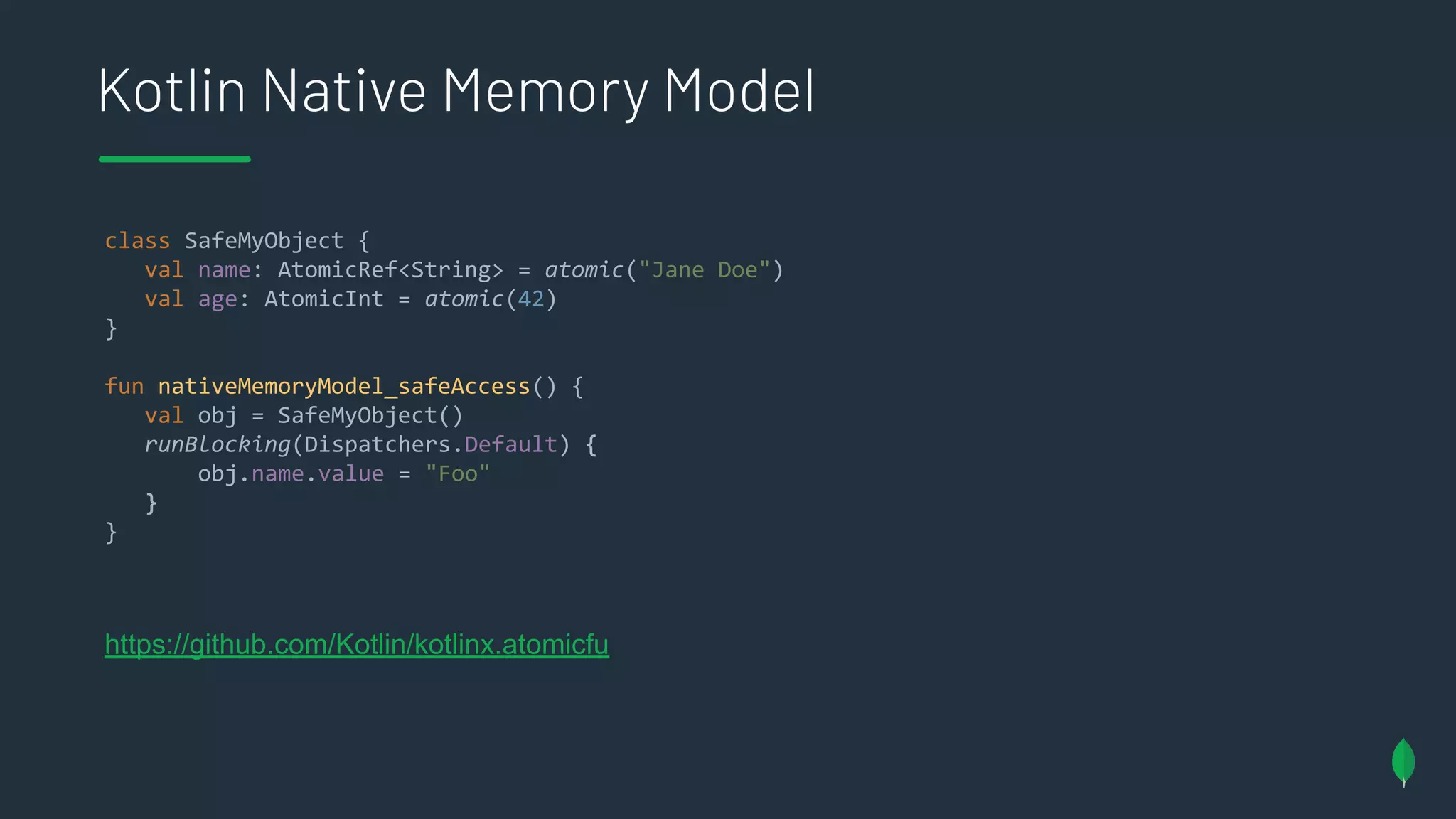

class SafeMyObject {
val name: AtomicRef<String> = atomic("Jane Doe")
val age: AtomicInt = atomic(42)
}
fun nativeMemoryModel_safeAccess() {
val obj = SafeMyObject()
runBlocking(Dispatchers.Default) {
obj.name.value = "Foo"
}
}
https://github.com/Kotlin/kotlinx.atomicfu

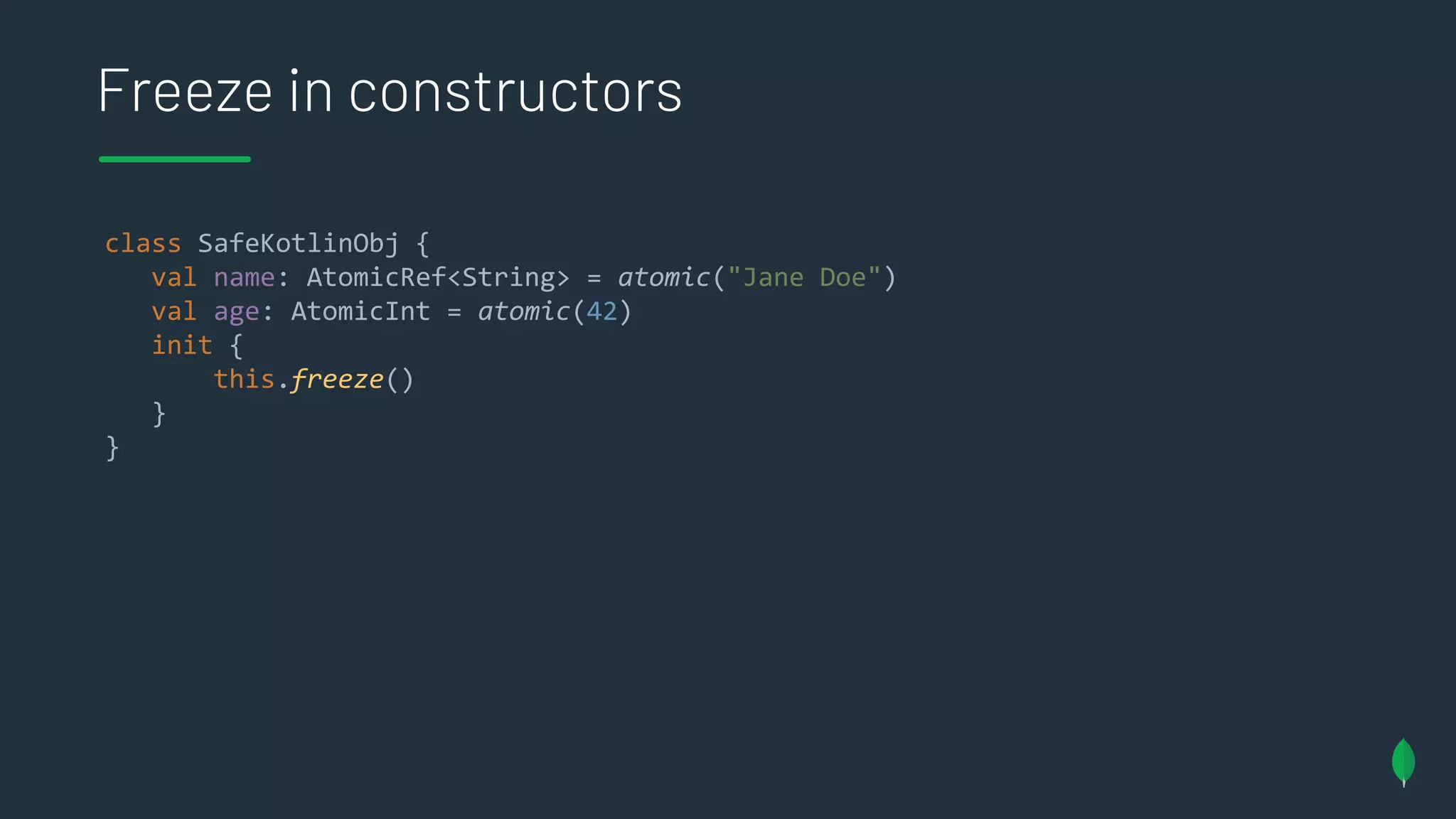

Freeze in constructors
class SafeKotlinObj {
val name: AtomicRef<String> = atomic("Jane Doe")
val age: AtomicInt = atomic(42)
init {
this.freeze()
}
}

Advice #2: Code and
test against the most
restrictive memory
model

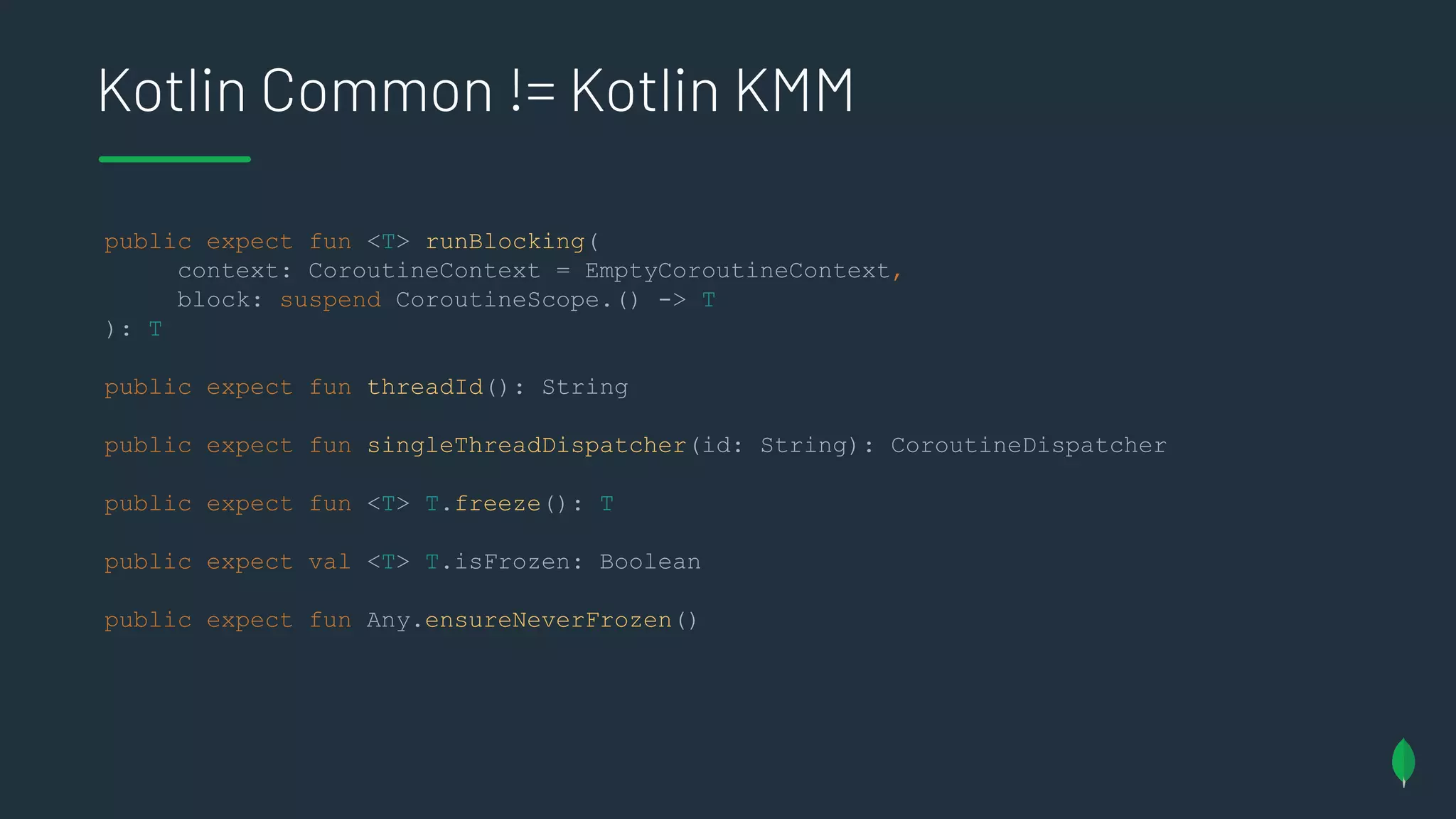

Kotlin Common != Kotlin KMM
public expect fun <T> runBlocking(
context: CoroutineContext = EmptyCoroutineContext,
block: suspend CoroutineScope.() -> T
): T
public expect fun threadId(): String
public expect fun singleThreadDispatcher(id: String): CoroutineDispatcher
public expect fun <T> T.freeze(): T
public expect val <T> T.isFrozen: Boolean
public expect fun Any.ensureNeverFrozen()

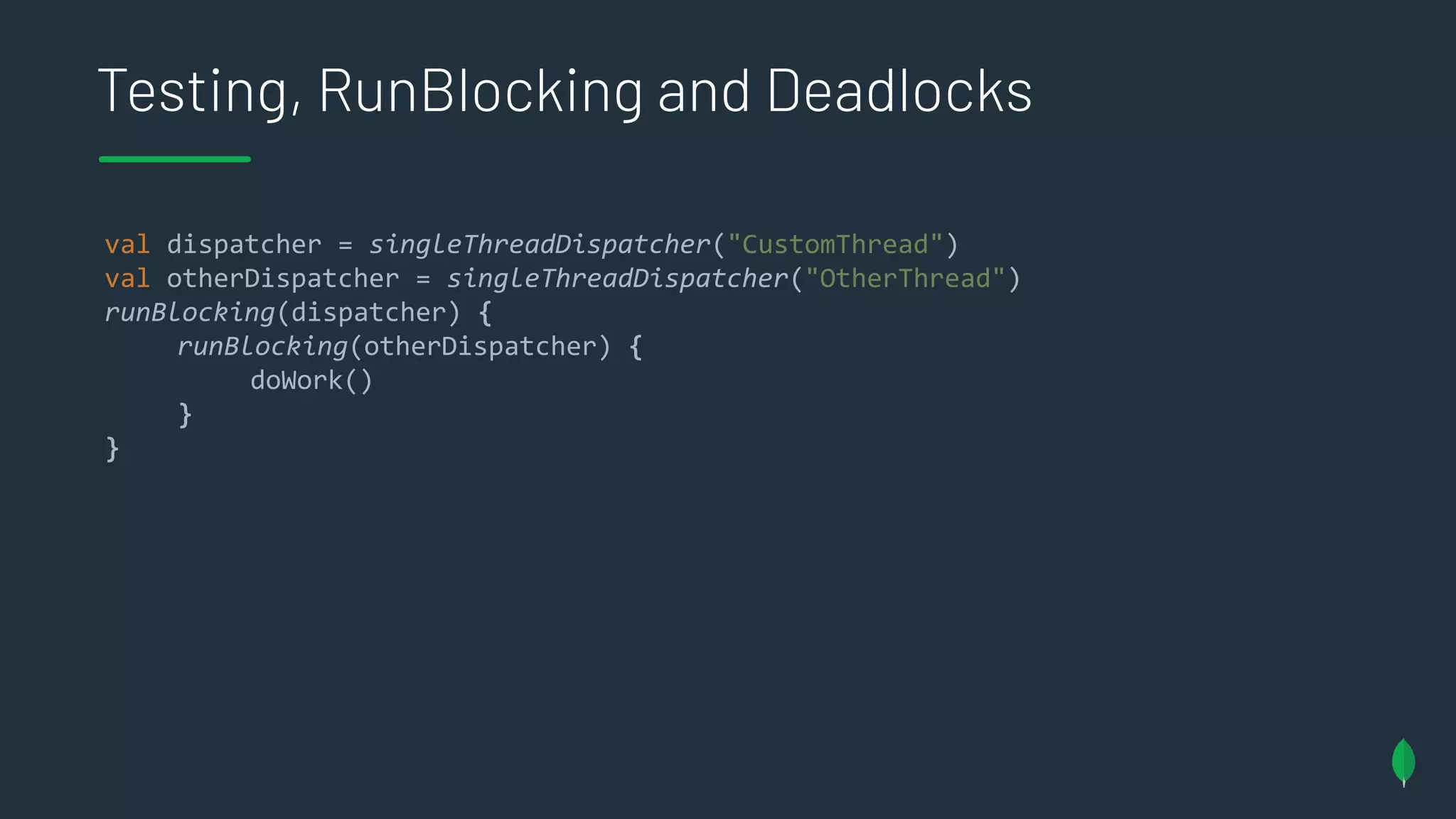

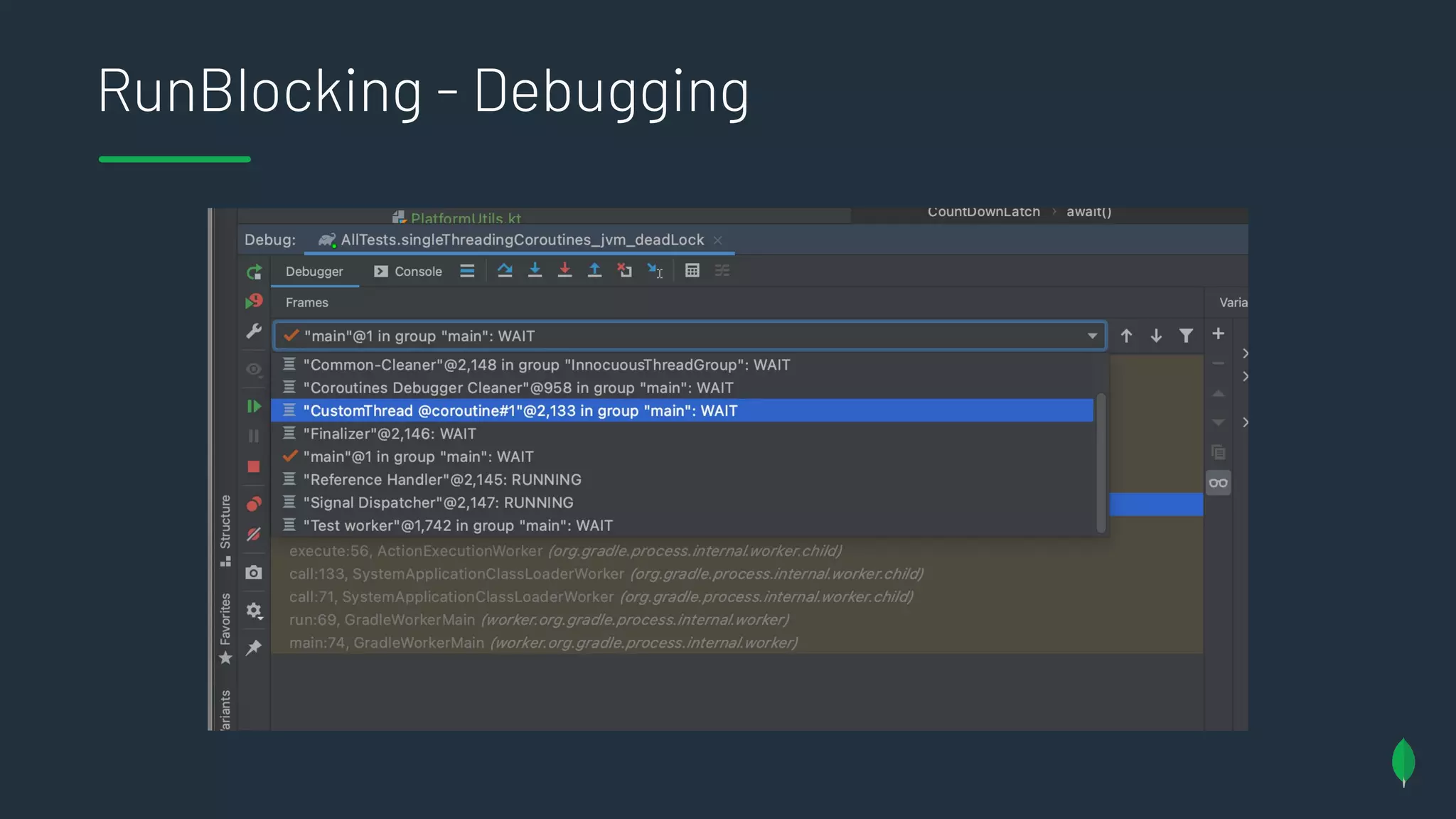

Testing, RunBlocking and Deadlocks
val dispatcher = singleThreadDispatcher("CustomThread")
val otherDispatcher = singleThreadDispatcher("OtherThread")
runBlocking(dispatcher) {
runBlocking(otherDispatcher) {
doWork()
}
}

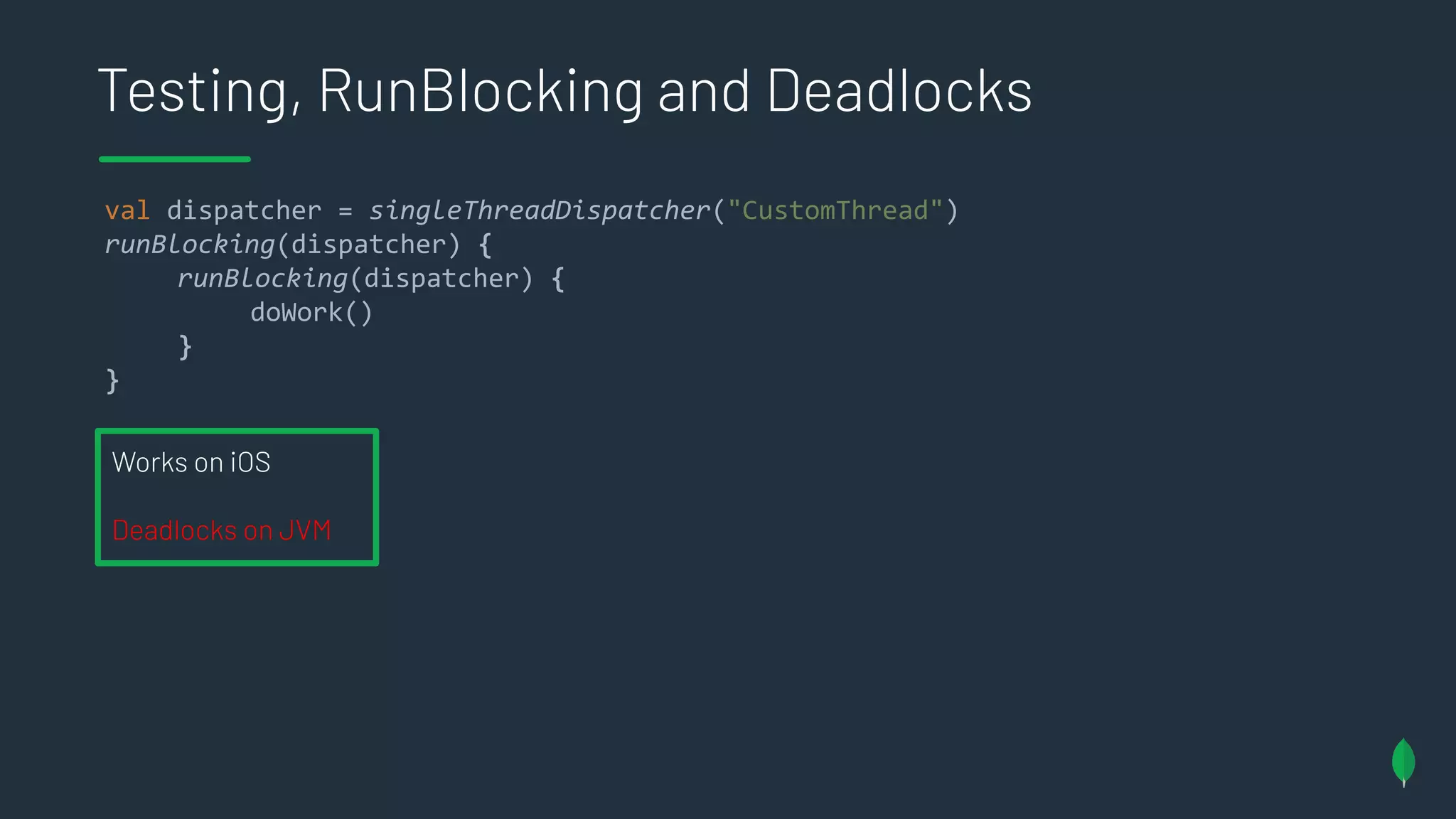

Testing, RunBlocking and Deadlocks
val dispatcher = singleThreadDispatcher("CustomThread")
doWork()
}
}
Works on iOS
Deadlocks on JVM

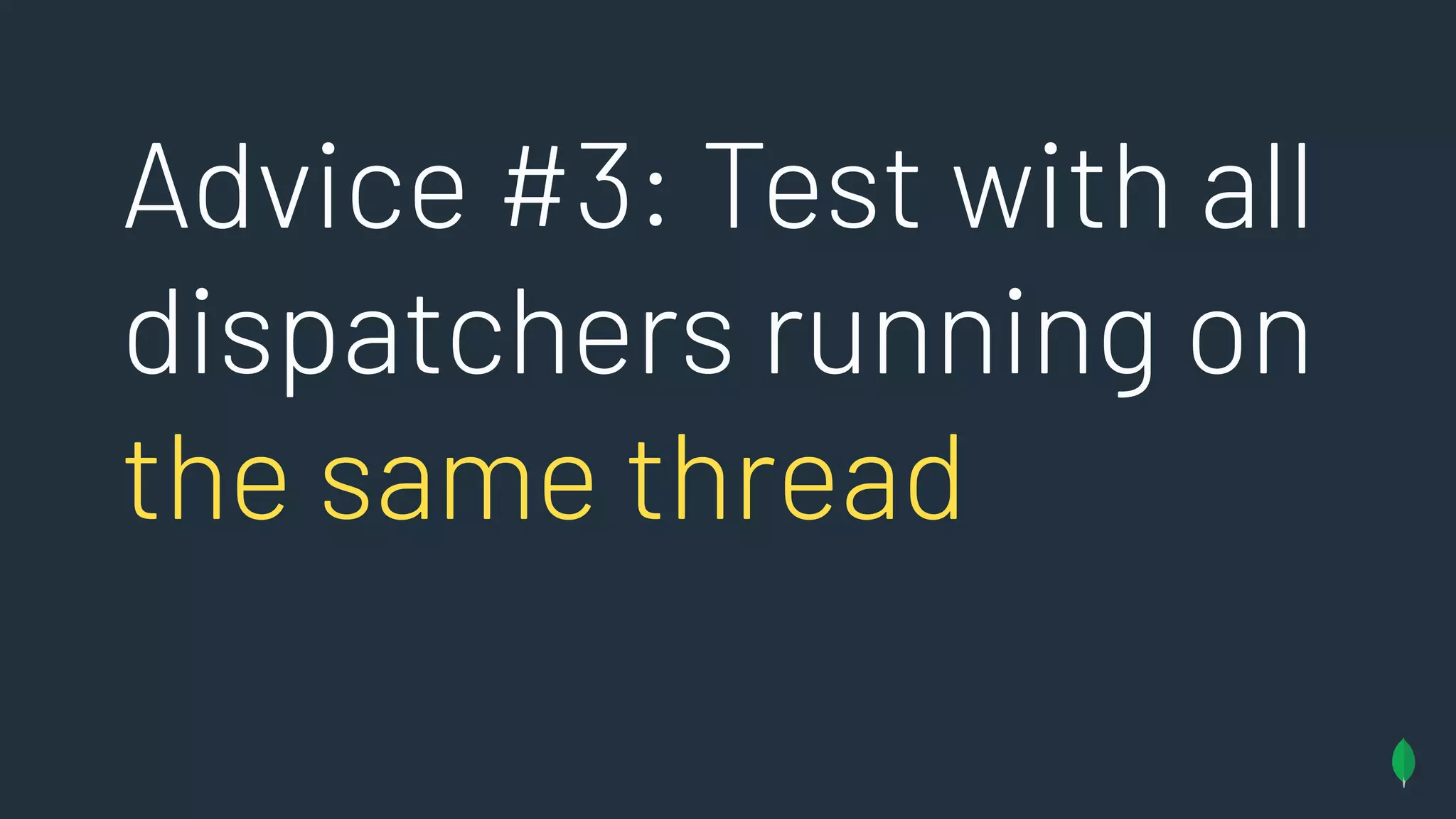

Advice #3: Test with all
dispatchers running on
the same thread

Advice #4: Test on both
Native and JVM

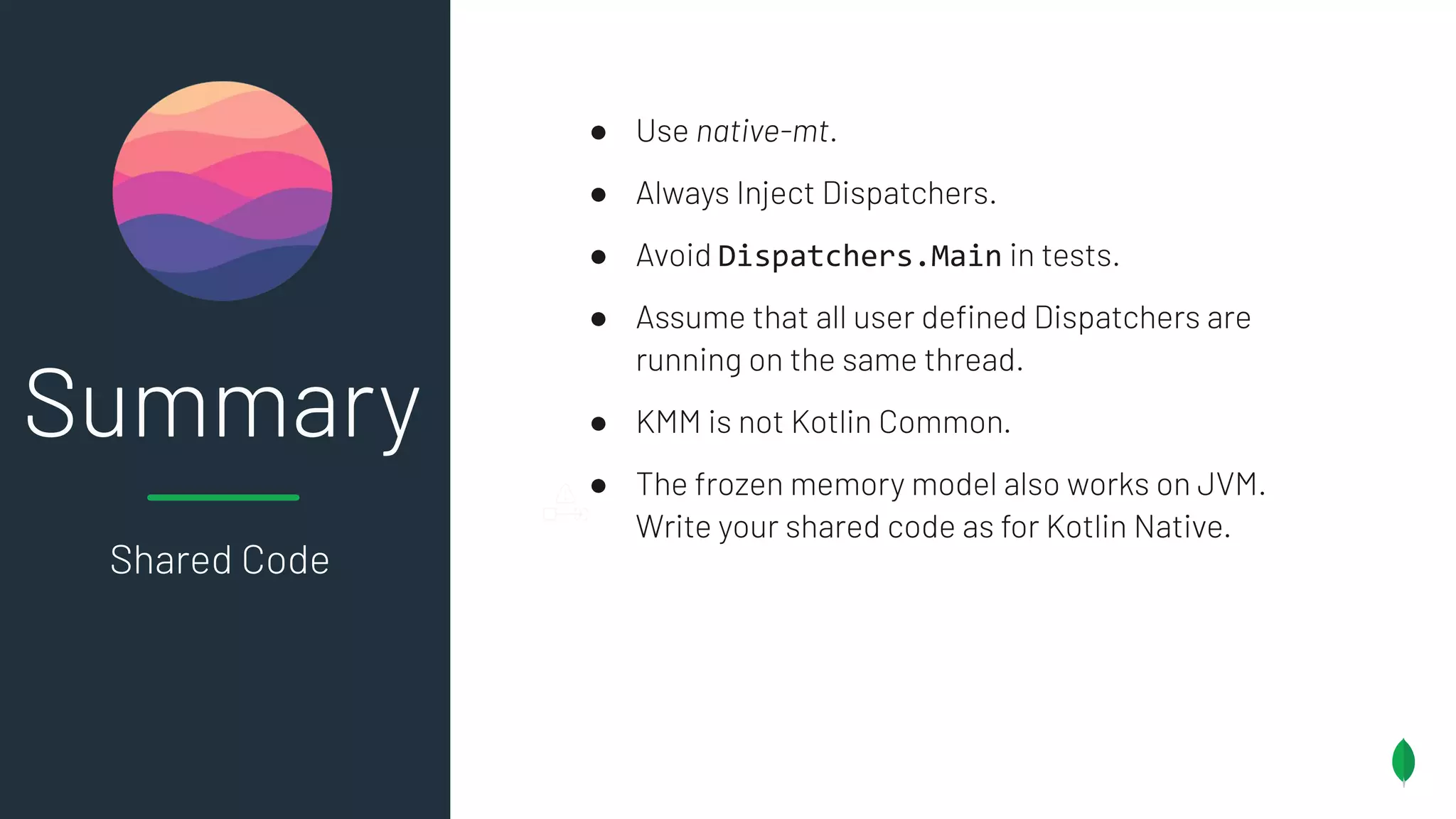

Summary
● Use native-mt.
● Always Inject Dispatchers.
● Avoid Dispatchers.Main in tests.
● Assume that all user deﬁned Dispatchers are
running on the same thread.
● KMM is not Kotlin Common.
● The frozen memory model also works on JVM.
Write your shared code as for Kotlin Native.
Shared Code

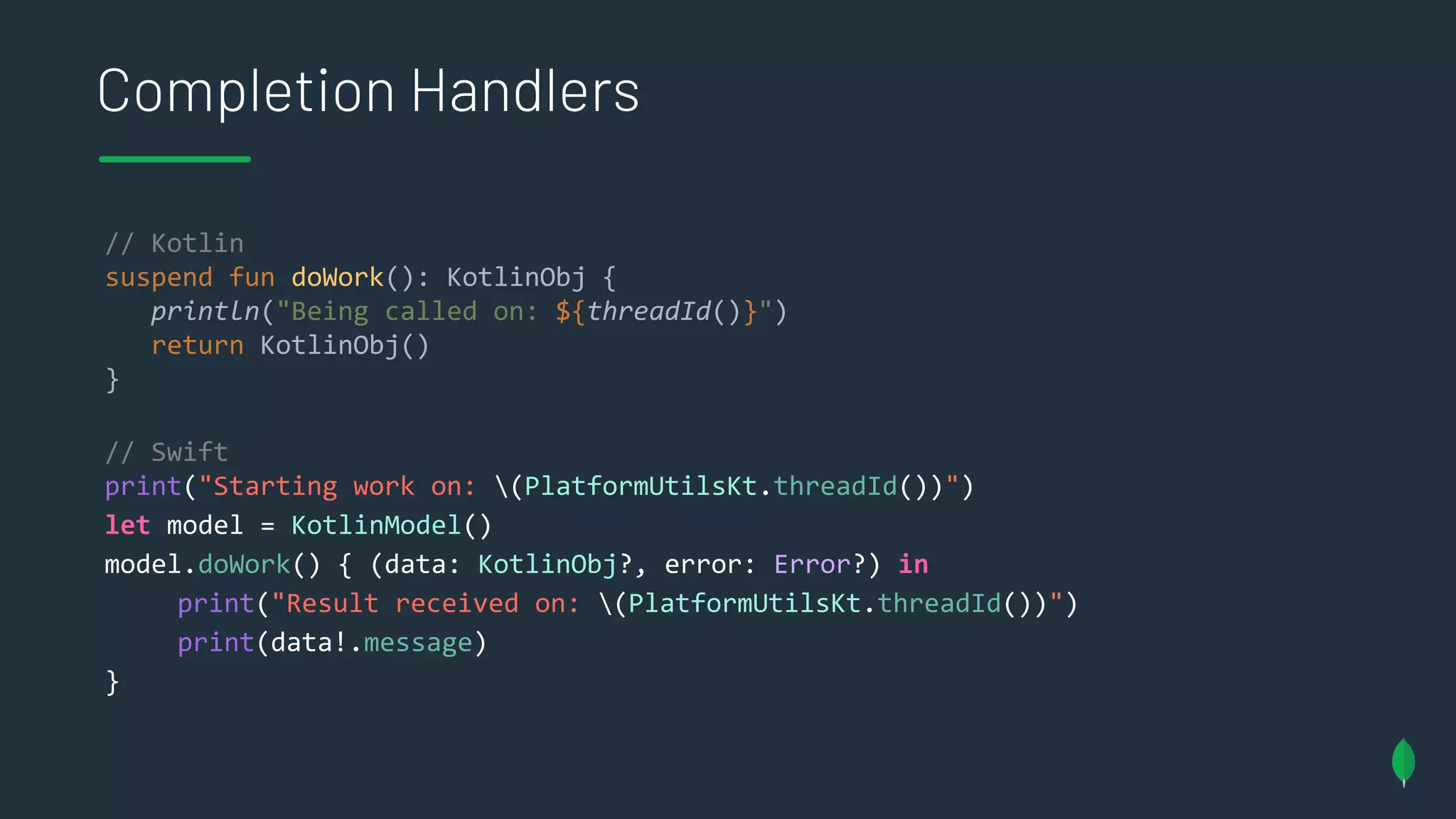

Completion Handlers
// Kotlin
suspend fun doWork(): KotlinObj {
println("Being called on: ${threadId()}")
return KotlinObj()
}
// Swift
print("Starting work on: (PlatformUtilsKt.threadId())")
let model = KotlinModel()
model.doWork() { (data: KotlinObj?, error: Error?) in
print("Result received on: (PlatformUtilsKt.threadId())")
print(data!.message)
}

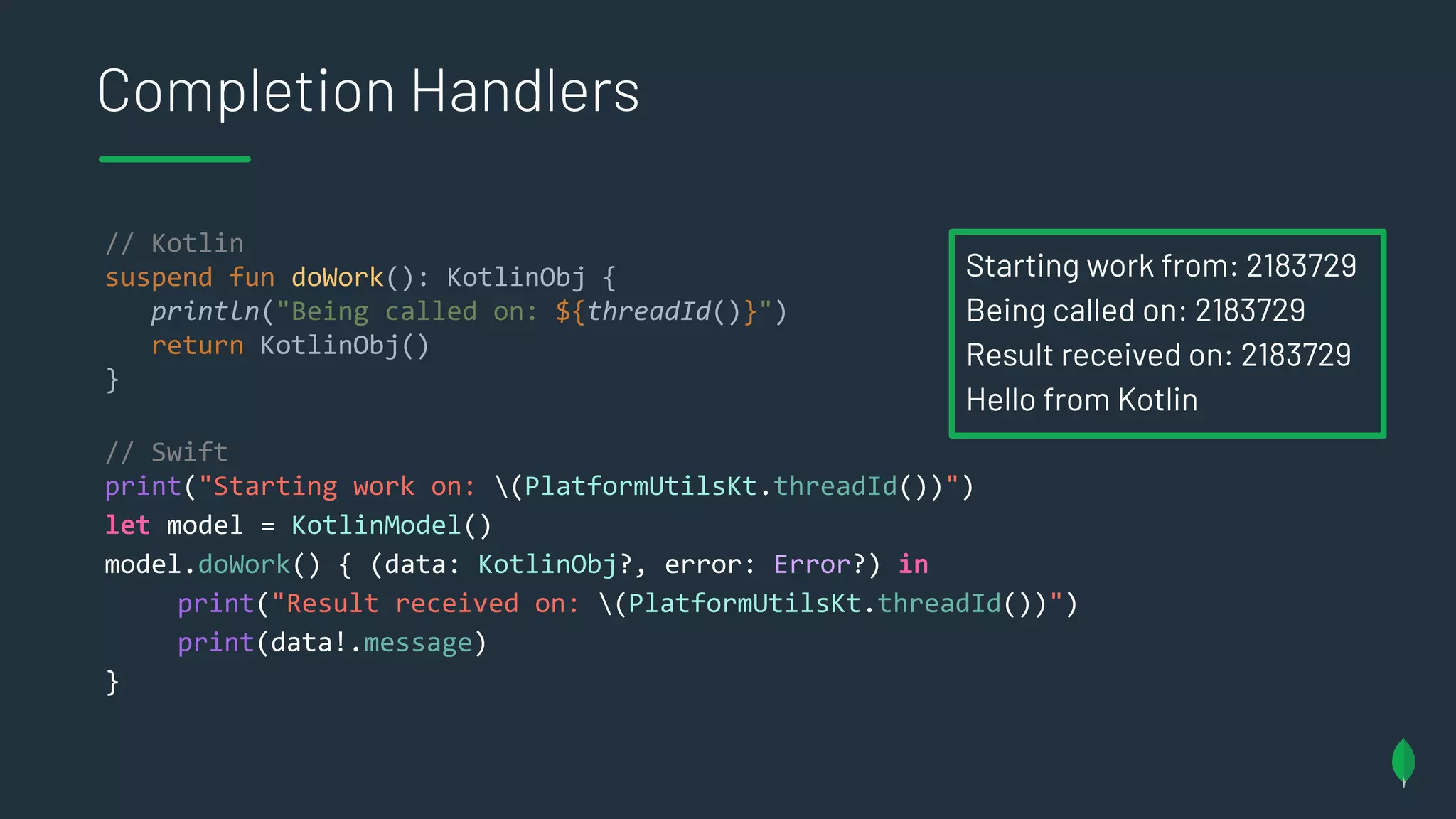

Completion Handlers
// Kotlin
suspend fun doWork(): KotlinObj {
return KotlinObj()
}
// Swift
print("Starting work on: (PlatformUtilsKt.threadId())")
model.doWork() { (data: KotlinObj?, error: Error?) in
}
Starting work from: 2183729
Being called on: 2183729
Result received on: 2183729
Hello from Kotlin

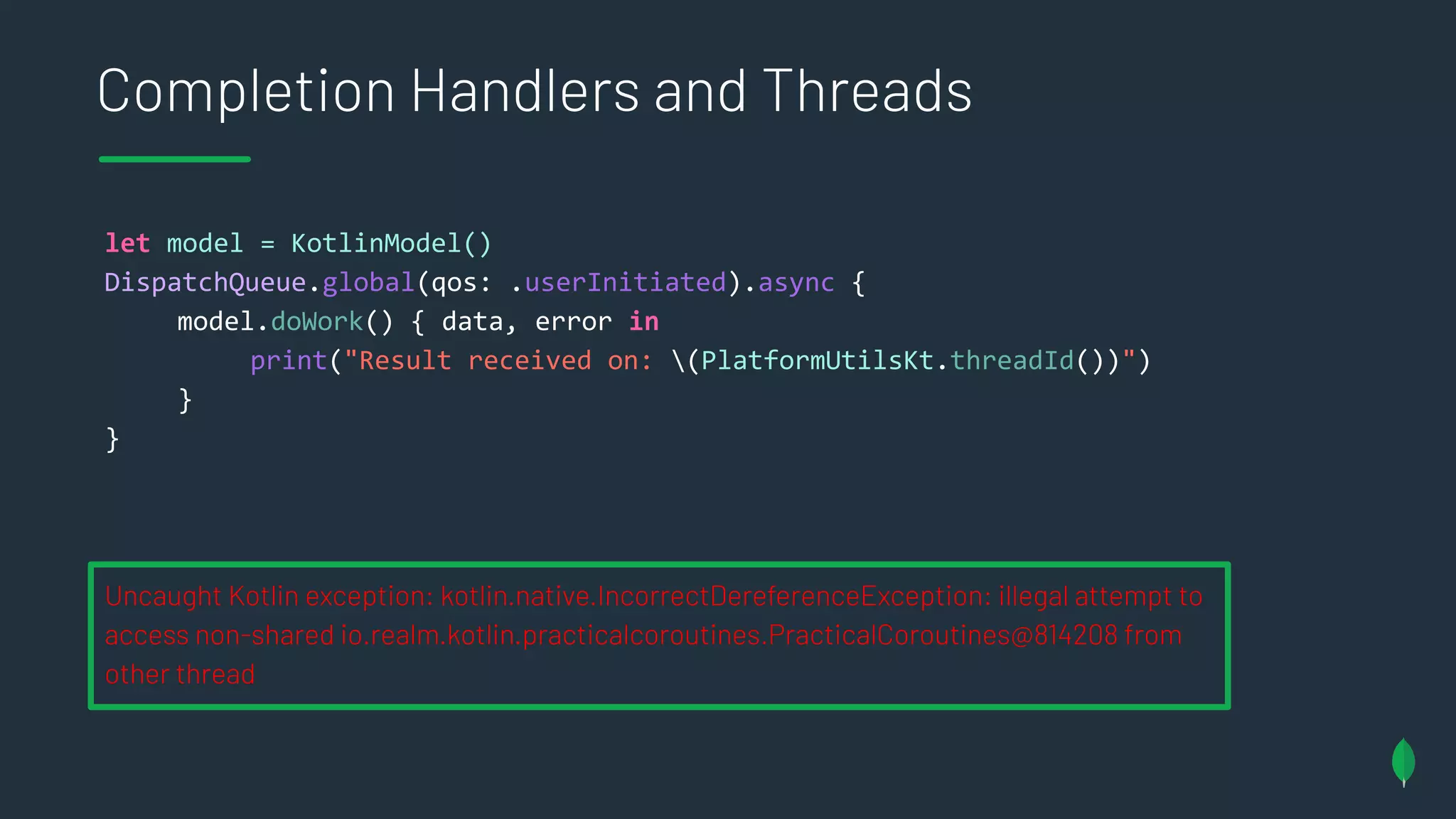

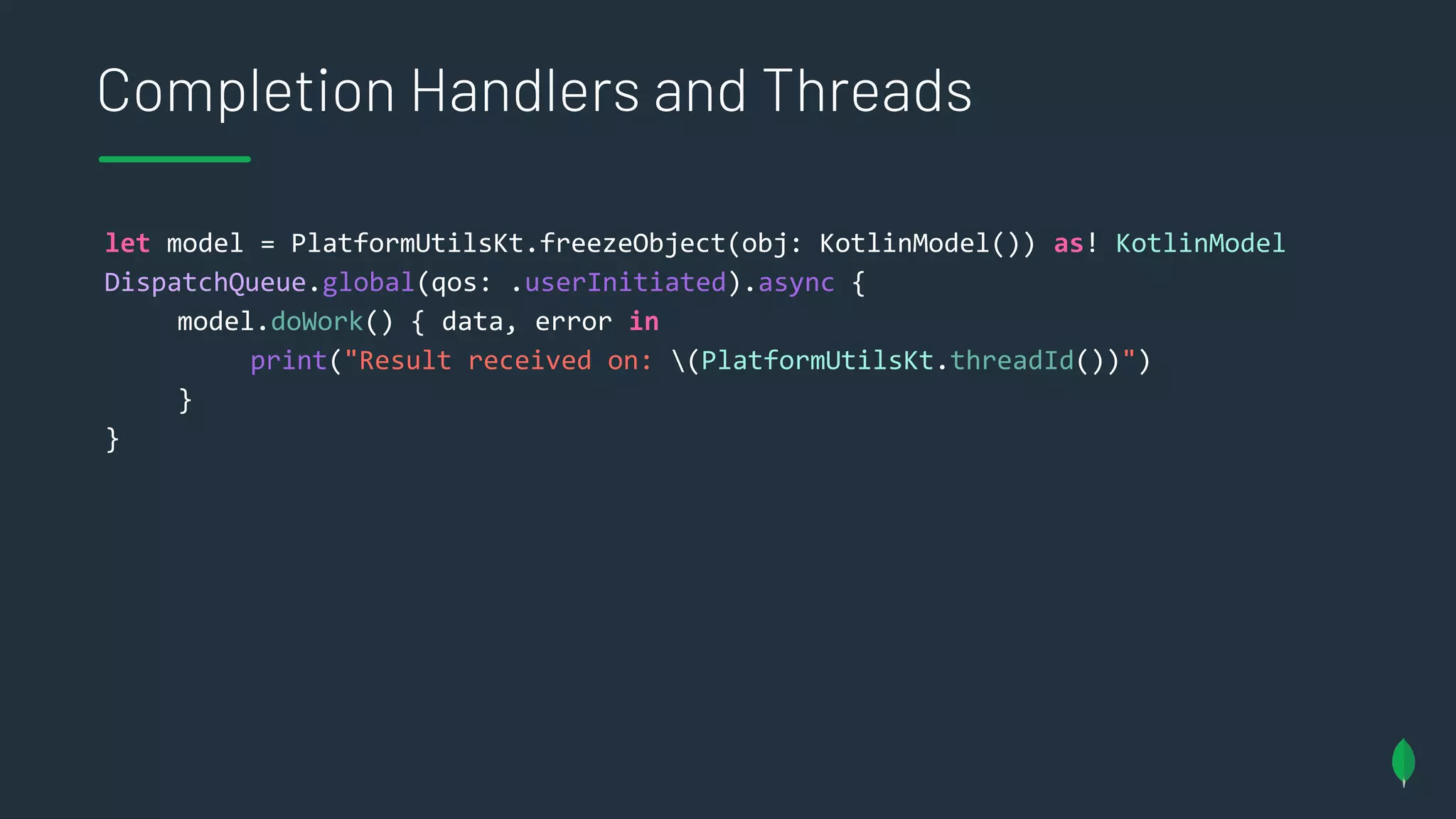

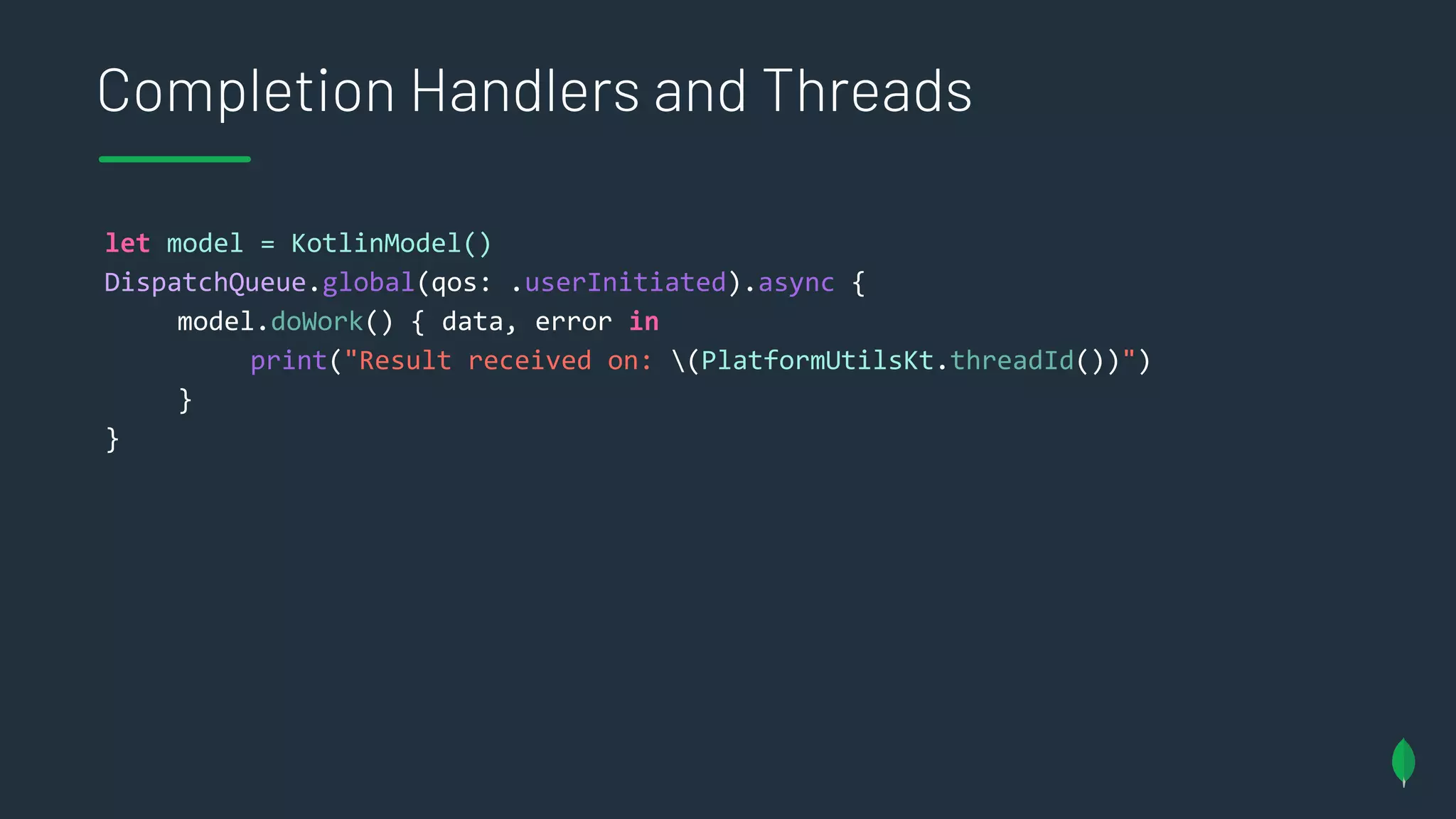

Completion Handlers and Threads
DispatchQueue.global(qos: .userInitiated).async {
model.doWork() { data, error in
}
}

}
}
Uncaught Kotlin exception: kotlin.native.IncorrectDereferenceException: illegal attempt to
access non-shared io.realm.kotlin.practicalcoroutines.PracticalCoroutines@814208 from
other thread

Advice #5: All public
API’s should be frozen

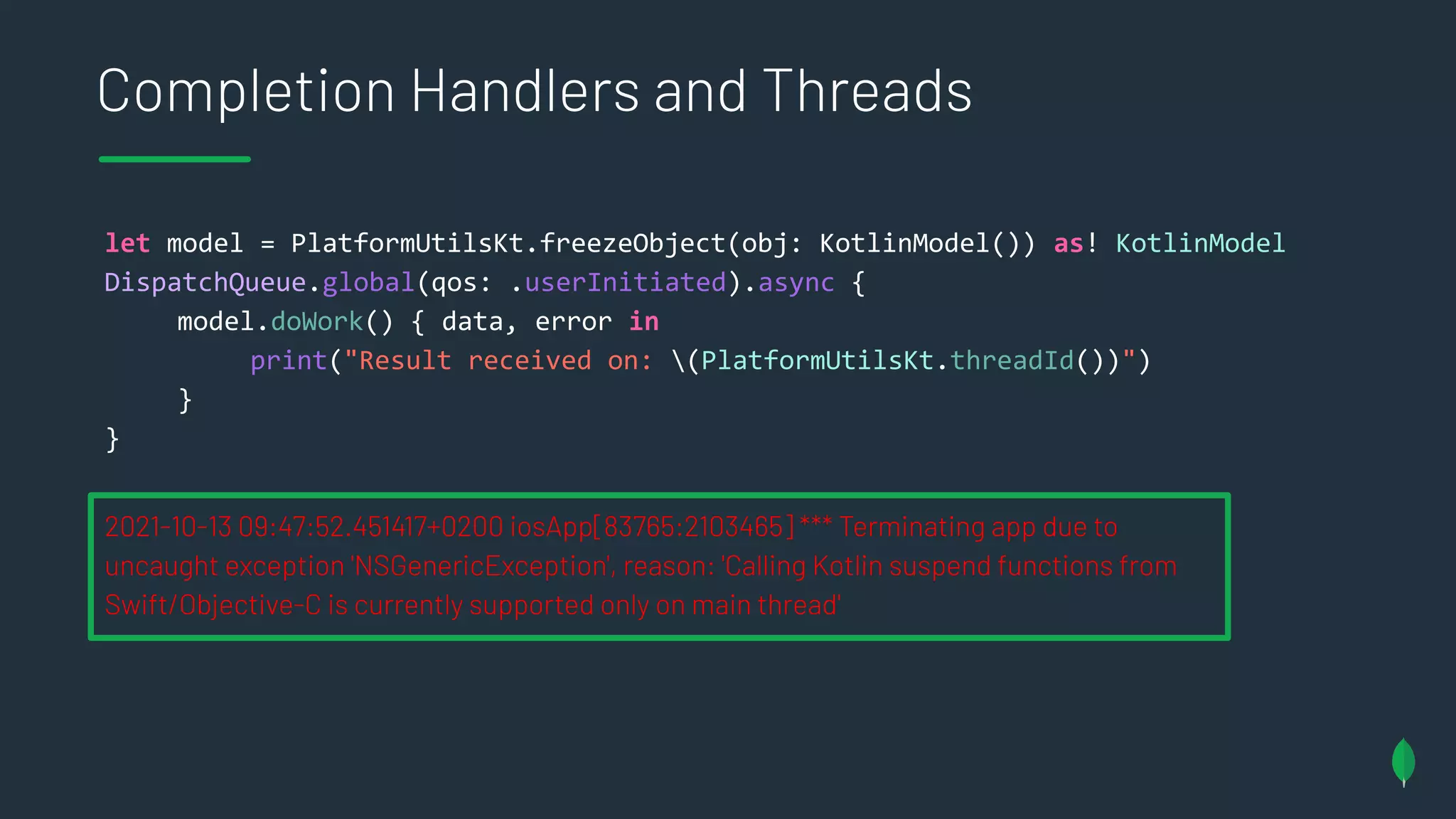

let model = PlatformUtilsKt.freezeObject(obj: KotlinModel()) as! KotlinModel
}
}

let model = PlatformUtilsKt.freezeObject(obj: KotlinModel()) as! KotlinModel
}
}
2021-10-13 09:47:52.451417+0200 iosApp[83765:2103465] *** Terminating app due to
uncaught exception 'NSGenericException', reason: 'Calling Kotlin suspend functions from
Swift/Objective-C is currently supported only on main thread'

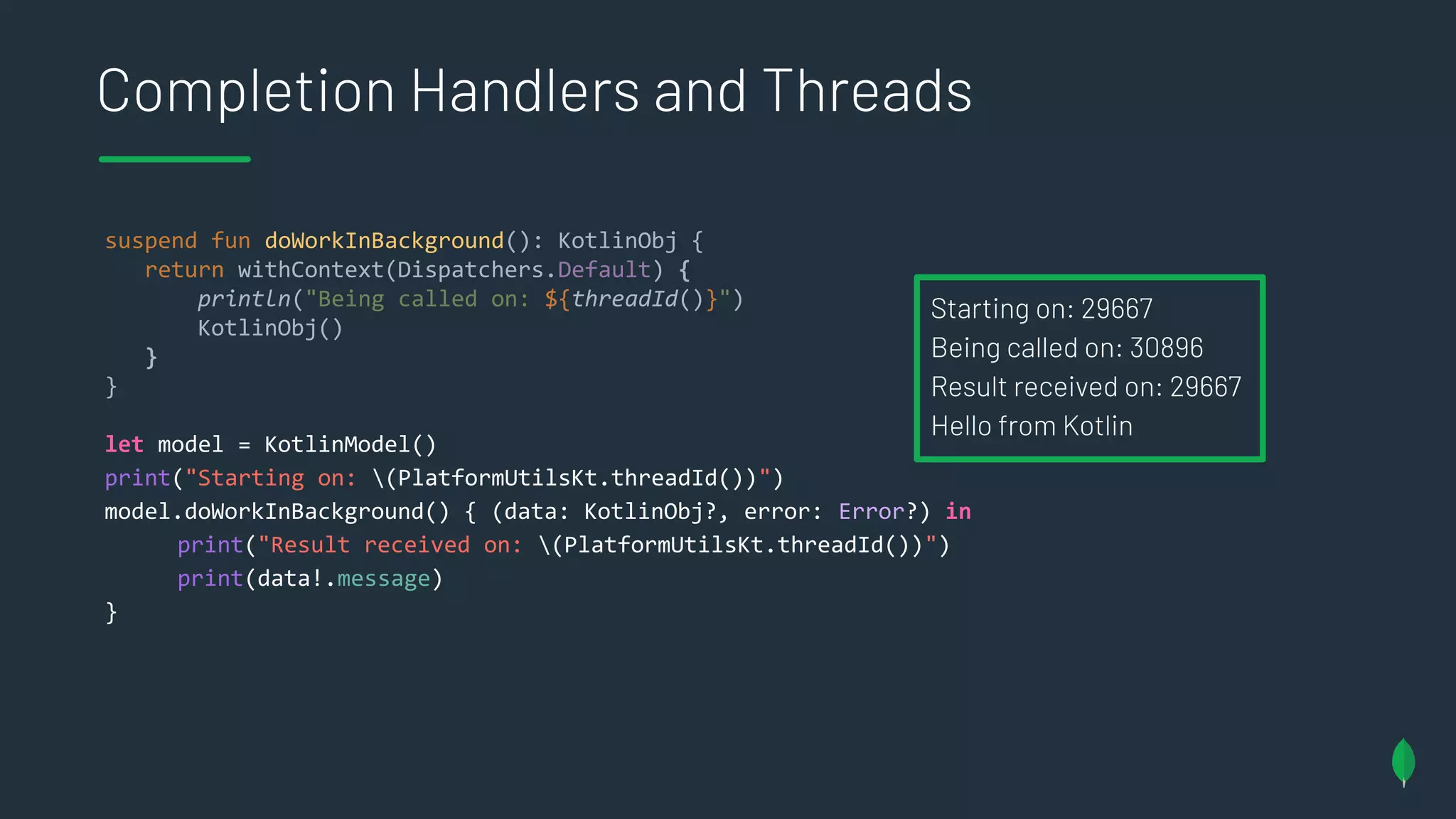

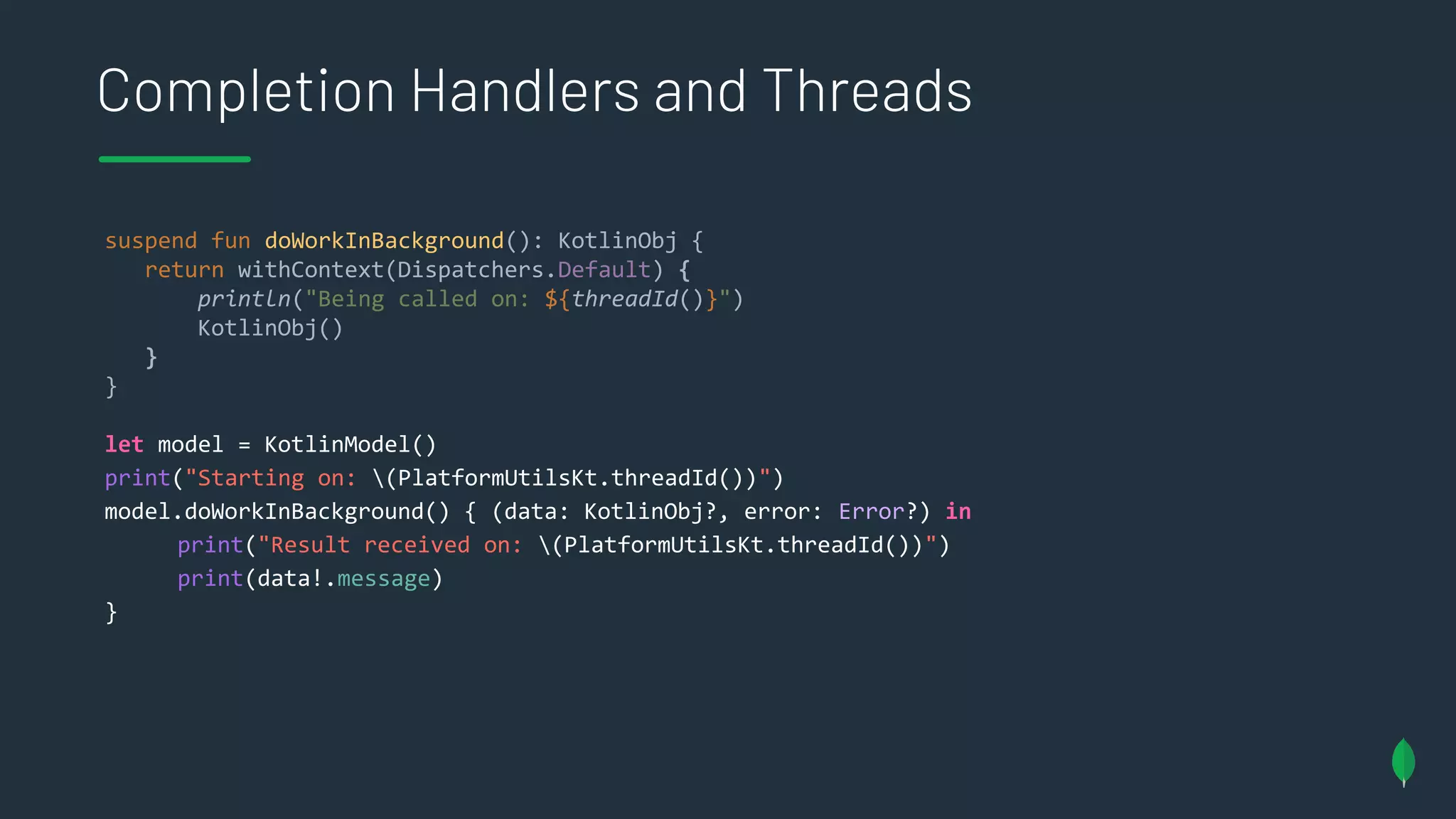

suspend fun doWorkInBackground(): KotlinObj {
return withContext(Dispatchers.Default) {
KotlinObj()
}
}
print("Starting on: (PlatformUtilsKt.threadId())")
model.doWorkInBackground() { (data: KotlinObj?, error: Error?) in
}

suspend fun doWorkInBackground(): KotlinObj {
return withContext(Dispatchers.Default) {
KotlinObj()
}
}
print("Starting on: (PlatformUtilsKt.threadId())")
model.doWorkInBackground() { (data: KotlinObj?, error: Error?) in
}
Starting on: 29667
Result received on: 29667
Hello from Kotlin

Advice #6: Control
Context in shared code

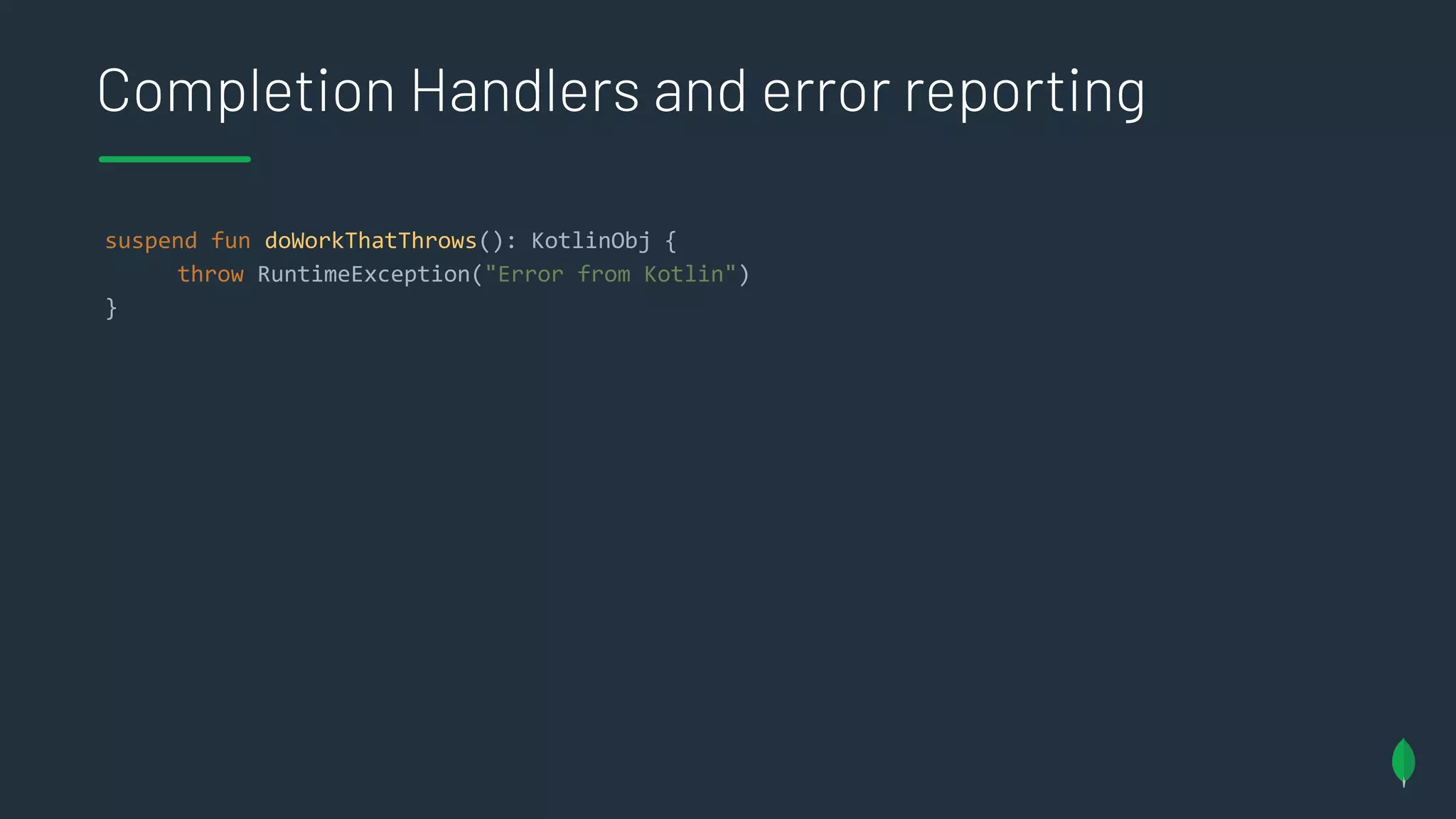

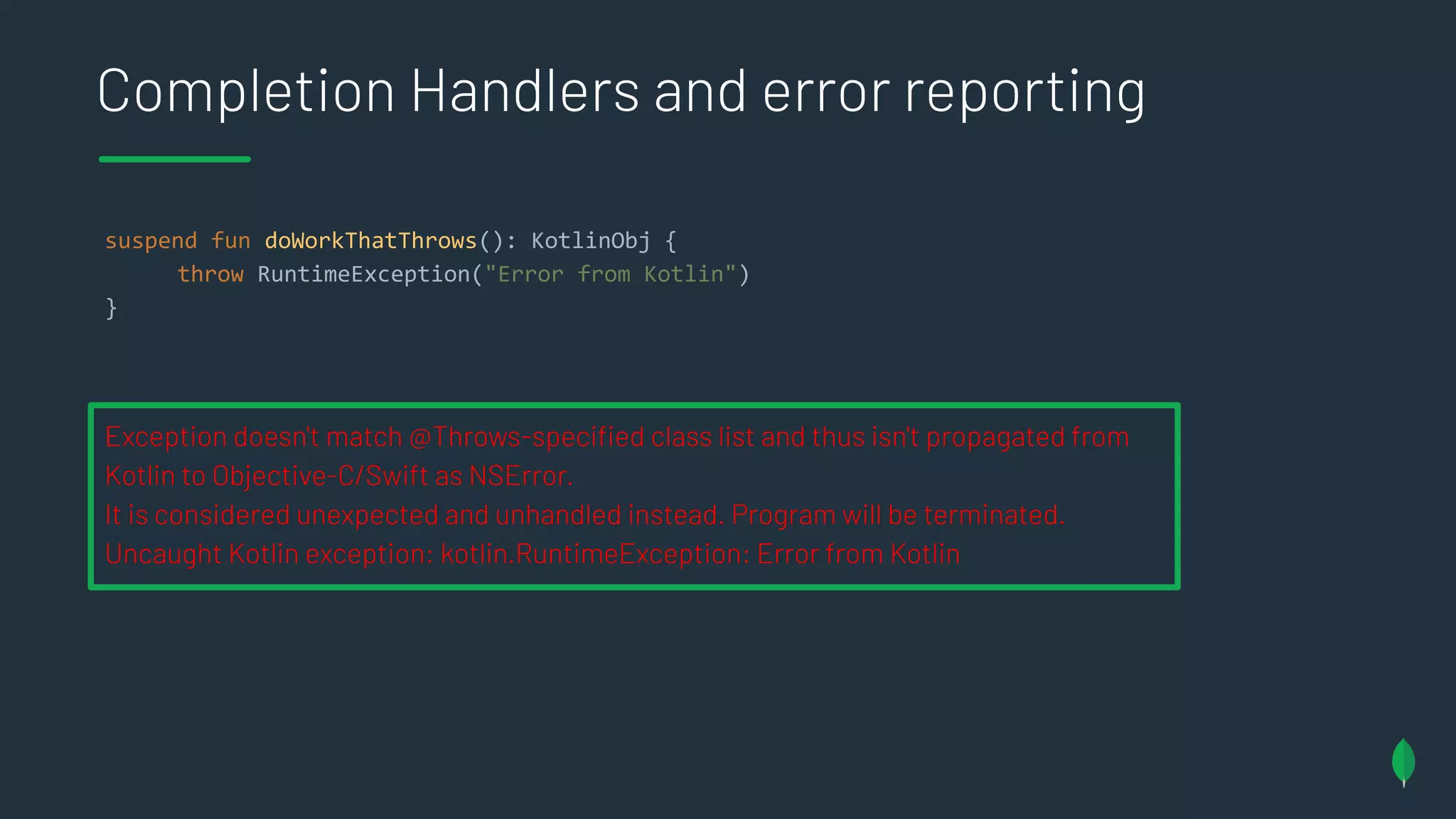

Completion Handlers and error reporting
suspend fun doWorkThatThrows(): KotlinObj {
throw RuntimeException("Error from Kotlin")
}

}
Exception doesn't match @Throws-speciﬁed class list and thus isn't propagated from
Kotlin to Objective-C/Swift as NSError.
It is considered unexpected and unhandled instead. Program will be terminated.
Uncaught Kotlin exception: kotlin.RuntimeException: Error from Kotlin

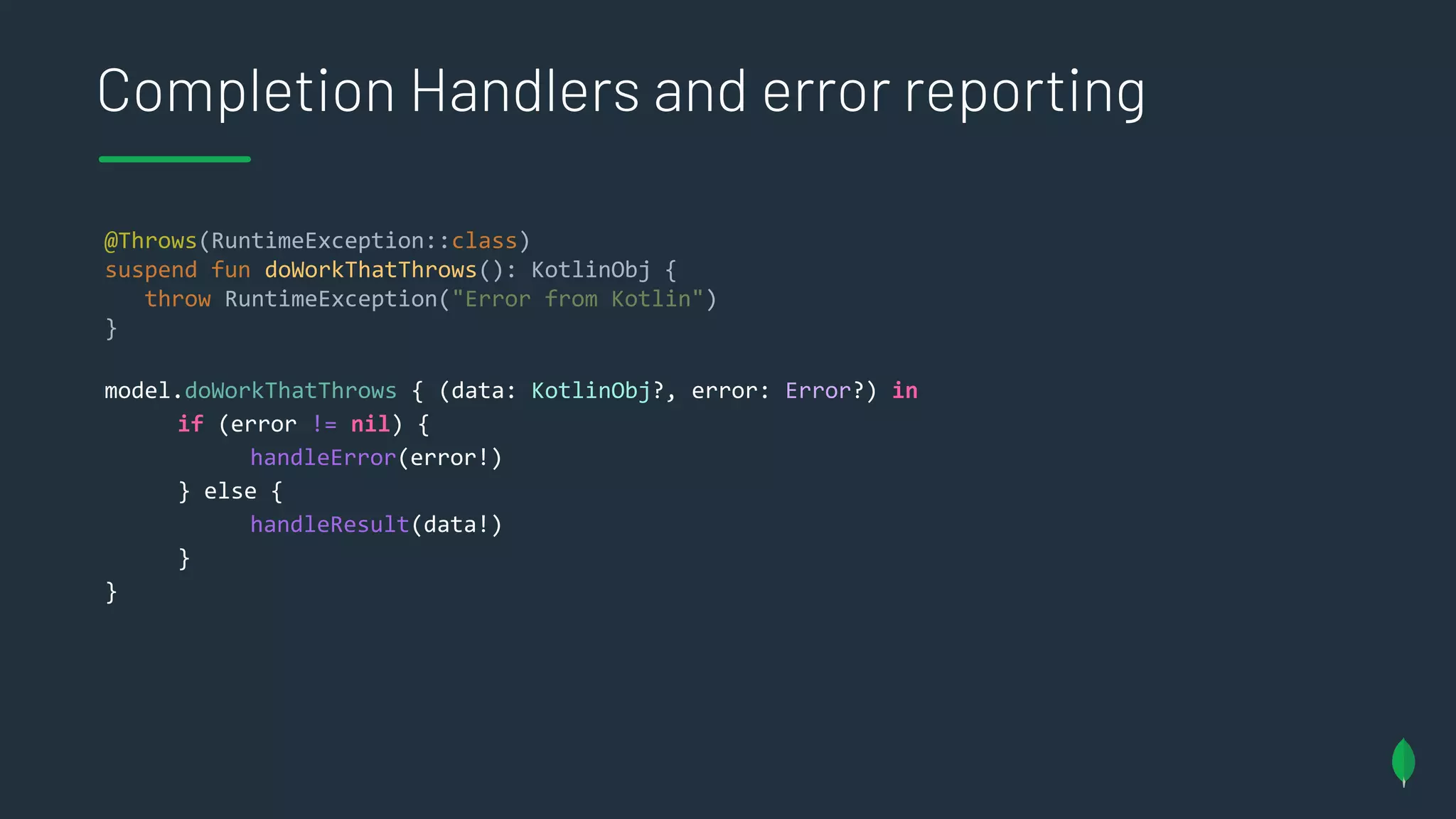

@Throws(RuntimeException::class)
}
model.doWorkThatThrows { (data: KotlinObj?, error: Error?) in
if (error != nil) {
handleError(error!)
} else {
handleResult(data!)
}
}

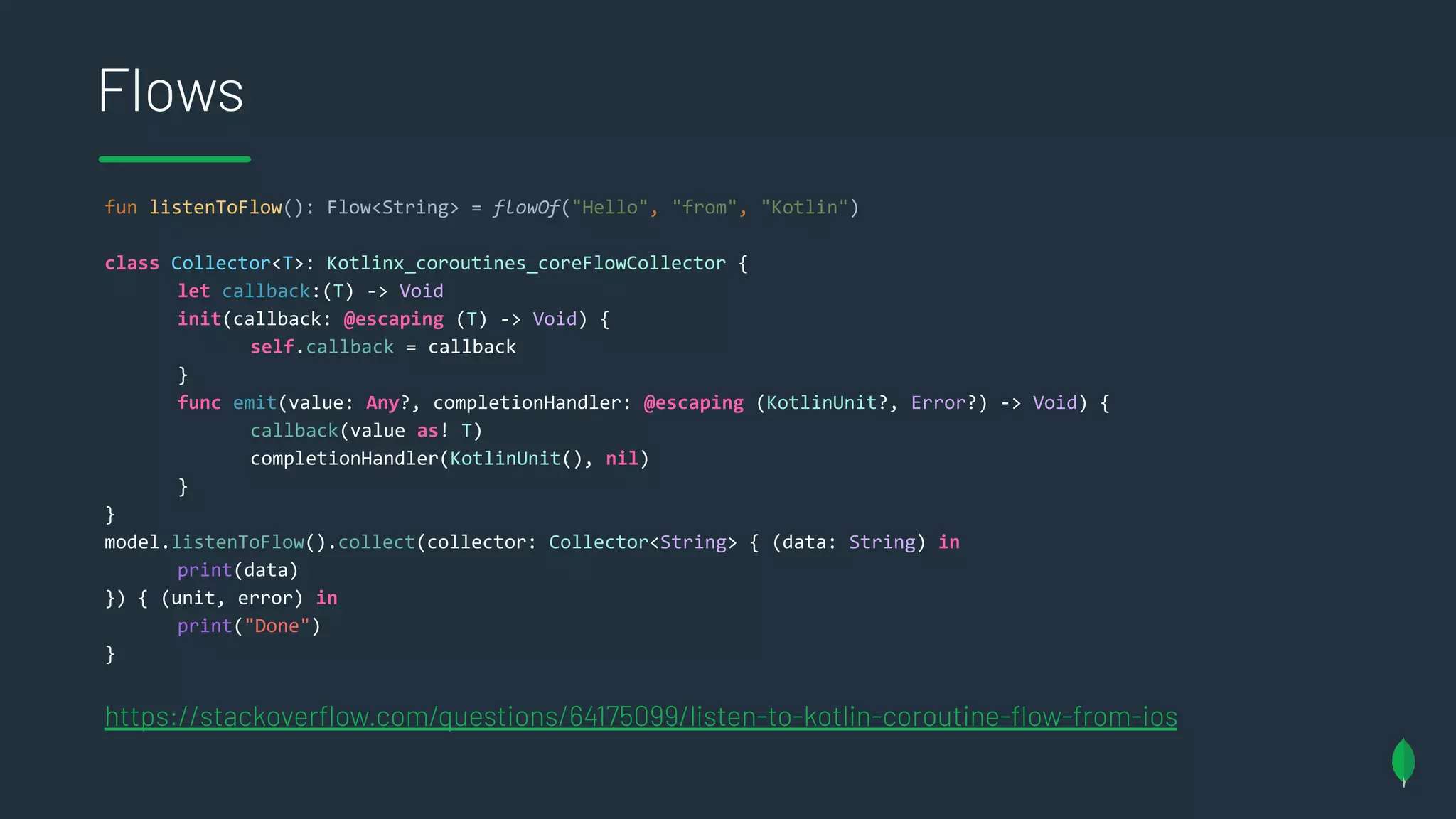

Flows
fun listenToFlow(): Flow<String> = flowOf("Hello", "from", "Kotlin")
class Collector<T>: Kotlinx_coroutines_coreFlowCollector {
let callback:(T) -> Void
init(callback: @escaping (T) -> Void) {
self.callback = callback
}
func emit(value: Any?, completionHandler: @escaping (KotlinUnit?, Error?) -> Void) {
callback(value as! T)
completionHandler(KotlinUnit(), nil)
}
}
model.listenToFlow().collect(collector: Collector<String> { (data: String) in
print(data)
}) { (unit, error) in
print("Done")
}
https://stackoverﬂow.com/questions/64175099/listen-to-kotlin-coroutine-ﬂow-from-ios

https://github.com/JetBrains/kotlinconf-app/blob/master/common/src/mobileMain/kotlin/org
/jetbrains/kotlinconf/FlowUtils.kt

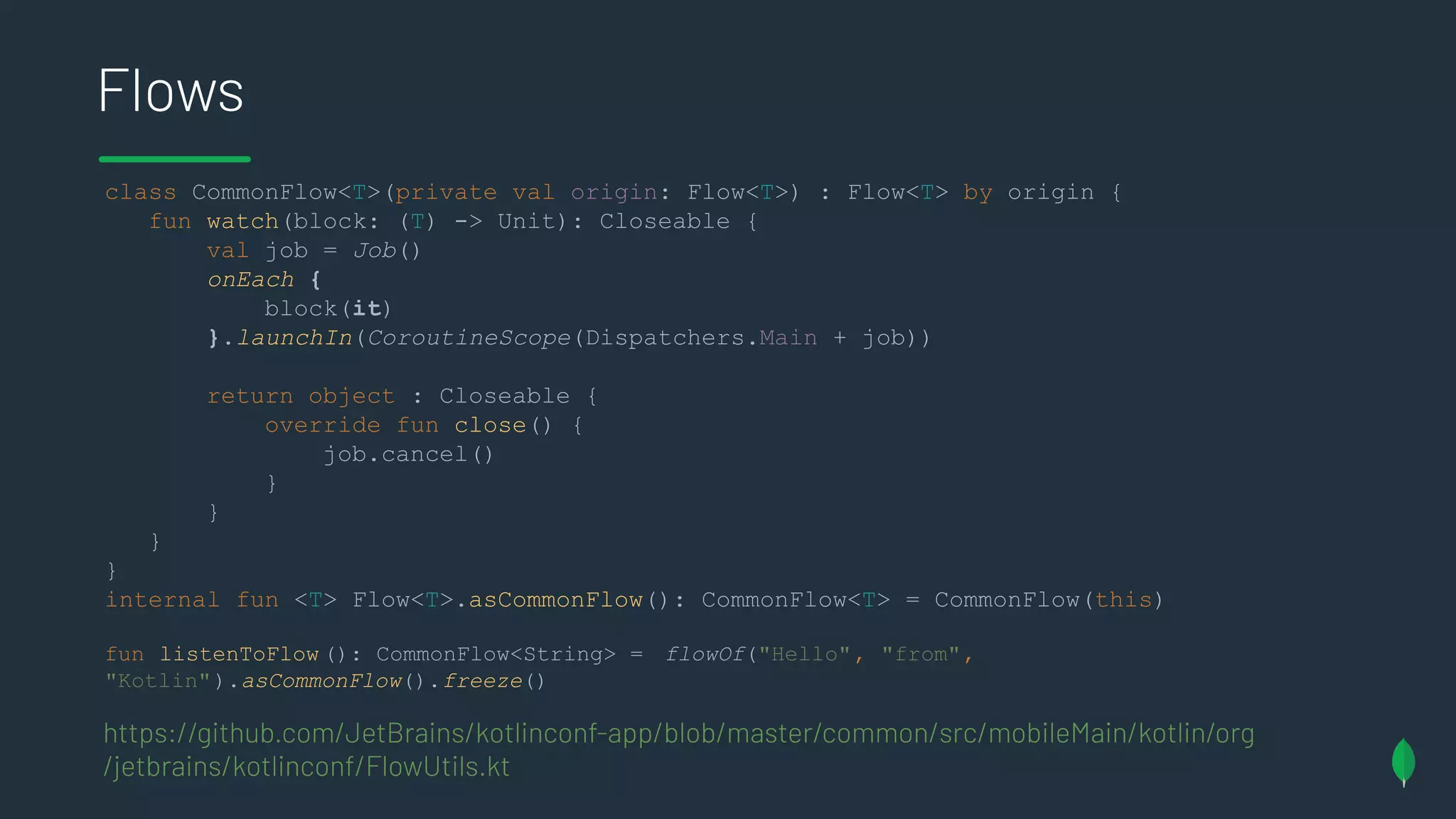

class CommonFlow<T>(private val origin: Flow<T>) : Flow<T> by origin {
fun watch(block: (T) -> Unit): Closeable {
val job = Job()
onEach {
block(it)
}.launchIn(CoroutineScope(Dispatchers.Main + job))
return object : Closeable {
override fun close() {
job.cancel()
}
}
}
}
internal fun <T> Flow<T>.asCommonFlow(): CommonFlow<T> = CommonFlow(this)
fun listenToFlow (): CommonFlow<String> = flowOf("Hello", "from",
"Kotlin").asCommonFlow().freeze()
Flows

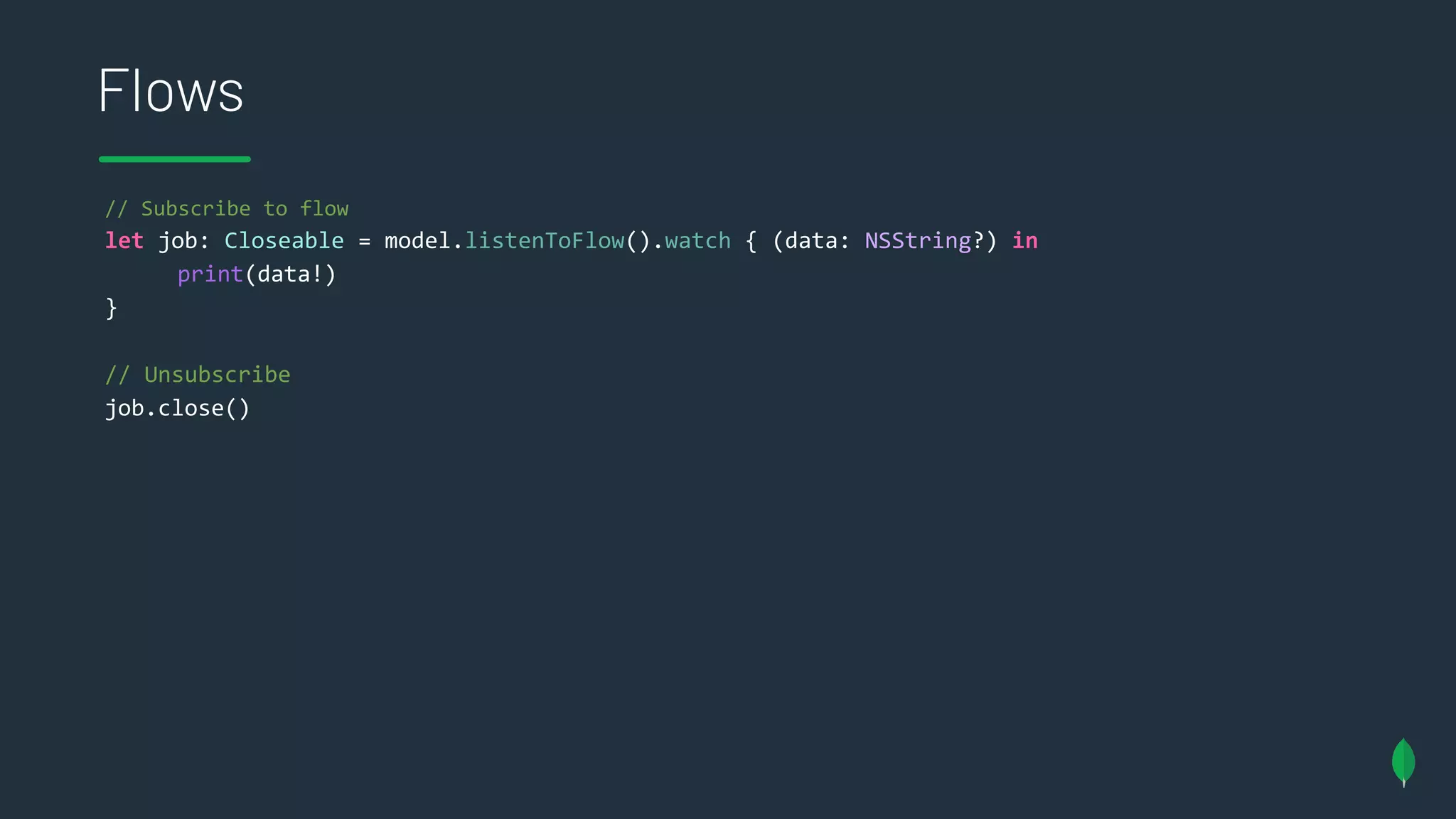

Flows
// Subscribe to flow
let job: Closeable = model.listenToFlow().watch { (data: NSString?) in
print(data!)
}
// Unsubscribe
job.close()

Flows
// Subscribe to flow
let job: Closeable = model.listenToFlow().watch { (data: NSString?) in
print(data!)
}
Starting on: 2370807
Receiving on: 2370807
Hello
from
Kotlin

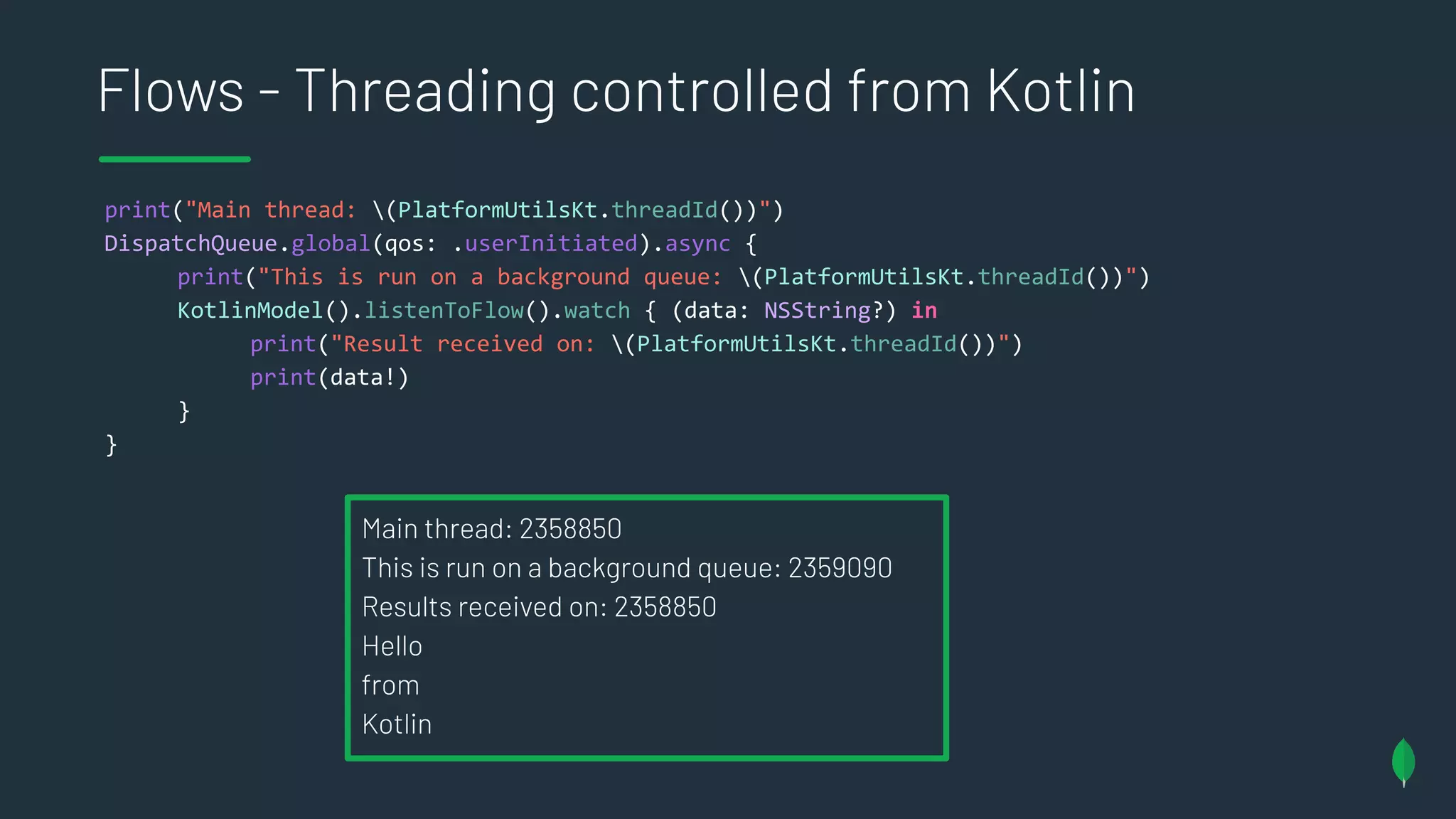

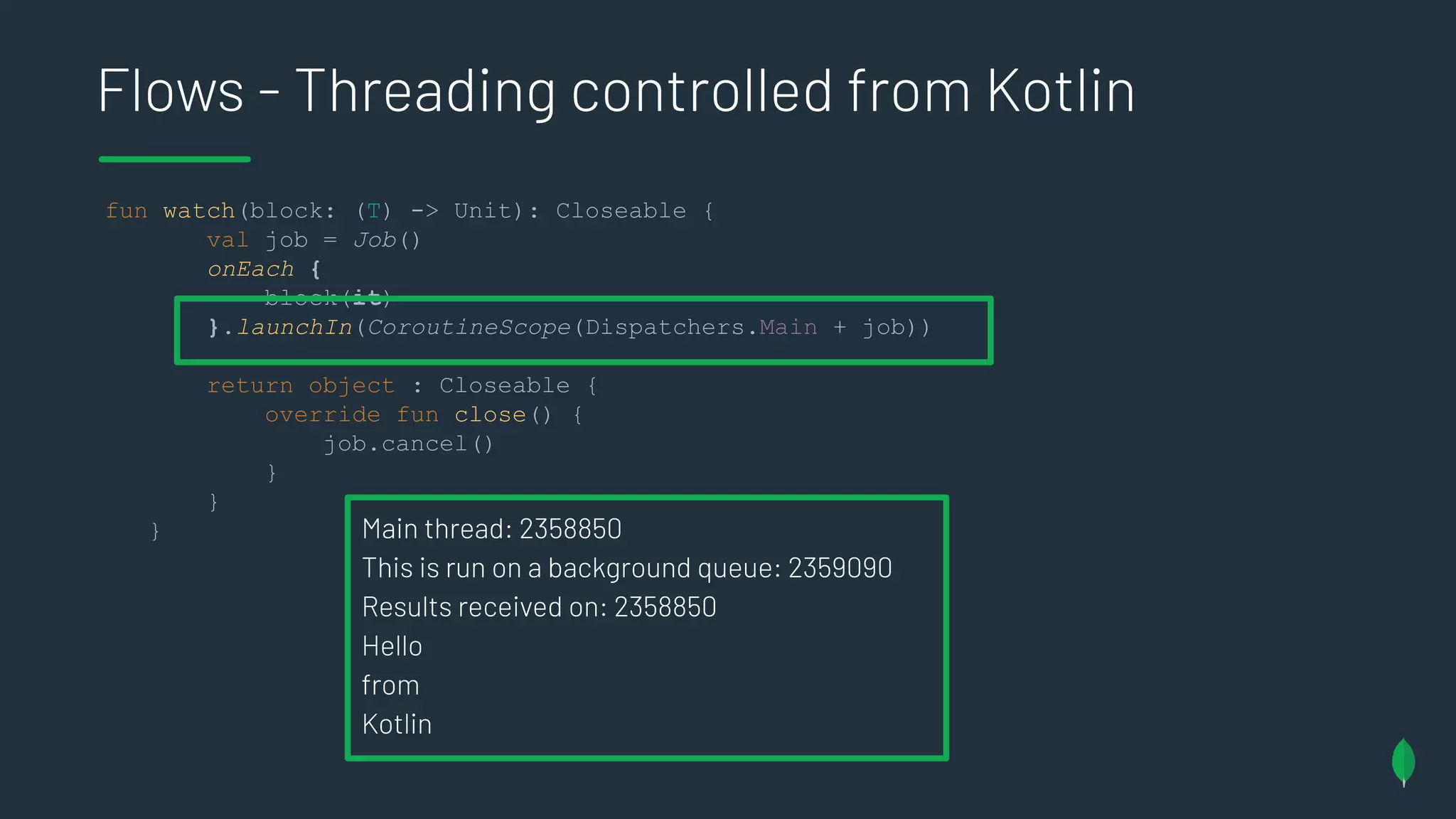

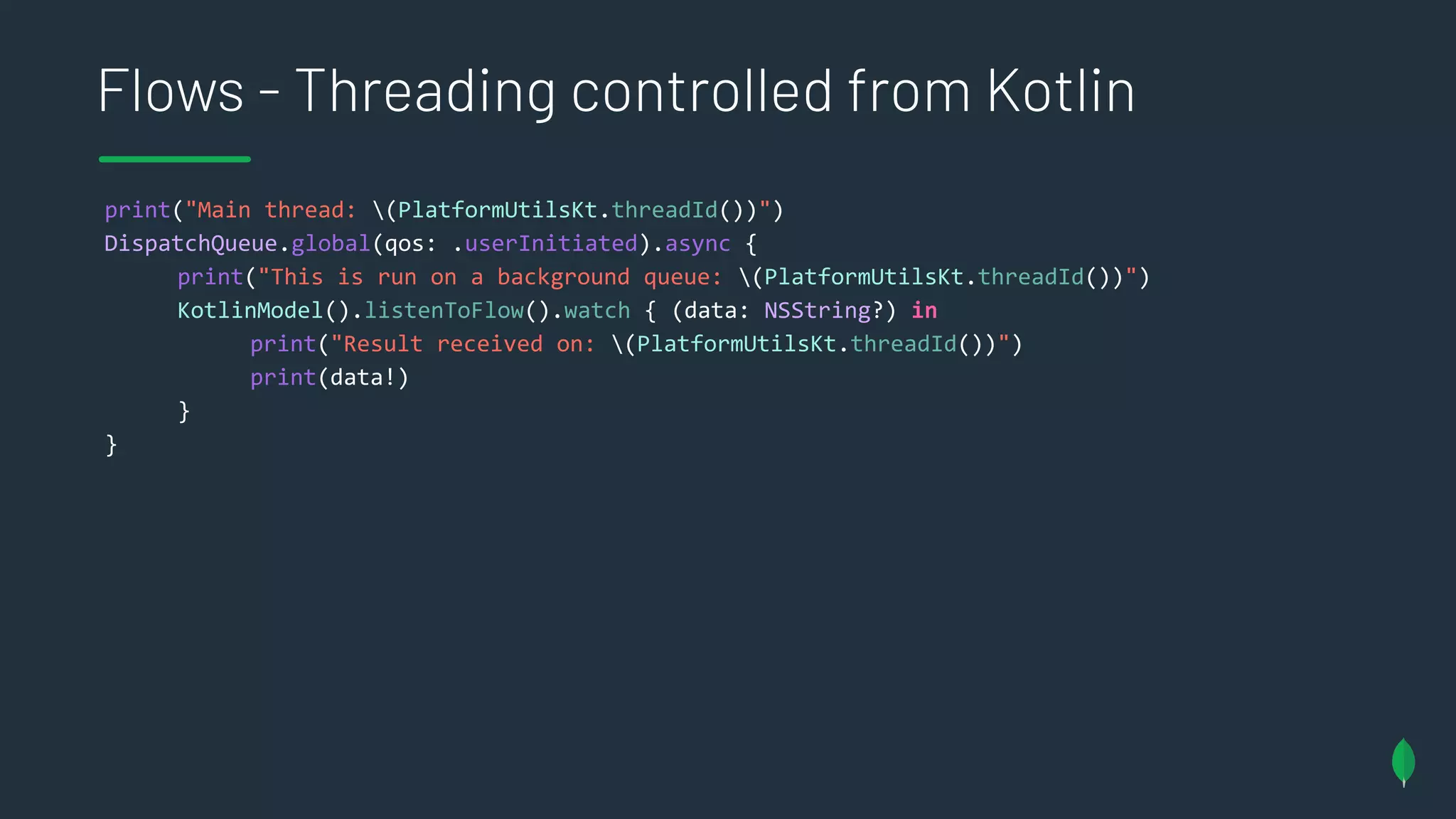

Flows - Threading controlled from Kotlin
print("Main thread: (PlatformUtilsKt.threadId())")
print("This is run on a background queue: (PlatformUtilsKt.threadId())")
KotlinModel().listenToFlow().watch { (data: NSString?) in
print(data!)
}
}

print("Main thread: (PlatformUtilsKt.threadId())")
print("This is run on a background queue: (PlatformUtilsKt.threadId())")
KotlinModel().listenToFlow().watch { (data: NSString?) in
print(data!)
}
}
Main thread: 2358850
This is run on a background queue: 2359090
Results received on: 2358850
Hello
from
Kotlin

fun watch(block: (T) -> Unit): Closeable {
val job = Job()
onEach {
block(it)
}.launchIn(CoroutineScope(Dispatchers.Main + job))
job.cancel()
}
}
} Main thread: 2358850
This is run on a background queue: 2359090
Results received on: 2358850
Hello
from
Kotlin

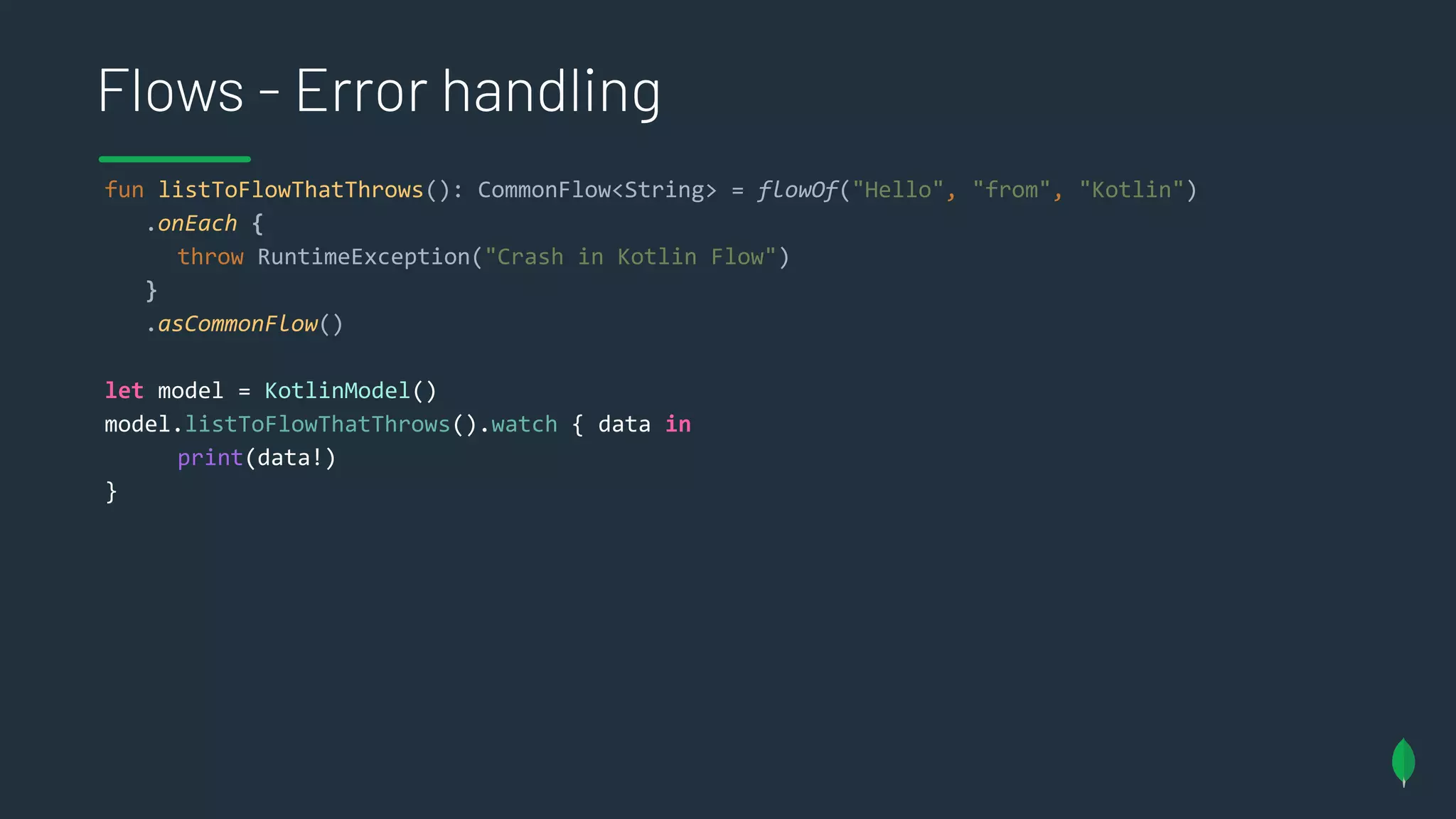

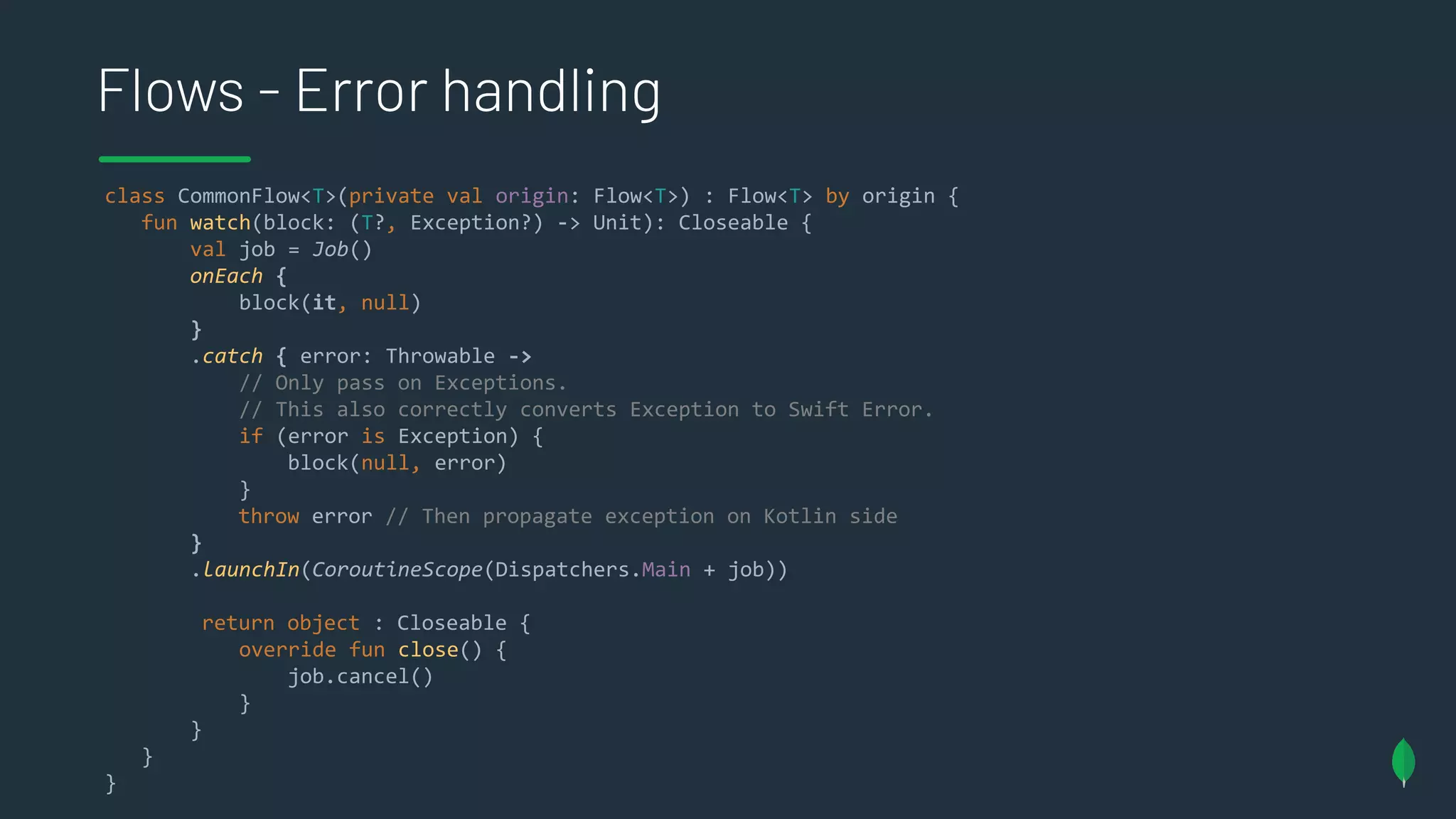

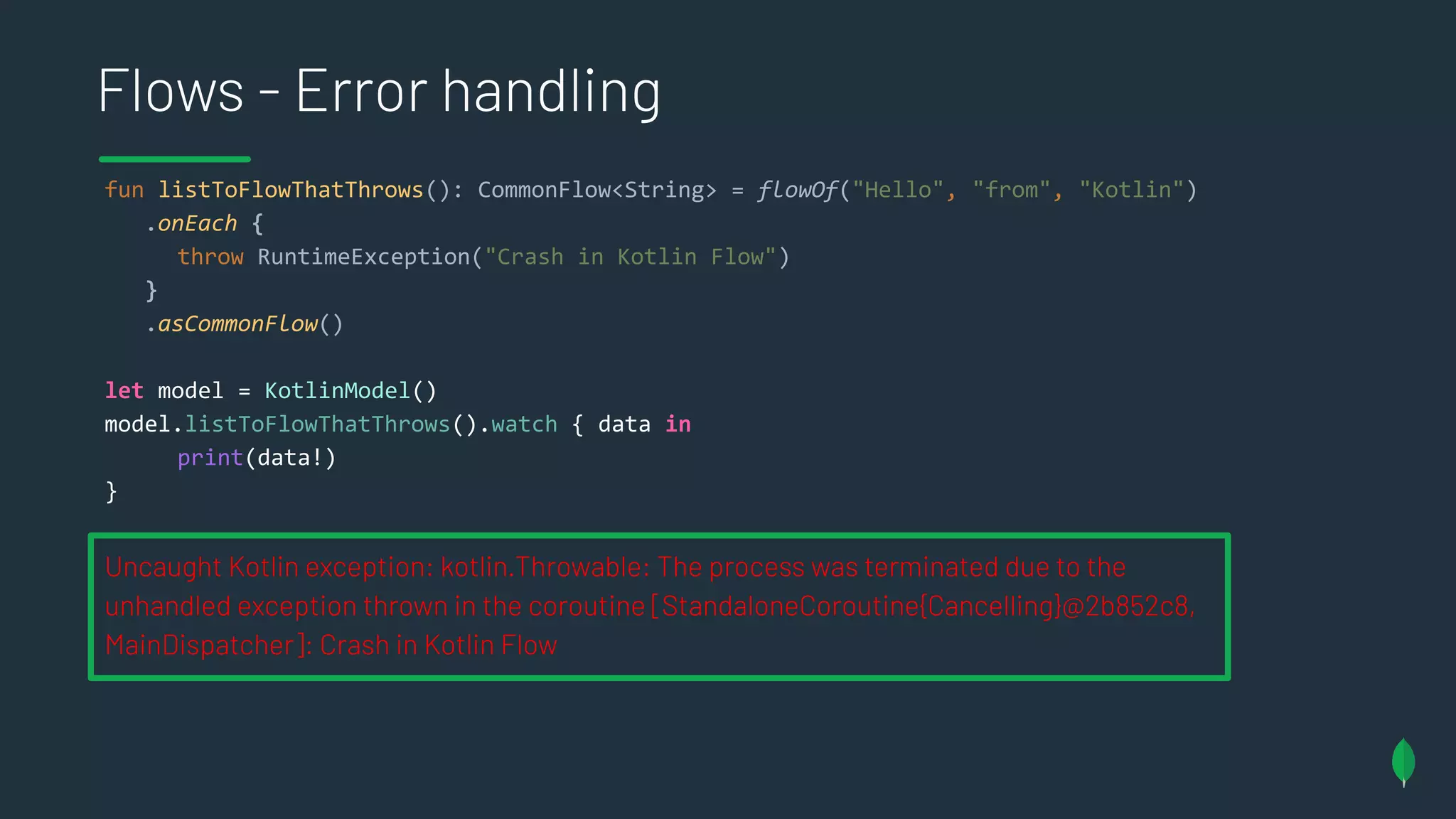

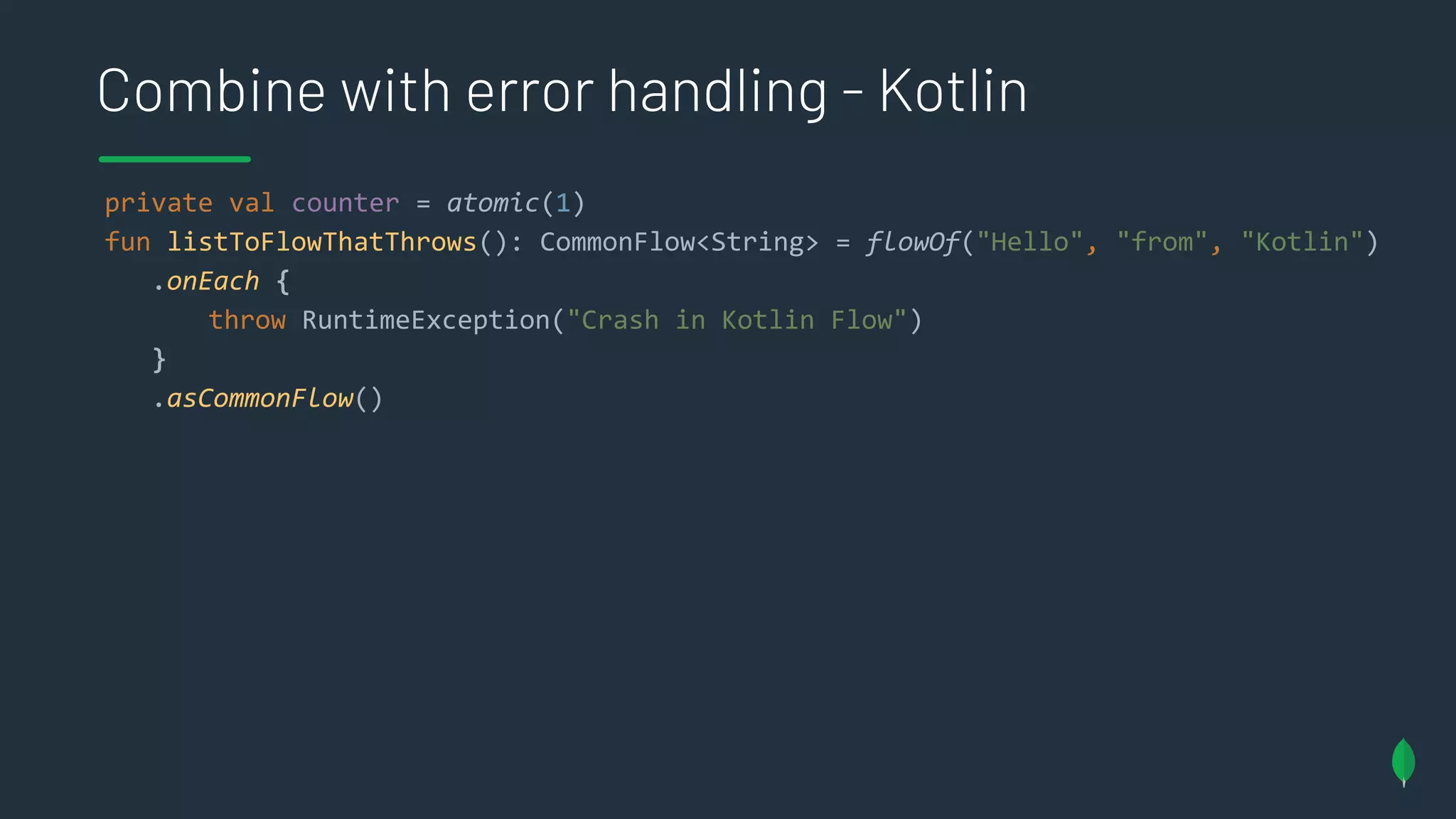

Flows - Error handling
fun listToFlowThatThrows(): CommonFlow<String> = flowOf("Hello", "from", "Kotlin")
.onEach {
throw RuntimeException("Crash in Kotlin Flow")
}
.asCommonFlow()
model.listToFlowThatThrows().watch { data in
print(data!)
}

.onEach {
}
.asCommonFlow()
model.listToFlowThatThrows().watch { data in
print(data!)
}
Uncaught Kotlin exception: kotlin.Throwable: The process was terminated due to the
unhandled exception thrown in the coroutine [StandaloneCoroutine{Cancelling}@2b852c8,
MainDispatcher]: Crash in Kotlin Flow

fun watch(block: (T?, Exception?) -> Unit): Closeable {
val job = Job()
onEach {
block(it, null)
}
.catch { error: Throwable ->
// Only pass on Exceptions.
// This also correctly converts Exception to Swift Error.
if (error is Exception) {
block(null, error)
}
throw error // Then propagate exception on Kotlin side
}
.launchIn(CoroutineScope(Dispatchers.Main + job))
job.cancel()
}
}
}
}

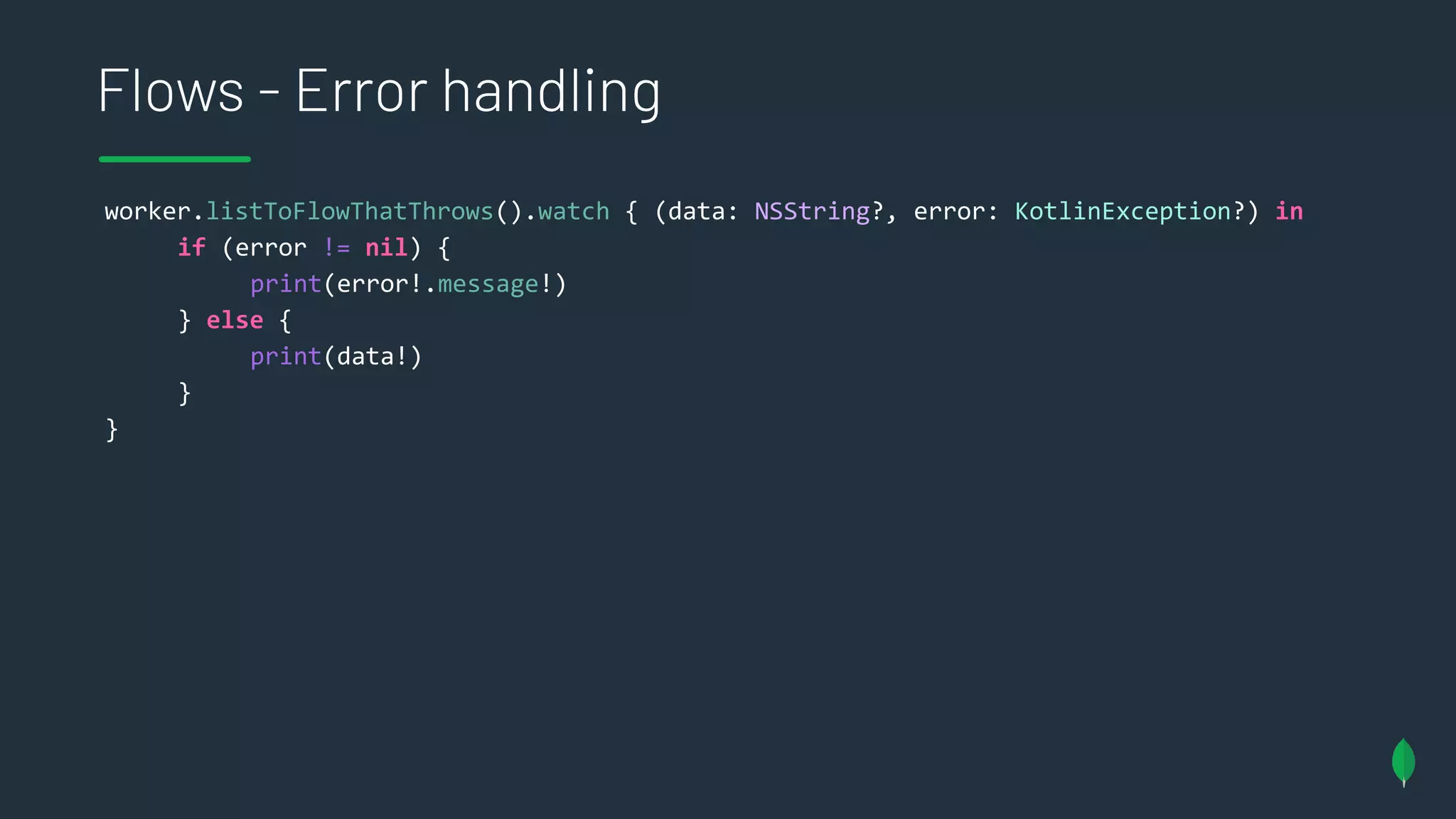

worker.listToFlowThatThrows().watch { (data: NSString?, error: KotlinException?) in
if (error != nil) {
print(error!.message!)
} else {
print(data!)
}
}

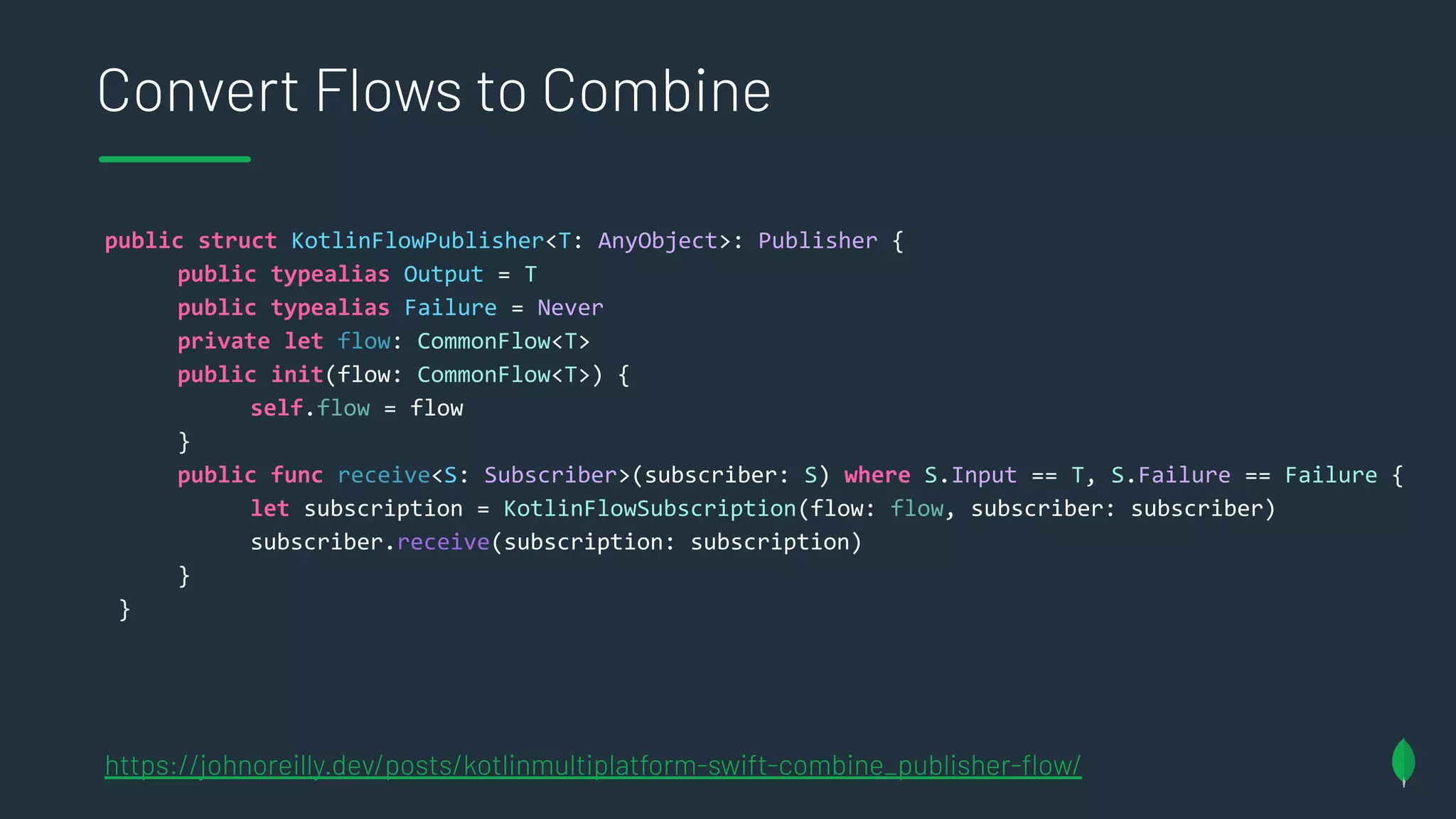

Convert Flows to Combine
public struct KotlinFlowPublisher<T: AnyObject>: Publisher {
public typealias Output = T
public typealias Failure = Never
private let flow: CommonFlow<T>
public init(flow: CommonFlow<T>) {
self.flow = flow
}
public func receive<S: Subscriber>(subscriber: S) where S.Input == T, S.Failure == Failure {
let subscription = KotlinFlowSubscription(flow: flow, subscriber: subscriber)
subscriber.receive(subscription: subscription)
}
}
https://johnoreilly.dev/posts/kotlinmultiplatform-swift-combine_publisher-ﬂow/

final class KotlinFlowSubscription<S: Subscriber>: Subscription where S.Input == T, S.Failure == Failure {
private var subscriber: S?
private var job: Kotlinx_coroutines_coreJob? = nil
private let flow: CommonFlow<T>
init(flow: CommonFlow<T>, subscriber: S) {
self.flow = flow
self.subscriber = subscriber
job = flow.subscribe(
onEach: { el in subscriber.receive(el!) },
onComplete: { subscriber.receive(completion: .finished) },
onThrow: { error in debugPrint(error) }
)
}
func cancel() {
subscriber = nil
job?.cancel(cause: nil)
}
func request(_ demand: Subscribers.Demand) {}
}
}

// ...
// Expose Flow in a way that makes it possible to convert to Publisher in Swift.
fun subscribe(
onEach: (item: T) -> Unit,
onComplete: () -> Unit,
onThrow: (error: Throwable) -> Unit
) = this
.onEach { onEach(it) }
.catch { onThrow(it) }
.onCompletion { onComplete() }
.launchIn(CoroutineScope(Dispatchers.Main + job))
}

Convert Flows to Combine - Usage
KotlinFlowPublisher<NSString>(flow: model.listenToFlow())
.sink { data in
Swift.print("""
Receiving '(data)' on:
(PlatformUtilsKt.threadId())
""")
}
.store(in: &self.jobs)

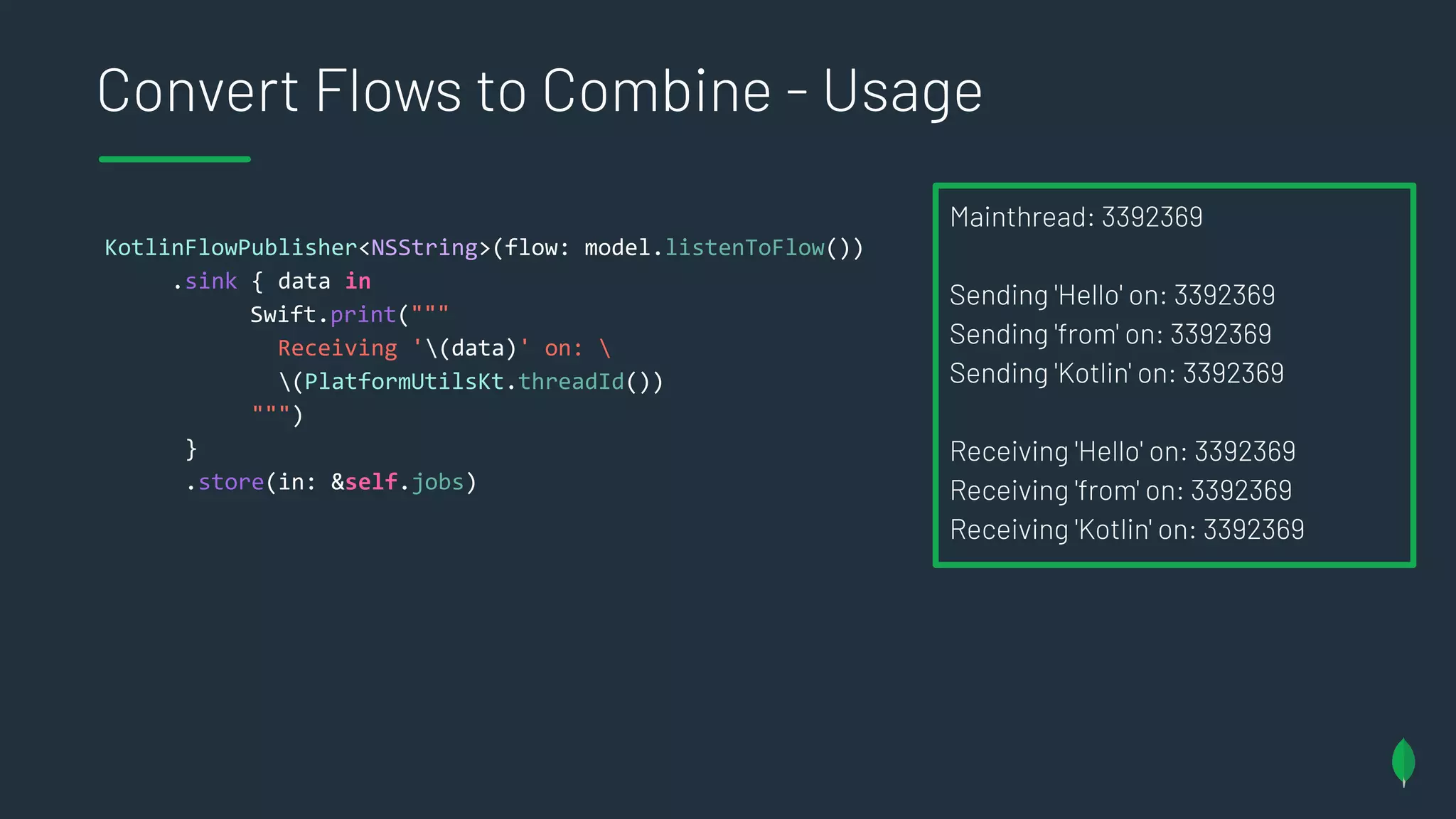

Convert Flows to Combine - Usage
.sink { data in
Swift.print("""
""")
}
Mainthread: 3392369
Sending 'Hello' on: 3392369
Sending 'from' on: 3392369
Sending 'Kotlin' on: 3392369
Receiving 'Hello' on: 3392369
Receiving 'from' on: 3392369
Receiving 'Kotlin' on: 3392369

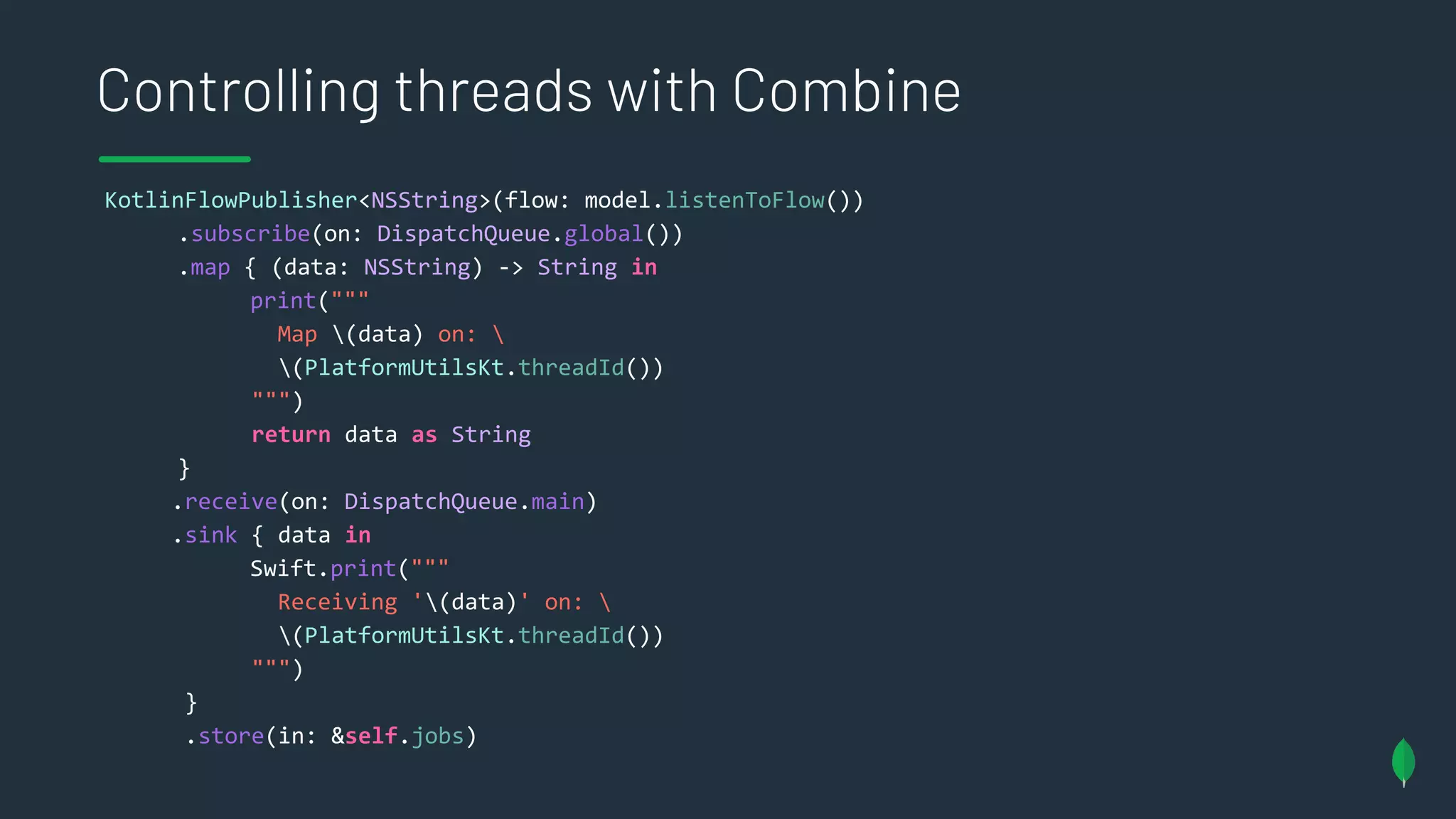

Controlling threads with Combine
.subscribe(on: DispatchQueue.global())
.map { (data: NSString) -> String in
print("""
Map (data) on:
""")
return data as String
}
.receive(on: DispatchQueue.main)
.sink { data in
Swift.print("""
""")
}

print("""
Map (data) on:
""")
}
.sink { data in
Swift.print("""
""")
}
Mainthread: 3392369
Map 'Hello' on: 3392369
Map 'from' on: 3392369
Map 'Kotlin' on: 3392369

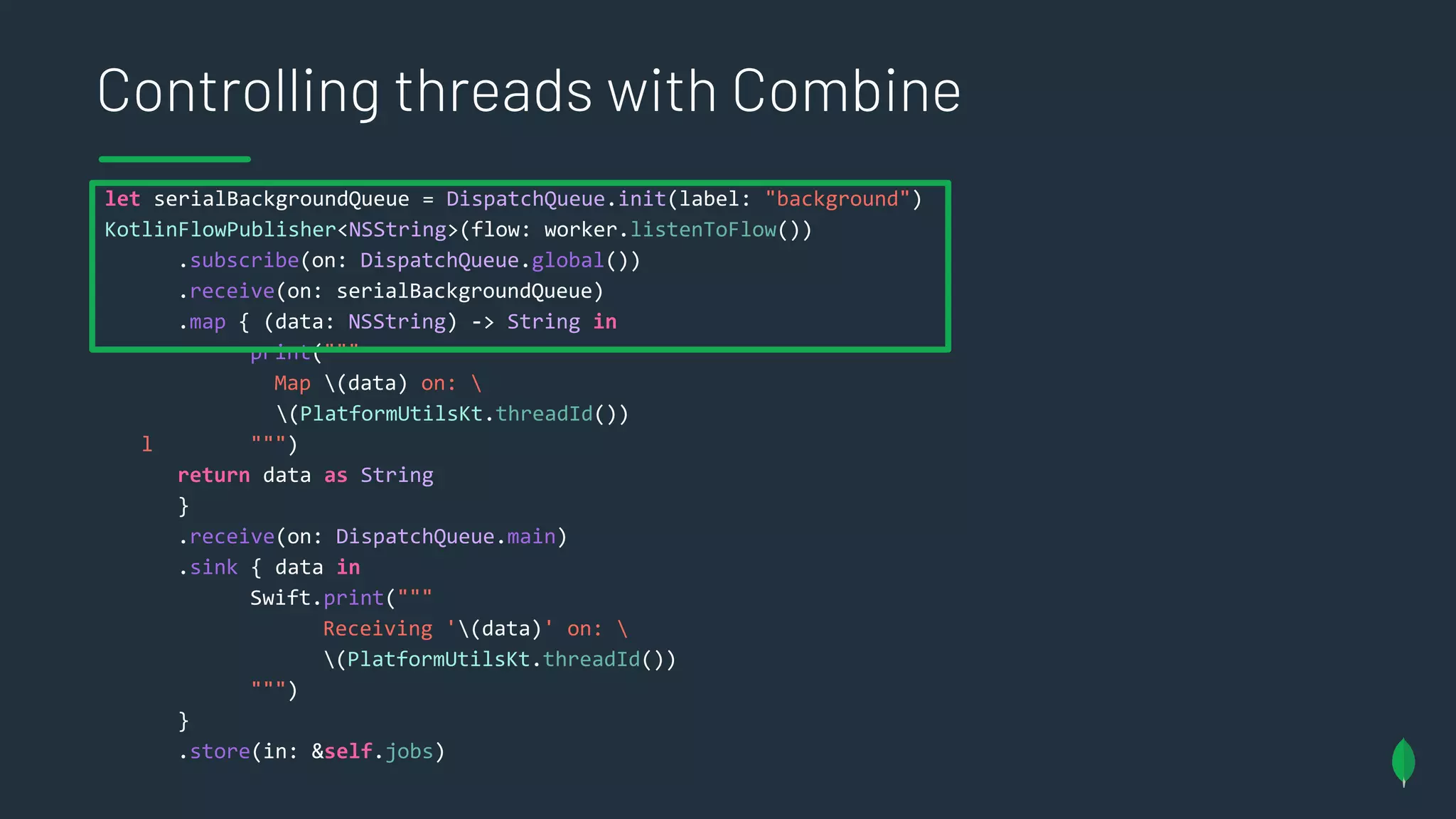

let serialBackgroundQueue = DispatchQueue.init(label: "background")
KotlinFlowPublisher<NSString>(flow: worker.listenToFlow())
.receive(on: serialBackgroundQueue)
print("""
Map (data) on:
l """)
}
.sink { data in
Swift.print("""
""")
}

let serialBackgroundQueue = DispatchQueue.init(label: "background")
KotlinFlowPublisher<NSString>(flow: worker.listenToFlow())
.receive(on: serialBackgroundQueue)
print("""
Map (data) on:
""")
}
.sink { data in
Swift.print("""
""")
}
Map Hello on: 3420430
Map from on: 3420430
Map Kotlin on: 3420430

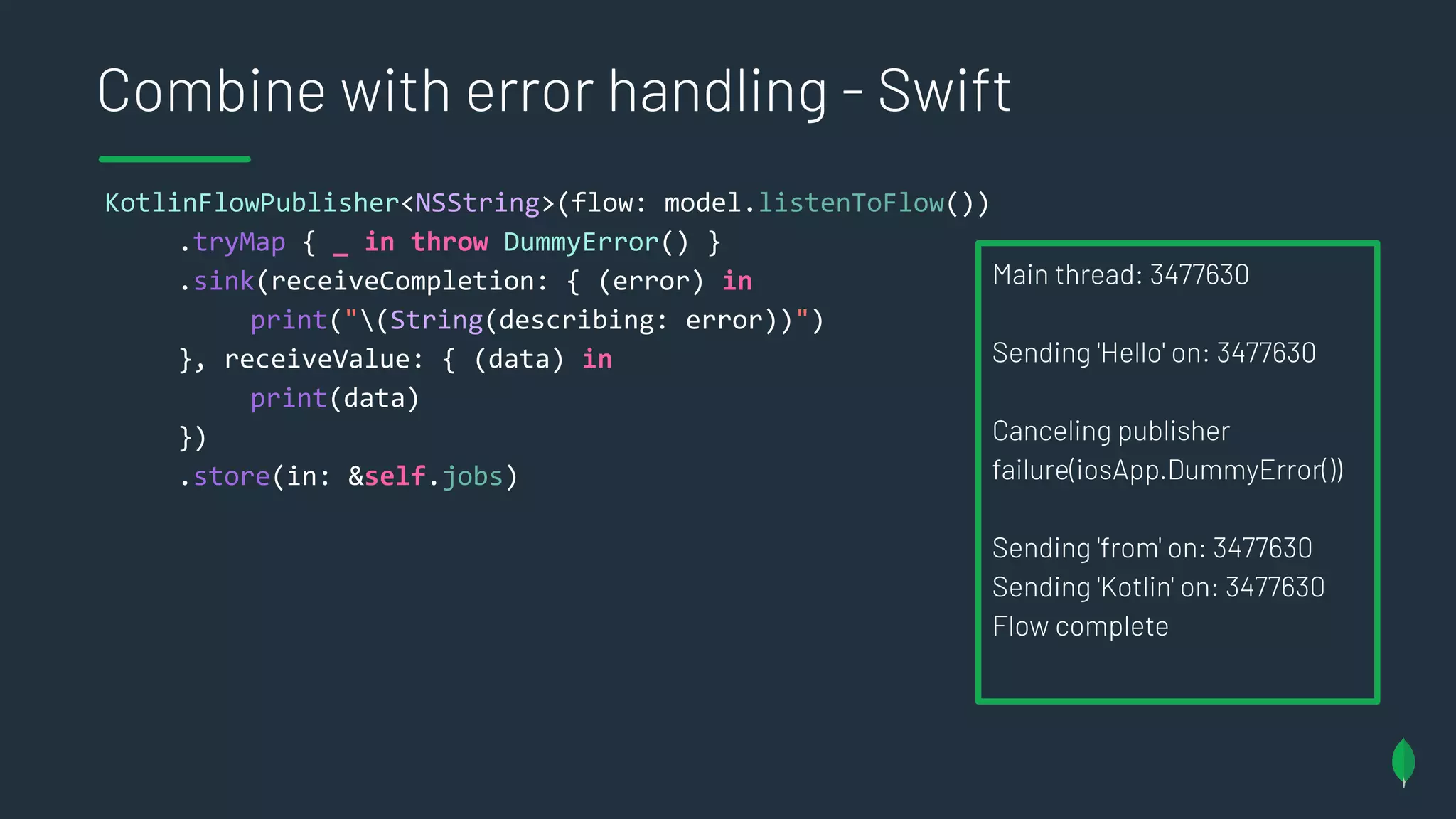

Combine with error handling - Swift
.tryMap { _ in throw DummyError() }
.sink(receiveCompletion: { (error) in
print("(String(describing: error))")
}, receiveValue: { (data) in
print(data)
})

.tryMap { _ in throw DummyError() }
.sink(receiveCompletion: { (error) in
print(data)
})
Canceling publisher
failure(iosApp.DummyError())
Flow complete

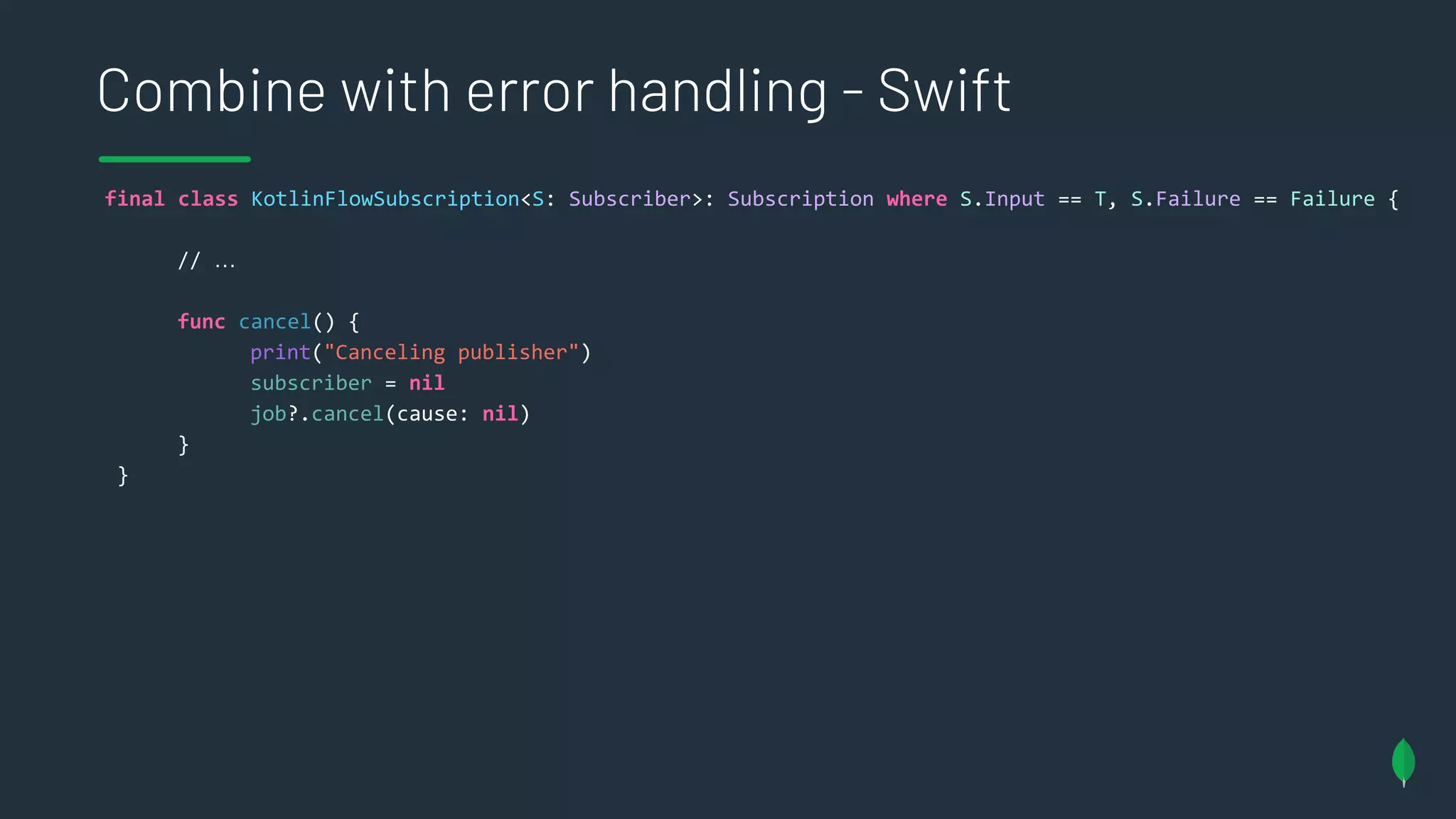

final class KotlinFlowSubscription<S: Subscriber>: Subscription where S.Input == T, S.Failure == Failure {
// …
func cancel() {
print("Canceling publisher")
subscriber = nil
job?.cancel(cause: nil)
}
}

Combine with error handling - Kotlin
private val counter = atomic(1)
.onEach {
}
.asCommonFlow()

Combine with error handling
public struct KotlinFlowError: Error { … }
public struct KotlinFlowPublisher<T: AnyObject>: Publisher {
public typealias Output = T
public typealias Failure = KotlinFlowError
...
job = flow.subscribe(
onEach: { el in subscriber.receive(el!) },
onComplete: { subscriber.receive(completion: .finished) },
onThrow: { (error: KotlinThrowable) in
let wrappedError = KotlinFlowError(error: error)
subscriber.receive(completion: .failure(wrappedError))
}
)

KotlinFlowPublisher<NSString>(flow: model.listToFlowThatThrows())
.sink(receiveCompletion: { error in
Swift.print("""
""")
})
.store(in: &jobs)

KotlinFlowPublisher<NSString>(flow: model.listToFlowThatThrows())
.sink(receiveCompletion: { error in
Swift.print("""
""")
})
.store(in: &jobs)
Catching error:
kotlin.RuntimeException:
Canceling publisher
failure(iosApp.KotlinFlowError())
Flow complete

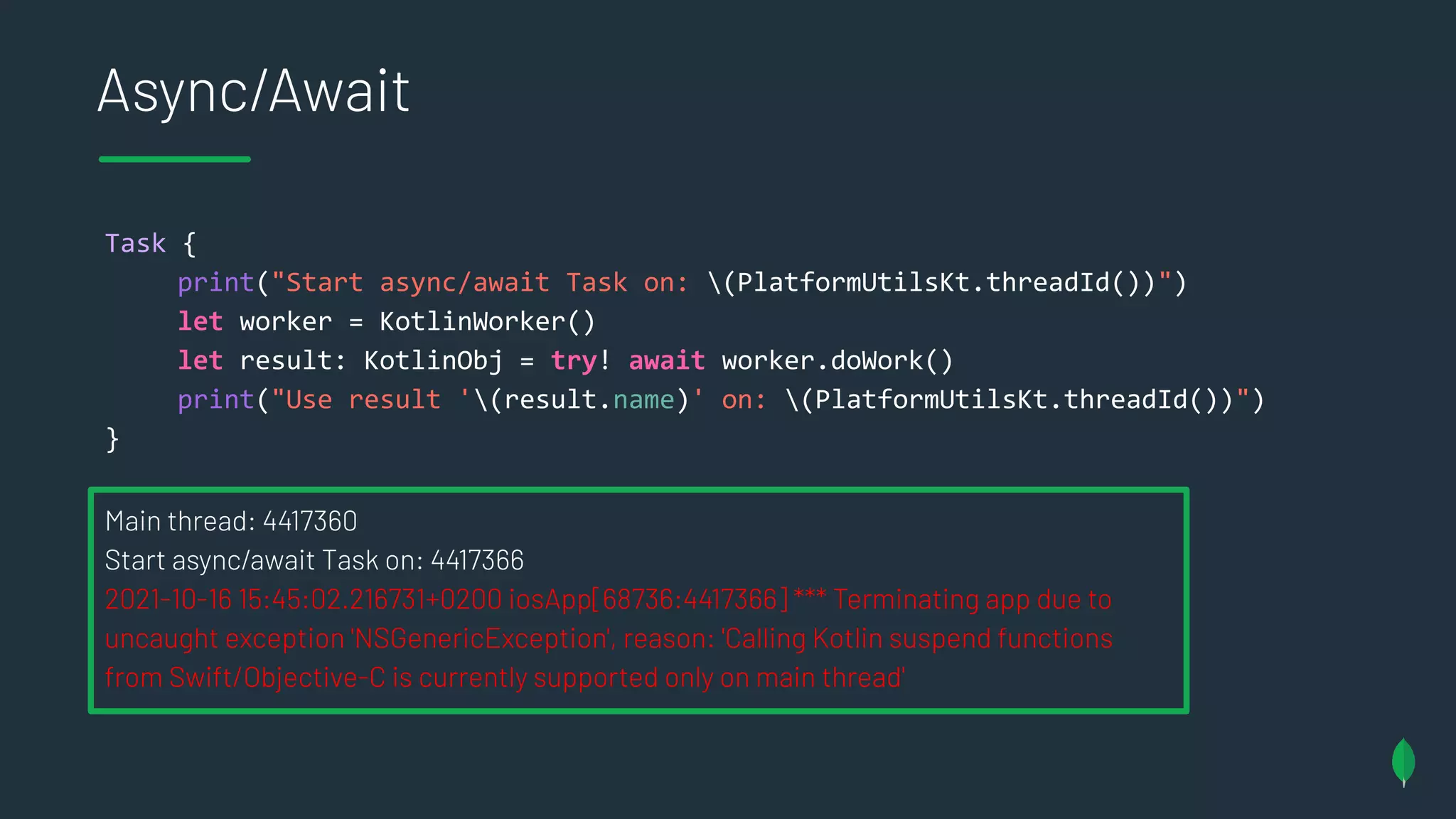

Async/Await
Task {
print("Start async/await Task on: (PlatformUtilsKt.threadId())")
let worker = KotlinWorker()
let result: KotlinObj = try! await worker.doWork()
print("Use result '(result.name)' on: (PlatformUtilsKt.threadId())")
}

Async/Await
Task {
let result: KotlinObj = try! await worker.doWork()
}
Start async/await Task on: 4417366
2021-10-16 15:45:02.216731+0200 iosApp[68736:4417366] *** Terminating app due to
uncaught exception 'NSGenericException', reason: 'Calling Kotlin suspend functions
from Swift/Objective-C is currently supported only on main thread'

Async/Await and controlling threads
func run() {
Task {
let result: KotlinObj = try! await callWorker()
}
}
@MainActor
func callWorker() async throws -> KotlinObj {
print("""Run Kotlin suspend function on:
(PlatformUtilsKt.threadId())""")
return try await worker.doWork()
}

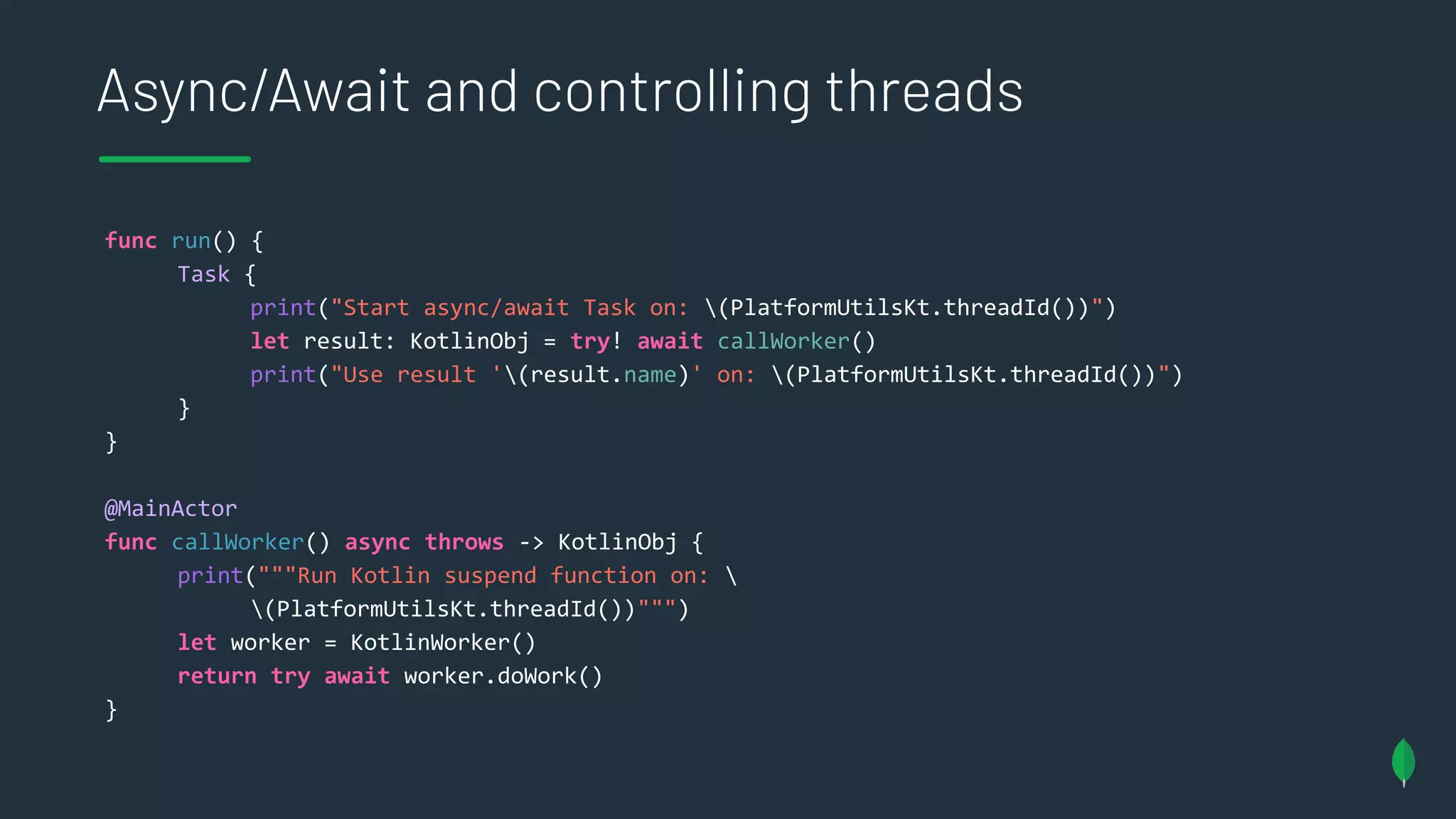

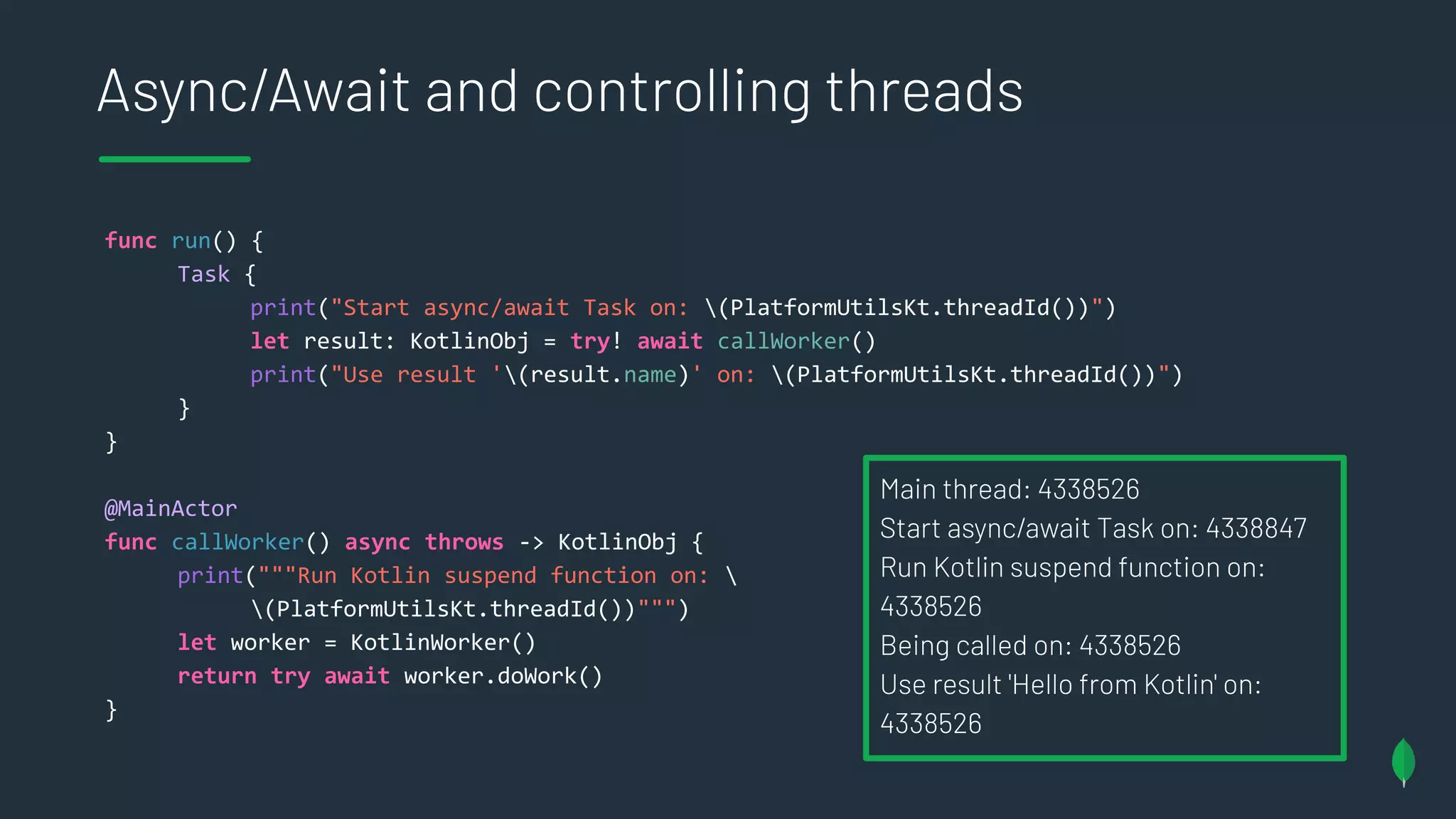

Async/Await and controlling threads
func run() {
Task {
let result: KotlinObj = try! await callWorker()
}
}
@MainActor
func callWorker() async throws -> KotlinObj {
print("""Run Kotlin suspend function on:
(PlatformUtilsKt.threadId())""")
return try await worker.doWork()
}
Start async/await Task on: 4338847
Run Kotlin suspend function on:
4338526
Use result 'Hello from Kotlin' on:
4338526

Async/Await with SwiftUI
struct ContentView: View {
@StateObject var vm = MyViewModel()
var body: some View {
Text(vm.name).task {
await vm.doWork()
}
}
}
class MyViewModel: ObservableObject {
@Published var name: String = "-"
init() {}
let worker = PracticalCoroutines()
func doWork() async {
self.name = try! await worker.doWork().name
}
}

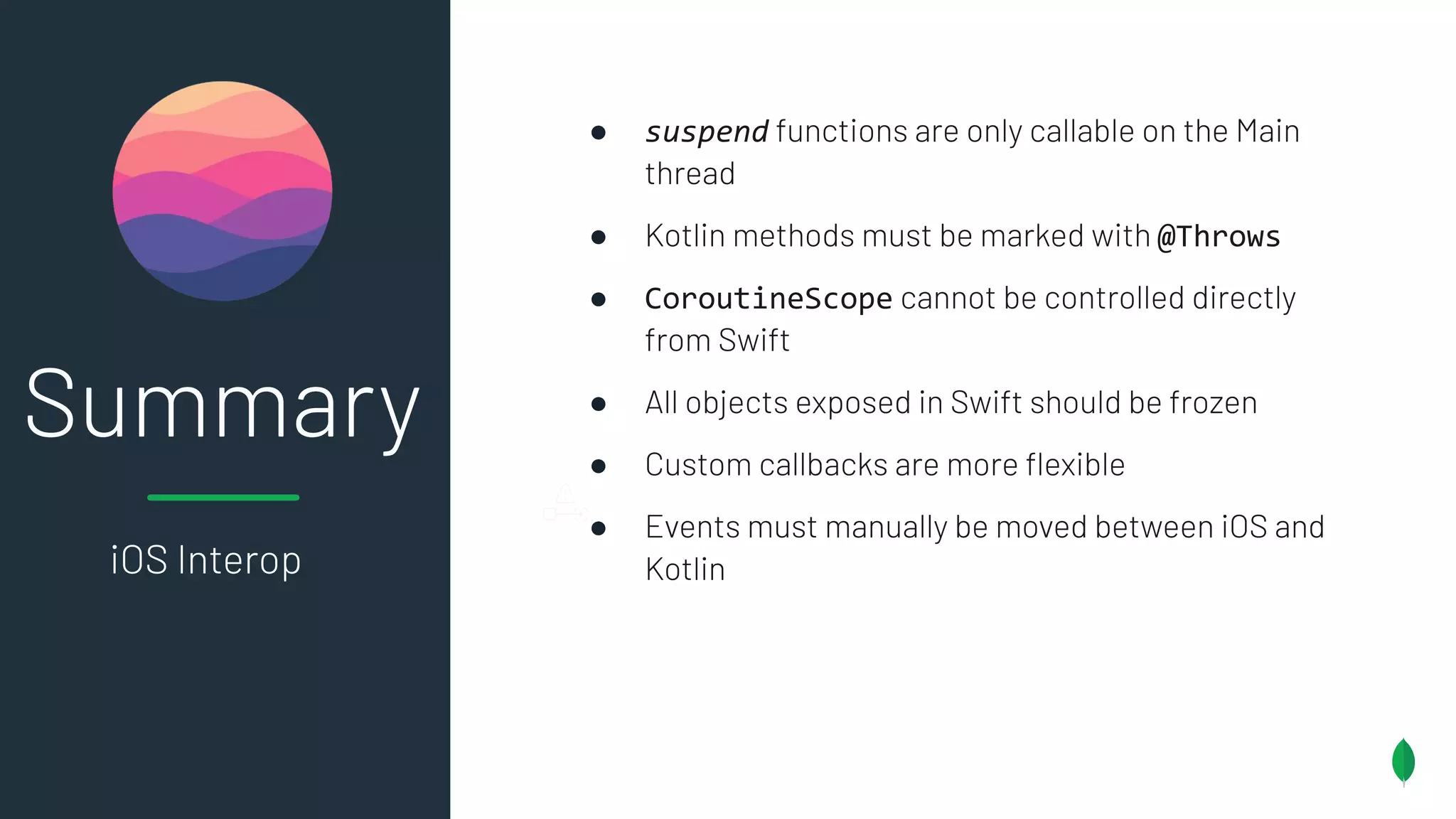

Summary
iOS Interop
● suspend functions are only callable on the Main
thread
● Kotlin methods must be marked with @Throws
● CoroutineScope cannot be controlled directly
from Swift
● All objects exposed in Swift should be frozen
● Custom callbacks are more ﬂexible
● Events must manually be moved between iOS and
Kotlin

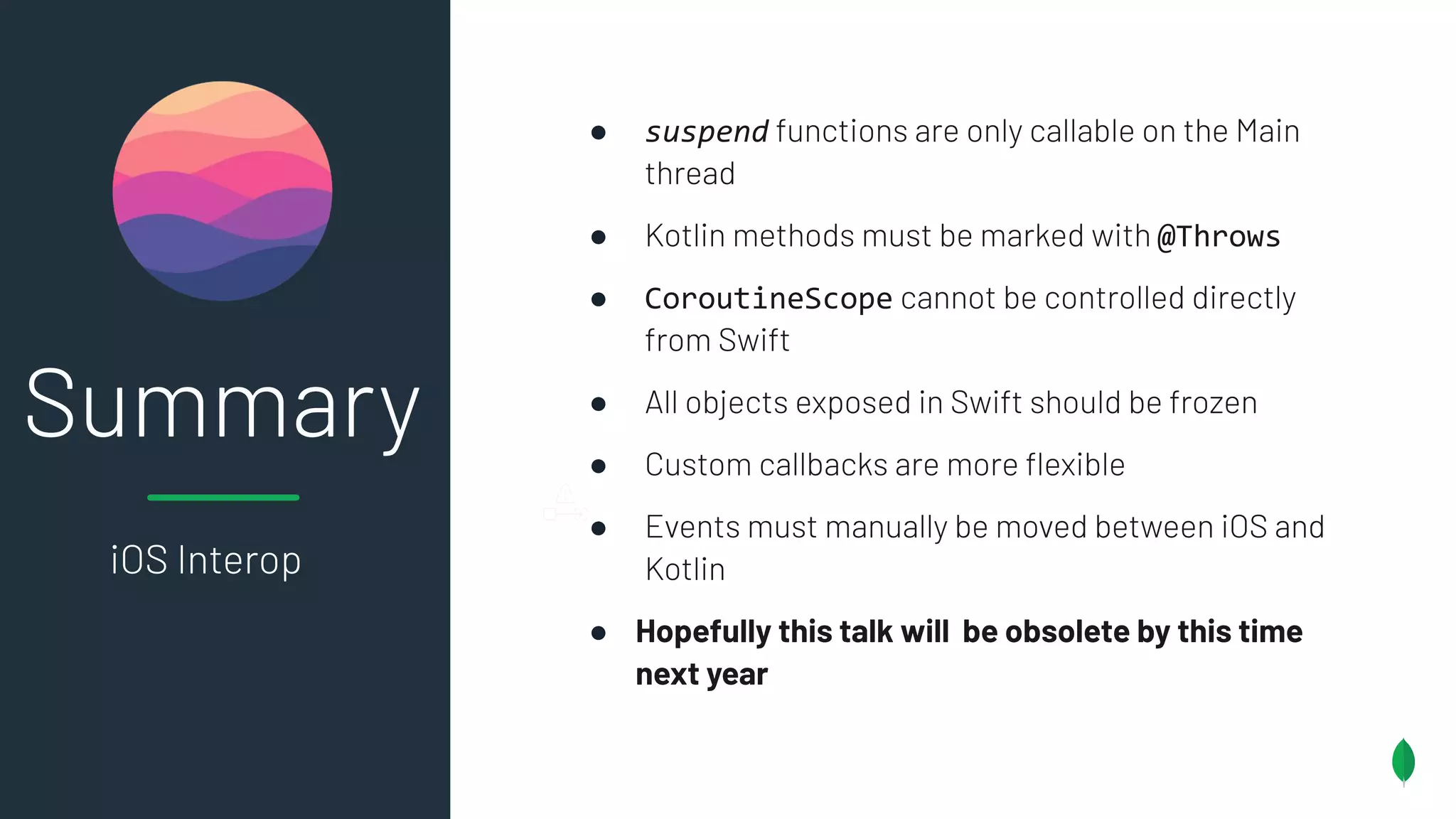

Summary
iOS Interop
● suspend functions are only callable on the Main
thread
● Kotlin methods must be marked with @Throws
● CoroutineScope cannot be controlled directly
from Swift
● All objects exposed in Swift should be frozen
● Custom callbacks are more ﬂexible
● Events must manually be moved between iOS and
Kotlin
● Hopefully this talk will be obsolete by this time
next year

QA
Resources
● https://github.com/realm/realm-kotlin/
● https://github.com/realm/realm-kotlin-samples
● https://www.mongodb.com/realm
THANK YOU
@chrmelchior

Coroutines for Kotlin Multiplatform in Practise

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Coroutines for Kotlin Multiplatform in Practise

Similar to Coroutines for Kotlin Multiplatform in Practise (20)

Recently uploaded

Recently uploaded (20)

Coroutines for Kotlin Multiplatform in Practise
