This document discusses how Puppet can be used to enable continuous integration (CI). Puppet allows infrastructure to be automated and treated as code, facilitating CI workflows where development, test, and production environments can be duplicated and changes deployed in a controlled manner. The document outlines a CI process where developers and operations teams commit code to a source control management system, a build server compiles and tests the application and Puppet code, simulates changes, and instructs the Puppet master to deploy updates to target environments according to a specific tag. This allows full environments rather than just applications to be compiled, packaged, and deployed through CI.

1. Continuous Integration
with Puppet

2. Miguel Zuniga
Arch / Lead / Principal / Speaker
since v. 0.22.2

3. Agenda
● Continuous Integration
● How puppet can help us on CI?
● Puppet Environments = CI Environments
● Package, Test, Deploy
● Infrastructure as Code
● Puppet and CI
● Q&A

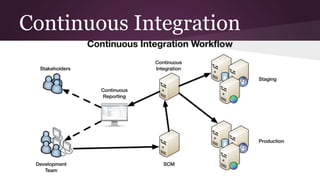

4. Continuous Integration

5. How puppet can help use on CI?
● Automate configuration of Infrastructure
● Automate package deployment
● Keep track of changes done at the infra layer
● Control where and when gets software setup
● Build server becomes… a build server.

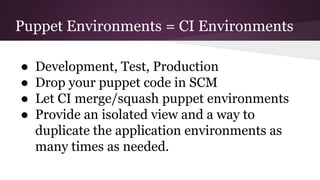

6. Puppet Environments = CI Environments
● Development, Test, Production
● Drop your puppet code in SCM
● Let CI merge/squash puppet environments
● Provide an isolated view and a way to
duplicate the application environments as
many times as needed.

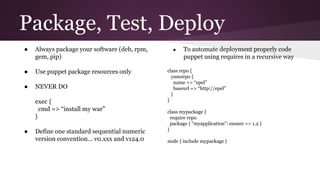

7. Package, Test, Deploy
● Always package your software (deb, rpm,
gem, pip)
● Use puppet package resources only
● NEVER DO
exec {
cmd => “install my war”
}
● Define one standard sequential numeric
version convention… v0.xxx and v124.0
● To automate deployment properly code
puppet using requires in a recursive way
class repo {
yumrepo {
name => “epel”
baseurl => “http://epel”
}
}
class mypackage {
require repo
package { “myapplication”: ensure => 1.2 }
}
node { include mypackage }

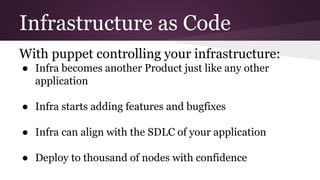

8. Infrastructure as Code
With puppet controlling your infrastructure:
● Infra becomes another Product just like any other
application
● Infra starts adding features and bugfixes
● Infra can align with the SDLC of your application
● Deploy to thousand of nodes with confidence

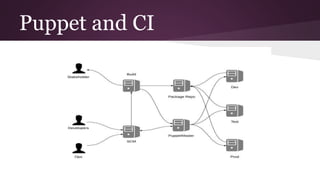

9. Puppet and CI

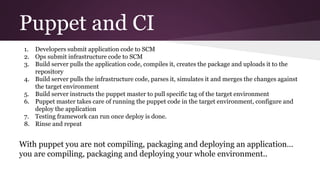

10. Puppet and CI
1. Developers submit application code to SCM
2. Ops submit infrastructure code to SCM
3. Build server pulls the application code, compiles it, creates the package and uploads it to the
repository
4. Build server pulls the infrastructure code, parses it, simulates it and merges the changes against
the target environment
5. Build server instructs the puppet master to pull specific tag of the target environment
6. Puppet master takes care of running the puppet code in the target environment, configure and
deploy the application
7. Testing framework can run once deploy is done.
8. Rinse and repeat
With puppet you are not compiling, packaging and deploying an application…
you are compiling, packaging and deploying your whole environment..

11. Q&A
Thank you
tweet @mike_zuniga
github.com/mikezuniga
G+ +miguelzuniga
Linkedin /in/miguelzuniga
