1. MOTOTRBO™
SLSERIES
DigitalTwo-way
PortableRadioWherefunctionmeetsstyle

2. Digital has never looked better
From the concierge desk to the convention centre, MOTOTRBO™
SL Series
keeps you instantly connected and in control with an incredibly sleek and
light radio for the ultimate in discreet communication.
Versatile and powerful, our revolutionary MOTOTRBO portable combines
the best of two-way radio functionality with the latest digital technology.
SL Series radios integrate voice and data seamlessly, offer enhanced
features that are easy to use, such as integrated Bluetooth®, covert
mode, vibrate alert and Intelligent Audio. Designed in a small form factor
so sophisticated, it is like no other radio you have used.
Only the SL Series enhances your professionalism, so you can remaster
your productivity and image like never before.
www.bluetechwireless.net

3. PAGE 3
MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
DISCREET WAS NEVER SO SLEEK
Everything about the SL Series portable is designed for
discretion and professionalism. From its incredibly sleek
shape –so your staff will always look professional –to its
exceptionally slim size. Hold it in your hand and feel how
light it is –less than half the weight of a standard radio.
It’s so effortless to carry, comfortable to wear and elegant
in styling, it complements the most upscale attire.
The accessories are also designed to complement the sleek,
compact design of the SL Series portables. Bluetooth®
wireless and compact single-wire earpieces enhance
discreet communication and increase client satisfaction.
AUDIO BEYOND EXPECTATIONS
When it comes to exceptional audio clarity, the quality of
digital can’t be surpassed. With the SL Series portables,
you get digital quality plus unique features to help your
employees hear and speak clearly, wherever they work.
With the Intelligent Audio feature, the radio volume
automatically adjusts to compensate for background noise
so managers won’t miss a call on the manufacturing floor
or disturb others when they return to the main office. The
radio’s background noise suppression filters out external
clamour – from crowded conventions to bustling airport
gates. And Bluetooth®
audio, embedded right in the radio,
provides wireless voice communication with outstanding
clarity and discretion.
INTEGRATED DATA SOLUTIONS
Whether the front desk is assisting a guest or the
event planner is preparing for a special event, sharing
information instantly is paramount. The SL Series features
text messaging and embedded Bluetooth®
data in the radio
so work teams can share real time information, saving
valuable hours and enabling better decision making.
Plus your staff can read work order tickets and text
messages quickly and clearly on the large, high resolution,
full-colour screen.
Take a look at the enhanced work order ticket
management in the SL Series and see what true efficiency
can be. We’ve eliminated a number of steps to read work
order tickets and the five line display presents data at
a glance–saving time and eliminating scrolling through
screens.
And Motorola’s Application Developer Program offers
customised data applications tailored to your operations.
With the largest developer program in the industry, data
applications help meet your objectives – from email
gateways to telephony integration, and more.
COVERT WHEN IT COUNTS
Put the SL Series radio in covert mode and it goes dark –
shielding the display, LED lights and audible tones –for the
ultimate in discretion. Your security personnel can hear
clearly using our inconspicuous audio accessories, but
no one else can. These accessories – a swivel earpiece
or surveillance earpiece with a translucent tube – are
so small, sleek and powerful, your staff can converse
privately and conveniently wherever they work. For further
discretion, they can use the vibrate alert feature to switch
the radio to vibrate mode and never disturb or interrupt
guests again.
EXCEPTIONALLY INTUITIVE
The high resolution, full colour screen on the SL Series
portable automatically senses ambient light and adjusts
backlighting for optimal viewing in all kinds of conditions. It
also features a full keypad and an enhanced programmable
button that manages up to nine frequently used features.
Press a button and access all of your contacts or check the
status of a work ticket with just a touch.
Customisable voice announcement provides audible
confirmation so a user can be notified of channel and zone
changes or programmable button statuses without having
to view the radio display.
MOTOROLA’S
APPLICATION DEVELOPER
PROGRAM: BUILT FOR
YOUR BUSINESS
Powerful and flexible,
MOTOTRBO is a business
critical communication tool that
adapts to your workforce, your
customers and your operations.
With the industry’s largest
Application Developer Program,
MOTOTRBO offers a wide
array of data applications to
expand communication beyond
voice. What’s more, you can
work directly with third-party
developers or your own IT
staff to create customised
applications designed for your
unique needs.
Work order tickets for faster customer
response
Integrated Bluetooth® for sharing data
wirelessly and instantly between devices
Dispatch consoles for centralised
communication
Email gateways to connect to email from
your radio
Keep business running smoothly with business applications:
Network monitoring to maximise system
utilisation
Man-down applications so radios call for
help when workers can’t
Telephony for communication between
radios and landline or mobile phones
Text messaging for quick and discreet
communication

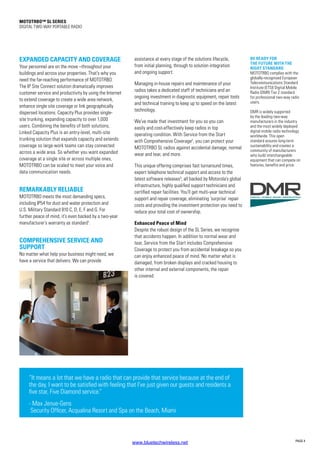

4. MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
PAGE 4
BE READY FOR
THE FUTURE WITH THE
RIGHT STANDARD
MOTOTRBO complies with the
globally-recognised European
Telecommunications Standard
Institute (ETSI) Digital Mobile
Radio (DMR) Tier 2 standard
for professional two-way radio
users.
DMR is widely supported
by the leading two-way
manufacturers in the industry
and the most widely deployed
digital mobile radio technology
worldwide. This open
standard assures long-term
sustainability and creates a
community of manufacturers
who build interchangeable
equipment that can compete on
features, benefits and price.
EXPANDED CAPACITY AND COVERAGE
Your personnel are on the move –throughout your
buildings and across your properties. That’s why you
need the far-reaching performance of MOTOTRBO.
The IP Site Connect solution dramatically improves
customer service and productivity by using the Internet
to extend coverage to create a wide area network,
enhance single site coverage or link geographically
dispersed locations. Capacity Plus provides single-
site trunking, expanding capacity to over 1,000
users. Combining the benefits of both solutions,
Linked Capacity Plus is an entry-level, multi-site
trunking solution that expands capacity and extends
coverage so large work teams can stay connected
across a wide area. So whether you want expanded
coverage at a single site or across multiple ones,
MOTOTRBO can be scaled to meet your voice and
data communication needs.
REMARKABLY RELIABLE
MOTOTRBO meets the most demanding specs,
including IP54 for dust and water protection and
U.S. Military Standard 810 C, D, E, F and G. For
further peace of mind, it’s even backed by a two-year
manufacturer’s warranty as standard1
.
COMPREHENSIVE SERVICE AND
SUPPORT
No matter what help your business might need, we
have a service that delivers. We can provide
assistance at every stage of the solutions lifecycle,
from initial planning, through to solution integration
and ongoing support.
Managing in-house repairs and maintenance of your
radios takes a dedicated staff of technicians and an
ongoing investment in diagnostic equipment, repair tools
and technical training to keep up to speed on the latest
technology.
We’ve made that investment for you so you can
easily and cost-effectively keep radios in top
operating condition. With Service from the Start
with Comprehensive Coverage2
, you can protect your
MOTOTRBO SL radios against accidental damage, normal
wear and tear, and more.
This unique offering comprises fast turnaround times,
expert telephone technical support and access to the
latest software releases3
; all backed by Motorola’s global
infrastructure, highly qualified support technicians and
certified repair facilities. You’ll get multi-year technical
support and repair coverage, eliminating ‘surprise’ repair
costs and providing the investment protection you need to
reduce your total cost of ownership.
Enhanced Peace of Mind
Despite the robust design of the SL Series, we recognise
that accidents happen. In addition to normal wear and
tear, Service from the Start includes Comprehensive
Coverage to protect you from accidental breakage so you
can enjoy enhanced peace of mind. No matter what is
damaged, from broken displays and cracked housing to
other internal and external components, the repair
is covered.
“It means a lot that we have a radio that can provide that service because at the end of
the day, I want to be satisfied with feeling that I’ve just given our guests and residents a
five star, Five Diamond service.”
- Max Jenue-Gens
Security Officer, Acqualina Resort and Spa on the Beach, Miami
www.bluetechwireless.net

5. MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
PAGE 5

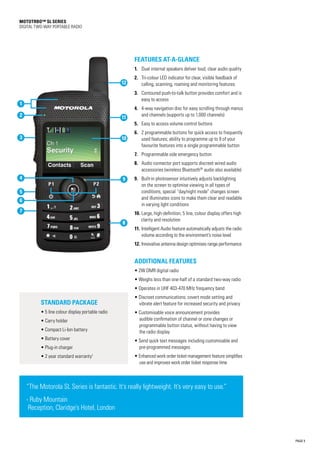

Features At-A-Glance
1. Dual internal speakers deliver loud, clear audio quality
2. Tri-colour LED indicator for clear, visible feedback of
calling, scanning, roaming and monitoring features.
3. Contoured push-to-talk button provides comfort and is
easy to access
4. 4-way navigation disc for easy scrolling through menus
and channels (supports up to 1,000 channels)
5. Easy to access volume control buttons
6. 2 programmable buttons for quick access to frequently
used features; ability to programme up to 9 of your
favourite features into a single programmable button
7. Programmable side emergency button
8. Audio connector port supports discreet wired audio
accessories (wireless Bluetooth®
audio also available)
9. Built-in photosensor intuitively adjusts backlighting
on the screen to optimise viewing in all types of
conditions, special “day/night mode” changes screen
and illuminates icons to make them clear and readable
in varying light conditions
10. Large, high-definition, 5 line, colour display offers high
clarity and resolution
11. Intelligent Audio feature automatically adjusts the radio
volume according to the environment’s noise level
12. Innovative antenna design optimises range performance
Additional Features
• 2W DMR digital radio
• Weighs less than one-half of a standard two-way radio
• Operates in UHF 403-470 MHz frequency band
• Discreet communications; covert mode setting and
vibrate alert feature for increased security and privacy
• Customisable voice announcement provides
audible confirmation of channel or zone changes or
programmable button status, without having to view
the radio display
• Send quick text messages including customisable and
pre-programmed messages
• Enhanced work order ticket management feature simplifies
use and improves work order ticket response time
Standard Package
• 5 line colour display portable radio
• Carry holder
• Compact Li-Ion battery
• Battery cover
• Plug-in charger
• 2 year standard warranty1
1
12
2
3
4
6
5
7
11
10
9
8
“The Motorola SL Series is fantastic. It’s really lightweight. It’s very easy to use.”
- Ruby Mountain
Reception, Claridge’s Hotel, London

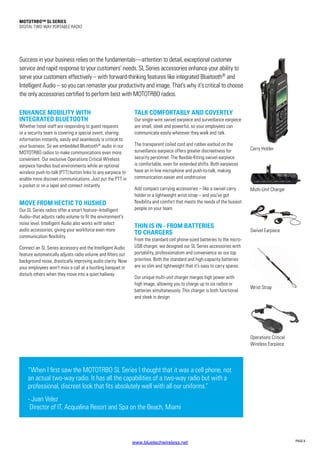

6. MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
PAGE 6
Success in your business relies on the fundamentals—attention to detail, exceptional customer
service and rapid response to your customers’ needs. SL Series accessories enhance your ability to
serve your customers effectively – with forward-thinking features like integrated Bluetooth®
and
Intelligent Audio – so you can remaster your productivity and image. That’s why it’s critical to choose
the only accessories certified to perform best with MOTOTRBO radios.
ENHANCE MOBILITY WITH
INTEGRATED BLUETOOTH
Whether hotel staff are responding to guest requests
or a security team is covering a special event, sharing
information instantly, easily and seamlessly is critical to
your business. So we embedded Bluetooth®
audio in our
MOTOTRBO radios to make communications even more
convenient. Our exclusive Operations Critical Wireless
earpiece handles loud environments while an optional
wireless push-to-talk (PTT) button links to any earpiece to
enable more discreet communications. Just put the PTT in
a pocket or on a lapel and connect instantly.
MOVE FROM HECTIC TO HUSHED
Our SL Series radios offer a smart feature–Intelligent
Audio–that adjusts radio volume to fit the environment’s
noise level. Intelligent Audio also works with select
audio accessories, giving your workforce even more
communication flexibility.
Connect an SL Series accessory and the Intelligent Audio
feature automatically adjusts radio volume and filters out
background noise, drastically improving audio clarity. Now
your employees won’t miss a call at a bustling banquet or
disturb others when they move into a quiet hallway.

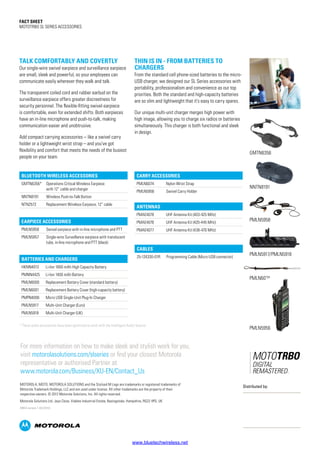

TALK COMFORTABLY AND COVERTLY
Our single-wire swivel earpiece and surveillance earpiece
are small, sleek and powerful, so your employees can
communicate easily wherever they walk and talk.
The transparent coiled cord and rubber earbud on the
surveillance earpiece offers greater discreetness for
security personnel. The flexible-fitting swivel earpiece
is comfortable, even for extended shifts. Both earpieces
have an in-line microphone and push-to-talk, making
communication easier and unobtrusive.
Add compact carrying accessories – like a swivel carry
holder or a lightweight wrist strap – and you’ve got
flexibility and comfort that meets the needs of the busiest
people on your team.
THIN IS IN - FROM BATTERIES
TO CHARGERS
From the standard cell phone-sized batteries to the micro-
USB charger, we designed our SL Series accessories with
portability, professionalism and convenience as our top
priorities. Both the standard and high-capacity batteries
are so slim and lightweight that it’s easy to carry spares.
Our unique multi-unit charger merges high power with
high image, allowing you to charge up to six radios or
batteries simultaneously. This charger is both functional
and sleek in design.
Multi-Unit Charger
Carry Holder
“When I first saw the MOTOTRBO SL Series I thought that it was a cell phone, not
an actual two-way radio. It has all the capabilities of a two-way radio but with a
professional, discreet look that fits absolutely well with all our uniforms.”
- Juan Velez
Director of IT, Acqualina Resort and Spa on the Beach, Miami
Wrist Strap
Operations Critical
Wireless Earpiece
Swivel Earpiece
www.bluetechwireless.net

7. MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
PAGE 7

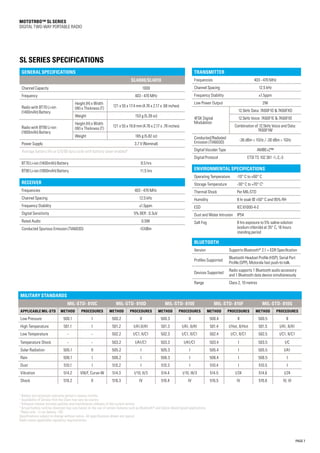

SL SERIES Specifications
GENERAL SPECIFICATIONS
SL4000/SL4010
Channel Capacity 1000
Frequency 403 - 470 MHz
Radio with BT70 Li-ion
(1400mAh) Battery
Height (H) x Width
(W) x Thickness (T)
121 x 55 x 17.4 mm (4.76 x 2.17 x .68 inches)
Weight 153 g (5.39 oz)
Radio with BT90 Li-ion
(1800mAh) Battery
Height (H) x Width
(W) x Thickness (T)
121 x 55 x 19.8 mm (4.76 x 2.17 x .78 inches)
Weight 165 g (5.82 oz)
Power Supply 3.7 V (Nominal)
Average battery life at 5/5/90 duty cycle with battery saver enabled4
BT70 Li-ion (1400mAh) Battery 8.5 hrs
BT90 Li-ion (1800mAh) Battery 11.5 hrs
RECEIVER
Frequencies 403 - 470 MHz
Channel Spacing 12.5 kHz
Frequency Stability ±1.5ppm
Digital Sensitivity 5% BER : 0.3uV
Rated Audio 0.5W
Conducted Spurious Emission (TIA603D) -57dBm
TRANSMITTER
Frequencies 403 - 470 MHz
Channel Spacing 12.5 kHz
Frequency Stability ±1.5ppm
Low Power Output 2W
4FSK Digital
Modulation
12.5kHz Data: 7K60F1D 7K60FXD
12.5kHz Voice: 7K60F1E 7K60FXE
Combination of 12.5kHz Voice and Data:
7K60F1W
Conducted/Radiated
Emission (TIA603D)
-36 dBm 1GHz / -30 dBm 1GHz
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI TS 102 361 -1,-2,-3
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -10° C to +60° C
Storage Temperature -30° C to +70° C5
Thermal Shock Per MIL-STD
Humidity 8 hr soak @ +50° C and 95% RH
ESD IEC 61000-4-2
Dust and Water Intrusion IP54
Salt Fog 8 hrs exposure to 5% saline solution
(sodium chloride) at 35° C, 16 hours
standing period
1
Battery and accessory warranty period is twelve months.
2
Availability of Service from the Start may vary by country.
3
Software release includes patches and maintenance releases of the current version
4
Actual battery runtime observed may vary based on the use of certain features such as Bluetooth®
and Option Board based applications.
5
Radio only - Li-ion battery -10C
Specifications subject to change without notice. All specifications shown are typical.
Radio meets applicable regulatory requirementes.
MILITARY STANDARDS
MIL-STD- 810C MIL-STD- 810D MIL-STD- 810E MIL-STD- 810F MIL-STD- 810G
Applicable MIL-STD Method Procedures Method Procedures Method Procedures Method Procedures Method Procedures
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 500.5 II
High Temperature 501.1 I 501.2 I/A1,II/A1 501.3 I/A1, II/A1 501.4 I/Hot, II/Hot 501.5 I/A1, II/A1
Low Temperature - - 502.2 I/C1, II/C1 502.3 I/C1, II/C1 502.4 I/C1, II/C1 502.5 I/C1, II/C1
Temperature Shock - - 503.2 I/A1/C1 503.3 I/A1/C1 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I/A1
Rain 506.1 I 506.2 I 506.3 I 506.4 I 506.5 I
Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Vibration 514.2 VIII/F, Curve-W 514.3 I/10, II/3 514.4 I/10, III/3 514.5 I/24 514.6 I/24
Shock 516.2 II 516.3 IV 516.4 IV 516.5 IV 516.6 IV, VI
BLUETOOTH
Version Supports Bluetooth®
2.1 + EDR Specification
Profiles Supported
Bluetooth Headset Profile (HSP), Serial Port
Profile (SPP), Motorola fast push-to-talk.
Devices Supported
Radio supports 1 Bluetooth audio accessory
and 1 Bluetooth data device simultaneously
Range Class 2, 10 metres

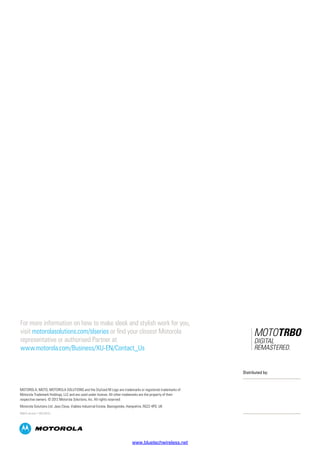

8. For more information on how to make sleek and stylish work for you,
visit motorolasolutions.com/slseries or find your closest Motorola
representative or authorised Partner at
www.motorola.com/Business/XU-EN/Contact_Us
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their
respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
Motorola Solutions Ltd. Jays Close, Viables Industrial Estate, Basingstoke, Hampshire, RG22 4PD, UK
EMEA version 1 (02/2012)
Distributed by:
www.bluetechwireless.net

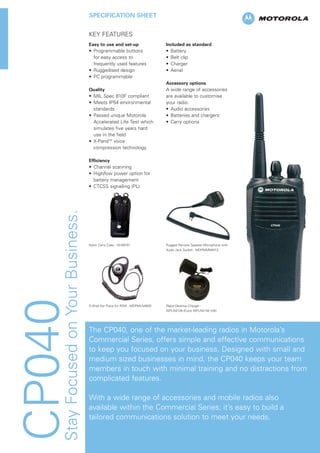

9. CP040StayFocusedonYourBusiness.
SPECIFICATION SHEET
KEY FEATURES
Easy to use and set-up
• Programmable buttons
for easy access to
frequently used features
• Ruggedised design
• PC programmable
Quality
• MIL Spec 810F compliant
• Meets IP54 environmental
standards
• Passed unique Motorola
Accelerated Life Test which
simulates five years hard
use in the field
• X-PandTM
voice
compression technology
Efficiency
• Channel scanning
• High/low power option for
battery management
• CTCSS signalling (PL)
Included as standard
• Battery
• Belt clip
• Charger
• Aerial
Accessory options
A wide range of accessories
are available to customise
your radio.
• Audio accessories
• Batteries and chargers
• Carry options
The CP040, one of the market-leading radios in Motorola’s
Commercial Series, offers simple and effective communications
to keep you focused on your business. Designed with small and
medium sized businesses in mind, the CP040 keeps your team
members in touch with minimal training and no distractions from
complicated features.
With a wide range of accessories and mobile radios also
available within the Commercial Series; it’s easy to build a
tailored communications solution to meet your needs.
Nylon Carry Case - HLN9701
D-Shell Ear Piece for RSM - MDPMLN4620
Rugged Remote Speaker Microphone with
Audio Jack Socket - MDPMMN4013
Rapid Desktop Charger -
WPLN4139 (Euro) WPLN4140 (UK)

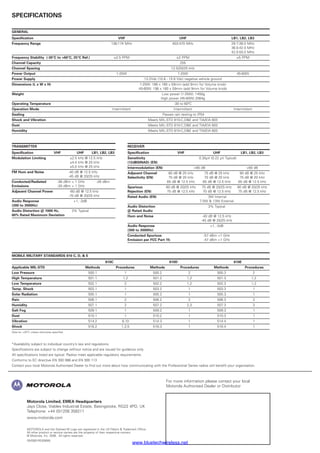

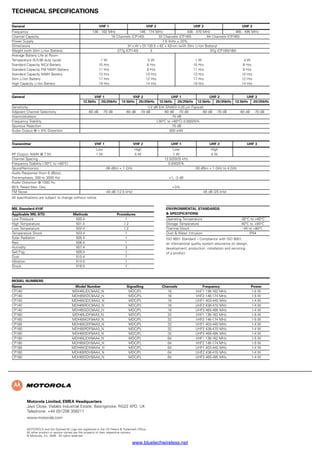

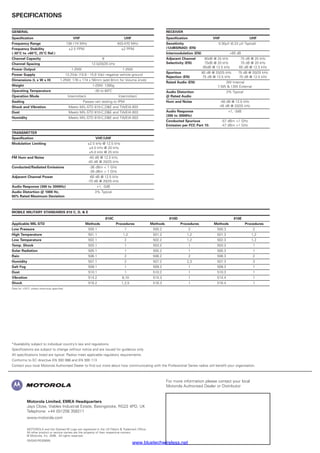

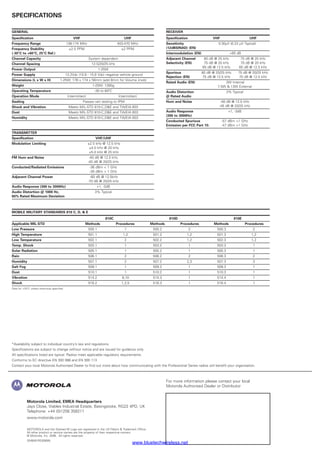

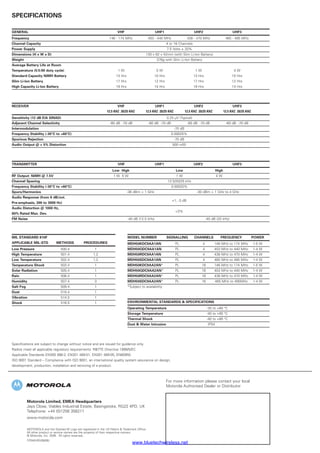

10. SPECIFICATIONS
Motorola Limited, EMEA Headquarters
Jays Close, Viables Industrial Estate, Basingstoke, RG22 4PD, UK
Telephone: +44 (0)1256 358211
www.motorola.com
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006. All rights reserved.
CP040-RE(09/06)
For more information please contact your local
Motorola Authorised Dealer or Distributor
Specifications are subject to change without notice and are issued for guidance only.
Radios meet all applicable regulatory requirements: RTTE Directive 1999/5/EC
Applicable Standards EN300 086-2, EN301 489-01, EN301 489-05, EN60950
ISO 9001 Standard – Compliance with ISO 9001, an international quality system assurance on design,
development, production, installation and servicing of a product.
GENERAL VHF UHF1 UHF2 UHF3
Frequency 146 - 174 MHz 403 - 440 MHz 438 - 470 MHz 465 - 495 MHz
Channel Capacity 4 or 16 Channels
Power Supply 7.5 Volts ± 20%
Dimensions (H x W x D) 130 x 62 x 42mm (with Slim Li-Ion Battery)
Weight 376g with Slim Li-Ion Battery
Average Battery Life at Room
Temperature (5:5:90 duty cycle) 1 W 5 W 1 W 4 W
Standard Capacity NiMH Battery 13 Hrs 10 Hrs 13 Hrs 10 Hrs
Slim Li-Ion Battery 17 Hrs 12 Hrs 17 Hrs 12 Hrs
High Capacity Li-Ion Battery 19 Hrs 14 Hrs 19 Hrs 14 Hrs
RECEIVER VHF UHF1 UHF2 UHF3
12.5 KHZ 20/25 KHZ 12.5 KHZ 20/25 KHZ 12.5 KHZ 20/25 KHZ 12.5 KHZ 20/25 KHZ
Sensitivity (12 dB EIA SINAD) 0.25 µV (Typical)
Adjacent Channel Selectivity -60 dB -70 dB -60 dB -70 dB -60 dB -70 dB -60 dB -70 dB
Intermodulation -70 dB
Frequency Stability (-30°C to +60°C) 0.00025%
Spurious Rejection -70 dB
Audio Output @ 5% Distortion 500 mW
TRANSMITTER VHF UHF1 UHF2 UHF3
Low High Low High
RF Output: NiMH @ 7.5V 1 W 5 W 1 W 4 W
Channel Spacing 12.5/20/25 kHz
Frequency Stability (-30°C to +60°C) 0.00025%
Spurs/Harmonics -36 dBm 1 GHz -30 dBm 1 GHz to 4 GHz
Audio Response (from 6 dB/oct.
Pre-emphasis, 300 to 3000 Hz)
+1, -3 dB
Audio Distortion @ 1000 Hz,
60% Rated Max. Dev.
3%
FM Noise -40 dB (12.5 kHz) -45 dB (25 kHz)
MIL STANDARD 810F
APPLICABLE MIL-STD METHODS PROCEDURES
Low Pressure 500.4 1
High Temperature 501.4 1,2
Low Temperature 502.4 1,2
Temperature Shock 503.4 1
Solar Radiation 505.4 1
Rain 506.4 1
Humidity 507.4 3
Salt Fog 509.4 1
Dust 510.4 1
Vibration 514.5 1
Shock 516.5 1
MODEL NUMBER SIGNALLING CHANNELS FREQUENCY POWER
MDH50KDC9AA1AN PL 4 146 MHz to 174 MHz 1-5 W
MDH50QDC9AA1AN PL 4 403 MHz to 440 MHz 1-4 W
MDH50RDC9AA1AN PL 4 438 MHz to 470 MHz 1-4 W
MDH50SDC9AA1AN PL 4 465 MHz to 495 MHz 1-4 W
MDH50KDC9AA2AN* PL 16 146 MHz to 174 MHz 1-5 W
MDH50QDC9AA2AN* PL 16 403 MHz to 440 MHz 1-4 W
MDH50RDC9AA2AN* PL 16 438 MHz to 470 MHz 1-4 W
MDH50SDC9AA2AN* PL 16 465 MHz to 495MHz 1-4 W
*Subject to availability
ENVIRONMENTAL STANDARDS SPECIFICATIONS
Operating Temperature -30 to +60 °C
Storage Temperature -40 to +85 °C
Thermal Shock -40 to +80 °C
Dust Water Intrusion IP54
www.bluetechwireless.net

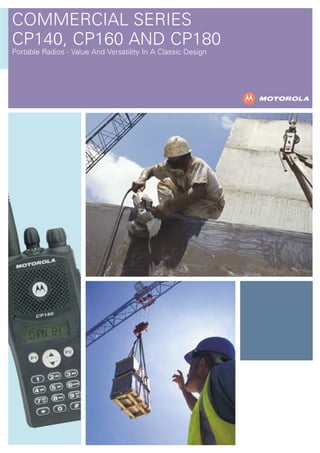

11. COMMERCIAL SERIES
CP140, CP160 AND CP180
Portable Radios - Value And Versatility In A Classic Design

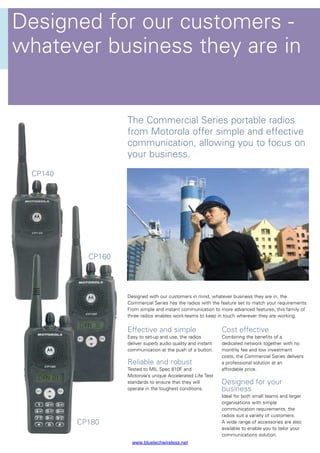

12. Designed for our customers -
whatever business they are in
Effective and simple
Easy to set-up and use, the radios
deliver superb audio quality and instant
communication at the push of a button.
Reliable and robust
Tested to MIL Spec 810F and
Motorola’s unique Accelerated Life Test
standards to ensure that they will
operate in the toughest conditions.
Cost effective
Combining the benefits of a
dedicated network together with no
monthly fee and low investment
costs, the Commercial Series delivers
a professional solution at an
affordable price.
Designed for your
business
Ideal for both small teams and larger
organisations with simple
communication requirements, the
radios suit a variety of customers.
A wide range of accessories are also
available to enable you to tailor your
communications solution.
Designed with our customers in mind, whatever business they are in, the
Commercial Series has the radios with the feature set to match your requirements.
From simple and instant communication to more advanced features, this family of
three radios enables work-teams to keep in touch wherever they are working.
The Commercial Series portable radios
from Motorola offer simple and effective
communication, allowing you to focus on
your business.
CP140
CP180
CP160
www.bluetechwireless.net

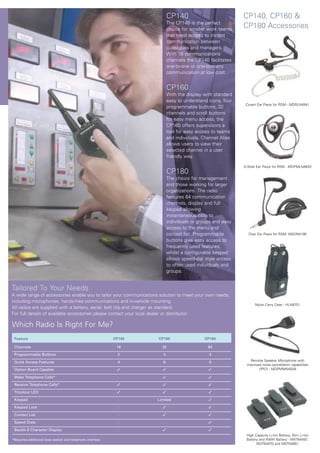

13. Which Radio Is Right For Me?
CP140
The CP140 is the perfect
choice for smaller work teams
that need access to instant
communication between
colleagues and managers.
With 16 communications
channels the CP140 facilitates
one-to-one or one-to-many
communication at low cost.
CP160
With the display with standard
easy to understand icons, four
programmable buttons, 32
channels and scroll buttons
for easy menu access, the
CP160 offers supervisors a
tool for easy access to teams
and individuals. Channel Alias
allows users to view their
selected channel in a user
friendly way.
CP180
The choice for management
and those working for larger
organizations. The radio
features 64 communication
channels, display and full
keypad allowing
instantaneous calls to
individuals or groups and easy
access to the menu and
contact list. Programmable
buttons give easy access to
frequently used features;
whilst a configurable keypad
allows speed-dial style access
to often used individuals and
groups.
Feature CP140 CP160 CP180
Channels 16 32 64
Programmable Buttons 2 4 4
Quick Access Features 4 8 8
Option Board Capable
Make Telephone Calls* -
Receive Telephone Calls*
Tricolour LED
Keypad - Limited
Keypad Lock -
Contact List -
Speed Dials - -
Backlit 8 Character Display -
*Requires additional base station and telephone interface
CP140, CP160
CP180 Accessories
Tailored To Your Needs
A wide range of accessories enable you to tailor your communications solution to meet your own needs,
including microphones, hands-free communications and in-vehicle mounting.
All radios are supplied with a battery, aerial, belt clip and charger as standard.
For full details of available accessories please contact your local dealer or distributor.
High Capacity Li-Ion Battery, Slim Li-Ion
Battery and NiMH Battery - NNTN4497,
NNTN4970 and NNTN4851
D-Shell Ear Piece for RSM - MDPMLN4620
Covert Ear Piece for RSM - MDRLN4941
Nylon Carry Case - HLN9701
Remote Speaker Microphone with
improved noise cancellation capabilities
(IP57) - MDPMMN4029
Over Ear Piece for RSM- WADN4190

14. Motorola Limited, EMEA Headquarters
Jays Close, Viables Industrial Estate, Basingstoke, RG22 4PD, UK
Telephone: +44 (0)1256 358211
www.motorola.com
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006. All rights reserved.
MIL Standard 810F
Applicable MIL-STD Methods Procedures
Low Pressure 500.4 1
High Temperature 501.4 1,2
Low Temperature 502.4 1,2
Temperature Shock 503.4 1
Solar Radiation 505.4 1
Rain 506.4 1
Humidity 507.4 3
Salt Fog 509.4 1
Dust 510.4 1
Vibration 514.5 1
Shock 516.5 1
ENVIRONMENTAL STANDARDS
SPECIFICATIONS
Operating Temperature -30°C to +60°C
Storage Temperature 40°C to +85°C
Thermal Shock -40 to +80°C
Dust Water Intrusion IP54
ISO 9001 Standard – Compliance with ISO 9001,
an international quality system assurance on design,
development, production, installation and servicing
of a product.
General VHF 1 VHF 2 UHF 2 UHF 3
Frequency 136 - 162 MHz 146 - 174 MHz 438 - 470 MHz 465 - 495 MHz
Channel Capacity 16 Channels (CP140) 32 Channels (CP160) 64 Channels (CP180)
Power Supply 7.5 Volts ± 20%
Dimensions (H x W x D) 130.5 x 62 x 42mm (with Slim Li-Ion Battery)
Weight (with Slim Li-Ion Battery) 377g (CP140) 3 97g (CP160/180)
Average Battery Life at Room
Temperature (5:5:90 duty cycle) 1 W 5 W 1 W 4 W
Standard Capacity NiCd Battery 10 Hrs 8 Hrs 10 Hrs 8 Hrs
Standard Capacity FM NiMH Battery 11 Hrs 9 Hrs 11 Hrs 9 Hrs
Standard Capacity NiMH Battery 13 Hrs 10 Hrs 13 Hrs 10 Hrs
Slim Li-Ion Battery 17 Hrs 12 Hrs 17 Hrs 12 Hrs
High Capacity Li-Ion Battery 19 Hrs 14 Hrs 19 Hrs 14 Hrs
General VHF 1 VHF 2 UHF 1 UHF 2 UHF 3
12.5kHz 20/25kHz 12.5kHz 20/25kHz 12.5kHz 20/25kHz 12.5kHz 20/25kHz 12.5kHz 20/25kHz
Sensitivity (12 dB EIA SINAD) 0.25 µV (Typical)
Adjacent Channel Selectivity -60 dB -70 dB -60 dB -70 dB -60 dB -70 dB -60 dB -70 dB -60 dB -70 dB
Intermodulation -70 dB
Frequency Stability (-30°C to +60°C) 0.00025%
Spurious Rejection -70 dB
Audio Output @ 5% Distortion 500 mW
Transmitter VHF 1 VHF 2 UHF 1 UHF 2 UHF 3
Low High Low High
RF Output: NiMH @ 7.5V 1 W 5 W 1 W 4 W
Channel Spacing 12.5/20/25 kHz
Frequency Stability (-30°C to +60°C) 0.00025%
Spurs/Harmonics -36 dBm 1 GHz -30 dBm 1 GHz to 4 GHz
Audio Response (from 6 dB/oct.
Pre-emphasis, 300 to 3000 Hz) +1, -3 dB
Audio Distortion @ 1000 Hz,
60% Rated Max. Dev. 3%
FM Noise -40 dB (12.5 kHz) -45 dB (25 kHz)
All specifications are subject to change without notice.
MODEL NUMBERS
Name Model Number Signalling Channels Frequency Power
CP140 MDH65JDC9AA2_N MDC/PL 16 VHF1 136-162 MHz 1-5 W
CP140 MDH65KDC9AA2_N MDC/PL 16 VHF2 146-174 MHz 1-5 W
CP140 MDH65QDC9AA2_N MDC/PL 16 UHF1 403-440 MHz 1-4 W
CP140 MDH65RDC9AA2_N MDC/PL 16 UHF2 438-470 MHz 1-4 W
CP140 MDH65SDC9AA2_N MDC/PL 16 UHF3 465-495 MHz 1-4 W
CP160 MDH65JDF9AA3_N MDC/PL 32 VHF1 136-162 MHz 1-5 W
CP160 MDH65KDF9AA3_N MDC/PL 32 VHF2 146-174 MHz 1-5 W
CP160 MDH65QDF9AA3_N MDC/PL 32 UHF1 403-440 MHz 1-4 W
CP160 MDH65RDF9AA3_N MDC/PL 32 UHF2 438-470 MHz 1-4 W
CP160 MDH65SDF9AA3_N MDC/PL 32 UHF3 465-495 MHz 1-4 W
CP180 MDH65JDH9AA4_N MDC/PL 64 VHF1 136-162 MHz 1-5 W
CP180 MDH65KDH9AA4_N MDC/PL 64 VHF2 146-174 MHz 1-5 W
CP180 MDH65QDH9AA4_N MDC/PL 64 UHF1 403-440 MHz 1-4 W
CP180 MDH65RDH9AA4_N MDC/PL 64 UHF2 438-470 MHz 1-4 W
CP180 MDH65SDH9AA4_N MDC/PL 64 UHF3 465-495 MHz 1-4 W
TECHNICAL SPECIFICATIONS
www.bluetechwireless.net

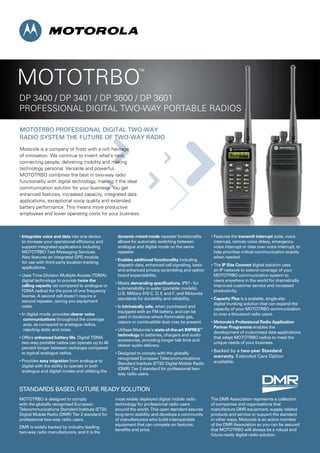

15. MOTOTRBO PROfeSSiOnal DiGiTal TWO-WaY
RaDiO SYSTeM THe fUTURe Of TWO-WaY RaDiO
Motorola is a company of firsts with a rich heritage
of innovation. We continue to invent what’s next,
connecting people, delivering mobility and making
technology personal. Versatile and powerful,
MOTOTRBO combines the best in two-way radio
functionality with digital technology, making it the ideal
communication solution for your business. You get
enhanced features, increased capacity, integrated data
applications, exceptional voice quality and extended
battery performance. This means more productive
employees and lower operating costs for your business.
MOTOTRBO
™

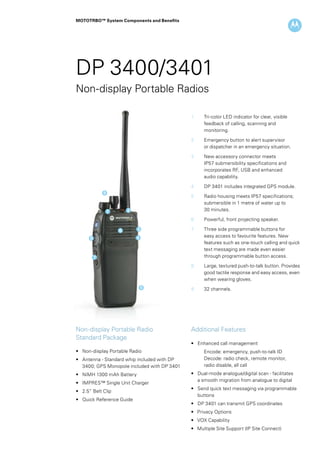

DP 3400 / DP 3401 / DP 3600 / DP 3601
PROFESSIONAL DIGITAL TWO-WAY PORTABLE RADIOSPROFESSIONAL DIGITAL TWO-WAY PORTABLE RADIOS
• Integrates voice and data into one device
to increase your operational efficiency and
support integrated applications including
MOTOTRBO Text Messaging Services.
also features an integrated GPS module
for use with third-party location-tracking
applications.
• Uses Time-Division Multiple-Access (TDMA)
digital technology to provide twice the
calling capacity (as compared to analogue or
FDMA radios) for the price of one frequency
license. A second call doesn’t require a
second repeater, saving you equipment
costs.
• In digital mode, provides clearer voice
communications throughout the coverage
area, as compared to analogue radios,
rejecting static and noise.
• Offers enhanced battery life. Digital TDMa
two-way portable radios can operate up to 40
percent longer between recharges compared
to typical analogue radios.
• Provides easy migration from analogue to
digital with the ability to operate in both
analogue and digital modes and utilising the
dynamic mixed mode repeater functionality
allows for automatic switching between
analogue and digital mode on the same
repeater.
• Enables additional functionality including
dispatch data, enhanced call signaling, basic
and enhanced privacy-scrambling and option
board expandability.
• Meets demanding specifications, iP57– for
submersibility in water (portable models),
U.S. Military 810 c, D, e and f, and Motorola
standards for durability and reliability.
• Is intrinsically safe, when purchased and
equipped with an FM battery, and can be
used in locations where flammable gas,
vapors or combustible dust may be present.
• Utilises Motorola’s state-of-the-art IMPRES™
technology in batteries, chargers and audio
accessories, providing longer talk time and
clearer audio delivery.
• Designed to comply with the globally
recognised european Telecommunications
Standard Institute (ETSI) Digital Mobile Radio
(DMR) Tier 2 standard for professional two-
way radio users.
• Features the transmit interrupt suite, voice
interrupt, remote voice dekey, emergency
voice interrupt or data over voice interrupt, to
help prioritise critical communication exactly
when needed.
• The IP Site Connect digital solution uses
an iP network to extend coverage of your
MOTOTRBO communication system to
users anywhere in the world for dramatically
improved customer service and increased
productivity.
• Capacity Plus is a scalable, single-site
digital trunking solution that can expand the
capacity of your MOTOTRBO communication
to over a thousand radio users.
• Motorola’s Professional Radio Application
Partner Programme enables the
development of customised data applications
that adapt MOTOTRBO radios to meet the
unique needs of your business.
• Backed by a two-year Standard
warranty. extended care Option
available.
MOTOTRBO is designed to comply
with the globally recognised european
Telecommunications Standard Institute (ETSI)
Digital Mobile Radio (DMR) Tier 2 standard for
professional two-way radio users.
DMR is widely backed by industry leading
two-way radio manufacturers, and it is the
most widely deployed digital mobile radio
technology for professional radio users
around the world. This open standard assures
long-term stability and develops a community
of manufacturers who build interoperable
equipment that can compete on features,
benefits and price.
The DMR association represents a collection
of companies and organisations that
manufacture DMR equipment, supply related
products and service or support the standard
in other ways. Motorola is an active member
of the DMR association so you can be assured
that MOTOTRBO will always be a robust and
future-ready digital radio solution.
STanDaRDS BaSeD, fUTURe ReaDY SOlUTiOn

16. MOTOTRBO™

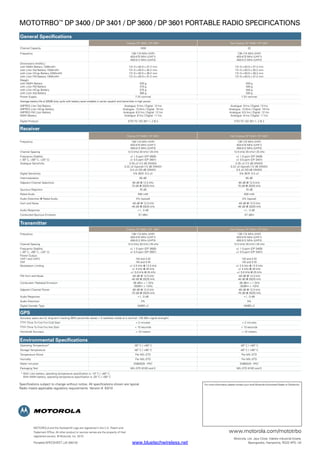

DP 3400 / DP 3401 / DP 3600 / DP 3601 Portable Radio Specifications
Specifications subject to change without notice. All specifications shown are typical.
Radio meets applicable regulatory requirements. Version 9 03/10
MOTOROLA and the Stylised M Logo are registered in the U.S. Patent and
Trademark Office. All other product or service names are the property of their
registered owners. © Motorola, Inc. 2010
Portable-SPECSHEET_UK (04/10)
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
www.motorola.com/mototrbo
For more information please contact your local Motorola Authorised Dealer or Distributor
General Specifications
Display DP 3600 / DP 3601 Non-Display DP 3400 / DP 3401
Channel Capacity 1000 32
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Dimensions (HxWxL)
with NiMH Battery 1300mAH
with LiIon Std Battery 1500mAH
with LiIon HiCap Battery 2200mAH
with LiIon FM Battery 1400mAH
131.5 x 63.5 x 37.2 mm
131.5 x 63.5 x 35.2 mm
131.5 x 63.5 x 39.2 mm
131.5 x 63.5 x 37.2 mm
131.5 x 63.5 x 37.2 mm
131.5 x 63.5 x 35.2 mm
131.5 x 63.5 x 39.2 mm
131.5 x 63.5 x 37.2 mm
Weight
with NiMH Battery
with LiIon FM Battery
with LiIon HiCap Battery
with LiIon Std Battery
430 g
370 g
375 g
360 g
430 g
340 g
345 g
330 g
Power Supply 7.2V nominal 7.2V nominal
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power.
IMPRES LiIon Std Battery
IMPRES LiIon HiCap Battery
IMPRES FM LiIon Battery
NiMH Battery
Analogue: 9 hrs / Digital: 13 hrs
Analogue: 13.5hrs / Digital: 19 hrs
Analogue: 8.5 hrs / Digital: 12 hrs
Analogue: 8 hrs / Digital: 11 hrs
Analogue: 9 hrs / Digital: 13 hrs
Analogue: 13.5hrs / Digital: 19 hrs
Analogue: 8.5 hrs / Digital: 12 hrs
Analogue: 8 hrs / Digital: 11 hrs
Digital Protocol ETSI-TS 102 361-1, 2 3 ETSI-TS 102 361-1, 2 3
Receiver
Display DP 3600 / DP 3601 Non-Display DP 3400 / DP 3401
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Channel Spacing 12.5 kHz/ 20 kHz1
/ 25 kHz 12.5 kHz/ 20 kHz1
/ 25 kHz
Frequency Stability
( -30° C, +60° C, +25° C)
+/- 1.5 ppm (DP 3600)
+/- 0.5 ppm (DP 3601)
+/- 1.5 ppm (DP 3400)
+/- 0.5 ppm (DP 3401)
Analogue Sensitivity 0.35 uV (12 dB SINAD)
0.22 uV (typical) (12 dB SINAD)
0.4 uV (20 dB SINAD)
0.35 uV (12 dB SINAD)
0.22 uV (typical) (12 dB SINAD)
0.4 uV (20 dB SINAD)
Digital Sensitivity 5% BER: 0.3 uV 5% BER: 0.3 uV
Intermodulation 65 dB 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Spurious Rejection 70 dB 70 dB
Rated Audio 500 mW 500 mW
Audio Distortion @ Rated Audio 3% (typical) 3% (typical)
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
-40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3 dB +1, -3 dB
Conducted Spurious Emission -57 dBm -57 dBm
Transmitter
Display DP 3600 / DP 3601 Non-Display DP 3400 / DP 3401
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Channel Spacing 12.5 kHz/ 20 kHz1
/ 25 kHz 12.5 kHz/ 20 kHz1
/ 25 kHz
Frequency Stability
( -30° C, +60° C, +25° C)
+/- 1.5 ppm (DP 3600)
+/- 0.5 ppm (DP 3601)
+/- 1.5 ppm (DP 3400)
+/- 0.5 ppm (DP 3401)
Power Output
UHF1 and UHF2
VHF
1W and 4 W
1W and 5 W
1W and 4 W
1W and 5 W
Modulation Limiting +/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
+/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
-40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted / Radiated Emission -36 dBm 1 GHz
-30dBm 1GHz
-36 dBm 1 GHz
-30dBm 1GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
-60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response +1, -3 dB +1, -3 dB
Audio Distortion 3% 3%
Digital Vocoder Type AMBE+2 AMBE+2
GPS
Accuracy specs are for long-term tracking (95th percentile values 5 satellites visible at a nominal -130 dBm signal strength)
TTFF (Time To First Fix) Cold Start 2 minutes 2 minutes
TTFF (Time To First Fix) Hot Start 10 seconds 10 seconds
Horizontal Accuracy 10 meters 10 meters
Environmental Specifications
Operating Temperature* -30° C / +60° C -30° C / +60° C
Storage Temperature -40° C / +85° C -40° C / +85° C
Temperature Shock Per MIL-STD Per MIL-STD
Humidity Per MIL-STD Per MIL-STD
Water Intrusion EN60529 - IP57 EN60529 - IP57
Packaging Test MIL-STD 810D and E MIL-STD 810D and E
* With LiIon battery, operating temperature specification is -10° C / +60° C.
With NiMH battery, operating temperature specification is -20° C / +60° C
www.bluetechwireless.net

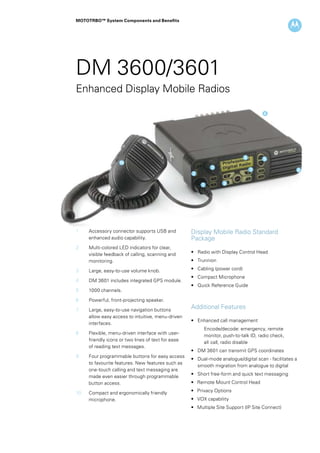

17. MOTOTRBO™ System Components and Benefits
DM 3600/3601
10
2
1
3
9
8 5
4
67
Enhanced Display Mobile Radios
1 Accessory connector supports USB and
enhanced audio capability.
2 Multi-colored LED indicators for clear,
visible feedback of calling, scanning and
monitoring.
3 Large, easy-to-use volume knob.
4 DM 3601 includes integrated GPS module.
5 1000 channels.
6 Powerful, front-projecting speaker.
7 Large, easy-to-use navigation buttons
allow easy access to intuitive, menu-driven
interfaces.
8 Flexible, menu-driven interface with user-
friendly icons or two lines of text for ease
of reading text messages.
9 Four programmable buttons for easy access
to favourite features. New features such as
one-touch calling and text messaging are
made even easier through programmable
button access.
10 Compact and ergonomically friendly
microphone.
Additional Features
• Enhanced call management
Encode/decode: emergency, remote
monitor, push-to-talk ID, radio check,
all call, radio disable
• DM 3601 can transmit GPS coordinates
• Dual-mode analogue/digital scan - facilitates a
smooth migration from analogue to digital
• Short free-form and quick text messaging
• Remote Mount Control Head
• Privacy Options
• VOX capability
• Multiple Site Support (IP Site Connect)
Display Mobile Radio Standard
Package
• Radio with Display Control Head
• Trunnion
• Cabling (power cord)
• Compact Microphone
• Quick Reference Guide

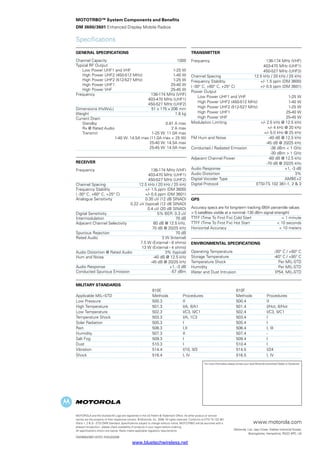

18. MOTOTRBO™ System Components and Benefits
DM 3600/3601 Enhanced Display Mobile Radios
GENERAL SPECIFICATIONS
Channel Capacity 1000
Typical RF Output
Low Power UHF1 and VHF 1-25 W
High Power UHF2 (450-512 MHz) 1-40 W
High Power UHF2 (512-527 MHz) 1-25 W
High Power UHF1 25-40 W
High Power VHF 25-45 W
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-527 MHz (UHF2)
Dimensions (HxWxL) 51 x 175 x 206 mm
Weight 1.8 kg
Current Drain:
Standby 0.81 A max
Rx @ Rated Audio 2 A max
Transmit 1-25 W: 11.0A max
1-40 W: 14.5A max (11.0A max 25 W)
25-40 W: 14.5A max
25-45 W: 14.5A max
RECEIVER
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-527 MHz (UHF2)
Channel Spacing 12.5 kHz / 20 kHz / 25 kHz
Frequency Stability +/- 1.5 ppm (DM 3600)
( -30° C, +60° C, +25° C) +/- 0.5 ppm (DM 3601)
Analogue Sensitivity 0.30 uV (12 dB SINAD)
0.22 uV (typical) (12 dB SINAD)
0.4 uV (20 dB SINAD)
Digital Sensitivity 5% BER: 0.3 uV
Intermodulation 70 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz,
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Rated Audio 3 W (Internal)
7.5 W (External - 8 ohms)
13 W (External - 4 ohms)
Audio Distortion @ Rated Audio 3% (typical)
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3 dB
Conducted Spurious Emission -57 dBm
TRANSMITTER
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-527 MHz (UHF2)
Channel Spacing 12.5 kHz / 20 kHz / 25 kHz
Frequency Stability +/- 1.5 ppm (DM 3600)
( -30° C, +60° C, +25° C) +/- 0.5 ppm (DM 3601)
Power Output
Low Power UHF1 and VHF 1-25 W
High Power UHF2 (450-512 MHz) 1-40 W
High Power UHF2 (512-527 MHz) 1-25 W
High Power UHF1 25-40 W
High Power VHF 25-45 W
Modulation Limiting +/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted / Radiated Emission -36 dBm 1 GHz
-30 dBm 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response +1, -3 dB
Audio Distortion 3%
Digital Vocoder Type AMBE+2
Digital Protocol ETSI-TS 102 361-1, 2 3
GPS
Accuracy specs are for long-term tracking (95th percentile values
5 satellites visible at a nominal -130 dBm signal strength)
TTFF (Time To First Fix) Cold Start 1 minute
TTFF (Time To First Fix) Hot Start 10 seconds
Horizontal Accuracy 10 meters
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -30° C / +60° C
Storage Temperature -40° C / +85° C
Temperature Shock Per MIL-STD
Humidity Per MIL-STD
Water and Dust Intrusion IP54, MIL-STD
MILITARY STANDARDS
810E 810F
Applicable MIL–STD Methods Procedures Methods Procedures
Low Pressure 500.3 II 500.4 II
High Temperature 501.3 I/A, II/A1 501.4 I/Hot, II/Hot
Low Temperature 502.3 I/C3, II/C1 502.4 I/C3, II/C1
Temperature Shock 503.3 I/A, 1C3 503.4 I
Solar Radiation 505.3 I 505.4 I
Rain 506.3 I,II 506.4 I, III
Humidity 507.3 II 507.4 -
Salt Fog 509.3 I 509.4 I
Dust 510.3 I 510.4 I
Vibration 514.4 I/10, II/3 514.5 I/24
Shock 516.4 I, IV 516.5 I, IV
Specifications
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2008. All rights reserved. Conforms to ETSI TS 102 361
(Parts 1, 2 3) - ETSI DMR Standard. Specifications subject to change without notice. MOTOTRBO will be launched with a
phased introduction - please check availability of products in your region before ordering.
All specifications shown are typical. Radio meets applicable regulatory requirements.
DM3600/3601/SPEC-ENG(02/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
For more information please contact your local Motorola Authorised Dealer or Distributor
www.bluetechwireless.net

19. MOTOTRBO™ System Components and Benefits
DP 3400/3401
Non-display Portable Radios
1 Tri-color LED indicator for clear, visible
feedback of calling, scanning and
monitoring.
2 Emergency button to alert supervisor
or dispatcher in an emergency situation.
3 New accessory connector meets
IP57 submersibility specifications and
incorporates RF, USB and enhanced
audio capability.
4 DP 3401 includes integrated GPS module.
5 Radio housing meets IP57 specifications;
submersible in 1 metre of water up to
30 minutes.
6 Powerful, front projecting speaker.
7 Three side programmable buttons for
easy access to favourite features. New
features such as one-touch calling and quick
text messaging are made even easier
through programmable button access.
8 Large, textured push-to-talk button. Provides
good tactile response and easy access, even
when wearing gloves.
9 32 channels.
Non-display Portable Radio
Standard Package
• Non-display Portable Radio
• Antenna - Standard whip included with DP
3400; GPS Monopole included with DP 3401
• NiMH 1300 mAh Battery
• IMPRES™ Single Unit Charger
• 2.5” Belt Clip
• Quick Reference Guide
Additional Features
• Enhanced call management
Encode: emergency, push-to-talk ID
Decode: radio check, remote monitor,
radio disable, all call
• Dual-mode analogue/digital scan - facilitates
a smooth migration from analogue to digital
• Send quick text messaging via programmable
buttons
• DP 3401 can transmit GPS coordinates
• Privacy Options
• VOX Capability
• Multiple Site Support (IP Site Connect)
21
3
5
4
6
7
8
9

20. MOTOTRBO™ System Components and Benefits
DP 3400/3401 Non-display Portable Radios
GENERAL SPECIFICATIONS
Channel Capacity 32
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Dimensions (HxWxL)
with NiMH Battery 1300mAH 131.5 x 63.5 x 37.2 mm
with LiIon Std Battery 1500mAH 131.5 x 63.5 x 35.2 mm
with LiIon HiCap Battery 2200mAH 131.5 x 63.5 x 39.2 mm
with LiIon FM Battery 1400mAH 131.5 x 63.5 x 37.2 mm
Weight
with NiMH Battery 400 g
with LiIon FM Battery 340 g
with LiIon HiCap Battery 345 g
with LiIon Std Battery 330 g
Power Supply 7.2V nominal
Average battery life at 5/5/90 duty cycle with battery saver
enabled in carrier squelch and transmitter in high power.
IMPRES LiIon Std Battery Analogue: 9 hrs / Digital: 13 hrs
IMPRES LiIon HiCap Battery Analogue: 13.5hrs / Digital: 19 hrs
IMPRES FM LiIon Battery Analogue: 8.5 hrs / Digital: 12 hrs
NiMH Battery Analogue: 8 hrs / Digital: 11 hrs
RECEIVER
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Channel Spacing 12.5 kHz/ 20 kHz1
/ 25 kHz
Frequency Stability +/- 1.5 ppm (DP 3400)
( -30° C, +60° C, +25° C) +/- 0.5 ppm (DP 3401)
Analogue Sensitivity 0.35 uV (12 dB SINAD)
0.22 uV (typical) (12 dB SINAD)
0.4 uV (20 dB SINAD)
Digital Sensitivity 5% BER: 0.3 uV
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz,
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Rated Audio 500 mW
Audio Distortion @ Rated Audio 3% (typical)
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3 dB
Conducted Spurious Emission -57 dBm
TRANSMITTER
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Channel Spacing 12.5 kHz/ 20 kHz1
/ 25 kHz
Frequency Stability +/- 1.5 ppm (DP 3400)
( -30° C, +60° C, +25° C) +/- 0.5 ppm (DP 3401)
Power Output
UHF1 and UHF2 1W and 4 W
VHF 1W and 5 W
Modulation Limiting +/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted / Radiated Emission -36 dBm 1 GHz
-30dBm 1GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response +1, -3 dB
Audio Distortion 3%
Digital Vocoder Type AMBE+2
Digital Protocol ETSI-TS 102 361-1, 2 3
GPS
Accuracy specs are for long-term tracking (95th percentile values
5 satellites visible at a nominal -130 dBm signal strength)
TTFF (Time To First Fix) Cold Start 2 minutes
TTFF (Time To First Fix) Hot Start 10 seconds
Horizontal Accuracy 10 meters
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature* -30° C / +60° C
Storage Temperature -40° C / +85° C
Temperature Shock Per MIL-STD
Humidity Per MIL-STD
Water Intrusion EN60529 - IP57
Packaging Test MIL-STD 810D and E
* With LiIon battery, operating temperature specification is -10° C / +60° C.
With NiMH battery, operating temperature specification is -20° C / +60° C
MILITARY STANDARDS
810E 810F
Applicable MIL–STD Methods Procedures Methods Procedures
Low Pressure 500.3 II 500.4 II
High Temperature 501.3 I/A, II/A1 501.4 I/Hot, II/Hot
Low Temperature 502.3 I/C3, II/C1 502.4 I/C3, II/C1
Temperature Shock 503.3 I/A, 1C3 503.4 I
Solar Radiation 505.3 I 505.4 I
Rain 506.3 I,II 506.4 I, III
Humidity 507.3 II 507.4 -
Salt Fog 509.3 I 509.4 I
Dust 510.3 I 510.4 I
Vibration 514.4 I/10, II/3 514.5 I/24
Shock 516.4 I, IV 516.5 I, IV
Specifications
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2008. All rights reserved. Conforms to ETSI TS 102 361
(Parts 1, 2 3) - ETSI DMR Standard. Specifications subject to change without notice. MOTOTRBO will be launched with a
phased introduction - please check availability of products in your region before ordering.
All specifications shown are typical. Radio meets applicable regulatory requirements.
DP3400/3401/SPEC-ENG(02/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
FACTORY MUTUAL APPROVALS - DP family of radios are certified by Factory
Mutual Approvals as intrinsically safe for use in Division 1, Class I,II,III, Groups
C,D,E,F,G, when ordered with the Factory Mutual approved battery option. Two
versions of the VHF (136-174 MHz) portable are available; one which does not
support 20 kHz, but can be ordered with the Factory Mutual approved battery
option and one which supports 20 kHz but can not be ordered with the FM
approved battery option.
1
20 kHz is not supported in 450 - 512 MHz (UHF2)
For more information please contact your local Motorola Authorised Dealer or Distributor
www.bluetechwireless.net
www.bluetechwireless.net
NIGERIA
For Sales Services Contact

21. 21 3
5
4
6

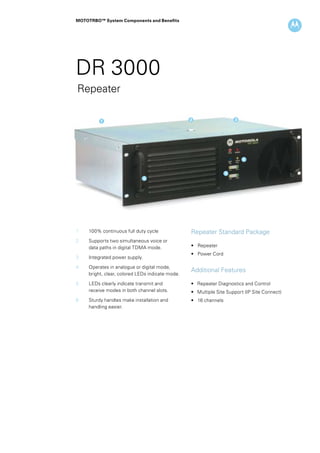

MOTOTRBO™ System Components and Benefits
DR 3000
Repeater
1 100% continuous full duty cycle
2 Supports two simultaneous voice or
data paths in digital TDMA mode.
3 Integrated power supply.
4 Operates in analogue or digital mode,
bright, clear, colored LEDs indicate mode.
5 LEDs clearly indicate transmit and
receive modes in both channel slots.
6 Sturdy handles make installation and
handling easier.
Repeater Standard Package
• Repeater
• Power Cord
Additional Features
• Repeater Diagnostics and Control
• Multiple Site Support (IP Site Connect)
• 16 channels

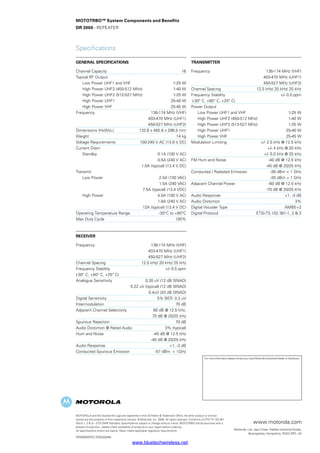

22. MOTOTRBO™ System Components and Benefits
DR 3000 - Repeater
Specifications
GENERAL SPECIFICATIONS
Channel Capacity 16
Typical RF Output
Low Power UHF1 and VHF 1-25 W
High Power UHF2 (450-512 MHz) 1-40 W
High Power UHF2 (512-527 MHz) 1-25 W
High Power UHF1 25-40 W
High Power VHF 25-45 W
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-527 MHz (UHF2)
Dimensions (HxWxL) 132.6 x 482.6 x 296.5 mm
Weight 14 kg
Voltage Requirements 100-240 V AC (13.6 V DC)
Current Drain:
Standby 0.1A (100 V AC)
0.5A (240 V AC)
1.0A (typical) (13.4 V DC)
Transmit
Low Power 2.5A (100 VAC)
1.5A (240 VAC)
7.5A (typical) (13.4 VDC)
High Power 4.0A (100 V AC)
1.8A (240 V AC)
12A (typical) (13.4 V DC)
Operating Temperature Range -30°C to +60°C
Max Duty Cycle 100%
Receiver
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-527 MHz (UHF2)
Channel Spacing 12.5 kHz/ 20 kHz/ 25 kHz
Frequency Stability +/- 0.5 ppm
(-30° C, +60° C, +25° C)
Analogue Sensitivity 0.30 uV (12 dB SINAD)
0.22 uV (typical) (12 dB SINAD)
0.4uV (20 dB SINAD)
Digital Sensitivity 5% BER: 0.3 uV
Intermodulation 70 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz,
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Audio Distortion @ Rated Audio 3% (typical)
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3 dB
Conducted Spurious Emission -57 dBm 1GHz
Transmitter
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-527 MHz (UHF2)
Channel Spacing 12.5 kHz/ 20 kHz/ 25 kHz
Frequency Stability +/- 0.5 ppm
(-30° C, +60° C, +25° C)
Power Output
Low Power UHF1 and VHF 1-25 W
High Power UHF2 (450-512 MHz) 1-40 W
High Power UHF2 (512-527 MHz) 1-25 W
High Power UHF1 25-40 W
High Power VHF 25-45 W
Modulation Limiting +/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted / Radiated Emission -36 dBm 1 GHz
-30 dBm 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response +1, -3 dB
Audio Distortion 3%
Digital Vocoder Type AMBE+2
Digital Protocol ETSI-TS 102 361-1, 2 3
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2008. All rights reserved. Conforms to ETSI TS 102 361
(Parts 1, 2 3) - ETSI DMR Standard. Specifications subject to change without notice. MOTOTRBO will be launched with a
phased introduction - please check availability of products in your region before ordering.
All specifications shown are typical. Radio meets applicable regulatory requirements.
DR3000/SPEC-ENG(02/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
For more information please contact your local Motorola Authorised Dealer or Distributor
www.bluetechwireless.net

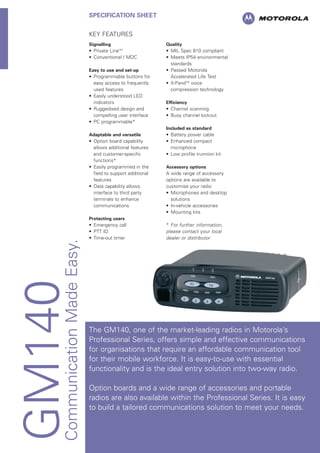

23. GM140CommunicationMadeEasy.
SPECIFICATION SHEET
KEY FEATURES
Signalling
• Private LineTM
• Conventional / MDC
Easy to use and set-up
• Programmable buttons for
easy access to frequently
used features
• Easily understood LED
indicators
• Ruggedised design and
compelling user interface
• PC programmable*
Adaptable and versatile
• Option board capability
allows additional features
and customer-specific
functions*
• Easily programmed in the
field to support additional
features
• Data capability allows
interface to third party
terminals to enhance
communications
Protecting users
• Emergency call
• PTT ID
• Time-out timer
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental
standards
• Passed Motorola
Accelerated Life Test
• X-PandTM
voice
compression technology
Efficiency
• Channel scanning
• Busy channel lockout
Included as standard
• Battery power cable
• Enhanced compact
microphone
• Low profile trunnion kit
Accessory options
A wide range of accessory
options are available to
customise your radio
• Microphones and desktop
solutions
• In-vehicle accessories
• Mounting kits
* For further information,
please contact your local
dealer or distributor
The GM140, one of the market-leading radios in Motorola’s
Professional Series, offers simple and effective communications
for organisations that require an affordable communication tool
for their mobile workforce. It is easy-to-use with essential
functionality and is the ideal entry solution into two-way radio.
Option boards and a wide range of accessories and portable
radios are also available within the Professional Series. It is easy
to build a tailored communications solution to meet your needs.

24. SPECIFICATIONS
Motorola Limited, EMEA Headquarters
Jays Close, Viables Industrial Estate, Basingstoke, RG22 4PD, UK
Telephone: +44 (0)1256 358211
www.motorola.com
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006. All rights reserved.
GM140-RE(09/06)
For more information please contact your local
Motorola Authorised Dealer or Distributor
GENERAL
Specification VHF UHF
Frequency Range 136-174 MHz 403-470 MHz
Frequency Stability ±2.5 PPM ±2 PPM
(-30°C to +60°C, 25°C Ref.)
Channel Capacity 4
Channel Spacing 12.5/20/25 kHz
Power Output 1-25W 25-45W
Power Supply 13.2Vdc (10.8 - 15.6 Vdc) negative vehicle ground
Dimensions (L x W x H) 1-25W: 176 x 174 x 56mm (add 8mm for Volume knob)
25-45W: 187 x 174 x 56mm (add 8mm for Volume knob)
Weight 1-25W: 1390g
25-45W: 1470g
Operating Temperature -30 to 60ºC
Operation Mode Intermittent Intermittent
Sealing Passes rain testing to IP54
Shock and Vibration Meets MIL-STD 810-C,DE and TIA/EIA 603
Dust Meets MIL-STD 810-C,DE and TIA/EIA 603
Humidity Meets MIL-STD 810-C,DE and TIA/EIA 603
TRANSMITTER
Specification VHF/UHF
Modulation Limiting ±2.5 kHz @ 12.5 kHz
±4.0 kHz @ 20 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted/Radiated Emissions -36 dBm 1 GHz
-30 dBm 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response (300 to 3000Hz) +1, -3dB
Audio Distortion @ 1000 Hz, 3% Typical
60% Rated Maximum Deviation
RECEIVER
Specification VHF UHF
Sensitivity 0.30µV (0.22 µV Typical)
(12dBSINAD) (EN)
Intermodulation (EN) 65 dB
Adjacent Channel 80dB @ 25 kHz 75 dB @ 25 kHz
Selectivity (EN) 75dB @ 20 kHz 70 dB @ 20 kHz
65dB @ 12.5 kHz 65 dB @ 12.5 kHz
Spurious 80 dB @ 20/25 kHz 75 dB @ 20/25 kHz
Rejection (EN) 75 dB @ 12.5 kHz 70 dB @ 12.5 kHz
Rated Audio (EN) 3W Internal
7.5W 13W External
Audio Distortion 3% Typical
@ Rated Audio
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3dB
(300 to 3000Hz)
Conducted Spurious -57 dBm 1 GHz
Emission per FCC Part 15: -47 dBm 1 GHz
MOBILE MILITARY STANDARDS 810 C, D, E
810C 810D 810E
Applicable MIL-STD Methods Procedures Methods Procedures Methods Procedures
Low Pressure 500.1 1 500.2 2 500.3 2
High Temperature 501.1 1,2 501.2 1,2 501.3 1,2
Low Temperature 502.1 2 502.2 1,2 502.3 1,2
Temp. Shock 503.1 1 503.2 1 503.3 1
Solar Radiation 505.1 1 505.2 1 505.3 1
Rain 506.1 2 506.2 2 506.3 2
Humidity 507.1 2 507.2 2,3 507.3 3
Salt Fog 509.1 1 509.2 1 509.3 1
Dust 510.1 1 510.2 1 510.3 1
Vibration 514.2 8,10 514.3 1 514.4 1
Shock 516.2 1,2,5 516.3 1 516.4 1
Data for +25°C unless otherwise specified
*Availability subject to individual country’s law and regulations.
Specifications are subject to change without notice and are issued for guidance only.
All specifications listed are typical. Radios meet applicable regulatory requirements.
Conforms to EC directive EN 300 086 and EN 300 113
Contact your local Motorola Authorised Dealer to find out more about how communicating with the Professional Series radios will benefit your organisation.
www.bluetechwireless.net
For Sales Services Contact

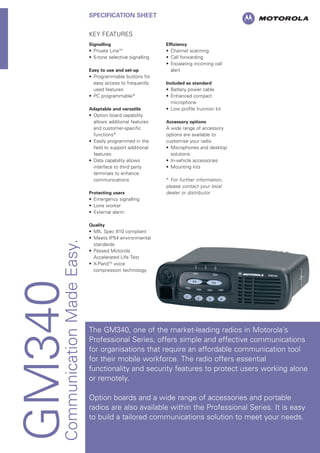

25. GM340CommunicationMadeEasy.
SPECIFICATION SHEET
KEY FEATURES
Signalling
• Private LineTM
• 5-tone selective signalling
Easy to use and set-up
• Programmable buttons for
easy access to frequently
used features
• PC programmable*
Adaptable and versatile
• Option board capability
allows additional features
and customer-specific
functions*
• Easily programmed in the
field to support additional
features
• Data capability allows
interface to third party
terminals to enhance
communications
Protecting users
• Emergency signalling
• Lone worker
• External alarm
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental
standards
• Passed Motorola
Accelerated Life Test
• X-PandTM
voice
compression technology
Efficiency
• Channel scanning
• Call forwarding
• Escalating incoming call
alert
Included as standard
• Battery power cable
• Enhanced compact
microphone
• Low profile trunnion kit
Accessory options
A wide range of accessory
options are available to
customise your radio
• Microphones and desktop
solutions
• In-vehicle accessories
• Mounting kits
* For further information,
please contact your local
dealer or distributor
The GM340, one of the market-leading radios in Motorola’s
Professional Series, offers simple and effective communications
for organisations that require an affordable communication tool
for their mobile workforce. The radio offers essential
functionality and security features to protect users working alone
or remotely.
Option boards and a wide range of accessories and portable
radios are also available within the Professional Series. It is easy
to build a tailored communications solution to meet your needs.

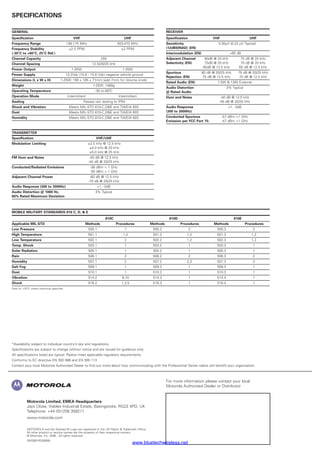

26. Motorola Limited, EMEA Headquarters
Jays Close, Viables Industrial Estate, Basingstoke, RG22 4PD, UK
Telephone: +44 (0)1256 358211
www.motorola.com
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006. All rights reserved.
GM340-RE(09/06)
For more information please contact your local
Motorola Authorised Dealer or Distributor
*Availability subject to individual country’s law and regulations.
Specifications are subject to change without notice and are issued for guidance only.
All specifications listed are typical. Radios meet applicable regulatory requirements.
Conforms to EC directive EN 300 086 and EN 300 113
Contact your local Motorola Authorised Dealer to find out more about how communicating with the Professional Series radios will benefit your organisation.

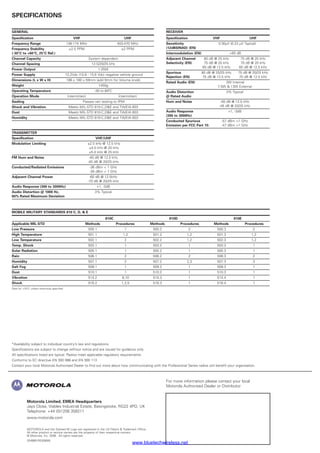

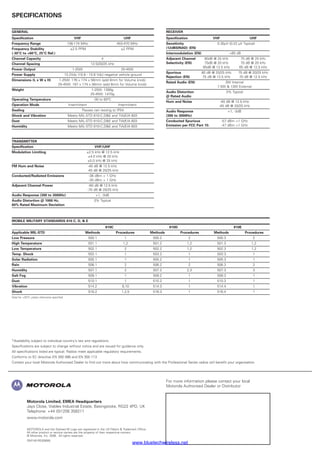

SPECIFICATIONS
GENERAL
Specification VHF UHF
Frequency Range 136-174 MHz 403-470 MHz
Frequency Stability ±2.5 PPM ±2 PPM
(-30°C to +60°C, 25°C Ref.)
Channel Capacity 6
Channel Spacing 12.5/20/25 kHz
Power Output 1-25W 1-25W
Power Supply 13.2Vdc (10.8 - 15.6 Vdc) negative vehicle ground
Dimensions (L x W x H) 1-25W: 176 x 174 x 56mm (add 8mm for Volume knob)
Weight 1-25W: 1390g
Operating Temperature -30 to 60ºC
Operation Mode Intermittent Intermittent
Sealing Passes rain testing to IP54
Shock and Vibration Meets MIL-STD 810-C,DE and TIA/EIA 603
Dust Meets MIL-STD 810-C,DE and TIA/EIA 603
Humidity Meets MIL-STD 810-C,DE and TIA/EIA 603
TRANSMITTER
Specification VHF/UHF
Modulation Limiting ±2.5 kHz @ 12.5 kHz
±4.0 kHz @ 20 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted/Radiated Emissions -36 dBm 1 GHz
-30 dBm 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response (300 to 3000Hz) +1, -3dB
Audio Distortion @ 1000 Hz, 3% Typical
60% Rated Maximum Deviation
RECEIVER
Specification VHF UHF
Sensitivity 0.30µV (0.22 µV Typical)
(12dBSINAD) (EN)
Intermodulation (EN) 65 dB
Adjacent Channel 80dB @ 25 kHz 75 dB @ 25 kHz
Selectivity (EN) 75dB @ 20 kHz 70 dB @ 20 kHz
65dB @ 12.5 kHz 65 dB @ 12.5 kHz
Spurious 80 dB @ 20/25 kHz 75 dB @ 20/25 kHz
Rejection (EN) 75 dB @ 12.5 kHz 70 dB @ 12.5 kHz
Rated Audio (EN) 3W Internal
7.5W 13W External
Audio Distortion 3% Typical
@ Rated Audio
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3dB
(300 to 3000Hz)
Conducted Spurious -57 dBm 1 GHz
Emission per FCC Part 15: -47 dBm 1 GHz
MOBILE MILITARY STANDARDS 810 C, D, E
810C 810D 810E
Applicable MIL-STD Methods Procedures Methods Procedures Methods Procedures
Low Pressure 500.1 1 500.2 2 500.3 2
High Temperature 501.1 1,2 501.2 1,2 501.3 1,2
Low Temperature 502.1 2 502.2 1,2 502.3 1,2
Temp. Shock 503.1 1 503.2 1 503.3 1
Solar Radiation 505.1 1 505.2 1 505.3 1
Rain 506.1 2 506.2 2 506.3 2
Humidity 507.1 2 507.2 2,3 507.3 3
Salt Fog 509.1 1 509.2 1 509.3 1
Dust 510.1 1 510.2 1 510.3 1
Vibration 514.2 8,10 514.3 1 514.4 1
Shock 516.2 1,2,5 516.3 1 516.4 1
Data for +25°C unless otherwise specified
www.bluetechwireless.net

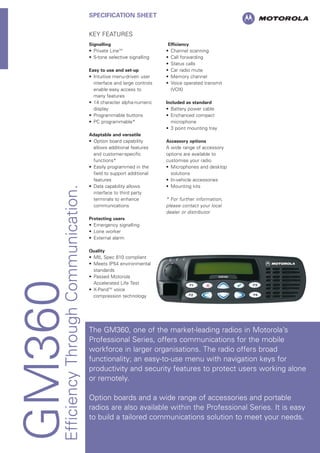

27. GM360EfficiencyThroughCommunication.
SPECIFICATION SHEET
KEY FEATURES
Signalling
• Private LineTM
• 5-tone selective signalling
Easy to use and set-up
• Intuitive menu-driven user
interface and large controls
enable easy access to
many features
• 14 character alpha-numeric
display
• Programmable buttons
• PC programmable*
Adaptable and versatile
• Option board capability
allows additional features
and customer-specific
functions*
• Easily programmed in the
field to support additional
features
• Data capability allows
interface to third party
terminals to enhance
communications
Protecting users
• Emergency signalling
• Lone worker
• External alarm
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental
standards
• Passed Motorola
Accelerated Life Test
• X-PandTM
voice
compression technology
Efficiency
• Channel scanning
• Call forwarding
• Status calls
• Car radio mute
• Memory channel
• Voice operated transmit
(VOX)
Included as standard
• Battery power cable
• Enchanced compact
microphone
• 3 point mounting tray
Accessory options
A wide range of accessory
options are available to
customise your radio
• Microphones and desktop
solutions
• In-vehicle accessories
• Mounting kits
* For further information,
please contact your local
dealer or distributor
The GM360, one of the market-leading radios in Motorola’s
Professional Series, offers communications for the mobile
workforce in larger organisations. The radio offers broad
functionality; an easy-to-use menu with navigation keys for
productivity and security features to protect users working alone
or remotely.
Option boards and a wide range of accessories and portable
radios are also available within the Professional Series. It is easy
to build a tailored communications solution to meet your needs.

28. Motorola Limited, EMEA Headquarters
Jays Close, Viables Industrial Estate, Basingstoke, RG22 4PD, UK
Telephone: +44 (0)1256 358211
www.motorola.com
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006. All rights reserved.
GM360-RE(09/06)
For more information please contact your local
Motorola Authorised Dealer or Distributor
*Availability subject to individual country’s law and regulations.
Specifications are subject to change without notice and are issued for guidance only.
All specifications listed are typical. Radios meet applicable regulatory requirements.
Conforms to EC directive EN 300 086 and EN 300 113
Contact your local Motorola Authorised Dealer to find out more about how communicating with the Professional Series radios will benefit your organisation.
SPECIFICATIONS
TRANSMITTER
Specification VHF UHF LB1, LB2, LB3
Modulation Limiting ±2.5 kHz @ 12.5 kHz
±4.0 kHz @ 20 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted/Radiated -36 dBm 1 GHz -26 dBm
Emissions -30 dBm 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response +1, -3dB
(300 to 3000Hz)
Audio Distortion @ 1000 Hz, 3% Typical
60% Rated Maximum Deviation
RECEIVER
Specification VHF UHF LB1, LB2, LB3
Sensitivity 0.30µV (0.22 µV Typical)
(12dBSINAD) (EN)
Intermodulation (EN) 65 dB 65 dB
Adjacent Channel 80 dB @ 25 kHz 75 dB @ 25 kHz 80 dB @ 25 kHz
Selectivity (EN) 75 dB @ 20 kHz 70 dB @ 20 kHz 75 dB @ 20 kHz
65 dB @ 12.5 kHz 65 dB @ 12.5 kHz 65 dB @ 12.5 kHz
Spurious 80 dB @ 20/25 kHz 75 dB @ 20/25 kHz 80 dB @ 20/25 kHz
Rejection (EN) 75 dB @ 12.5 kHz 70 dB @ 12.5 kHz 75 dB @ 12.5 kHz
Rated Audio (EN) 3W Internal
7.5W 13W External
Audio Distortion 3% Typical
@ Rated Audio
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3dB
(300 to 3000Hz)
Conducted Spurious -57 dBm 1 GHz
Emission per FCC Part 15: -47 dBm 1 GHz
GENERAL
Specification VHF UHF LB1, LB2, LB3
Frequency Range 136-174 MHz 403-470 MHz 29.7-36.0 MHz
36.0-42.0 MHz
42.0-50.0 MHz
Frequency Stability (-30°C to +60°C, 25°C Ref.) ±2.5 PPM ±2 PPM ±5 PPM
Channel Capacity 255
Channel Spacing 12.5/20/25 kHz
Power Output 1-25W 1-25W 45-60W
Power Supply 13.2Vdc (10.8 - 15.6 Vdc) negative vehicle ground
Dimensions (L x W x H) 1-25W: 186 x 180 x 59mm (add 9mm for Volume knob)
45-60W: 198 x 180 x 59mm (add 9mm for Volume knob)
Weight Low power (1-25W): 1450g
High power (45-60W) 2064g
Operating Temperature -30 to 60ºC
Operation Mode Intermittent Intermittent Intermittent
Sealing Passes rain testing to IP54
Shock and Vibration Meets MIL-STD 810-C,DE and TIA/EIA 603
Dust Meets MIL-STD 810-C,DE and TIA/EIA 603
Humidity Meets MIL-STD 810-C,DE and TIA/EIA 603
MOBILE MILITARY STANDARDS 810 C, D, E
810C 810D 810E
Applicable MIL-STD Methods Procedures Methods Procedures Methods Procedures
Low Pressure 500.1 1 500.2 2 500.3 2
High Temperature 501.1 1,2 501.2 1,2 501.3 1,2
Low Temperature 502.1 2 502.2 1,2 502.3 1,2
Temp. Shock 503.1 1 503.2 1 503.3 1
Solar Radiation 505.1 1 505.2 1 505.3 1
Rain 506.1 2 506.2 2 506.3 2
Humidity 507.1 2 507.2 2,3 507.3 3
Salt Fog 509.1 1 509.2 1 509.3 1
Dust 510.1 1 510.2 1 510.3 1
Vibration 514.2 8,10 514.3 1 514.4 1
Shock 516.2 1,2,5 516.3 1 516.4 1
Data for +25°C unless otherwise specified
www.bluetechwireless.net

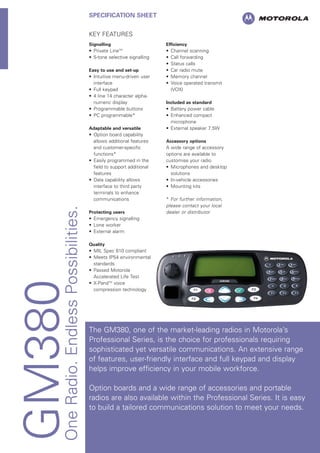

29. GM380OneRadio.EndlessPossibilities.
SPECIFICATION SHEET
KEY FEATURES
Signalling
• Private LineTM
• 5-tone selective signalling
Easy to use and set-up
• Intuitive menu-driven user
interface
• Full keypad
• 4 line 14 character alpha-
numeric display
• Programmable buttons
• PC programmable*
Adaptable and versatile
• Option board capability
allows additional features
and customer-specific
functions*
• Easily programmed in the
field to support additional
features
• Data capability allows
interface to third party
terminals to enhance
communications
Protecting users
• Emergency signalling
• Lone worker
• External alarm
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental
standards
• Passed Motorola
Accelerated Life Test
• X-PandTM
voice
compression technology
Efficiency
• Channel scanning
• Call forwarding
• Status calls
• Car radio mute
• Memory channel
• Voice operated transmit
(VOX)
Included as standard
• Battery power cable
• Enhanced compact
microphone
• External speaker 7.5W
Accessory options
A wide range of accessory
options are available to
customise your radio
• Microphones and desktop
solutions
• In-vehicle accessories
• Mounting kits
* For further information,
please contact your local
dealer or distributor
The GM380, one of the market-leading radios in Motorola’s
Professional Series, is the choice for professionals requiring
sophisticated yet versatile communications. An extensive range
of features, user-friendly interface and full keypad and display
helps improve efficiency in your mobile workforce.
Option boards and a wide range of accessories and portable
radios are also available within the Professional Series. It is easy
to build a tailored communications solution to meet your needs.

30. Motorola Limited, EMEA Headquarters
Jays Close, Viables Industrial Estate, Basingstoke, RG22 4PD, UK
Telephone: +44 (0)1256 358211
www.motorola.com
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006. All rights reserved.
GM380-RE(09/06)
For more information please contact your local
Motorola Authorised Dealer or Distributor
*Availability subject to individual country’s law and regulations.
Specifications are subject to change without notice and are issued for guidance only.
All specifications listed are typical. Radios meet applicable regulatory requirements.
Conforms to EC directive EN 300 086 and EN 300 113
Contact your local Motorola Authorised Dealer to find out more about how communicating with the Professional Series radios will benefit your organisation.
SPECIFICATIONS
GENERAL
Specification VHF UHF
Frequency Range 136-174 MHz 403-470 MHz
Frequency Stability ±2.5 PPM ±2 PPM
(-30°C to +60°C, 25°C Ref.)
Channel Capacity 255
Channel Spacing 12.5/20/25 kHz
Power Output 1-25W 1-25W
Power Supply 13.2Vdc (10.8 - 15.6 Vdc) negative vehicle ground
Dimensions (L x W x H) 1-25W: 190 x 185 x 71mm (add 7mm for Volume knob)
Weight 1-25W: 1480g
Operating Temperature -30 to 60ºC
Operation Mode Intermittent Intermittent
Sealing Passes rain testing to IP54
Shock and Vibration Meets MIL-STD 810-C,DE and TIA/EIA 603
Dust Meets MIL-STD 810-C,DE and TIA/EIA 603
Humidity Meets MIL-STD 810-C,DE and TIA/EIA 603
TRANSMITTER
Specification VHF/UHF
Modulation Limiting ±2.5 kHz @ 12.5 kHz
±4.0 kHz @ 20 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted/Radiated Emissions -36 dBm 1 GHz
-30 dBm 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response (300 to 3000Hz) +1, -3dB
Audio Distortion @ 1000 Hz, 3% Typical
60% Rated Maximum Deviation
RECEIVER
Specification VHF UHF
Sensitivity 0.30µV (0.22 µV Typical)
(12dBSINAD) (EN)
Intermodulation (EN) 65 dB
Adjacent Channel 80dB @ 25 kHz 75 dB @ 25 kHz
Selectivity (EN) 75dB @ 20 kHz 70 dB @ 20 kHz
65dB @ 12.5 kHz 65 dB @ 12.5 kHz
Spurious 80 dB @ 20/25 kHz 75 dB @ 20/25 kHz
Rejection (EN) 75 dB @ 12.5 kHz 70 dB @ 12.5 kHz
Rated Audio (EN) 7.5W 13W External
Audio Distortion 3% Typical
@ Rated Audio
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3dB
(300 to 3000Hz)
Conducted Spurious -57 dBm 1 GHz
Emission per FCC Part 15: -47 dBm 1 GHz
MOBILE MILITARY STANDARDS 810 C, D, E
810C 810D 810E
Applicable MIL-STD Methods Procedures Methods Procedures Methods Procedures
Low Pressure 500.1 1 500.2 2 500.3 2
High Temperature 501.1 1,2 501.2 1,2 501.3 1,2
Low Temperature 502.1 2 502.2 1,2 502.3 1,2
Temp. Shock 503.1 1 503.2 1 503.3 1
Solar Radiation 505.1 1 505.2 1 505.3 1
Rain 506.1 2 506.2 2 506.3 2
Humidity 507.1 2 507.2 2,3 507.3 3
Salt Fog 509.1 1 509.2 1 509.3 1
Dust 510.1 1 510.2 1 510.3 1
Vibration 514.2 8,10 514.3 1 514.4 1
Shock 516.2 1,2,5 516.3 1 516.4 1
Data for +25°C unless otherwise specified
www.bluetechwireless.net

31. GM640CommunicationMadeEasy.
SPECIFICATION SHEET
KEY FEATURES
Signalling
• Fully compliant to
MPT1327
• Includes MTP1343,
RegioNet 43 and ANN
dialling plan
• Configurable up to 2
personalities including
talkgroup select or
conventional signalling
Easy to use and set-up
• Programmable buttons
• PC programmable*
Adaptable and versatile
• Option board capability
allows additional features
and customer-specific
functions*
• Easily programmed in the
field to support additional
features
• Data capability allows
interface to third party
terminals to enhance
communications
Protecting users
• Emergency signalling
• Lone worker
• Time-out timer
• External alarm
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental
standards
• Passed Motorola
Accelerated Life Test
• X-PandTM
voice
compression technology
Efficiency
• Dynamic regrouping
• Missed call alert
• External alarm
• Voice storage
• Wideband and
programmable channel
spacing
• Car radio mute
Included as standard
• Battery power cable
• Enhanced compact
microphone
• Low profile trunnion kit
Accessory options
A wide range of accessory
options are available to
customise your radio
• Microphones and desktop
solutions
• In-vehicle accessories
• Mounting kits
* For further information,
please contact your local
dealer or distributor
The GM640, one of the market-leading radios in Motorola’s
Professional Series, offers simple communications for
organisations on MPT networks requiring an effective
communication tool. It is easy to use with essential functionality;
whilst the additional security features offer increased protection
for lone and remote workers.
Option boards and a wide range of accessories and portable
radios are also available within the Professional Series. It is easy
to build a tailored communications solution to meet your needs.

32. Motorola Limited, EMEA Headquarters
Jays Close, Viables Industrial Estate, Basingstoke, RG22 4PD, UK
Telephone: +44 (0)1256 358211
www.motorola.com
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006. All rights reserved.
GM640-RE(09/06)
For more information please contact your local
Motorola Authorised Dealer or Distributor
*Availability subject to individual country’s law and regulations.
Specifications are subject to change without notice and are issued for guidance only.
All specifications listed are typical. Radios meet applicable regulatory requirements.
Conforms to EC directive EN 300 086 and EN 300 113
Contact your local Motorola Authorised Dealer to find out more about how communicating with the Professional Series radios will benefit your organisation.
SPECIFICATIONS
GENERAL
Specification VHF UHF
Frequency Range 136-174 MHz 403-470 MHz
Frequency Stability ±2.5 PPM ±2 PPM
(-30°C to +60°C, 25°C Ref.)
Channel Capacity System dependent
Channel Spacing 12.5/20/25 kHz
Power Output 1-25W
Power Supply 13.2Vdc (10.8 - 15.6 Vdc) negative vehicle ground
Dimensions (L x W x H) 1-25W: 176 x 174 x 56mm (add 8mm for Volume knob)
Weight 1-25W: 1390g
Operating Temperature -30 to 60ºC
Operation Mode Intermittent Intermittent
Sealing Passes rain testing to IP54
Shock and Vibration Meets MIL-STD 810-C,DE and TIA/EIA 603
Dust Meets MIL-STD 810-C,DE and TIA/EIA 603
Humidity Meets MIL-STD 810-C,DE and TIA/EIA 603
TRANSMITTER
Specification VHF/UHF
Modulation Limiting ±2.5 kHz @ 12.5 kHz
±4.0 kHz @ 20 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted/Radiated Emissions -36 dBm 1 GHz
-30 dBm 1 GHz
Adjacent Channel Power -60 dB @ 12.5kHz
-70 dB @ 20/25 kHz
Audio Response (300 to 3000Hz) +1, -3dB
Audio Distortion @ 1000 Hz, 3% Typical
60% Rated Maximum Deviation
RECEIVER
Specification VHF UHF
Sensitivity 0.30µV (0.22 µV Typical)
(12dBSINAD) (EN)
Intermodulation (EN) 65 dB
Adjacent Channel 80 dB @ 25 kHz 75 dB @ 25 kHz
Selectivity (EN) 75 dB @ 20 kHz 70 dB @ 20 kHz
65 dB @ 12.5 kHz 65 dB @ 12.5 kHz
Spurious 80 dB @ 20/25 kHz 75 dB @ 20/25 kHz
Rejection (EN) 75 dB @ 12.5 kHz 70 dB @ 12.5 kHz
Rated Audio (EN) 3W Internal
7.5W 13W External
Audio Distortion 3% Typical
@ Rated Audio
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3dB
(300 to 3000Hz)
Conducted Spurious -57 dBm 1 GHz
Emission per FCC Part 15: -47 dBm 1 GHz
MOBILE MILITARY STANDARDS 810 C, D, E
810C 810D 810E
Applicable MIL-STD Methods Procedures Methods Procedures Methods Procedures
Low Pressure 500.1 1 500.2 2 500.3 2
High Temperature 501.1 1,2 501.2 1,2 501.3 1,2
Low Temperature 502.1 2 502.2 1,2 502.3 1,2
Temp. Shock 503.1 1 503.2 1 503.3 1
Solar Radiation 505.1 1 505.2 1 505.3 1
Rain 506.1 2 506.2 2 506.3 2
Humidity 507.1 2 507.2 2,3 507.3 3
Salt Fog 509.1 1 509.2 1 509.3 1
Dust 510.1 1 510.2 1 510.3 1
Vibration 514.2 8,10 514.3 1 514.4 1
Shock 516.2 1,2,5 516.3 1 516.4 1
Data for +25°C unless otherwise specified
www.bluetechwireless.net

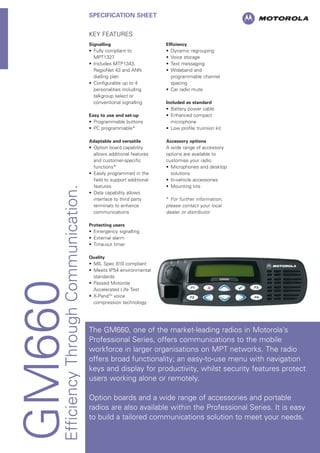

33. GM660EfficiencyThroughCommunication.
SPECIFICATION SHEET
KEY FEATURES
Signalling
• Fully compliant to
MPT1327
• Includes MTP1343,
RegioNet 43 and ANN
dialling plan
• Configurable up to 4
personalities including
talkgroup select or
conventional signalling
Easy to use and set-up
• Programmable buttons
• PC programmable*
Adaptable and versatile
• Option board capability
allows additional features
and customer-specific
functions*
• Easily programmed in the
field to support additional
features
• Data capability allows
interface to third party
terminals to enhance
communications
Protecting users
• Emergency signalling
• External alarm
• Time-out timer
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental
standards
• Passed Motorola
Accelerated Life Test
• X-PandTM
voice
compression technology
Efficiency
• Dynamic regrouping
• Voice storage
• Text messaging
• Wideband and
programmable channel
spacing
• Car radio mute
Included as standard
• Battery power cable
• Enhanced compact
microphone
• Low profile trunnion kit
Accessory options
A wide range of accessory
options are available to
customise your radio
• Microphones and desktop
solutions
• In-vehicle accessories
• Mounting kits
* For further information,
please contact your local
dealer or distributor
The GM660, one of the market-leading radios in Motorola’s
Professional Series, offers communications to the mobile
workforce in larger organisations on MPT networks. The radio
offers broad functionality; an easy-to-use menu with navigation
keys and display for productivity, whilst security features protect
users working alone or remotely.
Option boards and a wide range of accessories and portable
radios are also available within the Professional Series. It is easy
to build a tailored communications solution to meet your needs.

34. Motorola Limited, EMEA Headquarters
Jays Close, Viables Industrial Estate, Basingstoke, RG22 4PD, UK
Telephone: +44 (0)1256 358211
www.motorola.com
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006. All rights reserved.
GM660-RE(09/06)
For more information please contact your local
Motorola Authorised Dealer or Distributor
*Availability subject to individual country’s law and regulations.
Specifications are subject to change without notice and are issued for guidance only.
All specifications listed are typical. Radios meet applicable regulatory requirements.
Conforms to EC directive EN 300 086 and EN 300 113
Contact your local Motorola Authorised Dealer to find out more about how communicating with the Professional Series radios will benefit your organisation.
SPECIFICATIONS
GENERAL
Specification VHF UHF
Frequency Range 136-174 MHz 403-470 MHz
Frequency Stability ±2.5 PPM ±2 PPM
(-30°C to +60°C, 25°C Ref.)
Channel Capacity System dependent
Channel Spacing 12.5/20/25 kHz
Power Output 1-25W
Power Supply 13.2Vdc (10.8 - 15.6 Vdc) negative vehicle ground
Dimensions (L x W x H) 186 x 180 x 59mm (add 9mm for Volume knob)
Weight 1450g
Operating Temperature -30 to 60ºC
Operation Mode Intermittent Intermittent
Sealing Passes rain testing to IP54
Shock and Vibration Meets MIL-STD 810-C,DE and TIA/EIA 603
Dust Meets MIL-STD 810-C,DE and TIA/EIA 603
Humidity Meets MIL-STD 810-C,DE and TIA/EIA 603
TRANSMITTER
Specification VHF/UHF
Modulation Limiting ±2.5 kHz @ 12.5 kHz
±4.0 kHz @ 20 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted/Radiated Emissions -36 dBm 1 GHz
-30 dBm 1 GHz
Adjacent Channel Power -60 dB @ 12.5kHz
-70 dB @ 20/25 kHz
Audio Response (300 to 3000Hz) +1, -3dB
Audio Distortion @ 1000 Hz, 3% Typical
60% Rated Maximum Deviation
RECEIVER
Specification VHF UHF
Sensitivity 0.30µV (0.22 µV Typical)
(12dBSINAD) (EN)
Intermodulation (EN) 65 dB
Adjacent Channel 80 dB @ 25 kHz 75 dB @ 25 kHz
Selectivity (EN) 75 dB @ 20 kHz 70 dB @ 20 kHz
65 dB @ 12.5 kHz 65 dB @ 12.5 kHz
Spurious 80 dB @ 20/25 kHz 75 dB @ 20/25 kHz
Rejection (EN) 75 dB @ 12.5 kHz 70 dB @ 12.5 kHz
Rated Audio (EN) 3W Internal
7.5W 13W External
Audio Distortion 3% Typical
@ Rated Audio
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3dB
(300 to 3000Hz)
Conducted Spurious -57 dBm 1 GHz
Emission per FCC Part 15: -47 dBm 1 GHz
MOBILE MILITARY STANDARDS 810 C, D, E
810C 810D 810E
Applicable MIL-STD Methods Procedures Methods Procedures Methods Procedures
Low Pressure 500.1 1 500.2 2 500.3 2
High Temperature 501.1 1,2 501.2 1,2 501.3 1,2
Low Temperature 502.1 2 502.2 1,2 502.3 1,2
Temp. Shock 503.1 1 503.2 1 503.3 1
Solar Radiation 505.1 1 505.2 1 505.3 1
Rain 506.1 2 506.2 2 506.3 2
Humidity 507.1 2 507.2 2,3 507.3 3
Salt Fog 509.1 1 509.2 1 509.3 1
Dust 510.1 1 510.2 1 510.3 1
Vibration 514.2 8,10 514.3 1 514.4 1
Shock 516.2 1,2,5 516.3 1 516.4 1
Data for +25°C unless otherwise specified
www.bluetechwireless.net

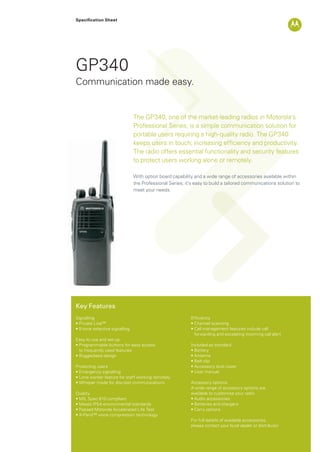

35. Specification Sheet
GP340
The GP340, one of the market-leading radios in Motorola’s
Professional Series, is a simple communication solution for
portable users requiring a high-quality radio. The GP340
keeps users in touch; increasing efficiency and productivity.
The radio offers essential functionality and security features
to protect users working alone or remotely.
With option board capability and a wide range of accessories available within
the Professional Series; it’s easy to build a tailored communications solution to
meet your needs.
Communication made easy.
Key Features
Signalling
• Private Line™
• 5-tone selective signalling
Easy to use and set-up
• Programmable buttons for easy access
to frequently used features
• Ruggedised design
Protecting users
• Emergency signalling
• Lone worker feature for staff working remotely
• Whisper mode for discreet communications
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental standards
• Passed Motorola Accelerated Life Test
• X-Pand™ voice compression technology
Efficiency
• Channel scanning
• Call management features include call
forwarding and escalating incoming call alert
Included as standard
• Battery
• Antenna
• Belt clip
• Accessory dust cover
• User manual
Accessory options
A wide range of accessory options are
available to customise your radio
• Audio accessories
• Batteries and chargers
• Carry options
For full details of available accessories,
please contact your local dealer or distributor
GP340_Datasheet.indd 1 3/12/09 15:44:59

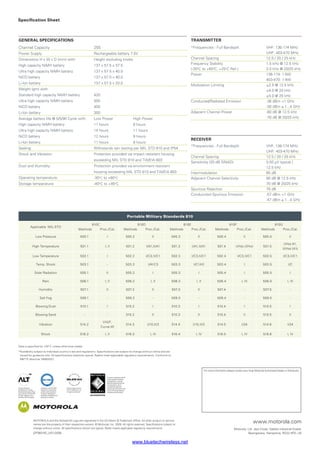

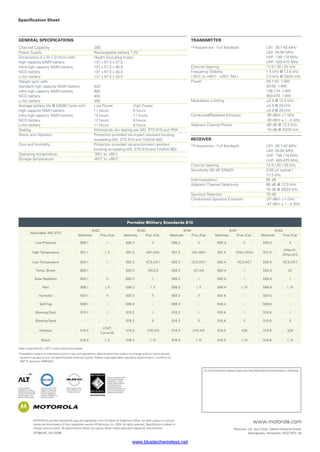

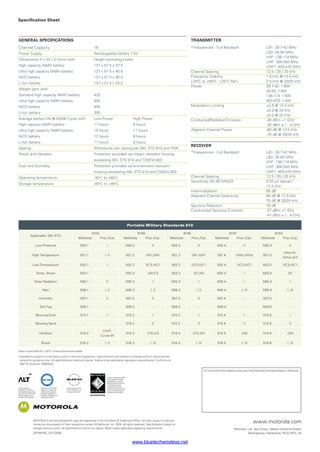

36. Specification Sheet
Channel Capacity 16
Power Supply Rechargeable battery 7.5V
Dimensions H x W x D (mm) with: Height excluding knobs
High capacity NiMH battery 137 x 57.5 x 37.5
Ultra high capacity NiMH battery 137 x 57.5 x 40.0
NiCD battery 137 x 57.5 x 40.0
Li-Ion battery 137 x 57.5 x 33.0
Weight (gm) with:
Standard high capacity NiMH battery 420
Ultra high capacity NiMH battery 500
NiCD battery 450
Li-Ion battery 350
Average battery life @ 5/5/90 Cycle with: Low Power High Power
High capacity NiMH battery 11 hours 8 hours
Ultra high capacity NiMH battery 14 hours 11 hours
NiCD battery 12 hours 9 hours
Li-Ion battery 11 hours 8 hours
Sealing: Withstands rain testing per MIL STD 810 and IP54
Shock and Vibration: Protection provided via impact resistant housing
exceeding MIL STD 810 and TIA/EIA 603
Dust and Humidity: Protection provided via environment resistant
housing exceeding MIL STD 810 and TIA/EIA 603
Operating temperature: -30o
C to +60o
C
Storage temperature: -40o
C to +85o
C
*Frequencies - Full Bandsplit LB1: 29.7-42 MHz
LB2: 35-50 MHz
VHF: 136-174 MHz
UHF: 300-350 MHz
UHF1: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability 1.5 kHz @ 12.5 kHz
(-30o
C to +60o
C, +25o
C Ref.) 2.0 kHz @ 20/25 kHz
Power 29.7-42: 1-6W
35-50: 1-6W
136-174: 1-5W
403-470: 1-4W
Modulation Limiting ±2.5 @ 12.5 kHz
±4.0 @ 20 kHz
±5.0 @ 25 kHz
Conducted/Radiated Emission -36 dBm 1 GHz
-30 dBm ≥ 1...4 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
*Frequencies - Full Bandsplit LB1: 29.7-42 MHz
LB2: 35-50 MHz
VHF: 136-174 MHz
UHF: 300-350 MHz
UHF1: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Sensitivity (20 dB SINAD) 0.50 μV typical /
12.5 kHz
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Conduncted Spurious Emission -57 dBm 1 GHz
-47 dBm ≥ 1...4 GHz
GENERAL SPECIFICATIONS TRANSMITTER
RECEIVER
Data is specified for +25°C unless otherwise stated
*Availability subject to individual country’s law and regulations. Specifications are subject to change without notice and are
issued for guidance only. All specifications listed are typical. Radios meet applicable regulatory requirements. Conforms to
RTTE directive 1999/5/EC
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2009. All rights reserved. Specifications subject to
change without notice. All specifications shown are typical. Radio meets applicable regulatory requirements.
GP340-RE_UK(12/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
For more information please contact your local Motorola Authorised Dealer or Distributor

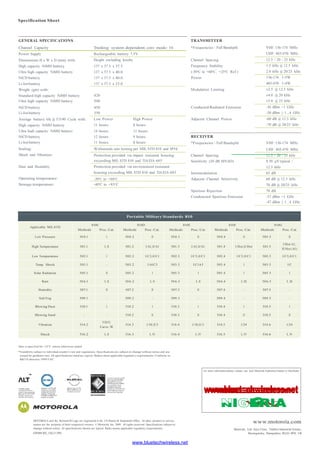

Portable Military Standards 810
Applicable MIL-STD
810C
Methods Proc./Cat.
810D
Methods Proc./Cat.
810E
Methods Proc./Cat.
810F
Methods Proc./Cat.
810G
Methods Proc./Cat.
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 505.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot,II/Hot 501.5
I/Hot A1,
II/Hot (A1)
Low Temperature 502.1 I 502.2 I/C3,II/C1 502.3 I/C3,II/C1 502.4 I/C3,II/C1 502.5 I/C3,II/C1
Temp. Shock 503.1 - 503.2 I/A1C3 503.3 I/C1A3 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III 506.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 -
Salt Fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Blowing Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Blowing Sand - - 510.2 II 510.3 II 510.4 II 510.5 II
Vibration 514.2
VIII/F,
Curve-W
514.3 I/10,II/3 514.4 I/10,II/3 514.5 I/24 514.6 I/24
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV
GP340_Datasheet.indd 2 3/12/09 15:45:02
www.bluetechwireless.net

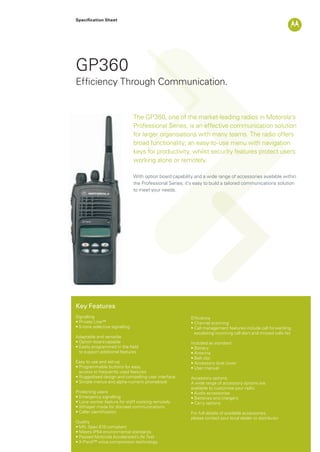

37. Specification Sheet
GP360
Key Features
Signalling
• Private Line™
• 5-tone selective signalling
Adaptable and versatile
• Option board capable
• Easily programmed in the field
to support additional features
Easy to use and set-up
• Programmable buttons for easy
access to frequently used features
• Ruggedised design and compelling user interface
• Simple menus and alpha-numeric phonebook
Protecting users
• Emergency signalling
• Lone worker feature for staff working remotely
• Whisper mode for discreet communications
• Caller identification
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental standards
• Passed Motorola Accelerated Life Test
• X-Pand™ voice compression technology
Efficiency
• Channel scanning
• Call management features include call forwarding,
escalating incoming call alert and missed calls list
Included as standard
• Battery
• Antenna
• Belt clip
• Accessory dust cover
• User manual
Accessory options
A wide range of accessory options are
available to customise your radio
• Audio accessories
• Batteries and chargers
• Carry options
For full details of available accessories,
please contact your local dealer or distributor
The GP360, one of the market-leading radios in Motorola’s
Professional Series, is an effective communication solution
for larger organisations with many teams. The radio offers
broad functionality; an easy-to-use menu with navigation
keys for productivity, whilst security features protect users
working alone or remotely.
With option board capability and a wide range of accessories available within
the Professional Series; it’s easy to build a tailored communications solution
to meet your needs.
Efficiency Through Communication.
GP360_Datasheet.indd 1 3/12/09 15:48:12

38. MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2009. All rights reserved. Specifications subject to
change without notice. All specifications shown are typical. Radio meets applicable regulatory requirements.
GP360-RE_UK(12/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
For more information please contact your local Motorola Authorised Dealer or Distributor
Specification Sheet
Channel Capacity 255
Power Supply Rechargeable battery 7.5V
Dimensions H x W x D (mm) with: Height excluding knobs
High capacity NiMH battery 137 x 57.5 x 37.5
Ultra high capacity NiMH battery 137 x 57.5 x 40.0
NiCD battery 137 x 57.5 x 40.0
Li-Ion battery 137 x 57.5 x 33.0
Weight (gm) with:
Standard high capacity NiMH battery 420
Ultra high capacity NiMH battery 500
NiCD battery 450
Li-Ion battery 350
Average battery life @ 5/5/90 Cycle with: Low Power High Power
High capacity NiMH battery 11 hours 8 hours
Ultra high capacity NiMH battery 14 hours 11 hours
NiCD battery 12 hours 9 hours
Li-Ion battery 11 hours 8 hours
Sealing: Withstands rain testing per MIL STD 810 and IP54
Shock and Vibration: Protection provided via impact resistant housing
exceeding MIL STD 810 and TIA/EIA 603
Dust and Humidity: Protection provided via environment resistant
housing exceeding MIL STD 810 and TIA/EIA 603
Operating temperature: -30o
C to +60o
C
Storage temperature: -40o
C to +85o
C
*Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability 1.5 kHz @ 12.5 kHz
(-30o
C to +60o
C, +25o
C Ref.) 2.0 kHz @ 20/25 kHz
Power 136-174: 1-5W
403-470: 1-4W
Modulation Limiting ±2.5 @ 12.5 kHz
±4.0 @ 20 kHz
±5.0 @ 25 kHz
Conducted/Radiated Emission -36 dBm 1 GHz
-30 dBm ≥ 1...4 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
*Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Sensitivity (20 dB SINAD) 0.50 μV typical /
12.5 kHz
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Conduncted Spurious Emission -57 dBm 1 GHz
-47 dBm ≥ 1...4 GHz
GENERAL SPECIFICATIONS TRANSMITTER
RECEIVER
Data is specified for +25°C unless otherwise stated
*Availability subject to individual country’s law and regulations. Specifications are subject to change without notice and are
issued for guidance only. All specifications listed are typical. Radios meet applicable regulatory requirements. Conforms to
RTTE directive 1999/5/EC
Portable Military Standards 810
Applicable MIL-STD
810C
Methods Proc./Cat.
810D
Methods Proc./Cat.
810E
Methods Proc./Cat.
810F
Methods Proc./Cat.
810G
Methods Proc./Cat.
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 505.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot,II/Hot 501.5
I/Hot A1,
II/Hot (A1)
Low Temperature 502.1 I 502.2 I/C3,II/C1 502.3 I/C3,II/C1 502.4 I/C3,II/C1 502.5 I/C3,II/C1
Temp. Shock 503.1 - 503.2 I/A1C3 503.3 I/C1A3 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III 506.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 -
Salt Fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Blowing Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Blowing Sand - - 510.2 II 510.3 II 510.4 II 510.5 II
Vibration 514.2
VIII/F,
Curve-W
514.3 I/10,II/3 514.4 I/10,II/3 514.5 I/24 514.6 I/24
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV
GP360_Datasheet.indd 2 3/12/09 15:48:13
www.bluetechwireless.net

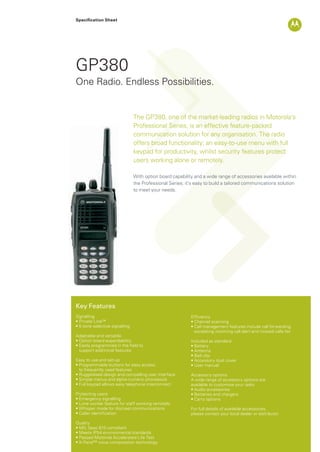

39. Specification Sheet
GP380
The GP380, one of the market-leading radios in Motorola’s
Professional Series, is an effective feature-packed
communication solution for any organisation. The radio
offers broad functionality; an easy-to-use menu with full
keypad for productivity, whilst security features protect
users working alone or remotely.
With option board capability and a wide range of accessories available within
the Professional Series; it’s easy to build a tailored communications solution
to meet your needs.
One Radio. Endless Possibilities.
Key Features
Signalling
• Private Line™
• 5-tone selective signalling
Adaptable and versatile
• Option board expandability
• Easily programmed in the field to
support additional features
Easy to use and set-up
• Programmable buttons for easy access
to frequently used features
• Ruggedised design and compelling user interface
• Simple menus and alpha-numeric phonebook
• Full keypad allows easy telephone interconnect
Protecting users
• Emergency signalling
• Lone worker feature for staff working remotely
• Whisper mode for discreet communications
• Caller identification
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental standards
• Passed Motorola Accelerated Life Test
• X-Pand™ voice compression technology
Efficiency
• Channel scanning
• Call management features include call forwarding,
escalating incoming call alert and missed calls list
Included as standard
• Battery
• Antenna
• Belt clip
• Accessory dust cover
• User manual
Accessory options
A wide range of accessory options are
available to customise your radio
• Audio accessories
• Batteries and chargers
• Carry options
For full details of available accessories,
please contact your local dealer or distributor
GP380_Datasheet.indd 1 3/12/09 15:52:10

40. Specification Sheet
Channel Capacity 255
Power Supply Rechargeable battery 7.5V
Dimensions H x W x D (mm) with: Height excluding knobs
High capacity NiMH battery 137 x 57.5 x 37.5
Ultra high capacity NiMH battery 137 x 57.5 x 40.0
NiCD battery 137 x 57.5 x 40.0
Li-Ion battery 137 x 57.5 x 33.0
Weight (gm) with:
Standard high capacity NiMH battery 420
Ultra high capacity NiMH battery 500
NiCD battery 450
Li-Ion battery 350
Average battery life @ 5/5/90 Cycle with: Low Power High Power
High capacity NiMH battery 11 hours 8 hours
Ultra high capacity NiMH battery 14 hours 11 hours
NiCD battery 12 hours 9 hours
Li-Ion battery 11 hours 8 hours
Sealing: Withstands rain testing per MIL STD 810 and IP54
Shock and Vibration: Protection provided via impact resistant housing
exceeding MIL STD 810 and TIA/EIA 603
Dust and Humidity: Protection provided via environment resistant
housing exceeding MIL STD 810 and TIA/EIA 603
Operating temperature: -30o
C to +60o
C
Storage temperature: -40o
C to +85o
C
*Frequencies - Full Bandsplit LB1: 29.7-42 MHz
LB2: 35-50 MHz
VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability 1.5 kHz @ 12.5 kHz
(-30o
C to +60o
C, +25o
C Ref.) 2.0 kHz @ 20/25 kHz
Power 29.7-42: 1-6W
35-50: 1-6W
136-174: 1-5W
403-470: 1-4W
Modulation Limiting ±2.5 @ 12.5 kHz
±4.0 @ 20 kHz
±5.0 @ 25 kHz
Conducted/Radiated Emission -36 dBm 1 GHz
-30 dBm ≥ 1...4 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
*Frequencies - Full Bandsplit LB1: 29.7-42 MHz
LB2: 35-50 MHz
VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Sensitivity (20 dB SINAD) 0.50 μV typical /
12.5 kHz
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Conduncted Spurious Emission -57 dBm 1 GHz
-47 dBm ≥ 1...4 GHz
GENERAL SPECIFICATIONS TRANSMITTER
RECEIVER
Data is specified for +25°C unless otherwise stated
*Availability subject to individual country’s law and regulations. Specifications are subject to change without notice and are
issued for guidance only. All specifications listed are typical. Radios meet applicable regulatory requirements. Conforms to
RTTE directive 1999/5/EC
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2009. All rights reserved. Specifications subject to
change without notice. All specifications shown are typical. Radio meets applicable regulatory requirements.
GP380-RE_UK(12/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
For more information please contact your local Motorola Authorised Dealer or Distributor
Portable Military Standards 810
Applicable MIL-STD
810C
Methods Proc./Cat.
810D
Methods Proc./Cat.
810E
Methods Proc./Cat.
810F
Methods Proc./Cat.
810G
Methods Proc./Cat.
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 505.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot,II/Hot 501.5
I/Hot A1,
II/Hot (A1)
Low Temperature 502.1 I 502.2 I/C3,II/C1 502.3 I/C3,II/C1 502.4 I/C3,II/C1 502.5 I/C3,II/C1
Temp. Shock 503.1 - 503.2 I/A1C3 503.3 I/C1A3 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III 506.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 -
Salt Fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Blowing Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Blowing Sand - - 510.2 II 510.3 II 510.4 II 510.5 II
Vibration 514.2
VIII/F,
Curve-W
514.3 I/10,II/3 514.4 I/10,II/3 514.5 I/24 514.6 I/24
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV
GP380_Datasheet.indd 2 3/12/09 15:52:11
www.bluetechwireless.net

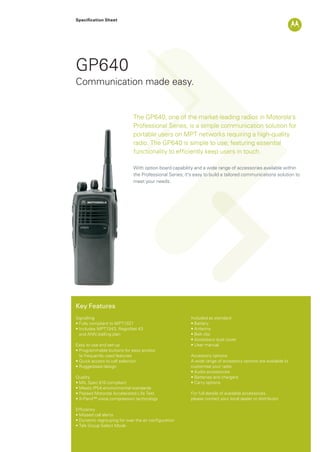

41. Specification Sheet
GP640
The GP640, one of the market-leading radios in Motorola’s
Professional Series, is a simple communication solution for
portable users on MPT networks requiring a high-quality
radio. The GP640 is simple to use; featuring essential
functionality to efficiently keep users in touch.
With option board capability and a wide range of accessories available within
the Professional Series; it’s easy to build a tailored communications solution to
meet your needs.
Communication made easy.
Key Features
Signalling
• Fully compliant to MPT1327
• Includes MPT1343, RegioNet 43
and ANN dialling plan
Easy to use and set-up
• Programmable buttons for easy access
to frequently used features
• Quick access to call selection
• Ruggedised design
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental standards
• Passed Motorola Accelerated Life Test
• X-Pand™ voice compression technology
Efficiency
• Missed call alerts
• Dynamic regrouping for over the air configuration
• Talk Group Select Mode
Included as standard
• Battery
• Antenna
• Belt clip
• Accessory dust cover
• User manual
Accessory options
A wide range of accessory options are available to
customise your radio
• Audio accessories
• Batteries and chargers
• Carry options
For full details of available accessories,
please contact your local dealer or distributor
GP640_Datasheet.indd 1 18/11/09 11:12:25

42. MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2009. All rights reserved. Specifications subject to
change without notice. All specifications shown are typical. Radio meets applicable regulatory requirements.
GP640-RE_UK(11/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
For more information please contact your local Motorola Authorised Dealer or Distributor
Specification Sheet
Channel Capacity Trunking: system dependent; conv mode: 16
Power Supply Rechargeable battery 7.5V
Dimensions H x W x D (mm) with: Height excluding knobs
High capacity NiMH battery 137 x 57.5 x 37.5
Ultra high capacity NiMH battery 137 x 57.5 x 40.0
NiCD battery 137 x 57.5 x 40.0
Li-Ion battery 137 x 57.5 x 33.0
Weight (gm) with:
Standard high capacity NiMH battery 420
Ultra high capacity NiMH battery 500
NiCD battery 450
Li-Ion battery 350
Average battery life @ 5/5/90 Cycle with: Low Power High Power
High capacity NiMH battery 11 hours 8 hours
Ultra high capacity NiMH battery 14 hours 11 hours
NiCD battery 12 hours 9 hours
Li-Ion battery 11 hours 8 hours
Sealing: Withstands rain testing per MIL STD 810 and IP54
Shock and Vibration: Protection provided via impact resistant housing
exceeding MIL STD 810 and TIA/EIA 603
Dust and Humidity: Protection provided via environment resistant
housing exceeding MIL STD 810 and TIA/EIA 603
Operating temperature: -30o
C to +60o
C
Storage temperature: -40o
C to +85o
C
*Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability 1.5 kHz @ 12.5 kHz
(-30o
C to +60o
C, +25o
C Ref.) 2.0 kHz @ 20/25 kHz
Power 136-174: 1-5W
403-470: 1-4W
Modulation Limiting ±2.5 @ 12.5 kHz
±4.0 @ 20 kHz
±5.0 @ 25 kHz
Conducted/Radiated Emission -36 dBm 1 GHz
-30 dBm ≥ 1...4 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
*Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Sensitivity (20 dB SINAD) 0.50 μV typical /
12.5 kHz
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Conduncted Spurious Emission -57 dBm 1 GHz
-47 dBm ≥ 1...4 GHz
GENERAL SPECIFICATIONS TRANSMITTER
RECEIVER
Data is specified for +25°C unless otherwise stated
*Availability subject to individual country’s law and regulations. Specifications are subject to change without notice and are
issued for guidance only. All specifications listed are typical. Radios meet applicable regulatory requirements. Conforms to
RTTE directive 1999/5/EC
Portable Military Standards 810
Applicable MIL-STD
810C
Methods Proc./Cat.
810D
Methods Proc./Cat.
810E
Methods Proc./Cat.
810F
Methods Proc./Cat.
810G
Methods Proc./Cat.
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 505.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot,II/Hot 501.5
I/Hot A1,
II/Hot (A1)
Low Temperature 502.1 I 502.2 I/C3,II/C1 502.3 I/C3,II/C1 502.4 I/C3,II/C1 502.5 I/C3,II/C1
Temp. Shock 503.1 - 503.2 I/A1C3 503.3 I/C1A3 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III 506.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 -
Salt Fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Blowing Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Blowing Sand - - 510.2 II 510.3 II 510.4 II 510.5 II
Vibration 514.2
VIII/F,
Curve-W
514.3 I/10,II/3 514.4 I/10,II/3 514.5 I/24 514.6 I/24
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV
GP640_Datasheet.indd 2 18/11/09 11:12:26
www.bluetechwireless.net

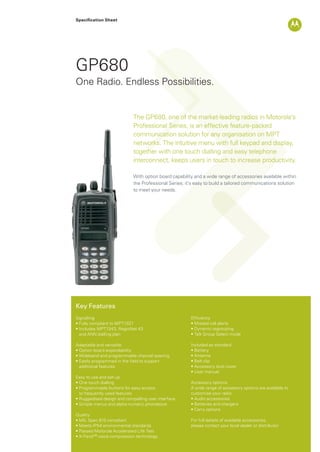

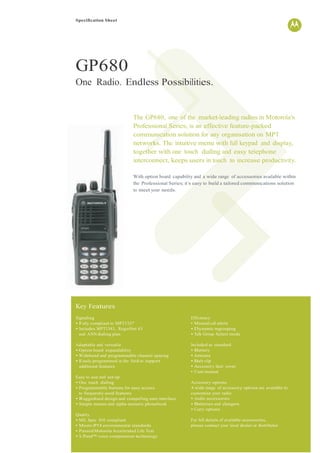

43. Specification Sheet
GP680
One Radio. Endless Possibilities.
Key Features
The GP680, one of the market-leading radios in Motorola’s
Professional Series, is an effective feature-packed
communication solution for any organisation on MPT
networks. The intuitive menu with full keypad and display,
together with one touch dialling and easy telephone
interconnect, keeps users in touch to increase productivity.
With option board capability and a wide range of accessories available within
the Professional Series; it’s easy to build a tailored communications solution
to meet your needs.
Signalling
• Fully compliant to MPT1327
• Includes MPT1343, RegioNet 43
and ANN dialling plan
Adaptable and versatile
• Option board expandability
• Wideband and programmable channel spacing
• Easily programmed in the field to support
additional features
Easy to use and set-up
• One touch dialling
• Programmable buttons for easy access
to frequently used features
• Ruggedised design and compelling user interface
• Simple menus and alpha-numeric phonebook
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental standards
• Passed Motorola Accelerated Life Test
• X-Pand™ voice compression technology
Efficiency
• Missed call alerts
• Dynamic regrouping
• Talk Group Select mode
Included as standard
• Battery
• Antenna
• Belt clip
• Accessory dust cover
• User manual
Accessory options
A wide range of accessory options are available to
customise your radio
• Audio accessories
• Batteries and chargers
• Carry options
For full details of available accessories,
please contact your local dealer or distributor

44. Specification Sheet
GENERAL SPECIFICATIONS TRANSMITTER
Channel Capacity Trunking: system dependent; conv mode: 16
Power Supply Rechargeable battery 7.5V
*Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Dimensions H x W x D (mm) with: Height excluding knobs Channel Spacing 12.5 / 20 / 25 kHz
High capacity NiMH battery
Ultra high capacity NiMH battery
137 x 57.5 x 37.5
137 x 57.5 x 40.0
Frequency Stability
(-30o
C to +60o
C, +25o
C Ref.)
1.5 kHz @ 12.5 kHz
2.0 kHz @ 20/25 kHz
NiCD battery
Li-Ion battery
137 x 57.5 x 40.0
137 x 57.5 x 33.0
Power 136-174: 1-5W
403-470: 1-4W
Weight (gm) with:
Standard high capacity NiMH battery 420
Modulation Limiting ±2.5 @ 12.5 kHz
±4.0 @ 20 kHz
Ultra high capacity NiMH battery 500 ±5.0 @ 25 kHz
NiCD battery 450 Conducted/Radiated Emission -36 dBm 1 GHz
Li-Ion battery 350 -30 dBm ≥ 1...4 GHz
Average battery life @ 5/5/90 Cycle with:
High capacity NiMH battery
Low Power
11 hours
High Power
8 hours
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Ultra high capacity NiMH battery 14 hours 11 hours
NiCD battery 12 hours 9 hours RECEIVER
Li-Ion battery 11 hours 8 hours *Frequencies - Full Bandsplit VHF: 136-174 MHz
Sealing: Withstands rain testing per MIL STD 810 and IP54 UHF: 403-470 MHz
Shock and Vibration: Protection provided via impact resistant housing Channel Spacing 12.5 / 20 / 25 kHz
exceeding MIL STD 810 and TIA/EIA 603 Sensitivity (20 dB SINAD) 0.50 μV typical /
Dust and Humidity: Protection provided via environment resistant 12.5 kHz
housing exceeding MIL STD 810 and TIA/EIA 603 Intermodulation 65 dB
Operating temperature: -30o
C to +60o
C Adjacent Channel Selectivity 60 dB @ 12.5 kHz
Storage temperature: -40o
C to +85o
C 70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Conduncted Spurious Emission -57 dBm 1 GHz
-47 dBm ≥ 1...4 GHz
Portable Military Standards 810
Applicable MIL-STD
810C
Methods Proc./Cat.
810D
Methods Proc./Cat.
810E
Methods Proc./Cat.
810F
Methods Proc./Cat.
810G
Methods Proc./Cat.
Low Pressure 50 0.1 I 50 0.2 II 50 0.3 II 50 0.4 II 505.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot,II/Hot 501.5
I/Hot A1,
II/Hot (A1)
Low Temperature 502.1 I 502.2 I/C3,II/C1 502.3 I/C3,II/C1 502.4 I/C3,II/C1 502.5 I/C3,II/C1
Temp. Shock 503.1 - 503.2 I/A1C3 503.3 I/C1A3 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I
Rain 50 6.1 I, II 50 6.2 I, II 50 6.3 I, II 50 6.4 I, III 50 6.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 -
Salt Fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Blowing Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Blowing Sand - - 510.2 II 510.3 II 510.4 II 510.5 II
Vibration 514.2
VIII/F,
Curve -W
514.3 I/10,II/3 514.4 I/10,II/3 514.5 I/24 514.6 I/24
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV
Data is specified for +25°C unless otherwise stated
*Availability subject to individual country’s law and regulations. Specifications are subject to change without notice and are
issued for guidance only. All specifications listed are typical. Radios meet applicable regulatory requirements. Conforms to
RTTE directive 1999/5/EC
For more information please contact your local Motorola Authorised Dealer or Distributor
MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2009. All rights reserved. Specifications subject to
change without notice. All specifications shown are typical. Radio meets applicable regulatory requirements.
GP680-RE_UK(11/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
www.bluetechwireless.net

45. Specification Sheet
GP680
The GP680, one of the market-leading radios in Motorola’s
Professional Series, is an effective feature-packed
communication solution for any organisation on MPT
networks. The intuitive menu with full keypad and display,
together with one touch dialling and easy telephone
interconnect, keeps users in touch to increase productivity.
With option board capability and a wide range of accessories available within
the Professional Series; it’s easy to build a tailored communications solution
to meet your needs.
One Radio. Endless Possibilities.
Key Features
Signalling
• Fully compliant to MPT1327
• Includes MPT1343, RegioNet 43
and ANN dialling plan
Adaptable and versatile
• Option board expandability
• Wideband and programmable channel spacing
• Easily programmed in the field to support
additional features
Easy to use and set-up
• One touch dialling
• Programmable buttons for easy access
to frequently used features
• Ruggedised design and compelling user interface
• Simple menus and alpha-numeric phonebook
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental standards
• Passed Motorola Accelerated Life Test
• X-Pand™ voice compression technology
Efficiency
• Missed call alerts
• Dynamic regrouping
• Talk Group Select mode
Included as standard
• Battery
• Antenna
• Belt clip
• Accessory dust cover
• User manual
Accessory options
A wide range of accessory options are available to
customise your radio
• Audio accessories
• Batteries and chargers
• Carry options
For full details of available accessories,
please contact your local dealer or distributor
GP680_Datasheet.indd 1 18/11/09 11:14:45

46. MOTOROLA and the Stylised M Logo are registered in the US Patent Trademark Office. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2009. All rights reserved. Specifications subject to
change without notice. All specifications shown are typical. Radio meets applicable regulatory requirements.
GP680-RE_UK(11/09)
www.motorola.com
Motorola, Ltd. Jays Close, Viables Industrial Estate,
Basingstoke, Hampshire, RG22 4PD, UK
For more information please contact your local Motorola Authorised Dealer or Distributor
Specification Sheet
Channel Capacity Trunking: system dependent; conv mode: 16
Power Supply Rechargeable battery 7.5V
Dimensions H x W x D (mm) with: Height excluding knobs
High capacity NiMH battery 137 x 57.5 x 37.5
Ultra high capacity NiMH battery 137 x 57.5 x 40.0
NiCD battery 137 x 57.5 x 40.0
Li-Ion battery 137 x 57.5 x 33.0
Weight (gm) with:
Standard high capacity NiMH battery 420
Ultra high capacity NiMH battery 500
NiCD battery 450
Li-Ion battery 350
Average battery life @ 5/5/90 Cycle with: Low Power High Power
High capacity NiMH battery 11 hours 8 hours
Ultra high capacity NiMH battery 14 hours 11 hours
NiCD battery 12 hours 9 hours
Li-Ion battery 11 hours 8 hours
Sealing: Withstands rain testing per MIL STD 810 and IP54
Shock and Vibration: Protection provided via impact resistant housing
exceeding MIL STD 810 and TIA/EIA 603
Dust and Humidity: Protection provided via environment resistant
housing exceeding MIL STD 810 and TIA/EIA 603
Operating temperature: -30o
C to +60o
C
Storage temperature: -40o
C to +85o
C
*Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability 1.5 kHz @ 12.5 kHz
(-30o
C to +60o
C, +25o
C Ref.) 2.0 kHz @ 20/25 kHz
Power 136-174: 1-5W
403-470: 1-4W
Modulation Limiting ±2.5 @ 12.5 kHz
±4.0 @ 20 kHz
±5.0 @ 25 kHz
Conducted/Radiated Emission -36 dBm 1 GHz
-30 dBm ≥ 1...4 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
*Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Sensitivity (20 dB SINAD) 0.50 μV typical /
12.5 kHz
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Conduncted Spurious Emission -57 dBm 1 GHz
-47 dBm ≥ 1...4 GHz
GENERAL SPECIFICATIONS TRANSMITTER
RECEIVER
Data is specified for +25°C unless otherwise stated
*Availability subject to individual country’s law and regulations. Specifications are subject to change without notice and are
issued for guidance only. All specifications listed are typical. Radios meet applicable regulatory requirements. Conforms to
RTTE directive 1999/5/EC
Portable Military Standards 810
Applicable MIL-STD
810C
Methods Proc./Cat.
810D
Methods Proc./Cat.
810E
Methods Proc./Cat.
810F
Methods Proc./Cat.
810G
Methods Proc./Cat.
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 505.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot,II/Hot 501.5
I/Hot A1,
II/Hot (A1)
Low Temperature 502.1 I 502.2 I/C3,II/C1 502.3 I/C3,II/C1 502.4 I/C3,II/C1 502.5 I/C3,II/C1
Temp. Shock 503.1 - 503.2 I/A1C3 503.3 I/C1A3 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III 506.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 -
Salt Fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Blowing Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Blowing Sand - - 510.2 II 510.3 II 510.4 II 510.5 II
Vibration 514.2
VIII/F,
Curve-W
514.3 I/10,II/3 514.4 I/10,II/3 514.5 I/24 514.6 I/24
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV
GP680_Datasheet.indd 2 18/11/09 11:14:45
www.bluetechwireless.net

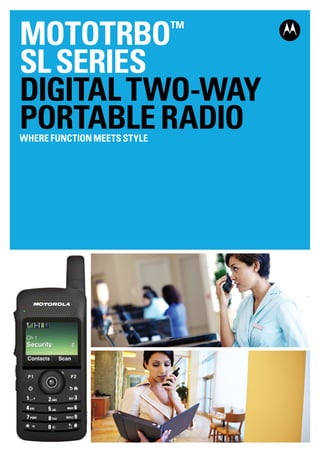

47. MOTOTRBO™
SLSERIES
DigitalTwo-way
PortableRadioWherefunctionmeetsstyle

48. Digital has never looked better
From the concierge desk to the convention centre, MOTOTRBO™
SL Series
keeps you instantly connected and in control with an incredibly sleek and
light radio for the ultimate in discreet communication.
Versatile and powerful, our revolutionary MOTOTRBO portable combines
the best of two-way radio functionality with the latest digital technology.
SL Series radios integrate voice and data seamlessly, offer enhanced
features that are easy to use, such as integrated Bluetooth®, covert
mode, vibrate alert and Intelligent Audio. Designed in a small form factor
so sophisticated, it is like no other radio you have used.
Only the SL Series enhances your professionalism, so you can remaster
your productivity and image like never before.
www.bluetechwireless.net

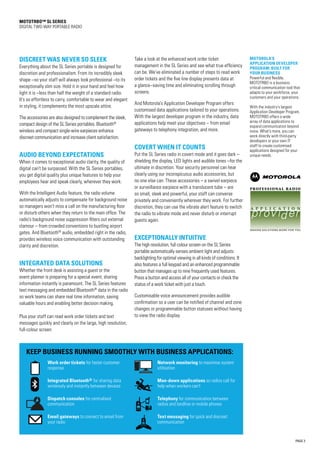

49. PAGE 3
MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
DISCREET WAS NEVER SO SLEEK
Everything about the SL Series portable is designed for
discretion and professionalism. From its incredibly sleek
shape –so your staff will always look professional –to its
exceptionally slim size. Hold it in your hand and feel how
light it is –less than half the weight of a standard radio.
It’s so effortless to carry, comfortable to wear and elegant
in styling, it complements the most upscale attire.
The accessories are also designed to complement the sleek,
compact design of the SL Series portables. Bluetooth®
wireless and compact single-wire earpieces enhance
discreet communication and increase client satisfaction.
AUDIO BEYOND EXPECTATIONS
When it comes to exceptional audio clarity, the quality of
digital can’t be surpassed. With the SL Series portables,
you get digital quality plus unique features to help your
employees hear and speak clearly, wherever they work.
With the Intelligent Audio feature, the radio volume
automatically adjusts to compensate for background noise
so managers won’t miss a call on the manufacturing floor
or disturb others when they return to the main office. The
radio’s background noise suppression filters out external
clamour – from crowded conventions to bustling airport
gates. And Bluetooth®
audio, embedded right in the radio,
provides wireless voice communication with outstanding
clarity and discretion.
INTEGRATED DATA SOLUTIONS
Whether the front desk is assisting a guest or the
event planner is preparing for a special event, sharing
information instantly is paramount. The SL Series features
text messaging and embedded Bluetooth®
data in the radio
so work teams can share real time information, saving
valuable hours and enabling better decision making.
Plus your staff can read work order tickets and text
messages quickly and clearly on the large, high resolution,
full-colour screen.
Take a look at the enhanced work order ticket
management in the SL Series and see what true efficiency
can be. We’ve eliminated a number of steps to read work
order tickets and the five line display presents data at
a glance–saving time and eliminating scrolling through
screens.
And Motorola’s Application Developer Program offers
customised data applications tailored to your operations.
With the largest developer program in the industry, data
applications help meet your objectives – from email
gateways to telephony integration, and more.
COVERT WHEN IT COUNTS
Put the SL Series radio in covert mode and it goes dark –
shielding the display, LED lights and audible tones –for the
ultimate in discretion. Your security personnel can hear
clearly using our inconspicuous audio accessories, but
no one else can. These accessories – a swivel earpiece
or surveillance earpiece with a translucent tube – are
so small, sleek and powerful, your staff can converse
privately and conveniently wherever they work. For further
discretion, they can use the vibrate alert feature to switch
the radio to vibrate mode and never disturb or interrupt
guests again.
EXCEPTIONALLY INTUITIVE
The high resolution, full colour screen on the SL Series
portable automatically senses ambient light and adjusts
backlighting for optimal viewing in all kinds of conditions. It
also features a full keypad and an enhanced programmable
button that manages up to nine frequently used features.
Press a button and access all of your contacts or check the
status of a work ticket with just a touch.
Customisable voice announcement provides audible
confirmation so a user can be notified of channel and zone
changes or programmable button statuses without having
to view the radio display.
MOTOROLA’S
APPLICATION DEVELOPER
PROGRAM: BUILT FOR
YOUR BUSINESS
Powerful and flexible,
MOTOTRBO is a business
critical communication tool that
adapts to your workforce, your
customers and your operations.
With the industry’s largest
Application Developer Program,
MOTOTRBO offers a wide
array of data applications to
expand communication beyond
voice. What’s more, you can
work directly with third-party
developers or your own IT
staff to create customised
applications designed for your
unique needs.
Work order tickets for faster customer
response
Integrated Bluetooth® for sharing data
wirelessly and instantly between devices
Dispatch consoles for centralised
communication
Email gateways to connect to email from
your radio
Keep business running smoothly with business applications:
Network monitoring to maximise system
utilisation
Man-down applications so radios call for
help when workers can’t
Telephony for communication between
radios and landline or mobile phones
Text messaging for quick and discreet
communication

50. MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
PAGE 4
BE READY FOR
THE FUTURE WITH THE
RIGHT STANDARD
MOTOTRBO complies with the
globally-recognised European
Telecommunications Standard
Institute (ETSI) Digital Mobile
Radio (DMR) Tier 2 standard
for professional two-way radio
users.
DMR is widely supported
by the leading two-way
manufacturers in the industry
and the most widely deployed
digital mobile radio technology
worldwide. This open
standard assures long-term
sustainability and creates a
community of manufacturers
who build interchangeable
equipment that can compete on
features, benefits and price.
EXPANDED CAPACITY AND COVERAGE
Your personnel are on the move –throughout your
buildings and across your properties. That’s why you
need the far-reaching performance of MOTOTRBO.
The IP Site Connect solution dramatically improves
customer service and productivity by using the Internet
to extend coverage to create a wide area network,
enhance single site coverage or link geographically
dispersed locations. Capacity Plus provides single-
site trunking, expanding capacity to over 1,000
users. Combining the benefits of both solutions,
Linked Capacity Plus is an entry-level, multi-site
trunking solution that expands capacity and extends
coverage so large work teams can stay connected
across a wide area. So whether you want expanded
coverage at a single site or across multiple ones,
MOTOTRBO can be scaled to meet your voice and
data communication needs.
REMARKABLY RELIABLE
MOTOTRBO meets the most demanding specs,
including IP54 for dust and water protection and
U.S. Military Standard 810 C, D, E, F and G. For
further peace of mind, it’s even backed by a two-year
manufacturer’s warranty as standard1
.
COMPREHENSIVE SERVICE AND
SUPPORT
No matter what help your business might need, we
have a service that delivers. We can provide
assistance at every stage of the solutions lifecycle,
from initial planning, through to solution integration
and ongoing support.
Managing in-house repairs and maintenance of your
radios takes a dedicated staff of technicians and an
ongoing investment in diagnostic equipment, repair tools
and technical training to keep up to speed on the latest
technology.
We’ve made that investment for you so you can
easily and cost-effectively keep radios in top
operating condition. With Service from the Start
with Comprehensive Coverage2
, you can protect your
MOTOTRBO SL radios against accidental damage, normal
wear and tear, and more.
This unique offering comprises fast turnaround times,
expert telephone technical support and access to the
latest software releases3
; all backed by Motorola’s global
infrastructure, highly qualified support technicians and
certified repair facilities. You’ll get multi-year technical
support and repair coverage, eliminating ‘surprise’ repair
costs and providing the investment protection you need to
reduce your total cost of ownership.
Enhanced Peace of Mind
Despite the robust design of the SL Series, we recognise
that accidents happen. In addition to normal wear and
tear, Service from the Start includes Comprehensive
Coverage to protect you from accidental breakage so you
can enjoy enhanced peace of mind. No matter what is
damaged, from broken displays and cracked housing to
other internal and external components, the repair
is covered.
“It means a lot that we have a radio that can provide that service because at the end of
the day, I want to be satisfied with feeling that I’ve just given our guests and residents a
five star, Five Diamond service.”
- Max Jenue-Gens
Security Officer, Acqualina Resort and Spa on the Beach, Miami
www.bluetechwireless.net

51. MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
PAGE 5
Features At-A-Glance
1. Dual internal speakers deliver loud, clear audio quality
2. Tri-colour LED indicator for clear, visible feedback of
calling, scanning, roaming and monitoring features.
3. Contoured push-to-talk button provides comfort and is
easy to access
4. 4-way navigation disc for easy scrolling through menus
and channels (supports up to 1,000 channels)
5. Easy to access volume control buttons
6. 2 programmable buttons for quick access to frequently
used features; ability to programme up to 9 of your
favourite features into a single programmable button
7. Programmable side emergency button
8. Audio connector port supports discreet wired audio
accessories (wireless Bluetooth®
audio also available)
9. Built-in photosensor intuitively adjusts backlighting
on the screen to optimise viewing in all types of
conditions, special “day/night mode” changes screen
and illuminates icons to make them clear and readable
in varying light conditions
10. Large, high-definition, 5 line, colour display offers high
clarity and resolution
11. Intelligent Audio feature automatically adjusts the radio
volume according to the environment’s noise level
12. Innovative antenna design optimises range performance
Additional Features
• 2W DMR digital radio
• Weighs less than one-half of a standard two-way radio
• Operates in UHF 403-470 MHz frequency band
• Discreet communications; covert mode setting and
vibrate alert feature for increased security and privacy
• Customisable voice announcement provides
audible confirmation of channel or zone changes or
programmable button status, without having to view
the radio display
• Send quick text messages including customisable and
pre-programmed messages
• Enhanced work order ticket management feature simplifies
use and improves work order ticket response time
Standard Package
• 5 line colour display portable radio
• Carry holder
• Compact Li-Ion battery
• Battery cover
• Plug-in charger
• 2 year standard warranty1
1
12
2
3
4
6
5
7
11
10
9
8
“The Motorola SL Series is fantastic. It’s really lightweight. It’s very easy to use.”
- Ruby Mountain
Reception, Claridge’s Hotel, London

52. MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
PAGE 6
Success in your business relies on the fundamentals—attention to detail, exceptional customer
service and rapid response to your customers’ needs. SL Series accessories enhance your ability to
serve your customers effectively – with forward-thinking features like integrated Bluetooth®
and
Intelligent Audio – so you can remaster your productivity and image. That’s why it’s critical to choose
the only accessories certified to perform best with MOTOTRBO radios.
ENHANCE MOBILITY WITH
INTEGRATED BLUETOOTH
Whether hotel staff are responding to guest requests
or a security team is covering a special event, sharing
information instantly, easily and seamlessly is critical to
your business. So we embedded Bluetooth®
audio in our
MOTOTRBO radios to make communications even more
convenient. Our exclusive Operations Critical Wireless
earpiece handles loud environments while an optional
wireless push-to-talk (PTT) button links to any earpiece to
enable more discreet communications. Just put the PTT in
a pocket or on a lapel and connect instantly.
MOVE FROM HECTIC TO HUSHED
Our SL Series radios offer a smart feature–Intelligent
Audio–that adjusts radio volume to fit the environment’s
noise level. Intelligent Audio also works with select
audio accessories, giving your workforce even more
communication flexibility.
Connect an SL Series accessory and the Intelligent Audio
feature automatically adjusts radio volume and filters out
background noise, drastically improving audio clarity. Now
your employees won’t miss a call at a bustling banquet or
disturb others when they move into a quiet hallway.
TALK COMFORTABLY AND COVERTLY
Our single-wire swivel earpiece and surveillance earpiece
are small, sleek and powerful, so your employees can
communicate easily wherever they walk and talk.
The transparent coiled cord and rubber earbud on the
surveillance earpiece offers greater discreetness for
security personnel. The flexible-fitting swivel earpiece
is comfortable, even for extended shifts. Both earpieces
have an in-line microphone and push-to-talk, making
communication easier and unobtrusive.
Add compact carrying accessories – like a swivel carry
holder or a lightweight wrist strap – and you’ve got
flexibility and comfort that meets the needs of the busiest
people on your team.
THIN IS IN - FROM BATTERIES
TO CHARGERS
From the standard cell phone-sized batteries to the micro-
USB charger, we designed our SL Series accessories with
portability, professionalism and convenience as our top
priorities. Both the standard and high-capacity batteries
are so slim and lightweight that it’s easy to carry spares.
Our unique multi-unit charger merges high power with
high image, allowing you to charge up to six radios or
batteries simultaneously. This charger is both functional
and sleek in design.
Multi-Unit Charger
Carry Holder
“When I first saw the MOTOTRBO SL Series I thought that it was a cell phone, not
an actual two-way radio. It has all the capabilities of a two-way radio but with a
professional, discreet look that fits absolutely well with all our uniforms.”
- Juan Velez
Director of IT, Acqualina Resort and Spa on the Beach, Miami
Wrist Strap
Operations Critical
Wireless Earpiece
Swivel Earpiece
www.bluetechwireless.net

53. MOTOTRBO™ SL Series
DIGITAL TWO-WAY PORTABLE RADIO
PAGE 7
SL SERIES Specifications
GENERAL SPECIFICATIONS
SL4000/SL4010
Channel Capacity 1000
Frequency 403 - 470 MHz
Radio with BT70 Li-ion
(1400mAh) Battery
Height (H) x Width
(W) x Thickness (T)
121 x 55 x 17.4 mm (4.76 x 2.17 x .68 inches)
Weight 153 g (5.39 oz)
Radio with BT90 Li-ion
(1800mAh) Battery
Height (H) x Width
(W) x Thickness (T)
121 x 55 x 19.8 mm (4.76 x 2.17 x .78 inches)
Weight 165 g (5.82 oz)
Power Supply 3.7 V (Nominal)
Average battery life at 5/5/90 duty cycle with battery saver enabled4
BT70 Li-ion (1400mAh) Battery 8.5 hrs
BT90 Li-ion (1800mAh) Battery 11.5 hrs
RECEIVER
Frequencies 403 - 470 MHz
Channel Spacing 12.5 kHz
Frequency Stability ±1.5ppm
Digital Sensitivity 5% BER : 0.3uV
Rated Audio 0.5W
Conducted Spurious Emission (TIA603D) -57dBm
TRANSMITTER
Frequencies 403 - 470 MHz
Channel Spacing 12.5 kHz
Frequency Stability ±1.5ppm
Low Power Output 2W
4FSK Digital
Modulation
12.5kHz Data: 7K60F1D 7K60FXD
12.5kHz Voice: 7K60F1E 7K60FXE
Combination of 12.5kHz Voice and Data:
7K60F1W
Conducted/Radiated
Emission (TIA603D)
-36 dBm 1GHz / -30 dBm 1GHz
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI TS 102 361 -1,-2,-3
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -10° C to +60° C
Storage Temperature -30° C to +70° C5
Thermal Shock Per MIL-STD
Humidity 8 hr soak @ +50° C and 95% RH
ESD IEC 61000-4-2
Dust and Water Intrusion IP54
Salt Fog 8 hrs exposure to 5% saline solution
(sodium chloride) at 35° C, 16 hours
standing period
1
Battery and accessory warranty period is twelve months.
2
Availability of Service from the Start may vary by country.
3
Software release includes patches and maintenance releases of the current version
4
Actual battery runtime observed may vary based on the use of certain features such as Bluetooth®
and Option Board based applications.
5
Radio only - Li-ion battery -10C
Specifications subject to change without notice. All specifications shown are typical.
Radio meets applicable regulatory requirementes.
MILITARY STANDARDS
MIL-STD- 810C MIL-STD- 810D MIL-STD- 810E MIL-STD- 810F MIL-STD- 810G
Applicable MIL-STD Method Procedures Method Procedures Method Procedures Method Procedures Method Procedures
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 500.5 II
High Temperature 501.1 I 501.2 I/A1,II/A1 501.3 I/A1, II/A1 501.4 I/Hot, II/Hot 501.5 I/A1, II/A1
Low Temperature - - 502.2 I/C1, II/C1 502.3 I/C1, II/C1 502.4 I/C1, II/C1 502.5 I/C1, II/C1
Temperature Shock - - 503.2 I/A1/C1 503.3 I/A1/C1 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I/A1
Rain 506.1 I 506.2 I 506.3 I 506.4 I 506.5 I
Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Vibration 514.2 VIII/F, Curve-W 514.3 I/10, II/3 514.4 I/10, III/3 514.5 I/24 514.6 I/24
Shock 516.2 II 516.3 IV 516.4 IV 516.5 IV 516.6 IV, VI
BLUETOOTH
Version Supports Bluetooth®
2.1 + EDR Specification
Profiles Supported
Bluetooth Headset Profile (HSP), Serial Port
Profile (SPP), Motorola fast push-to-talk.
Devices Supported
Radio supports 1 Bluetooth audio accessory
and 1 Bluetooth data device simultaneously
Range Class 2, 10 metres

54. For more information on how to make sleek and stylish work for you,
visit motorolasolutions.com/slseries or find your closest Motorola
representative or authorised Partner at
www.motorola.com/Business/XU-EN/Contact_Us
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their
respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
Motorola Solutions Ltd. Jays Close, Viables Industrial Estate, Basingstoke, Hampshire, RG22 4PD, UK
EMEA version 1 (02/2012)
Distributed by:
www.bluetechwireless.net

55. MOTOTRBO
™
RADIO ACCESSORIES
PERFORMANCE
THAT LIVES UP
TO ITS PROMISE

56. Your people are on the job, in the field, on the factory floor, moving across campus or
throughout the city. Whether they’re moving freight or providing security, repairing roads or
restoring power lines, you need to keep them all connected, everywhere they go.
How do you equip them with technology that is easy to use? Improve their performance and
increase productivity? The answer is as simple, seamless and scalable as MOTOTRBO.
Our robust, future-ready, standards-based solution is so flexible and versatile, it can be
customized to fit your unique business, coverage and application needs. MOTOTRBO is
the complete business-essential solution with portable radios, mobile radios, repeaters,
accessories, data applications and services.
MOTOTRBO™
Make your business
more efficient
and better connected
Transform your workplace with digital technology.
www.bluetechwireless.net

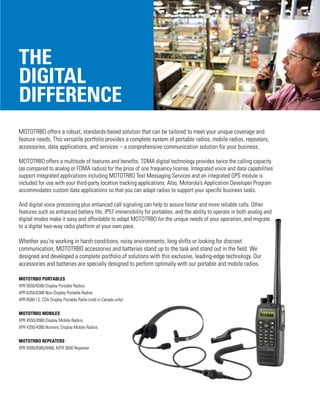

57. The
digital
difference
MOTOTRBO offers a robust, standards-based solution that can be tailored to meet your unique coverage and
feature needs. This versatile portfolio provides a complete system of portable radios, mobile radios, repeaters,
accessories, data applications, and services – a comprehensive communication solution for your business.
MOTOTRBO offers a multitude of features and benefits. TDMA digital technology provides twice the calling capacity
(as compared to analog or FDMA radios) for the price of one frequency license. Integrated voice and data capabilities
support integrated applications including MOTOTRBO Text Messaging Services and an integrated GPS module is
included for use with your third-party location tracking applications. Also, Motorola’s Application Developer Program
accommodates custom data applications so that you can adapt radios to support your specific business tasks.
And digital voice processing plus enhanced call signaling can help to assure faster and more reliable calls. Other
features such as enhanced battery life, IP57 immersibility for portables, and the ability to operate in both analog and
digital modes make it easy and affordable to adapt MOTOTRBO for the unique needs of your operation, and migrate
to a digital two-way radio platform at your own pace.
Whether you’re working in harsh conditions, noisy environments, long shifts or looking for discreet
communication, MOTOTRBO accessories and batteries stand up to the task and stand out in the field. We
designed and developed a complete portfolio of solutions with this exclusive, leading-edge technology. Our
accessories and batteries are specially designed to perform optimally with our portable and mobile radios.
MOTOTRBO PORTABLES
XPR 6550/6580 Display Portable Radios
XPR 6350/6380 Non-Display Portable Radios
XPR 6580 I.S. CSA Display Portable Radio (sold in Canada only)
MOTOTRBO MOBILES
XPR 4550/4580 Display Mobile Radios
XPR 4350/4380 Numeric Display Mobile Radios
MOTOTRBO REPEATERS
XPR 8300/8380/8400, MTR 3000 Repeater

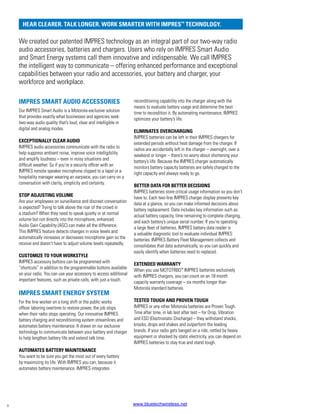

58. IMPRES SMART AUDIO ACCESSORIES
Our IMPRES Smart Audio is a Motorola-exclusive solution
that provides exactly what businesses and agencies seek:
two-way audio quality that’s loud, clear and intelligible in
digital and analog modes.
EXCEPTIONALLY CLEAR AUDIO
IMPRES audio accessories communicate with the radio to
help suppress ambient noise, improve voice intelligibility
and amplify loudness – even in noisy situations and
difficult weather. So if you’re a security officer with an
IMPRES remote speaker microphone clipped to a lapel or a
hospitality manager wearing an earpiece, you can carry on a
conversation with clarity, simplicity and certainty.
STOP ADJUSTING VOLUME
Are your employees on surveillance and discreet conversation
is expected? Trying to talk above the roar of the crowd in
a stadium? When they need to speak quietly or at normal
volume but not directly into the microphone, enhanced
Audio Gain Capability (AGC) can make all the difference.
This IMPRES feature detects changes in voice levels and
automatically increases or decreases microphone gain so the
receive end doesn’t have to adjust volume levels repeatedly.
CUSTOMIZE TO YOUR WORKSTYLE
IMPRES accessory buttons can be programmed with
“shortcuts” in addition to the programmable buttons available
on your radio. You can use your accessory to access additional
important features, such as private calls, with just a touch.
IMPRES SMART ENERGY SYSTEM
For the line worker on a long shift or the public works
officer laboring overtime to restore power, the job stops
when their radio stops operating. Our innovative IMPRES
battery charging and reconditioning system streamlines and
automates battery maintenance. It draws on our exclusive
technology to communicate between your battery and charger
to help lengthen battery life and extend talk time.
AUTOMATES BATTERY MAINTENANCE
You want to be sure you get the most out of every battery
by maximizing its life. With IMPRES you can, because it
automates battery maintenance. IMPRES integrates
reconditioning capability into the charger along with the
means to evaluate battery usage and determine the best
time to recondition it. By automating maintenance, IMPRES
optimizes your battery’s life.
ELIMINATES OVERCHARGING
IMPRES batteries can be left in their IMPRES chargers for
extended periods without heat damage from the charger. If
radios are accidentally left in the charger – overnight, over a
weekend or longer – there’s no worry about shortening your
battery’s life. Because the IMPRES charger automatically
monitors battery capacity batteries are safely charged to the
right capacity and always ready to go.
BETTER DATA FOR BETTER DECISIONS
IMPRES batteries store critical usage information so you don’t
have to. Each two-line IMPRES charger display presents key
data at a glance, so you can make informed decisions about
battery replacement. Data includes key information such as:
actual battery capacity, time remaining to complete charging,
and each battery’s unique serial number. If you’re operating
a large fleet of batteries, IMPRES battery data reader is
a valuable diagnostic tool to evaluate individual IMPRES
batteries. IMPRES Battery Fleet Management collects and
consolidates that data automatically, so you can quickly and
easily identify when batteries need to replaced.
EXTENDED WARRANTY
When you use MOTOTRBO™
IMPRES batteries exclusively
with IMPRES chargers, you can count on an 18-month
capacity warranty coverage – six months longer than
Motorola standard batteries.
TESTED TOUGH AND PROVEN TOUGH
IMPRES or any other Motorola batteries are Proven Tough.
Time after time, in lab test after test – for Drop, Vibration
and ESD (Electrostatic Discharge) – they withstand shocks,
knocks, drops and shakes and outperform the leading
brands. If your radio gets banged on a ride, rattled by heavy
equipment or shocked by static electricity, you can depend on
IMPRES batteries to stay true and stand tough.
We created our patented IMPRES technology as an integral part of our two-way radio
audio accessories, batteries and chargers. Users who rely on IMPRES Smart Audio
and Smart Energy systems call them innovative and indispensable. We call IMPRES
the intelligent way to communicate – offering enhanced performance and exceptional
capabilities between your radio and accessories, your battery and charger, your
workforce and workplace.
HEAR CLEARER. TALK LONGER. WORK SMARTER WITH IMPRES™
TECHNOLOGY.
4 www.bluetechwireless.net

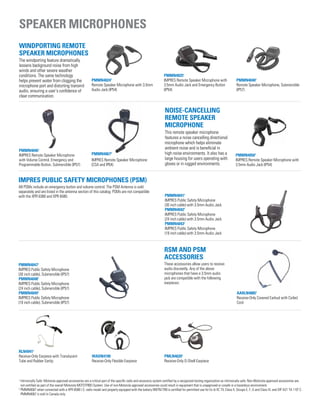

59. Speaker microphones
PMMN40241
Remote Speaker Microphone with 3.5mm
Audio Jack (IP54)
PMMN40251
IMPRES Remote Speaker Microphone with
3.5mm Audio Jack and Emergency Button
(IP54)
PMMN40401
Remote Speaker Microphone, Submersible
(IP57)
PMMN40461
IMPRES Remote Speaker Microphone
with Volume Control, Emergency and
Programmable Button, Submersible (IP57)
PMMN40672
IMPRES Remote Speaker Microphone
(CSA and IP64)
RLN49411
Receive-Only Earpiece with Translucent
Tube and Rubber Eartip
WADN4190
Receive-Only Flexible Earpiece
PMLN46201
Receive-Only D-Shell Earpiece
PMMN40471
IMPRES Public Safety Microphone
(30 inch cable), Submersible (IP57)
PMMN40481
IMPRES Public Safety Microphone
(24 inch cable), Submersible (IP57)
PMMN40491
IMPRES Public Safety Microphone
(18 inch cable), Submersible (IP57)
Windporting Remote
Speaker Microphones
The windporting feature dramatically
lessens background noise from high
winds and other severe weather
conditions. The same technology
helps prevent water from clogging the
microphone port and distorting transmit
audio, ensuring a user’s confidence of
clear communication.
Noise-Cancelling
Remote Speaker
Microphone
This remote speaker microphone
features a noise cancelling directional
microphone which helps eliminate
ambient noise and is beneficial in
high noise environments. It also has a
large housing for users operating with
gloves or in rugged environments.
IMPRES Public Safety Microphones (PSM)
All PSMs include an emergency button and volume control. The PSM Antenna is sold
separately and are listed in the antenna section of this catalog. PSMs are not compatible
with the XPR 6380 and XPR 6580.
PMMN40501
IMPRES Remote Speaker Microphone with
3.5mm Audio Jack (IP54)
PMMN40411
IMPRES Public Safety Microphone
(30 inch cable) with 3.5mm Audio Jack
PMMN40421
IMPRES Public Safety Microphone
(24 inch cable) with 3.5mm Audio Jack
PMMN40431
IMPRES Public Safety Microphone
(18 inch cable) with 3.5mm Audio Jack
AARLN48851
Receive-Only Covered Earbud with Coiled
Cord
RSM and PSM
Accessories
These accessories allow users to receive
audio discreetly. Any of the above
microphones that have a 3.5mm audio
jack are compatible with the following
earpieces:
1
Intrinsically Safe: Motorola approved accessories are a critical part of the specific radio and accessory system certified by a recognized testing organization as intrinsically safe. Non-Motorola approved accessories are
not certified as part of the overall Motorola MOTOTRBO System. Use of non-Motorola approved accessories could result in equipment that is unapproved or unsafe in a hazardous environment.
2
PMMN4067 when connected with a XPR 6580 I.S. radio model and properly equipped with the battery NNTN7789 is certified for permitted use for Ex ib IIC T4, Class II, Groups E, F, G and Class III, and DIP A21 TA 110º C.
PMMN4067 is sold in Canada only.

60. RLN58781
Receive-Only Earpiece, black
RLN58791
Receive-Only Earpiece, beige
RLN58801
IMPRES 2-Wire Surveillance Kit, black
RLN58811
IMPRES 2-Wire Surveillance Kit, beige
RLN58821
IMPRES 2-Wire Surveillance Kit with
Translucent Tube, black
RLN58831
IMPRES 2-Wire Surveillance Kit with
Translucent Tube, beige
Receive-Only
Surveillance Kits
Simple, cost-effective solution when
discreet communications is needed.
Privately receive messages with the
earpiece.
IMPRES 2-Wire and 3-Wire
Surveillance Kits
Allows you to both transmit and receive discreet communications.
All kits include one programmable-button for quick and easy access to critical
radio features.
2-Wire kits include one wire for receiving and one wire for the microphone.
3-Wire kits include one wire for receiving, one wire for the microphone and one
wire for the push-to-talk.
RLN5886
Low Noise Kit, includes 1 clear rubber
eartip. For low-noise environments (does
not provide hearing protection)
Noise Kits
Provide extra comfort and noise
protection for users wearing
surveillance accessories. Lightweight,
translucent tube attaches to the
surveillance accessory to provide
flexibility and comfort, while clothing
clip prevents accessory from being
pulled from the ear. For optimal
performance, extra loud earphones are
recommended for noise kits.
Clear comfortable
earpieces
The Clear Comfortable Earpiece forms
to the inside of the ear and is perfect
for low noise environments. It’s made
of easy-to-clean, chemically-inert,
hypo-allergenic material. Compatible
with all Motorola Noise and
Surveillance Kits.
RLN5887
Extreme Noise Kit, includes 2 foam
earplugs. For high-noise environments
(Noise Reduction = 24dB)
PMLN50971
IMPRES 3-Wire Surveillance Kit, black
PMLN51061
IMPRES 3-Wire Surveillance Kit, beige
PMLN51111
IMPRES 3-Wire Surveillance Kit with
Translucent Tube, black
PMLN51121
IMPRES 3-Wire Surveillance Kit with
Translucent Tube, beige
Replacement
accessories
5080384F72
Replacement Foam Plugs for RLN5887
Noise reduction = 24dB. Pack of 50.
RLN6282
Replacement Standard Clear Rubber
Eartips. Pack of 50.
RLN4760
Small Custom Earpiece - Right Ear
RLN4761
Medium Custom Earpiece - Right Ear
RLN4762
Large Custom Earpiece - Right Ear
RLN4763
Small Custom Earpiece - Left Ear
RLN4764
Medium Custom Earpiece - Left Ear
RLN4765
Large Custom Earpiece - Left Ear
Surveillance Audio
6 www.bluetechwireless.net

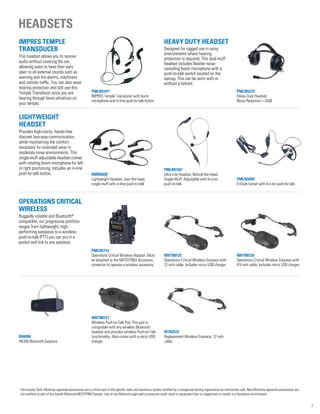

61. IMPRES Temple
Transducer
This headset allows you to receive
audio without covering the ear,
allowing users to have their ears
open to all external sounds such as
warning and fire alarms, machinery
and outside traffic. You can also wear
hearing protection and still use this
Temple Transducer since you are
hearing through bone vibrations on
your temple.
PMLN51011
IMPRES Temple Transducer with boom
microphone and in-line push-to-talk button
Heavy Duty Headset
Designed for rugged use in noisy
environments where hearing
protection is required. This dual-muff
headset includes flexible noise-
canceling boom microphone with a
push-to-talk switch located on the
earcup. This can be worn with or
without a helmet.
PMLN52751
Heavy Duty Headset,
Noise Reduction = 24dB
PMLN5712
Operations Critical Wireless Adapter. Must
be attached to the MOTOTRBO Accessory
connector to operate a wireless accessory.
RMN50581
Lightweight Headset, over-the-head,
single-muff with in-line push-to-talk
PMLN51021
Ultra-Lite Headset, Behind-the-Head
Single-Muff, Adjustable with In-Line
push-to-talk
PMLN50961
D-Style Earset with In-Line push-to-talk
NNTN8126
Operations Critical Wireless Earpiece with
9.5 inch cable. Includes micro USB charger.
NNTN8125
Operations Critical Wireless Earpiece with
12 inch cable. Includes micro USB charger.
89409N
HK200 Bluetooth Earpiece
NNTN8127
Wireless Push-to-Talk Pod. This pod is
compatible with any wireless Bluetooth
headset and provides wireless Push-to-Talk
functionality. Also comes with a micro USB
charger.
NTN2572
Replacement Wireless Earpiece, 12 inch
cable
Operations Critical
Wireless
Ruggedly reliable and Bluetooth®
compatible, our progressive portfolio
ranges from lightweight, high-
performing earpieces to a wireless
push-to-talk (PTT) you can put in a
pocket and link to any earpiece.
Lightweight
Headset
Provides high-clarity, hands-free
discreet two-way communication,
while maintaining the comfort
necessary for extended wear in
moderate noise environments. This
single-muff adjustable headset comes
with rotating boom microphone for left
or right positioning. Includes an in-line
push-to-talk button.
Headsets
7
1
Intrinsically Safe: Motorola approved accessories are a critical part of the specific radio and accessory system certified by a recognized testing organization as intrinsically safe. Non-Motorola approved accessories are
not certified as part of the overall Motorola MOTOTRBO System. Use of non-Motorola approved accessories could result in equipment that is unapproved or unsafe in a hazardous environment.

62. PMLN5653
IMPRES Ear Microphone with large
protected ring around push-to-talk
PMLN5021
Hard Leather Case with 3 Inch Fixed Belt
Loop
PMLN5030
Hard Leather Case with 3 Inch Fixed Belt
Loop
PMLN5015
Nylon Case with 3 Inch Fixed Belt Loop
PMLN5019
Hard Leather Case with 2.5 Inch Swivel Belt Loop
PMLN5020
Hard Leather Case with 3 Inch Swivel Belt Loop
PMLN5024
Nylon case with 3 Inch fixed belt loop
IMPRES
Ear Microphone
Lightweight earpiece that picks
up sound through bone vibration.
A built-in bone conduction microphone
and receiver eliminate the need for a
boom microphone. A programmable
button is available for quick access to
radio features.
PMLN5028
Hard Leather Case with 2.5 Inch Swivel Belt Loop
PMLN5029
Hard Leather Case with 3 Inch Swivel Belt Loop
MOTOTRBO With display
Non-display MOTOTRBO
Headsets
Carry accessories
NTN2575
Replacement Wireless Earpiece, 9.5 Inch
Cord
CARRY CASES
Carrying cases are available in sizes designed to fit your radio and battery and permit
audio to be heard clearly. Belt loop and nylon cases feature “D” rings that allow the cases
to be attached to a carrying strap. Swivel model cases secure to a belt loop and allow the
case to swing freely from side to side. The swivel latch system also allows the radio and
case to be removed from the belt loop by simply inverting the case and lifting it up and out
of the belt loop.
PMLN56072
Soft Leather Case with 3 Inch
Swivel Belt Loop for Display
Models
PMLN56062
Hard Leather Case with 3 Inch
Swivel Belt Loop for Display
Models
MOTOTRBO CSA
CARRYING CASES
8 www.bluetechwireless.net

63. PMLN5023
3 Inch Leather Swivel Belt Loop
PMLN4651
Spring Action 2 Inch Belt Clip
HLN9985
Waterproof Bag with Large Strap
4200865599
1.75 Inch Wide Leather Belt
PMLN56102
2.5 Inch Leather Swivel Belt Loop (CSA)
PMLN51342
Spring Action 2.5 Inch Belt Clip (CSA)
NTN5243
Adjustable, Black Nylon Carrying Strap.
Attaches to D-ring on cases.
HLN6602
Universal Chest Pack with Radio Holder,
Pen Holder and Velcro Secured Pouch
PMLN4652
Spring Action 2.5 Inch Belt Clip
RLN4295
Small Clip, Epaulet Strap
1505596Z02
Replacement Strap for HLN6602 and
RLN4570
RLN4570
Break-a-Way Chest Pack with Radio Holder,
Pen Holder and Velcro Secured Pouch
Universal Chest
Pack
Motorola Original Universal Chest
Pack protects the radio and provides
the freedom from holding it during
standby communication mode. The
Motorola Universal Chest Pack fits
any radio.
Break-away chest
pack
All the features of the original
Universal Chest Pack (HLN6602)
plus break-a-way tabs that allow
the entire pack to be pulled off with
approximately 10 lbs. of pressure.
PMLN5022
2.5 Inch Leather Swivel Belt Loop
Carry accessories
Carry packs
Belt CLIPS
Waterproof bag
and more
Carrying strap
9
Belt loops and
belts
1
Intrinsically Safe: Motorola approved accessories are a critical part of the specific radio and accessory system certified by a recognized testing organization as intrinsically safe. Non-Motorola approved accessories are
not certified as part of the overall Motorola MOTOTRBO System. Use of non-Motorola approved accessories could result in equipment that is unapproved or unsafe in a hazardous environment.
2
Carry Cases PMLN5606, PMLN5608, PMLN5607 and PMLN5609 when used with a XPR 6580 I.S. radio model and properly equipped with the battery NNTN7789 is certified for permitted use for Ex ib IIC T4, Class II,
Groups E, F, G and Class III, and DIP A21 TA 110º C. These carry cases are sold in Canada only.

64. PMNN4077
IMPRES Li-Ion 2150 mAh, Submersible
Battery - IP57 Rating
WPLN4212
IMPRES Multi-Unit Charger, 120 Volt
NNTN77892
IMPRES Li-Ion 1750 mAh Submersible
Battery - IP57 Rating, Intrinsically Safe
(CSA)
PMNN4065
NiMH 1300 mAh, Submersible Battery -
IP57 Rating
PMNN4066
IMPRES Li-Ion 1500 mAh, Submersible
Battery - IP57 Rating
NLN7967
Wall Mount for Multi-Unit Chargers
WPLN4219
IMPRES Multi-Unit Charger with Displays
PMNN40691
IMPRES Li-Ion 1400 mAh, Submersible
Battery - IP57 Rating, Intrinsically Safe (FM)
WPLN4232
IMPRES Single-Unit Charger, 120 Volt
RadioPAk™
The RadioPAk is lightweight and
comfortable. Worn around the waist,
it keeps radios and phones at hand. It
features a separate 6 x 8 inch zippered
pouch for other on-the-job necessities.
Adjustable woven nylon belt fits both
men and women.
RLN4815
RadioPAk Radio Utility Case
4280384F89
RadioPAk Extension Belt for waists larger
than 40 inches
10
Batteries
Chargers
IMPRES Batteries
You want to be sure to get the most
out of every battery by maximizing its
life. With IMPRES you can, because
it automates battery reconditioning,
adapting the intervals to each
battery’s usage pattern.
IMPRES Chargers
This smart energy system automatically reconditions IMPRES batteries based
on actual usage, keeping them in peak condition. Talk-time and cycle life are
optimized and the need for manual maintenance programs is eliminated. Its
advanced conditioning features allow batteries to be safely left on the charger
for extended periods of time without incurring damaging heat build-up which
can decrease battery cycle life. In addition, batteries left in the charger are
kept fully charged so they are always ready when needed. This rapid-rate, tri-
chemistry charging system will also charge compatible non-IMPRES batteries.
Motorola Original
Battery
This battery is ruggedly designed
for lasting durability and is system
tested with Motorola two-way radios
to ensure optimum performance.
NiMH chemistry offers an attractive
combination of capacity, weight and
cost.
IMPRES Multi-Unit
Charger with
Display
Charger Displays provide powerful,
“real time” information for IMPRES
batteries, including current charge
status, battery mAh, and voltage.
Readout displays battery kit number,
serial number and chemistry. 120 Volt.
Carry packs
1
Intrinsically Safe: Motorola approved accessories are a critical part of the specific radio and accessory system certified by a recognized testing organization as intrinsically safe. Non-Motorola approved accessories are
not certified as part of the overall Motorola MOTOTRBO System. Use of non-Motorola approved accessories could result in equipment that is unapproved or unsafe in a hazardous environment.
2
XPR 6580 I.S. radio models, when properly equipped with the battery NNTN7789 are certified for permitted use for Ex ib IIC T4, Class II, Groups E, F, G, and Class III, and DIP A21 TA 110º C. This battery is sold in Canada
only.
www.bluetechwireless.net

65. NNTN7392
IMPRES Battery Reader
RLN5382
Display Module for IMPRES Multi-Unit
Charger (WPLN4212)
NNTN7616
IMPRES Compatible Vehicular Charger
IMPRES BATTERY
Fleet Management Software
The industry exclusive IMPRES Battery Fleet Management software remotely
downloads key IMPRES battery data through existing IMPRES chargers for
more effective management of the IMPRES battery and charger fleet. These
reports provide key battery and charger data such as when IMPRES batteries are
nearing end of life, identifying lost batteries and ensuring IMPRES chargers are
appropriately distributed and use is maximized.
MOTOROLA Travel
Charger
Its small compact design allows the
radio to be used while rapid charging
in the charger base. Unit includes a
voltage regulated vehicular charger
adapter, custom charger base,
mounting bracket and coil cord.
RLN6433
Motorola Travel Charger
NNTN7677
Multi-Unit Charger Interface Unit,
attaches to an APX, XTS, MOTOTRBO and
Professional Series IMPRES multi-unit
charger to enable the data transfer to
IMPRES Battery Fleet Management. A CIU
is required for IMPRES chargers that report
data to IMPRES Battery Fleet Management.
NNTN8045
Single-Unit Charger Interface Unit ,
attaches to an APX, MOTOTRBO and
Professional Series IMPRES single-unit
charger to enable the data transfer to
IMPRES Battery Fleet Management. A
CIU is required for IMPRES chargers that
report data to the IMPRES Battery Fleet
Management.
NNTN7676
IMPRES Battery Fleet Management
Software
IMPRES Battery Reader
The industry exclusive IMPRES Battery Reader provides IMPRES battery users
the ability to access charging, reconditioning and key usage data that can affect
overall battery performance. By keeping batteries in peak condition, talk time
and cycle life are optimized, reducing battery replacement. Package includes
IMPRES Battery Reader (fits XTS batteries), System Software, USB Cord,
Adapter inserts for APX, MOTOTRBO and Professional Series radios.
11
Chargers
IMPRES Individual
Charger Display
Module
This module is compatible with
the standard IMPRES Multi-Unit
Chargers. Up to 6 modules can
be used per charger, one for each
charging pocket. Includes detailed
installation instructions.
IMPRES Compatible
Vehicular Charger
This charger has a full IMPRES
charger to battery communication
capability. This ensures continuity of
IMPRES battery charge data logging
in a vehicular environment, so the
IMPRES battery will receive adaptive
automatic reconditioning and will
qualify for the 6-month capacity
warranty extension.

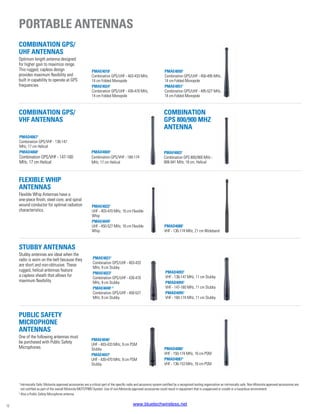

66. Combination GPS/
UHF Antennas
Optimum length antenna designed
for higher gain to maximize range.
This rugged, capless design
provides maximum flexibility and
built in capability to operate at GPS
frequencies.
Flexible Whip
Antennas
Flexible Whip Antennas have a
one-piece finish, steel core, and spiral
wound conductor for optimal radiation
characteristics.
Stubby Antennas
Stubby antennas are ideal when the
radio is worn on the belt because they
are short and non-obtrusive. These
rugged, helical antennas feature
a capless sheath that allows for
maximum flexibility.
Public Safety
Microphone
Antennas
One of the following antennas must
be purchased with Public Safety
Microphones.
Combination GPS/
VHF Antennas
PMAE40501
Combination GPS/UHF - 450-495 MHz,
14 cm Folded Monopole
PMAE40511
Combination GPS/UHF - 495-527 MHz,
14 cm Folded Monopole
PMAE40181
Combination GPS/UHF - 403-433 MHz,
14 cm Folded Monopole
PMAE40241
Combination GPS/UHF - 430-470 MHz,
14 cm Folded Monopole
PMAE40221
UHF - 403-470 MHz, 16 cm Flexible
Whip
PMAE40491
UHF - 450-527 MHz, 16 cm Flexible
Whip
PMAE40211
Combination GPS/UHF - 403-433
MHz, 9 cm Stubby
PMAE40231
Combination GPS/UHF - 430-470
MHz, 9 cm Stubby
PMAE40481, 2
Combination GPS/UHF - 450-527
MHz, 9 cm Stubby
PMAE40461
UHF - 403-433 MHz, 9 cm PSM
Stubby
PMAE40471
UHF - 430-470 MHz, 9 cm PSM
Stubby
PMAD40861
VHF - 150-174 MHz, 16 cm PSM
PMAD40871
VHF - 136-153 MHz, 16 cm PSM
PMAD40931
VHF - 136-147 MHz, 11 cm Stubby
PMAD40941
VHF - 147-160 MHz, 11 cm Stubby
PMAD40951
VHF - 160-174 MHz, 11 cm Stubby
PMAD40881
VHF - 136-174 MHz, 21 cm Wideband
Portable Antennas
Combination
GPS 800/900 MHz
Antenna
PMAD40691
Combination GPS/VHF - 160-174
MHz, 17 cm Helical
PMAD40671
Combination GPS/VHF - 136-147
MHz, 17 cm Helical
PMAD40681
Combination GPS/VHF - 147-160
MHz, 17 cm Helical
PMAF40031
Combination GPS 800/900 MHz -
806-941 MHz, 18 cm, Helical
12
1
Intrinsically Safe: Motorola approved accessories are a critical part of the specific radio and accessory system certified by a recognized testing organization as intrinsically safe. Non-Motorola approved accessories are
not certified as part of the overall Motorola MOTOTRBO System. Use of non-Motorola approved accessories could result in equipment that is unapproved or unsafe in a hazardous environment.
2
Also a Public Safety Microphone antenna.
www.bluetechwireless.net

67. Standard Compact
Microphone
Standard Compact Microphone
provides basic push-to-talk
functionality and ships with all
MOTOTRBO mobile radios.
IMPRES Heavy-Duty
Microphone
Heavy-Duty Microphone for users who
want more durability, also ideal for
those who need a larger microphone
that is easier to handle when wearing
gloves.
MOBILE MICROPHONE ACCESSORIES
Hands-free ACCESSORIES
MICROPHONE
EXTENSION Cables
External PTT
accessories
IMPRES Visor Microphone
Add even more convenience and safety with the IMPRES Visor Microphone and
its compatible hands-free transmission options. Small microphone mounts to
vehicle’s visor for convenient hands-free radio operation. Use with choice of
external push-to-talk switch.
Microphone
Hang-Up Clips
IMPRES Telephone
Style Handset
This Telephone Style handset provides
a flexible, discreet option when using
the mobile for private conversations
in a vehicular environment. Includes
a full keypad that enables you to
dial phone numbers or send text
messages.
IMPRES Keypad
Microphone
IMPRES Keypad Microphone includes
a full keypad that enables you to dial
phone numbers from the microphone,
also has three customizable buttons
that can be programmed with any of
the control head features, allowing
the user to navigate radio menus from
the microphone.
RMN5052
Standard Compact Microphone
RMN5065
IMPRES Keypad Microphone
HMN4098
IMPRES Telephone Style Handset
PMKN4033
10-foot Mobile Microphone Extension
Cable
PMKN4034
20-foot Mobile Microphone Extension
Cable
HLN9073
Microphone Hang-Up Clip
HLN9414
Universal Microphone Hang-Up Clip
RLN5926
Pushbutton with Push-to-Talk. Can be held in the hand, or
mounted to the vehicle with touch fasteners.
RLN5929
Emergency Footswitch
RMN5054
IMPRES Visor Microphone
RMN5053
IMPRES Heavy-Duty Microphone
Mobile Audio
13

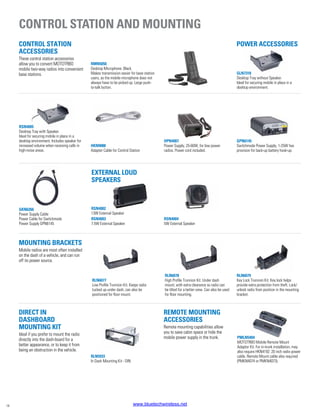

68. Control station
Accessories
These control station accessories
allow you to convert MOTOTRBO
mobile two-way radios into convenient
base stations.
Mounting brackets
Mobile radios are most often installed
on the dash of a vehicle, and can run
off its power source.
Direct In
Dashboard
Mounting Kit
Ideal if you prefer to mount the radio
directly into the dash-board for a
better appearance, or to keep it from
being an obstruction in the vehicle.
Remote Mounting
Accessories
Remote mounting capabilities allow
you to save cabin space or hide the
mobile power supply in the trunk.
Power Accessories
External loud
speakers
Control Station and MOUNTING
RMN5050
Desktop Microphone. Black.
Makes transmission easier for base station
users, as the mobile microphone does not
always have to be picked up. Large push-
to-talk button.
GLN7318
Desktop Tray without Speaker.
Ideal for securing mobile in place in a
desktop environment.
RSN4005
Desktop Tray with Speaker.
Ideal for securing mobile in place in a
desktop environment. Includes speaker for
increased volume when receiving calls in
high-noise areas.
HKN9088
Adapter Cable for Control Station
HPN4007
Power Supply, 25-60W, for low power
radios. Power cord included.
GPN6145
Switchmode Power Supply, 1-25W has
provision for back-up battery hook-up.
GKN6266
Power Supply Cable
Power Cable for Switchmode
Power Supply GPN6145
RSN4002
13W External Speaker
RSN4003
7.5W External Speaker
RSN4004
5W External Speaker
RLN6077
Low Profile Trunnion Kit. Keeps radio
tucked up under dash, can also be
positioned for floor mount.
RLN6078
High Profile Trunnion Kit. Under dash
mount, with extra clearance so radio can
be tilted for a better view. Can also be used
for floor mounting.
RLN6079
Key Lock Trunnion Kit. Key lock helps
provide extra protection from theft. Lock/
unlock radio from position in the mounting
bracket.
RLN5933
In Dash Mounting Kit - DIN
PMLN5404
MOTOTRBO Mobile Remote Mount
Adaptor Kit. For in-trunk installation, may
also require HKN4192. 20 inch radio power
cable. Remote Mount cable also required
(PMKN4074 or PMKN4073).
14 www.bluetechwireless.net

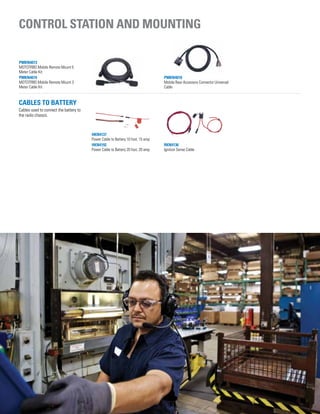

69. Cables to Battery
Cables used to connect the battery to
the radio chassis.
Control Station and MOUNTING
PMKN4073
MOTOTRBO Mobile Remote Mount 5
Meter Cable Kit
PMKN4074
MOTOTRBO Mobile Remote Mount 3
Meter Cable Kit
HKN4137
Power Cable to Battery 10 foot, 15 amp
HKN4192
Power Cable to Battery 20 foot, 20 amp
RKN4136
Ignition Sense Cable
PMKN4018
Mobile Rear Accessory Connector Universal
Cable
15

70. Mobile antennas
GPS Active
Antennas
The following antennas are intended
for users who have existing mobile
antennas and need to add GPS
capability.
PMAN4000
Fixed Mount GPS Active Antenna.
Discreet stand-alone GPS antenna has a
semi-permanent mount easily assembled
with minimal tools to vehicle roof or trunk.
PMAN4001
Glass Mount GPS Active Antenna
PMAN4002
Magnetic Mount GPS Active Antenna.
Discreet stand-alone GPS antenna can be
mounted either magnetically, via screw or
tape to vehicle roof or trunk.
Wide Area Through-Hole Mount Antennas
These through-hole mount antennas are designed to direct the signal more
towards the horizon, making them ideal for applications in more geographically flat
regions where signal coverage is sparse and must cover a larger area.
Urban Through-
Hole Mount
Antennas
The signals for these through-hole
mount antennas radiate vertically,
making them ideal for urban
environments where buildings can
obstruct the signal.
HAE4010
406-420 MHz, 3.5dB Gain
HAE4011
450-470 MHz, 3.5dB Gain
HAE4012
470-494 MHz, 3.5dB Gain
HAE4013
494-512 MHz, 3.5dB Gain
HAF4026
806-941 MHz, 3dB Gain
HAE4002
403-430 MHz, 1/4 Wave
HAE4003
450-470 MHz, 1/4 Wave
HAE4004
470-527 MHz, 1/4 Wave
HAD4006
136-144 MHz, 1⁄4 Wave
HAD4007
146-150.8 MHz, 1⁄4 Wave
HAD4008
150.8-162 MHz, 1⁄4 Wave
HAD4009
162-174 MHz, 1⁄4 Wave
HAF4025
806-941 MHz, 1/4 Wave
HAF4013
806-941 MHz, Stubby
HAF4027
806-941 MHz, 5dB Gain
UHF
800/900 MHz
UHF VHF 800/900 MHz
RAE4004
445-470 MHz, 5dB Gain
RAE4163ARB
410-430 MHz, Stubby
RAE4164ARB
430-450 MHz, Stubby
RAE4168ARB
450-470 MHz, Stubby
RAE4166ARB
470-490 MHz, Stubby
16 www.bluetechwireless.net

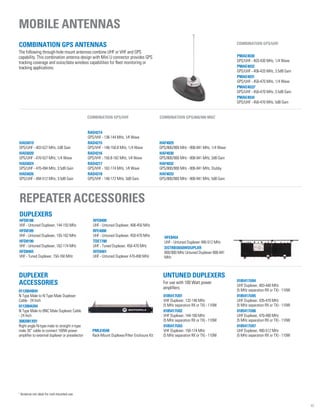

71. Mobile antennas
Repeater accessories
Duplexers
Duplexer
Accessories
Combination GPS Antennas
The following through-hole mount antennas combine UHF or VHF and GPS
capability. This combination antenna design with Mini U connector provides GPS
tracking coverage and voice/data wireless capabilities for fleet monitoring or
tracking applications.
PMAE4030
GPS/UHF - 403-430 MHz, 1/4 Wave
PMAE4032
GPS/UHF - 406-420 MHz, 3.5dB Gain
PMAE4031
GPS/UHF - 450-470 MHz, 1/4 Wave
PMAE40331
GPS/UHF - 450-470 MHz, 3.5dB Gain
PMAE4034
GPS/UHF - 450-470 MHz, 5dB Gain
HAE6019
GPS/UHF - 403-527 MHz, 2dB Gain
HAE6020
GPS/UHF - 470-527 MHz, 1/4 Wave
HAE6024
GPS/UHF - 470-494 MHz, 3.5dB Gain
HAE6026
GPS/UHF - 494-512 MHz, 3.5dB Gain
RAD4214
GPS/VHF - 136-144 MHz, 1⁄4 Wave
RAD4215
GPS/VHF - 146-150.8 MHz, 1/4 Wave
RAD4216
GPS/VHF - 150.8-162 MHz, 1⁄4 Wave
RAD4217
GPS/VHF - 162-174 MHz, 1⁄4 Wave
RAD4218
GPS/VHF - 146-172 MHz, 3dB Gain
HAF4029
GPS/800/900 MHz - 806-941 MHz, 1/4 Wave
HAF4030
GPS/800/900 MHz - 806-941 MHz, 3dB Gain
HAF4032
GPS/800/900 MHz - 806-941 MHz, Stubby
HAF4033
GPS/800/900 MHz - 806-941 MHz, 5dB Gain
HFD8188
VHF - Untuned Duplexer, 144-155 MHz
HFD8189
VHF - Untuned Duplexer, 155-162 MHz
HFD8190
VHF - Untuned Duplexer, 162-174 MHz
HFD8465
VHF - Tuned Duplexer, 150-160 MHz
0112004B04
N Type Male to N Type Male Duplexer
Cable - 24 Inch
0112004U04
N Type Male to BNC Male Duplexer Cable
- 24 Inch
3082081X01
Right angle N-type male to straight n-type
male 30” cable to connect 100W power
amplifier to external duplexer or preselector
PMLE4548
Rack-Mount Duplexer/Filter Enclosure Kit
HFE8400
UHF - Untuned Duplexer, 406-450 MHz
RFE4000
UHF - Untuned Duplexer, 450-470 MHz
TDE7780
UHF - Tuned Duplexer, 450-470 MHz
HFE8401
UHF - Untuned Duplexer 470-490 MHz
HFE8454
UHF - Untuned Duplexer 490-512 MHz
DSTRBO650WDUPLXR
800/900 MHz Untuned Duplexer 806-941
MHz
COMBINATION GPS/UHF
COMBINATION GPS/VHF COMBINATION GPS/800/900 MHz
1
Antenna not ideal for roof-mounted use.
0185417U01
VHF Duplexer, 132-146 MHz
(5 MHz separation RX or TX) - 110W
0185417U02
VHF Duplexer, 144-160 MHz
(5 MHz separation RX or TX) - 110W
0185417U03
VHF Duplexer, 158-174 MHz
(5 MHz separation RX or TX) - 110W
Untuned Duplexers
For use with 100 Watt power
amplifiers.
0185417U04
UHF Duplexer, 403-440 MHz
(5 MHz separation RX or TX) - 110W
0185417U05
UHF Duplexer, 435-470 MHz
(5 MHz separation RX or TX) - 110W
0185417U06
UHF Duplexer, 470-490 MHz
(5 MHz separation RX or TX) - 110W
0185417U07
UHF Duplexer, 490-512 MHz
(5 MHz separation RX or TX) - 110W
17

72. Repeater accessories
100 Watt Power Amplifiers
DSP1020MOVC5
P10 Series Amplifier, 136-174 MHz,
20-50W Input, 100W Output
DSP1020MOUC5
P10 Series Amplifier, 406-512 MHz,
20-50W Input, 100W Output
DSP1515MOJKC6
P15 Series Amplifier, 764-870 MHz,
15-25W Input, 150W Output
The following 100W Amplifiers include an
integrated 110W Power Supply
DSP1020MOVPS
P10 Series, C5 Amplifier, 136-174 MHz,
20-50W Input, 100W Output
DSP1020MOUPS
P10 Series, C5 Amplifier, 406-512 MHz,
20-50W Input, 100W Output
DSP1020MOJKPS
P10 Series, C5 Amplifier, 764-870 MHz,
20-50W Input, 80W Output
DSP1020MOLPS
P10 Series, C5 Amplifier, 928-942 MHz,
20-50W Input, 75W Output
HFF4003
810-960 MHz Circulator, 18 dB min
insulation, 100W max power handling
DSP1520MOJKC6
P15 Series Amplifier, 764-870 MHz,
20-50W Input, 150W Output
DSP1515MOLC6
P15 Series Amplifier, 928-942 MHz,
15-25W Input, 150W Output
DSP1520MOLC6
P15 Series Amplifier, 928-942 MHz,
20-50W Input, 150W Output
R1684 RM60M
Astron Power Supply, 50A Continuous,
55A ICS
R1685 RM50M
Astron Power Supply, 37A Continuous,
50A ICS
RDN9900
DPS-30 Duracomm, Filtered Power Supply,
30A Max
Circulator
Preselector
HFE8459
UHF Preselector, 440-474 MHz
HFD8461
VHF Preselector, 144-160 MHz
HFD8462
VHF Preselector, 160-174 MHz
HFE8460
UHF Preselector, 474-527 MHz
DSTRBO350WPRESEL
800/900 MHz Preselector, 806-960 MHz
Mounting
PMLE4476
Wall Mount Kit for XPR 8300
PMLN5072
Hardware Kit for Rear Accessory Connector
HKN9088
Mobile Mini U Antenna Adapter with
8 Foot Cable
Antennas
DSTRBO800ANTSC420
800 MHz – 7.5dB Gain Antenna,
806-869 MHz
DSTRBO900ANTSC420
900 MHz – 7.5dB Gain Antenna,
896-941 MHz
RDE4556
UHF - 3.8dB Gain Antenna
RDD4527
VHF - 136-144 MHz 1⁄4 Wave Antenna
RDE4555
UHF - 3.8dB Gain Antenna, 470-488 MHz
RDE4557
UHF – 3.8dB Gain Antenna, 403-420 MHz
18 www.bluetechwireless.net

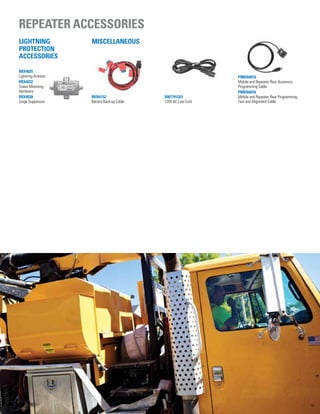

73. Repeater accessories
Lightning
Protection
Accessories
Miscellaneous
RRX4025
Lightning Arrestor
RRX4032
Tower Mounting
Hardware
RRX4038
Surge Suppressor
RKN4152
Battery Back-up Cable
3087791G01
120V AC Line Cord
PMKN4010
Mobile and Repeater Rear Accessory
Programming Cable
PMKN4016
Mobile and Repeater Rear Programming,
Test and Alignment Cable
19

74. Motorola Solutions, Inc. 1301 E. Algonquin Road, Schaumburg, Illinois 60196 U.S.A. motorolasolutions.com
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.
© 2011 Motorola Solutions, Inc. All rights reserved.
RC-3-1001B
For more information on how to make your business more efficient
and better connected, visit www.motorola.com/mototrbo
www.bluetechwireless.net

75. Fact SHEET
MOTOTRBO DM4000 SERIES ACCESSORIES
Delivery drivers or freight shippers, unloading cargo or crawling in traffic, how do you keep
your fleet in touch and your customers in the loop? MOTOTRBO™ digital solutions can
transform your enterprise and make employee interactions smarter and safer. Our DM4000
Series radios have expanded capabilities, like full colour displays and integrated data, to
empower people like never before.
That’s why it’s critical to choose the only accessories certified to perform with MOTOTRBO
radios. Only Motorola Original Accessories are developed and tested with Motorola radios
as a complete system to ensure optimal performance, reliability and regulatory compliance.
Our DM4000 Series accessories help remaster your workflow – with forward-thinking
features like integrated Bluetooth® and Intelligent Audio – so you can collaborate more
efficiently, wherever your people go.
MOTOTRBO™ DM4000
SERIES ACCESSORIES
WORK SMARTER WHEREVER WORK TAKES YOU

76. PAGE 2
Fact SHEET
MOTOTRBO DM4000 SERIES ACCESSORIES
BE SAFER WITH SMARTER
ACCESSORIES
Our exclusive IMPRES Smart Audio accessories
communicate with the radio to suppress ambient noise,
improve voice intelligibility and amplify loudness – even
with road noise and traffic. Automatic Gain Control
(AGC) adds another layer of exceptional audio. It detects
changes in voice levels from the individual talking, then
increases or decreases microphone gain so the listener
hears you clearly regardless of how loudly or quietly you
are talking into your radio accessory.
IMPRES accessories make communicating on the road
smarter and safer. A new keypad microphone has a four-
way navigation button to make accessing critical features
on the large colour display, dialling telephone numbers and
sending text messages easy. The heavy-duty microphone
is an easy to use option when wearing gloves.
INTELLIGENT AUDIO TAKES YOU
FARTHER
Our DM4000 Series mobile radios offer a smart feature in
digital mode –Intelligent Audio – that adjusts radio volume
to fit the environment’s noise level. Your workforce can
also enjoy the benefits of Intelligent Audio with select
audio accessories.
Plug in an IMPRES accessory and it instantly sets
the volume level and enhances the Intelligent Audio
capabilities on your mobile radio. With IMPRES, your
mobile not only recognises the accessory and loads
the correct profile to optimise audio performance, but
combined with Intelligent Audio it intuitively adjusts
volume to compensate for background noise.
INTEGRATED BLUETOOTH GOES MOBILE
Improve the mobility of your work teams without
wires getting tangled. The DM4000 Series are the first
MOTOTRBO mobiles to embed Bluetooth audio right
in the radio so no adapter is needed. Now your drivers
can check on packages or walk around the loading dock
and stay connected within 10 metres of their radio. And
Motorola’s unique Operations Critical Wireless Earpiece is
so comfortable and durable, they can wear it all day.
HANDS-FREE MAKES IT EASY
Whether your crews need to answer dispatch or report
from the road, the DM4000 Series accessories offer a
wide range of options that enable easy installation, space-
saving mounting solutions, hands-free use in the vehicle
or dispatch communications in the office. A full portfolio
of integrated GPS and non-GPS antennas are available to
ensure you get the coverage you need with your DM4000
Series mobile radio.
www.bluetechwireless.net

77. PAGE 3
Fact SHEET
MOTOTRBO DM4000 SERIES ACCESSORIES
Mobile Microphones
RMN5127¹,² IMPRES Keypad Microphone with 4-way navigation
for DM4000 Series mobile only
RMN5052¹ Standard Compact Microphone
RMN5053¹ IMPRES Heavy Duty Microphone
HMN4098¹ IMPRES Telephone Style Handset
RMN5054¹ IMPRES Visor Microphone
PMKN4033 Microphone Extension Cable for RMN5052 - 10 feet
PMKN4034 Microphone Extension Cable for RMN5052 - 20 feet
HLN9073 Microphone Hang-Up Clip
Wireless Accessories
GMTN6356¹ Operations Critical Wireless Earpiece with 12” cable
NNTN8191 Wireless Push-to-Talk Pod
NTN2572 Replacement Wireless Earpiece, 12” cable
Accessories compatible with
MOTOTRBO DM4000 SERIES MOBILE RADIOS
Antennas
Through-Hole Mount Antennas
RAD4198 136–144 MHz, ¼ Wave Through-Hole Mount
RAD4199 146–150.8 MHz, ¼ Wave Through-Hole Mount
RAD4200 150–8-162 MHz, ¼ Wave Through-Hole Mount
RAD4201 162–174 MHz, ¼ Wave Through-Hole Mount
RAE4151 403–430 MHz, ¼ Wave Through-Hole Mount
RAE4152 450–470 MHz, ¼ Wave Through-Hole Mount
RAE4158 406–420 MHz, 3.5dB gain Through-Hole Mount
RAE4154 450–470 MHz, 3.5 dB Gain Through-Hole Mount
HAE6021 403–527MHZ 2.0 dB Gain BNC
GPS Only Active Antennas
PMAN4000 Fixed Mount GPS Active Antenna
PMAN4001 Glass Mount GPS Active Antenna
PMAN4002 Magnetic Mount GPS Active Antenna
PMAN4003 GPS/NMO Mount Base Only BNC
PMAN4004 GPS/NMO Mount Base Antenna Mini-U
Combination GPS/RF Antennas
RAD4219 136–144 MHz, Combo GPS/VHF ¼ Wave
Through-Hole Mount
RAD4220 146–150.8 MHz, Combo GPS/VHF ¼ Wave
Through-Hole Mount
RAD4221 150.8–162 MHz, Combo GPS/VHF ¼ Wave
Through-Hole Mount
RAD4222 162–174 MHz, Combo GPS/VHF ¼ Wave
Through-Hole Mount
PMAE4035 403–430 MHz, Combo GPS/UHF ¼ Wave
Through-Hole Mount
PMAE4037 450–470 MHz, Combo GPS/UHF ¼ Wave
Through-Hole Mount
PMAE4036 406–420 MHz, Combo GPS/UHF 3.5dB
Gain Through-Hole Mount
PMAE4038 450–470 MHz, Combo GPS/UHF 5dB
Gain Through-Hole Mount
HAE6017 403–527 MHz, Combo GPS/UHF 2dB BNC
Programming Cables AND OTHER ACCESSORIES
PMKN4010 Mobile and Repeater Rear Programming Cable
HKN6184 Mobile Front Programming Cable
PMLN5072 Hardware Kit for Rear Accessory Connector
PMKN4016 Mobile Repeater Rear Connector Programming
and Test Cable
PMKN4018 Mobile and Repeater Rear Accessory Connector
Universal Cable
PMLN6024S BT/GPS Option Board
PMLN5718S Option Board Upgrade Kit

78. Fact SHEET
MOTOTRBO DM4000 SERIES ACCESSORIES
Mounting and Installation Accessories
RLN6466 Low Profile Trunnion Kit
RLN6467 High Profile Trunnion Kit
RLN6468 Key Lock Trunnion Kit
RLN6465 In-Dash Mounting Kit - DIN
HKN4137 Power Cable to Battery - 10 foot, 15 amp
HKN4192 Power Cable to Battery - 20 foot, 15 amp
HKN4191 Power Cable to Battery - 10 foot, 20 amp
RKN4136 Ignition Sense cable
Control Station Accessories
RMN5050 Desktop Microphone
RSN4002 13W External Speaker
RSN4003 7.5W External Speaker
RSN4004 5W External Speaker
GLN7318 Desktop Tray without speaker
RSN4005 Desktop Tray with speaker
HKN9088 Mobile Mini-U Antenna Adapter, 8 foot cable
HKN9557 PL259/Mini-U Antenna Adapter, 8-foot Cable
HPN4007 Power Supply, 1-60W
GPN6145 Switchmode Power Supply, 1-25W
GKN6266 Power Supply Cable for switchmode power supply
¹ These audio accessories have been optimised to work with the Intelligent Audio feature
² This microphone is only compatible with the DM4600 and DM4601
External Push-to-Talk Accessories
RLN5929 Emergency Footswitch
RLN5926 Pushbutton with push-to-talk
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their
respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
Motorola Solutions Ltd. Jays Close, Viables Industrial Estate, Basingstoke, Hampshire, RG22 4PD, UK
EMEA version 1 (02/2012)
For more information on how to make sleek and stylish work for you,
visit motorolasolutions.com/mototrbo or find your closest Motorola
representative or authorised Partner at
www.motorola.com/Business/XU-EN/Contact_Us
Distributed by:
www.bluetechwireless.net

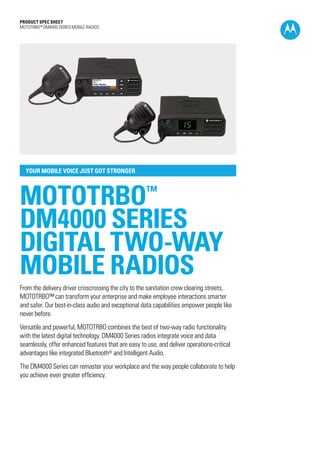

79. PRODUCT SPEC SHEET
MOTOTRBO™ DM4000 SERIES MOBILE RADIOS
YOUR MOBILE VOICE JUST GOT STRONGER
MOTOTRBO™
DM4000 SERIES
DIGITAL TWO-WAY
MOBILE RADIOS
From the delivery driver crisscrossing the city to the sanitation crew clearing streets,
MOTOTRBO™ can transform your enterprise and make employee interactions smarter
and safer. Our best-in-class audio and exceptional data capabilities empower people like
never before.
Versatile and powerful, MOTOTRBO combines the best of two-way radio functionality
with the latest digital technology. DM4000 Series radios integrate voice and data
seamlessly, offer enhanced features that are easy to use, and deliver operations-critical
advantages like integrated Bluetooth® and Intelligent Audio.
The DM4000 Series can remaster your workplace and the way people collaborate to help
you achieve even greater efficiency.

80. PRODUCT SPEC SHEET
MOTOTRBO™ DM4000 SERIES MOBILE RADIOS
AUDIO BEYOND EXPECTATIONS
When it comes to exceptional audio clarity, the quality
of digital can’t be denied. With the DM4000 Series
mobiles, you get digital quality plus unique features to
help your employees hear and speak clearly, wherever
they work.
With Intelligent Audio, the radio volume automatically
adjusts to compensate for background noise so workers
don’t have to adjust their radio volume to avoid missing
a call in loud situations or disturbing others when they
move into quiet places. Increased background noise
suppression filters out unwanted external clamour –
from road traffic to the roar of engines.
Bluetooth®
audio, built in to the radio, provides voice
communication with exceptional clarity – giving your
people the freedom to move without wires. Also,
IMPRES™ audio accessories enhance noise suppression
and improve voice intelligibility for smarter audio than
they’ve ever experienced before.
INTEGRATED DATA SOLUTIONS
DM4000 Series radios are available with integrated GPS
that enables location tracking of mobile work teams and
text messaging between radios enables communication
when voice isn’t feasible. The large, full-colour display
operates in day or night mode, for easy viewing of
contact lists, text messages and work order tickets
even in bright sunlight. Models are also available that
feature integrated Bluetooth enabling the radio to
wirelessly interface with Bluetooth-enabled devices
such as barcode scanners and magnetic card readers to
facilitate the collection of critical information
in the field.
MOTOTRBO’s Application Developer Program is the
largest in the industry and offers customised data
applications that allow you to adapt your radios to your
business challenges. With a wide range of solutions
available, data applications answer your objectives—
from work order ticket management to telephony
integration, and more.
HIGH-POWERED PERFORMANCE
Because MOTOTRBO uses TDMA digital technology,
you get integrated voice and data, twice the calling
capacity and clearer voice communications. Also, the
smart IMPRES™ technology in our high-powered
accessories enables easier communications –
everywhere your people travel.
RICH FUNCTIONALITY
DM4000 Series radios offer plenty of features your
business seeks – including enhanced call signalling,
basic and enhanced privacy-scrambling, option board
expandability, the Motorola-unique transmit interrupt
suite to prioritise critical communication the moment
you need it and compatibility with SCADA solutions
for utility and public service monitoring and alarms.
Programmable button features appear on the display
for easy viewing and quick access. And when workers
can’t be distracted, customisable voice announcement
provides audible confirmation of channel and zone
changes as well as programmable button features,
eliminating the need to view the display.
EXPANDED CAPACITY AND COVERAGE
Your work crews are on the go – picking up loads,
dropping off cargo, repairing roads or restoring power
after a storm. That’s why you need the far-reaching
performance of MOTOTRBO.
IP Site Connect helps to dramatically improve customer
service and productivity by using the Internet to extend
coverage to create a wide area network, enhance single
site coverage or link geographically dispersed locations.
Capacity Plus provides single-site trunking expanding
capacity to over 1,000 users. Combining the benefits of
both solutions, Linked Capacity Plus is an entry-level,
multi-site trunking solution that expands capacity
and extends coverage so large work teams can stay
connected across a wide area. So whether you want
expanded coverage at a single site or across multiple
ones, MOTOTRBO can be scaled to your needs.
MIGRATE AT YOUR OWN PACE
Keeping operations running smoothly during a change in
communication systems is vital to business. It’s easy to
migrate to digital with DM4000 Series radios because
they operate in analogue and digital mode while the
dynamic mixed mode repeater functionality streamlines
automatic switching between analogue and digital calls.
So you can begin using MOTOTRBO radios and repeaters
on your existing analogue system, and when your time
and budget allow, move to digital at your own pace.
DAY-IN, DAY-OUT DURABILITY
DM4000 Series mobile radios undergo Motorola’s
unique Accelerated Life Testing to help ensure they will
stand up to the hard knocks of everyday use. For even
greater peace of mind, they are backed by a two-year
Standard Warranty.
BE READY FOR
THE FUTURE WITH THE
RIGHT STANDARD
MOTOTRBO complies with the
globally-recognised European
Telecommunications Standard
Institute (ETSI) Digital Mobile
Radio (DMR) Tier 2 standard
for professional two-way radio
users.
DMR is widely supported
by the leading two-way
manufacturers in the industry
and the most widely deployed
digital mobile radio technology
worldwide. This open
standard assures long-term
sustainability and creates a
community of manufacturers
who build interchangeable
equipment that can compete on
features, benefits and price.
PAGE 2
www.bluetechwireless.net

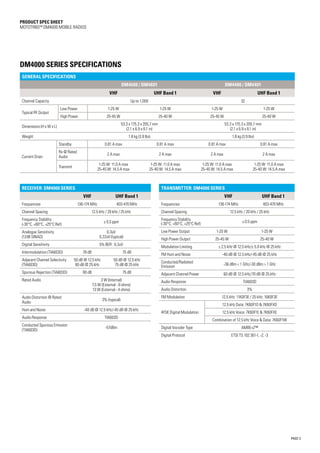

81. PRODUCT SPEC SHEET
MOTOTRBO™ DM4000 MOBILE RADIOS
DM4000 Series Specifications
GENERAL SPECIFICATIONS
DM4600 / DM4601 DM4400 / DM4401
VHF UHF Band 1 VHF UHF Band 1
Channel Capacity Up to 1,000 32
Typical RF Output
Low Power 1-25 W 1-25 W 1-25 W 1-25 W
High Power 25-45 W 25-40 W 25-45 W 25-40 W
Dimensions (H x W x L)
53.3 x 175.3 x 205.7 mm
(2.1 x 6.9 x 8.1 in)
53.3 x 175.3 x 205.7 mm
(2.1 x 6.9 x 8.1 in)
Weight 1.8 kg (3.9 lbs) 1.8 kg (3.9 lbs)
Current Drain
Standby 0.81 A max 0.81 A max 0.81 A max 0.81 A max
Rx @ Rated
Audio
2 A max 2 A max 2 A max 2 A max
Transmit
1-25 W: 11.0 A max
25-45 W: 14.5 A max
1-25 W: 11.0 A max
25-40 W: 14.5 A max
1-25 W: 11.0 A max
25-45 W: 14.5 A max
1-25 W: 11.0 A max
25-40 W: 14.5 A max
RECEIVER: DM4000 SERIES
VHF UHF Band 1
Frequencies 136-174 MHz 403-470 MHz
Channel Spacing 12.5 kHz / 20 kHz / 25 kHz
Frequency Stability
(-30°C, +60°C, +25°C Ref)
± 0.5 ppm
Analogue Sensitivity
(12dB SINAD)
0.3uV
0.22uV (typical)
Digital Sensitivity 5% BER : 0.3uV
Intermodulation (TIA603D) 78 dB 75 dB
Adjacent Channel Selectivity
(TIA603D)
50 dB @ 12.5 kHz
80 dB @ 25 kHz
50 dB @ 12.5 kHz
75 dB @ 25 kHz
Spurious Rejection (TIA603D) 80 dB 75 dB
Rated Audio 3 W (Internal)
7.5 W (External - 8 ohms)
13 W (External - 4 ohms)
Audio Distortion @ Rated
Audio
3% (typical)
Hum and Noise -40 dB @ 12.5 kHz/-45 dB @ 25 kHz
Audio Response TIA603D
Conducted Spurious Emission
(TIA603D)
-57dBm
TRANSMITTER: DM4000 SERIES
VHF UHF Band 1
Frequencies 136-174 MHz 403-470 MHz
Channel Spacing 12.5 kHz / 20 kHz / 25 kHz
Frequency Stability
(-30°C, +60°C, +25°C Ref)
± 0.5 ppm
Low Power Output 1-25 W 1-25 W
High Power Output 25-45 W 25-40 W
Modulation Limiting ± 2.5 kHz @ 12.5 kHz/± 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz/-45 dB @ 25 kHz
Conducted/Radiated
Emission
-36 dBm 1 GHz/-30 dBm 1 GHz
Adjacent Channel Power 60 dB @ 12.5 kHz/70 dB @ 25 kHz
Audio Response TIA603D
Audio Distortion 3%
FM Modulation 12.5 kHz: 11K0F3E / 25 kHz: 16K0F3E
4FSK Digital Modulation
12.5 kHz Data: 7K60F1D 7K60FXD
12.5 kHz Voice: 7K60F1E 7K60FXE
Combination of 12.5 kHz Voice Data: 7K60F1W
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI TS 102 361-1, -2, -3
PAGE 3

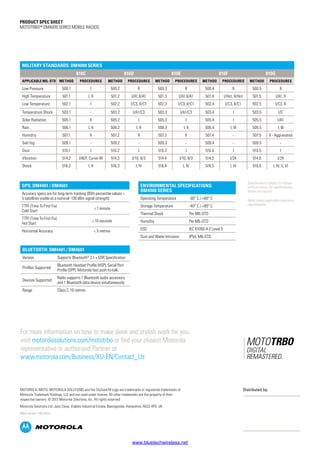

82. PRODUCT SPEC SHEET
MOTOTRBO™ DM4000 SERIES MOBILE RADIOS
Specifications subject to change
without notice. All specifications
shown are typical.
Radio meets applicable regulatory
requirements.
ENVIRONMENTAL SPECIFICATIONS:
DM4000 SERIES
Operating Temperature -30° C / +60° C
Storage Temperature -40° C / +85° C
Thermal Shock Per MIL-STD
Humidity Per MIL-STD
ESD IEC 61000-4-2 Level 3
Dust and Water Intrusion IP54, MIL-STD
BLUETOOTH: DM4401 / DM4601
Version Supports Bluetooth®
2.1 + EDR Specification
Profiles Supported
Bluetooth Headset Profile (HSP), Serial Port
Profile (SPP), Motorola fast push-to-talk.
Devices Supported
Radio supports 1 Bluetooth audio accessory
and 1 Bluetooth data device simultaneously
Range Class 2, 10 metres
GPS: DM4401 / DM4601
Accuracy specs are for long-term tracking (95th percentile values
5 satellites visible at a nominal -130 dBm signal strength)
TTFF (Time To First Fix)
Cold Start
1 minute
TTFF (Time To First Fix)
Hot Start
10 seconds
Horizontal Accuracy 5 metres
MILITARY STANDARDS: DM4000 SERIES
810C 810D 810E 810F 810G
Applicable MIL-STD Method Procedures Method Procedures Method Procedures Method Procedures Method Procedures
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 500.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot, II/Hot 501.5 I/A1, II
Low Temperature 502.1 I 502.2 I/C3, II/C1 502.3 I/C3, II/C1 502.4 I/C3, II/C1 502.5 I/C3, II
Temperature Shock 503.1 - 503.2 I/A1/C3 503.3 I/A1/C3 503.4 I 503.5 I/C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I/A1
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III 506.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 II - Aggravated
Salt fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Vibration 514.2 VIII/F, Curve-W 514.3 I/10, II/3 514.4 I/10, II/3 514.5 I/24 514.6 I/24
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV, V, VI
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their
respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
Motorola Solutions Ltd. Jays Close, Viables Industrial Estate, Basingstoke, Hampshire, RG22 4PD, UK
EMEA version 1 (02/2012)
For more information on how to make sleek and stylish work for you,
visit motorolasolutions.com/mototrbo or find your closest Motorola
representative or authorised Partner at
www.motorola.com/Business/XU-EN/Contact_Us
Distributed by:
www.bluetechwireless.net

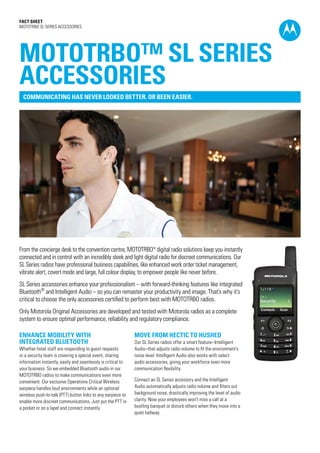

83. Fact SHEET
MOTOTRBO SL SERIES ACCESSORIES
From the concierge desk to the convention centre, MOTOTRBO™ digital radio solutions keep you instantly
connected and in control with an incredibly sleek and light digital radio for discreet communications. Our
SL Series radios have professional business capabilities, like enhanced work order ticket management,
vibrate alert, covert mode and large, full colour display, to empower people like never before.
SL Series accessories enhance your professionalism – with forward-thinking features like integrated
Bluetooth®
and Intelligent Audio – so you can remaster your productivity and image. That’s why it’s
critical to choose the only accessories certified to perform best with MOTOTRBO radios.
Only Motorola Original Accessories are developed and tested with Motorola radios as a complete
system to ensure optimal performance, reliability and regulatory compliance.
ENHANCE MOBILITY WITH
INTEGRATED BLUETOOTH
Whether hotel staff are responding to guest requests
or a security team is covering a special event, sharing
information instantly, easily and seamlessly is critical to
your business. So we embedded Bluetooth audio in our
MOTOTRBO radios to make communications even more
convenient. Our exclusive Operations Critical Wireless
earpiece handles loud environments while an optional
wireless push-to-talk (PTT) button links to any earpiece to
enable more discreet communications. Just put the PTT in
a pocket or on a lapel and connect instantly.
MOVE FROM HECTIC TO HUSHED
Our SL Series radios offer a smart feature–Intelligent
Audio–that adjusts radio volume to fit the environment’s
noise level. Intelligent Audio also works with select
audio accessories, giving your workforce even more
communication flexibility.
Connect an SL Series accessory and the Intelligent
Audio automatically adjusts radio volume and filters out
background noise, drastically improving the level of audio
clarity. Now your employees won’t miss a call at a
bustling banquet or disturb others when they move into a
quiet hallway.
MOTOTRBO™ SL SERIES
ACCESSORIES
COMMUNICATING HAS NEVER LOOKED BETTER. OR BEEN EASIER.

84. Fact SHEET
MOTOTRBO SL SERIES ACCESSORIES
Earpiece Accessories
PMLN5958 Swivel earpiece with in-line microphone and PTT
PMLN5957 Single-wire Surveillance earpiece with translucent
tube, in-line microphone and PTT (black)
Bluetooth WIRELESS Accessories
GMTN6356* Operations Critical Wireless Earpiece
with 12” cable and charger
NNTN8191 Wireless Push-to-Talk Button
NTN2572 Replacement Wireless Earpiece, 12” cable
Antennas
PMAE4078 UHF Antenna Kit (403-425 MHz)
PMAE4076 UHF Antenna Kit (420-445 MHz)
PMAE4077 UHF Antenna Kit (438-470 MHz)
Cables
25-124330-01R Programming Cable (Micro USB connector)
* These audio accessories have been optimized to work with the Intelligent Audio feature
Batteries and Chargers
HKNN4013 Li-Ion 1800 mAh High Capacity Battery
PMNN4425 Li-Ion 1400 mAh Battery
PMLN6000 Replacement Battery Cover (standard battery)
PMLN6001 Replacement Battery Cover (high-capacity battery)
PMPN4006 Micro USB Single-Unit Plug-In Charger
PMLN5917 Multi-Unit Charger (Euro)
PMLN5918 Multi-Unit Charger (UK)
Carry Accessories
PMLN6074 Nylon Wrist Strap
PMLN5956 Swivel Carry Holder
TALK COMFORTABLY AND COVERTLY
Our single-wire swivel earpiece and surveillance earpiece
are small, sleek and powerful, so your employees can
communicate easily wherever they walk and talk.
The transparent coiled cord and rubber earbud on the
surveillance earpiece offers greater discreetness for
security personnel. The flexible-fitting swivel earpiece
is comfortable, even for extended shifts. Both earpieces
have an in-line microphone and push-to-talk, making
communication easier and unobtrusive.
Add compact carrying accessories – like a swivel carry
holder or a lightweight wrist strap – and you’ve got
flexibility and comfort that meets the needs of the busiest
people on your team.
THIN IS IN - FROM BATTERIES TO
CHARGERS
From the standard cell phone-sized batteries to the micro-
USB charger, we designed our SL Series accessories with
portability, professionalism and convenience as our top
priorities. Both the standard and high-capacity batteries
are so slim and lightweight that it’s easy to carry spares.
Our unique multi-unit charger merges high power with
high image, allowing you to charge six radios or batteries
simultaneously. This charger is both functional and sleek
in design.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their
respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
Motorola Solutions Ltd. Jays Close, Viables Industrial Estate, Basingstoke, Hampshire, RG22 4PD, UK
EMEA version 1 (02/2012)
GMTN6356
PMLN5958
PMLN5917/PMLN5918
PMLN6074
NNTN8191
For more information on how to make sleek and stylish work for you,
visit motorolasolutions.com/slseries or find your closest Motorola
representative or authorised Partner at
www.motorola.com/Business/XU-EN/Contact_Us
Distributed by:
PMLN5956
www.bluetechwireless.net

85. MTR3000 STANDARD FEATURES:
• Operates in analog or MOTOTRBO digital
mode with a LED indicating mode of
operation
• Reliable 100W Continuous Duty Cycle
Operation
• 12.5 or 25 kHz programmable channel
spacing
• Analog and digital conventional are all
standard in one base station without the
cost of additional software or hardware
• Power supply functions over a wide
range of voltages
• RoHS (Restriction of Hazardous
Substances) compliant
• Integrated 100W Power Amplifier and
AC/DC Power Supply afford minimized
cabling, rack space, expense, and overall
complexity
• Offered in the UHF, VHF and 800 / 900
MHz frequency bands
• Wireline capability enables Integrated
Tone Remote Control and DC Remote
control functionality with balanced audio
• Analog voting capability supports
Spectra-TAC and DIGITAC comparators,
for improved subscriber talk-in
performance (optional wireline board
required)
MTR3000 PROGRAMMED IN
MOTOTRBO MODE PROVIDES:
• Two simultaneous voice paths in digital
12.5 kHzTDMA
• 6.25e compliance
• Division of an existing channel into two
timeslots delivering twice the capacity
through a single repeater
• MOTOTRBO Connect Plus multi-site
digital trunking for extended coverage
and increased capacity
• MOTOTRBO IP Site Connect for wide
area coverage
• MOTOTRBO Capacity Plus single-site
trunking for increased capacity without a
separate hardware controller
• The transmit interrupt suite - voice
interrupt, remote voice dekey,
emergency voice interrupt or data over
voice interrupt - to help prioritize critical
communication exactly when needed
• Dynamic mixed mode capability which
allows for automatic switching between
analog and digital mode
MTR3000 SERVICEABILITY:
• Repeater diagnostic and control software
provides remote or local site monitoring
• Easy to replace components with
functionally separate Field Replaceable
Units (FRU)
• Software based design simplifies feature
upgrades
• Easy access to service ports (no need
to remove the front panel) shortening
installation and maintenance time
• For ease of installation, minimal station
alignment is needed
• Improved Warranty: Backed by
Motorola’s Standard 2-year Warranty
MTR3000 is a MOTOTRBO™ integrated voice and data base
station/repeater designed to meet the requirements of small
public safety, utilities and professional organizations.
The MTR3000 operates in digital mode in MOTOTRBO
Conventional, IP Site Connect, Capacity Plus and Connect
Plus systems delivering increased capacity, spectral
efficiency, integrated data applications and enhanced voice
communications.
In addition the MTR3000 can also operate in analog mode
for conventional and LTR®
/PassPort®
Trunking systems
providing a flexible high power base station/repeater.
For systems currently using the MTR2000 base station/
repeater a simple MTR3000 upgrade kit is available so the
station can operate in a MOTOTRBO system and allow the
user to leverage their current investment.
MTR3000
BASE STATION / Repeater

86. MTR3000 BASE STATION / Repeater VHF Specifications
General Specifications
T3000A - MTR3000 T2003A - Upgrade kit for MTR2000 stations
Number of Frequencies Up to 16
Modulation FM 4FSK
Frequency Generation Synthesized
Channel Spacing Analog / Digital 12.5 kHz, 25 kHz, 30 kHz / 12.5 kHz (6.25e compliant)
Mode of Operation Simplex / Semi-Duplex / Duplex
Temperature Range –30ºC to +60ºC
Antenna Connectors Transmit and Receive, Type “N” Female
AC Operation 85-264 VAC, 47-63 Hz
DC Operation 28.6 VDC (25.7-30.7 VDC full rated output power)
Dimensions Weight
Base Station Repeater 5.25 x 19 x 16.5 in. (133 x 483 x 419 mm) 40 lbs (19 kg)
VHF Input Current (T3000A)
AC Line 117 Volts / 220 Volts 28 VDC D/C Battery
Revert, Neg. Gnd.
100 W Standby 0.4A / 0.4A 0.8A
100 W Transmit 3.5A / 1.9A 12.2A
Transmitter (VHF)
MTR3000 T2003A - Upgrade kit for MTR2000 stations
Frequency 136-174 MHz 136-154, 150-174 MHz
Power Output (Continuous Duty) 8-100 watts 1-30/40 watts, 25-100 watts
Electronic Bandwidth Full Band
Output Impedance 50 Ohms
Intermodulation Attenuation 55 dB 40 dB for 40W and 100W stations; 70 dB for 30W station
Maximum Deviation (RSD) 25 kHz / 12.5 kHz ±5 kHz / ±2.5 kHz
Audio Sensitivity 60% RSD @80 mV RMS
Spurious and Harmonic Emissions Attenuation 90 dB 85 dB
FM Hum and Noise (750 μs de-emphasis) 25 kHz / 12.5 kHz 50 dB (55 dB typical) / 45 dB (52 dB typical)
Frequency Stability (for temperature and aging variation) 1.5 PPM/External Ref (optional)
Audio Response +1/-3 dB from 6 dB per octave pre-emphasis; 300-3000 Hz referenced to 1000 Hz at line input
Audio Distortion Less than 3% (1% typical) at 1000 Hz; 60% RSD
Emission Designators FM Modulation: 12.5 kHz: 11K0F3E; 25 kHz,30 kHz: 16K0F3E
4FSK Modulation: 12.5 kHz - Data Only: 7K60FXD; 12.5 kHz - Data and Voice: 7K60FXE
Receiver (VHF)
MTR3000 T2003A - Upgrade kit for MTR2000 stations
Frequency 136-174 MHz
Selectivity (TIA603) 25 kHz / 12.5 kHz 80 dB (90 dB typical) / 75 dB (82 dB typical)
Selectivity (TIA603D) 25 kHz / 12.5 kHz 80 dB (90 dB typical) / 50 dB (60 dB typical)
Analog Sensitivity 12 dB SINAD 0.30 uV (0.22 uV typical)
Digital Sensitivity 5% BER 0.30 uV (0.20 uV typical)
Signal Displacement Bandwidth 25 kHz / 12.5 kHz 2 kHz / 1 kHz
Intermodulation Rejection 25 kHz and 12.5 kHz 85 dB
Spurious and Image Response Rejection 85 dB (95 dB typical)
Audio Response +1/-3 dB from 6 dB per octave pre-emphasis; 300-3000 Hz referenced to 1000 Hz at line output
Audio Distortion Less than 3% (1% typical) at 1000 Hz; 60% RSD
Line Output 330 mV (RMS) @ 60% RSD
FM Hum and Noise (750us de-emphasis) 25 kHz / 12.5 kHz 50 dB (56 dB typical) / 45 dB (52 dB typical)
RF Input Impedance 50 Ohms
FCCType Acceptance
Frequency Range in MHz Model Type Power Output in Watts US Type Acceptance Number
136-174 T3000A Transmitter 8 - 100 ABZ89FC3793
136-174 T3000A Receiver N/A ABZ89FR3794
136-174 T2003A Transmitter 25 - 100 ABZ89FC3795
136-174 T2003A Receiver N/A ABZ89FR3796
136-174 T2003A Transmitter 1-30 / 40 ABZ89FC3797
Industry Canada Approval: IC ID 109AB-3793; IC model T3000-VHF
Specifications per TIA/EIA 603D unless otherwise noted
Product meets ETSI 300-086 ETSI 300-113
CE Pending; RoHS compliant; UL Listed
Digital Protocol ETSI 102 361-1, -2, -3; AMBE +2™ Vocoder
Specifications subject to change without notice.
www.bluetechwireless.net

87. MTR3000 BASE STATION / Repeater UHF Specifications
Receiver (UHF)
T3000A T2003A - Upgrade kit for MTR2000 stations
Frequency 403-470, 450-524 MHz 403-470 MHz
Selectivity (TIA603) 25 kHz / 12.5 kHz 80 dB (86 dB typical) / 75 dB (78 dB typical)
Selectivity (TIA603D) 25 kHz / 12.5 kHz 75 dB (85 dB typical) / 45 dB (60 dB typical)
Analog Sensitivity 12 dB SINAD 0.30 uV (0.22 uV typical)
Digital Sensitivity 5% BER 0.30 µV (0.20 uV typical)
Signal Displacement Bandwidth 25 kHz / 12.5 kHz 2 kHz / 1 kHz
Intermodulation Rejection 25 kHz and 12.5 kHz 85 dB
Spurious and Image Response Rejection 85 dB (typical 95 dB)
Audio Response +1,-3 dB from 6 dB per octave de-emphasis; 300-3000 Hz referenced to 1000 Hz at line output
Audio Distortion Less than 3% (1.5% typical) at 1000 Hz, 60% RSD
Line Output 330 mV (RMS) @ 60% RSD
FM Hum and Noise (750μs de-emphasis) 25 kHz / 12.5 kHz 50 dB nominal / 45 dB nominal
RF Input Impedance 50 Ohms
General Specifications
T3000A - MTR3000 T2003A - Upgrade kit for MTR2000 stations
Number of Frequencies Up to 16
Modulation FM 4FSK
Frequency Generation Synthesized
Channel Spacing Analog / Digital 12.5 kHz, 25 kHz / 12.5 kHz (6.25e compliant)
Mode of Operation Simplex / Semi-Duplex / Duplex
Temperature Range –30ºC to +60ºC
Antenna Connectors Transmit and Receive, Type “N” Female
AC Operation 85-264 VAC, 47-63 Hz
DC Operation 28.6 VDC (25.7-30.7 VDC full rated output power)
Dimensions Weight
Base Station Repeater 5.25 x 19 x 16.5 in. (133 x 483 x 419 mm) 40 lbs (19 kg)
UHF Input Current (T3000A)
AC Line 117 Volts / 220 Volts 28 VDC D/C Battery
Revert, Neg. Gnd.
100 W Standby 0.4A / 0.4A 0.8A
100 W Transmit 3.3A/1.8A 11.5A
FCCType Acceptance
Frequency Range in MHz Model Type Power Output in Watts US Type Acceptance Number
406.1 - 470 T3000A Transmitter 8-100 ABZ89FC4823
403 - 470 T3000A Receiver N/A ABZ89FR4824
470 - 512 T3000A Transmitter 8-100 ABZ89FC4825
450 - 512 T3000A Receiver N/A ABZ89FR4826
406.1 - 470 T2003A Transmitter 25 - 100 ABZ89FC4827
406.1 - 470 T2003A Transmitter 2 - 30/40 ABZ89FC4829
403 - 470 T2003A Receiver N/A ABZ89FR4828
Transmitter (UHF)
T3000A T2003A - Upgrade kit for MTR2000 stations
Frequency 403-470, 470-524 MHz 403-435, 435-470 MHz
Power Output (Continuous Duty) 8-100 watts 2-30/40 watts; 25-100 watts
Electronic Bandwidth Full Band
Output Impedance 50 Ohms
Intermodulation Attenuation 55 dB 40 dB for 40W and 100W stations; 70 dB for 30W station
Maximum Deviation (RSD) 25 kHz / 12.5 kHz ±5 kHz / ±2.5 kHz
Audio Sensitivity 60% RSD @ 80 mV RMS
Spurious and Harmonic Emissions Attenuation 90 dB 85 dB
FM Hum and Noise (750 μs de-emphasis) 25 kHz / 12.5 kHz 50 dB nominal / 45 dB nominal
Frequency Stability (for temperature and aging variation) 1.5 PPM/External Ref (optional)
Audio Response +1,-3 dB from 6 dB per octave pre-emphasis; 300-3000 Hz referenced to 1000 Hz at line input
Audio Distortion Less than 3% (1% typical) at 1000 Hz; 60% RSD
Emission Designators FM Modulation: 12.5 kHz: 11K0F3E; 25 kHz: 16K0F3E
4FSK Modulation: 12.5 kHz - Data Only: 7K60FXD; 12.5 kHz - Data Voice: 7K60FXE
Industry Canada Approval: IC ID 109AB-T3000; IC model T3000-UHFR1
Specifications per TIA/EIA 603D unless otherwise noted
Product meets ETSI 300-086 ETSI 300-113
CE Marked; RoHS compliant; UL Listed
Digital Protocol ETSI 102 361-1, -2, -3; AMBE +2™ Vocoder
Specifications subject to change without notice.

88.
R3-2-2010D POD 12/10
MTR3000 BASE STATION / Repeater 800 / 900 MHz Specifications
General Specifications
T3000A - MTR3000 T2003A - Upgrade kit for MTR2000 stations
Number of Frequencies Up to 16
Modulation FM 4FSK
Frequency Generation Synthesized
Channel Spacing Analog / Digital 12.5 kHz, 25 kHz / 12.5 kHz (6.25e compliant)
Mode of Operation Semi-duplex / Duplex
Temperature Range –30ºC to +60ºC
Antenna Connectors Transmit and Receive, Type “N” Female
AC Operation 85-264 VAC, 47-63 Hz
DC Operation 28.6 VDC (24.7 - 30.7 VDC full rated output power)
Dimensions Weight
Base Station Repeater 5.25 x 19 x 16.5 in. (133 x 483 x 419 mm) 40 lbs (19 kg)
800/900 MHz Input Current (T3000A)
AC Line 117 Volts / 220 Volts 28 VDC D/C Battery
Revert, Neg. Gnd.
100 W Standby 0.4A / 0.4A 0.9A
100 W Transmit 3.4A / 1.9A 12.0A
Transmitter (800/900 MHz)
T3000A T2003A - Upgrade kit for MTR2000 stations
Frequency 851 - 870 935 - 941 MHz 851 - 870, 935 - 941 MHz
Power Output (Continuous Duty) 8-100 watts 20-75 watts
Electronic Bandwidth Full Band
Output Impedance 50 Ohms
Intermodulation Attenuation 55 dB 50 dB
Maximum Deviation (RSD) 800 MHz: 25 kHz, 12.5 kHz / 900 MHz: 12.5 kHz ±5 kHz, ±2.5 kHz / ±2.5 kHz
Audio Sensitivity 60% RSD @80 mV RMS
Spurious and Harmonic Emissions Attenuation 800 MHz / 900 MHz 90 dB / 86 dB 80 dB / 80 dB
FM Hum and Noise (750 μs de-emphasis) 800 MHz: 25 kHz, 12.5 kHz / 900 MHz: 12.5 kHz 50 dB nominal, 45 dB nominal / 45 dB nominal
Frequency Stability (for temperature and aging variation) 0.1PPM/ External Ref (optional)
Audio Response +1, -3 dB from 6 dB per octave pre-emphasis, 300 - 3000 Hz referenced to 1000 Hz at line input
Audio Distortion Less than 3%(1% typical) at 1000 Hz, 60% RSD
Emission Designators FM Modulation: 800 MHz: 12.5 kHz: 11K0F3E; 25 kHz: 16K0F3E
900 MHz: 12.5 kHz: 11K0F3E
4FSK Modulation: 12.5 kHz - Data Only: 7K60FXD; 12.5 kHz - Data Voice: 7K60FXE
Receiver (800/900 MHz)
T3000A T2003A - Upgrade kit for MTR2000 stations
Frequency 806 - 825 896 - 902 MHz 806 - 825, 896 - 902 MHz
Selectivity (TIA603) 800 MHz: 25 kHz, 12.5 kHz / 900 MHz: 12.5 kHz 85 dB , 75 dB / 75 dB
Selectivity (TIA603D) 800 MHz: 25 kHz, 12.5 kHz / 900 MHz: 12.5 kHz 80 dB (87 dB typical), 55 dB (62 dB typical) / 55 dB (62 dB typical)
Analog Sensitivity 12 dB SINAD 0.28 uV ( 0.21 uV typical)
Digital Sensitivity 5% BER 0.28 uV
Signal Displacement Bandwidth 800 MHz: 25 kHz, 12.5 kHz / 900 MHz: 12.5 kHz 2 kHz, 1 kHz / 1 kHz
Intermodulation Rejection 800 MHz: 25 kHz, 12.5 kHz / 900 MHz: 12.5 kHz 85 dB (90 dB typical) / 85 dB (90 dB typical)
Spurious and Image Response Rejection 90 dB
Audio Response +1, -3 dB from 6 dB per octave pre-emphasis, 300 - 3000 Hz referenced to 1000 Hz at line output
Audio Distortion Less than 3%(1.5% typical) at 1000 Hz, 60% RSD
Line Output 330 mV (RMS) @60% RSD
FM Hum and Noise (750us de-emphasis) 800 MHz: 25 kHz, 12.5 kHz / 900 MHz: 12.5 kHz 50 dB nominal, 45 dB nominal / 45 dB nominal
RF Input Impedance 50 Ohms
FCCType Acceptance
Frequency Range in MHz Model Type Power Output in Watts US Type Acceptance Number
851 - 870 935- 941 T3000A Transmitter 8 - 100 ABZ89FC5817
806 - 825 896 - 902 T3000A Receiver N/A ABZ89FR5818
851 - 870 T2003A Transmitter 20 - 75 ABZ89FC5819
806 - 825 T2003A Receiver N/A ABZ89FR5820
935 - 941 T2003A Transmitter 20 - 75 ABZ89FC5821
896 - 902 T2003A Receiver N/A ABZ89FR5822
Industry Canada Approval: IC ID 109AB-5817; IC Model T3000-8/900
Specifications per TIA/EIA 603D unless otherwise noted
Product meets ETSI 300-086 ETSI 300-113
RoHS compliant; UL Listed
Digital Protocol ETSI 102 361-1, -2, -3; AMBE +2™ Vocoder
Specifications subject to change without notice.
Specifications subject to change without notice. All specifications shown are typical. Radio meets applicable regulatory requirements.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings,
LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved.
www.bluetechwireless.net

89. Fully featured, tough and stylish the new TLKR T6 is the ideal way to stay
connected during outdoor adventures. At home on the campsite, theme
park or hike, the TLKR T6 is packed with functionality including a range
of up to 8km*, multiple call tones and rechargeable batteries.
TLKR T6
Features:
• PMR446 radios – license free
• Up to 8km range
(subject to terrain and conditions)
• Free Calls
• Rechargeable NiMH batteries (supplied)
• 8 Channels + 121 codes
• Scan/Monitor
• 5 call tones
• Hands-free
• Room monitor
• Accessory Connector
8km*
www.motorola.com/walkie-talkie

90. Basic Information T6
Nomenclature TLKR-T6
Colour Silver / Black
Freq Band PMR446
Tx power 500mW
Type Designation TLKR-T6
Bandwidth 12.5Khz
Channels 8
Weight 100g (excluding batteries)
Range 8 Km*
Size WxDxH (cm) 5.4 x 16 x 3.6
Codes 121 - providing 968 channel combinations
Battery Life (Typical)
• NiMH (supplied) - approx. 16hrs
Charging
• Twin Charger Pod (supplied)
• AC Adaptor
• Power source - Rechargeable NiMH
pack (supplied)
• 4 x AAA Alkaline batteries
(not supplied)
Mechanical
• 8 channels + 121 codes
• LCD backlit display
• Keypad lock
• Battery level indicator
• Belt clip
• 9V Jack
• 500mW Transmit Power
Features
• Scan
• VoX and iVoX
• Auto squelch
• Channel monitor
• Timer
• Room monitor
• Auto power off
Alerts
• 5 Call Tones
• Keypad tones
• Talk confirmation tone/Roger beep
T6 Display Box
Contents
Radios, rechargeable batteries, charger
tray, power adapter, belt clips, manuals
Size WxDxH (cm)
16.5 x 20.5 x 7.5
Weight (Kg)
0.85 (WE), 0.86 (UK)
T6 Shipping Carton
Contents
6 x display boxes
Size WxDxH (cm)
59.5 x 18.5 x 25.5
Weight (Kg)
5.59 (WE), 5.64 (UK)
T6 Pallet
Contents
32 x shipping cartons
Size WxDxH (cm)
120 x 80 x 94.4
Weight (Kg)
187.5 (WE), 189 (UK)
TLKR T6
Package Contents
• Two radios
• Two belt clips
• 2 NiMH rechargeable batteries
• Twin charger pod
• AC adapter
• Instruction manual
*The communication range quoted is calculated based on an unobstructed line of sight test under optimum
conditions. Actual range will vary depending on terrain and conditions, and is often less than the maximum
possible. Your actual range will be limited by several factors including, but not limited to: terrain, weather
conditions, electromagnetic interference, and obstructions. MOTOROLA and the stylized M Logo are registered
in the US Patent Trademark Office. All other product or service names are the property of their respective
owners. © Motorola, Inc.
www.motorola.com/walkie-talkie
Motorola Ltd. Jays Close, Viables Industrial Estate
Basingstoke, Hampshire, RG22 4PD, UK TLKR T6/SPEC-ENG (07/10)
For more information please contact your local Motorola Authorised Dealer
UK WE
Model number P14MAB03A1AS P14MAA03A1AW
Super Tanapa IXUE2061A IXUE2060A
EAN 5031753006037 5031753006020
www.bluetechwireless.net

91. Fact SHEET
MOTOTRBO DP4000 SERIES ACCESSORIES
mototrbo™
DP4000 SERIES
ACCESSORIES
MAKE YOUR WORKPLACE SIMPLER AND SMARTER
From the supervisor in the plant to the receptionist at a hotel, MOTOTRBO digital
solutions can transform your enterprise and make employee interactions smarter
and safer. Our DP4000 Series radios have expanded capabilities, like full colour
displays and powerful data features, to empower people like never before.
That’s why it’s critical to choose only accessories that are certified to perform with
MOTOTRBO radios. The DP4000 Series accessories help remaster your workplace
– with forward-thinking features like integrated Bluetooth® and Intelligent Audio –
so you can achieve greater efficiency.

92. PAGE 2
Fact SHEET
MOTOTRBO DP4000 SERIES ACCESSORIES
GET EXCEPTIONAL AUDIO EVERYWHERE
Our exclusive IMPRES Smart Audio accessories
communicate with the radio to suppress ambient noise,
improve voice intelligibility and amplify loudness – even
in high-noise and harsh weather. Automatic Gain Control
(AGC) adds another layer of exceptional audio. It detects
changes in voice levels from the individual talking, then
increases or decreases microphone gain so the listener
hears you clearly regardless of how loudly or quietly you
are talking into your accessory.
TAKE INTELLIGENT AUDIO
FURTHER WITH IMPRES
Our DP4000 Series radios offer a smart feature in digital
mode –Intelligent Audio. With Intelligent Audio, the
radio volume automatically adjusts to compensate for
background noise so workers don’t have to adjust their
radio volume to avoid missing a call in loud situations
or disturbing others when they move into quiet places.
Increased background noise suppression filters out
unwanted external clamor – from road traffic to the roar
of engines. Your workforce can also enjoy the benefits of
Intelligent Audio with select audio accessories.
Plug in an IMPRES accessory and it instantly sets
the volume level and enhances the Intelligent Audio
capabilities on the radio. With IMPRES, your radio not only
recognises the accessory and loads the correct profile to
optimise audio performance, but combined with Intelligent
Audio it intuitively adjusts volume to compensate for
background noise.
ENHANCE MOBILITY WITH
INTEGRATED BLUETOOTH
Improve the mobility of your crews without wires getting
tangled. We’ve embedded Bluetooth in to your DP4000
Series radio so no adapter is needed. Indoors at the plant
or outdoors at the gate, our exclusive Operations Critical
Wireless earpiece handles loud environments while an
optional wireless push-to-talk (PTT) seamlessly links to
any earpiece. Just put the PTT in a pocket or on a lapel and
connect instantly.
EVEN OUR BATTERIES ARE SMARTER
Shift workers rely on batteries that outlast their shifts and
our time-tested, “Proven Tough” IMPRES Smart Energy
System stands up to the challenge. It automates battery
maintenance and eliminates overcharging, no matter how
long radios are left in the charger. Our DP4000 Series
IMPRES batteries store critical data, letting you know
when they need to be replaced. These batteries also
feature a unique, textured surface that makes it easier to
grip the radio, even when wearing gloves.
Save energy and money by using the same charger to
power up all your MOTOTRBO portable radios. Simply mix
and match radios and batteries in one MOTOTRBO multi-
unit charger.
www.bluetechwireless.net

93. PAGE 3
Fact SHEET
MOTOTRBO DP4000 SERIES ACCESSORIES
Remote Speaker Microphones
PMMN4024¹,² Remote Speaker Microphone with 3.5mm audio jack (IP54)
PMMN4025¹,² IMPRES Remote Speaker Microphone with 3.5mm audio
jack and emergency button (IP54)
PMMN4040¹,² Remote Speaker Microphone, submersible (IP57)
PMMN4046¹,² IMPRES Remote Speaker Microphone with volume control,
emergency and programmable button, submersible (IP57)
PMMN4050¹,² IMPRES Noise cancellation Remote Speaker Microphone
with 3.5mm audio jack (IP54)
Surveillance Accessories
RLN5878 / RLN5879 ² Receive-Only Surveillance Kit (black/beige)
RLN5880 / RLN5881¹,² IMPRES 2-wire Surveillance Kit (black/beige)
RLN5882 / RLN5883¹,² IMPRES 2-wire Surveillance Kit with
translucent tube (black/beige)
PMLN5111 / PMLN5112¹,² IMPRES 3-wire Surveillance Kit with
translucent tube (black/beige)
PMLN5097 / PMLN5106¹,² IMPRES 3-wire Surveillance Kit (black/beige)
RLN5886 Low Noise Kit for Surveillance Kits
RLN5887 High Noise Kit for Surveillance Kits
RLN4760 / RLN4763 Small Clear, Comfortable Earpiece
(right/left ear)
RLN4761 / RLN4764 Medium Clear, Comfortable Earpiece
(right/left ear)
RLN4762 / RLN4765 Large Clear, Comfortable Earpiece
(right/left ear)
RLN6282 Replacement clear rubber eartips, pack of 50
Accessories compatible with
MOTOTRBO DP4800/DP4801/DP4600/DP4601/DP4400/DP4401
PORTABLE RADIOS
Remote Speaker Microphone Accessories
AARLN4885 ² Receive-Only Covered Earbud with coiled cord
RLN4941² Receive-Only Earpiece with translucent tube
WADN4190² Receive-Only Flexible Earpiece
PMLN4620² Receive-Only D-shell Earpiece
Bluetooth WIRELESS Accessories
NNTN82941,3
Operations Critical Wireless Earbud with 11.4” cable
NNTN82951,3
Operations Critical Wireless Earbud with 45.7” cable
PMPN4007 Charger, Micro USB (AU/NZ)
NTN25723
Operations Critical Wireless Earpiece with 12” cable
NTN25753
Operations Critical Wireless Earpiece with 9.5” cable
PMLN6050 Pod with charger (Aus NZ)
1 These audio accessories have
been optimised to work with the
Intelligent Audio feature
2 Intrinsically Safe
3 Must be ordered with PMLN6050,
wireless push-to-talk pod.
Earset
PMLN5096¹,² D-style Earset with inline push-to-talk
Antennas
PMAE4079² UHF Combination Whip Antenna (403-527 MHz)
PMAE4069² UHF Stubby Antenna (403-450 MHz)
PMAE4070² UHF Stubby Antenna(440-490 MHz)
PMAE4071² UHF Stubby Antenna (470-527 MHz)
PMAD4117² VHF Helical Antenna (136-155 MHz)
PMAD4116² VHF Helical Antenna (144-165 MHz)
PMAD4118² VHF Helical Antenna (152-174 MHz)
PMAD4119² VHF Stubby Antenna (136-148 MHz)
PMAD4120² VHF Stubby Antenna (146-160 MHz)
Headsets
PMLN5102¹,² Ultra-lite Headset, behind-the-head, adjustable with inline
push-to-talk
RMN5058¹,² Lightweight Headset, over-the-head single-muff with inline
push-to-talk
PMLN5275¹,² Heavy Duty Headset with boom microphone, noise
reduction = 24dB
PMLN5101¹,² IMPRES Temple Transducer with boom microphone and
inline push-to-talk

94. Fact SHEET
MOTOTRBO DP4000 SERIES ACCESSORIES
IMPRES Single unit CHARGERS
WPLN4256 IMPRES, Single Unit Charger, ANZ 2 Pin
2 Intrinsically Safe
4 Must use the B-version of the
PMKN4012 programming cable for
programming XPR P8600 Series
portables
5 Must use the C-version od the
PMKN4013 programming, test and
alignment cable for use on DP4000
Series portables
Programming and Test Cables
PMKN40124
Portable Programming Cable
PMKN40135
Programming, Test and Alignment Cable
PMKN4040 Portable Telemety Cable
PMKN4071 Portable to RS232 DB25M connector cable
IMPRES MULTI-UNIT CHARGERS
WPLN4215 IMPRES, MUC, Non-Display, 110-230V, ANZ Cord
Charger Software and Accessories
NNTN7979** IMPRES Battery Fleet Management Software
HKVN4039^ Software license key for Battery Fleet management
Software
NNTN7677 Multi-Unit Charger Interface Unit for IMPRES Battery Fleet
Management
NNTN8045 Single-Unit Charger Interface Unit for IMPRES Battery Fleet
Management
NLN7967 Wall Mount Brackets for multi-unit charger
RLN5382 Display Module for IMPRES multi-unit charger
IMPRES MULTI-UNIT CHARGERS WITH DISPLAY MODULES
WPLN4222 IMPRES, MUC, Display 110-230V ANZ Cord
** NNTN7979 is a DVD containing
the application software for Fleet
management. With this software
alone, you can only read the data
information from the batteries
when connected together with
the Charger Interface Units.
^ The software license key after
keying into the installed fleet
management software will
expand the following fleet
management capabilities:
1) Generate and print out pre-
defined or customised reports
2)Upgrade to a large fleet
management network consists up
to the maximium of 20 personal
computers
BATTERIES AND CHARGERS
IMPRES Batteries
PMNN4407 IMPRES Li-Ion 1500 mAh submersible battery, IP57
PMNN4409 IMPRES Li-Ion 2150 mAh high capacity submersible battery,
IP57
NNTN8129² IMPRES Li-ion 2150 mAh submersible battery, IP57,
Intrinsically Safe
Carry Accessories
PMLN5838 Hard Leather Case with 3” Fixed Belt Loop - full keypad
PMLN5839 Hard Leather Case with 3” Fixed Belt Loop – no display
PMLN5840 Hard Leather Case with 3” Swivel Belt Loop – full keypad
PMLN5846 Hard Leather Case with 3” Swivel Belt Loop – no display
PMLN5842 Hard Leather Case with 2.5” Swivel Belt Loop – full keypad
PMLN5843 Hard Leather Case with 2.5” Swivel Belt Loop – no display
PMLN5844 Nylon Case with 3” Fixed Belt Loop – full keypad
PMLN5845 Nylon Case with 3” Fixed Belt Loop – no display
PMLN7008 2.5” Belt Clip
PMLN4651 2” Belt Clip
NTN5243 Adjustable Nylon Carrying Strap
HLN6602 Universal Chest Pack
RLN4570 Break-a-way Chest Pack
1505596Z02 Chest Pack Replacement Strap
RLN4815 Radio Pack Radio Utility Case
4280384F89 Radio Pack Extension Belt
HLN9985 Waterproof Bag
RLN4295 Epaulet Strap
4200865599 1.75” Wide Leather Belt
15012157001 Accessory Connector Dust Cover
The information presented herein is to the best of our knowledge true and accurate. No warranty or guarantee expressed or implied is made regarding the capacity,
performance or suitability of any product. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylised M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
BTB/MA603 07/12
Motorola Solutions Australia Pty Limited
www.bluetechwireless.net

95. PRODUCT SPEC SHEET
MOTOTRBO™ DP4000 SERIES portablE RADIOS
MOTOTRBO™
DP4000 SERIES
DIGITAL TWO-WAY
portable RADIOS
YOUR VOICE JUST GOT STRONGER
From the factory worker building components to the road crew making repairs, MOTOTRBO
can transform your enterprise and make employee interactions smarter and safer.
Our best-in-class audio and unrivaled data capabilities empower people like never before.
Versatile and powerful, MOTOTRBO combines the best of two-way radio functionality with
the latest digital technology. DP4000 Series radios integrate voice and data seamlessly,
offer enhanced features that are easy to use, and deliver business-critical advantages like
integrated Bluetooth® and Intelligent Audio.
The DP4000 Series can remaster your workplace and the way people collaborate to help
you achieve even greater efficiency.

96. PAGE 2
PRODUCT SPEC SHEET
MOTOTRBO™ DP4000 SERIES portablE RADIOS
AUDIO BEYOND EXPECTATIONS
When it comes to exceptional audio clarity, the quality
of digital can’t be denied. DP4000 Series portables give
you digital audio performance throughout your coverage
area plus unique features to help your employees hear and
speak clearly, wherever they work.
With Intelligent Audio, the radio volume automatically
adjusts to compensate for background noise so workers
don’t have to adjust their radio volume to avoid missing a
call in loud situations or disturb others when they move
into quiet areas. Increased background noise suppression
helps filter out unwanted external clamor – from heavy
equipment to the roar of engines.
Bluetooth® audio is embedded right in the radio, so no
adapter is needed when using wireless accessories.
Also, IMPRES™ audio accessories enhance noise
suppression and improve voice intelligibility for smarter
accessories than they’ve ever experienced before.
INDUSTRY-LEADING DATA
DP4000 Series radios feature integrated Bluetooth® data,
so rather than waiting until the end of a shift, busy work
crews can send real time information back to the office,
saving valuable hours and enabling better decision making.
Integrated GPS enables location tracking of mobile work
teams and text messaging enables communication when
voice isn’t feasible. And the large, full-colour, 5-line display
operates in day or night mode, for easy viewing of contact
lists, text messages and work order tickets even in bright
sunlight.
MOTOTRBO’s Application Developer Program offers
customised data applications so you can adapt your radios
to your business challenges. With the largest developer
program in the industry, data applications help meet
your objectives – from work order ticket management to
telephony integration, and more.
HIGH-POWERED PERFORMANCE
Because MOTOTRBO uses TDMA digital technology, you
get integrated voice and data, twice the calling capacity
and clearer voice communications. When it comes to
battery performance, MOTOTRBO radios operate up to 40
percent longer between recharges compared to analogue.
RICH FUNCTIONALITY
DP4000 Series radios offer plenty of features businesses
seek – including enhanced call signaling, basic and
enhanced privacy-scrambling, option board expandability
and the transmit interrupt suite to prioritise critical
communication the moment you need it. Programmable
button features appear on the display for easy viewing
and quick access. And when workers can’t be distracted,
customisable voice announcement provides audible
confirmation of channel and zone changes as well as
programmable button features, eliminating the need to
view the display.
EXPANDED CAPACITY AND COVERAGE
Your workforce is hard at work every day – picking up
loads, making road repairs, providing security, responding
to guest requests or restoring power after a storm.
IP Site Connect helps to dramatically improve customer
service and productivity by using the Internet to extend
coverage to create a wide area network, enhance single
site coverage or link geographically dispersed locations.
Capacity Plus single-site trunking expands capacity to over
1,000 users without having to add new frequencies. Linked
Capacity Plus combines the expanded capacity of Capacity
Plus with the wide area coverage of IP Site Connect,
delivering a high capacity, wide area, and cost effective
multi-site trunking solution. So whether you want coverage
at a single site or across multiple ones, MOTOTRBO can be
scaled to your business and budget.
MIGRATE AT YOUR OWN PACE
Keeping operations running smoothly during a change in
communication systems is vital to any business. It’s easy
to migrate to digital with DP4000 Series radios because
they operate in analogue and digital mode. To ease the
transition even further, the dynamic mixed mode repeater
functionality streamlines automatic switching between
analogue and digital calls. So you can begin using
MOTOTRBO radios and repeaters on your existing analogue
system, and when your time and budget allow, move to
digital at your own pace.
DAY-IN, DAY-OUT DURABILITY
DP4000 Series radios meet the most demanding specs,
including IP57 for water submersibility and U.S. Military
810 C, D, E, F, G standards for exceptional durability.
The radio is also “intrinsically safe” when purchased and
equipped with an intrinsically safe (FM) battery, for use in
environments where flammable gas, vapors or combustible
dust may be present. And it’s backed by a two-year
Standard Warranty, and 1-year warranty for batteries and
accessories.
Location tracking:
Monitor the
whereabouts of mobile
workers so they can
respond immediately;
in an emergency, you
can pinpoint security
personnel and send the
nearest to the scene
Integrated
Bluetooth® for
sharing data wirelessly
and instantly between
devices
Dispatch consoles
for centralised
communication
Email gateways to
connect to email from
your radio
Network monitoring
to maximise system
utilisation
Man-down
applications so
radios call for help
when workers can’t
Telephony for
communication
between radios and
landline or mobile
phones
Text messaging for
quick and discreet
communication
Work order tickets
for faster customer
response
Keep your business
running smoothly
with business
applications:
www.bluetechwireless.net

97. PAGE 3
PRODUCT SPEC SHEET
MOTOTRBO™ DP4000 SERIES portablE RADIOS
DP4000 Series Specifications
GENERAL SPECIFICATIONS
DISPLAY DP4800/DP4801/DP4600/DP4601 NON DISPLAY DP4400/DP4401
VHF UHF VHF UHF
Channel Capacity 1000 32
Frequency 136-174 MHz 403-527 MHz 136-174 MHz 403-527 MHz
IMPRES Hi-Cap Li-ion 2150 mAH
Battery (PMNN4409)
(HxWxL) 130.3 mm / 55.2 mm / 41.1 mm 130.3 mm / 55.2 mm / 39.6 mm
Weight 355.5 g 323 g
Slim IMPRES Li-ion 1500 mAH
Battery (PMNN4407)
(HxWxL) 130.3 mm / 55.2 mm / 35.8 mm 130.3 mm / 55.2 mm / 34.3 mm
Weight 335.5 g 303 g
IMPRES Hi-Cap Li-ion FM
2300 mAH Battery (NNTN8129)
(HxWxL) 130.3 mm / 55.2 mm / 41.1 mm 130.3 mm / 55.2 mm / 39.6 mm
Weight 365.5 g 333 g
Power Supply 7.5 V (Nominal)
Operating Temperature -30 ~ +60 °C¹
FCC Description ABZ99FT3085 ABZ99FT4086 ABZ99FT3085 ABZ99FT4086
IC Description 109AB-99FT3085 109AB-99FT4086 109AB-99FT3085 109AB-99FT4086
Battery
Average Battery Life 5/5/90 duty cycle with carrier squelch and transmitter in high power²
Slim IMPRES Li-ion 1500 mAh Battery Analogue: 7.7 hrs/ Digital: 11.3 hrs Analogue: 8 hrs/ Digital: 11.8 hrs
IMPRES Hi-Cap Li-ion 2150 mAH Battery Analogue: 11.1 hrs/Digital: 16.2 hrs Analogue: 11.5 hrs/Digital: 17 hrs
IMPRES Hi-Cap Li-ion FM 2300 mAH Battery Analogue: 11.9 hrs/Digital: 17.3 hrs Analogue: 12.3 hrs/Digital: 18.1 hrs
RECEIVER
VHF UHF
Frequencies 136-174 MHz 403-527 MHz
Channel Spacing 12.5/25kHz
Frequency Stability (-30°C, +60°C, +25°C Ref) ± .5 ppm
Analogue Sensitivity (12dB SINAD) 0.3uV (0.22uV typical)
Digital Sensitivity 0.25 uV (0.19 uV typical)
Intermodulation (TIA603D) 70 dB
Adjacent Channel Selectivity (TIA603A)-1T 60dB @ 12.5 kHz / 70dB @ 25 kHz³
Adjacent Channel Selectivity (TIA603D)-2T 45dB @ 12.5 kHz / 70dB @ 25 kHz³
Spurious Rejection (TIA603D) 70 dB
Rated Audio 0.5W
Audio Distortion @ Rated Audio 5% (3% typical)
Hum and Noise -40dB @ 12.5 kHz / -45dB @ 25 kHz³
Audio Response TIA603D
Conducted Spurious Emission (TIA603D) -57dBm
TRANSMITTER
VHF UHF
Frequencies 136-174 MHz 403-527 MHz
Channel Spacing 12.5/25 kHz
Frequency Stability ± .5 ppm
Low Power Output 1W 1W
High Power Output 5W 4W
Modulation Limiting ± 2.5kHz @ 12.5 kHz / ± 5.0kHz @ 25 kHz³
FM Hum and Noise -40dB@ 12.5 kHz / -45dB@ 25 kHz³
Conducted/Radiated Emission -36 dBm 1GHz / -30 dBm 1GHz
Adjacent Channel Power 60dB @ 12.5 kHz / 70dB @ 25 kHz³
Audio Response TIA603D
Audio Distortion 3%
4FSK Digital Modulation
12.5 kHz Data: 7K60F1D 7K60FXD
12.5 kHz Voice: 7K60F1E 7K60FXE
Combination of 12.5 kHz Voice Data: 7K60F1W
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI TS 102 361-1, -2, -3
¹ Radio only - Li-Ion battery -10C
² Actual battery runtime observed
may vary based on the use of
certain features such as GPS,
Bluetooth, and Expansion Card
based applications.
Please contact your Motorola sales
representative for battery runtime
expectations based on your
specific radio configuration.

98. PRODUCT SPEC SHEET
MOTOTRBO™ DP4000 SERIES portablE RADIOS
For more information on how to strengthen your portable voice,
visit motorolasolutions.com/mototrbo
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -30° C / +60° C
Storage Temperature -40° C / +85° C
Thermal Shock Per MIL-STD
Humidity Per MIL-STD
ESD IEC 61000-4-2 Level 3
Dust and Water Intrusion IEC 60529 - IP57
Packaging test MIL-STD 810D and E
Testing completed using portable radio with attached battery and antenna.
BLUETOOTH
Version Supports Bluetooth® 2.1 + EDR Specification
Range Class 2, 10 meters
GPS
Accuracy specs are for long-term tracking (95th percentile values5
satellites visible at nominal -130 dBm signal strength)
TTFF (Time To First Fix) - Cold Start 60 seconds
TTFF (Time To First Fix) - Hot Start 10 seconds
Horizontal Accuracy 5 meters
MILITARY STANDARDS
810C 810D 810E 810F 810G
Applicable MIL-STD Method Procedures Method Procedures Method Procedures Method Procedures Method Procedures
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 500.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot, II/Hot 501.5 I-A1, II
Low Temperature 502.1 I 502.2 I/C3, II/C1 502.3 I/C3, II/C1 502.4 I-C3, II/C1 502.5 I, II
Temperature Shock 503.1 - 503.2 I/A1/C3 503.3 I/A1/C3 503.4 I 503.5 I-C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I-A1
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III 506.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 II
Salt fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Vibration 514.2 VIII/F, Curve-W 514.3 I/10, II/3 514.4 I/10, II/3 514.5 I/24 514.6 II/5
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV, VI
FACTORY MUTUAL APPROVALS
MOTOTRBO DP4000 Series portable radios have been certified by
FM in accordance with U.S. Codes as intrinsically safe for use in
Class I, II, III, Division 1, Groups C, D, E, F, G, when properly equipped
with a Motorola FM approved battery option. They are also
approved for use in Class I, Division 2, Groups A, B, C, D.
Specifications subject to change
without notice. All specifications
shown are typical.
Radio meets applicable regulatory
requirementes.
The information presented herein is to the best of our knowledge true and accurate. No warranty or guarantee expressed or implied is made regarding the capacity,
performance or suitability of any product. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylised M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
BTB/MA603-A 07/12
Motorola Solutions Australia Pty Limited
www.bluetechwireless.net

99. PRODUCT SPEC SHEET
MOTOTRBO™ DP2000 SERIES PORTABLE RADIOS
MOTOTRBO™
DP2000 SERIES
DIGITAL TWO-WAY
PORTABLE RADIOS
DIGITAL, NOW WITHIN REACH
Monitoring supply needs on a manufacturing line or reporting an incident on a construction
site, how do you keep employees connected and safe? MOTOTRBO digital radio solutions
can help by putting the power of digital communications within reach.
Versatile and powerful, MOTOTRBO combines the best of two-way radio functionality with
the latest digital technology. DP2000 Series radios offer best-in-class audio in a scalable
solution to meet your communication needs. Because they are also analogue interoperable,
you can make the transition to digital at your own pace and budget.
The DP2000 Series radios can remaster your workplace and the way people collaborate to
help you achieve even greater productivity, safety and cost-effectiveness.

100. PAGE 2
PRODUCT SPEC SHEET
MOTOTRBO™ DP2000 SERIES PORTABLE RADIOS
INDUSTRY-LEADING AUDIO
When it comes to exceptional audio clarity, the quality of
digital can’t be denied. With the DP2000 Series portables,
you get digital quality throughout your coverage area plus
unique features to help your employees hear and speak
clearly, wherever they work.
With Intelligent Audio, the radio volume automatically
adjusts to compensate for background noise. Now,
workers don’t have to adjust their radio volume to avoid
missing a call in loud situations or disturbing others when
they move into quiet places. Increased background noise
suppression filters out unwanted external clamour – from
the rumble of forklifts to the buzz of traffic noise. And
IMPRES™ audio accessories enhance noise suppression
and improve voice intelligibility for smarter audio than
they’ve ever experienced before.
HIGH-POWERED PERFORMANCE
Because the DP2000 Series uses TDMA digital
technology, it delivers twice the calling capacity plus
clearer voice communications. When it comes to battery
performance, these radios operate up to 40 percent
longer between recharges compared to analogue. In fact,
the leading-edge IMPRES™ technology in our batteries,
chargers and audio accessories also ensures longer talk
time and clearer audio.
The DP2000 Series offers plenty of features to make
workers more efficient. Voice announcement provides
audible confirmation so they can be notified of channel and
zone changes as well as programmable button features
without having to view the radio display. The display and
easy to use navigation menu makes the radio intuitive to
use so they can stay focused on the job at hand - from the
hotel receptionist confirming rooms to security covering a
sporting event.
MIGRATE AT YOUR OWN PACE
Keeping operations running smoothly during a change in
communication systems is vital to your operation. It’s easy
to migrate to digital because the DP2000 Series radios
operate in analogue and digital mode while the dynamic
mixed mode repeater functionality streamlines automatic
switching between analogue and digital calls. So you can
begin using MOTOTRBO radios and repeaters on your
existing analogue system, and when your time and budget
allow, move to digital at your own pace.
SCALABLE TO MEET YOUR NEEDS
Your workforce is hard at work every day – getting drivers
home safely, unloading cargo, checking inventory and
checking on guests. That’s why you’ll appreciate the easy
flexibility and scalability of the DP2000 Series to fit your
changing needs and coverage area. All it takes is a simple
software upgrade to add key features like enhanced
privacy scrambling or the transmit interrupt suite to
prioritize critical communication exactly when it’s needed.
And when you want expanded coverage or capacity,
an upgrade to the DP2000 Series can enable IP Site
Connect which dramatically improves customer service
and productivity by using the Internet to extend coverage
to create a wide area network, enhance single site
coverage or link geographically dispersed locations. Or
upgrade to Capacity Plus single-site trunking in order to
expand capacity to over 1,000 users. Linked Capacity Plus
combines the expanded capacity of Capacity Plus with the
wide area coverage of IP Site Connect, delivering a high
capacity, wide area, and cost effective multi-site trunking
solution. So whether you want expanded coverage at a
single site or across multiple ones, the DP2000 Series can
be scaled to your business and budget.
DAY-IN, DAY-OUT DURABILITY
The DP2000 Series meets demanding specs, including
IP55 for water protection and U.S. Military Standard
810 C, D, E, F and G. DP2000 radios have a two-year
Standard Warranty with 1-year warranty for batteries and
accessories. In addition, Service from the Start provides
multi-year peace of mind with fast repair turnaround
times, expert telephone technical support and access to
the latest software releases1
; all backed by Motorola’s
globally integrated services infrastructure, highly qualified
support technicians and certified repair facilities.
www.bluetechwireless.net

101. PAGE 3
PRODUCT SPEC SHEET
MOTOTRBO™ DP2000 SERIES PORTABLE RADIOS
DP2000 Series Specifications
GENERAL SPECIFICATIONS
DISPLAY DP2600 NON DISPLAY DP2400
VHF UHF VHF UHF
Channel Capacity 128 128 16 16
Frequency 136-174MHz 403-527 MHz 136-174 MHz 403-527 MHz
IMPRES Hi-Cap Li-ion (2250 mAH)
Battery
Height (H) 122 mm (4.80 inch) 122 mm (4.80 inch)
Width (W) 56 mm (2.20 inch) 56 mm (2.20 inch)
Thickness (T) 41.7 mm (1.64 inch) 41.7 mm (1.64 inch)
Weight 305 g (10.8 oz) 285 g (10.0 oz)
IMPRES Li-ion Slim (1600mAH)
Battery
Height (H) 122 mm (4.80 inch) 122 mm (4.80 inch)
Width (W) 56 mm (2.20 inch) 56 mm (2.20 inch)
Thickness (T) 36.4 mm (1.43 inch) 36.4 mm (1.43 inch)
Weight 285 g (10.0 oz) 265 g (9.3 oz)
Slim Li-Ion (1600 mAH) Battery
Height (H) 122 mm (4.80 inch) 122 mm (4.80 inch)
Width (W) 56 mm (2.20 inch) 56 mm (2.20 inch)
Thickness (T) 36.4 mm (1.43 inch) 36.4 mm (1.43 inch)
Weight 285 g (10.0 oz) 265 g (9.3 oz)
NiMH (1400mAh) Battery
Height (H) 122 mm (4.80 inch) 122 mm (4.80 inch)
Width (W) 56 mm (2.20 inch) 56 mm (2.20 inch)
Thickness (T) 39.4 mm (1.55 inch) 39.4 mm (1.55 inch)
Weight 375 g (13.2 oz) 355 g (12.5 oz)
Power Supply 7.5 V (Nominal)
Operating Temperature -30°~ +60 °C2
Average battery life 5/5/90 duty cycle with carrier squelch and transmitter in high power3
IMPRES Hi-Cap Li-ion (2250 mAH) Battery Analogue: 11.5 hrs / Digital: 16.5 hrs Analogue: 11.5 hrs / Digital: 16.5 hrs
IMPRES Li-ion Slim (1600 mAH) Battery Analogue: 8 hrs / Digital: 11.5 hrs Analogue: 8 hrs / Digital: 11.5 hrs
Slim Li-Ion (1600 mAH) Battery Analogue: 8 hrs / Digital: 11.5 hrs Analogue: 8 hrs / Digital: 11.5 hrs
NiMH (1400 mAh) Battery Analogue: 7 hrs / Digital: 10 hrs Analogue: 7 hrs / Digital: 10 hrs
MILITARY STANDARDS
810C 810D 810E 810F 810G
Applicable MIL-STD Method Procedures Method Procedures Method Procedures Method Procedures Method Procedures
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II 500.5 II
High Temperature 501.1 I, II 501.2 I/A1,II/A1 501.3 I/A1,II/A1 501.4 I/Hot, II/Hot 501.5 I-A1, II
Low Temperature 502.1 I 502.2 I/C3, II/C1 502.3 I/C3, II/C1 502.4 I-C3, II/C1 502.5 I, II
Temperature Shock 503.1 - 503.2 I/A1/C3 503.3 I/A1/C3 503.4 I 503.5 I-C
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I 505.5 I-A1
Rain 506.1 I, II 506.2 I, II 506.3 I, II 506.4 I, III 506.5 I, III
Humidity 507.1 II 507.2 II 507.3 II 507.4 - 507.5 II
Salt fog 509.1 - 509.2 - 509.3 - 509.4 - 509.5 -
Dust 510.1 I 510.2 I 510.3 I 510.4 I 510.5 I
Vibration 514.2 VIII/F, Curve-W 514.3 I/10, II/3 514.4 I/10, II/3 514.5 I/24 514.6 I-cat 24, II/5
Shock 516.2 I, II 516.3 I, IV 516.4 I, IV 516.5 I, IV 516.6 I, IV, VI

102. PRODUCT SPEC SHEET
MOTOTRBO™ DP2000 SERIES PORTABLE RADIOS
RECEIVER
VHF UHF
Frequencies 136-174 MHz 403-527 MHz
Channel Spacing 12.5/20/25kHz
Frequency Stability ± 0.5 ppm
Analogue Sensitivity (12dB SINAD)
Typical
0.3uV
0.22uV (typical)
Digital Sensitivity 0.25 uV (0.19 uV typical)
Intermodulation (TIA603D) 70 dB
Adjacent Channel Selectivity
(TIA603A)-1T
60dB @ 12.5kHz / 70dB @
20/25kHz
Adjacent Channel Selectivity
(TIA603D)-2T
45dB @ 12.5kHz / 70dB @
20/25kHz
Spurious Rejection (TIA603D) 70 dB
Rated Audio 0.5W
Audio Distortion @ Rated Audio 5%
3% (typical)
Hum and Noise -40dB @ 12.5kHz / -45dB @
20/25kHz
Audio Response TIA603D
Conducted Spurious Emission
(TIA603D)
-57 dBm
TRANSMITTER
VHF UHF
Frequencies 136-174 MHz 403-527 MHz
Channel Spacing 12.5/20/25kHz
Frequency Stability ± 0.5 ppm
Low Power Output 1W 1W
High Power Output 5W 4W
Modulation Limiting
± 2.5 kHz @ 12.5 kHz
±4.0kHz @ 20 kHz
± 5.0 kHz @ 25 kHz
FM Hum and Noise
-40 dB@ 12.5 kHz
-45 dB@ 20/25 kHz
Conducted/Radiated Emission
-36 dBm 1 GHz
-30 dBm 1 GHz
Adjacent Channel Power
60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Audio Response TIA603D
Audio Distortion 3%
4FSK Digital Modulation
12.5kHz Data: 7K60F1D 7K60FXD
12.5kHz Voice: 7K60F1E 7K60FXE
Combination of 12.5 kHz Voice and
Data: 7K60F1W
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI TS 102 361 -1,-2,-3
¹ Software release covers patches
and maintenance releases of the
current version to the operating
system i.e. that shipped with the
terminal.
2
Radio only - Li-Ion battery -10C
3
Actual battery runtime observed
may vary based on the specific
radio configuration.
Specifications subject to change
without notice. All specifications
shown are typical.
Radio meets applicable regulatory
requirementes.
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -30° C / +60 °C2
Storage Temperature -40° C / +85 °C
Thermal Shock Per MIL-STD
Humidity Per MIL-STD
ESD IEC 61000-4-2 Level 3
Dust and Water Intrusion IEC60529 - IP55
Testing completed using portable radio with attached battery and antenna.
For more information on how to reach it all with digital,
visit motorolasolutions.com/mototrbo or find your closest
Motorola representative or authorised Partner at
motorola.com/Business/XU-EN/Contact_Us
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their
respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
Motorola Solutions Ltd. Jays Close, Viables Industrial Estate, Basingstoke, Hampshire, RG22 4PD, UK
EMEA version 1 (05/2012)
Distributed by:
www.bluetechwireless.net

103. Fact SHEET
MOTOTRBO DP2000 SERIES ACCESSORIES
mototrbo™
DP2000 SERIES
ACCESSORIES
EASIER CONNECTIONS, FASTER INTERACTIONS
Supervising a manufacturing line or dispatching buses and trams, how do you keep
customers satisfied and drivers safe? MOTOTRBO digital radio solutions can help
by putting the power of digital communications within reach. DP2000 series radios
offer best-in-class audio in a scalable solution to meet your communication needs
and empower people like never before.
That’s why it’s critical to choose the only accessories certified to perform with
MOTOTRBO radios. Our complete portfolio helps you remaster the way your
people collaborate – with forward-thinking features such as IMPRES™ , Intelligent
Audio and a quick-release connector— so you can achieve greater efficiency.

104. PAGE 2
Fact SHEET
MOTOTRBO DP2000 SERIES ACCESSORIES
EASY CONNECTIONS AT HAND
Our DP2000 series audio accessories are uniquely
designed so you can secure the accessory easily to your
radio in two steps by hand, then quickly disconnect with
one hand. Walking across the factory or working on a
ladder, the accessory stays snugly attached and detaches
easily when you need to. And because it’s so slim, it won’t
add bulk to the radio.
EXCEPTIONAL AUDIO EVERYWHERE
Our exclusive IMPRES™ Smart Audio accessories
communicate with the radio to suppress ambient noise,
improve voice intelligibility and amplify loudness – even
in high-noise and harsh weather. Automatic Gain Control
(AGC) adds another layer of exceptional audio. It detects
changes in voice levels from the individual talking, then
increases or decreases microphone gain so the listener
hears you clearly regardless of how loudly or quietly you
are talking into your accessory.
TAKE INTELLIGENT AUDIO
FURTHER WITH IMPRES
Our DP2000 series radios offer a smart new feature in
digital mode –Intelligent Audio. With Intelligent Audio,
the radio volume automatically adjusts to compensate for
background noise so workers don’t have to adjust their
radio volume to avoid missing a call in loud situations
or disturbing others when they move into quiet places.
Increased background noise suppression filters out
unwanted external distractions. Your workforce can also
enjoy the benefits of Intelligent Audio with select audio
accessories.
Plug in an IMPRES accessory and it instantly sets
the volume level and enhances the Intelligent Audio
capabilities on the radio. With IMPRES, your radio not only
recognizes the accessory and loads the correct profile to
optimize audio performance, but combined with Intelligent
Audio it intuitively adjusts volume to compensate for
background noise.
FLEXIBLE OPTIONS TO WEAR
AND SHARE
Our complete portfolio of audio accessories includes
remote speaker microphones, earbuds and a heavy-
duty headset. Our new single-wire swivel earpiece is
comfortable enough for all day use and fits outside the
ear so it is hygienic and easily shared. Nylon and leather
carry cases protect your radio from the dirtiest tasks and
toughest days.
HIGH VALUE MEETS SOLID
PRODUCTIVITY
When you want greater affordability with solid
performance, rely on Mag One™, the only value-line of
audio accessories tested and certified by Motorola.
BATTERIES THAT WORK OVERTIME
Our IMPRES Smart Energy System automates battery
maintenance and eliminates overcharging, no matter how
long radios are left in the charger. And IMPRES batteries
store critical data, so you know when they need to be
replaced. These “Proven Tough” batteries also feature a
unique, textured surface that makes it easier to grip the
radio, even when wearing gloves.
Save energy and money by using the same charger to
power up all your MOTOTRBO portable radios. Simply mix
and match radios in one MOTOTRBO multi-unit charger.
ONE ANTENNA HANDLES THE BAND
The DP2000 series radios have a new wideband UHF
whip antenna that provides coverage across the entire
band (403-527 MHz). Choose stubby antennas when you
want an unobtrusive option. These stubby antennas offer
even better performance than previous Motorola stubby
antennas.
www.bluetechwireless.net

105. PAGE 3
Fact SHEET
MOTOTRBO DP2000 SERIES ACCESSORIES
Remote Speaker Microphones
PMMN4071¹ IMPRES Noise Canceling Remote Speaker Microphone
with 3.5 mm audio jack (IP54)
PMMN4073¹ IMPRES Windporting Remote Speaker Microphone with
3.5mm audio jack [IP55]
PMMN4075¹ Windporting Remote Speaker Microphone, submersible
(IP57)
PMMN4076¹ Windporting Remote Speaker Microphone
with 3.5mm audio jack (IP54)
Earpiece Accessories
PMLN5724 /
PMLN5726¹
2-wire Surveillance Kit with removable earbud
(black/beige)
PMLN5727 Mag One Swivel Earpiece with
in-line microphone and PTT
PMLN5733 Mag One Earbud with inline microphone and PTT
Headsets
PMLN5731¹ Over-the-Head Heavy Duty Headset with boom
microphone, in-line PTT, noise reduction = 24dB
PMLN5732 Mag One Earset with Boom Microphone
and in-line PTT
ACCESSORIES COMPATIBLE WITH
MOTOTRBO DP2000 SERIES PORTABLE RADIOS
Chargers and Batteries
Batteries
PMNN4415 NiMH 1400 mAh battery
PMNN4416 Li-Ion 1600 mAh battery
PMNN4417 IMPRES Li-Ion 1600 mAh battery
PMNN4418 IMPRES Li-Ion 2250 mAh high capacity battery
CHARGERS
NNTN8117 Single Unit Charger, Base Only
NNTN8273 Single Unit Charger, SMPS EU CE
NNTN8274 Single Unit Charger, SMPS UK CE
WPLN4226 IMPRES Single Unit Charger, Base Only
WPLN4255 IMPRES Single Unit Charger with SMPS EU CE
WPLN4254 IMPRES Single Unit Charger with SMPS UK CE
WPLN4253 IMPRES Single Unit Charger with SMPS US CE
WPLN4211 IMPRES Multi-Unit Charger, Base Only
WPLN4213 IMPRES Multi-Unit Charger, Euro Plug
WPLN4214 IMPRES Multi-Unit Charger, UK Plug
WPLN4212 IMPRES Multi-Unit Charger, US Plug
WPLN4218 IMPRES Multi-Unit Charger with Display, Base Only
WPLN4220 IMPRES Multi-Unit Charger with Display, Euro Plug
WPLN4221 IMPRES Multi-Unit Charger with Display, UK Plug
WPLN4219 IMPRES Multi-Unit Charger with Display, US Plug
Charger Software and Accessories
NNTN7980 IMPRES Battery Fleet Management Software
NNTN7677 Multi-Unit Charger Interface Unit for IMPRES
Battery Fleet Management
NNTN7392 IMPRES Battery Reader
NLN7967 Wall Mount Brackets for multi-unit charger
RLN5382 Display Module for IMPRES multi-unit charger
Programming and Test Cables
PMKN4115 Portable Programming Cable
PMKN4116 Programming cable DP2000 to DB25 and TTR
PMKN4117 Programming cable DP2000 to DB25 and USB
Remote Speaker Microphone Accessories
MDRLN4885 Receive-Only Covered Earbud with coiled cord
MDRLN4941 Receive-Only Earpiece with translucent tube
WADN4190 Receive-Only Flexible Earpiece
MDPMLN4620 Receive-Only D-shell Earpiece

106. Fact SHEET
MOTOTRBO DP2000 SERIES ACCESSORIES
Carry Accessories
PMLN5863 Hard Leather Case with 3” Fixed Belt Loop -
limited keypad
PMLN5864 Hard Leather Case with 3” Fixed Belt Loop –
no display
PMLN5865 Hard Leather Case with 3” Swivel Belt Loop – limited
keypad
PMLN5866 Hard Leather Case with 3” Swivel Belt Loop –
no display
PMLN5867 Hard Leather Case with 2.5” Swivel Belt Loop – limited
keypad
PMLN5868 Hard Leather Case with 2.5” Swivel Belt Loop –
no display
PMLN5869 Nylon case with 3” Fixed Belt Loop – limited keypad
PMLN5870 Nylon case with 3” Fixed Belt Loop – no display
PMLN5610 Replacement 2.5” Swivel Belt Loop
PMLN5611 Replacement 3” Swivel Belt Loop
PMLN4651 2” Belt Clip
PMLN7008 2.5” Belt Clip
NTN5243 Adjustable carrying strap
HLN6602 Universal Chest Pack
RLN4570 Break-away chest pack
1505596Z02 Replacement strap
RLN4815 Radio Pack Radio Utility Case
4280384F89 Radio Pack Extension Belt
HLN9985 Waterproof Bag
RLN4295 Epaulet Strap
4200865599 1.75” Wide Leather Belt
PMLN6066 Accessory Connector Dust Cover
¹ These audio accessories have
been optimized to work with the
Intelligent Audio feature.
Antennas
PMAE4079 UHF Wideband Whip Antenna
(403-527 MHz)
PMAE4069 UHF Stubby Antenna (403-450 MHz)
PMAE4070 UHFStubby Antenna(440-490 MHz)
PMAE4071 UHF Stubby Antenna (470-527 MHz)
PMAD4117 VHF Helical Antenna (136-155 MHz)
PMAD4116 VHF Helical Antenna (144-165 MHz)
PMAD4118 VHF Helical Antenna (152-174 MHz)
PMAD4119 VHF Stubby Antenna (136-148 MHz)
PMAD4120 VHF Stubby Antenna (146-160 MHz)
Antenna ID bands
32012144001 Gray Antenna ID Band (pack of 10)
32012144002 Yellow Antenna ID Band (pack of 10)
32012144003 Green Antenna ID Band (pack of 10)
32012144004 Blue Antenna ID Band (pack of 10)
32012144005 Purple Antenna ID Band (pack of 10)
For more information on how to reach it all with digital,
visit motorolasolutions.com/mototrbo or find your closest
Motorola representative or authorised Partner at
motorola.com/Business/XU-EN/Contact_Us
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their
respective owners. © 2012 Motorola Solutions, Inc. All rights reserved.
Motorola Solutions Ltd. Jays Close, Viables Industrial Estate, Basingstoke, Hampshire, RG22 4PD, UK
EMEA version 1 (05/2012)
Distributed by:
www.bluetechwireless.net
