1. Names, Bindings
and Scopes
Chapter 5
(part 1)

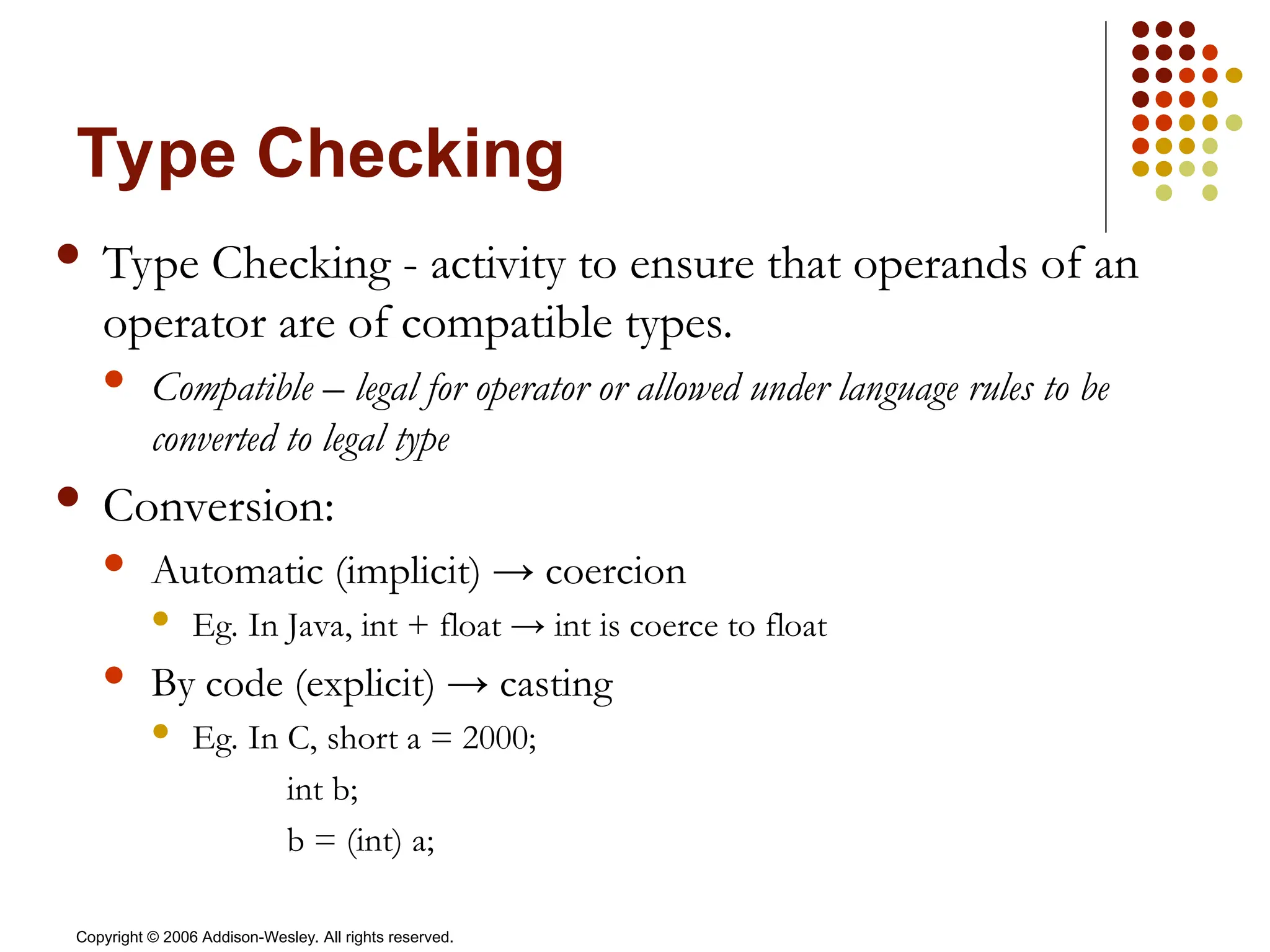

2. Type Checking
 Type Checking - activity to ensure that operands of an
operator are of compatible types.
 Compatible – legal for operator or allowed under language rules to be
converted to legal type
 Conversion:
 Automatic (implicit) → coercion
 Eg. In Java, int + float → int is coerce to float
 By code (explicit) → casting
 Eg. In C, short a = 2000;
int b;
b = (int) a;
Copyright © 2006 Addison-Wesley. All rights reserved.

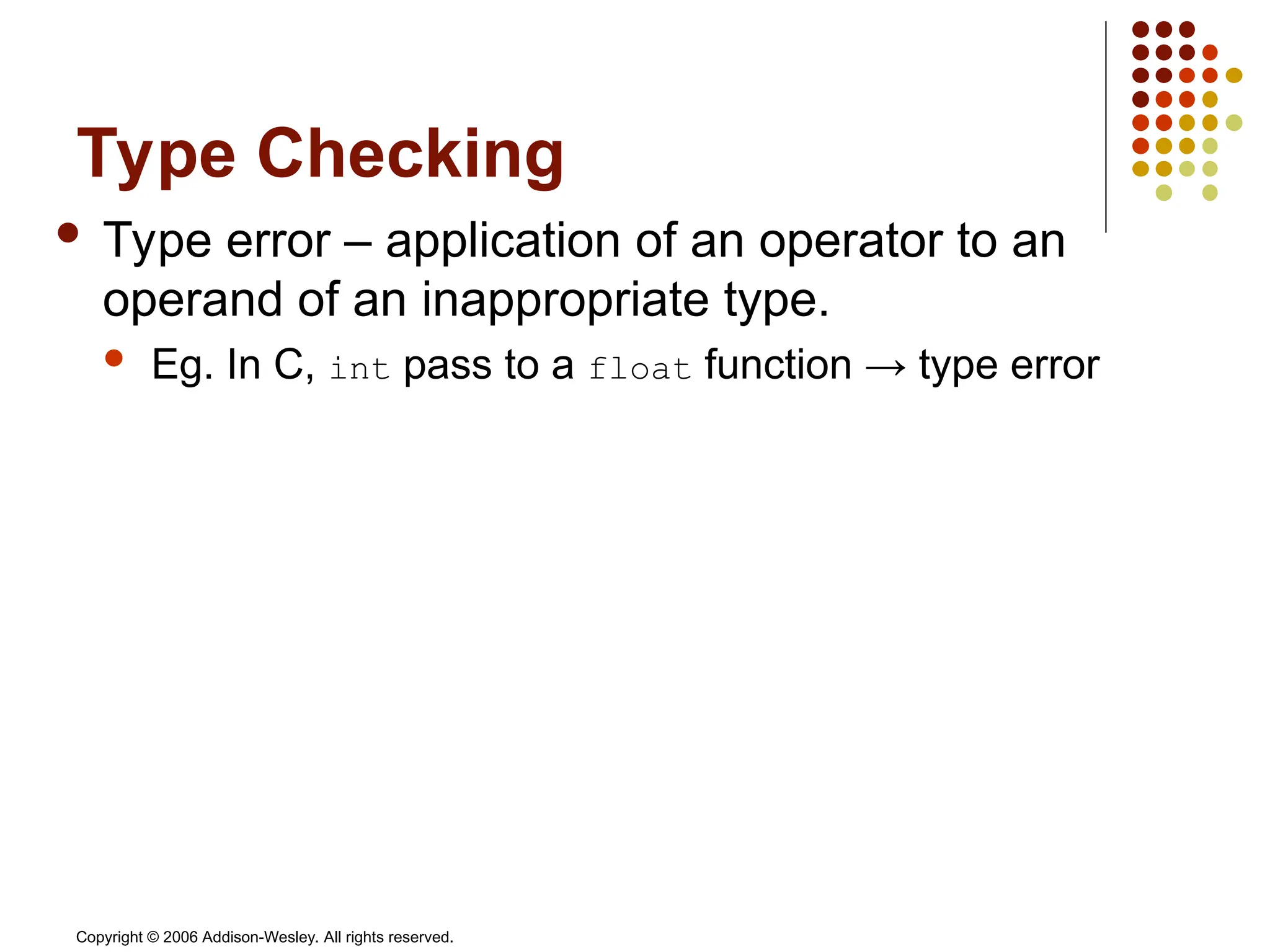

3. Type Checking
 Type error – application of an operator to an
operand of an inappropriate type.
 Eg. In C, int pass to a float function → type error
Copyright © 2006 Addison-Wesley. All rights reserved.

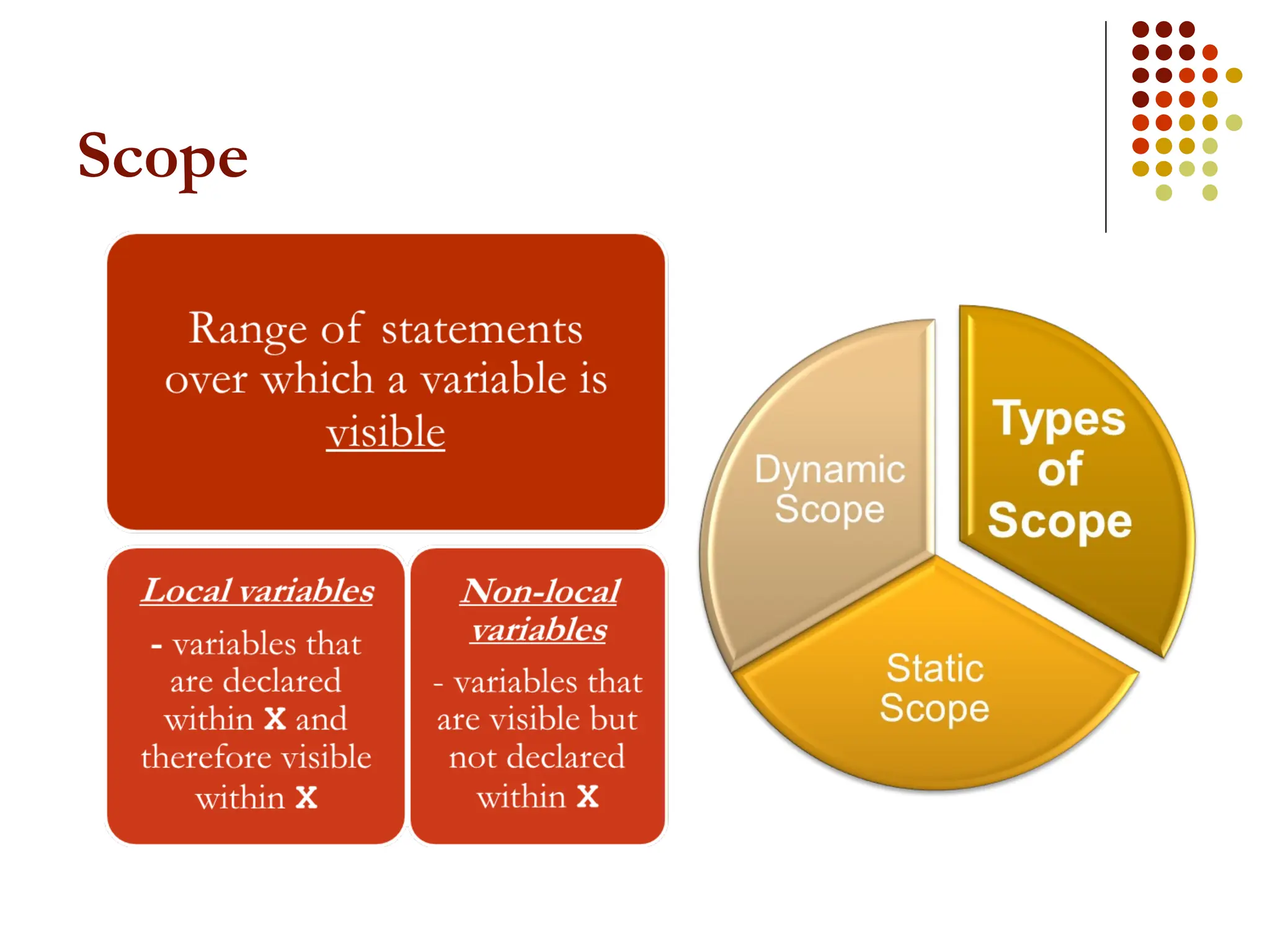

4. Scope

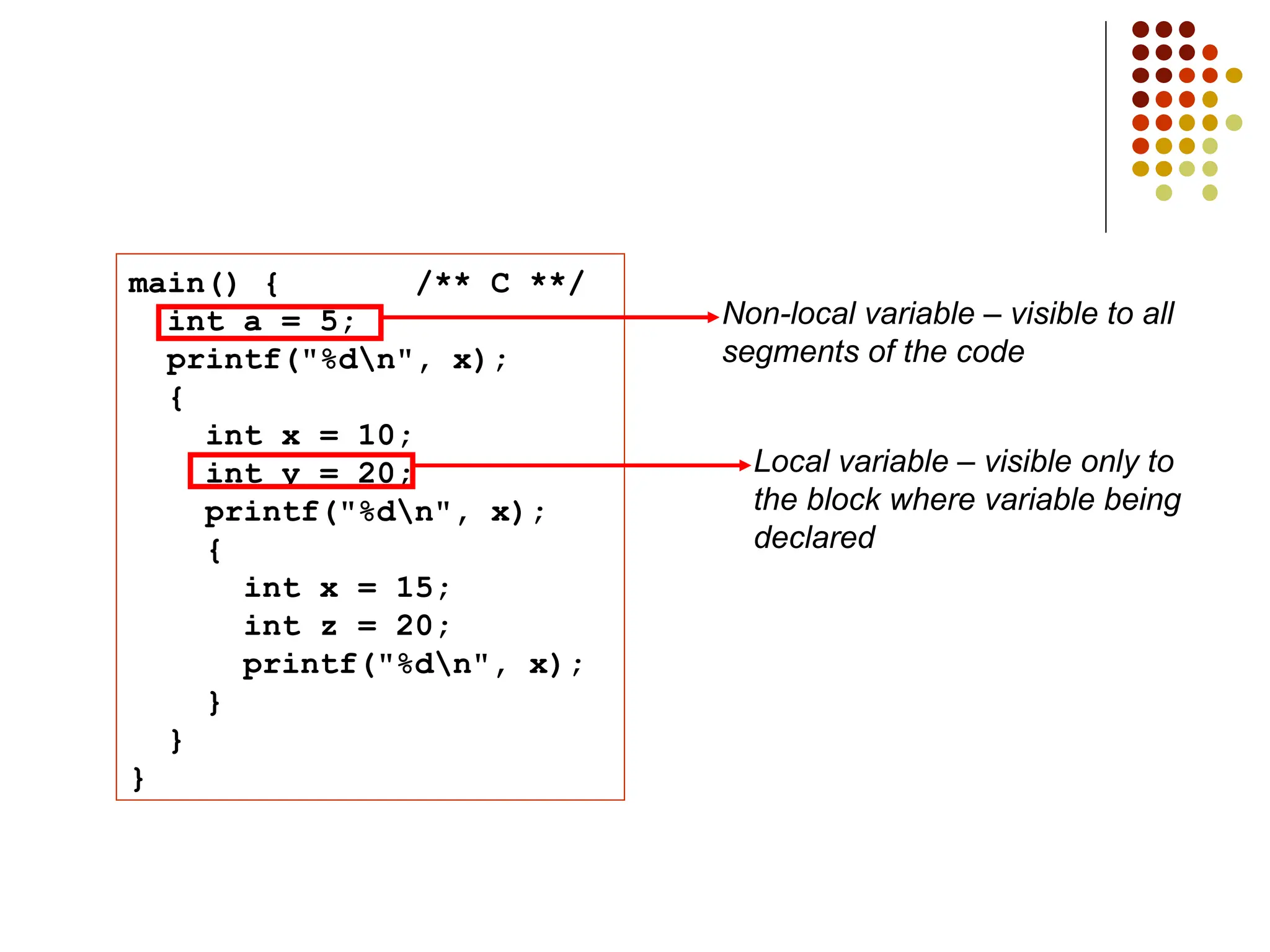

5. main() { /** C **/
int a = 5;
printf("%dn", x);
{
int x = 10;
int y = 20;
printf("%dn", x);
{
int x = 15;
int z = 20;
printf("%dn", x);
}
}
}
Local variable – visible only to
the block where variable being
declared
Non-local variable – visible to all
segments of the code

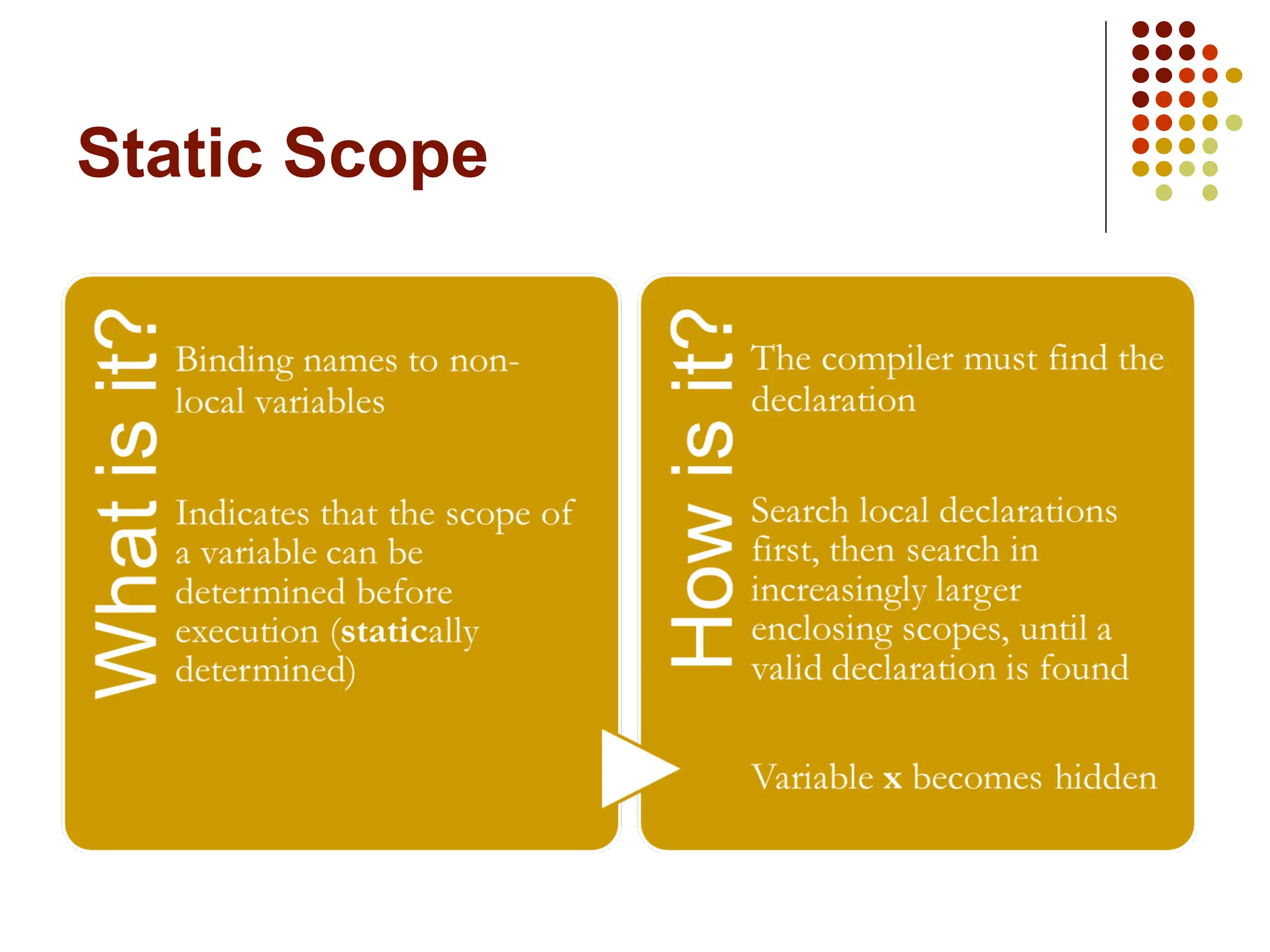

6. Static Scope

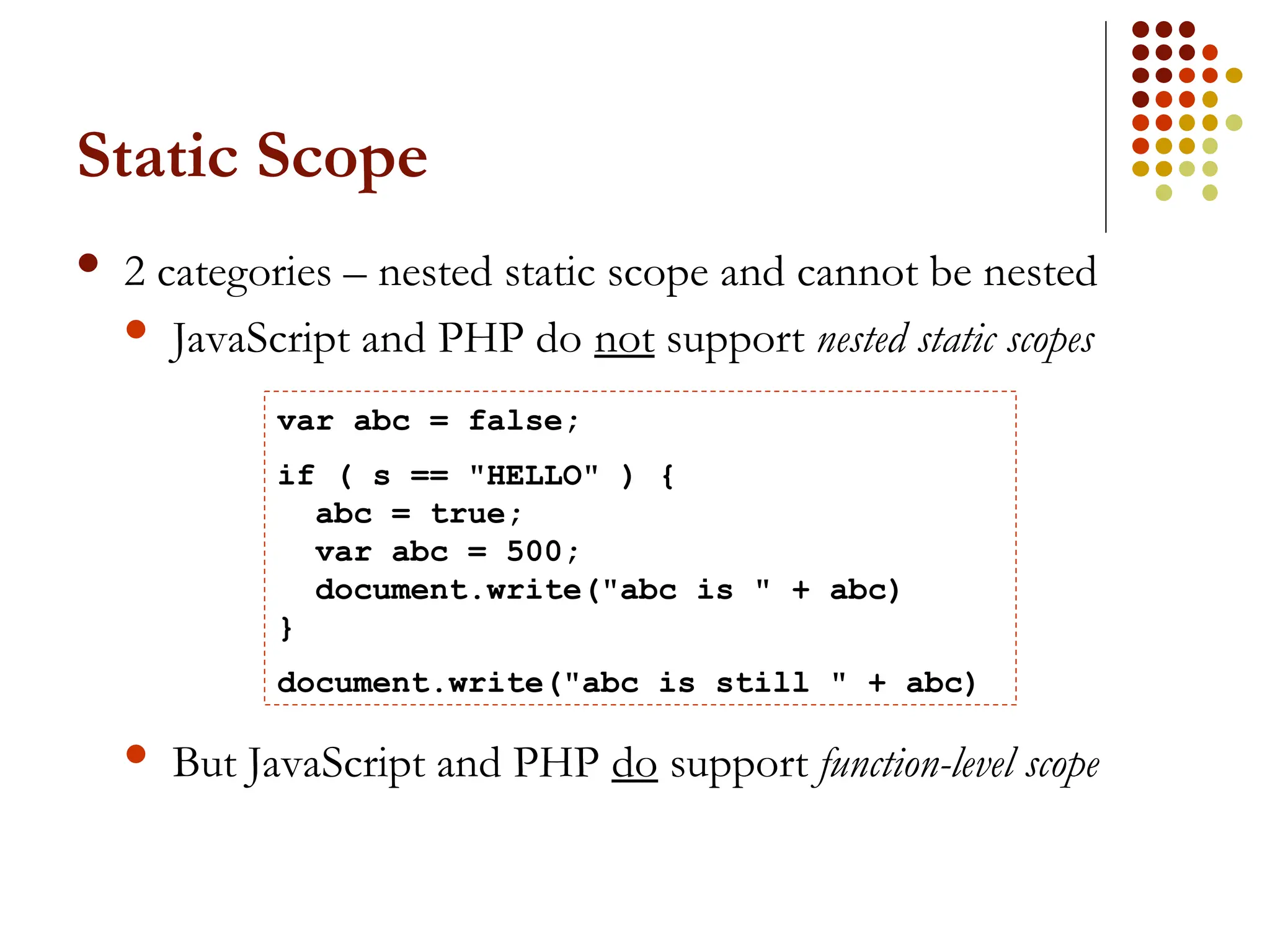

7. Static Scope
 2 categories – nested static scope and cannot be nested
 JavaScript and PHP do not support nested static scopes
 But JavaScript and PHP do support function-level scope
var abc = false;
if ( s == "HELLO" ) {
abc = true;
var abc = 500;
document.write("abc is " + abc)
}
document.write("abc is still " + abc)

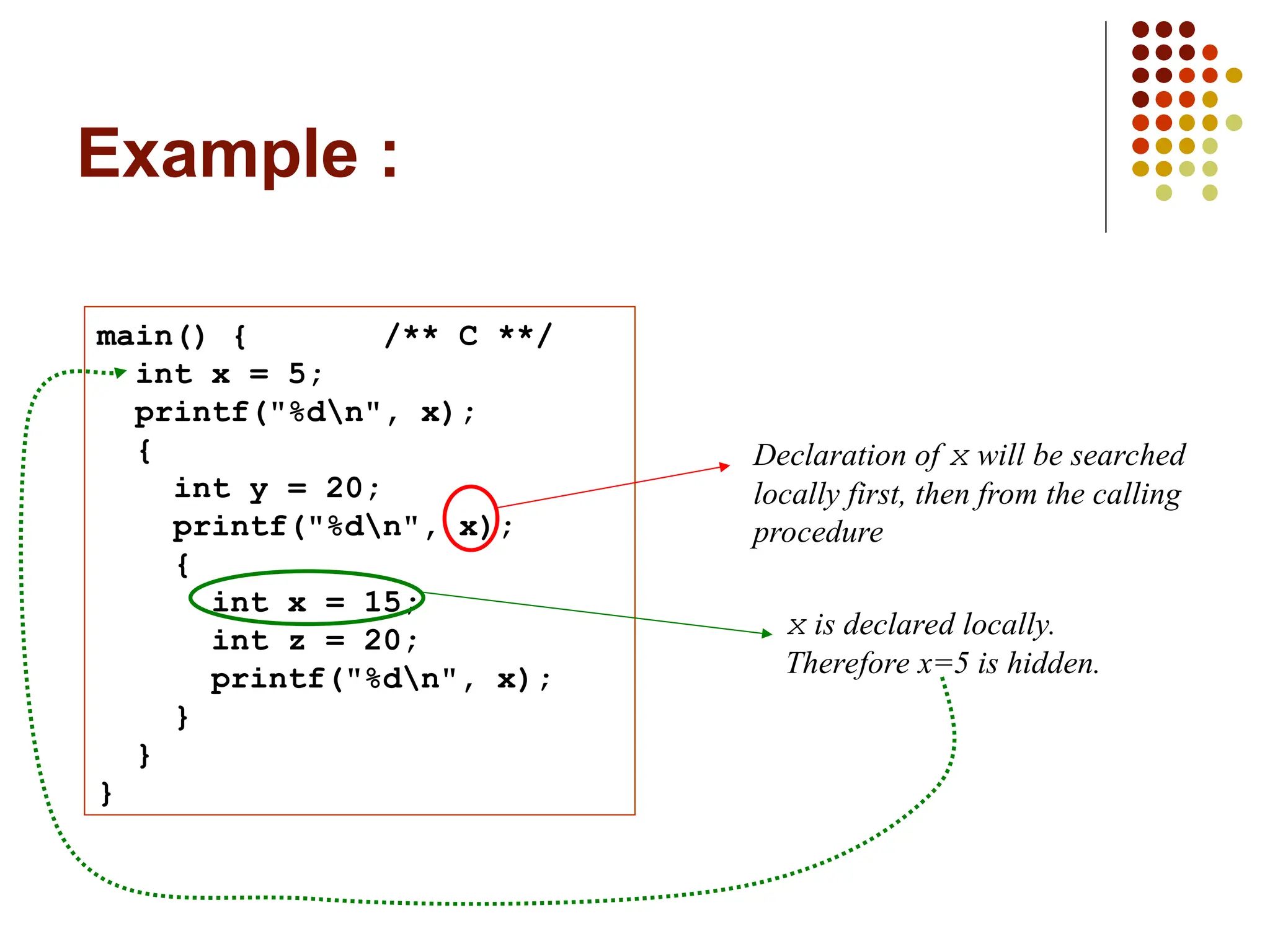

8. Example :
main() { /** C **/
int x = 5;
printf("%dn", x);
{
int y = 20;
printf("%dn", x);
{
int x = 15;
int z = 20;
printf("%dn", x);
}
}
}
Declaration of x will be searched
locally first, then from the calling
procedure
x is declared locally.
Therefore x=5 is hidden.

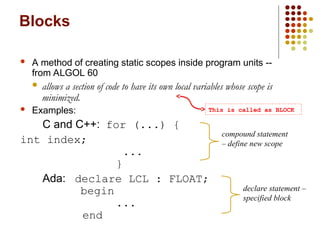

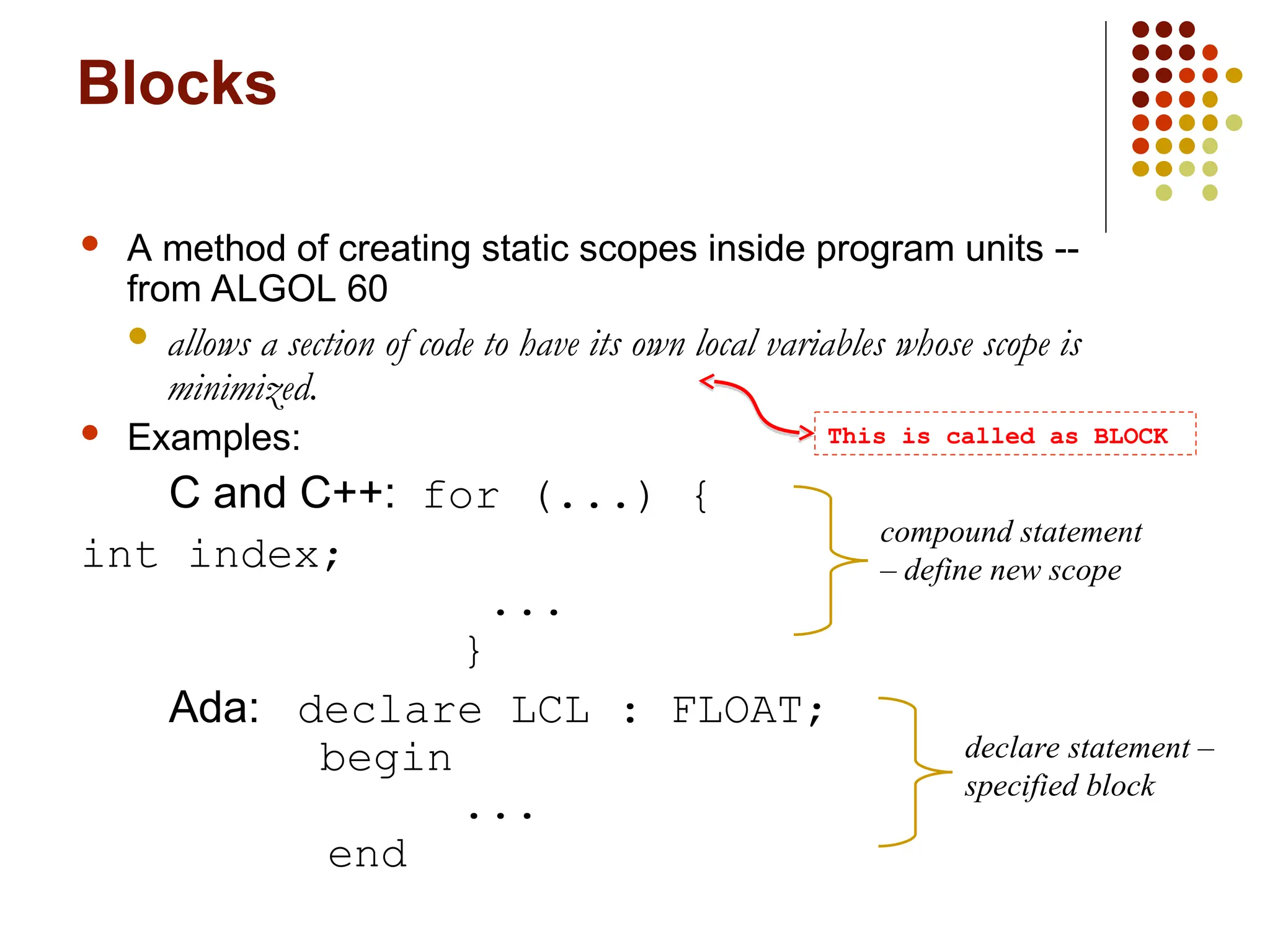

9. Blocks
 A method of creating static scopes inside program units --
from ALGOL 60
 allows a section of code to have its own local variables whose scope is
minimized.
 Examples:
C and C++: for (...) {
int index;
...
}
Ada: declare LCL : FLOAT;
begin
...
end
compound statement
– define new scope
declare statement –
specified block
This is called as BLOCK

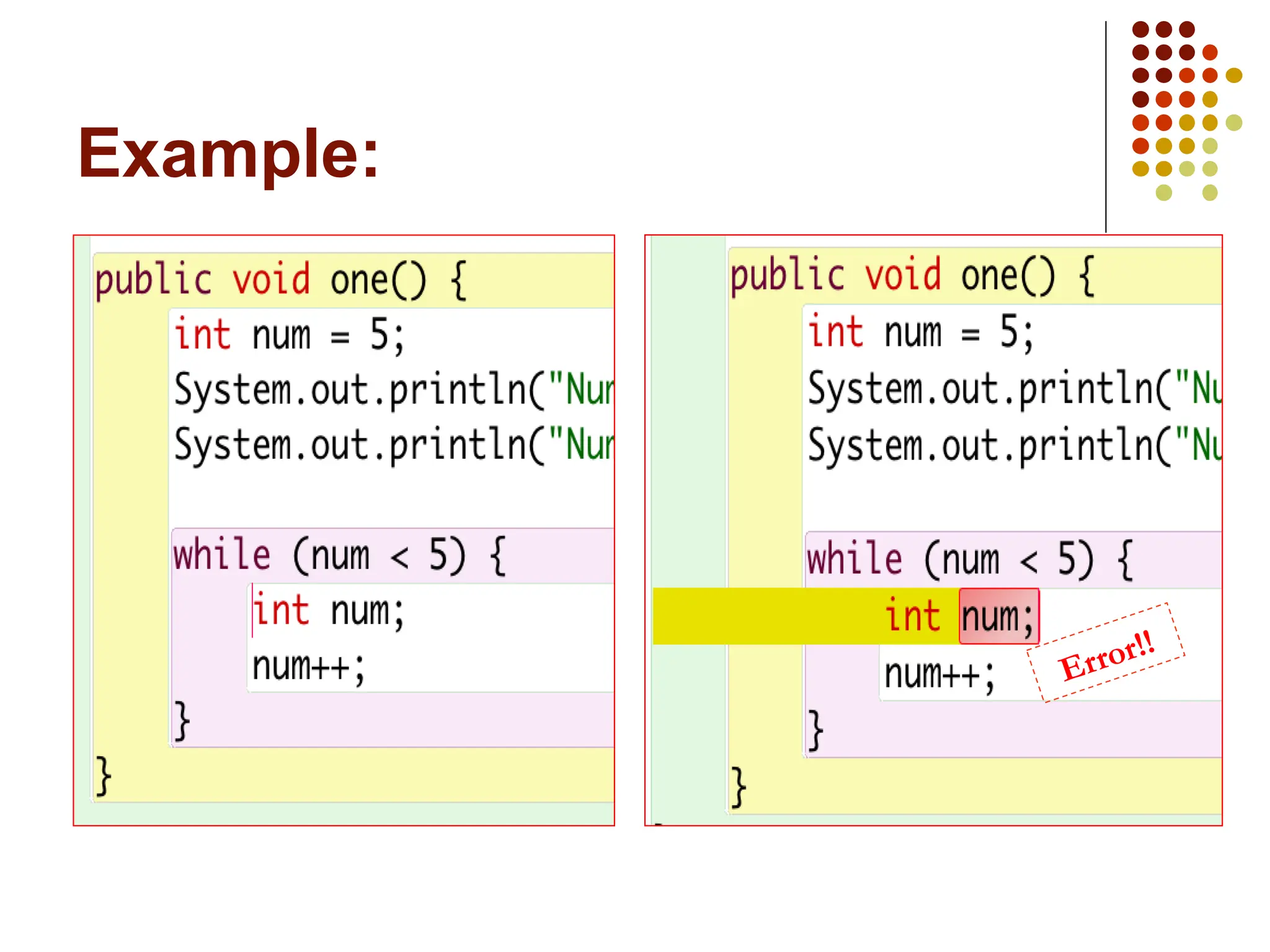

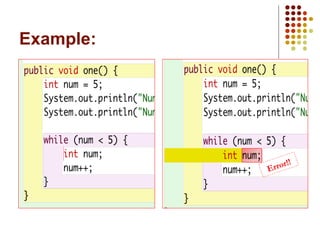

10. Example:
Error!!

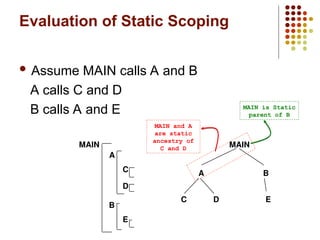

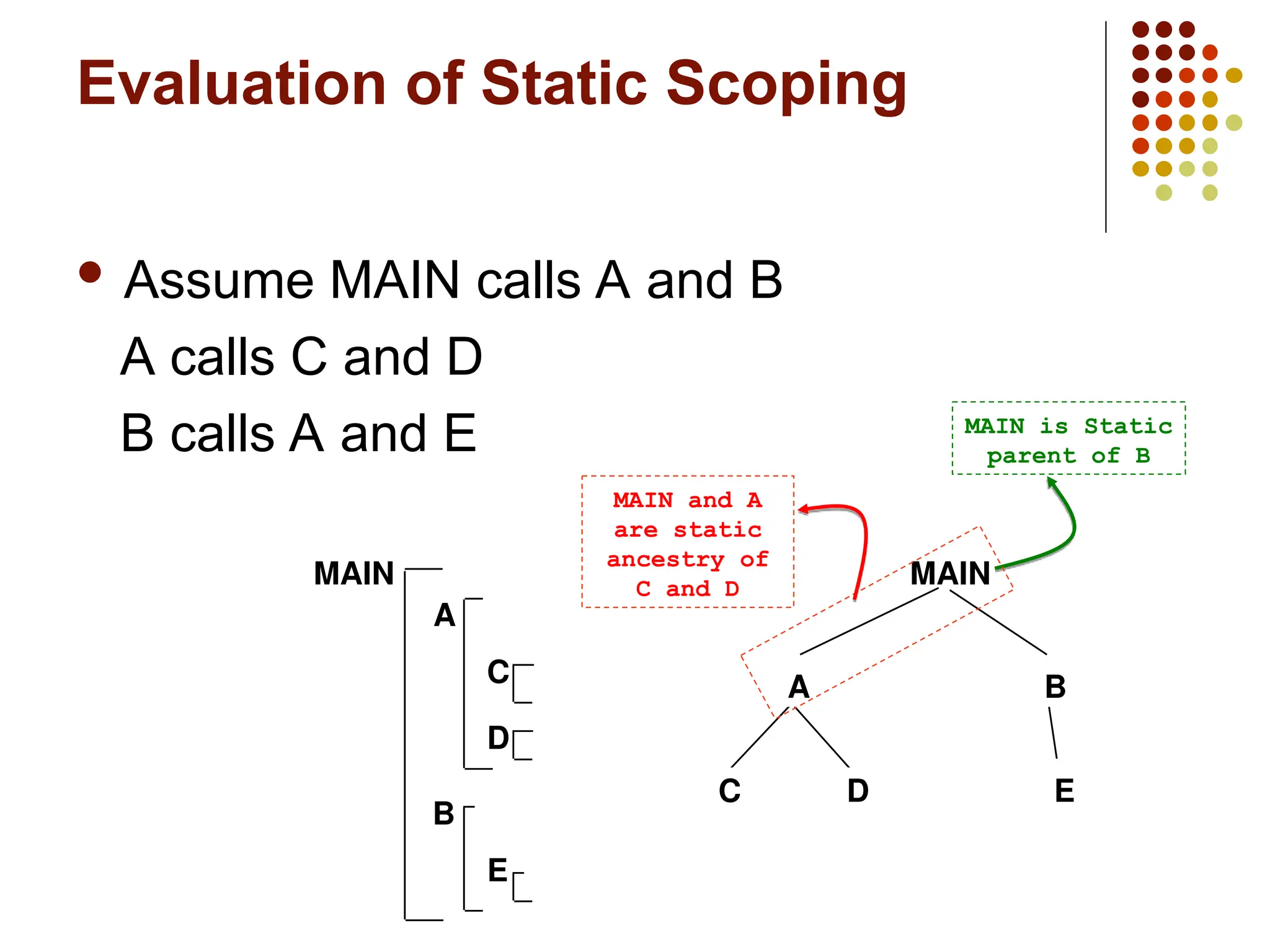

11. Evaluation of Static Scoping
 Assume MAIN calls A and B
A calls C and D
B calls A and E
MAIN
MAIN
E
A
C
D
B
A B
C D E
MAIN is Static
parent of B
MAIN and A
are static
ancestry of
C and D

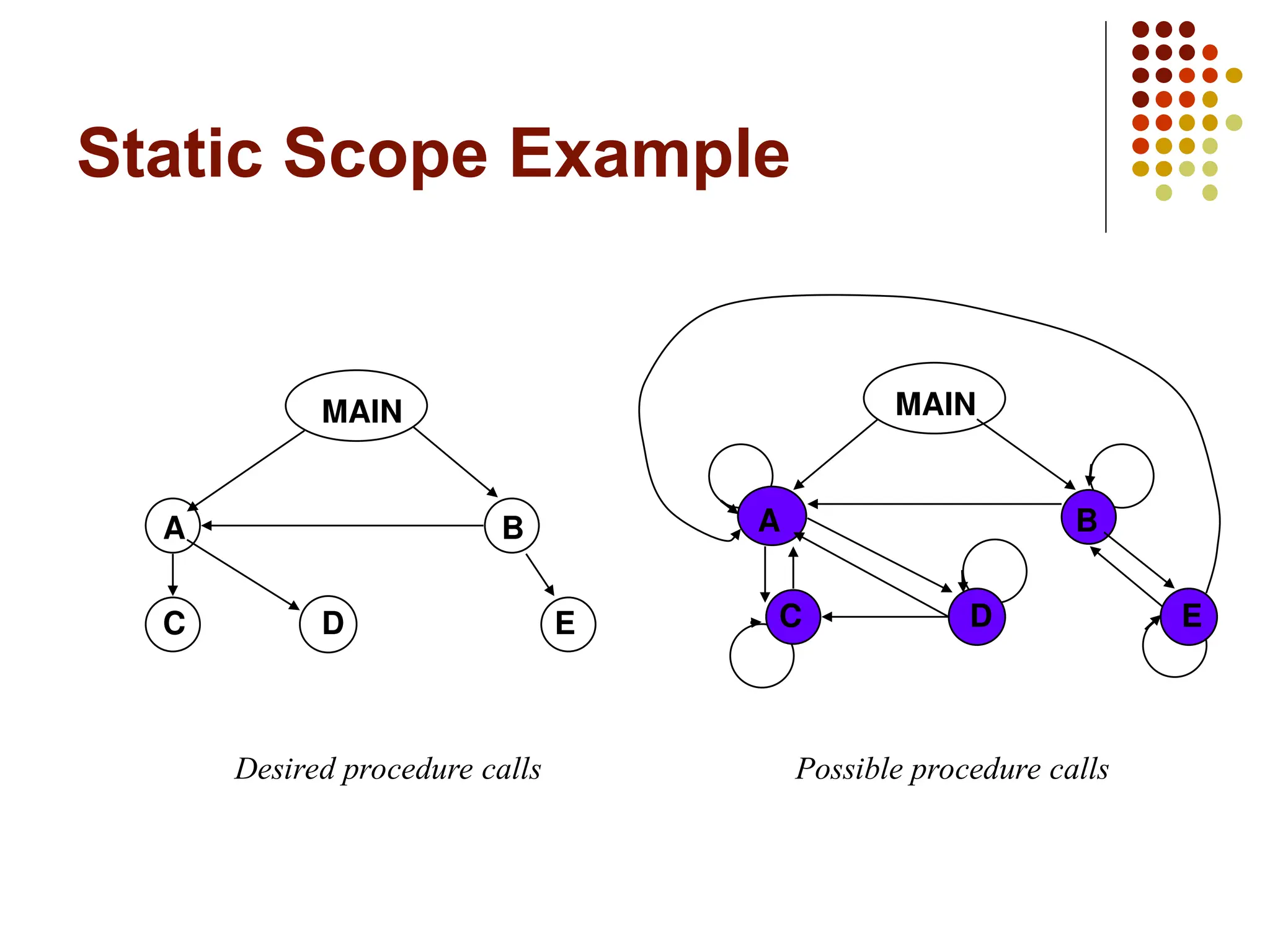

12. Static Scope Example
MAIN MAIN
A B
C D E
A
C
B
E
D
Possible procedure calls
Desired procedure calls

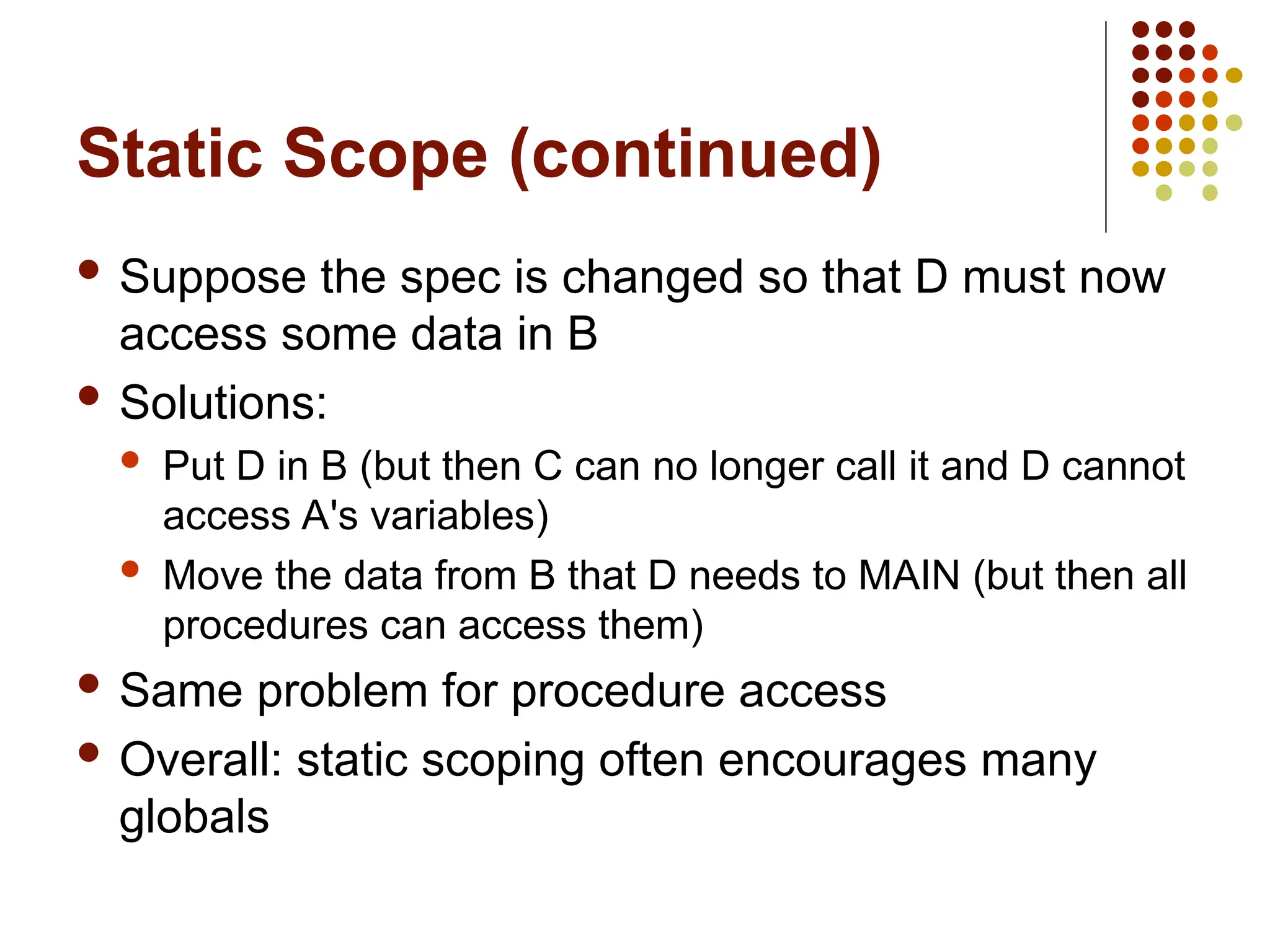

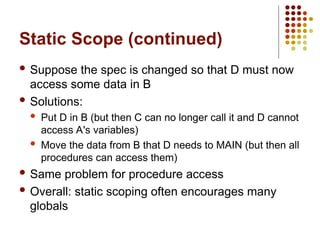

13. Static Scope (continued)
 Suppose the spec is changed so that D must now
access some data in B
 Solutions:
 Put D in B (but then C can no longer call it and D cannot
access A's variables)
 Move the data from B that D needs to MAIN (but then all
procedures can access them)
 Same problem for procedure access
 Overall: static scoping often encourages many
globals

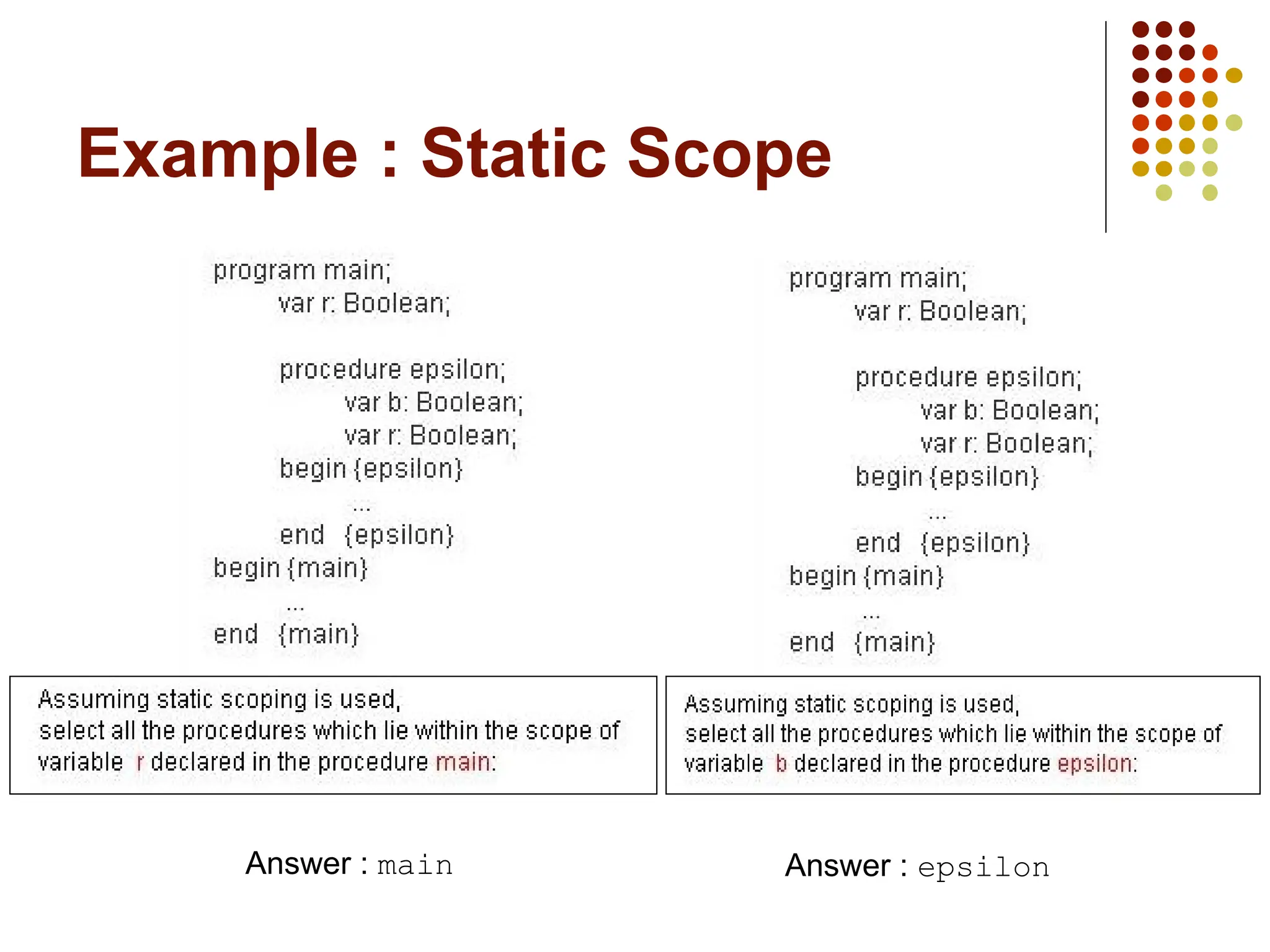

14. Example : Static Scope
Answer : main Answer : epsilon

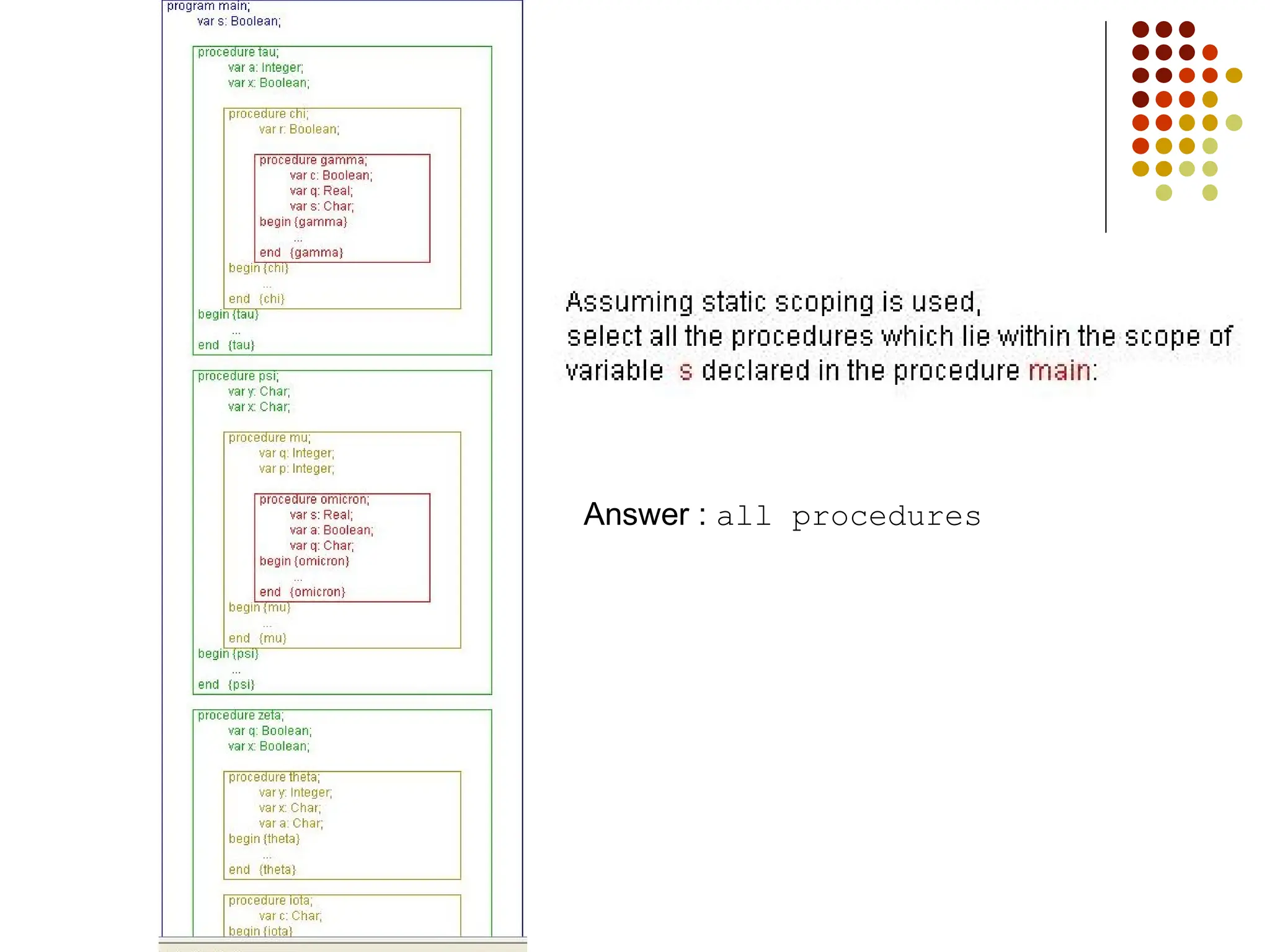

15. Answer : all procedures

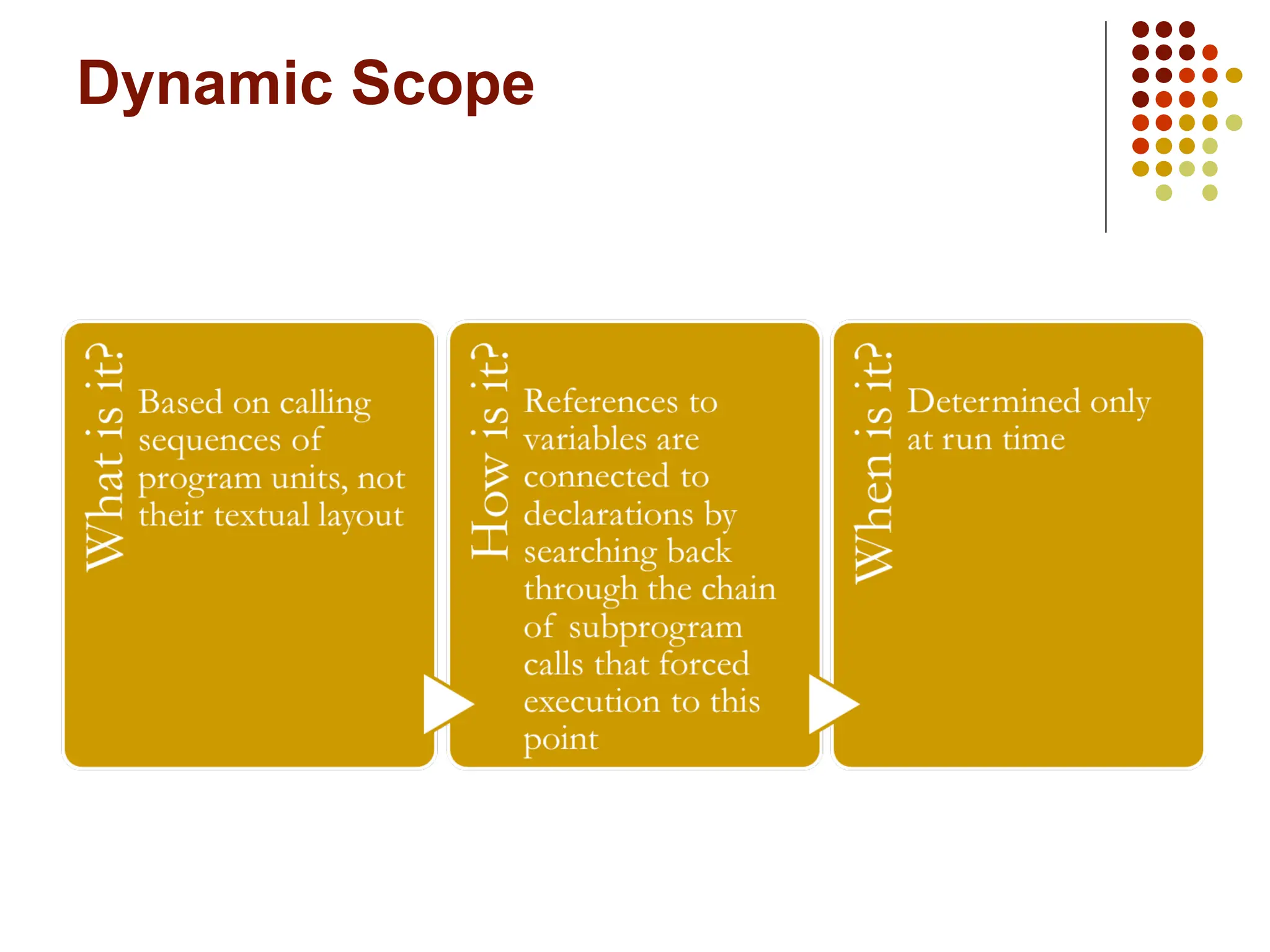

16. Dynamic Scope

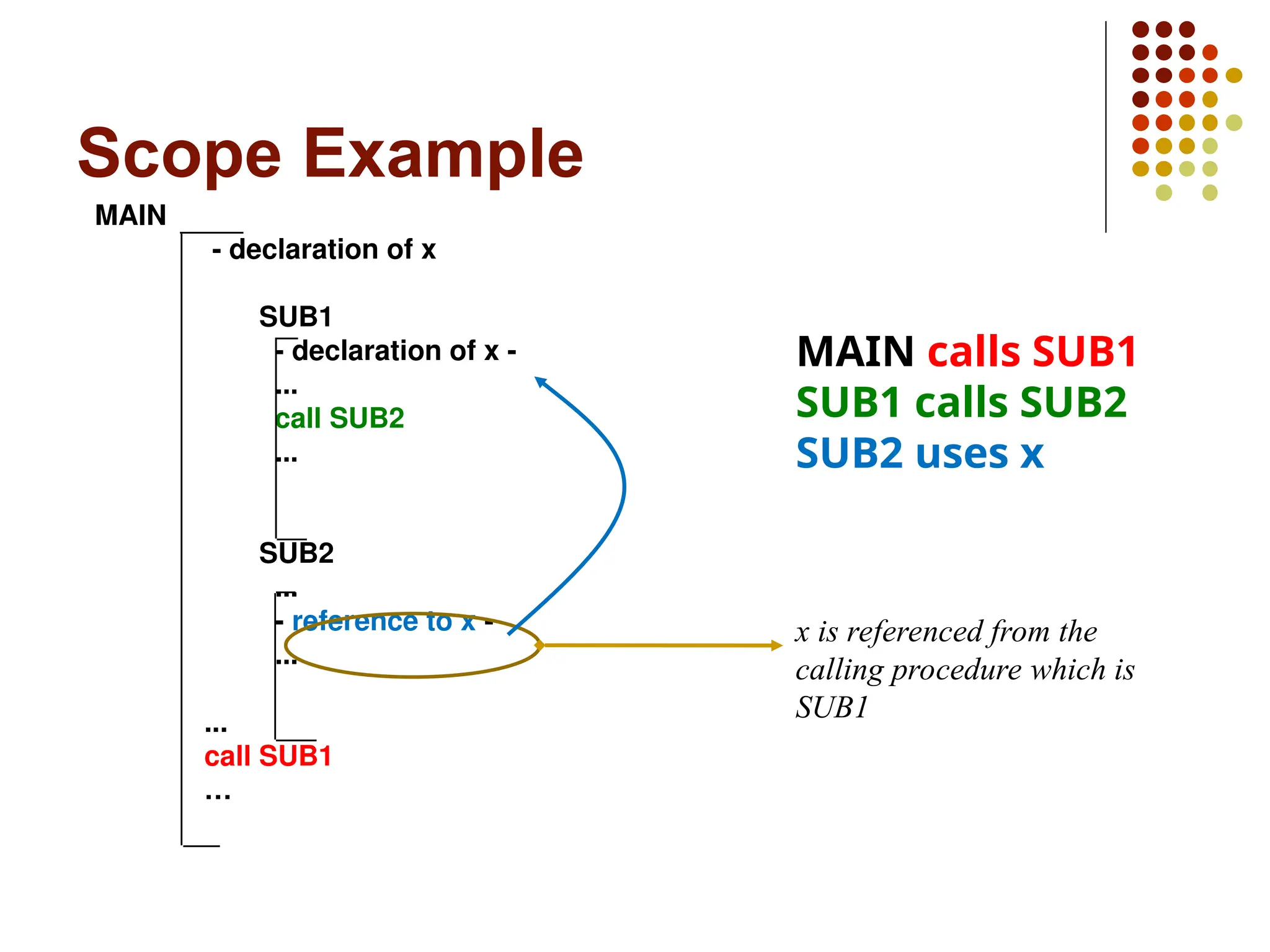

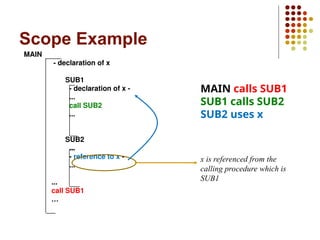

17. Scope Example
MAIN
- declaration of x
SUB1
- declaration of x -
...
call SUB2
...
SUB2
...
- reference to x -
...
...
call SUB1
…
MAIN calls SUB1
SUB1 calls SUB2
SUB2 uses x
x is referenced from the
calling procedure which is
SUB1

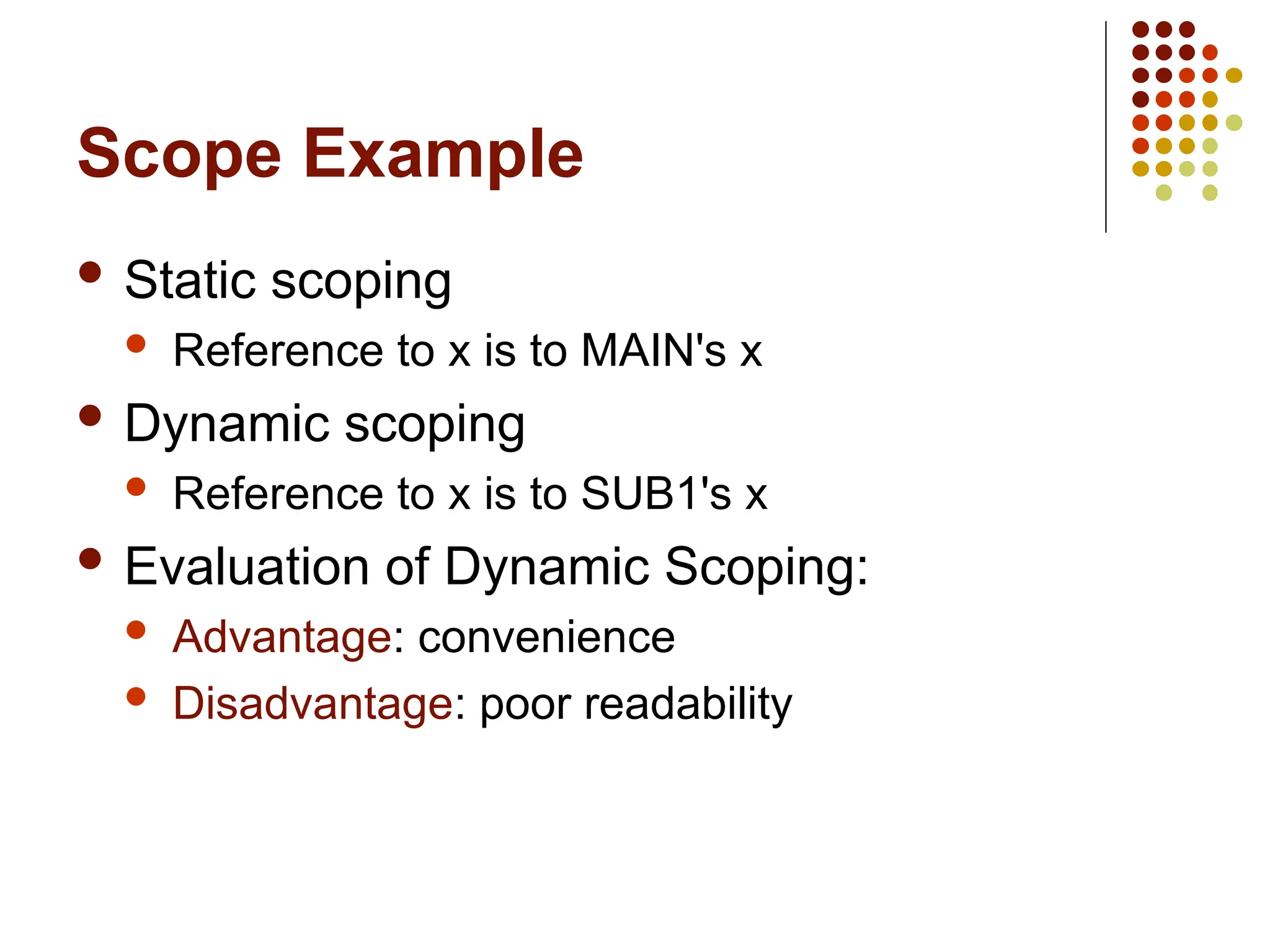

18. Scope Example
 Static scoping
 Reference to x is to MAIN's x
 Dynamic scoping
 Reference to x is to SUB1's x
 Evaluation of Dynamic Scoping:
 Advantage: convenience
 Disadvantage: poor readability

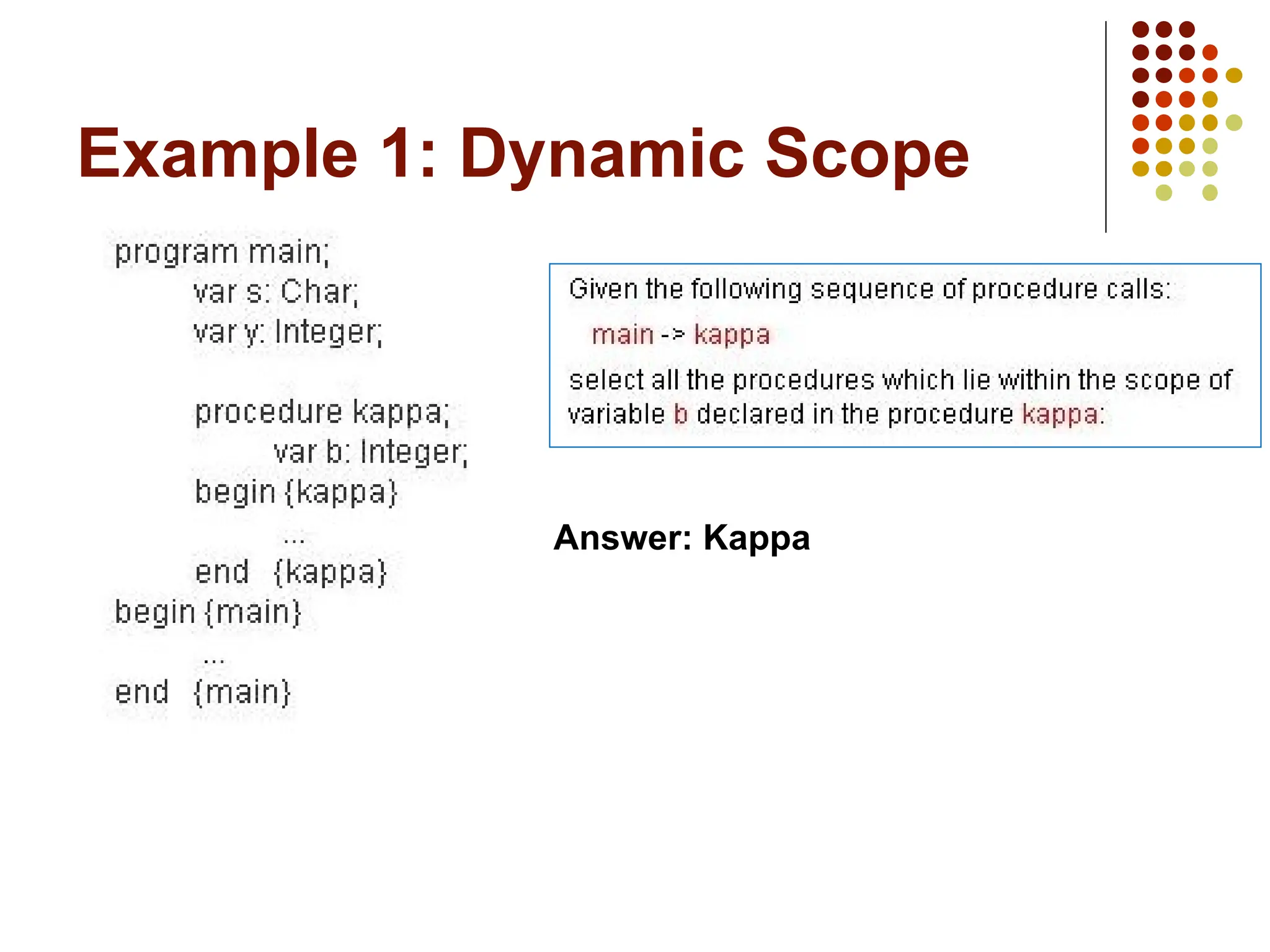

19. Example 1: Dynamic Scope
Answer: Kappa

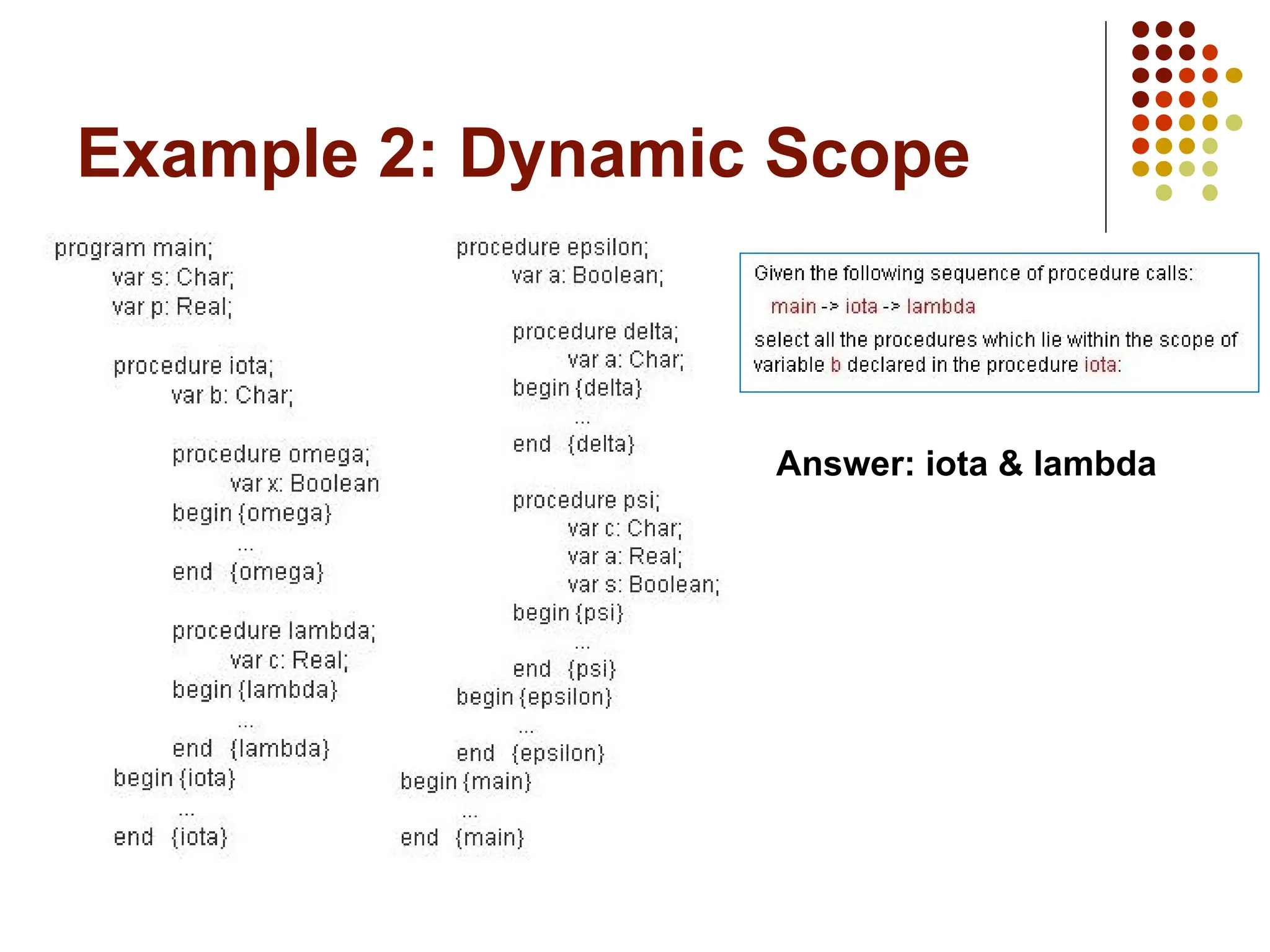

20. Example 2: Dynamic Scope
Answer: iota & lambda

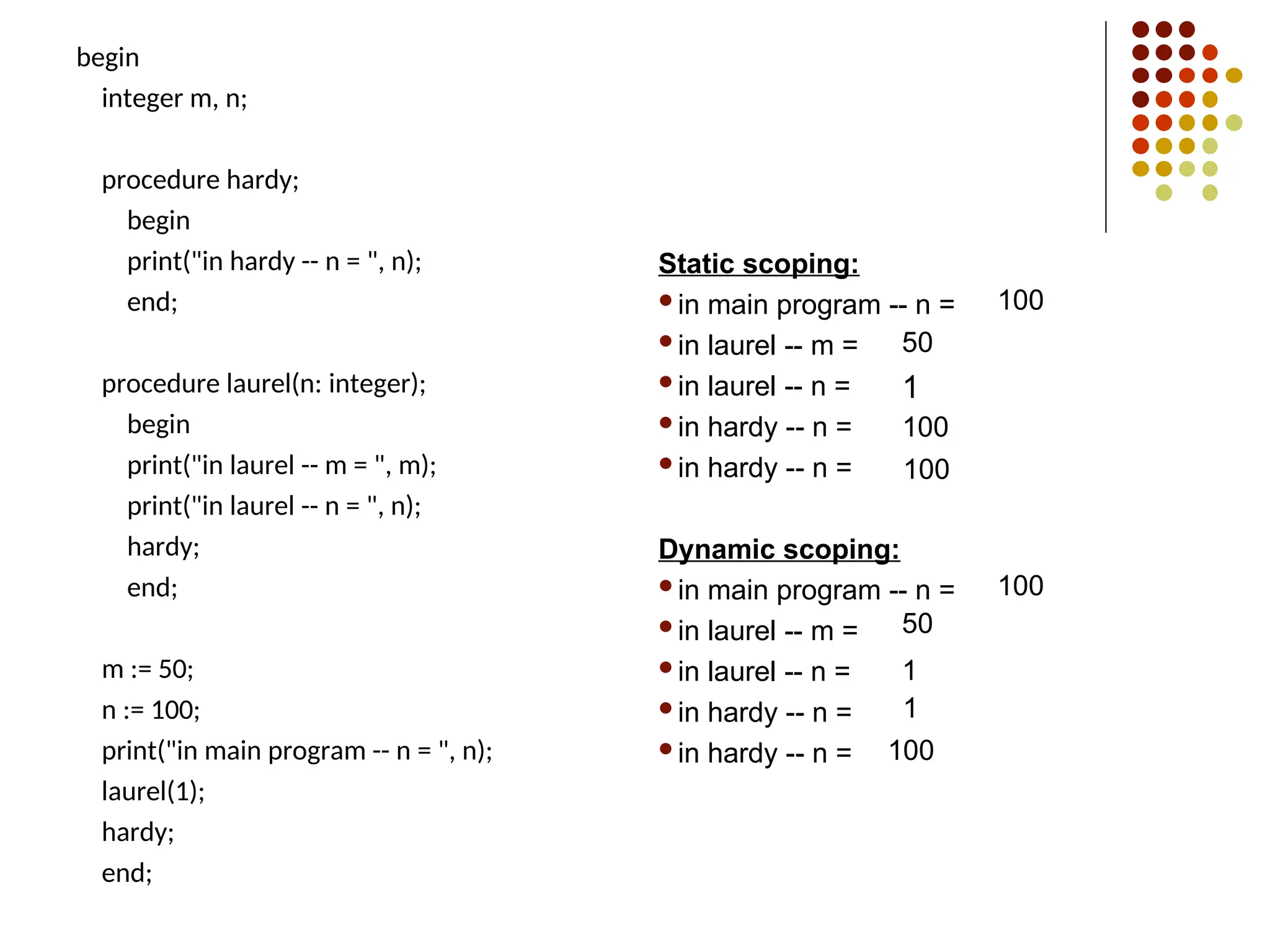

21. begin
integer m, n;
procedure hardy;
begin
print("in hardy -- n = ", n);
end;
procedure laurel(n: integer);
begin
print("in laurel -- m = ", m);
print("in laurel -- n = ", n);
hardy;
end;
m := 50;
n := 100;
print("in main program -- n = ", n);
laurel(1);
hardy;
end;
Static scoping:
in main program -- n =
in laurel -- m =
in laurel -- n =
in hardy -- n =
in hardy -- n =
Dynamic scoping:
in main program -- n =
in laurel -- m =
in laurel -- n =
in hardy -- n =
in hardy -- n =
100
50
1
100
100
100
50
1
1
100

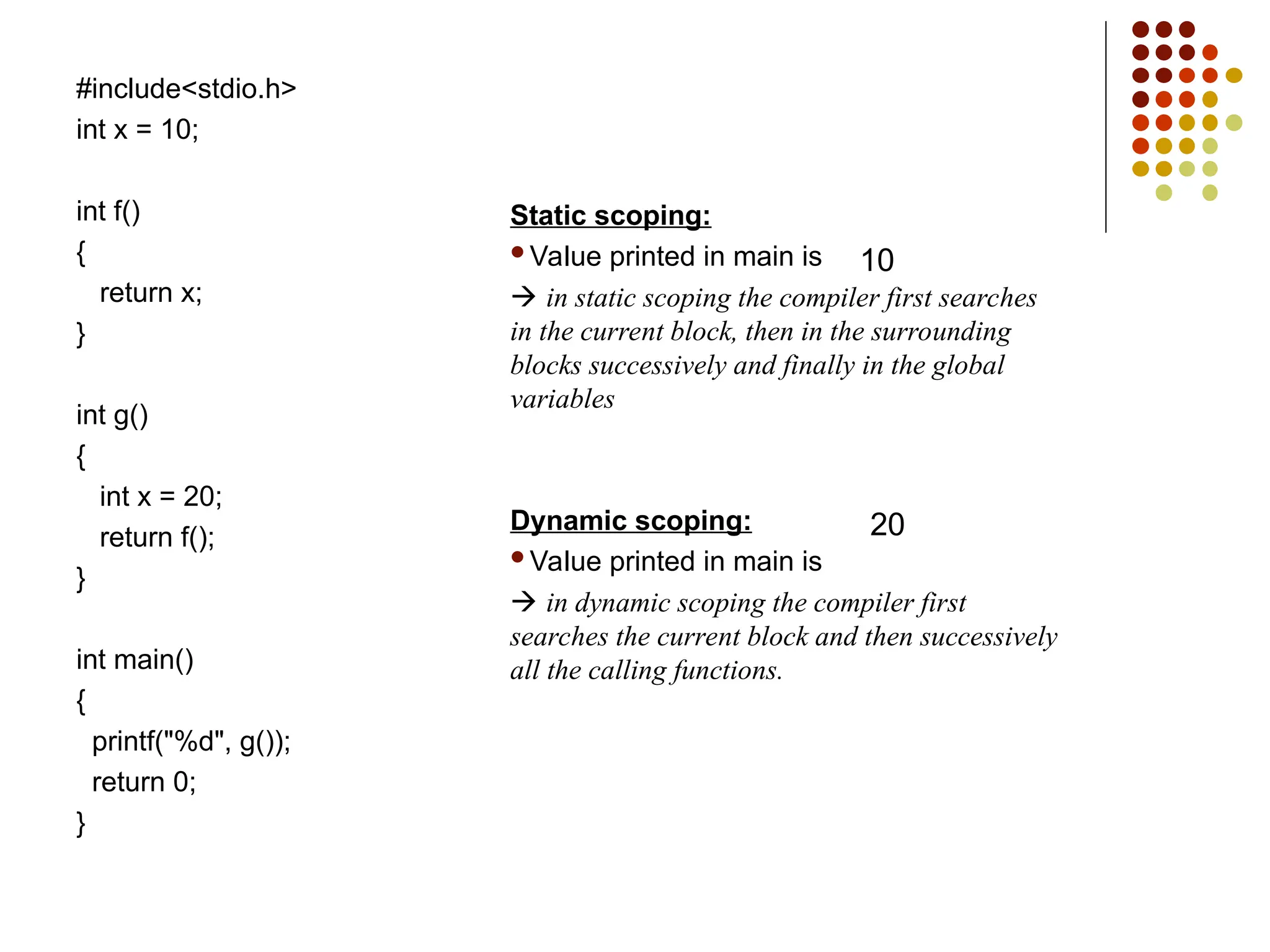

22. #include<stdio.h>
int x = 10;
int f()
{
return x;
}
int g()
{
int x = 20;
return f();
}
int main()
{
printf("%d", g());
return 0;
}
Static scoping:
Value printed in main is
 in static scoping the compiler first searches
in the current block, then in the surrounding
blocks successively and finally in the global
variables
Dynamic scoping:
Value printed in main is
 in dynamic scoping the compiler first
searches the current block and then successively
all the calling functions.
10
20

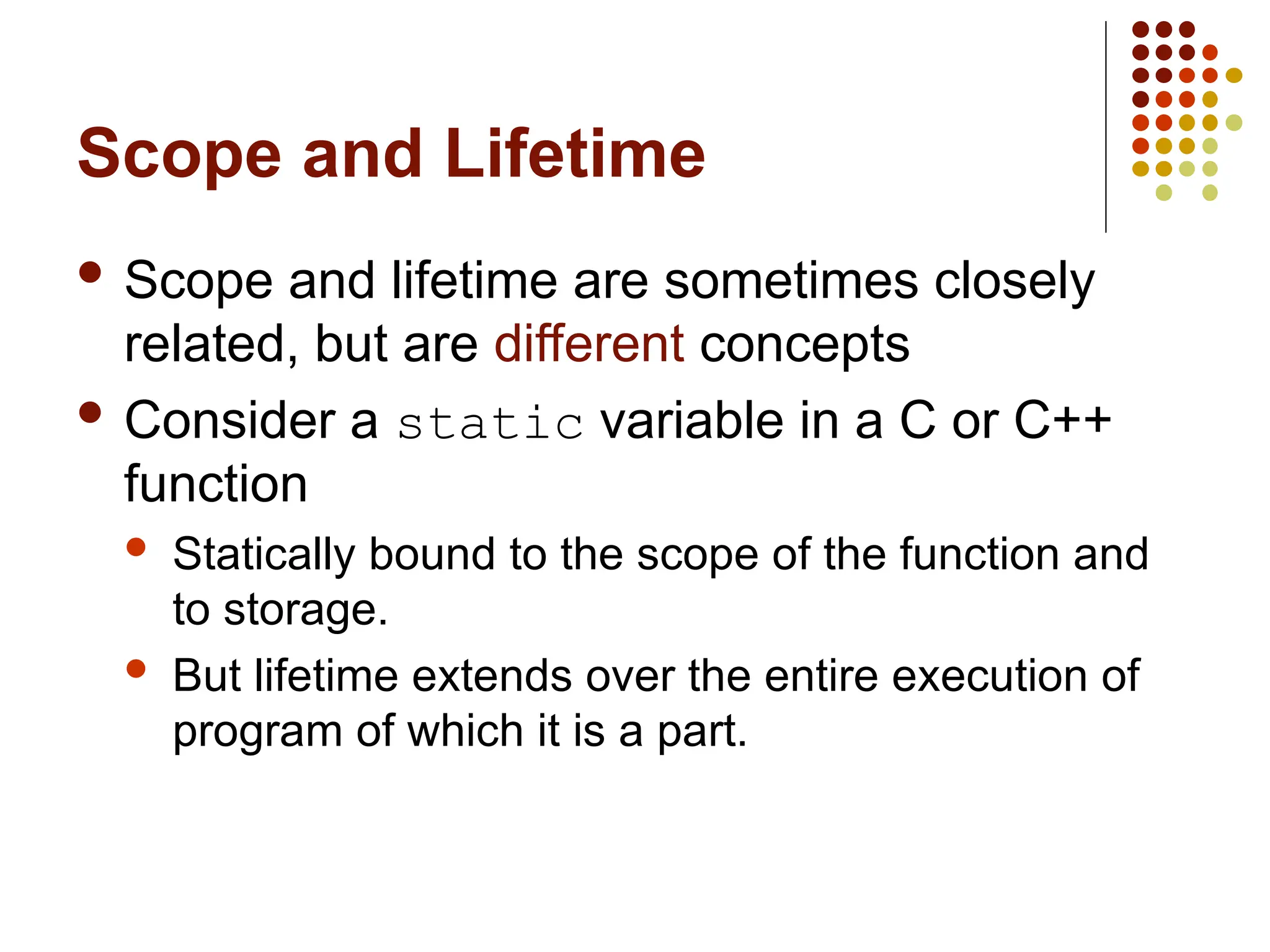

23. Scope and Lifetime
 Scope and lifetime are sometimes closely
related, but are different concepts
 Consider a static variable in a C or C++
function
 Statically bound to the scope of the function and
to storage.
 But lifetime extends over the entire execution of
program of which it is a part.

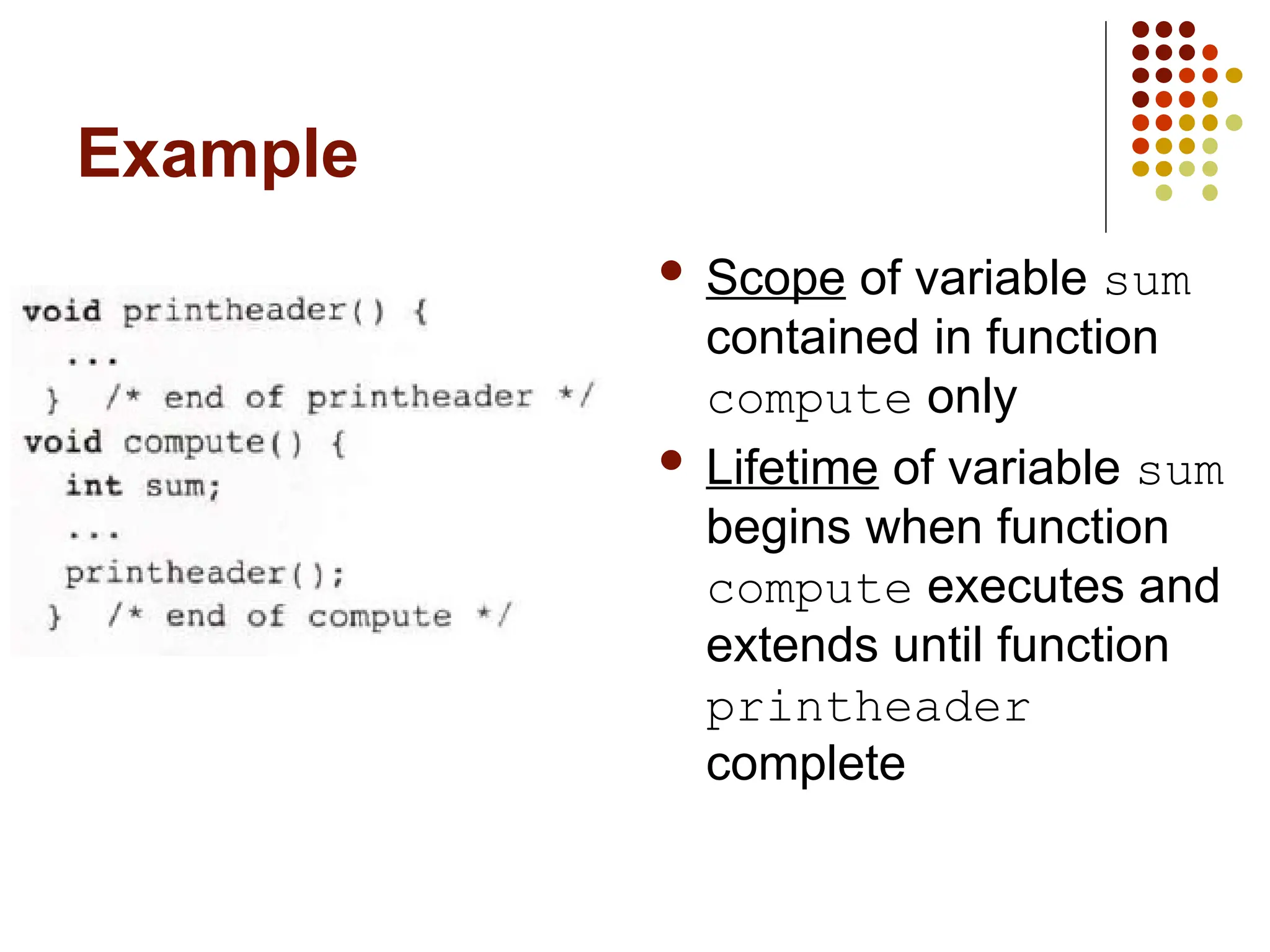

24. Example
 Scope of variable sum
contained in function
compute only
 Lifetime of variable sum
begins when function
compute executes and
extends until function
printheader
complete
