This document provides an introduction to compilers and their construction. It defines a compiler as a program that translates a source program into target machine code. The compilation process involves several phases including lexical analysis, syntax analysis, semantic analysis, code optimization, and code generation. An interpreter directly executes source code without compilation. The document also discusses compiler tools and intermediate representations used in the compilation process.

1. Introduction to Compiler
Construction
Lecture 1
BY NDIBALEKERA ROSSY

2. Compiler
• A given source language is either compiled or
interpreted for execution
• compiler is a program that translates a source
program (HLL; C, Java) into target code;
machine re-locatable code or assembly code.
–The generated machine code can be later
executed many times against different data
each time.
–The code generated is not portable to other
systems.

3. Interpreter
 In an interpreted language, implementations
execute instructions directly and freely
without previously compiling a program into
machine code instructions.
 Translation occurs at the same time as the
program is being executed.
 An interpreter reads an executable source
program written in HLL as well as data for this
program, and it runs the program against the
data to produce some results.
–

4. Interpreter

 Common interpreters include Perl, Python, and
Ruby interpreters, which execute Perl, Python,
and Ruby code respectively.
 Others include Unix shell interpreter, which
runs operating system commands interactively.
 Source program is interpreted every time it is
executed (less efficient).
–

5. Interpreter

 Interpreted languages are portable since they
are not machine dependent. They can run on
different operating systems and platforms.
 They are translated on the spot and thus
optimized for the system on which they’re
being run.
–

6. Compilers and Interpreters
• “Compilation”
– Translation of a program written in a source
language into a semantically equivalent
program written in a target language
Compiler
Error messages
Source
Program
Target
Program
Input
Output

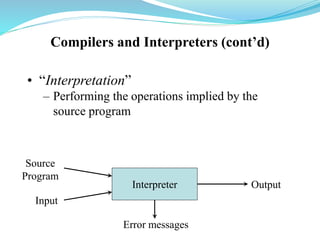

7. Compilers and Interpreters (cont’d)
Interpreter
Source
Program
Input
Output
Error messages
• “Interpretation”
– Performing the operations implied by the
source program

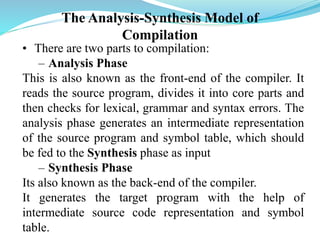

8. The Analysis-Synthesis Model of
Compilation
• There are two parts to compilation:
– Analysis Phase
This is also known as the front-end of the compiler. It
reads the source program, divides it into core parts and
then checks for lexical, grammar and syntax errors. The
analysis phase generates an intermediate representation
of the source program and symbol table, which should
be fed to the Synthesis phase as input
– Synthesis Phase
Its also known as the back-end of the compiler.
It generates the target program with the help of
intermediate source code representation and symbol
table.

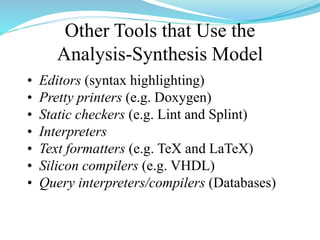

9. Other Tools that Use the
Analysis-Synthesis Model
• Editors (syntax highlighting)
• Pretty printers (e.g. Doxygen)
• Static checkers (e.g. Lint and Splint)
• Interpreters
• Text formatters (e.g. TeX and LaTeX)
• Silicon compilers (e.g. VHDL)
• Query interpreters/compilers (Databases)

10. Preprocessors, Compilers, Assemblers and
Linkers
• A preprocessor considered as part of compiler, is a
tool that produces input for compilers. It deals with
macro-processing, file inclusion, language extension,
etc.
• Assembler
An assembler translates assembly language programs
into machine code. The output of an assembler is called
an object file, which contains a combination of
machine instructions as well as the data required to
place these instructions in memory.

11. Preprocessors, Compilers, Assemblers and
Linkers
• Linker
A computer program that links and merges various
object files together in order to make an executable
file.
 All these files might have been compiled by separate
assemblers. The major task of a linker is to search
and locate referenced module/routines in a program
and to determine the memory location where these
codes will be loaded, making the program
instruction to have absolute references.

12. Compiler Design - Architecture of a
Compiler
• A compiler can have many phases and passes.
• Pass : A pass refers to the traversal of a compiler
through the entire program.
• Phase : A phase of a compiler is a distinguishable
stage, which takes input from the previous stage,
processes and yields output that can be used as input
for the next stage. A pass can have more than one
phase.

13. Phases of a Compiler
• The compilation process is a sequence of various
phases.
• Each phase takes input from its previous stage and
has its own representation of source program, and
feeds its output to the next phase of the compiler.

14. Traditional three pass compiler
Front end
Source
code
Machine
code
errors
IR
Back end
Middle
end
IR

15. Phases of a Compiler - Front end
 The front end analyzes the source code to
build an internal representation of the
program, called the intermediate
representation (IR).
 It also manages the symbol table, a data
structure mapping each symbol in the source
code to associated information such as
location, type and scope.

16. Phases of a Compiler - Front end cont’d
The front end includes all analysis phases and
the intermediate code generator.
• Lexical analysis is the first phase of compiler
which is also termed as scanning.
• During this phase, Source program is scanned to
read the stream of characters and those characters are
grouped to form a sequence called lexemes which
produces token as output. Tokens are defined by
regular expressions which are understood by the
lexical analyzer.

17. Lexical Analysis
 lexical analysis: The process of converting a sequence
of characters (such as in a computer program) into a
sequence of tokens (strings with an identified
"meaning")
 Lexical analysis takes the modified source code from
language preprocessors that are written in the form of
sentences.
 The lexical analyzer breaks these syntaxes into a
series of tokens, by removing any whitespace or
comments in the source code.

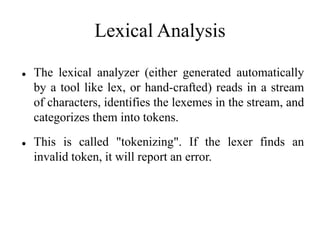

18. Lexical Analysis
 The lexical analyzer (either generated automatically
by a tool like lex, or hand-crafted) reads in a stream
of characters, identifies the lexemes in the stream, and
categorizes them into tokens.
 This is called "tokenizing". If the lexer finds an
invalid token, it will report an error.

19. Front end: Terminologies
• Token: Token is a sequence of characters that
represent lexical unit, which matches with
the pattern, such as keywords, operators,
identifiers etc.
• Lexeme: Lexeme is instance of a token i.e.,
group of characters forming a token.
• Pattern: Pattern describes the rule that the
lexemes of a token takes. It is the structure
that must be matched by strings.

20. Token and Lexeme
 Once a token is generated the corresponding
entry is made in the symbol table.
At lexical analysis phase,
Input: stream of characters
Output: Token
Token Template:
<token-name, attribute-value>
 For example, for c=a+b*5;
Hence,
<id, 1><=>< id, 2>< +><id, 3 >< * >< 5>

21. Token and Lexeme Cont’d

22. Syntax Analysis
 Syntax Analyze is sometimes called as
parser. It constructs the parse tree. It takes all
the tokens one by one and uses Context Free
Grammar to construct the parse tree.
Why Grammar ?
 The rules of programming can be entirely
represented in some few productions. Using
these productions we can represent what the
program actually is. The input has to be
checked whether it is in the desired format or
not.

23. Syntax Analysis cont’d
 Syntax error can be detected at this level if
the input is not in accordance with the
grammar.

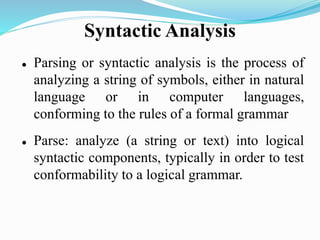

24. Syntactic Analysis
 Parsing or syntactic analysis is the process of
analyzing a string of symbols, either in natural
language or in computer languages,
conforming to the rules of a formal grammar
 Parse: analyze (a string or text) into logical
syntactic components, typically in order to test
conformability to a logical grammar.

25. Syntactic Analysis cont’d
 If the lexical analyzer finds a token invalid, it
generates an error.
 The lexical analyzer works closely with the
syntax analyzer. It reads character streams
from the source code, checks for legal tokens,
and passes the data to the syntax analyzer
when it demands.

26. Semantic Analysis
 Semantic analyzer takes the output of syntax
analyzer and produces another tree.
 Similarly, intermediate code generator takes a
tree as an input produced by semantic
analyzer and produces intermediate code.

27. Semantic Analyzer

28. Semantic Analysis cont’d
Syntax tree is a compressed representation of
the parse tree (a hierarchical structure that
represents the derivation of the grammar to
obtain input strings) in which the operators
appear as interior nodes and the operands of the
operator are the children of the node for that
operator.
 Example of syntax tree

29. Semantic Analyzer
Semantic analysis is the third phase of compiler.
 It checks for the semantic consistency.
 Type information is gathered and stored in
symbol table or in syntax tree.
 Performs type checking.
 It verifies the parse tree, whether it’s
meaningful or not. It furthermore produces a
verified parse tree.

30. Semantic Analyzer

31. Front-end, Back-end division
• Front end maps legal code into IR
• Back end maps IR onto target machine
• Allows multiple front ends
• Multiple passes -> better code
Front end
Source
code
Machine
code
errors
IR
Back end

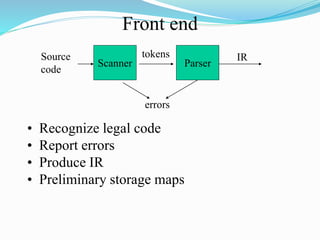

32. Front end
• Recognize legal code
• Report errors
• Produce IR
• Preliminary storage maps
Scanner
Source
code
IR
errors
tokens
Parser

33. Front end
• Scanner:
– Maps characters into tokens – the basic unit of syntax
• x = x + y becomes <id, x> = <id, x> + <id, y>
– Typical tokens: number, id, +, -, *, /, do, end
– Eliminate white space (tabs, blanks, comments)
• A key issue is speed so instead of using a tool like
LEX it sometimes needed to write your own
scanner
Scanner
Source
code
IR
errors
tokens
Parser

34. Front end
• Parser:
– Recognize context-free syntax
– Guide context-sensitive analysis
– Construct IR
– Produce meaningful error messages
– Attempt error correction
• There are parser generators like YACC which
automates much of the work
Scanner
Source
code
IR
errors
tokens
Parser

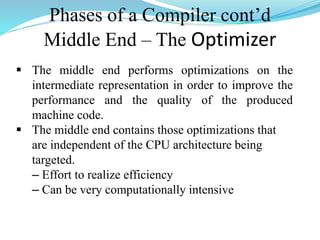

35. Phases of a Compiler cont’d
Middle End – The Optimizer
 The middle end performs optimizations on the
intermediate representation in order to improve the
performance and the quality of the produced
machine code.
 The middle end contains those optimizations that
are independent of the CPU architecture being
targeted.
– Effort to realize efficiency
– Can be very computationally intensive

36. Middle end (optimizer)
• Modern optimizers are usually built as a set
of passes
• Typical passes
– Constant propagation
– Common sub-expression elimination
– Redundant store elimination
– Dead code elimination

37. Back end
• Translate IR into target machine code
• Choose instructions for each IR operation
• Decide what to keep in registers at each
point
• Ensure conformance with system interfaces
Instruction
selection
IR
Machine code
errors
Register
Allocation

38. Phases of a Compiler

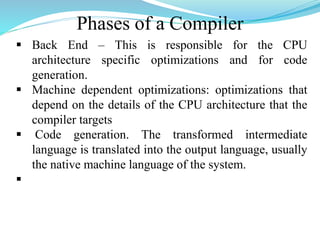

 Back End – This is responsible for the CPU
architecture specific optimizations and for code
generation.
 Machine dependent optimizations: optimizations that
depend on the details of the CPU architecture that the
compiler targets
 Code generation. The transformed intermediate
language is translated into the output language, usually
the native machine language of the system.


39. Phases of a Compiler
 It also involves resource and storage decisions, such
as; deciding which variables to fit into registers and
memory and the selection and scheduling of
appropriate machine instructions along with their
associated addressing modes
– Processor (target) Dependant optimization
•

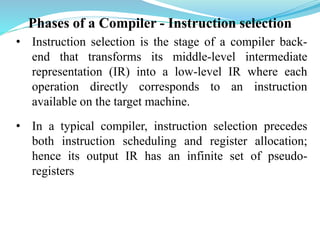

40. Phases of a Compiler - Instruction selection
• Instruction selection is the stage of a compiler back-
end that transforms its middle-level intermediate
representation (IR) into a low-level IR where each
operation directly corresponds to an instruction
available on the target machine.
• In a typical compiler, instruction selection precedes
both instruction scheduling and register allocation;
hence its output IR has an infinite set of pseudo-
registers

41. Back end
• Have a value in a register when used
• Limited resources
• Optimal allocation is difficult
Instruction
selection
IR
Machine code
errors
Register
Allocation

42. Intermediate Code Generation
After semantic analysis the compiler generates an
intermediate code of the source code for the target
machine.
– It represents a program for some abstract
machine.
– It is in between the high-level language and the
machine language.
– This intermediate code should be generated in
such a way that it makes it easier to be
translated into the target machine code.

43. Code Optimization
 Optimization can be assumed as something that
removes unnecessary code lines, and arranges the
sequence of statements in order to speed up the
program execution without wasting resources
(CPU, memory).

44. Code Generation
• In this phase, the code generator takes the
optimized representation of the intermediate code
and maps it to the target machine language.
• The code generator translates the intermediate
code into a sequence of (generally) re-locatable
machine code. Sequence of instructions of
machine code performs the task as the
intermediate code would do.

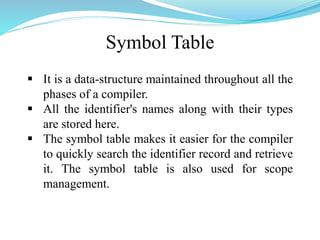

45. Symbol Table
 It is a data-structure maintained throughout all the
phases of a compiler.
 All the identifier's names along with their types
are stored here.
 The symbol table makes it easier for the compiler
to quickly search the identifier record and retrieve
it. The symbol table is also used for scope
management.

46. Compiler-Construction Tools
• Software development tools are available to
implement one or more compiler phases
– Scanner generators
– Parser generators
– Syntax-directed translation engines
– Automatic code generators
– Data-flow engines
