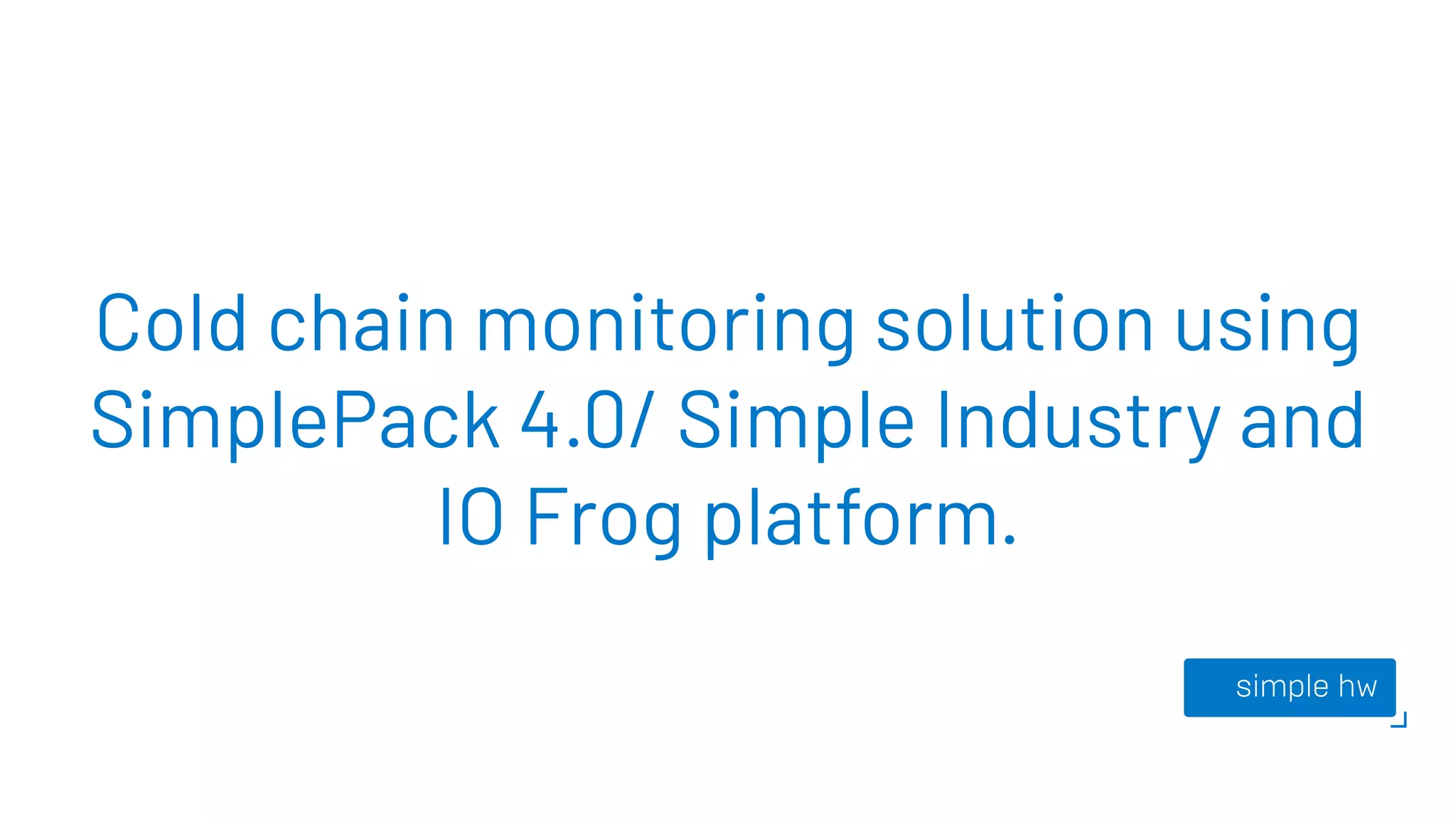

1. Cold chain monitoring solution using
SimplePack 4.0/ Simple Industry and
IO Frog platform.

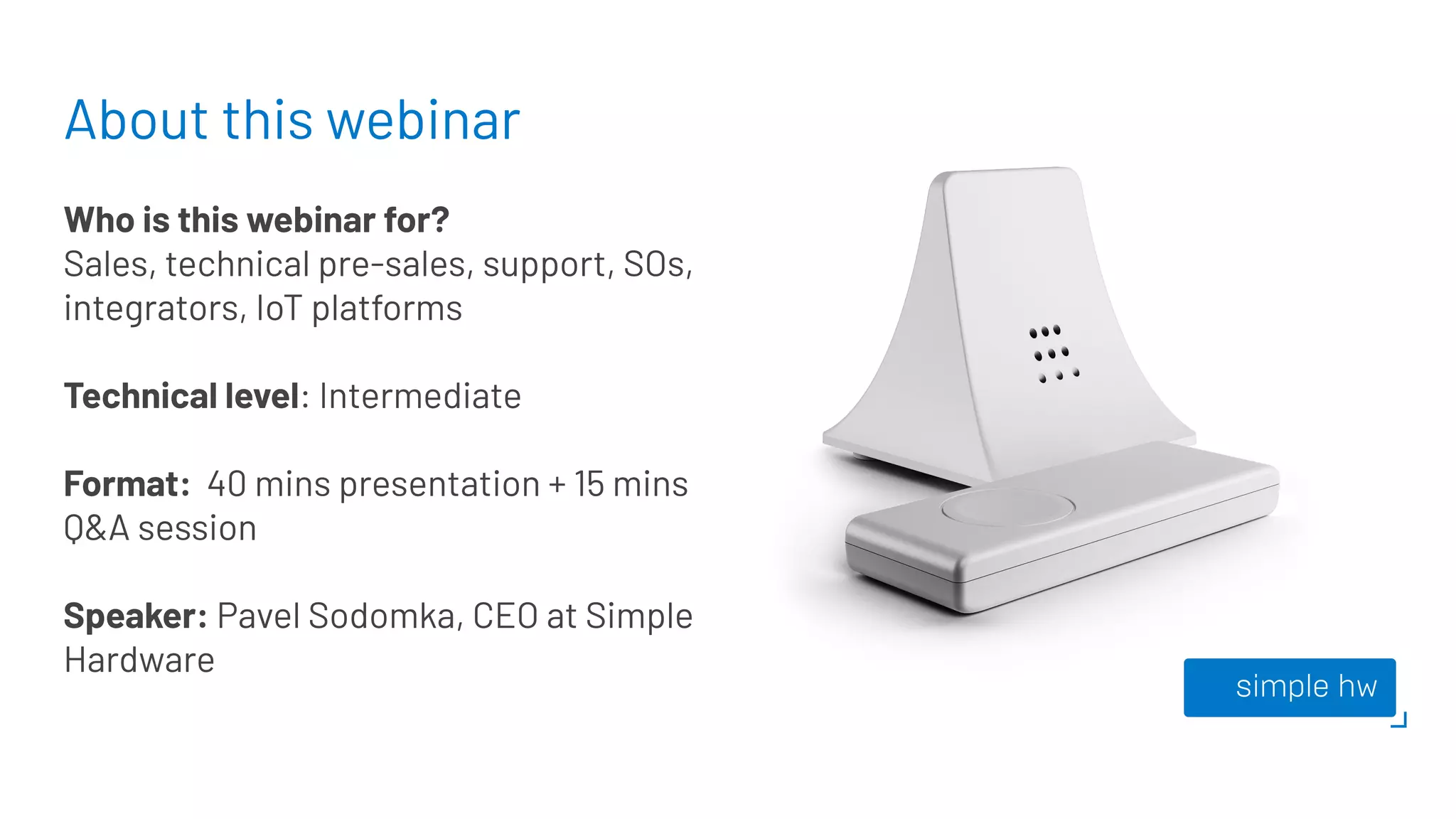

2. About this webinar
Who is this webinar for?
Sales, technical pre-sales, support, SOs,
integrators, IoT platforms
Technical level: Intermediate
Format: 40 mins presentation + 15 mins
Q&A session
Speaker: Pavel Sodomka, CEO at Simple
Hardware

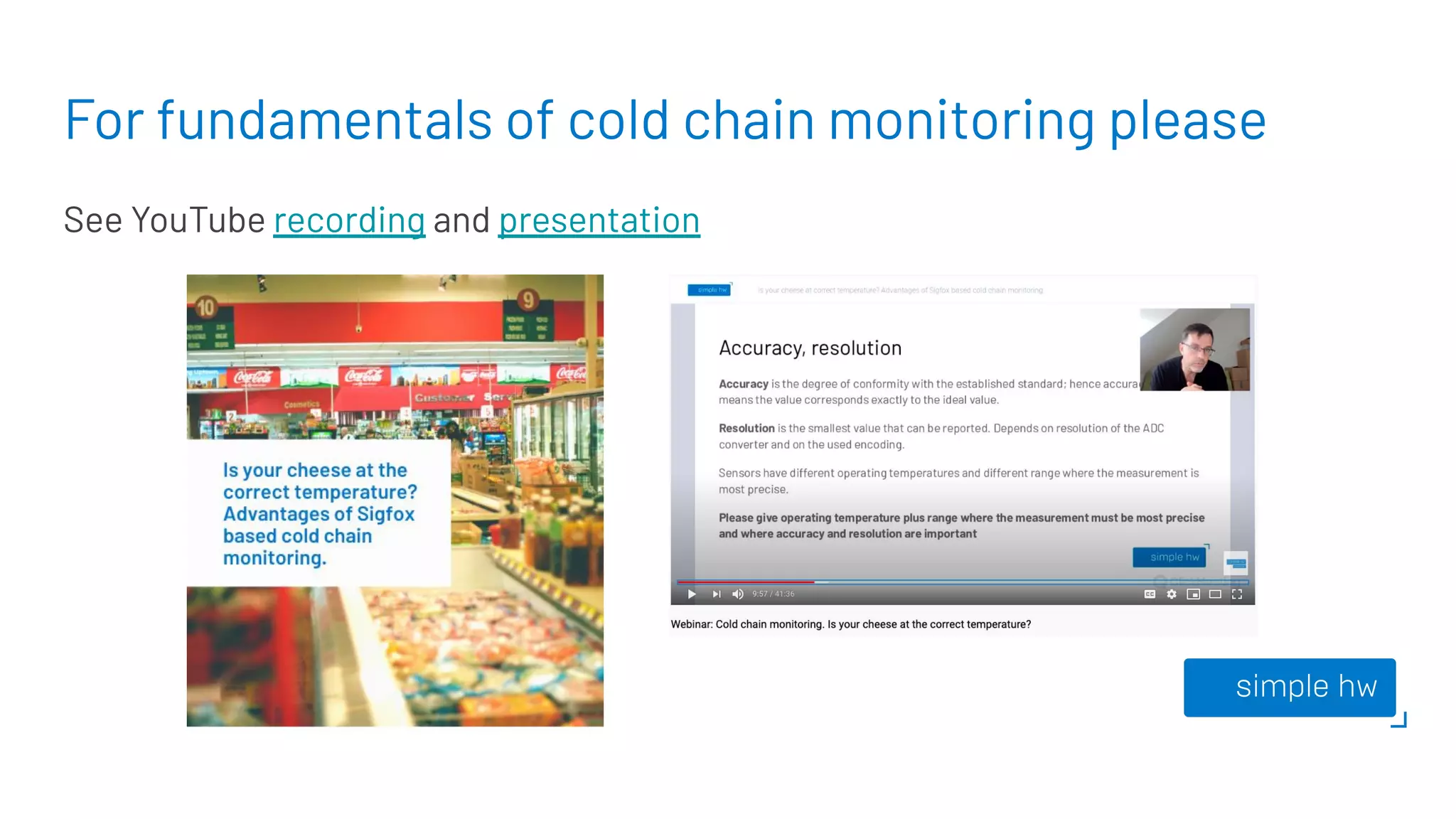

3. For fundamentals of cold chain monitoring please
See YouTube recording and presentation

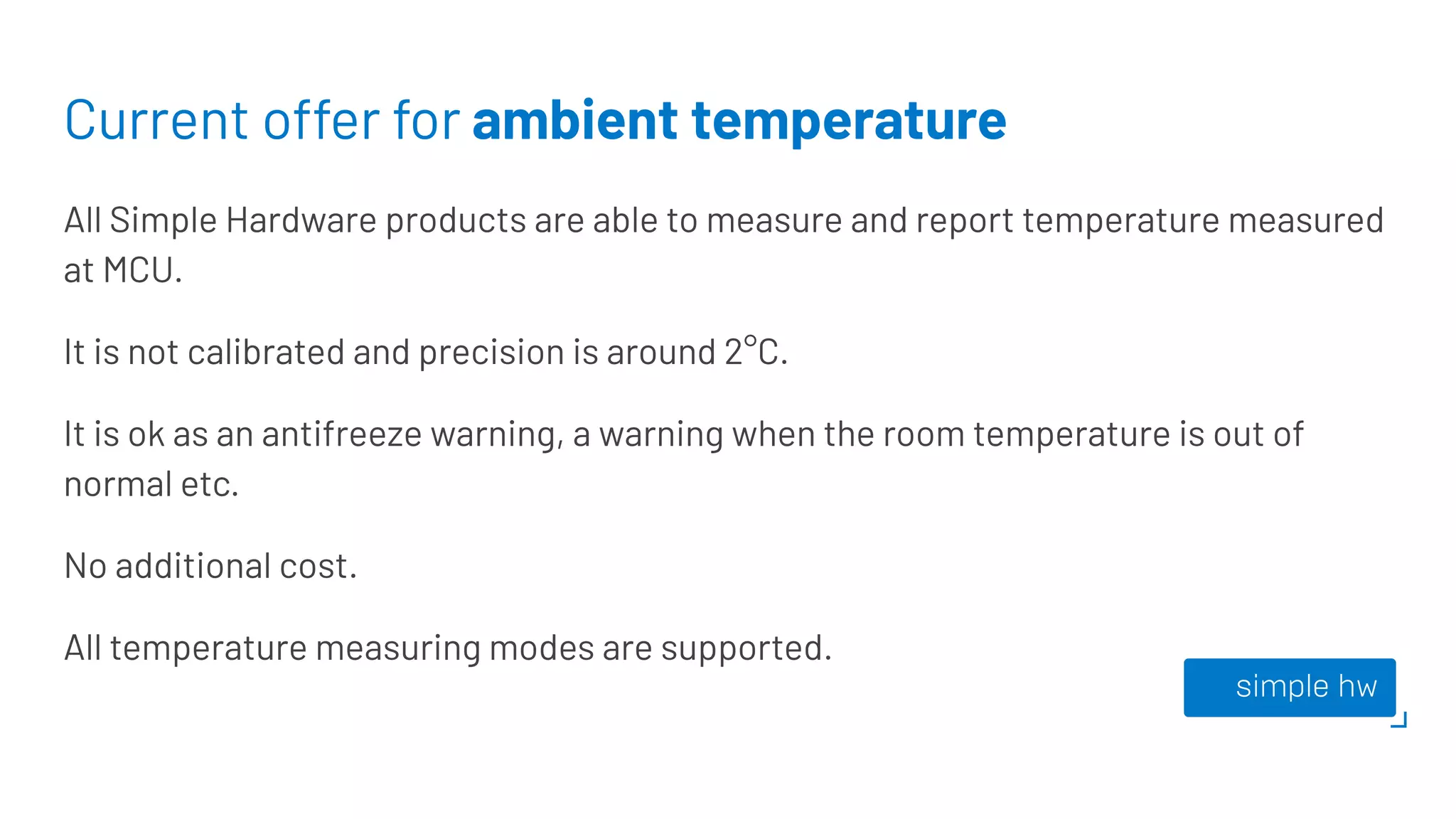

4. Current offer for ambient temperature
All Simple Hardware products are able to measure and report temperature measured
at MCU.
It is not calibrated and precision is around 2°C.
It is ok as an antifreeze warning, a warning when the room temperature is out of
normal etc.
No additional cost.
All temperature measuring modes are supported.

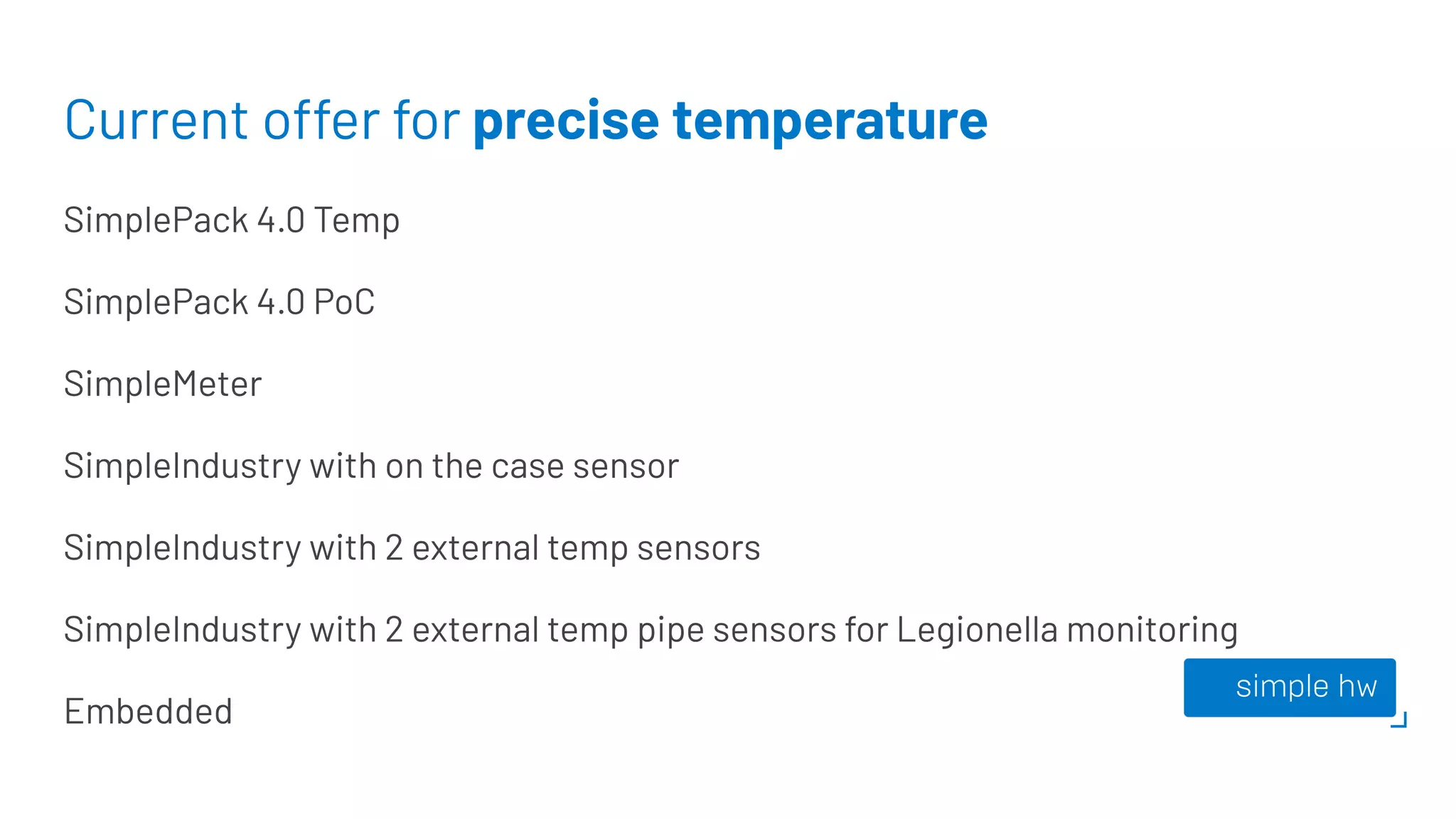

5. Current offer for precise temperature
SimplePack 4.0 Temp
SimplePack 4.0 PoC
SimpleMeter
SimpleIndustry with on the case sensor
SimpleIndustry with 2 external temp sensors
SimpleIndustry with 2 external temp pipe sensors for Legionella monitoring
Embedded

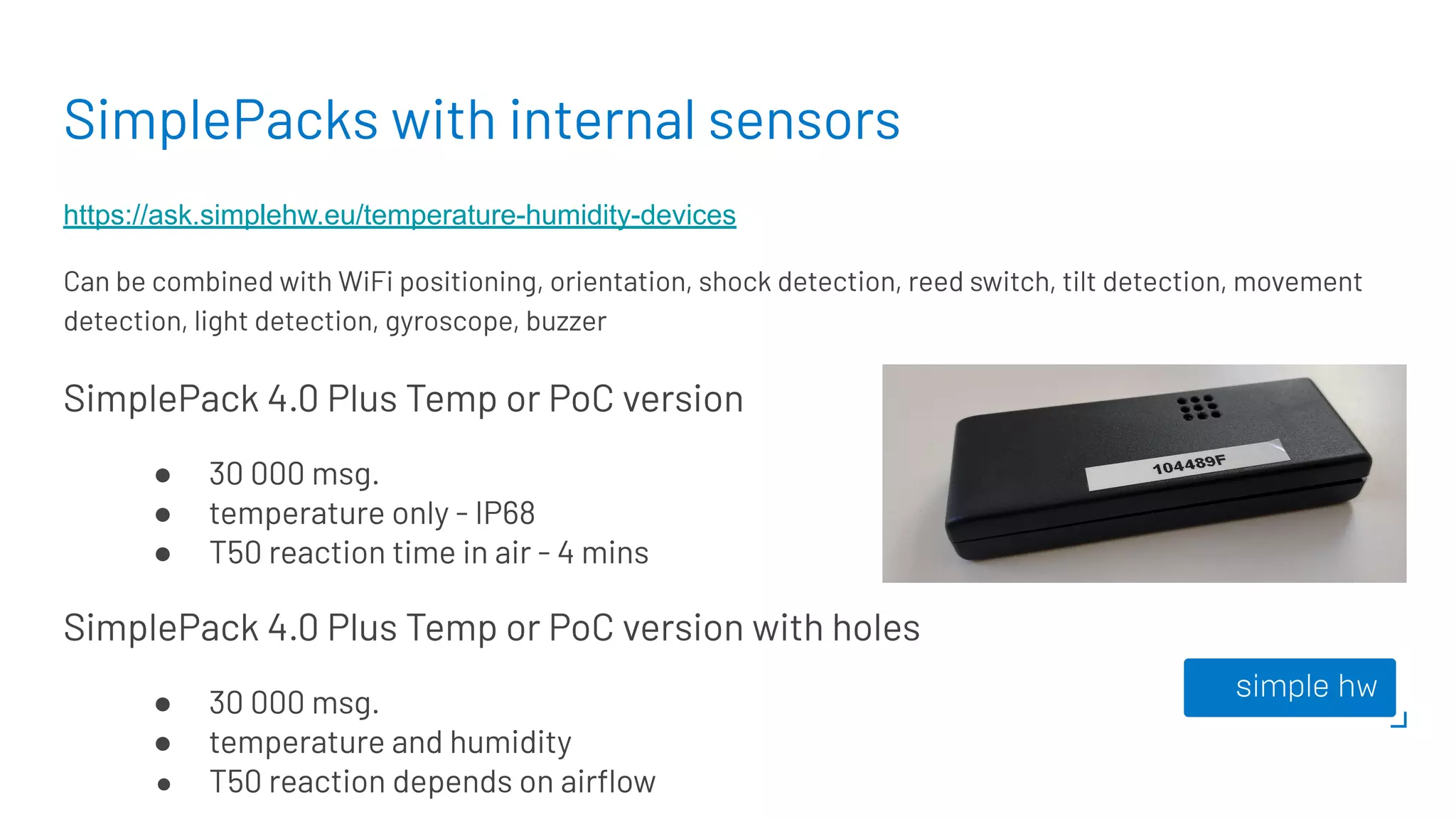

6. SimplePacks with internal sensors
https://ask.simplehw.eu/temperature-humidity-devices
Can be combined with WiFi positioning, orientation, shock detection, reed switch, tilt detection, movement
detection, light detection, gyroscope, buzzer
SimplePack 4.0 Plus Temp or PoC version
● 30 000 msg.
● temperature only - IP68
● T50 reaction time in air - 4 mins
SimplePack 4.0 Plus Temp or PoC version with holes
● 30 000 msg.
● temperature and humidity
● T50 reaction depends on airflow

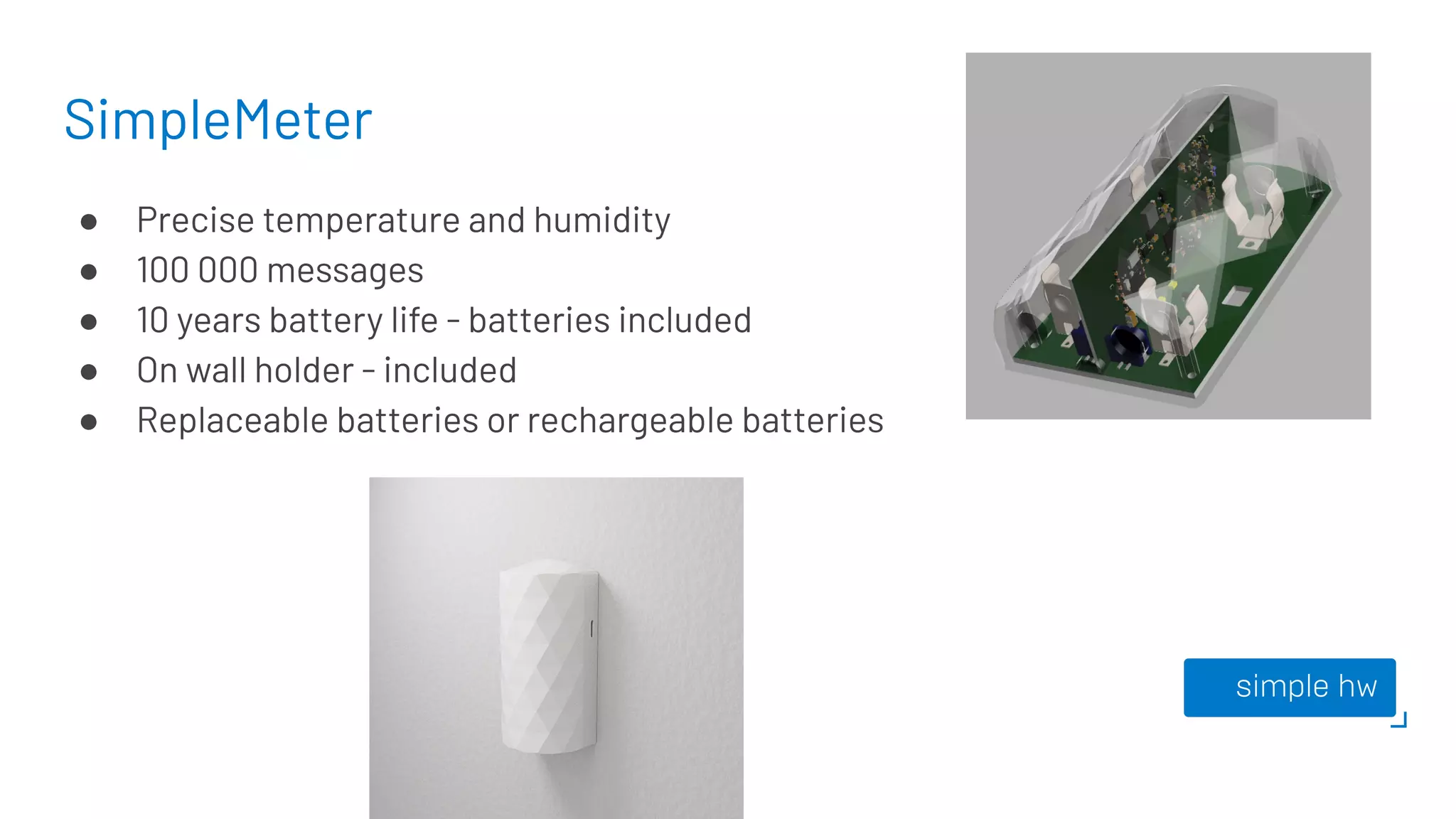

7. SimpleMeter
● Precise temperature and humidity
● 100 000 messages
● 10 years battery life - batteries included
● On wall holder - included
● Replaceable batteries or rechargeable batteries

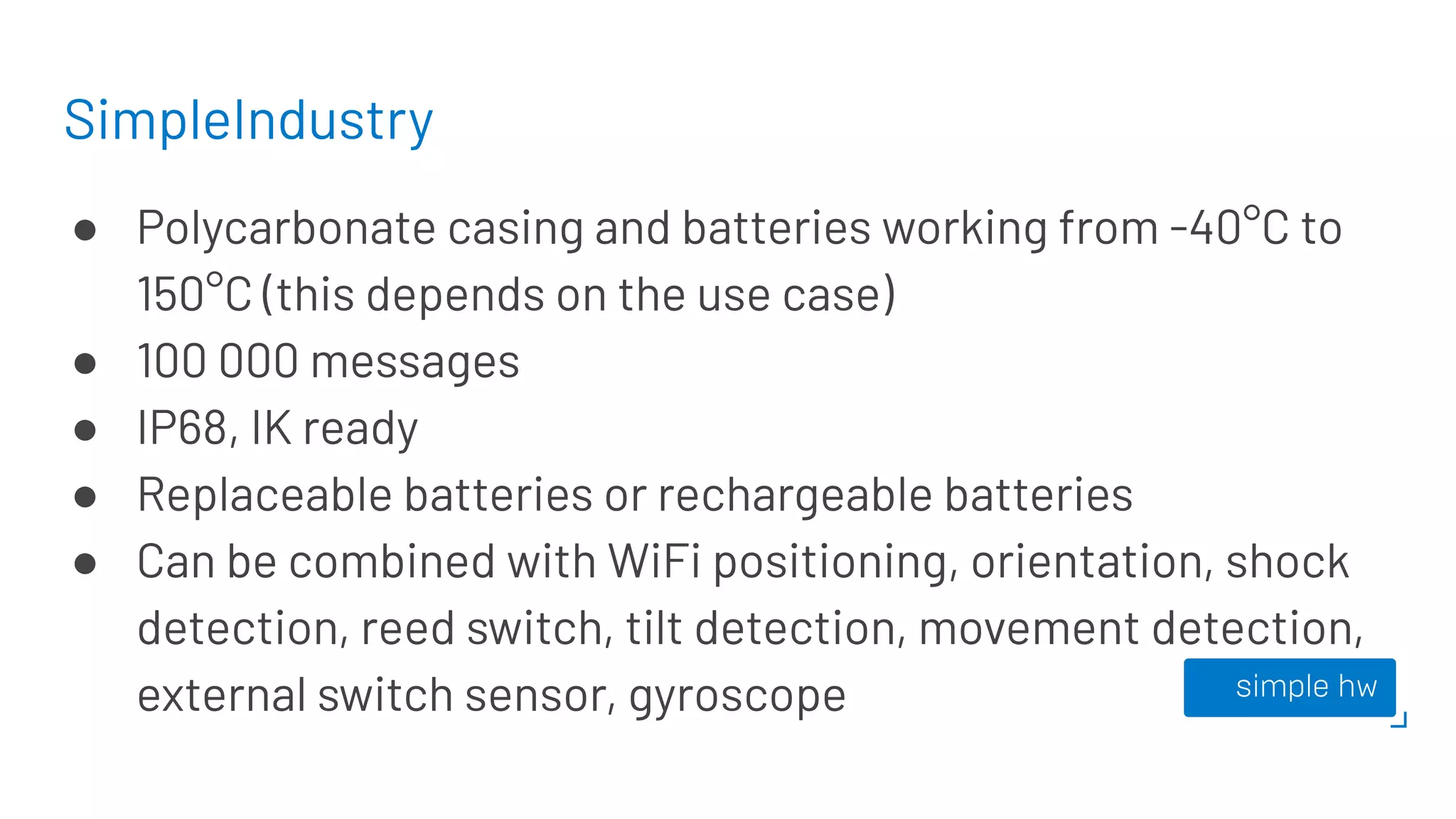

8. SimpleIndustry
● Polycarbonate casing and batteries working from -40°C to
150°C (this depends on the use case)
● 100 000 messages
● IP68, IK ready
● Replaceable batteries or rechargeable batteries
● Can be combined with WiFi positioning, orientation, shock
detection, reed switch, tilt detection, movement detection,
external switch sensor, gyroscope

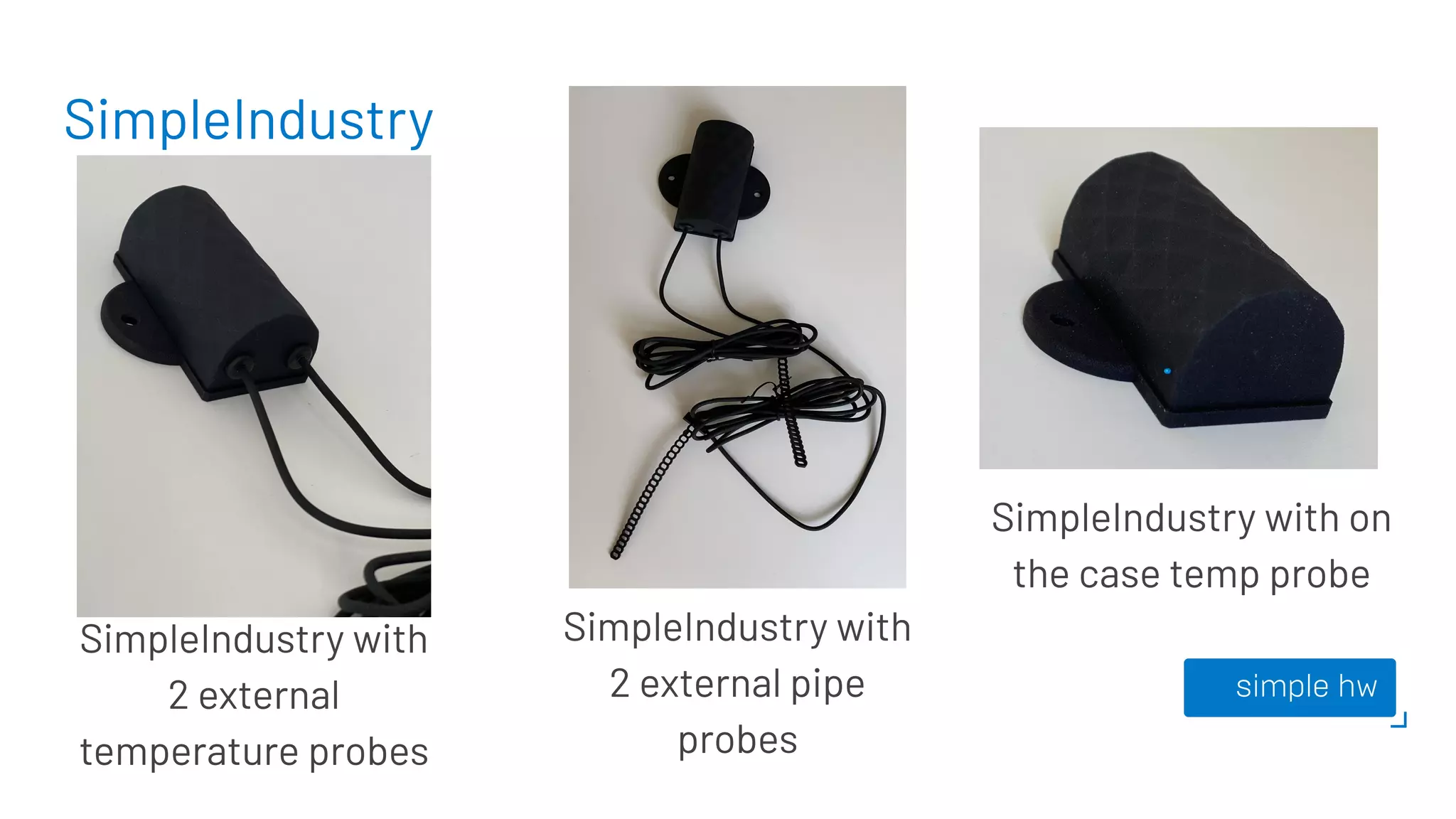

9. SimpleIndustry
SimpleIndustry with on
the case temp probe
SimpleIndustry with
2 external pipe
probes
SimpleIndustry with
2 external
temperature probes

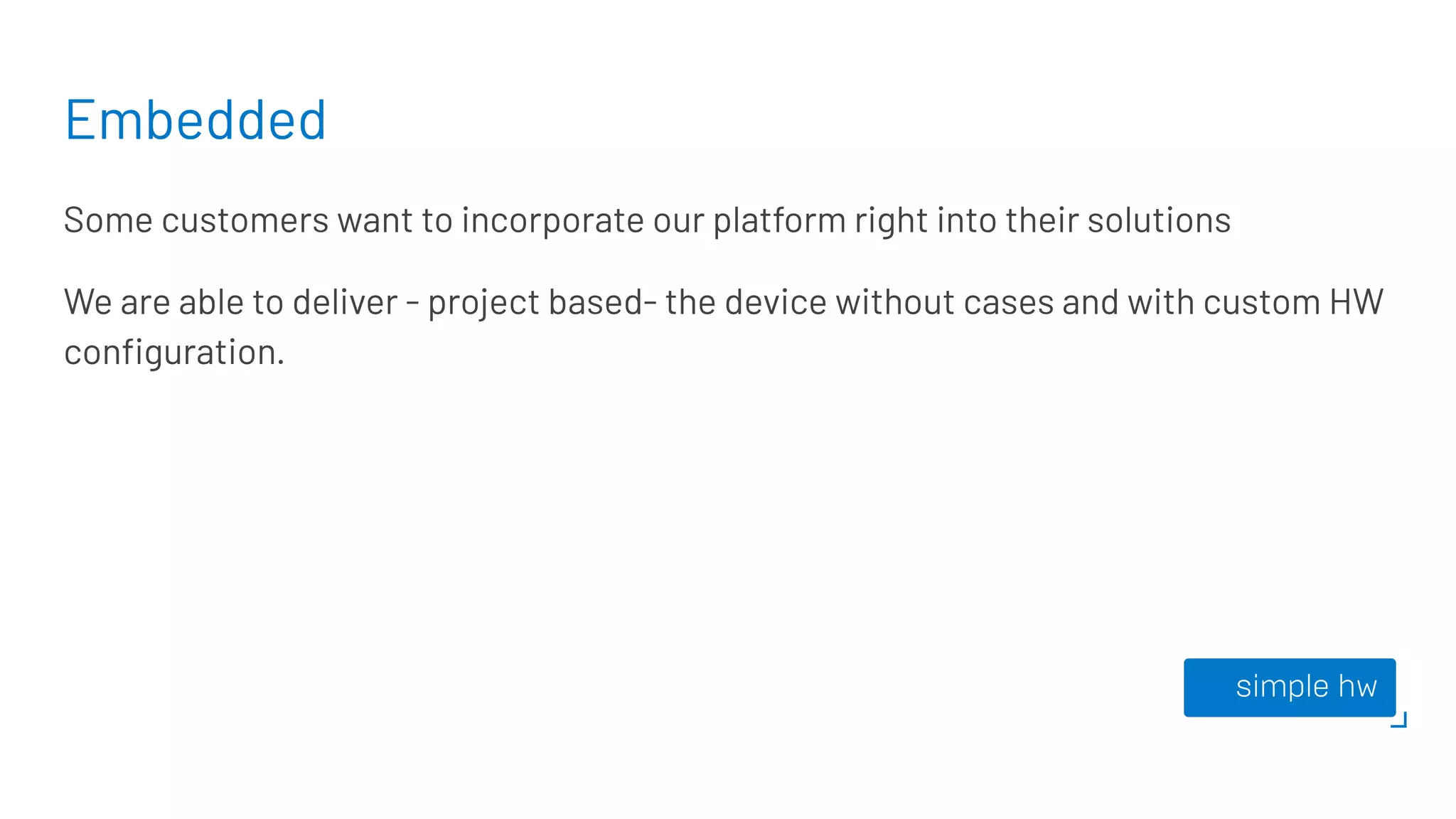

10. Embedded
Some customers want to incorporate our platform right into their solutions
We are able to deliver - project based- the device without cases and with custom HW
configuration.

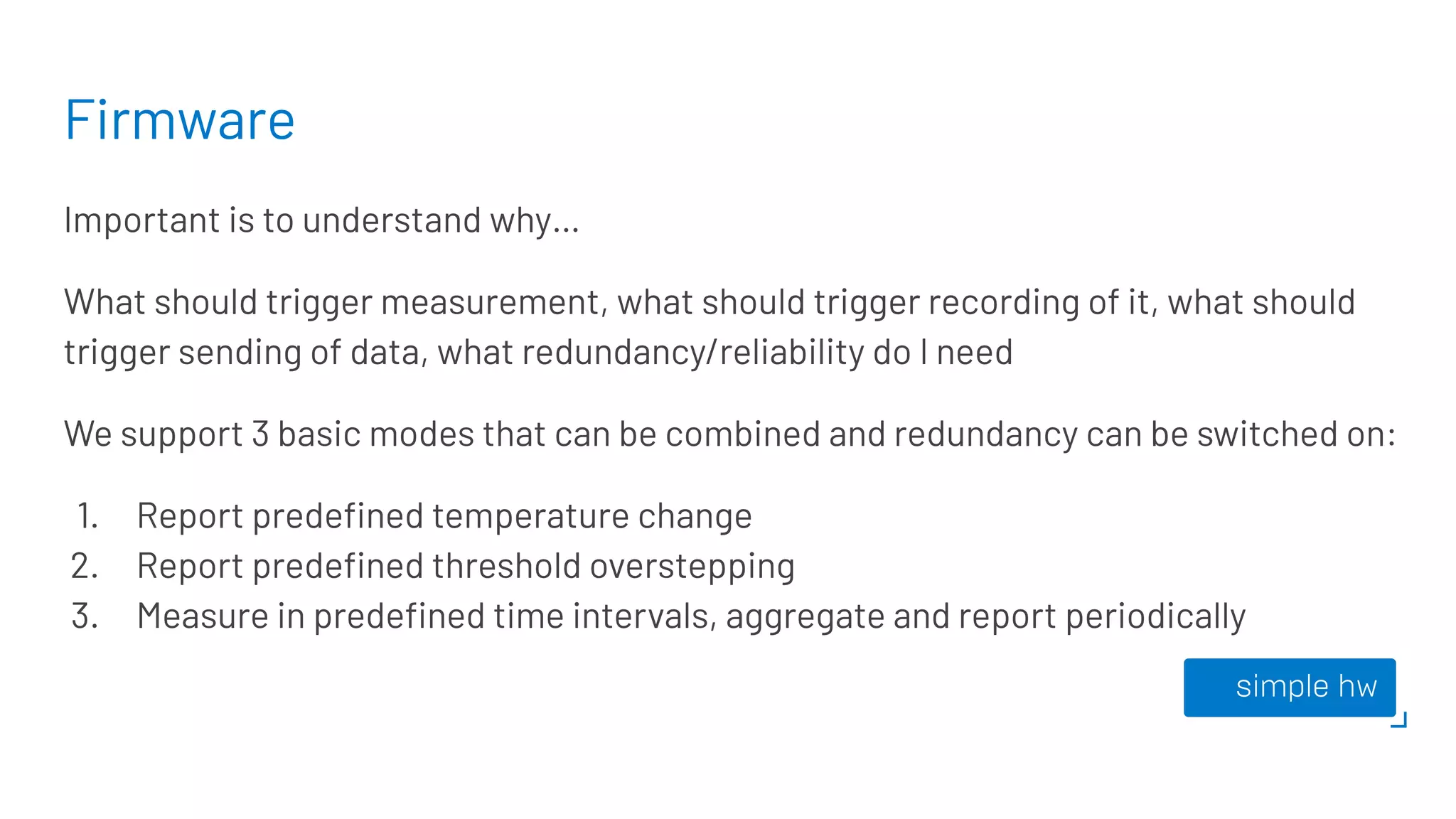

11. Firmware
Important is to understand why…
What should trigger measurement, what should trigger recording of it, what should
trigger sending of data, what redundancy/reliability do I need
We support 3 basic modes that can be combined and redundancy can be switched on:
1. Report predefined temperature change
2. Report predefined threshold overstepping
3. Measure in predefined time intervals, aggregate and report periodically

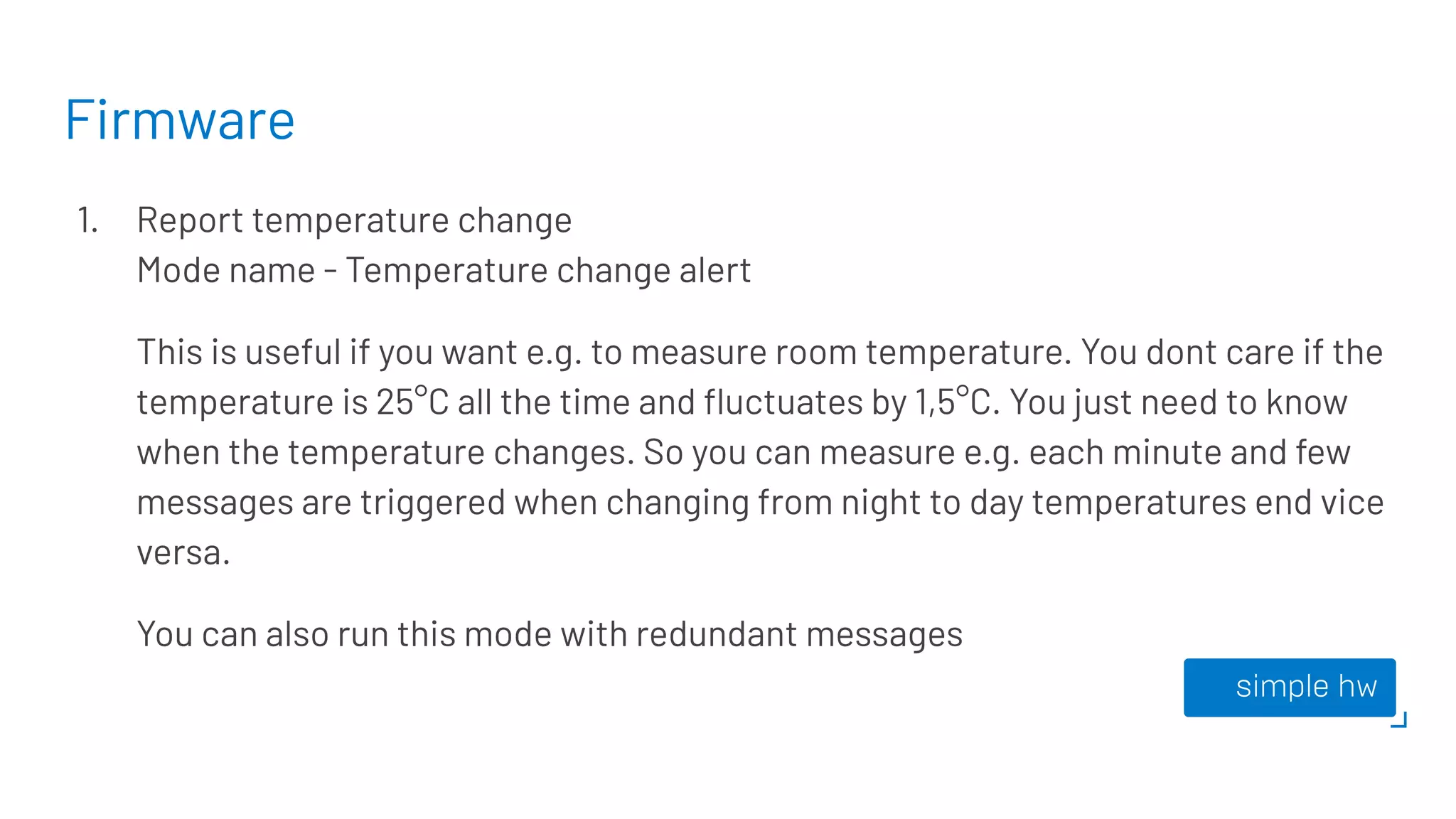

12. Firmware
1. Report temperature change
Mode name - Temperature change alert
This is useful if you want e.g. to measure room temperature. You dont care if the
temperature is 25°C all the time and fluctuates by 1,5°C. You just need to know
when the temperature changes. So you can measure e.g. each minute and few
messages are triggered when changing from night to day temperatures end vice
versa.
You can also run this mode with redundant messages

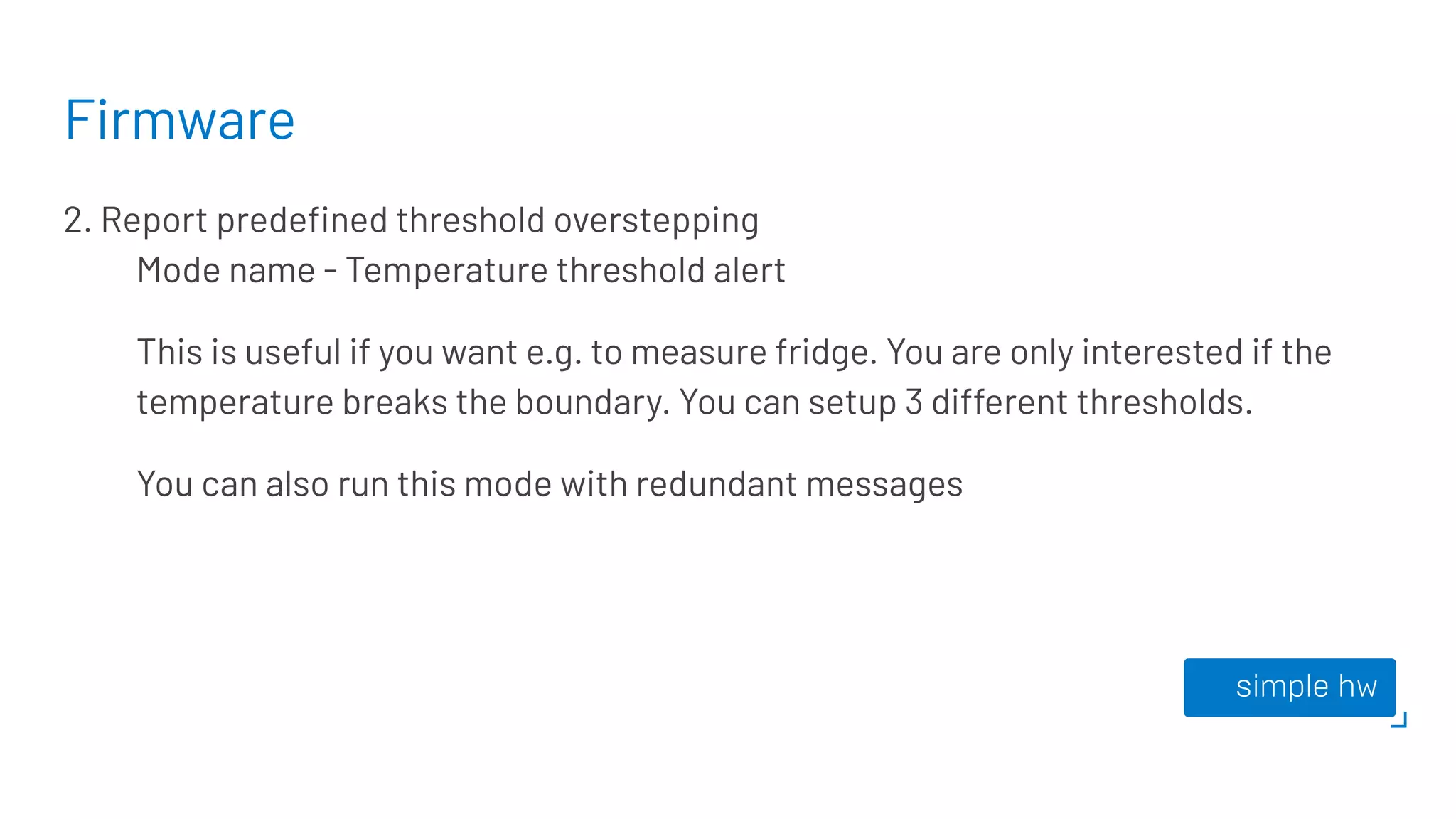

13. Firmware
2. Report predefined threshold overstepping
Mode name - Temperature threshold alert
This is useful if you want e.g. to measure fridge. You are only interested if the
temperature breaks the boundary. You can setup 3 different thresholds.
You can also run this mode with redundant messages

14. Firmware
3. Measure in predefined time intervals, aggregate and report periodically
Mode name: Periodic alert
This is useful if because of regulatory requirements you need to measure and report
temperature in periodic time intervals.
So e.g. you can measures each 20 seconds (for other watchdogs to report immediately),
record each 5 minutes, send a message each 15 minutes with last 3 temp recordings.
Plus you can report past 2 messages, so if messages get lost, the IoT platform will
reconstruct all the data.
All the parameters are configurable via downlinks.

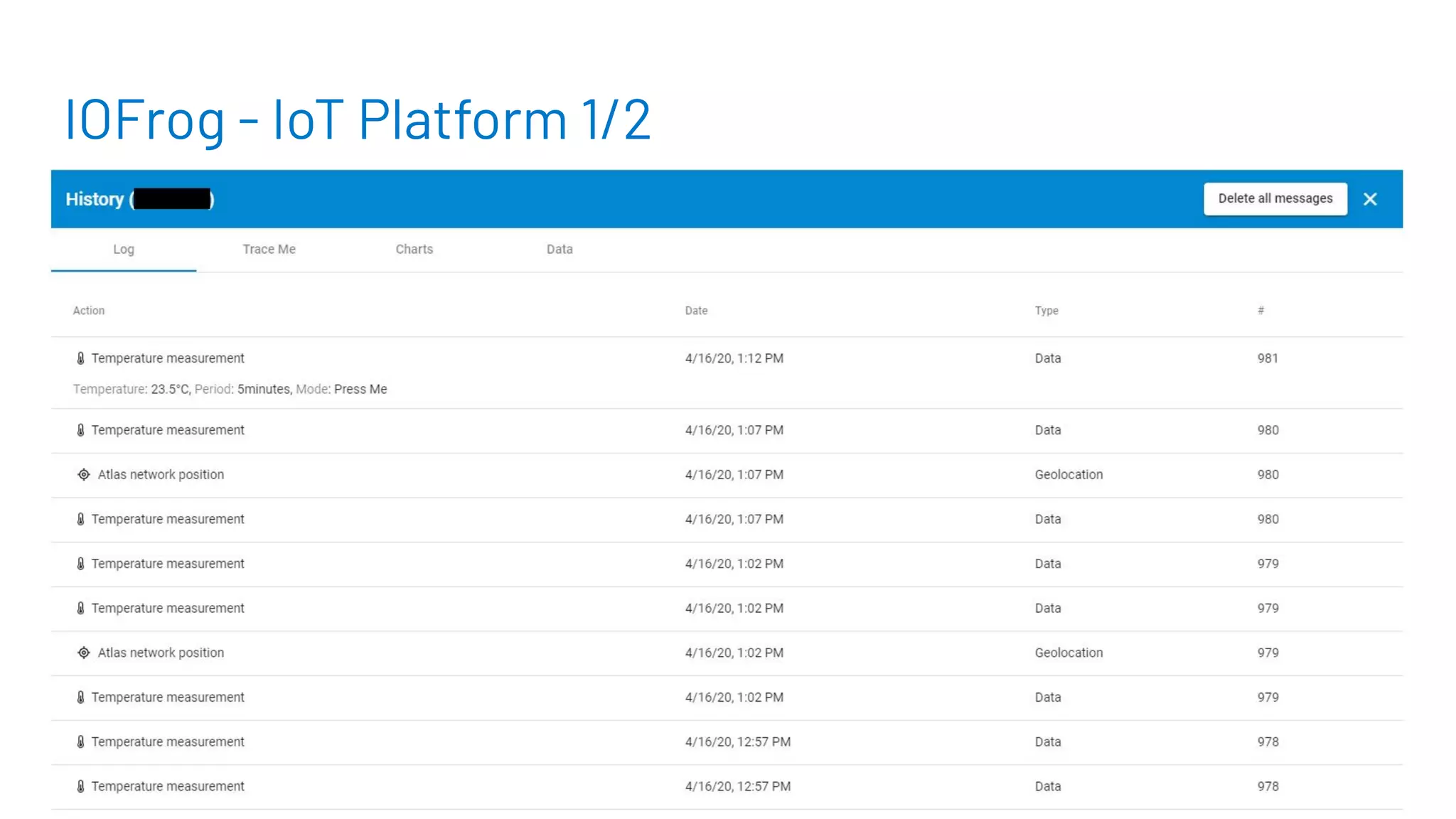

15. IOFrog - IoT Platform 1/2

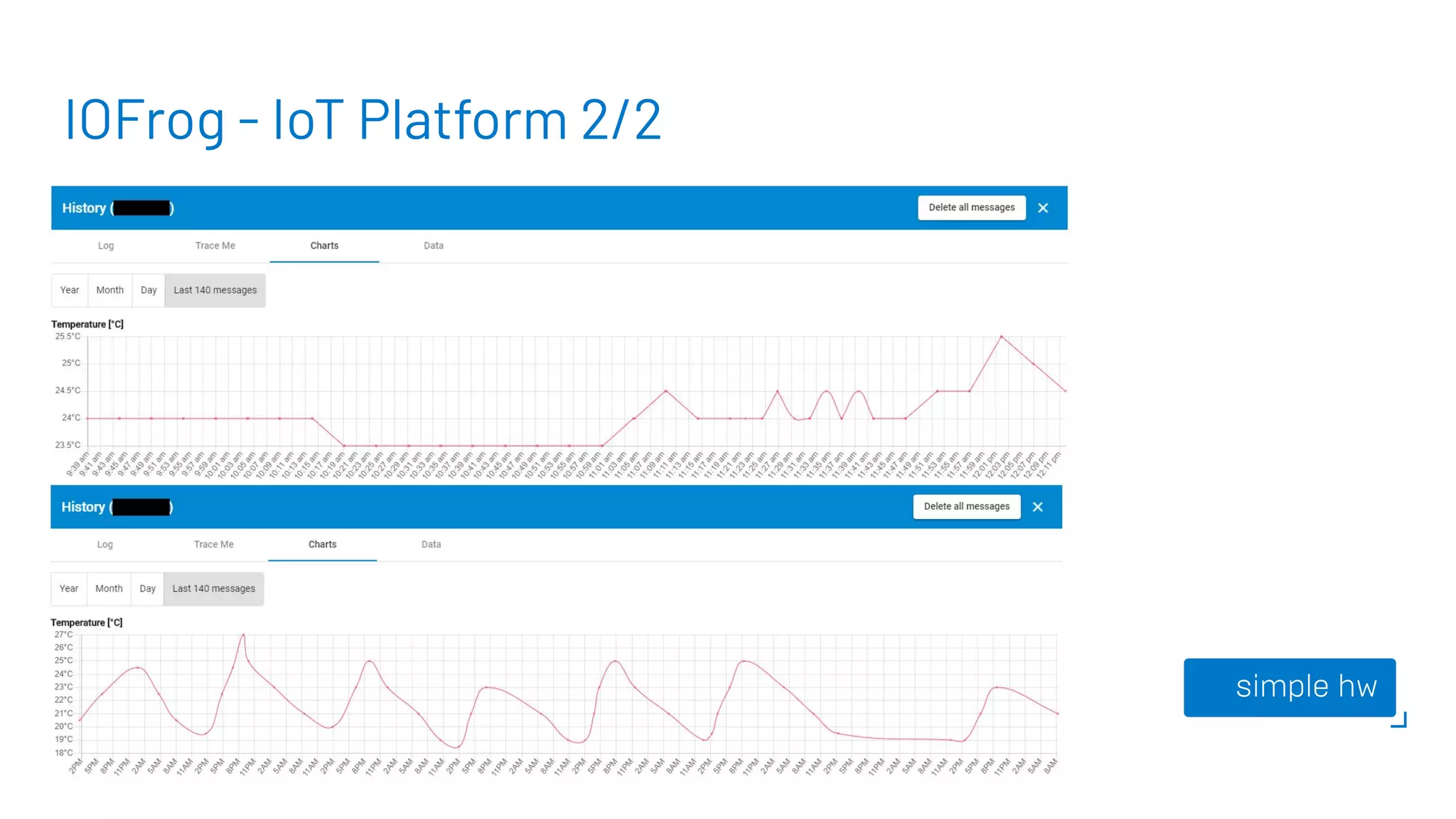

16. IOFrog - IoT Platform 2/2

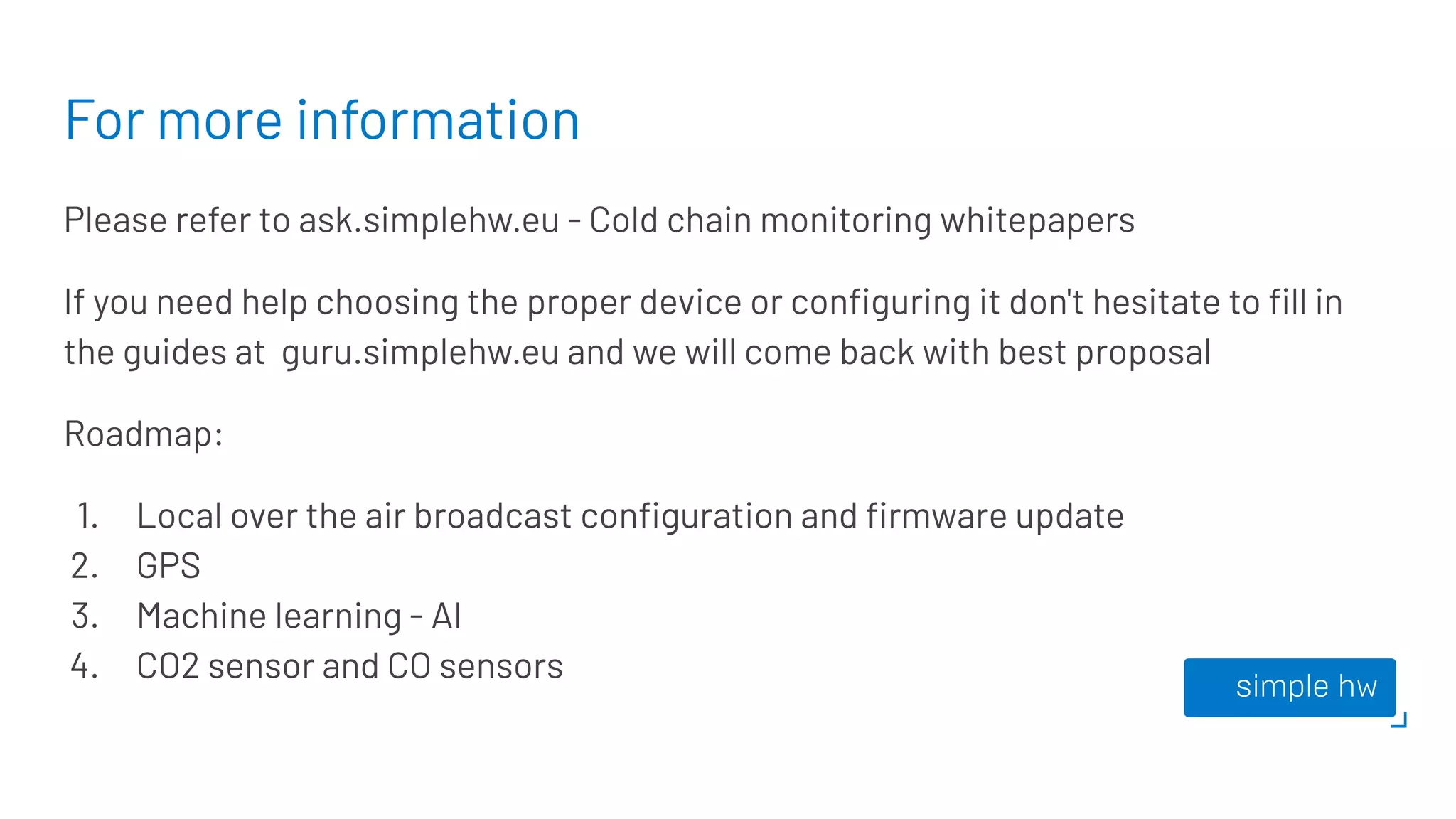

17. For more information
Please refer to ask.simplehw.eu - Cold chain monitoring whitepapers
If you need help choosing the proper device or configuring it don't hesitate to fill in
the guides at guru.simplehw.eu and we will come back with best proposal
Roadmap:
1. Local over the air broadcast configuration and firmware update
2. GPS
3. Machine learning - AI
4. CO2 sensor and CO sensors

18. Now it is time for your questions!

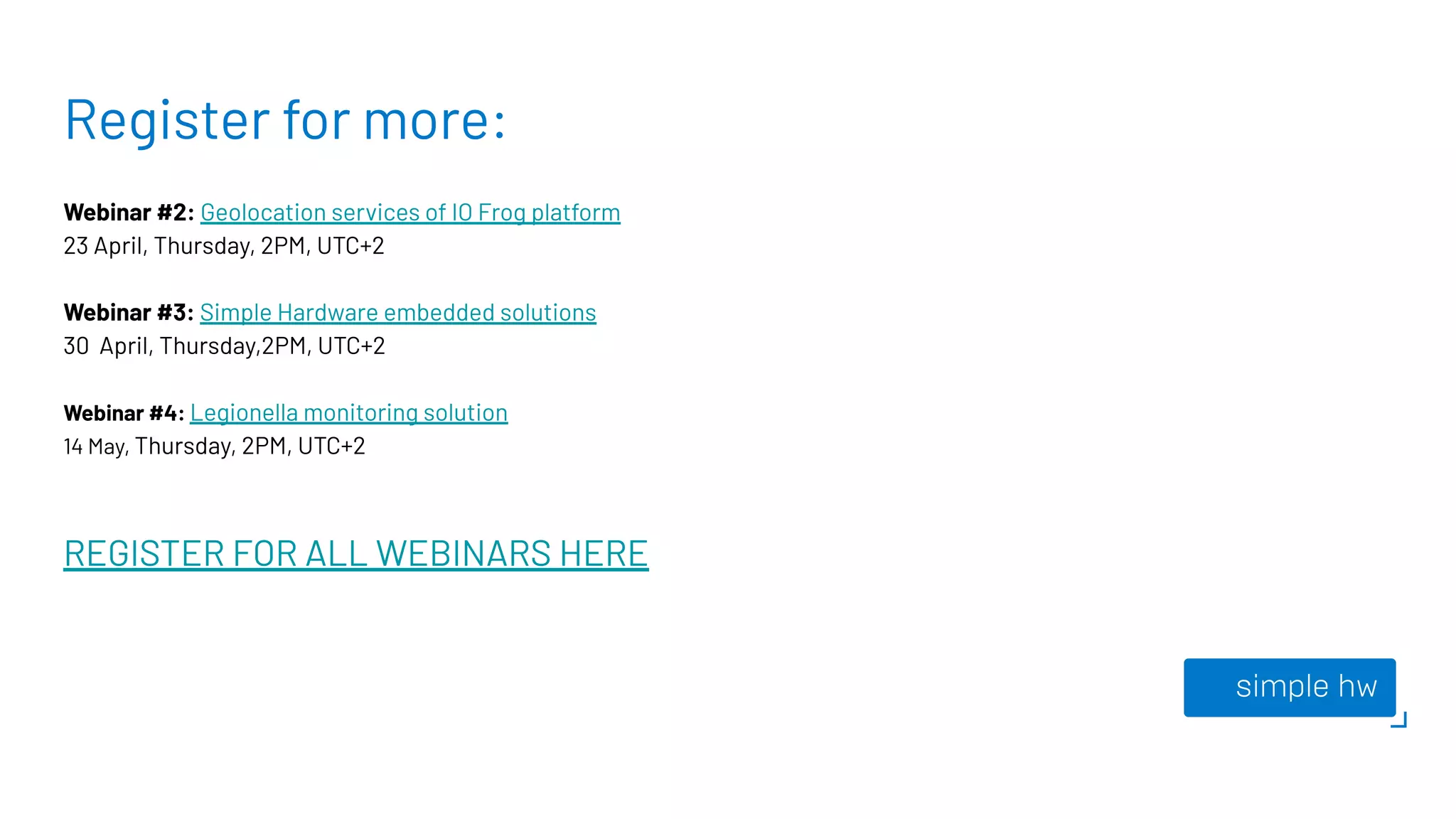

19. Register for more:
Webinar #2: Geolocation services of IO Frog platform
23 April, Thursday, 2PM, UTC+2
Webinar #3: Simple Hardware embedded solutions
30 April, Thursday,2PM, UTC+2
Webinar #4: Legionella monitoring solution
14 May, Thursday, 2PM, UTC+2
REGISTER FOR ALL WEBINARS HERE
