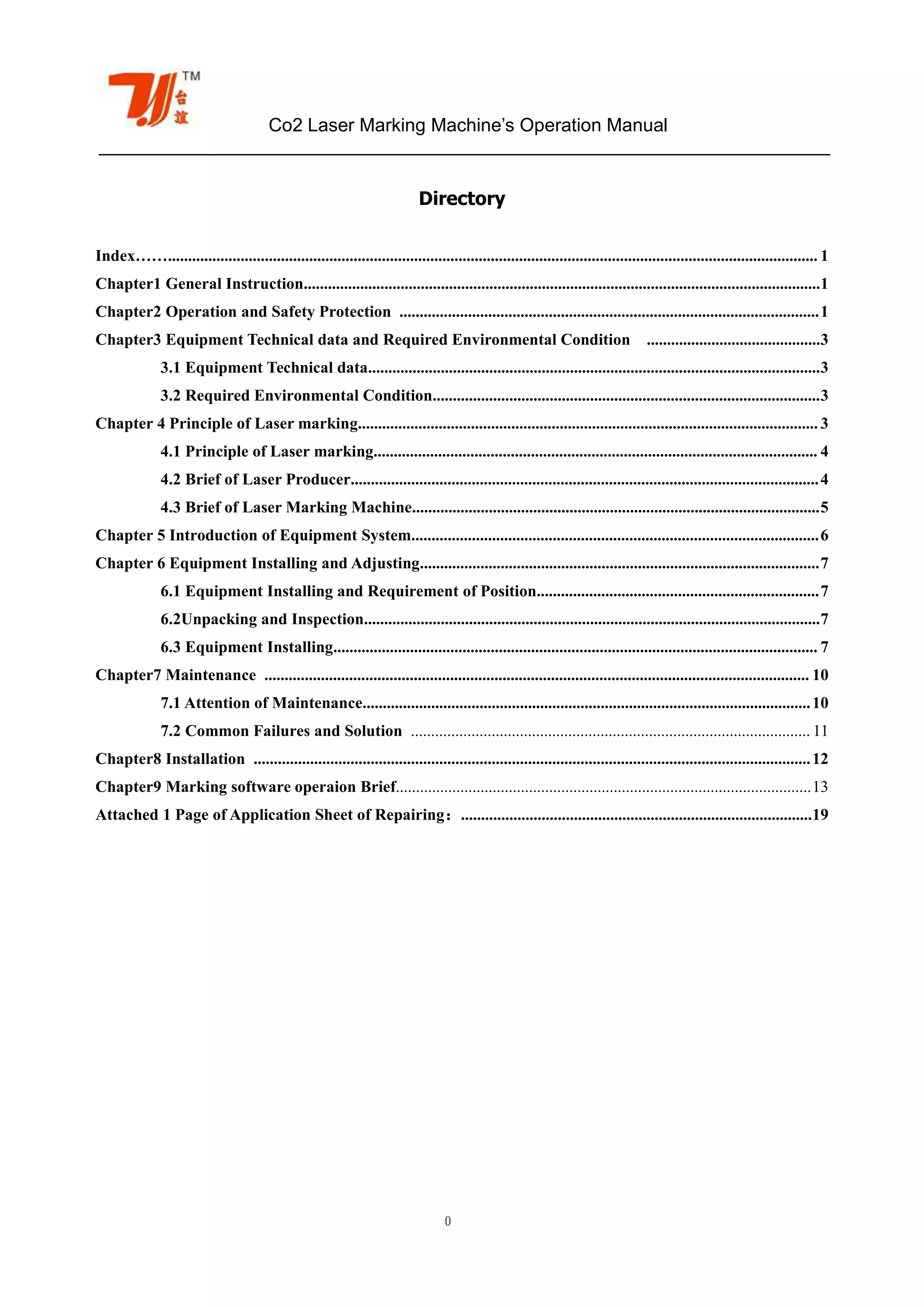

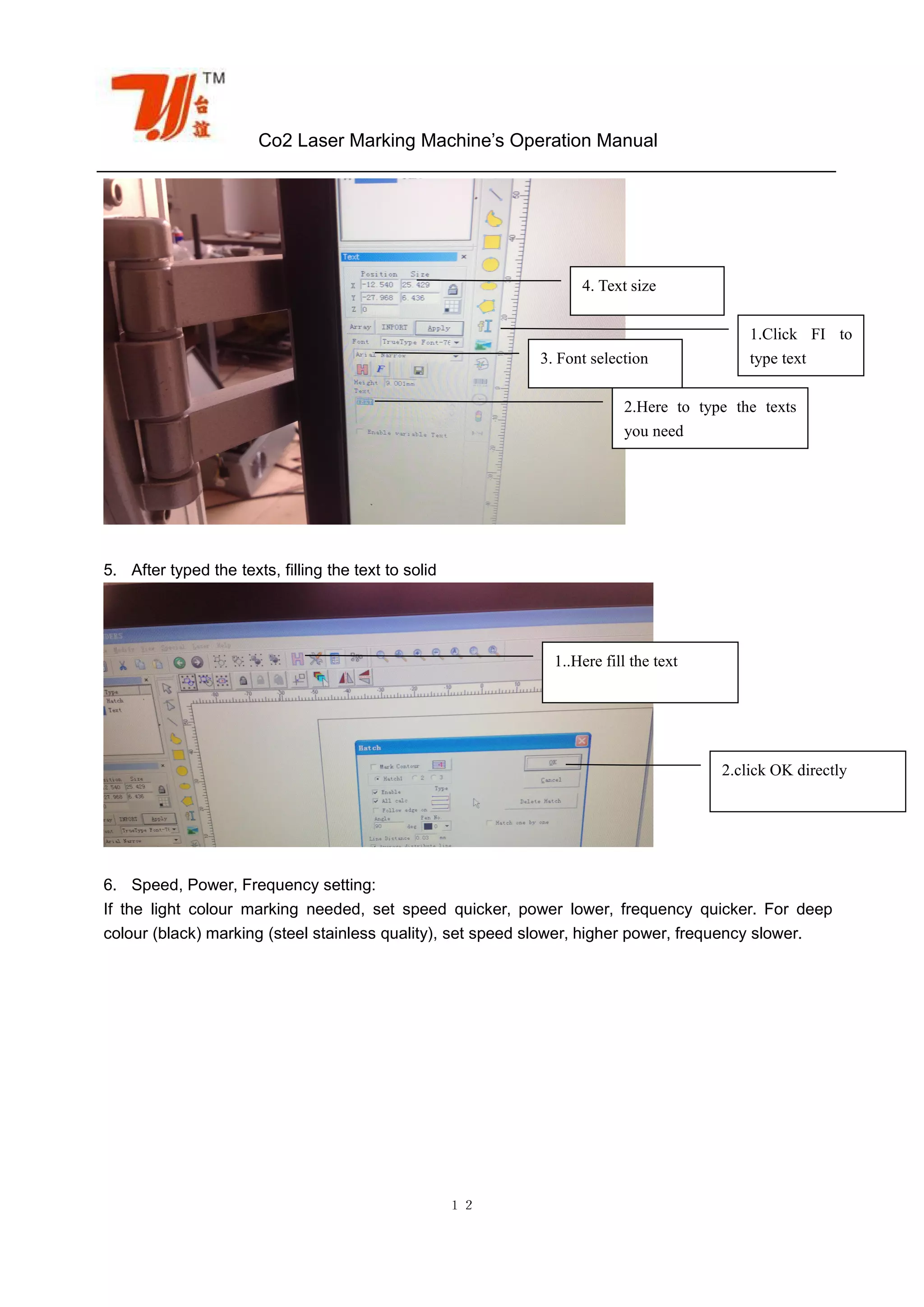

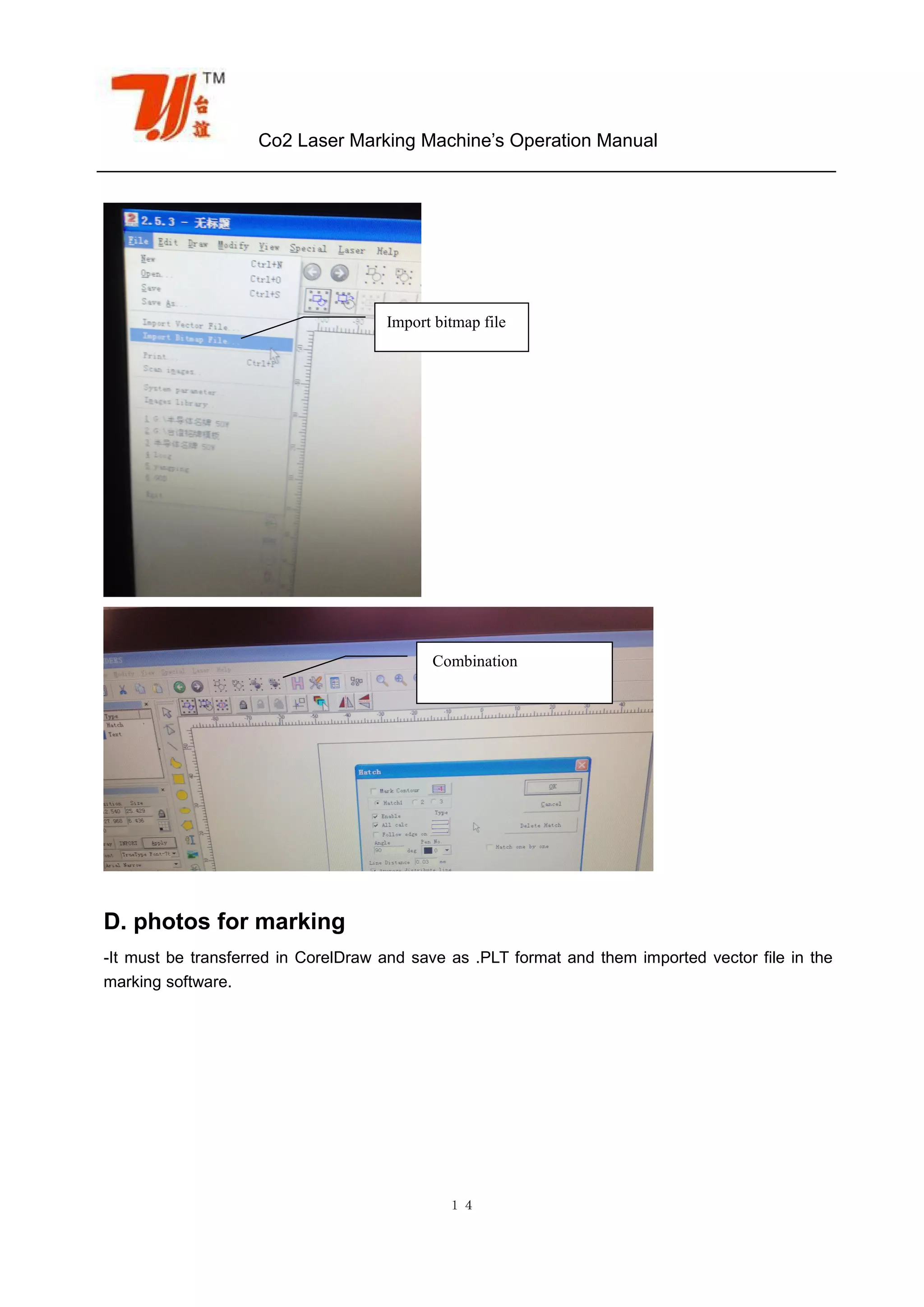

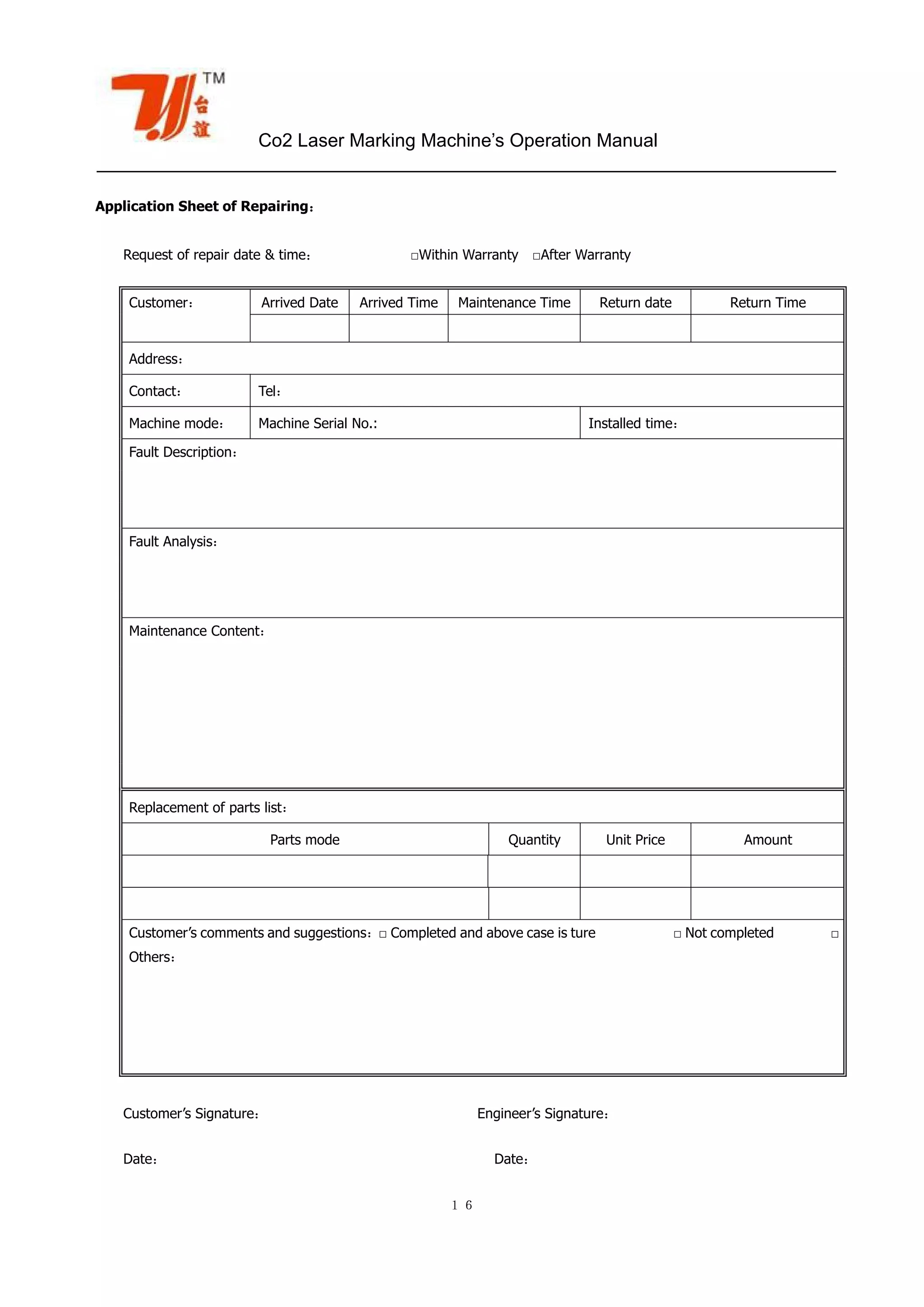

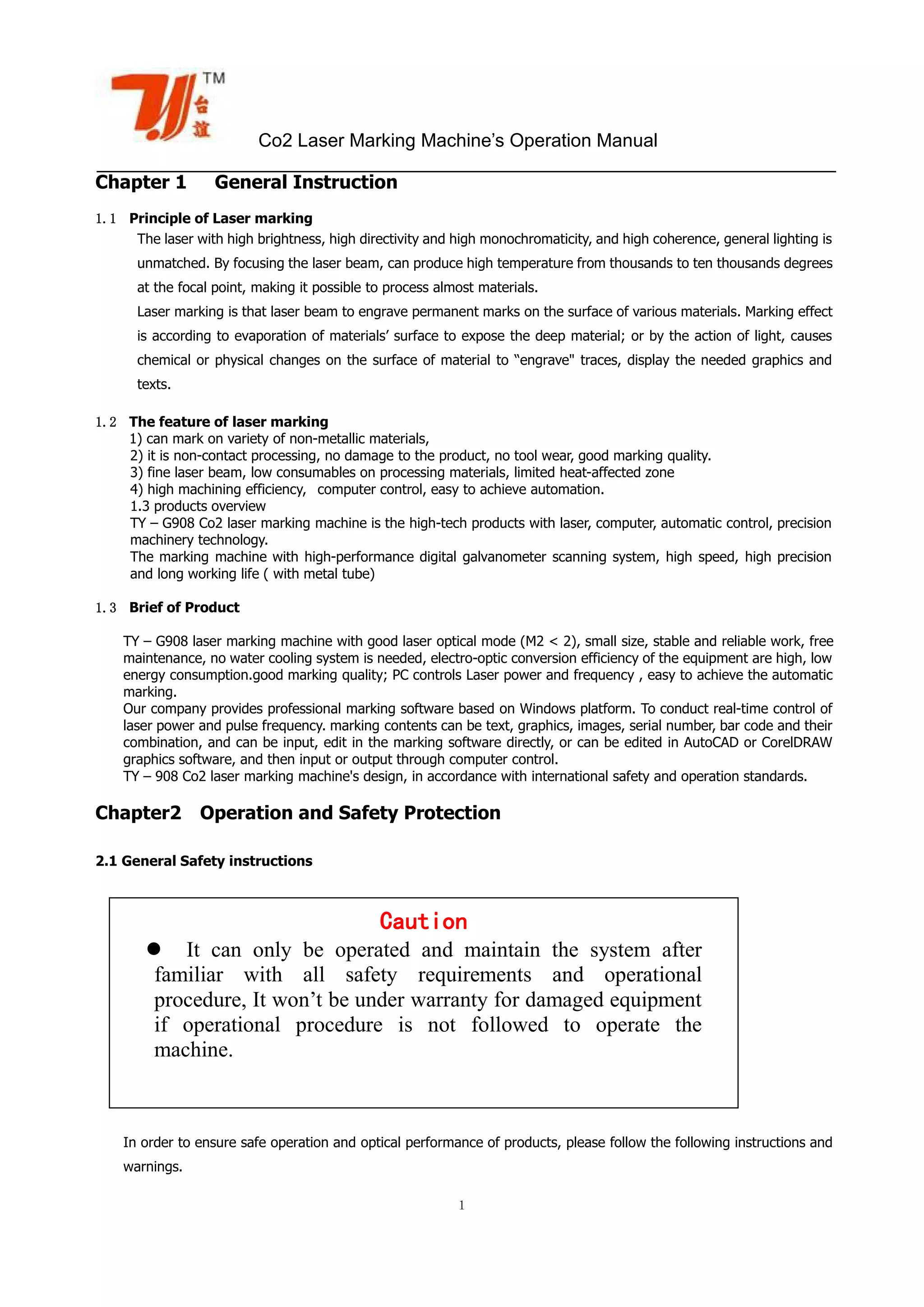

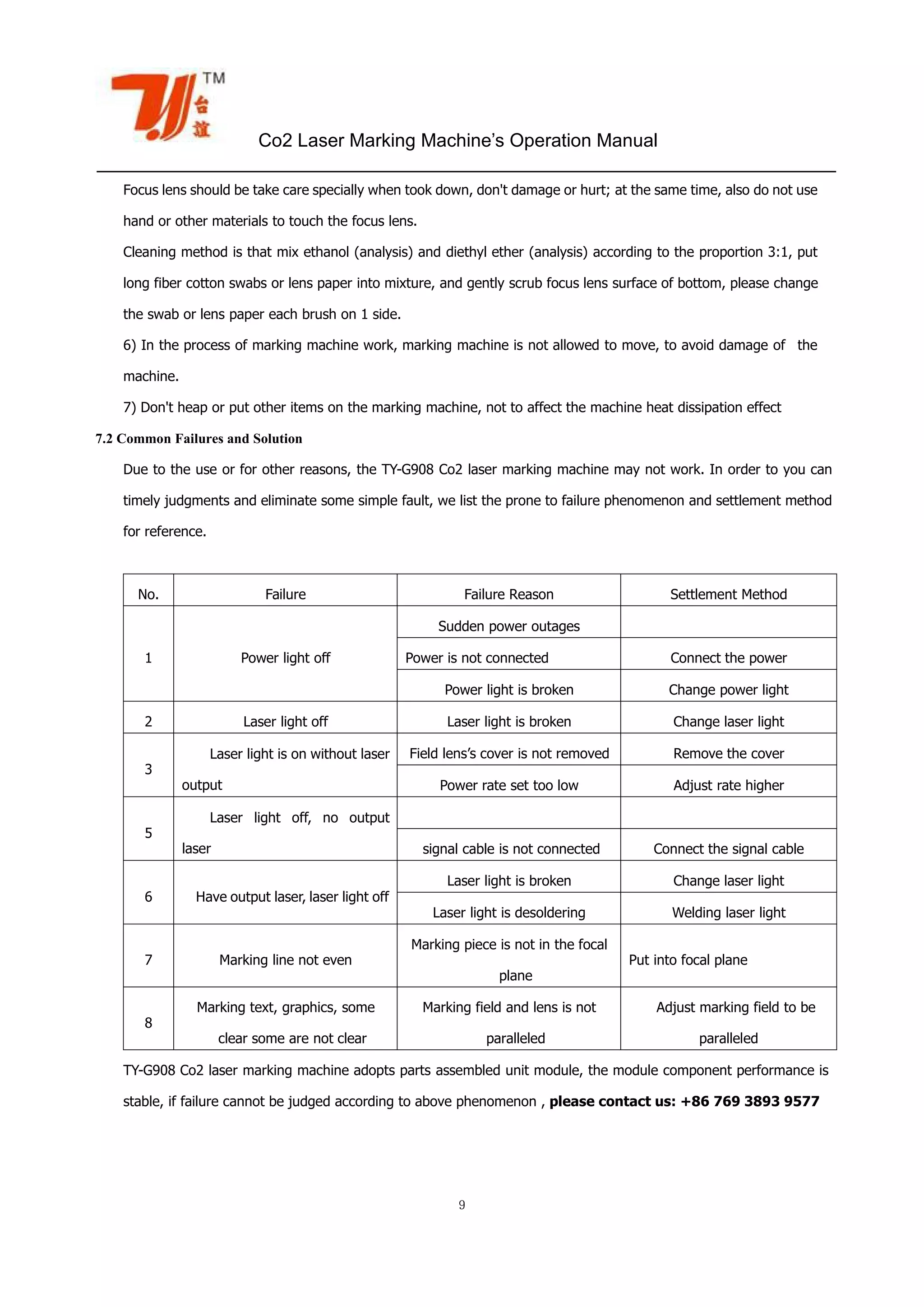

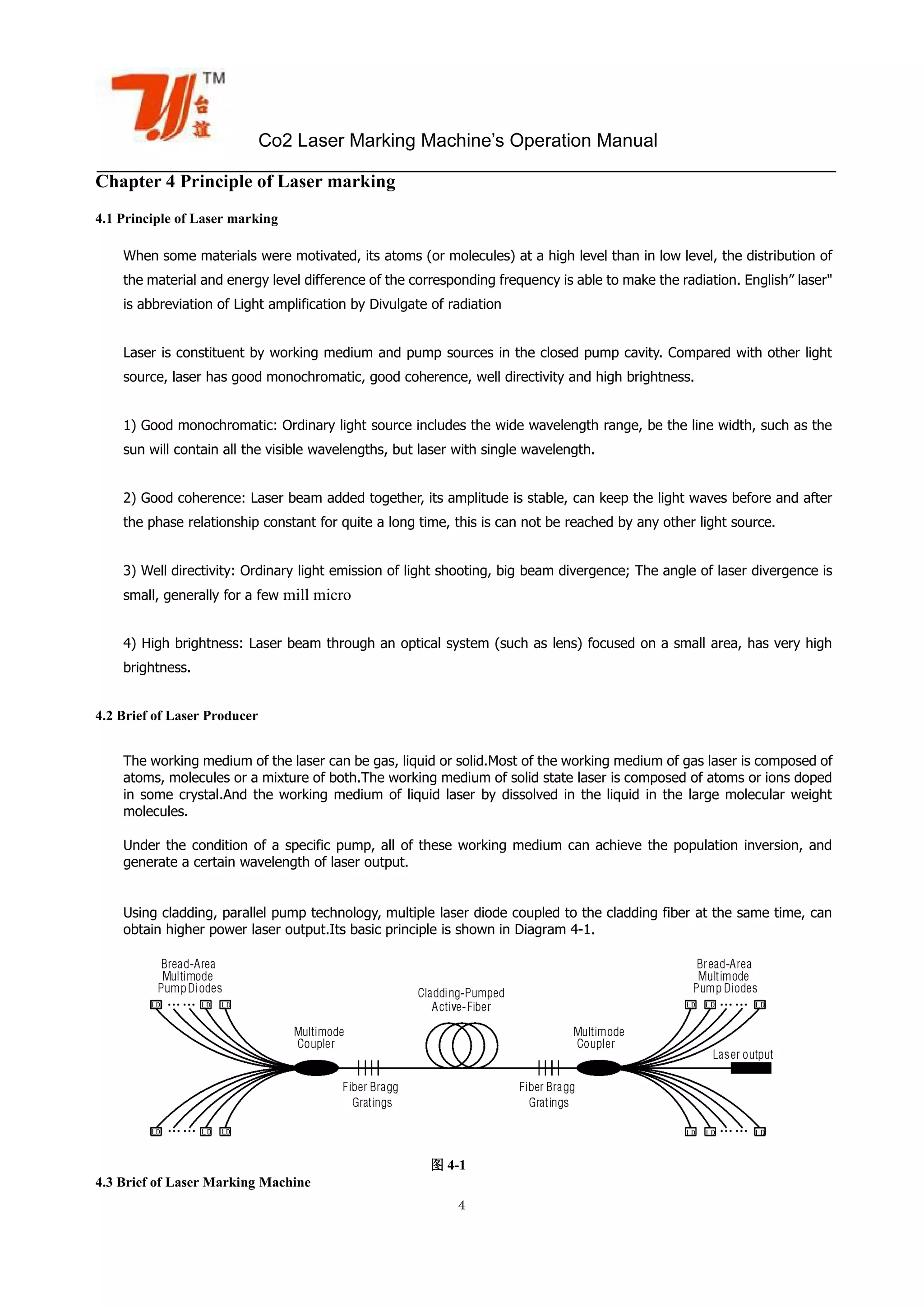

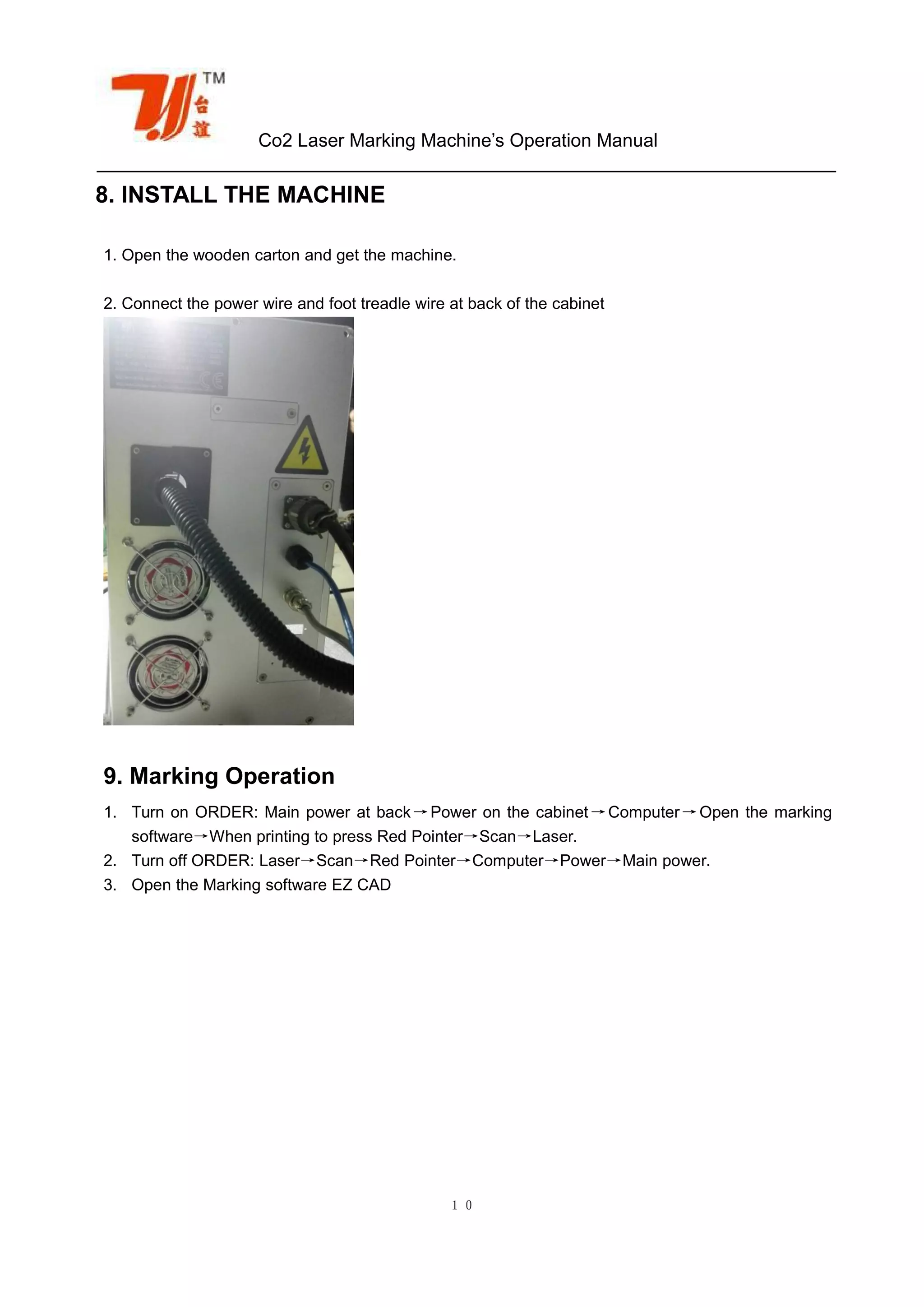

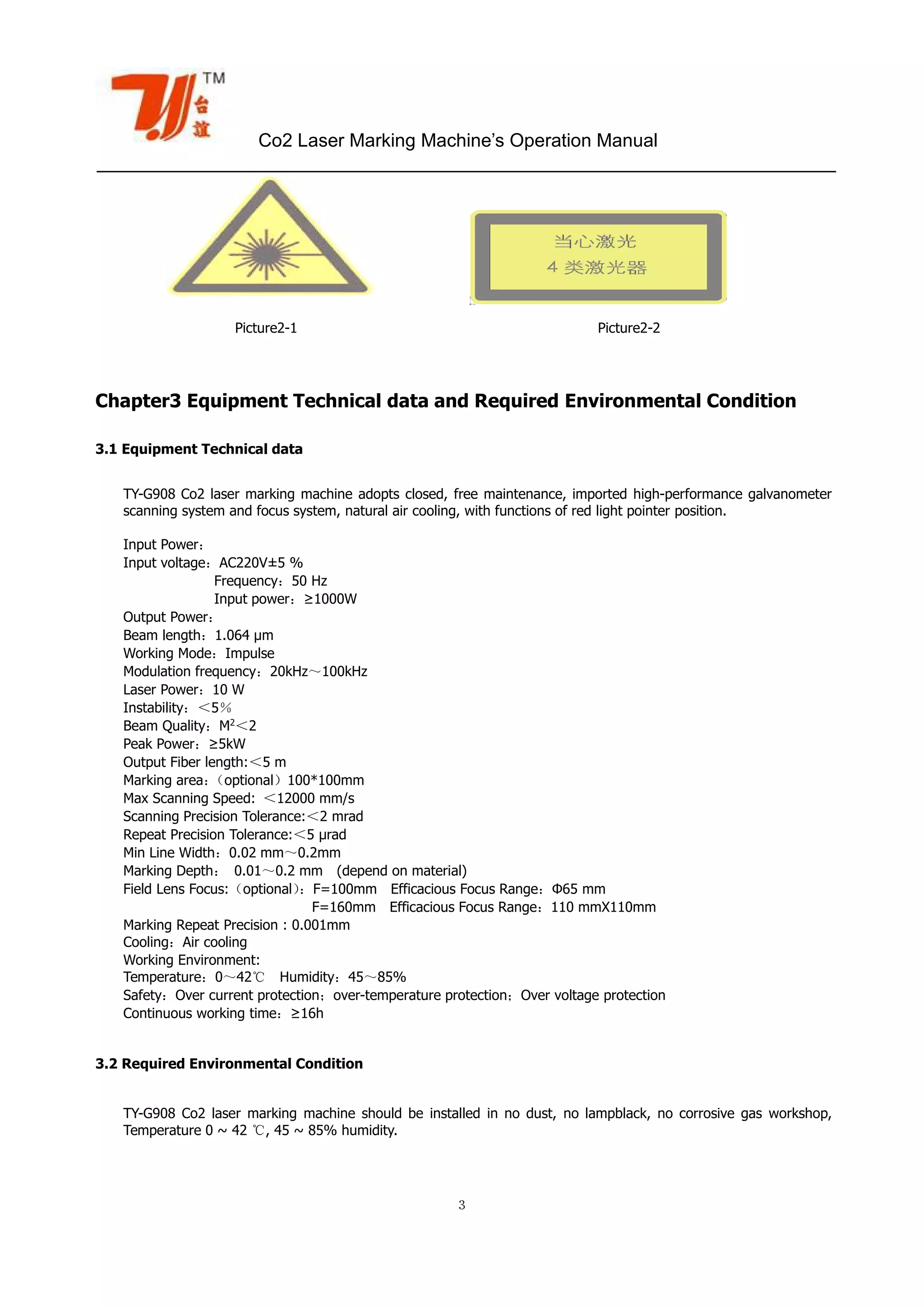

This Taiyi Co2 laser marking machine's operation manual contain General Instruction,Operation and Safety Protection,Equipment Technical data and Required Environmental Condition,Introduction of Equipment System, Maintenance,etc.
Laporan Praktikum Proses Produksi 2020 Mhd. Brian Awiruddin NIM 21050118130075BrianAwiruddin
Laporan Praktikum Proses Produksi 2020. Mahasiswa Teknik Mesin Undip pada semester 4 melakukan praktikum Proses Produksi makan dibuatlah laporan praktikumnya.
This report is prepared at Instrumentation Limited, Kota. this is for Mechanical Engineering branch trainees. It will help you to prepare a report on IL.
Laporan Praktikum Proses Produksi 2020 Mhd. Brian Awiruddin NIM 21050118130075BrianAwiruddin
Laporan Praktikum Proses Produksi 2020. Mahasiswa Teknik Mesin Undip pada semester 4 melakukan praktikum Proses Produksi makan dibuatlah laporan praktikumnya.
This report is prepared at Instrumentation Limited, Kota. this is for Mechanical Engineering branch trainees. It will help you to prepare a report on IL.
Non-Destructive Testing is a simple way of testing without destroying.Techshore Inspection Services, with a humble beginning in Cochin, India started as an Engineering, Procurement and Construction company offering wide range of innovative services and engineering solutions in the field of Oil and Gas, Power and other major industries in the disciplines of Mechanical, Civil, Instrumentation and NDT, soon expanded its business into professional training in all the aforesaid disciplines.
초소형의 가볍고 컴팩트한 크기로 탁월한 인식률을 자랑하는, OEM 어플리케이션을 위한 비용대비 효율적인 산업용 솔루션입니다.
모터는 응용 소프트웨어 명령을 통한 온/오프 조절이 특징인 레이저스캐너 입니다.
데이타로직 DS1100 고정식 바코드스캐너는 광범위한 판독 영역을 포함하여 출력창에 매우 근접하게 스캔하는 덕분에 고해상도 코드에 최적화된 성능을 자랑합니다.
강력한 RISC 디코더와 믿을 수있는 디코딩 알고리즘 및 광학 성능을 완벽하게 결합하여 손상되거나 제대로 인쇄되지 않은 바코드에서도 최고의 판독 속도와 정확성을 보장합니다.
기존의 제어시스템, PC 또는 PLC와의 통합 및 연결은 2개의 고속 직렬 인터페이스를 사용하여 매우 쉽습니다.
멀티 포인트 스캐닝 구성은 마스터 - 슬레이브 또는 멀티플렉서 연결을 사용하여 사용할 수 있습니다.
데이타로직 DS1100 바코드스캐너는 IP65 견고한 산업용 하우징이 장착되어 있으며 특정 용도의 임베디드 모듈로도 제공됩니다.
스캔 속도 : 최대 500scans/s
보호 등급 : IP65
최대 해상도 : 0.127mm(5mils)
소프트웨어 명령을 통한 모터 온/오프
전원 : 5VDC, 최대2W
보호 등급 : IP65
ELECTRICAL CHARACTERISTICS
Power Supply : 5 VDC ±5% (4 to 30 VDC with converter)
Power Consumption : 1.5 W
MECHANICAL CHARACTERISTICS
Dimensions : 80 x 50 x 22 mm (3.15 x 1.97 x 0.89 in.)
Weight (Without cable) : <100 g (<3.53 oz)
Case meterial : Magnesium (body) + Polycarbonate (cover)
PERFORMANCE
Light Source : Visible laser diode (650 nm)
Scanning Speed : 500 scans/s
MAX. Resolution :
- 1xxx models : 0.20 mm (8 mils)
- 2xxx models : 0.12 mm (5 mils)
MAX. Reading Distance :
- 1xxx models : 220 mm (8.7 in) on 0.50 mm (20 mils) code res.
- 2xxx models : 110 mm (4.3 in) on 0.30 mm (12 mils) code res.
MAX. Depth of Field :
- 1xxx models : 190 mm (7.5 in) on 0.50 mm (20 mils) code res.
- 2xxx models : 100 mm (3.7 in) on 0.30 mm (12 mils) code res.
Aperture Angle : 70 degrees
Raster Aperture : 15 mm (0.6 in) at 220 mm (8.7 in)
Readable Codes : Code 2/5, Code 39, Code 93, Code 128, EAN/UPC, EAN 128, Codabar, Plessey, Pharmacode
Multilabel Reading : Up to 6 different codes in the same reading phase
COMM. Interfaces : RS232+RS485 half duplex
Baud Rate : Up to 115,200 bauds
Input Signal : One programmable digital input and One External Trigger digital input
Output Signals : Two programmable digital outputs
Programming Methode : Via serial port (WINHOST™)
Operating Modes : ‘On line’, ‘Serial On-line’, ‘Automatic’, ‘Test’
Motor Control : Motor on/off software commands
LED Indicators : ‘Power On’, ‘Ext Trigger’, ‘Laser On’, ‘Good Read’, ‘Tx Data’
Laser Classification : IEC 825-1 Class 2; CDRH Class II
Laser Control : Security system to turn laser off in case of motor slow down or failure
ENVIRONMENT
Operating Temperature : 0 to 45 °C (32 to 113 °F)
Storage Temperature : -20 to 70 °C (-4 to 158 °F)
Humidity : 90% non condensing
Vibration Resistance : IEC 68-2-6 test FC 1.5 mm; 10 to 55 Hz; 2 hours on each axis
Shock Resistance : IEC 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis
Protection Class : IP65
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
This Advertising letter laser welder operation manual contains Configuration of equipment,Introduction of structure and maintenance guide,installation,Operation manual,etc
Any interests,welcome to contact me Mobile/Wechat/whatsApp/Skype:+86 135 3855 4312
Non-Destructive Testing is a simple way of testing without destroying.Techshore Inspection Services, with a humble beginning in Cochin, India started as an Engineering, Procurement and Construction company offering wide range of innovative services and engineering solutions in the field of Oil and Gas, Power and other major industries in the disciplines of Mechanical, Civil, Instrumentation and NDT, soon expanded its business into professional training in all the aforesaid disciplines.
초소형의 가볍고 컴팩트한 크기로 탁월한 인식률을 자랑하는, OEM 어플리케이션을 위한 비용대비 효율적인 산업용 솔루션입니다.
모터는 응용 소프트웨어 명령을 통한 온/오프 조절이 특징인 레이저스캐너 입니다.
데이타로직 DS1100 고정식 바코드스캐너는 광범위한 판독 영역을 포함하여 출력창에 매우 근접하게 스캔하는 덕분에 고해상도 코드에 최적화된 성능을 자랑합니다.
강력한 RISC 디코더와 믿을 수있는 디코딩 알고리즘 및 광학 성능을 완벽하게 결합하여 손상되거나 제대로 인쇄되지 않은 바코드에서도 최고의 판독 속도와 정확성을 보장합니다.
기존의 제어시스템, PC 또는 PLC와의 통합 및 연결은 2개의 고속 직렬 인터페이스를 사용하여 매우 쉽습니다.
멀티 포인트 스캐닝 구성은 마스터 - 슬레이브 또는 멀티플렉서 연결을 사용하여 사용할 수 있습니다.
데이타로직 DS1100 바코드스캐너는 IP65 견고한 산업용 하우징이 장착되어 있으며 특정 용도의 임베디드 모듈로도 제공됩니다.
스캔 속도 : 최대 500scans/s
보호 등급 : IP65
최대 해상도 : 0.127mm(5mils)
소프트웨어 명령을 통한 모터 온/오프
전원 : 5VDC, 최대2W
보호 등급 : IP65
ELECTRICAL CHARACTERISTICS
Power Supply : 5 VDC ±5% (4 to 30 VDC with converter)
Power Consumption : 1.5 W
MECHANICAL CHARACTERISTICS
Dimensions : 80 x 50 x 22 mm (3.15 x 1.97 x 0.89 in.)
Weight (Without cable) : <100 g (<3.53 oz)
Case meterial : Magnesium (body) + Polycarbonate (cover)
PERFORMANCE
Light Source : Visible laser diode (650 nm)
Scanning Speed : 500 scans/s
MAX. Resolution :
- 1xxx models : 0.20 mm (8 mils)
- 2xxx models : 0.12 mm (5 mils)
MAX. Reading Distance :
- 1xxx models : 220 mm (8.7 in) on 0.50 mm (20 mils) code res.
- 2xxx models : 110 mm (4.3 in) on 0.30 mm (12 mils) code res.
MAX. Depth of Field :
- 1xxx models : 190 mm (7.5 in) on 0.50 mm (20 mils) code res.
- 2xxx models : 100 mm (3.7 in) on 0.30 mm (12 mils) code res.
Aperture Angle : 70 degrees
Raster Aperture : 15 mm (0.6 in) at 220 mm (8.7 in)
Readable Codes : Code 2/5, Code 39, Code 93, Code 128, EAN/UPC, EAN 128, Codabar, Plessey, Pharmacode
Multilabel Reading : Up to 6 different codes in the same reading phase
COMM. Interfaces : RS232+RS485 half duplex
Baud Rate : Up to 115,200 bauds
Input Signal : One programmable digital input and One External Trigger digital input
Output Signals : Two programmable digital outputs
Programming Methode : Via serial port (WINHOST™)
Operating Modes : ‘On line’, ‘Serial On-line’, ‘Automatic’, ‘Test’
Motor Control : Motor on/off software commands
LED Indicators : ‘Power On’, ‘Ext Trigger’, ‘Laser On’, ‘Good Read’, ‘Tx Data’
Laser Classification : IEC 825-1 Class 2; CDRH Class II
Laser Control : Security system to turn laser off in case of motor slow down or failure
ENVIRONMENT
Operating Temperature : 0 to 45 °C (32 to 113 °F)
Storage Temperature : -20 to 70 °C (-4 to 158 °F)
Humidity : 90% non condensing
Vibration Resistance : IEC 68-2-6 test FC 1.5 mm; 10 to 55 Hz; 2 hours on each axis
Shock Resistance : IEC 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis
Protection Class : IP65
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
This Advertising letter laser welder operation manual contains Configuration of equipment,Introduction of structure and maintenance guide,installation,Operation manual,etc
Any interests,welcome to contact me Mobile/Wechat/whatsApp/Skype:+86 135 3855 4312
데이타로직 DS2200 1D 산업용 고정식 바코드스캐너 산업용 레이저스캐너 매뉴얼HION IT
고성능의 초소형 크기로, 다양한 연결성 및 프로그래밍 기능을 통해 DS2200은 통합 기능과 높은 신뢰성이 필수적이며 비용대비 효율성이 핵심요소인 OEM 및 기타 애플리케이션에 이상적인 구성 요소입니다.
데이타로직 DS2200 고정식 바코드 스캐너의 높은 스캐닝 속도와 광학 품질은 새로운 세대의 실시간 디코더와 유연한 디코딩 소프트웨어와 함께 가장 널리 사용되는 바코드 심볼로지 및 손상되거나 제대로 인쇄되지 않은 바코드에 대해 높은 디코딩 성능과 안정성을 제공합니다.
Datalogic DS2200 산업용 고정식 바코드스캐너는 소형이며 경량으로 인해 자동화 장비로의 통합이 매우 쉽습니다.
듀얼 직렬 인터페이스는 장치의 다양성과 연결성을 향상시켜 마스터슬레이브 또는 멀티플렉서 연결을 통해 멀티 포인트 스캐닝 구성을 가능하게합니다. 사용자 친화적인 설치 절차는 쉽고 직관적 인 WINHOST ™ 소프트웨어를 통해 수행됩니다. DS2200-2xxx 모델은 초 고밀도 코드에서도 우수한 성능을 제공합니다.
작은 크기
고 밀도의 코드에서도 뛰어난 리딩성능
OEM에 적합한 설계
높은 밀도의 코드 리딩(최대 0.076mm / 3mils)
크기 : 50x40x28mm
보호등급 : IP65
스캔속도 : 500scans/s (1000scans/s on demand)
리딩범위 : 50mm에서 200mm
최대해상도 : 0.076mm(3mils)
전원 : 5VDC, 최대2W
보호 등급: IP65
적용분야:
자동기계의 OEM 통합
ATL
문서작업 기기
프린트 & 부착 시스템
고속 의약품 포장
포장기기
ELECTRICAL CHARACTERISTICS
Power Supply : 5 VDC ±5% (4 to 30 VDC with converter)
Power Consumption : 2 W
MECHANICAL CHARACTERISTICS
Dimensions : 50 x 40 x 28 mm (1.97 x 1.57 x 1.10 in)
Weight : 150 g (5.29 oz)
Case material : Die-cast zinc
PERFORMANCE
Light source : Visible laser diode (650 nm)
Max. Resolution :
- 0.15 mm (6 mils) for standard resolution models
- 0.076 mm (3 mils) for high resolution models
Scanning speed : 500 scans/sec
Max. Reading distance :
- 220 mm (on 0.60 mm/24 mils codes) for standard resolution models
- 125mm (on 0.20 mm/8 mils codes) for high resolution models
Max. Depth of field :
- 170 mm (on 0.60 mm/24 mils codes) for standard resolution models
- 85 mm (on 0.20 mm/8 mils codes) for high resolution models
Aperture angle :
- 52 degrees for standard resolution models
- 62 degrees for high resolution models
Raster Aperture : 15 mm (0.6 in) at 220 mm (8.7 in) for raster models
Readable codes : Code 2/5, Code 39, Code 93, Code 128, EAN/UPC, EAN128, Codabar, Pharmacode
Reconstruction software acb ™ : (Advanced Code Builder) integrated
Multilabel Reading : Up to 6 different codes in the same presence sensor phase
Communication Interface : Dual serial interface (RS232+RS485 half duplex)
Baud Rate : Up to 115.2 Kbauds
Input Signals : One external trigger digital input
Output Signals : Two programmable digital outputs
Programming Method : Via serial port (WINHOST™)
Operating Modes : ‘On line,’ ‘Serial On-line,’ ‘Automatic,’ ‘Test,’ ‘Verifier’
LED Indicators : ‘Power On,’ ‘External Trigger,’ ‘Good Read,’ ‘TX Data’
Laser Classification : IEC 825 Class 2
Laser Control : Security system to turn laser off in case of motor slow down or failure
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
Rotork YTC YT-3300(Rotork YTC YT-3350) Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.
Rotork YTC Smart Positioner, Electro Pneumatic Positioner, Volume Booster, Lock Up Valve, Solenoid Valve, Position Transmitter, I/P Converter Distributors, Suppliers, Traders, Wholesalers India
For any Enquiry Call Us: +91-11-2201-4325, Email at : info@ytcindia.com, Our Website :- www.ytcindia.com
Rotork YTC YT- 3300 Smart Positioner DealersYTC INDIA
Rotork YTC YT-3300(Rotork YTC YT-3350) Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.
Rotork YTC Smart Positioner, Electro Pneumatic Positioner, Volume Booster, Lock Up Valve, Solenoid Valve, Position Transmitter, Control Valves, Air Lock Relay, IP Converters, Limit Switches, Positioners, Positioner Feedback Transmitter, Solenoid Valves, Piston Actuated Valves, Globe Control Valves, Fairchild, YTC, Midland Distributors, Suppliers, Traders, Wholesalers India
For any Enquiry Call Us: +91-11-2201-4325, For Bulk Order Email at : Enquiry@ytcindia.com, Our Website :- www.ytcindia.com
"servo motor drive, servo motor drive dealers, servo motor drive dealers in ahmedabad, servo motor drive dealers in gujarat, servo motor drive dealers in india, servo motor drive suppliers, servo motor drive suppliers in ahmedabad, servo motor drive suppliers in gujarat, servo motor drive suppliers in india, servo motor drive distributors, servo motor drive distributors in ahmedabad, servo motor drive distributors in gujarat, servo motor drive distributors in india"
The 808nm diode laser hair removal machine E-012 is a device that uses a special laser with a pulse width of 808nm which can effectively penetrate hair follicles. Using selective light absorption theory, the laser is preferentially absorbed by the melanin of the hair, heating the hair shaft and follicle, destroying the hair follicle and oxygen organization around it. After the hair removal laser fires, the system employs a special cooling process that cools the skin and protects against damage and discomfort.
시크 고정식 바코드스캐너 CLV69x는 처리 속도가 매우 빠르고 판독이 아주 확실하며 최고 수준의 유연성과 성능을 자랑합니다.
이 장치에 탑재된 거리 측정 기술에 기반한 자동 초점 기능 덕분에 리딩 필드 내 코드를 높이에 관계없이 판독할 수 있습니다.
진보한 SMART+ 코드 복원 기술
매개 변수 메모리가 내장된 신형 커넥터
CAN, Ethernet, D-Sub 내장(사용하는 복제 수 커넥터에 따라 다름)
실시간 자동 초점 기능으로 인한 매우 높은 피사계 심도
사용자 친화적인 통합 GUI “SOPAS ET”
트래킹 기능이 내장되어 별도 시스템 컨트롤러를 사용할 필요가 없음
유연한 분류 및 필터링 기능
내장 LED 막대 그래프(조작 필드 포함)
FEATURE
Version : Standard Density
Connection type: Depending on the cloning plug used
Reading field: Front
Scanner design: Line scanner
Focus: Auto focus (alternative: dynamic focus control)
Focus adjustment time: ≤ 20 ms
Focus trigger source: Data interface, Switching inputs
Light source: Visible red light (660 nm)
MTBF: 100,000 h
Laser class: 2 (IEC 60825-1 (2007-3))
Field of view: ≤ 60 °
Code resolution: 0.25 mm ... 1 mm
Reading distance: 500 mm ... 2,100 mm 1)
Scanning frequency: 400 Hz ... 1,200 Hz
No. of distance configurations: 8
PERFORMANCE
Bar code types : Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
Print ratio: 2:1 ... 3:1
No. of codes per scan: 1 ... 20 (Standard decoder), 1 ... 6 (SMART decoder)
No. of codes per reading interval: 1 ... 50 (auto-discriminating)
No. of characters per reading interval: 5,000
No. of multiple readings: 1 ... 100
INTERFACE
Serial (RS-232, RS-422/485): V
Remark (Serial (RS-232, RS-422/485)): Only with cloning plug D-Sub and Ethernet
Function (Serial (RS-232, RS-422/485)): Host, AUX (only RS-232)
Data transmission rate (Serial (RS-232, RS-422/485)): 300 Baud ... 500 kBaud, AUX: 57.6 kBaud (RS-232)
Ethernet: V
Remark (Ethernet) : Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
Function (Ethernet) : Host, AUX
Protocol (Ethernet) : TCP/IP, EtherNet/IP, PROFINET (optional via external connection module CDF600-2), PROFINET Dual Port (optional via external connection module CDF600-2)
Data transmission rate (Ethernet): 10/100 Mbit
CAN bus : V
Function (CAN bus) : SICK CAN sensor network (Master/Slave, Multiplexer/Server)
Protocol (CAN bus) : CSN (SICK CAN Sensor Network)
Data transmission rate (CAN bus): 20 kbit/s ... 1 Mbit/s
PROFIBUS DP : V
Remark (PROFIBUS DP): Optional via external connection module (CDF600-2)
DeviceNet : V
Remark (DeviceNet): Optional via external connection module (CDM + CMF)
Control elements: 2 buttons
Switching inputs: 6 (“Sensor 1” ... “Sensor 6”)
Switching outputs: 4 (“Result 1” ... “Result 4”)
Reading pulse: Auto pulse, CAN, Switching inputs, Serial interface
Optical indicators: 6 LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10 LEDs))
Parameter storage: Integrated in cloning plug
Configuration software: SOPAS ET
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
IRJET - Smart Industrial Control and Safety System
Co2 laser marking machine's operation manual
1. Co2 Laser Marking Machine’s Operation Manual
0
Directory
Index……................................................................................................................................................................. 1
Chapter1 General Instruction................................................................................................................................1
Chapter2 Operation and Safety Protection ........................................................................................................1
Chapter3 Equipment Technical data and Required Environmental Condition ...........................................3
3.1 Equipment Technical data................................................................................................................3
3.2 Required Environmental Condition................................................................................................3
Chapter 4 Principle of Laser marking.................................................................................................................. 3
4.1 Principle of Laser marking.............................................................................................................. 4
4.2 Brief of Laser Producer....................................................................................................................4
4.3 Brief of Laser Marking Machine.....................................................................................................5
Chapter 5 Introduction of Equipment System.....................................................................................................6
Chapter 6 Equipment Installing and Adjusting...................................................................................................7
6.1 Equipment Installing and Requirement of Position......................................................................7
6.2Unpacking and Inspection.................................................................................................................7
6.3 Equipment Installing........................................................................................................................ 7
Chapter7 Maintenance ....................................................................................................................................... 10
7.1 Attention of Maintenance...............................................................................................................10
7.2 Common Failures and Solution ................................................................................................... 11
Chapter8 Installation ..........................................................................................................................................12
Chapter9 Marking software operaion Brief.......................................................................................................13
Attached 1 Page of Application Sheet of Repairing:.......................................................................................19
2. Co2 Laser Marking Machine’s Operation Manual
1
Chapter 1 General Instruction
1.1 Principle of Laser marking
The laser with high brightness, high directivity and high monochromaticity, and high coherence, general lighting is
unmatched. By focusing the laser beam, can produce high temperature from thousands to ten thousands degrees
at the focal point, making it possible to process almost materials.
Laser marking is that laser beam to engrave permanent marks on the surface of various materials. Marking effect
is according to evaporation of materials’ surface to expose the deep material; or by the action of light, causes
chemical or physical changes on the surface of material to “engrave" traces, display the needed graphics and
texts.
1.2 The feature of laser marking
1) can mark on variety of non-metallic materials,
2) it is non-contact processing, no damage to the product, no tool wear, good marking quality.
3) fine laser beam, low consumables on processing materials, limited heat-affected zone
4) high machining efficiency, computer control, easy to achieve automation.
1.3 products overview
TY – G908 Co2 laser marking machine is the high-tech products with laser, computer, automatic control, precision
machinery technology.
The marking machine with high-performance digital galvanometer scanning system, high speed, high precision
and long working life ( with metal tube)
1.3 Brief of Product
TY – G908 laser marking machine with good laser optical mode (M2 < 2), small size, stable and reliable work, free
maintenance, no water cooling system is needed, electro-optic conversion efficiency of the equipment are high, low
energy consumption.good marking quality; PC controls Laser power and frequency , easy to achieve the automatic
marking.
Our company provides professional marking software based on Windows platform. To conduct real-time control of
laser power and pulse frequency. marking contents can be text, graphics, images, serial number, bar code and their
combination, and can be input, edit in the marking software directly, or can be edited in AutoCAD or CorelDRAW
graphics software, and then input or output through computer control.
TY – 908 Co2 laser marking machine's design, in accordance with international safety and operation standards.
Chapter2 Operation and Safety Protection
2.1 General Safety instructions
In order to ensure safe operation and optical performance of products, please follow the following instructions and
warnings.
Caution
It can only be operated and maintain the system after
familiar with all safety requirements and operational
procedure, It won’t be under warranty for damaged equipment
if operational procedure is not followed to operate the
machine.
3. Co2 Laser Marking Machine’s Operation Manual
2

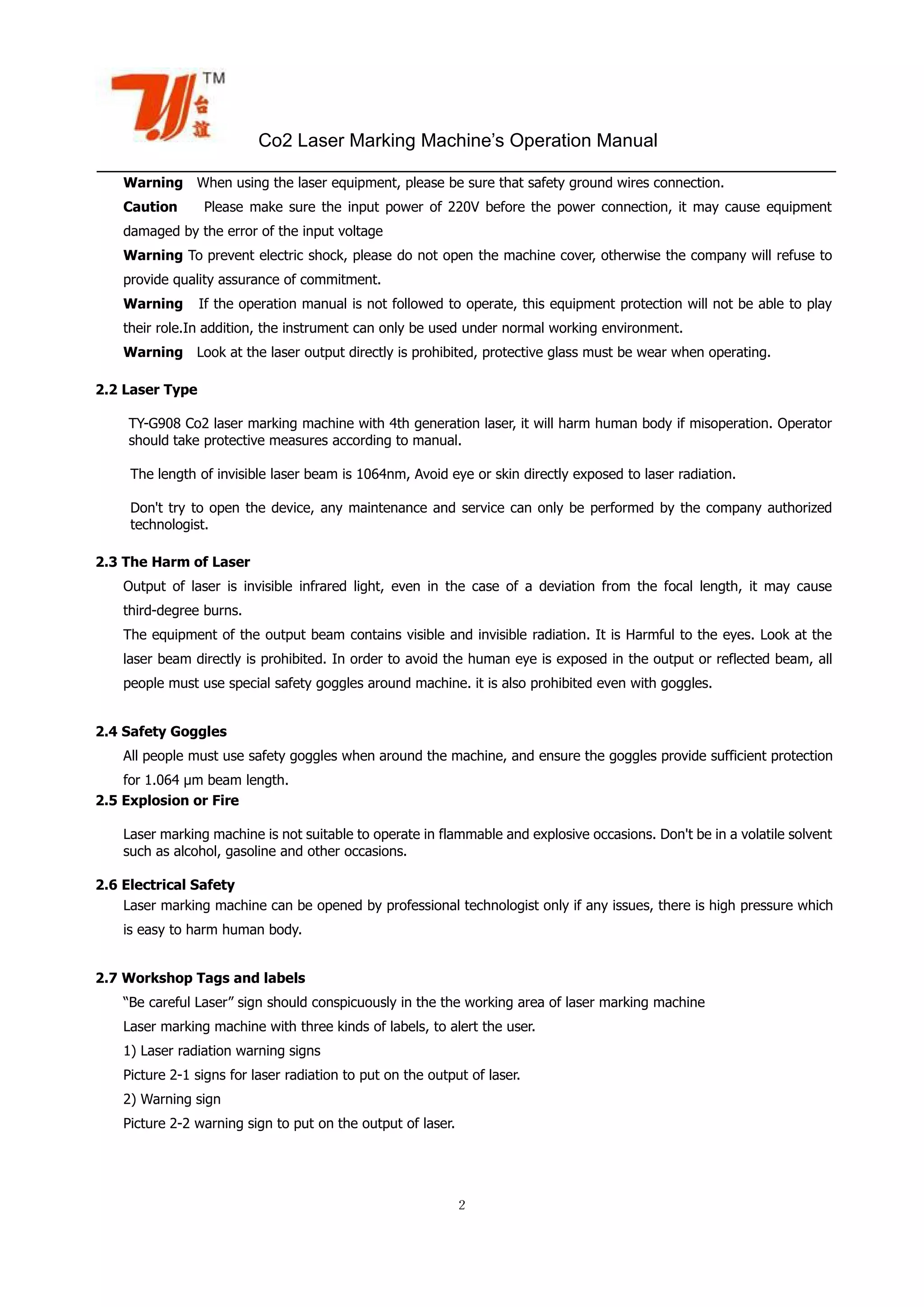

Warning When using the laser equipment, please be sure that safety ground wires connection.
Caution Please make sure the input power of 220V before the power connection, it may cause equipment
damaged by the error of the input voltage
Warning To prevent electric shock, please do not open the machine cover, otherwise the company will refuse to
provide quality assurance of commitment.
Warning If the operation manual is not followed to operate, this equipment protection will not be able to play
their role.In addition, the instrument can only be used under normal working environment.
Warning Look at the laser output directly is prohibited, protective glass must be wear when operating.
2.2 Laser Type
TY-G908 Co2 laser marking machine with 4th generation laser, it will harm human body if misoperation. Operator
should take protective measures according to manual.
The length of invisible laser beam is 1064nm, Avoid eye or skin directly exposed to laser radiation.
Don't try to open the device, any maintenance and service can only be performed by the company authorized
technologist.
2.3 The Harm of Laser
Output of laser is invisible infrared light, even in the case of a deviation from the focal length, it may cause
third-degree burns.
The equipment of the output beam contains visible and invisible radiation. It is Harmful to the eyes. Look at the
laser beam directly is prohibited. In order to avoid the human eye is exposed in the output or reflected beam, all
people must use special safety goggles around machine. it is also prohibited even with goggles.
2.4 Safety Goggles
All people must use safety goggles when around the machine, and ensure the goggles provide sufficient protection
for 1.064 µm beam length.
2.5 Explosion or Fire
Laser marking machine is not suitable to operate in flammable and explosive occasions. Don't be in a volatile solvent
such as alcohol, gasoline and other occasions.
2.6 Electrical Safety
Laser marking machine can be opened by professional technologist only if any issues, there is high pressure which
is easy to harm human body.
2.7 Workshop Tags and labels
“Be careful Laser” sign should conspicuously in the the working area of laser marking machine
Laser marking machine with three kinds of labels, to alert the user.
1) Laser radiation warning signs
Picture 2-1 signs for laser radiation to put on the output of laser.
2) Warning sign
Picture 2-2 warning sign to put on the output of laser.
4. Co2 Laser Marking Machine’s Operation Manual
3
Picture2-1 Picture2-2
Chapter3 Equipment Technical data and Required Environmental Condition
3.1 Equipment Technical data
TY-G908 Co2 laser marking machine adopts closed, free maintenance, imported high-performance galvanometer
scanning system and focus system, natural air cooling, with functions of red light pointer position.
Input Power:
Input voltage:AC220V±5 %
Frequency:50 Hz
Input power:≥1000W
Output Power:
Beam length:1.064 µm
Working Mode:Impulse
Modulation frequency:20kHz~100kHz
Laser Power:10 W
Instability:<5%
Beam Quality:M2
<2
Peak Power:≥5kW
Output Fiber length:<5 m
Marking area:(optional)100*100mm
Max Scanning Speed: <12000 mm/s
Scanning Precision Tolerance:<2 mrad
Repeat Precision Tolerance:<5 μrad
Min Line Width:0.02 mm~0.2mm
Marking Depth: 0.01~0.2 mm (depend on material)
Field Lens Focus:(optional):F=100mm Efficacious Focus Range:Φ65 mm
F=160mm Efficacious Focus Range:110 mmX110mm
Marking Repeat Precision : 0.001mm
Cooling:Air cooling
Working Environment:
Temperature:0~42℃ Humidity:45~85%
Safety:Over current protection;over-temperature protection;Over voltage protection
Continuous working time:≥16h
3.2 Required Environmental Condition
TY-G908 Co2 laser marking machine should be installed in no dust, no lampblack, no corrosive gas workshop,
Temperature 0 ~ 42 ℃, 45 ~ 85% humidity.
5. Co2 Laser Marking Machine’s Operation Manual
4
Chapter 4 Principle of Laser marking
4.1 Principle of Laser marking
When some materials were motivated, its atoms (or molecules) at a high level than in low level, the distribution of
the material and energy level difference of the corresponding frequency is able to make the radiation. English” laser"
is abbreviation of Light amplification by Divulgate of radiation
Laser is constituent by working medium and pump sources in the closed pump cavity. Compared with other light
source, laser has good monochromatic, good coherence, well directivity and high brightness.
1) Good monochromatic: Ordinary light source includes the wide wavelength range, be the line width, such as the
sun will contain all the visible wavelengths, but laser with single wavelength.
2) Good coherence: Laser beam added together, its amplitude is stable, can keep the light waves before and after
the phase relationship constant for quite a long time, this is can not be reached by any other light source.
3) Well directivity: Ordinary light emission of light shooting, big beam divergence; The angle of laser divergence is
small, generally for a few mill micro
4) High brightness: Laser beam through an optical system (such as lens) focused on a small area, has very high
brightness.
4.2 Brief of Laser Producer
The working medium of the laser can be gas, liquid or solid.Most of the working medium of gas laser is composed of
atoms, molecules or a mixture of both.The working medium of solid state laser is composed of atoms or ions doped
in some crystal.And the working medium of liquid laser by dissolved in the liquid in the large molecular weight
molecules.
Under the condition of a specific pump, all of these working medium can achieve the population inversion, and
generate a certain wavelength of laser output.
Using cladding, parallel pump technology, multiple laser diode coupled to the cladding fiber at the same time, can
obtain higher power laser output.Its basic principle is shown in Diagram 4-1.
图 4-1
4.3 Brief of Laser Marking Machine
6. Co2 Laser Marking Machine’s Operation Manual
5

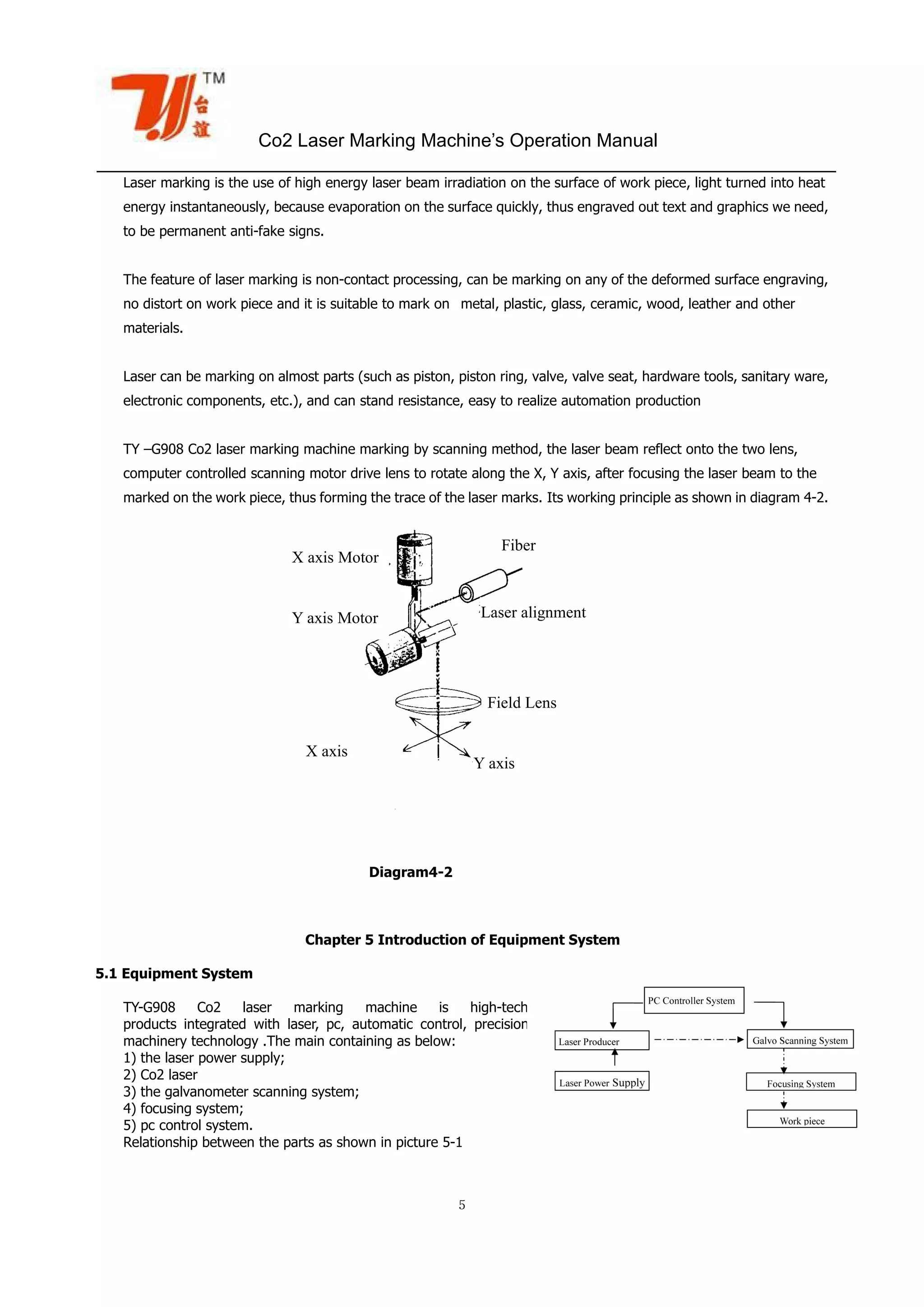

Laser marking is the use of high energy laser beam irradiation on the surface of work piece, light turned into heat
energy instantaneously, because evaporation on the surface quickly, thus engraved out text and graphics we need,
to be permanent anti-fake signs.
The feature of laser marking is non-contact processing, can be marking on any of the deformed surface engraving,
no distort on work piece and it is suitable to mark on metal, plastic, glass, ceramic, wood, leather and other
materials.
Laser can be marking on almost parts (such as piston, piston ring, valve, valve seat, hardware tools, sanitary ware,
electronic components, etc.), and can stand resistance, easy to realize automation production
TY –G908 Co2 laser marking machine marking by scanning method, the laser beam reflect onto the two lens,
computer controlled scanning motor drive lens to rotate along the X, Y axis, after focusing the laser beam to the
marked on the work piece, thus forming the trace of the laser marks. Its working principle as shown in diagram 4-2.
Diagram4-2
Chapter 5 Introduction of Equipment System
5.1 Equipment System
TY-G908 Co2 laser marking machine is high-tech
products integrated with laser, pc, automatic control, precision
machinery technology .The main containing as below:
1) the laser power supply;
2) Co2 laser
3) the galvanometer scanning system;
4) focusing system;
5) pc control system.
Relationship between the parts as shown in picture 5-1
X axis Motor
Y axis Motor
X axis
Y axis
Field Lens
Laser alignment
Fiber
7. Co2 Laser Marking Machine’s Operation Manual
6

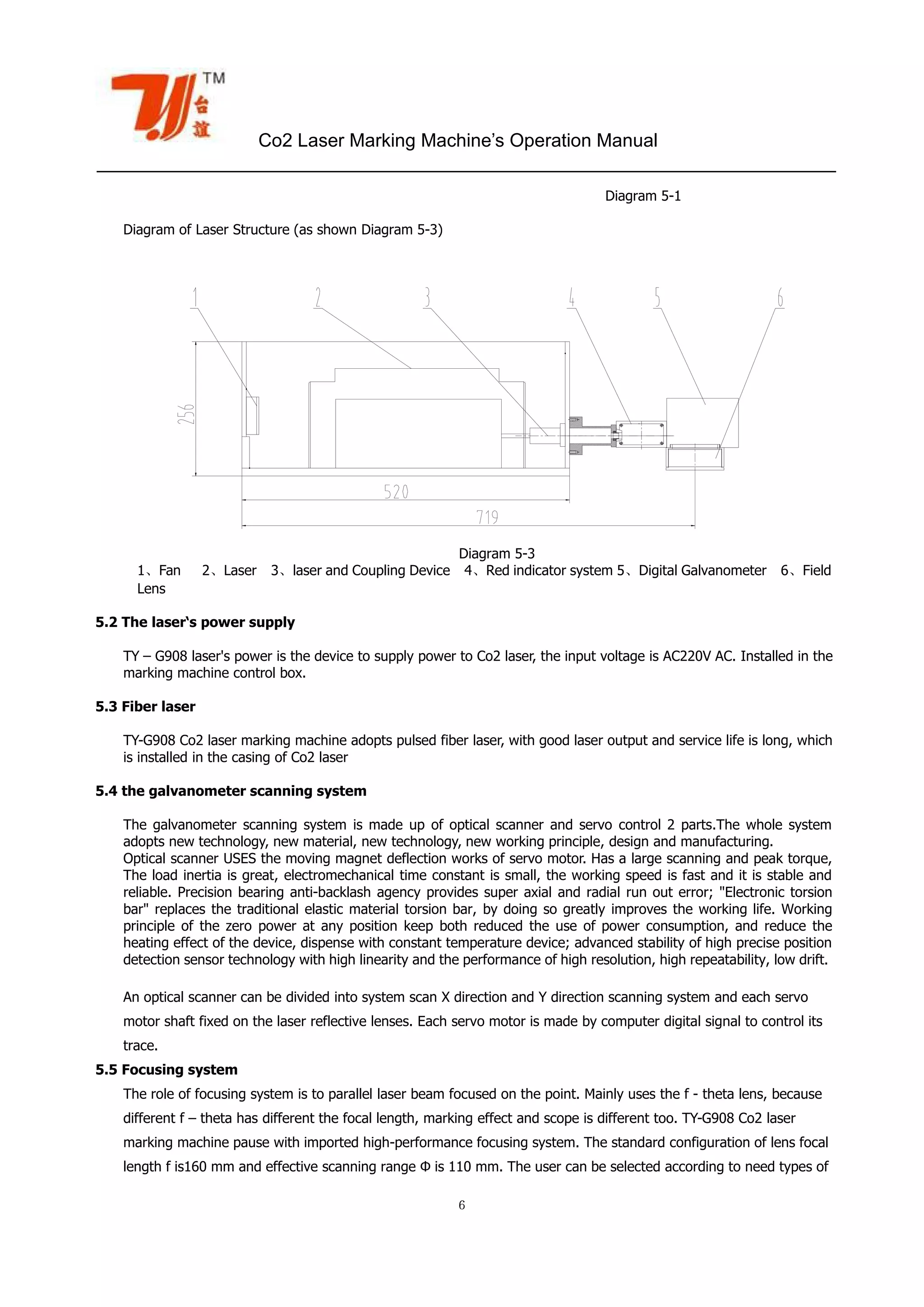

Diagram 5-1
Diagram of Laser Structure (as shown Diagram 5-3)
Diagram 5-3
1、Fan 2、Laser 3、laser and Coupling Device 4、Red indicator system 5、Digital Galvanometer 6、Field
Lens
5.2 The laser‘s power supply
TY – G908 laser's power is the device to supply power to Co2 laser, the input voltage is AC220V AC. Installed in the
marking machine control box.
5.3 Fiber laser
TY-G908 Co2 laser marking machine adopts pulsed fiber laser, with good laser output and service life is long, which
is installed in the casing of Co2 laser
5.4 the galvanometer scanning system
The galvanometer scanning system is made up of optical scanner and servo control 2 parts.The whole system
adopts new technology, new material, new technology, new working principle, design and manufacturing.
Optical scanner USES the moving magnet deflection works of servo motor. Has a large scanning and peak torque,
The load inertia is great, electromechanical time constant is small, the working speed is fast and it is stable and
reliable. Precision bearing anti-backlash agency provides super axial and radial run out error; "Electronic torsion
bar" replaces the traditional elastic material torsion bar, by doing so greatly improves the working life. Working
principle of the zero power at any position keep both reduced the use of power consumption, and reduce the
heating effect of the device, dispense with constant temperature device; advanced stability of high precise position
detection sensor technology with high linearity and the performance of high resolution, high repeatability, low drift.
An optical scanner can be divided into system scan X direction and Y direction scanning system and each servo
motor shaft fixed on the laser reflective lenses. Each servo motor is made by computer digital signal to control its
trace.
5.5 Focusing system
The role of focusing system is to parallel laser beam focused on the point. Mainly uses the f - theta lens, because
different f – theta has different the focal length, marking effect and scope is different too. TY-G908 Co2 laser
marking machine pause with imported high-performance focusing system. The standard configuration of lens focal
length f is160 mm and effective scanning range Φ is 110 mm. The user can be selected according to need types of
8. Co2 Laser Marking Machine’s Operation Manual
7

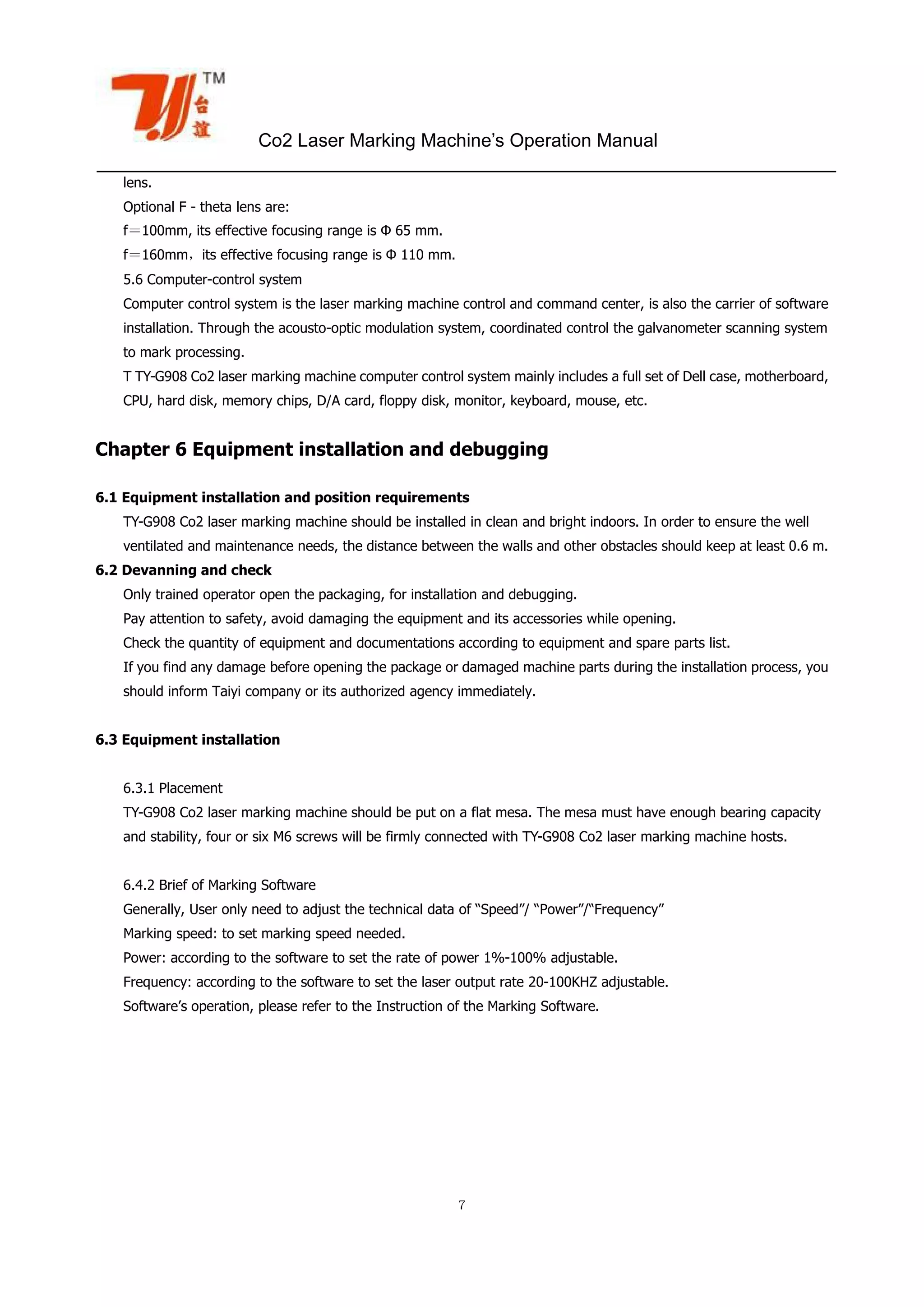

lens.
Optional F - theta lens are:
f=100mm, its effective focusing range is Φ 65 mm.
f=160mm,its effective focusing range is Φ 110 mm.
5.6 Computer-control system
Computer control system is the laser marking machine control and command center, is also the carrier of software
installation. Through the acousto-optic modulation system, coordinated control the galvanometer scanning system
to mark processing.
T TY-G908 Co2 laser marking machine computer control system mainly includes a full set of Dell case, motherboard,
CPU, hard disk, memory chips, D/A card, floppy disk, monitor, keyboard, mouse, etc.
Chapter 6 Equipment installation and debugging
6.1 Equipment installation and position requirements
TY-G908 Co2 laser marking machine should be installed in clean and bright indoors. In order to ensure the well
ventilated and maintenance needs, the distance between the walls and other obstacles should keep at least 0.6 m.
6.2 Devanning and check
Only trained operator open the packaging, for installation and debugging.
Pay attention to safety, avoid damaging the equipment and its accessories while opening.
Check the quantity of equipment and documentations according to equipment and spare parts list.
If you find any damage before opening the package or damaged machine parts during the installation process, you
should inform Taiyi company or its authorized agency immediately.
6.3 Equipment installation
6.3.1 Placement
TY-G908 Co2 laser marking machine should be put on a flat mesa. The mesa must have enough bearing capacity
and stability, four or six M6 screws will be firmly connected with TY-G908 Co2 laser marking machine hosts.
6.4.2 Brief of Marking Software
Generally, User only need to adjust the technical data of “Speed”/ “Power”/“Frequency”
Marking speed: to set marking speed needed.
Power: according to the software to set the rate of power 1%-100% adjustable.
Frequency: according to the software to set the laser output rate 20-100KHZ adjustable.
Software’s operation, please refer to the Instruction of the Marking Software.
9. Co2 Laser Marking Machine’s Operation Manual
8

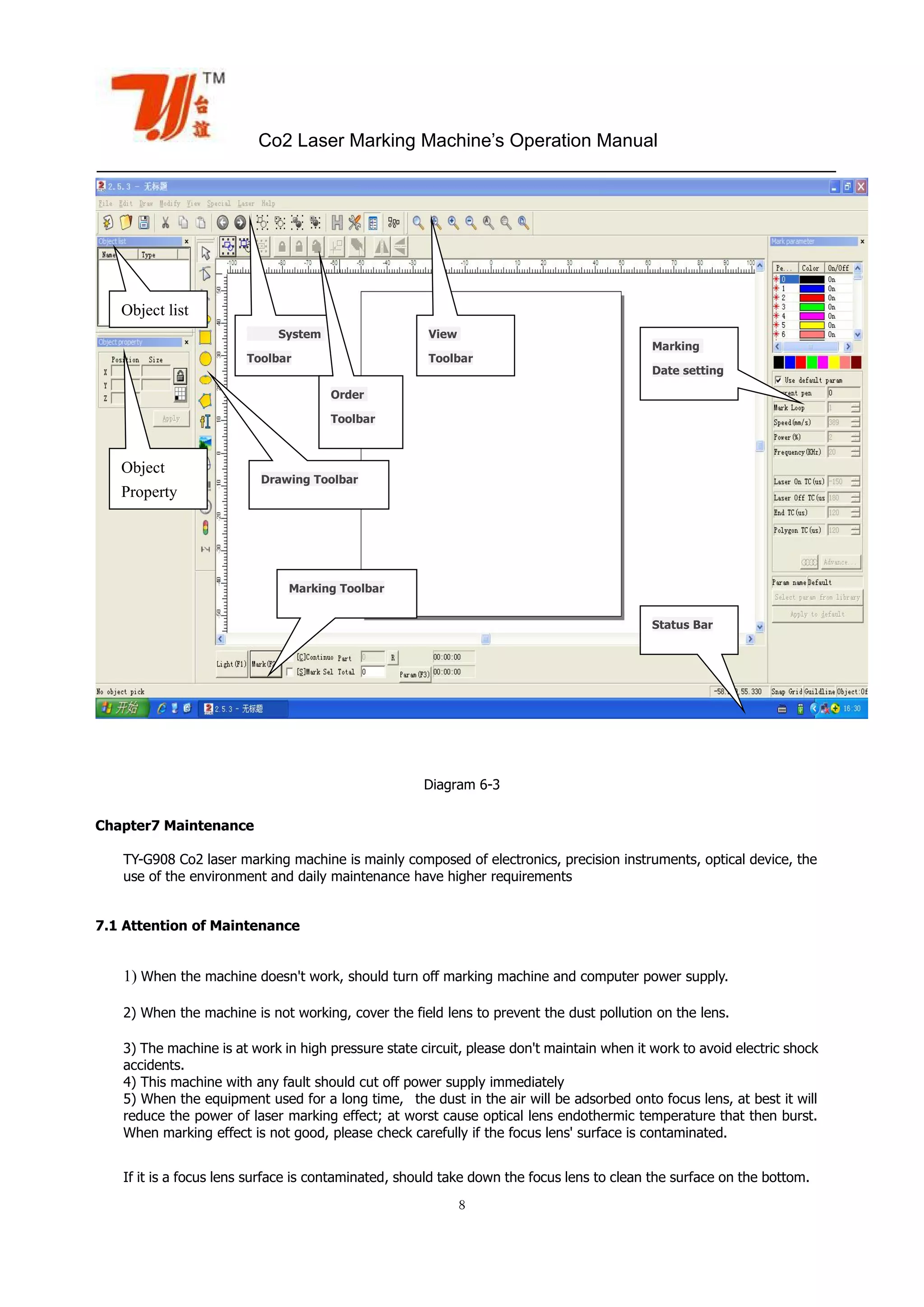

Diagram 6-3
Chapter7 Maintenance
TY-G908 Co2 laser marking machine is mainly composed of electronics, precision instruments, optical device, the
use of the environment and daily maintenance have higher requirements
7.1 Attention of Maintenance
1) When the machine doesn't work, should turn off marking machine and computer power supply.
2) When the machine is not working, cover the field lens to prevent the dust pollution on the lens.
3) The machine is at work in high pressure state circuit, please don't maintain when it work to avoid electric shock
accidents.
4) This machine with any fault should cut off power supply immediately
5) When the equipment used for a long time, the dust in the air will be adsorbed onto focus lens, at best it will
reduce the power of laser marking effect; at worst cause optical lens endothermic temperature that then burst.
When marking effect is not good, please check carefully if the focus lens' surface is contaminated.
If it is a focus lens surface is contaminated, should take down the focus lens to clean the surface on the bottom.
Object list
System
Toolbar
Object
Property
View
Toolbar
Order
Toolbar
Drawing Toolbar
Marking Toolbar
Status Bar
Marking
Date setting
10. Co2 Laser Marking Machine’s Operation Manual
9
Focus lens should be take care specially when took down, don't damage or hurt; at the same time, also do not use
hand or other materials to touch the focus lens.
Cleaning method is that mix ethanol (analysis) and diethyl ether (analysis) according to the proportion 3:1, put
long fiber cotton swabs or lens paper into mixture, and gently scrub focus lens surface of bottom, please change
the swab or lens paper each brush on 1 side.
6) In the process of marking machine work, marking machine is not allowed to move, to avoid damage of the
machine.
7) Don't heap or put other items on the marking machine, not to affect the machine heat dissipation effect
7.2 Common Failures and Solution
Due to the use or for other reasons, the TY-G908 Co2 laser marking machine may not work. In order to you can
timely judgments and eliminate some simple fault, we list the prone to failure phenomenon and settlement method
for reference.
No. Failure Failure Reason Settlement Method
1 Power light off
Sudden power outages
Power is not connected Connect the power
Power light is broken Change power light
2 Laser light off Laser light is broken Change laser light
3
Laser light is on without laser
output
Field lens’s cover is not removed Remove the cover
Power rate set too low Adjust rate higher
5
Laser light off, no output
laser signal cable is not connected Connect the signal cable
6 Have output laser, laser light off
Laser light is broken Change laser light
Laser light is desoldering Welding laser light
7 Marking line not even
Marking piece is not in the focal
plane
Put into focal plane
8
Marking text, graphics, some
clear some are not clear
Marking field and lens is not
paralleled
Adjust marking field to be
paralleled
TY-G908 Co2 laser marking machine adopts parts assembled unit module, the module component performance is
stable, if failure cannot be judged according to above phenomenon , please contact us: +86 769 3893 9577
11. Co2 Laser Marking Machine’s Operation Manual
10
8. INSTALL THE MACHINE
1. Open the wooden carton and get the machine.
2. Connect the power wire and foot treadle wire at back of the cabinet
9. Marking Operation
1. Turn on ORDER: Main power at back→Power on the cabinet→Computer→Open the marking
software→When printing to press Red Pointer→Scan→Laser.
2. Turn off ORDER: Laser→Scan→Red Pointer→Computer→Power→Main power.
3. Open the Marking software EZ CAD

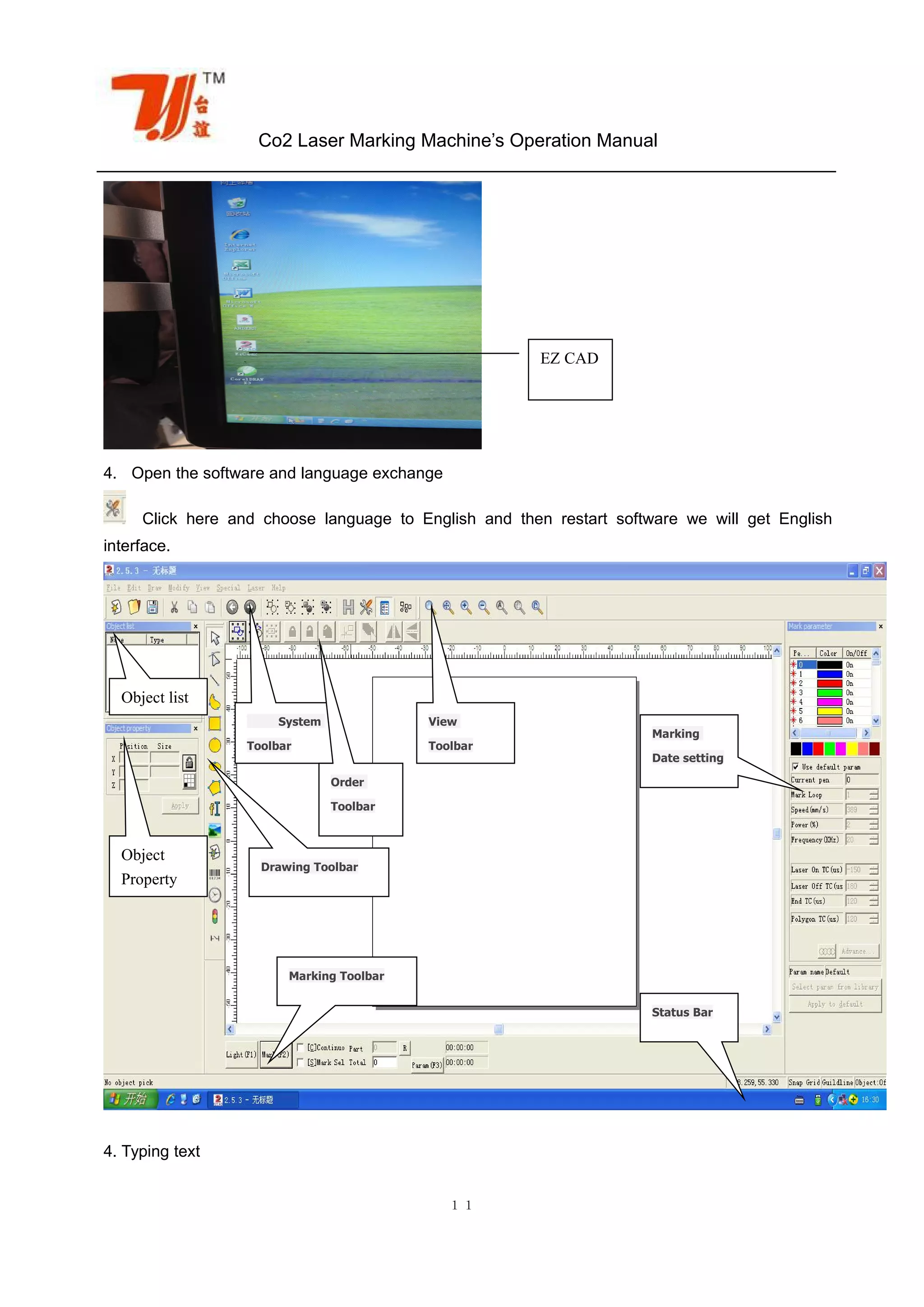

12. Co2 Laser Marking Machine’s Operation Manual
11
4. Open the software and language exchange
Click here and choose language to English and then restart software we will get English
interface.
4. Typing text
EZ CAD
Object list
System
Toolbar
Object
Property
View
Toolbar
Order
Toolbar
Drawing Toolbar
Marking Toolbar
Status Bar
Marking
Date setting
13. Co2 Laser Marking Machine’s Operation Manual
12
5. After typed the texts, filling the text to solid
6. Speed, Power, Frequency setting:
If the light colour marking needed, set speed quicker, power lower, frequency quicker. For deep
colour (black) marking (steel stainless quality), set speed slower, higher power, frequency slower.
1.Click FI to
type text
2.Here to type the texts
you need
3. Font selection
4. Text size
1..Here fill the text
2.click OK directly
14. Co2 Laser Marking Machine’s Operation Manual
13

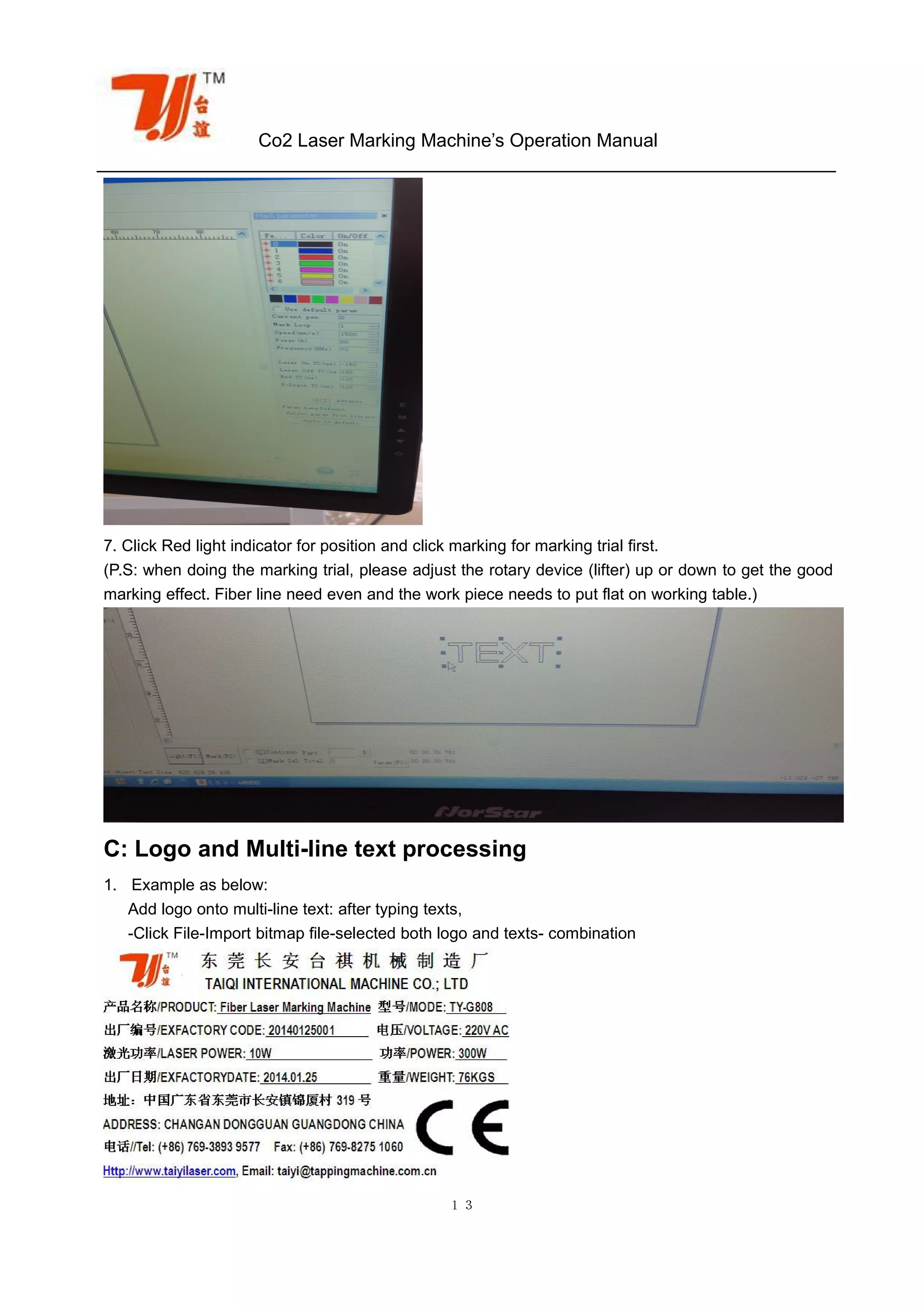

7. Click Red light indicator for position and click marking for marking trial first.
(P.S: when doing the marking trial, please adjust the rotary device (lifter) up or down to get the good
marking effect. Fiber line need even and the work piece needs to put flat on working table.)
C: Logo and Multi-line text processing
1. Example as below:
Add logo onto multi-line text: after typing texts,
-Click File-Import bitmap file-selected both logo and texts- combination
15. Co2 Laser Marking Machine’s Operation Manual
14
D. photos for marking
-It must be transferred in CorelDraw and save as .PLT format and them imported vector file in the
marking software.
Import bitmap file
Combination
16. Co2 Laser Marking Machine’s Operation Manual
15

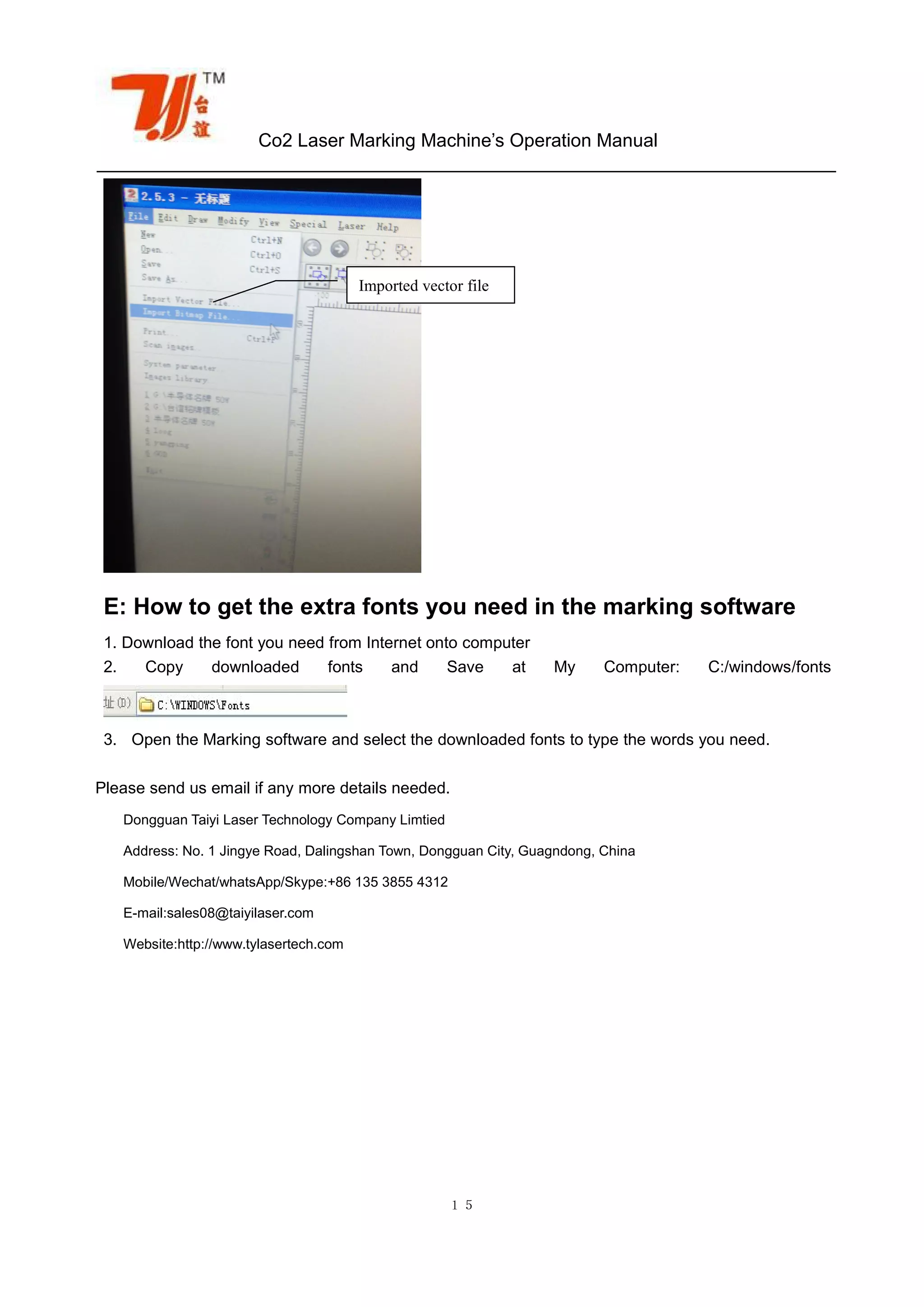

E: How to get the extra fonts you need in the marking software
1. Download the font you need from Internet onto computer
2. Copy downloaded fonts and Save at My Computer: C:/windows/fonts
3. Open the Marking software and select the downloaded fonts to type the words you need.
Please send us email if any more details needed.
Dongguan Taiyi Laser Technology Company Limtied
Address: No. 1 Jingye Road, Dalingshan Town, Dongguan City, Guagndong, China
Mobile/Wechat/whatsApp/Skype:+86 135 3855 4312
E-mail:sales08@taiyilaser.com
Website:http://www.tylasertech.com
Imported vector file
17. Co2 Laser Marking Machine’s Operation Manual
16
Application Sheet of Repairing:
Request of repair date & time: □Within Warranty □After Warranty
Customer’s Signature: Engineer’s Signature:
Date: Date:
Customer: Arrived Date Arrived Time Maintenance Time Return date Return Time
Address:
Contact: Tel:
Machine mode: Machine Serial No.: Installed time:
Fault Description:
Fault Analysis:
Maintenance Content:
Replacement of parts list:
Parts mode Quantity Unit Price Amount
Customer’s comments and suggestions:□ Completed and above case is ture □ Not completed □
Others:
