This document discusses using Docker to move workloads to the cloud. It compares Infrastructure as a Service (IaaS), Platform as a Service (PaaS), and Containers as a Service (CaaS). It also demonstrates how to build and run Windows containers with Docker, including .NET and ASP.NET applications, and provides examples of deploying Docker containers to Microsoft Azure.

1. Docker
POWER YOUR MOVE TO THE CLOUD
@EltonStoneman | elton@docker.com

2. Today
MOVING TO THE CLOUD WITH DOCKER
• IaaS, PaaS or CaaS?
• Docker and Windows Containers
• Docker in Production on Azure

3. IaaS, PaaS or CaaS?

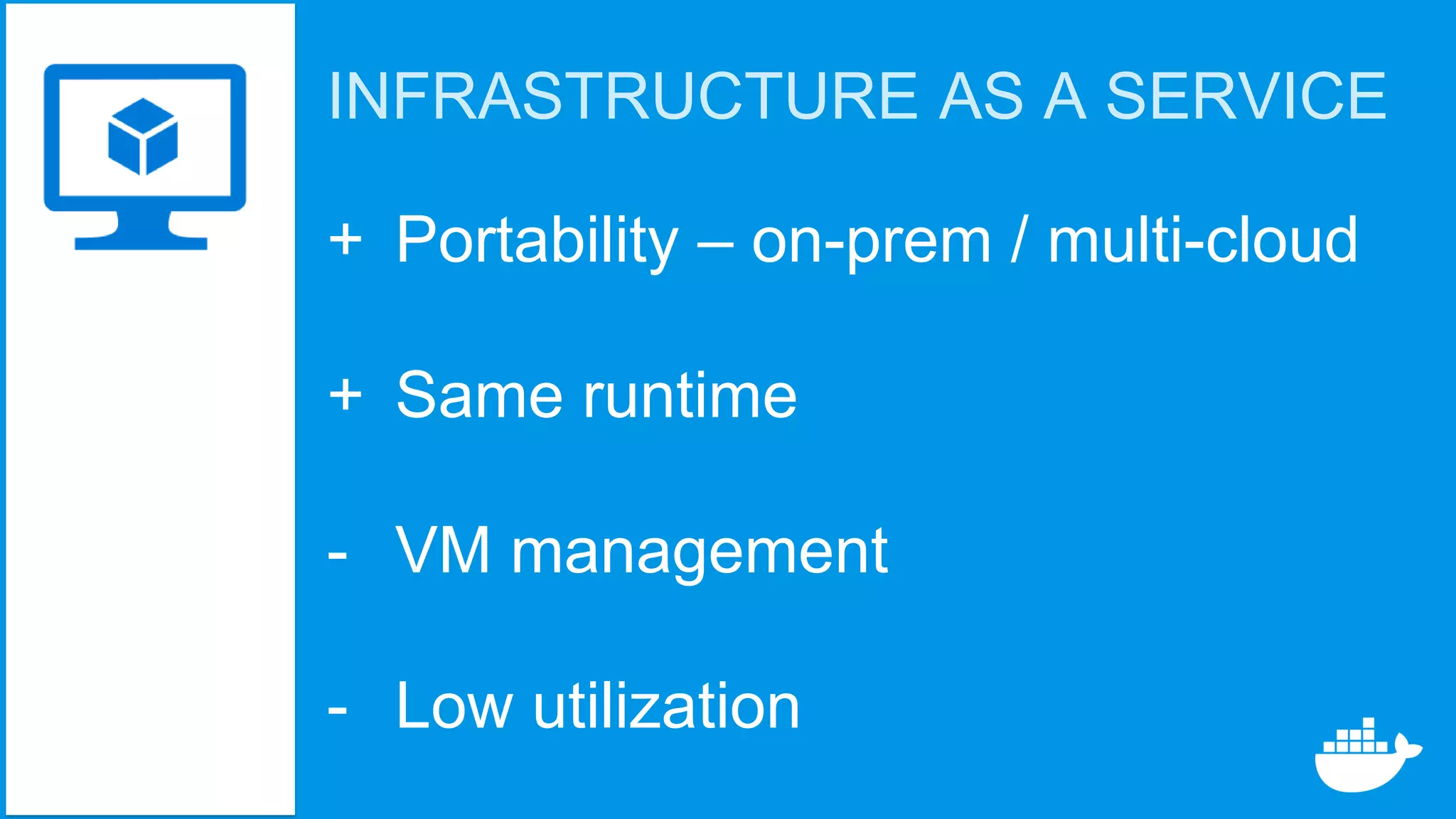

4. INFRASTRUCTURE AS A SERVICE
+ Portability – on-prem / multi-cloud
+ Same runtime
- VM management
- Low utilization

5. PLATFORM AS A SERVICE
+ High utilization
+ Extended feature set
- Custom packaging & deployment
- Local emulation

6. CONTAINERS AS A SERVICE
+ High utilization
+ Extended feature set
+ Portability – on-prem / multi-cloud
+ Same runtime

7. Docker and
Windows Containers

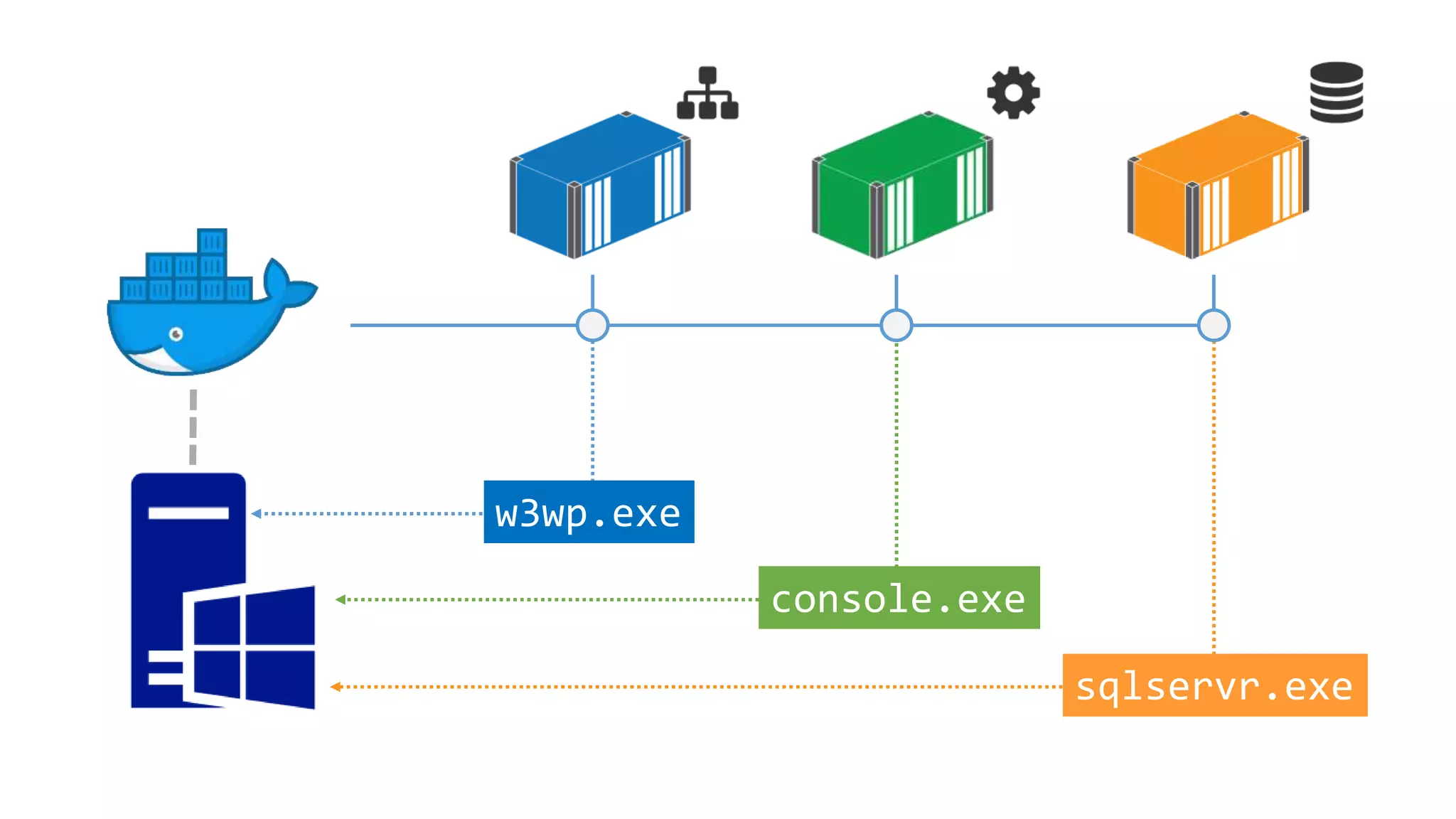

8. sqlservr.exe
console.exe
w3wp.exe

9. build
ship
run

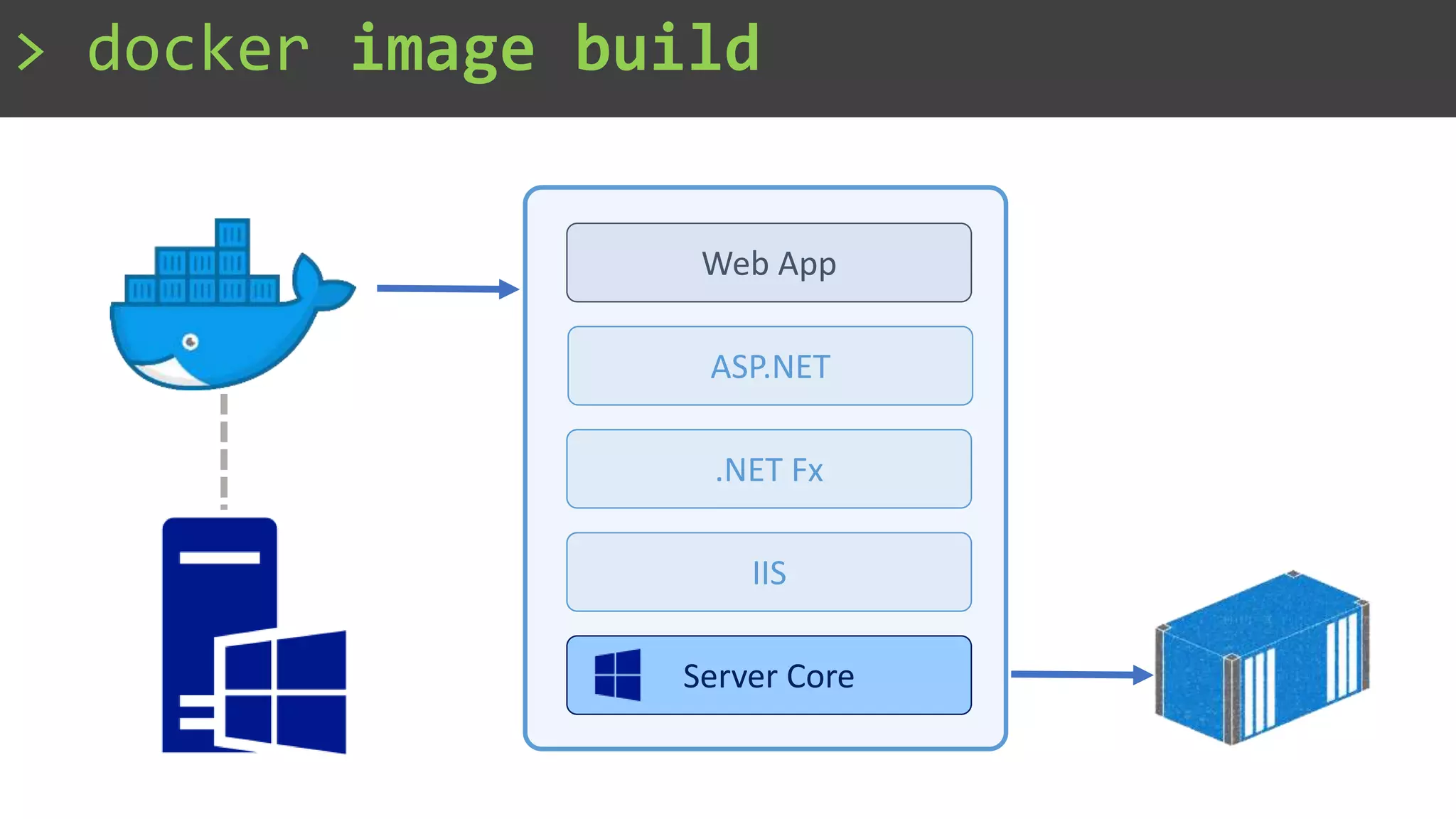

10. .NET Fx
ASP.NET
Web App
Server Core
IIS
> docker image build

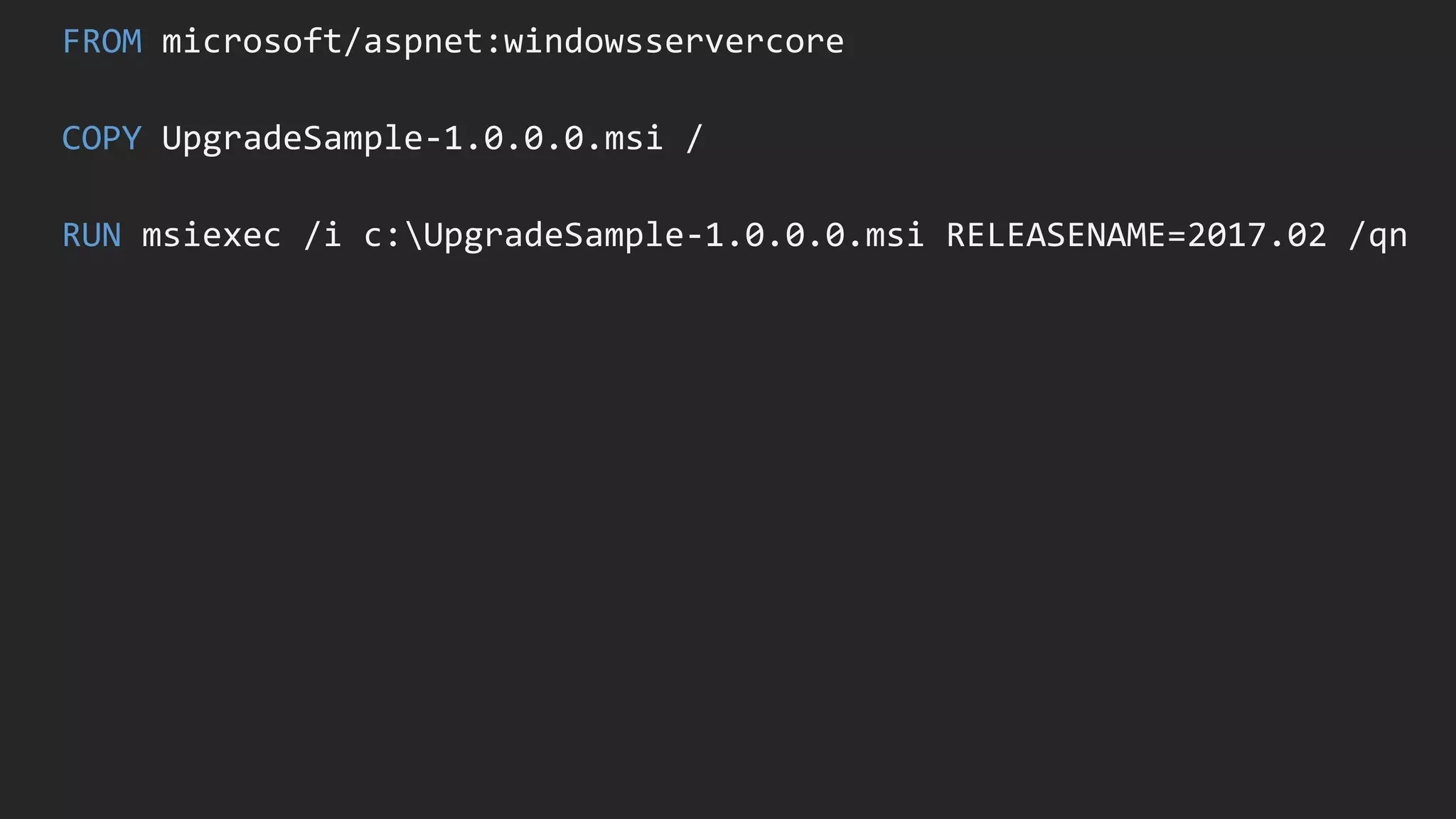

11. FROM microsoft/aspnet:windowsservercore
COPY UpgradeSample-1.0.0.0.msi /
RUN msiexec /i c:UpgradeSample-1.0.0.0.msi RELEASENAME=2017.02 /qn

12. # escape=`
FROM microsoft/windowsservercore:10.0.14393.2068
SHELL ["powershell", "-Command"]
RUN Add-WindowsFeature Web-server, `
NET-Framework-45-ASPNET, Web-Asp-Net45; `
Remove-Website -Name 'Default Web Site'
COPY ProductLaunchWeb /product-launch-web
RUN New-Website -Name 'product-launch' `
-PhysicalPath 'C:product-launch-web' -Port 80
EXPOSE 80
COPY bootstrap.ps1 /
ENTRYPOINT ./bootstrap.ps1

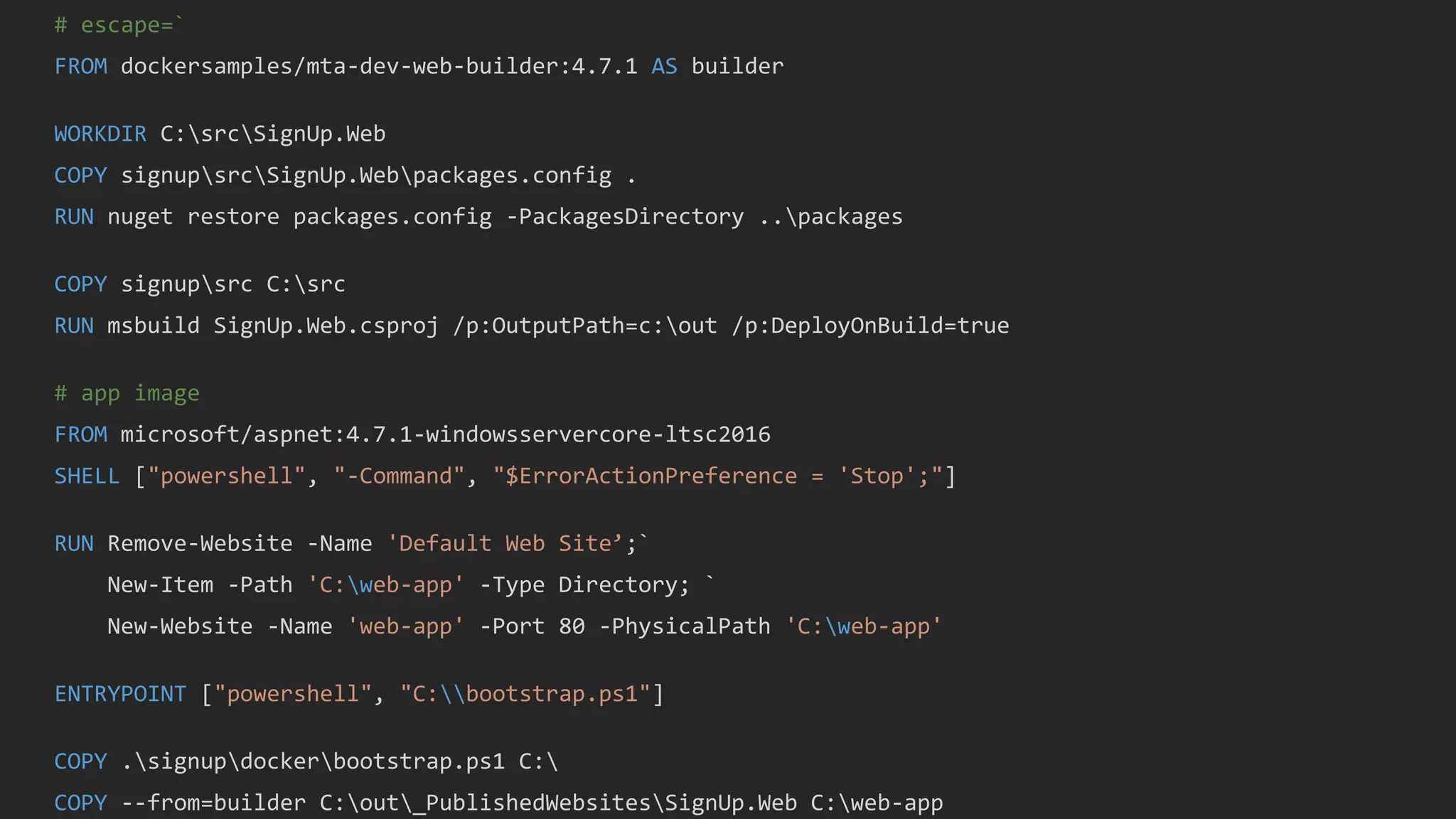

13. # escape=`
FROM dockersamples/mta-dev-web-builder:4.7.1 AS builder
WORKDIR C:srcSignUp.Web
COPY signupsrcSignUp.Webpackages.config .
RUN nuget restore packages.config -PackagesDirectory ..packages
COPY signupsrc C:src
RUN msbuild SignUp.Web.csproj /p:OutputPath=c:out /p:DeployOnBuild=true
# app image
FROM microsoft/aspnet:4.7.1-windowsservercore-ltsc2016
SHELL ["powershell", "-Command", "$ErrorActionPreference = 'Stop';"]
RUN Remove-Website -Name 'Default Web Site’;`
New-Item -Path 'C:web-app' -Type Directory; `
New-Website -Name 'web-app' -Port 80 -PhysicalPath 'C:web-app'
ENTRYPOINT ["powershell", "C:bootstrap.ps1"]
COPY .signupdockerbootstrap.ps1 C:
COPY --from=builder C:out_PublishedWebsitesSignUp.Web C:web-app

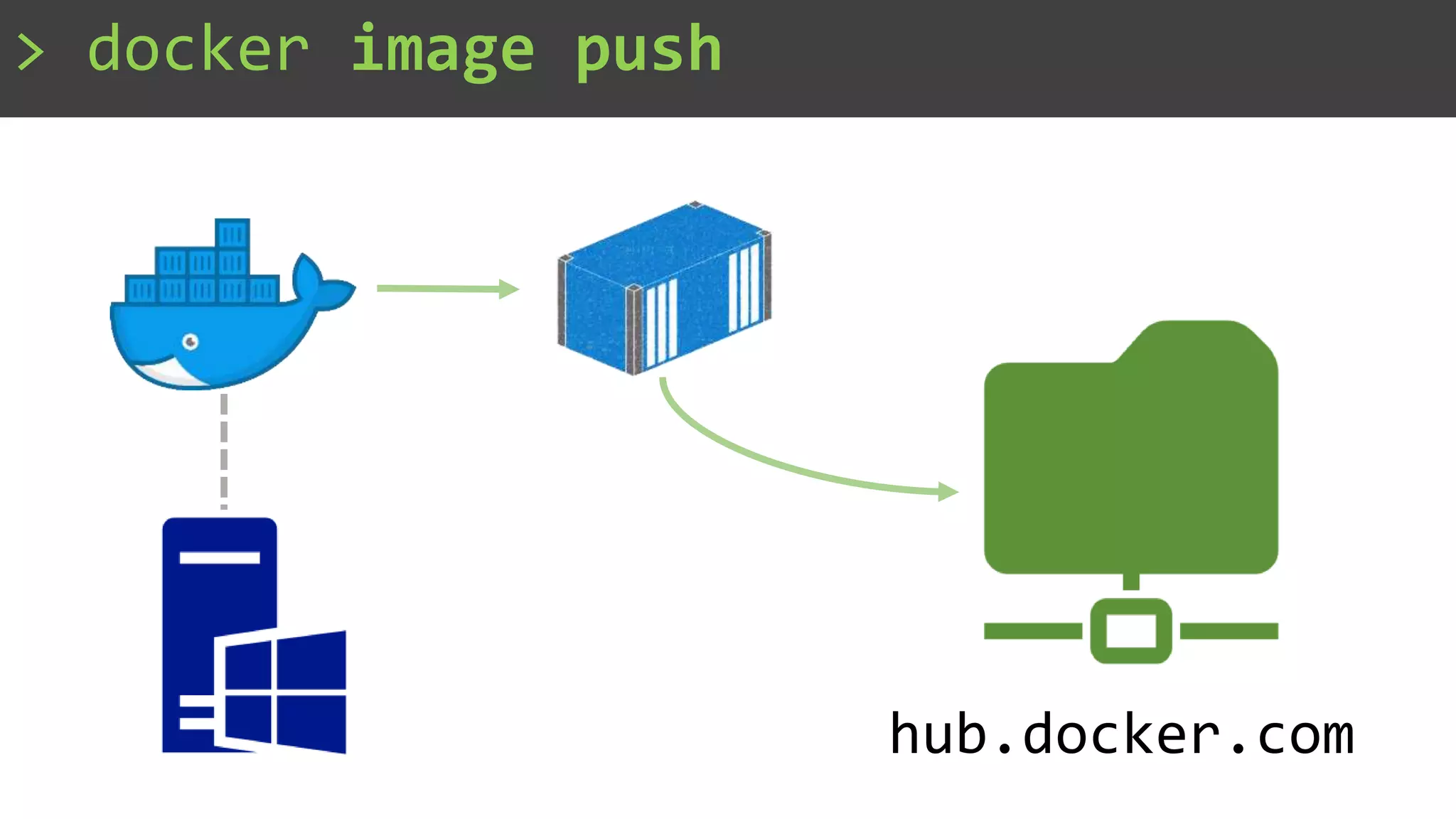

14. hub.docker.com
> docker image push

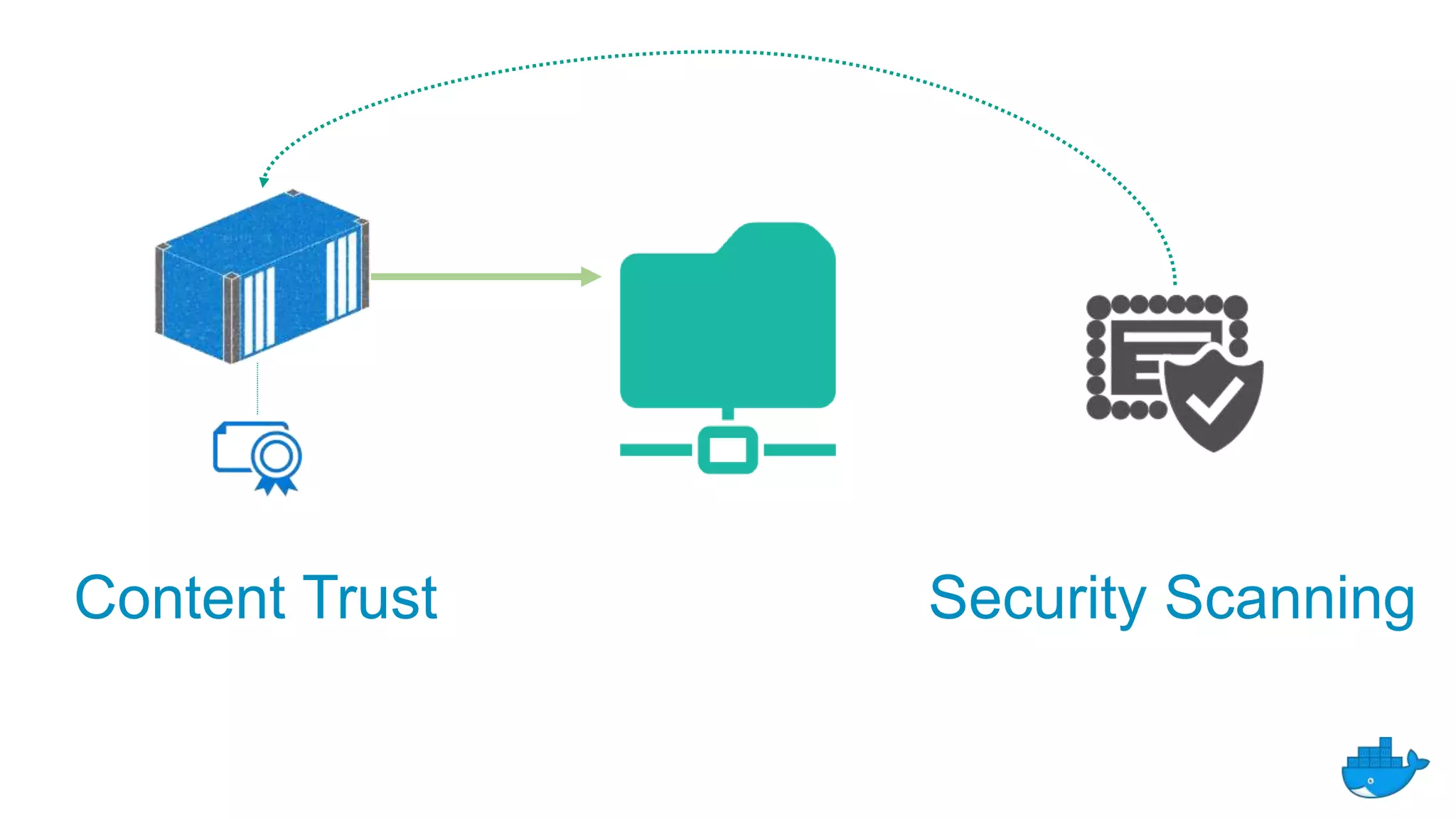

15. Security ScanningContent Trust

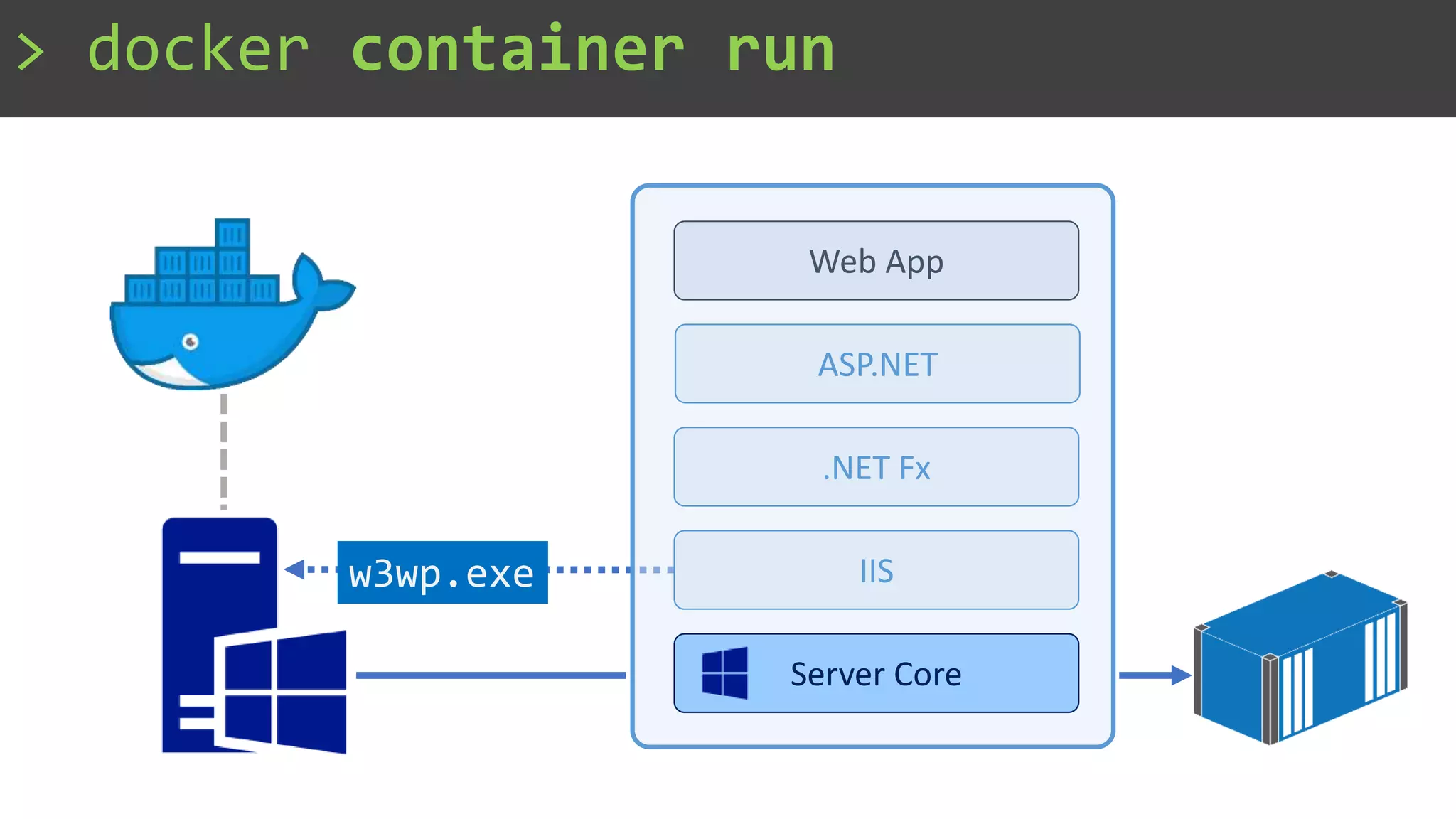

16. > docker container run
w3wp.exe
.NET Fx
ASP.NET
Web App
Server Core
IIS

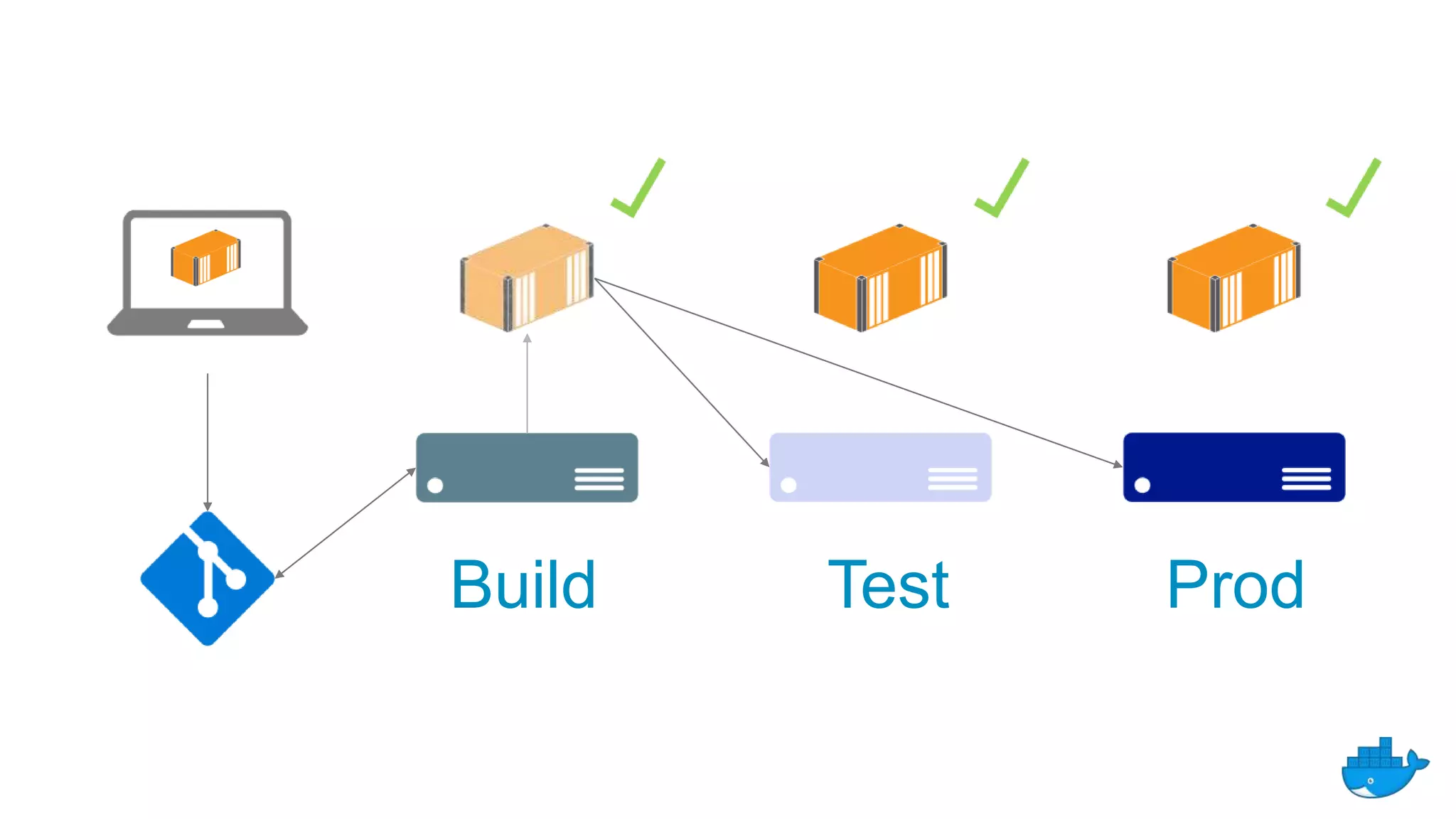

17. Build Test Prod

18. > demo

19. Docker in Production
on Azure

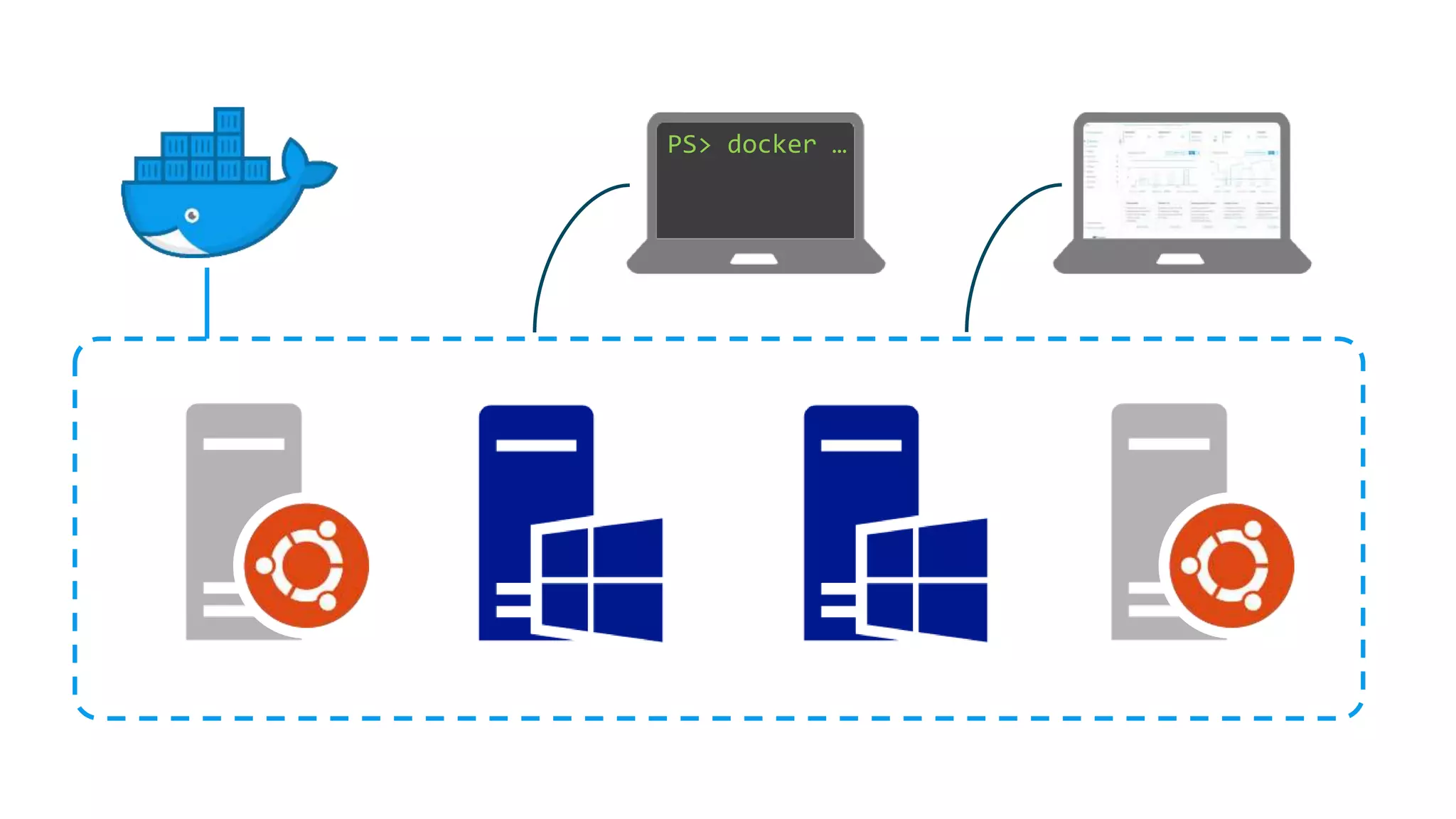

20. PS> docker …

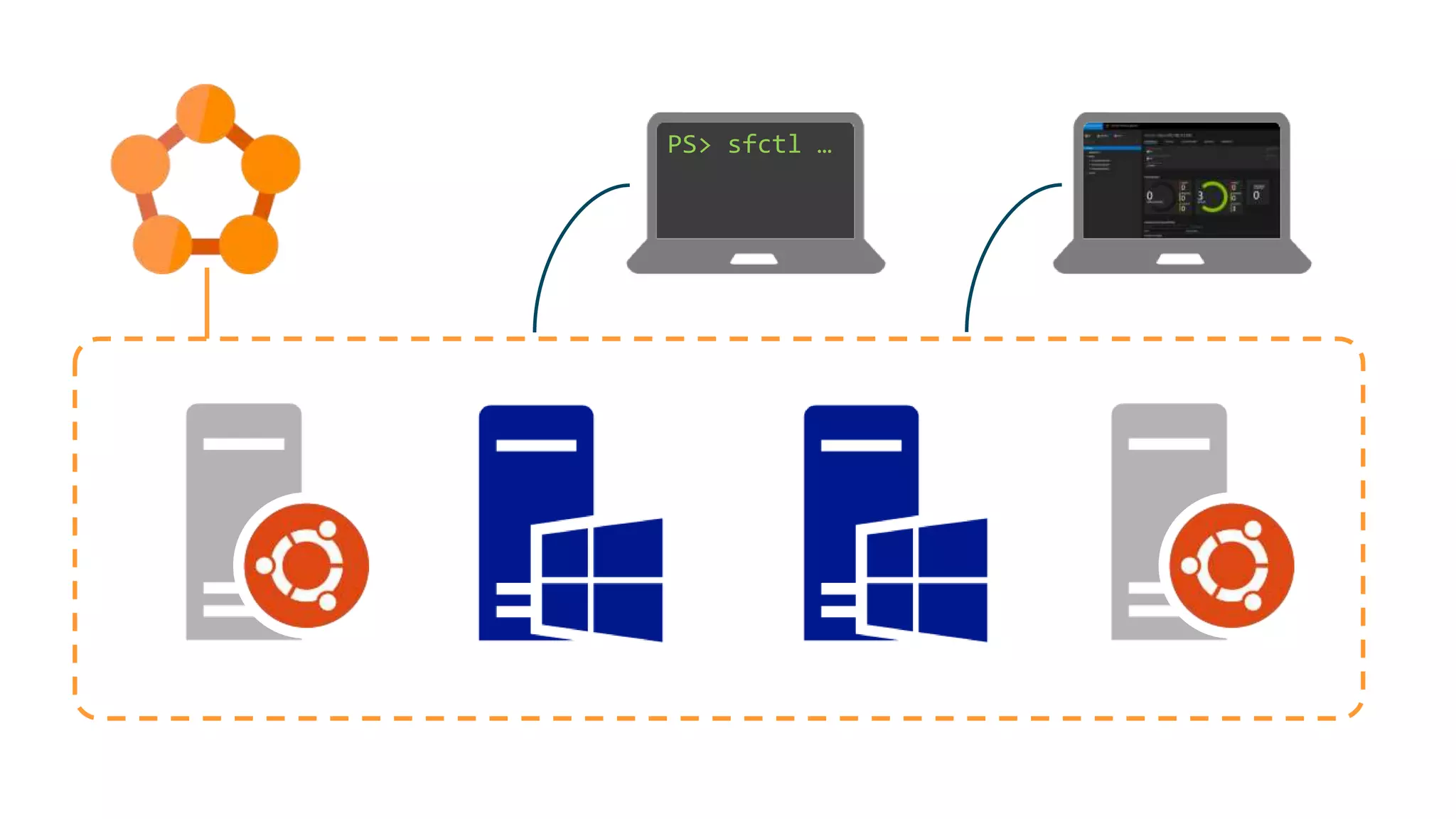

21. PS> sfctl …

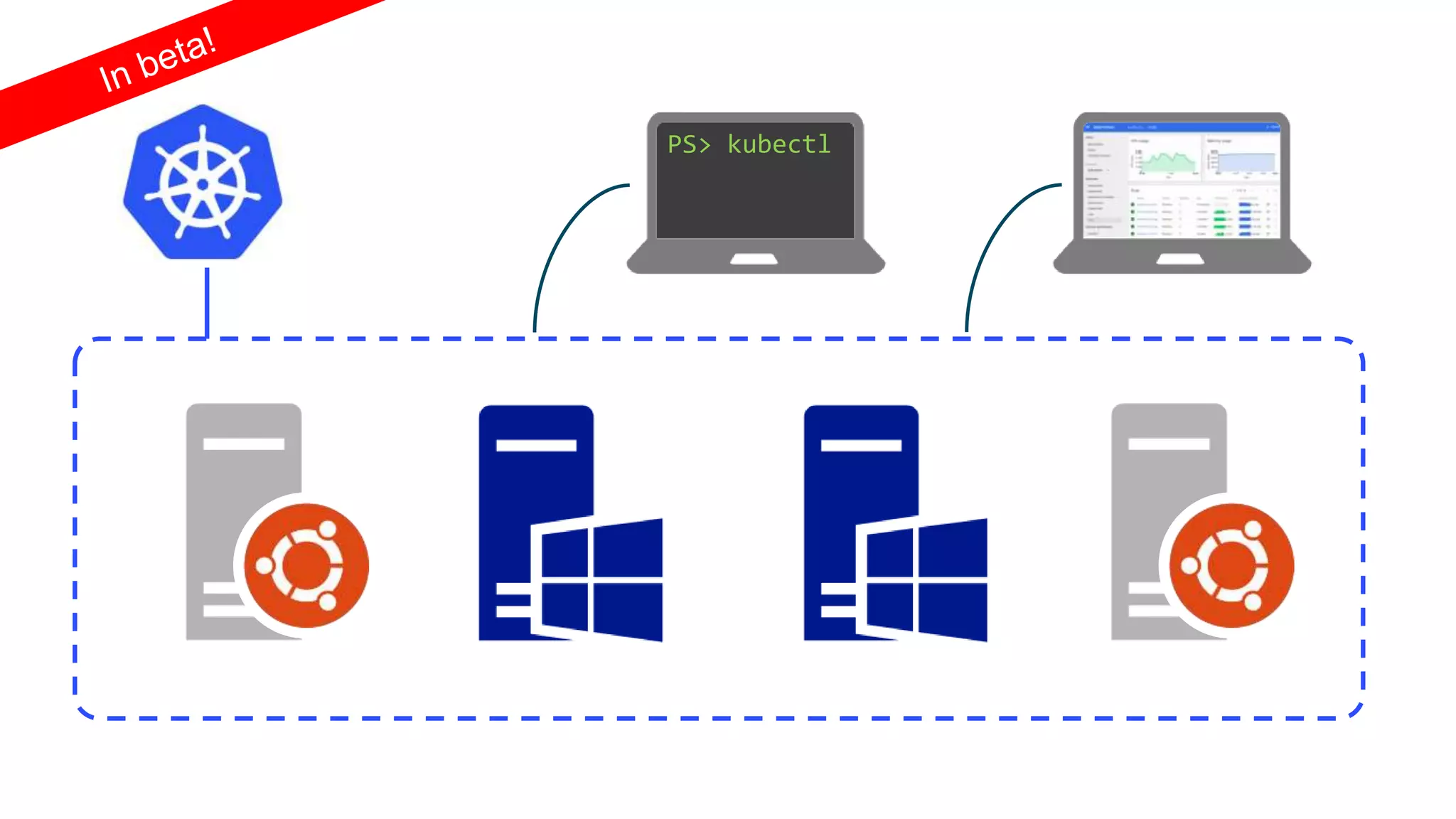

22. PS> kubectl

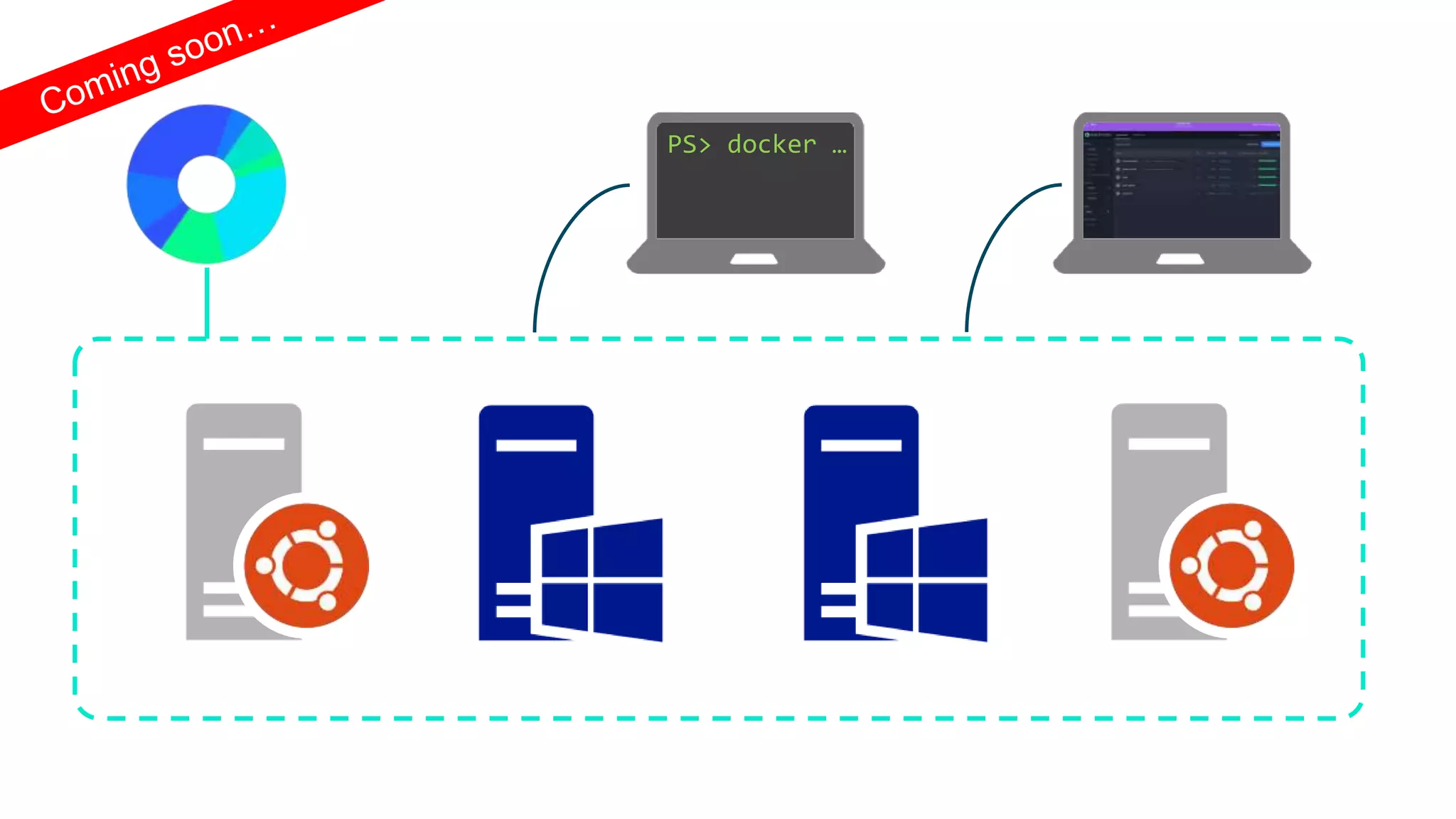

23. PS> docker …

24. > demo

26. build
ship
run

27. • EE on Azure | dockr.ly/ee-azure
• Workshop | dockr.ly/windows-workshop
• MTA videos | dockr.ly/mta-dev
| dockr.ly/mta-itpro
NEXT STEPS

28. THANK YOU :)
@EltonStoneman | elton@docker.com
