WordPress & Cloud Computing:
Scalability and High Availability
Gabriele Mittica & Walter Dal Mut

WORDCAMP BOLOGNA - 9 FEB 2013
@WORDCAMPBOLOGNA # WPCAMPBO13

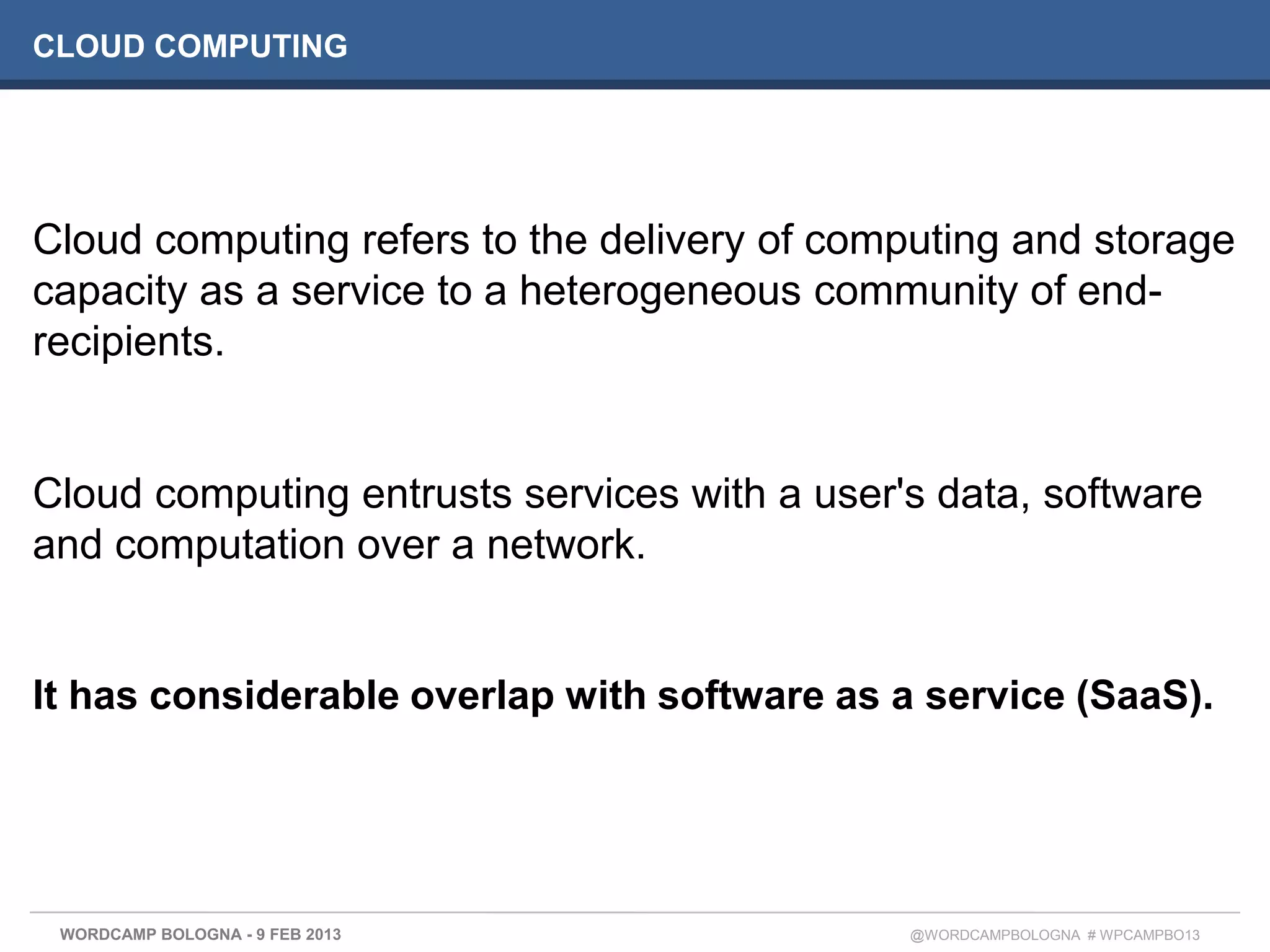

CLOUD COMPUTING

Cloud computing refers to the delivery of computing and storage
capacity as a service to a heterogeneous community of end-
recipients.

Cloud computing entrusts services with a user's data, software
and computation over a network.

It has considerable overlap with software as a service (SaaS).

WORDCAMP BOLOGNA - 9 FEB 2013 @WORDCAMPBOLOGNA # WPCAMPBO13

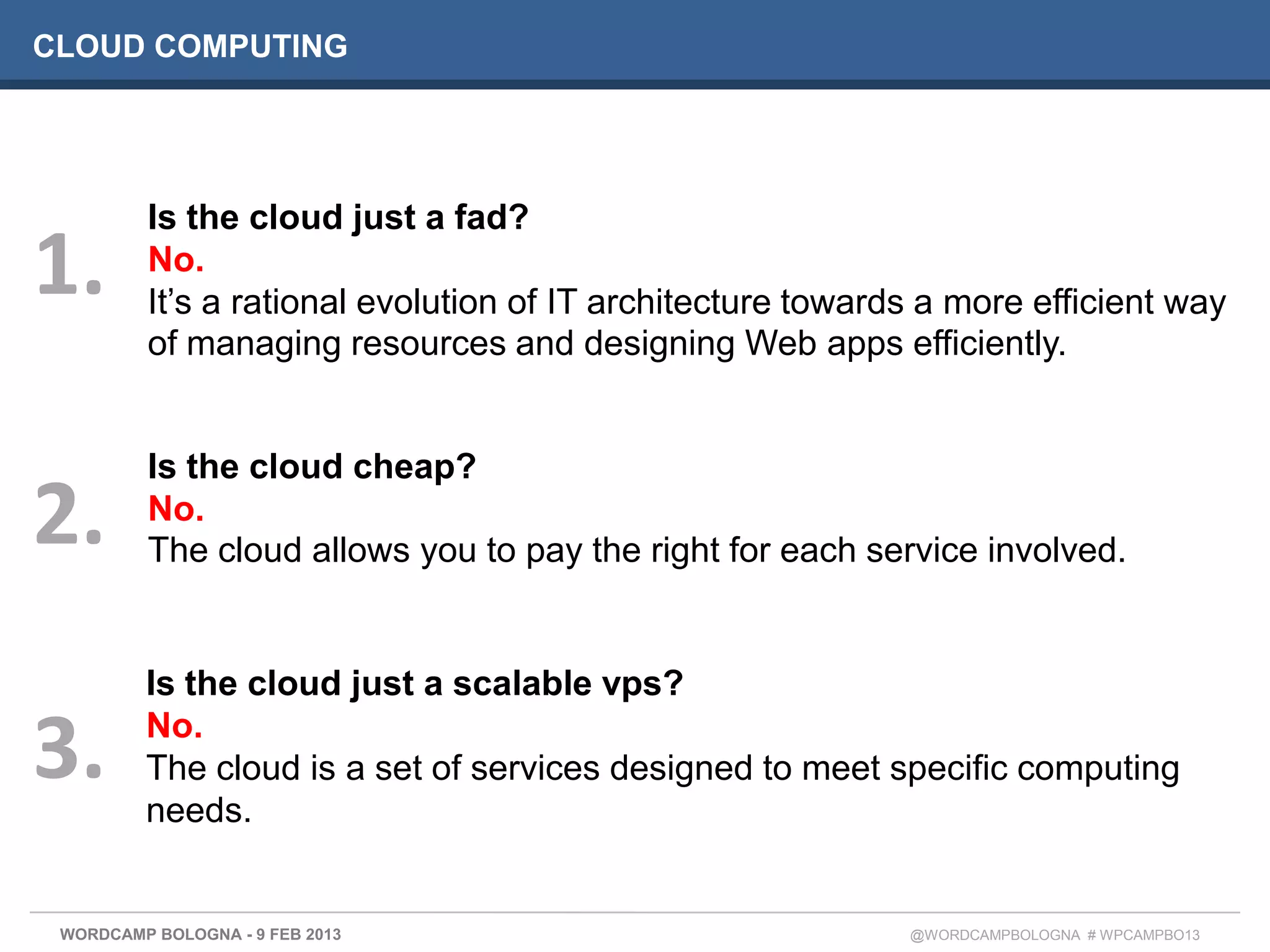

CLOUD COMPUTING

Is the cloud just a fad?
1. No.
It’s a rational evolution of IT architecture towards a more efficient way
of managing resources and designing Web apps efficiently.

Is the cloud cheap?
2. No.
The cloud allows you to pay the right for each service involved.

Is the cloud just a scalable vps?

3. No.
The cloud is a set of services designed to meet specific computing
needs.

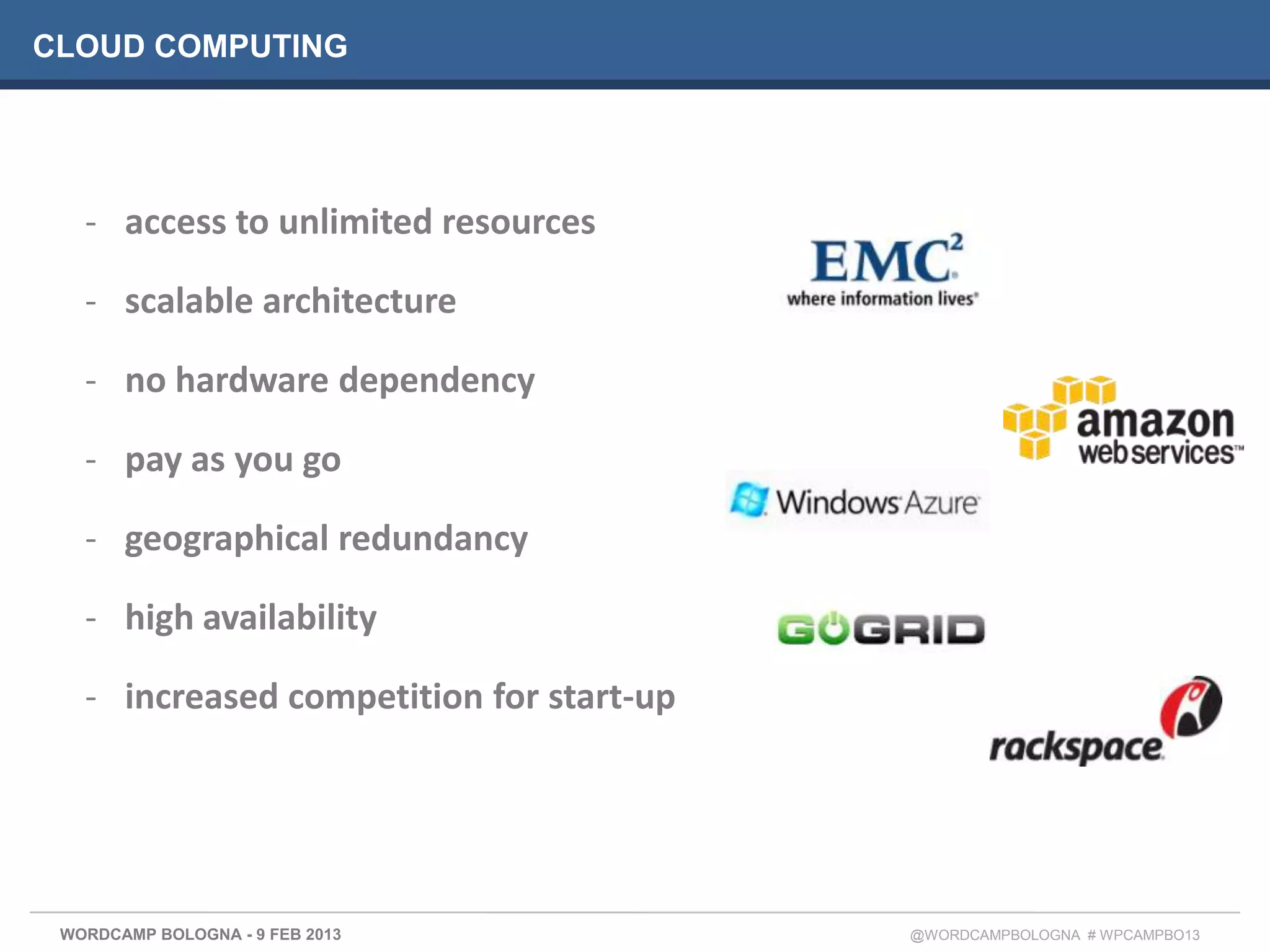

CLOUD COMPUTING

- access to unlimited resources

- scalable architecture

- no hardware dependency

- pay as you go

- geographical redundancy

- high availability

- increased competition for start-up

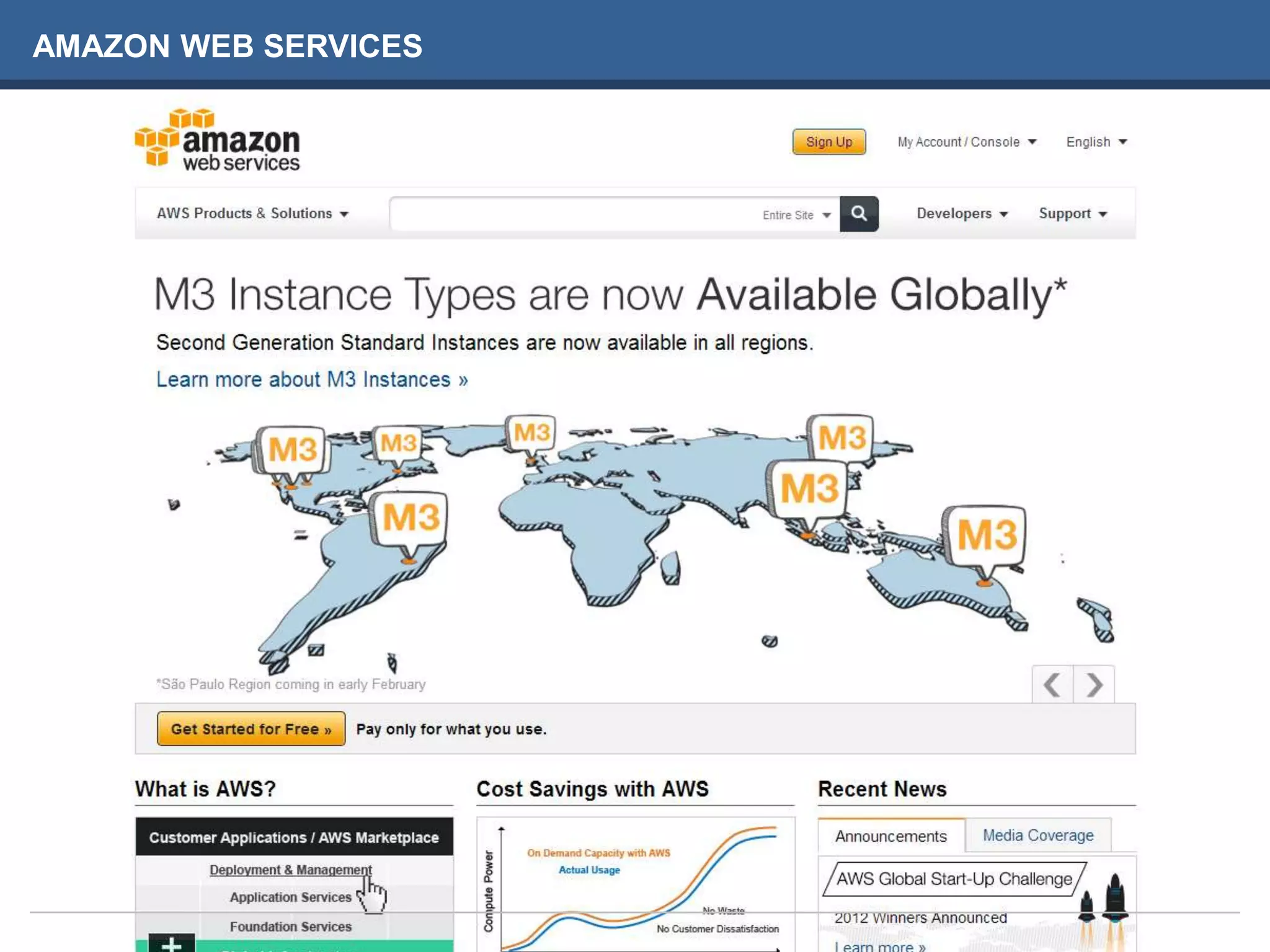

AMAZON WEB SERVICES

WORDCAMP BOLOGNA - 9 FEBBRAIO 2013 @WORDCAMPBOLOGNA # WPCAMPBO13

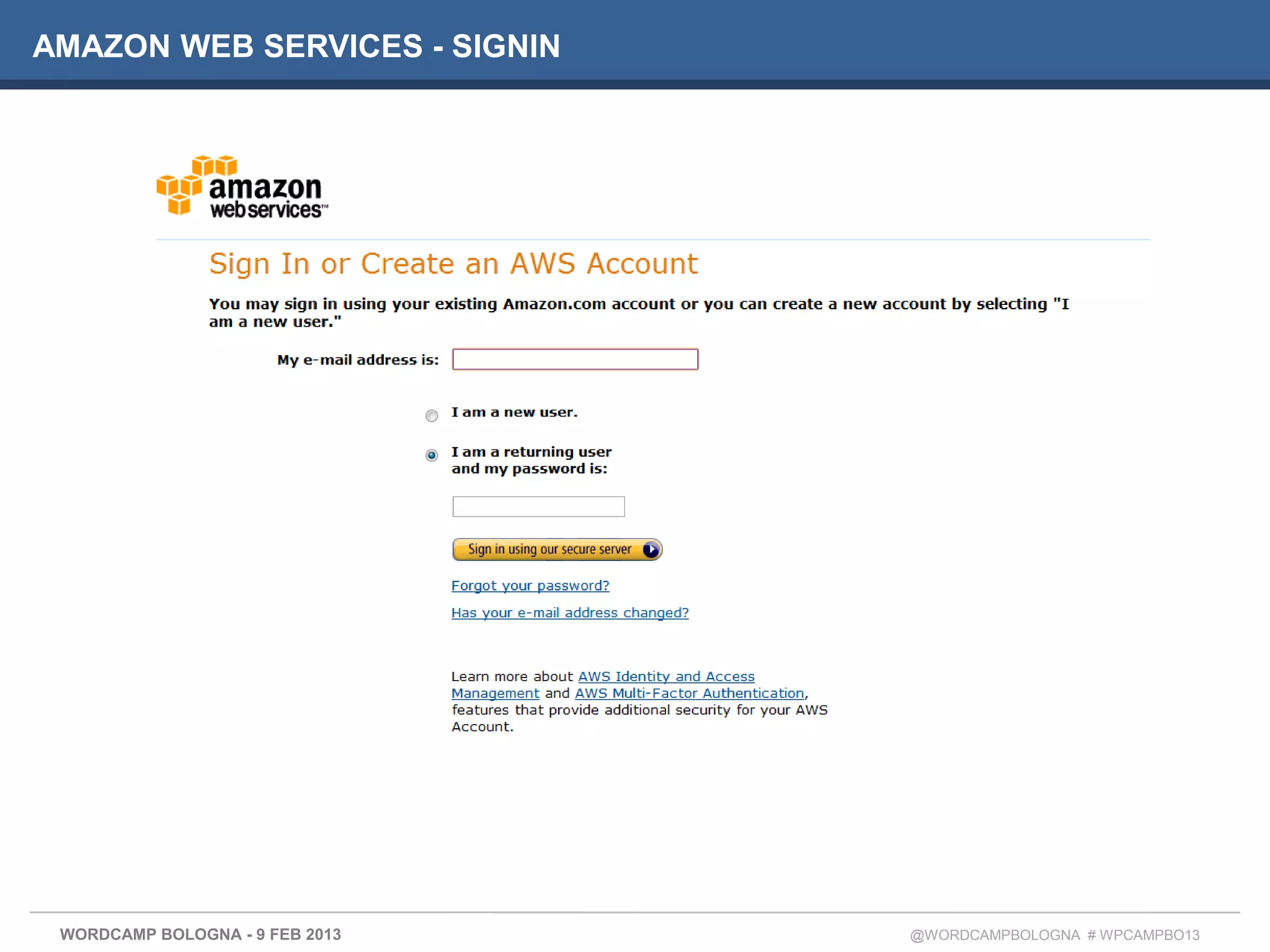

AMAZON WEB SERVICES - SIGNIN

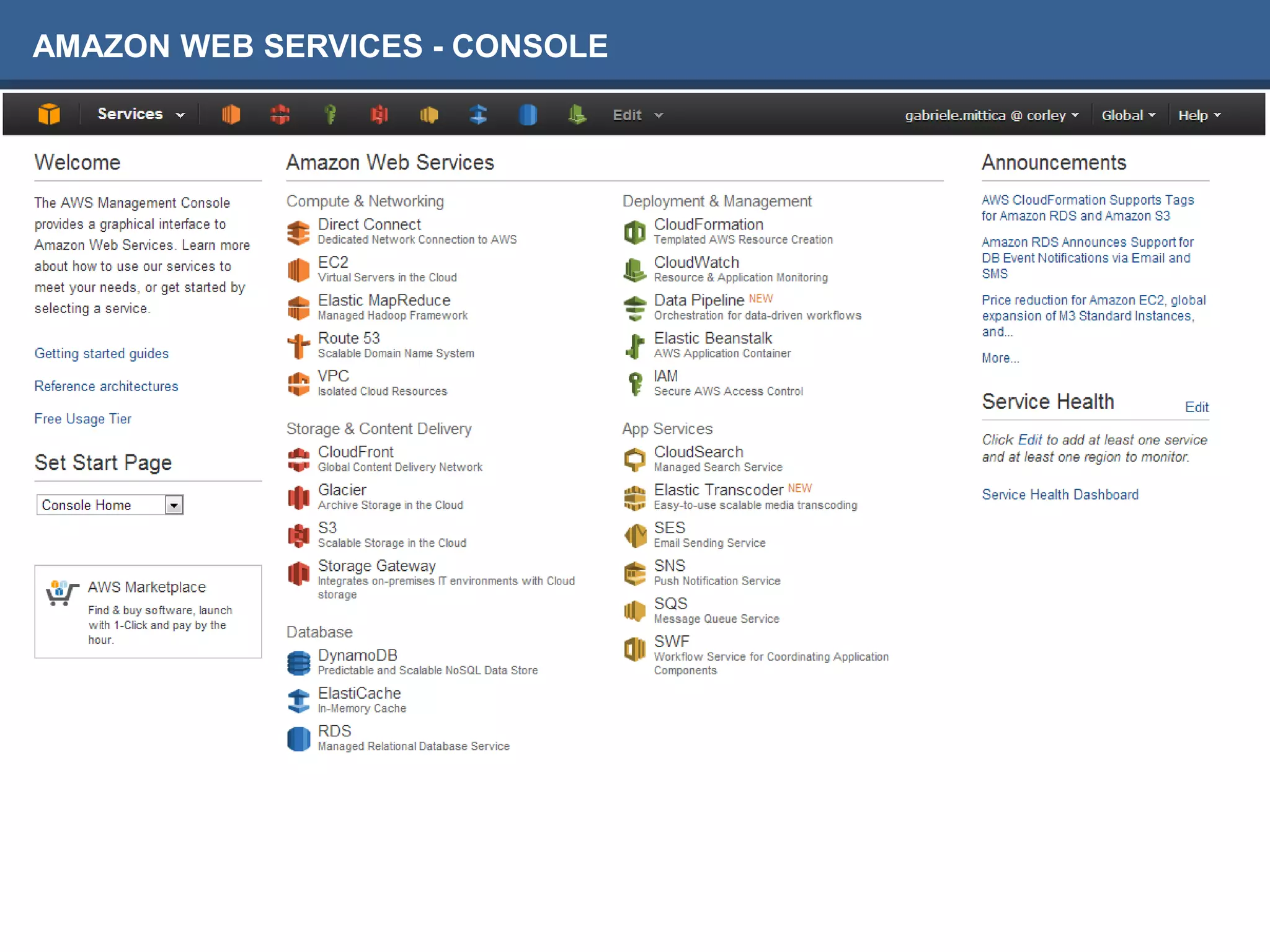

AMAZON WEB SERVICES - CONSOLE

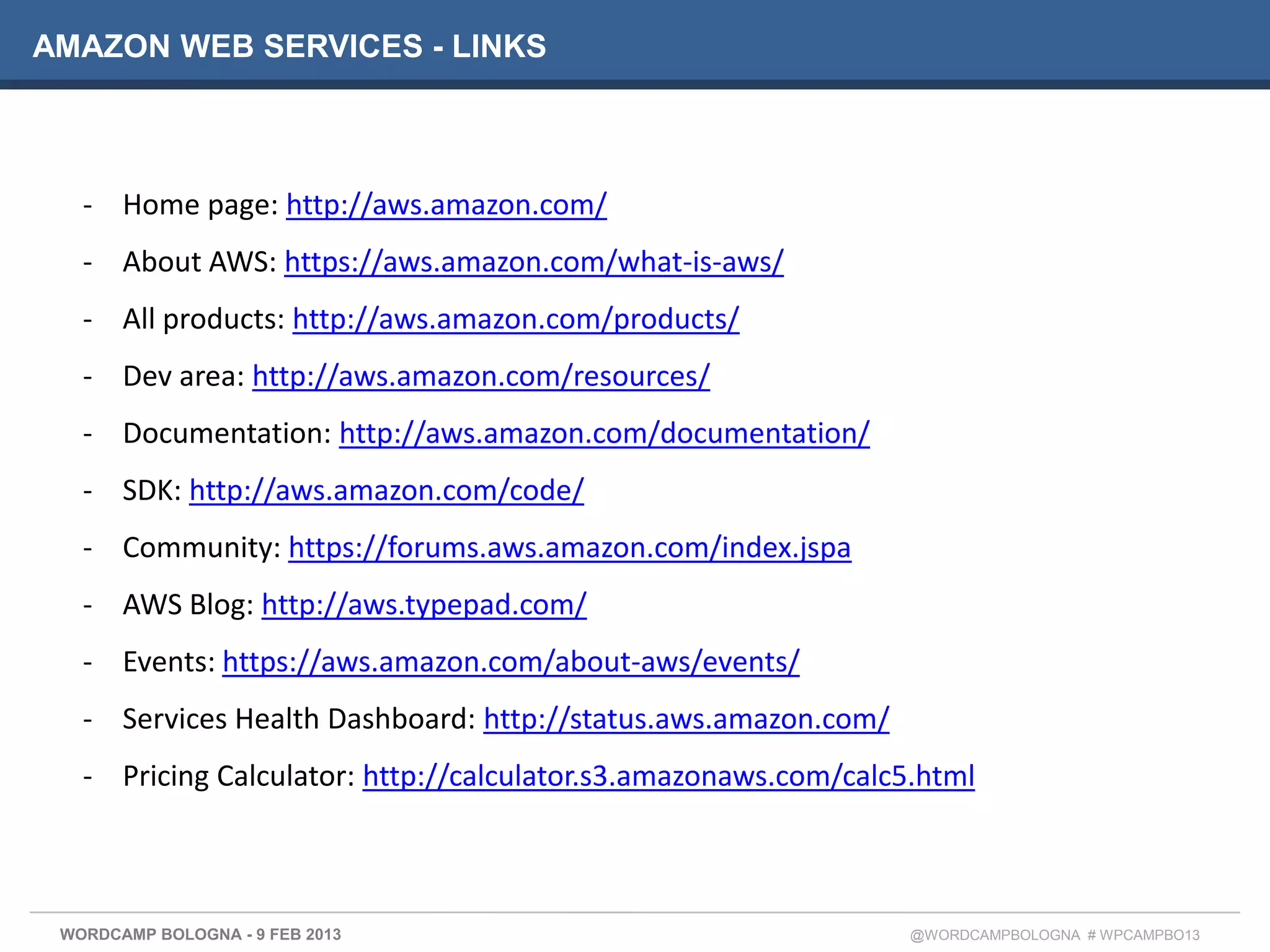

AMAZON WEB SERVICES - LINKS

- Home page: http://aws.amazon.com/
- About AWS: https://aws.amazon.com/what-is-aws/
- All products: http://aws.amazon.com/products/
- Dev area: http://aws.amazon.com/resources/
- Documentation: http://aws.amazon.com/documentation/
- SDK: http://aws.amazon.com/code/
- Community: https://forums.aws.amazon.com/index.jspa
- AWS Blog: http://aws.typepad.com/
- Events: https://aws.amazon.com/about-aws/events/
- Services Health Dashboard: http://status.aws.amazon.com/
- Pricing Calculator: http://calculator.s3.amazonaws.com/calc5.html


WORDPRESS ON
AMAZON WEB SERVICES

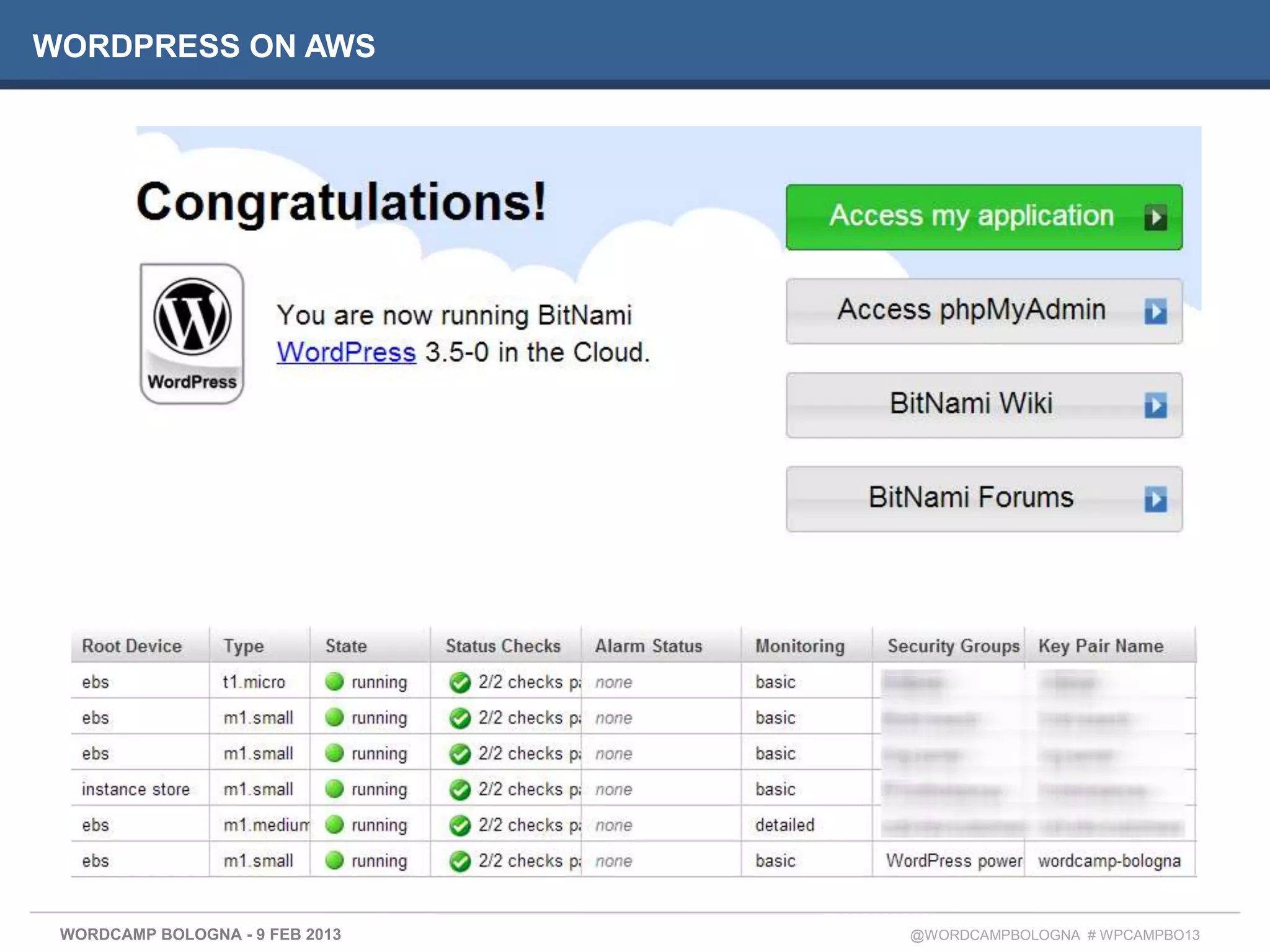

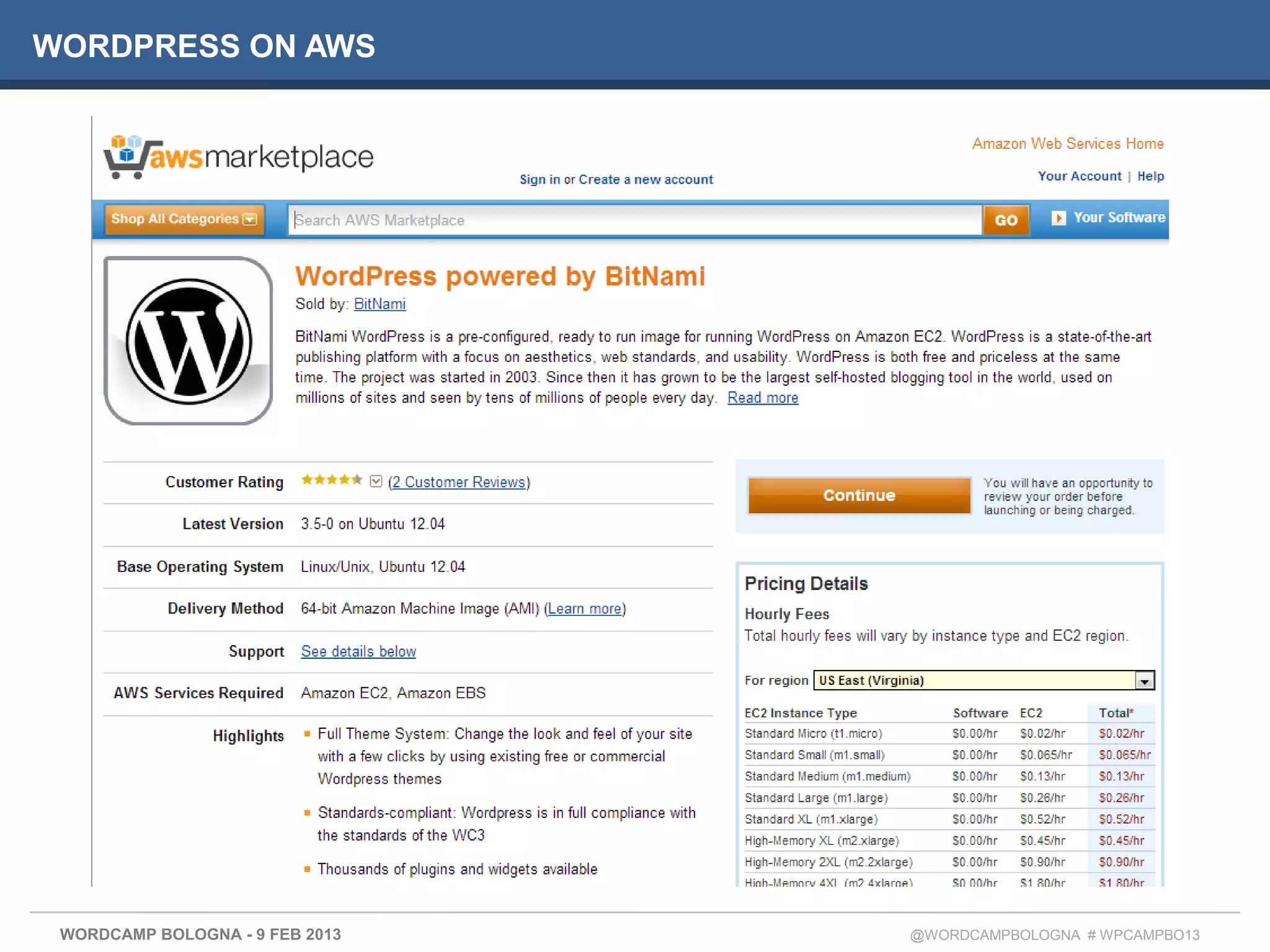

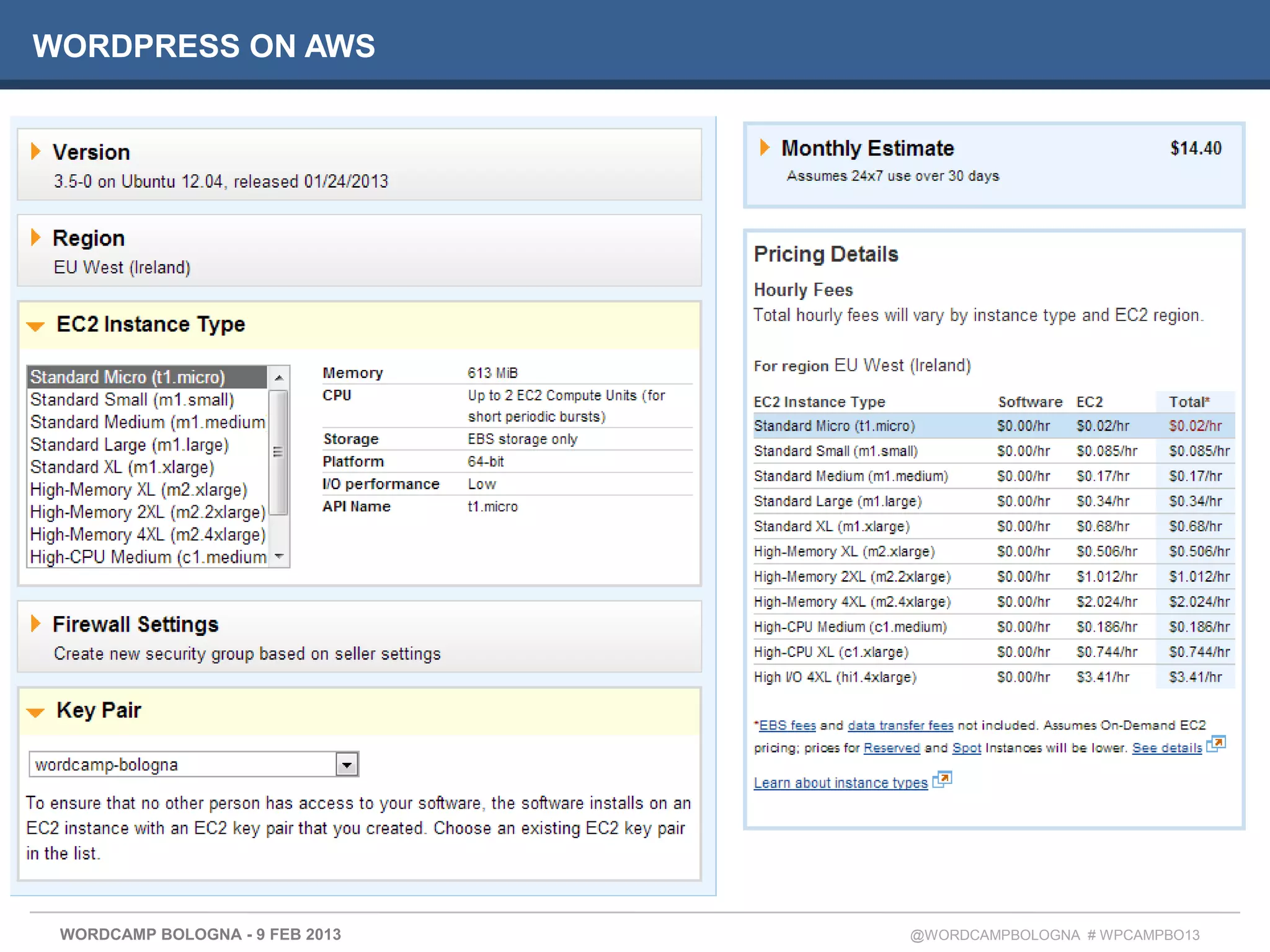

WORDPRESS ON AWS

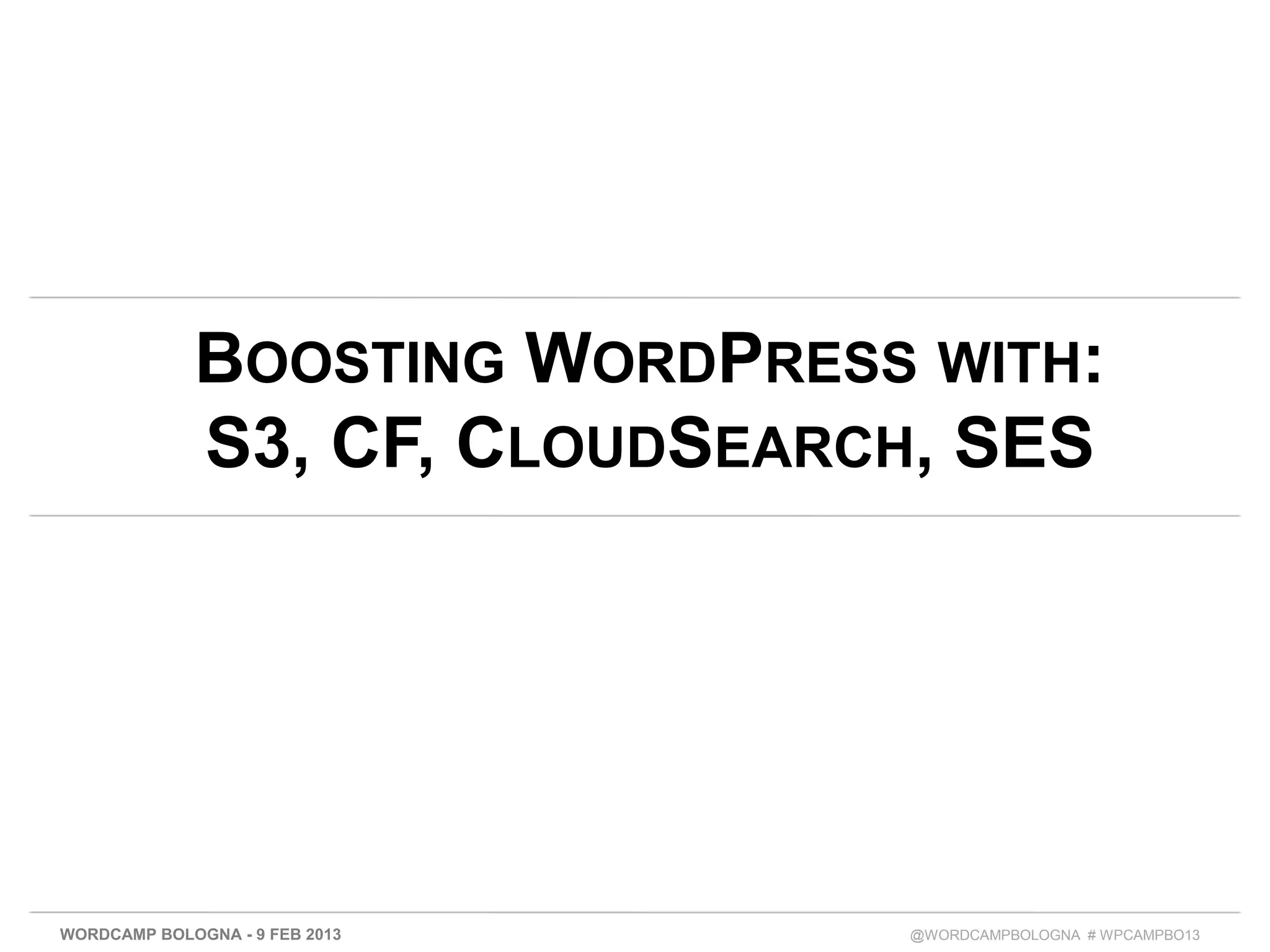

BOOSTING WORDPRESS WITH:
S3, CF, CLOUDSEARCH, SES

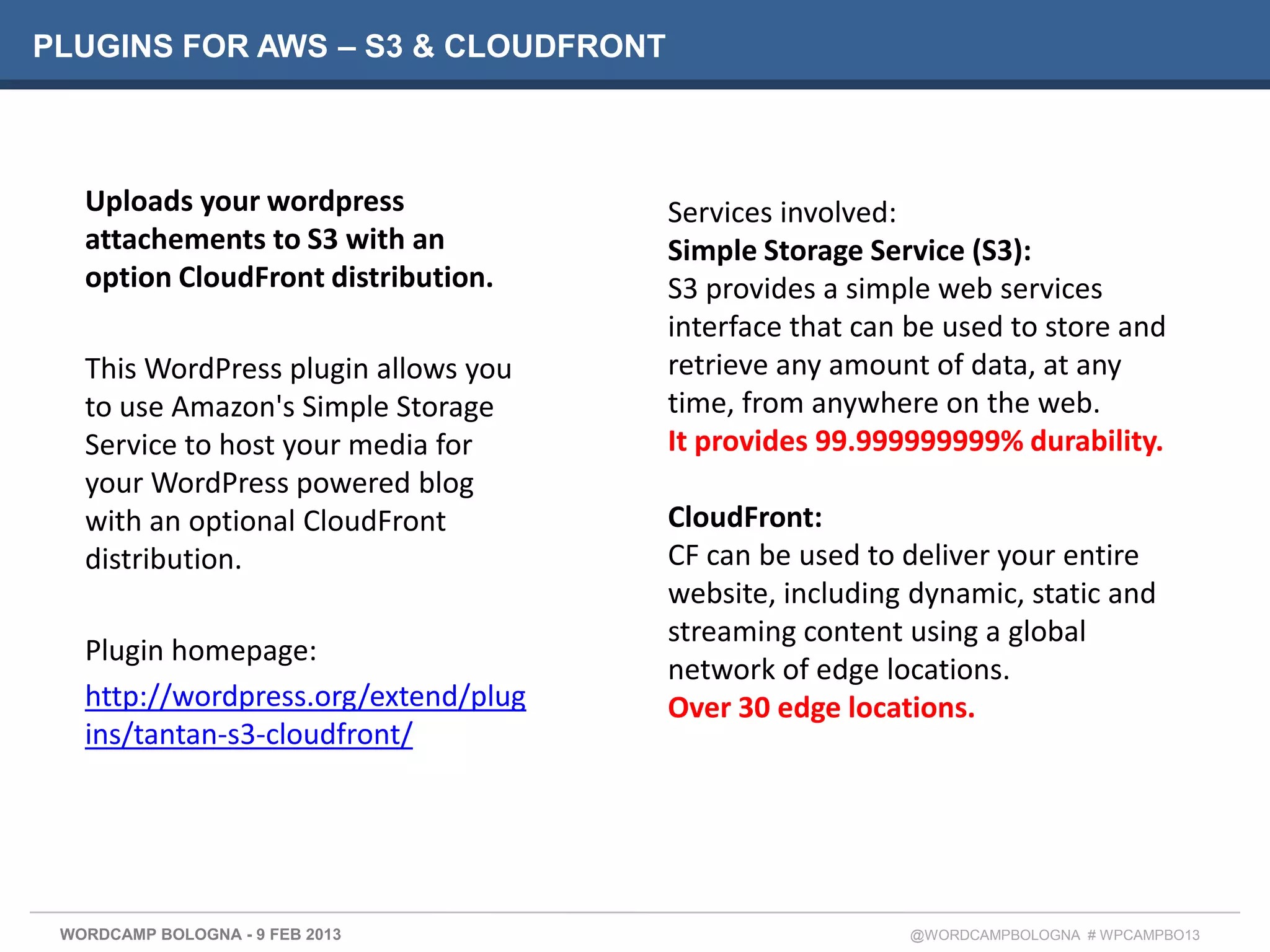

PLUGINS FOR AWS – S3 & CLOUDFRONT

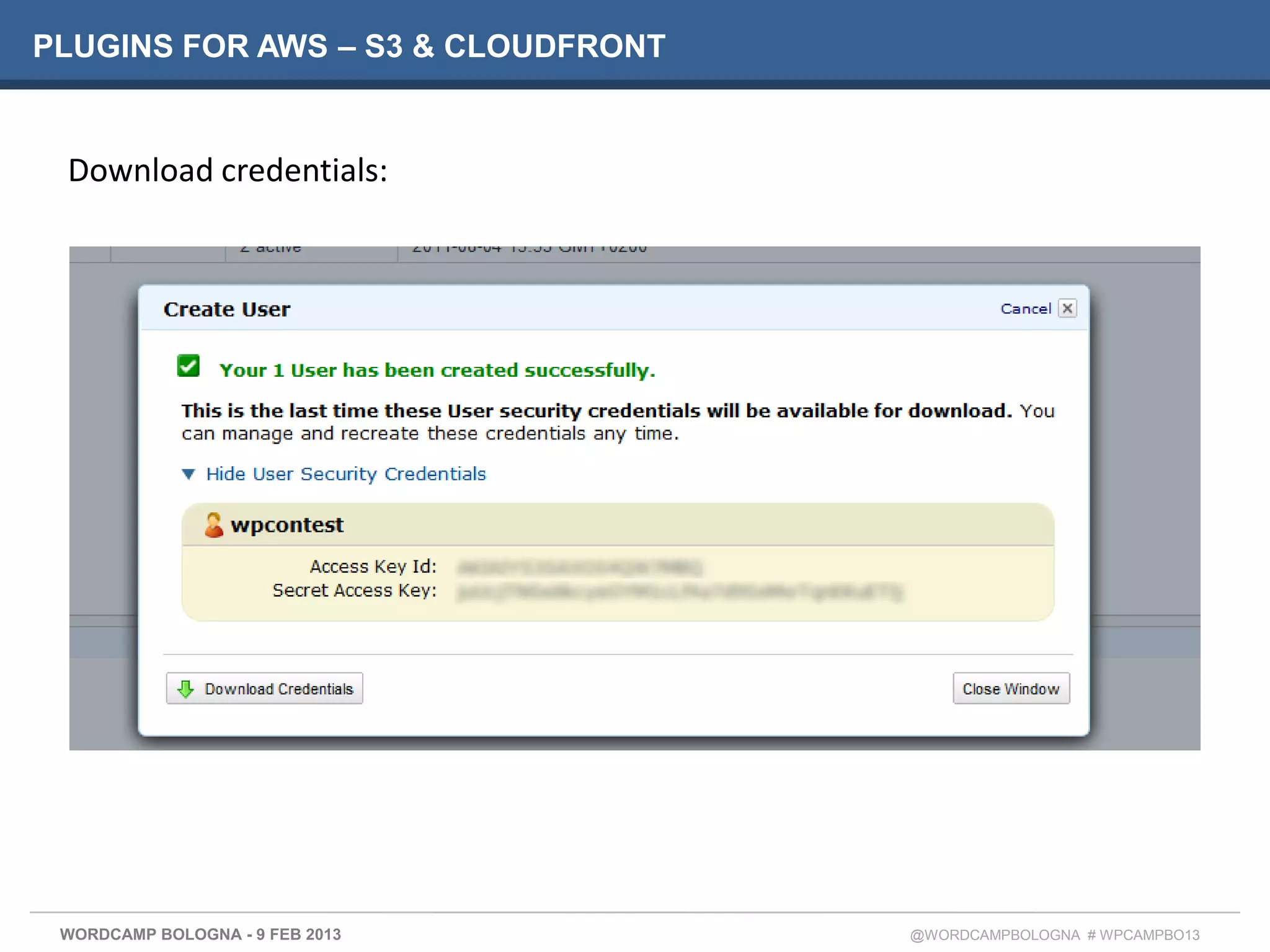

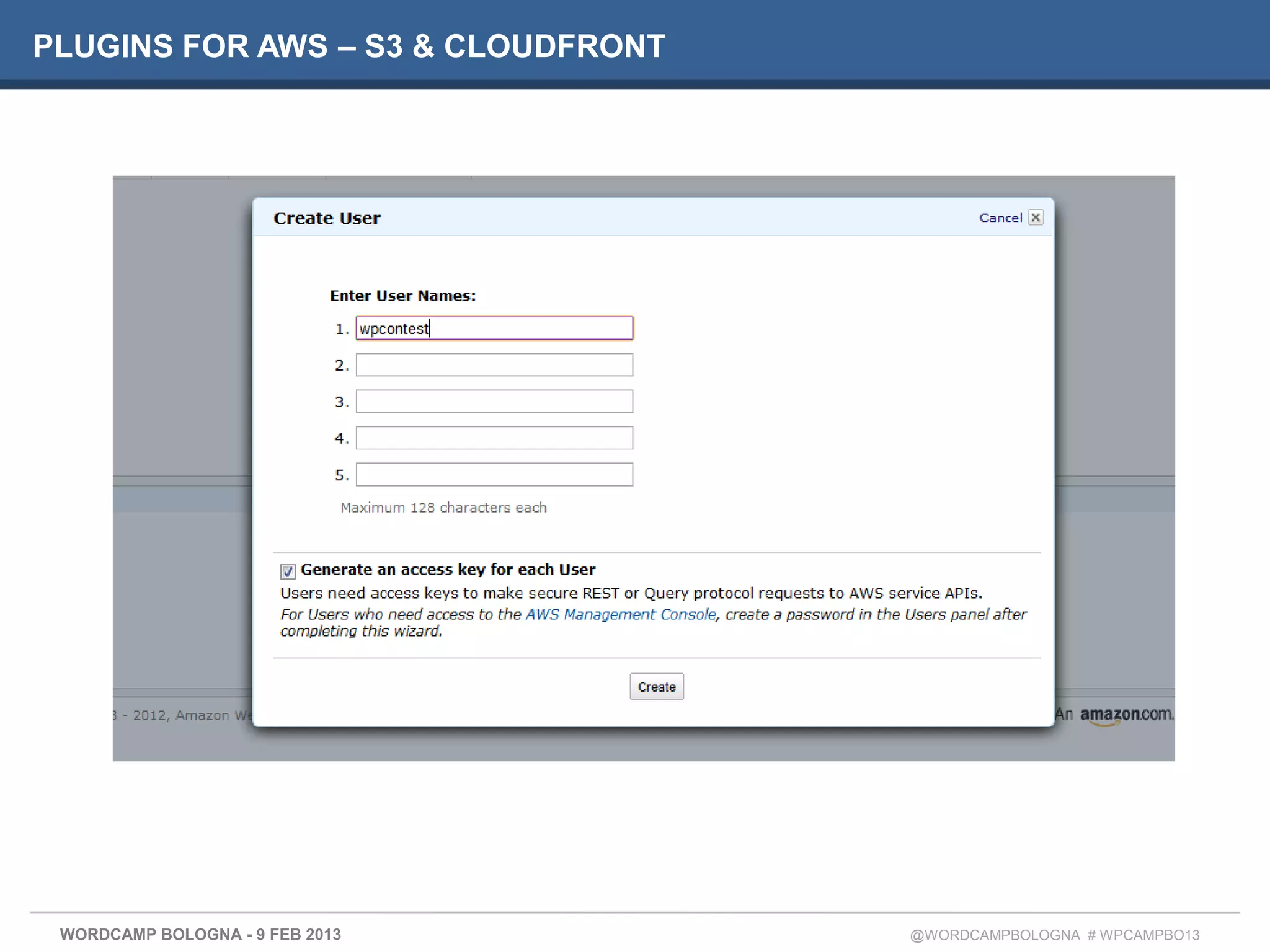

Download credentials:

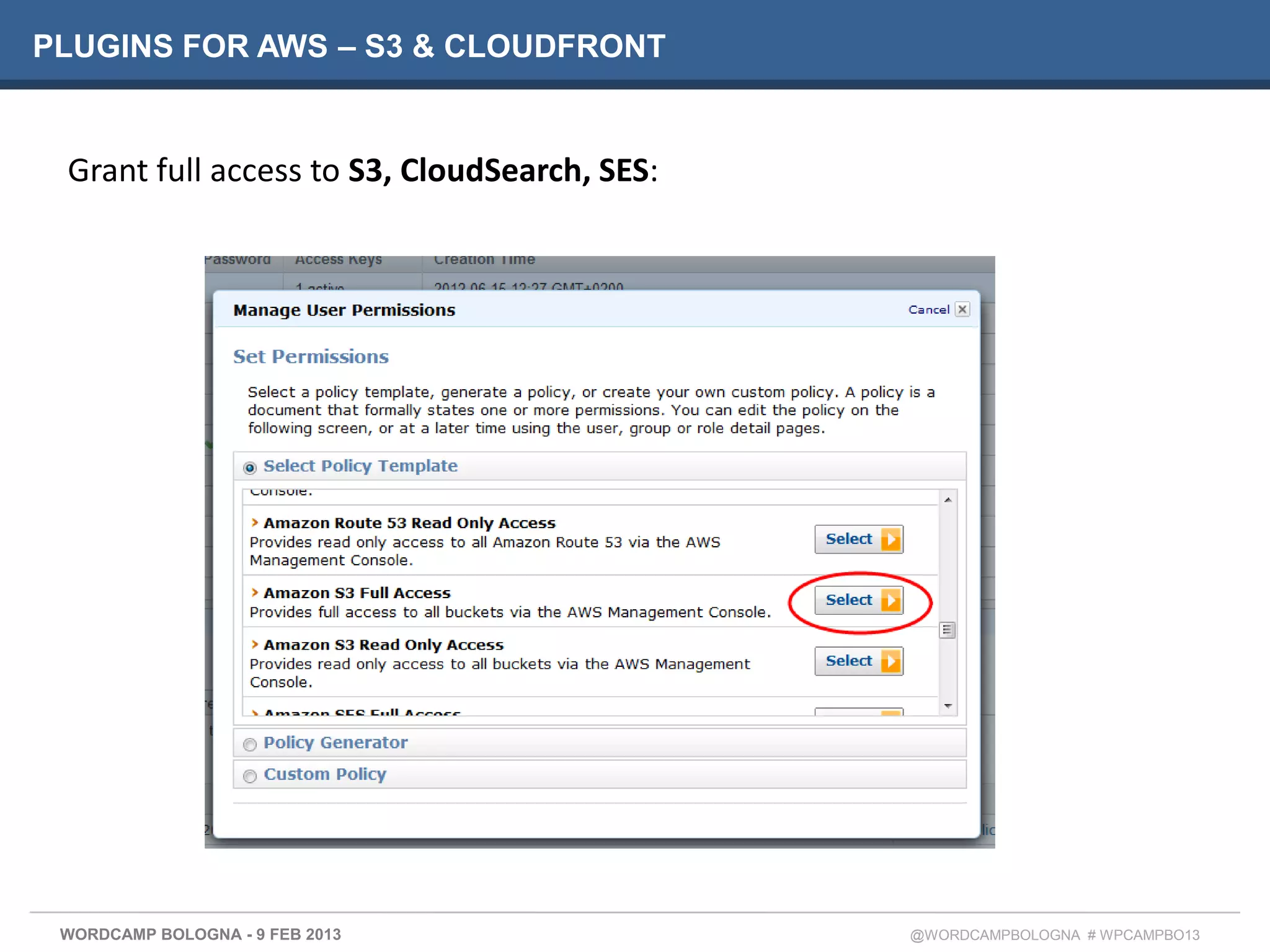

Grant full access to S3, CloudSearch, SES:

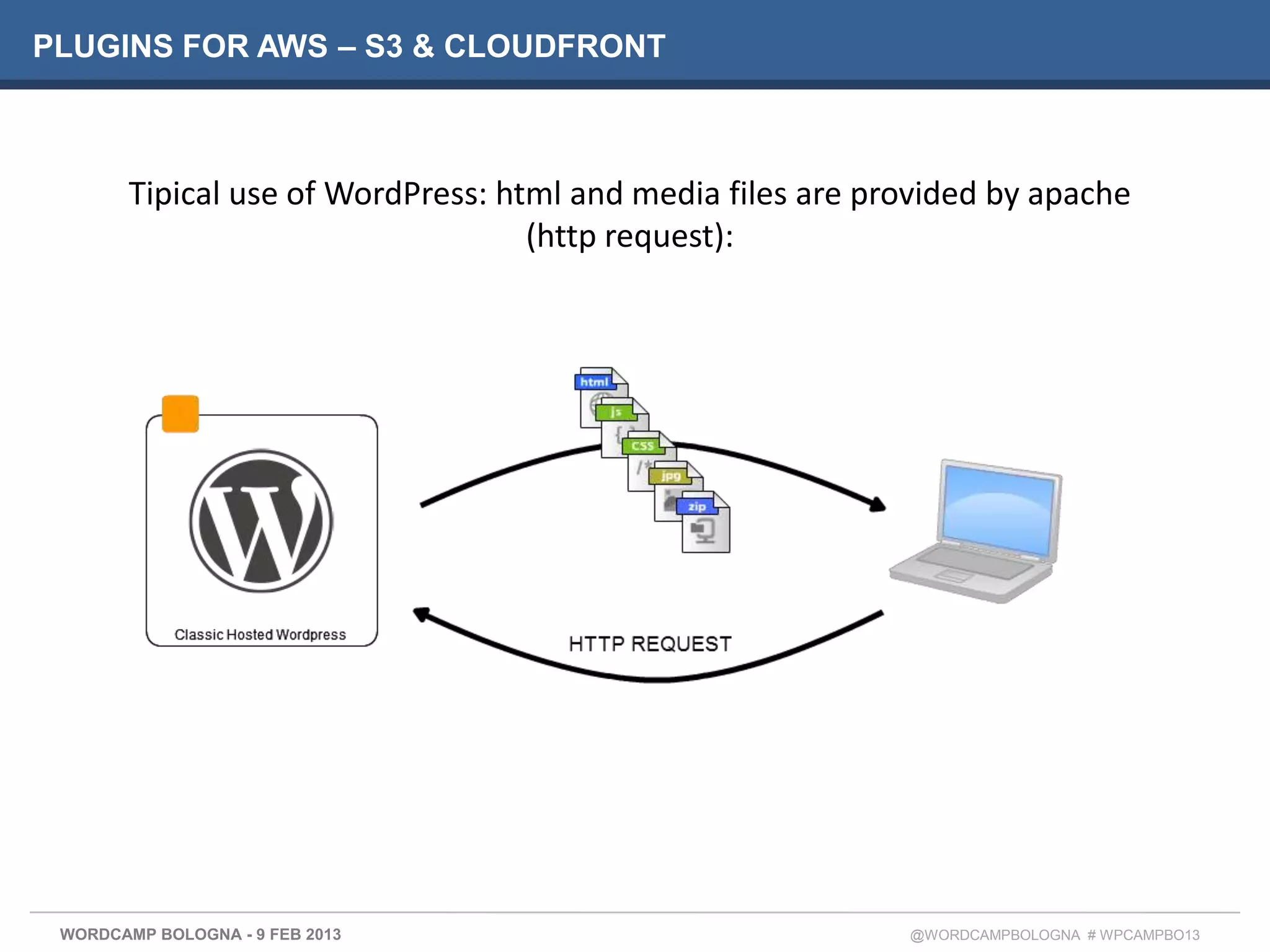

Tipical use of WordPress: html and media files are provided by apache
(http request):



Uploads your wordpress Services involved:
attachements to S3 with an Simple Storage Service (S3):
option CloudFront distribution. S3 provides a simple web services
interface that can be used to store and
This WordPress plugin allows you retrieve any amount of data, at any
to use Amazon's Simple Storage time, from anywhere on the web.
Service to host your media for It provides 99.999999999% durability.
your WordPress powered blog
with an optional CloudFront CloudFront:
distribution. CF can be used to deliver your entire
website, including dynamic, static and
streaming content using a global
Plugin homepage:
network of edge locations.
http://wordpress.org/extend/plug Over 30 edge locations.
ins/tantan-s3-cloudfront/

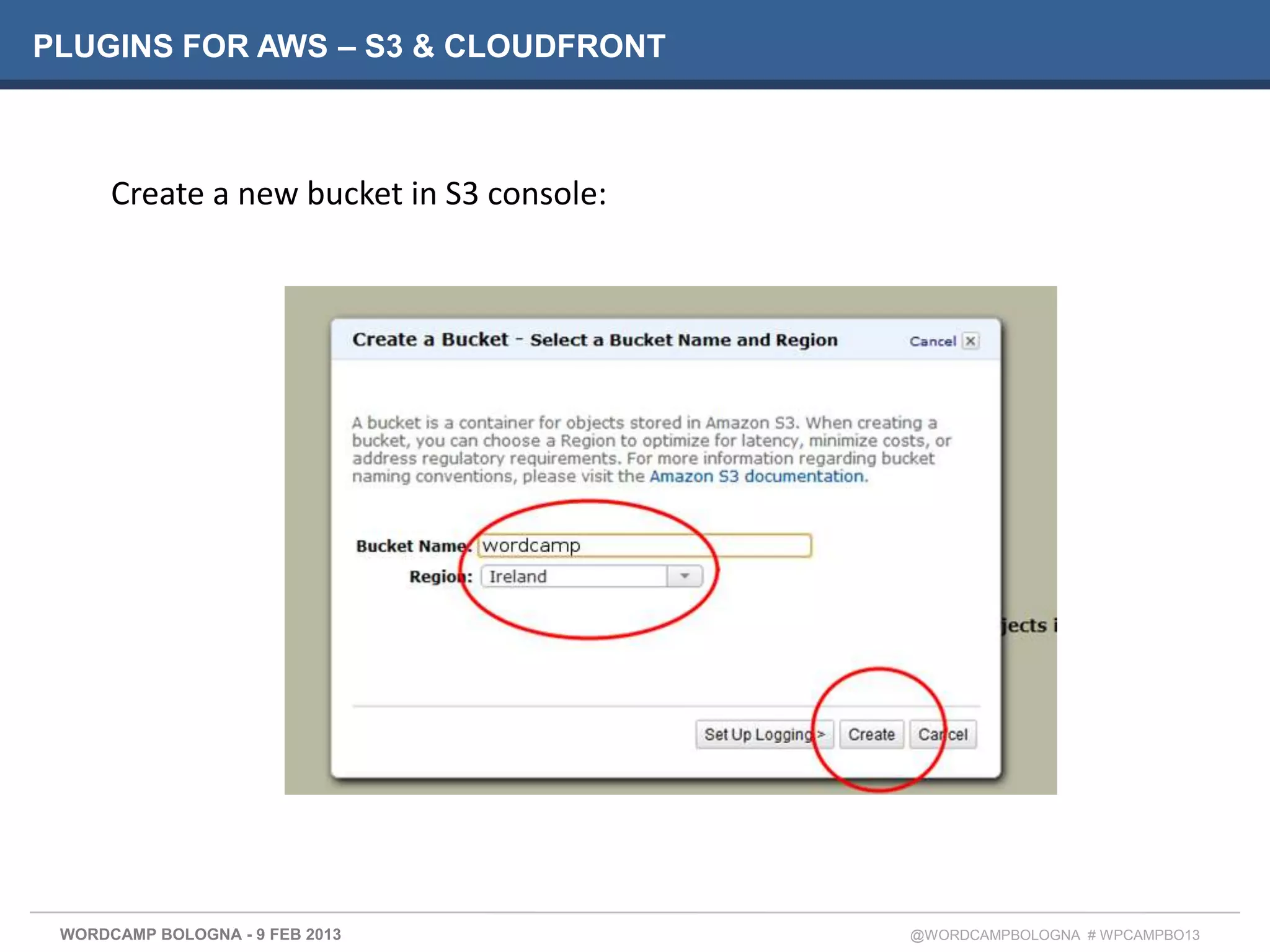

Create a new bucket in S3 console:


PLUGINS FOR AWS

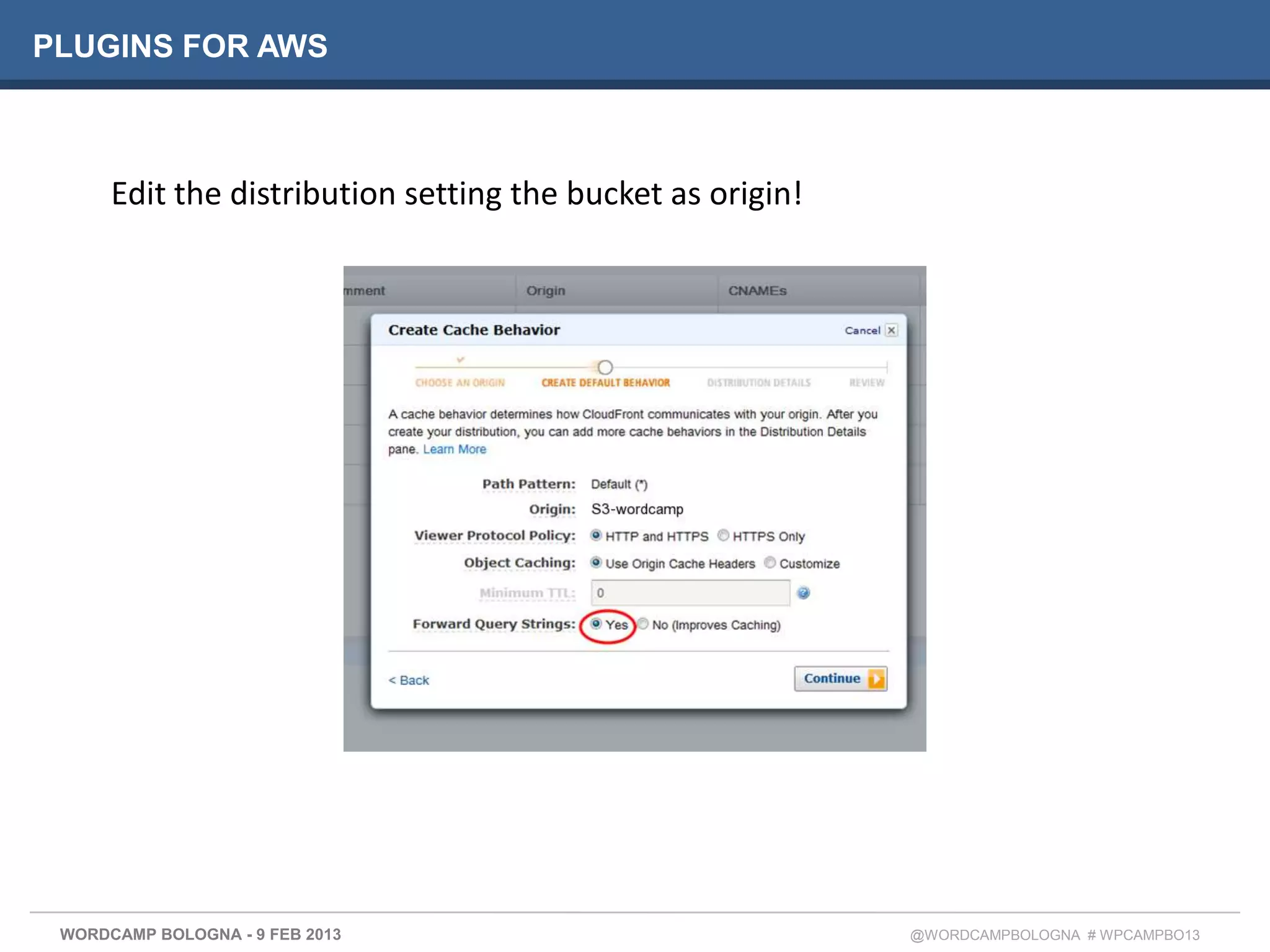

Edit the distribution setting the bucket as origin!

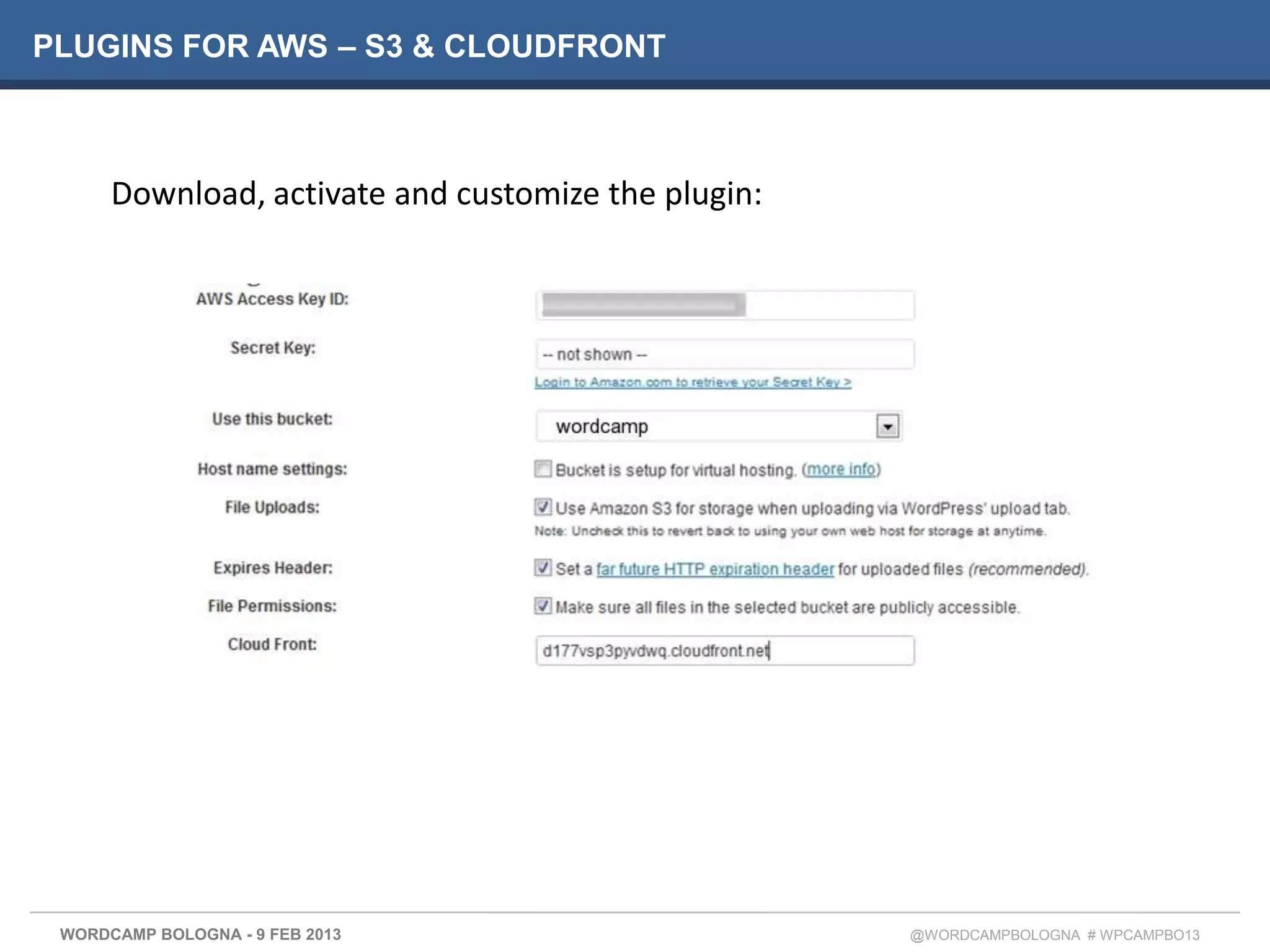

Download, activate and customize the plugin:

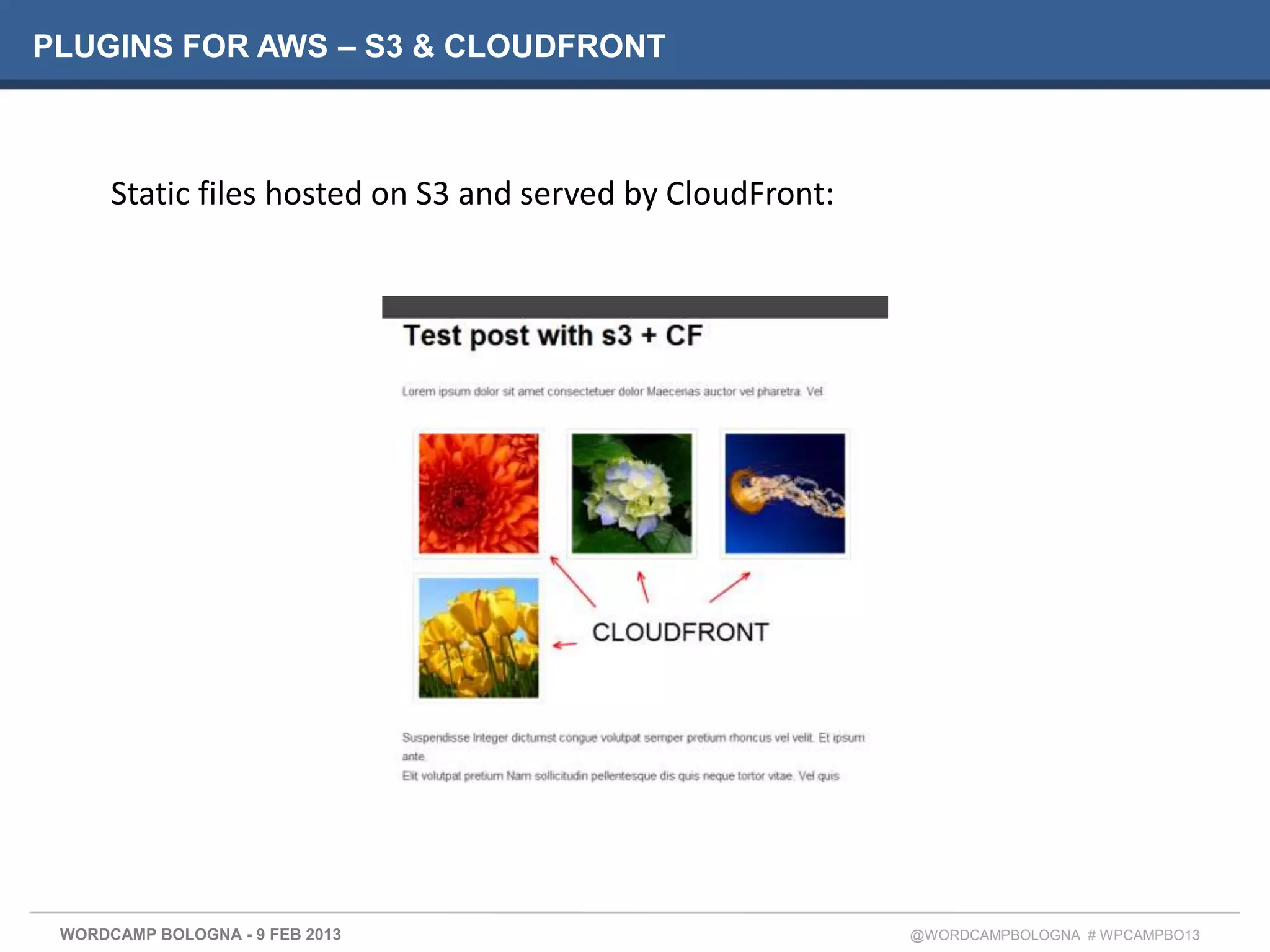

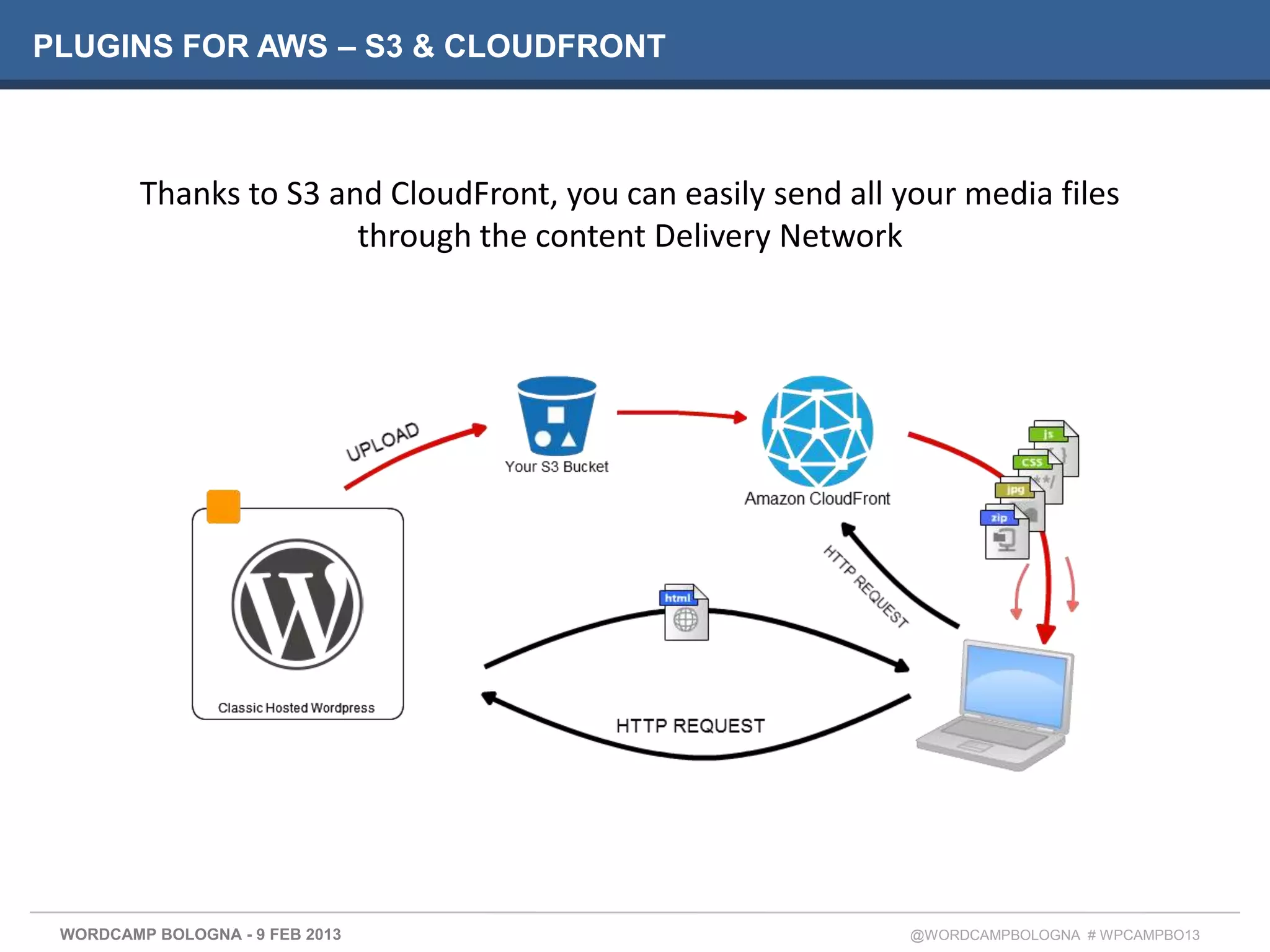

Static files hosted on S3 and served by CloudFront:



Thanks to S3 and CloudFront, you can easily send all your media files
through the content Delivery Network

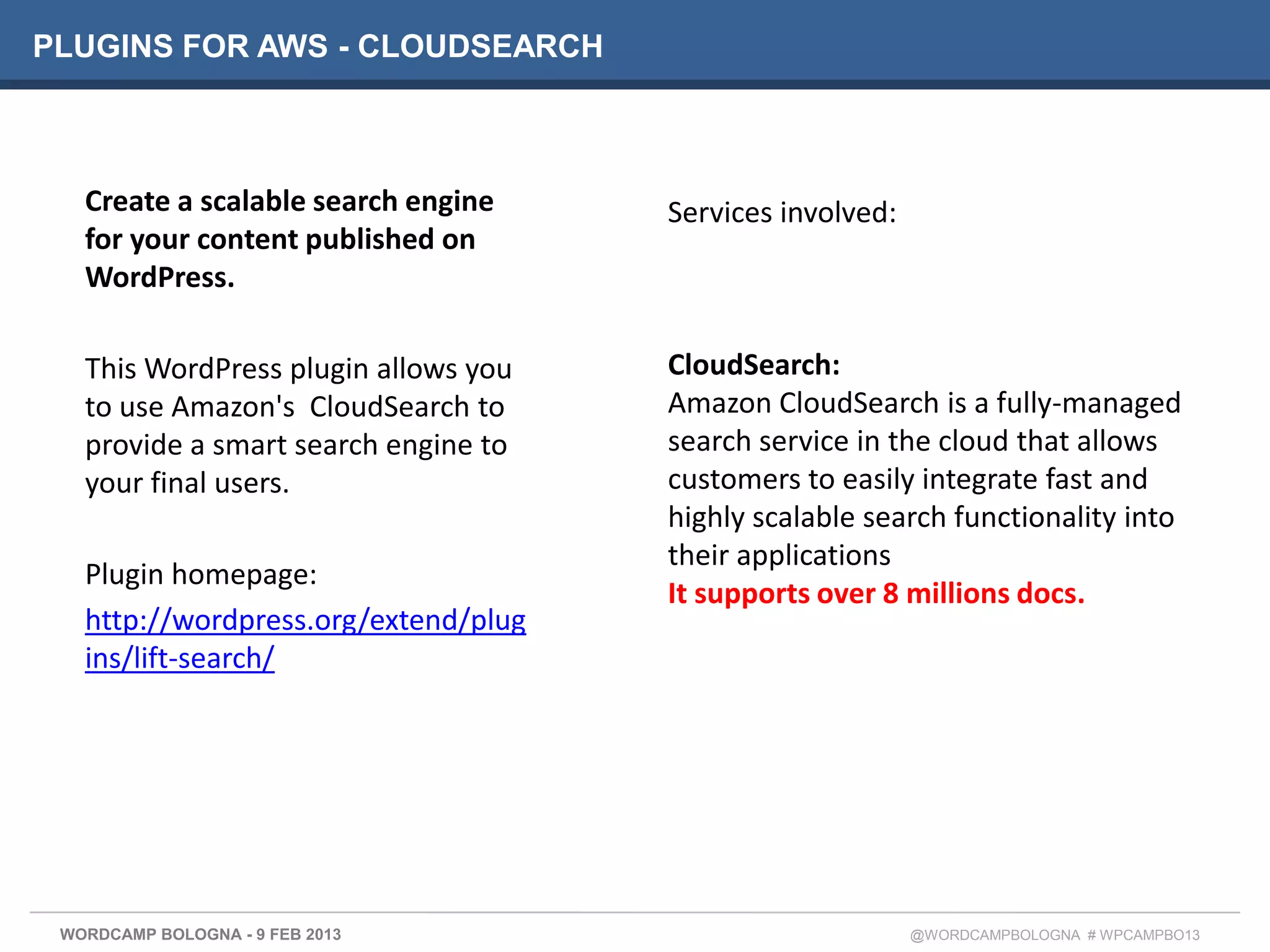

PLUGINS FOR AWS - CLOUDSEARCH

Create a scalable search engine Services involved:
for your content published on
WordPress.

This WordPress plugin allows you CloudSearch:
to use Amazon's CloudSearch to Amazon CloudSearch is a fully-managed
provide a smart search engine to search service in the cloud that allows
your final users. customers to easily integrate fast and
highly scalable search functionality into
their applications
Plugin homepage:
It supports over 8 millions docs.
http://wordpress.org/extend/plug
ins/lift-search/

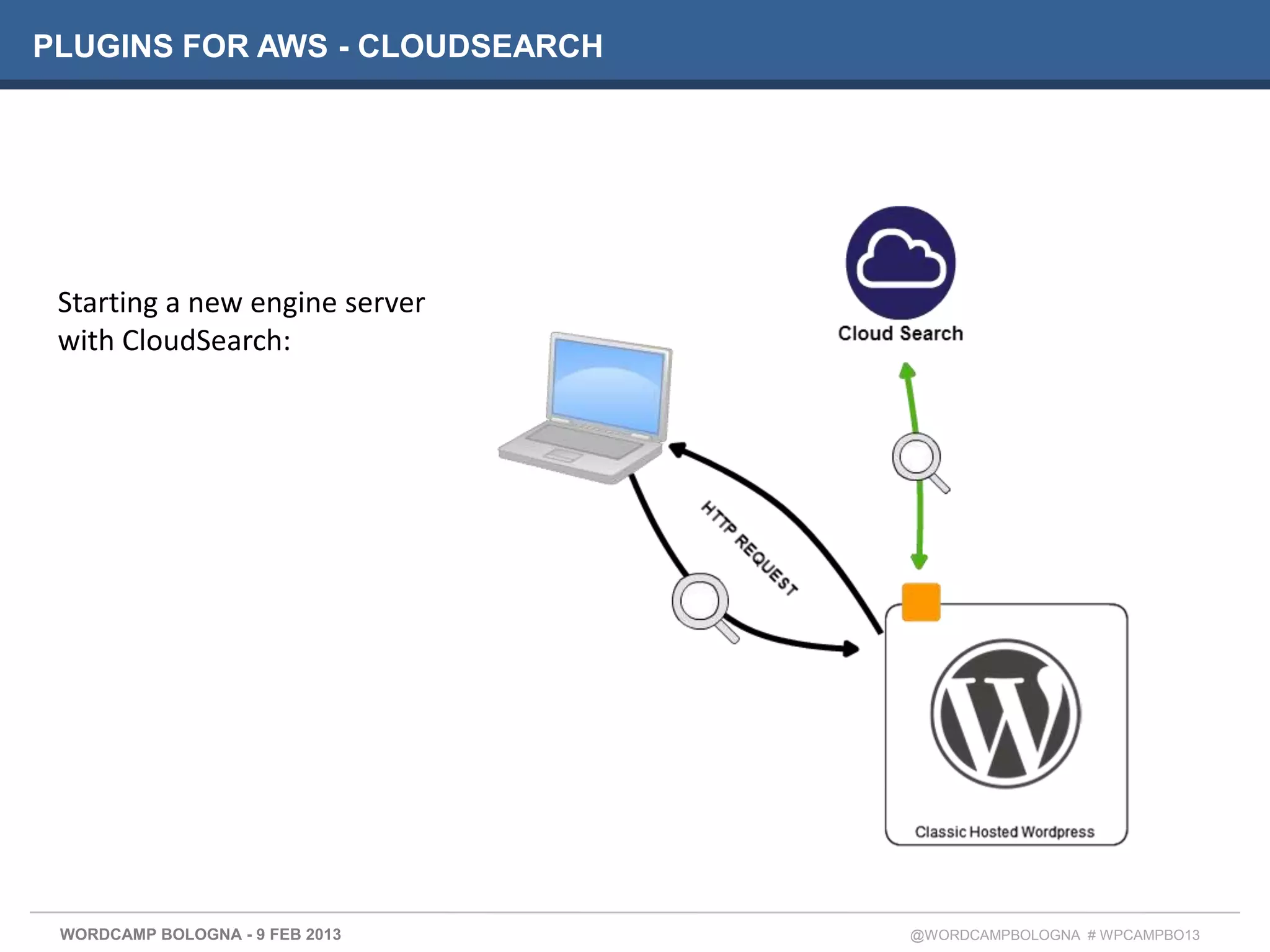

Starting a new engine server
with CloudSearch:

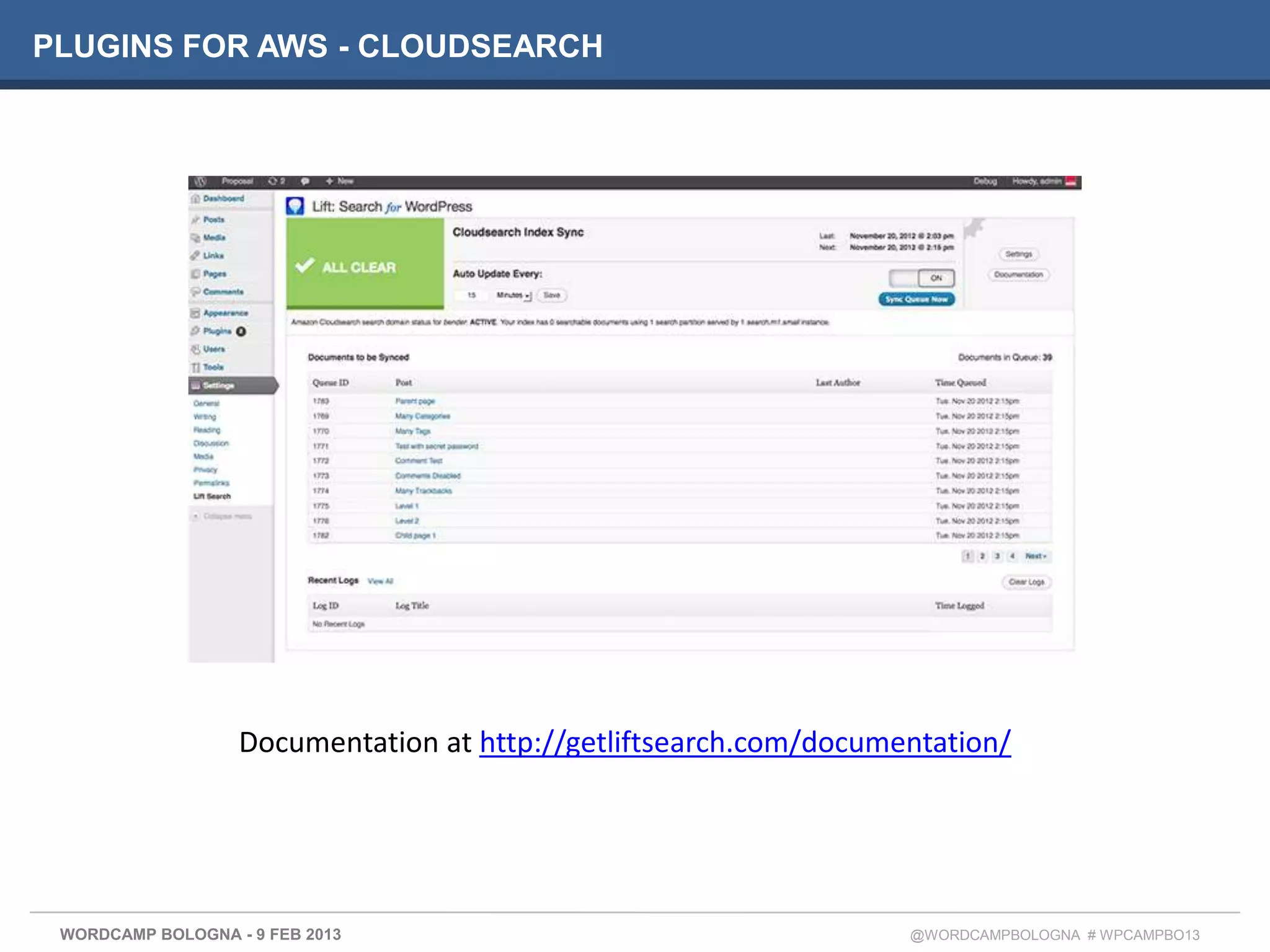

Documentation at http://getliftsearch.com/documentation/

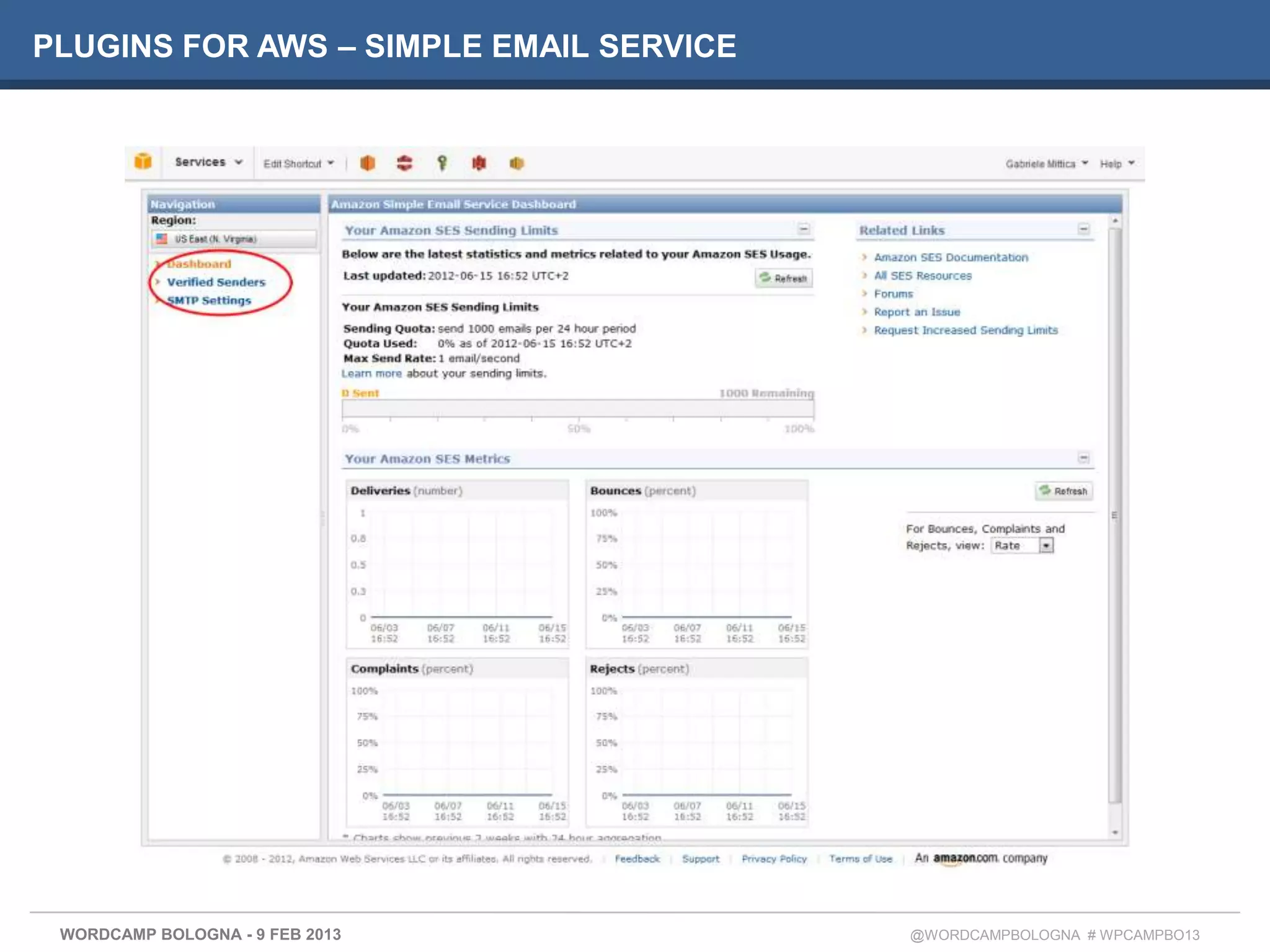

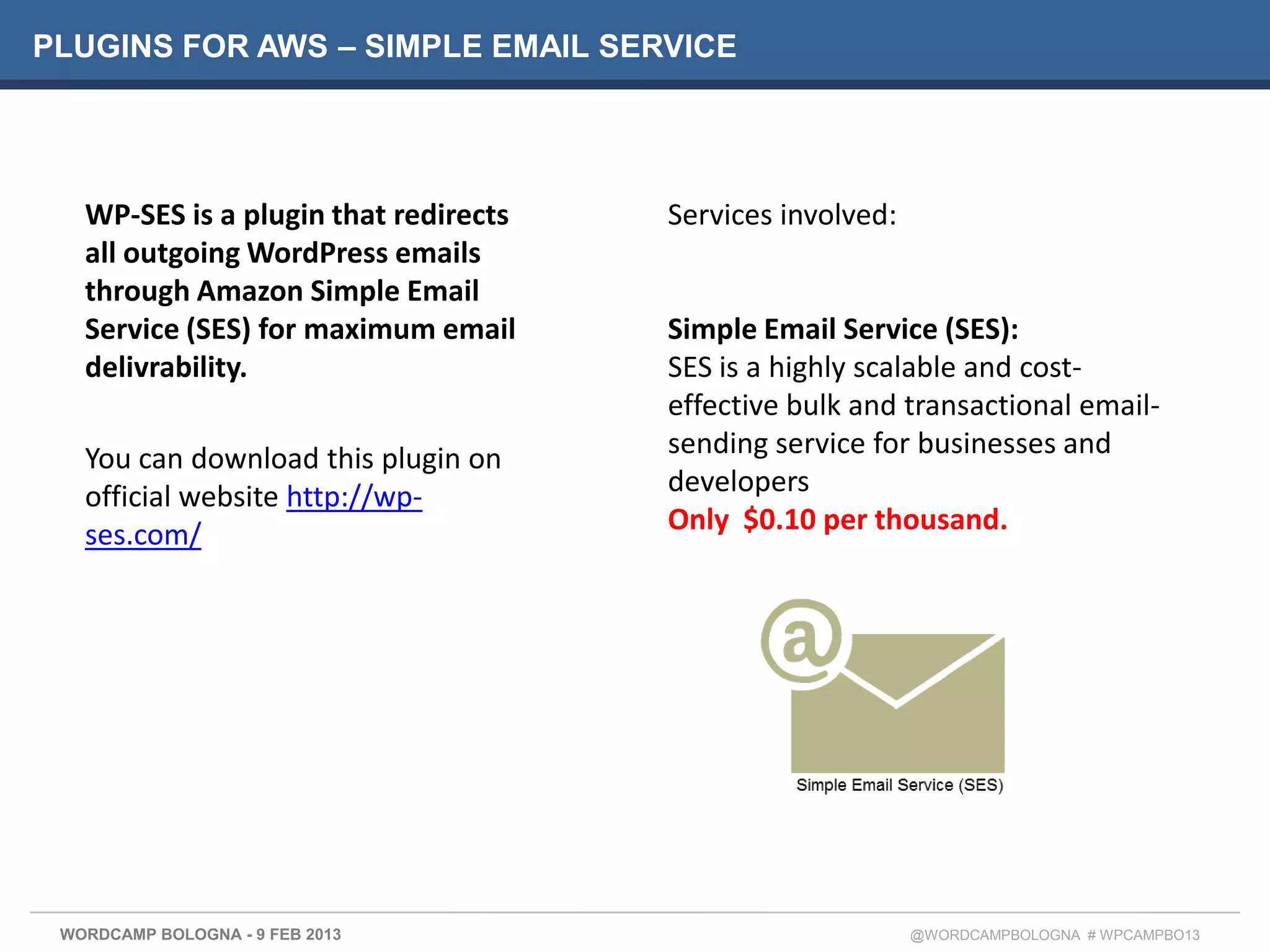

PLUGINS FOR AWS – SIMPLE EMAIL SERVICE

WP-SES is a plugin that redirects Services involved:
all outgoing WordPress emails
through Amazon Simple Email
Service (SES) for maximum email Simple Email Service (SES):
delivrability. SES is a highly scalable and cost-
effective bulk and transactional email-
You can download this plugin on sending service for businesses and
official website http://wp- developers
ses.com/ Only $0.10 per thousand.

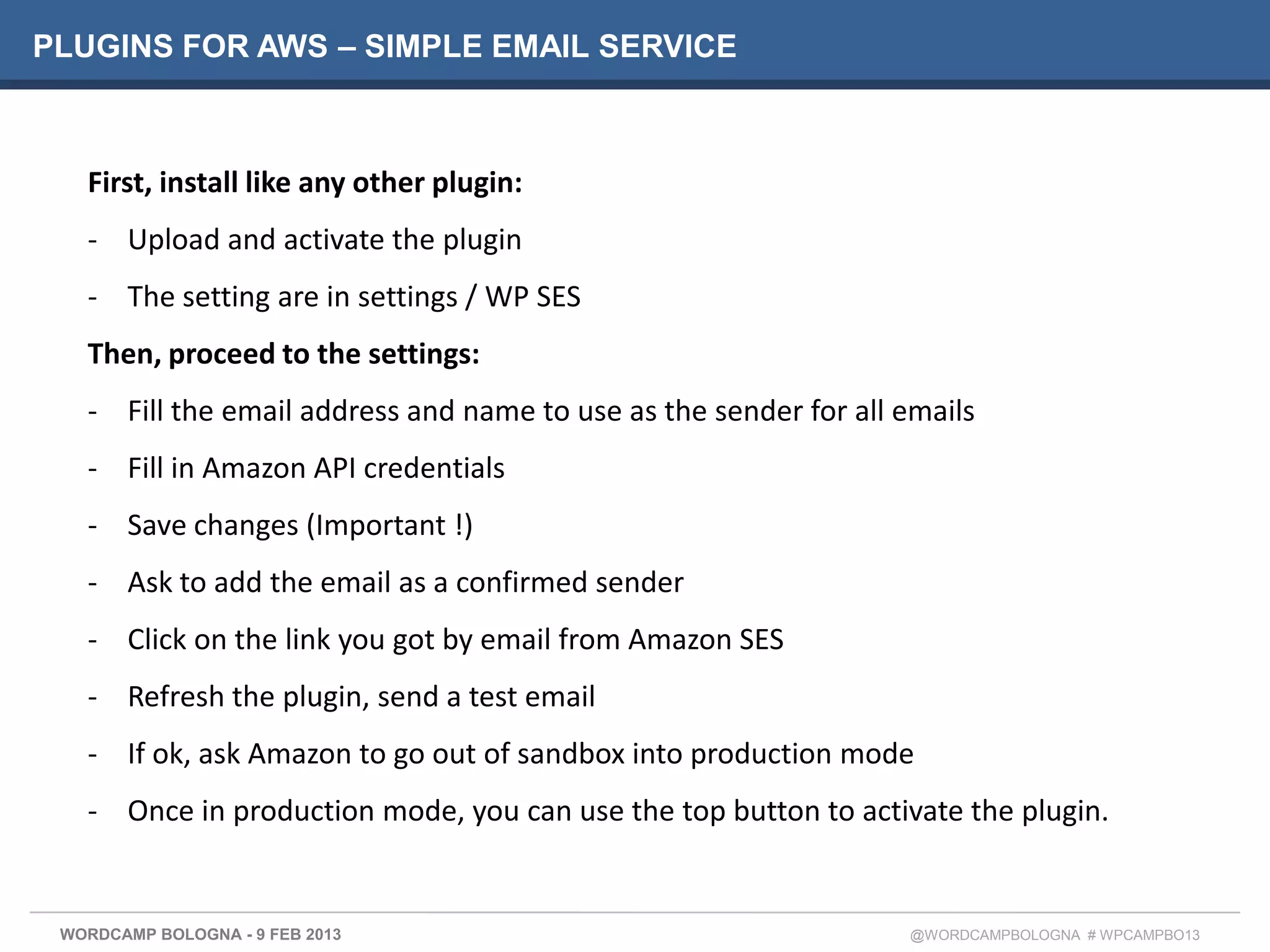

First, install like any other plugin:
- Upload and activate the plugin
- The setting are in settings / WP SES
Then, proceed to the settings:
- Fill the email address and name to use as the sender for all emails
- Fill in Amazon API credentials
- Save changes (Important !)
- Ask to add the email as a confirmed sender
- Click on the link you got by email from Amazon SES
- Refresh the plugin, send a test email
- If ok, ask Amazon to go out of sandbox into production mode
- Once in production mode, you can use the top button to activate the plugin.

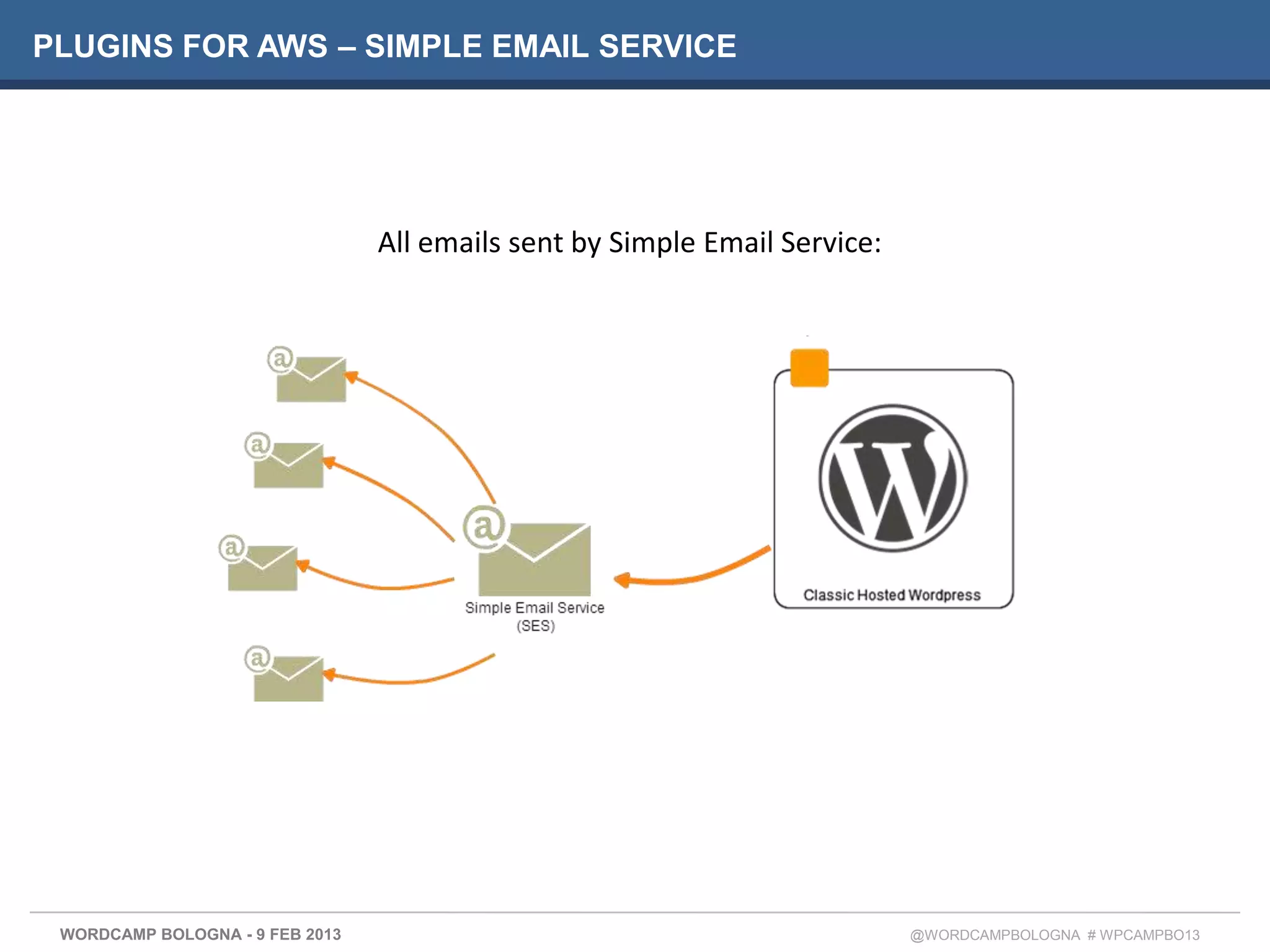

All emails sent by Simple Email Service:


PLUGINS FOR AWS

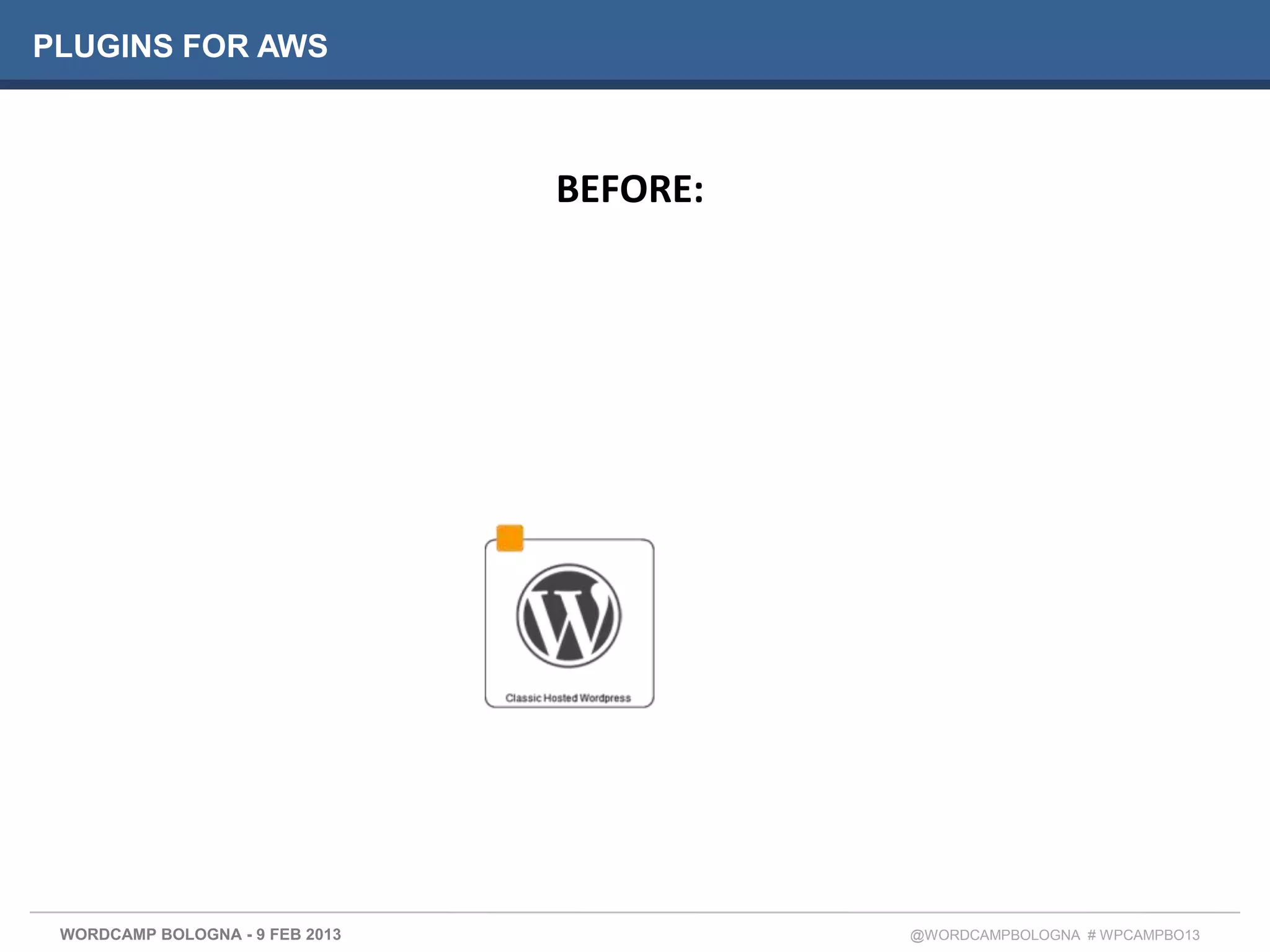

BEFORE:

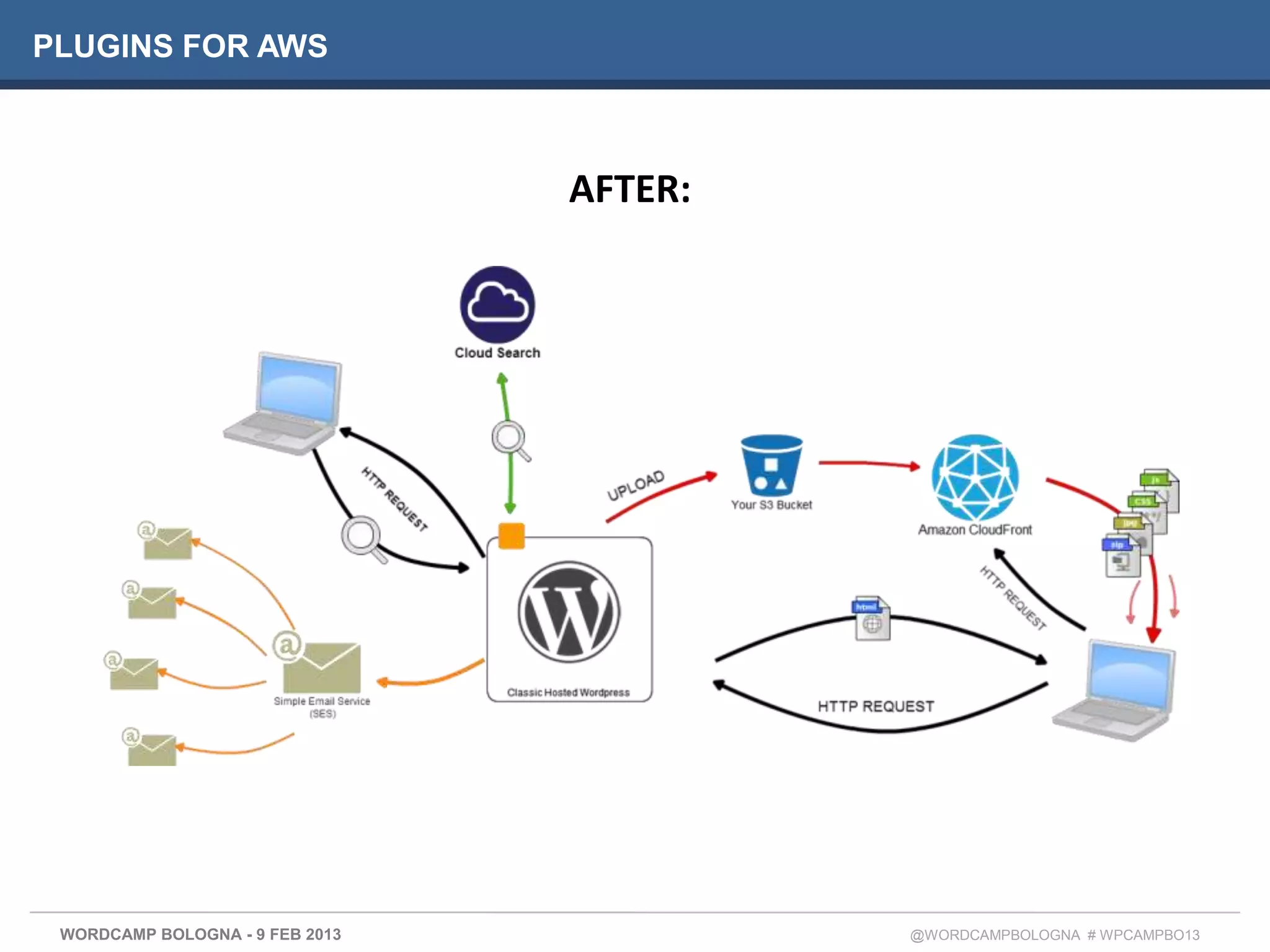

PLUGINS FOR AWS

AFTER:

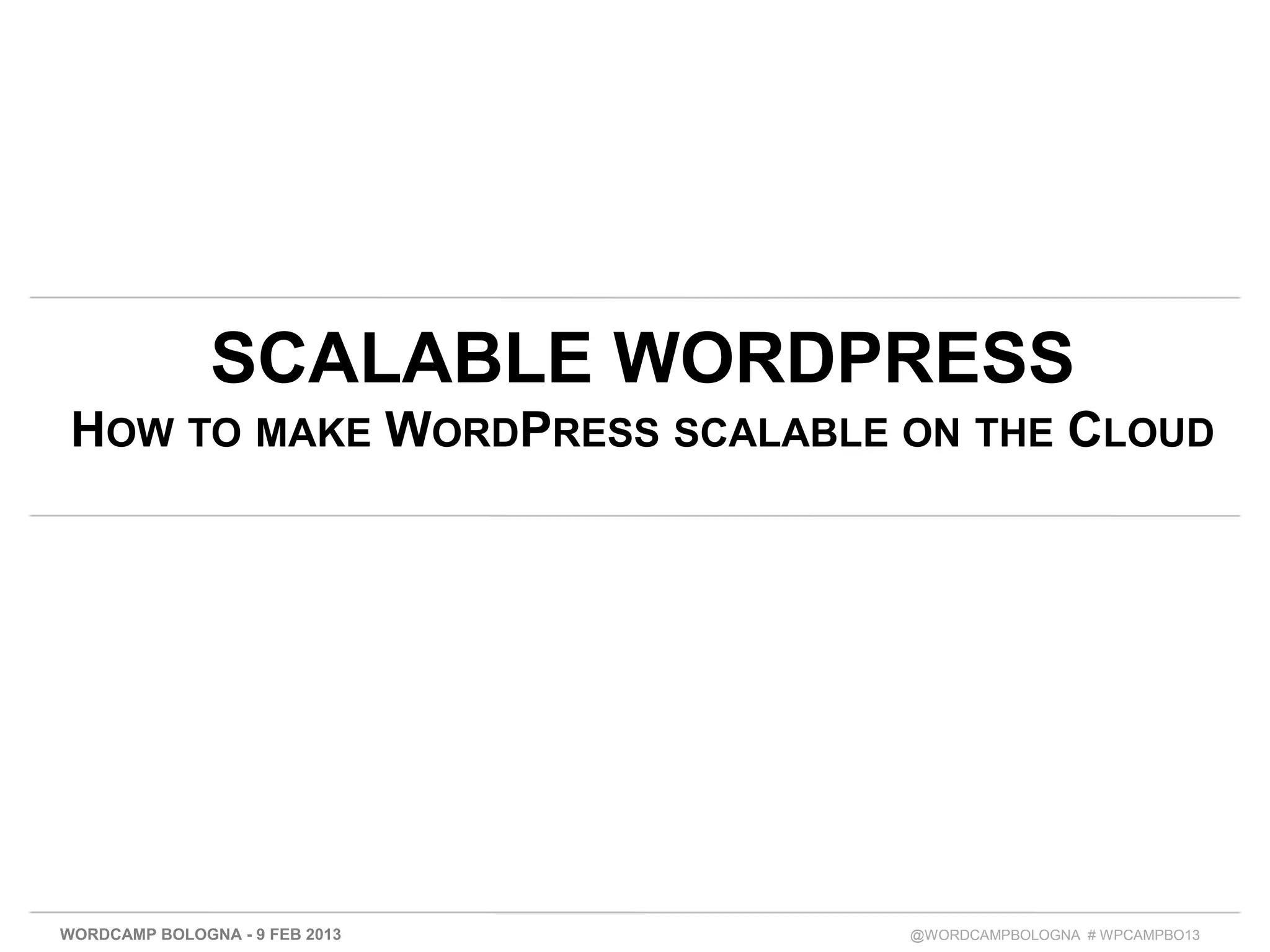

SCALABLE WORDPRESS
HOW TO MAKE WORDPRESS SCALABLE ON THE CLOUD

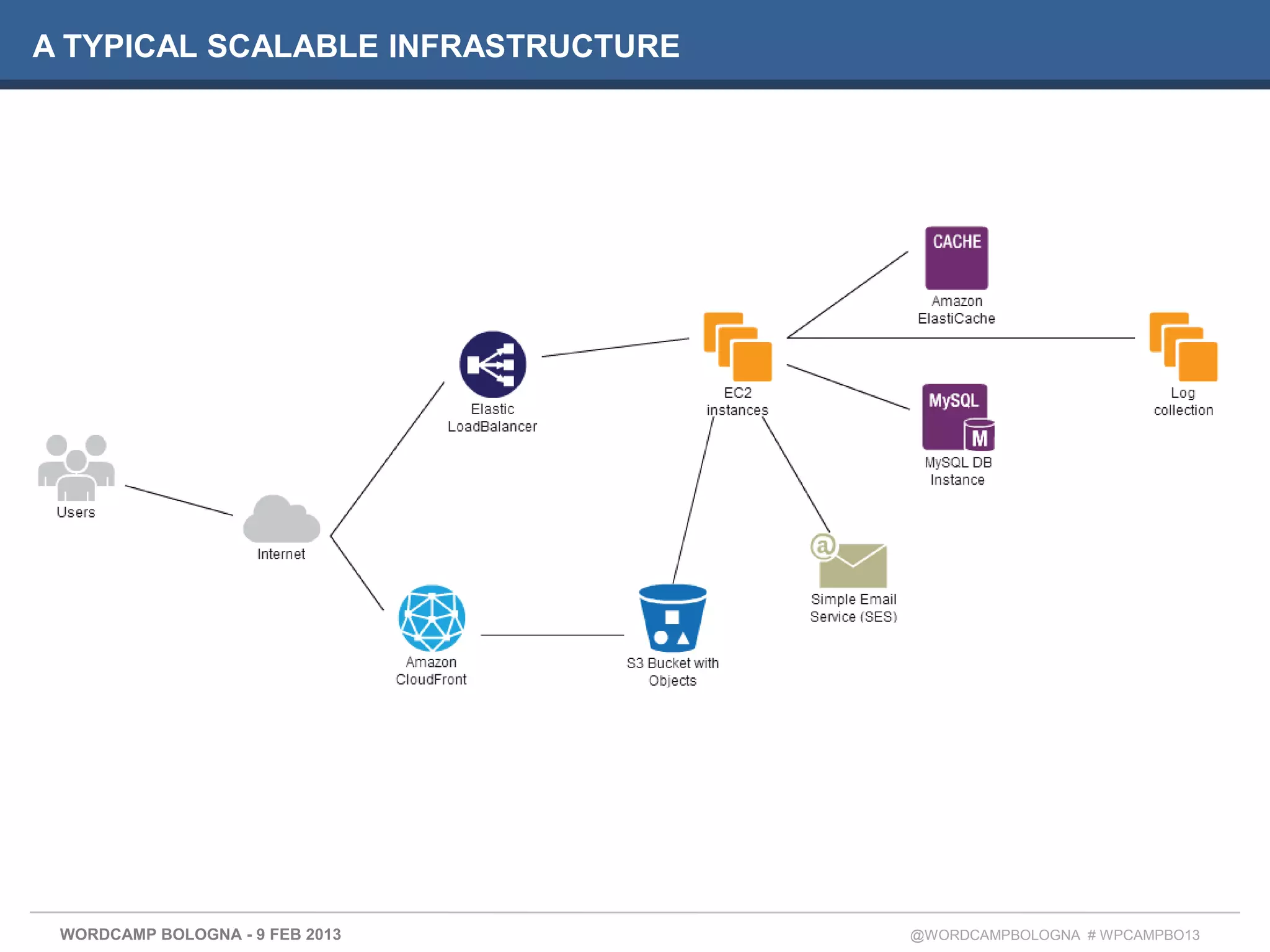

A TYPICAL SCALABLE INFRASTRUCTURE

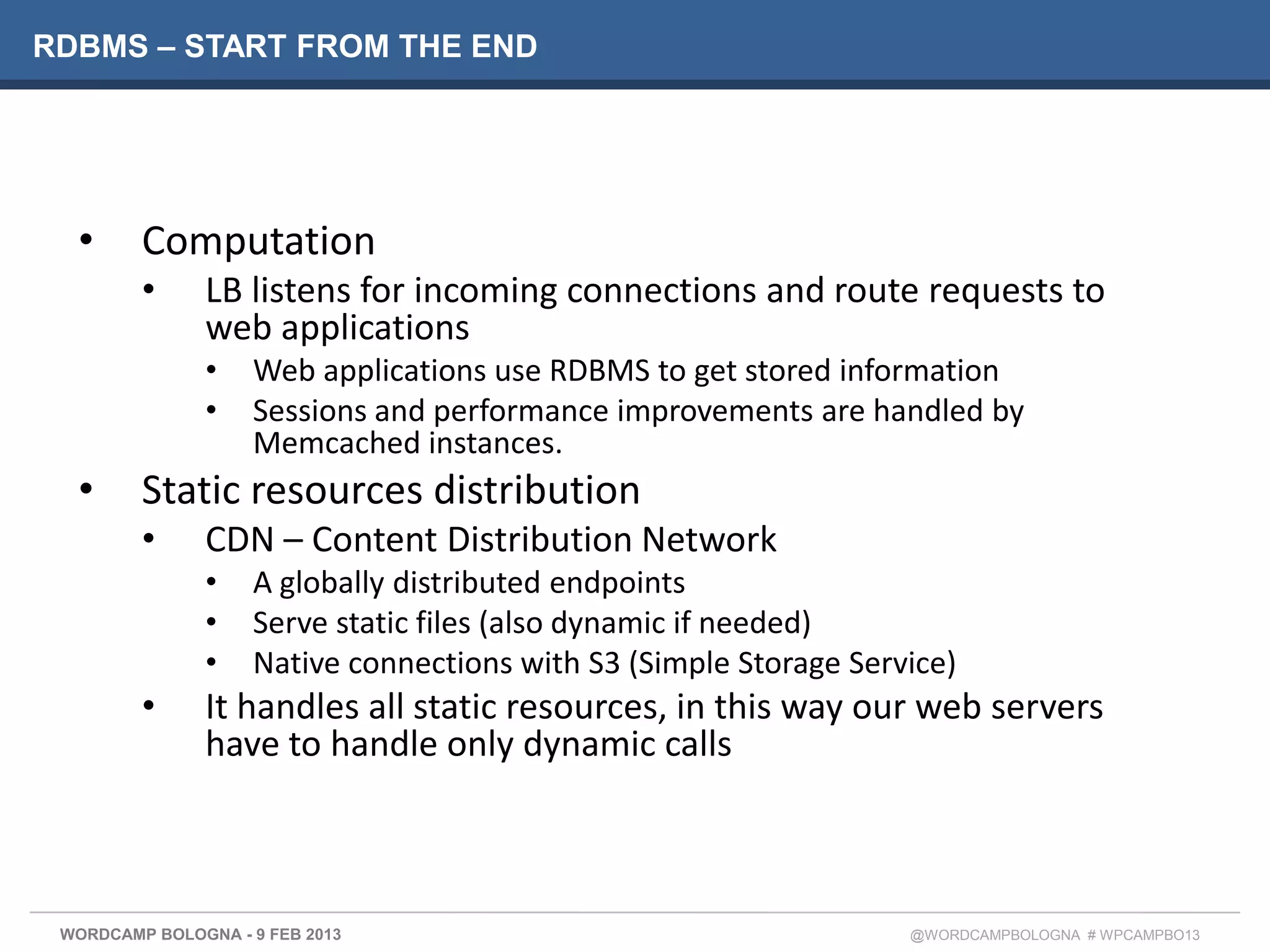

RDBMS – START FROM THE END

• Computation
• LB listens for incoming connections and route requests to
web applications
• Web applications use RDBMS to get stored information
• Sessions and performance improvements are handled by
Memcached instances.
• Static resources distribution
• CDN – Content Distribution Network
• A globally distributed endpoints
• Serve static files (also dynamic if needed)
• Native connections with S3 (Simple Storage Service)
• It handles all static resources, in this way our web servers
have to handle only dynamic calls

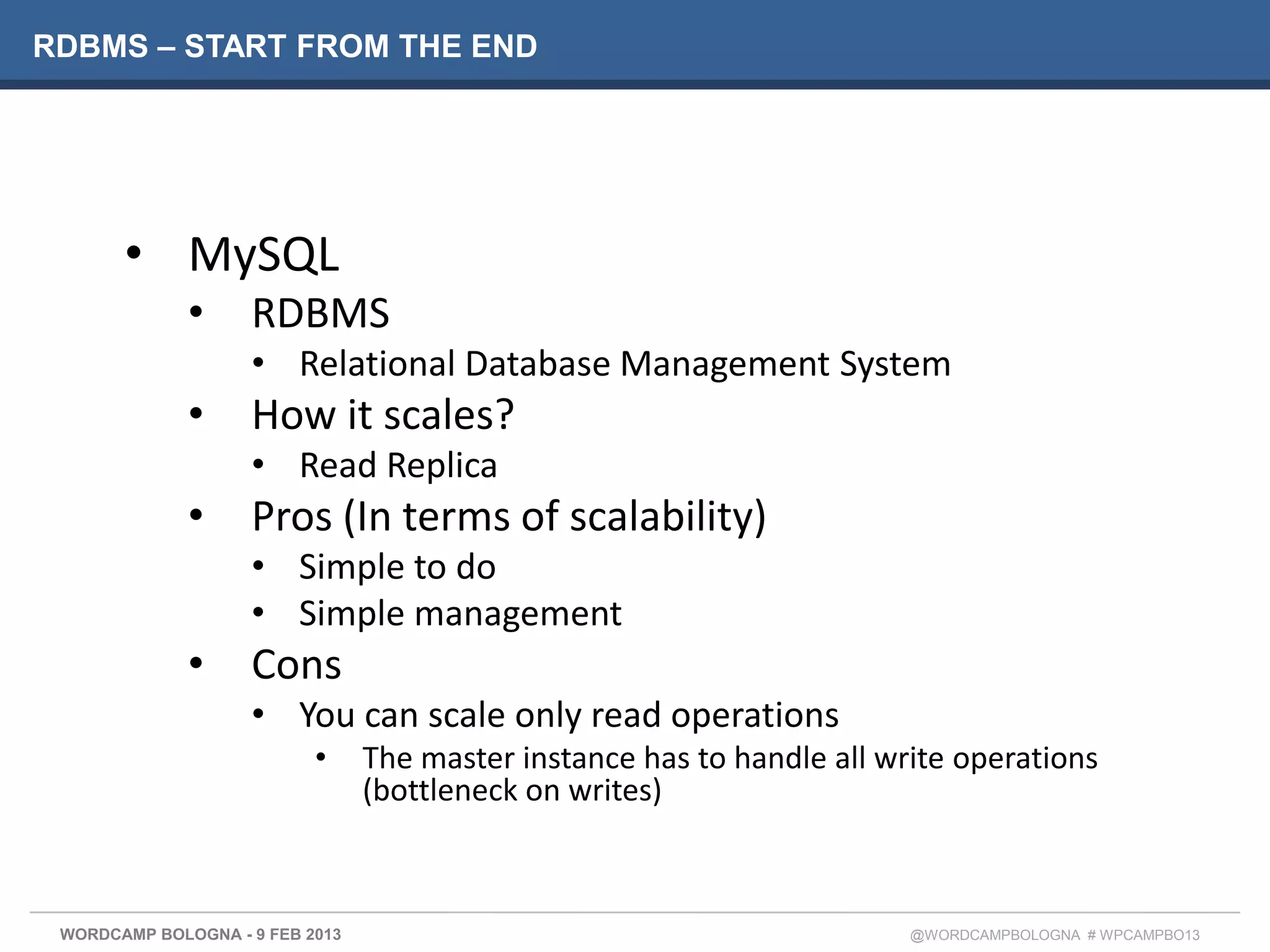

RDBMS – START FROM THE END

• MySQL
• RDBMS
• Relational Database Management System
• How it scales?
• Read Replica
• Pros (In terms of scalability)
• Simple to do
• Simple management
• Cons
• You can scale only read operations
• The master instance has to handle all write operations
(bottleneck on writes)

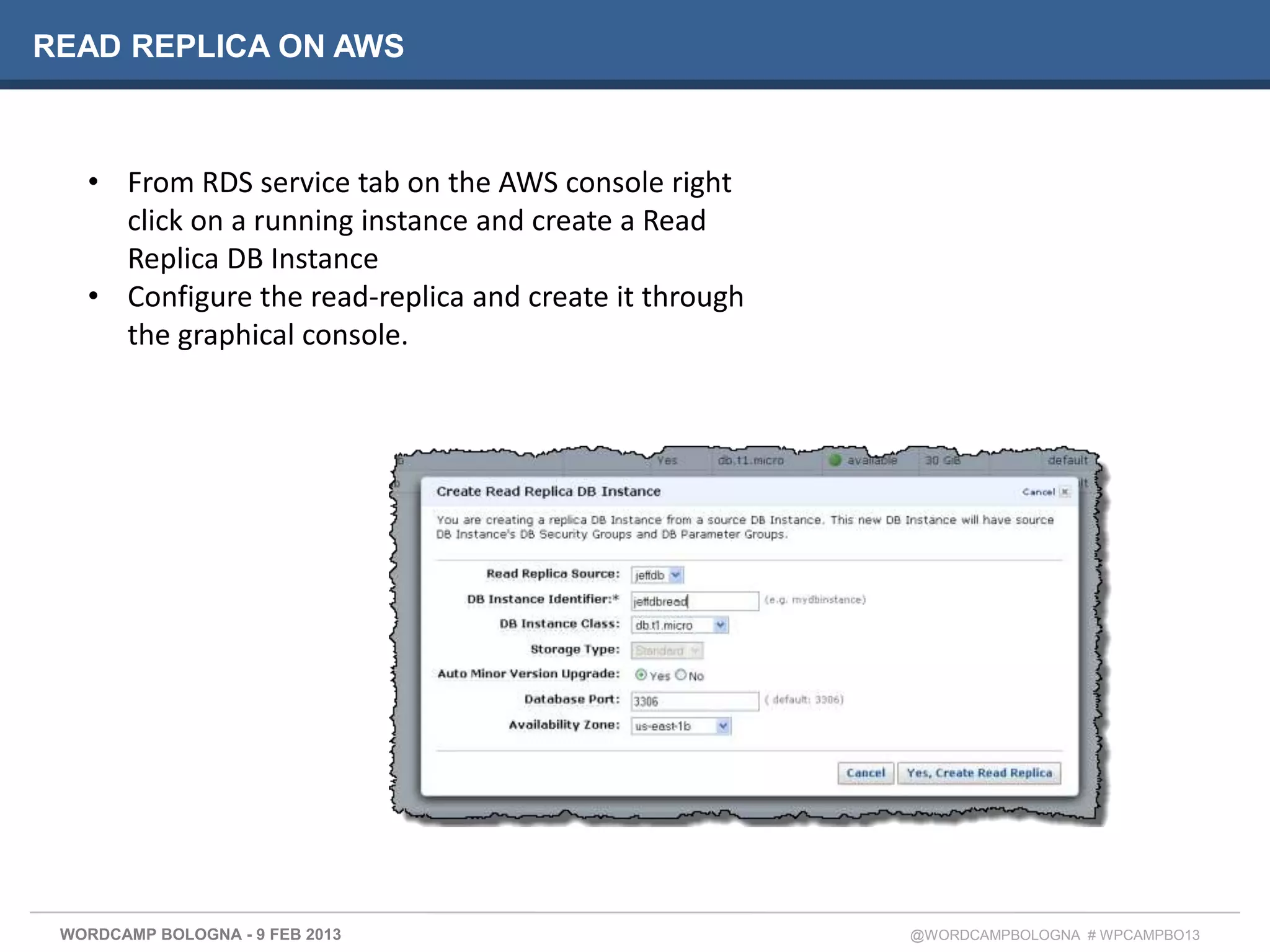

READ REPLICA ON AWS

• From RDS service tab on the AWS console right
click on a running instance and create a Read
Replica DB Instance
• Configure the read-replica and create it through
the graphical console.

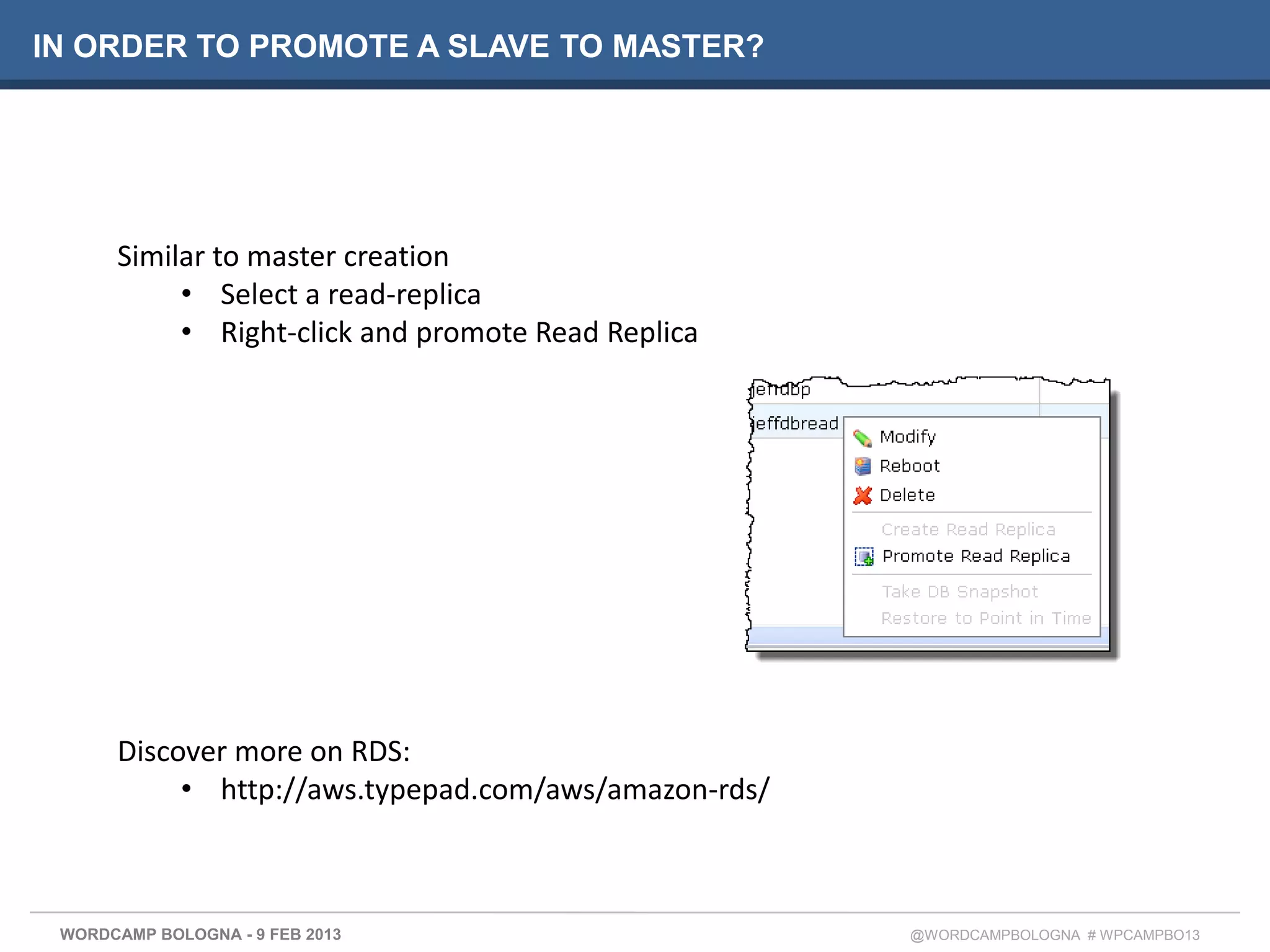

IN ORDER TO PROMOTE A SLAVE TO MASTER?

Similar to master creation
• Select a read-replica
• Right-click and promote Read Replica

Discover more on RDS:
• http://aws.typepad.com/aws/amazon-rds/

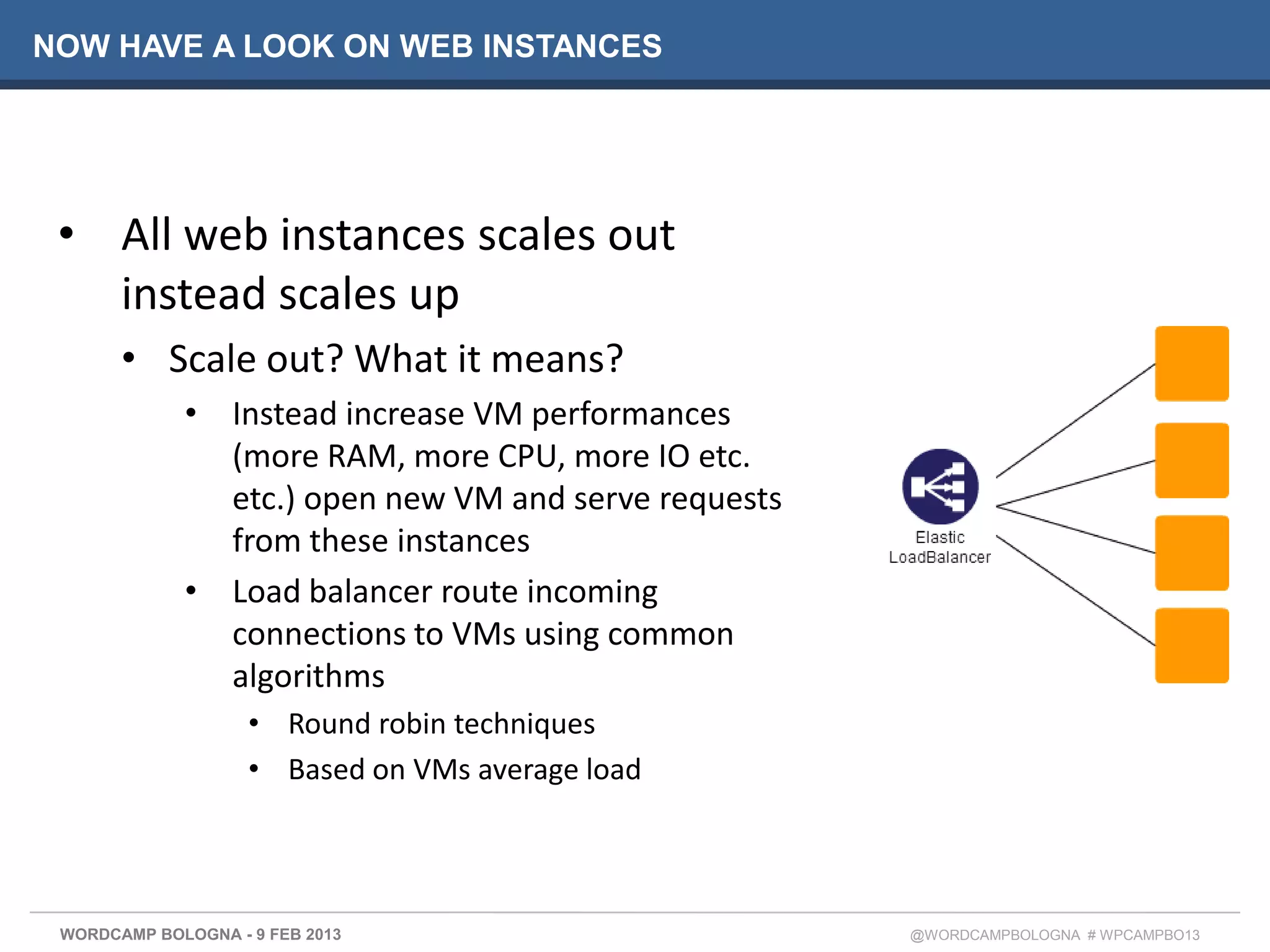

NOW HAVE A LOOK ON WEB INSTANCES

• All web instances scales out
instead scales up
• Scale out? What it means?
• Instead increase VM performances
(more RAM, more CPU, more IO etc.
etc.) open new VM and serve requests
from these instances
• Load balancer route incoming
connections to VMs using common
algorithms
• Round robin techniques
• Based on VMs average load

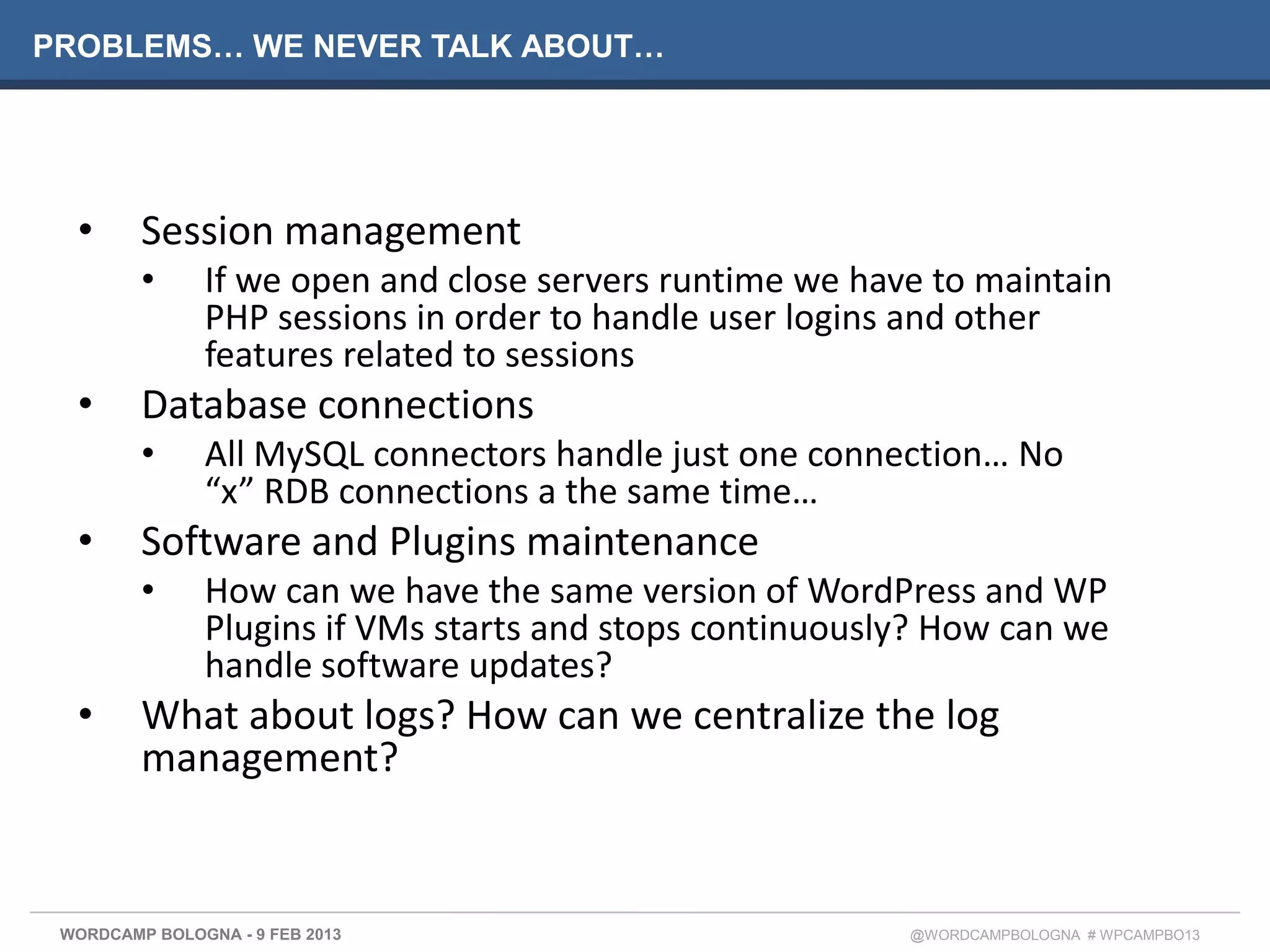

PROBLEMS… WE NEVER TALK ABOUT…

• Session management
• If we open and close servers runtime we have to maintain
PHP sessions in order to handle user logins and other
features related to sessions
• Database connections
• All MySQL connectors handle just one connection… No
“x” RDB connections a the same time…
• Software and Plugins maintenance
• How can we have the same version of WordPress and WP
Plugins if VMs starts and stops continuously? How can we
handle software updates?
• What about logs? How can we centralize the log
management?

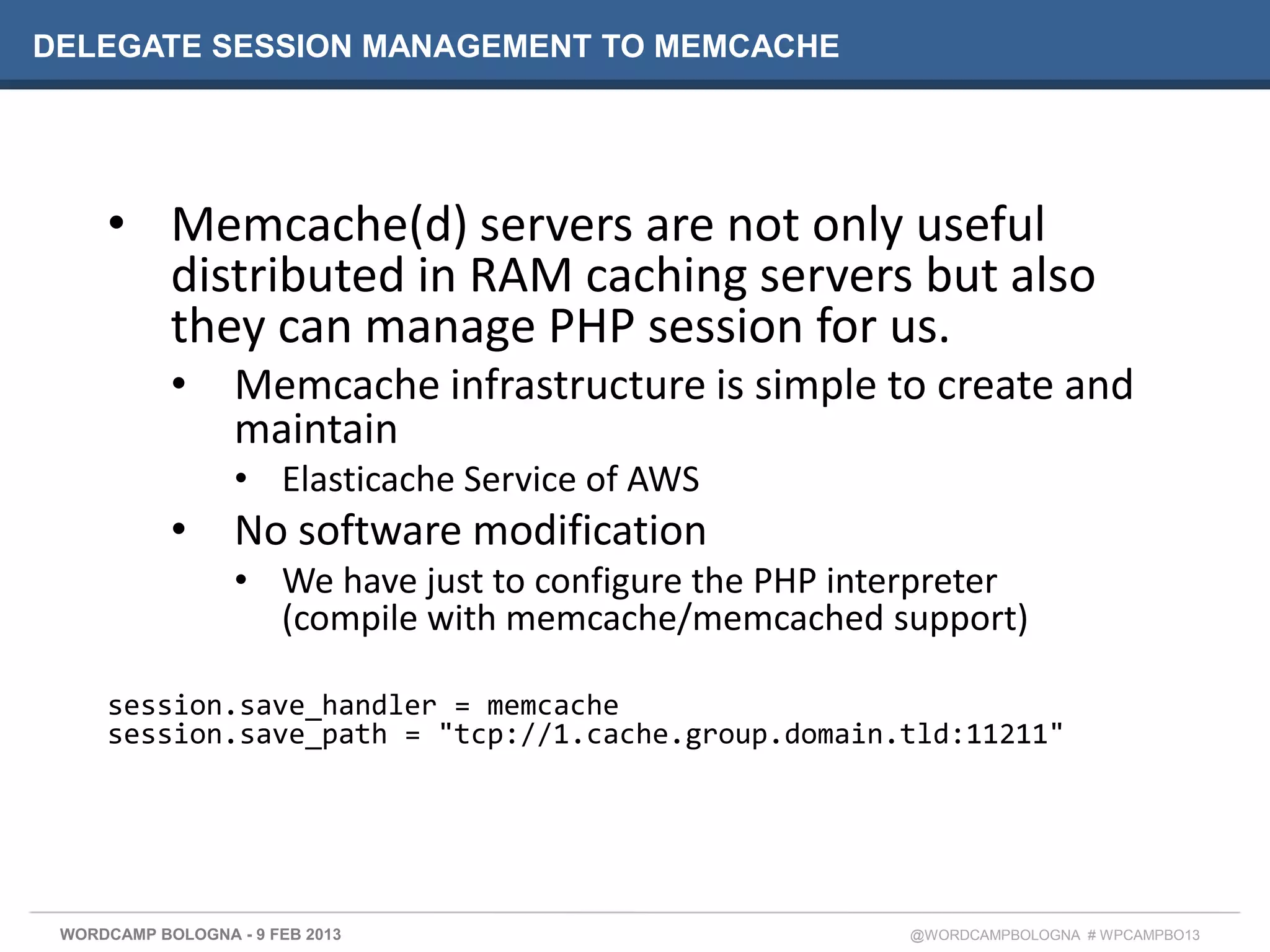

DELEGATE SESSION MANAGEMENT TO MEMCACHE

• Memcache(d) servers are not only useful
distributed in RAM caching servers but also
they can manage PHP session for us.
• Memcache infrastructure is simple to create and
maintain
• Elasticache Service of AWS
• No software modification
• We have just to configure the PHP interpreter
(compile with memcache/memcached support)

session.save_handler = memcache
session.save_path = "tcp://1.cache.group.domain.tld:11211"

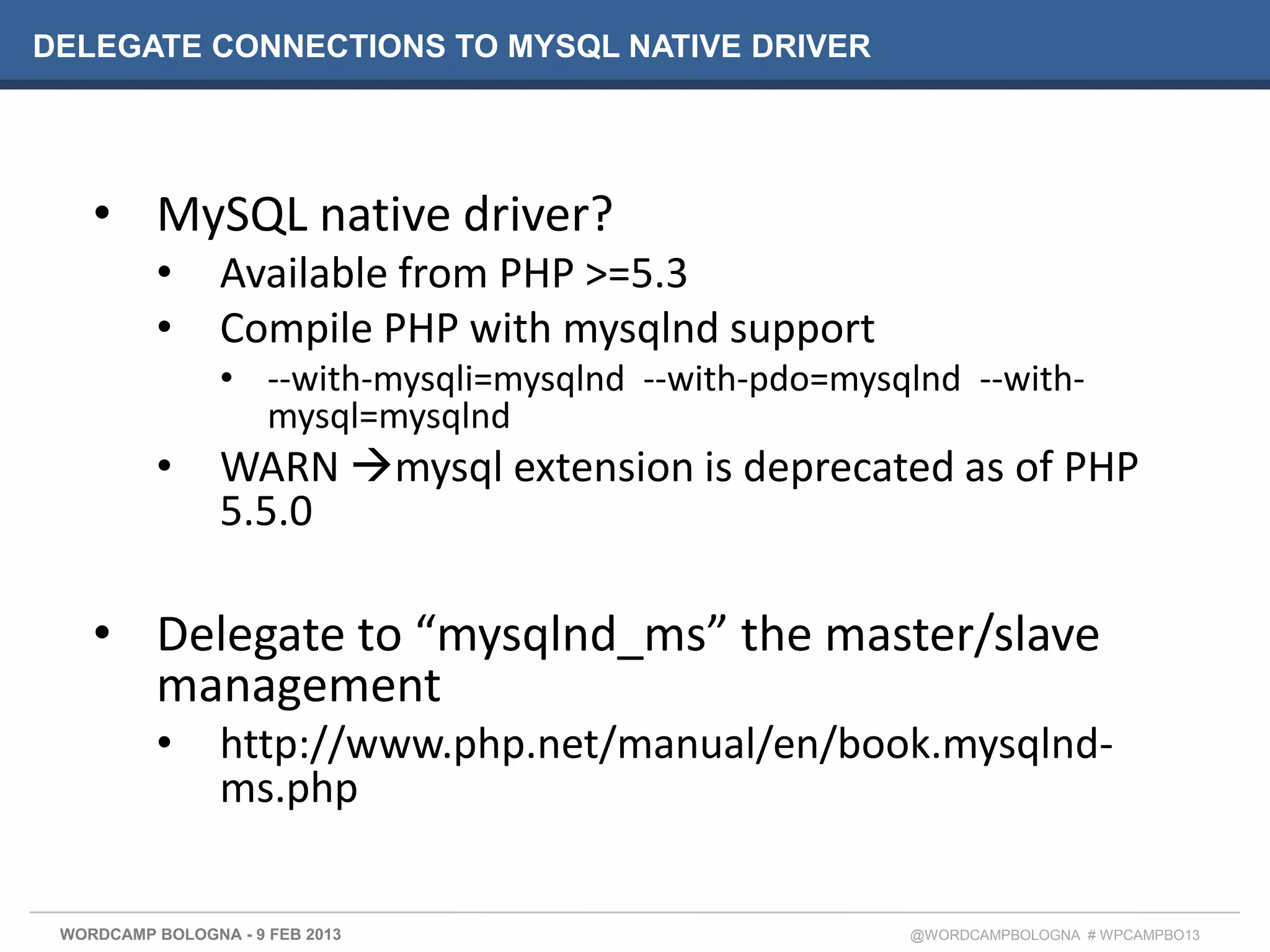

DELEGATE CONNECTIONS TO MYSQL NATIVE DRIVER

• MySQL native driver?
• Available from PHP >=5.3
• Compile PHP with mysqlnd support
• --with-mysqli=mysqlnd --with-pdo=mysqlnd --with-
mysql=mysqlnd
• WARN mysql extension is deprecated as of PHP
5.5.0

• Delegate to “mysqlnd_ms” the master/slave
management
• http://www.php.net/manual/en/book.mysqlnd-
ms.php

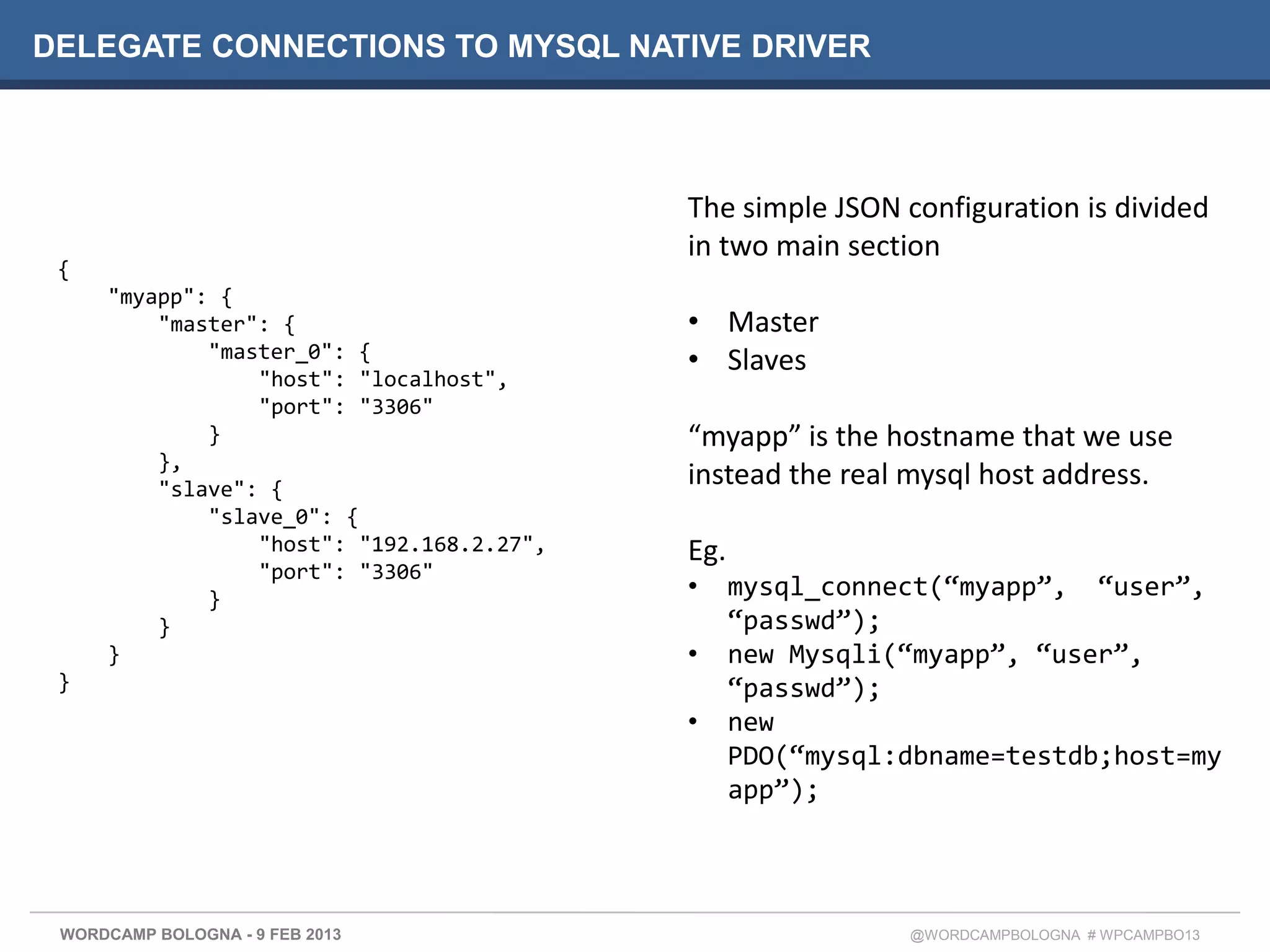

DELEGATE CONNECTIONS TO MYSQL NATIVE DRIVER

The simple JSON configuration is divided
in two main section
{
"myapp": {
"master": { • Master
"master_0": { • Slaves
"host": "localhost",
"port": "3306"
} “myapp” is the hostname that we use
},
"slave": {
instead the real mysql host address.
"slave_0": {
"host": "192.168.2.27", Eg.
"port": "3306"
} • mysql_connect(“myapp”, “user”,
} “passwd”);
} • new Mysqli(“myapp”, “user”,
} “passwd”);
• new
PDO(“mysql:dbname=testdb;host=my
app”);

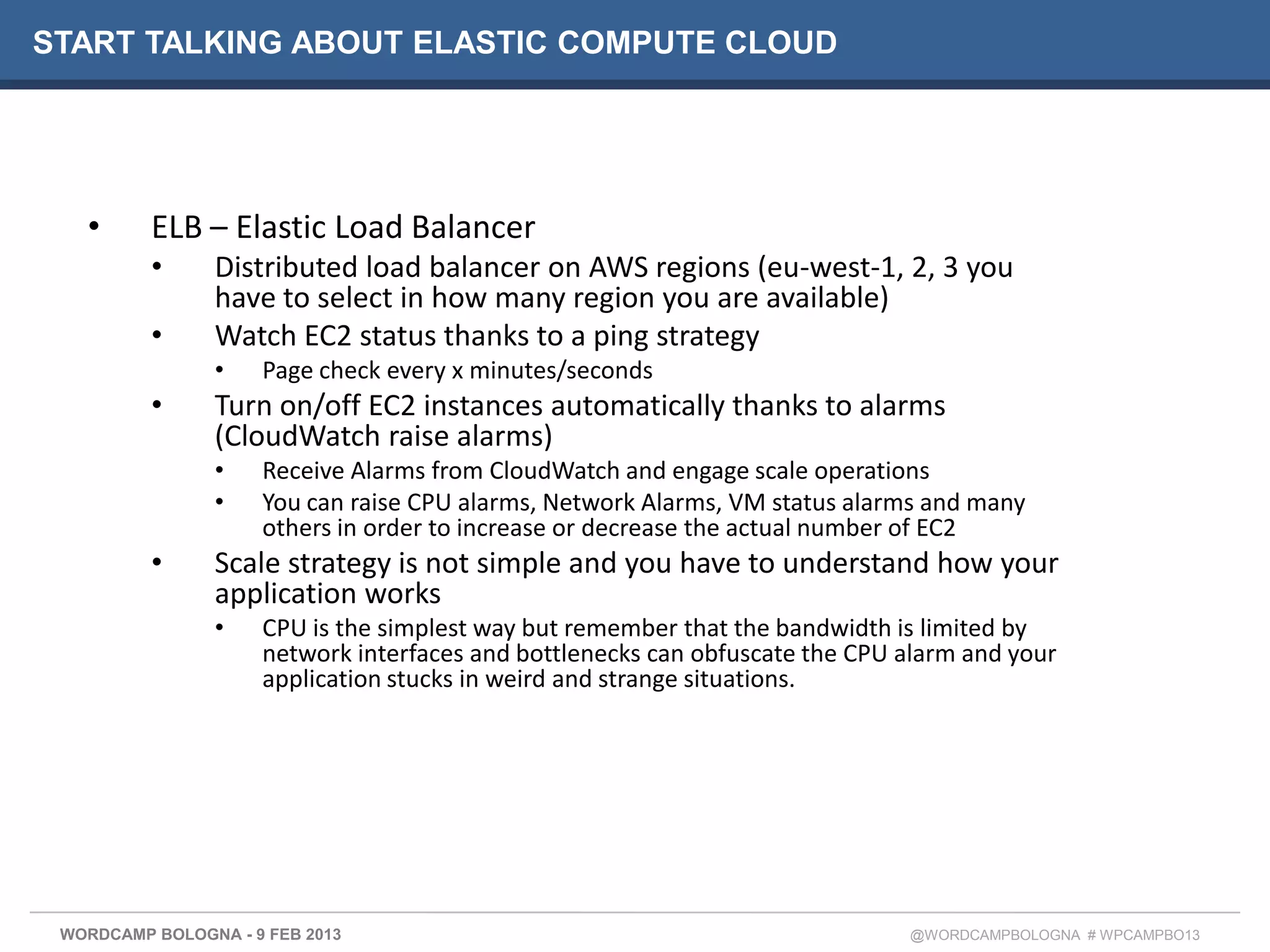

START TALKING ABOUT ELASTIC COMPUTE CLOUD

• ELB – Elastic Load Balancer
• Distributed load balancer on AWS regions (eu-west-1, 2, 3 you
have to select in how many region you are available)
• Watch EC2 status thanks to a ping strategy
• Page check every x minutes/seconds
• Turn on/off EC2 instances automatically thanks to alarms
(CloudWatch raise alarms)
• Receive Alarms from CloudWatch and engage scale operations
• You can raise CPU alarms, Network Alarms, VM status alarms and many
others in order to increase or decrease the actual number of EC2
• Scale strategy is not simple and you have to understand how your
application works
• CPU is the simplest way but remember that the bandwidth is limited by
network interfaces and bottlenecks can obfuscate the CPU alarm and your
application stucks in weird and strange situations.

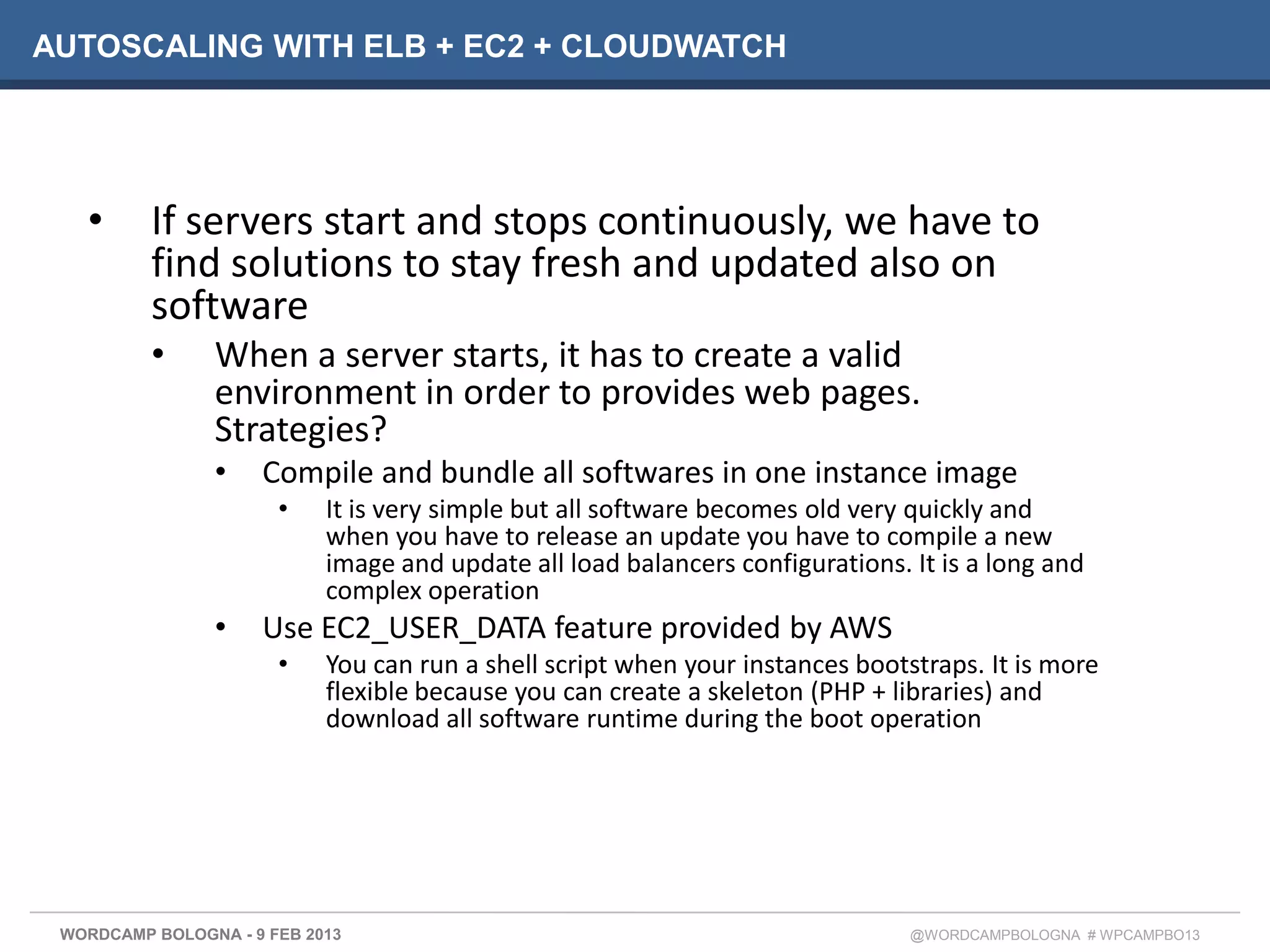

AUTOSCALING WITH ELB + EC2 + CLOUDWATCH

• If servers start and stops continuously, we have to
find solutions to stay fresh and updated also on
software
• When a server starts, it has to create a valid
environment in order to provides web pages.
Strategies?
• Compile and bundle all softwares in one instance image
• It is very simple but all software becomes old very quickly and
when you have to release an update you have to compile a new
image and update all load balancers configurations. It is a long and
complex operation
• Use EC2_USER_DATA feature provided by AWS
• You can run a shell script when your instances bootstraps. It is more
flexible because you can create a skeleton (PHP + libraries) and
download all software runtime during the boot operation

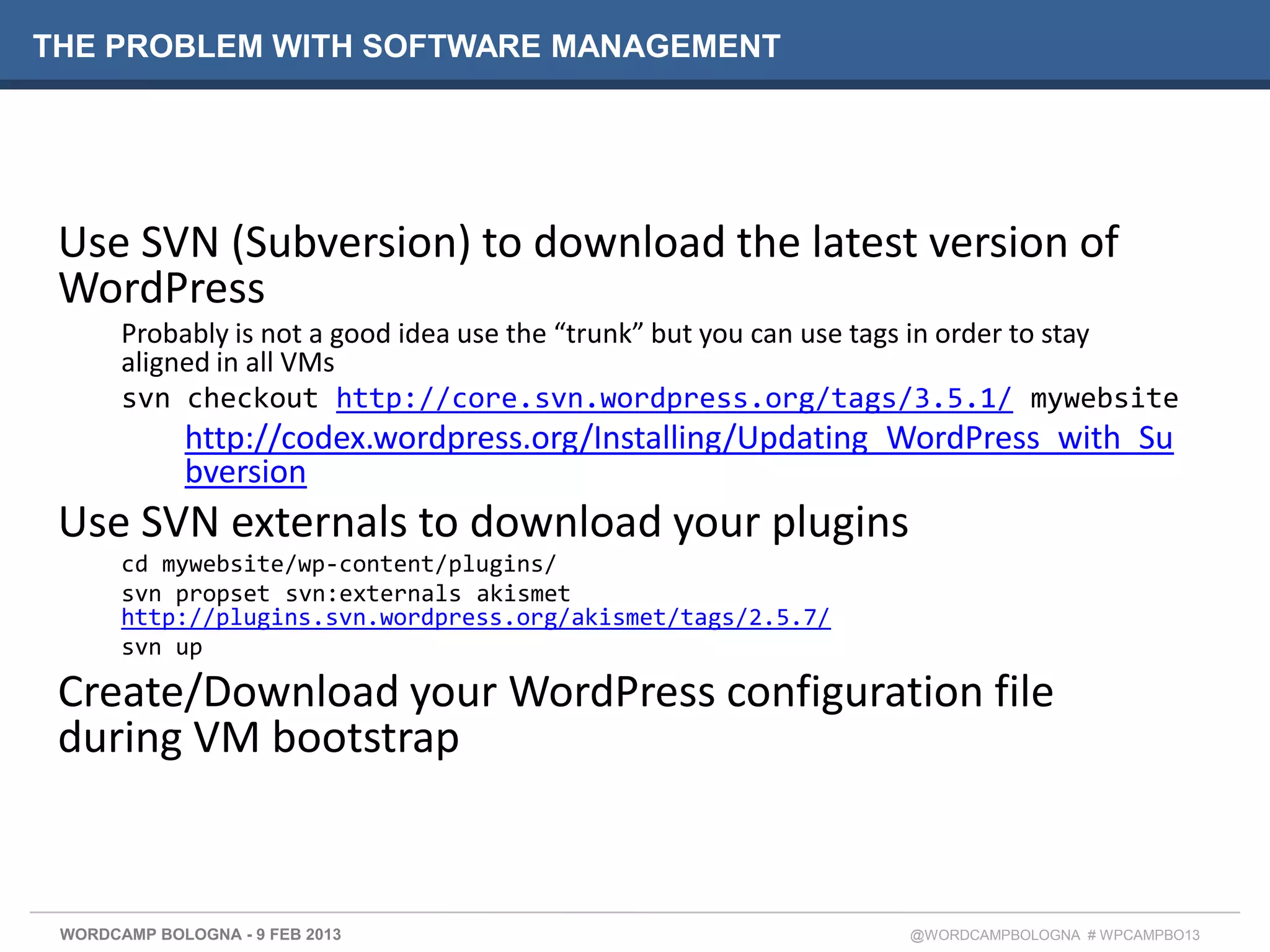

THE PROBLEM WITH SOFTWARE MANAGEMENT

Use SVN (Subversion) to download the latest version of
WordPress
Probably is not a good idea use the “trunk” but you can use tags in order to stay
aligned in all VMs
svn checkout http://core.svn.wordpress.org/tags/3.5.1/ mywebsite
http://codex.wordpress.org/Installing/Updating_WordPress_with_Su
bversion
Use SVN externals to download your plugins
cd mywebsite/wp-content/plugins/
svn propset svn:externals akismet
http://plugins.svn.wordpress.org/akismet/tags/2.5.7/
svn up

Create/Download your WordPress configuration file
during VM bootstrap

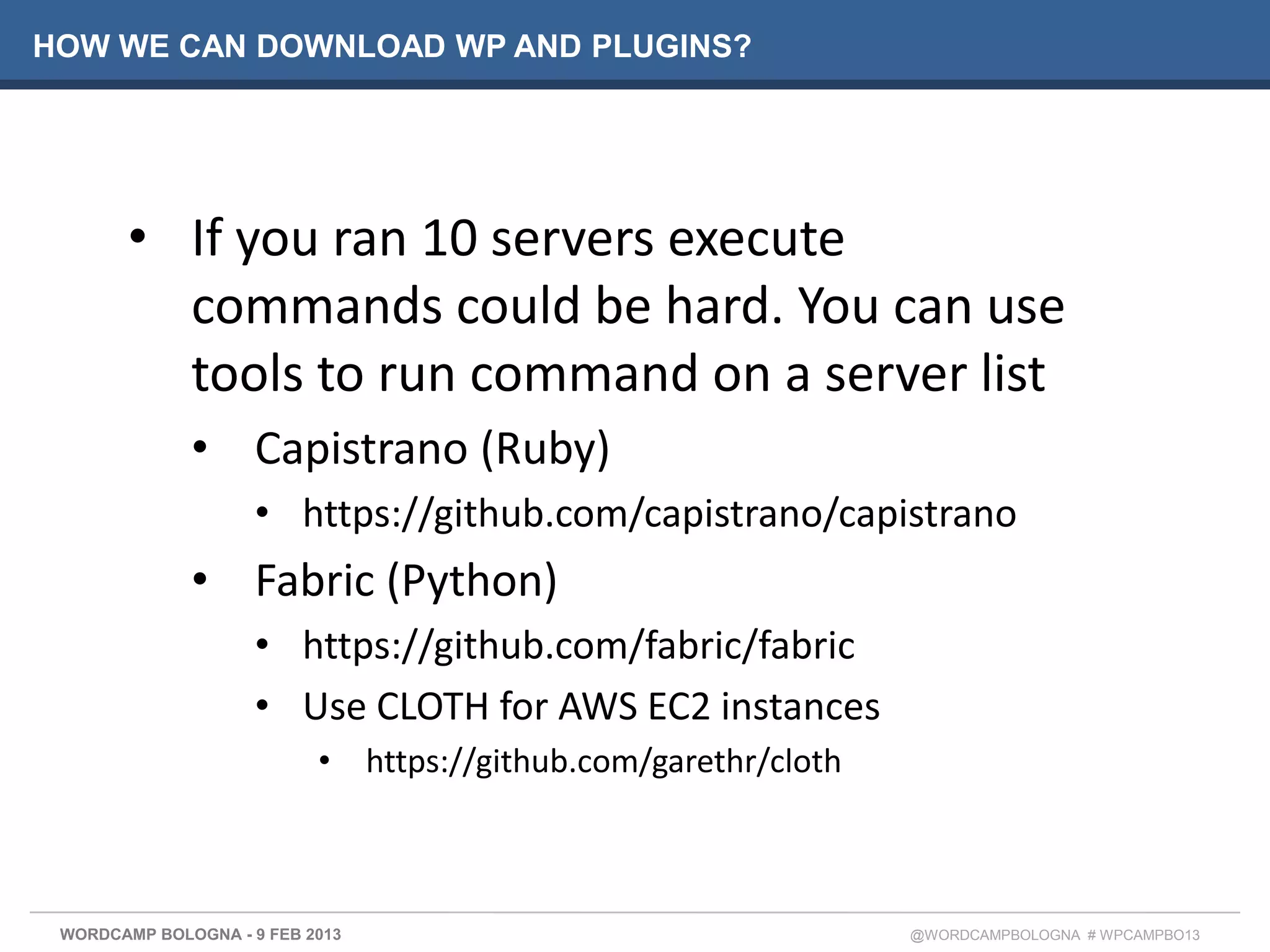

HOW WE CAN DOWNLOAD WP AND PLUGINS?

• If you ran 10 servers execute
commands could be hard. You can use
tools to run command on a server list
• Capistrano (Ruby)
• https://github.com/capistrano/capistrano
• Fabric (Python)
• https://github.com/fabric/fabric
• Use CLOTH for AWS EC2 instances
• https://github.com/garethr/cloth


HOW TO UPDATE CONFIGURATIONS RUNTIME?

#! /usr/bin/env python
from __future__ import with_statement
from fabric.api import *
from fabric.contrib.console import confirm EC2 instances are dynamic with don’t know
address, for that reason we can use tagging
from cloth.tasks import * system to execute commands on a group of
instances
env.user = "root"
env.directory = '/mnt/wordpress' fab nodes:"^production.*" tail
env.key_filename = ['/home/walter/Amazon/wp-
cms.pem'] Execute the “tail” command on all instances
with a name that starts with “production.”
@task
def reload(): Eg.
"Reload Apache configuration" • production.web-1
run('/etc/init.d/apache2 reload') • production.log
• production.mongodb
@task
def tail():
"Tail Apache logs"
run('tail /var/log/syslog')

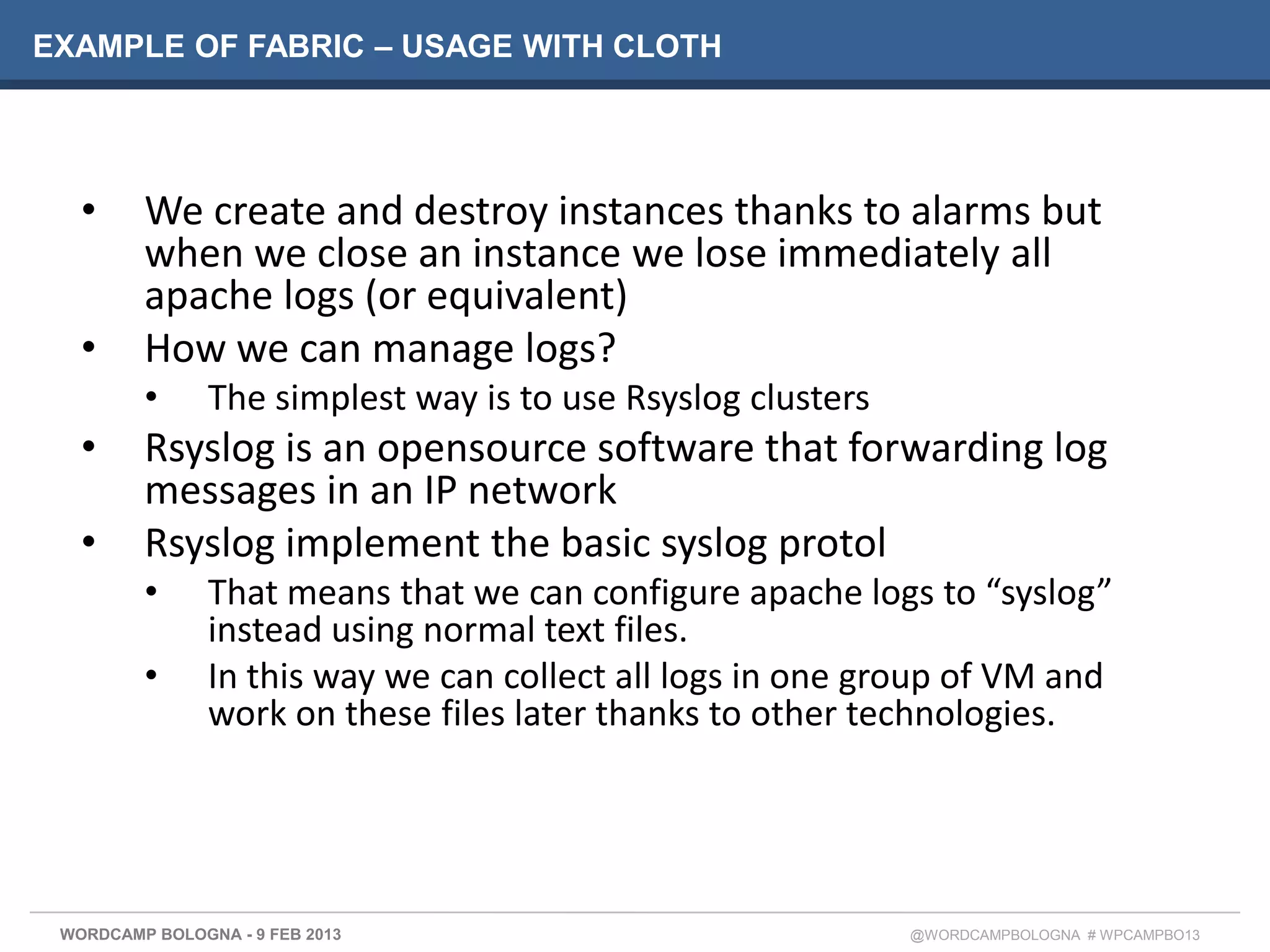

EXAMPLE OF FABRIC – USAGE WITH CLOTH

• We create and destroy instances thanks to alarms but
when we close an instance we lose immediately all
apache logs (or equivalent)
• How we can manage logs?
• The simplest way is to use Rsyslog clusters
• Rsyslog is an opensource software that forwarding log
messages in an IP network
• Rsyslog implement the basic syslog protol
• That means that we can configure apache logs to “syslog”
instead using normal text files.
• In this way we can collect all logs in one group of VM and
work on these files later thanks to other technologies.

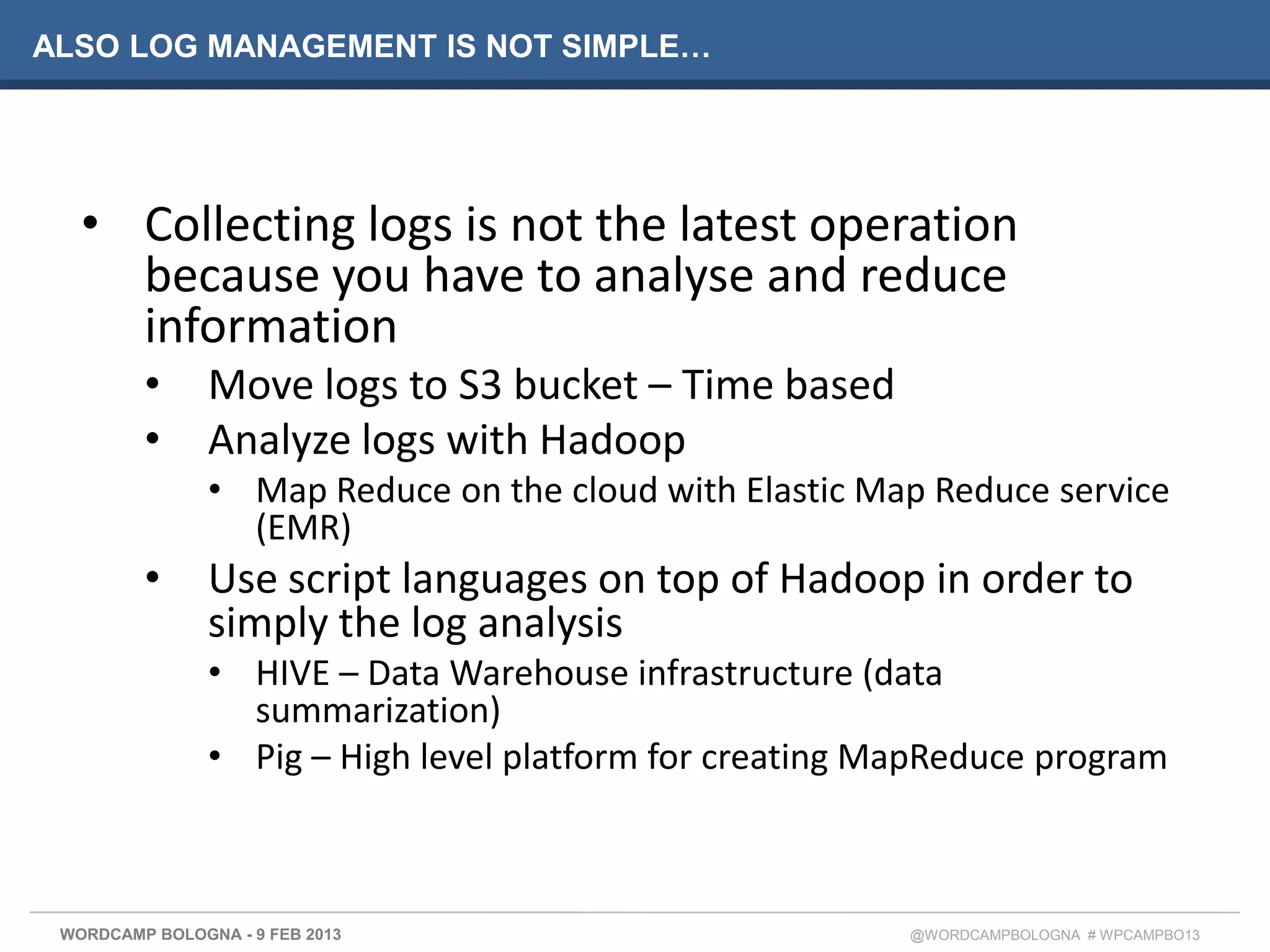

ALSO LOG MANAGEMENT IS NOT SIMPLE…

• Collecting logs is not the latest operation
because you have to analyse and reduce
information
• Move logs to S3 bucket – Time based
• Analyze logs with Hadoop
• Map Reduce on the cloud with Elastic Map Reduce service
(EMR)
• Use script languages on top of Hadoop in order to
simply the log analysis
• HIVE – Data Warehouse infrastructure (data
summarization)
• Pig – High level platform for creating MapReduce program


The end? Really you want the Red pill?

find out just how deep the rabbit hole
goes

RELATORI

Gabriele Mittica
Web: www.gabrielemittica.com

Twitter: @gabrielemittica

Walter Dal Mut
Web: www.walterdalmut.com

Twitter: @walterdalmut


Cloud Computing & WordPress - Scalability and High Availability - wpcampbo13

Recommended

Recommended

More Related Content

What's hot

What's hot (19)

Viewers also liked

Viewers also liked (16)

Similar to Cloud Computing & WordPress - Scalability and High Availability - wpcampbo13

Similar to Cloud Computing & WordPress - Scalability and High Availability - wpcampbo13 (20)

More from Corley S.r.l.

More from Corley S.r.l. (20)

Recently uploaded

Recently uploaded (20)

Cloud Computing & WordPress - Scalability and High Availability - wpcampbo13
