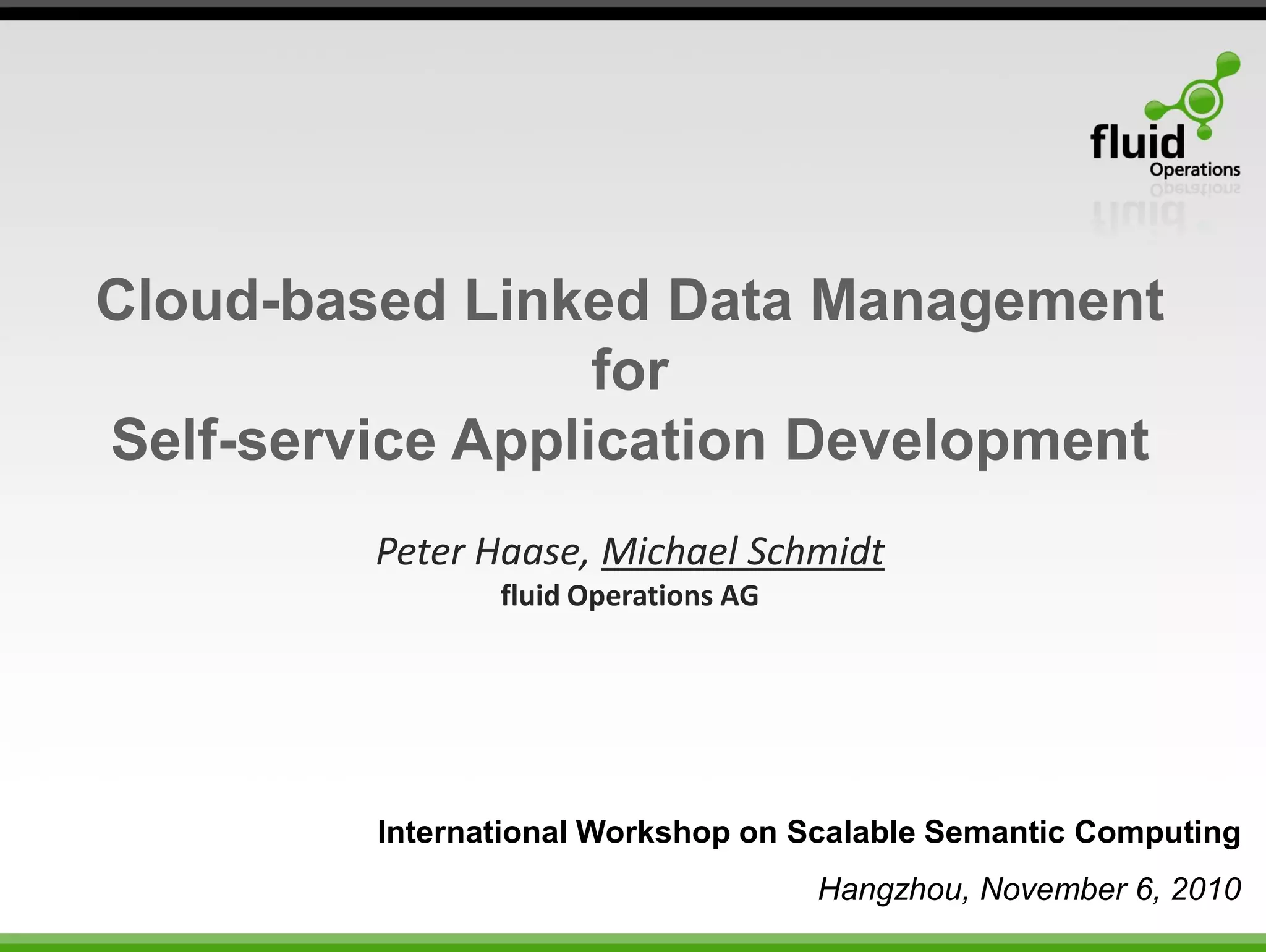

1. Peter Haase, Michael Schmidt
fluid Operations AG
Cloud-based Linked Data Management
for
Self-service Application Development
International Workshop on Scalable Semantic Computing
Hangzhou, November 6, 2010

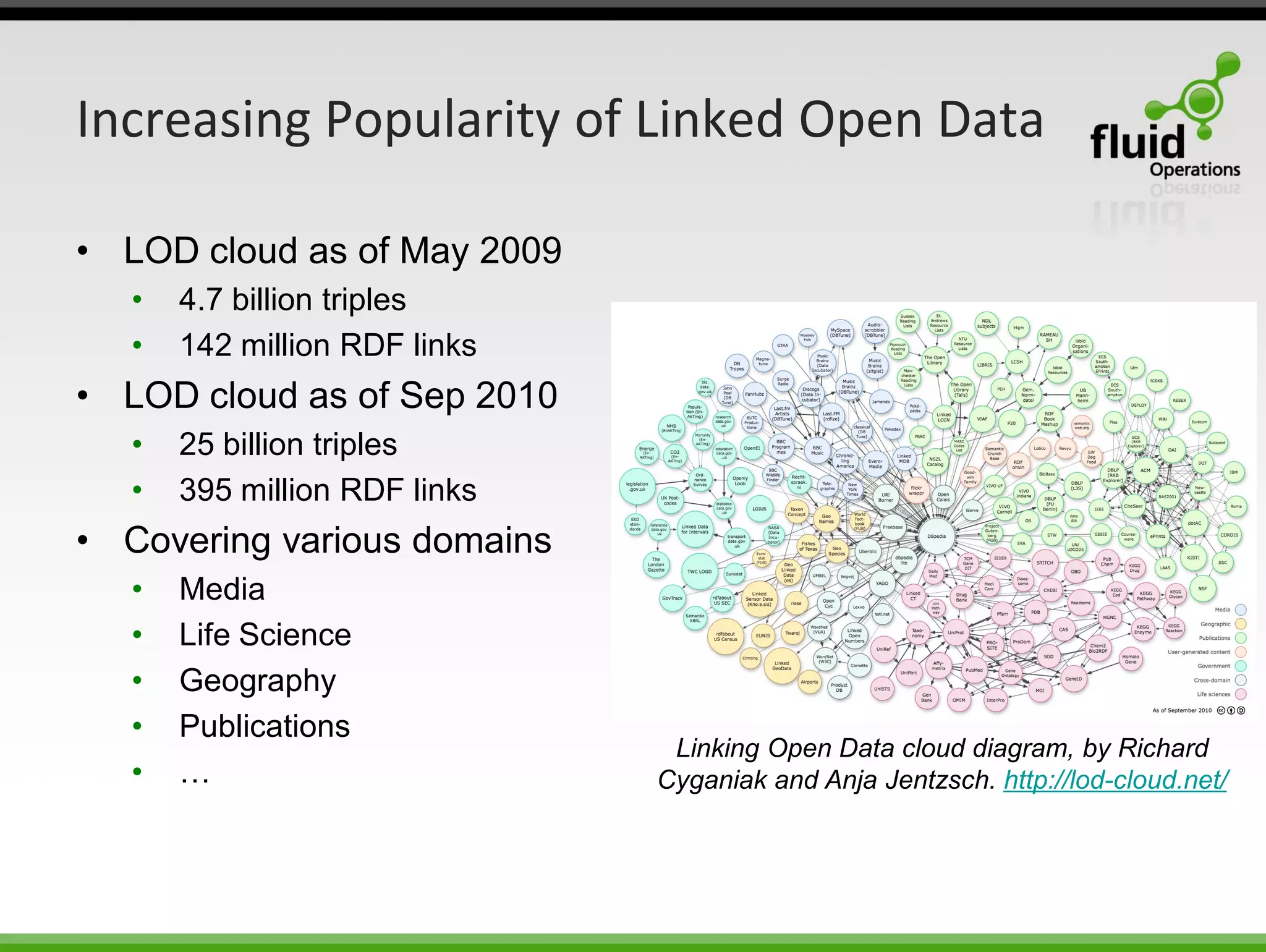

2. Increasing Popularity of Linked Open Data
• LOD cloud as of May 2009
• 4.7 billion triples
• 142 million RDF links
• LOD cloud as of Sep 2010
• 25 billion triples
• 395 million RDF links
• Covering various domains
• Media
• Life Science
• Geography
• Publications
• …
Linking Open Data cloud diagram, by Richard
Cyganiak and Anja Jentzsch. http://lod-cloud.net/

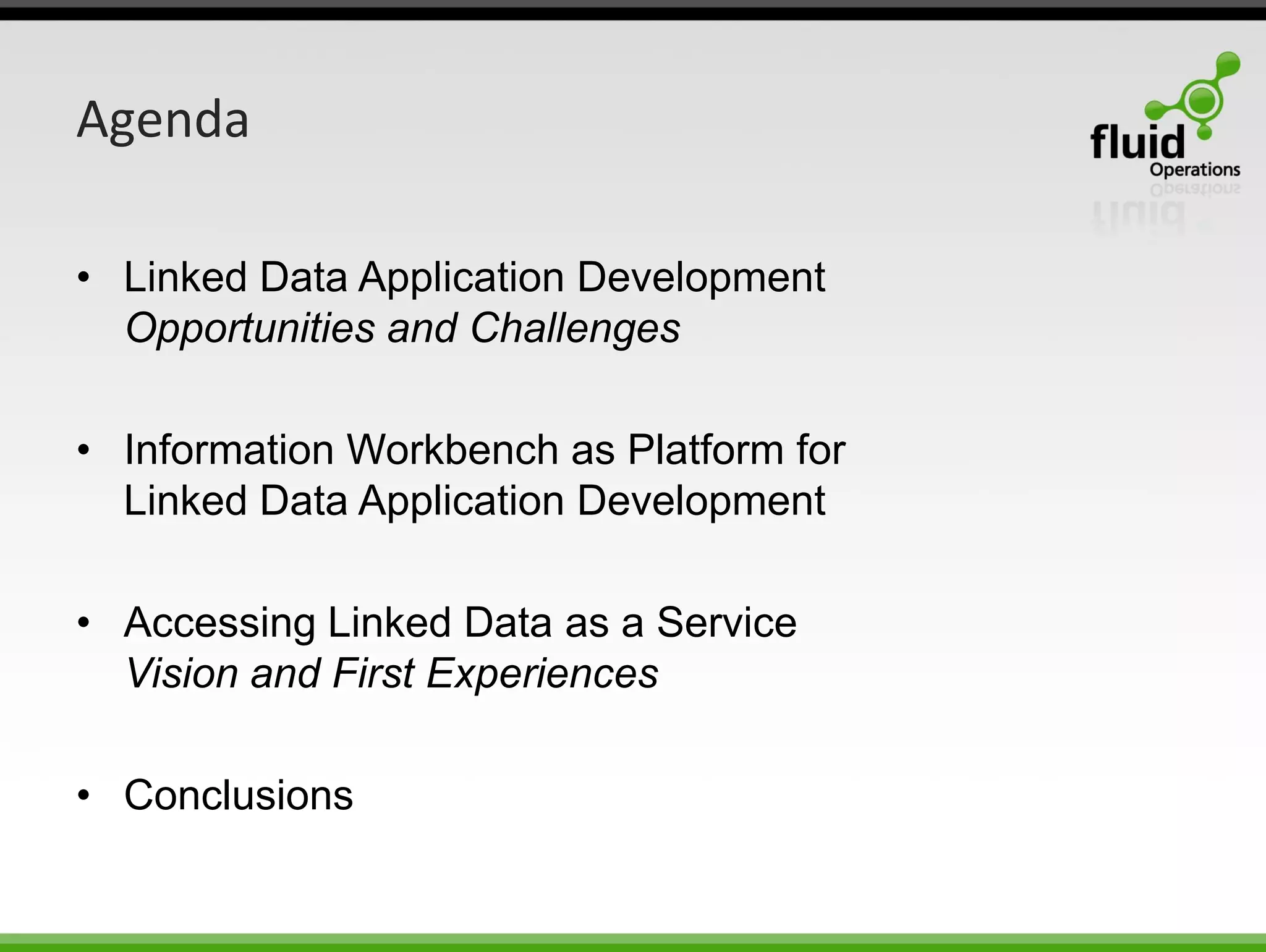

3. Agenda
• Linked Data Application Development
Opportunities and Challenges
• Information Workbench as Platform for
Linked Data Application Development
• Accessing Linked Data as a Service
Vision and First Experiences
• Conclusions

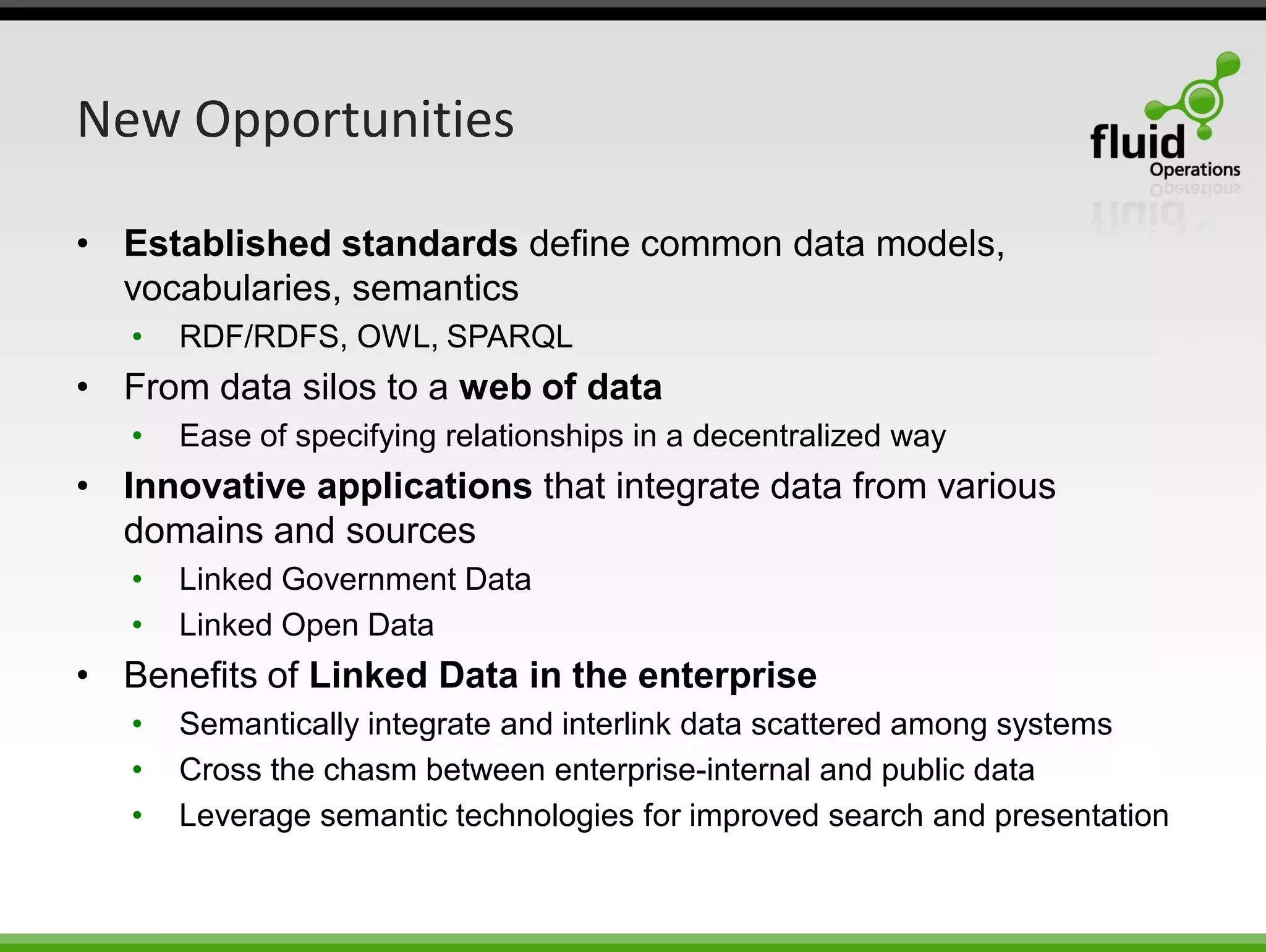

4. New Opportunities
• Established standards define common data models,
vocabularies, semantics
• RDF/RDFS, OWL, SPARQL
• From data silos to a web of data
• Ease of specifying relationships in a decentralized way
• Innovative applications that integrate data from various
domains and sources
• Linked Government Data
• Linked Open Data
• Benefits of Linked Data in the enterprise
• Semantically integrate and interlink data scattered among systems
• Cross the chasm between enterprise-internal and public data
• Leverage semantic technologies for improved search and presentation

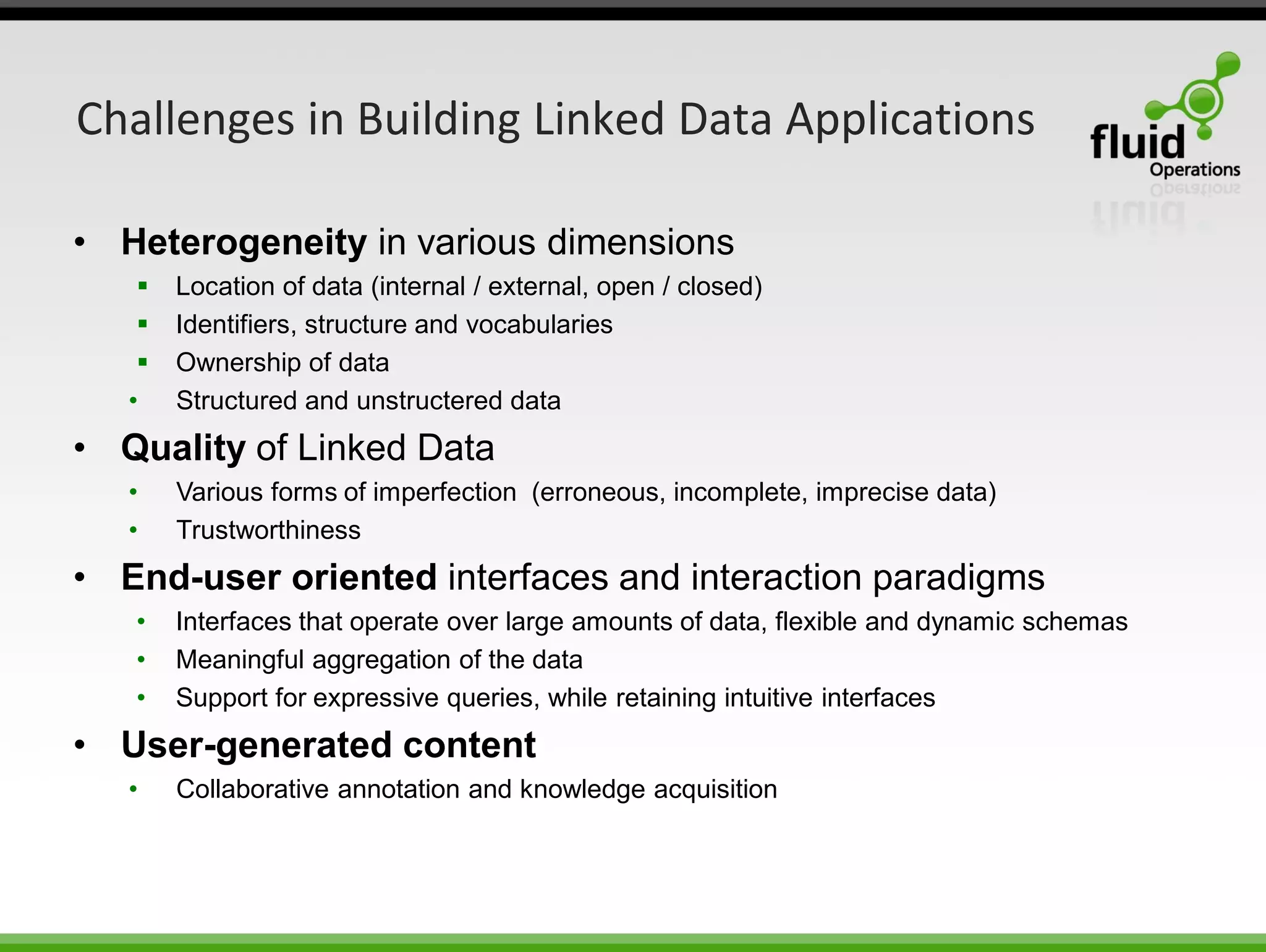

5. Challenges in Building Linked Data Applications
• Heterogeneity in various dimensions
 Location of data (internal / external, open / closed)
 Identifiers, structure and vocabularies
 Ownership of data
• Structured and unstructered data
• Quality of Linked Data
• Various forms of imperfection (erroneous, incomplete, imprecise data)
• Trustworthiness
• End-user oriented interfaces and interaction paradigms
• Interfaces that operate over large amounts of data, flexible and dynamic schemas
• Meaningful aggregation of the data
• Support for expressive queries, while retaining intuitive interfaces
• User-generated content
• Collaborative annotation and knowledge acquisition

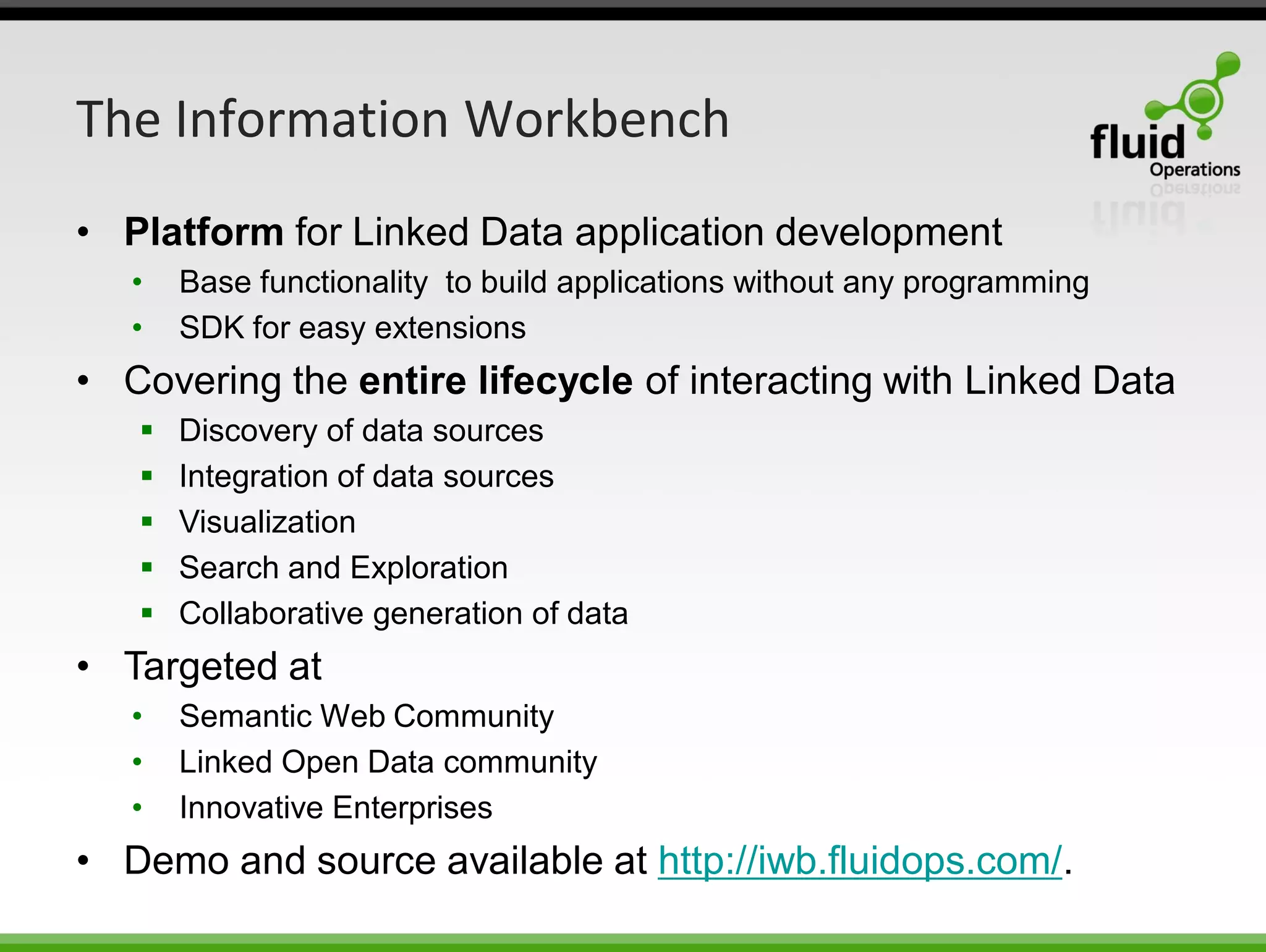

6. The Information Workbench
• Platform for Linked Data application development
• Base functionality to build applications without any programming
• SDK for easy extensions
• Covering the entire lifecycle of interacting with Linked Data
 Discovery of data sources
 Integration of data sources
 Visualization
 Search and Exploration
 Collaborative generation of data
• Targeted at
• Semantic Web Community
• Linked Open Data community
• Innovative Enterprises
• Demo and source available at http://iwb.fluidops.com/.

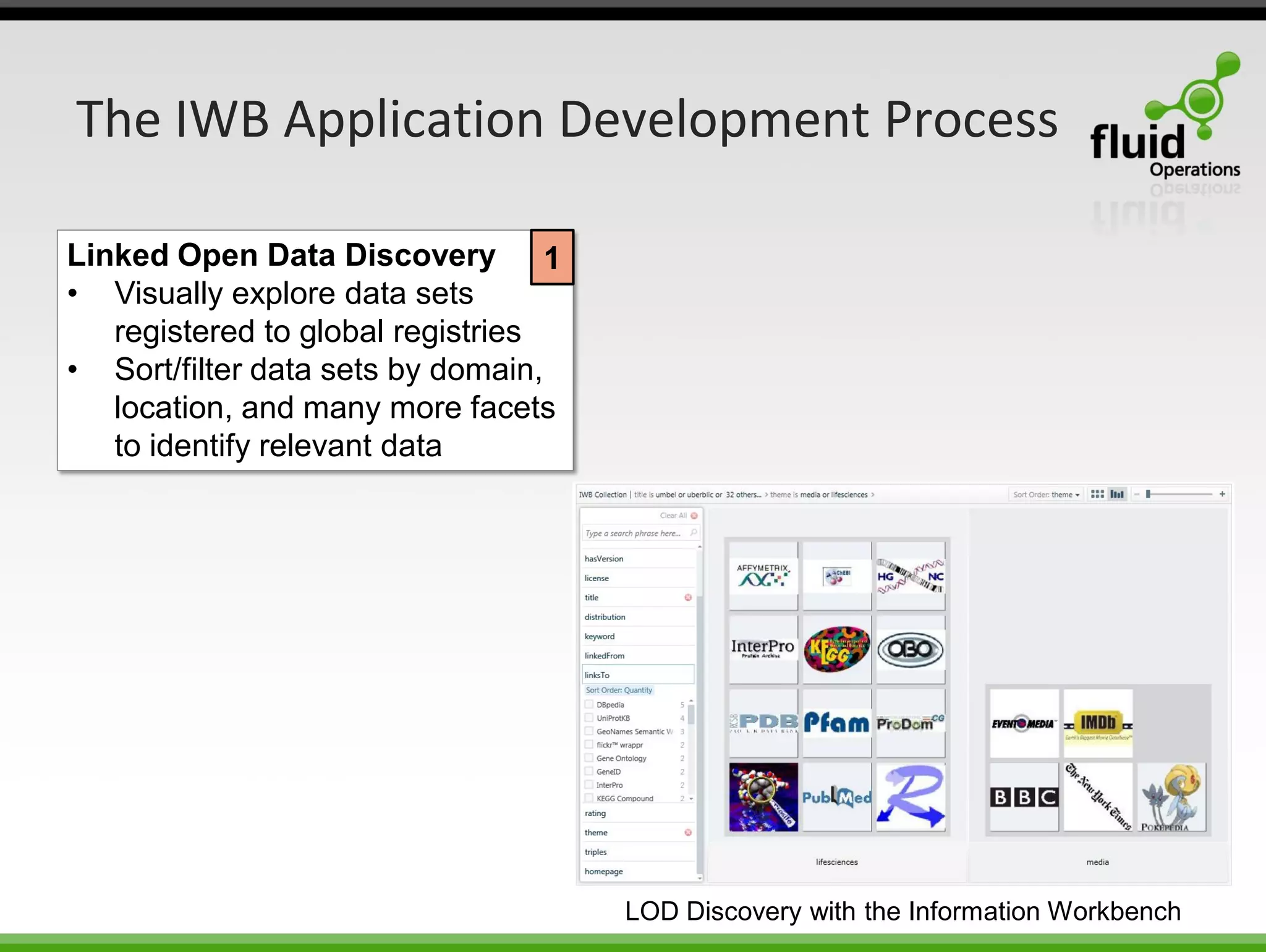

7. The IWB Application Development Process
Linked Open Data Discovery
• Visually explore data sets
registered to global registries
• Sort/filter data sets by domain,
location, and many more facets
to identify relevant data
1
LOD Discovery with the Information Workbench

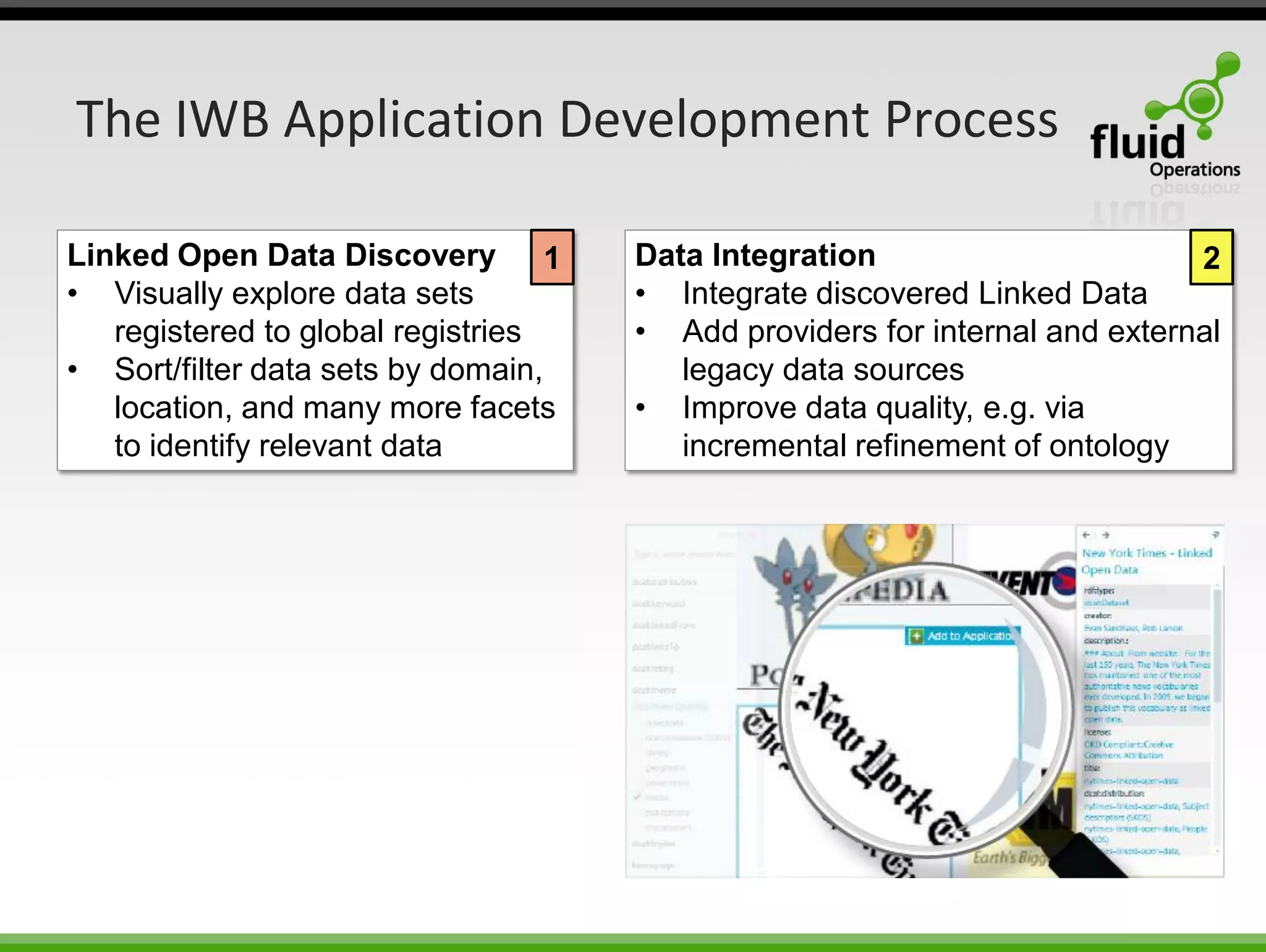

8. The IWB Application Development Process
Linked Open Data Discovery
• Visually explore data sets
registered to global registries
• Sort/filter data sets by domain,
location, and many more facets
to identify relevant data
Data Integration
• Integrate discovered Linked Data
• Add providers for internal and external
legacy data sources
• Improve data quality, e.g. via
incremental refinement of ontology
1 2

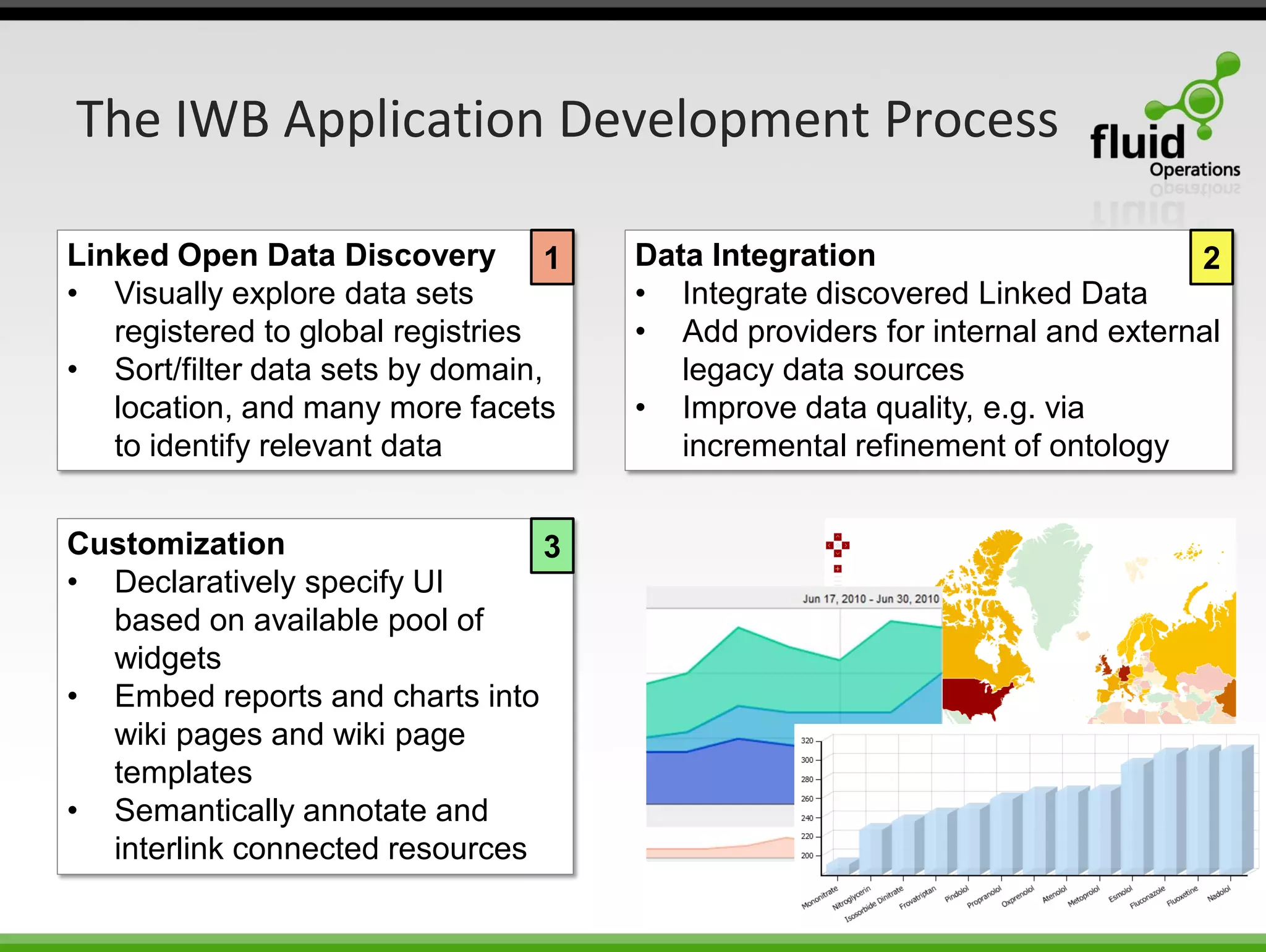

9. The IWB Application Development Process
Linked Open Data Discovery
• Visually explore data sets
registered to global registries
• Sort/filter data sets by domain,
location, and many more facets
to identify relevant data
Data Integration
• Integrate discovered Linked Data
• Add providers for internal and external
legacy data sources
• Improve data quality, e.g. via
incremental refinement of ontology
Customization
• Declaratively specify UI
based on available pool of
widgets
• Embed reports and charts into
wiki pages and wiki page
templates
• Semantically annotate and
interlink connected resources
1
3
2

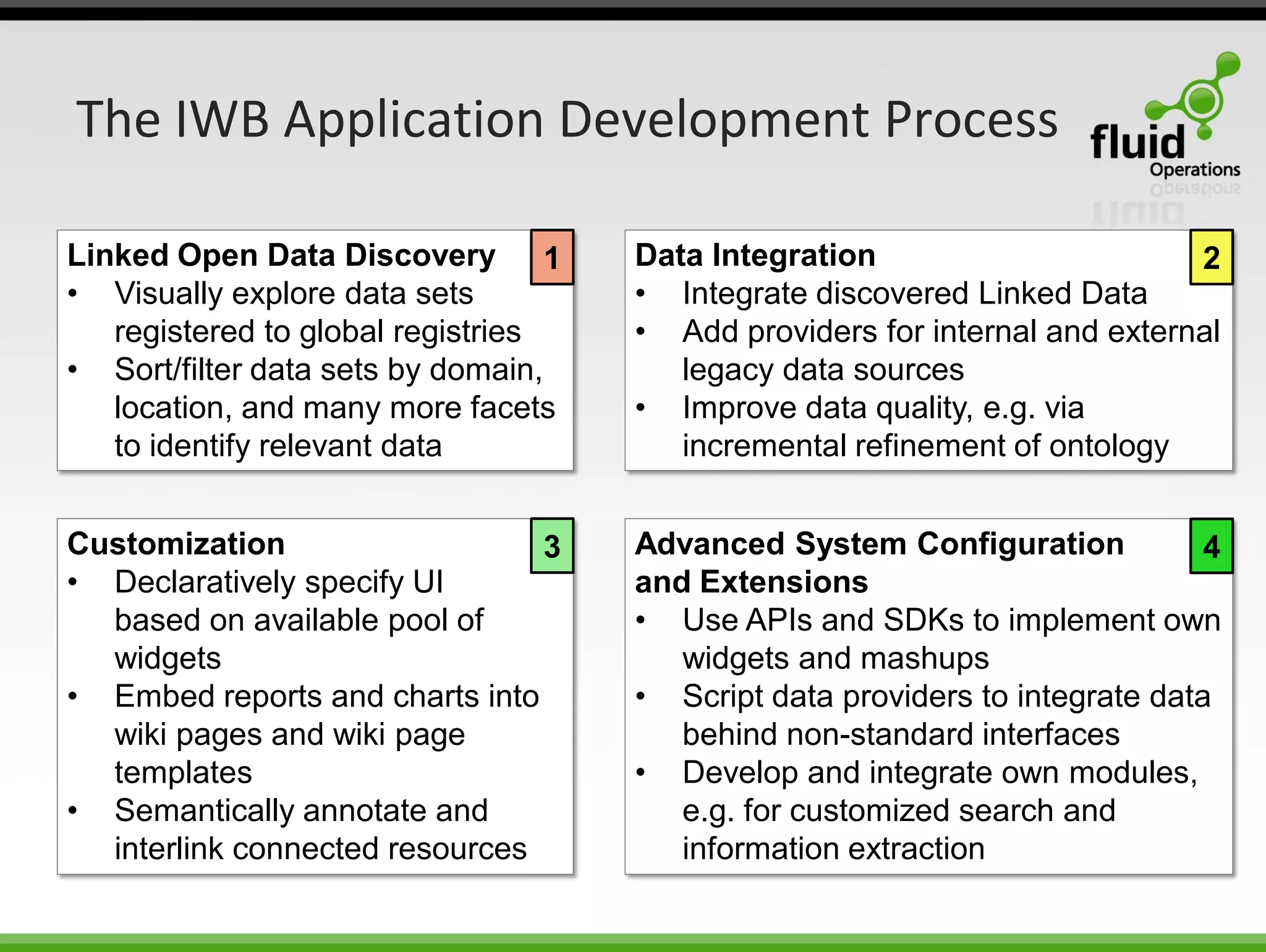

10. The IWB Application Development Process
Linked Open Data Discovery
• Visually explore data sets
registered to global registries
• Sort/filter data sets by domain,
location, and many more facets
to identify relevant data
Data Integration
• Integrate discovered Linked Data
• Add providers for internal and external
legacy data sources
• Improve data quality, e.g. via
incremental refinement of ontology
Customization
• Declaratively specify UI
based on available pool of
widgets
• Embed reports and charts into
wiki pages and wiki page
templates
• Semantically annotate and
interlink connected resources
Advanced System Configuration
and Extensions
• Use APIs and SDKs to implement own
widgets and mashups
• Script data providers to integrate data
behind non-standard interfaces
• Develop and integrate own modules,
e.g. for customized search and
information extraction
1 2
3 4

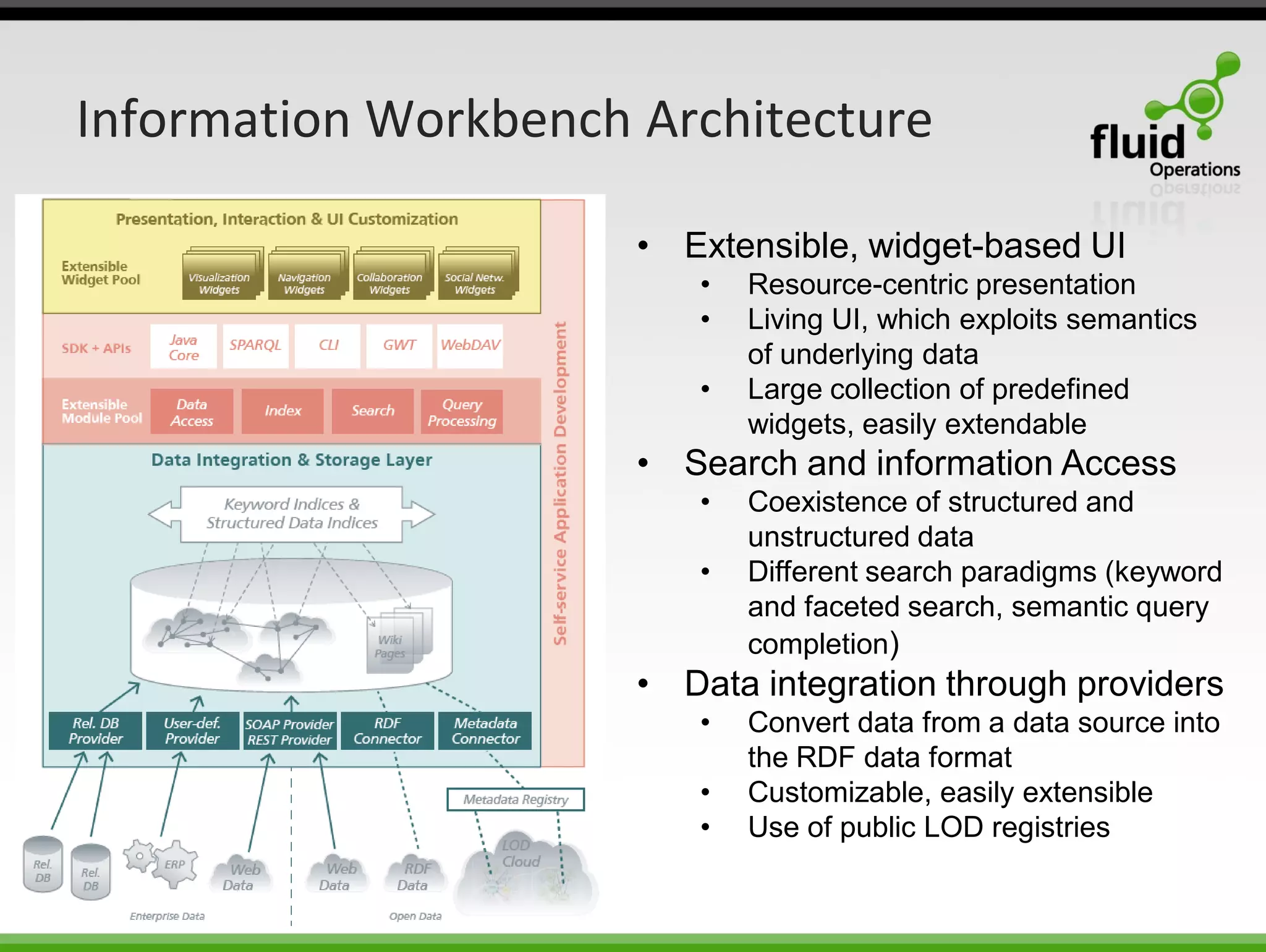

11. Information Workbench Architecture
• Extensible, widget-based UI
• Resource-centric presentation
• Living UI, which exploits semantics
of underlying data
• Large collection of predefined
widgets, easily extendable
• Search and information Access
• Coexistence of structured and
unstructured data
• Different search paradigms (keyword
and faceted search, semantic query
completion)
• Data integration through providers
• Convert data from a data source into
the RDF data format
• Customizable, easily extensible
• Use of public LOD registries

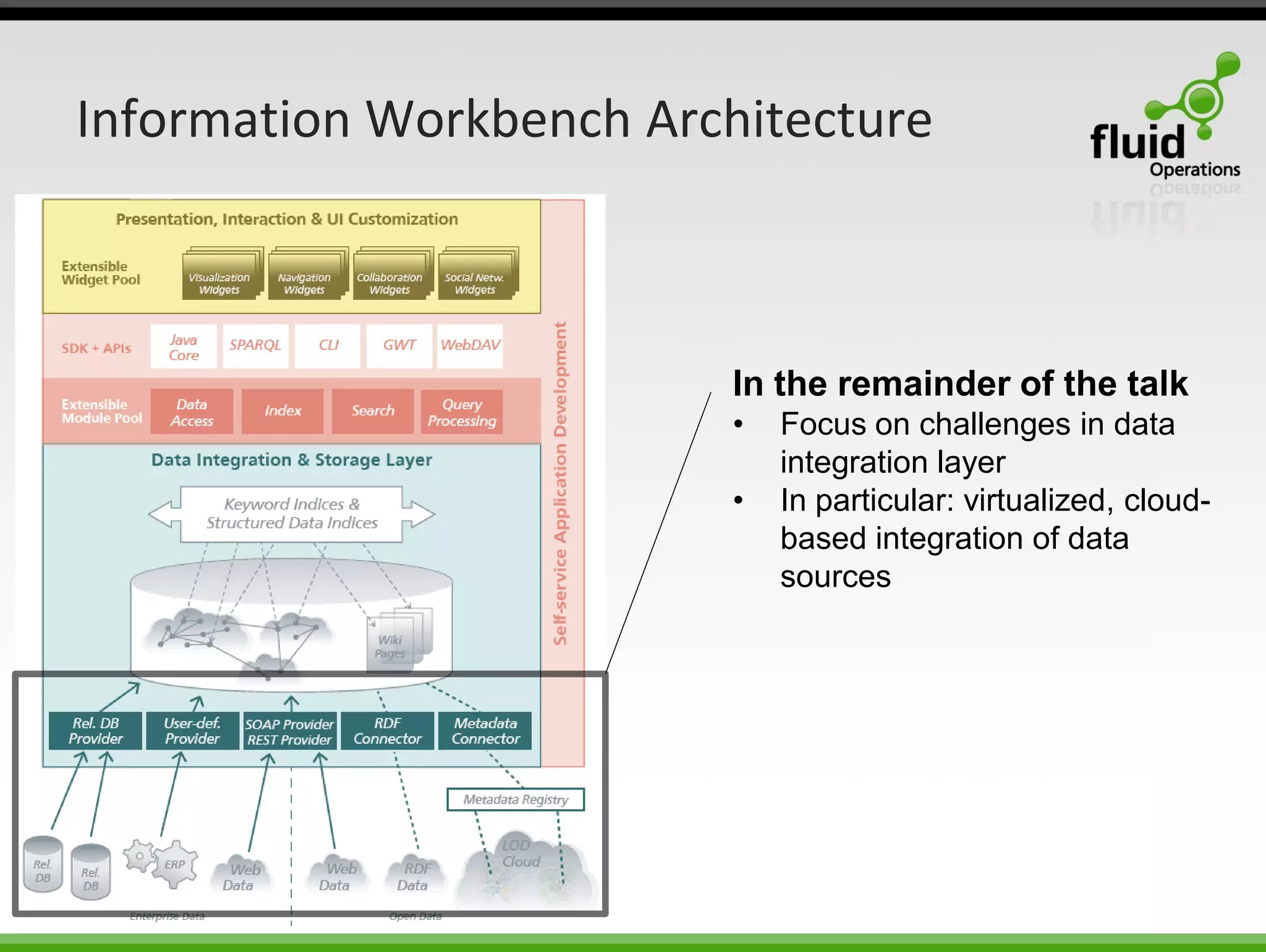

12. Information Workbench Architecture
In the remainder of the talk
• Focus on challenges in data
integration layer
• In particular: virtualized, cloud-
based integration of data
sources

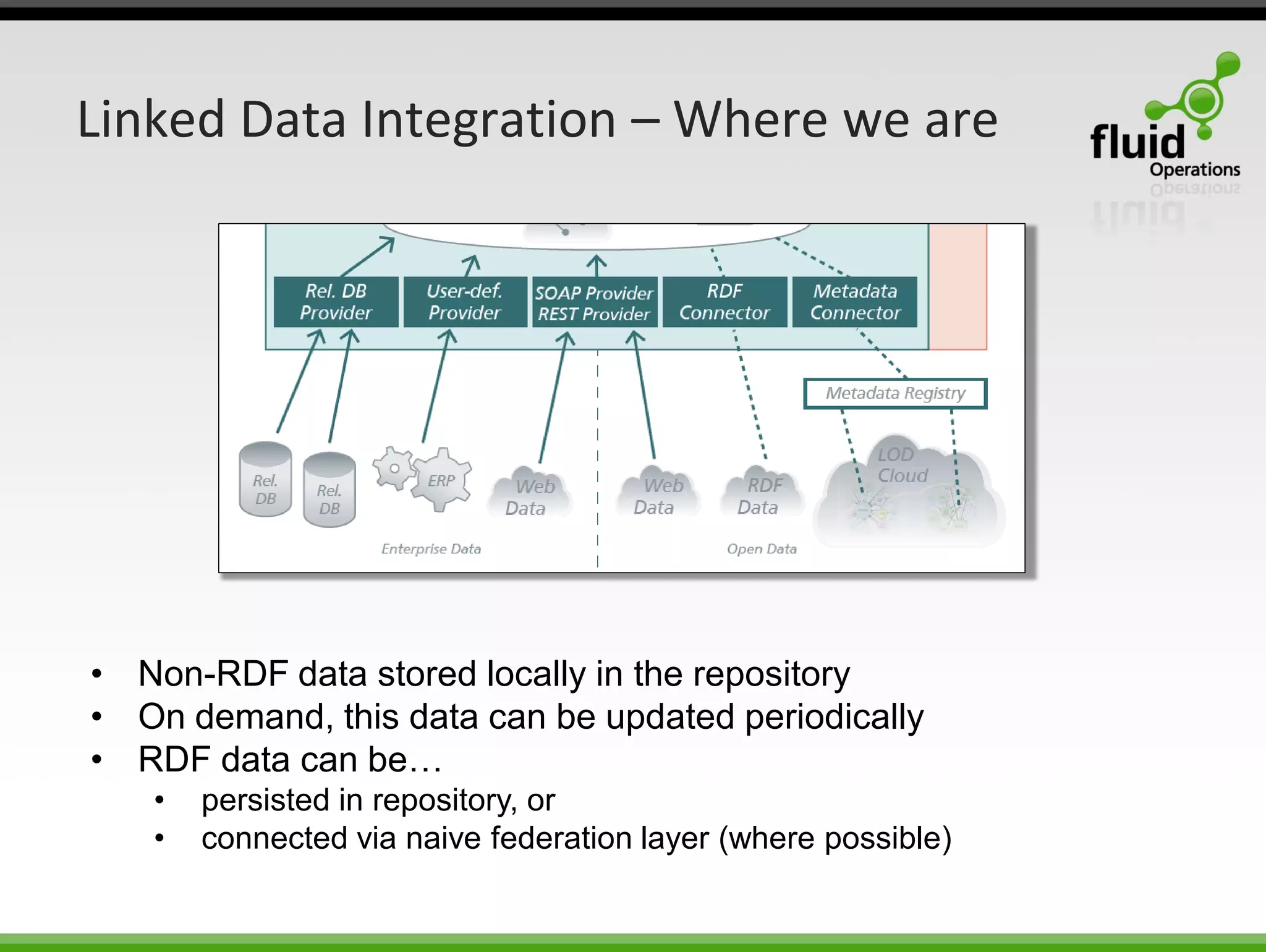

13. Linked Data Integration – Where we are
• Non-RDF data stored locally in the repository
• On demand, this data can be updated periodically
• RDF data can be…
• persisted in repository, or
• connected via naive federation layer (where possible)

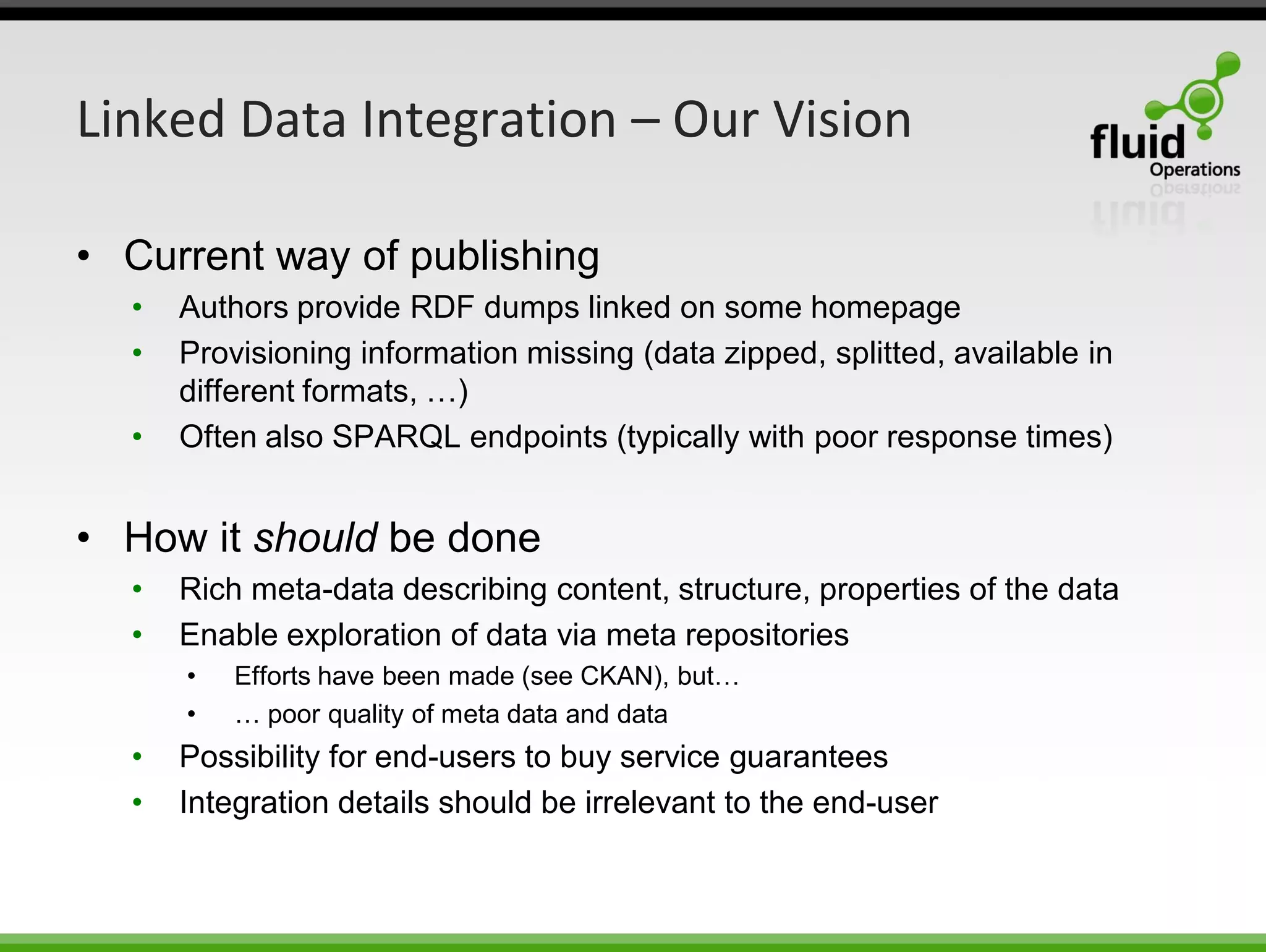

14. Linked Data Integration – Our Vision
• Current way of publishing
• Authors provide RDF dumps linked on some homepage
• Provisioning information missing (data zipped, splitted, available in
different formats, …)
• Often also SPARQL endpoints (typically with poor response times)
• How it should be done
• Rich meta-data describing content, structure, properties of the data
• Enable exploration of data via meta repositories
• Efforts have been made (see CKAN), but…
• … poor quality of meta data and data
• Possibility for end-users to buy service guarantees
• Integration details should be irrelevant to the end-user

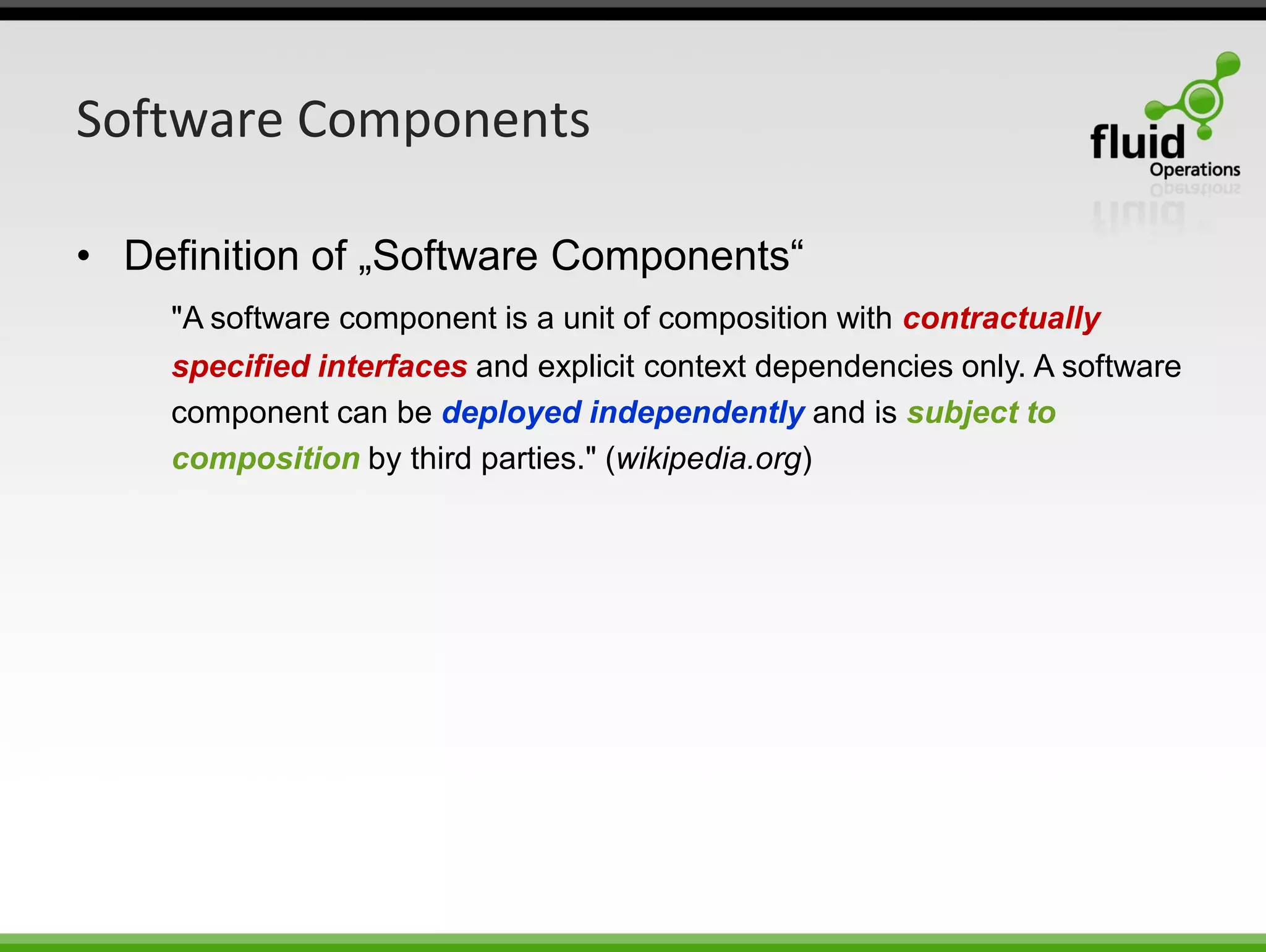

15. Software Components
• Definition of „Software Components“
"A software component is a unit of composition with contractually
specified interfaces and explicit context dependencies only. A software
component can be deployed independently and is subject to
composition by third parties." (wikipedia.org)

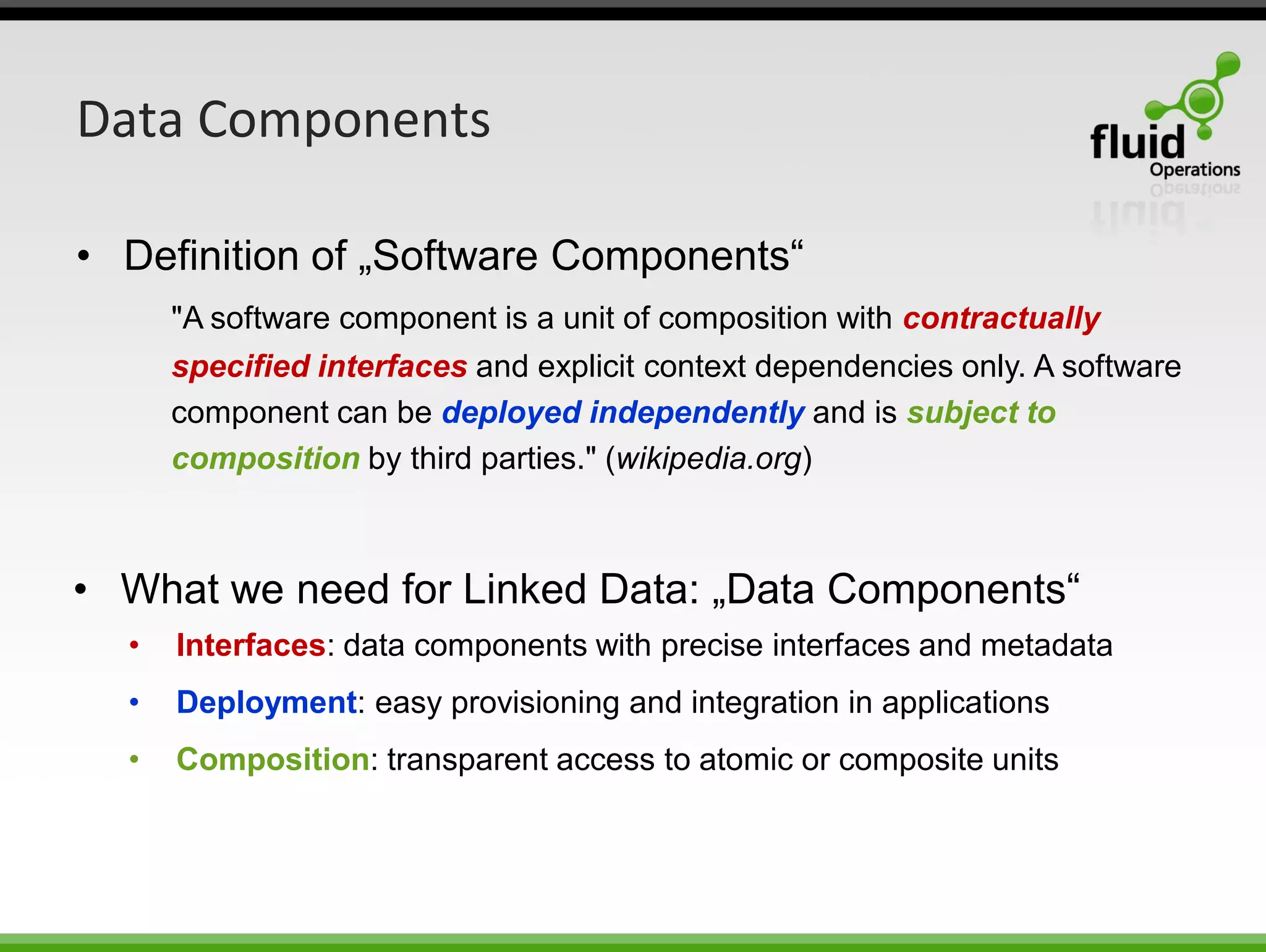

16. Data Components
• What we need for Linked Data: „Data Components“
• Interfaces: data components with precise interfaces and metadata
• Deployment: easy provisioning and integration in applications
• Composition: transparent access to atomic or composite units
• Definition of „Software Components“
"A software component is a unit of composition with contractually
specified interfaces and explicit context dependencies only. A software
component can be deployed independently and is subject to
composition by third parties." (wikipedia.org)

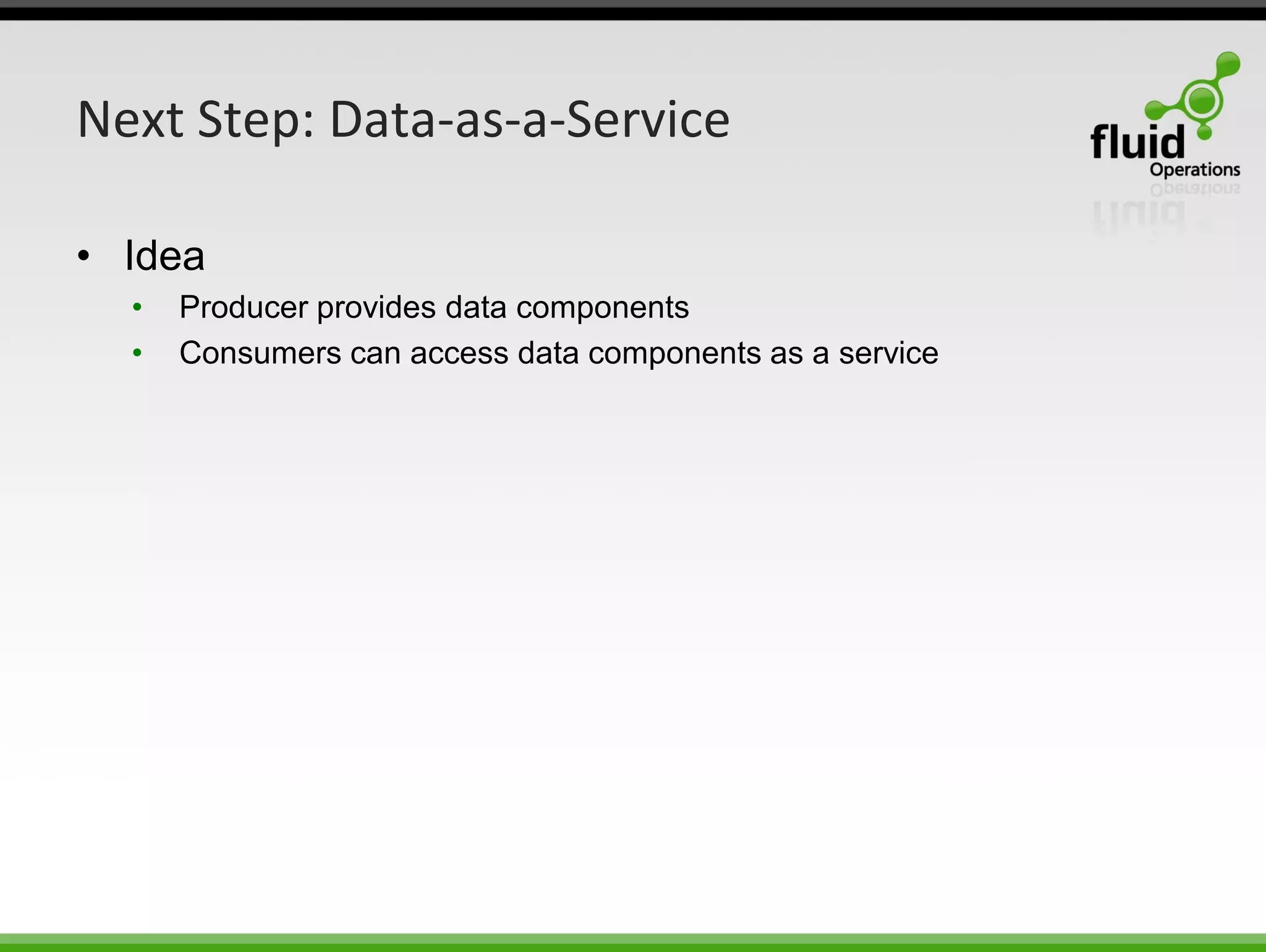

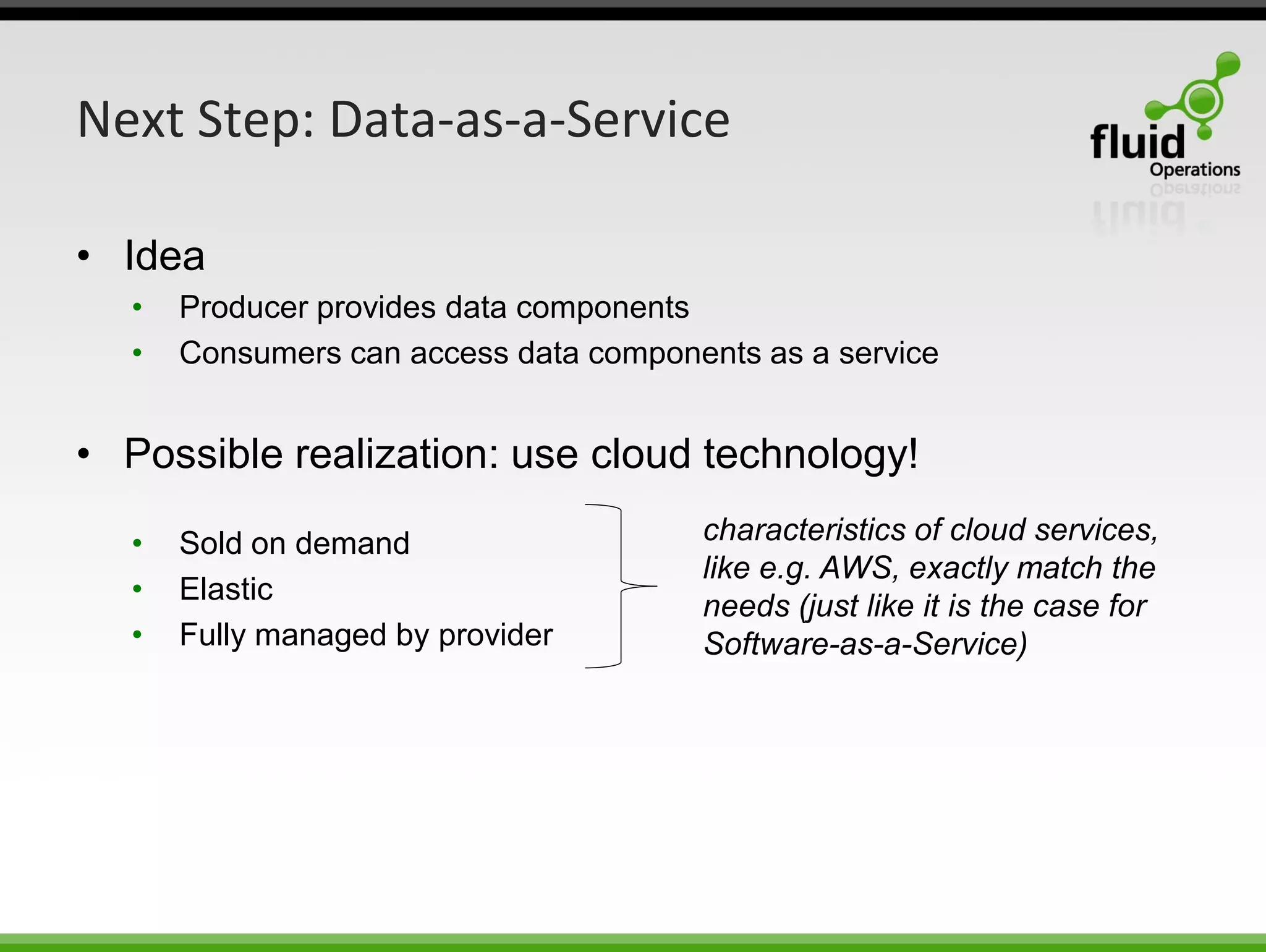

17. Next Step: Data-as-a-Service
• Idea
• Producer provides data components
• Consumers can access data components as a service

18. Next Step: Data-as-a-Service
• Idea
• Producer provides data components
• Consumers can access data components as a service
• Possible realization: use cloud technology!
• Sold on demand
• Elastic
• Fully managed by provider
characteristics of cloud services,
like e.g. AWS, exactly match the
needs (just like it is the case for
Software-as-a-Service)

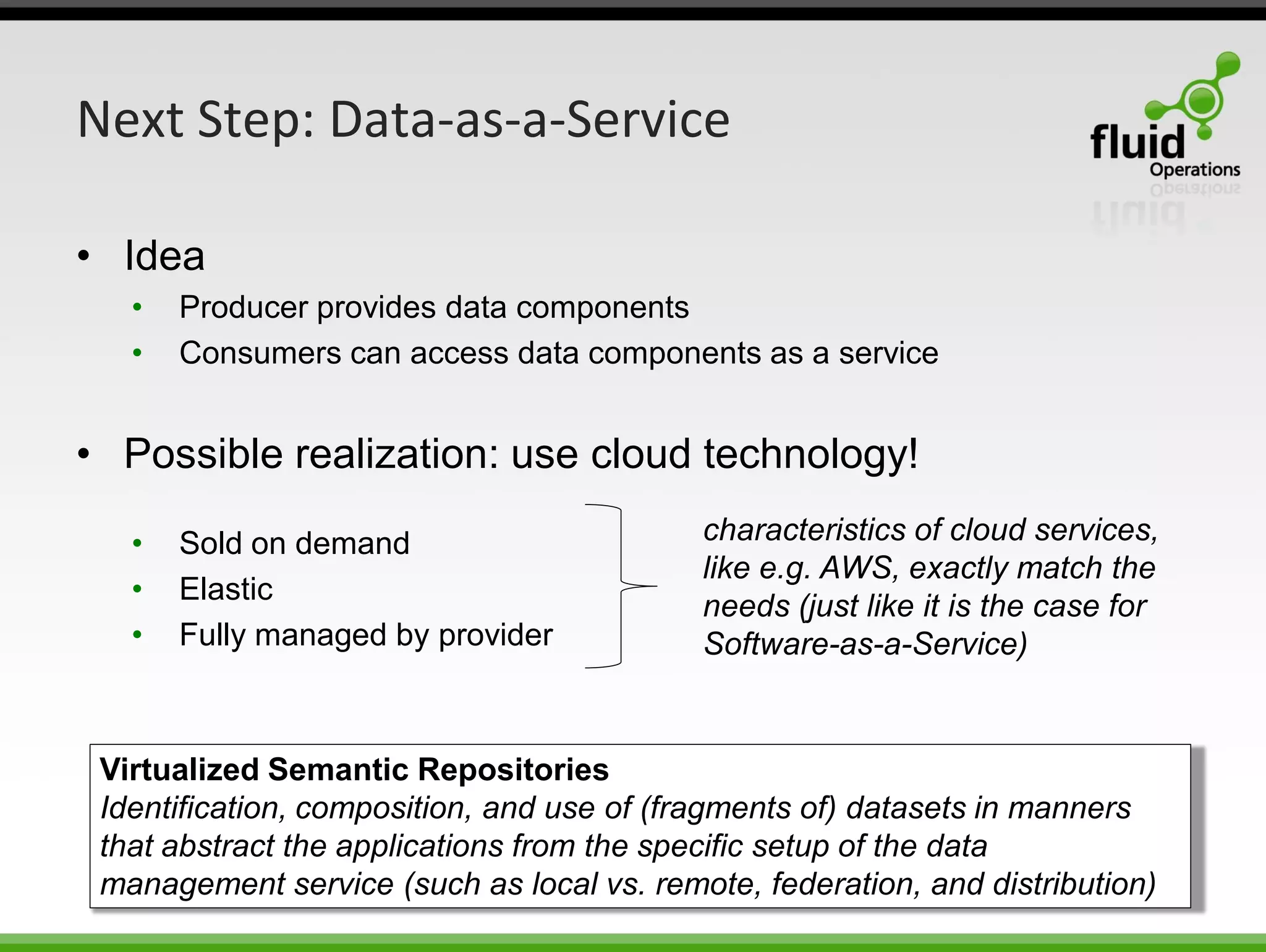

19. Next Step: Data-as-a-Service
Virtualized Semantic Repositories
Identification, composition, and use of (fragments of) datasets in manners
that abstract the applications from the specific setup of the data
management service (such as local vs. remote, federation, and distribution)
• Idea
• Producer provides data components
• Consumers can access data components as a service
• Possible realization: use cloud technology!
• Sold on demand
• Elastic
• Fully managed by provider
characteristics of cloud services,
like e.g. AWS, exactly match the
needs (just like it is the case for
Software-as-a-Service)

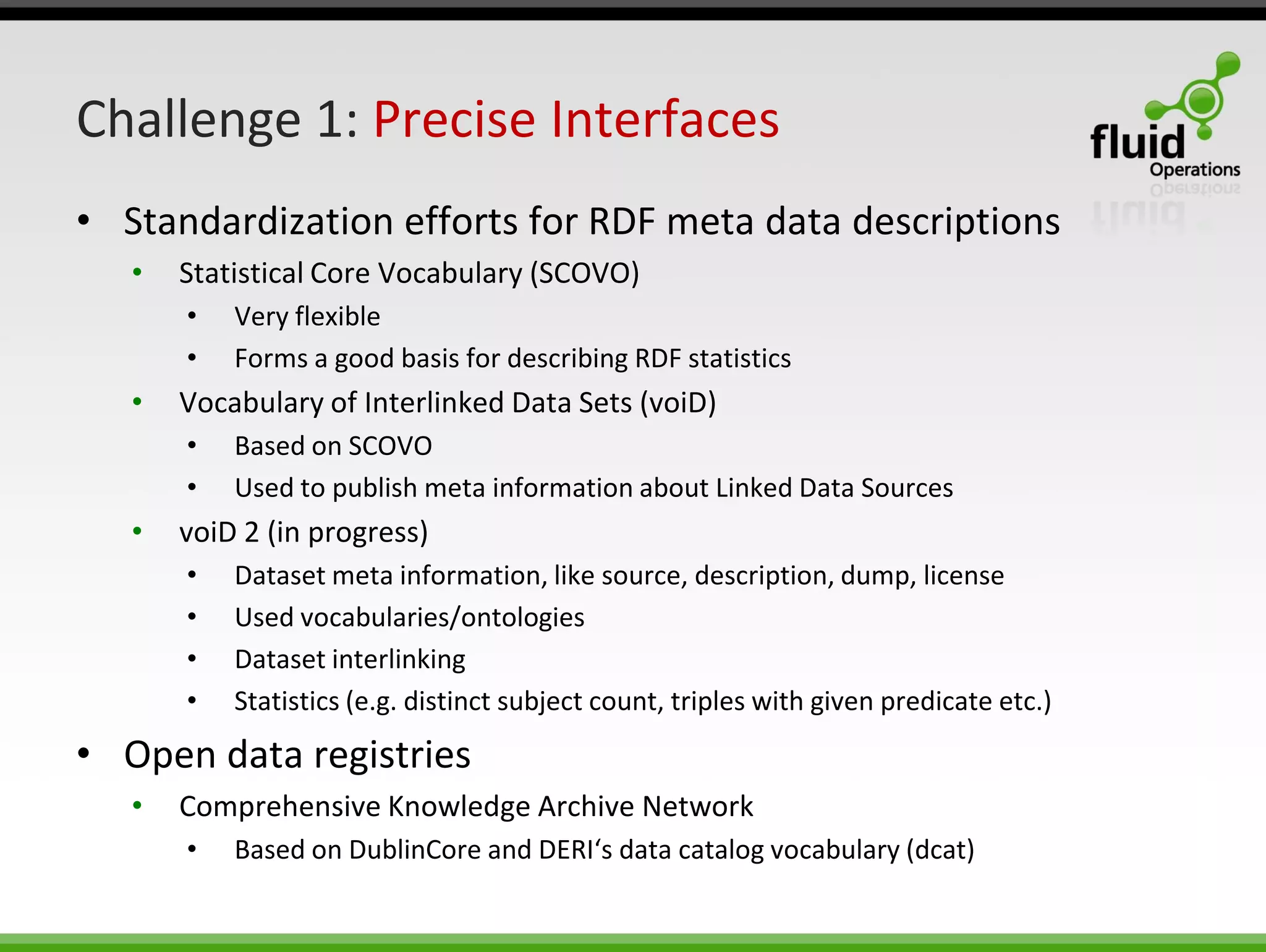

20. Challenge 1: Precise Interfaces
• Standardization efforts for RDF meta data descriptions
• Statistical Core Vocabulary (SCOVO)
• Very flexible
• Forms a good basis for describing RDF statistics
• Vocabulary of Interlinked Data Sets (voiD)
• Based on SCOVO
• Used to publish meta information about Linked Data Sources
• voiD 2 (in progress)
• Dataset meta information, like source, description, dump, license
• Used vocabularies/ontologies
• Dataset interlinking
• Statistics (e.g. distinct subject count, triples with given predicate etc.)
• Open data registries
• Comprehensive Knowledge Archive Network
• Based on DublinCore and DERI‘s data catalog vocabulary (dcat)

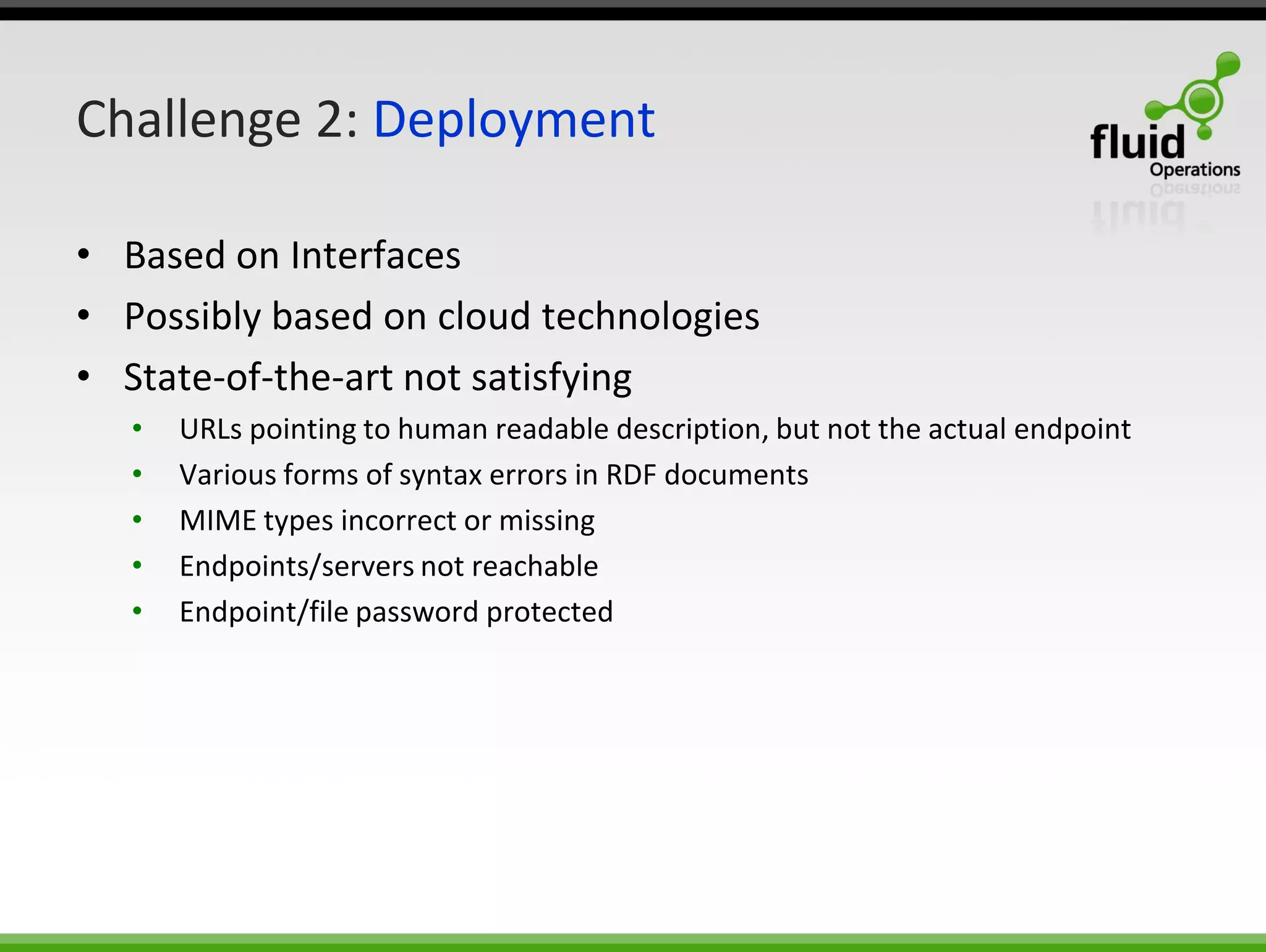

21. Challenge 2: Deployment
• Based on Interfaces
• Possibly based on cloud technologies
• State-of-the-art not satisfying
• URLs pointing to human readable description, but not the actual endpoint
• Various forms of syntax errors in RDF documents
• MIME types incorrect or missing
• Endpoints/servers not reachable
• Endpoint/file password protected

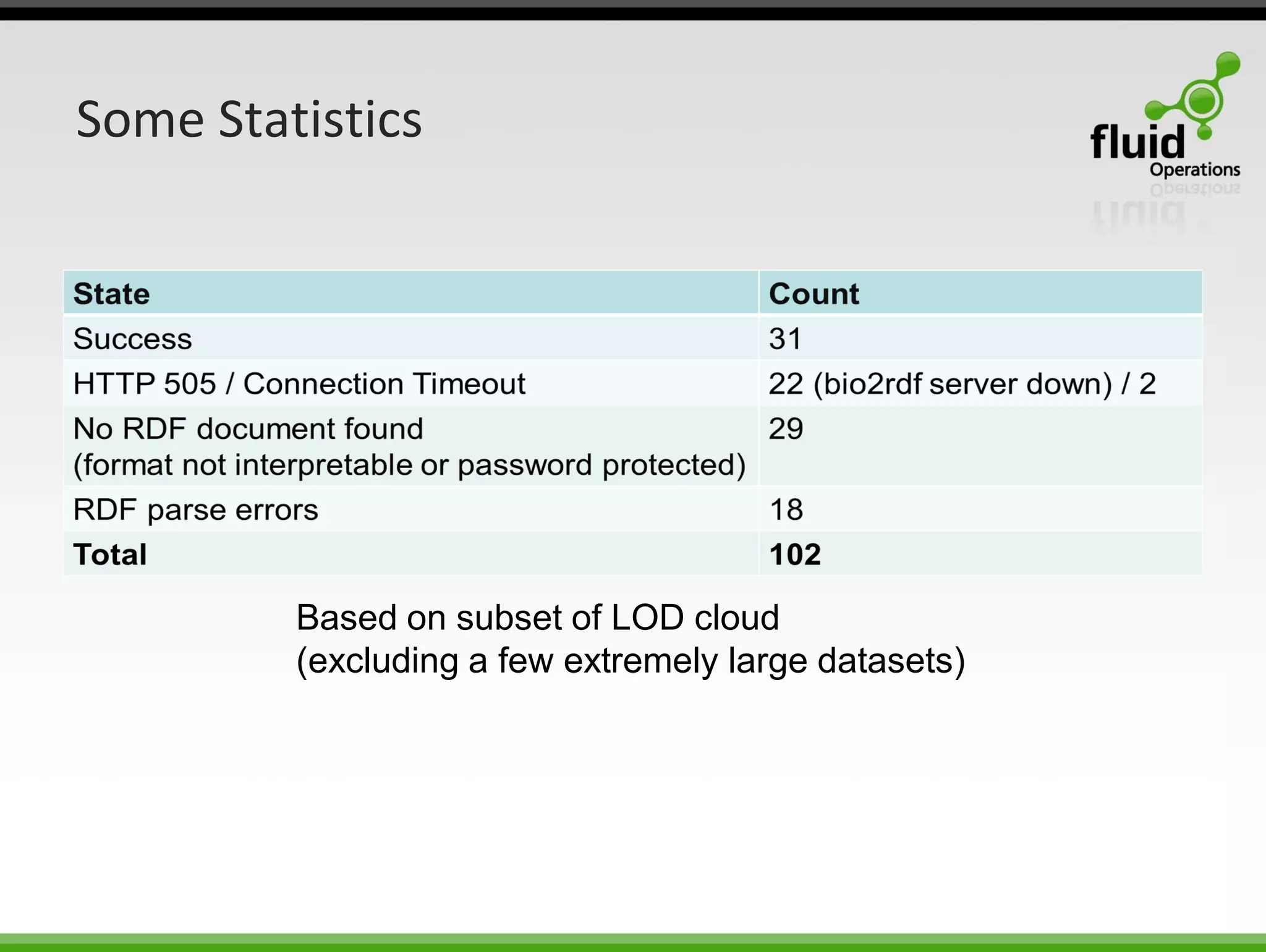

22. Some Statistics
Based on subset of LOD cloud
(excluding a few extremely large datasets)

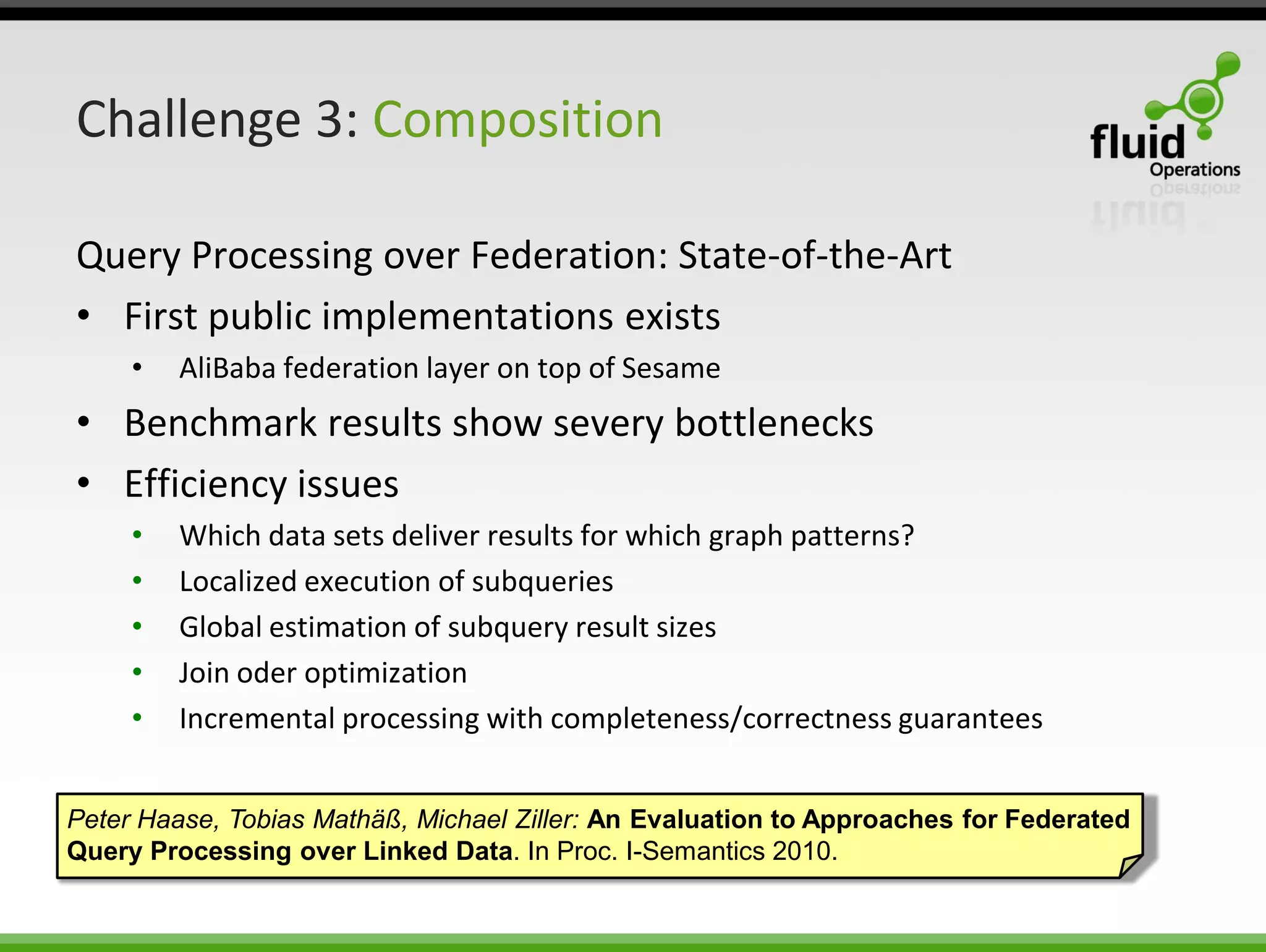

23. Challenge 3: Composition
Query Processing over Federation: State-of-the-Art
• First public implementations exists
• AliBaba federation layer on top of Sesame
• Benchmark results show severy bottlenecks
• Efficiency issues
• Which data sets deliver results for which graph patterns?
• Localized execution of subqueries
• Global estimation of subquery result sizes
• Join oder optimization
• Incremental processing with completeness/correctness guarantees
Peter Haase, Tobias Mathäß, Michael Ziller: An Evaluation to Approaches for Federated
Query Processing over Linked Data. In Proc. I-Semantics 2010.

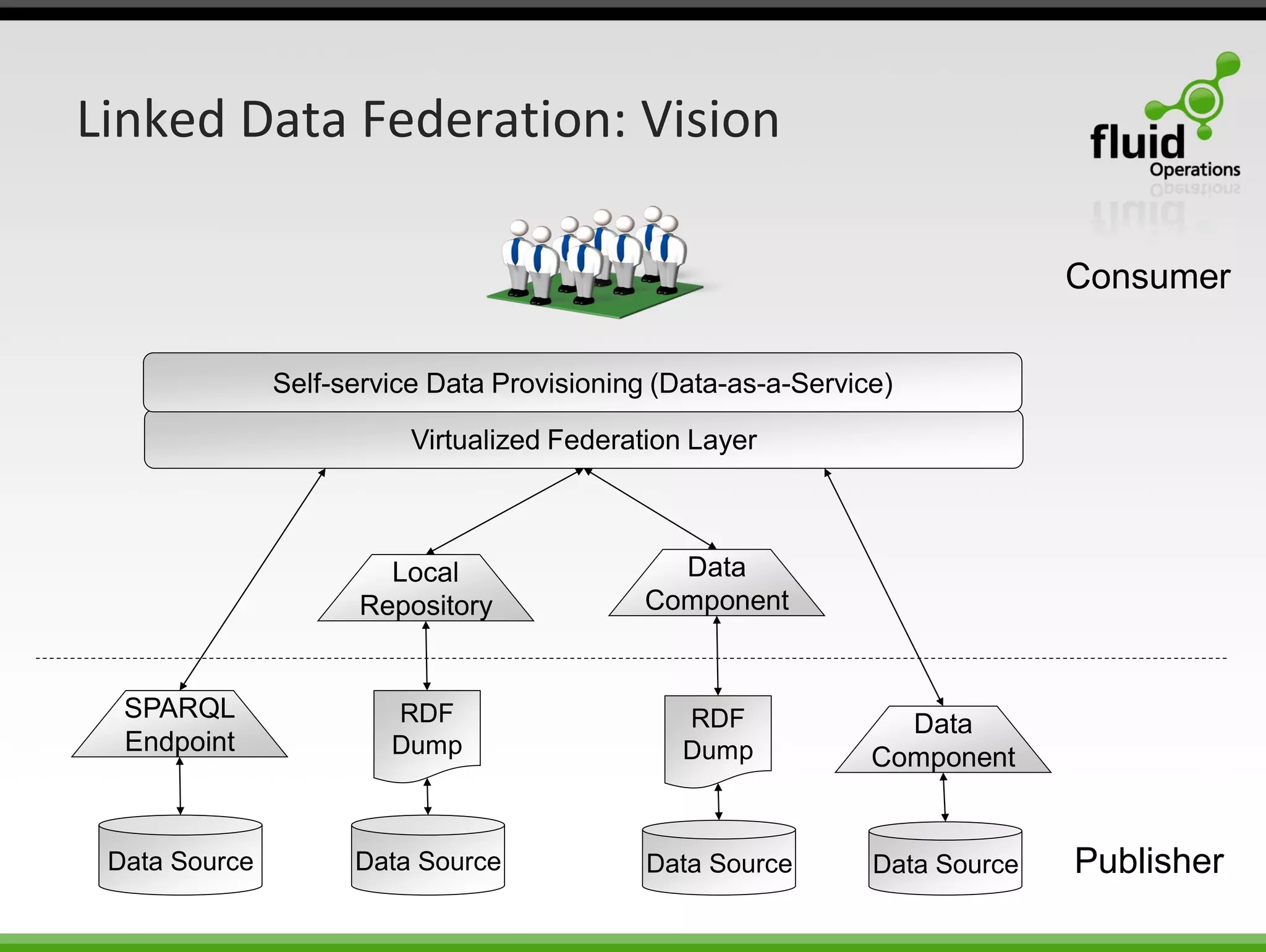

24. Linked Data Federation: Vision
Data Source Data Source Data Source Data Source
SPARQL
Endpoint
Virtualized Federation Layer
Consumer
Publisher
Local
Repository
RDF
Dump
Data
Component
RDF
Dump
Data
Component
Self-service Data Provisioning (Data-as-a-Service)

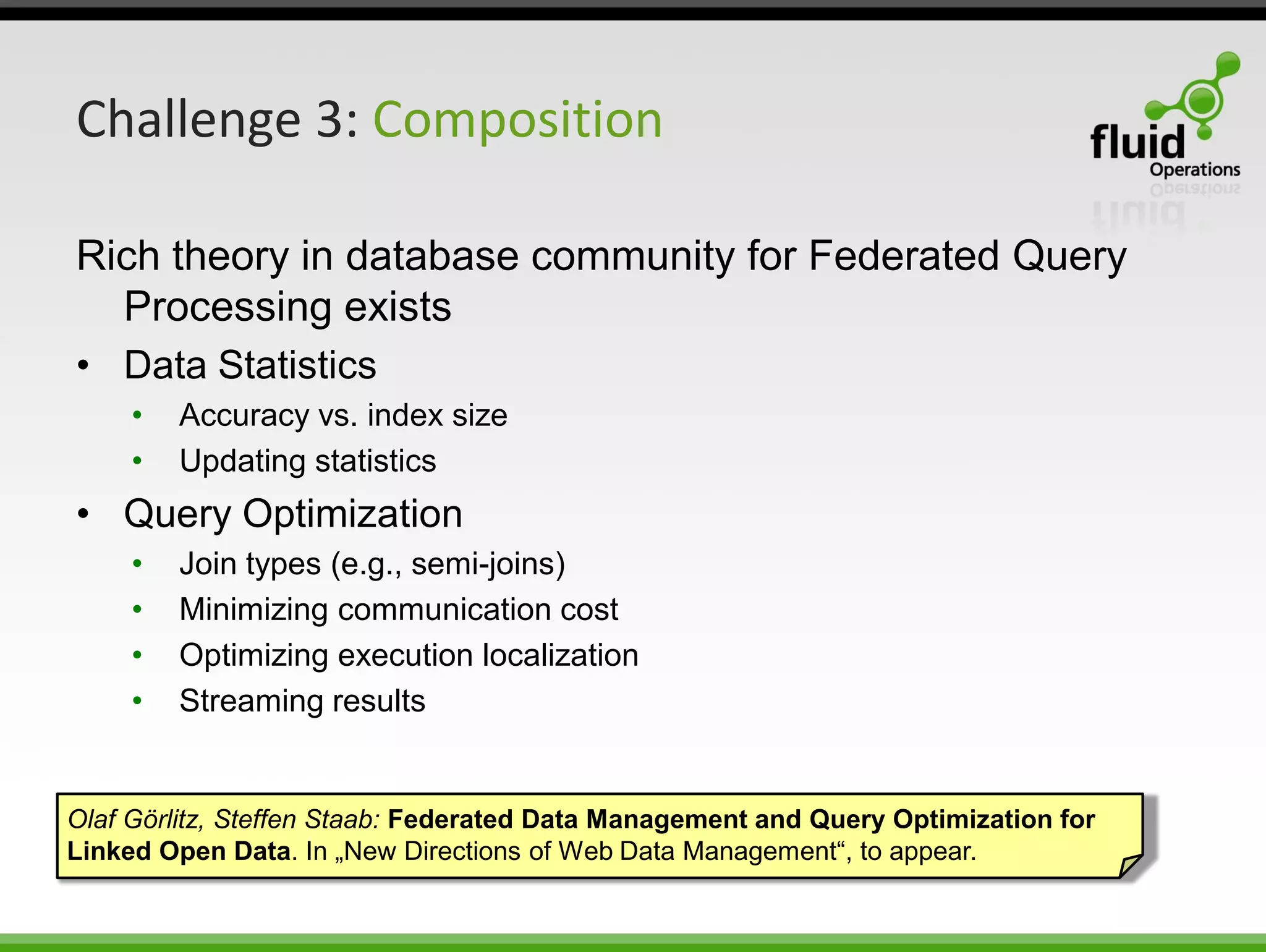

25. Challenge 3: Composition
Rich theory in database community for Federated Query
Processing exists
• Data Statistics
• Accuracy vs. index size
• Updating statistics
• Query Optimization
• Join types (e.g., semi-joins)
• Minimizing communication cost
• Optimizing execution localization
• Streaming results
Olaf Görlitz, Steffen Staab: Federated Data Management and Query Optimization for
Linked Open Data. In „New Directions of Web Data Management“, to appear.

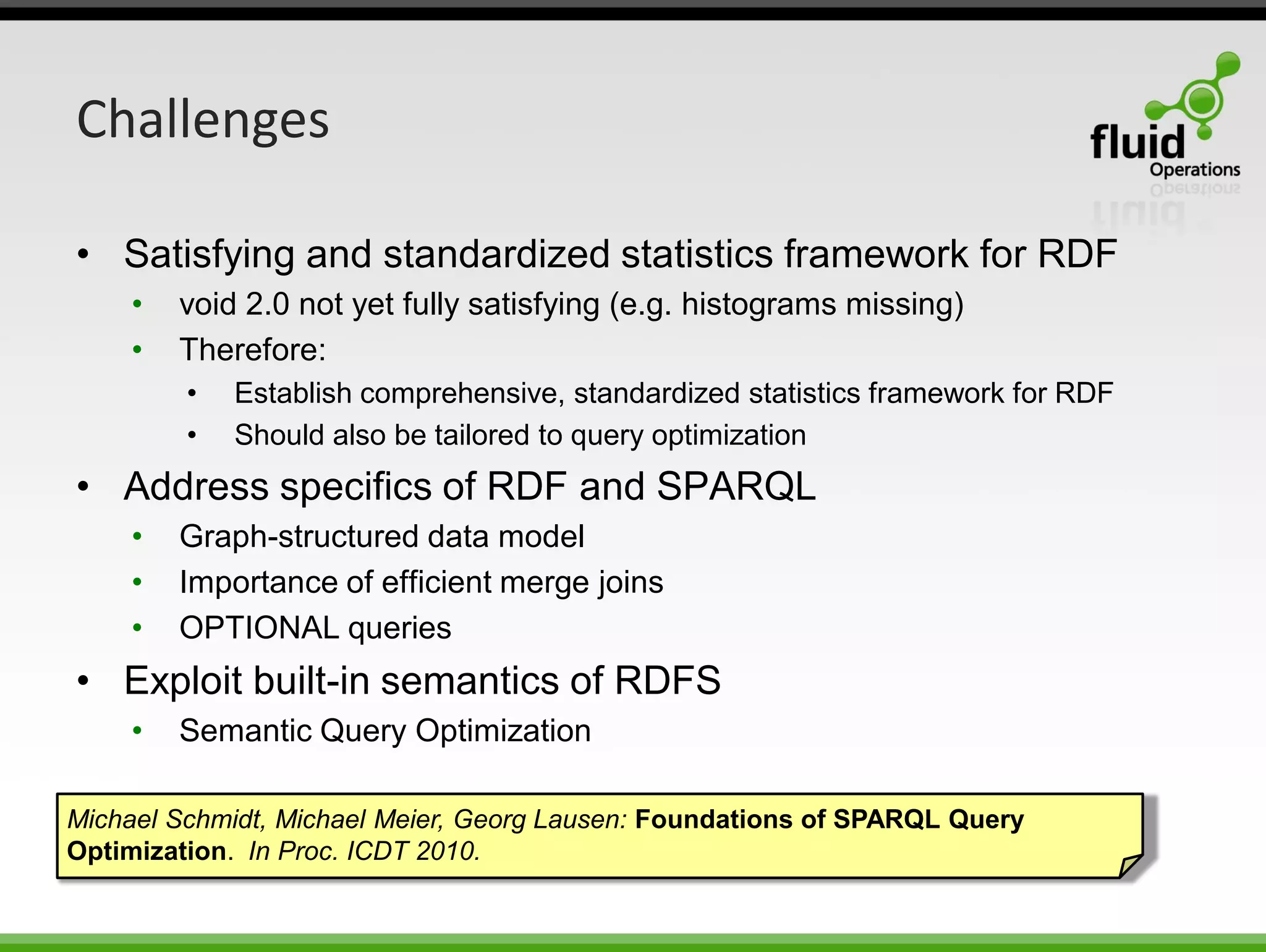

26. Challenges
• Satisfying and standardized statistics framework for RDF
• void 2.0 not yet fully satisfying (e.g. histograms missing)
• Therefore:
• Establish comprehensive, standardized statistics framework for RDF
• Should also be tailored to query optimization
• Address specifics of RDF and SPARQL
• Graph-structured data model
• Importance of efficient merge joins
• OPTIONAL queries
• Exploit built-in semantics of RDFS
• Semantic Query Optimization
Michael Schmidt, Michael Meier, Georg Lausen: Foundations of SPARQL Query
Optimization. In Proc. ICDT 2010.

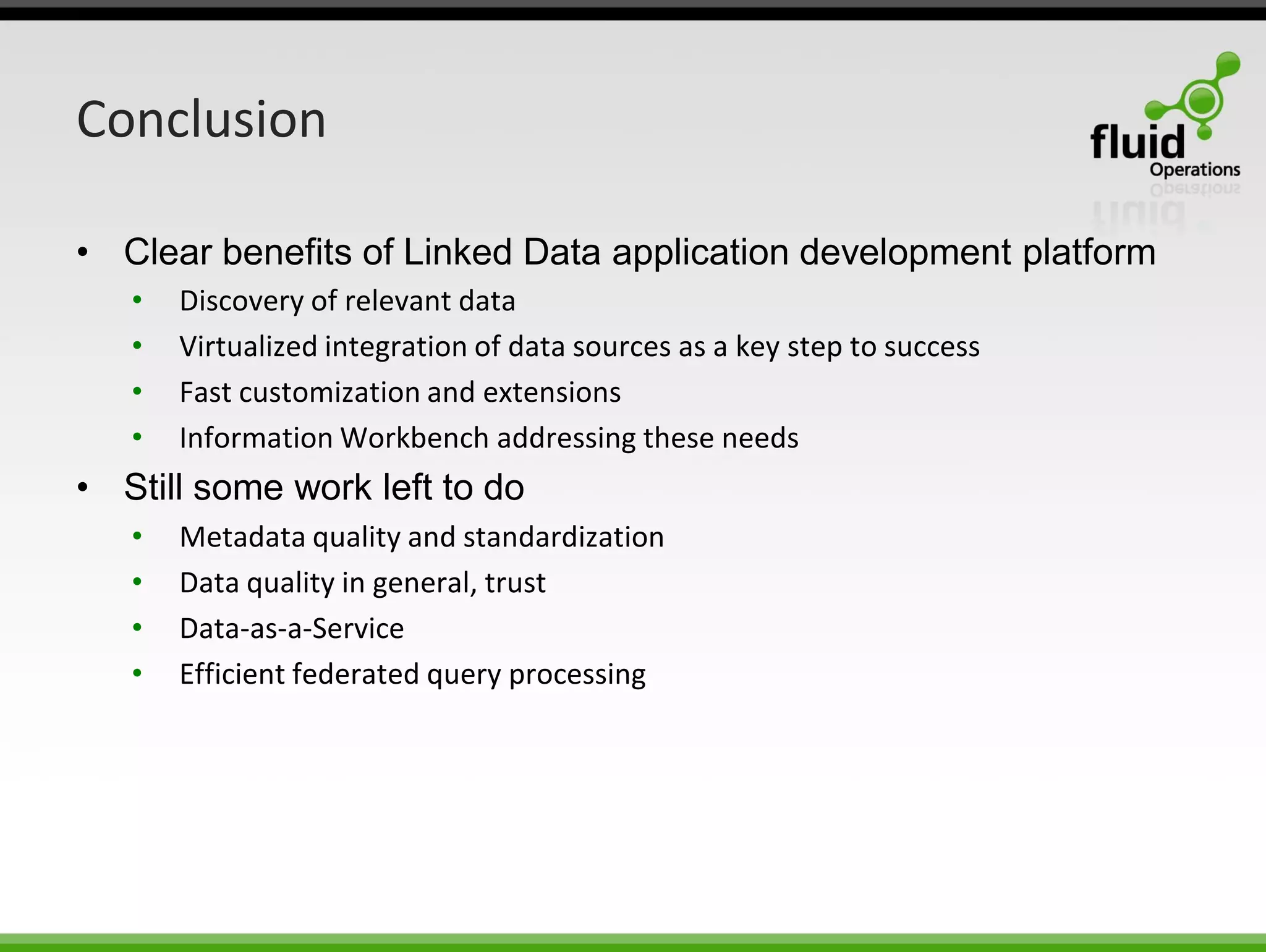

27. Conclusion
• Clear benefits of Linked Data application development platform
• Discovery of relevant data
• Virtualized integration of data sources as a key step to success
• Fast customization and extensions
• Information Workbench addressing these needs
• Still some work left to do
• Metadata quality and standardization
• Data quality in general, trust
• Data-as-a-Service
• Efficient federated query processing

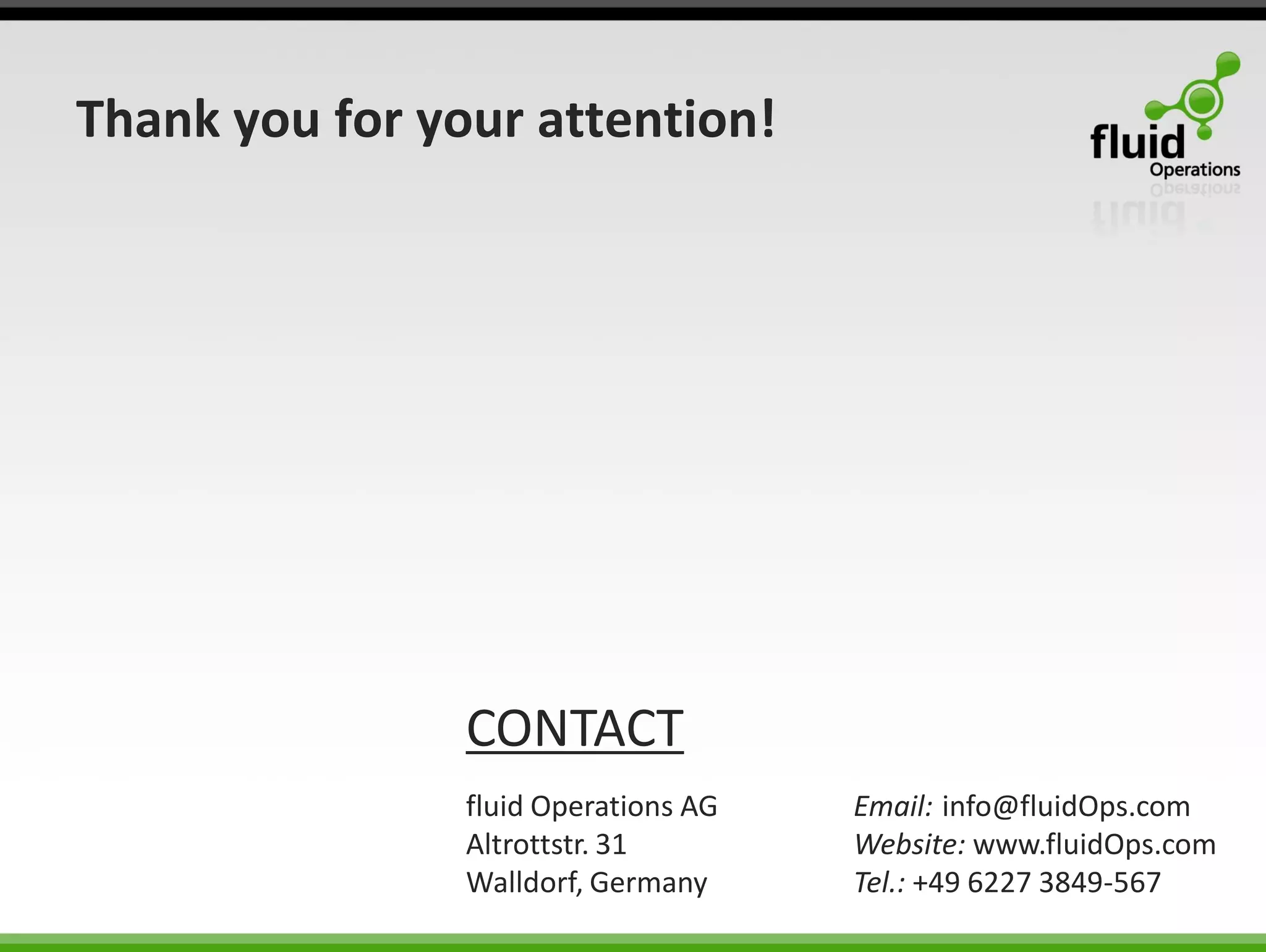

28. Thank you for your attention!
CONTACT
fluid Operations AG Email: info@fluidOps.com
Altrottstr. 31 Website: www.fluidOps.com
Walldorf, Germany Tel.: +49 6227 3849-567
