Cloud Computing Concepts, Technology and Architecture TUDOR MARIUS COSMIN

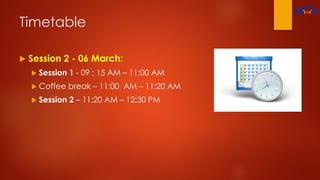

Timetable  Session 2 - 06 March:  Session 1 - 09 : 15 AM – 11:00 AM  Coffee break – 11:00 AM – 11:20 AM  Session 2 – 11:20 AM – 12:30 PM

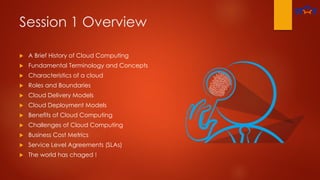

Session 1 Overview  A Brief History of Cloud Computing  Fundamental Terminology and Concepts  Characteristics of a cloud  Roles and Boundaries  Cloud Delivery Models  Cloud Deployment Models  Benefits of Cloud Computing  Challenges of Cloud Computing  Business Cost Metrics  Service Level Agreements (SLAs)  The world has chaged !
CLOUD from A to Z

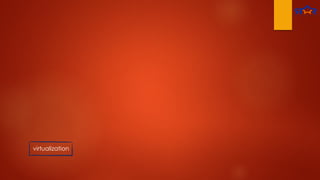

virtualization

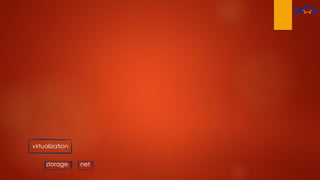

virtualization storage net
virtualization storage net operations

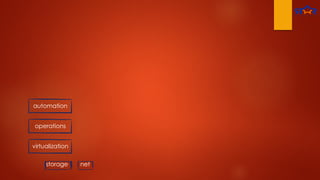

virtualization storage net operations automation
virtualization storage net operations automation business
virtualization storage net operations automation business other virtualization

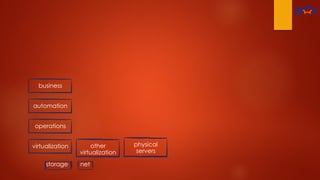

virtualization storage net automation business other virtualization physical servers operations

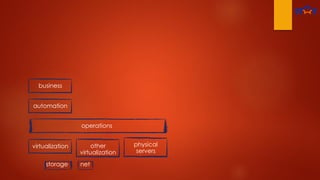

virtualization storage net automation business other virtualization physical servers operations
virtualization storage net business other virtualization physical servers operations automation

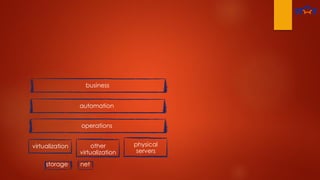

virtualization storage net other virtualization physical servers operations automation business
virtualization storage net other virtualization physical servers operations automation business Softwaredefineddatacenter
virtualization storage net other virtualization physical servers operations automation business Softwaredefineddatacenter
virtualization storage net other virtualization physical servers automation business Softwaredefineddatacenter operations
virtualization storage net other virtualization physical servers business Softwaredefineddatacenter operations automation

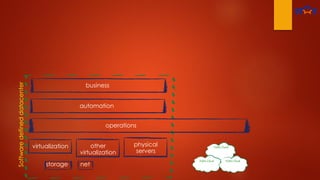

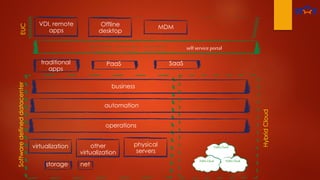

virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business
virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud

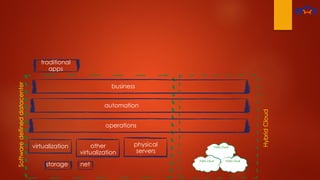

virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud traditional apps
virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud traditional apps PaaS
virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud traditional apps PaaS SaaS
virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud traditional apps PaaS SaaS self service portal
virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud traditional apps PaaS SaaS self service portal VDI, remote apps
virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud traditional apps PaaS SaaS self service portal VDI, remote apps Offline desktop
virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud traditional apps PaaS SaaS self service portal VDI, remote apps Offline desktop MDM

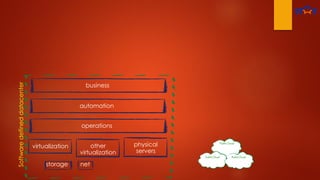

virtualization storage net other virtualization physical servers Softwaredefineddatacenter operations automation business HybridCloud traditional apps PaaS SaaS self service portal VDI, remote apps Offline desktop MDM EUC

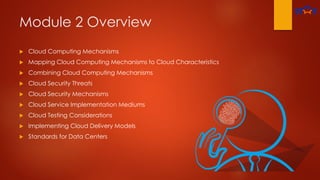

Module 2 Overview  Cloud Computing Mechanisms  Mapping Cloud Computing Mechanisms to Cloud Characteristics  Combining Cloud Computing Mechanisms  Cloud Security Threats  Cloud Security Mechanisms  Cloud Service Implementation Mediums  Cloud Testing Considerations  Implementing Cloud Delivery Models  Standards for Data Centers
Cloud Computing Mechanisms
Overview Cloud Computing mechanisms are a common moving parts of a cloud-based technology architecture that work together to establish a cohesive function. In this section, we describe the following fundamental cloud computing mechanisms:  Virtual Server  Ready-Made Environment  Automated Scaling Listener  Failover System  Multi-Device Broker  Pay-Per-Use Monitor  State Management Database  Resource Replication

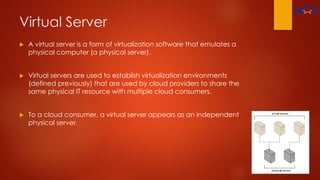

Virtual Server  A virtual server is a form of virtualization software that emulates a physical computer (a physical server).  Virtual servers are used to establish virtualization environments (defined previously) that are used by cloud providers to share the same physical IT resource with multiple cloud consumers.  To a cloud consumer, a virtual server appears as an independent physical server.

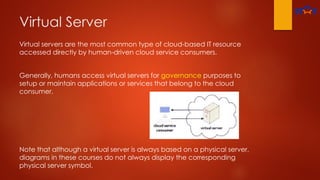

Virtual Server Virtual servers are the most common type of cloud-based IT resource accessed directly by human-driven cloud service consumers. Generally, humans access virtual servers for governance purposes to setup or maintain applications or services that belong to the cloud consumer. Note that although a virtual server is always based on a physical server, diagrams in these courses do not always display the corresponding physical server symbol.

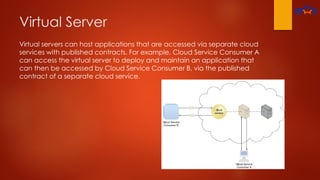

Virtual Server Virtual servers can host applications that are accessed via separate cloud services with published contracts. For example, Cloud Service Consumer A can access the virtual server to deploy and maintain an application that can then be accessed by Cloud Service Consumer B, via the published contract of a separate cloud service.

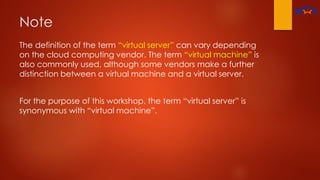

Note The definition of the term “virtual server” can vary depending on the cloud computing vendor. The term “virtual machine” is also commonly used, although some vendors make a further distinction between a virtual machine and a virtual server. For the purpose of this workshop, the term “virtual server” is synonymous with “virtual machine”.

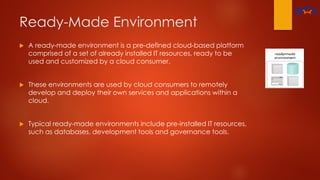

Ready-Made Environment  A ready-made environment is a pre-defined cloud-based platform comprised of a set of already installed IT resources, ready to be used and customized by a cloud consumer.  These environments are used by cloud consumers to remotely develop and deploy their own services and applications within a cloud.  Typical ready-made environments include pre-installed IT resources, such as databases, development tools and governance tools.

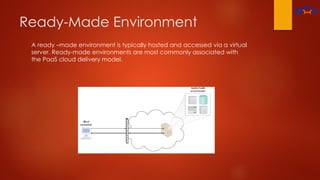

Ready-Made Environment A ready –made environment is typically hosted and accessed via a virtual server. Ready-made environments are most commonly associated with the PaaS cloud delivery model.

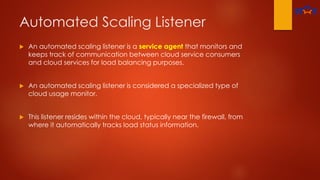

Automated Scaling Listener  An automated scaling listener is a service agent that monitors and keeps track of communication between cloud service consumers and cloud services for load balancing purposes.  An automated scaling listener is considered a specialized type of cloud usage monitor.  This listener resides within the cloud, typically near the firewall, from where it automatically tracks load status information.

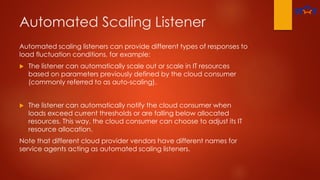

Automated Scaling Listener Automated scaling listeners can provide different types of responses to load fluctuation conditions, for example:  The listener can automatically scale out or scale in IT resources based on parameters previously defined by the cloud consumer (commonly referred to as auto-scaling).  The listener can automatically notify the cloud consumer when loads exceed current thresholds or are falling below allocated resources. This way, the cloud consumer can choose to adjust its IT resource allocation. Note that different cloud provider vendors have different names for service agents acting as automated scaling listeners.

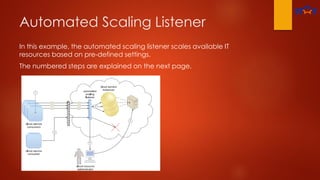

Automated Scaling Listener In this example, the automated scaling listener scales available IT resources based on pre-defined settings. The numbered steps are explained on the next page.

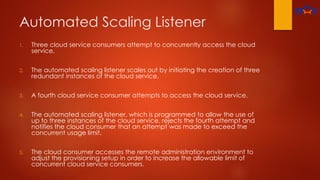

Automated Scaling Listener 1. Three cloud service consumers attempt to concurrently access the cloud service. 2. The automated scaling listener scales out by initiating the creation of three redundant instances of the cloud service. 3. A fourth cloud service consumer attempts to access the cloud service. 4. The automated scaling listener, which is programmed to allow the use of up to three instances of the cloud service, rejects the fourth attempt and notifies the cloud consumer that an attempt was made to exceed the concurrent usage limit. 5. The cloud consumer accesses the remote administration environment to adjust the provisioning setup in order to increase the allowable limit of concurrent cloud service consumers.

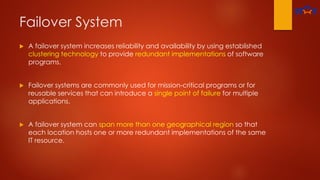

Failover System  A failover system increases reliability and availability by using established clustering technology to provide redundant implementations of software programs.  Failover systems are commonly used for mission-critical programs or for reusable services that can introduce a single point of failure for multiple applications.  A failover system can span more than one geographical region so that each location hosts one or more redundant implementations of the same IT resource.

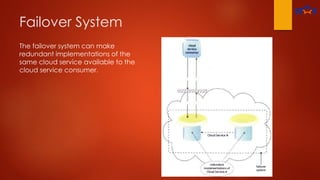

Failover System The failover system can make redundant implementations of the same cloud service available to the cloud service consumer.

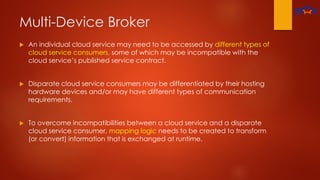

Multi-Device Broker  An individual cloud service may need to be accessed by different types of cloud service consumers, some of which may be incompatible with the cloud service’s published service contract.  Disparate cloud service consumers may be differentiated by their hosting hardware devices and/or may have different types of communication requirements.  To overcome incompatibilities between a cloud service and a disparate cloud service consumer, mapping logic needs to be created to transform (or convert) information that is exchanged at runtime.

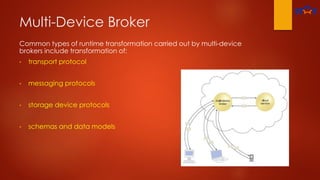

Multi-Device Broker Common types of runtime transformation carried out by multi-device brokers include transformation of: • transport protocol • messaging protocols • storage device protocols • schemas and data models

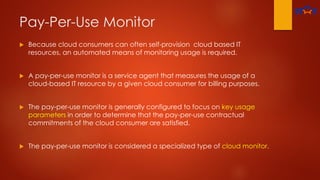

Pay-Per-Use Monitor  Because cloud consumers can often self-provision cloud based IT resources, an automated means of monitoring usage is required.  A pay-per-use monitor is a service agent that measures the usage of a cloud-based IT resource by a given cloud consumer for billing purposes.  The pay-per-use monitor is generally configured to focus on key usage parameters in order to determine that the pay-per-use contractual commitments of the cloud consumer are satisfied.  The pay-per-use monitor is considered a specialized type of cloud monitor.
Pay-Per-Use Monitor For example, the pay-per-use monitor can be positioned as a service agent that tracks usage to a cloud service. Based on the generated logs, the charges for the cloud service consumers are calculated. The numbered steps are explained on the next page.

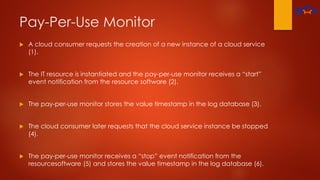

Pay-Per-Use Monitor  A cloud consumer requests the creation of a new instance of a cloud service (1).  The IT resource is instantiated and the pay-per-use monitor receives a “start” event notification from the resource software (2).  The pay-per-use monitor stores the value timestamp in the log database (3).  The cloud consumer later requests that the cloud service instance be stopped (4).  The pay-per-use monitor receives a “stop” event notification from the resourcesoftware (5) and stores the value timestamp in the log database (6).

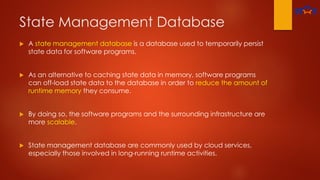

State Management Database  A state management database is a database used to temporarily persist state data for software programs.  As an alternative to caching state data in memory, software programs can off-load state data to the database in order to reduce the amount of runtime memory they consume.  By doing so, the software programs and the surrounding infrastructure are more scalable.  State management database are commonly used by cloud services, especially those involved in long-running runtime activities.

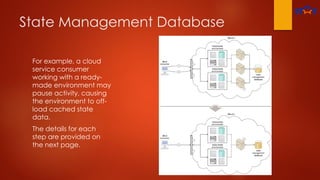

State Management Database For example, a cloud service consumer working with a ready- made environment may pause activity, causing the environment to off- load cached state data. The details for each step are provided on the next page.

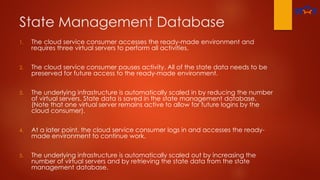

State Management Database 1. The cloud service consumer accesses the ready-made environment and requires three virtual servers to perform all activities. 2. The cloud service consumer pauses activity. All of the state data needs to be preserved for future access to the ready-made environment. 3. The underlying infrastructure is automatically scaled in by reducing the number of virtual servers. State data is saved in the state management database. (Note that one virtual server remains active to allow for future logins by the cloud consumer). 4. At a later point, the cloud service consumer logs in and accesses the ready- made environment to continue work. 5. The underlying infrastructure is automatically scaled out by increasing the number of virtual servers and by retrieving the state data from the state management database.

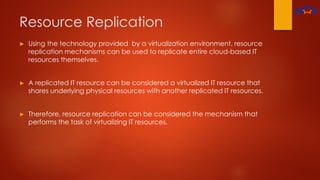

Resource Replication ► Using the technology provided by a virtualization environment, resource replication mechanisms can be used to replicate entire cloud-based IT resources themselves. ► A replicated IT resource can be considered a virtualized IT resource that shares underlying physical resources with another replicated IT resources. ► Therefore, resource replication can be considered the mechanism that performs the task of virtualizing IT resources.

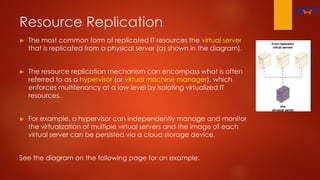

Resource Replication ► The most common form of replicated IT resources the virtual server that is replicated from a physical server (as shown in the diagram). ► The resource replication mechanism can encompass what is often referred to as a hypervisor (or virtual machine manager), which enforces multitenancy at a low level by isolating virtualized IT resources. ► For example, a hypervisor can independently manage and monitor the virtualization of multiple virtual servers and the image of each virtual server can be persisted via a cloud storage device. See the diagram on the following page for an example.

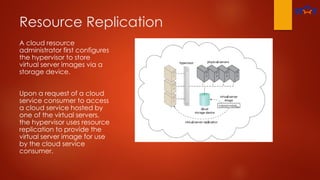

Resource Replication A cloud resource administrator first configures the hypervisor to store virtual server images via a storage device. Upon a request of a cloud service consumer to access a cloud service hosted by one of the virtual servers, the hypervisor uses resource replication to provide the virtual server image for use by the cloud service consumer.

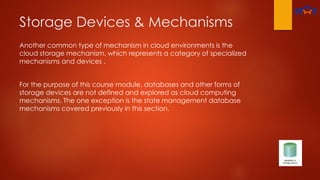

Storage Devices & Mechanisms Another common type of mechanism in cloud environments is the cloud storage mechanism, which represents a category of specialized mechanisms and devices . For the purpose of this course module, databases and other forms of storage devices are not defined and explored as cloud computing mechanisms. The one exception is the state management database mechanisms covered previously in this section.
Mapping Cloud Computing Mechanisms to Cloud Characteristics

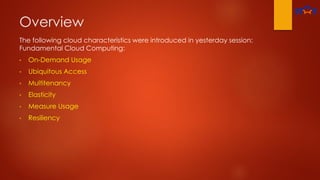

Overview The following cloud characteristics were introduced in yesterday session: Fundamental Cloud Computing: • On-Demand Usage • Ubiquitous Access • Multitenancy • Elasticity • Measure Usage • Resiliency
Mechanisms and Characteristics Mapping Summary On-Demand Usage • Automated scaling listener • Pay-to-use monitor Ubiquitous Access • Multi-device broker Multitenancy • Virtual server • Resource replication Measured Usage • Pay-per-use monitor Elasticity • Virtual server • Automated scaling monitor • State management database • Resource replication • Pay-per-use monitor Resiliency • Failover system • State management database • Resource replication
Combining Cloud Computing Mechanisms
Overview ► Cloud computing mechanisms are commonly combined to create custom cloud-based solutions. ► Understanding cloud computing technology therefore requires an understanding of fundamental mechanisms and how they can relate to each other. ► This section describes the following two examples of mechanism combinations: - Cloud Balancing (automated scaling listener + failover system). - Cloud Bursting (automated scaling listener + resource replication).

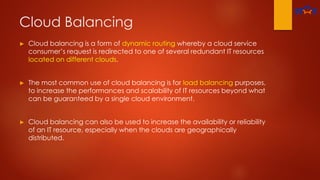

Cloud Balancing ► Cloud balancing is a form of dynamic routing whereby a cloud service consumer’s request is redirected to one of several redundant IT resources located on different clouds. ► The most common use of cloud balancing is for load balancing purposes, to increase the performances and scalability of IT resources beyond what can be guaranteed by a single cloud environment. ► Cloud balancing can also be used to increase the availability or reliability of an IT resource, especially when the clouds are geographically distributed.
Cloud Balancing ► Other custom variations of the routing criteria used for cloud balancing can be created. For example, the routing logic can be based on business or environment factors. ► To achieve cloud balancing the automated scaling listener and failover system mechanisms can be combined. (See the example scenario on the following page). ► For cloud balancing purposes, a special type of automated scaling listener is used as this mechanism needs to be aware of the redundant implementations of IT resources and any special criteria or algorithm it needs to perform the runtime routing of messages from cloud service consumers.
In this scenario, the automated scaling listener is located in a separate cloud from the redundantly deployed cloud services. Alternatively, the automated scaling listener cloud be located together with one of the redundant cloud service implementations.

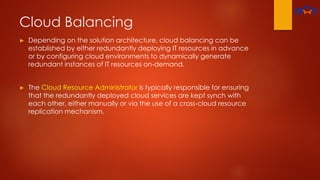

Cloud Balancing ► Depending on the solution architecture, cloud balancing can be established by either redundantly deploying IT resources in advance or by configuring cloud environments to dynamically generate redundant instances of IT resources on-demand. ► The Cloud Resource Administrator is typically responsible for ensuring that the redundantly deployed cloud services are kept synch with each other, either manually or via the use of a cross-cloud resource replication mechanism.

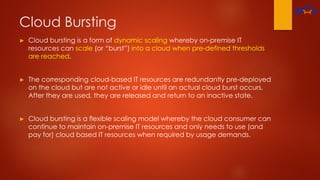

Cloud Bursting ► Cloud bursting is a form of dynamic scaling whereby on-premise IT resources can scale (or “burst”) into a cloud when pre-defined thresholds are reached. ► The corresponding cloud-based IT resources are redundantly pre-deployed on the cloud but are not active or idle until an actual cloud burst occurs. After they are used, they are released and return to an inactive state. ► Cloud bursting is a flexible scaling model whereby the cloud consumer can continue to maintain on-premise IT resources and only needs to use (and pay for) cloud based IT resources when required by usage demands.

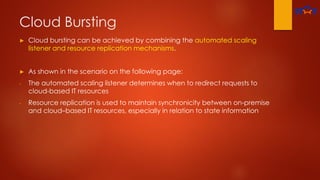

Cloud Bursting ► Cloud bursting can be achieved by combining the automated scaling listener and resource replication mechanisms. ► As shown in the scenario on the following page: - The automated scaling listener determines when to redirect requests to cloud-based IT resources - Resource replication is used to maintain synchronicity between on-premise and cloud–based IT resources, especially in relation to state information
Cloud Bursting In this scenario, the automated scaling listener is deployed at the cloud consume premises, but is designed to interact with an external cloud in order to carry out cloud bursts. 1- when Service Consumer C tries to access Service A, the automated scaling listener determines that the threshold has been exceeded ant therefore redirects the request to Cloud Service A, witch is dynamically instantiated 2- resource replication is used to keep the state information used by Service A and Cloud Service A in sync
Cloud Security Threats

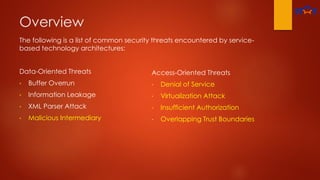

Overview The following is a list of common security threats encountered by service- based technology architectures: Data-Oriented Threats • Buffer Overrun • Information Leakage • XML Parser Attack • Malicious Intermediary Access-Oriented Threats • Denial of Service • Virtualization Attack • Insufficient Authorization • Overlapping Trust Boundaries

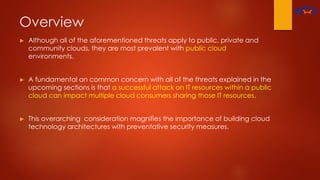

Overview ► Although all of the aforementioned threats apply to public, private and community clouds, they are most prevalent with public cloud environments. ► A fundamental an common concern with all of the threats explained in the upcoming sections is that a successful attack on IT resources within a public cloud can impact multiple cloud consumers sharing those IT resources. ► This overarching consideration magnifies the importance of building cloud technology architectures with preventative security measures.

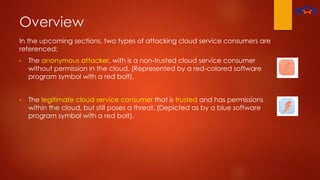

Overview In the upcoming sections, two types of attacking cloud service consumers are referenced: • The anonymous attacker, with is a non-trusted cloud service consumer without permission in the cloud. (Represented by a red-colored software program symbol with a red bolt). • The legitimate cloud service consumer that is trusted and has permissions within the cloud, but still poses a threat. (Depicted as by a blue software program symbol with a red bolt).

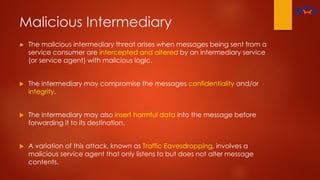

Malicious Intermediary ► The malicious intermediary threat arises when messages being sent from a service consumer are intercepted and altered by an intermediary service (or service agent) with malicious logic.  The intermediary may compromise the messages confidentiality and/or integrity.  The intermediary may also insert harmful data into the message before forwarding it to its destination.  A variation of this attack, known as Traffic Eavesdropping, involves a malicious service agent that only listens to but does not alter message contents.
Malicious Intermediary In this example, a malicious service agent (acting as the intermediary) accesses and modifies a message by inserting harmful data. It then forwards the message to the cloud where it successfully damages a virtual server.

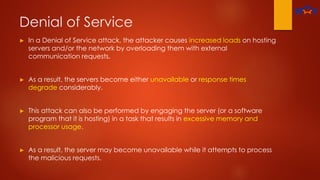

Denial of Service ► In a Denial of Service attack, the attacker causes increased loads on hosting servers and/or the network by overloading them with external communication requests. ► As a result, the servers become either unavailable or response times degrade considerably. ► This attack can also be performed by engaging the server (or a software program that it is hosting) in a task that results in excessive memory and processor usage. ► As a result, the server may become unavailable while it attempts to process the malicious requests.

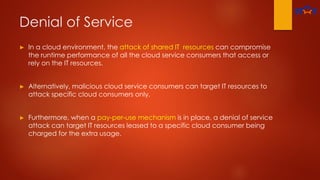

Denial of Service ► In a cloud environment, the attack of shared IT resources can compromise the runtime performance of all the cloud service consumers that access or rely on the IT resources. ► Alternatively, malicious cloud service consumers can target IT resources to attack specific cloud consumers only. ► Furthermore, when a pay-per-use mechanism is in place, a denial of service attack can target IT resources leased to a specific cloud consumer being charged for the extra usage.

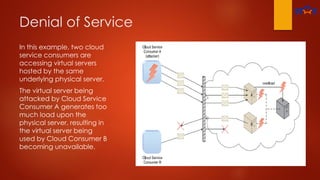

Denial of Service In this example, two cloud service consumers are accessing virtual servers hosted by the same underlying physical server. The virtual server being attacked by Cloud Service Consumer A generates too much load upon the physical server, resulting in the virtual server being used by Cloud Consumer B becoming unavailable.

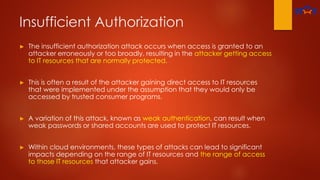

Insufficient Authorization ► The insufficient authorization attack occurs when access is granted to an attacker erroneously or too broadly, resulting in the attacker getting access to IT resources that are normally protected. ► This is often a result of the attacker gaining direct access to IT resources that were implemented under the assumption that they would only be accessed by trusted consumer programs. ► A variation of this attack, known as weak authentication, can result when weak passwords or shared accounts are used to protect IT resources. ► Within cloud environments, these types of attacks can lead to significant impacts depending on the range of IT resources and the range of access to those IT resources that attacker gains.

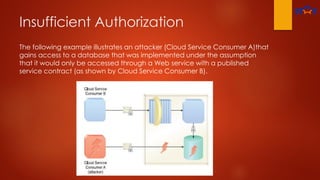

Insufficient Authorization The following example illustrates an attacker (Cloud Service Consumer A)that gains access to a database that was implemented under the assumption that it would only be accessed through a Web service with a published service contract (as shown by Cloud Service Consumer B).
Insufficient Authorization (Weak Authentication) In this example, an attacker has cracked a weak password used by Cloud Service Consumer A. As a result , a malicious cloud service consumer (owned by the attacker) is designed to pose as Cloud Service Consumer A in order to gain access to the cloud-based IT resource.
Virtualization Attack ► As explained in Module 1, virtualization technologies are employed to serve multiple cloud consumers in a multi-tenancy model. ► This model can lead to attacks on physical IT resources by both trusted and non-trusted cloud service consumers. ► With public clouds, where a single physical IT resource may be providing virtualized IT resources to multiple cloud consumers, such an attack can have significant repercussions.

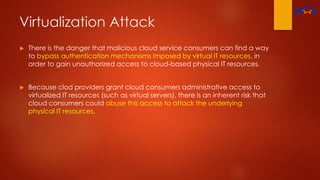

Virtualization Attack ► There is the danger that malicious cloud service consumers can find a way to bypass authentication mechanisms imposed by virtual IT resources, in order to gain unauthorized access to cloud-based physical IT resources. ► Because clod providers grant cloud consumers administrative access to virtualized IT resources (such as virtual servers), there is an inherent risk that cloud consumers could abuse this access to attack the underlying physical IT resources.

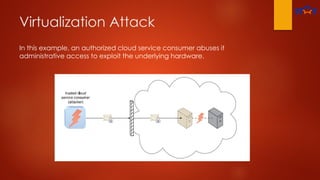

Virtualization Attack In this example, an authorized cloud service consumer abuses it administrative access to exploit the underlying hardware.

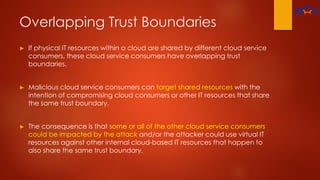

Overlapping Trust Boundaries ► If physical IT resources within a cloud are shared by different cloud service consumers, these cloud service consumers have overlapping trust boundaries. ► Malicious cloud service consumers can target shared resources with the intention of compromising cloud consumers or other IT resources that share the same trust boundary. ► The consequence is that some or all of the other cloud service consumers could be impacted by the attack and/or the attacker could use virtual IT resources against other internal cloud-based IT resources that happen to also share the same trust boundary.

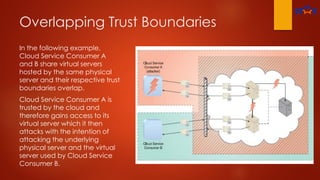

Overlapping Trust Boundaries In the following example, Cloud Service Consumer A and B share virtual servers hosted by the same physical server and their respective trust boundaries overlap. Cloud Service Consumer A is trusted by the cloud and therefore gains access to its virtual server which it then attacks with the intention of attacking the underlying physical server and the virtual server used by Cloud Service Consumer B.
Cloud Security Mechanisms

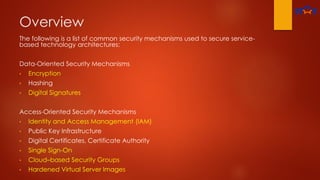

Overview The following is a list of common security mechanisms used to secure service- based technology architectures: Data-Oriented Security Mechanisms • Encryption • Hashing • Digital Signatures Access-Oriented Security Mechanisms • Identity and Access Management (IAM) • Public Key Infrastructure • Digital Certificates, Certificate Authority • Single Sign-On • Cloud–based Security Groups • Hardened Virtual Server Images

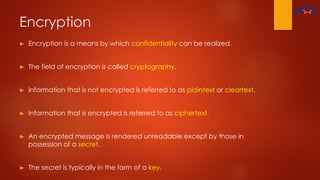

Encryption ► Encryption is a means by which confidentiality can be realized. ► The field of encryption is called cryptography. ► Information that is not encrypted is referred to as plaintext or cleartext. ► Information that is encrypted is referred to as ciphertext. ► An encrypted message is rendered unreadable except by those in possession of a secret. ► The secret is typically in the form of a key.

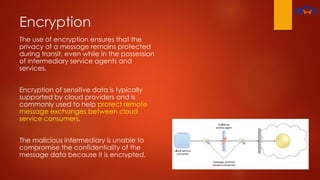

Encryption The use of encryption ensures that the privacy of a message remains protected during transit, even while in the possession of intermediary service agents and services. Encryption of sensitive data is typically supported by cloud providers and is commonly used to help protect remote message exchanges between cloud service consumers. The malicious intermediary is unable to compromise the confidentiality of the message data because it is encrypted.

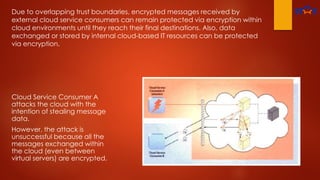

Due to overlapping trust boundaries, encrypted messages received by external cloud service consumers can remain protected via encryption within cloud environments until they reach their final destinations. Also, data exchanged or stored by internal cloud-based IT resources can be protected via encryption. Cloud Service Consumer A attacks the cloud with the intention of stealing message data. However, the attack is unsuccessful because all the messages exchanged within the cloud (even between virtual servers) are encrypted.

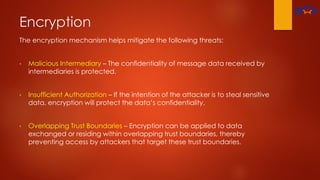

Encryption The encryption mechanism helps mitigate the following threats: • Malicious Intermediary – The confidentiality of message data received by intermediaries is protected. • Insufficient Authorization – If the intention of the attacker is to steal sensitive data, encryption will protect the data’s confidentiality. • Overlapping Trust Boundaries – Encryption can be applied to data exchanged or residing within overlapping trust boundaries, thereby preventing access by attackers that target these trust boundaries.
Digital Signatures ► Digital signatures are a means of realizing authentication and integrity: - Authentication: Who signed the message? - Integrity: Has the message been altered since it was signed? ► A digital signature is data that proves that: - a message was sent by the intended sender - a message was not altered ► Digital signatures use encryption and hashing technologies.
In the following example, a malicious intermediary inserts harmful data into a message. However, the message is rejected by the cloud because it contains a digital signature that was used to detect that the message had been altered since it was originally sent by the cloud service consumer.

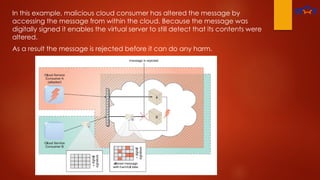

In this example, malicious cloud consumer has altered the message by accessing the message from within the cloud. Because the message was digitally signed it enables the virtual server to still detect that its contents were altered. As a result the message is rejected before it can do any harm.

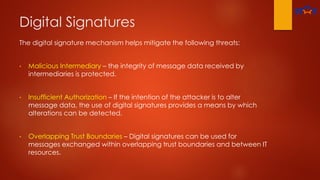

Digital Signatures The digital signature mechanism helps mitigate the following threats: • Malicious Intermediary – the integrity of message data received by intermediaries is protected. • Insufficient Authorization – If the intention of the attacker is to alter message data, the use of digital signatures provides a means by which alterations can be detected. • Overlapping Trust Boundaries – Digital signatures can be used for messages exchanged within overlapping trust boundaries and between IT resources.
Identity and Access Management (IAM) ► Just about any security infrastructure will require a repository (referred to as an identity store) that houses the identity information used by programs to carry out authentication and authorization upon receiving credentials. ► An identity and access management (IAM) system establishes a central identity store along with roles and access control rules for the defined identities (as well as various tools used to administer the identities and rules). ► The cloud provider will typically pre-define a set of identities and related roles and access control rules that are enforced for a given set of IT resources. ► An IAM is fundamental to cloud security in that it provides the means by which the cloud and/or its IT resources can perform authentication and authorization.

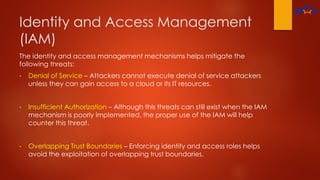

Identity and Access Management (IAM) The identity and access management mechanisms helps mitigate the following threats: • Denial of Service – Attackers cannot execute denial of service attackers unless they can gain access to a cloud or its IT resources. • Insufficient Authorization – Although this threats can still exist when the IAM mechanism is poorly implemented, the proper use of the IAM will help counter this threat. • Overlapping Trust Boundaries – Enforcing identity and access roles helps avoid the exploitation of overlapping trust boundaries.

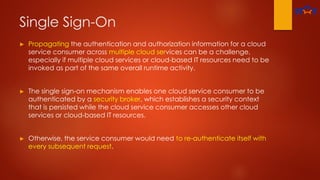

Single Sign-On ► Propagating the authentication and authorization information for a cloud service consumer across multiple cloud services can be a challenge, especially if multiple cloud services or cloud-based IT resources need to be invoked as part of the same overall runtime activity. ► The single sign-on mechanism enables one cloud service consumer to be authenticated by a security broker, which establishes a security context that is persisted while the cloud service consumer accesses other cloud services or cloud-based IT resources. ► Otherwise, the service consumer would need to re-authenticate itself with every subsequent request.

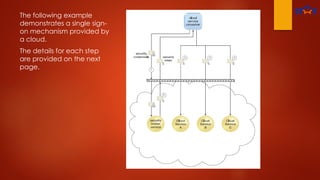

The following example demonstrates a single sign- on mechanism provided by a cloud. The details for each step are provided on the next page.
Single Sign-On 1. The cloud service consumer sends its authentication credentials to the security broker. 2. After successful authentication, the security broker responds with an authentication token (represented by the dark colored message symbols). 3. The cloud service consumer accesses other cloud services or cloud- based IT resources with the authentication token.

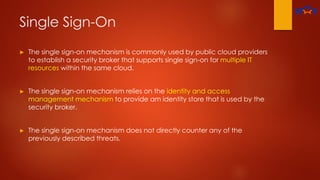

Single Sign-On ► The single sign-on mechanism is commonly used by public cloud providers to establish a security broker that supports single sign-on for multiple IT resources within the same cloud. ► The single sign-on mechanism relies on the identity and access management mechanism to provide am identity store that is used by the security broker. ► The single sign-on mechanism does not directly counter any of the previously described threats.

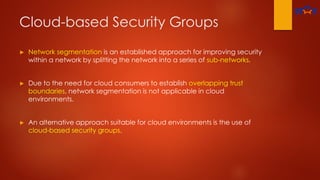

Cloud-based Security Groups ► Network segmentation is an established approach for improving security within a network by splitting the network into a series of sub-networks. ► Due to the need for cloud consumers to establish overlapping trust boundaries, network segmentation is not applicable in cloud environments. ► An alternative approach suitable for cloud environments is the use of cloud-based security groups.

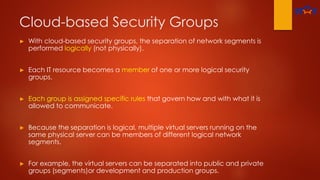

Cloud-based Security Groups ► With cloud-based security groups, the separation of network segments is performed logically (not physically). ► Each IT resource becomes a member of one or more logical security groups. ► Each group is assigned specific rules that govern how and with what it is allowed to communicate. ► Because the separation is logical, multiple virtual servers running on the same physical server can be members of different logical network segments. ► For example, the virtual servers can be separated into public and private groups (segments)or development and production groups.
In this example, two cloud–based security groups for Cloud Service Consumers A and B are established. Each IT resource can only communicate with other IT resources in the same security group.

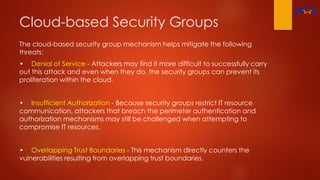

Cloud-based Security Groups The cloud-based security group mechanism helps mitigate the following threats: • Denial of Service - Attackers may find it more difficult to successfully carry out this attack and even when they do, the security groups can prevent its proliferation within the cloud. • Insufficient Authorization - Because security groups restrict IT resource communication, attackers that breach the perimeter authentication and authorization mechanisms may still be challenged when attempting to compromise IT resources. • Overlapping Trust Boundaries - This mechanism directly counters the vulnerabilities resulting from overlapping trust boundaries.
Hardened Virtual Server Imagines • Virtual servers mirror a template configuration established on an underlying physical server. • This standard configuration is often called a virtual server image (or virtual machine image) and forms the basis for all virtual servers created from this image. • Hardening is the security practice of trimming away unnecessary software programs and functions in order to minimize potential security vulnerabilities. • A hardened virtual server image therefore establishes a template for virtual servers that is inherently more secure. The symbol used to represent a hardened virtual server image.

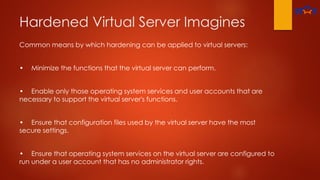

Hardened Virtual Server Imagines Common means by which hardening can be applied to virtual servers: • Minimize the functions that the virtual server can perform. • Enable only those operating system services and user accounts that are necessary to support the virtual server's functions. • Ensure that configuration files used by the virtual server have the most secure settings. • Ensure that operating system services on the virtual server are configured to run under a user account that has no administrator rights.

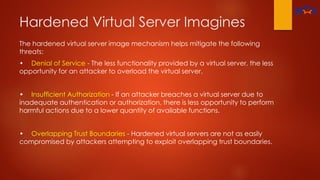

Hardened Virtual Server Imagines The hardened virtual server image mechanism helps mitigate the following threats: • Denial of Service - The less functionality provided by a virtual server, the less opportunity for an attacker to overload the virtual server. • Insufficient Authorization - If an attacker breaches a virtual server due to inadequate authentication or authorization, there is less opportunity to perform harmful actions due to a lower quantity of available functions. • Overlapping Trust Boundaries - Hardened virtual servers are not as easily compromised by attackers attempting to exploit overlapping trust boundaries.
Cloud Testing Considerations

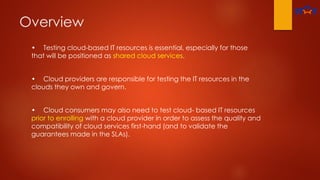

Overview • Testing cloud-based IT resources is essential, especially for those that will be positioned as shared cloud services. • Cloud providers are responsible for testing the IT resources in the clouds they own and govern. • Cloud consumers may also need to test cloud- based IT resources prior to enrolling with a cloud provider in order to assess the quality and compatibility of cloud services first-hand (and to validate the guarantees made in the SLAs).

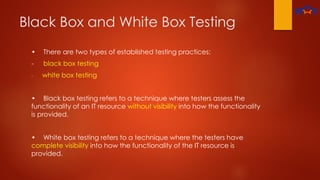

Black Box and White Box Testing • There are two types of established testing practices: - black box testing - white box testing • Black box testing refers to a technique where testers assess the functionality of an IT resource without visibility into how the functionality is provided. • White box testing refers to a technique where the testers have complete visibility into how the functionality of the IT resource is provided.

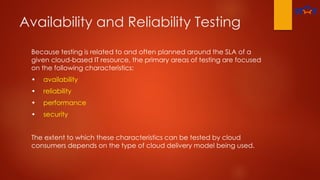

Availability and Reliability Testing Because testing is related to and often planned around the SLA of a given cloud-based IT resource, the primary areas of testing are focused on the following characteristics: • availability • reliability • performance • security The extent to which these characteristics can be tested by cloud consumers depends on the type of cloud delivery model being used.

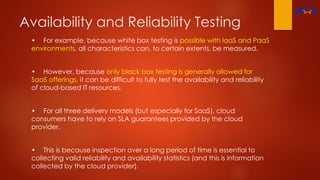

Availability and Reliability Testing • For example, because white box testing is possible with laaS and PaaS environments, all characteristics can, to certain extents, be measured. • However, because only black box testing is generally allowed for SaaS offerings, it can be difficult to fully test the availability and reliability of cloud-based IT resources. • For all three delivery models (but especially for SaaS), cloud consumers have to rely on SLA guarantees provided by the cloud provider. • This is because inspection over a long period of time is essential to collecting valid reliability and availability statistics (and this is information collected by the cloud provider).

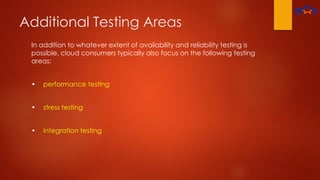

Additional Testing Areas In addition to whatever extent of availability and reliability testing is possible, cloud consumers typically also focus on the following testing areas: • performance testing • stress testing • integration testing
Performance Testing • Performance testing is focused primarily on the speed and responsiveness of an IT resource. • Performance testing is usually carried out with a black box testing approach that involves the use of automated testing software (to simulate various high-demand scenarios). • With the cooperation of the cloud provider, the cloud consumer can subject cloud-based IT resources on a public cloud to various performance tests.

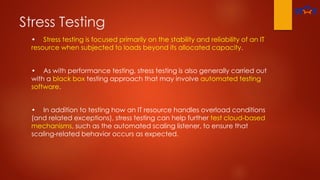

Stress Testing • Stress testing is focused primarily on the stability and reliability of an IT resource when subjected to loads beyond its allocated capacity. • As with performance testing, stress testing is also generally carried out with a black box testing approach that may involve automated testing software. • In addition to testing how an IT resource handles overload conditions (and related exceptions), stress testing can help further test cloud-based mechanisms, such as the automated scaling listener, to ensure that scaling-related behavior occurs as expected.
Integration Testing • Integration testing is focused on verifying the functionality, reliability and runtime performance of two or more aggregated IT resources. • For example, a service composition comprised of an on-premise service and a cloud service would undergo integration testing to ensure that the two services can adequately interact. • Integration testing is traditionally carried with some extent of white box testing, depending on the cloud delivery model being used.

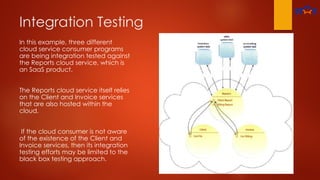

Integration Testing In this example, three different cloud service consumer programs are being integration tested against the Reports cloud service, which is an SaaS product. The Reports cloud service itself relies on the Client and Invoice services that are also hosted within the cloud. If the cloud consumer is not aware of the existence of the Client and Invoice services, then its integration testing efforts may be limited to the black box testing approach.
Implementing Cloud Delivery Models (Cloud Provider Design Considerations)

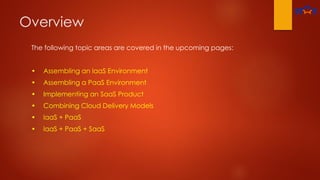

Overview The following topic areas are covered in the upcoming pages: • Assembling an laaS Environment • Assembling a PaaS Environment • Implementing an SaaS Product • Combining Cloud Delivery Models • laaS + PaaS • laaS + PaaS + SaaS

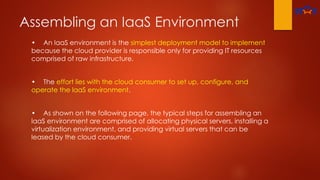

Assembling an IaaS Environment • An laaS environment is the simplest deployment model to implement because the cloud provider is responsible only for providing IT resources comprised of raw infrastructure. • The effort lies with the cloud consumer to set up, configure, and operate the laaS environment. • As shown on the following page, the typical steps for assembling an laaS environment are comprised of allocating physical servers, installing a virtualization environment, and providing virtual servers that can be leased by the cloud consumer.

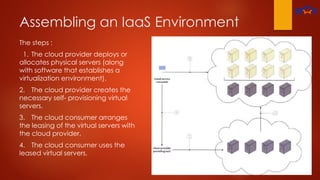

Assembling an IaaS Environment The steps : 1. The cloud provider deploys or allocates physical servers (along with software that establishes a virtualization environment). 2. The cloud provider creates the necessary self- provisioning virtual servers. 3. The cloud consumer arranges the leasing of the virtual servers with the cloud provider. 4. The cloud consumer uses the leased virtual servers.

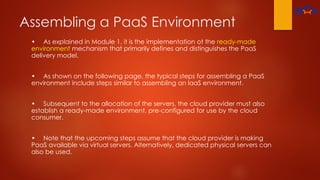

Assembling a PaaS Environment • As explained in Module 1, it is the implementation ot the ready-made environment mechanism that primarily defines and distinguishes the PaaS delivery model. • As shown on the following page, the typical steps for assembling a PaaS environment include steps similar to assembling an laaS environment. • Subsequent to the allocation of the servers, the cloud provider must also establish a ready-made environment, pre-configured for use by the cloud consumer. • Note that the upcoming steps assume that the cloud provider is making PaaS available via virtual servers. Alternatively, dedicated physical servers can also be used.

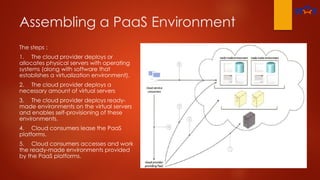

Assembling a PaaS Environment The steps : 1. The cloud provider deploys or allocates physical servers with operating systems (along with software that establishes a virtualization environment). 2. The cloud provider deploys a necessary amount of virtual servers 3. The cloud provider deploys ready- made environments on the virtual servers and enables self-provisioning of these environments. 4. Cloud consumers lease the PaaS platforms. 5. Cloud consumers accesses and work the ready-made environments provided by the PaaS platforms.
Implementing a SaaS Product • As explained in Module 1, the SaaS delivery model enables the provisioning of a cloud service as a commercial product that can be publicly accessed and used for a cost. • As shown on the following two pages, the common steps for implementing an SaaS product involve steps that are similar to assembling PaaS and laaS environments. • Although the upcoming diagram depicts an SaaS cloud service as being hosted by one virtual server and one physical server, the actual scope and quantity of the underlying server resources can vary dramatically, depending on the usage demands and scalability requirements of the cloud service.
Implementing a SaaS Product The steps : 1. The cloud provider installs or allocates the one or more necessary physical servers (along with software that establishes a virtualization environment). 2. The cloud provider deploys a one or more necessary virtual servers. 3. The cloud provider installs an already developed cloud service that is being offered as a SaaS product and enables self-provisioning. 4. Cloud consumers purchase access to the SaaS product from the cloud provider. 5. Cloud consumers access and use the SaaS product.

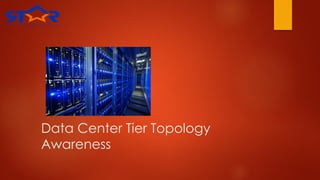

Data Center Tier Topology Awareness
DATA CENTER TIER TOPOLOGY

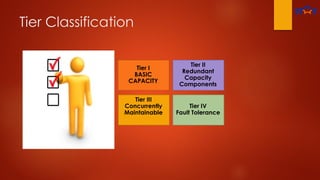

Tier Classification Tier II Redundant Capacity Components Tier III Concurrently Maintainable Tier IV Fault Tolerance Tier I BASIC CAPACITY Tier II Redundant Capacity Components Tier III Concurrently Maintainable Tier I BASIC CAPACITY
Tier I – Basic Capacity  Requirements:  Non-redundant capacity components and a single, non-redundant distribution path;  Space, Power, and Cooling Systems allocated for Critical Environment;  12 hours of on-site fuel storage for engine generator(s);  Operations and Maintenance Considerations :  Site infrastructure and Critical Environments must be shut down for annual maintenance and repair work;  Installation or construction of capacity may disrupt the Critical Environment;  Operational Risks :  Any capacity component or distribution path element failure will disrupt the Critical Environment;  All or portions of the Critical Environment are susceptible to disruption due to planned and unplanned activities;  Operations (Human) errors have high likelihood of site disruption;  Deferred maintenance to avoid downtime increases the risk and severity of disruptions in the Critical Environment ;

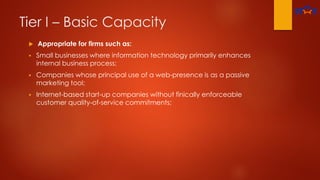

Tier I – Basic Capacity  Appropriate for firms such as:  Small businesses where information technology primarily enhances internal business process;  Companies whose principal use of a web-presence is as a passive marketing tool;  Internet-based start-up companies without finically enforceable customer quality-of-service commitments;

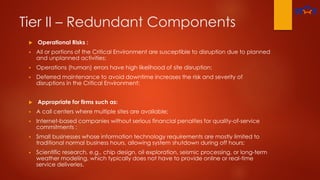

Tier II – Redundant Components  Operational Risks :  All or portions of the Critical Environment are susceptible to disruption due to planned and unplanned activities;  Operations (human) errors have high likelihood of site disruption;  Deferred maintenance to avoid downtime increases the risk and severity of disruptions in the Critical Environment;  Appropriate for firms such as:  A call centers where multiple sites are available;  Internet-based companies without serious financial penalties for quality-of-service commitments ;  Small businesses whose information technology requirements are mostly limited to traditional normal business hours, allowing system shutdown during off hours;  Scientific research, e.g., chip design, oil exploration, seismic processing, or long-term weather modeling, which typically does not have to provide online or real-time service deliveries.

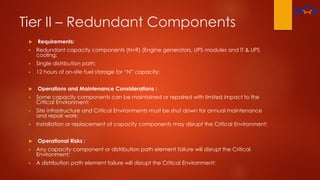

Tier II – Redundant Components  Requirements:  Redundant capacity components (N+R) (Engine generators, UPS modules and IT & UPS cooling;  Single distribution path;  12 hours of on-site fuel storage for “N” capacity;  Operations and Maintenance Considerations :  Some capacity components can be maintained or repaired with limited impact to the Critical Environment;  Site infrastructure and Critical Environments must be shut down for annual maintenance and repair work;  Installation or replacement of capacity components may disrupt the Critical Environment;  Operational Risks :  Any capacity component or distribution path element failure will disrupt the Critical Environment;  A distribution path element failure will disrupt the Critical Environment;

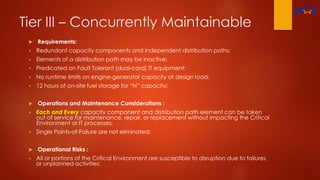

Tier III – Concurrently Maintainable  Requirements:  Redundant capacity components and independent distribution paths;  Elements of a distribution path may be inactive;  Predicated on Fault Tolerant (dual-cord) IT equipment;  No runtime limits on engine-generator capacity at design load;  12 hours of on-site fuel storage for “N” capacity;  Operations and Maintenance Considerations :  Each and Every capacity component and distribution path element can be taken out of service for maintenance, repair, or replacement without impacting the Critical Environment or IT processes;  Single Points-of-Failure are not eliminated;  Operational Risks :  All or portions of the Critical Environment are susceptible to disruption due to failures or unplanned activities;

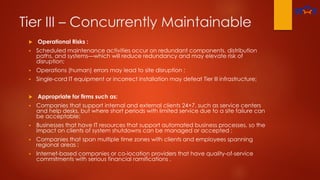

Tier III – Concurrently Maintainable  Operational Risks :  Scheduled maintenance activities occur on redundant components, distribution paths, and systems—which will reduce redundancy and may elevate risk of disruption;  Operations (human) errors may lead to site disruption ;  Single-cord IT equipment or incorrect installation may defeat Tier Ill infrastructure;  Appropriate for firms such as:  Companies that support internal and external clients 24×7, such as service centers and help desks, but where short periods with limited service due to a site failure can be acceptable;  Businesses that have IT resources that support automated business processes, so the impact on clients of system shutdowns can be managed or accepted ;  Companies that span multiple time zones with clients and employees spanning regional areas ;  Internet-based companies or co-location providers that have quality-of-service commitments with serious financial ramifications .
Tier IV – Fault Tolerant  Requirements:  Redundant, physically isolated (Compartmentalization)  Redundant capacity components  Redundant independent active distribution paths  Continuous Cooling for critical IT and UPS systems;  Autonomous response (N after any failure);  No runtime limits on engine-generator capacity at design load;  12 hours of on-site fuel storage for “N” capacity;  Operations and Maintenance Considerations :  Each and Every capacity component and distribution path element can sustain a failure, error, planned, or unplanned event without impacting the Critical Environment or IT processes;  Single event with consequential impact;  Design considerations for Continuous Cooling are consistent with UPS for IT equipment power;  Tier IV protects against some human errors except for  Accidental EPO activation  Intentional sabotage
Tier IV – Fault Tolerant  Operational Risks :  The Critical Environment is not susceptible to disruption due to failure of any single capacity component, distribution element, site infrastructure system, or single human error;  Scheduled maintenance activities occur on redundant components, elements, and systems which may create a risk of disruption;  Operation of the EPO system, activation of the fire protection system, or malicious human interaction may lead to site disruption;  Single-cord IT equipment or incorrect installation may defeat Tier IV infrastructure;  Appropriate for firms such as:  Companies with an international market presence delivering “24 by forever” services in a client-facing market space where there is high competition or where processes are continuous (international in-and outbound wire transfers, etc.);  Business that are based on financial settlement processes, market transactions, or E- commerce;  Large, global companies where client access to applications and employee exploitation of information technology is a competitive advantage;  Internet-based companies or co-location providers that have to commit to quality-of- service and would have serious financial ramifications.

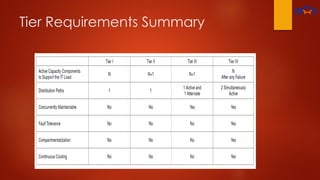

Tier Requirements Summary

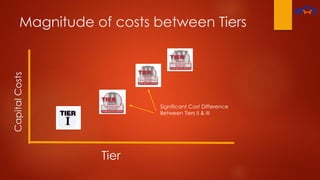

Magnitude of costs between TiersCapitalCosts Tier Significant Cost Difference Between Tiers II & III

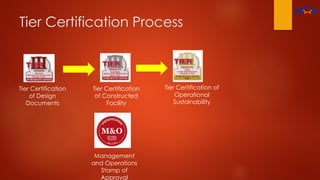

Tier Certification Process Tier Certification of Design Documents Tier Certification of Constructed Facility Tier Certification of Operational Sustainability Management and Operations Stamp of Approval

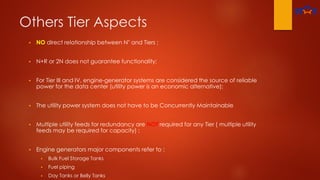

Others Tier Aspects  NO direct relationship between N" and Tiers ;  N+R or 2N does not guarantee functionality;  For Tier III and IV, engine-generator systems are considered the source of reliable power for the data center (utility power is an economic alternative);  The utility power system does not have to be Concurrently Maintainable  Multiple utility feeds for redundancy are NOT required for any Tier ( multiple utility feeds may be required for capacity) ;  Engine generators major components refer to :  Bulk Fuel Storage Tanks  Fuel piping  Day Tanks or Belly Tanks

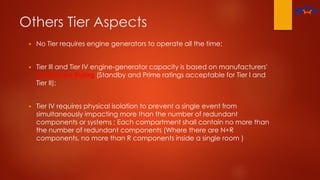

Others Tier Aspects  No Tier requires engine generators to operate all the time;  Tier Ill and Tier IV engine-generator capacity is based on manufacturers' Continuous Rating (Standby and Prime ratings acceptable for Tier I and Tier II);  Tier IV requires physical isolation to prevent a single event from simultaneously impacting more than the number of redundant components or systems ; Each compartment shall contain no more than the number of redundant components (Where there are N+R components, no more than R components inside a single room )

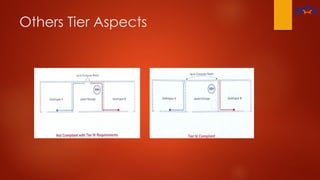

Others Tier Aspects

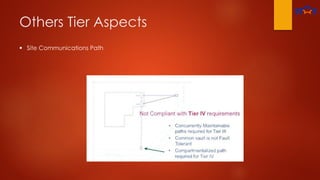

Others Tier Aspects  Site Communications Path

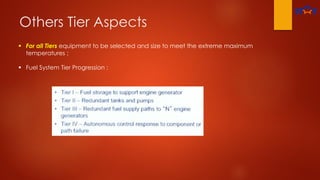

Others Tier Aspects  For all Tiers equipment to be selected and size to meet the extreme maximum temperatures ;  Fuel System Tier Progression :

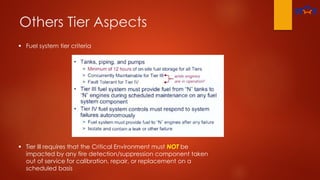

Others Tier Aspects  Fuel system tier criteria  Tier Ill requires that the Critical Environment must NOT be impacted by any fire detection/suppression component taken out of service for calibration, repair, or replacement on a scheduled basis

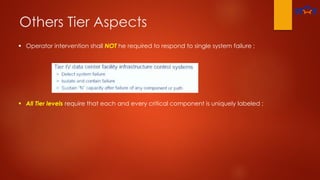

Others Tier Aspects  Operator intervention shall NOT he required to respond to single system failure ;  All Tier levels require that each and every critical component is uniquely labeled ;
OPERATION SUSTAINABILITY

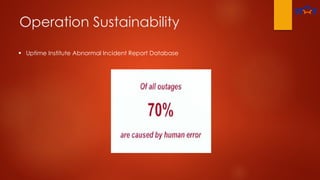

Operation Sustainability  Uptime Institute Abnormal Incident Report Database
Elements of Operational Sustainability Management & Operations Building Characteristics Site Locations ChangeOpportunity ImpacttoOperations

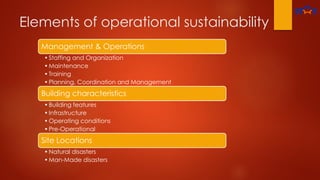

Elements of operational sustainability Management & Operations •Staffing and Organization •Maintenance •Training •Planning, Coordination and Management Building characteristics •Building features •Infrastructure •Operating conditions •Pre-Operational Site Locations •Natural disasters •Man-Made disasters
Building characteristics - Commissioning

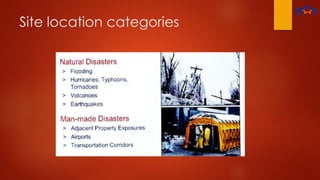

Site location categories

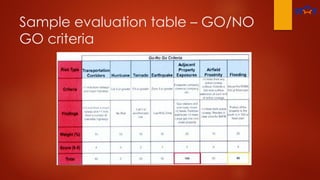

Sample evaluation table – GO/NO GO criteria
Uptime Standards and Certification
Uptime Standards and TIA-942

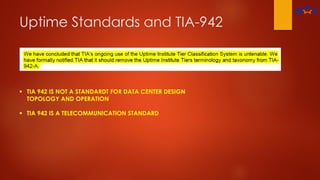

Uptime Standards and TIA-942  TIA 942 IS NOT A STANDARDT FOR DATA CENTER DESIGN TOPOLOGY AND OPERATION  TIA 942 IS A TELECOMMUNICATION STANDARD
THE WORLD HAS CHANGED!
Business Drivers: Organization Agility “… so even elephants can walk on a tightrope”
Can a Truck Jump a Lotus Formula 1 car ? https://www.youtube.com/watch?v=TVBcEg6klJI
Drifting a 200ton Mining Truck ? https://www.youtube.com/watch?v=y7K7m7lJHrc
What is the “CLOUD”
Cloud Technology_Concepts

More Related Content

PPTX
Fundamental Concepts-and-Models Cloud Computing
byMohammed Sajjad Ali

PDF
Cloud Computing_2015_03_05
byeGuvernare_Moldova

PPTX
Fundamental cloud computing
byAsmaa Ibrahim

PDF
Introduction of Cloud Computing By Pawan Thakur HOD CS & IT
byGovt. P.G. College Dharamshala

PPT
Cloud Computing By Pankaj Sharma
byRanjan Kumar

ODP
Innovation for Participation - Paul De Decker, Sun Microsystems
byrobinwauters

PDF
Cloud computing
byJawhar Ali

PDF
CLOUD COMPUTING_proposal
byLaud Randy Amofah

Fundamental Concepts-and-Models Cloud Computing
byMohammed Sajjad Ali

Cloud Computing_2015_03_05
byeGuvernare_Moldova

Fundamental cloud computing
byAsmaa Ibrahim

Introduction of Cloud Computing By Pawan Thakur HOD CS & IT
byGovt. P.G. College Dharamshala

Cloud Computing By Pankaj Sharma
byRanjan Kumar

Innovation for Participation - Paul De Decker, Sun Microsystems
byrobinwauters

Cloud computing
byJawhar Ali

CLOUD COMPUTING_proposal
byLaud Randy Amofah


What's hot

PDF
Cloud Infrastructure m Service Delivery Models (IAAS, PAAS and SAAS) Cloud D...
byGovt. P.G. College Dharamshala

PDF
Introduction of cloud By Pawan Thakur
byGovt. P.G. College Dharamshala

PDF
www.iosrjournals.org 57 | Page Latest development of cloud computing technolo...
bySushil kumar Choudhary

DOCX
The seminar report on cloud computing
byDivyesh Shah

PPTX
Cloud computing
byKshitij Mittal

DOCX
Synopsis on cloud computing by Prashant upta
byPrashant Gupta

PPTX
Understanding Cloud Computing
byMohammed Sajjad Ali

PPT
Cc unit 1 ppt
byDr VISU P

DOCX
Cloud Computing
byAbdul Aslam

PPTX
Fundamental concepts and models
byAsmaa Ibrahim

PDF
Cloud Computing
byAshutosh Anshu

PDF
Final Year IEEE Project 2013-2014 - Cloud Computing Project Title and Abstract
byelysiumtechnologies

PDF
A proposal for implementing cloud computing in newspaper company
byKingsley Mensah

PDF
484 488
byEditor IJARCET

DOCX
Cloud computing seminar report
byshafzonly

DOCX
Cloud computing
byAparnaKumari31

PPTX
Cloud computing 1
bySagar Kumar

PDF
CS8791 Cloud Computing - Question Bank
bypkaviya

PPT
Cc unit 2 ppt
byDr VISU P

PDF
Seminar report on cloud computing
byJagan Mohan Bishoyi

Cloud Infrastructure m Service Delivery Models (IAAS, PAAS and SAAS) Cloud D...
byGovt. P.G. College Dharamshala

Introduction of cloud By Pawan Thakur
byGovt. P.G. College Dharamshala

www.iosrjournals.org 57 | Page Latest development of cloud computing technolo...
bySushil kumar Choudhary

The seminar report on cloud computing
byDivyesh Shah

Cloud computing
byKshitij Mittal

Synopsis on cloud computing by Prashant upta
byPrashant Gupta

Understanding Cloud Computing
byMohammed Sajjad Ali

Cc unit 1 ppt
byDr VISU P

Cloud Computing
byAbdul Aslam

Fundamental concepts and models
byAsmaa Ibrahim

Cloud Computing
byAshutosh Anshu

Final Year IEEE Project 2013-2014 - Cloud Computing Project Title and Abstract
byelysiumtechnologies

A proposal for implementing cloud computing in newspaper company
byKingsley Mensah

484 488
byEditor IJARCET

Cloud computing seminar report
byshafzonly

Cloud computing
byAparnaKumari31

Cloud computing 1
bySagar Kumar

CS8791 Cloud Computing - Question Bank
bypkaviya

Cc unit 2 ppt
byDr VISU P

Seminar report on cloud computing
byJagan Mohan Bishoyi


Similar to Cloud Technology_Concepts

PDF
Cyber forensics in cloud computing
byAlexander Decker

PDF
11.cyber forensics in cloud computing
byAlexander Decker

PPTX
ARCHITECTURAL_DESIGN_OF_COMPUTE_AND_STORAGE_CLOUDS[1] - Read-Only.pptx
byVenkateshperadka2

PPTX
Cloud computing and different and its types Unit-2.pptx
bySuryaBasnet3

PDF
Virtualisation and cloud computing notes.pdf
byvedikagezwal09

PPTX
Information Storage and Management
byAngelineR

DOC
Cloud computing charecteristics and types altanai bisht , 2nd year, part iii
byALTANAI BISHT

PPT
Cloud Computing MODULE 1 basics of cloud computing .ppt
bymithunrocky72

PDF
cloud computing notes for anna university syllabus
byViolet Violet

PPTX
Cloud computing lecture number one intro
byhamza749817

PPTX
Cloud computing_Final
byKaushik Padmanabhan

PPTX
cloud computing module 1 for seventh semester
bydiksha8842

PPTX
Introduction about cloud computing and its basics
byexamsnscoll

PPTX
Cloud computing is the delivery of computing services—including servers, stor...
bymohitmanu2001

PPT
Cloud computing
bykarthiklreddy

PPT
Cloud models and platforms
byPrabhat gangwar

PDF
Cloud_Computing_An_Introduction_Chapter_1.pdf
byManash Kumar Mondal

PDF
International Journal of Computational Engineering Research(IJCER)
byijceronline

PPTX
Cloud computing
byMahdi Hosseini Moghaddam

PPTX
Resource Management and Security in Cloud
bySathishkumar Jaganathan

Cyber forensics in cloud computing
byAlexander Decker

11.cyber forensics in cloud computing
byAlexander Decker

ARCHITECTURAL_DESIGN_OF_COMPUTE_AND_STORAGE_CLOUDS[1] - Read-Only.pptx
byVenkateshperadka2

Cloud computing and different and its types Unit-2.pptx
bySuryaBasnet3

Virtualisation and cloud computing notes.pdf
byvedikagezwal09

Information Storage and Management
byAngelineR

Cloud computing charecteristics and types altanai bisht , 2nd year, part iii
byALTANAI BISHT

Cloud Computing MODULE 1 basics of cloud computing .ppt
bymithunrocky72

cloud computing notes for anna university syllabus
byViolet Violet

Cloud computing lecture number one intro
byhamza749817

Cloud computing_Final
byKaushik Padmanabhan

cloud computing module 1 for seventh semester
bydiksha8842

Introduction about cloud computing and its basics
byexamsnscoll

Cloud computing is the delivery of computing services—including servers, stor...
bymohitmanu2001

Cloud computing
bykarthiklreddy

Cloud models and platforms
byPrabhat gangwar

Cloud_Computing_An_Introduction_Chapter_1.pdf
byManash Kumar Mondal

International Journal of Computational Engineering Research(IJCER)
byijceronline

Cloud computing
byMahdi Hosseini Moghaddam

Resource Management and Security in Cloud
bySathishkumar Jaganathan


More from eGuvernare_Moldova

PDF
Sondaj Naţional Anual 201: Nivelul de accesare a paginilor web ale instituț...
byeGuvernare_Moldova

PDF
Sondaj Național Anual 2015: Gradul de dotare a gospodăriilor cu calculatoare
byeGuvernare_Moldova

PDF
Sondaj Național 2015: Ponderea cetățenilor care au solicitat serviciile publice
byeGuvernare_Moldova

PDF
Sondaj Național 2015: Nivelul de susținere a eTransformării Guvernării
byeGuvernare_Moldova

PDF
Buletin electronic_martie 2016
byeGuvernare_Moldova

PDF
Newsletter, luna ianuarie_2016
byeGuvernare_Moldova

PDF
Newsletter aniversar Centrul de Guvernare Electronică
byeGuvernare_Moldova

PDF
e- Estonia presentation, by Victor Guzun
byeGuvernare_Moldova

PDF
Government as platform, by Iurie Țurcanu
byeGuvernare_Moldova

PPTX
E-Government Center Moldova: MPay presentation
byeGuvernare_Moldova

PDF
Termeni şi condiţii de funcţionare_ro
byeGuvernare_Moldova

PDF
Decizie consiliul de administare 2015
byeGuvernare_Moldova

PDF
Ordinul nr:306-03 din 21 mai 2015, cu privire la implimentarea Agendei de e-T...
byeGuvernare_Moldova

PDF
Prezentare rda 10.06.15
byeGuvernare_Moldova

PDF
Aprilie newsletter e-gov_sursa(05.05.2015)
byeGuvernare_Moldova

PDF
Newsletter-eGov- Aprilie
byeGuvernare_Moldova

PDF
Roadmap to your business
byeGuvernare_Moldova

PDF
Newsletter_Martie
byeGuvernare_Moldova

PDF
Strategia de dezvoltare_MCloud
byeGuvernare_Moldova

Sondaj Naţional Anual 201: Nivelul de accesare a paginilor web ale instituț...
byeGuvernare_Moldova

Sondaj Național Anual 2015: Gradul de dotare a gospodăriilor cu calculatoare
byeGuvernare_Moldova

Sondaj Național 2015: Ponderea cetățenilor care au solicitat serviciile publice
byeGuvernare_Moldova

Sondaj Național 2015: Nivelul de susținere a eTransformării Guvernării
byeGuvernare_Moldova

Buletin electronic_martie 2016
byeGuvernare_Moldova

Newsletter, luna ianuarie_2016
byeGuvernare_Moldova

Newsletter aniversar Centrul de Guvernare Electronică
byeGuvernare_Moldova

e- Estonia presentation, by Victor Guzun
byeGuvernare_Moldova

Government as platform, by Iurie Țurcanu
byeGuvernare_Moldova

E-Government Center Moldova: MPay presentation
byeGuvernare_Moldova

Termeni şi condiţii de funcţionare_ro
byeGuvernare_Moldova

Decizie consiliul de administare 2015
byeGuvernare_Moldova

Ordinul nr:306-03 din 21 mai 2015, cu privire la implimentarea Agendei de e-T...
byeGuvernare_Moldova

Prezentare rda 10.06.15
byeGuvernare_Moldova

Aprilie newsletter e-gov_sursa(05.05.2015)
byeGuvernare_Moldova

Newsletter-eGov- Aprilie
byeGuvernare_Moldova

Roadmap to your business
byeGuvernare_Moldova

Newsletter_Martie
byeGuvernare_Moldova

Strategia de dezvoltare_MCloud
byeGuvernare_Moldova


Recently uploaded

PPTX
TechLeadCertificationPresentation - Share.pptx
byoutsystemspuneusergr

PPTX
2026-02-01 Hebrews 05 (shared slides).pptx
byDale Wells

PDF
What’s New in the Latest Roblox Update (2026)
bytenaciousmunir77

PPT
Slides for module 3_Community mobilization.ppt
bymangwirobz

PDF
Novel training approaches for the public administration in the context of Gre...
byProf. Dr. Fotios Fitsilis

PPTX
HUMAN RESOURCE STRATEGY & PERSONNEL PLANNING.pptx
bynaimaengfarah76

PPT
Slides for Module 4_ MAM Management in SFP.ppt
bymangwirobz

PPTX
Virtual Orientation on the Administration of CBNCAE ppt.pptx
byMikeJeronMartinez1

PDF
Dechlorination and process,Types of Dechlorination
bysoundharyamp01

PPTX
Agentic AI Specialist OutSystems ODC Certification
byoutsystemspuneusergr

PDF
Leaching -Microbial Leaching of Ores .pdf
bysoundharyamp01

PDF
SourceofContaminationofrawmilkinspoilage
bydharanin33

PDF
Technical Terms_20260202_220329_0000.pdf
bykierallenvelilla123

PDF
Nanoscience in food preservation, Microencapsulation
bydharanin33

PPTX
Advanced methods of bacterial diagnosis a
bysalisusaniyusuf4

PDF
Chemical_Summit_2026_Presentation (2).pdf
bychemicalsummit2026

PPTX
Febelfin Academy Presentation - Breakfast
byFinTech Belgium

PDF
Presentation - French Revolution (Student Lecture).pdf
byacdebussy

PDF
Resilient, bouncing back or trapped? Rudiger Ahrend
byOECD CFE

PDF
Microbes involved in aerobic and anaerobic process
bysoundharyamp01

TechLeadCertificationPresentation - Share.pptx
byoutsystemspuneusergr

2026-02-01 Hebrews 05 (shared slides).pptx
byDale Wells

What’s New in the Latest Roblox Update (2026)
bytenaciousmunir77

Slides for module 3_Community mobilization.ppt
bymangwirobz

Novel training approaches for the public administration in the context of Gre...
byProf. Dr. Fotios Fitsilis

HUMAN RESOURCE STRATEGY & PERSONNEL PLANNING.pptx
bynaimaengfarah76

Slides for Module 4_ MAM Management in SFP.ppt
bymangwirobz

Virtual Orientation on the Administration of CBNCAE ppt.pptx
byMikeJeronMartinez1

Dechlorination and process,Types of Dechlorination
bysoundharyamp01

Agentic AI Specialist OutSystems ODC Certification
byoutsystemspuneusergr

Leaching -Microbial Leaching of Ores .pdf
bysoundharyamp01

SourceofContaminationofrawmilkinspoilage
bydharanin33

Technical Terms_20260202_220329_0000.pdf
bykierallenvelilla123

Nanoscience in food preservation, Microencapsulation
bydharanin33

Advanced methods of bacterial diagnosis a
bysalisusaniyusuf4

Chemical_Summit_2026_Presentation (2).pdf
bychemicalsummit2026

Febelfin Academy Presentation - Breakfast
byFinTech Belgium

Presentation - French Revolution (Student Lecture).pdf
byacdebussy

Resilient, bouncing back or trapped? Rudiger Ahrend
byOECD CFE

Microbes involved in aerobic and anaerobic process
bysoundharyamp01


Cloud Technology_Concepts

  • 1.
    Cloud Computing Concepts, Technologyand Architecture TUDOR MARIUS COSMIN
  • 2.
    Timetable  Session 2- 06 March:  Session 1 - 09 : 15 AM – 11:00 AM  Coffee break – 11:00 AM – 11:20 AM  Session 2 – 11:20 AM – 12:30 PM
  • 3.
    Session 1 Overview A Brief History of Cloud Computing  Fundamental Terminology and Concepts  Characteristics of a cloud  Roles and Boundaries  Cloud Delivery Models  Cloud Deployment Models  Benefits of Cloud Computing  Challenges of Cloud Computing  Business Cost Metrics  Service Level Agreements (SLAs)  The world has chaged !
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.
  • 29.
    Module 2 Overview Cloud Computing Mechanisms  Mapping Cloud Computing Mechanisms to Cloud Characteristics  Combining Cloud Computing Mechanisms  Cloud Security Threats  Cloud Security Mechanisms  Cloud Service Implementation Mediums  Cloud Testing Considerations  Implementing Cloud Delivery Models  Standards for Data Centers
  • 30.
  • 31.
    Overview Cloud Computing mechanismsare a common moving parts of a cloud-based technology architecture that work together to establish a cohesive function. In this section, we describe the following fundamental cloud computing mechanisms:  Virtual Server  Ready-Made Environment  Automated Scaling Listener  Failover System  Multi-Device Broker  Pay-Per-Use Monitor  State Management Database  Resource Replication
  • 32.
    Virtual Server  Avirtual server is a form of virtualization software that emulates a physical computer (a physical server).  Virtual servers are used to establish virtualization environments (defined previously) that are used by cloud providers to share the same physical IT resource with multiple cloud consumers.  To a cloud consumer, a virtual server appears as an independent physical server.
  • 33.
    Virtual Server Virtual serversare the most common type of cloud-based IT resource accessed directly by human-driven cloud service consumers. Generally, humans access virtual servers for governance purposes to setup or maintain applications or services that belong to the cloud consumer. Note that although a virtual server is always based on a physical server, diagrams in these courses do not always display the corresponding physical server symbol.
  • 34.
    Virtual Server Virtual serverscan host applications that are accessed via separate cloud services with published contracts. For example, Cloud Service Consumer A can access the virtual server to deploy and maintain an application that can then be accessed by Cloud Service Consumer B, via the published contract of a separate cloud service.
  • 35.
    Note The definition ofthe term “virtual server” can vary depending on the cloud computing vendor. The term “virtual machine” is also commonly used, although some vendors make a further distinction between a virtual machine and a virtual server. For the purpose of this workshop, the term “virtual server” is synonymous with “virtual machine”.
  • 36.
    Ready-Made Environment  Aready-made environment is a pre-defined cloud-based platform comprised of a set of already installed IT resources, ready to be used and customized by a cloud consumer.  These environments are used by cloud consumers to remotely develop and deploy their own services and applications within a cloud.  Typical ready-made environments include pre-installed IT resources, such as databases, development tools and governance tools.
  • 37.
    Ready-Made Environment A ready–made environment is typically hosted and accessed via a virtual server. Ready-made environments are most commonly associated with the PaaS cloud delivery model.
  • 38.
    Automated Scaling Listener An automated scaling listener is a service agent that monitors and keeps track of communication between cloud service consumers and cloud services for load balancing purposes.  An automated scaling listener is considered a specialized type of cloud usage monitor.  This listener resides within the cloud, typically near the firewall, from where it automatically tracks load status information.
  • 39.
    Automated Scaling Listener Automatedscaling listeners can provide different types of responses to load fluctuation conditions, for example:  The listener can automatically scale out or scale in IT resources based on parameters previously defined by the cloud consumer (commonly referred to as auto-scaling).  The listener can automatically notify the cloud consumer when loads exceed current thresholds or are falling below allocated resources. This way, the cloud consumer can choose to adjust its IT resource allocation. Note that different cloud provider vendors have different names for service agents acting as automated scaling listeners.
  • 40.
    Automated Scaling Listener Inthis example, the automated scaling listener scales available IT resources based on pre-defined settings. The numbered steps are explained on the next page.
  • 41.
    Automated Scaling Listener 1.Three cloud service consumers attempt to concurrently access the cloud service. 2. The automated scaling listener scales out by initiating the creation of three redundant instances of the cloud service. 3. A fourth cloud service consumer attempts to access the cloud service. 4. The automated scaling listener, which is programmed to allow the use of up to three instances of the cloud service, rejects the fourth attempt and notifies the cloud consumer that an attempt was made to exceed the concurrent usage limit. 5. The cloud consumer accesses the remote administration environment to adjust the provisioning setup in order to increase the allowable limit of concurrent cloud service consumers.
  • 42.
    Failover System  Afailover system increases reliability and availability by using established clustering technology to provide redundant implementations of software programs.  Failover systems are commonly used for mission-critical programs or for reusable services that can introduce a single point of failure for multiple applications.  A failover system can span more than one geographical region so that each location hosts one or more redundant implementations of the same IT resource.
  • 43.
    Failover System The failoversystem can make redundant implementations of the same cloud service available to the cloud service consumer.
  • 44.
    Multi-Device Broker  Anindividual cloud service may need to be accessed by different types of cloud service consumers, some of which may be incompatible with the cloud service’s published service contract.  Disparate cloud service consumers may be differentiated by their hosting hardware devices and/or may have different types of communication requirements.  To overcome incompatibilities between a cloud service and a disparate cloud service consumer, mapping logic needs to be created to transform (or convert) information that is exchanged at runtime.
  • 45.
    Multi-Device Broker Common typesof runtime transformation carried out by multi-device brokers include transformation of: • transport protocol • messaging protocols • storage device protocols • schemas and data models
  • 46.
    Pay-Per-Use Monitor  Becausecloud consumers can often self-provision cloud based IT resources, an automated means of monitoring usage is required.  A pay-per-use monitor is a service agent that measures the usage of a cloud-based IT resource by a given cloud consumer for billing purposes.  The pay-per-use monitor is generally configured to focus on key usage parameters in order to determine that the pay-per-use contractual commitments of the cloud consumer are satisfied.  The pay-per-use monitor is considered a specialized type of cloud monitor.
  • 47.
    Pay-Per-Use Monitor For example,the pay-per-use monitor can be positioned as a service agent that tracks usage to a cloud service. Based on the generated logs, the charges for the cloud service consumers are calculated. The numbered steps are explained on the next page.
  • 48.
    Pay-Per-Use Monitor  Acloud consumer requests the creation of a new instance of a cloud service (1).  The IT resource is instantiated and the pay-per-use monitor receives a “start” event notification from the resource software (2).  The pay-per-use monitor stores the value timestamp in the log database (3).  The cloud consumer later requests that the cloud service instance be stopped (4).  The pay-per-use monitor receives a “stop” event notification from the resourcesoftware (5) and stores the value timestamp in the log database (6).
  • 49.
    State Management Database A state management database is a database used to temporarily persist state data for software programs.  As an alternative to caching state data in memory, software programs can off-load state data to the database in order to reduce the amount of runtime memory they consume.  By doing so, the software programs and the surrounding infrastructure are more scalable.  State management database are commonly used by cloud services, especially those involved in long-running runtime activities.
  • 50.
    State Management Database Forexample, a cloud service consumer working with a ready- made environment may pause activity, causing the environment to off- load cached state data. The details for each step are provided on the next page.
  • 51.
    State Management Database 1.The cloud service consumer accesses the ready-made environment and requires three virtual servers to perform all activities. 2. The cloud service consumer pauses activity. All of the state data needs to be preserved for future access to the ready-made environment. 3. The underlying infrastructure is automatically scaled in by reducing the number of virtual servers. State data is saved in the state management database. (Note that one virtual server remains active to allow for future logins by the cloud consumer). 4. At a later point, the cloud service consumer logs in and accesses the ready- made environment to continue work. 5. The underlying infrastructure is automatically scaled out by increasing the number of virtual servers and by retrieving the state data from the state management database.
  • 52.
    Resource Replication ► Usingthe technology provided by a virtualization environment, resource replication mechanisms can be used to replicate entire cloud-based IT resources themselves. ► A replicated IT resource can be considered a virtualized IT resource that shares underlying physical resources with another replicated IT resources. ► Therefore, resource replication can be considered the mechanism that performs the task of virtualizing IT resources.
  • 53.
    Resource Replication ► Themost common form of replicated IT resources the virtual server that is replicated from a physical server (as shown in the diagram). ► The resource replication mechanism can encompass what is often referred to as a hypervisor (or virtual machine manager), which enforces multitenancy at a low level by isolating virtualized IT resources. ► For example, a hypervisor can independently manage and monitor the virtualization of multiple virtual servers and the image of each virtual server can be persisted via a cloud storage device. See the diagram on the following page for an example.
  • 54.
    Resource Replication A cloudresource administrator first configures the hypervisor to store virtual server images via a storage device. Upon a request of a cloud service consumer to access a cloud service hosted by one of the virtual servers, the hypervisor uses resource replication to provide the virtual server image for use by the cloud service consumer.
  • 55.
    Storage Devices &Mechanisms Another common type of mechanism in cloud environments is the cloud storage mechanism, which represents a category of specialized mechanisms and devices . For the purpose of this course module, databases and other forms of storage devices are not defined and explored as cloud computing mechanisms. The one exception is the state management database mechanisms covered previously in this section.
  • 56.
  • 57.
    Overview The following cloudcharacteristics were introduced in yesterday session: Fundamental Cloud Computing: • On-Demand Usage • Ubiquitous Access • Multitenancy • Elasticity • Measure Usage • Resiliency
  • 58.
    Mechanisms and Characteristics MappingSummary On-Demand Usage • Automated scaling listener • Pay-to-use monitor Ubiquitous Access • Multi-device broker Multitenancy • Virtual server • Resource replication Measured Usage • Pay-per-use monitor Elasticity • Virtual server • Automated scaling monitor • State management database • Resource replication • Pay-per-use monitor Resiliency • Failover system • State management database • Resource replication
  • 59.
  • 60.
    Overview ► Cloud computingmechanisms are commonly combined to create custom cloud-based solutions. ► Understanding cloud computing technology therefore requires an understanding of fundamental mechanisms and how they can relate to each other. ► This section describes the following two examples of mechanism combinations: - Cloud Balancing (automated scaling listener + failover system). - Cloud Bursting (automated scaling listener + resource replication).
  • 61.
    Cloud Balancing ► Cloudbalancing is a form of dynamic routing whereby a cloud service consumer’s request is redirected to one of several redundant IT resources located on different clouds. ► The most common use of cloud balancing is for load balancing purposes, to increase the performances and scalability of IT resources beyond what can be guaranteed by a single cloud environment. ► Cloud balancing can also be used to increase the availability or reliability of an IT resource, especially when the clouds are geographically distributed.
  • 62.
    Cloud Balancing ► Othercustom variations of the routing criteria used for cloud balancing can be created. For example, the routing logic can be based on business or environment factors. ► To achieve cloud balancing the automated scaling listener and failover system mechanisms can be combined. (See the example scenario on the following page). ► For cloud balancing purposes, a special type of automated scaling listener is used as this mechanism needs to be aware of the redundant implementations of IT resources and any special criteria or algorithm it needs to perform the runtime routing of messages from cloud service consumers.
  • 63.
    In this scenario,the automated scaling listener is located in a separate cloud from the redundantly deployed cloud services. Alternatively, the automated scaling listener cloud be located together with one of the redundant cloud service implementations.
  • 64.
    Cloud Balancing ► Dependingon the solution architecture, cloud balancing can be established by either redundantly deploying IT resources in advance or by configuring cloud environments to dynamically generate redundant instances of IT resources on-demand. ► The Cloud Resource Administrator is typically responsible for ensuring that the redundantly deployed cloud services are kept synch with each other, either manually or via the use of a cross-cloud resource replication mechanism.
  • 65.
    Cloud Bursting ► Cloudbursting is a form of dynamic scaling whereby on-premise IT resources can scale (or “burst”) into a cloud when pre-defined thresholds are reached. ► The corresponding cloud-based IT resources are redundantly pre-deployed on the cloud but are not active or idle until an actual cloud burst occurs. After they are used, they are released and return to an inactive state. ► Cloud bursting is a flexible scaling model whereby the cloud consumer can continue to maintain on-premise IT resources and only needs to use (and pay for) cloud based IT resources when required by usage demands.
  • 66.
    Cloud Bursting ► Cloudbursting can be achieved by combining the automated scaling listener and resource replication mechanisms. ► As shown in the scenario on the following page: - The automated scaling listener determines when to redirect requests to cloud-based IT resources - Resource replication is used to maintain synchronicity between on-premise and cloud–based IT resources, especially in relation to state information
  • 67.
    Cloud Bursting In thisscenario, the automated scaling listener is deployed at the cloud consume premises, but is designed to interact with an external cloud in order to carry out cloud bursts. 1- when Service Consumer C tries to access Service A, the automated scaling listener determines that the threshold has been exceeded ant therefore redirects the request to Cloud Service A, witch is dynamically instantiated 2- resource replication is used to keep the state information used by Service A and Cloud Service A in sync
  • 68.
  • 69.
    Overview The following isa list of common security threats encountered by service- based technology architectures: Data-Oriented Threats • Buffer Overrun • Information Leakage • XML Parser Attack • Malicious Intermediary Access-Oriented Threats • Denial of Service • Virtualization Attack • Insufficient Authorization • Overlapping Trust Boundaries
  • 70.
    Overview ► Although allof the aforementioned threats apply to public, private and community clouds, they are most prevalent with public cloud environments. ► A fundamental an common concern with all of the threats explained in the upcoming sections is that a successful attack on IT resources within a public cloud can impact multiple cloud consumers sharing those IT resources. ► This overarching consideration magnifies the importance of building cloud technology architectures with preventative security measures.
  • 71.
    Overview In the upcomingsections, two types of attacking cloud service consumers are referenced: • The anonymous attacker, with is a non-trusted cloud service consumer without permission in the cloud. (Represented by a red-colored software program symbol with a red bolt). • The legitimate cloud service consumer that is trusted and has permissions within the cloud, but still poses a threat. (Depicted as by a blue software program symbol with a red bolt).
  • 72.
    Malicious Intermediary ► Themalicious intermediary threat arises when messages being sent from a service consumer are intercepted and altered by an intermediary service (or service agent) with malicious logic.  The intermediary may compromise the messages confidentiality and/or integrity.  The intermediary may also insert harmful data into the message before forwarding it to its destination.  A variation of this attack, known as Traffic Eavesdropping, involves a malicious service agent that only listens to but does not alter message contents.
  • 73.
    Malicious Intermediary In thisexample, a malicious service agent (acting as the intermediary) accesses and modifies a message by inserting harmful data. It then forwards the message to the cloud where it successfully damages a virtual server.
  • 74.
    Denial of Service ►In a Denial of Service attack, the attacker causes increased loads on hosting servers and/or the network by overloading them with external communication requests. ► As a result, the servers become either unavailable or response times degrade considerably. ► This attack can also be performed by engaging the server (or a software program that it is hosting) in a task that results in excessive memory and processor usage. ► As a result, the server may become unavailable while it attempts to process the malicious requests.
  • 75.
    Denial of Service ►In a cloud environment, the attack of shared IT resources can compromise the runtime performance of all the cloud service consumers that access or rely on the IT resources. ► Alternatively, malicious cloud service consumers can target IT resources to attack specific cloud consumers only. ► Furthermore, when a pay-per-use mechanism is in place, a denial of service attack can target IT resources leased to a specific cloud consumer being charged for the extra usage.
  • 76.
    Denial of Service Inthis example, two cloud service consumers are accessing virtual servers hosted by the same underlying physical server. The virtual server being attacked by Cloud Service Consumer A generates too much load upon the physical server, resulting in the virtual server being used by Cloud Consumer B becoming unavailable.
  • 77.
    Insufficient Authorization ► Theinsufficient authorization attack occurs when access is granted to an attacker erroneously or too broadly, resulting in the attacker getting access to IT resources that are normally protected. ► This is often a result of the attacker gaining direct access to IT resources that were implemented under the assumption that they would only be accessed by trusted consumer programs. ► A variation of this attack, known as weak authentication, can result when weak passwords or shared accounts are used to protect IT resources. ► Within cloud environments, these types of attacks can lead to significant impacts depending on the range of IT resources and the range of access to those IT resources that attacker gains.
  • 78.
    Insufficient Authorization The followingexample illustrates an attacker (Cloud Service Consumer A)that gains access to a database that was implemented under the assumption that it would only be accessed through a Web service with a published service contract (as shown by Cloud Service Consumer B).
  • 79.
    Insufficient Authorization (Weak Authentication) Inthis example, an attacker has cracked a weak password used by Cloud Service Consumer A. As a result , a malicious cloud service consumer (owned by the attacker) is designed to pose as Cloud Service Consumer A in order to gain access to the cloud-based IT resource.
  • 80.
    Virtualization Attack ► Asexplained in Module 1, virtualization technologies are employed to serve multiple cloud consumers in a multi-tenancy model. ► This model can lead to attacks on physical IT resources by both trusted and non-trusted cloud service consumers. ► With public clouds, where a single physical IT resource may be providing virtualized IT resources to multiple cloud consumers, such an attack can have significant repercussions.
  • 81.
    Virtualization Attack ► Thereis the danger that malicious cloud service consumers can find a way to bypass authentication mechanisms imposed by virtual IT resources, in order to gain unauthorized access to cloud-based physical IT resources. ► Because clod providers grant cloud consumers administrative access to virtualized IT resources (such as virtual servers), there is an inherent risk that cloud consumers could abuse this access to attack the underlying physical IT resources.
  • 82.
    Virtualization Attack In thisexample, an authorized cloud service consumer abuses it administrative access to exploit the underlying hardware.
  • 83.
    Overlapping Trust Boundaries ►If physical IT resources within a cloud are shared by different cloud service consumers, these cloud service consumers have overlapping trust boundaries. ► Malicious cloud service consumers can target shared resources with the intention of compromising cloud consumers or other IT resources that share the same trust boundary. ► The consequence is that some or all of the other cloud service consumers could be impacted by the attack and/or the attacker could use virtual IT resources against other internal cloud-based IT resources that happen to also share the same trust boundary.
  • 84.
    Overlapping Trust Boundaries Inthe following example, Cloud Service Consumer A and B share virtual servers hosted by the same physical server and their respective trust boundaries overlap. Cloud Service Consumer A is trusted by the cloud and therefore gains access to its virtual server which it then attacks with the intention of attacking the underlying physical server and the virtual server used by Cloud Service Consumer B.
  • 85.
  • 86.
    Overview The following isa list of common security mechanisms used to secure service- based technology architectures: Data-Oriented Security Mechanisms • Encryption • Hashing • Digital Signatures Access-Oriented Security Mechanisms • Identity and Access Management (IAM) • Public Key Infrastructure • Digital Certificates, Certificate Authority • Single Sign-On • Cloud–based Security Groups • Hardened Virtual Server Images
  • 87.
    Encryption ► Encryption isa means by which confidentiality can be realized. ► The field of encryption is called cryptography. ► Information that is not encrypted is referred to as plaintext or cleartext. ► Information that is encrypted is referred to as ciphertext. ► An encrypted message is rendered unreadable except by those in possession of a secret. ► The secret is typically in the form of a key.
  • 88.
    Encryption The use ofencryption ensures that the privacy of a message remains protected during transit, even while in the possession of intermediary service agents and services. Encryption of sensitive data is typically supported by cloud providers and is commonly used to help protect remote message exchanges between cloud service consumers. The malicious intermediary is unable to compromise the confidentiality of the message data because it is encrypted.
  • 89.
    Due to overlappingtrust boundaries, encrypted messages received by external cloud service consumers can remain protected via encryption within cloud environments until they reach their final destinations. Also, data exchanged or stored by internal cloud-based IT resources can be protected via encryption. Cloud Service Consumer A attacks the cloud with the intention of stealing message data. However, the attack is unsuccessful because all the messages exchanged within the cloud (even between virtual servers) are encrypted.
  • 90.
    Encryption The encryption mechanismhelps mitigate the following threats: • Malicious Intermediary – The confidentiality of message data received by intermediaries is protected. • Insufficient Authorization – If the intention of the attacker is to steal sensitive data, encryption will protect the data’s confidentiality. • Overlapping Trust Boundaries – Encryption can be applied to data exchanged or residing within overlapping trust boundaries, thereby preventing access by attackers that target these trust boundaries.
  • 91.
    Digital Signatures ► Digitalsignatures are a means of realizing authentication and integrity: - Authentication: Who signed the message? - Integrity: Has the message been altered since it was signed? ► A digital signature is data that proves that: - a message was sent by the intended sender - a message was not altered ► Digital signatures use encryption and hashing technologies.
  • 92.
    In the followingexample, a malicious intermediary inserts harmful data into a message. However, the message is rejected by the cloud because it contains a digital signature that was used to detect that the message had been altered since it was originally sent by the cloud service consumer.
  • 93.
    In this example,malicious cloud consumer has altered the message by accessing the message from within the cloud. Because the message was digitally signed it enables the virtual server to still detect that its contents were altered. As a result the message is rejected before it can do any harm.
  • 94.
    Digital Signatures The digitalsignature mechanism helps mitigate the following threats: • Malicious Intermediary – the integrity of message data received by intermediaries is protected. • Insufficient Authorization – If the intention of the attacker is to alter message data, the use of digital signatures provides a means by which alterations can be detected. • Overlapping Trust Boundaries – Digital signatures can be used for messages exchanged within overlapping trust boundaries and between IT resources.
  • 95.
    Identity and AccessManagement (IAM) ► Just about any security infrastructure will require a repository (referred to as an identity store) that houses the identity information used by programs to carry out authentication and authorization upon receiving credentials. ► An identity and access management (IAM) system establishes a central identity store along with roles and access control rules for the defined identities (as well as various tools used to administer the identities and rules). ► The cloud provider will typically pre-define a set of identities and related roles and access control rules that are enforced for a given set of IT resources. ► An IAM is fundamental to cloud security in that it provides the means by which the cloud and/or its IT resources can perform authentication and authorization.
  • 96.
    Identity and AccessManagement (IAM) The identity and access management mechanisms helps mitigate the following threats: • Denial of Service – Attackers cannot execute denial of service attackers unless they can gain access to a cloud or its IT resources. • Insufficient Authorization – Although this threats can still exist when the IAM mechanism is poorly implemented, the proper use of the IAM will help counter this threat. • Overlapping Trust Boundaries – Enforcing identity and access roles helps avoid the exploitation of overlapping trust boundaries.
  • 97.
    Single Sign-On ► Propagatingthe authentication and authorization information for a cloud service consumer across multiple cloud services can be a challenge, especially if multiple cloud services or cloud-based IT resources need to be invoked as part of the same overall runtime activity. ► The single sign-on mechanism enables one cloud service consumer to be authenticated by a security broker, which establishes a security context that is persisted while the cloud service consumer accesses other cloud services or cloud-based IT resources. ► Otherwise, the service consumer would need to re-authenticate itself with every subsequent request.
  • 98.
    The following example demonstratesa single sign- on mechanism provided by a cloud. The details for each step are provided on the next page.
  • 99.
    Single Sign-On 1. Thecloud service consumer sends its authentication credentials to the security broker. 2. After successful authentication, the security broker responds with an authentication token (represented by the dark colored message symbols). 3. The cloud service consumer accesses other cloud services or cloud- based IT resources with the authentication token.
  • 100.
    Single Sign-On ► Thesingle sign-on mechanism is commonly used by public cloud providers to establish a security broker that supports single sign-on for multiple IT resources within the same cloud. ► The single sign-on mechanism relies on the identity and access management mechanism to provide am identity store that is used by the security broker. ► The single sign-on mechanism does not directly counter any of the previously described threats.
  • 101.
    Cloud-based Security Groups ►Network segmentation is an established approach for improving security within a network by splitting the network into a series of sub-networks. ► Due to the need for cloud consumers to establish overlapping trust boundaries, network segmentation is not applicable in cloud environments. ► An alternative approach suitable for cloud environments is the use of cloud-based security groups.
  • 102.
    Cloud-based Security Groups ►With cloud-based security groups, the separation of network segments is performed logically (not physically). ► Each IT resource becomes a member of one or more logical security groups. ► Each group is assigned specific rules that govern how and with what it is allowed to communicate. ► Because the separation is logical, multiple virtual servers running on the same physical server can be members of different logical network segments. ► For example, the virtual servers can be separated into public and private groups (segments)or development and production groups.
  • 103.
    In this example, twocloud–based security groups for Cloud Service Consumers A and B are established. Each IT resource can only communicate with other IT resources in the same security group.
  • 104.
    Cloud-based Security Groups Thecloud-based security group mechanism helps mitigate the following threats: • Denial of Service - Attackers may find it more difficult to successfully carry out this attack and even when they do, the security groups can prevent its proliferation within the cloud. • Insufficient Authorization - Because security groups restrict IT resource communication, attackers that breach the perimeter authentication and authorization mechanisms may still be challenged when attempting to compromise IT resources. • Overlapping Trust Boundaries - This mechanism directly counters the vulnerabilities resulting from overlapping trust boundaries.
  • 105.
    Hardened Virtual ServerImagines • Virtual servers mirror a template configuration established on an underlying physical server. • This standard configuration is often called a virtual server image (or virtual machine image) and forms the basis for all virtual servers created from this image. • Hardening is the security practice of trimming away unnecessary software programs and functions in order to minimize potential security vulnerabilities. • A hardened virtual server image therefore establishes a template for virtual servers that is inherently more secure. The symbol used to represent a hardened virtual server image.
  • 106.
    Hardened Virtual ServerImagines Common means by which hardening can be applied to virtual servers: • Minimize the functions that the virtual server can perform. • Enable only those operating system services and user accounts that are necessary to support the virtual server's functions. • Ensure that configuration files used by the virtual server have the most secure settings. • Ensure that operating system services on the virtual server are configured to run under a user account that has no administrator rights.
  • 107.
    Hardened Virtual ServerImagines The hardened virtual server image mechanism helps mitigate the following threats: • Denial of Service - The less functionality provided by a virtual server, the less opportunity for an attacker to overload the virtual server. • Insufficient Authorization - If an attacker breaches a virtual server due to inadequate authentication or authorization, there is less opportunity to perform harmful actions due to a lower quantity of available functions. • Overlapping Trust Boundaries - Hardened virtual servers are not as easily compromised by attackers attempting to exploit overlapping trust boundaries.
  • 108.
  • 109.
    Overview • Testing cloud-basedIT resources is essential, especially for those that will be positioned as shared cloud services. • Cloud providers are responsible for testing the IT resources in the clouds they own and govern. • Cloud consumers may also need to test cloud- based IT resources prior to enrolling with a cloud provider in order to assess the quality and compatibility of cloud services first-hand (and to validate the guarantees made in the SLAs).
  • 110.
    Black Box andWhite Box Testing • There are two types of established testing practices: - black box testing - white box testing • Black box testing refers to a technique where testers assess the functionality of an IT resource without visibility into how the functionality is provided. • White box testing refers to a technique where the testers have complete visibility into how the functionality of the IT resource is provided.
  • 111.
    Availability and ReliabilityTesting Because testing is related to and often planned around the SLA of a given cloud-based IT resource, the primary areas of testing are focused on the following characteristics: • availability • reliability • performance • security The extent to which these characteristics can be tested by cloud consumers depends on the type of cloud delivery model being used.
  • 112.
    Availability and ReliabilityTesting • For example, because white box testing is possible with laaS and PaaS environments, all characteristics can, to certain extents, be measured. • However, because only black box testing is generally allowed for SaaS offerings, it can be difficult to fully test the availability and reliability of cloud-based IT resources. • For all three delivery models (but especially for SaaS), cloud consumers have to rely on SLA guarantees provided by the cloud provider. • This is because inspection over a long period of time is essential to collecting valid reliability and availability statistics (and this is information collected by the cloud provider).
  • 113.
    Additional Testing Areas Inaddition to whatever extent of availability and reliability testing is possible, cloud consumers typically also focus on the following testing areas: • performance testing • stress testing • integration testing
  • 114.
    Performance Testing • Performancetesting is focused primarily on the speed and responsiveness of an IT resource. • Performance testing is usually carried out with a black box testing approach that involves the use of automated testing software (to simulate various high-demand scenarios). • With the cooperation of the cloud provider, the cloud consumer can subject cloud-based IT resources on a public cloud to various performance tests.
  • 115.
    Stress Testing • Stresstesting is focused primarily on the stability and reliability of an IT resource when subjected to loads beyond its allocated capacity. • As with performance testing, stress testing is also generally carried out with a black box testing approach that may involve automated testing software. • In addition to testing how an IT resource handles overload conditions (and related exceptions), stress testing can help further test cloud-based mechanisms, such as the automated scaling listener, to ensure that scaling-related behavior occurs as expected.
  • 116.
    Integration Testing • Integrationtesting is focused on verifying the functionality, reliability and runtime performance of two or more aggregated IT resources. • For example, a service composition comprised of an on-premise service and a cloud service would undergo integration testing to ensure that the two services can adequately interact. • Integration testing is traditionally carried with some extent of white box testing, depending on the cloud delivery model being used.
  • 117.
    Integration Testing In thisexample, three different cloud service consumer programs are being integration tested against the Reports cloud service, which is an SaaS product. The Reports cloud service itself relies on the Client and Invoice services that are also hosted within the cloud. If the cloud consumer is not aware of the existence of the Client and Invoice services, then its integration testing efforts may be limited to the black box testing approach.
  • 118.
    Implementing Cloud Delivery Models(Cloud Provider Design Considerations)
  • 119.
    Overview The following topicareas are covered in the upcoming pages: • Assembling an laaS Environment • Assembling a PaaS Environment • Implementing an SaaS Product • Combining Cloud Delivery Models • laaS + PaaS • laaS + PaaS + SaaS
  • 120.
    Assembling an IaaSEnvironment • An laaS environment is the simplest deployment model to implement because the cloud provider is responsible only for providing IT resources comprised of raw infrastructure. • The effort lies with the cloud consumer to set up, configure, and operate the laaS environment. • As shown on the following page, the typical steps for assembling an laaS environment are comprised of allocating physical servers, installing a virtualization environment, and providing virtual servers that can be leased by the cloud consumer.
  • 121.
    Assembling an IaaSEnvironment The steps : 1. The cloud provider deploys or allocates physical servers (along with software that establishes a virtualization environment). 2. The cloud provider creates the necessary self- provisioning virtual servers. 3. The cloud consumer arranges the leasing of the virtual servers with the cloud provider. 4. The cloud consumer uses the leased virtual servers.
  • 122.
    Assembling a PaaSEnvironment • As explained in Module 1, it is the implementation ot the ready-made environment mechanism that primarily defines and distinguishes the PaaS delivery model. • As shown on the following page, the typical steps for assembling a PaaS environment include steps similar to assembling an laaS environment. • Subsequent to the allocation of the servers, the cloud provider must also establish a ready-made environment, pre-configured for use by the cloud consumer. • Note that the upcoming steps assume that the cloud provider is making PaaS available via virtual servers. Alternatively, dedicated physical servers can also be used.
  • 123.
    Assembling a PaaSEnvironment The steps : 1. The cloud provider deploys or allocates physical servers with operating systems (along with software that establishes a virtualization environment). 2. The cloud provider deploys a necessary amount of virtual servers 3. The cloud provider deploys ready- made environments on the virtual servers and enables self-provisioning of these environments. 4. Cloud consumers lease the PaaS platforms. 5. Cloud consumers accesses and work the ready-made environments provided by the PaaS platforms.
  • 124.
    Implementing a SaaSProduct • As explained in Module 1, the SaaS delivery model enables the provisioning of a cloud service as a commercial product that can be publicly accessed and used for a cost. • As shown on the following two pages, the common steps for implementing an SaaS product involve steps that are similar to assembling PaaS and laaS environments. • Although the upcoming diagram depicts an SaaS cloud service as being hosted by one virtual server and one physical server, the actual scope and quantity of the underlying server resources can vary dramatically, depending on the usage demands and scalability requirements of the cloud service.
  • 125.
    Implementing a SaaSProduct The steps : 1. The cloud provider installs or allocates the one or more necessary physical servers (along with software that establishes a virtualization environment). 2. The cloud provider deploys a one or more necessary virtual servers. 3. The cloud provider installs an already developed cloud service that is being offered as a SaaS product and enables self-provisioning. 4. Cloud consumers purchase access to the SaaS product from the cloud provider. 5. Cloud consumers access and use the SaaS product.
  • 126.
    Data Center TierTopology Awareness
  • 127.
  • 128.
    Tier Classification Tier II Redundant Capacity Components TierIII Concurrently Maintainable Tier IV Fault Tolerance Tier I BASIC CAPACITY Tier II Redundant Capacity Components Tier III Concurrently Maintainable Tier I BASIC CAPACITY
  • 129.
    Tier I –Basic Capacity  Requirements:  Non-redundant capacity components and a single, non-redundant distribution path;  Space, Power, and Cooling Systems allocated for Critical Environment;  12 hours of on-site fuel storage for engine generator(s);  Operations and Maintenance Considerations :  Site infrastructure and Critical Environments must be shut down for annual maintenance and repair work;  Installation or construction of capacity may disrupt the Critical Environment;  Operational Risks :  Any capacity component or distribution path element failure will disrupt the Critical Environment;  All or portions of the Critical Environment are susceptible to disruption due to planned and unplanned activities;  Operations (Human) errors have high likelihood of site disruption;  Deferred maintenance to avoid downtime increases the risk and severity of disruptions in the Critical Environment ;
  • 130.
    Tier I –Basic Capacity  Appropriate for firms such as:  Small businesses where information technology primarily enhances internal business process;  Companies whose principal use of a web-presence is as a passive marketing tool;  Internet-based start-up companies without finically enforceable customer quality-of-service commitments;
  • 131.
    Tier II –Redundant Components  Operational Risks :  All or portions of the Critical Environment are susceptible to disruption due to planned and unplanned activities;  Operations (human) errors have high likelihood of site disruption;  Deferred maintenance to avoid downtime increases the risk and severity of disruptions in the Critical Environment;  Appropriate for firms such as:  A call centers where multiple sites are available;  Internet-based companies without serious financial penalties for quality-of-service commitments ;  Small businesses whose information technology requirements are mostly limited to traditional normal business hours, allowing system shutdown during off hours;  Scientific research, e.g., chip design, oil exploration, seismic processing, or long-term weather modeling, which typically does not have to provide online or real-time service deliveries.
  • 132.
    Tier II –Redundant Components  Requirements:  Redundant capacity components (N+R) (Engine generators, UPS modules and IT & UPS cooling;  Single distribution path;  12 hours of on-site fuel storage for “N” capacity;  Operations and Maintenance Considerations :  Some capacity components can be maintained or repaired with limited impact to the Critical Environment;  Site infrastructure and Critical Environments must be shut down for annual maintenance and repair work;  Installation or replacement of capacity components may disrupt the Critical Environment;  Operational Risks :  Any capacity component or distribution path element failure will disrupt the Critical Environment;  A distribution path element failure will disrupt the Critical Environment;
  • 133.
    Tier III –Concurrently Maintainable  Requirements:  Redundant capacity components and independent distribution paths;  Elements of a distribution path may be inactive;  Predicated on Fault Tolerant (dual-cord) IT equipment;  No runtime limits on engine-generator capacity at design load;  12 hours of on-site fuel storage for “N” capacity;  Operations and Maintenance Considerations :  Each and Every capacity component and distribution path element can be taken out of service for maintenance, repair, or replacement without impacting the Critical Environment or IT processes;  Single Points-of-Failure are not eliminated;  Operational Risks :  All or portions of the Critical Environment are susceptible to disruption due to failures or unplanned activities;
  • 134.
    Tier III –Concurrently Maintainable  Operational Risks :  Scheduled maintenance activities occur on redundant components, distribution paths, and systems—which will reduce redundancy and may elevate risk of disruption;  Operations (human) errors may lead to site disruption ;  Single-cord IT equipment or incorrect installation may defeat Tier Ill infrastructure;  Appropriate for firms such as:  Companies that support internal and external clients 24×7, such as service centers and help desks, but where short periods with limited service due to a site failure can be acceptable;  Businesses that have IT resources that support automated business processes, so the impact on clients of system shutdowns can be managed or accepted ;  Companies that span multiple time zones with clients and employees spanning regional areas ;  Internet-based companies or co-location providers that have quality-of-service commitments with serious financial ramifications .
  • 135.
    Tier IV –Fault Tolerant  Requirements:  Redundant, physically isolated (Compartmentalization)  Redundant capacity components  Redundant independent active distribution paths  Continuous Cooling for critical IT and UPS systems;  Autonomous response (N after any failure);  No runtime limits on engine-generator capacity at design load;  12 hours of on-site fuel storage for “N” capacity;  Operations and Maintenance Considerations :  Each and Every capacity component and distribution path element can sustain a failure, error, planned, or unplanned event without impacting the Critical Environment or IT processes;  Single event with consequential impact;  Design considerations for Continuous Cooling are consistent with UPS for IT equipment power;  Tier IV protects against some human errors except for  Accidental EPO activation  Intentional sabotage
  • 136.
    Tier IV –Fault Tolerant  Operational Risks :  The Critical Environment is not susceptible to disruption due to failure of any single capacity component, distribution element, site infrastructure system, or single human error;  Scheduled maintenance activities occur on redundant components, elements, and systems which may create a risk of disruption;  Operation of the EPO system, activation of the fire protection system, or malicious human interaction may lead to site disruption;  Single-cord IT equipment or incorrect installation may defeat Tier IV infrastructure;  Appropriate for firms such as:  Companies with an international market presence delivering “24 by forever” services in a client-facing market space where there is high competition or where processes are continuous (international in-and outbound wire transfers, etc.);  Business that are based on financial settlement processes, market transactions, or E- commerce;  Large, global companies where client access to applications and employee exploitation of information technology is a competitive advantage;  Internet-based companies or co-location providers that have to commit to quality-of- service and would have serious financial ramifications.
  • 137.
  • 138.
    Magnitude of costsbetween TiersCapitalCosts Tier Significant Cost Difference Between Tiers II & III
  • 139.
    Tier Certification Process TierCertification of Design Documents Tier Certification of Constructed Facility Tier Certification of Operational Sustainability Management and Operations Stamp of Approval
  • 140.
    Others Tier Aspects NO direct relationship between N" and Tiers ;  N+R or 2N does not guarantee functionality;  For Tier III and IV, engine-generator systems are considered the source of reliable power for the data center (utility power is an economic alternative);  The utility power system does not have to be Concurrently Maintainable  Multiple utility feeds for redundancy are NOT required for any Tier ( multiple utility feeds may be required for capacity) ;  Engine generators major components refer to :  Bulk Fuel Storage Tanks  Fuel piping  Day Tanks or Belly Tanks
  • 141.
    Others Tier Aspects No Tier requires engine generators to operate all the time;  Tier Ill and Tier IV engine-generator capacity is based on manufacturers' Continuous Rating (Standby and Prime ratings acceptable for Tier I and Tier II);  Tier IV requires physical isolation to prevent a single event from simultaneously impacting more than the number of redundant components or systems ; Each compartment shall contain no more than the number of redundant components (Where there are N+R components, no more than R components inside a single room )
  • 142.
  • 143.
    Others Tier Aspects Site Communications Path
  • 144.
    Others Tier Aspects For all Tiers equipment to be selected and size to meet the extreme maximum temperatures ;  Fuel System Tier Progression :
  • 145.
    Others Tier Aspects Fuel system tier criteria  Tier Ill requires that the Critical Environment must NOT be impacted by any fire detection/suppression component taken out of service for calibration, repair, or replacement on a scheduled basis
  • 146.
    Others Tier Aspects Operator intervention shall NOT he required to respond to single system failure ;  All Tier levels require that each and every critical component is uniquely labeled ;
  • 147.
  • 148.
    Operation Sustainability  UptimeInstitute Abnormal Incident Report Database
  • 149.
    Elements of OperationalSustainability Management & Operations Building Characteristics Site Locations ChangeOpportunity ImpacttoOperations
  • 150.
    Elements of operationalsustainability Management & Operations •Staffing and Organization •Maintenance •Training •Planning, Coordination and Management Building characteristics •Building features •Infrastructure •Operating conditions •Pre-Operational Site Locations •Natural disasters •Man-Made disasters
  • 151.
  • 152.
  • 153.
    Sample evaluation table– GO/NO GO criteria
  • 154.
    Uptime Standards andCertification
  • 155.
  • 156.
    Uptime Standards andTIA-942  TIA 942 IS NOT A STANDARDT FOR DATA CENTER DESIGN TOPOLOGY AND OPERATION  TIA 942 IS A TELECOMMUNICATION STANDARD
  • 157.
    THE WORLD HASCHANGED!
  • 158.
    Business Drivers: OrganizationAgility “… so even elephants can walk on a tightrope”
  • 159.
    Can a TruckJump a Lotus Formula 1 car ? https://www.youtube.com/watch?v=TVBcEg6klJI
  • 160.
    Drifting a 200tonMining Truck ? https://www.youtube.com/watch?v=y7K7m7lJHrc
  • 161.
