It is about my project report for Pagerank Algorithm Implementation using Map-Reduce on psuedo/distributed mode..

1. Page Rank Implementation CLOUD COMPUTING PROJECT -Team 3 By: - Devendra Singh Parmar

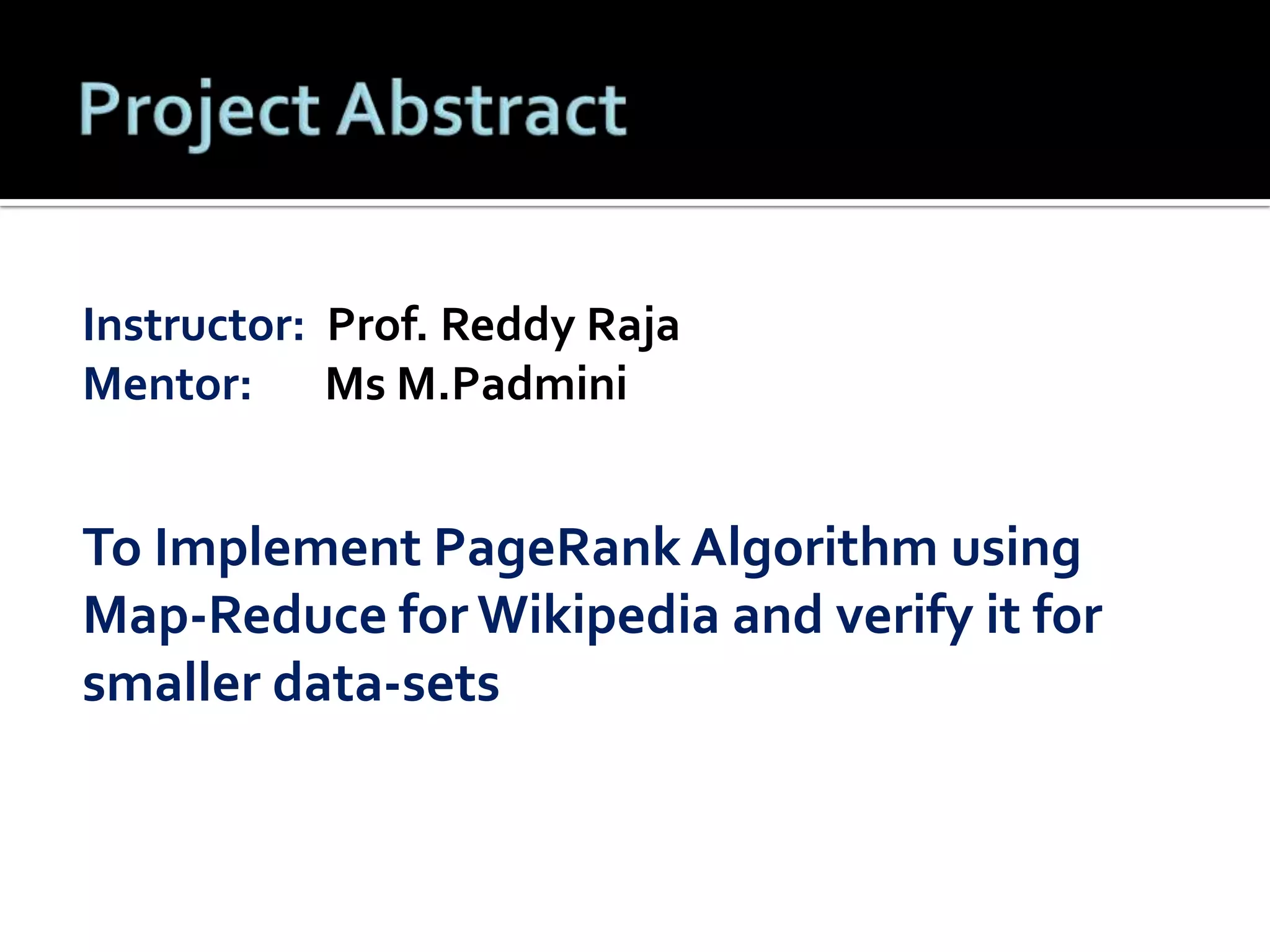

2. Project Abstract Instructor: Prof. Reddy Raja Mentor: Ms M.Padmini To Implement PageRank Algorithm using Map-Reduce for Wikipedia and verify it for smaller data-sets

4. Introduction to Algorithm

5. PageRank Equation Analysis

6. Brief Description of Project

7. Module1

8. Module2

9. Module3

12. Introduction to Algorithm

13. PageRank Equation Analysis

14. Brief Description of Project

15. Module1

16. Module2

17. Module3

19. Algorithm Google figures that when one page links to another page, it is effectively casting a vote for the other page. The more votes that are cast for a page, the more important the page must be. Also, the importance of the page that is casting the vote determines how important the vote itself is. Google calculates a page's importance from the votes cast for it. How important each vote is also taken into account when a page's PageRank is calculated.

21. Introduction to Algorithm

22. PageRank Equation Analysis

23. Brief Description of Project

24. Module1

25. Module2

26. Module3

29. CyclesSolution:

30. PageRank Equation(Enhancement) Solution for Cycles and If a random surfer gets bored Here ‘d ‘ is known as damping factor . It represents the probability, at any step, that the person will continue surfing . The value of ‘d’ is typically kept 0.85

31. PageRank Equation (finally)

32. In other words In a simpler way:- a page's PageRank = 0.15 /N+ 0.85 * (a "share" of the PageRank of every page that links to it) "share" = the linking page's PageRank divided by the number of outbound links on the page. And N=the number of documents in collection The equation of PageRank shows clearly how a page's PageRank is arrived at. But what isn't immediately obvious is that it can't work if the calculation is done just once.

33. PageRank Equation-as per the published paper :“The Anatomy of a Large-Scale Hyper textual Web Search Engine”-Sergey Brin and Lawrence Page We assume page A has pages T1...Tn which point to it (i.e., are citations). The parameter d is a damping factor which can be set between 0 and 1. We usually set d to 0.85.. Also C(A) is defined as the number of links going out of page A. The PageRank of a page A is given as follows: PR(A) = (1-d) + d (PR(T1)/C(T1) + ... + PR(Tn)/C(Tn)) ->Note that the PageRanks form a probability distribution over web pages, so the sum of all web pages’ PageRanks will be one.

34. IssuesIn the Original Formula Formula given in the in Page and Brin's paper does not supports the statement that "the sum of all PageRanks is one“ Hence to support the statement the formula is modified as: PR(A) = (1-d)/N + d (PR(T1)/C(T1) + ... + PR(Tn)/C(Tn)) where N=the number of documents in collection

36. Introduction to Algorithm

37. PageRank Equation Analysis

38. Brief Description of Project

39. Module1

40. Module2

41. Module3

43. Brief Description of Project(Contd.) Output: The output file consist of records containing the url of the page(from Url), the page rank value of the page(PRValue) and the list of urls to which the page points to(ToUrlList). FinalOutput.txt ToUrlList fromUrl PRValue

44. Brief Description of ProjectModules Web Graph Module1: Converter Module2: PageRank Calculator Module3: Output Analyzer Converter Iterate until convergence PageRank Calculator ... Search Engine Output Analyzer Create Index

46. Introduction to Algorithm

47. PageRank Equation Analysis

48. Brief Description of Project

49. Module1

50. Module2

51. Module3

53. Module1: ConverterIssues Self Loops: -handled by checking the FromUrl with ToUrl before sending it to the reduce function Dangling Pages: -handled by initializing their PRValue with 1/N and the List of ToUrls is left blank.

55. Introduction to Algorithm

56. PageRank Equation Analysis

57. Brief Description of Project

58. Module1

59. Module2

60. Module3

62. Module2: PageRank Calculator Map: Input: index.html PRValueOutList: < 1.html 2.html... > Output 1. Output for each outlink: key: “1.html” value: PRValue/ ListLength (Vote Share) 2. ToUrl itself key: index.html value: <OutList> Reduce Input: Key: “1.html” Value: 0.5 23Value: 0.24 2……. Value : UrlList <OutLink> Output: Key: “1.html” Value: “<new pagerank> <OutList> 1.html 2.html...” Start with the initial PageRank and Outlinksof a document.

63. Module2: PageRank Calculator Map: Input: index.html PRValueOutList: < 1.html 2.html... > Output 1. Output for each outlink: key: “1.html” value: PRValue/ ListLength (Vote Share) 2. ToUrl itself key: index.html value: <OutList> Reduce Input: Key: “1.html” Value: 0.5 23Value: 0.24 2……. Value : UrlList <OutLink> Output: Key: “1.html” Value: “<new pagerank> <OutList> 1.html 2.html...” For each Outlink, output the PageRank’s share of the Inlinks, and List of outlinks.

64. Module2: PageRank Calculator Map: Input: index.html PRValueOutList: < 1.html 2.html... > Output 1. Output for each outlink: key: “1.html” value: PRValue/ ListLength (Vote Share) 2. ToUrl itself key: index.html value: <OutList> Reduce Input: Key: “1.html” Value: 0.5 23Value: 0.24 2……. Value : UrlList <OutLink> Output: Key: “1.html” Value: “<new pagerank> <OutList> 1.html 2.html...” Now the reducer has a Url of document, all the inlinks to that document and their corresponding PageRank’s share and List of outlinks.

65. Module2: PageRank Calculator Map: Input: index.html PRValueOutList: < 1.html 2.html... > Output 1. Output for each outlink: key: “1.html” value: PRValue/ ListLength (Vote Share) 2. ToUrl itself key: index.html value: <OutList> Reduce Input: Key: “1.html” Value: 0.5 23Value: 0.24 2……. Value : UrlList <OutLink> Output: Key: “1.html” Value: “<new pagerank> <OutList> 1.html 2.html...” Compute the new PageRank and output in the same format as the input.

66. Module2: PageRank Calculator Map: Input: index.html PRValueOutList: < 1.html 2.html... > Output 1. Output for each outlink: key: “1.html” value: PRValue/ ListLength (Vote Share) 2. ToUrl itself key: index.html value: <OutList> Reduce Input: Key: “1.html” Value: 0.5 23Value: 0.24 2……. Value : UrlList <OutLink> Output: Key: “1.html” Value: “<new pagerank> <OutList> 1.html 2.html...” Now iterate until convergence (determined by the precision value).

67. Module2: PageRank Calculator IssuesCatch22 Situation Suppose we have 2 pages, A and B, which link to each other, and neither have any other links of any kind. This is what happens:- Step 1: Calculate page A's PageRank from the value of its inbound links Step 2: Calculate page B's PageRank from the value of its inbound links we can't work out A's PageRank until we know B's PageRank, and we can't work out B's PageRank until we know A's PageRank. Thus the PageRank of A and B will be inaccurate.

68. Module2: PageRank Calculator IssuesCatch22 situation (solution) This problem is overcome by repeating the calculations many times. Each time produces slightly more accurate values. In fact, total accuracy can never be achieved because the calculations are always based on inaccurate values. The number of iterations should be sufficient to reach a point where any further iterations wouldn't produce enough of a change to the values to matter. => Use “delta function” which will keep track of changes in the PageRank of all the pages and if the change in PageRank of all the pages is less than the value specified by the user the iterations can be stopped.

70. Introduction to Algorithm

71. PageRank Equation Analysis

72. Brief Description of Project

73. Module1

74. Module2

75. Module3

78. Introduction to Algorithm

79. PageRank Equation Analysis

80. Brief Description of Project

81. Module1

82. Module2

83. Module3

84. Applications

87. GeneRank (based on PageRank) ranks the genes analyzed in the microarray to see the relationship between the cell’s function and gene expression.

89. Questions

90. Thank You
