You will learn why naming is really difficult if done right, why coding and style guidelines are crucial, code structuring, exception handling and why other elements of coding often define the tipping point between success and failure of projects. Following the principles of software craftsmanship will allow you to end up with better maintainability and extensibility of your software and the success of the project in the end. All 3 Clean Code presentations provide great value by themselves, but taken together are designed to offer a holistic approach to successful software creation. Why writing Clean Code makes us more efficient Over the lifetime of a product, maintaining the product is actually one - if not the most - expensive area(s) of the overall product costs. Writing clean code can significantly lower these costs. However, writing clean code also makes you more efficient during the initial development time and results in more stable code. You will be presented design patterns and best practices which will make you write better and more easily maintainable code, seeing code in a holistic way. You will learn how to apply them by using an existing implementation as the starting point of the presentation. Finally, patterns & practices benefits are explained. This presentation is based on C# and Visual Studio 2013. However, the demonstrated patterns and practice can be applied to every other programming language too. Note: Moving forwards this presentation will be updated with the latest version of the slides for the last event I did the presentation instead of creating new separate slide decks here on SlideShare. Presentation dates and locations: 2015-06-27 SoCal Code Camp - San Diego, CA 2014-11-14 SoCal Code Camp - Los Angeles, CA 2014-10-18 Desert Code Camp - Chandler, AZ

1. Clean Code III
Software Craftsmanship
UC SD La Jolla, June 27th, 2015
SoCal Code Camp 2015

2. We are hiring!
http://www.appdynamics.com/ careers

3. Theo Jungeblut
• Director Customer Success at
AppDynamics in San Francisco
• Coder & software craftsman by night, first
time dad and house builder
• Architects decoupled solutions & crafts
maintainable code to last
• Worked in healthcare and factory
automation, building mission critical
applications, framework & platforms
• Degree in Software Engineering
and Network Communications
• Enjoys cycling, running and eating theo@designitright.net
www.designitright.net

4. Your feedback is important!
http://speakerrate.com/speakers/18667-theo-jungeblut

5. Where to get the Slides
http://www.slideshare.net/theojungeblut

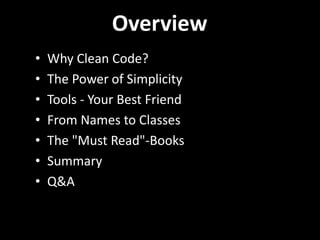

6. Overview
• Why Clean Code?
• The Power of Simplicity
• Tools - Your Best Friend
• From Names to Classes
• The "Must Read"-Books
• Summary
• Q&A

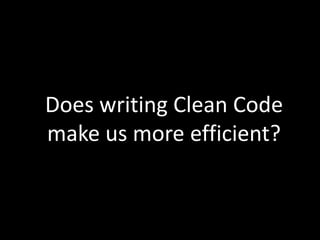

7. Does writing Clean Code
make us more efficient?

8. The only valid Measurement of Code
Quality

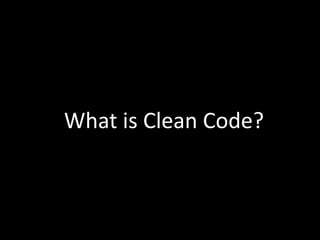

9. What is Clean Code?

10. Clean Code is maintainable
Source code must be:
• readable & well structured
• extensible
• testable

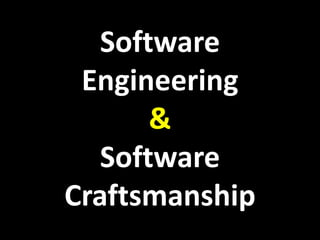

11. Software
Engineering
&
Software
Craftsmanship

12. The “Must Read”-Book(s)
by Robert C Martin
A Handbook of Agile
Software Craftsmanship
“Even bad code can
function. But if code isn’t
clean, it can bring a
development organization
to its knees.”

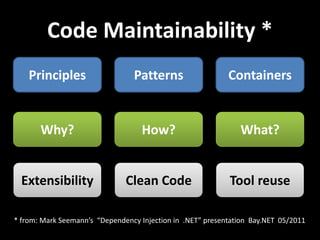

13. Code Maintainability *
Principles Patterns Containers
Why? How? What?
Extensibility Clean Code Tool reuse
* from: Mark Seemann’s “Dependency Injection in .NET” presentation Bay.NET 05/2011

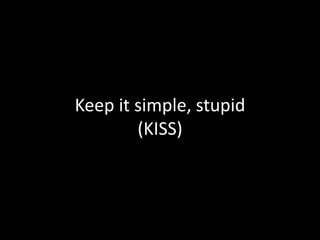

14. Keep it simple, stupid
(KISS)

15. KISS-Principle – “Keep It Simple Stupid”
http://blogs.smarter.com/blogs/Lego%20Brick.jpg
by Kelly Johnson

16. The Power of Simplicity
http://www.geekalerts.com/lego-iphone/
Graphic by Nathan Sawaya courtesy of brickartist.com
Graphic by Nathan Sawaya courtesy of brickartist.com

17. Chaos build from simplicity
Graphic by Nathan Sawaya courtesy of brickartist.com

18. Source Code Conventions

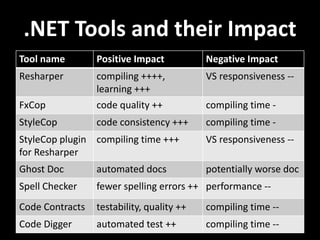

19. .NET Tools and their Impact
Tool name Positive Impact Negative Impact
Resharper compiling ++++,
learning +++
VS responsiveness --
FxCop code quality ++ compiling time -
StyleCop code consistency +++ compiling time -
StyleCop plugin
for Resharper
compiling time +++ VS responsiveness --
Ghost Doc automated docs potentially worse doc
Spell Checker fewer spelling errors ++ performance --
Code Contracts testability, quality ++ compiling time --
Code Digger automated test ++ compiling time --

20. Resharper
Features:
– Code Analysis
– Quick Fixes
– Code Templates
– Code Generation
– Code Cleanup
– Many, many more…
“The single most impacting development addition
to Visual Studio”
http://www.jetbrains.com/resharper/

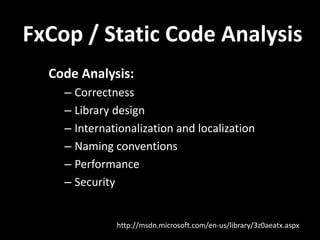

21. FxCop / Static Code Analysis
Code Analysis:
– Correctness
– Library design
– Internationalization and localization
– Naming conventions
– Performance
– Security
http://msdn.microsoft.com/en-us/library/3z0aeatx.aspx

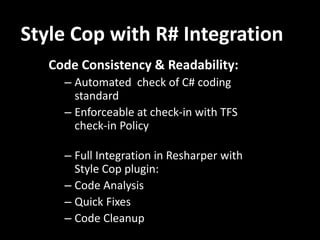

22. Style Cop with R# Integration
Code Consistency & Readability:
– Automated check of C# coding standard
– Enforceable at check-in with TFS check-in
Policy
– Full Integration in Resharper with Style Cop
plugin:
– Code Analysis
– Quick Fixes
– Code Cleanup

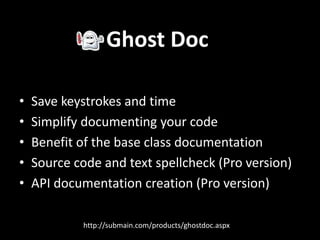

23. http://submain.com/products/ghostdoc.aspx
• Save keystrokes and time
• Simplify documenting your code
• Benefit of the base class documentation
• Source code and text spellcheck (Pro version)
• API documentation creation (Pro version)
Ghost Doc

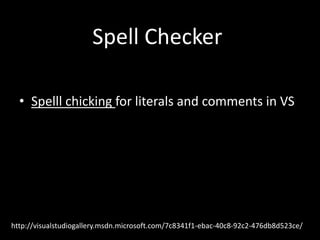

24. Spell Checker
http://visualstudiogallery.msdn.microsoft.com/7c8341f1-ebac-40c8-92c2-476db8d523ce/
• Spelll chicking for literals and comments in VS

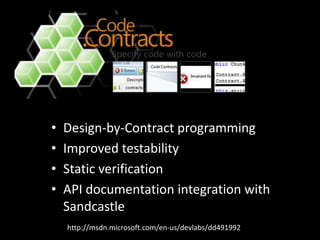

25. http://msdn.microsoft.com/en-us/devlabs/dd491992
• Design-by-Contract programming
• Improved testability
• Static verification
• API documentation integration with Sandcastle

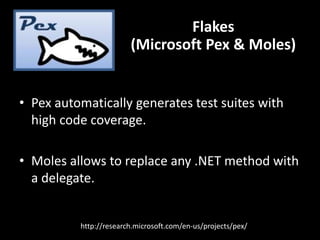

26. • Pex automatically generates test suites with high code
coverage.
• Moles allows to replace any .NET method with a delegate.
Flakes
(Microsoft Pex & Moles)
http://research.microsoft.com/en-us/projects/pex/

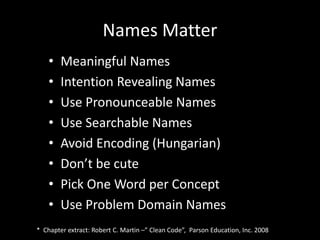

27. Names Matter
• Meaningful Names
• Intention Revealing Names
• Use Pronounceable Names
• Use Searchable Names
• Avoid Encoding (Hungarian)
• Don’t be cute
• Pick One Word per Concept
• Use Problem Domain Names
* Chapter extract: Robert C. Martin –” Clean Code”, Parson Education, Inc. 2008

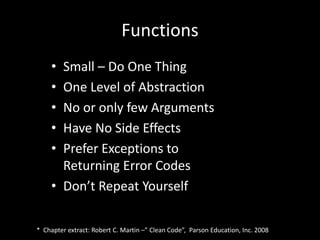

28. Functions
• Small – Do One Thing
• One Level of Abstraction
• No or only few Arguments
• Have No Side Effects
• Prefer Exceptions to
Returning Error Codes
• Don’t Repeat Yourself
* Chapter extract: Robert C. Martin –” Clean Code”, Parson Education, Inc. 2008

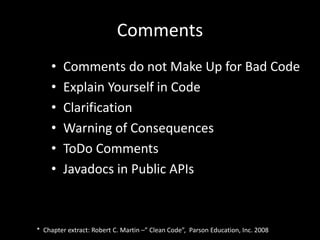

29. Comments
• Comments do not Make Up for Bad Code
• Explain Yourself in Code
• Clarification
• Warning of Consequences
• ToDo Comments
• Javadocs in Public APIs
* Chapter extract: Robert C. Martin –” Clean Code”, Parson Education, Inc. 2008

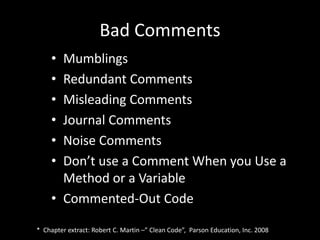

30. Bad Comments
• Mumblings
• Redundant Comments
• Misleading Comments
• Journal Comments
• Noise Comments
• Don’t use a Comment When you Use a
Method or a Variable
• Commented-Out Code
* Chapter extract: Robert C. Martin –” Clean Code”, Parson Education, Inc. 2008

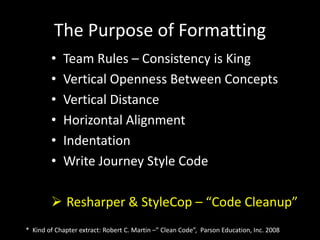

31. The Purpose of Formatting
• Team Rules – Consistency is King
• Vertical Openness Between Concepts
• Vertical Distance
• Horizontal Alignment
• Indentation
• Write Journey Style Code
 Resharper & StyleCop – “Code Cleanup”
* Kind of Chapter extract: Robert C. Martin –” Clean Code”, Parson Education, Inc. 2008

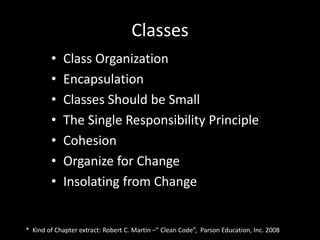

32. Classes
• Class Organization
• Encapsulation
• Classes Should be Small
• The Single Responsibility Principle
• Cohesion
• Organize for Change
• Insolating from Change
* Kind of Chapter extract: Robert C. Martin –” Clean Code”, Parson Education, Inc. 2008

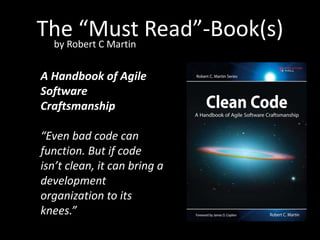

33. The “Must Read”-Book(s)
by Robert C Martin
A Handbook of Agile
Software Craftsmanship
“Even bad code can
function. But if code isn’t
clean, it can bring a
development organization
to its knees.”

34. The “Must Read”-Book(s)
by Krzysztof Cwalina, Brad Abrams
Framework Design
Guidelines
“teaches developers
the best practices for
designing reusable
libraries for the
Microsoft .NET
Framework.”

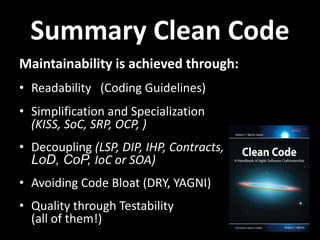

35. Summary Clean Code
Maintainability is achieved through:
• Readability (Coding Guidelines)
• Simplification and Specialization
(KISS, SoC, SRP, OCP, )
• Decoupling (LSP, DIP, IHP, Contracts,
LoD, CoP, IoC or SOA)
• Avoiding Code Bloat (DRY, YAGNI)
• Quality through Testability
(all of them!)

36. Downloads,
Feedback & Comments:
Q & A
Graphic by Nathan Sawaya courtesy of brickartist.com
theo@designitright.net
www.designitright.net
http://speakerrate.com/ speakers
/18667-theo-jungeblut

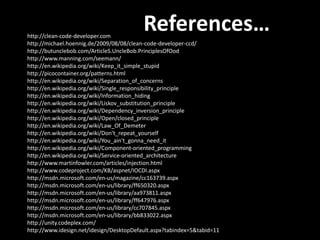

37. References…
http://clean-code-developer.com
http://michael.hoennig.de/2009/08/08/clean-code-developer-ccd/
http://butunclebob.com/ArticleS.UncleBob.PrinciplesOfOod
http://www.manning.com/seemann/
http://en.wikipedia.org/wiki/Keep_it_simple_stupid
http://picocontainer.org/patterns.html
http://en.wikipedia.org/wiki/Separation_of_concerns
http://en.wikipedia.org/wiki/Single_responsibility_principle
http://en.wikipedia.org/wiki/Information_hiding
http://en.wikipedia.org/wiki/Liskov_substitution_principle
http://en.wikipedia.org/wiki/Dependency_inversion_principle
http://en.wikipedia.org/wiki/Open/closed_principle
http://en.wikipedia.org/wiki/Law_Of_Demeter
http://en.wikipedia.org/wiki/Don't_repeat_yourself
http://en.wikipedia.org/wiki/You_ain't_gonna_need_it
http://en.wikipedia.org/wiki/Component-oriented_programming
http://en.wikipedia.org/wiki/Service-oriented_architecture
http://www.martinfowler.com/articles/injection.html
http://www.codeproject.com/KB/aspnet/IOCDI.aspx
http://msdn.microsoft.com/en-us/magazine/cc163739.aspx
http://msdn.microsoft.com/en-us/library/ff650320.aspx
http://msdn.microsoft.com/en-us/library/aa973811.aspx
http://msdn.microsoft.com/en-us/library/ff647976.aspx
http://msdn.microsoft.com/en-us/library/cc707845.aspx
http://msdn.microsoft.com/en-us/library/bb833022.aspx
http://unity.codeplex.com/
http://www.idesign.net/idesign/DesktopDefault.aspx?tabindex=5&tabid=11

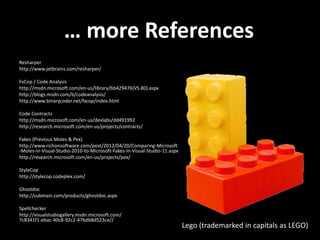

38. … more References
Resharper
http://www.jetbrains.com/resharper/
FxCop / Code Analysis
http://msdn.microsoft.com/en-us/library/bb429476(VS.80).aspx
http://blogs.msdn.com/b/codeanalysis/
http://www.binarycoder.net/fxcop/index.html
Code Contracts
http://msdn.microsoft.com/en-us/devlabs/dd491992
http://research.microsoft.com/en-us/projects/contracts/
Fakes (Previous Moles & Pex)
http://www.richonsoftware.com/post/2012/04/20/Comparing-Microsoft
-Moles-in-Visual-Studio-2010-to-Microsoft-Fakes-in-Visual-Studio-11.aspx
http://research.microsoft.com/en-us/projects/pex/
StyleCop
http://stylecop.codeplex.com/
Ghostdoc
http://submain.com/products/ghostdoc.aspx
Spellchecker
http://visualstudiogallery.msdn.microsoft.com/
7c8341f1-ebac-40c8-92c2-476db8d523ce//

39. Time to say Thank You!
The Organizers
Thevolunteers
(howaboutyou?)TheSponsors

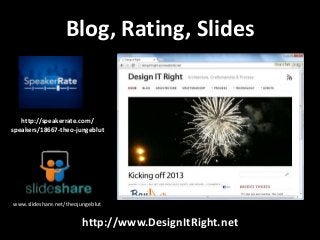

40. Blog, Rating, Slides
http://www.DesignItRight.net
http://speakerrate.com/
speakers/18667-theo-jungeblut
www.slideshare.net/theojungeblut

41. … thanks for you attention!
Please fill out the
feedback, and…
www.speakerrate.com/theoj
And visit and support
your local user groups!
