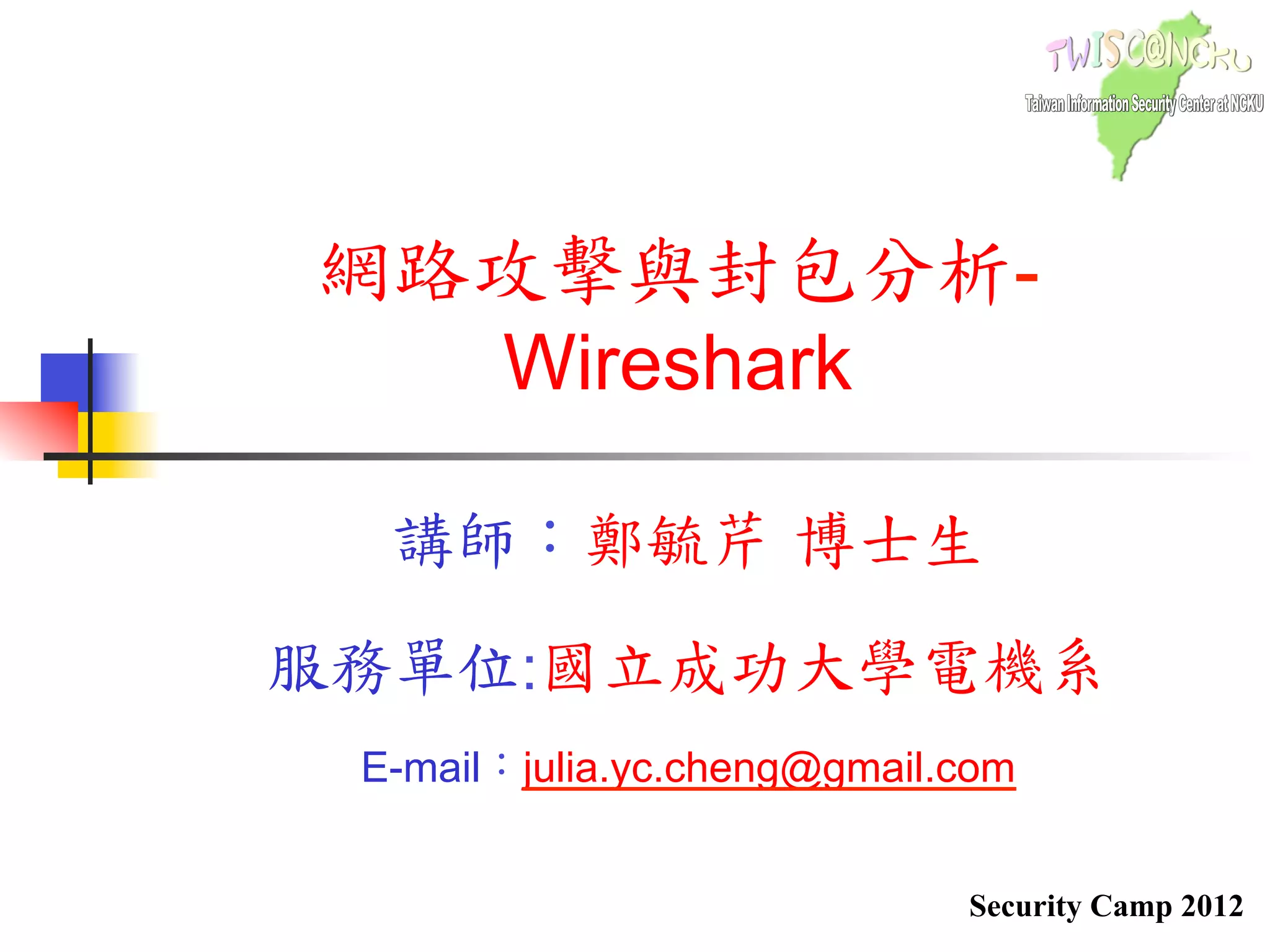

Basic technology and Wireshark used to analysis network pcaps

1. Security Camp 2012
網路攻擊與封包分析-
Wireshark
講師：鄭毓芹
博士生
服務單位:國立成功大學電機系
E-mail：julia.yc.cheng@gmail.com

2. 2Security Camp 2012
Agenda
n Basics
n What is “Network Security Analysis” ?
n How useful for your security activities?
n Who Uses Network Analyzers
n Tool Introduction
n About Wireshark
n Sniffer Positioning
n Features & Panels
n Exercise

3. 3Security Camp 2012
What is “Network Security Analysis” ?
n Important activities for incident responders
and security analyst
n Currently data just travels around your
network like a train. With a packet sniffer, get
the ability to capture the data and look inside
the packets to see what is actually moving
along the tracks.

4. 4Security Camp 2012
What is “Network Security
Analysis” ?
n Related to many security activities
n Network monitoring
n To detect on-going incident
n Network forensics:
n To find evidence in the specific incident
n Malware analysis:
n To find capability of malware such as “sending
important data to malicious servers” or “Bot
command & control”
n Process of capturing, decoding, and analyzing
network traffic

5. 5Security Camp 2012 5
Who Uses Network Analyzers
n System administrators
n Understand system problems and performance
n Intrusion detection
n Malicious individuals (intruders)
n Capture cleartext data
n Passively collect data on vulnerable protocols
n FTP, POP3, IMAP, SMATP, rlogin, HTTP, etc.
n Capture VoIP data
n Mapping the target network
n Traffic pattern discovery
n Actively break into the network (backdoor techniques)

6. 6Security Camp 2012
Network security analysis –
Flow based
n Feature
n Focus on network flow/traffic instead of each
packet
n Good approach to get high level overview or
accounting
n Tools
n Netflow / sFlow
n MRTG/RRDTool

7. 7Security Camp 2012
Network security analysis –
Packet based
n Feature
n Focus on each packet or group of packets
n Can analyze thoroughly but high cost
n Tools / Techniques
n Tcpdump
n Wireshark / tshark

8. 8Security Camp 2012
Network security analysis –
Packet based (Cont.)
n Capture packet
n Don’t use Wireshark to capture packets
n Avoid running Wireshark with root privilege
n Use more simple program instead
n E.g. tcpdump, dumpcap
n Analyze packet:
n Wireshark is the best friend for this purpose.

9. 9Security Camp 2012
Tool Introduction:
About Wireshark
n Wireshark is free and open-source tool
n Run on many OSs
n Windows / Linux / *BSD / Solaris and others
n User Interface
n GUI - Packet list / Packet details / Packet Bytes
n CUI – tshark (Command line modes)
n Many Features
n Search / Filter/ Colorize / Statistics / others
n Vulnerability: http://www.wireshark.org/security/

10. 10Security Camp 2012 10
n Decodes over 750 protocols
n Compatible with many other sniffers
n Plenty of online resources are available
n Supports command-line and GUI interfaces
n TSHARK (offers command line interface) has three
components
n Editcap
n Mergecap
n text2pcap
Tool Introduction:
About Wireshark (Cont.)

11. 11Security Camp 2012 11
Tool Introduction:
Sniffer Positioning

12. 12Security Camp 2012
Hub
Tool Introduction:
Sniffer Positioning (Cont.)

13. 13Security Camp 2012
Switches
Tool Introduction:
Sniffer Positioning (Cont.)

14. 14
Wireshark (and WinPcap)
Wireshark – Application for Sniffing Packets
WinPcap – open source library for packet capture
Operating System – Windows & Unix/Linux
Network Card Drivers – Ethernet/WiFi Card
Ethernet Card

15. 15Security Camp 2012 15
Getting Wireshark
n Download the program from
n www.wireshark.org/download.html
n Requires to install capture drivers (monitor
ports and capture all traveling packets)
n Windows: winpcap (www.winpcap.org)
n Linux: libpcap

16. 16Security Camp 2012 16
Running Wireshark

17. 17Security Camp 2012
Simple Capture

18. 18Security Camp 2012
Capture Options

19. 19Security Camp 2012 19
Details of the
selected packet
(#215)
Raw data
(content of
packet # 215)
Packet
#215:
HTTP
packet

20. 20Security Camp 2012
Menu Bar

21. 21Security Camp 2012
Status Bar

22. 22Security Camp 2012 22
Filtering
HTTP
packets
only

23. 23Security Camp 2012
Right Click Filtering

24. 24Security Camp 2012
Follow TCP Stream

25. 25Security Camp 2012

26. 26Security Camp 2012
Protocol Hierarchy

27. 27Security Camp 2012
Protocol Hierarchy

28. 28Security Camp 2012
Conversations

29. 29Security Camp 2012
Conversations

30. 30Security Camp 2012
Expert Info

31. 31Security Camp 2012
Expert Info

32. 32Security Camp 2012
Capture Filter

33. Security Camp 2012
Exercise 1
FTP Traffic

34. 34Security Camp 2012
Exercise 1 : FTP Traffic
n Q1: 封包擷取日期？
n Q2: Protocol analysis ?
n Q3. FTP server's IP address is
n Q4. FTP client's IP address is
n Q5. FTP Err Code 530 means
n Q4. 10.234.125.254 attempt

35. Security Camp 2012
Exercise 2
Malware Communication Traffic

36. 36Security Camp 2012
Exercise 2:
Malware Communication Traffic
n Q1. What kind of malicious activity did this
malware do?
n Q2. What is the malicious server's IP
address?

37. Security Camp 2012
Exercise 3
Malicious HTTP Traffic

38. 38Security Camp 2012
n Q1. Which site and which page were
defaced?
n site
n page
n Q2. Which URL looks malicious?
n Q3. Which software seemed to be the target
of this exploit?
n Q4. What kind of malicioius activity was
executed after exploit?

39. 39Security Camp 2012
HTTP Analysis

40. 40Security Camp 2012
HTTP Analysis – Load
Distribution

41. 41Security Camp 2012
HTTP Analysis – Packet Counter

42. 42Security Camp 2012
HTTP Analysis – Requests

43. 43Security Camp 2012
Export HTTP Objects

44. 44Security Camp 2012
Packet Length

45. 45Security Camp 2012
Packet Length
