[CIbSE2023] Cross-language clone detection for Mobile Apps

1. The document describes a hybrid approach called OUT OF STEP for detecting clones across programming languages for mobile app development. 2. It discusses the need to abstract syntax trees to compare code snippets across different languages while retaining language references. 3. The approach uses universal nodes to represent common concepts, enriched syntax trees to provide hierarchy, and stop nodes to fragment trees for comparison across locations.

Engineering◦
Related topics:
Mobile Apps Overview•

Embed presentation

Download as PDF, PPTX
Mon 24 - Fri 28 April 2023 Montevideo, Uruguay Cross-language Clone Detection for Mobile Apps Stephannie Jimenez, Gordana Rakic,2 Silvia Takahashi, Nicolás Cardozo Systems an Computing Engineering - Universidad de los Andes, Bogotá - Colombia 2Faculty of Sciences - University of Novi Sad - Serbia {s.jimenez16, stakahas, n.cardozo}@uniandes.edu.co, gordana.rakic@dmi.uns.ac.rs @ncardoz CIbSE 2023 XXVI Ibero-American Conference on Software Engineering XXVI Congreso Iberoamericano en Ingeniería de Software XXVI Congresso Ibero-Americano em Engenharia de Software
2 Code clones

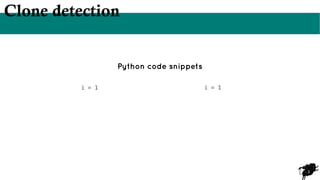

3 Clone detection Python code snippets i = 1 i = 1
3 Clone detection Type 1 clones Python code snippets i = 1 i = 1

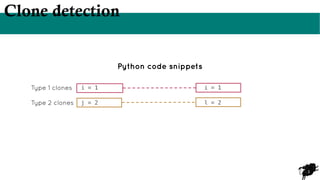

3 Clone detection Type 1 clones Type 2 clones Python code snippets i = 1 j = 2 i = 1 l = 2
3 Clone detection Type 1 clones Type 2 clones Type 3 clones Python code snippets i = 1 j = 2 i = i + 1 i = 1 l = 2 i += 1
3 Clone detection Type 1 clones Type 2 clones Type 3 clones Type 4 clones Python code snippets i = 1 j = 2 i = i + 1 for i in range(1,10): i += 1 i = 1 l = 2 i += 1 i = 1 + 9
3 Clone detection Type 1 clones Type 2 clones Type 3 clones Type 4 clones Python code snippets i = 1 j = 2 i = i + 1 for i in range(1,10): i += 1 i = 1 l = 2 i += 1 i = 1 + 9 }Focus of clone detection

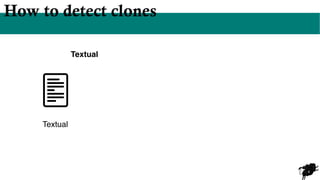

4 How to detect clones Textual Textual

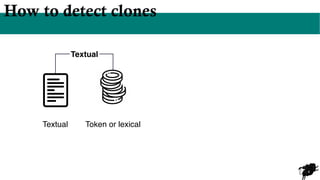

4 How to detect clones Token or lexical Textual Textual

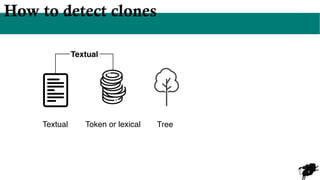

4 How to detect clones Token or lexical Tree Textual Textual

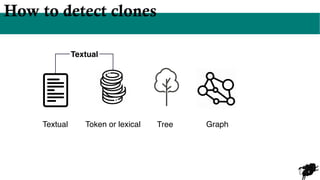

4 How to detect clones Token or lexical Tree Graph Textual Textual
4 How to detect clones Token or lexical Tree Graph Hybrid Textual Textual OUT OF STEP is a hybrid approach combining a generalized tree structure and the textual representation of tokens

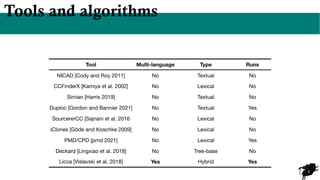

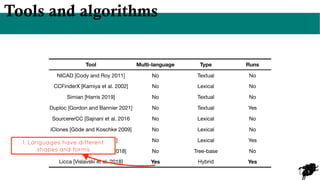

5 Tools and algorithms Tool Multi-language Type Runs NICAD [Cody and Roy 2011] No Textual No CCFinderX [Kamiya et al. 2002] No Lexical No Simian [Harris 2019] No Textual No Duploc [Gordon and Bannier 2021] No Textual Yes SourcererCC [Sajnani et al. 2016 No Lexical No iClones [Göde and Koschke 2009] No Lexical No PMD/CPD [pmd 2021] No Lexical Yes Deckard [Lingxiao et al. 2018] No Tree-base No Licca [Vislavski et al. 2018] Yes Hybrid Yes
5 Tools and algorithms Tool Multi-language Type Runs NICAD [Cody and Roy 2011] No Textual No CCFinderX [Kamiya et al. 2002] No Lexical No Simian [Harris 2019] No Textual No Duploc [Gordon and Bannier 2021] No Textual Yes SourcererCC [Sajnani et al. 2016 No Lexical No iClones [Göde and Koschke 2009] No Lexical No PMD/CPD [pmd 2021] No Lexical Yes Deckard [Lingxiao et al. 2018] No Tree-base No Licca [Vislavski et al. 2018] Yes Hybrid Yes 1. Languages have different shapes and forms
5 Tools and algorithms Tool Multi-language Type Runs NICAD [Cody and Roy 2011] No Textual No CCFinderX [Kamiya et al. 2002] No Lexical No Simian [Harris 2019] No Textual No Duploc [Gordon and Bannier 2021] No Textual Yes SourcererCC [Sajnani et al. 2016 No Lexical No iClones [Göde and Koschke 2009] No Lexical No PMD/CPD [pmd 2021] No Lexical Yes Deckard [Lingxiao et al. 2018] No Tree-base No Licca [Vislavski et al. 2018] Yes Hybrid Yes 1. Languages have different shapes and forms 2. We need to abstract away from language details while keeping a reference to the language

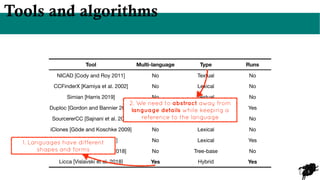

5 Tools and algorithms Tool Multi-language Type Runs NICAD [Cody and Roy 2011] No Textual No CCFinderX [Kamiya et al. 2002] No Lexical No Simian [Harris 2019] No Textual No Duploc [Gordon and Bannier 2021] No Textual Yes SourcererCC [Sajnani et al. 2016 No Lexical No iClones [Göde and Koschke 2009] No Lexical No PMD/CPD [pmd 2021] No Lexical Yes Deckard [Lingxiao et al. 2018] No Tree-base No Licca [Vislavski et al. 2018] Yes Hybrid Yes 1. Languages have different shapes and forms 2. We need to abstract away from language details while keeping a reference to the language 3. In current settings

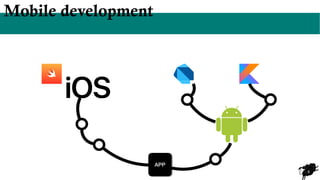

6 Mobile development APP
6 Mobile development APP
6 Mobile development APP FEATURE DIVERGENCE
7 Kotlin var i = 1 val j = 2 i = i + 1 for(i in 1..10) { i += 1 } int i = 1; int l = 2; i += 1; i = 1 + 9; Dart OUT OF STEP
7 Type 1 clones Type 2 clones Type 3 clones Type 4 clones Kotlin var i = 1 val j = 2 i = i + 1 for(i in 1..10) { i += 1 } int i = 1; int l = 2; i += 1; i = 1 + 9; }Focus of clone detection Dart OUT OF STEP

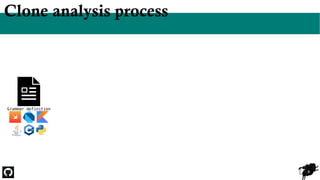

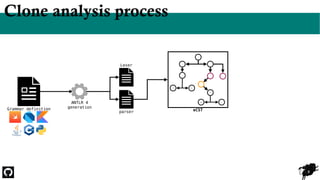

8 Clone analysis process Grammar definition

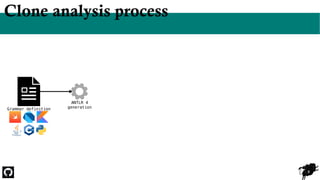

8 Clone analysis process Grammar definition ANTLR 4 generation

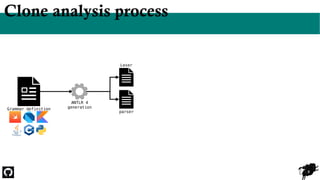

8 Clone analysis process Grammar definition ANTLR 4 generation Lexer parser
8 Clone analysis process Grammar definition ANTLR 4 generation sum 1 += int num eCST Lexer parser
8 Clone analysis process Grammar definition ANTLR 4 generation sum 1 += int num eCST Lexer parser OutOfStep
8 Clone analysis process Grammar definition ANTLR 4 generation sum 1 += int num eCST Lexer parser OutOfStep Type 1 Type 2 Type 3 Clone detection

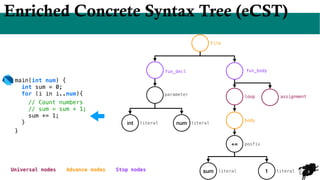

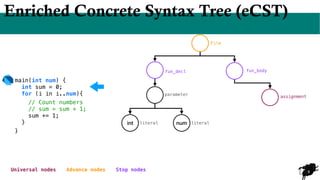

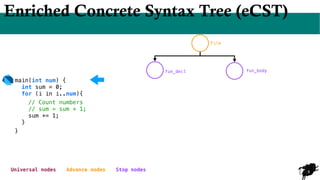

9 Enriched Concrete Syntax Tree (eCST) main(int num) { int sum = 0; for (i in i..num){ // Count numbers // sum = sum + 1; sum += 1; } }
9 Enriched Concrete Syntax Tree (eCST) main(int num) { int sum = 0; for (i in i..num){ // Count numbers // sum = sum + 1; sum += 1; } } File Advance nodes
9 Enriched Concrete Syntax Tree (eCST) main(int num) { int sum = 0; for (i in i..num){ // Count numbers // sum = sum + 1; sum += 1; } } File fun_decl fun_body Universal nodes Advance nodes Stop nodes
9 Enriched Concrete Syntax Tree (eCST) main(int num) { int sum = 0; for (i in i..num){ // Count numbers // sum = sum + 1; sum += 1; } } int num File fun_decl fun_body literal literal parameter Universal nodes Advance nodes Stop nodes
9 Enriched Concrete Syntax Tree (eCST) main(int num) { int sum = 0; for (i in i..num){ // Count numbers // sum = sum + 1; sum += 1; } } int num File fun_decl fun_body assignment literal literal parameter Universal nodes Advance nodes Stop nodes
9 Enriched Concrete Syntax Tree (eCST) main(int num) { int sum = 0; for (i in i..num){ // Count numbers // sum = sum + 1; sum += 1; } } int num File fun_decl fun_body assignment loop literal literal body parameter Universal nodes Advance nodes Stop nodes
9 Enriched Concrete Syntax Tree (eCST) main(int num) { int sum = 0; for (i in i..num){ // Count numbers // sum = sum + 1; sum += 1; } } sum 1 += int num File fun_decl fun_body assignment literal loop literal literal literal body posfix parameter Universal nodes Advance nodes Stop nodes
10 Universal nodes represent syntactic grammar rules abstracting programming languages’ concepts Enriched Concrete Syntax Tree (eCST)

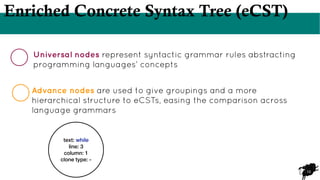

10 Advance nodes are used to give groupings and a more hierarchical structure to eCSTs, easing the comparison across language grammars Universal nodes represent syntactic grammar rules abstracting programming languages’ concepts Enriched Concrete Syntax Tree (eCST)
10 Advance nodes are used to give groupings and a more hierarchical structure to eCSTs, easing the comparison across language grammars Universal nodes represent syntactic grammar rules abstracting programming languages’ concepts text: while line: 3 column: 1 clone type: - Enriched Concrete Syntax Tree (eCST)

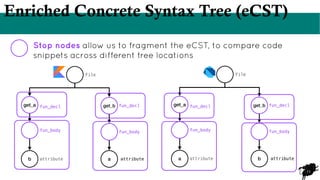

11 Stop nodes allow us to fragment the eCST, to compare code snippets across different tree locations Enriched Concrete Syntax Tree (eCST) a get_b get_a b File fun_decl fun_body attribute attribute fun_decl fun_body b get_b get_a a File fun_decl fun_body attribute attribute fun_decl fun_body
11 Stop nodes allow us to fragment the eCST, to compare code snippets across different tree locations Enriched Concrete Syntax Tree (eCST) a get_b get_a b File fun_decl fun_body attribute attribute fun_decl fun_body b get_b get_a a File fun_decl fun_body attribute attribute fun_decl fun_body

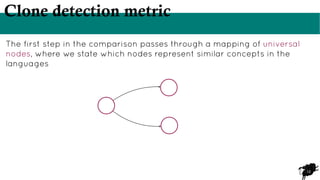

12 Clone detection metric The first step in the comparison passes through a mapping of universal nodes, where we state which nodes represent similar concepts in the languages
12 Clone detection metric The first step in the comparison passes through a mapping of universal nodes, where we state which nodes represent similar concepts in the languages type parameter_type function_type ...
12 Clone detection metric The first step in the comparison passes through a mapping of universal nodes, where we state which nodes represent similar concepts in the languages type parameter_type function_type ... Second, we compare the tokens’ text text1 text2 = ?

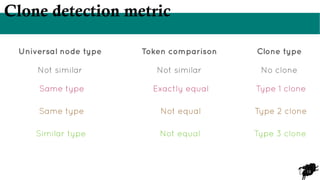

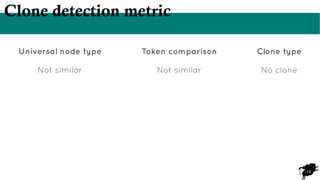

13 Clone detection metric Universal node type Token comparison Clone type
13 Clone detection metric Universal node type Token comparison Clone type Not similar Not similar No clone
13 Clone detection metric Universal node type Token comparison Clone type Not similar Not similar No clone Same type Exactly equal Type 1 clone
13 Clone detection metric Universal node type Token comparison Clone type Not similar Not similar No clone Same type Exactly equal Type 1 clone Same type Not equal Type 2 clone
13 Clone detection metric Universal node type Token comparison Clone type Not similar Not similar No clone Same type Exactly equal Type 1 clone Same type Not equal Type 2 clone Similar type Not equal Type 3 clone
13 Clone detection metric Universal node type Token comparison Clone type Not similar Not similar No clone Same type Exactly equal Type 1 clone Same type Not equal Type 2 clone Similar type Not equal Type 3 clone m = 3T1 + 2T2 + T3 Find the most similar clone pair:

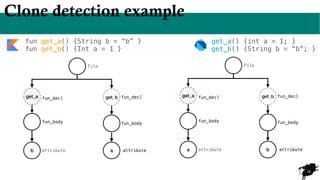

14 Clone detection example a get_b get_a b File fun_decl fun_body attribute attribute fun_decl fun_body b get_b get_a a File fun_decl fun_body attribute attribute fun_decl fun_body fun get_a() {String b = “b” } fun get_b() {Int a = 1 } get_a() {int a = 1; } get_b() {String b = “b”; }

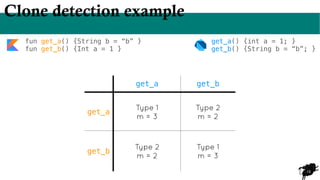

15 Clone detection example fun get_a() {String b = “b” } fun get_b() {Int a = 1 } get_a() {int a = 1; } get_b() {String b = “b”; } get_a get_b get_a Type 1 m = 3 Type 2 m = 2 get_b Type 2 m = 2 Type 1 m = 3
16 Clone detection example a get_b get_a b File fun_decl fun_body attribute attribute fun_decl fun_body b get_b get_a a File fun_decl fun_body attribute attribute fun_decl fun_body fun get_a() {String b = “b” } fun get_b() {Int a = 1 } get_a() {int a = 1; } get_b() {String b = “b”; }
17 Clone detection example a b b Type 2 m = 2 Type 1 m = 3 a Type 1 m = 3 Type 2 m = 2 fun get_a() {String b = “b” } fun get_b() {Int a = 1 } get_a() {int a = 1; } get_b() {String b = “b”; }

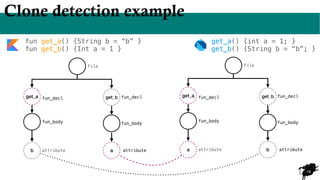

18 Clone detection example a get_b get_a b File fun_decl fun_body attribute attribute fun_decl fun_body b get_b get_a a File fun_decl fun_body attribute attribute fun_decl fun_body fun get_a() {String b = “b” } fun get_b() {Int a = 1 } get_a() {int a = 1; } get_b() {String b = “b”; }
18 Clone detection example a get_b get_a b File fun_decl fun_body attribute attribute fun_decl fun_body b get_b get_a a File fun_decl fun_body attribute attribute fun_decl fun_body fun get_a() {String b = “b” } fun get_b() {Int a = 1 } get_a() {int a = 1; } get_b() {String b = “b”; }

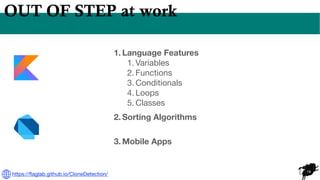

19 OUT OF STEP at work 1. Language Features 1. Variables 2. Functions 3. Conditionals 4. Loops 5. Classes 2. Sorting Algorithms 3. Mobile Apps https:// fl aglab.github.io/CloneDetection/

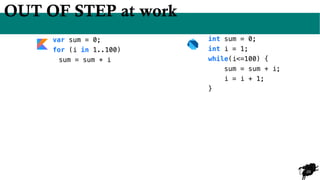

20 OUT OF STEP at work int sum = 0; int i = 1; while(i<=100) { sum = sum + i; i = i + 1; } var sum = 0; for (i in 1..100) sum = sum + i

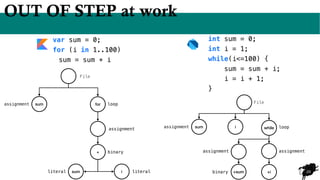

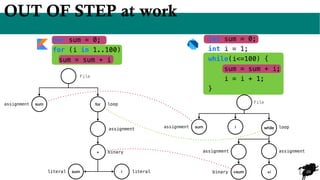

20 OUT OF STEP at work + for sum File assignment binary loop assignment +i while sum File assignment loop assignment i sum i literal literal assignment +sum binary int sum = 0; int i = 1; while(i<=100) { sum = sum + i; i = i + 1; } var sum = 0; for (i in 1..100) sum = sum + i
20 OUT OF STEP at work + for sum File assignment binary loop assignment +i while sum File assignment loop assignment i sum i literal literal assignment +sum binary int sum = 0; int i = 1; while(i<=100) { sum = sum + i; i = i + 1; } var sum = 0; for (i in 1..100) sum = sum + i
20 OUT OF STEP at work + for sum File assignment binary loop assignment +i while sum File assignment loop assignment i sum i literal literal assignment +sum binary int sum = 0; int i = 1; while(i<=100) { sum = sum + i; i = i + 1; } var sum = 0; for (i in 1..100) sum = sum + i
20 OUT OF STEP at work + for sum File assignment binary loop assignment +i while sum File assignment loop assignment i sum i literal literal assignment +sum binary int sum = 0; int i = 1; while(i<=100) { sum = sum + i; i = i + 1; } var sum = 0; for (i in 1..100) sum = sum + i
20 OUT OF STEP at work + for sum File assignment binary loop assignment +i while sum File assignment loop assignment i sum i literal literal assignment +sum binary int sum = 0; int i = 1; while(i<=100) { sum = sum + i; i = i + 1; } var sum = 0; for (i in 1..100) sum = sum + i
21 OUT OF STEP at work •52 applications evaluated (26 Kotlin, 26 Dart) •12 different application domains •(8) Medium and (18) large (> 2000LOC) applications •Different production levels (novice, intermediate, enterprise)

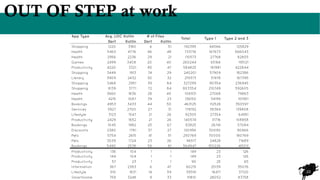

22 OUT OF STEP at work App Type Avg. LOC Kotlin # of Files Total Type 1 Type 2 and 3 Dart Kotlin Dart Kotlin Shopping 1220 3180 6 51 192395 66566 125829 Health 5463 4776 46 48 733716 167673 566043 Health 2956 2236 29 21 110573 27768 82805 Games 2499 3408 20 40 260244 65166 195121 Productivity 4220 3321 85 47 584825 161981 422844 Shopping 3449 1913 74 29 240201 57909 182386 Library 3909 2432 30 32 219373 51978 167395 Shopping 3468 2951 39 84 327299 90354 236945 Shopping 8139 3771 72 84 803354 210749 592605 Health 3660 1836 28 40 106931 27068 79863 Health 4215 1087 39 23 136150 34199 101951 Bookings 4953 3433 44 50 463125 112528 350597 Services 3927 2700 27 31 178192 38384 139808 Lifestyle 3123 1547 21 26 92305 27354 64951 Productivity 2429 1652 21 26 140574 31716 108858 Bookings 1045 1982 25 67 83825 26741 57084 Discounts 2380 1781 37 27 120956 30090 90866 Pets 5754 2615 41 51 250769 70000 180769 Pets 3039 1724 23 26 96517 24828 71689 Bookings 5490 2538 58 81 564947 150226 415011 Productivity 136 104 1 1 149 23 126 Productivity 144 104 1 1 149 23 126 Productivity 57 23 1 1 90 25 65 Information 367 2383 6 47 60215 25139 35076 Lifestyle 510 1831 14 59 55591 18471 37120 SmartHome 759 3248 9 33 111810 28052 83758

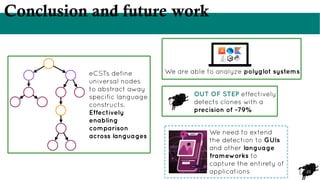

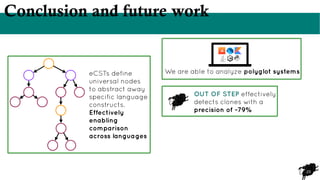

23 Conclusion and future work

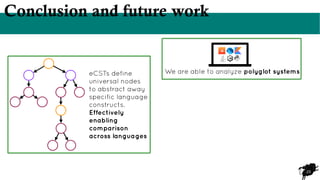

23 Conclusion and future work eCSTs define universal nodes to abstract away specific language constructs. Effectively enabling comparison across languages
23 Conclusion and future work eCSTs define universal nodes to abstract away specific language constructs. Effectively enabling comparison across languages We are able to analyze polyglot systems
23 Conclusion and future work eCSTs define universal nodes to abstract away specific language constructs. Effectively enabling comparison across languages We are able to analyze polyglot systems OUT OF STEP effectively detects clones with a precision of ~79%
23 Conclusion and future work eCSTs define universal nodes to abstract away specific language constructs. Effectively enabling comparison across languages We are able to analyze polyglot systems OUT OF STEP effectively detects clones with a precision of ~79% We need to extend the detection to GUIs and other language frameworks to capture the entirety of applications
