Compilers Are Databases
JVM Languages Summit
Martin Odersky
TypeSafe and EPFL

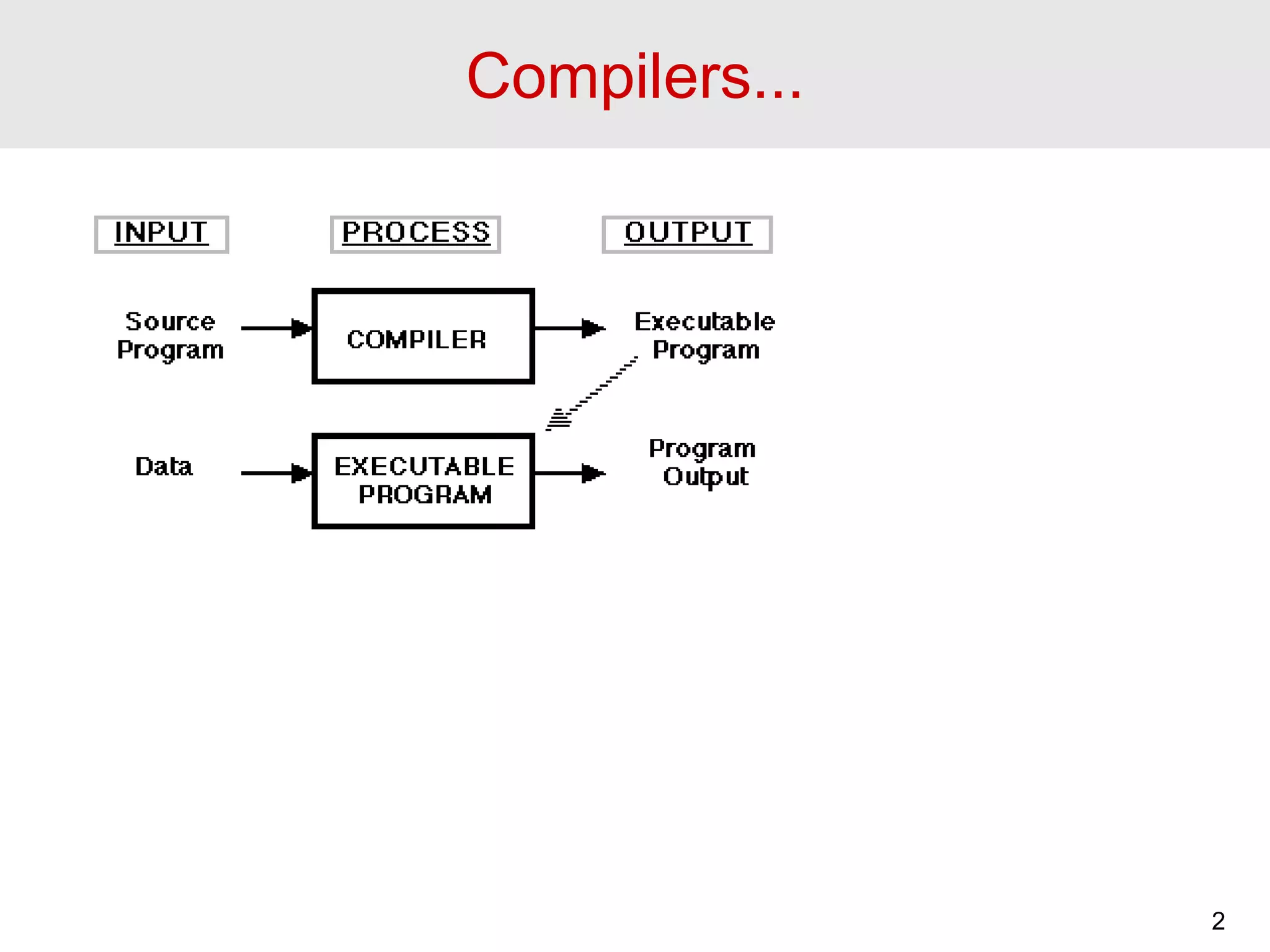

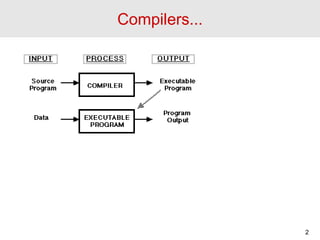

Compilers...
2

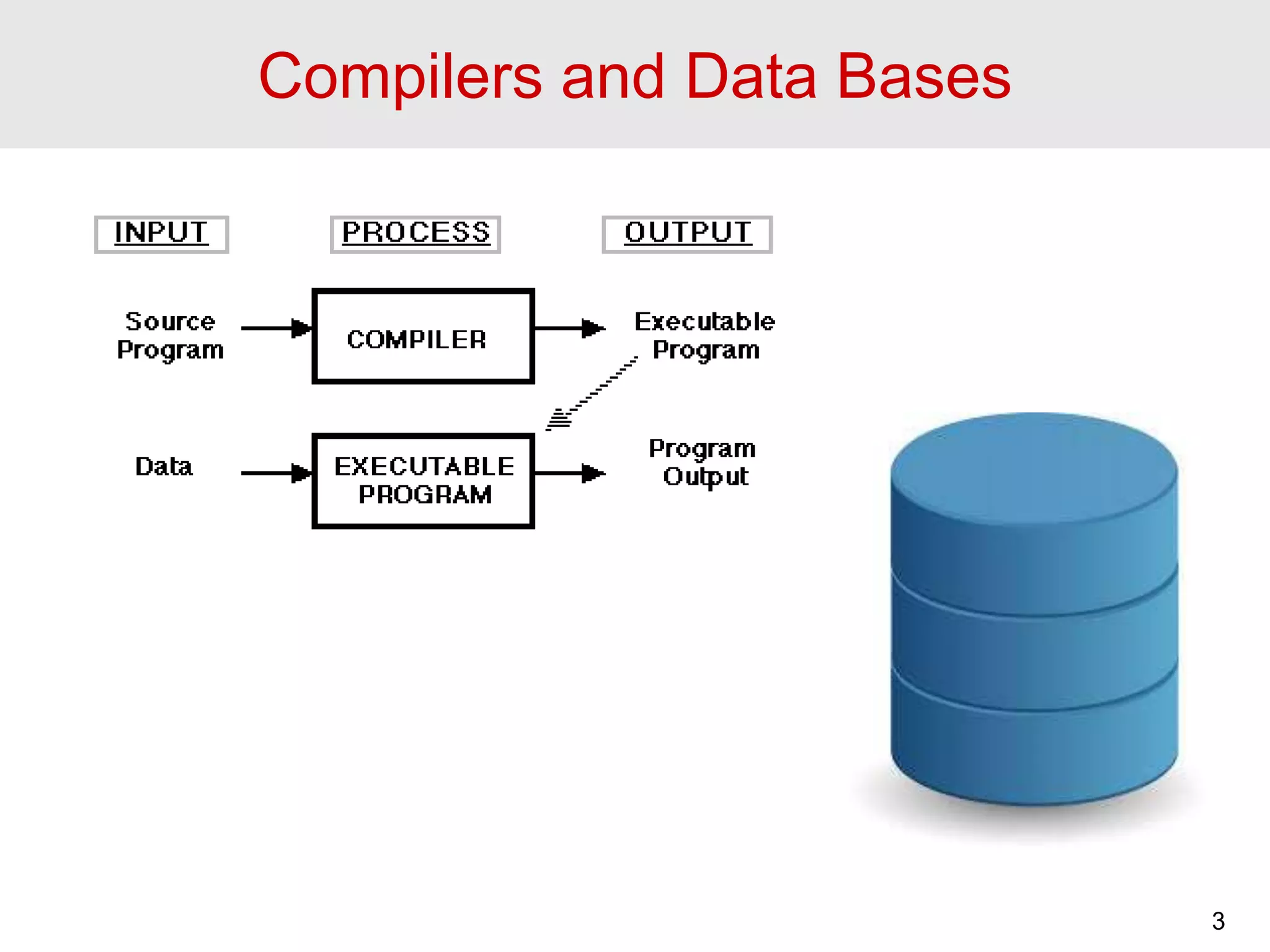

Compilers and Data Bases
3

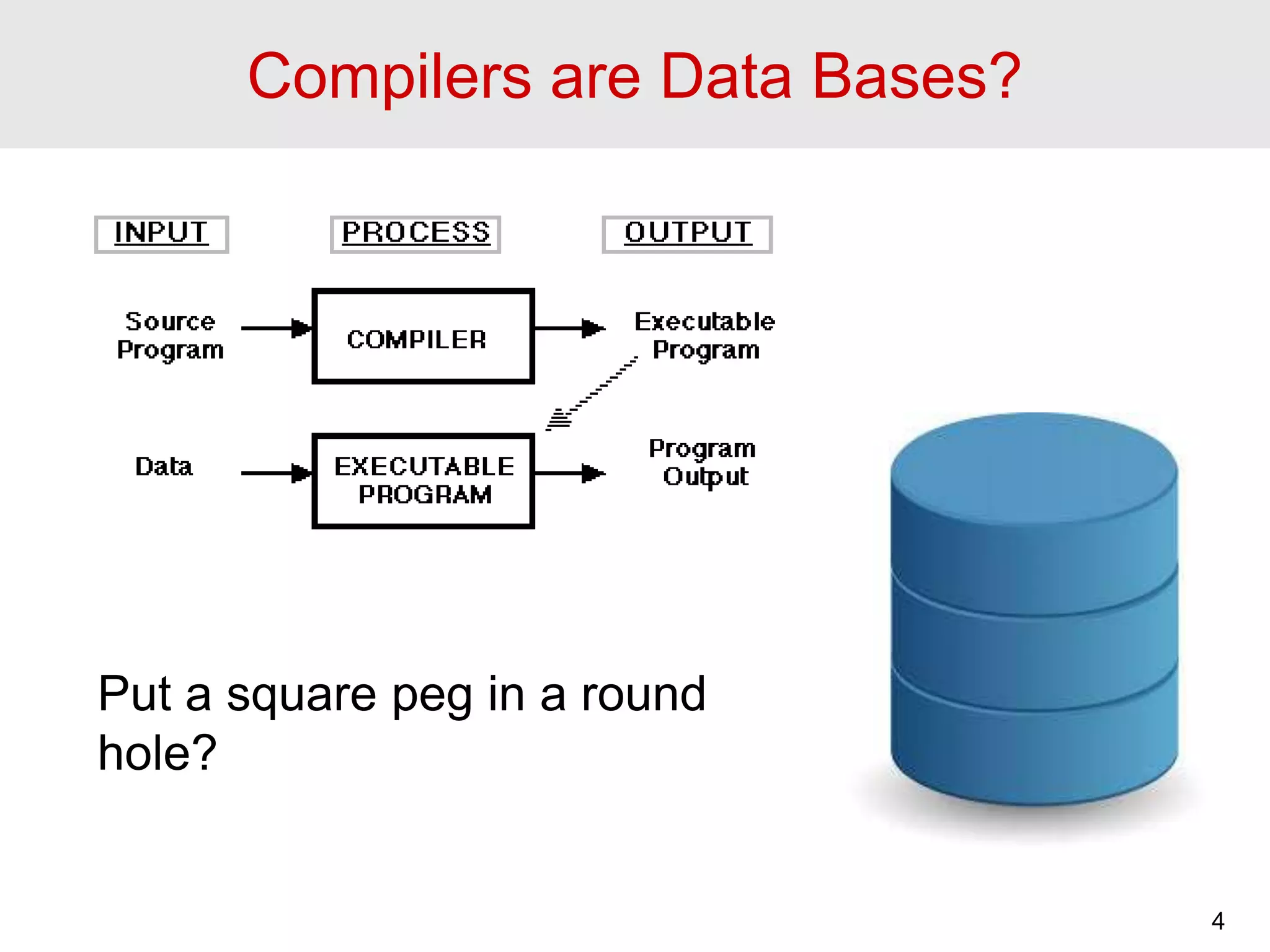

Compilers are Data Bases?
4
Put a square peg in a round
hole?

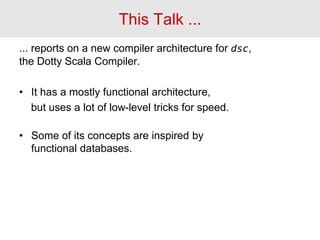

This Talk ...
... reports on a new compiler architecture for dsc,
the Dotty Scala Compiler.
• It has a mostly functional architecture,
but uses a lot of low-level tricks for speed.
• Some of its concepts are inspired by
functional databases.

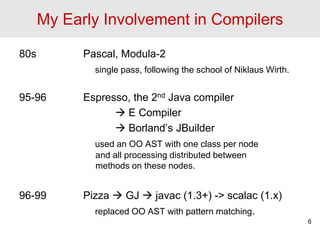

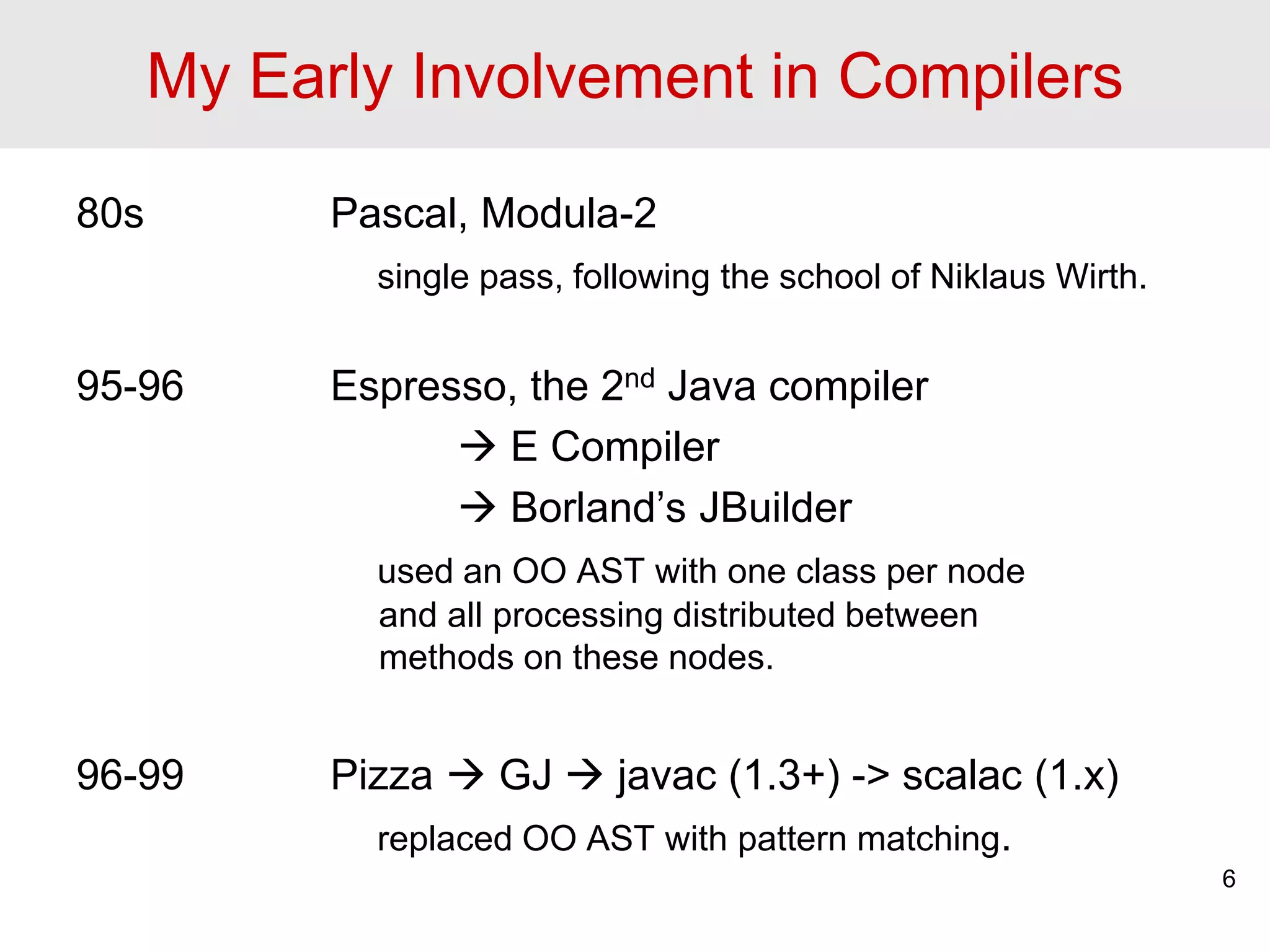

My Early Involvement in Compilers
80s Pascal, Modula-2
single pass, following the school of Niklaus Wirth.
95-96 Espresso, the 2nd Java compiler
 E Compiler
 Borland’s JBuilder
used an OO AST with one class per node
and all processing distributed between
methods on these nodes.
96-99 Pizza  GJ  javac (1.3+) -> scalac (1.x)
replaced OO AST with pattern matching.
6

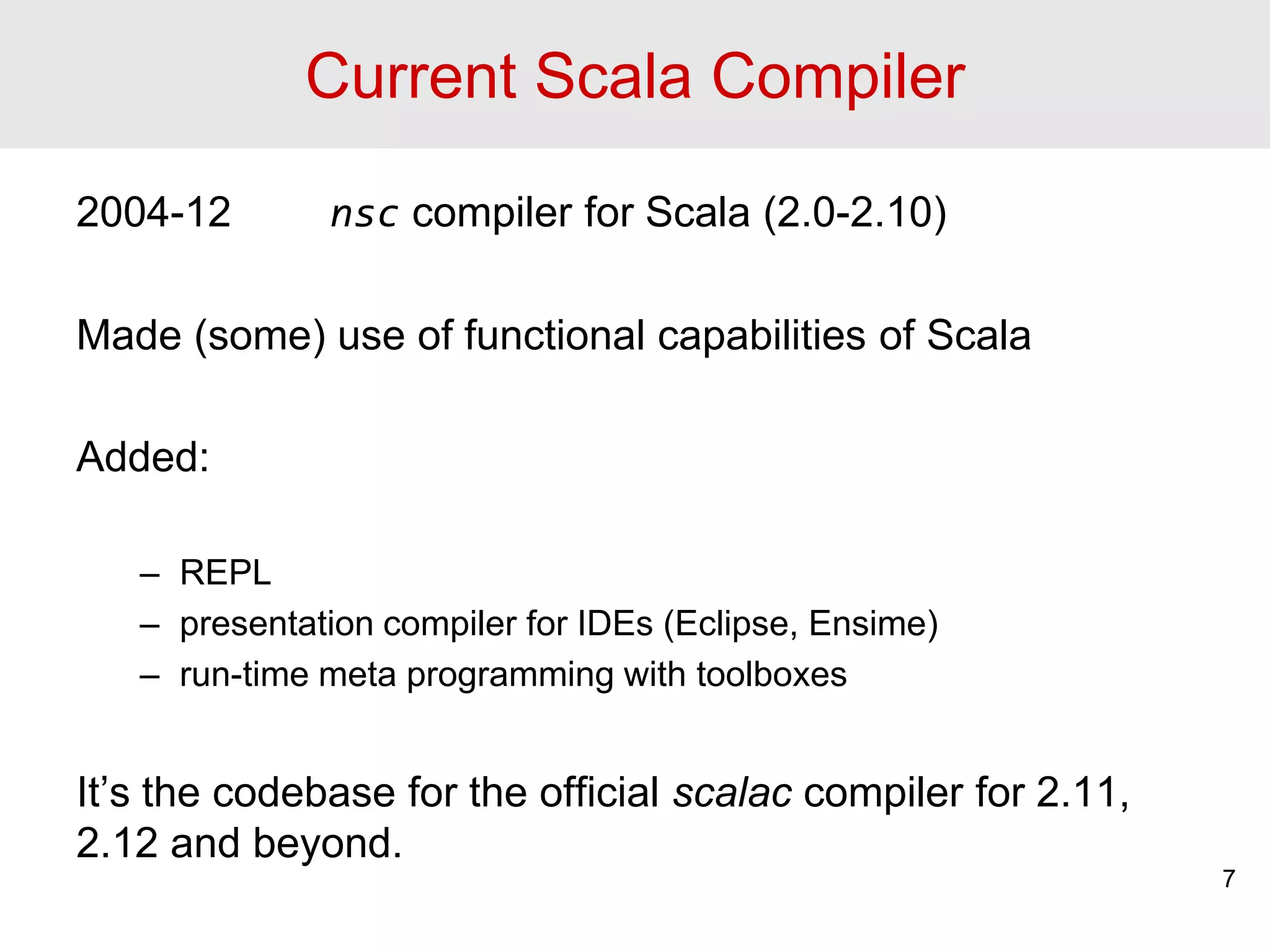

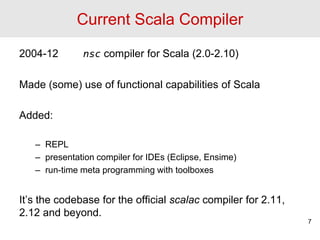

Current Scala Compiler
2004-12 nsc compiler for Scala (2.0-2.10)
Made (some) use of functional capabilities of Scala
Added:
– REPL
– presentation compiler for IDEs (Eclipse, Ensime)
– run-time meta programming with toolboxes
It’s the codebase for the official scalac compiler for 2.11,
2.12 and beyond.
7

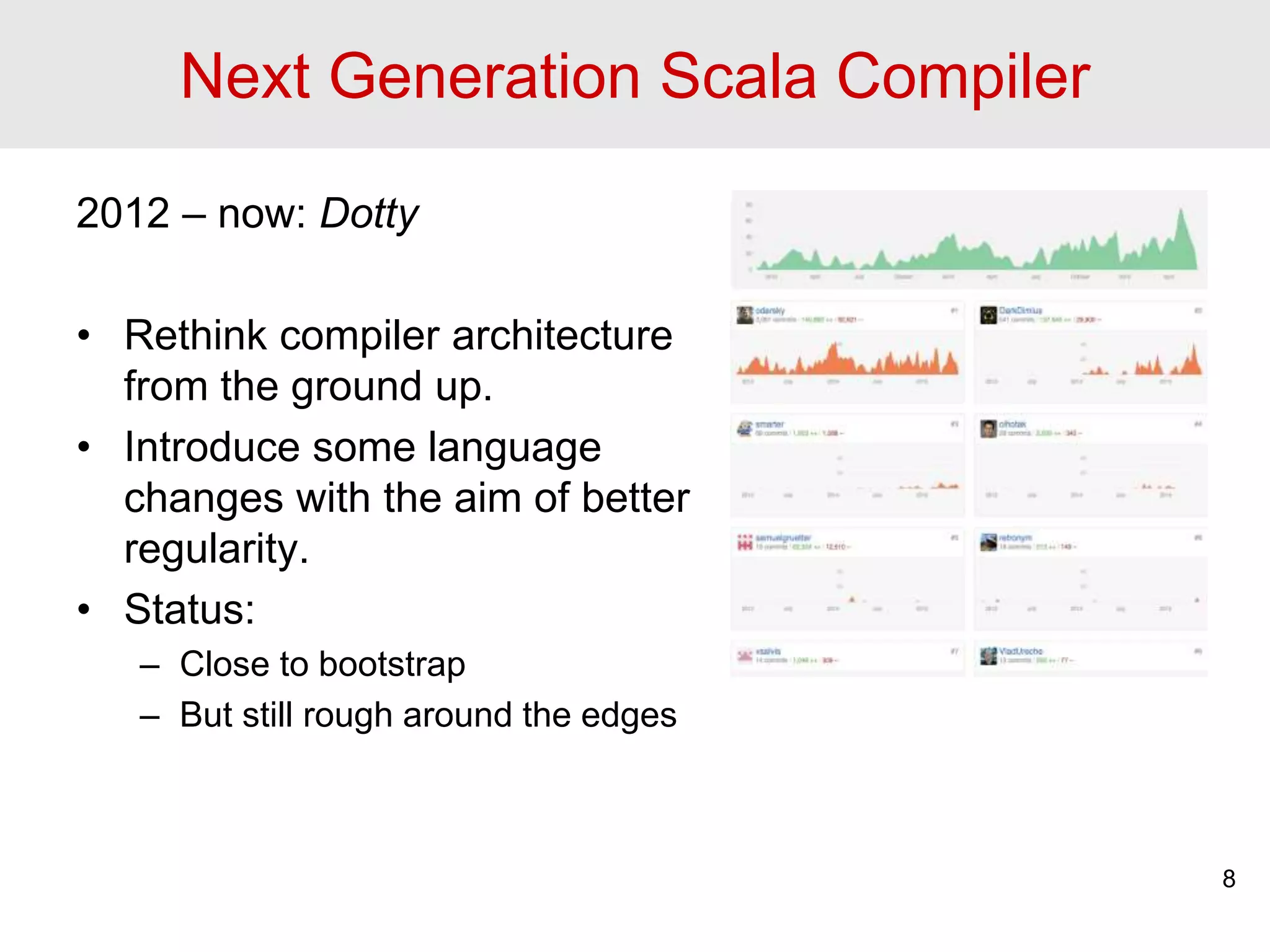

Next Generation Scala Compiler
2012 – now: Dotty
• Rethink compiler architecture
from the ground up.
• Introduce some language
changes with the aim of better
regularity.
• Status:
– Close to bootstrap
– But still rough around the edges
8

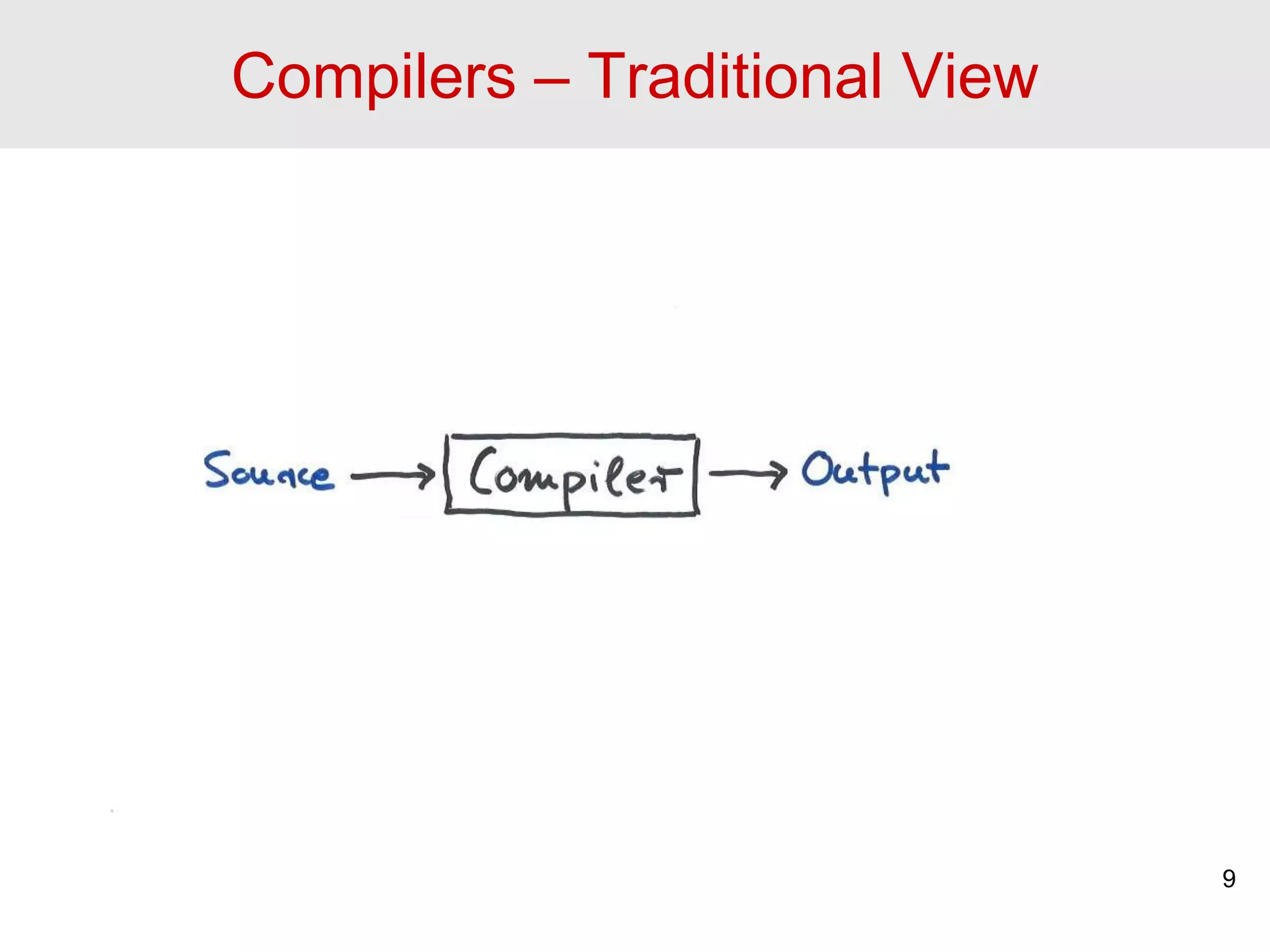

Compilers – Traditional View
9

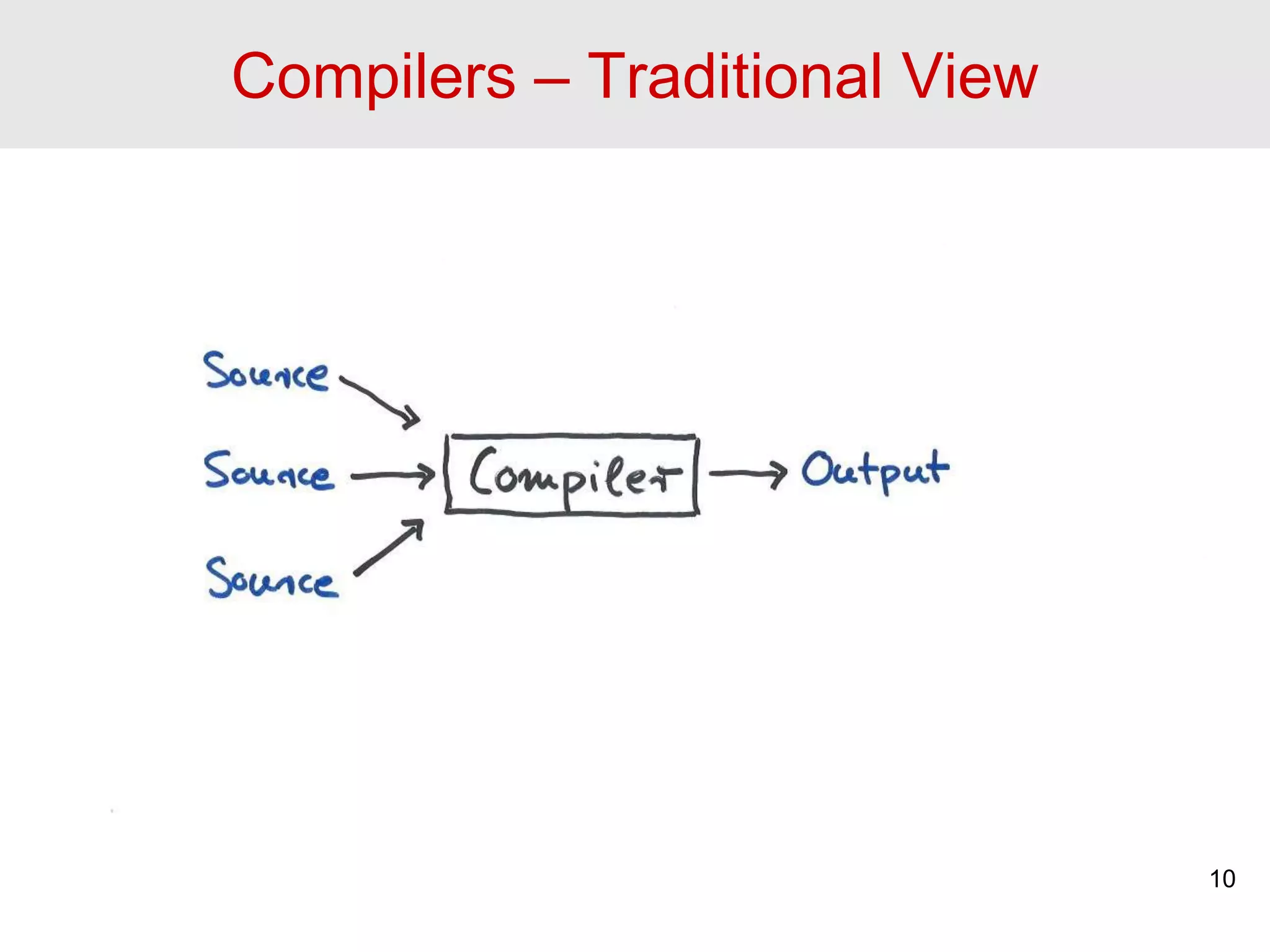

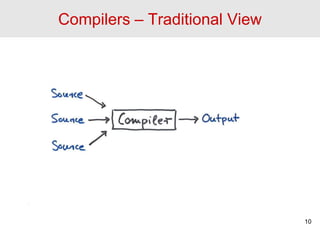

Compilers – Traditional View
10

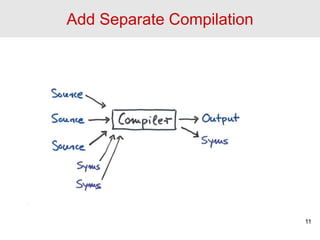

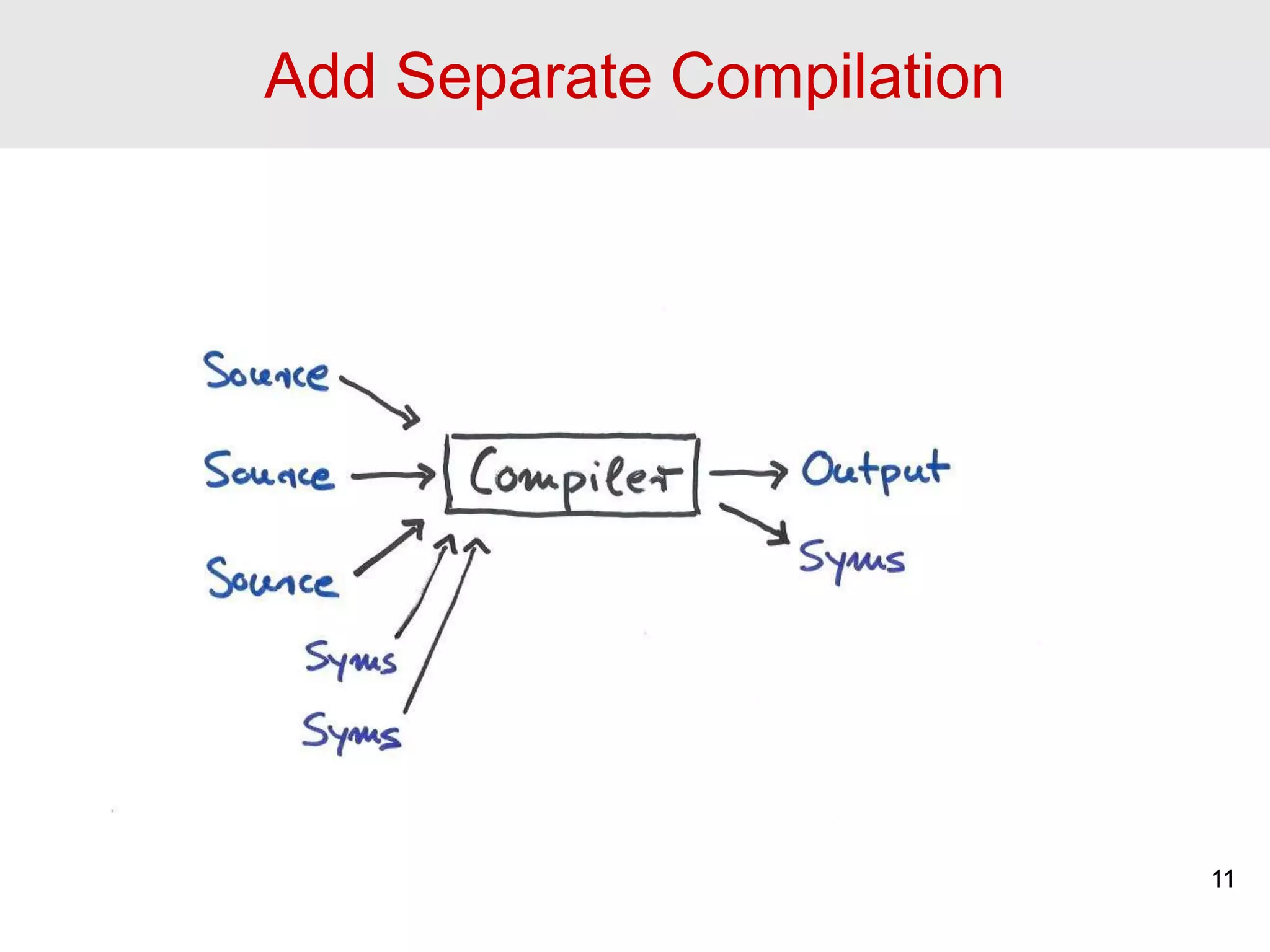

Add Separate Compilation
11

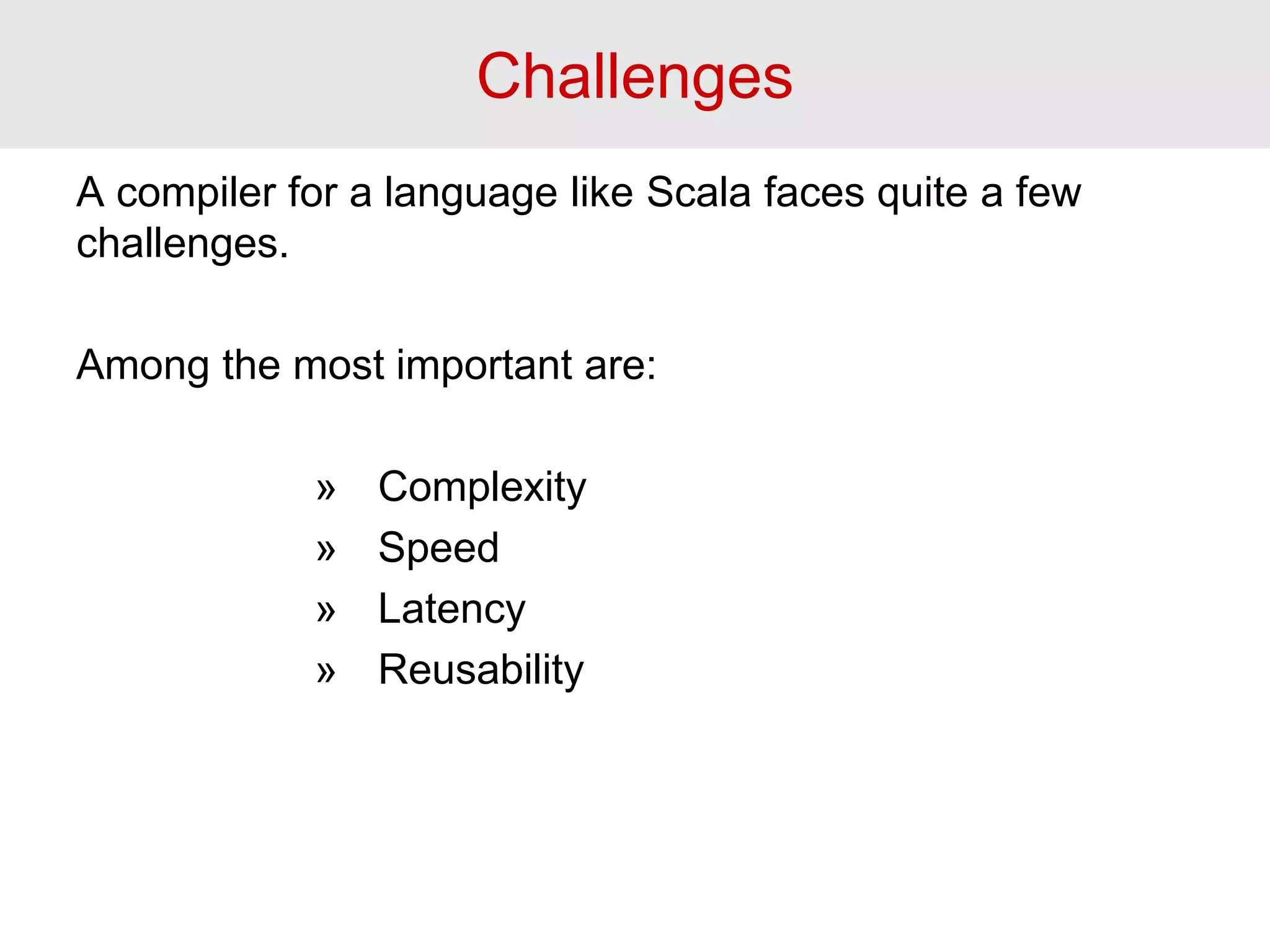

Challenges
A compiler for a language like Scala faces quite a few
challenges.
Among the most important are:
» Complexity
» Speed
» Latency
» Reusability

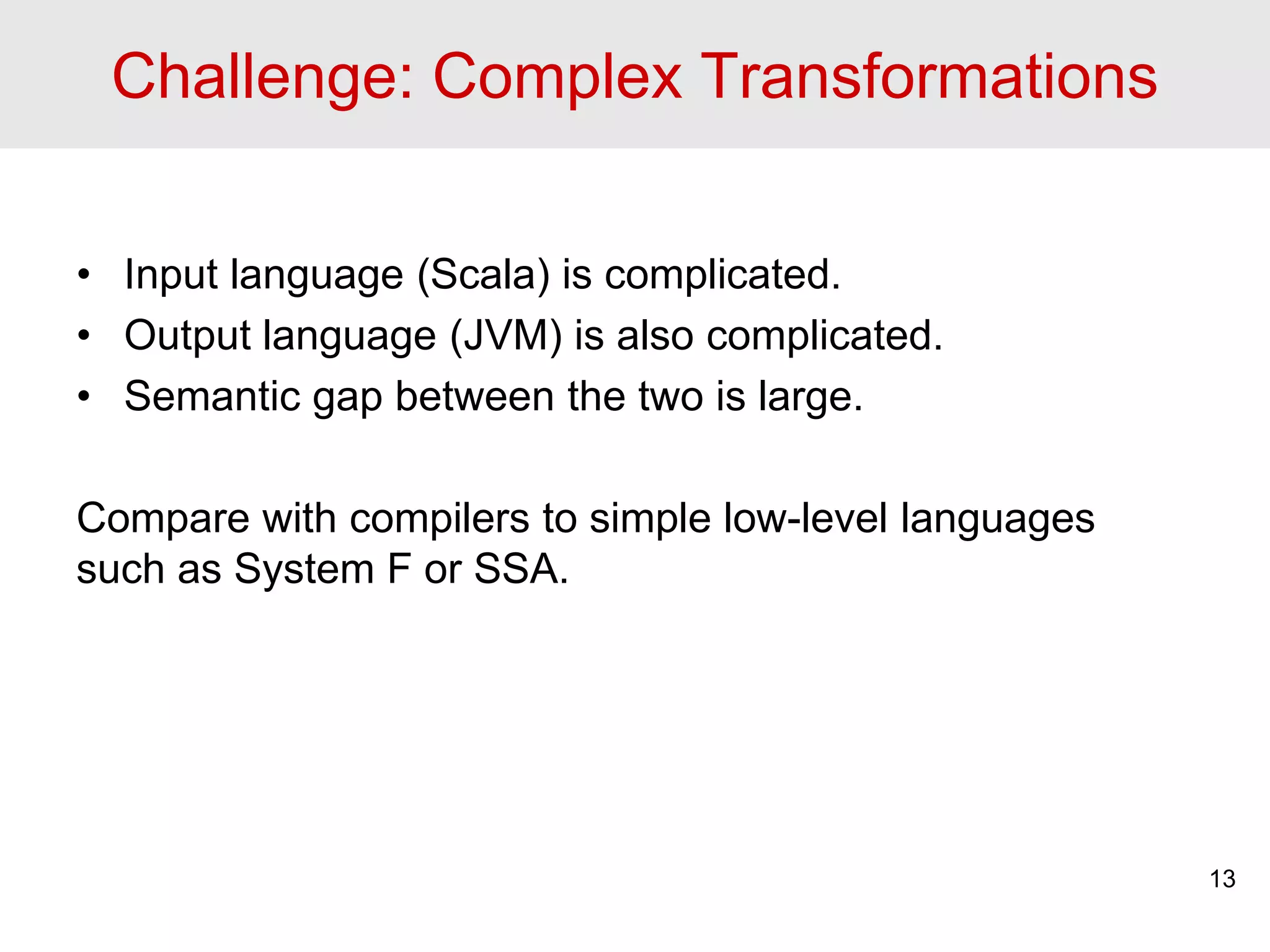

Challenge: Complex Transformations
• Input language (Scala) is complicated.
• Output language (JVM) is also complicated.
• Semantic gap between the two is large.
Compare with compilers to simple low-level languages
such as System F or SSA.
13

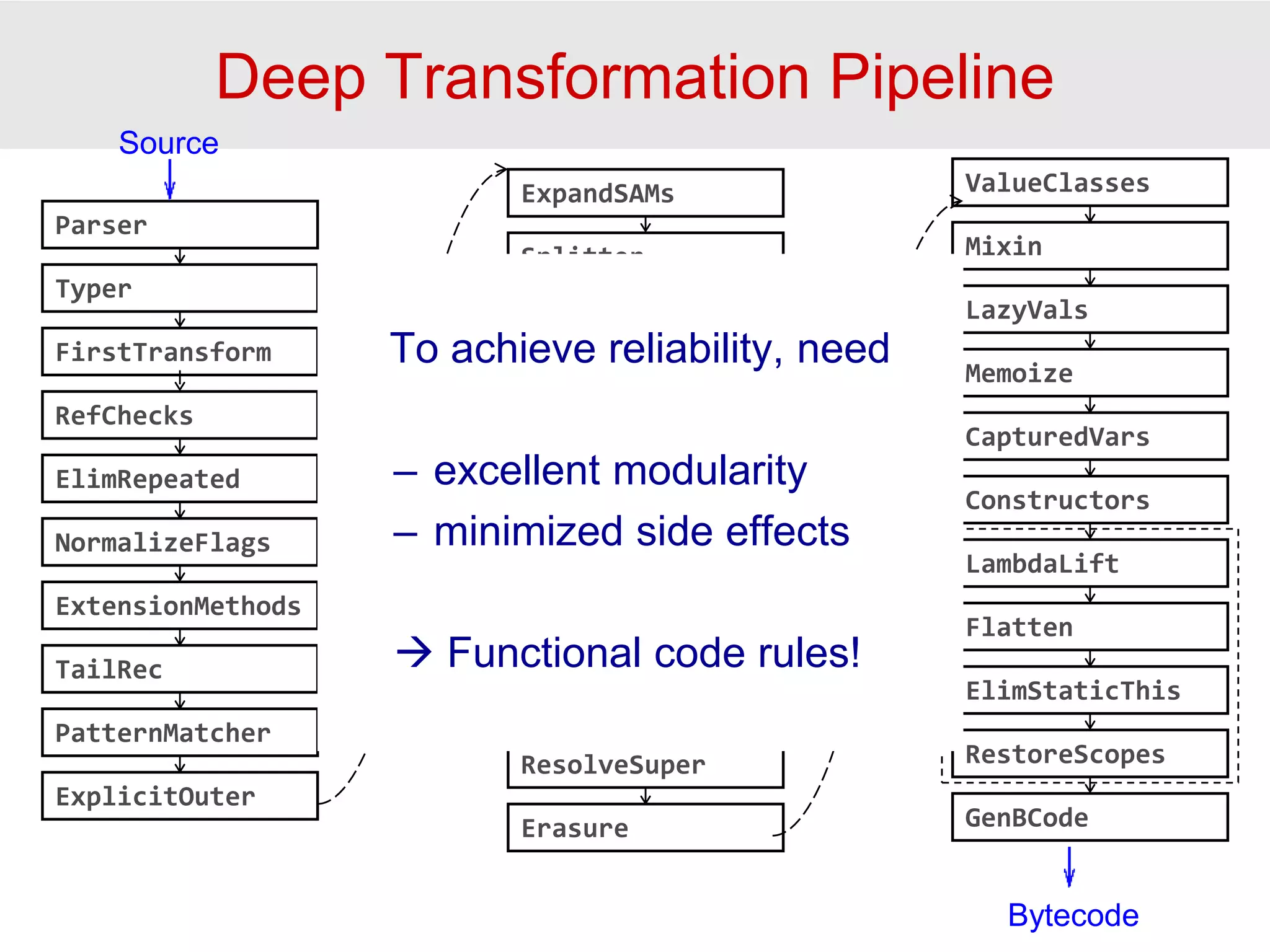

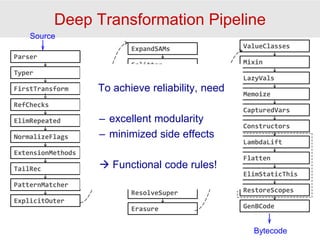

Deep Transformation Pipeline
Parser
Typer
FirstTransform
ValueClasses
Mixin
LazyVals
Memoize
CapturedVars
Constructors
LambdaLift
Flatten
ElimStaticThis
RestoreScopes
GenBCode
Source
Bytecode
RefChecks
ElimRepeated
NormalizeFlags
ExtensionMethods
TailRec
PatternMatcher
ExplicitOuter
ExpandSAMs
Splitter
SeqLiterals
InterceptedMeths
Literalize
Getters
ClassTags
ElimByName
AugmentS2Traits
ResolveSuper
Erasure
To achieve reliability, need
– excellent modularity
– minimized side effects
 Functional code rules!

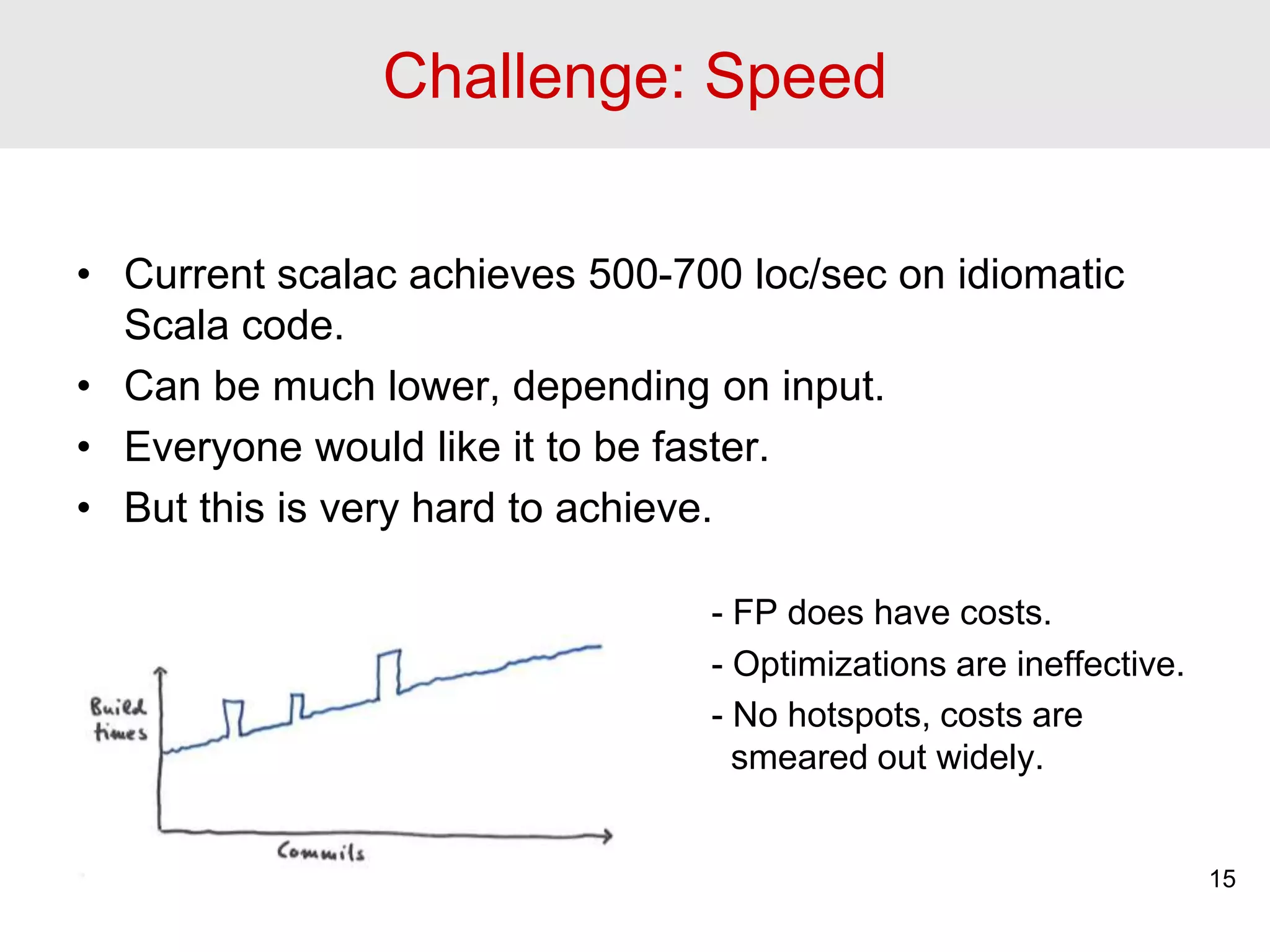

Challenge: Speed
• Current scalac achieves 500-700 loc/sec on idiomatic
Scala code.
• Can be much lower, depending on input.
• Everyone would like it to be faster.
• But this is very hard to achieve.
- FP does have costs.
- Optimizations are ineffective.
- No hotspots, costs are
smeared out widely.
15

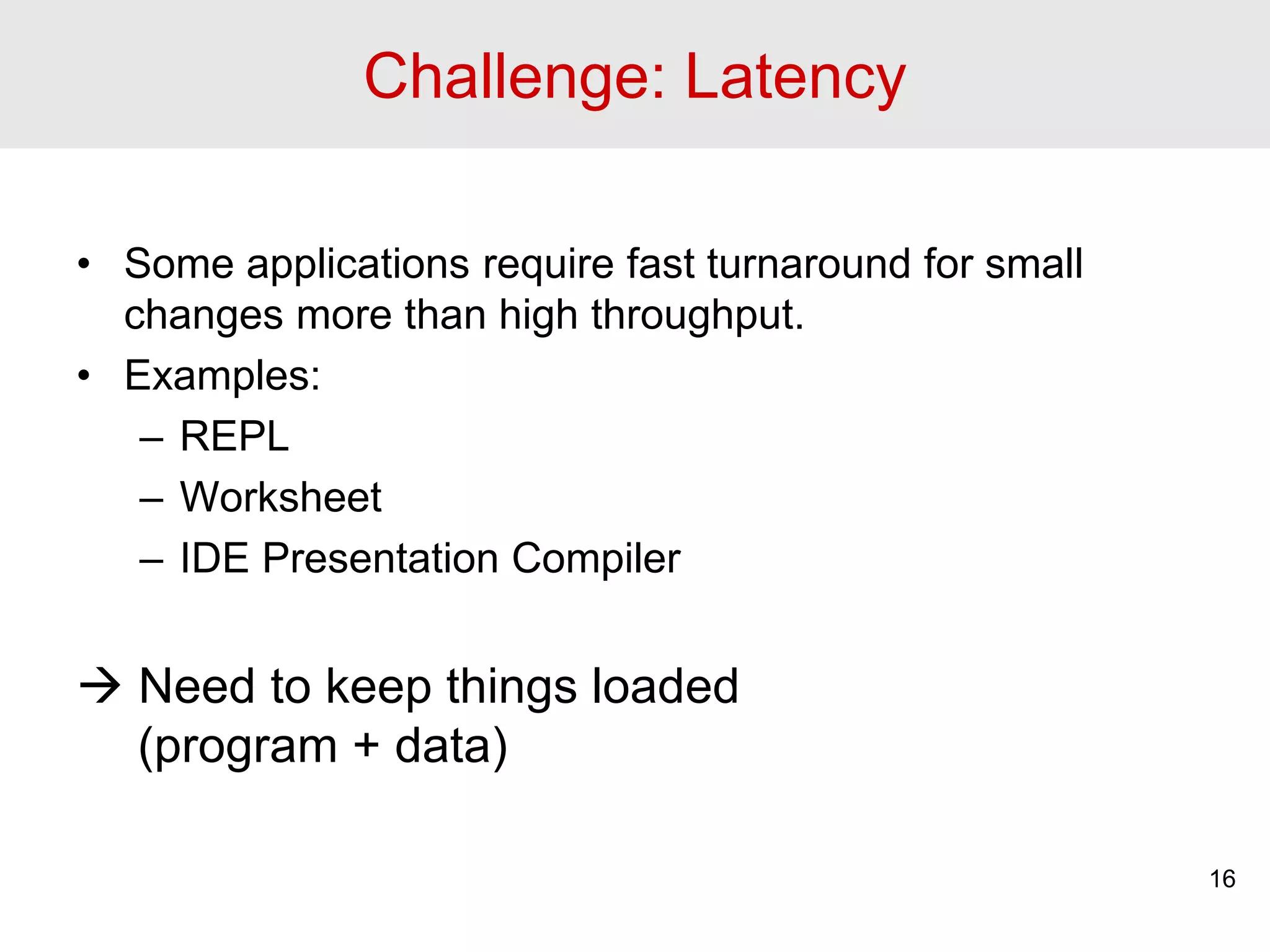

Challenge: Latency
• Some applications require fast turnaround for small
changes more than high throughput.
• Examples:
– REPL
– Worksheet
– IDE Presentation Compiler
 Need to keep things loaded
(program + data)
16

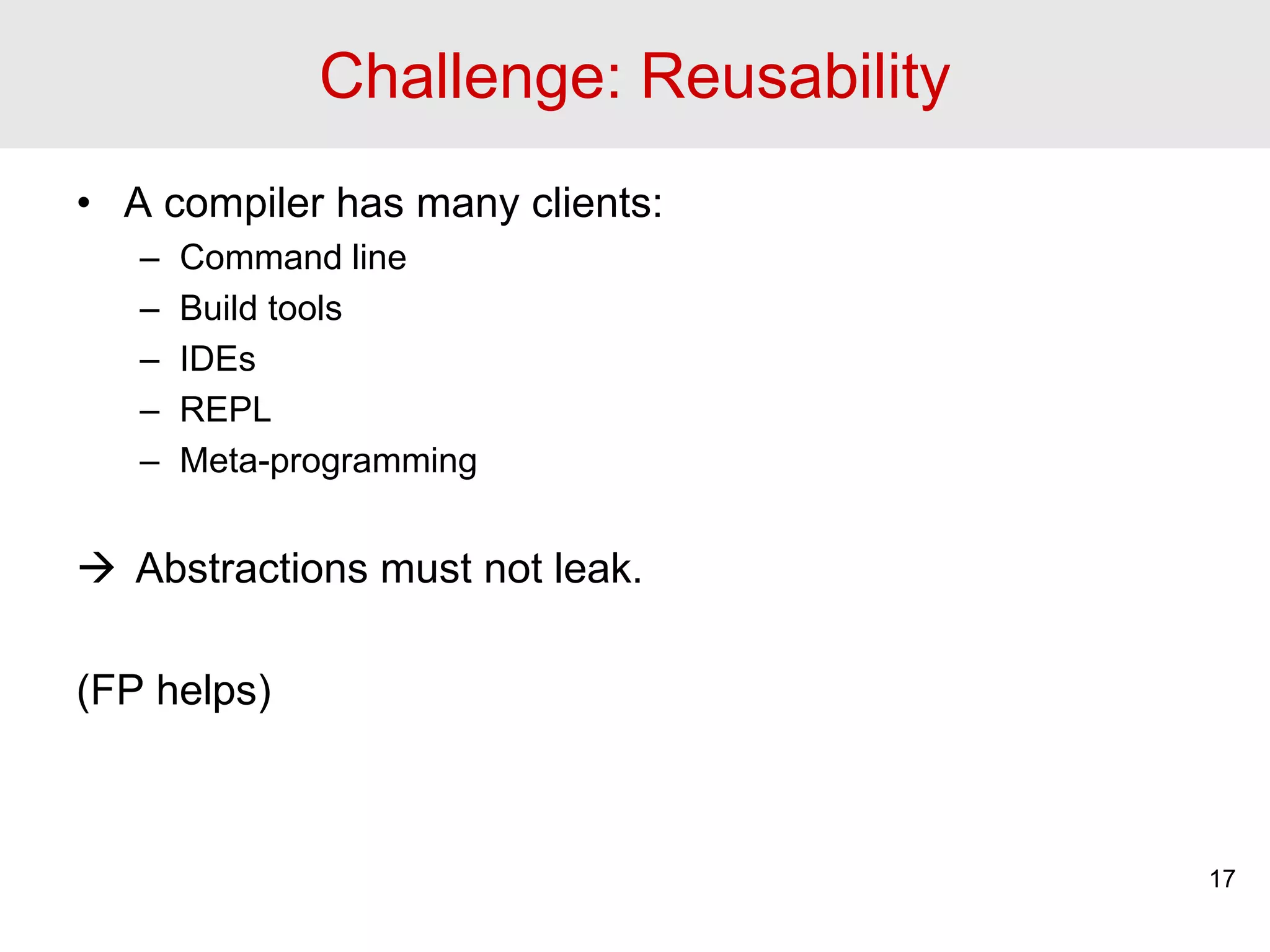

Challenge: Reusability
• A compiler has many clients:
– Command line
– Build tools
– IDEs
– REPL
– Meta-programming
 Abstractions must not leak.
(FP helps)
17

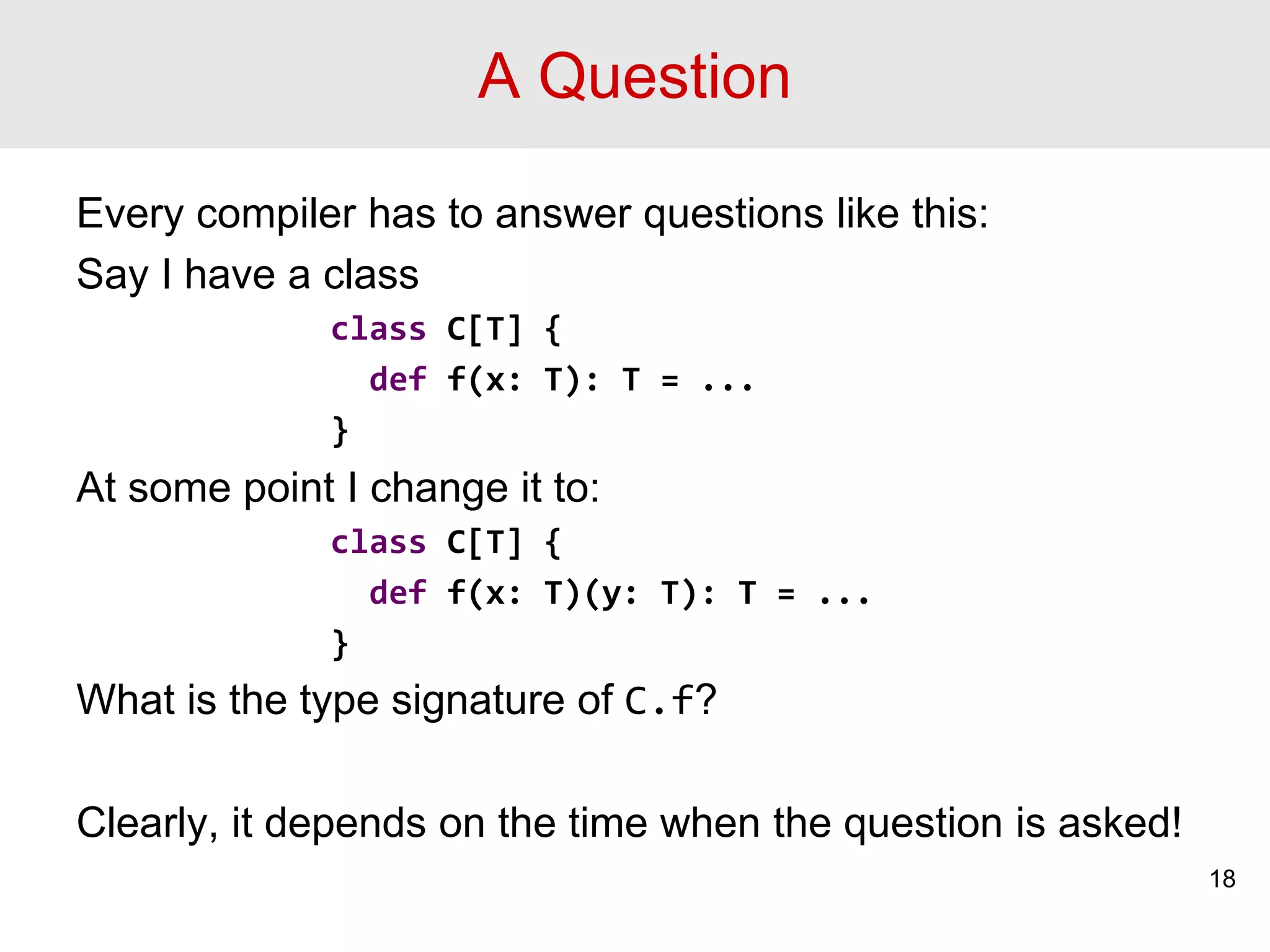

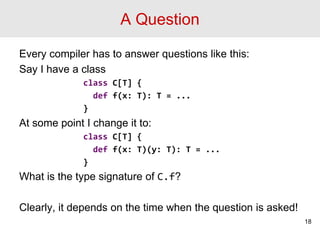

A Question
Every compiler has to answer questions like this:
Say I have a class
class C[T] {
def f(x: T): T = ...
}
At some point I change it to:
class C[T] {
def f(x: T)(y: T): T = ...
}
What is the type signature of C.f?
Clearly, it depends on the time when the question is asked!
18

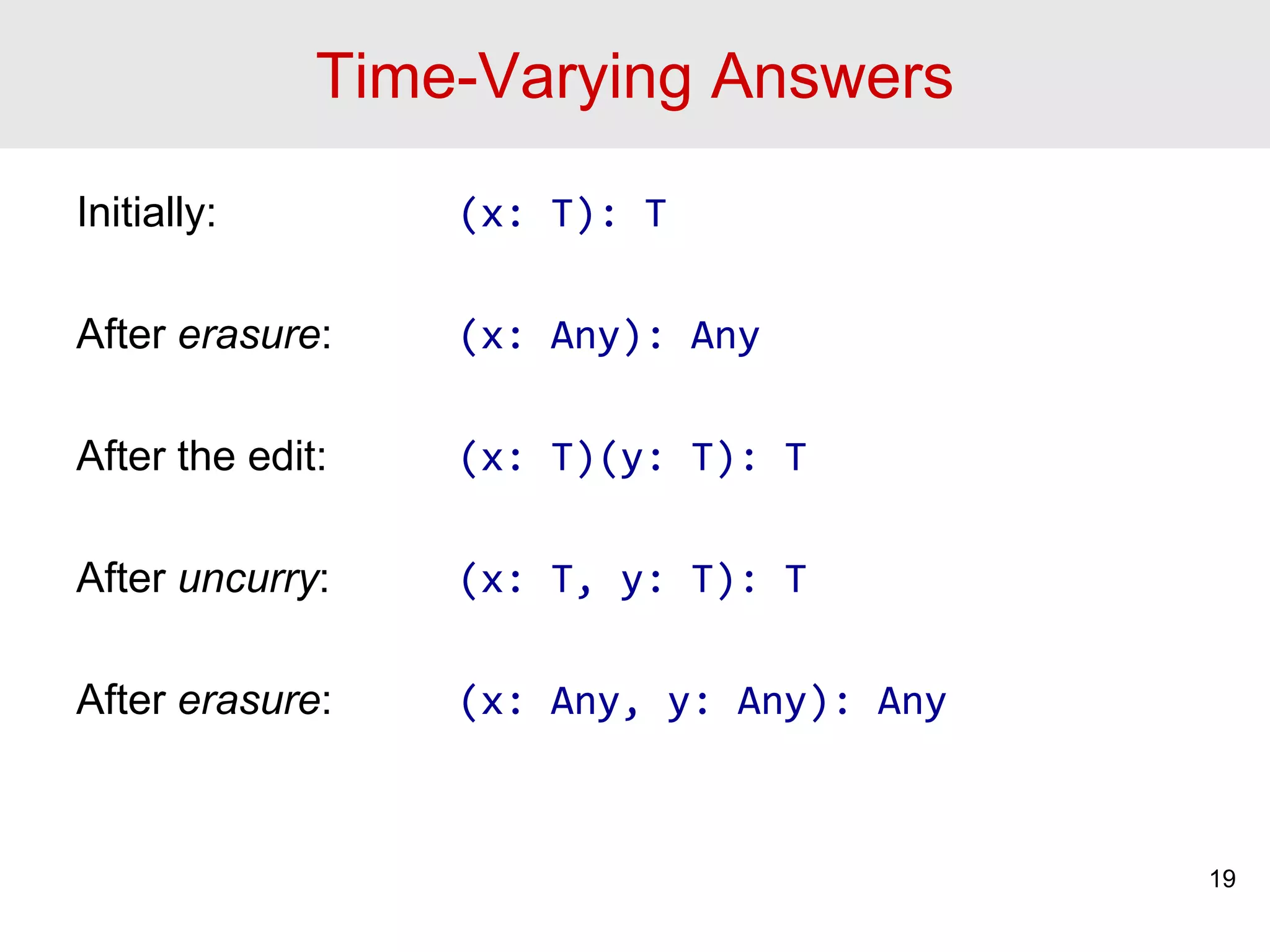

Time-Varying Answers
Initially: (x: T): T
After erasure: (x: Any): Any
After the edit: (x: T)(y: T): T
After uncurry: (x: T, y: T): T
After erasure: (x: Any, y: Any): Any
19

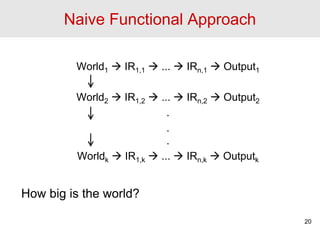

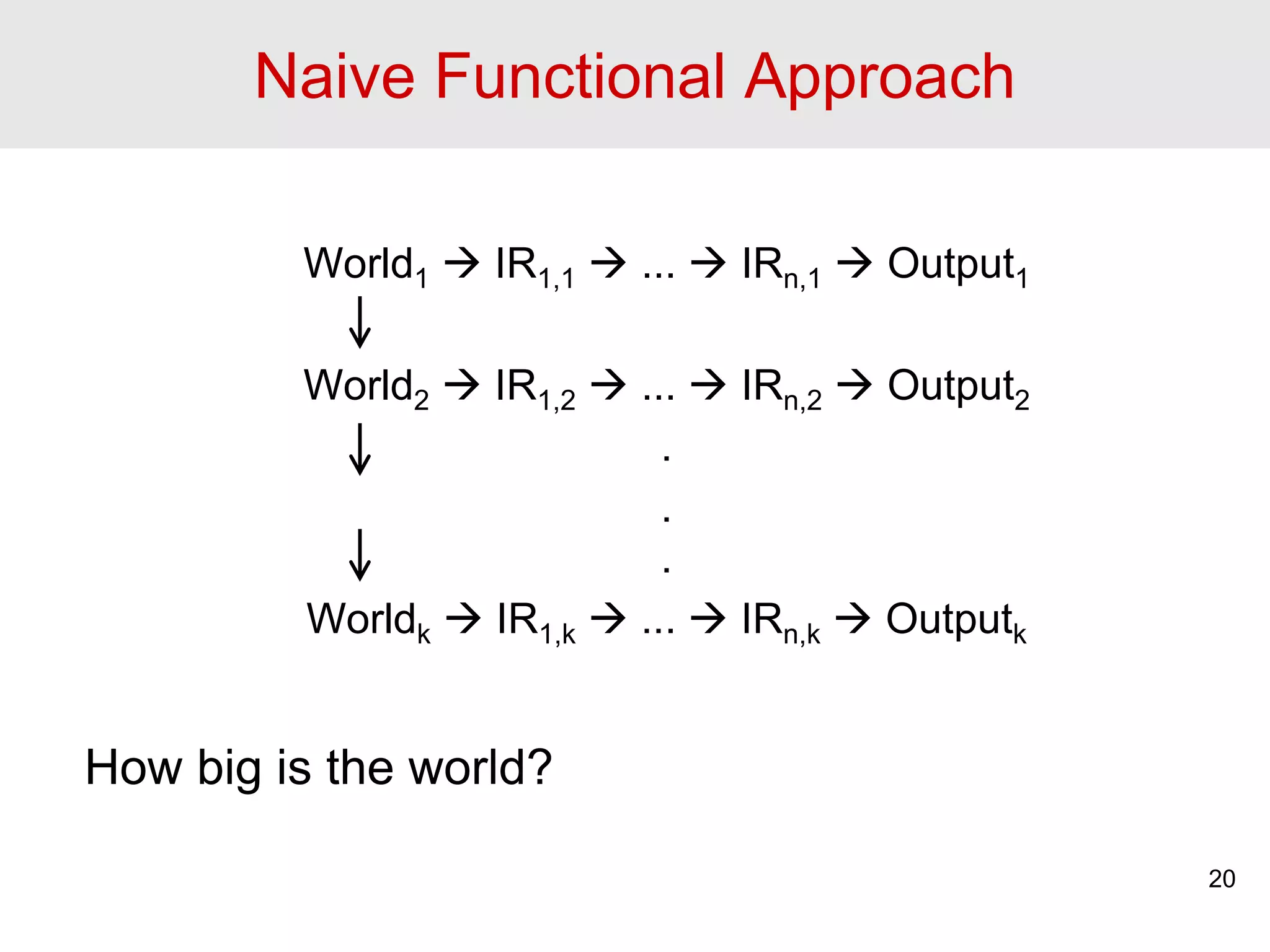

Naive Functional Approach
World1  IR1,1  ...  IRn,1  Output1
World2  IR1,2  ...  IRn,2  Output2
.
.
.
Worldk  IR1,k  ...  IRn,k  Outputk
How big is the world?
20

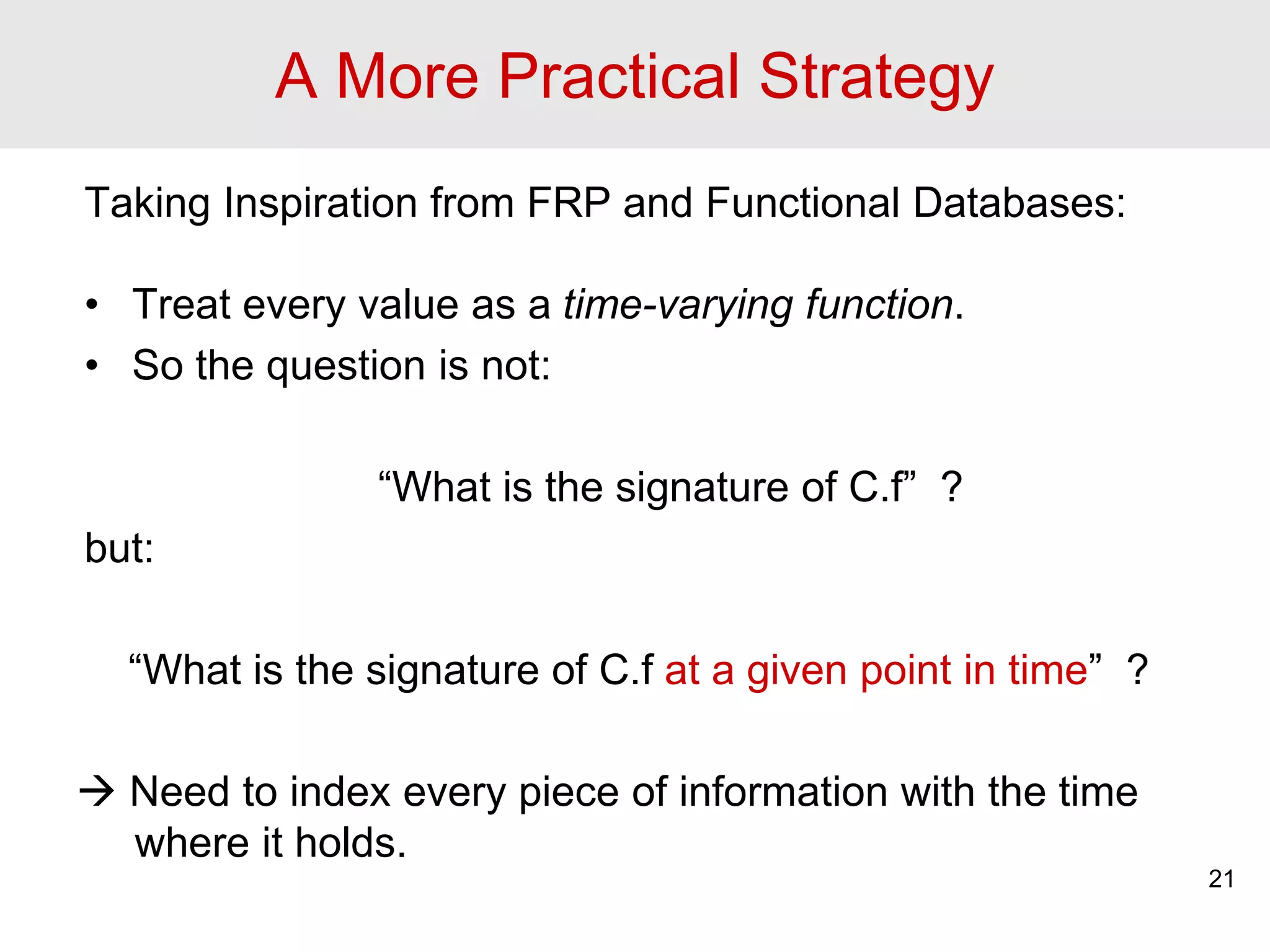

A More Practical Strategy
Taking Inspiration from FRP and Functional Databases:
• Treat every value as a time-varying function.
• So the question is not:
“What is the signature of C.f” ?
but:
“What is the signature of C.f at a given point in time” ?
 Need to index every piece of information with the time
where it holds.
21

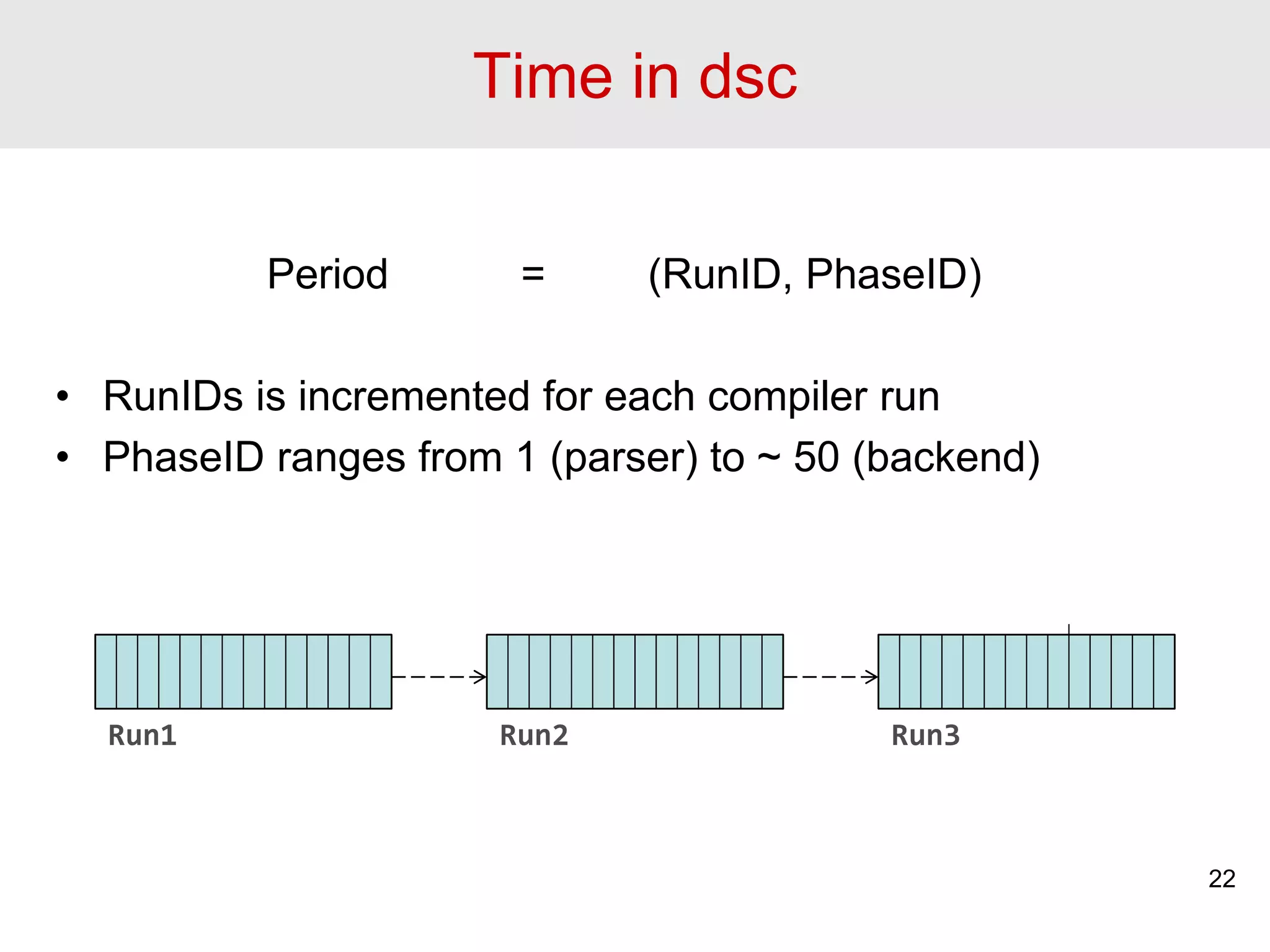

Time in dsc
Period = (RunID, PhaseID)
• RunIDs is incremented for each compiler run
• PhaseID ranges from 1 (parser) to ~ 50 (backend)
22
Run1 Run2 Run3

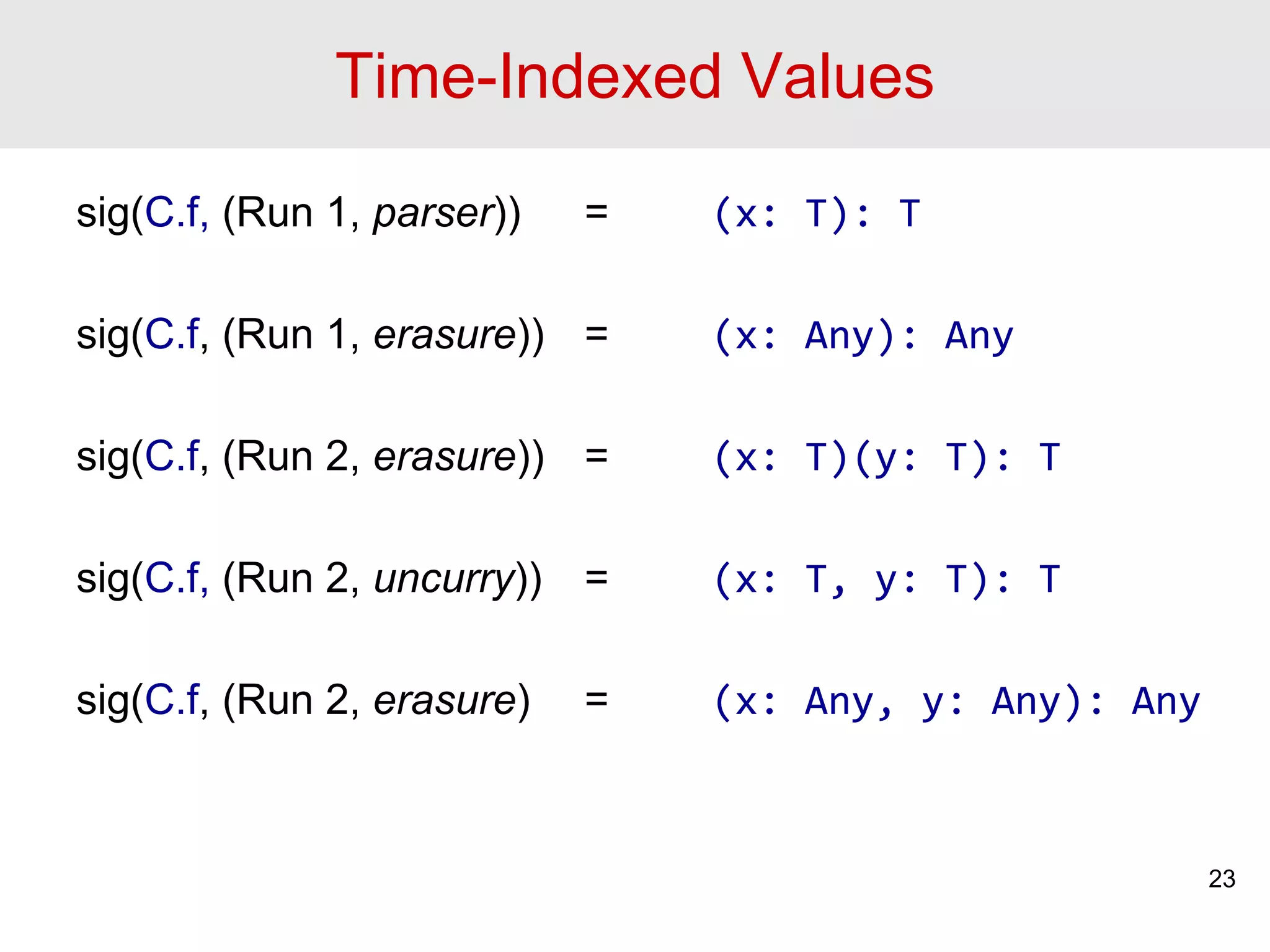

Time-Indexed Values
sig(C.f, (Run 1, parser)) = (x: T): T
sig(C.f, (Run 1, erasure)) = (x: Any): Any
sig(C.f, (Run 2, erasure)) = (x: T)(y: T): T
sig(C.f, (Run 2, uncurry)) = (x: T, y: T): T
sig(C.f, (Run 2, erasure) = (x: Any, y: Any): Any
23

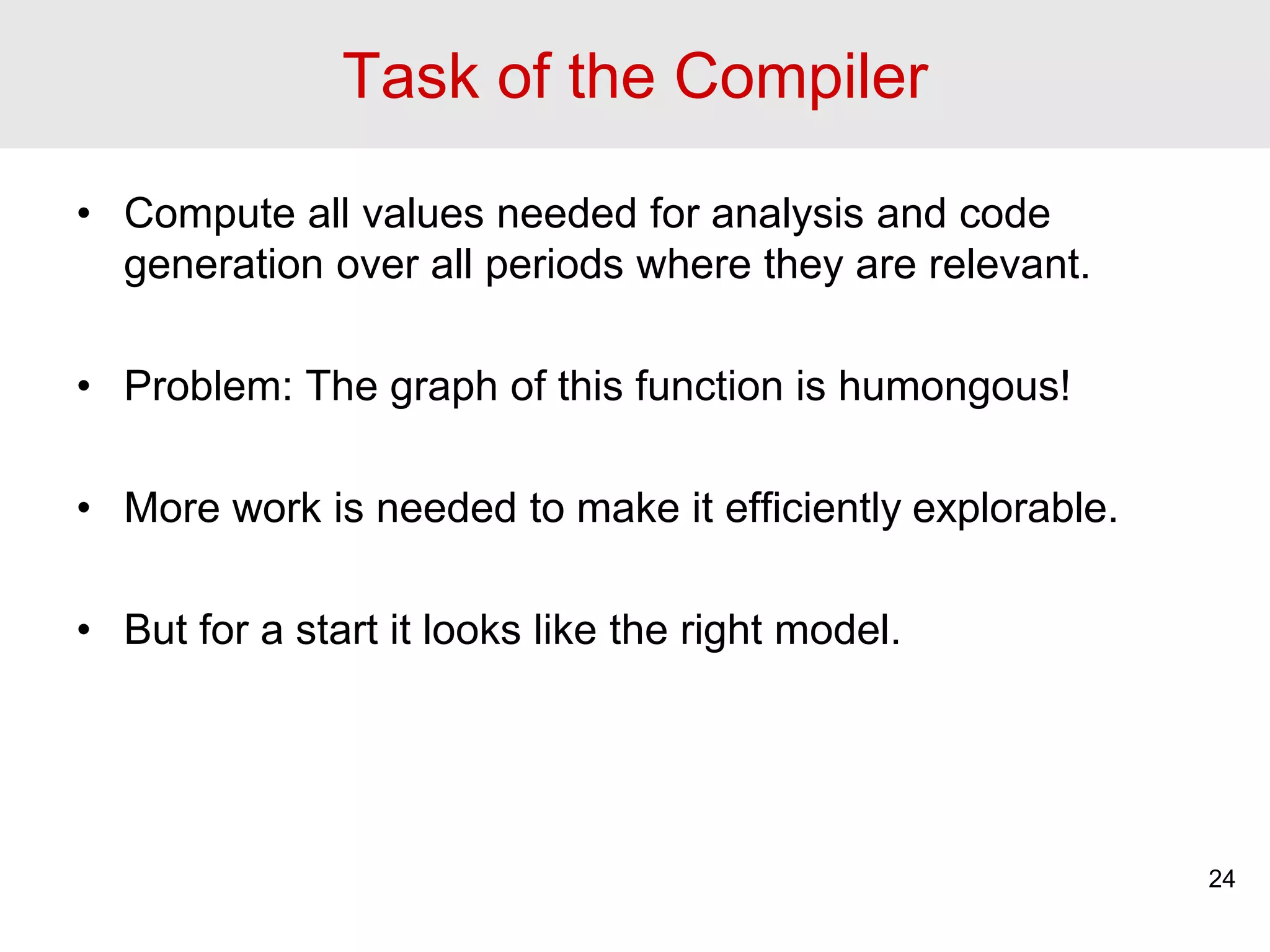

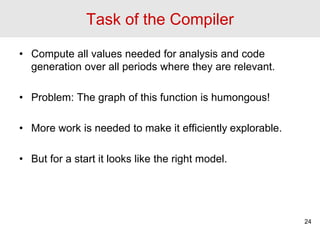

Task of the Compiler
• Compute all values needed for analysis and code
generation over all periods where they are relevant.
• Problem: The graph of this function is humongous!
• More work is needed to make it efficiently explorable.
• But for a start it looks like the right model.
24

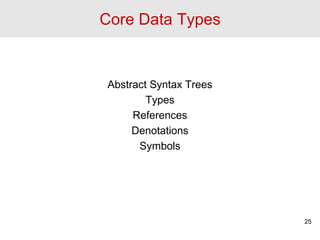

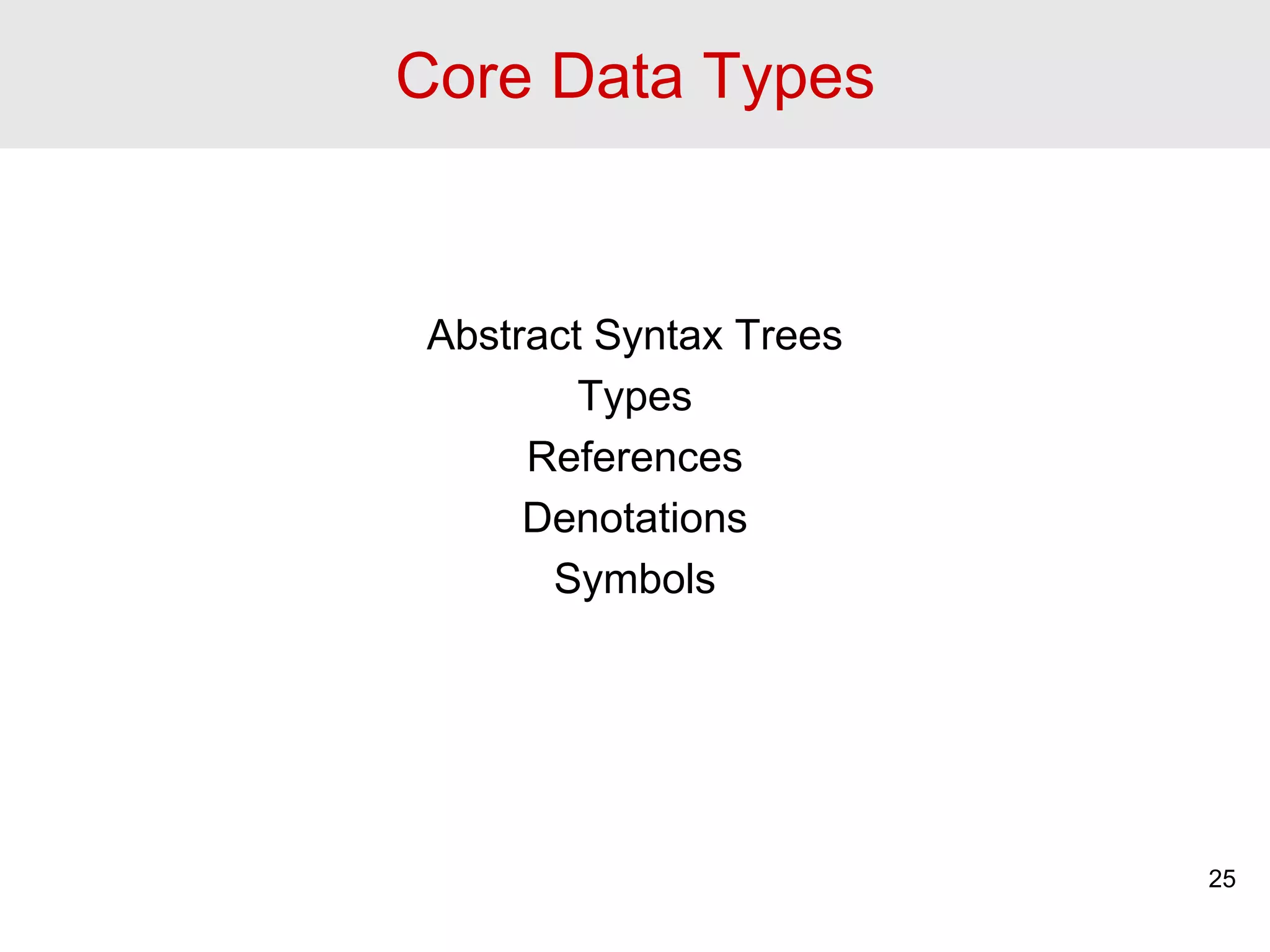

Core Data Types
Abstract Syntax Trees
Types
References
Denotations
Symbols
25

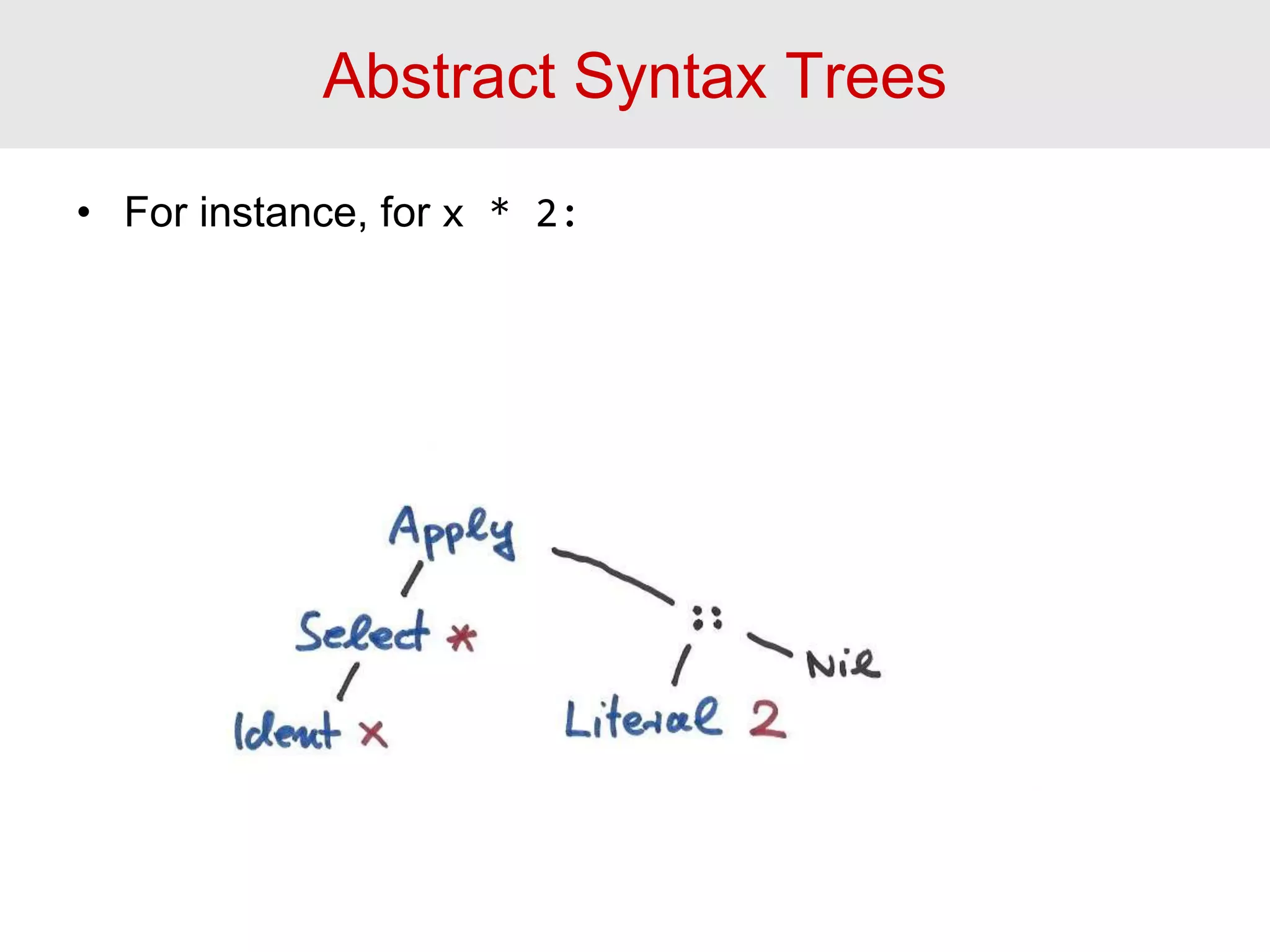

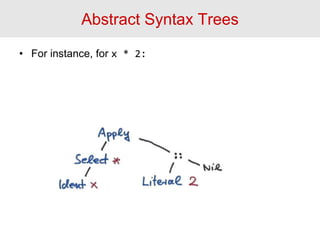

Abstract Syntax Trees
• For instance, for x * 2:
26

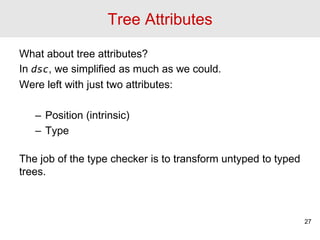

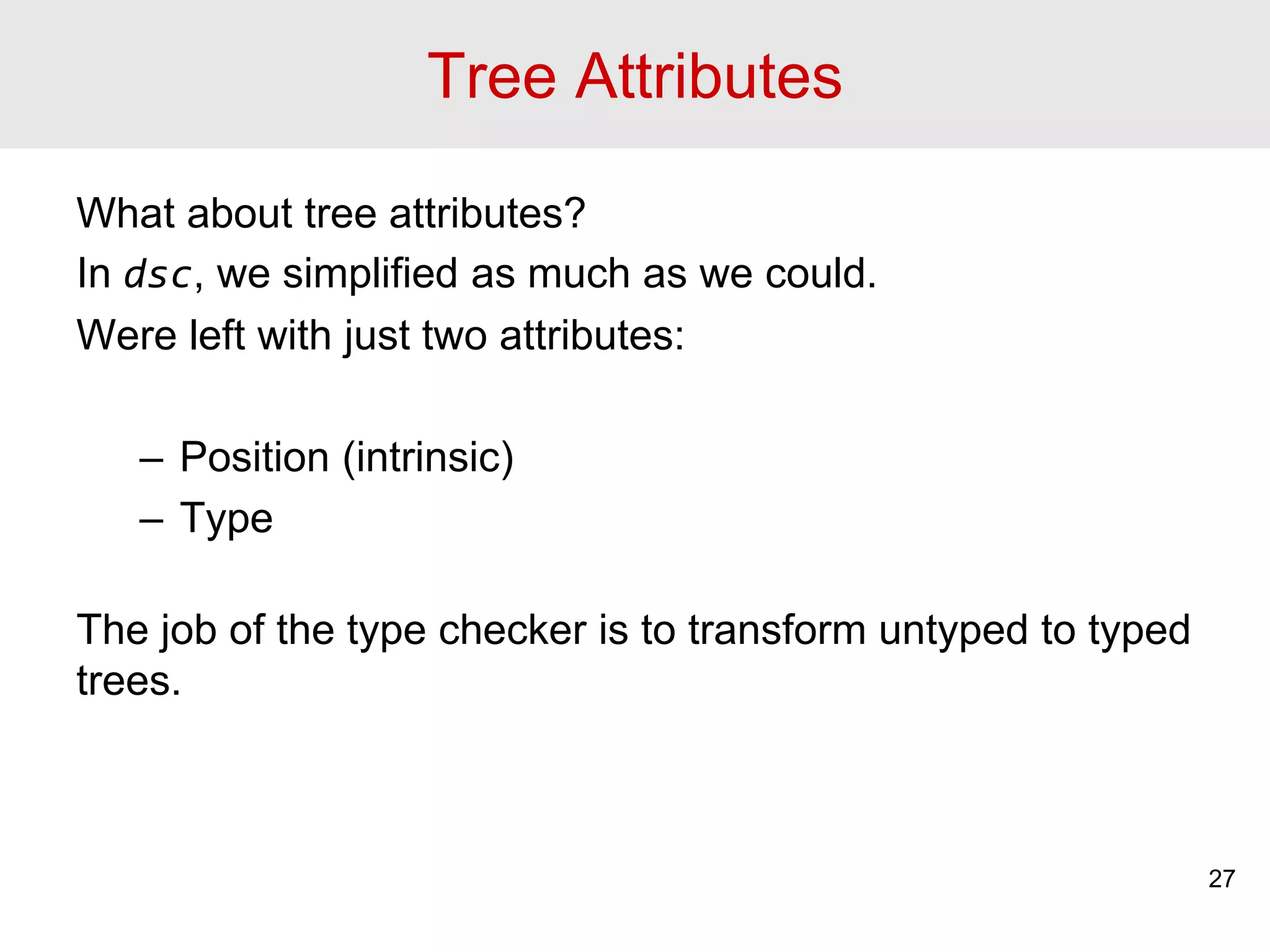

Tree Attributes
What about tree attributes?
In dsc, we simplified as much as we could.
Were left with just two attributes:
– Position (intrinsic)
– Type
The job of the type checker is to transform untyped to typed
trees.
27

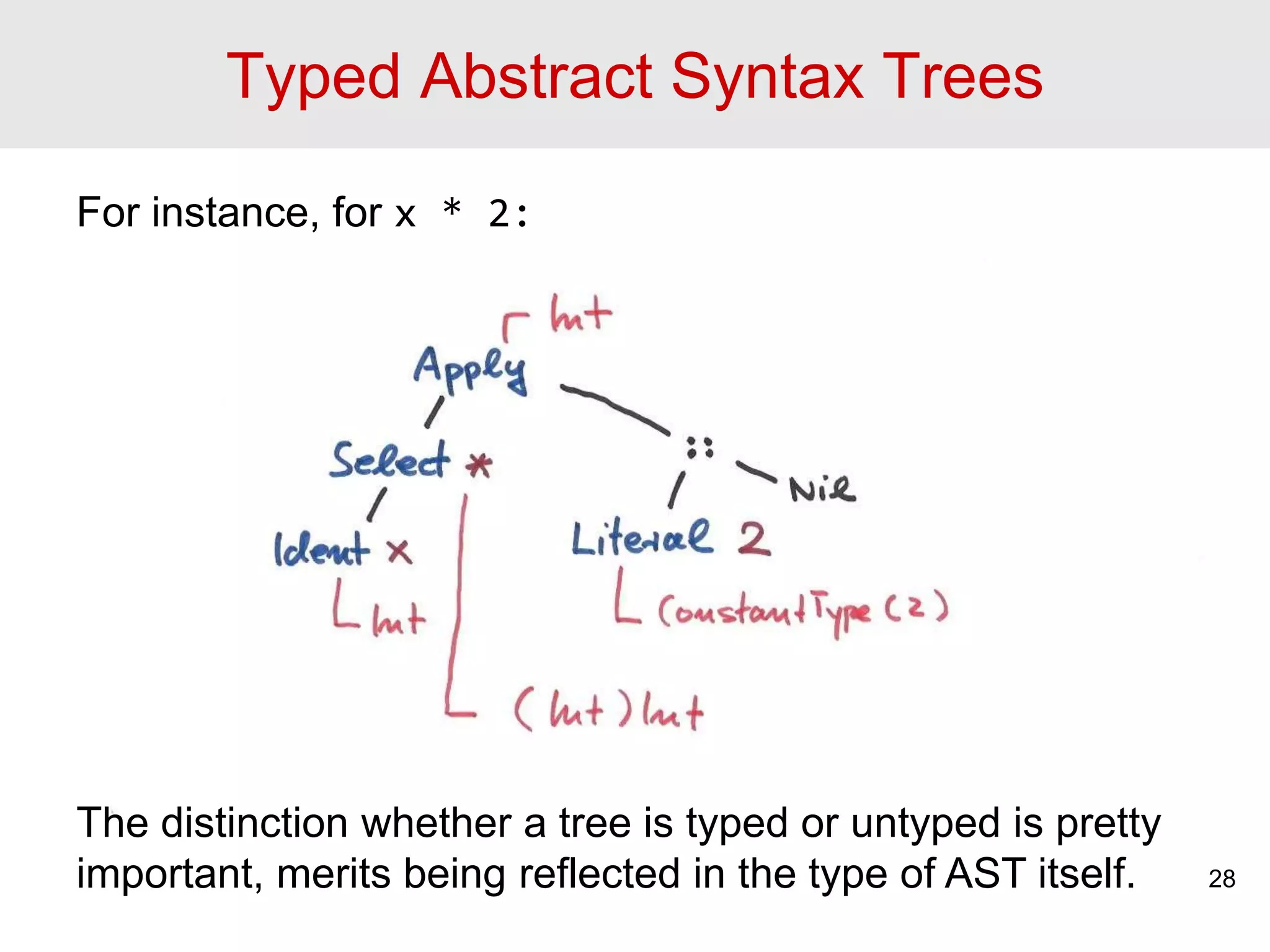

Typed Abstract Syntax Trees
28
For instance, for x * 2:
The distinction whether a tree is typed or untyped is pretty
important, merits being reflected in the type of AST itself.

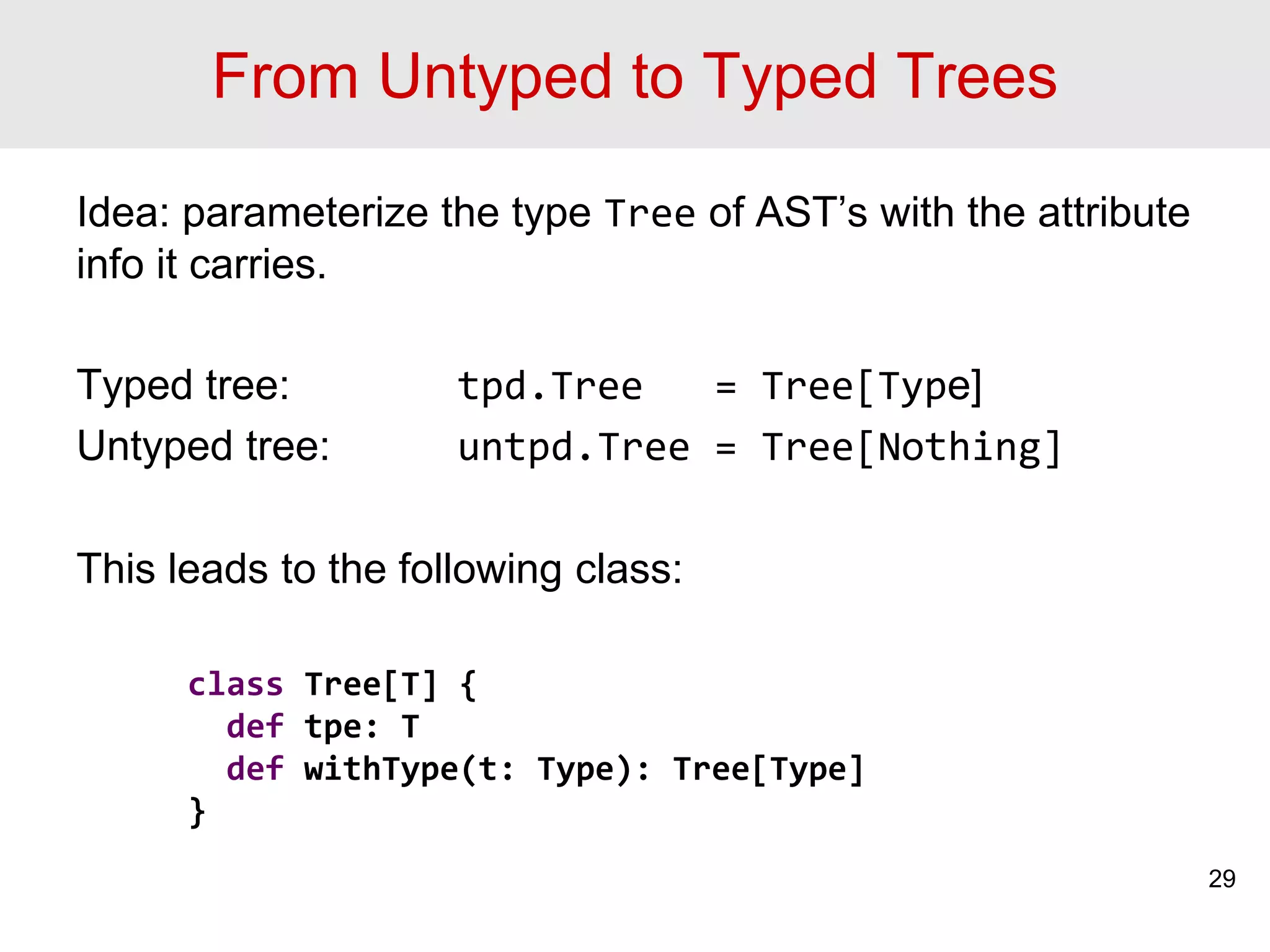

From Untyped to Typed Trees
Idea: parameterize the type Tree of AST’s with the attribute
info it carries.
Typed tree: tpd.Tree = Tree[Type]
Untyped tree: untpd.Tree = Tree[Nothing]
This leads to the following class:
class Tree[T] {
def tpe: T
def withType(t: Type): Tree[Type]
}
29

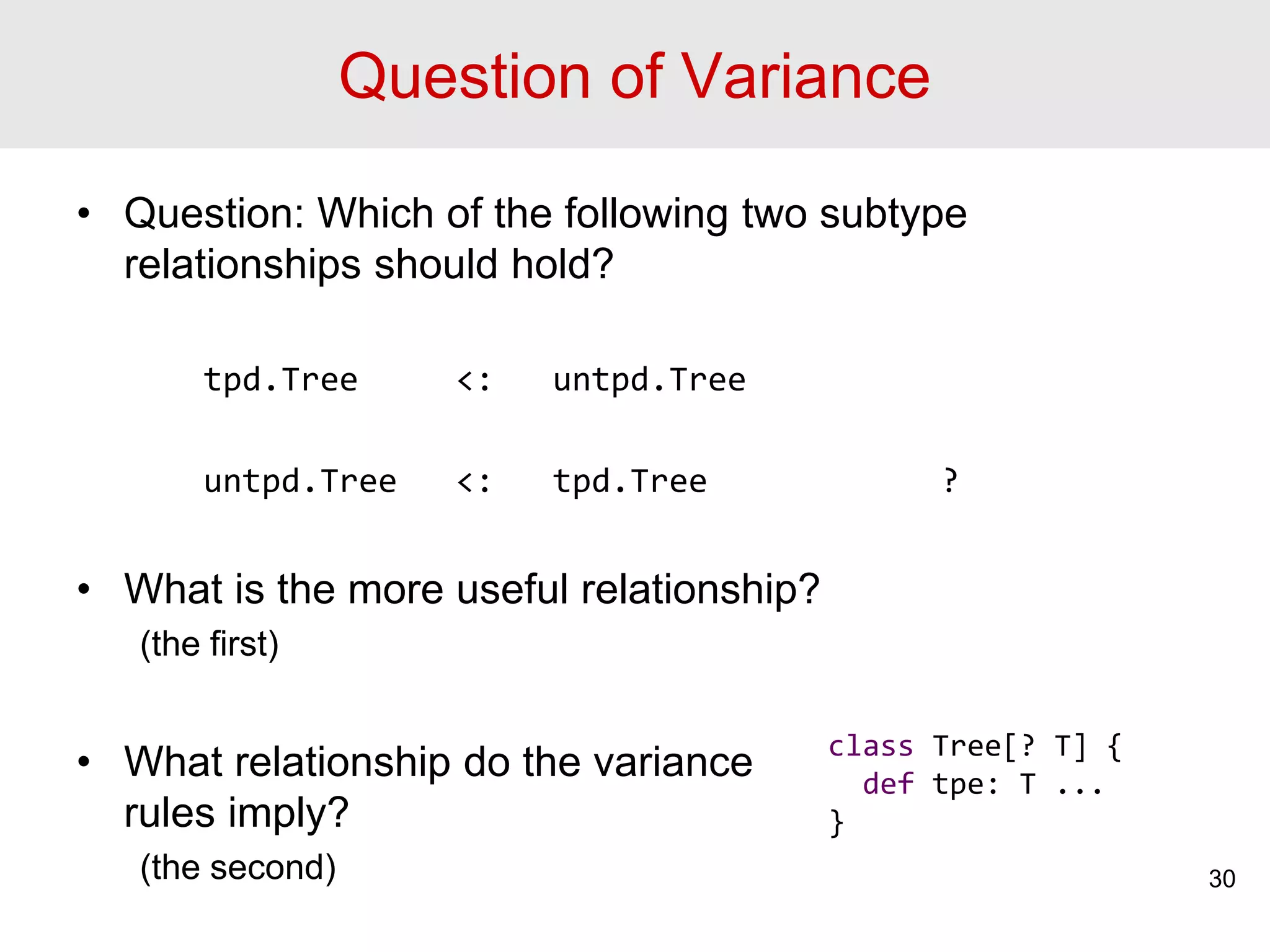

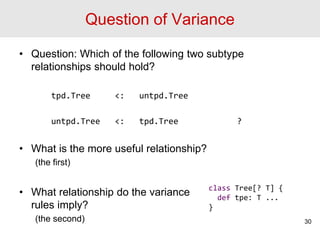

Question of Variance
• Question: Which of the following two subtype
relationships should hold?
tpd.Tree <: untpd.Tree
untpd.Tree <: tpd.Tree ?
• What is the more useful relationship?
(the first)
• What relationship do the variance
rules imply?
(the second) 30
class Tree[? T] {
def tpe: T ...
}

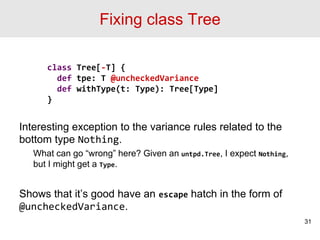

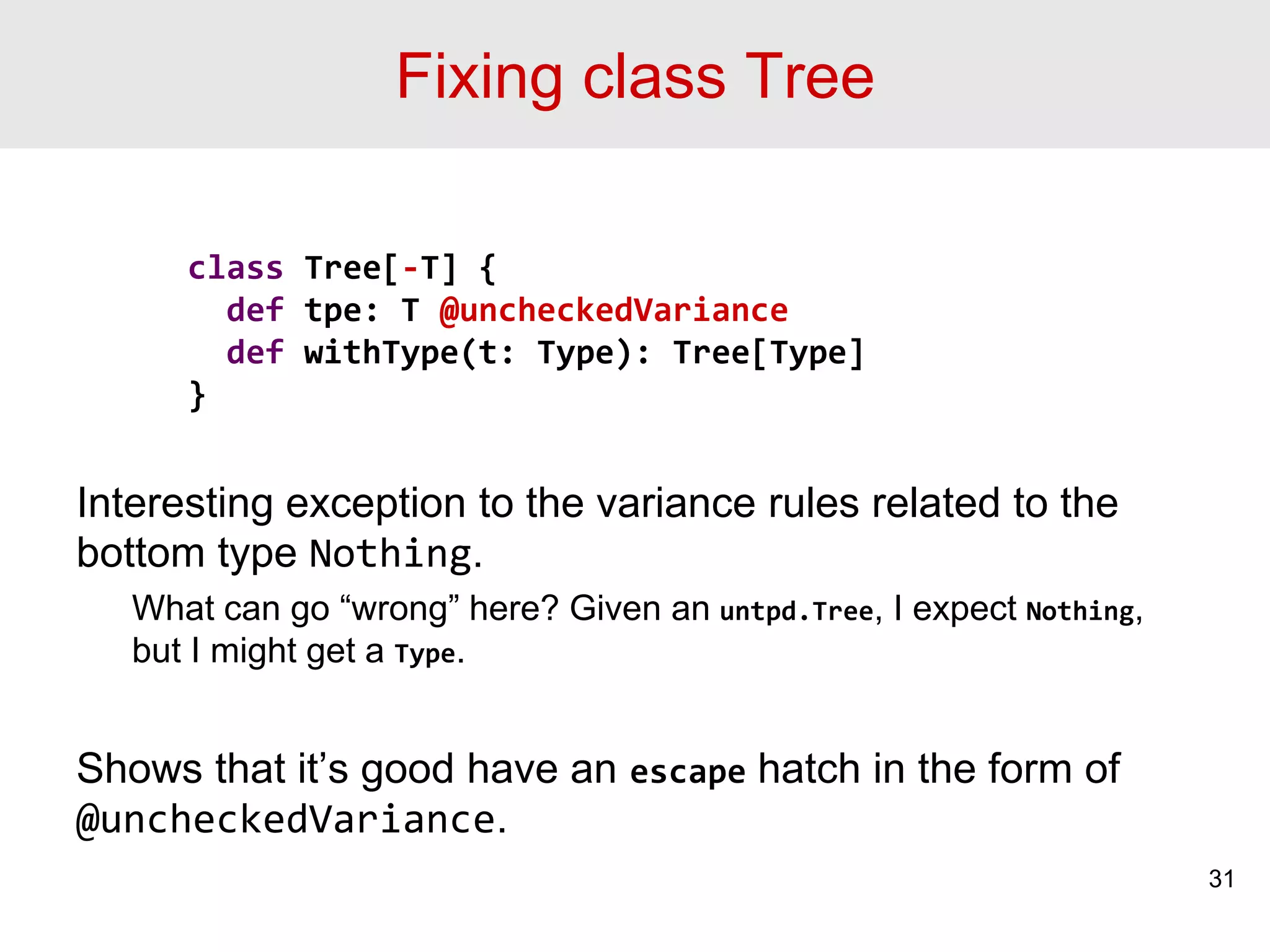

Fixing class Tree
class Tree[-T] {
def tpe: T @uncheckedVariance
def withType(t: Type): Tree[Type]
}
Interesting exception to the variance rules related to the
bottom type Nothing.
What can go “wrong” here? Given an untpd.Tree, I expect Nothing,
but I might get a Type.
Shows that it’s good have an escape hatch in the form of
@uncheckedVariance.
31

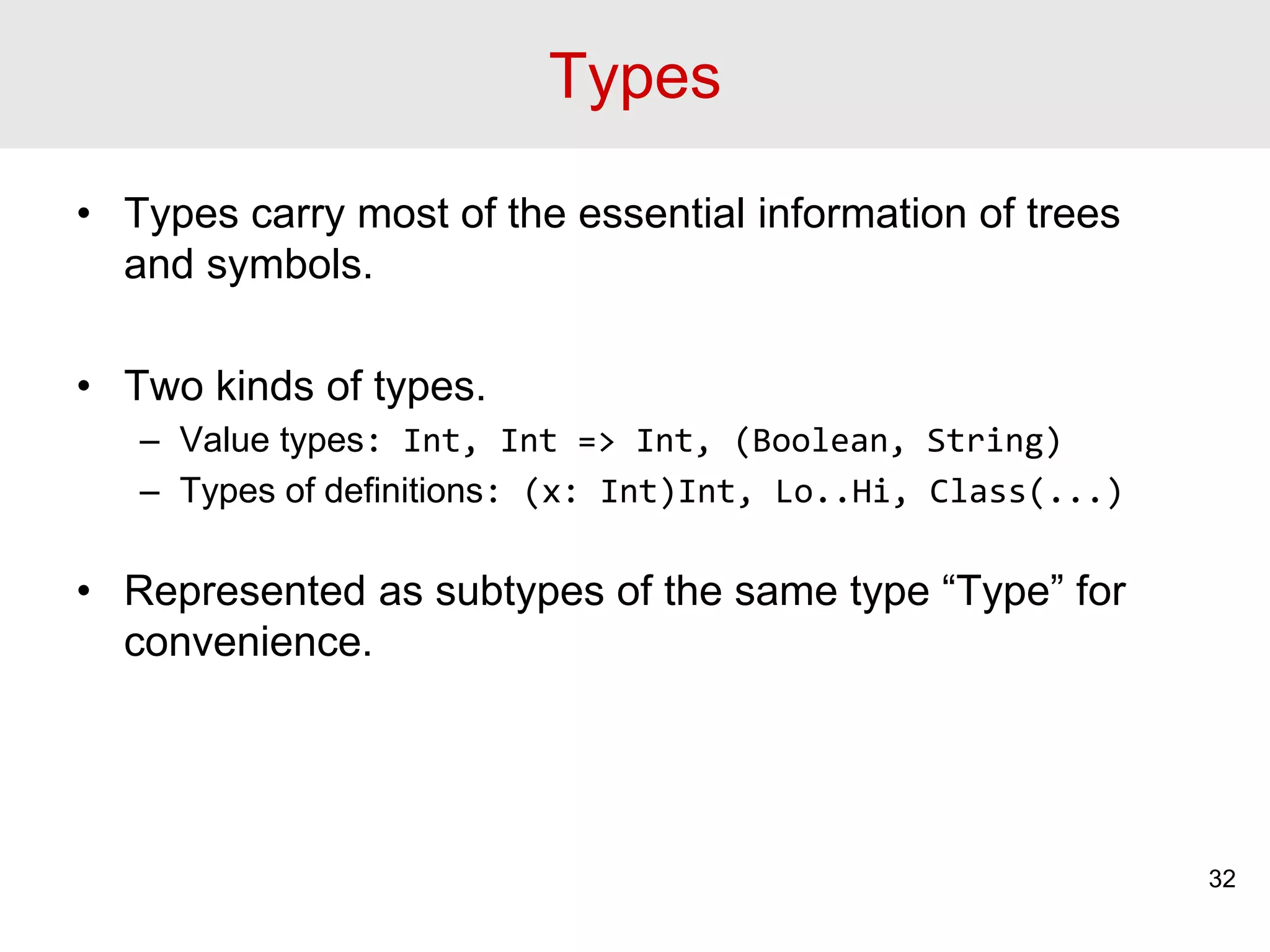

Types
• Types carry most of the essential information of trees
and symbols.
• Two kinds of types.
– Value types: Int, Int => Int, (Boolean, String)
– Types of definitions: (x: Int)Int, Lo..Hi, Class(...)
• Represented as subtypes of the same type “Type” for
convenience.
32

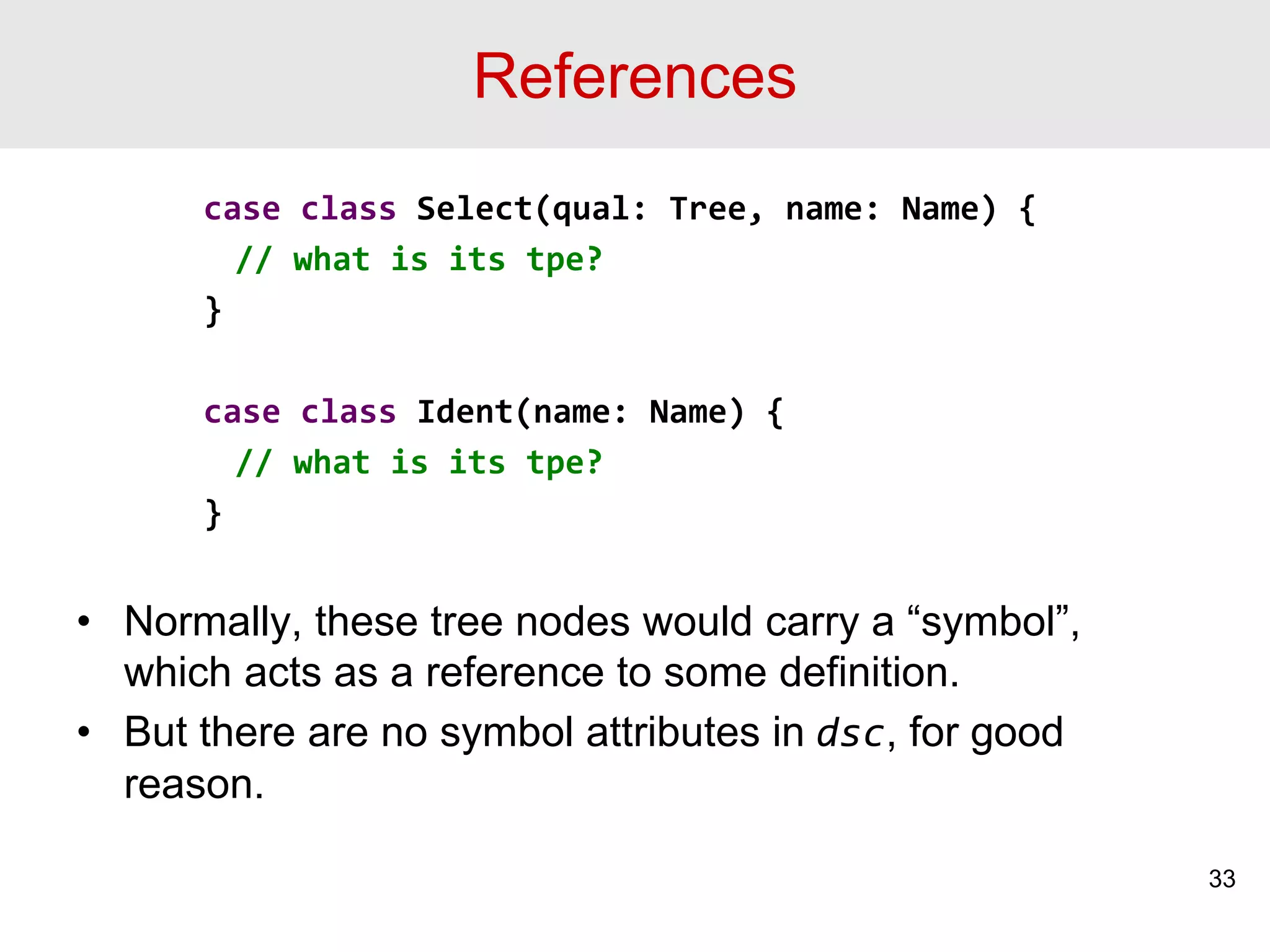

References
case class Select(qual: Tree, name: Name) {
// what is its tpe?
}
case class Ident(name: Name) {
// what is its tpe?
}
• Normally, these tree nodes would carry a “symbol”,
which acts as a reference to some definition.
• But there are no symbol attributes in dsc, for good
reason.
33

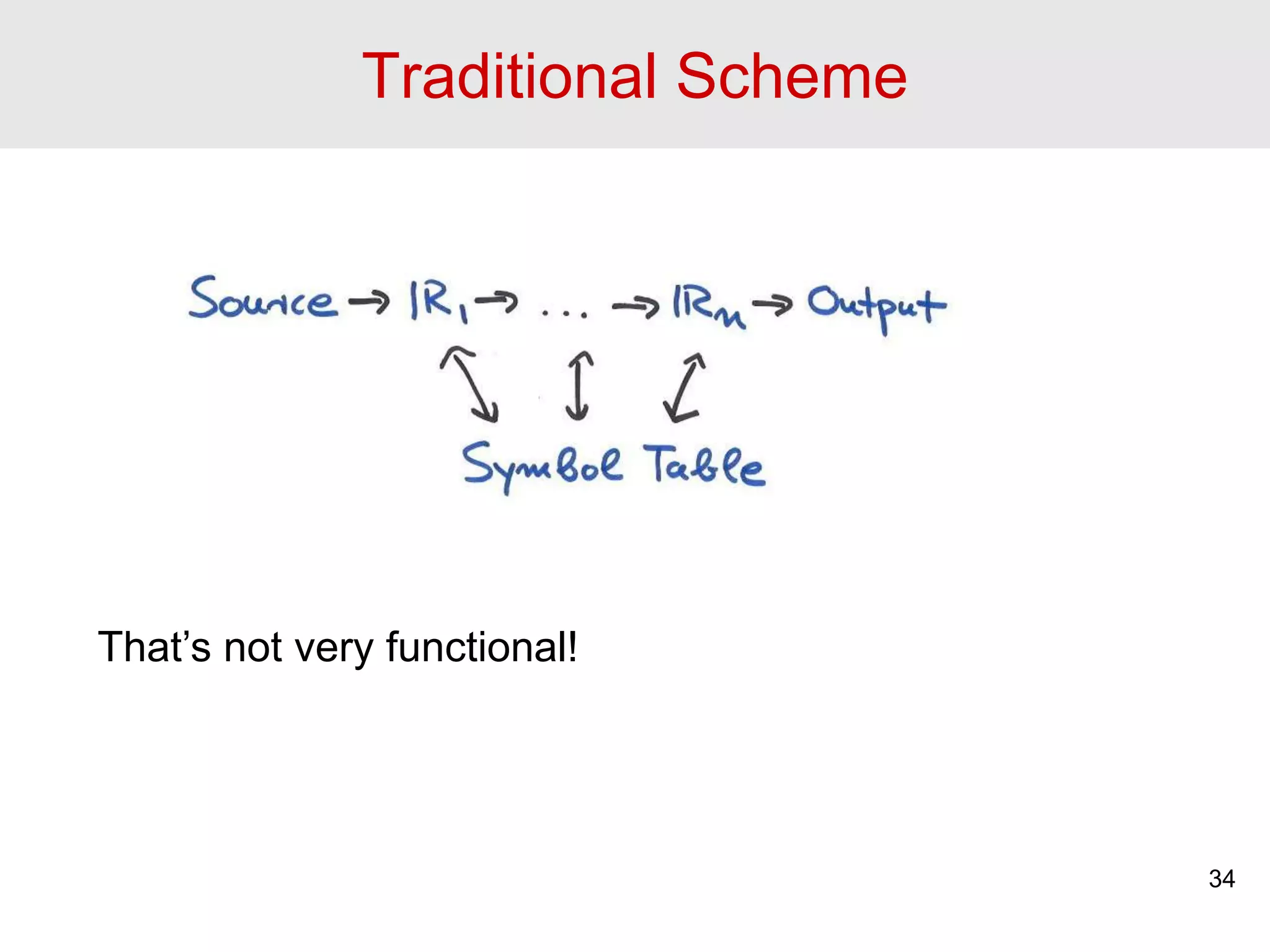

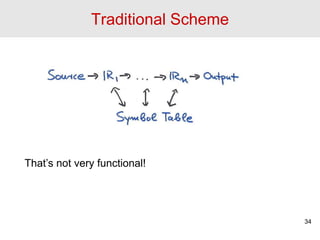

Traditional Scheme
34
That’s not very functional!

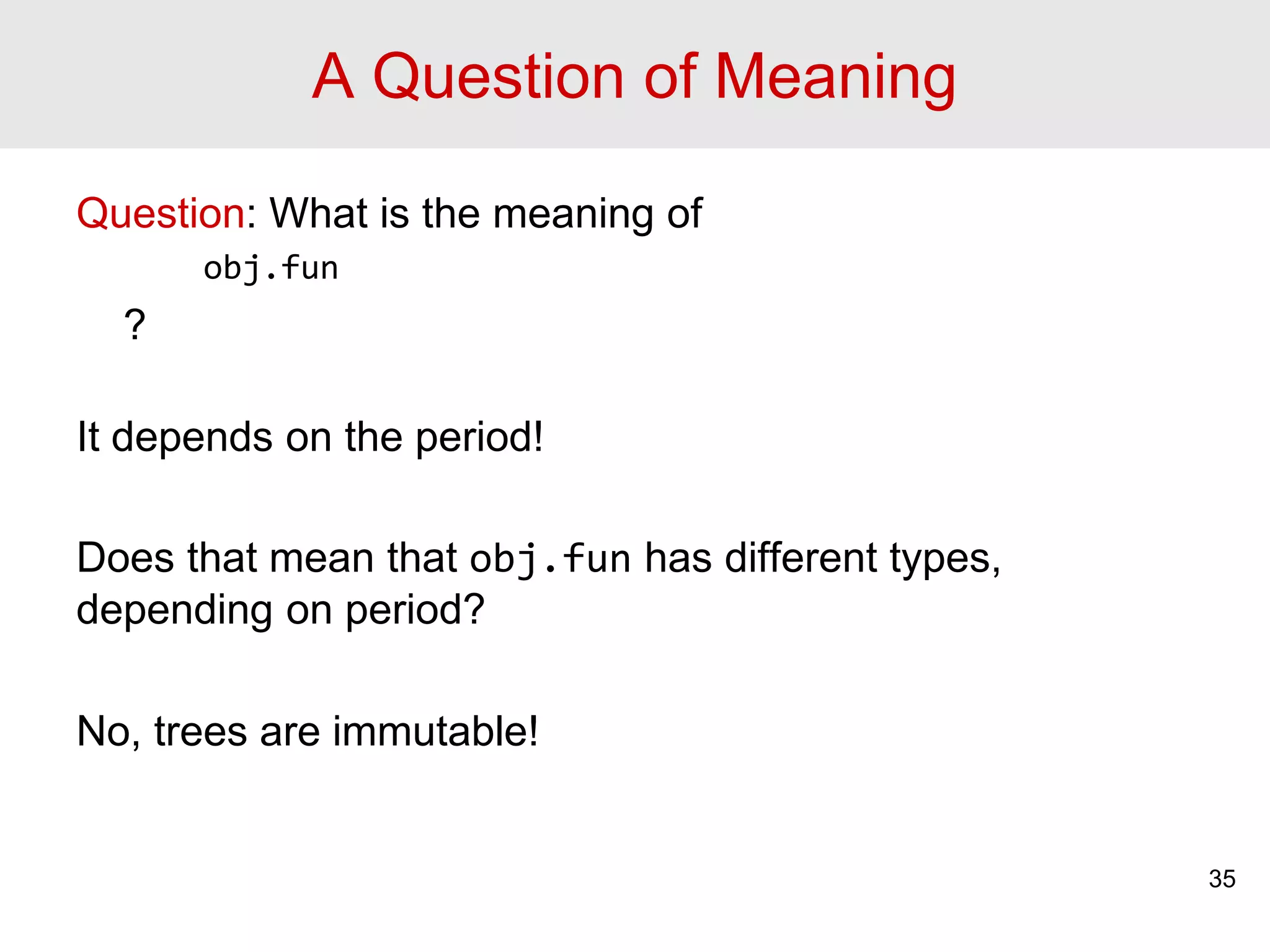

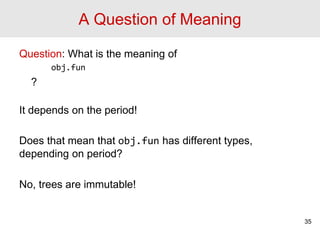

A Question of Meaning
Question: What is the meaning of
obj.fun
?
It depends on the period!
Does that mean that obj.fun has different types,
depending on period?
No, trees are immutable!
35

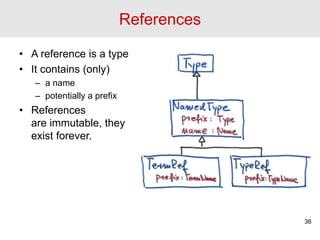

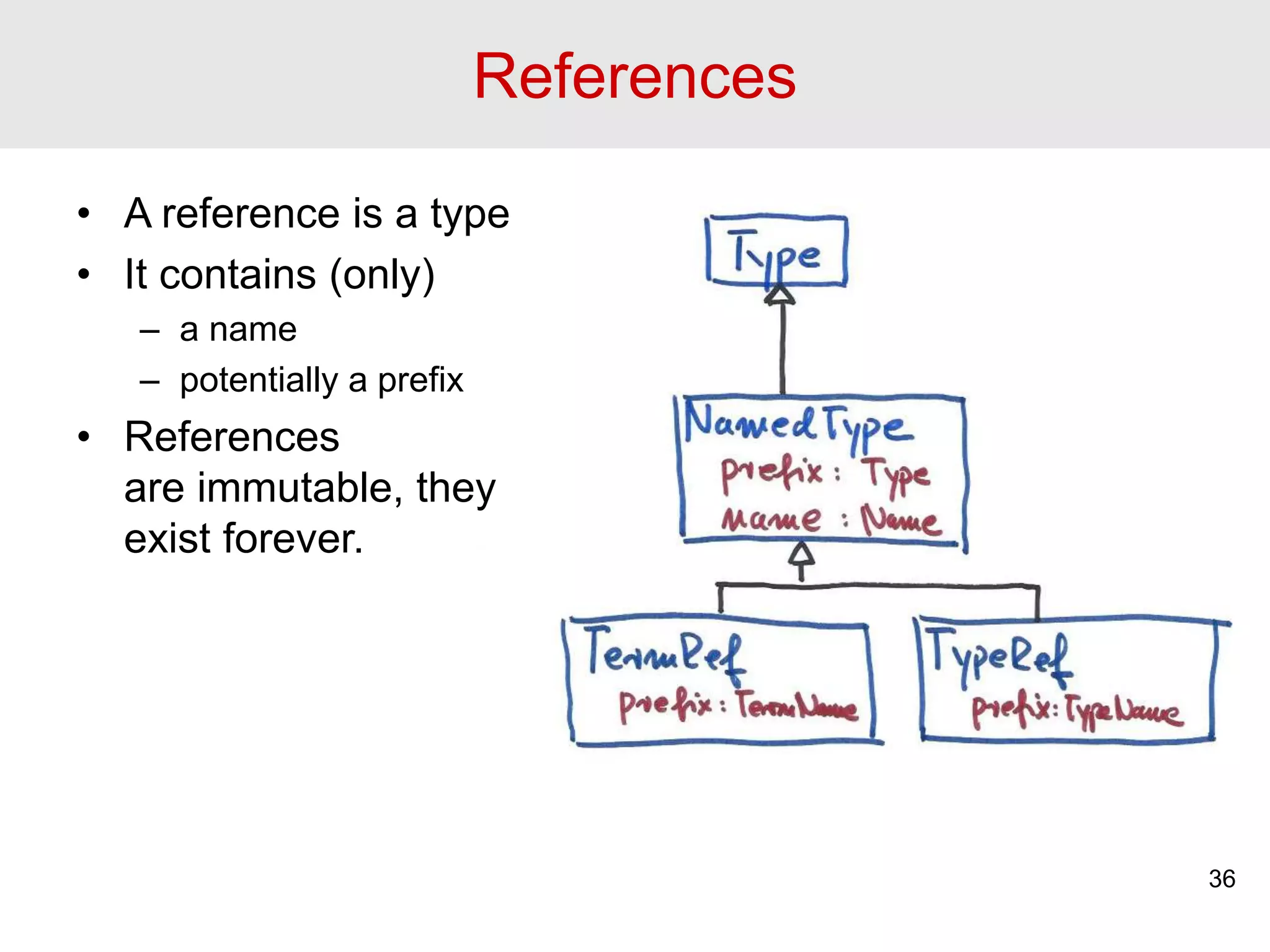

References
36
• A reference is a type
• It contains (only)
– a name
– potentially a prefix
• References
are immutable, they
exist forever.

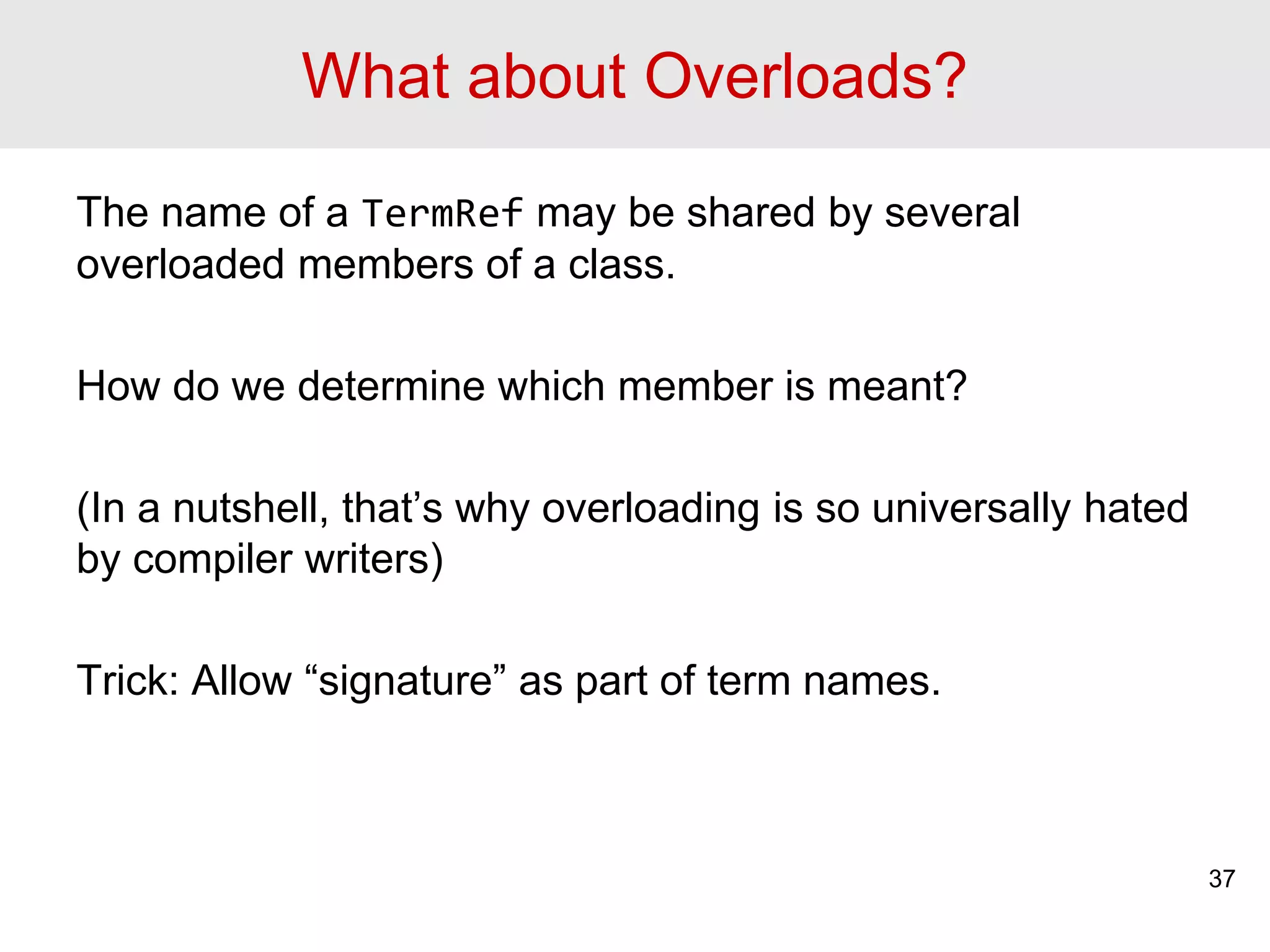

What about Overloads?
The name of a TermRef may be shared by several
overloaded members of a class.
How do we determine which member is meant?
(In a nutshell, that’s why overloading is so universally hated
by compiler writers)
Trick: Allow “signature” as part of term names.
37

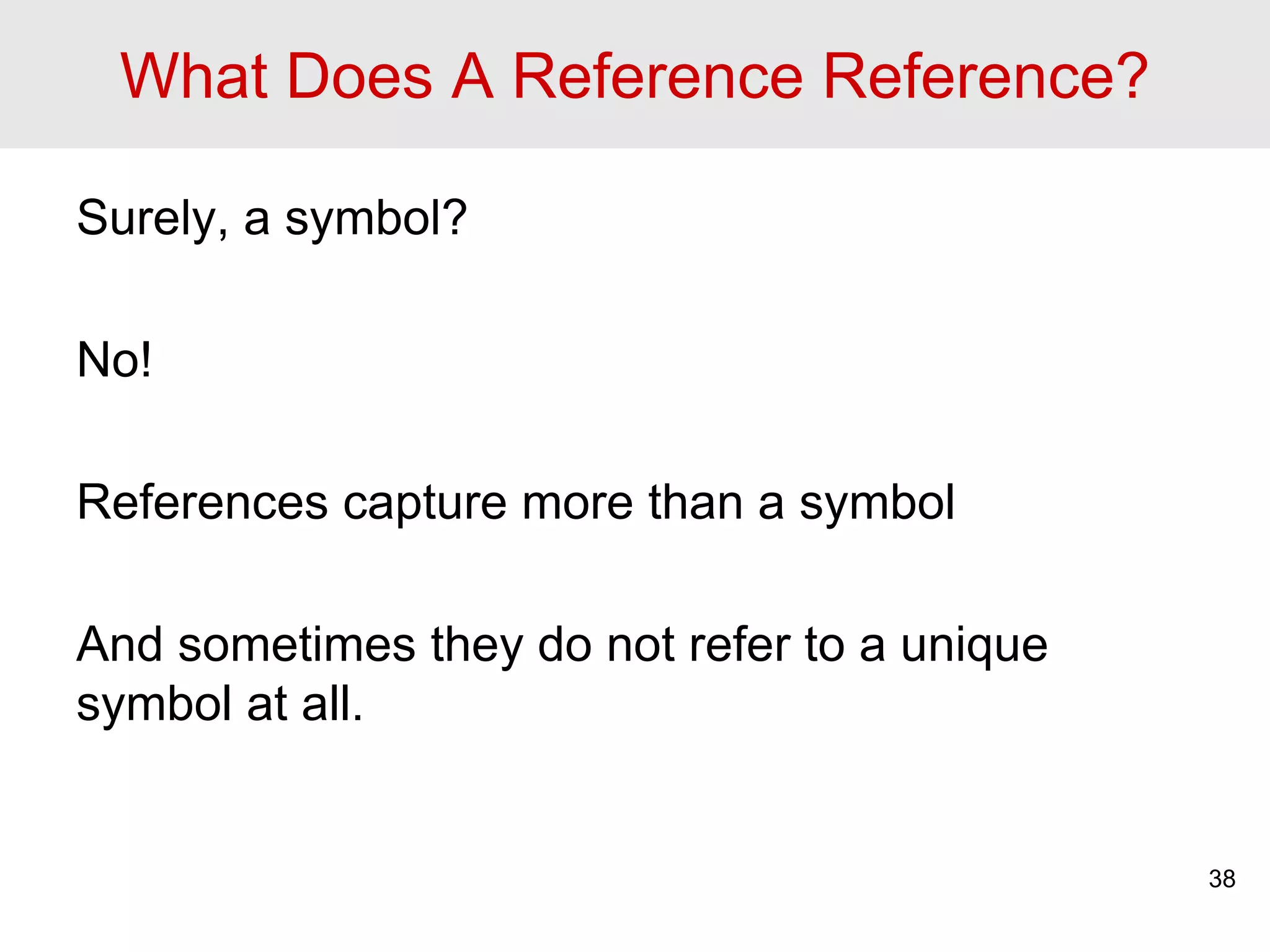

What Does A Reference Reference?
Surely, a symbol?
No!
References capture more than a symbol
And sometimes they do not refer to a unique
symbol at all.
38

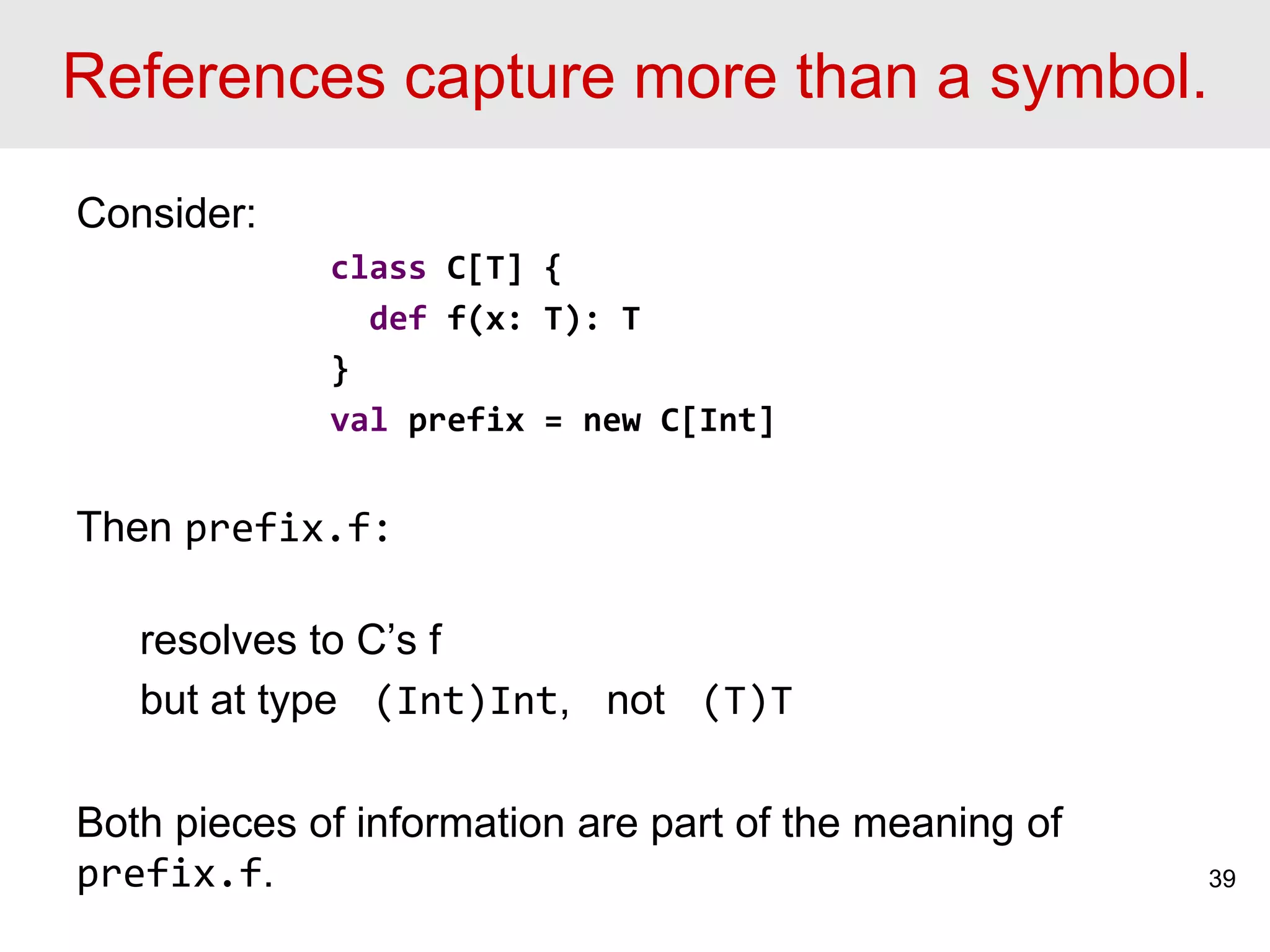

References capture more than a symbol.
Consider:
class C[T] {
def f(x: T): T
}
val prefix = new C[Int]
Then prefix.f:
resolves to C’s f
but at type (Int)Int, not (T)T
Both pieces of information are part of the meaning of
prefix.f. 39

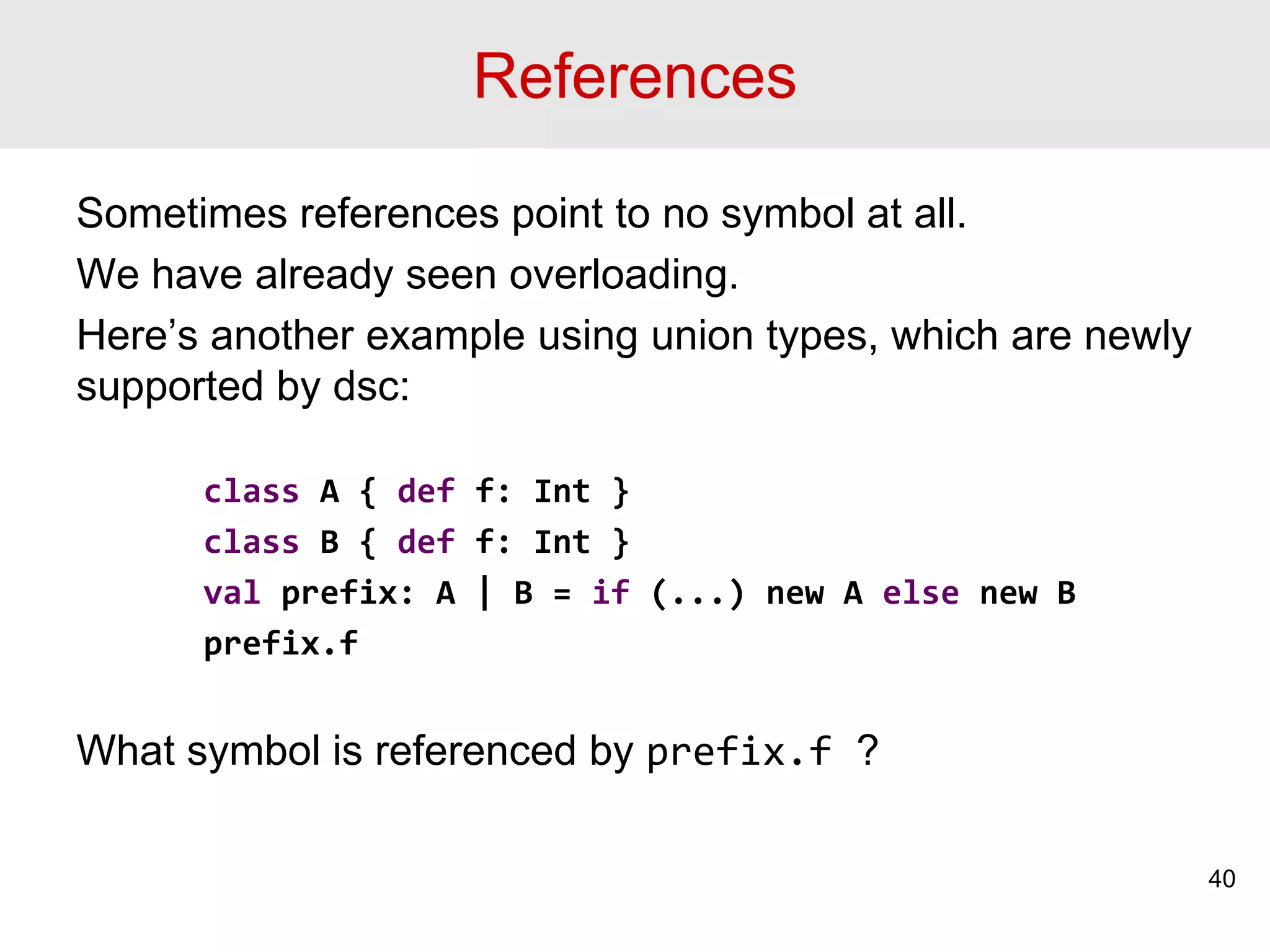

References
Sometimes references point to no symbol at all.
We have already seen overloading.
Here’s another example using union types, which are newly
supported by dsc:
class A { def f: Int }
class B { def f: Int }
val prefix: A | B = if (...) new A else new B
prefix.f
What symbol is referenced by prefix.f ?
40

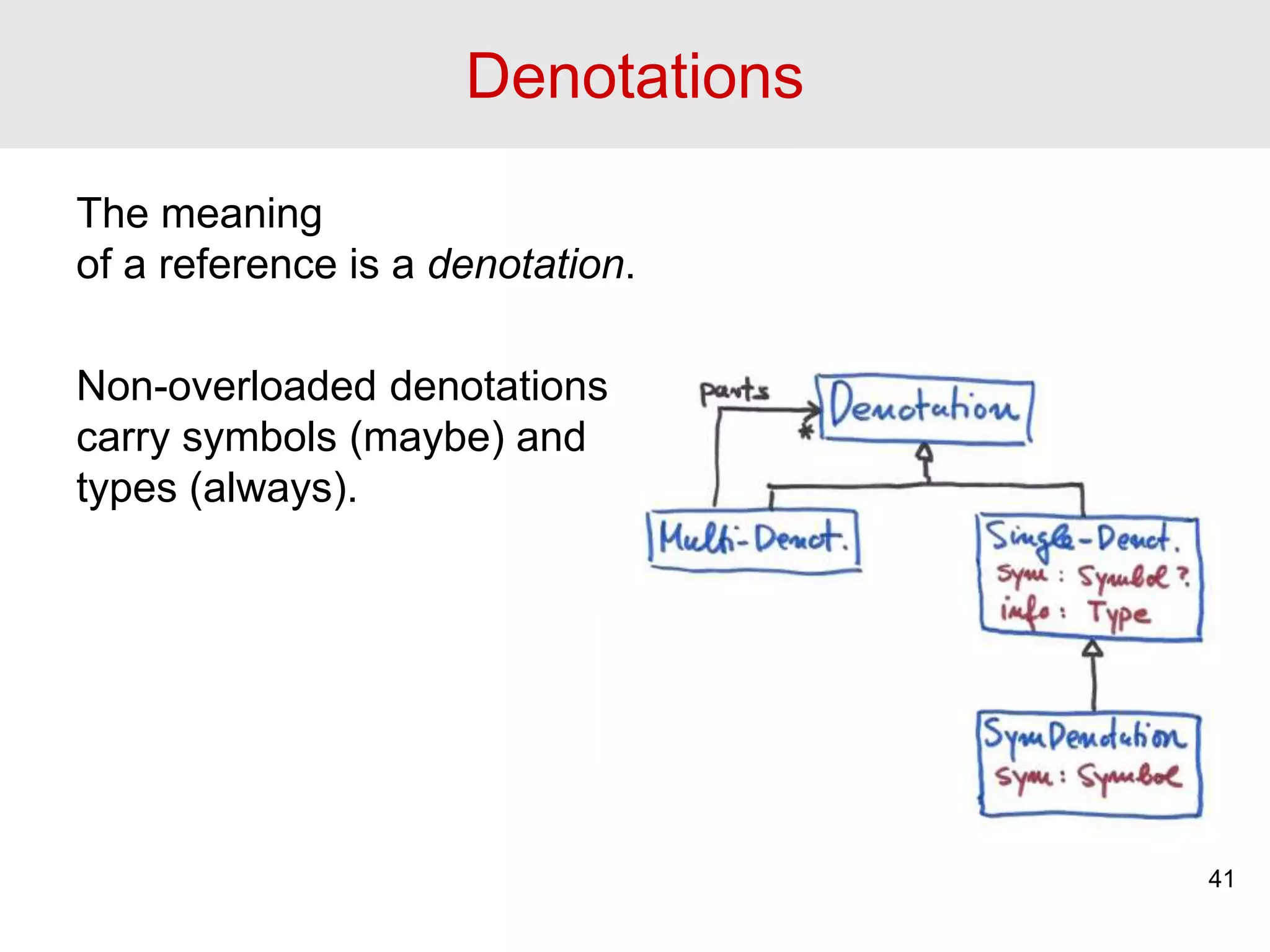

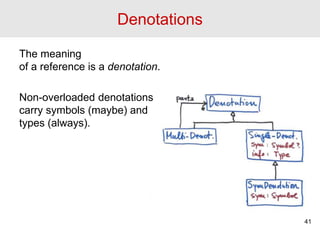

Denotations
The meaning
of a reference is a denotation.
Non-overloaded denotations
carry symbols (maybe) and
types (always).
41

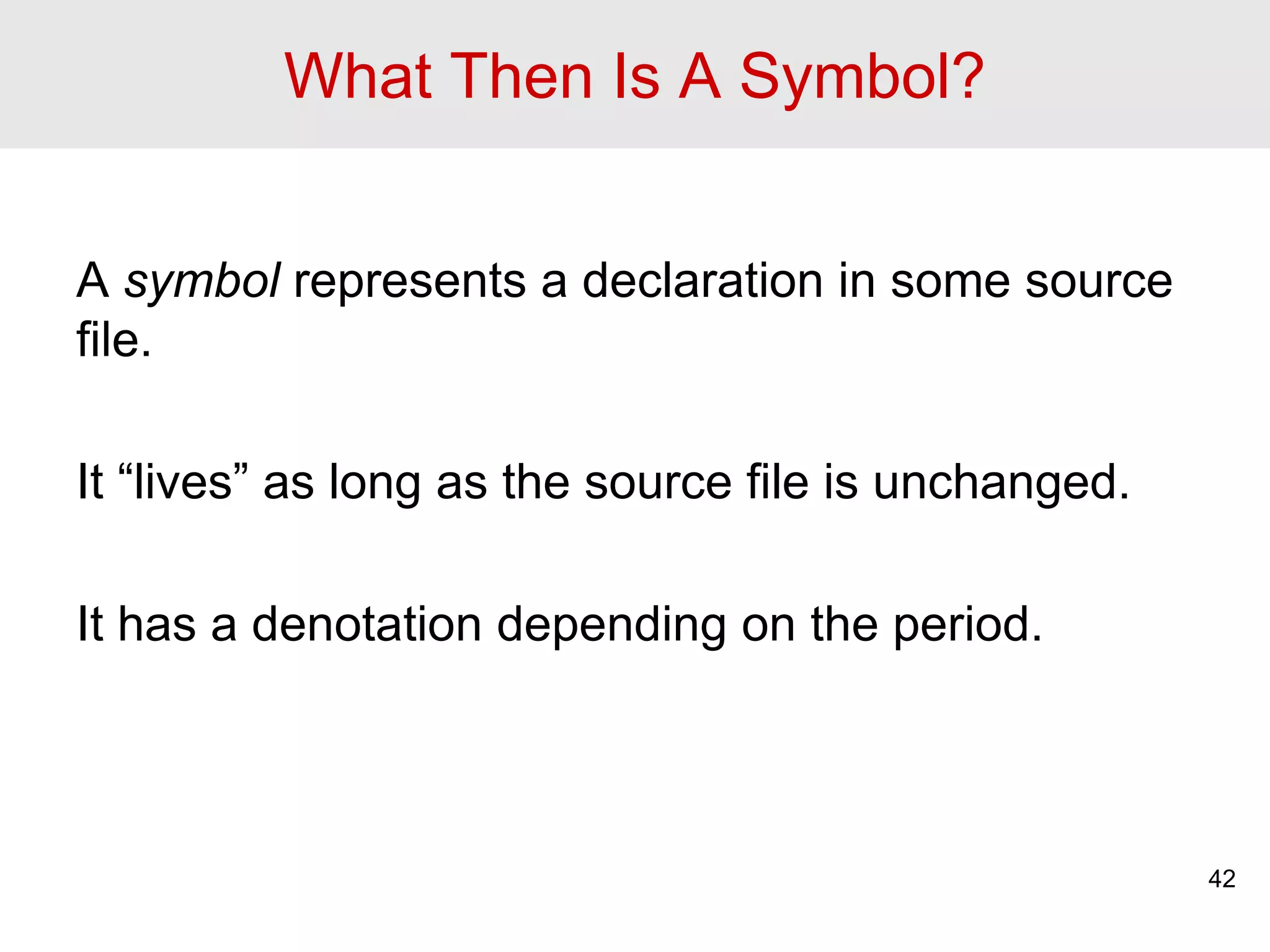

What Then Is A Symbol?
A symbol represents a declaration in some source
file.
It “lives” as long as the source file is unchanged.
It has a denotation depending on the period.
42

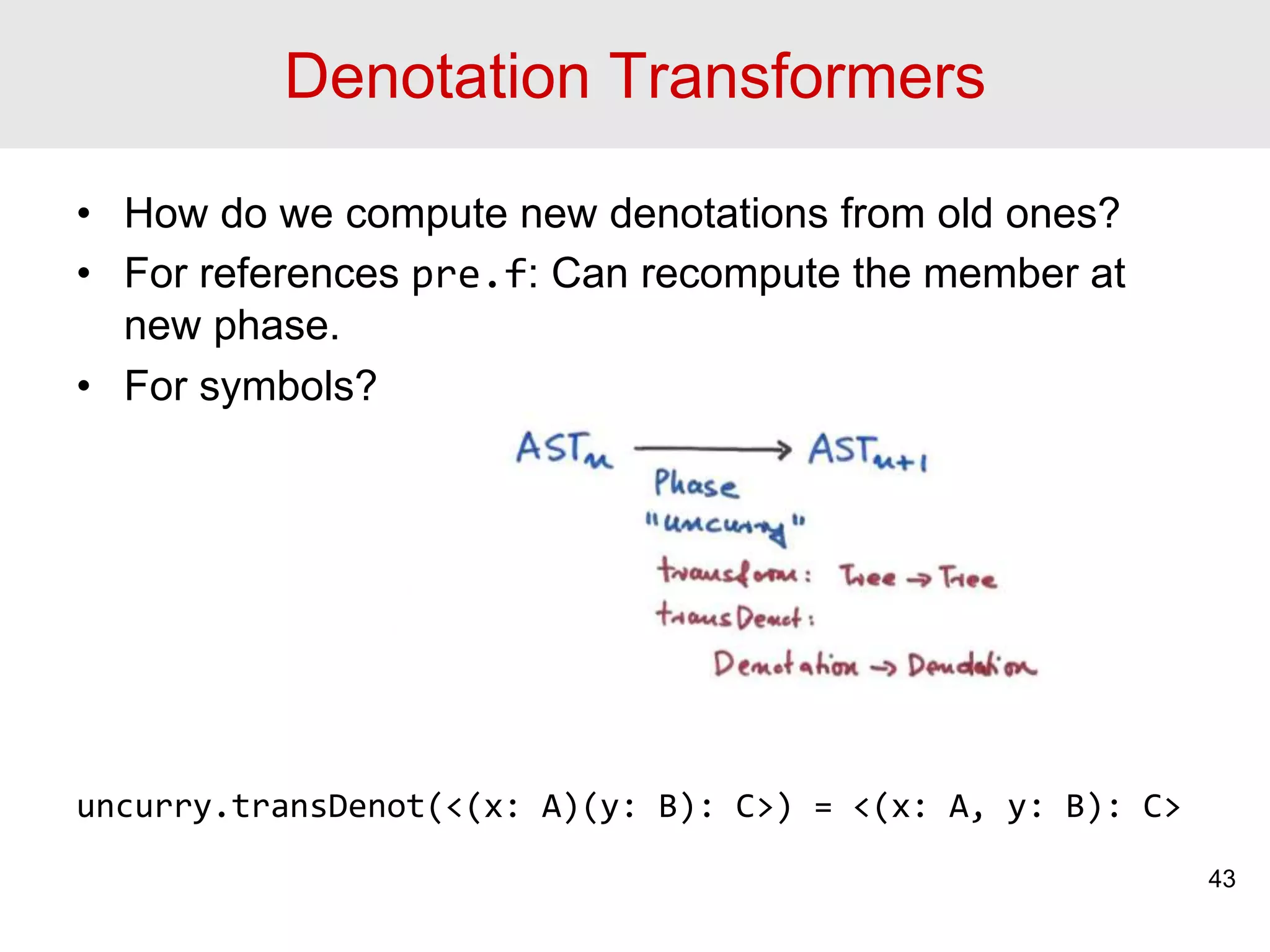

Denotation Transformers
• How do we compute new denotations from old ones?
• For references pre.f: Can recompute the member at
new phase.
• For symbols?
uncurry.transDenot(<(x: A)(y: B): C>) = <(x: A, y: B): C>
43

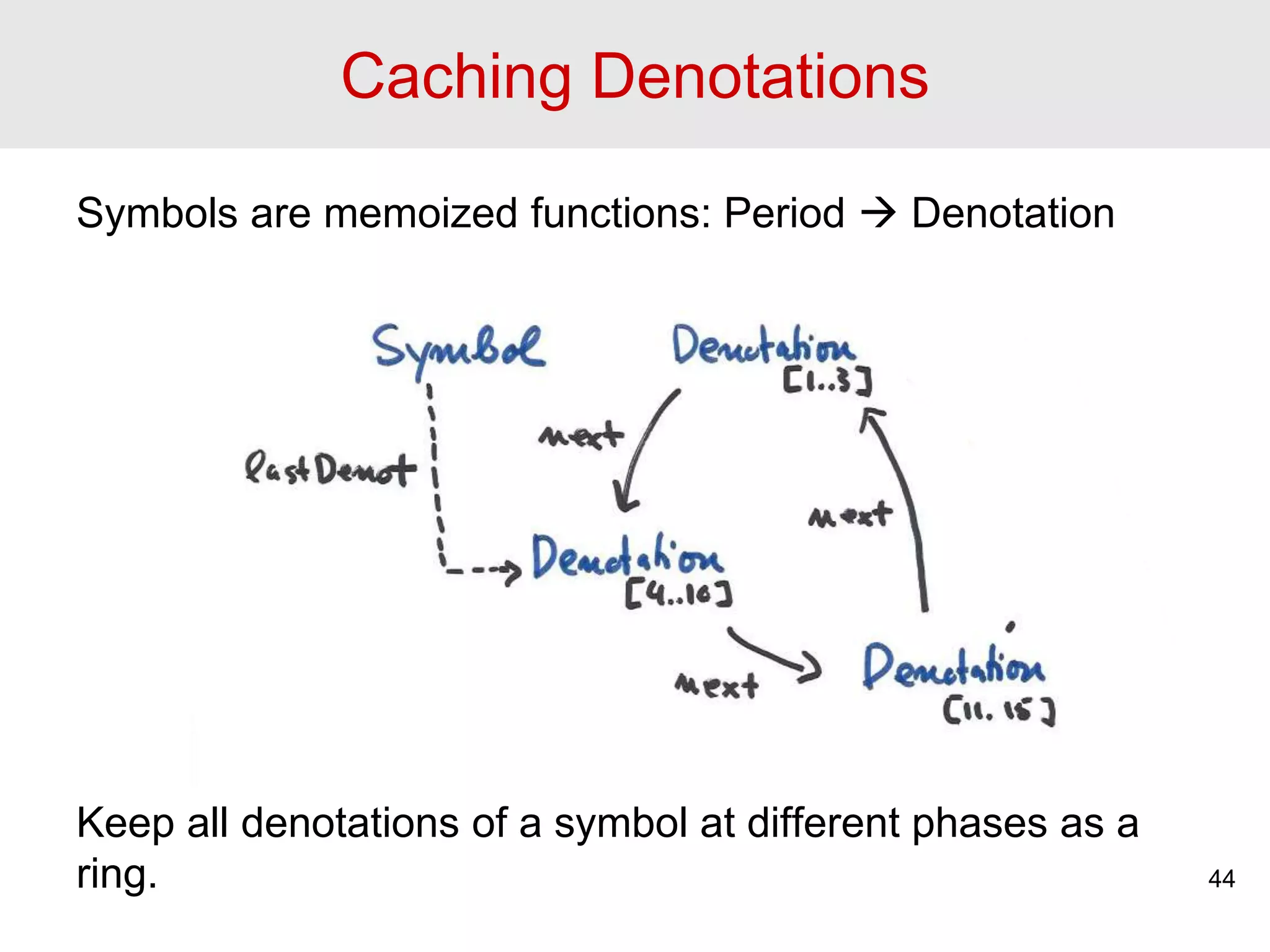

Caching Denotations
Symbols are memoized functions: Period  Denotation
Keep all denotations of a symbol at different phases as a
ring. 44
Putting it all Together
45
• ER diagram of core compiler architecture:
*
*

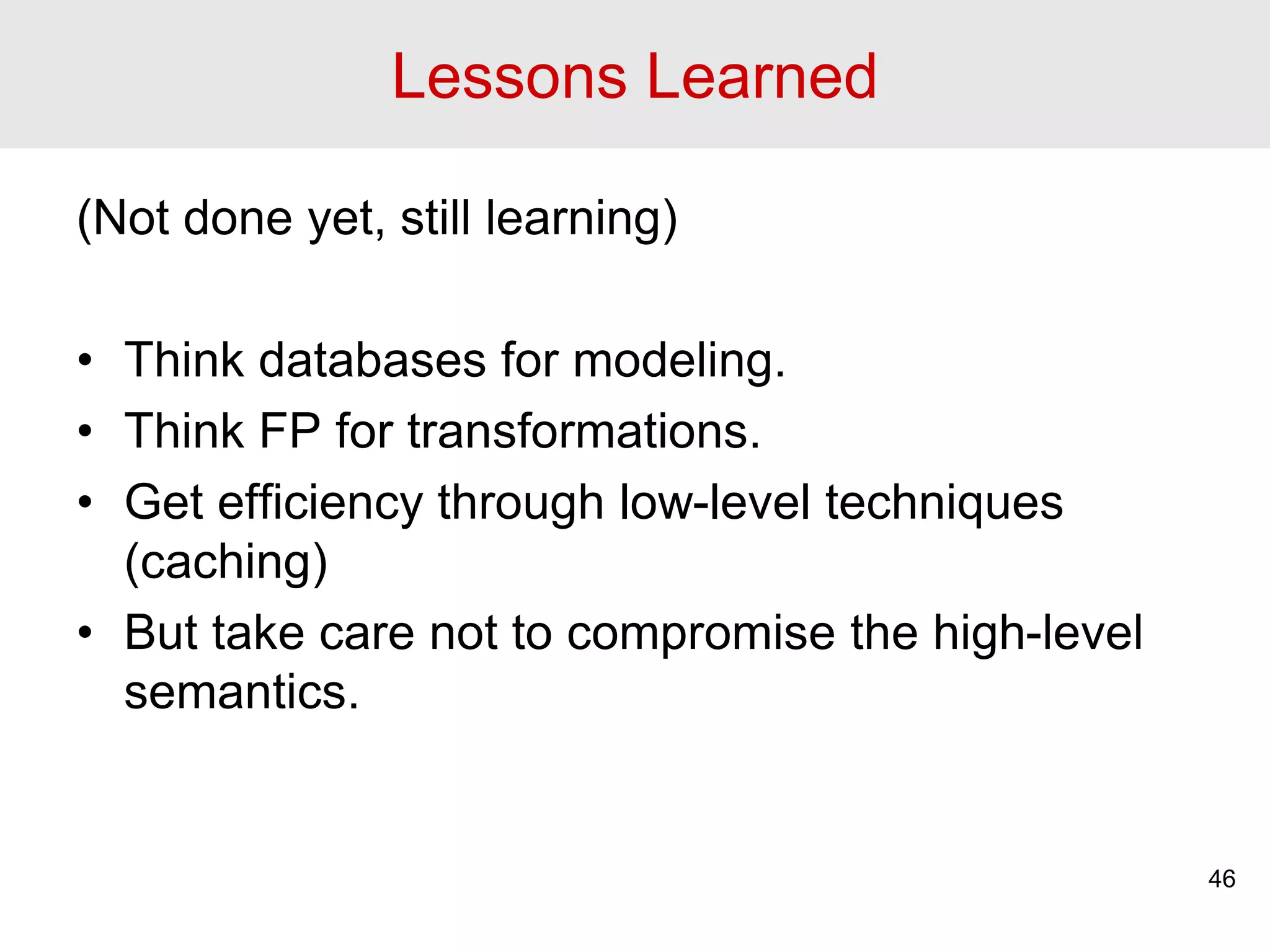

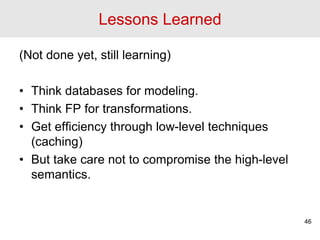

Lessons Learned
(Not done yet, still learning)
• Think databases for modeling.
• Think FP for transformations.
• Get efficiency through low-level techniques
(caching)
• But take care not to compromise the high-level
semantics.
46

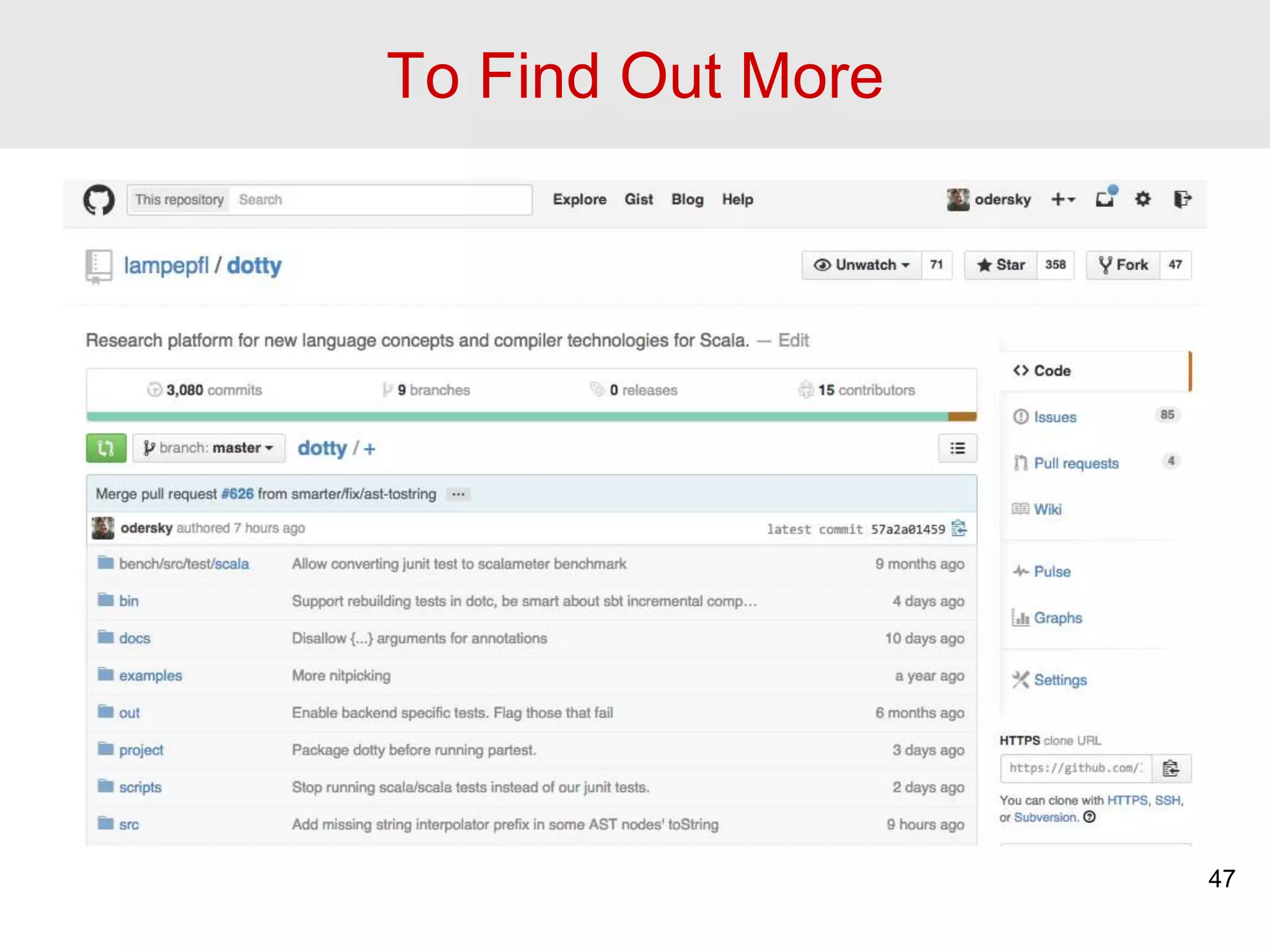

To Find Out More
47

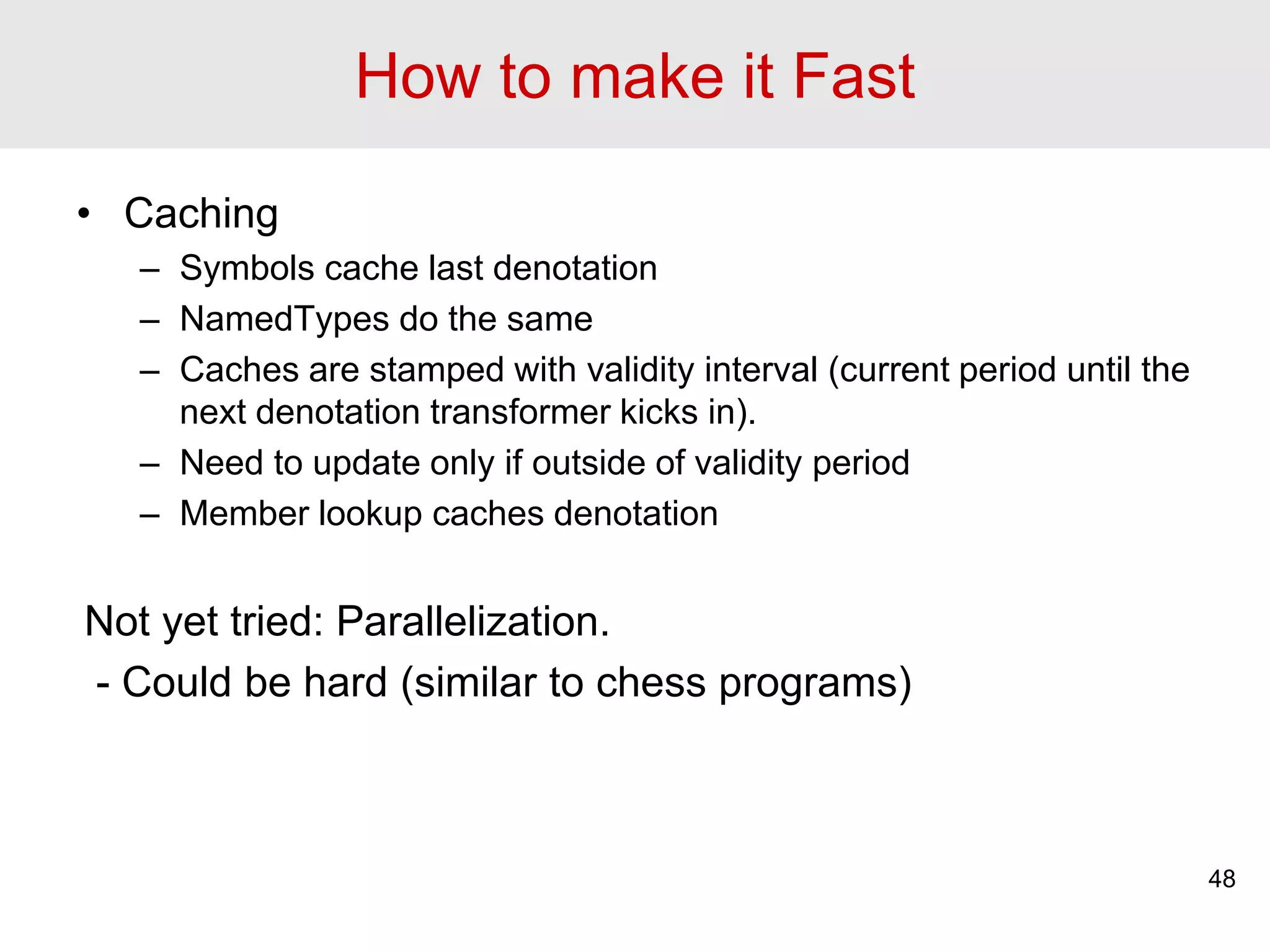

How to make it Fast
• Caching
– Symbols cache last denotation
– NamedTypes do the same
– Caches are stamped with validity interval (current period until the
next denotation transformer kicks in).
– Need to update only if outside of validity period
– Member lookup caches denotation
Not yet tried: Parallelization.
- Could be hard (similar to chess programs)
48

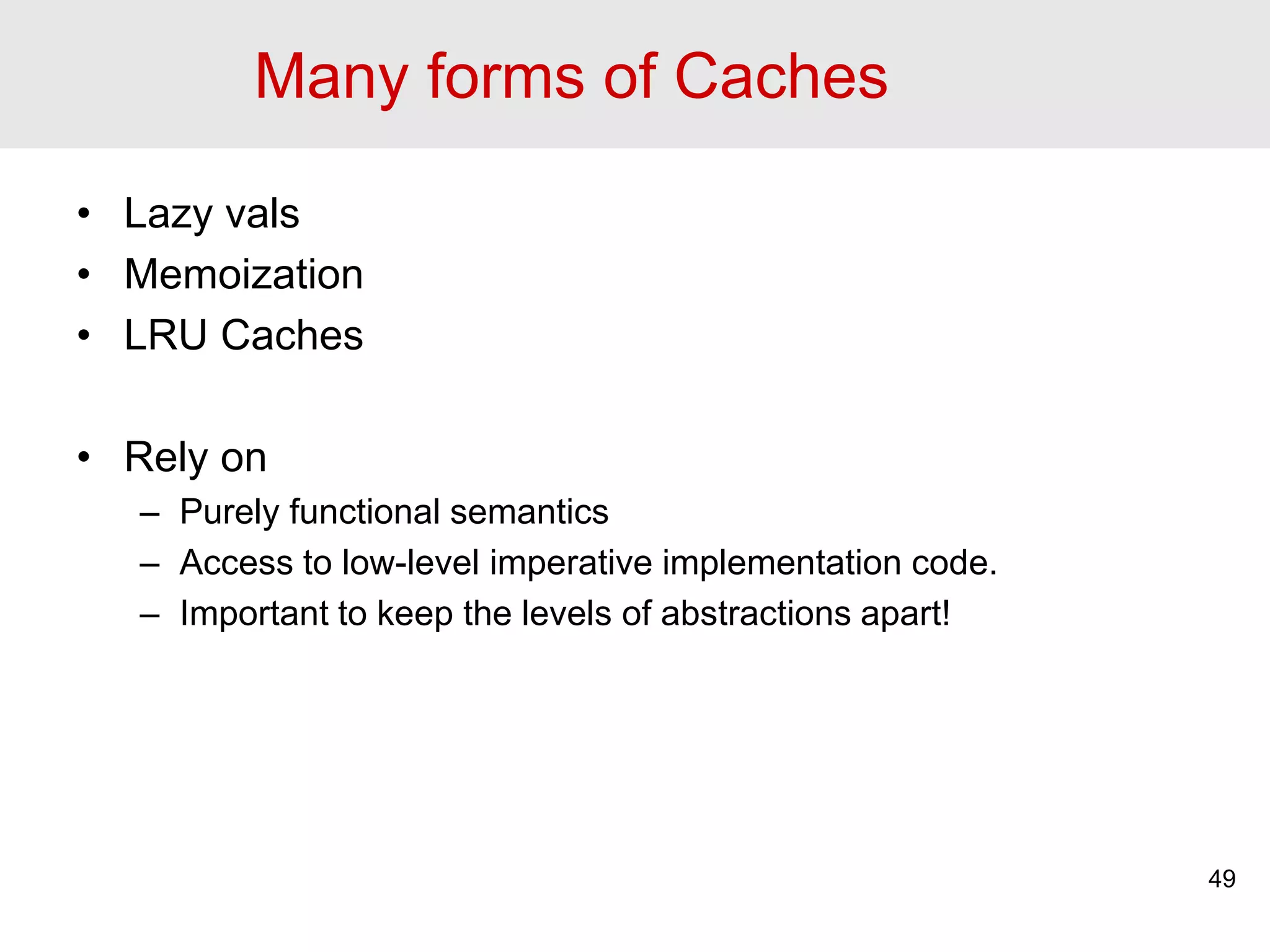

Many forms of Caches
• Lazy vals
• Memoization
• LRU Caches
• Rely on
– Purely functional semantics
– Access to low-level imperative implementation code.
– Important to keep the levels of abstractions apart!
49

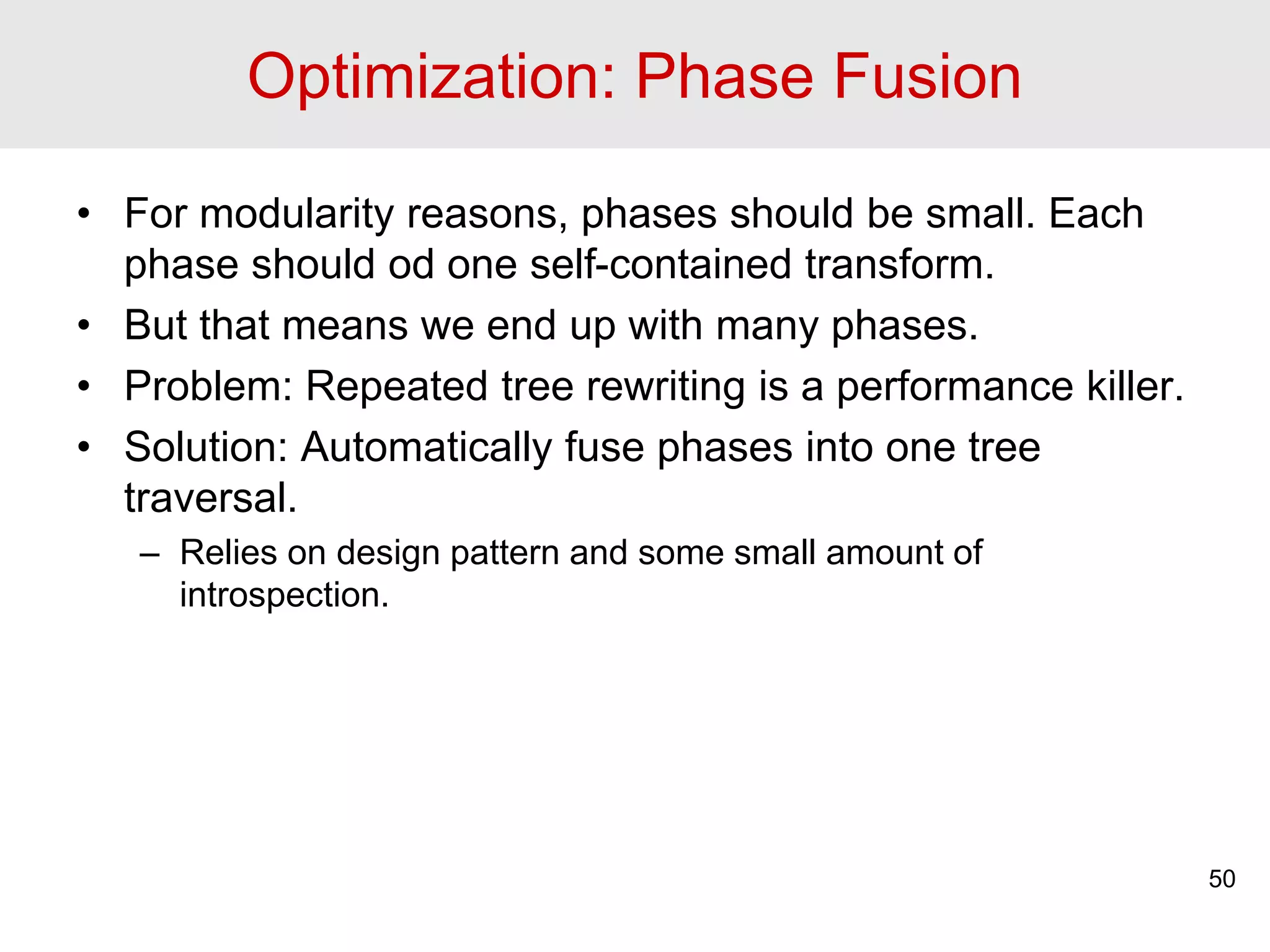

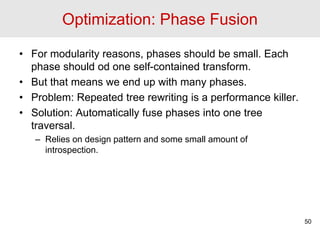

Optimization: Phase Fusion
• For modularity reasons, phases should be small. Each
phase should od one self-contained transform.
• But that means we end up with many phases.
• Problem: Repeated tree rewriting is a performance killer.
• Solution: Automatically fuse phases into one tree
traversal.
– Relies on design pattern and some small amount of
introspection.
50

More Related Content

What's hot

Apache Arrow: In Theory, In Practice
Apache Arrow: In Theory, In PracticeApache Arrow: In Theory, In Practice
Apache Arrow: In Theory, In PracticeDremio Corporation

File Format Benchmarks - Avro, JSON, ORC, & Parquet
File Format Benchmarks - Avro, JSON, ORC, & ParquetFile Format Benchmarks - Avro, JSON, ORC, & Parquet
File Format Benchmarks - Avro, JSON, ORC, & ParquetOwen O'Malley

Solving PostgreSQL wicked problems
Solving PostgreSQL wicked problemsSolving PostgreSQL wicked problems
Solving PostgreSQL wicked problemsAlexander Korotkov

Top 5 Mistakes When Writing Spark Applications
Top 5 Mistakes When Writing Spark ApplicationsTop 5 Mistakes When Writing Spark Applications
Top 5 Mistakes When Writing Spark ApplicationsSpark Summit

Structuring Spark: DataFrames, Datasets, and Streaming by Michael Armbrust
Structuring Spark: DataFrames, Datasets, and Streaming by Michael ArmbrustStructuring Spark: DataFrames, Datasets, and Streaming by Michael Armbrust
Structuring Spark: DataFrames, Datasets, and Streaming by Michael ArmbrustSpark Summit

A Deep Dive into Spark SQL's Catalyst Optimizer with Yin Huai
A Deep Dive into Spark SQL's Catalyst Optimizer with Yin HuaiA Deep Dive into Spark SQL's Catalyst Optimizer with Yin Huai
A Deep Dive into Spark SQL's Catalyst Optimizer with Yin HuaiDatabricks

Migrating from InnoDB and HBase to MyRocks at Facebook
Migrating from InnoDB and HBase to MyRocks at FacebookMigrating from InnoDB and HBase to MyRocks at Facebook
Migrating from InnoDB and HBase to MyRocks at FacebookMariaDB plc

Apache Arrow and Pandas UDF on Apache Spark
Apache Arrow and Pandas UDF on Apache SparkApache Arrow and Pandas UDF on Apache Spark
Apache Arrow and Pandas UDF on Apache SparkTakuya UESHIN

Stability Patterns for Microservices
Stability Patterns for MicroservicesStability Patterns for Microservices
Stability Patterns for Microservicespflueras

OLTP+OLAP=HTAP
 OLTP+OLAP=HTAP OLTP+OLAP=HTAP
OLTP+OLAP=HTAPEDB

InfluxDB IOx Tech Talks: Replication, Durability and Subscriptions in InfluxD...
InfluxDB IOx Tech Talks: Replication, Durability and Subscriptions in InfluxD...InfluxDB IOx Tech Talks: Replication, Durability and Subscriptions in InfluxD...
InfluxDB IOx Tech Talks: Replication, Durability and Subscriptions in InfluxD...InfluxData

Data warehousing with Hadoop
Data warehousing with HadoopData warehousing with Hadoop
Data warehousing with Hadoophadooparchbook

2022-06-23 Apache Arrow and DataFusion_ Changing the Game for implementing Da...
2022-06-23 Apache Arrow and DataFusion_ Changing the Game for implementing Da...2022-06-23 Apache Arrow and DataFusion_ Changing the Game for implementing Da...
2022-06-23 Apache Arrow and DataFusion_ Changing the Game for implementing Da...Andrew Lamb

Degrading Performance? You Might be Suffering From the Small Files Syndrome
Degrading Performance? You Might be Suffering From the Small Files SyndromeDegrading Performance? You Might be Suffering From the Small Files Syndrome
Degrading Performance? You Might be Suffering From the Small Files SyndromeDatabricks

In-memory OLTP storage with persistence and transaction support
In-memory OLTP storage with persistence and transaction supportIn-memory OLTP storage with persistence and transaction support
In-memory OLTP storage with persistence and transaction supportAlexander Korotkov

PostgreSQL HA
PostgreSQL   HAPostgreSQL   HA
PostgreSQL HAharoonm

Spark SQL: Another 16x Faster After Tungsten: Spark Summit East talk by Brad ...
Spark SQL: Another 16x Faster After Tungsten: Spark Summit East talk by Brad ...Spark SQL: Another 16x Faster After Tungsten: Spark Summit East talk by Brad ...
Spark SQL: Another 16x Faster After Tungsten: Spark Summit East talk by Brad ...Spark Summit


What's hot (20)

Apache Arrow: In Theory, In Practice
Apache Arrow: In Theory, In PracticeApache Arrow: In Theory, In Practice
Apache Arrow: In Theory, In Practice

ElephantDB
ElephantDBElephantDB
ElephantDB

File Format Benchmarks - Avro, JSON, ORC, & Parquet
File Format Benchmarks - Avro, JSON, ORC, & ParquetFile Format Benchmarks - Avro, JSON, ORC, & Parquet
File Format Benchmarks - Avro, JSON, ORC, & Parquet

Solving PostgreSQL wicked problems
Solving PostgreSQL wicked problemsSolving PostgreSQL wicked problems
Solving PostgreSQL wicked problems

Top 5 Mistakes When Writing Spark Applications
Top 5 Mistakes When Writing Spark ApplicationsTop 5 Mistakes When Writing Spark Applications
Top 5 Mistakes When Writing Spark Applications

Structuring Spark: DataFrames, Datasets, and Streaming by Michael Armbrust
Structuring Spark: DataFrames, Datasets, and Streaming by Michael ArmbrustStructuring Spark: DataFrames, Datasets, and Streaming by Michael Armbrust
Structuring Spark: DataFrames, Datasets, and Streaming by Michael Armbrust

A Deep Dive into Spark SQL's Catalyst Optimizer with Yin Huai
A Deep Dive into Spark SQL's Catalyst Optimizer with Yin HuaiA Deep Dive into Spark SQL's Catalyst Optimizer with Yin Huai
A Deep Dive into Spark SQL's Catalyst Optimizer with Yin Huai

Migrating from InnoDB and HBase to MyRocks at Facebook
Migrating from InnoDB and HBase to MyRocks at FacebookMigrating from InnoDB and HBase to MyRocks at Facebook
Migrating from InnoDB and HBase to MyRocks at Facebook

Apache Arrow and Pandas UDF on Apache Spark
Apache Arrow and Pandas UDF on Apache SparkApache Arrow and Pandas UDF on Apache Spark
Apache Arrow and Pandas UDF on Apache Spark

Stability Patterns for Microservices
Stability Patterns for MicroservicesStability Patterns for Microservices
Stability Patterns for Microservices

OLTP+OLAP=HTAP
 OLTP+OLAP=HTAP OLTP+OLAP=HTAP
OLTP+OLAP=HTAP

File Format Benchmark - Avro, JSON, ORC & Parquet
File Format Benchmark - Avro, JSON, ORC & ParquetFile Format Benchmark - Avro, JSON, ORC & Parquet
File Format Benchmark - Avro, JSON, ORC & Parquet

InfluxDB IOx Tech Talks: Replication, Durability and Subscriptions in InfluxD...
InfluxDB IOx Tech Talks: Replication, Durability and Subscriptions in InfluxD...InfluxDB IOx Tech Talks: Replication, Durability and Subscriptions in InfluxD...
InfluxDB IOx Tech Talks: Replication, Durability and Subscriptions in InfluxD...

Data warehousing with Hadoop
Data warehousing with HadoopData warehousing with Hadoop
Data warehousing with Hadoop

Parquet overview
Parquet overviewParquet overview
Parquet overview

2022-06-23 Apache Arrow and DataFusion_ Changing the Game for implementing Da...
2022-06-23 Apache Arrow and DataFusion_ Changing the Game for implementing Da...2022-06-23 Apache Arrow and DataFusion_ Changing the Game for implementing Da...
2022-06-23 Apache Arrow and DataFusion_ Changing the Game for implementing Da...

Degrading Performance? You Might be Suffering From the Small Files Syndrome
Degrading Performance? You Might be Suffering From the Small Files SyndromeDegrading Performance? You Might be Suffering From the Small Files Syndrome
Degrading Performance? You Might be Suffering From the Small Files Syndrome

In-memory OLTP storage with persistence and transaction support
In-memory OLTP storage with persistence and transaction supportIn-memory OLTP storage with persistence and transaction support
In-memory OLTP storage with persistence and transaction support

PostgreSQL HA
PostgreSQL   HAPostgreSQL   HA
PostgreSQL HA

Spark SQL: Another 16x Faster After Tungsten: Spark Summit East talk by Brad ...
Spark SQL: Another 16x Faster After Tungsten: Spark Summit East talk by Brad ...Spark SQL: Another 16x Faster After Tungsten: Spark Summit East talk by Brad ...
Spark SQL: Another 16x Faster After Tungsten: Spark Summit East talk by Brad ...


Similar to Compilers Are Databases

Martin Odersky - Evolution of Scala
Martin Odersky - Evolution of ScalaMartin Odersky - Evolution of Scala
Martin Odersky - Evolution of ScalaScala Italy

First Class Variables as AST Annotations
 First Class Variables as AST Annotations First Class Variables as AST Annotations
First Class Variables as AST AnnotationsESUG

First Class Variables as AST Annotations
First Class Variables as AST AnnotationsFirst Class Variables as AST Annotations
First Class Variables as AST AnnotationsMarcus Denker

Scala Days San Francisco
Scala Days San FranciscoScala Days San Francisco
Scala Days San FranciscoMartin Odersky

Archi Modelling
Archi ModellingArchi Modelling
Archi Modellingdilane007

Scala for Machine Learning
Scala for Machine LearningScala for Machine Learning
Scala for Machine LearningPatrick Nicolas

Specialized Compiler for Hash Cracking
Specialized Compiler for Hash CrackingSpecialized Compiler for Hash Cracking
Specialized Compiler for Hash CrackingPositive Hack Days

Threads and multi threading
Threads and multi threadingThreads and multi threading
Threads and multi threadingAntonio Cesarano

QuadIron An open source library for number theoretic transform-based erasure ...
QuadIron An open source library for number theoretic transform-based erasure ...QuadIron An open source library for number theoretic transform-based erasure ...
QuadIron An open source library for number theoretic transform-based erasure ...Scality

Metrics ekon 14_2_kleiner
Metrics ekon 14_2_kleinerMetrics ekon 14_2_kleiner
Metrics ekon 14_2_kleinerMax Kleiner

A full Machine learning pipeline in Scikit-learn vs in scala-Spark: pros and ...
A full Machine learning pipeline in Scikit-learn vs in scala-Spark: pros and ...A full Machine learning pipeline in Scikit-learn vs in scala-Spark: pros and ...
A full Machine learning pipeline in Scikit-learn vs in scala-Spark: pros and ...Jose Quesada (hiring)

Standardizing on a single N-dimensional array API for Python
Standardizing on a single N-dimensional array API for PythonStandardizing on a single N-dimensional array API for Python
Standardizing on a single N-dimensional array API for PythonRalf Gommers

Data oriented design and c++
Data oriented design and c++Data oriented design and c++
Data oriented design and c++Mike Acton

Lecture1_computer vision-2023.pdf
Lecture1_computer vision-2023.pdfLecture1_computer vision-2023.pdf
Lecture1_computer vision-2023.pdfssuserff72e4

Type Profiler: Ambitious Type Inference for Ruby 3
Type Profiler: Ambitious Type Inference for Ruby 3Type Profiler: Ambitious Type Inference for Ruby 3
Type Profiler: Ambitious Type Inference for Ruby 3mametter


Similar to Compilers Are Databases (20)

Scala Days NYC 2016
Scala Days NYC 2016Scala Days NYC 2016
Scala Days NYC 2016

Martin Odersky - Evolution of Scala
Martin Odersky - Evolution of ScalaMartin Odersky - Evolution of Scala
Martin Odersky - Evolution of Scala

First Class Variables as AST Annotations
 First Class Variables as AST Annotations First Class Variables as AST Annotations
First Class Variables as AST Annotations

First Class Variables as AST Annotations
First Class Variables as AST AnnotationsFirst Class Variables as AST Annotations
First Class Variables as AST Annotations

Scala Days San Francisco
Scala Days San FranciscoScala Days San Francisco
Scala Days San Francisco

Archi Modelling
Archi ModellingArchi Modelling
Archi Modelling

Scala for Machine Learning
Scala for Machine LearningScala for Machine Learning
Scala for Machine Learning

Csharp
CsharpCsharp
Csharp

Specialized Compiler for Hash Cracking
Specialized Compiler for Hash CrackingSpecialized Compiler for Hash Cracking
Specialized Compiler for Hash Cracking

MatlabIntro (1).ppt
MatlabIntro (1).pptMatlabIntro (1).ppt
MatlabIntro (1).ppt

Threads and multi threading
Threads and multi threadingThreads and multi threading
Threads and multi threading

QuadIron An open source library for number theoretic transform-based erasure ...
QuadIron An open source library for number theoretic transform-based erasure ...QuadIron An open source library for number theoretic transform-based erasure ...
QuadIron An open source library for number theoretic transform-based erasure ...

Matlab lec1
Matlab lec1Matlab lec1
Matlab lec1

Metrics ekon 14_2_kleiner
Metrics ekon 14_2_kleinerMetrics ekon 14_2_kleiner
Metrics ekon 14_2_kleiner

A full Machine learning pipeline in Scikit-learn vs in scala-Spark: pros and ...
A full Machine learning pipeline in Scikit-learn vs in scala-Spark: pros and ...A full Machine learning pipeline in Scikit-learn vs in scala-Spark: pros and ...
A full Machine learning pipeline in Scikit-learn vs in scala-Spark: pros and ...

Standardizing on a single N-dimensional array API for Python
Standardizing on a single N-dimensional array API for PythonStandardizing on a single N-dimensional array API for Python
Standardizing on a single N-dimensional array API for Python

Data oriented design and c++
Data oriented design and c++Data oriented design and c++
Data oriented design and c++

Lecture1_computer vision-2023.pdf
Lecture1_computer vision-2023.pdfLecture1_computer vision-2023.pdf
Lecture1_computer vision-2023.pdf

Type Profiler: Ambitious Type Inference for Ruby 3
Type Profiler: Ambitious Type Inference for Ruby 3Type Profiler: Ambitious Type Inference for Ruby 3
Type Profiler: Ambitious Type Inference for Ruby 3

Modern C++
Modern C++Modern C++
Modern C++


More from Martin Odersky

Capabilities for Resources and Effects
Capabilities for Resources and EffectsCapabilities for Resources and Effects
Capabilities for Resources and EffectsMartin Odersky

What To Leave Implicit
What To Leave ImplicitWhat To Leave Implicit
What To Leave ImplicitMartin Odersky

What To Leave Implicit
What To Leave ImplicitWhat To Leave Implicit
What To Leave ImplicitMartin Odersky

Implementing Higher-Kinded Types in Dotty
Implementing Higher-Kinded Types in DottyImplementing Higher-Kinded Types in Dotty
Implementing Higher-Kinded Types in DottyMartin Odersky

The Evolution of Scala
The Evolution of ScalaThe Evolution of Scala
The Evolution of ScalaMartin Odersky

Scala - The Simple Parts, SFScala presentation
Scala - The Simple Parts, SFScala presentationScala - The Simple Parts, SFScala presentation
Scala - The Simple Parts, SFScala presentationMartin Odersky

flatMap Oslo presentation slides
flatMap Oslo presentation slidesflatMap Oslo presentation slides
flatMap Oslo presentation slidesMartin Odersky

Oscon keynote: Working hard to keep it simple
Oscon keynote: Working hard to keep it simpleOscon keynote: Working hard to keep it simple
Oscon keynote: Working hard to keep it simpleMartin Odersky

Scala eXchange opening
Scala eXchange openingScala eXchange opening
Scala eXchange openingMartin Odersky

Scala Talk at FOSDEM 2009
Scala Talk at FOSDEM 2009Scala Talk at FOSDEM 2009
Scala Talk at FOSDEM 2009Martin Odersky


More from Martin Odersky (17)

scalar.pdf
scalar.pdfscalar.pdf
scalar.pdf

Capabilities for Resources and Effects
Capabilities for Resources and EffectsCapabilities for Resources and Effects
Capabilities for Resources and Effects

Preparing for Scala 3
Preparing for Scala 3Preparing for Scala 3
Preparing for Scala 3

Simplicitly
SimplicitlySimplicitly
Simplicitly

What To Leave Implicit
What To Leave ImplicitWhat To Leave Implicit
What To Leave Implicit

What To Leave Implicit
What To Leave ImplicitWhat To Leave Implicit
What To Leave Implicit

From DOT to Dotty
From DOT to DottyFrom DOT to Dotty
From DOT to Dotty

Implementing Higher-Kinded Types in Dotty
Implementing Higher-Kinded Types in DottyImplementing Higher-Kinded Types in Dotty
Implementing Higher-Kinded Types in Dotty

Scalax
ScalaxScalax
Scalax

The Evolution of Scala
The Evolution of ScalaThe Evolution of Scala
The Evolution of Scala

Scala - The Simple Parts, SFScala presentation
Scala - The Simple Parts, SFScala presentationScala - The Simple Parts, SFScala presentation
Scala - The Simple Parts, SFScala presentation

Flatmap
FlatmapFlatmap
Flatmap

flatMap Oslo presentation slides
flatMap Oslo presentation slidesflatMap Oslo presentation slides
flatMap Oslo presentation slides

Devoxx
DevoxxDevoxx
Devoxx

Oscon keynote: Working hard to keep it simple
Oscon keynote: Working hard to keep it simpleOscon keynote: Working hard to keep it simple
Oscon keynote: Working hard to keep it simple

Scala eXchange opening
Scala eXchange openingScala eXchange opening
Scala eXchange opening

Scala Talk at FOSDEM 2009
Scala Talk at FOSDEM 2009Scala Talk at FOSDEM 2009
Scala Talk at FOSDEM 2009


Recently uploaded

Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024Victor Rentea

Vector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxVector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxjbellis

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...panagenda

The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...SOFTTECHHUB

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightSafe Software

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)Samir Dash

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAnitaRaj43

Design and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data ScienceDesign and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data SciencePaolo Missier

ERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctBrainSell Technologies

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe中 央社

Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...Skynet Technologies

Design Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxDesign Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxFIDO Alliance

UiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewUiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewDianaGray10

CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)Wonjun Hwang

Finding Java's Hidden Performance Traps @ DevoxxUK 2024
Finding Java's Hidden Performance Traps @ DevoxxUK 2024Finding Java's Hidden Performance Traps @ DevoxxUK 2024
Finding Java's Hidden Performance Traps @ DevoxxUK 2024Victor Rentea

الأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهلهالأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهلهMohamed Sweelam

Six Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal OntologySix Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal Ontologyjohnbeverley2021

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxFIDO Alliance

How to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfHow to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfdanishmna97

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024Lorenzo Miniero


Recently uploaded (20)

Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024

Vector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxVector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptx

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...

The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by Anitaraj

Design and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data ScienceDesign and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data Science

ERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage Intacct

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe

Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...

Design Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxDesign Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptx

UiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewUiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overview

CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)

Finding Java's Hidden Performance Traps @ DevoxxUK 2024
Finding Java's Hidden Performance Traps @ DevoxxUK 2024Finding Java's Hidden Performance Traps @ DevoxxUK 2024
Finding Java's Hidden Performance Traps @ DevoxxUK 2024

الأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهلهالأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهله

Six Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal OntologySix Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal Ontology

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx

How to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfHow to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cf

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024


Compilers Are Databases

  • 1. Compilers Are Databases JVM Languages Summit Martin Odersky TypeSafe and EPFL
  • 4. Compilers are Data Bases? 4 Put a square peg in a round hole?
  • 5. This Talk ... ... reports on a new compiler architecture for dsc, the Dotty Scala Compiler. • It has a mostly functional architecture, but uses a lot of low-level tricks for speed. • Some of its concepts are inspired by functional databases.
  • 6. My Early Involvement in Compilers 80s Pascal, Modula-2 single pass, following the school of Niklaus Wirth. 95-96 Espresso, the 2nd Java compiler  E Compiler  Borland’s JBuilder used an OO AST with one class per node and all processing distributed between methods on these nodes. 96-99 Pizza  GJ  javac (1.3+) -> scalac (1.x) replaced OO AST with pattern matching. 6
  • 7. Current Scala Compiler 2004-12 nsc compiler for Scala (2.0-2.10) Made (some) use of functional capabilities of Scala Added: – REPL – presentation compiler for IDEs (Eclipse, Ensime) – run-time meta programming with toolboxes It’s the codebase for the official scalac compiler for 2.11, 2.12 and beyond. 7
  • 8. Next Generation Scala Compiler 2012 – now: Dotty • Rethink compiler architecture from the ground up. • Introduce some language changes with the aim of better regularity. • Status: – Close to bootstrap – But still rough around the edges 8
  • 12. Challenges A compiler for a language like Scala faces quite a few challenges. Among the most important are: » Complexity » Speed » Latency » Reusability
  • 13. Challenge: Complex Transformations • Input language (Scala) is complicated. • Output language (JVM) is also complicated. • Semantic gap between the two is large. Compare with compilers to simple low-level languages such as System F or SSA. 13
  • 15. Challenge: Speed • Current scalac achieves 500-700 loc/sec on idiomatic Scala code. • Can be much lower, depending on input. • Everyone would like it to be faster. • But this is very hard to achieve. - FP does have costs. - Optimizations are ineffective. - No hotspots, costs are smeared out widely. 15
  • 16. Challenge: Latency • Some applications require fast turnaround for small changes more than high throughput. • Examples: – REPL – Worksheet – IDE Presentation Compiler  Need to keep things loaded (program + data) 16
  • 17. Challenge: Reusability • A compiler has many clients: – Command line – Build tools – IDEs – REPL – Meta-programming  Abstractions must not leak. (FP helps) 17
  • 18. A Question Every compiler has to answer questions like this: Say I have a class class C[T] { def f(x: T): T = ... } At some point I change it to: class C[T] { def f(x: T)(y: T): T = ... } What is the type signature of C.f? Clearly, it depends on the time when the question is asked! 18
  • 19. Time-Varying Answers Initially: (x: T): T After erasure: (x: Any): Any After the edit: (x: T)(y: T): T After uncurry: (x: T, y: T): T After erasure: (x: Any, y: Any): Any 19
  • 20. Naive Functional Approach World1  IR1,1  ...  IRn,1  Output1 World2  IR1,2  ...  IRn,2  Output2 . . . Worldk  IR1,k  ...  IRn,k  Outputk How big is the world? 20
  • 21. A More Practical Strategy Taking Inspiration from FRP and Functional Databases: • Treat every value as a time-varying function. • So the question is not: “What is the signature of C.f” ? but: “What is the signature of C.f at a given point in time” ?  Need to index every piece of information with the time where it holds. 21
  • 22. Time in dsc Period = (RunID, PhaseID) • RunIDs is incremented for each compiler run • PhaseID ranges from 1 (parser) to ~ 50 (backend) 22 Run1 Run2 Run3
  • 23. Time-Indexed Values sig(C.f, (Run 1, parser)) = (x: T): T sig(C.f, (Run 1, erasure)) = (x: Any): Any sig(C.f, (Run 2, erasure)) = (x: T)(y: T): T sig(C.f, (Run 2, uncurry)) = (x: T, y: T): T sig(C.f, (Run 2, erasure) = (x: Any, y: Any): Any 23
  • 24. Task of the Compiler • Compute all values needed for analysis and code generation over all periods where they are relevant. • Problem: The graph of this function is humongous! • More work is needed to make it efficiently explorable. • But for a start it looks like the right model. 24
  • 25. Core Data Types Abstract Syntax Trees Types References Denotations Symbols 25
  • 26. Abstract Syntax Trees • For instance, for x * 2: 26
  • 27. Tree Attributes What about tree attributes? In dsc, we simplified as much as we could. Were left with just two attributes: – Position (intrinsic) – Type The job of the type checker is to transform untyped to typed trees. 27
  • 28. Typed Abstract Syntax Trees 28 For instance, for x * 2: The distinction whether a tree is typed or untyped is pretty important, merits being reflected in the type of AST itself.
  • 29. From Untyped to Typed Trees Idea: parameterize the type Tree of AST’s with the attribute info it carries. Typed tree: tpd.Tree = Tree[Type] Untyped tree: untpd.Tree = Tree[Nothing] This leads to the following class: class Tree[T] { def tpe: T def withType(t: Type): Tree[Type] } 29
  • 30. Question of Variance • Question: Which of the following two subtype relationships should hold? tpd.Tree <: untpd.Tree untpd.Tree <: tpd.Tree ? • What is the more useful relationship? (the first) • What relationship do the variance rules imply? (the second) 30 class Tree[? T] { def tpe: T ... }
  • 31. Fixing class Tree class Tree[-T] { def tpe: T @uncheckedVariance def withType(t: Type): Tree[Type] } Interesting exception to the variance rules related to the bottom type Nothing. What can go “wrong” here? Given an untpd.Tree, I expect Nothing, but I might get a Type. Shows that it’s good have an escape hatch in the form of @uncheckedVariance. 31
  • 32. Types • Types carry most of the essential information of trees and symbols. • Two kinds of types. – Value types: Int, Int => Int, (Boolean, String) – Types of definitions: (x: Int)Int, Lo..Hi, Class(...) • Represented as subtypes of the same type “Type” for convenience. 32
  • 33. References case class Select(qual: Tree, name: Name) { // what is its tpe? } case class Ident(name: Name) { // what is its tpe? } • Normally, these tree nodes would carry a “symbol”, which acts as a reference to some definition. • But there are no symbol attributes in dsc, for good reason. 33
  • 35. A Question of Meaning Question: What is the meaning of obj.fun ? It depends on the period! Does that mean that obj.fun has different types, depending on period? No, trees are immutable! 35
  • 36. References 36 • A reference is a type • It contains (only) – a name – potentially a prefix • References are immutable, they exist forever.
  • 37. What about Overloads? The name of a TermRef may be shared by several overloaded members of a class. How do we determine which member is meant? (In a nutshell, that’s why overloading is so universally hated by compiler writers) Trick: Allow “signature” as part of term names. 37
  • 38. What Does A Reference Reference? Surely, a symbol? No! References capture more than a symbol And sometimes they do not refer to a unique symbol at all. 38
  • 39. References capture more than a symbol. Consider: class C[T] { def f(x: T): T } val prefix = new C[Int] Then prefix.f: resolves to C’s f but at type (Int)Int, not (T)T Both pieces of information are part of the meaning of prefix.f. 39
  • 40. References Sometimes references point to no symbol at all. We have already seen overloading. Here’s another example using union types, which are newly supported by dsc: class A { def f: Int } class B { def f: Int } val prefix: A | B = if (...) new A else new B prefix.f What symbol is referenced by prefix.f ? 40
  • 41. Denotations The meaning of a reference is a denotation. Non-overloaded denotations carry symbols (maybe) and types (always). 41
  • 42. What Then Is A Symbol? A symbol represents a declaration in some source file. It “lives” as long as the source file is unchanged. It has a denotation depending on the period. 42
  • 43. Denotation Transformers • How do we compute new denotations from old ones? • For references pre.f: Can recompute the member at new phase. • For symbols? uncurry.transDenot(<(x: A)(y: B): C>) = <(x: A, y: B): C> 43
  • 44. Caching Denotations Symbols are memoized functions: Period  Denotation Keep all denotations of a symbol at different phases as a ring. 44
  • 45. Putting it all Together 45 • ER diagram of core compiler architecture: * *
  • 46. Lessons Learned (Not done yet, still learning) • Think databases for modeling. • Think FP for transformations. • Get efficiency through low-level techniques (caching) • But take care not to compromise the high-level semantics. 46
  • 47. To Find Out More 47
  • 48. How to make it Fast • Caching – Symbols cache last denotation – NamedTypes do the same – Caches are stamped with validity interval (current period until the next denotation transformer kicks in). – Need to update only if outside of validity period – Member lookup caches denotation Not yet tried: Parallelization. - Could be hard (similar to chess programs) 48
  • 49. Many forms of Caches • Lazy vals • Memoization • LRU Caches • Rely on – Purely functional semantics – Access to low-level imperative implementation code. – Important to keep the levels of abstractions apart! 49
  • 50. Optimization: Phase Fusion • For modularity reasons, phases should be small. Each phase should od one self-contained transform. • But that means we end up with many phases. • Problem: Repeated tree rewriting is a performance killer. • Solution: Automatically fuse phases into one tree traversal. – Relies on design pattern and some small amount of introspection. 50
