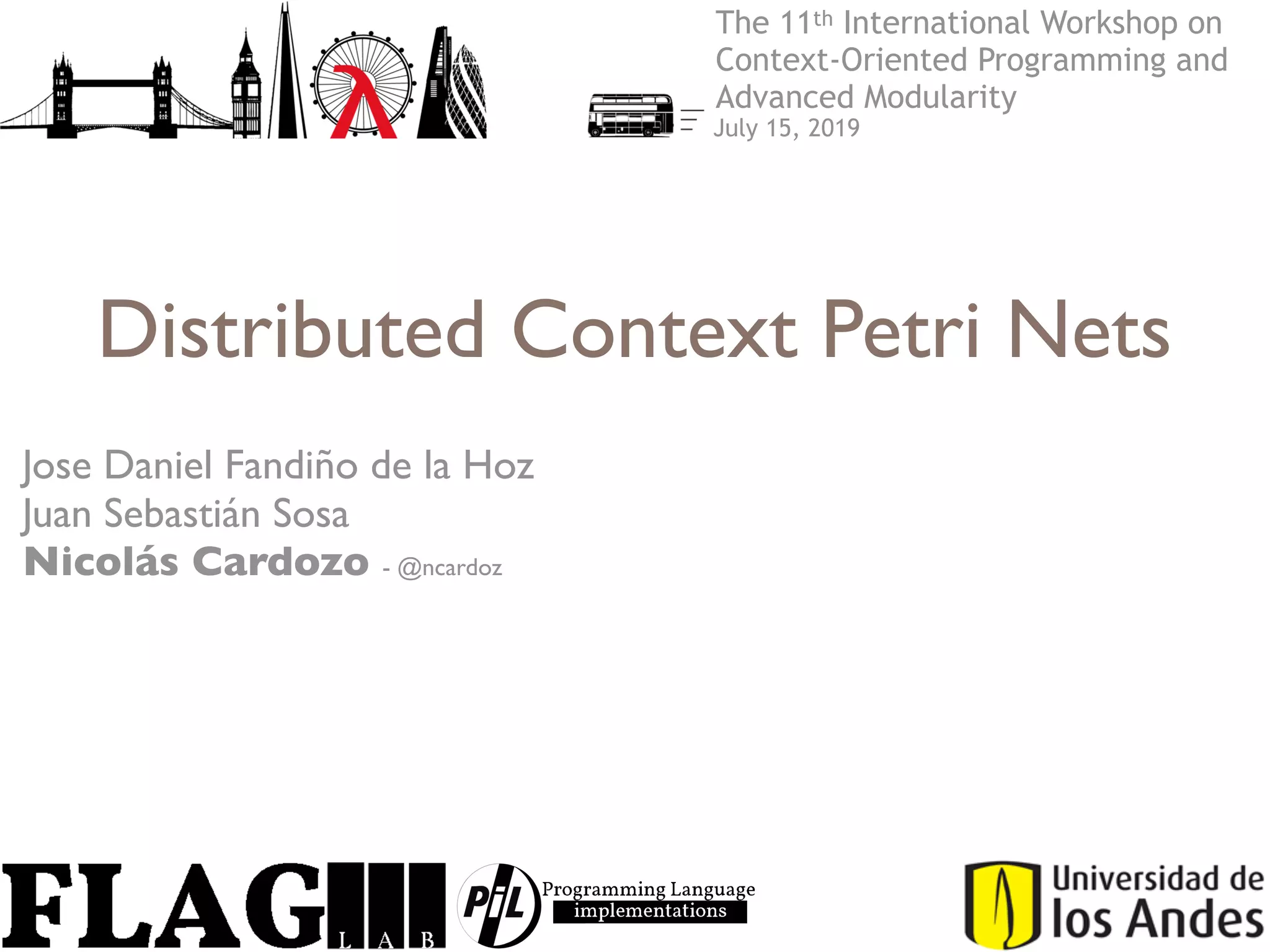

1. Distributed Context Petri Nets
Jose Daniel Fandiño de la Hoz
Juan Sebastián Sosa
Nicolás Cardozo - @ncardoz
The 11th International Workshop on
Context-Oriented Programming and
Advanced Modularity
July 15, 2019

2. Context-oriented programming2
DCoPNsMotivation Validation Conclusion

3. Context-oriented programming2
DCoPNsMotivation Validation Conclusion
Adaptation to the surrounding execution environment
The environment is static
Interactions between adaptations are presupposed

4. Context-oriented programming2
DCoPNsMotivation Validation Conclusion
Adaptation to the surrounding execution environment
The environment is static
Interactions between adaptations are presupposed

5. Context-oriented programming2
DCoPNsMotivation Validation Conclusion
Adaptation to the surrounding execution environment
The environment is static
Interactions between adaptations are presupposed
New contexts are not taken
into account at run time

6. Motivating example3
DCoPNsMotivation Validation Conclusion
Mobile City Guide

7. Motivating example3
DCoPNsMotivation Validation Conclusion
Mobile City Guide
Context Behavior

8. Motivating example3
DCoPNsMotivation Validation Conclusion
4.5. Virtual city guide contexts 39
(a) Adaptation of the display of the
POIs list according to the context
GuidedTour
(b) Adaptation of the Guided Tour
map display according to the context
GuidedTour
(c) Adaptation of the view defining the
details of a particular POI according
to the ColoredCategories context
(d) Adaptations of the view related to
the list of POIs according to the Sim-
pleInterface context
Figure 4.8: Screenshots related to the virtual city guide application
Mobile City Guide
Context Behavior

9. Motivating example3
DCoPNsMotivation Validation Conclusion
4.5. Virtual city guide contexts 39
(a) Adaptation of the display of the
POIs list according to the context
GuidedTour
(b) Adaptation of the Guided Tour
map display according to the context
GuidedTour
(c) Adaptation of the view defining the
details of a particular POI according
to the ColoredCategories context
(d) Adaptations of the view related to
the list of POIs according to the Sim-
pleInterface context
Figure 4.8: Screenshots related to the virtual city guide application
Mobile City Guide
Context Behavior

10. Motivating example4
DCoPNsMotivation Validation Conclusion
Mobile City Guide
exclusion
requirement
causality implication
suggestion
GPS
GuidedTour
ItineraryPOIOrder
WifiConnectivity3G
Connectivity
LowBattery LowMemory
AgeGroup

11. Motivating example5
DCoPNsMotivation Validation Conclusion
Mobile City GuideGPS
GuidedTour
ItineraryPOIOrder
WifiConnectivity3G
Connectivity
LowBattery LowMemory
AgeGroup
User device
Museum
TourBus
exclusion
requirement
causality implication
suggestion

12. Motivating example6
DCoPNsMotivation Validation Conclusion

13. Motivating example6
DCoPNsMotivation Validation Conclusion
Manage interaction between contexts in a
continuously changing environment

14. Validation Conclusion
7
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets

15. Validation Conclusion
7
Definition
A context is defined by a context Petri net (CoPN)
defined as
0.1 slide 14 1
0.1 slide 14
C = ÈPc, Pt, Te, Ti, f, f¶, fl, L, m0, Í
Pc fl Pt = „ fl : T ≠æ Zú
Te fl Ti = „ ’ t œ Te, fl(t) = 0
(Pc fi Pt) fl (Te fi Ti) = „ ’ t œ Ti, fl(t) > 0
f : (P ◊ T ◊ L) fi (T ◊ P ◊ L) ≠æ Zú
m0 : P ◊ L ≠æ Zú
f¶ : P ◊ T ≠æ {0, 1}
0.2 slide 21
¶({CQ, CN, CM}, {ÈE, CQ, CNÍ, ÈS, CM, CQÍ})
¶({CQ, CM}, {ÈS, CM, CQÍ})
union({CQ, CM})
extS({CQ, CM}, {ÈS, CM, CQÍ})
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets

16. Validation Conclusion
7
temporary
place
context
place
activation
state
external
transition
clearing
transition
internal
transition
arcs
inhibitor
arcs
[Reactive Petri nets,2003]
[On the analysis of Petri nets with static priorities,1996]
[Petri net semantics of priority systems,2003]
Definition
A context is defined by a context Petri net (CoPN)
defined as
0.1 slide 14 1
0.1 slide 14
C = ÈPc, Pt, Te, Ti, f, f¶, fl, L, m0, Í
Pc fl Pt = „ fl : T ≠æ Zú
Te fl Ti = „ ’ t œ Te, fl(t) = 0
(Pc fi Pt) fl (Te fi Ti) = „ ’ t œ Ti, fl(t) > 0
f : (P ◊ T ◊ L) fi (T ◊ P ◊ L) ≠æ Zú
m0 : P ◊ L ≠æ Zú
f¶ : P ◊ T ≠æ {0, 1}
0.2 slide 21
¶({CQ, CN, CM}, {ÈE, CQ, CNÍ, ÈS, CM, CQÍ})
¶({CQ, CM}, {ÈS, CM, CQÍ})
union({CQ, CM})
extS({CQ, CM}, {ÈS, CM, CQÍ})
GTPr(GT) Pr(¬GT)
req(GT) act(GT)
deac(GT)
req(¬GT)
@context(GuidedTour)
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets

17. Validation Conclusion
7
temporary
place
context
place
activation
state
external
transition
clearing
transition
internal
transition
arcs
inhibitor
arcs
[Reactive Petri nets,2003]
[On the analysis of Petri nets with static priorities,1996]
[Petri net semantics of priority systems,2003]
Definition
A context is defined by a context Petri net (CoPN)
defined as
0.1 slide 14 1
0.1 slide 14
C = ÈPc, Pt, Te, Ti, f, f¶, fl, L, m0, Í
Pc fl Pt = „ fl : T ≠æ Zú
Te fl Ti = „ ’ t œ Te, fl(t) = 0
(Pc fi Pt) fl (Te fi Ti) = „ ’ t œ Ti, fl(t) > 0
f : (P ◊ T ◊ L) fi (T ◊ P ◊ L) ≠æ Zú
m0 : P ◊ L ≠æ Zú
f¶ : P ◊ T ≠æ {0, 1}
0.2 slide 21
¶({CQ, CN, CM}, {ÈE, CQ, CNÍ, ÈS, CM, CQÍ})
¶({CQ, CM}, {ÈS, CM, CQÍ})
union({CQ, CM})
extS({CQ, CM}, {ÈS, CM, CQÍ})
GTPr(GT) Pr(¬GT)
req(GT) act(GT)
deac(GT)
req(¬GT)
@context(GuidedTour)
@activate(GuidedTour) @deactivate(GuidedTour)
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets

18. Validation Conclusion
7
temporary
place
context
place
activation
state
external
transition
clearing
transition
internal
transition
arcs
inhibitor
arcs
[Reactive Petri nets,2003]
[On the analysis of Petri nets with static priorities,1996]
[Petri net semantics of priority systems,2003]
Definition
A context is defined by a context Petri net (CoPN)
defined as
0.1 slide 14 1
0.1 slide 14
C = ÈPc, Pt, Te, Ti, f, f¶, fl, L, m0, Í
Pc fl Pt = „ fl : T ≠æ Zú
Te fl Ti = „ ’ t œ Te, fl(t) = 0
(Pc fi Pt) fl (Te fi Ti) = „ ’ t œ Ti, fl(t) > 0
f : (P ◊ T ◊ L) fi (T ◊ P ◊ L) ≠æ Zú
m0 : P ◊ L ≠æ Zú
f¶ : P ◊ T ≠æ {0, 1}
0.2 slide 21
¶({CQ, CN, CM}, {ÈE, CQ, CNÍ, ÈS, CM, CQÍ})
¶({CQ, CM}, {ÈS, CM, CQÍ})
union({CQ, CM})
extS({CQ, CM}, {ÈS, CM, CQÍ})
GTPr(GT) Pr(¬GT)
req(GT) act(GT)
deac(GT)
req(¬GT)
@context(GuidedTour)
@activate(GuidedTour) @deactivate(GuidedTour)
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets

19. Validation Conclusion
8
Context dependency relations
Five types of context dependency relations: Exclusion ( ), Causality
(⇽), Implication (➝), Requirement ( ), suggestion ( )
deac(GT)
IPOreq(IPO) act(IPO) Pr(¬IPO)
deac(IPO)
req(¬IPO)
Pr(IPO)
GT
req(GT)
act(GT) Pr(¬GT)
deac(GT)req(¬GT)
Pr(GT)
[addRequirementTo: GuidedTour of: ItineraryPoiOrder]
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets
[Context Petri nets enabling consistent composition of context-dependent behavior. PNSE’12]

20. Run-time interaction and consistency9
Consistent States
No enabled internal transitions, and marked
temporary places
WC
req(WC) act(WC) Pr(¬WC)
deac(WC)
req(¬WC)
Pr(WC)
LB
req(LB)
act(LB) Pr(¬LB)
deac(LB)req(¬LB)
Pr(LB)
DCoPNsMotivation Validation Conclusion

21. Run-time interaction and consistency9
Consistent States
No enabled internal transitions, and marked
temporary places
WC
req(WC) act(WC) Pr(¬WC)
deac(WC)
req(¬WC)
Pr(WC)
LB
req(LB)
act(LB) Pr(¬LB)
deac(LB)req(¬LB)
Pr(LB)
DCoPNsMotivation Validation Conclusion

22. Run-time interaction and consistency9
Consistent States
No enabled internal transitions, and marked
temporary places
WC
req(WC) act(WC) Pr(¬WC)
deac(WC)
req(¬WC)
Pr(WC)
LB
req(LB)
act(LB) Pr(¬LB)
deac(LB)req(¬LB)
Pr(LB)
DCoPNsMotivation Validation Conclusion

23. Run-time interaction and consistency9
Consistent States
No enabled internal transitions, and marked
temporary places
WC
req(WC) act(WC) Pr(¬WC)
deac(WC)
req(¬WC)
Pr(WC)
LB
req(LB)
act(LB) Pr(¬LB)
deac(LB)req(¬LB)
Pr(LB)
DCoPNsMotivation Validation Conclusion

24. Run-time interaction and consistency9
Consistent States
No enabled internal transitions, and marked
temporary places
WC
req(WC) act(WC) Pr(¬WC)
deac(WC)
req(¬WC)
Pr(WC)
LB
req(LB)
act(LB) Pr(¬LB)
deac(LB)req(¬LB)
Pr(LB)
DCoPNsMotivation Validation Conclusion

25. Validation Conclusion
10
Run-time interaction and consistency
1. External transitions fire after @activate and @deactivate
[Context Petri Nets: Consistent of Context-dependent Behavior. PNSE’12]
2. Enabled internal transitions are always fired
3.If there is an inconsistency, actions are reverted to previous consistent state
4. Consistent states are accepted
deac(GT)
IPOreq(IPO) act(IPO) Pr(¬IPO)
deac(IPO)
req(¬IPO)
Pr(IPO)
GT
req(GT)
act(GT) Pr(¬GT)
deac(GT)req(¬GT)
Pr(GT)
DCoPNsMotivation

26. Validation Conclusion
11
Context dependency relations
Five types of context dependency relations: Exclusion ( ), Causality
(⇽), Implication (➝), Requirement ( ), suggestion ( )
deac(GT)
IPOreq(IPO) act(IPO) Pr(¬IPO)
deac(IPO)
req(¬IPO)
Pr(IPO)
GT
req(GT)
act(GT) Pr(¬GT)
deac(GT)req(¬GT)
Pr(GT)
[addRequirementTo: GuidedTour of: ItineraryPoiOrder]
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets
[Context Petri nets enabling consistent composition of context-dependent behavior. PNSE’12]

27. Validation Conclusion
11
Context dependency relations
Five types of context dependency relations: Exclusion ( ), Causality
(⇽), Implication (➝), Requirement ( ), suggestion ( )
deac(GT)
IPOreq(IPO) act(IPO) Pr(¬IPO)
deac(IPO)
req(¬IPO)
Pr(IPO)
GT
req(GT)
act(GT) Pr(¬GT)
deac(GT)req(¬GT)
Pr(GT)
[addRequirementTo: GuidedTour of: ItineraryPoiOrder]
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets
[Context Petri nets enabling consistent composition of context-dependent behavior. PNSE’12]

28. Validation Conclusion
11
Context dependency relations
Five types of context dependency relations: Exclusion ( ), Causality
(⇽), Implication (➝), Requirement ( ), suggestion ( )
deac(GT)
IPOreq(IPO) act(IPO) Pr(¬IPO)
deac(IPO)
req(¬IPO)
Pr(IPO)
GT
req(GT)
act(GT) Pr(¬GT)
deac(GT)req(¬GT)
Pr(GT)
[addRequirementTo: GuidedTour of: ItineraryPoiOrder]
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets
[Context Petri nets enabling consistent composition of context-dependent behavior. PNSE’12]

29. Validation Conclusion
11
Context dependency relations
Five types of context dependency relations: Exclusion ( ), Causality
(⇽), Implication (➝), Requirement ( ), suggestion ( )
deac(GT)
IPOreq(IPO) act(IPO) Pr(¬IPO)
deac(IPO)
req(¬IPO)
Pr(IPO)
GT
req(GT)
act(GT) Pr(¬GT)
deac(GT)req(¬GT)
Pr(GT)
[addRequirementTo: GuidedTour of: ItineraryPoiOrder]
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets
[Context Petri nets enabling consistent composition of context-dependent behavior. PNSE’12]

30. Validation Conclusion
11
Context dependency relations
Five types of context dependency relations: Exclusion ( ), Causality
(⇽), Implication (➝), Requirement ( ), suggestion ( )
deac(GT)
IPOreq(IPO) act(IPO) Pr(¬IPO)
deac(IPO)
req(¬IPO)
Pr(IPO)
GT
req(GT)
act(GT) Pr(¬GT)
deac(GT)req(¬GT)
Pr(GT)
[addRequirementTo: GuidedTour of: ItineraryPoiOrder]
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets
[Context Petri nets enabling consistent composition of context-dependent behavior. PNSE’12]

31. Validation Conclusion
11
Context dependency relations
Five types of context dependency relations: Exclusion ( ), Causality
(⇽), Implication (➝), Requirement ( ), suggestion ( )
deac(GT)
IPOreq(IPO) act(IPO) Pr(¬IPO)
deac(IPO)
req(¬IPO)
Pr(IPO)
GT
req(GT)
act(GT) Pr(¬GT)
deac(GT)req(¬GT)
Pr(GT)
[addRequirementTo: GuidedTour of: ItineraryPoiOrder]
[Modeling and analyzing self-adaptive systems with context Petri nets.TASE’13]
DCoPNsMotivation
Context Petri nets
[Context Petri nets enabling consistent composition of context-dependent behavior. PNSE’12]

32. Validation Conclusion
12
Distributed context Petri nets
DCoPNsMotivation

33. Validation Conclusion
12
Distributed context Petri nets
Definition
A context is defined by a distributed context Petri net
(DCoPN) defined as tuple ⟨PN, UT, F, F0⟩
• PN: set of CoPNs
• UT: set of universal transitions (transitions
belonging to any context)
• F: set of remote arcs
• F0: set of remote inhibitor arcs } Arcs crossing
nodes’ boundaries
DCoPNsMotivation

34. Validation Conclusion
13
Distributed context Petri nets
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
DCoPNsMotivation

35. GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
Validation Conclusion
14
Distributed context Petri nets
UserNode
DCoPNsMotivation

36. GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
Validation Conclusion
14
Distributed context Petri nets
UserNode
DCoPNsMotivation
1. Each node is
consistent
3. Keep consistency
between connected nodes
2. Globally execute all
connected nodes

37. Validation Conclusion
15
Local consistency
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
Each node only contains a CoPN; in isolation, this is
consistent following the semantics of CoPNs
DCoPNsMotivation

38. Validation Conclusion
15
Local consistency
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
Each node only contains a CoPN; in isolation, this is
consistent following the semantics of CoPNs
DCoPNsMotivation

39. Validation Conclusion
16
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)

40. Validation Conclusion
16
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
@deactivate(AG)

41. Validation Conclusion
16
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
@deactivate(AG)

42. Validation Conclusion
17
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
@deactivate(AG)

43. Validation Conclusion
17
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
@deactivate(AG)
transitions outside of nodes need
to managed by an oracle

44. Validation Conclusion
18
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
@deactivate(AG)

45. Validation Conclusion
18
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
@deactivate(AG)

46. Validation Conclusion
18
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
@deactivate(AG)

47. Validation Conclusion
18
Global execution
DCoPNsMotivation
GPSPr(GPS) Pr(¬GPS)
req(GPS) act(GPS)
deac(GPS)
req(¬GPS)
UserNode
AGPr(AG) Pr(¬AG)
req(AG) act(AG)
deac(AG)
req(¬AG)
MuseumNode
deac(GPS)
deac(AG)
@deactivate(AG)

48. Validation Conclusion
19
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT

49. Validation Conclusion
19
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT
Upon connection, context
dependency relations generate
the association between nodes

50. Validation Conclusion
19
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT
Upon connection, context
dependency relations generate
the association between nodes

51. Validation Conclusion
19
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT
Upon connection, context
dependency relations generate
the association between nodes

52. Validation Conclusion
19
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT
Upon connection, context
dependency relations generate
the association between nodes

53. Validation Conclusion
20
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT
markings
remote arcs

54. Validation Conclusion
20
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT
markings
remote arcs

55. Validation Conclusion
20
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT
markings
remote arcs

56. Validation Conclusion
20
Global execution
DCoPNsMotivation
N1
N2
N3
[Ongaro et al, In Search of an Understandable Consensus Algorithm. USENIX’14]
UT
markings
remote arcs

57. Validation Conclusion
21
Global consistency
Two types of inconsistencies can appear in DCoPNs
DCoPNsMotivation
• Unstable states consist of marked temporary
places, where no reactive transition is enabled
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

58. Validation Conclusion
21
Global consistency
Two types of inconsistencies can appear in DCoPNs
DCoPNsMotivation
• Unstable states consist of marked temporary
places, where no reactive transition is enabled
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

59. Validation Conclusion
21
Global consistency
Two types of inconsistencies can appear in DCoPNs
DCoPNsMotivation
• Unstable states consist of marked temporary
places, where no reactive transition is enabled
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

60. Validation Conclusion
22
Global consistency
Two types of inconsistencies can appear in DCoPNs
DCoPNsMotivation
• Conflicting states consist of context places
markings that violate the definition of its context
dependency relations
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

61. Validation Conclusion
22
Global consistency
Two types of inconsistencies can appear in DCoPNs
DCoPNsMotivation
• Conflicting states consist of context places
markings that violate the definition of its context
dependency relations
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

62. Validation Conclusion
22
Global consistency
Two types of inconsistencies can appear in DCoPNs
DCoPNsMotivation
• Conflicting states consist of context places
markings that violate the definition of its context
dependency relations
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

63. Validation Conclusion
22
Global consistency
Two types of inconsistencies can appear in DCoPNs
DCoPNsMotivation
• Conflicting states consist of context places
markings that violate the definition of its context
dependency relations
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

64. Validation Conclusion
23
Global consistency
DCoPNsMotivation
SM1
SM2
SM3
…
SMn
CurrentMarking
current marking
conflicting set

65. Validation Conclusion
23
Global consistency
DCoPNsMotivation
SM1
SM2
SM3
…
SMn
CurrentMarking
current marking
conflicting set

66. Validation Conclusion
23
Global consistency
DCoPNsMotivation
SM1
SM2
SM3
…
SMn
CurrentMarking
current marking
conflicting set

67. Validation Conclusion
23
Global consistency
DCoPNsMotivation
SM1
SM2
SM3
…
SMn
CurrentMarking
current marking
conflicting set

68. Validation Conclusion
23
Global consistency
DCoPNsMotivation
SM1
SM2
SM3
…
SMn
CurrentMarking
current marking
conflicting set
WC - exclusion - revert_all

69. Validation Conclusion
23
Global consistency
DCoPNsMotivation
CurrentMarking
current marking
conflicting set
WC - exclusion - revert_all
SM2
SM3
…
SMn

70. Validation Conclusion
23
Global consistency
DCoPNsMotivation
CurrentMarking
current marking
conflicting set
WC - exclusion - revert_all
SM2
SM3
…
SMn

71. Validation Conclusion
Conflict resolution24
DCoPNsMotivation
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

72. Validation Conclusion
Conflict resolution24
DCoPNsMotivation
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

73. Validation Conclusion
Conflict resolution24
DCoPNsMotivation
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

74. Validation Conclusion
Conflict resolution24
DCoPNsMotivation
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

75. Validation Conclusion
Conflict resolution24
DCoPNsMotivation
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)

76. Validation Conclusion
Conflict resolution24
DCoPNsMotivation
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)
revert(LB)
revert(WC)

77. Validation Conclusion
Conflict resolution24
DCoPNsMotivation
WCPr(WC) Pr(¬WC)
req(WC)
act(WC)
deac(WC)
req(¬WC)
LBPr(LB) Pr(¬LB)
req(LB) act(LB)
deac(LB)
req(¬LB)
revert(LB)
revert(WC)

78. Validation Conclusion
Conflict resolution25
DCoPNsMotivation

79. Validation Conclusion
Conflict resolution25
DCoPNsMotivation
Context dependency
relation
Situation Inconsistency Resolution
A B
activate(A),req(B), conn(A,B)
activate(A),activate(B),conn(A,B)
Unstable state
Conflict state
revert(A),revert(B)
revert(B)
A B - None
A B activate(A),conn(A,B) Conflict state revert(A)
B A activate(B),conn(A,B) Conflict state revert(B)
A B - None

80. Conclusion26
@ncardoz
DCoPNsMotivation Validation Conclusion

81. Conclusion26
@ncardoz
Adaptation to the surrounding execution environment
The environment dynamically changes
Interactions between adaptations are presupposed
DCoPNsMotivation Validation Conclusion

82. Conclusion26
@ncardoz
Adaptation to the surrounding execution environment
The environment dynamically changes
Interactions between adaptations are presupposed
➡ Emergence of context dependency relations
DCoPNsMotivation Validation Conclusion

83. Conclusion26
Questions?
@ncardoz
Adaptation to the surrounding execution environment
The environment dynamically changes
Interactions between adaptations are presupposed
➡ Emergence of context dependency relations
DCoPNsMotivation Validation Conclusion
