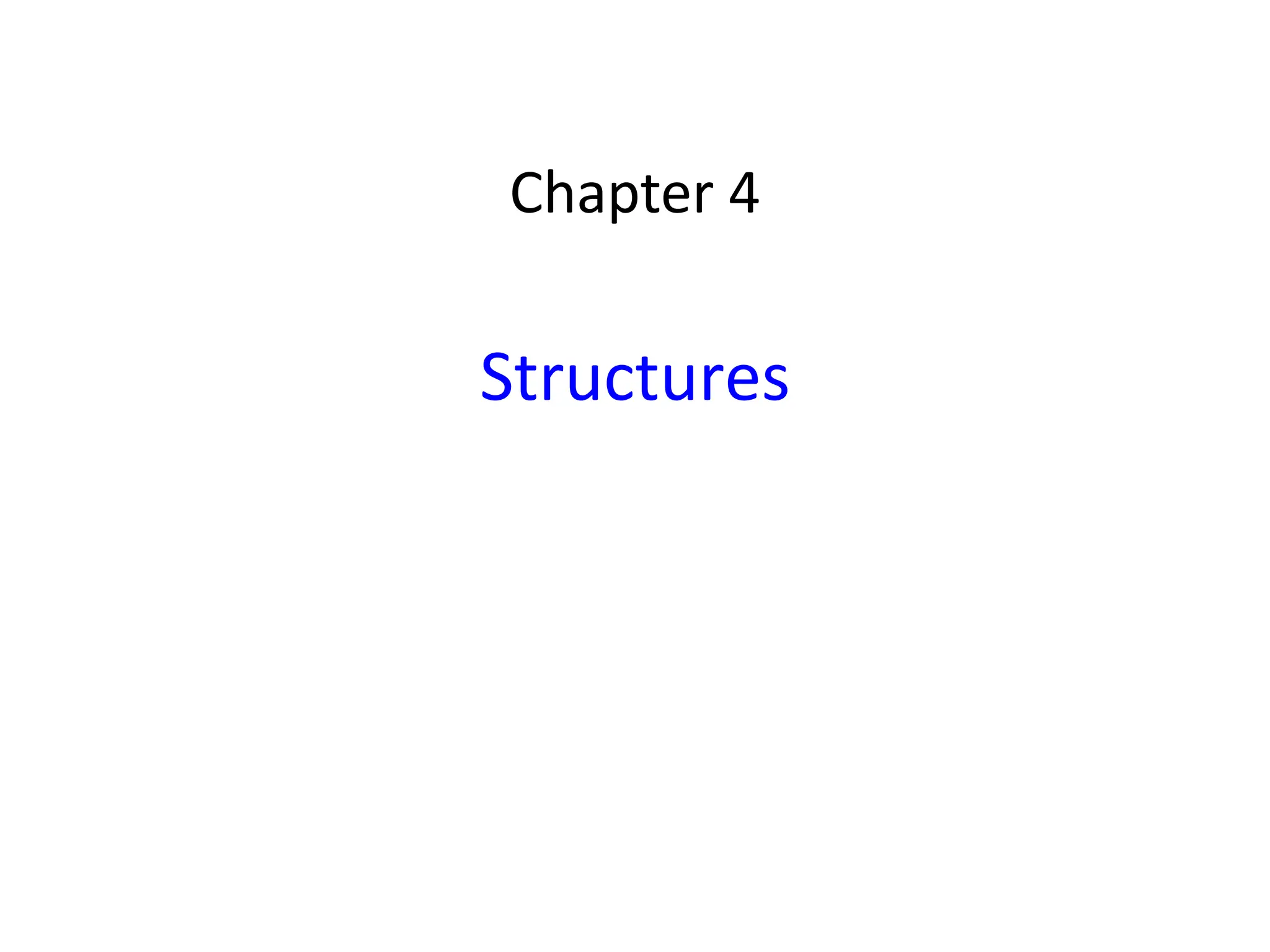

1. Structures
Chapter 4

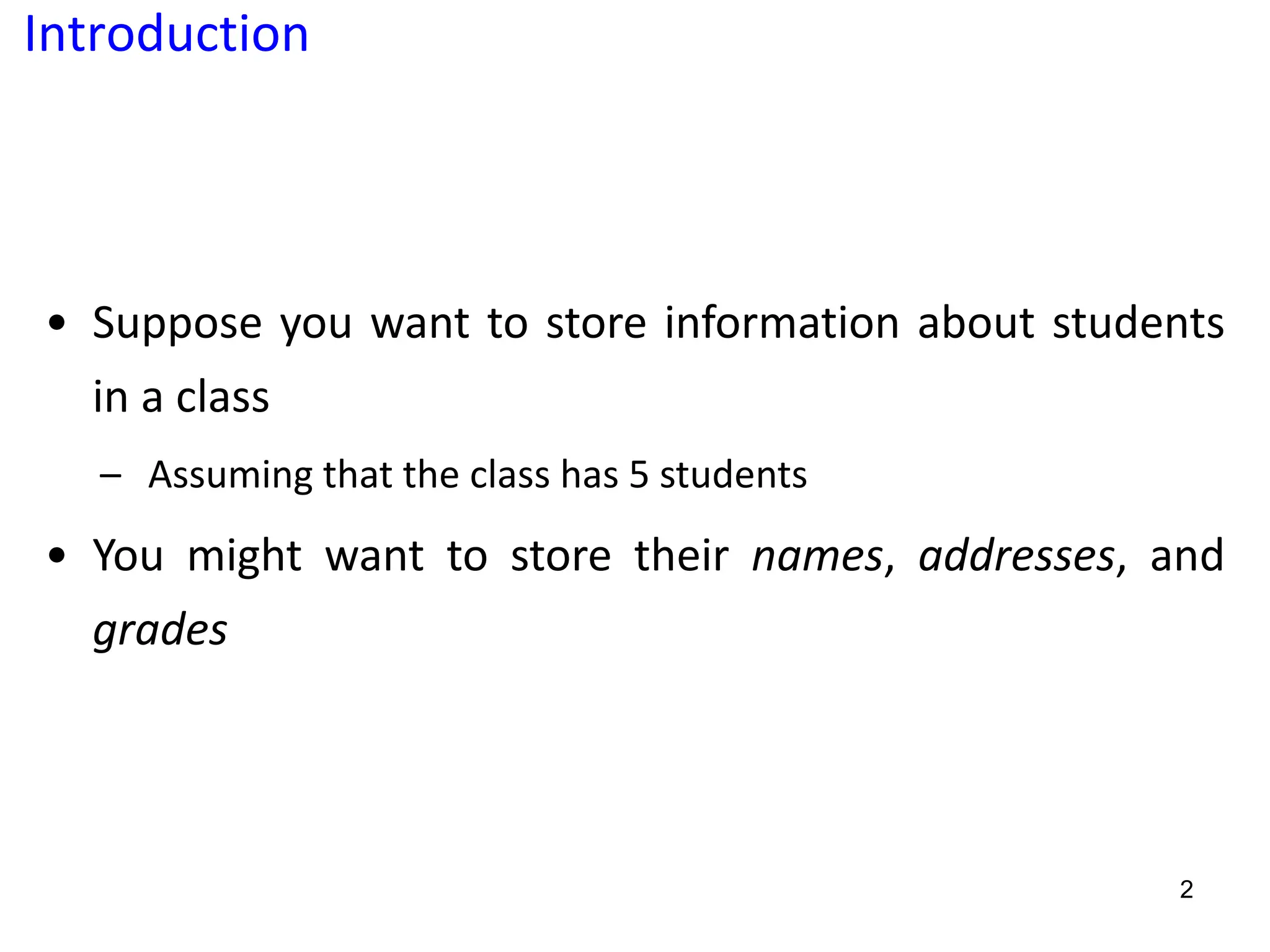

2. Introduction
• Suppose you want to store information about students
in a class
– Assuming that the class has 5 students
• You might want to store their names, addresses, and
grades
2

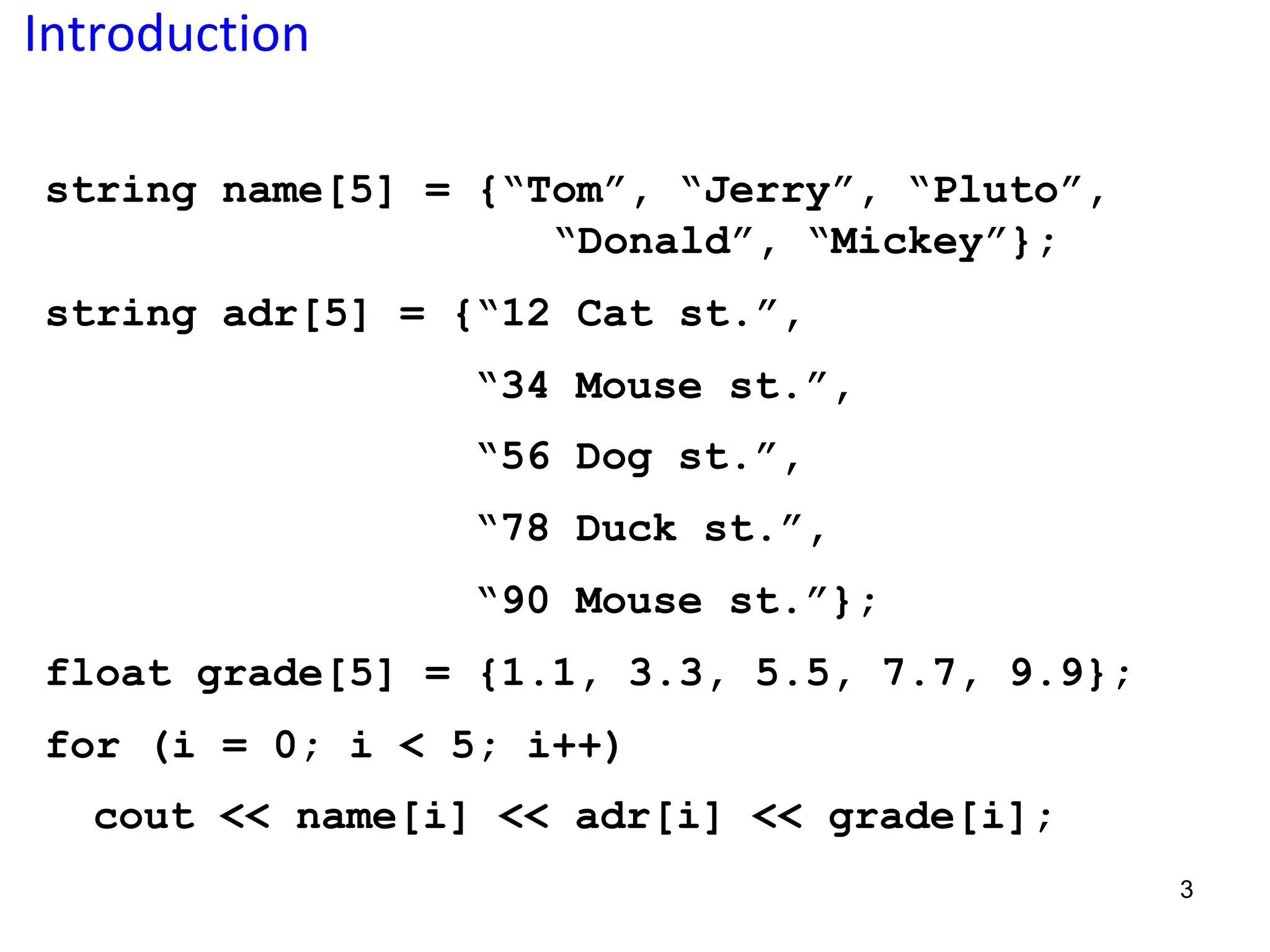

3. Introduction
string name[5] = {“Tom”, “Jerry”, “Pluto”,
“Donald”, “Mickey”};
string adr[5] = {“12 Cat st.”,
“34 Mouse st.”,
“56 Dog st.”,
“78 Duck st.”,
“90 Mouse st.”};
float grade[5] = {1.1, 3.3, 5.5, 7.7, 9.9};
for (i = 0; i < 5; i++)
cout << name[i] << adr[i] << grade[i];
3

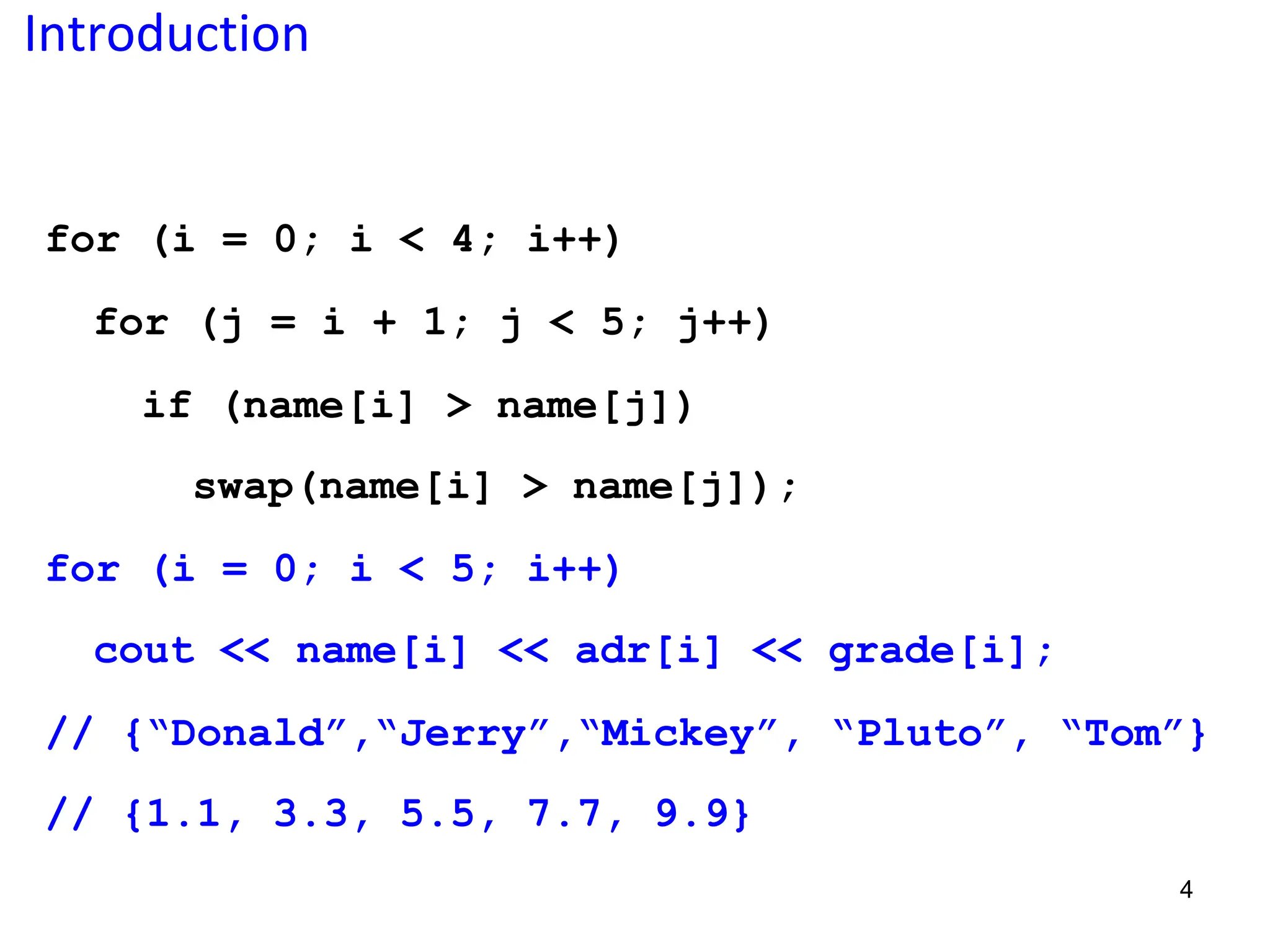

4. Introduction
for (i = 0; i < 4; i++)
for (j = i + 1; j < 5; j++)
if (name[i] > name[j])
swap(name[i] > name[j]);
for (i = 0; i < 5; i++)
cout << name[i] << adr[i] << grade[i];
// {“Donald”,“Jerry”,“Mickey”, “Pluto”, “Tom”}
// {1.1, 3.3, 5.5, 7.7, 9.9}
4

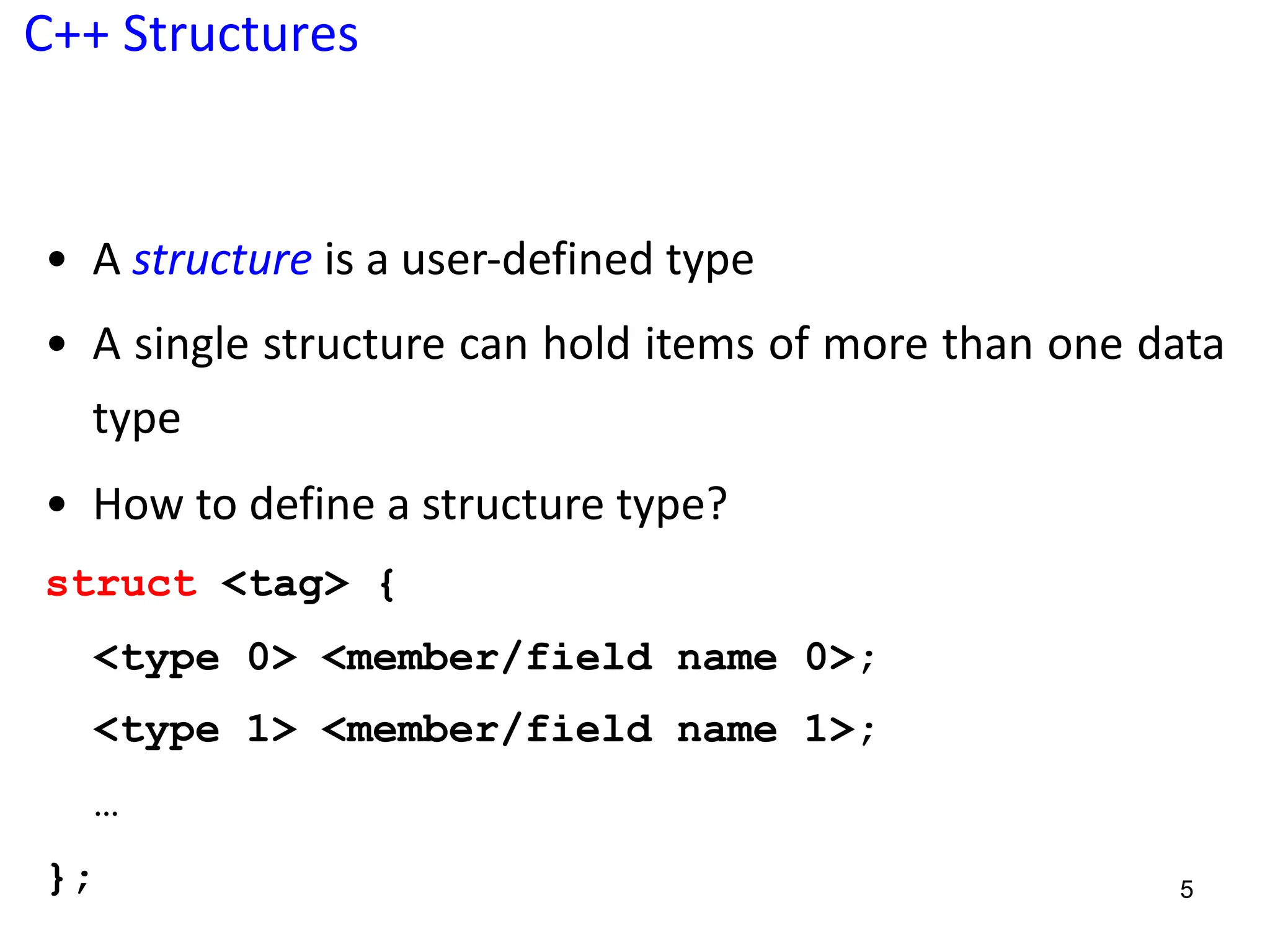

5. C++ Structures
• A structure is a user-defined type
• A single structure can hold items of more than one data
type
• How to define a structure type?
struct <tag> {
<type 0> <member/field name 0>;
<type 1> <member/field name 1>;
…
}; 5

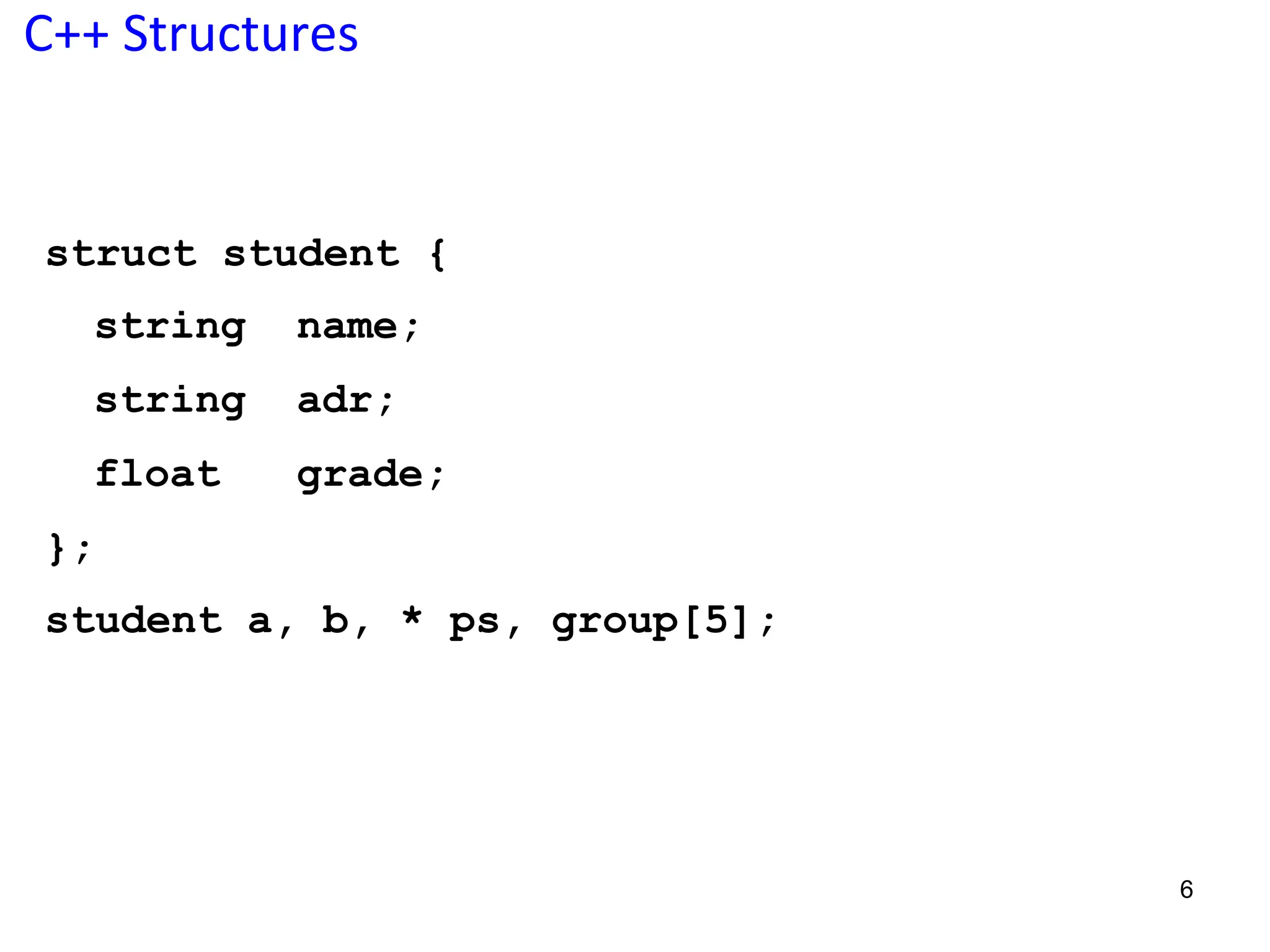

6. C++ Structures
struct student {
string name;
string adr;
float grade;
};
student a, b, * ps, group[5];
6

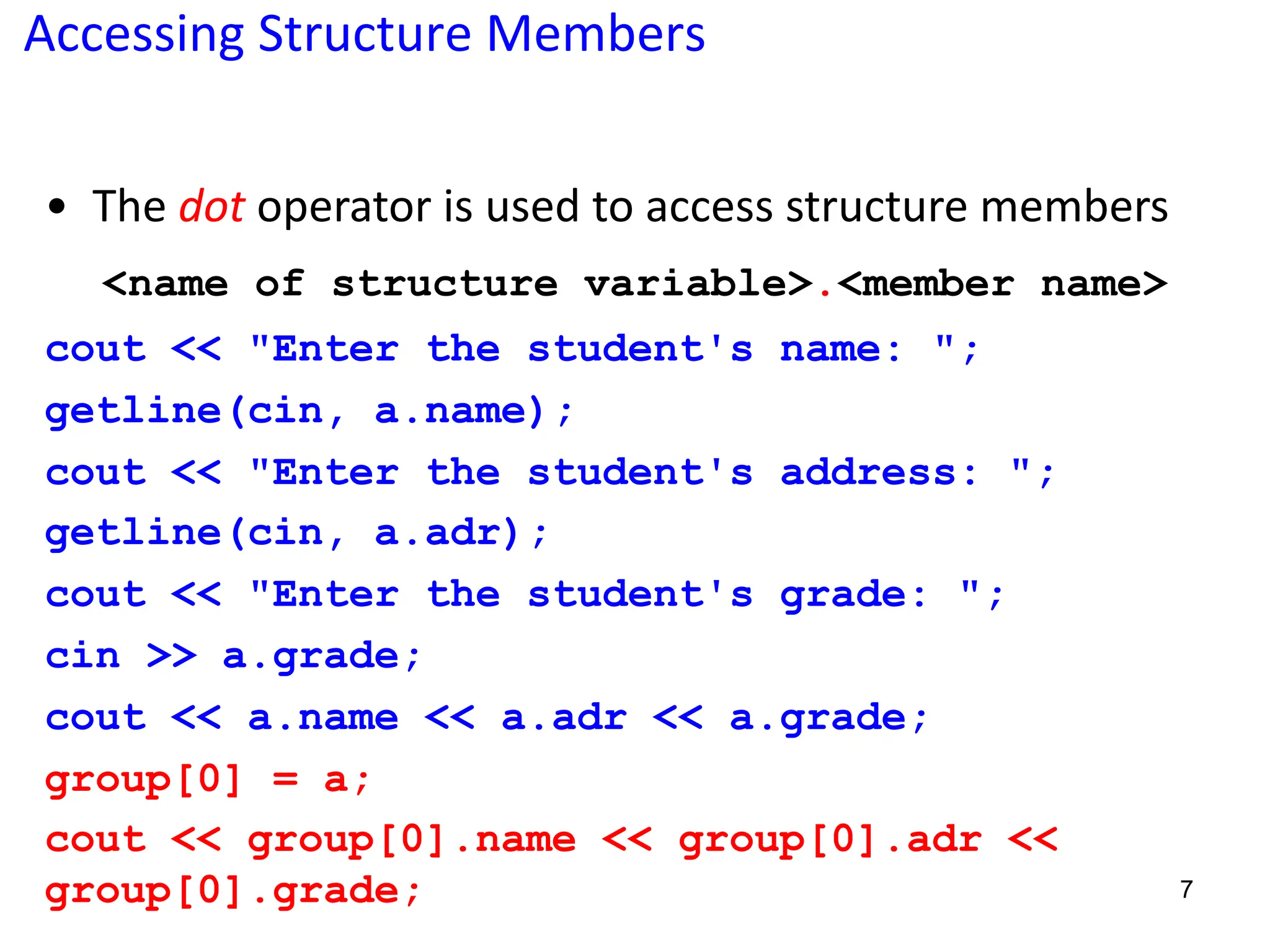

7. Accessing Structure Members
• The dot operator is used to access structure members
<name of structure variable>.<member name>
cout << "Enter the student's name: ";
getline(cin, a.name);
cout << "Enter the student's address: ";
getline(cin, a.adr);
cout << "Enter the student's grade: ";
cin >> a.grade;
cout << a.name << a.adr << a.grade;
group[0] = a;
cout << group[0].name << group[0].adr <<
group[0].grade; 7

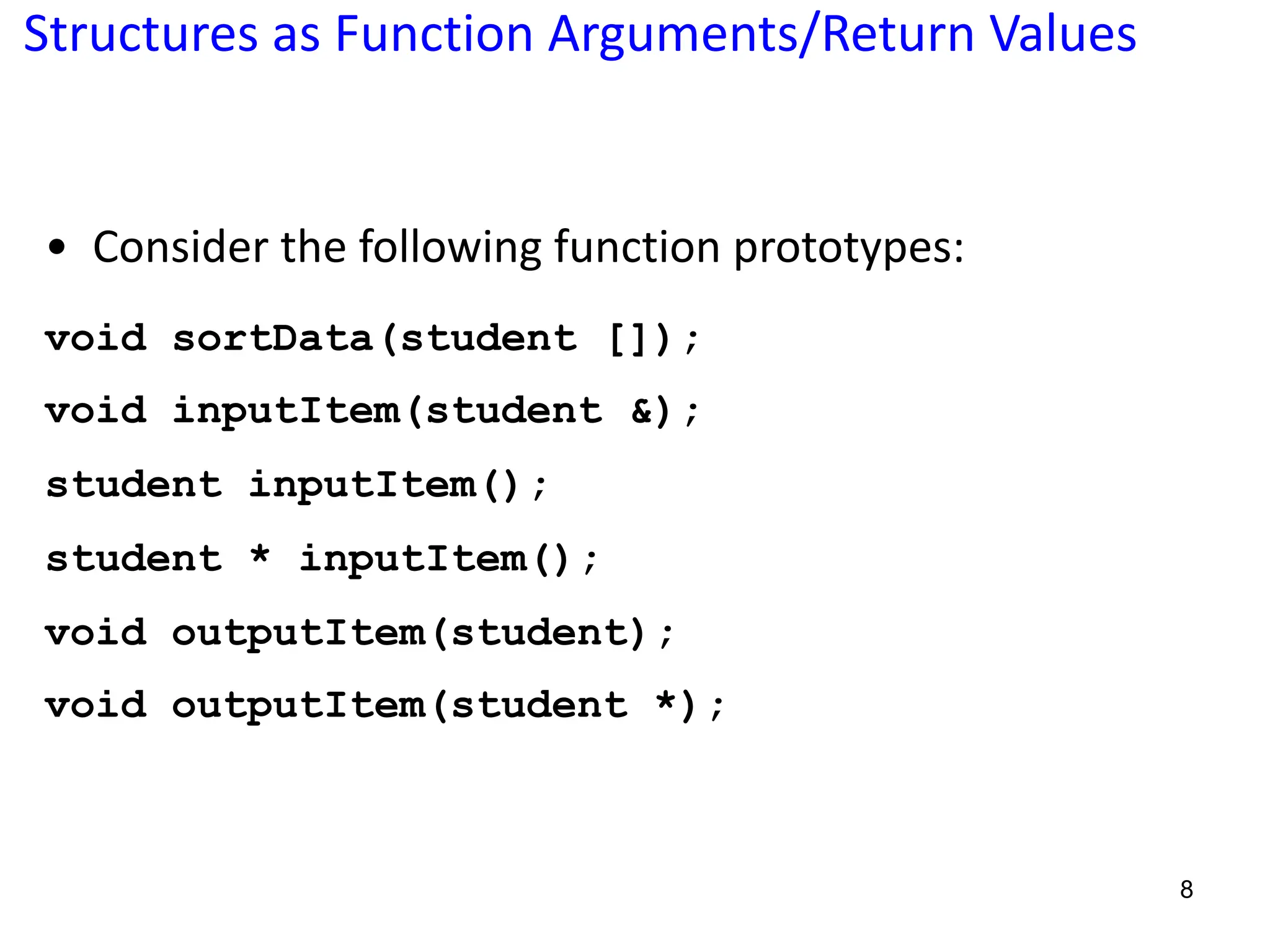

8. Structures as Function Arguments/Return Values
• Consider the following function prototypes:
void sortData(student []);
void inputItem(student &);
student inputItem();
student * inputItem();
void outputItem(student);
void outputItem(student *);
8

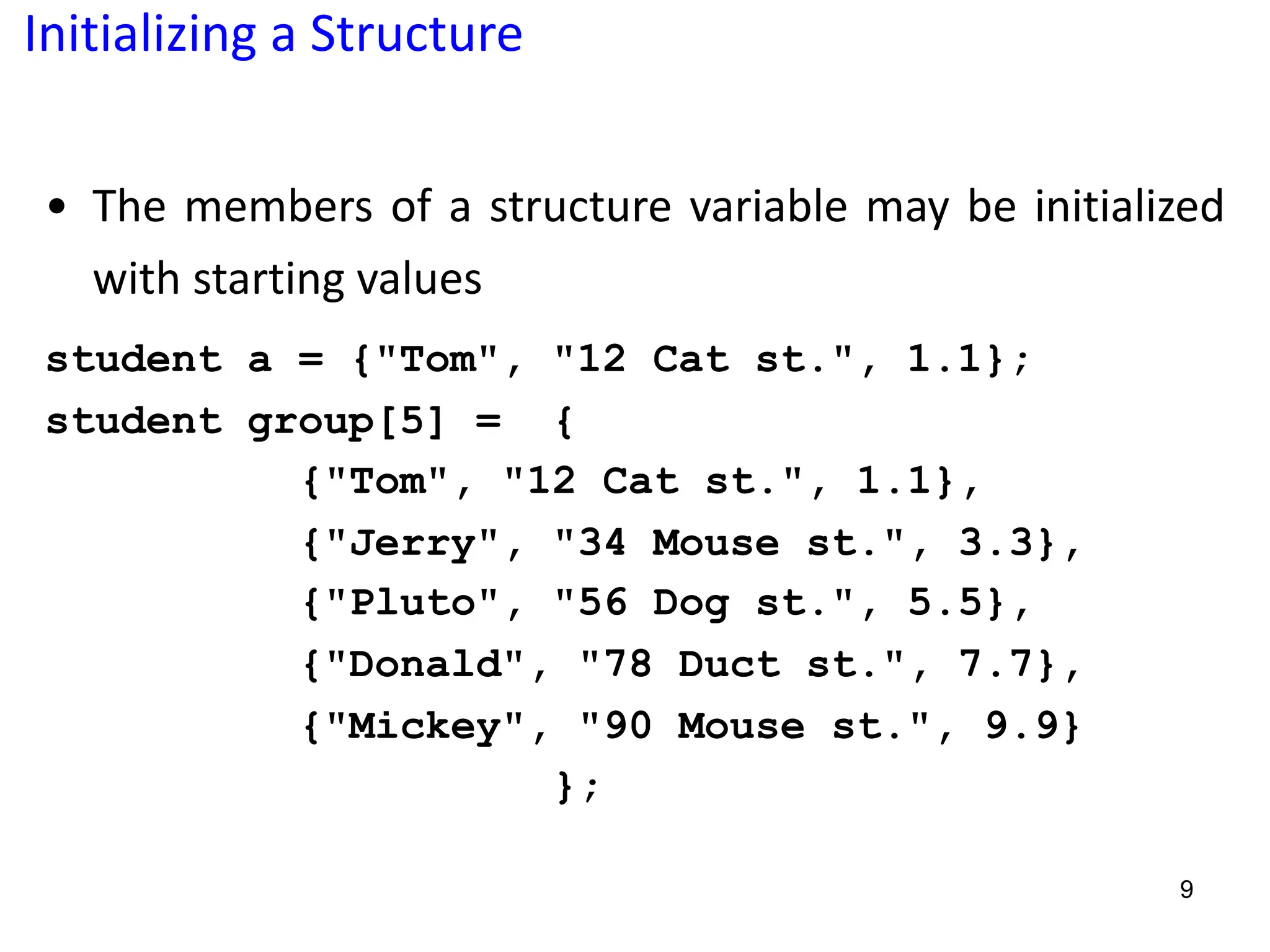

9. Initializing a Structure
• The members of a structure variable may be initialized
with starting values
student a = {"Tom", "12 Cat st.", 1.1};
student group[5] = {
{"Tom", "12 Cat st.", 1.1},
{"Jerry", "34 Mouse st.", 3.3},
{"Pluto", "56 Dog st.", 5.5},
{"Donald", "78 Duct st.", 7.7},
{"Mickey", "90 Mouse st.", 9.9}
};
9

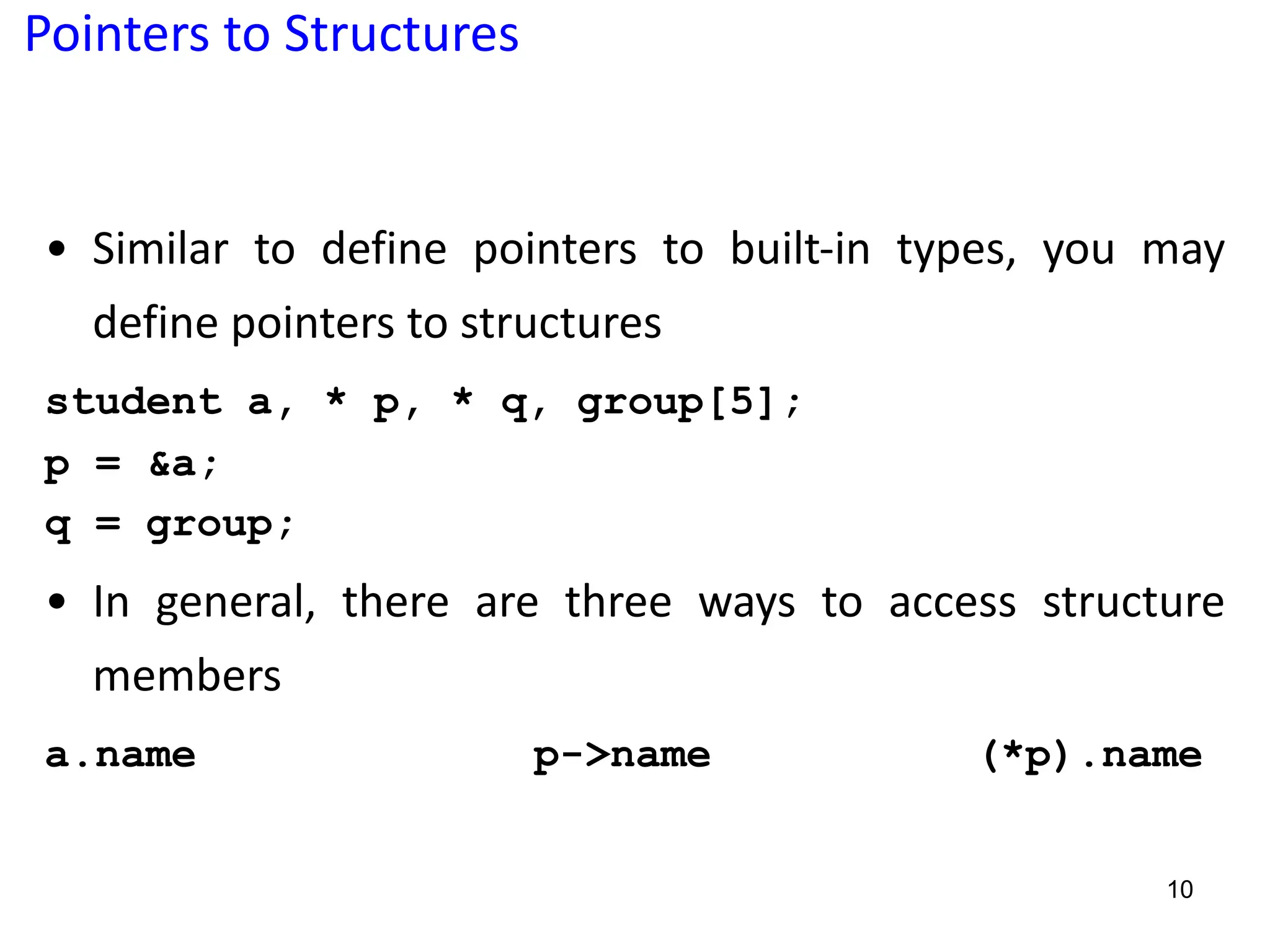

10. Pointers to Structures
• Similar to define pointers to built-in types, you may
define pointers to structures
student a, * p, * q, group[5];
p = &a;
q = group;
• In general, there are three ways to access structure
members
a.name p->name (*p).name
10

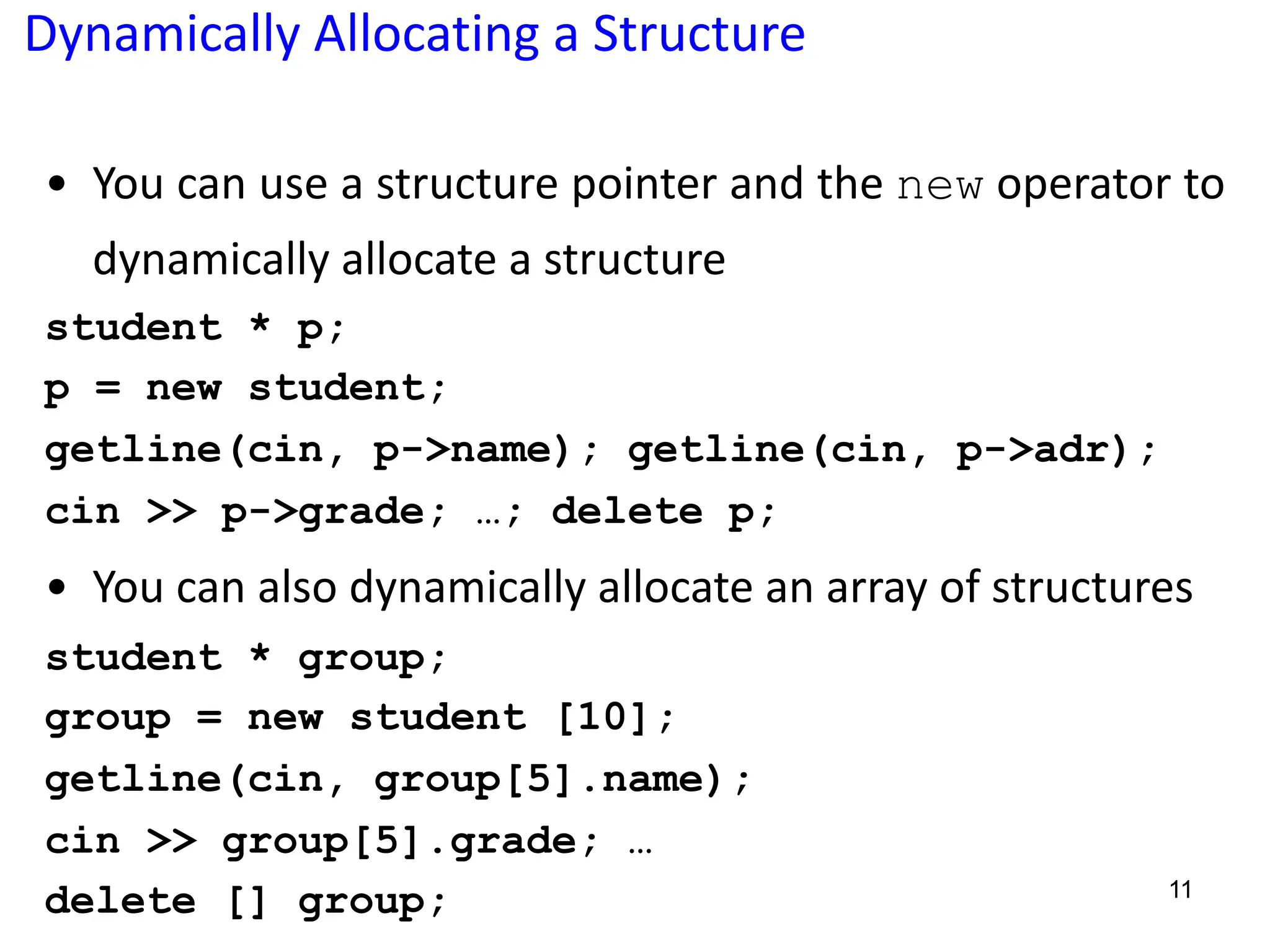

11. Dynamically Allocating a Structure
• You can use a structure pointer and the new operator to
dynamically allocate a structure
student * p;
p = new student;
getline(cin, p->name); getline(cin, p->adr);
cin >> p->grade; …; delete p;
• You can also dynamically allocate an array of structures
student * group;
group = new student [10];
getline(cin, group[5].name);
cin >> group[5].grade; …
delete [] group; 11

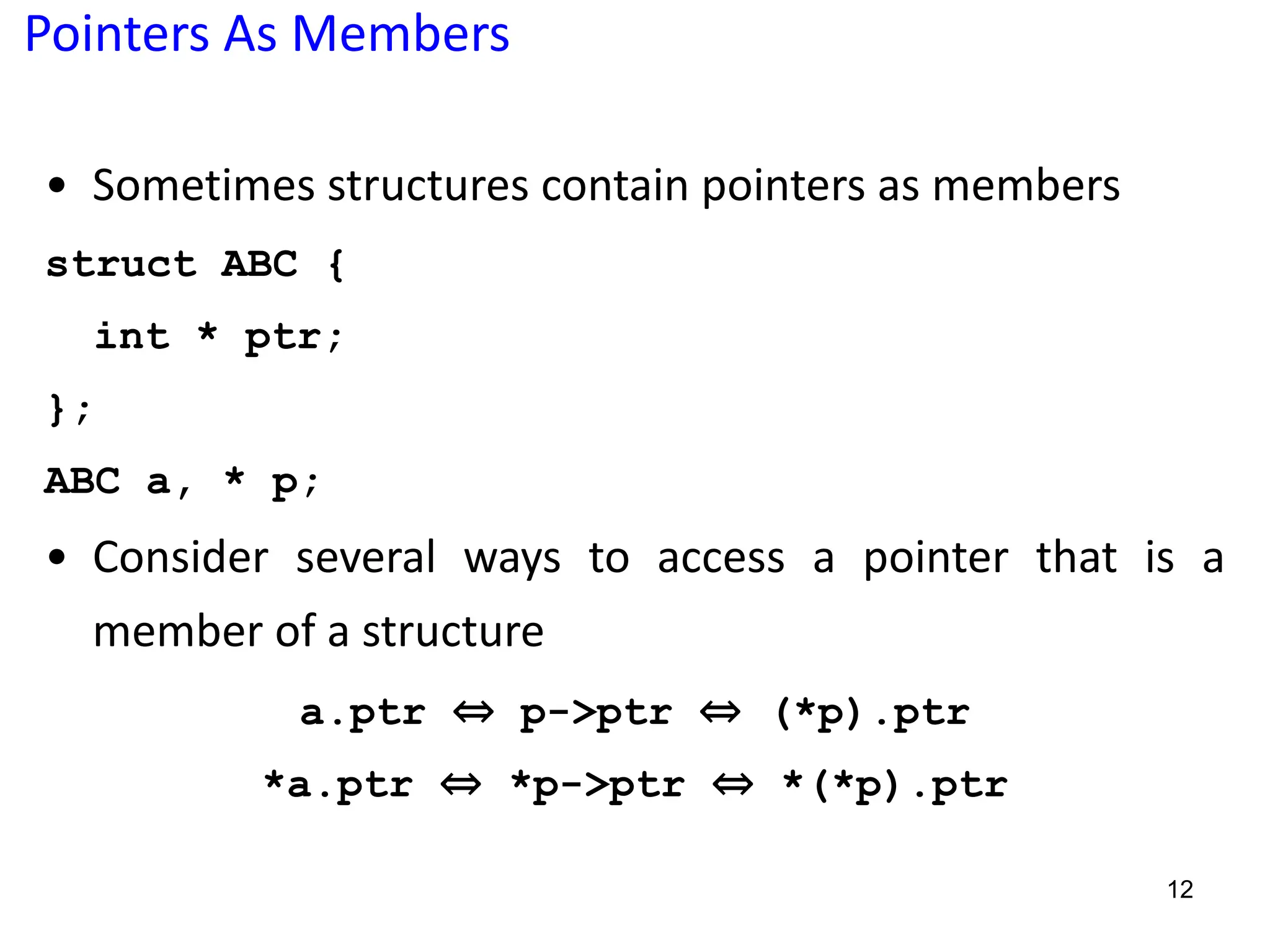

12. Pointers As Members
• Sometimes structures contain pointers as members
struct ABC {
int * ptr;
};
ABC a, * p;
• Consider several ways to access a pointer that is a
member of a structure
a.ptr ⇔ p->ptr ⇔ (*p).ptr
*a.ptr ⇔ *p->ptr ⇔ *(*p).ptr
12

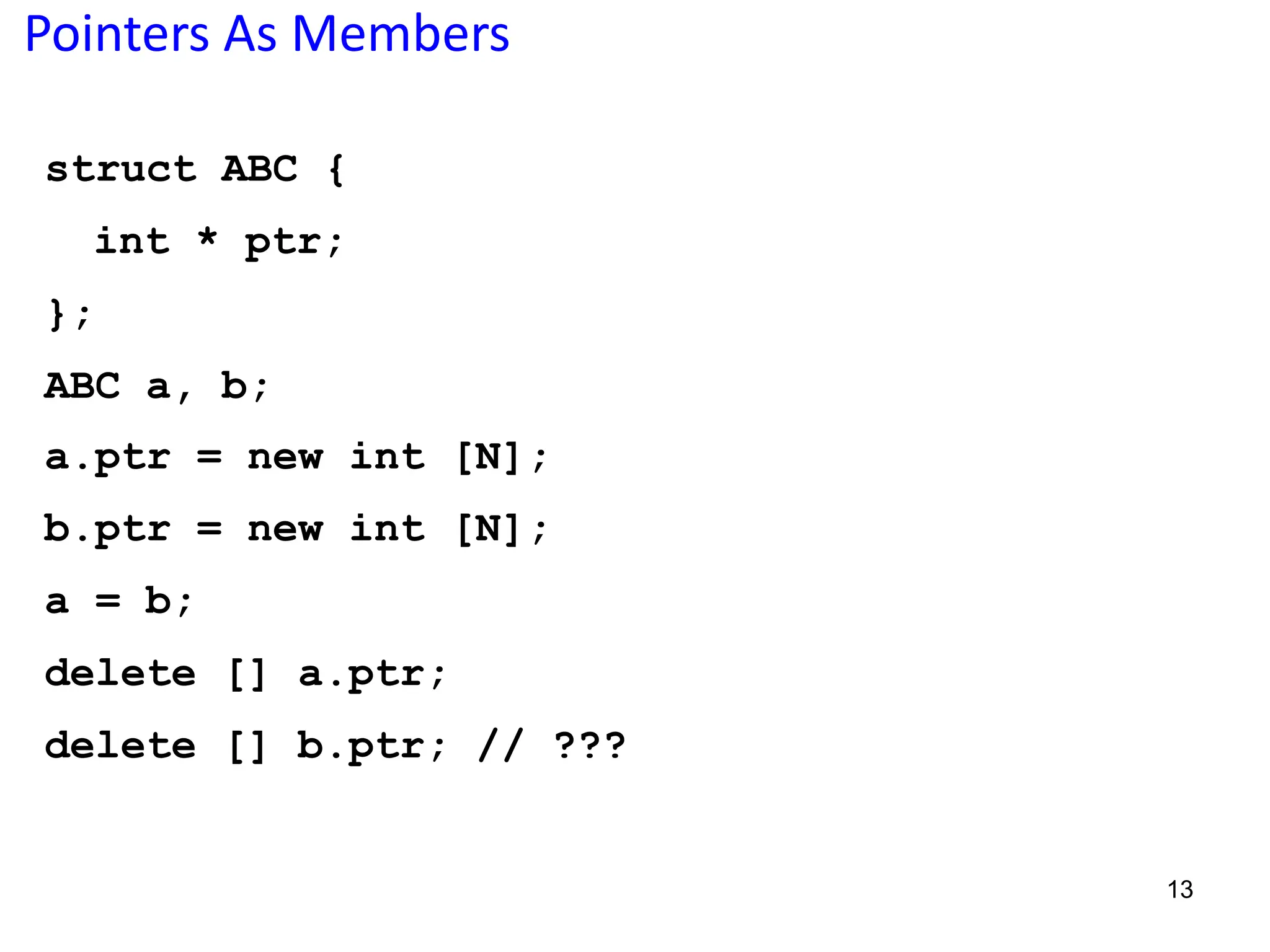

13. Pointers As Members
struct ABC {
int * ptr;
};
ABC a, b;
a.ptr = new int [N];
b.ptr = new int [N];
a = b;
delete [] a.ptr;
delete [] b.ptr; // ???
13

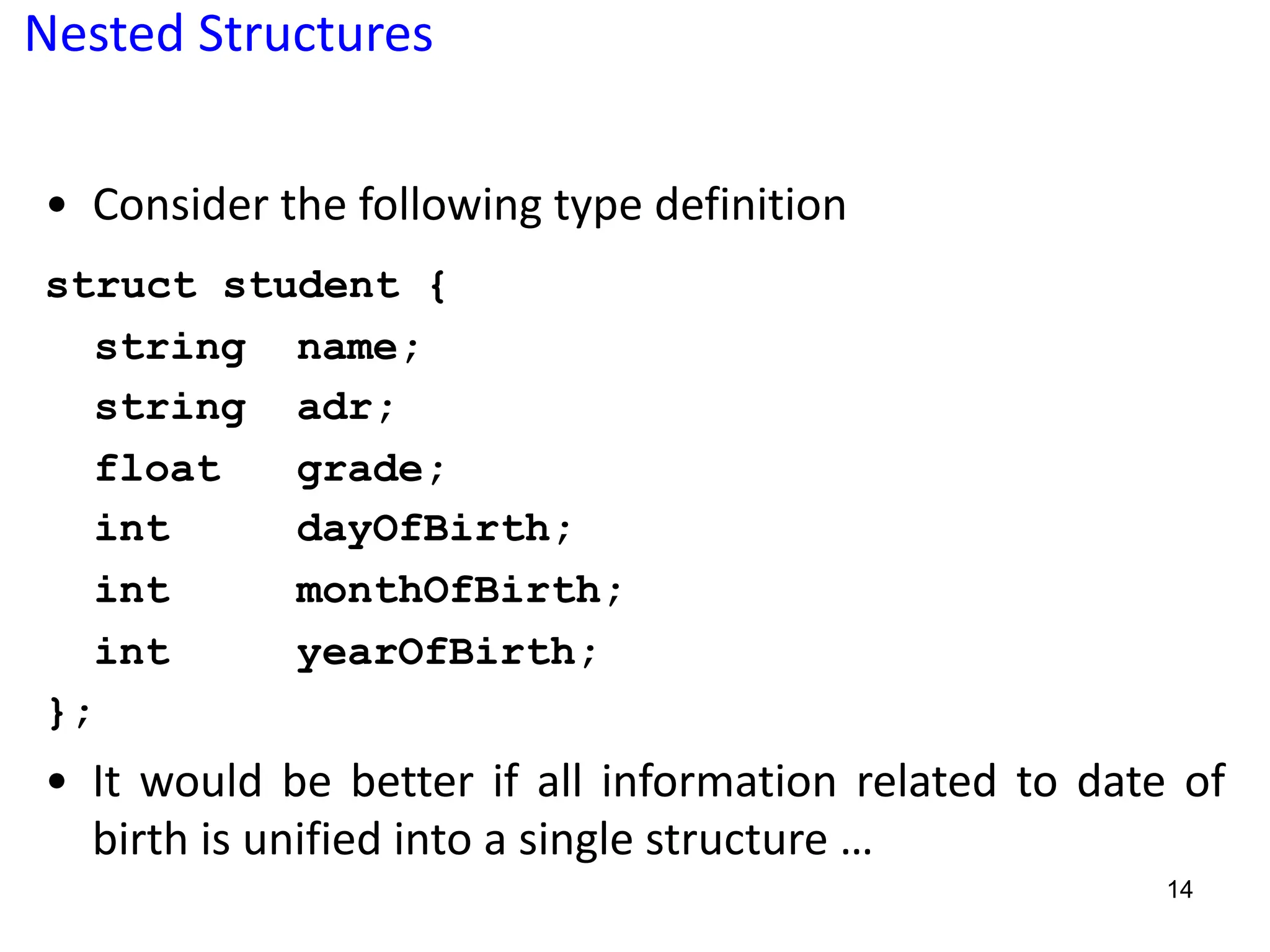

14. Nested Structures
• Consider the following type definition
struct student {
string name;
string adr;
float grade;
int dayOfBirth;
int monthOfBirth;
int yearOfBirth;
};
• It would be better if all information related to date of
birth is unified into a single structure …
14

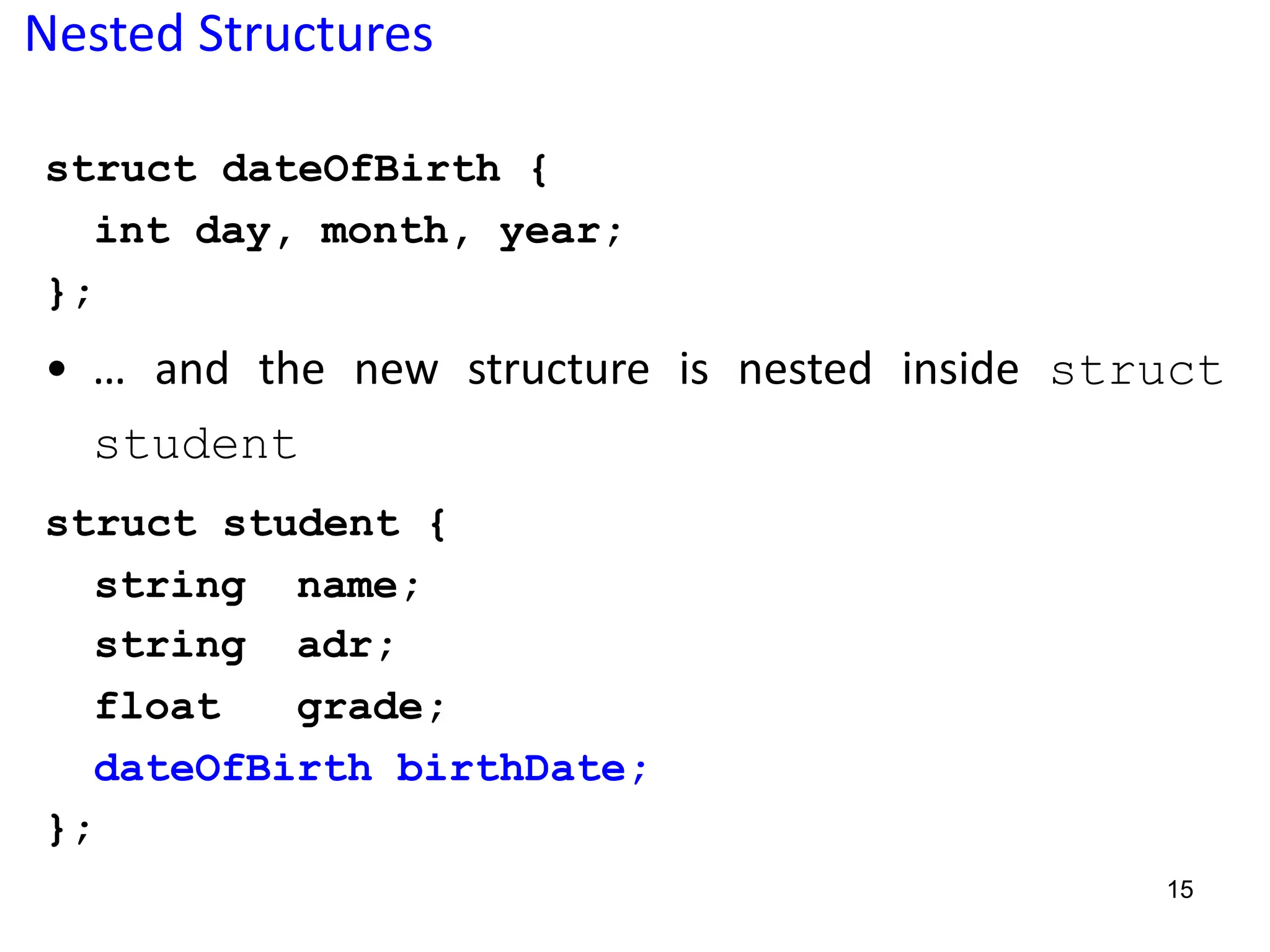

15. Nested Structures
struct dateOfBirth {
int day, month, year;
};
• … and the new structure is nested inside struct
student
struct student {
string name;
string adr;
float grade;
dateOfBirth birthDate;
};
15

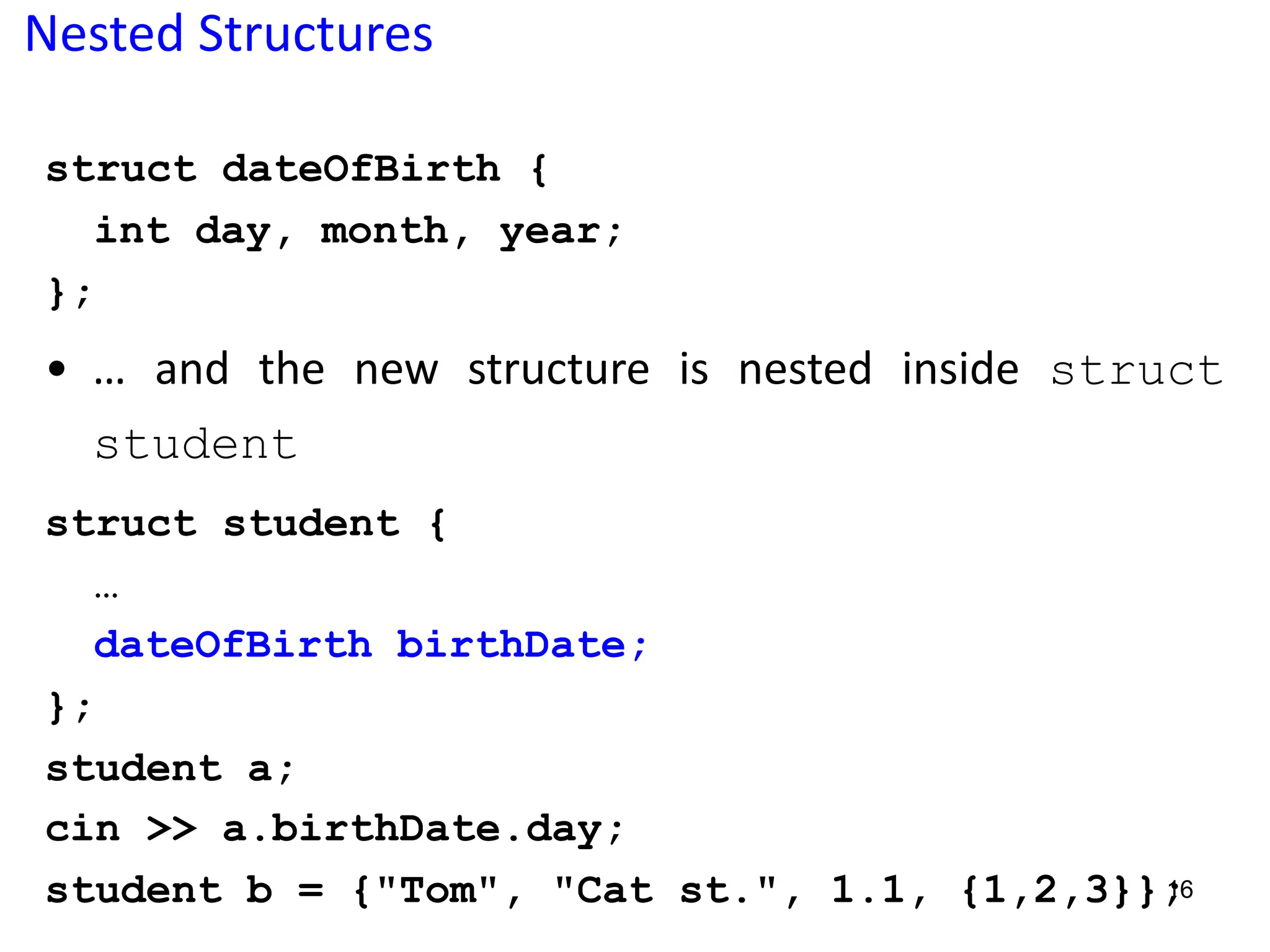

16. Nested Structures
struct dateOfBirth {
int day, month, year;
};
• … and the new structure is nested inside struct
student
struct student {
…
dateOfBirth birthDate;
};
student a;
cin >> a.birthDate.day;
student b = {"Tom", "Cat st.", 1.1, {1,2,3}};
16

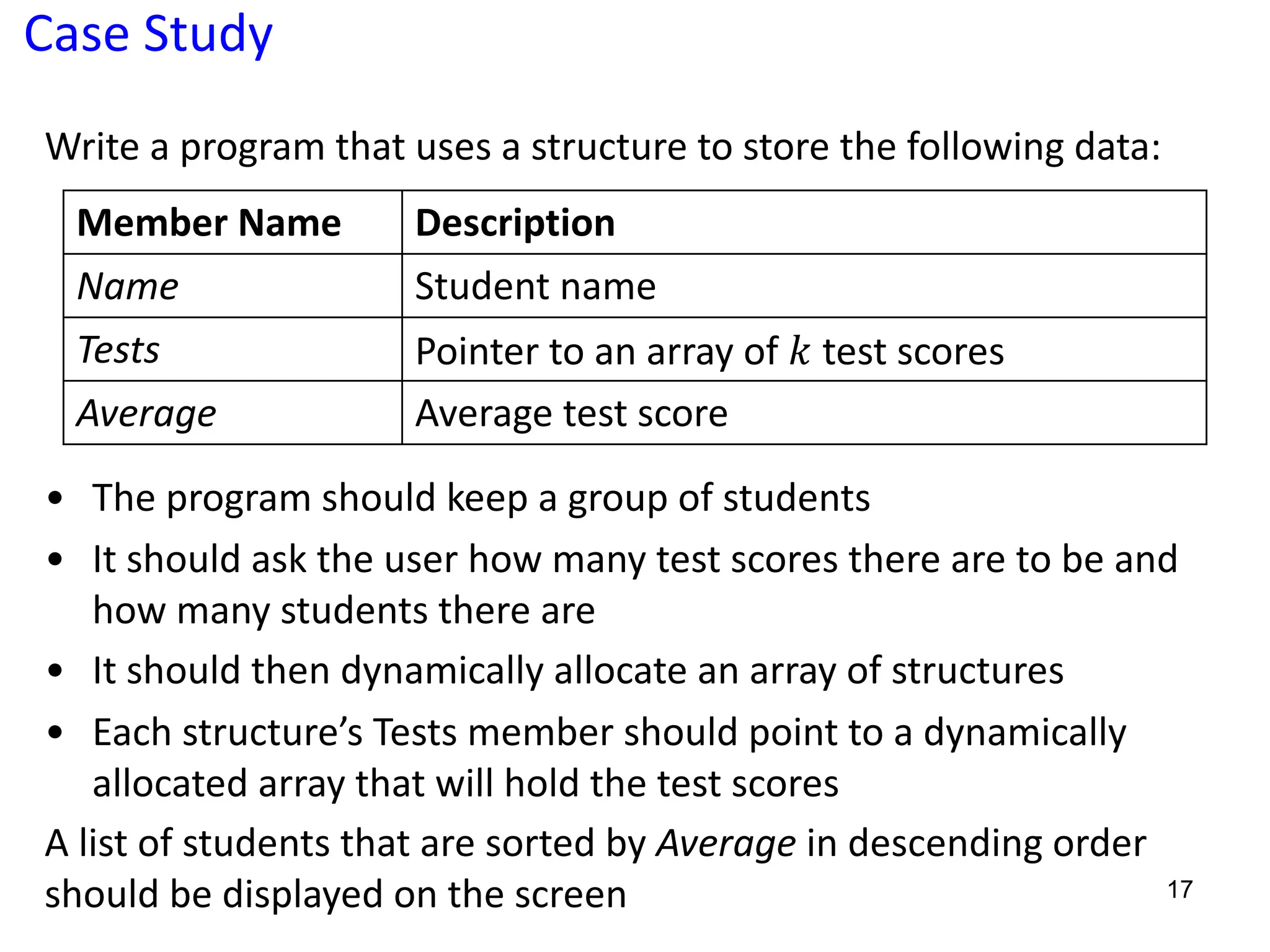

17. Case Study
Write a program that uses a structure to store the following data:
17
Member Name Description
Name Student name
Tests Pointer to an array of 𝑘 test scores
Average Average test score
• The program should keep a group of students
• It should ask the user how many test scores there are to be and
how many students there are
• It should then dynamically allocate an array of structures
• Each structure’s Tests member should point to a dynamically
allocated array that will hold the test scores
A list of students that are sorted by Average in descending order
should be displayed on the screen
