This document provides an introduction to object modeling and the Unified Modeling Language (UML) for representing object-oriented systems. It covers fundamental concepts such as objects, classes, attributes, inheritance, polymorphism, and associations, as well as the purposes and types of various UML diagrams. The content aims to standardize object-oriented programming practices and improve design and analysis by promoting a clearer and more unified approach to modeling.

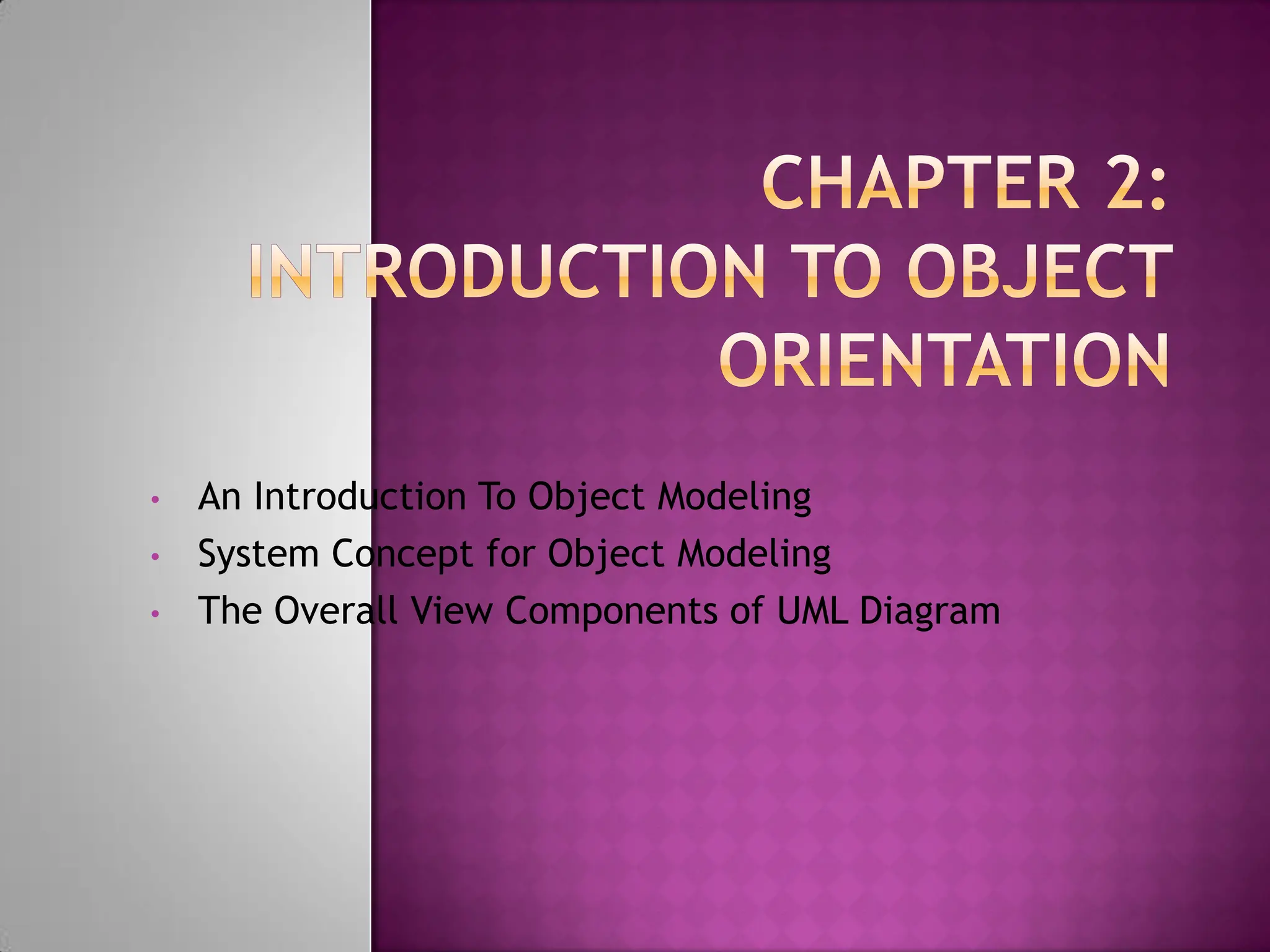

1. • An Introduction To Object Modeling
• System Concept for Object Modeling
• The Overall View Components of UML Diagram

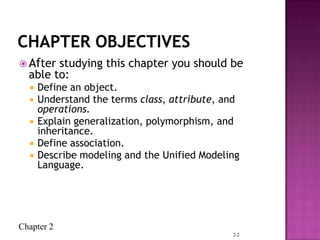

2. Chapter 2

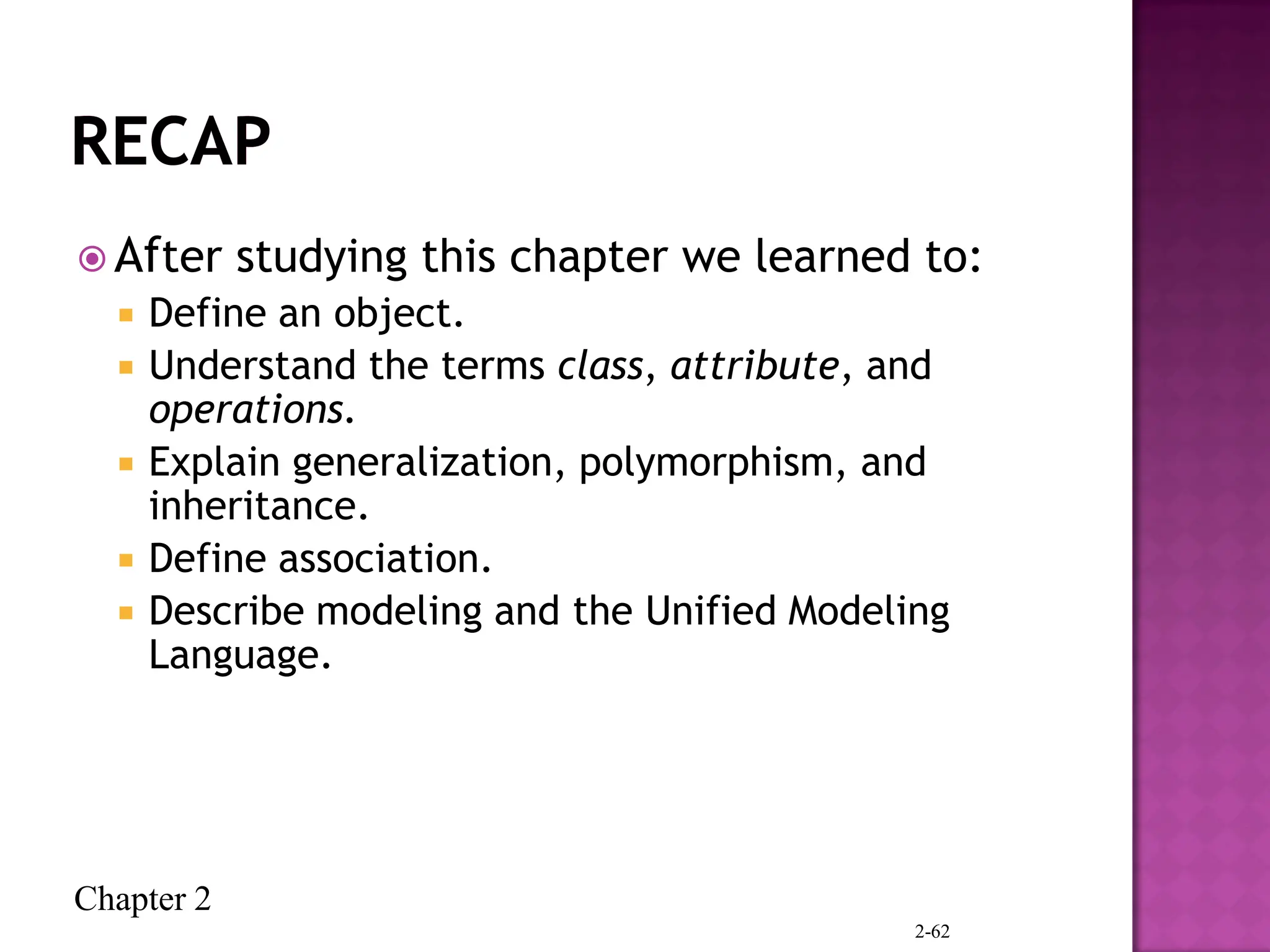

 After studying this chapter you should be
able to:
 Define an object.
 Understand the terms class, attribute, and
operations.
 Explain generalization, polymorphism, and
inheritance.
 Define association.
 Describe modeling and the Unified Modeling
Language.
2-2

3. Chapter 2

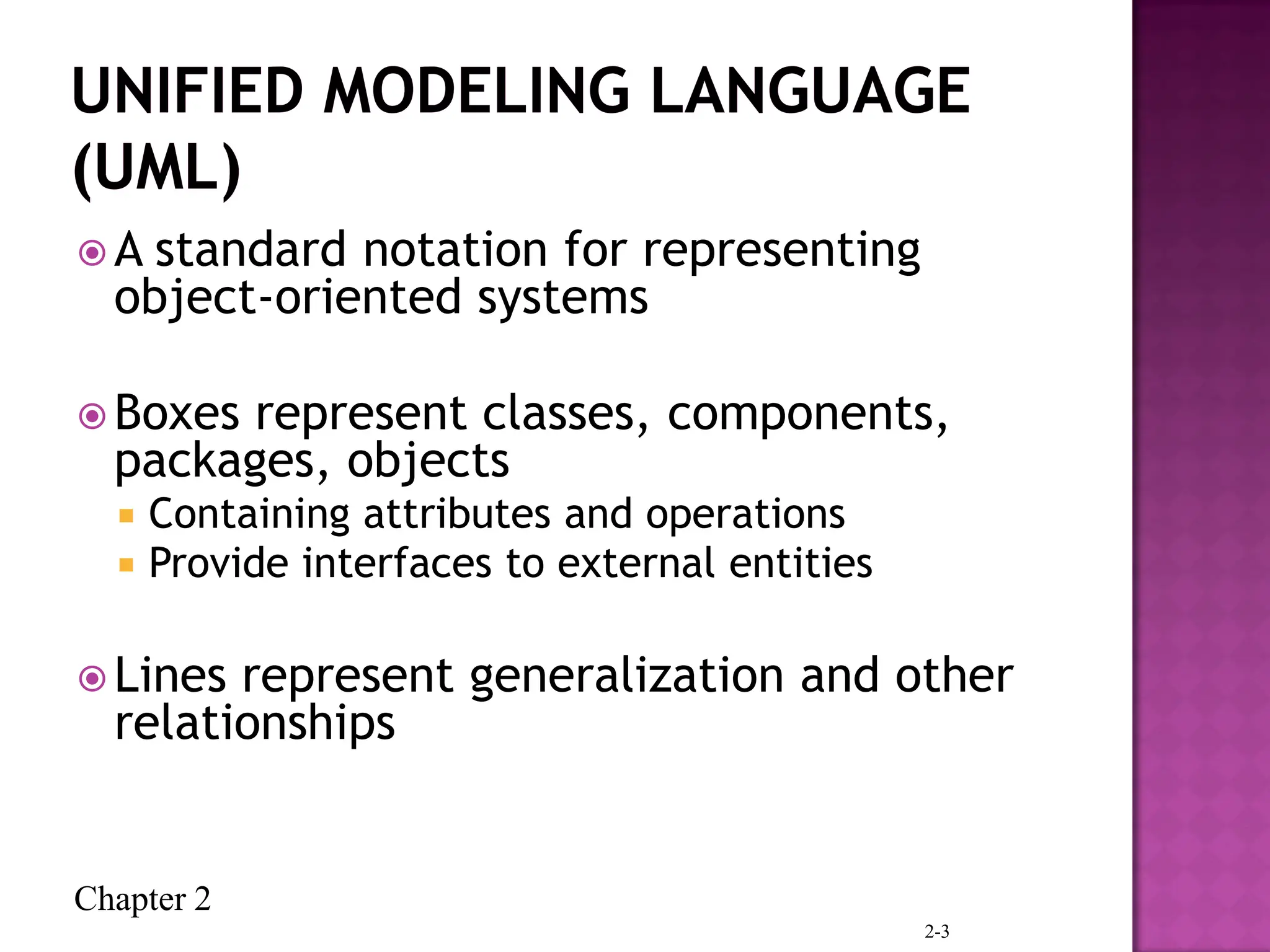

 A standard notation for representing
object-oriented systems
 Boxes represent classes, components,
packages, objects
 Containing attributes and operations
 Provide interfaces to external entities
 Lines represent generalization and other
relationships
2-3

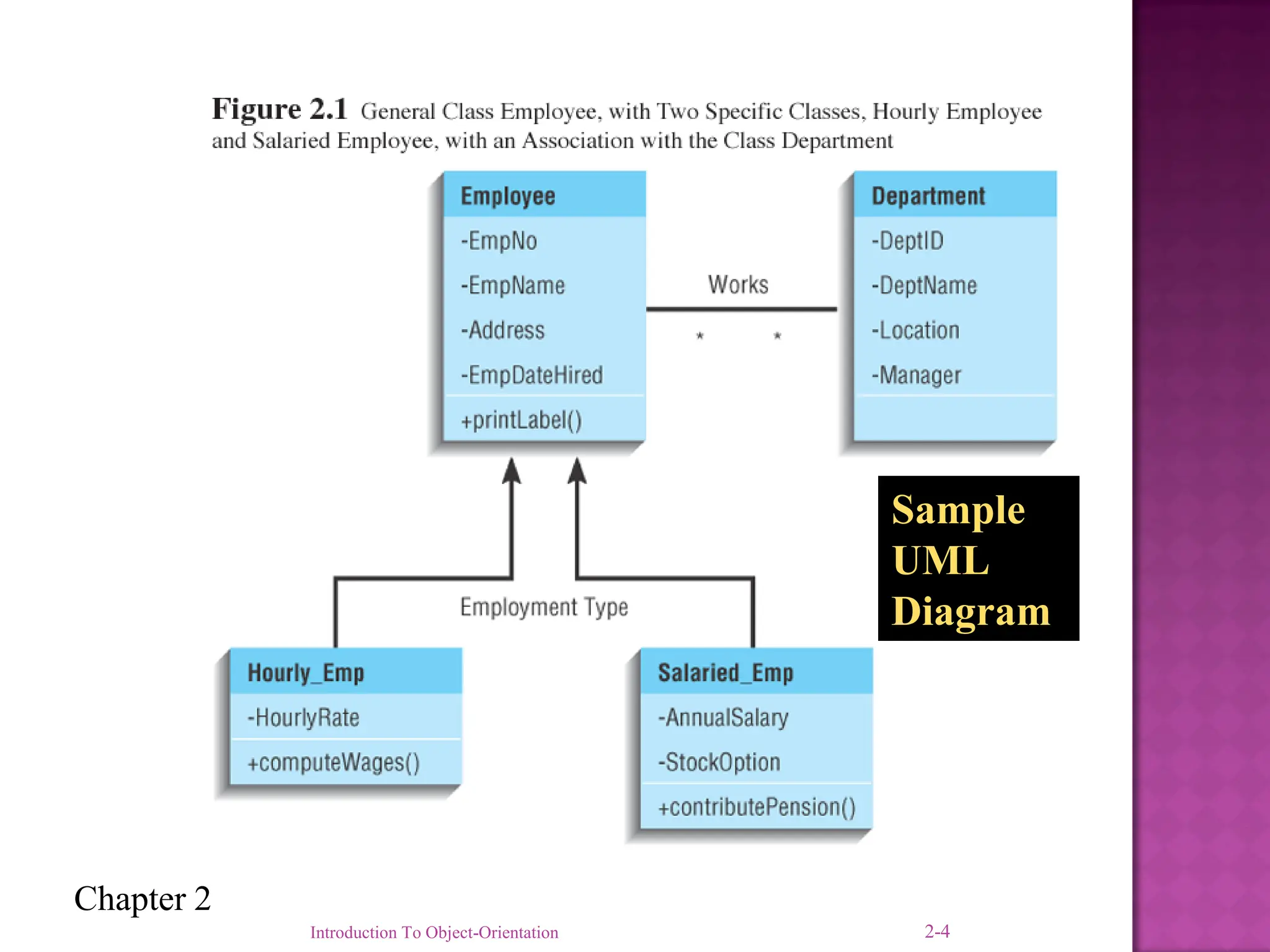

4. Chapter 2
Sample
UML
Diagram
Introduction To Object-Orientation 2-4

5. Chapter 2
2-5
Introduction To Object-Orientation

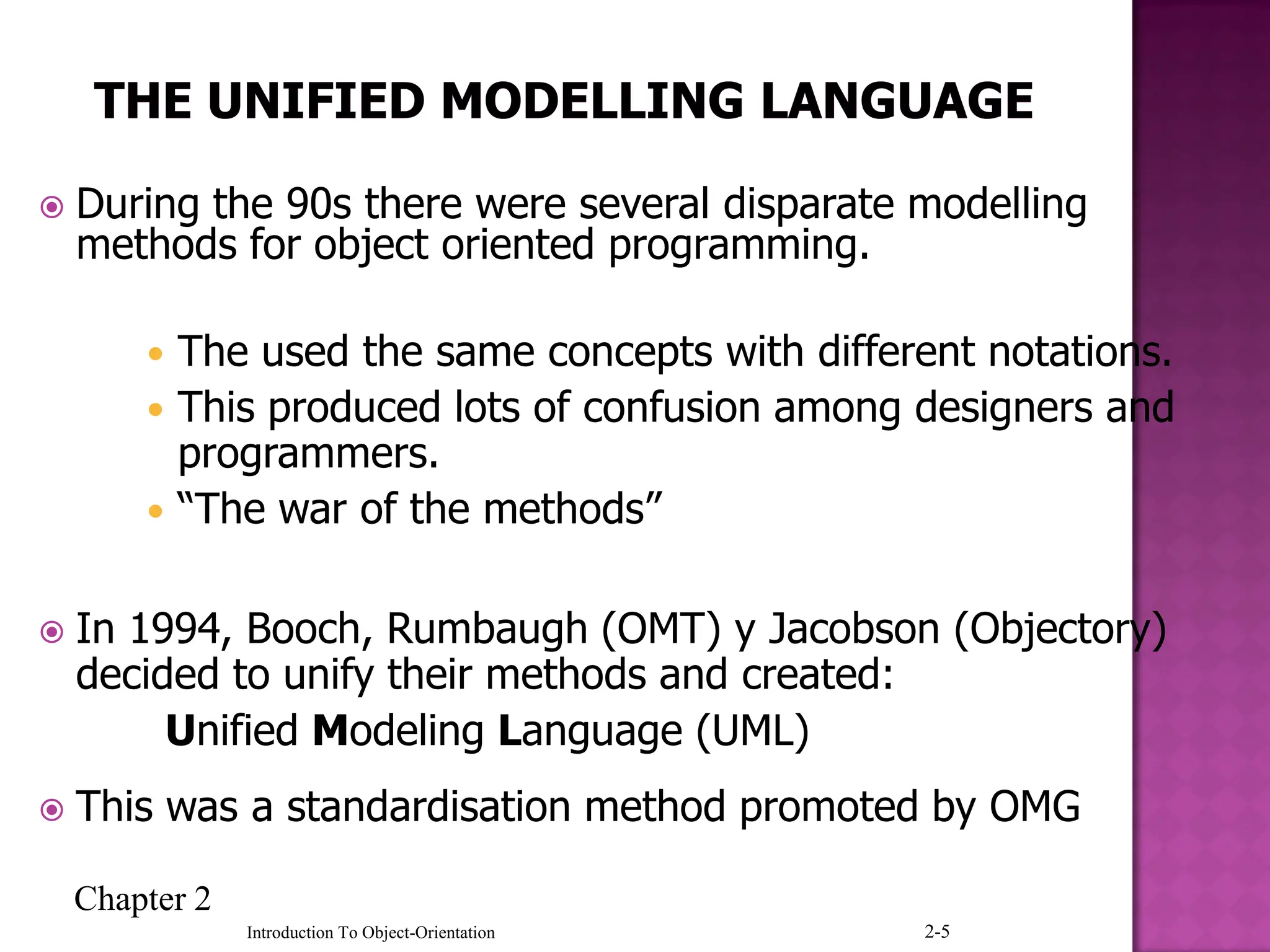

 During the 90s there were several disparate modelling
methods for object oriented programming.
 The used the same concepts with different notations.
 This produced lots of confusion among designers and
programmers.
 “The war of the methods”
 In 1994, Booch, Rumbaugh (OMT) y Jacobson (Objectory)
decided to unify their methods and created:
Unified Modeling Language (UML)
 This was a standardisation method promoted by OMG

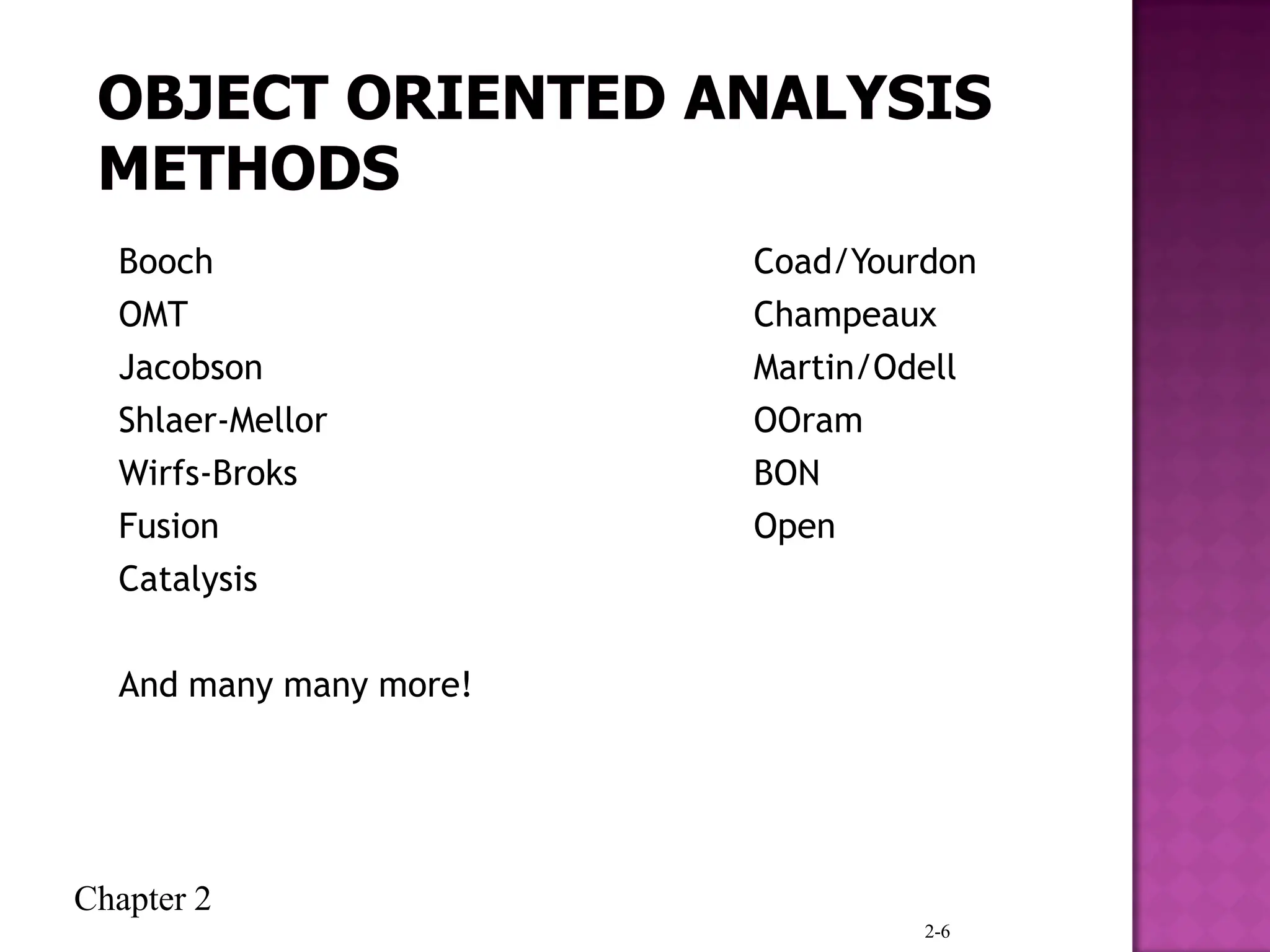

6. Chapter 2
2-6
Booch Coad/Yourdon
OMT Champeaux
Jacobson Martin/Odell
Shlaer-Mellor OOram
Wirfs-Broks BON
Fusion Open
Catalysis
And many many more!

7. Chapter 2
2-7

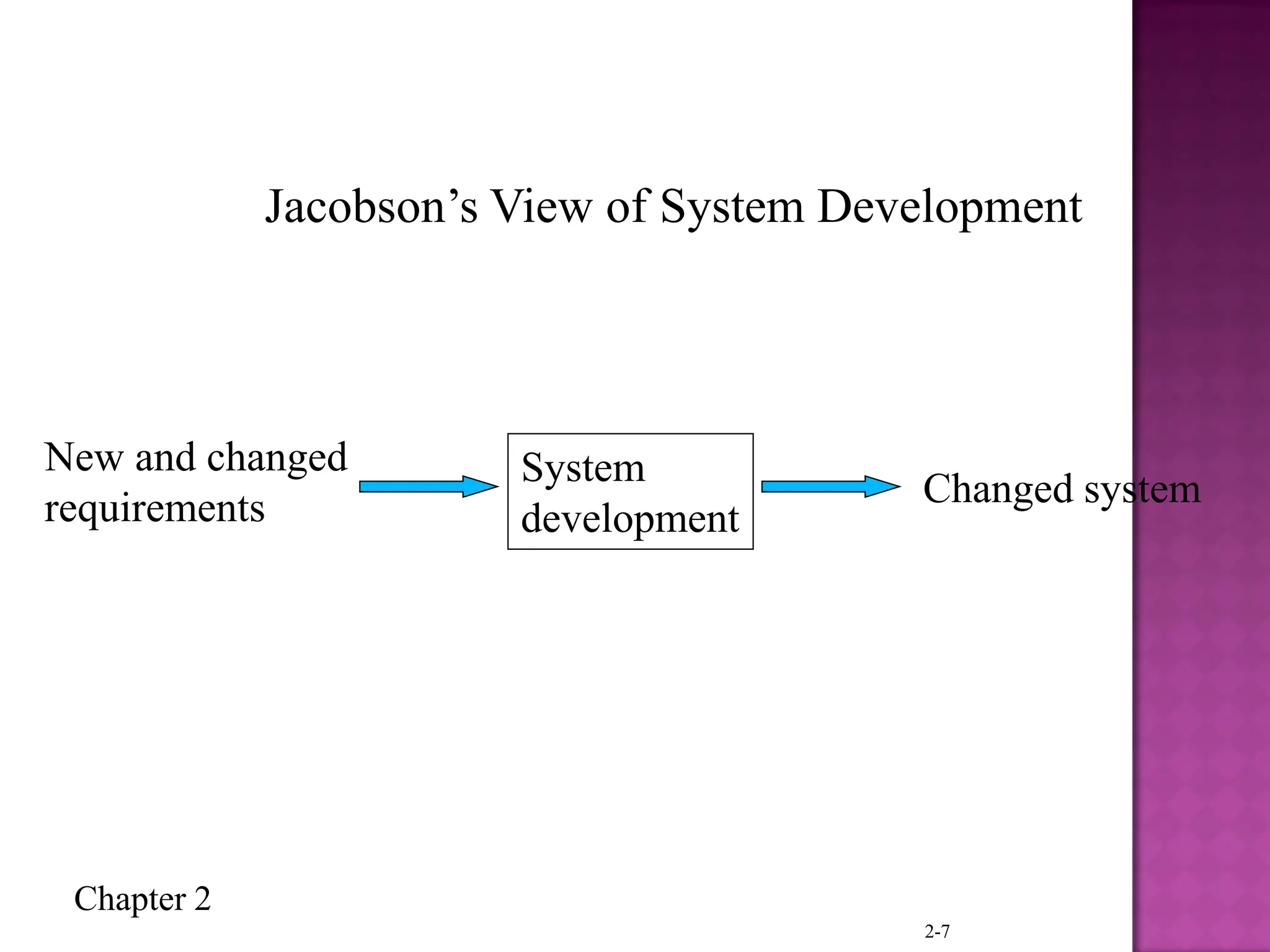

Jacobson’s View of System Development
New and changed
requirements
System
development
Changed system

8. Chapter 2
Introduction To Object-Orientation 2-8

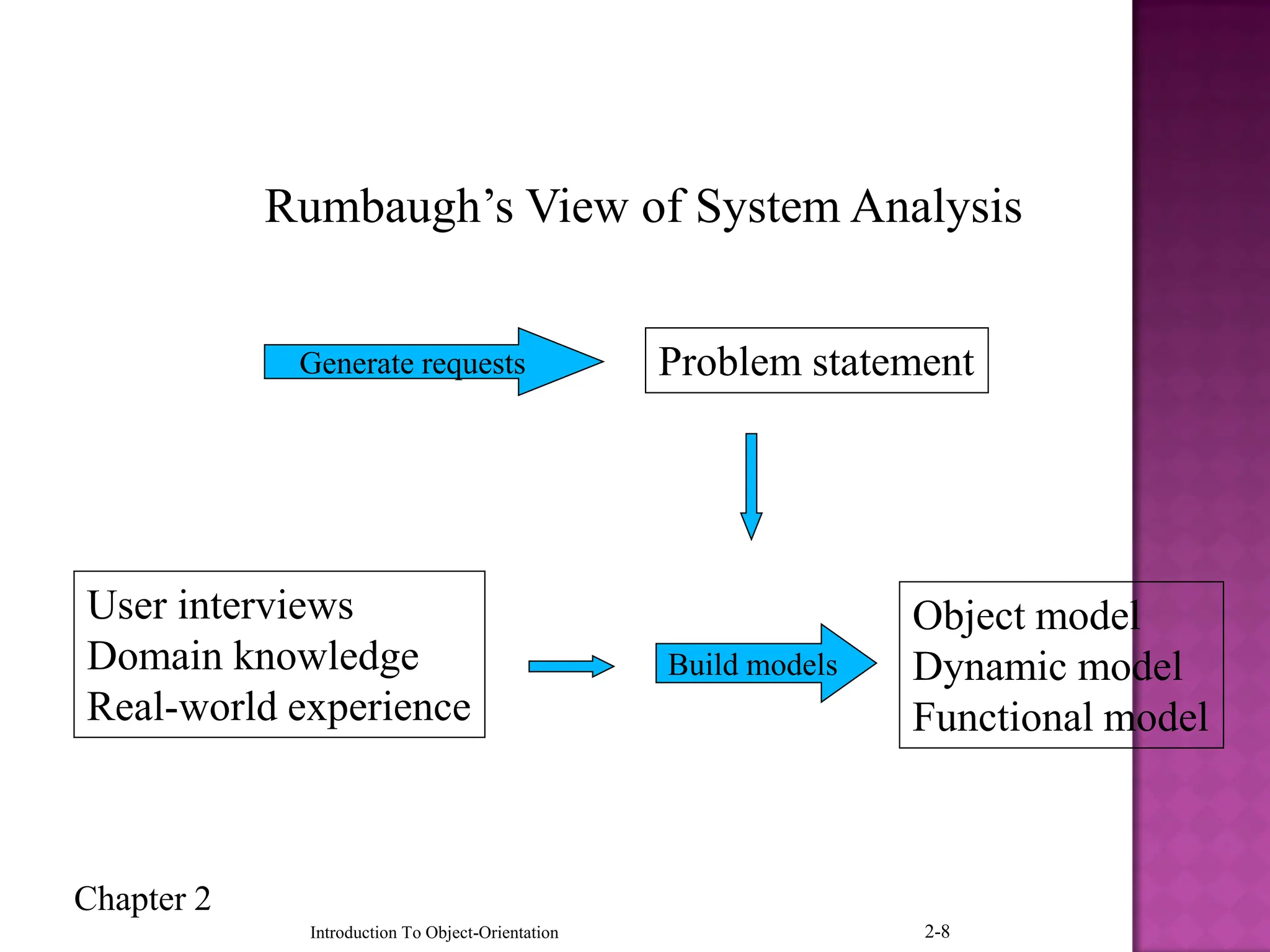

Rumbaugh’s View of System Analysis
Problem statement
User interviews
Domain knowledge
Real-world experience
Object model
Dynamic model
Functional model
Generate requests
Build models

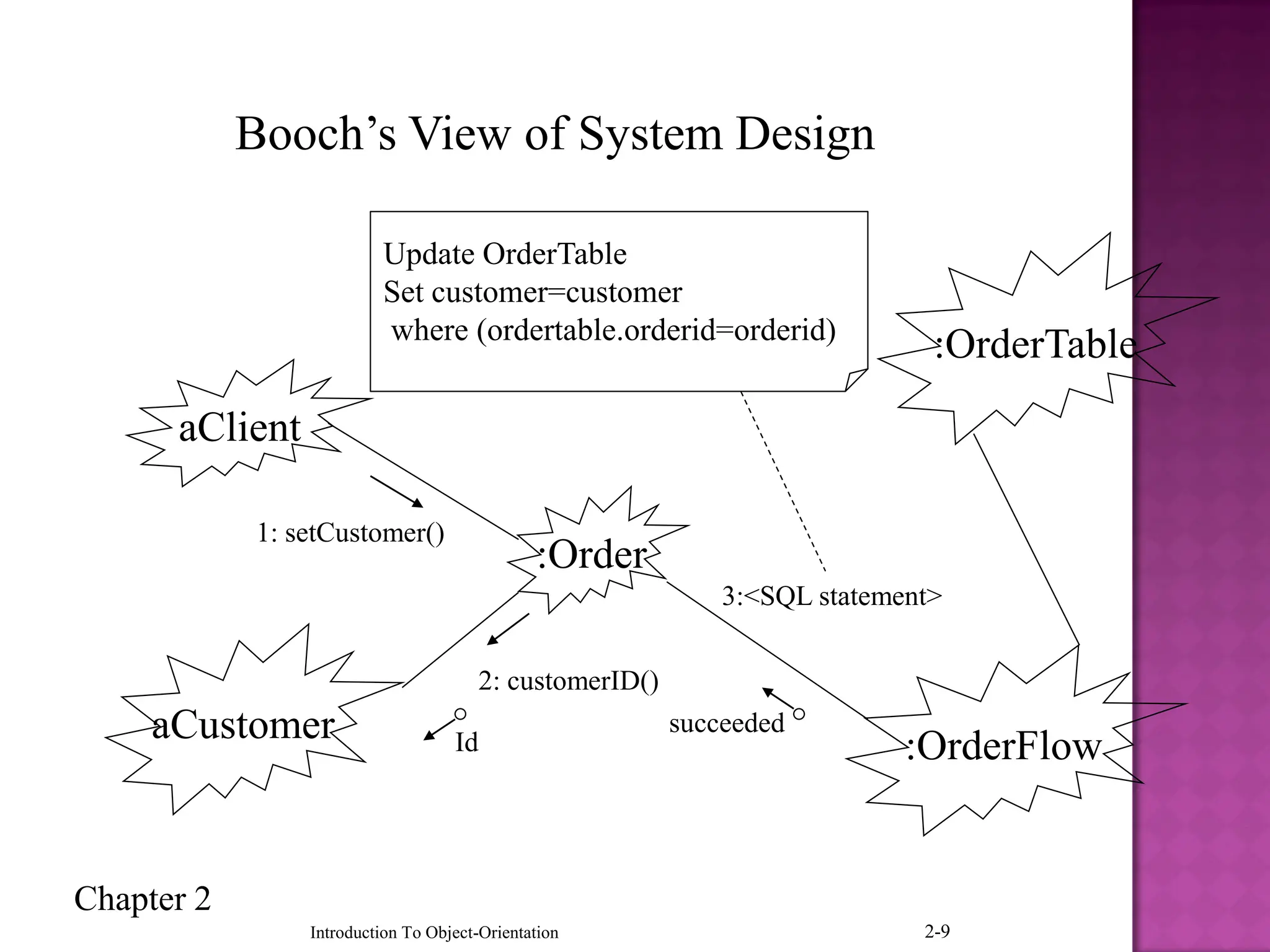

9. Chapter 2
Introduction To Object-Orientation 2-9

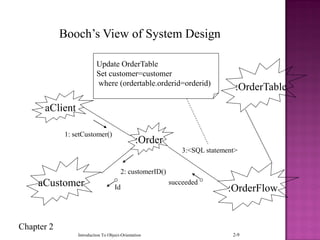

Booch’s View of System Design
:OrderTable
:Order
:OrderFlow
aCustomer
aClient
1: setCustomer()
2: customerID()
3:<SQL statement>
Id
succeeded
Update OrderTable
Set customer=customer
where (ordertable.orderid=orderid)

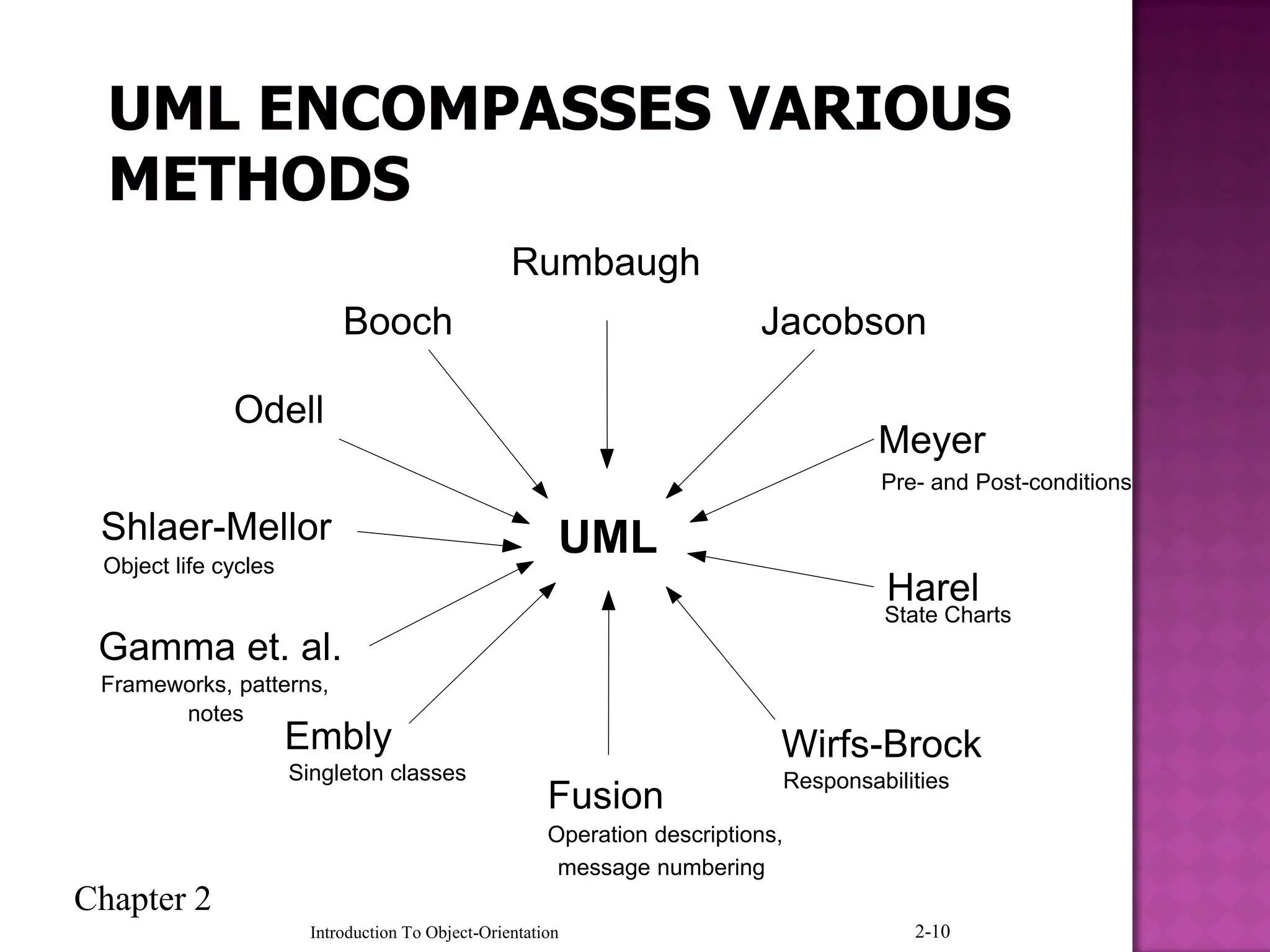

10. Chapter 2
Introduction To Object-Orientation 2-10
message numbering
UML
Rumbaugh
Jacobson
Meyer
Harel
Wirfs-Brock
Fusion
Embly
Gamma et. al.
Shlaer-Mellor
Odell
Booch
Pre- and Post-conditions
State Charts
Responsabilities
Operation descriptions,
Singleton classes
Frameworks, patterns,
notes
Object life cycles

11. Chapter 2
Introduction To Object-Orientation 2-11

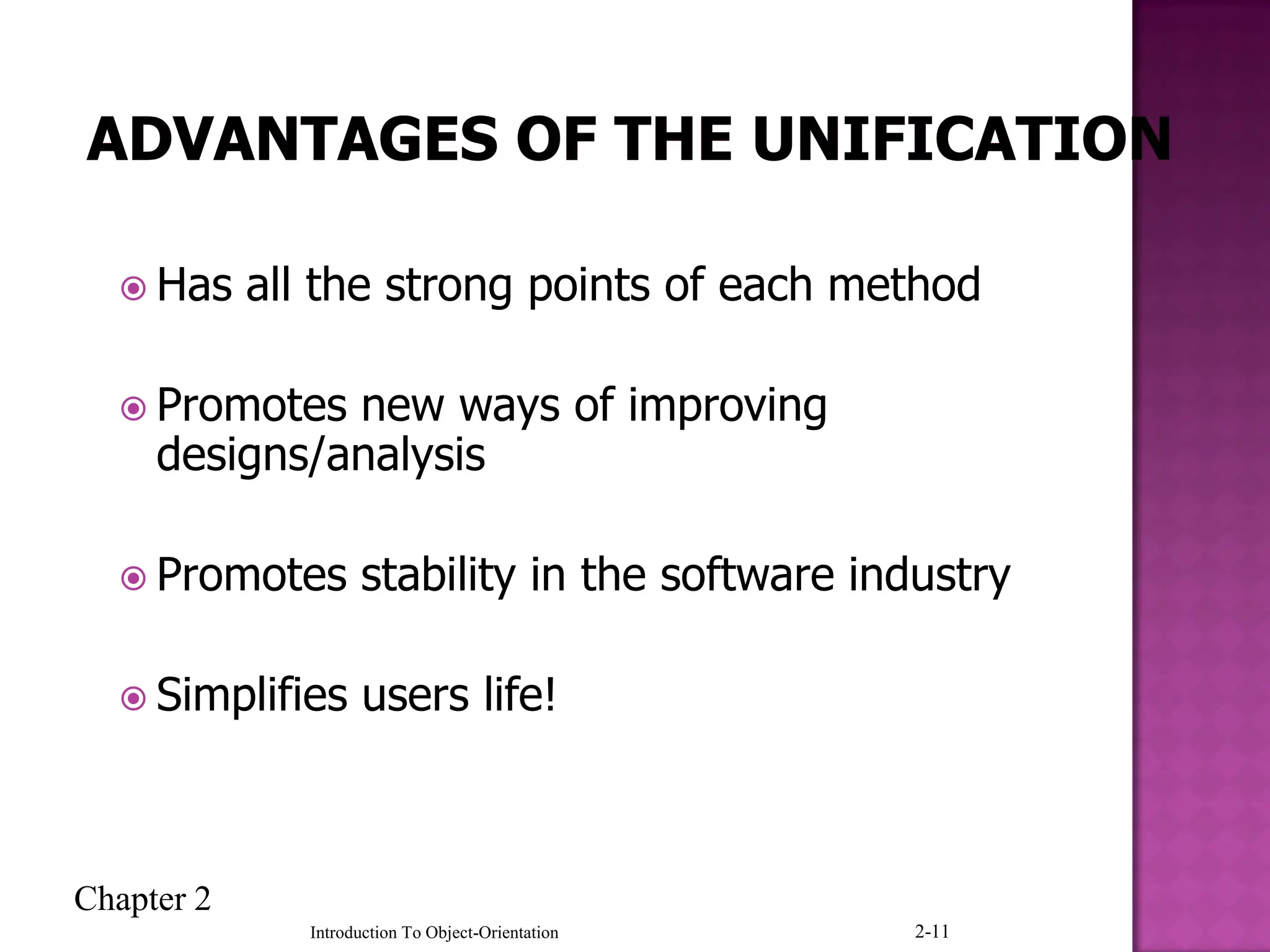

 Has all the strong points of each method
 Promotes new ways of improving
designs/analysis
 Promotes stability in the software industry
 Simplifies users life!

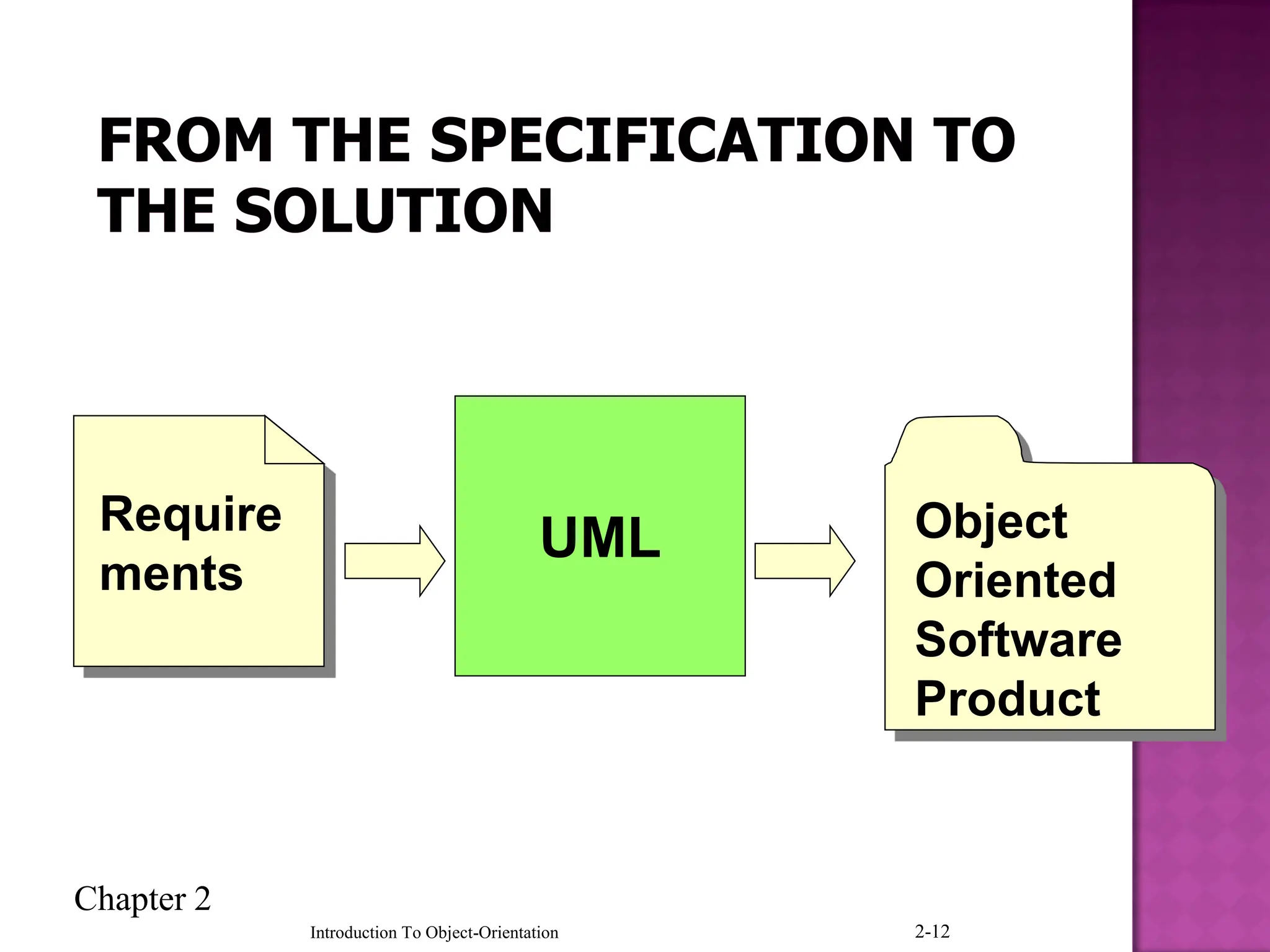

12. Chapter 2
Introduction To Object-Orientation 2-12
Require
ments
Object
Oriented
Software
Product
UML

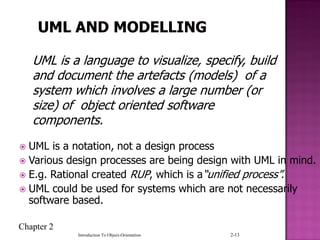

13. Chapter 2

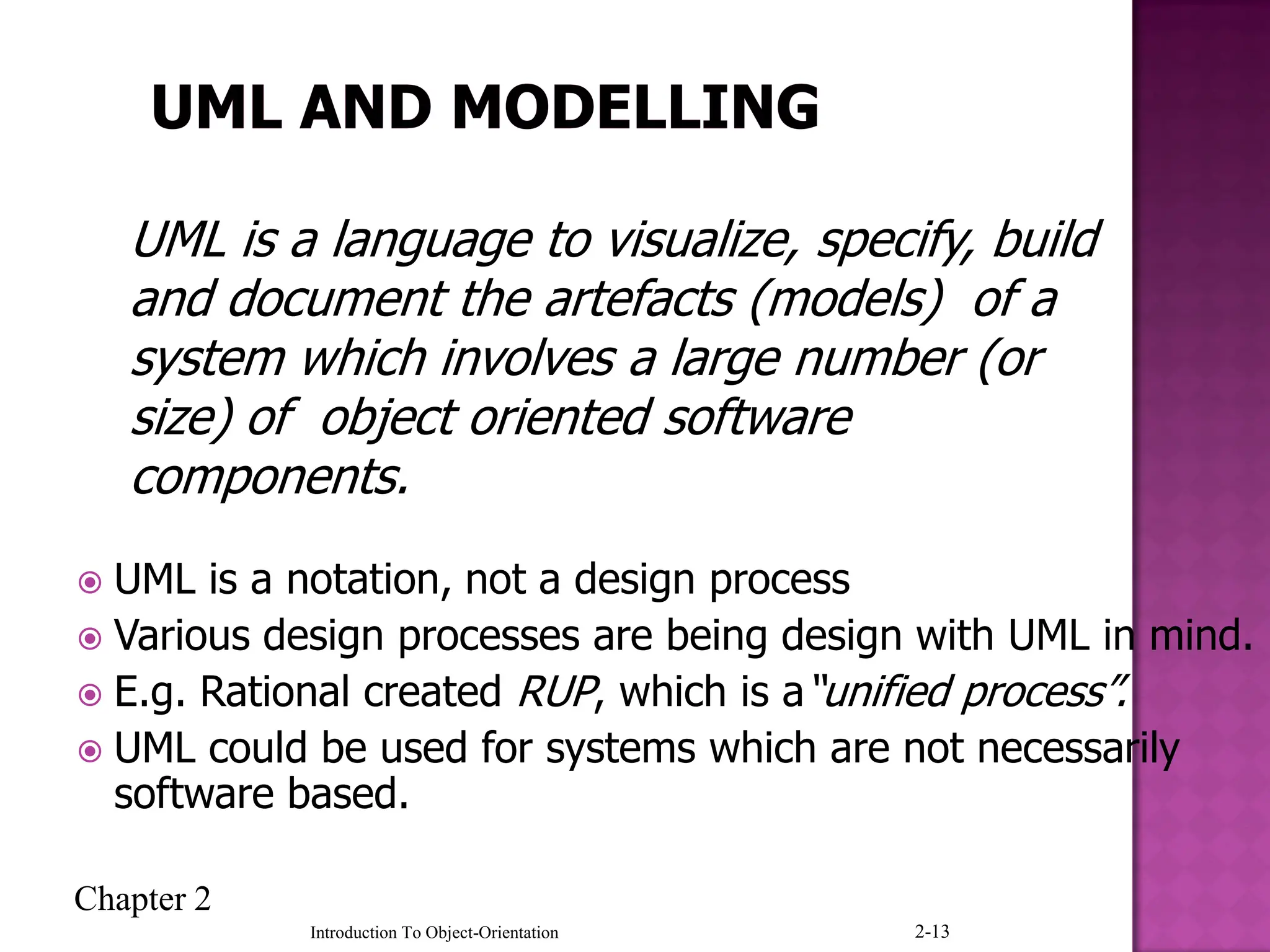

Introduction To Object-Orientation 2-13
 UML is a notation, not a design process
 Various design processes are being design with UML in mind.
 E.g. Rational created RUP, which is a“unified process”.
 UML could be used for systems which are not necessarily
software based.
UML is a language to visualize, specify, build
and document the artefacts (models) of a
system which involves a large number (or
size) of object oriented software
components.

14. Chapter 2

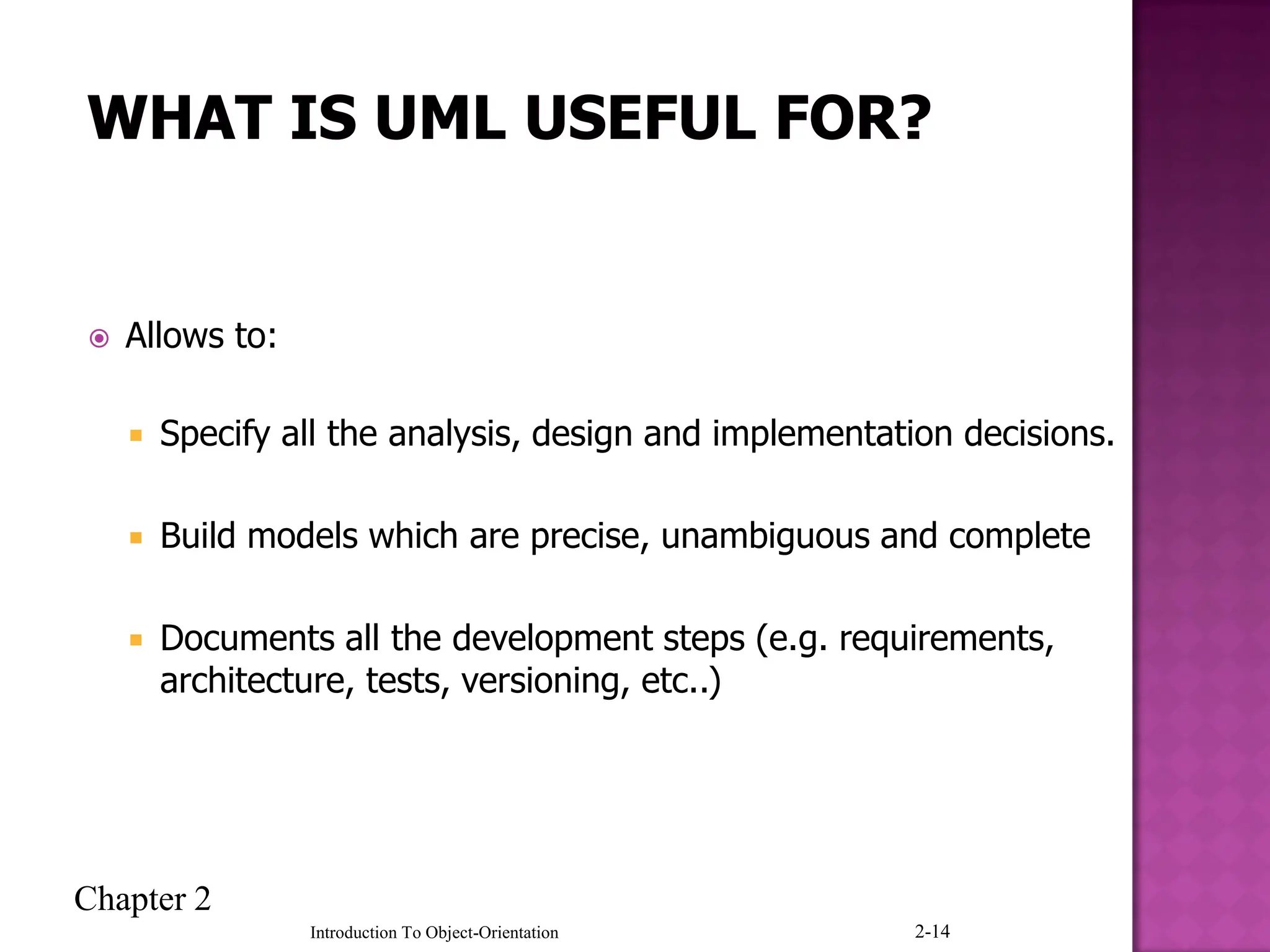

Introduction To Object-Orientation 2-14
 Allows to:
 Specify all the analysis, design and implementation decisions.
 Build models which are precise, unambiguous and complete
 Documents all the development steps (e.g. requirements,
architecture, tests, versioning, etc..)

15. Chapter 2
Introduction To Object-Orientation 2-15

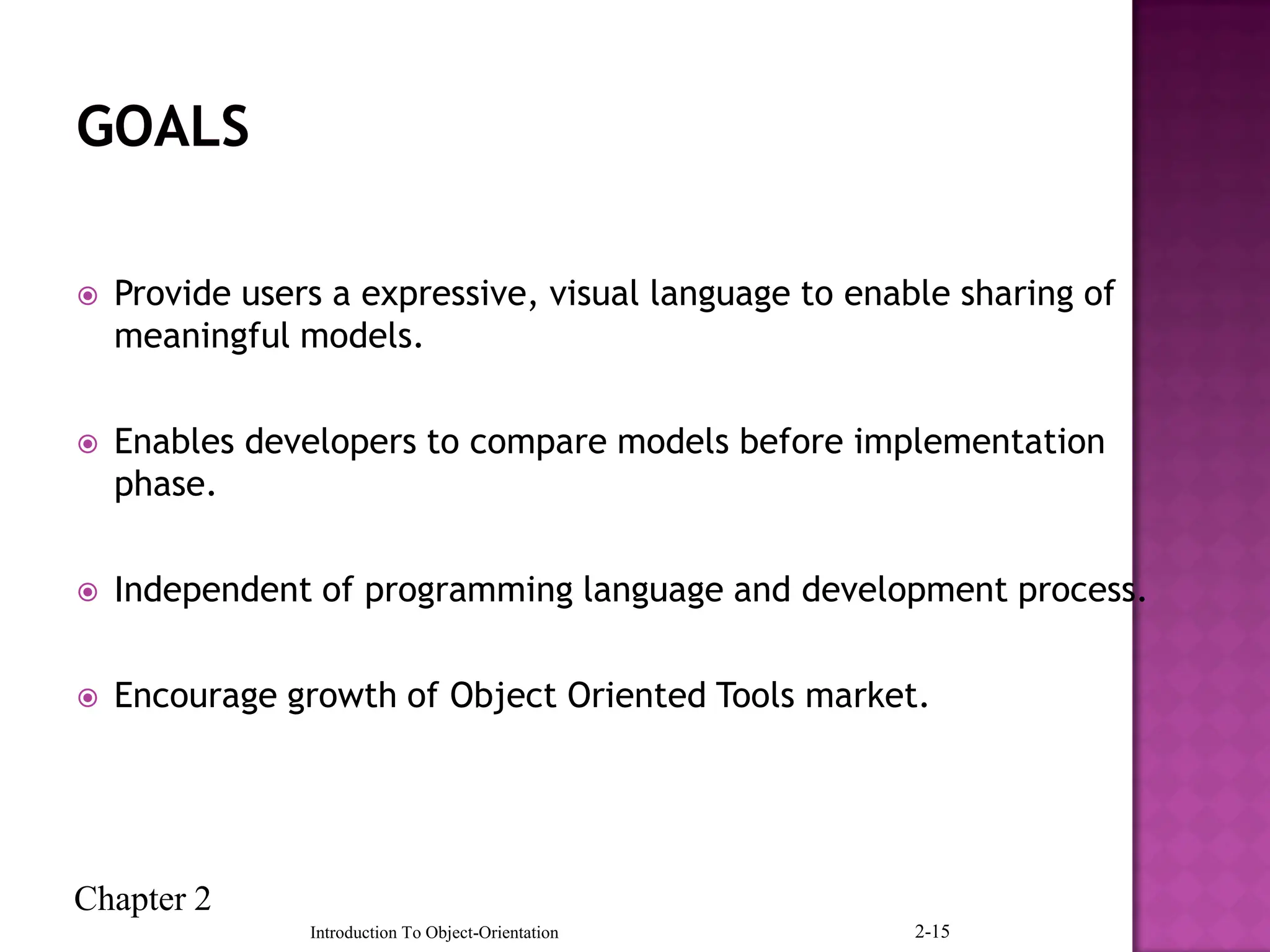

 Provide users a expressive, visual language to enable sharing of
meaningful models.
 Enables developers to compare models before implementation
phase.
 Independent of programming language and development process.
 Encourage growth of Object Oriented Tools market.

16. Chapter 2
Introduction To Object-Orientation 2-16

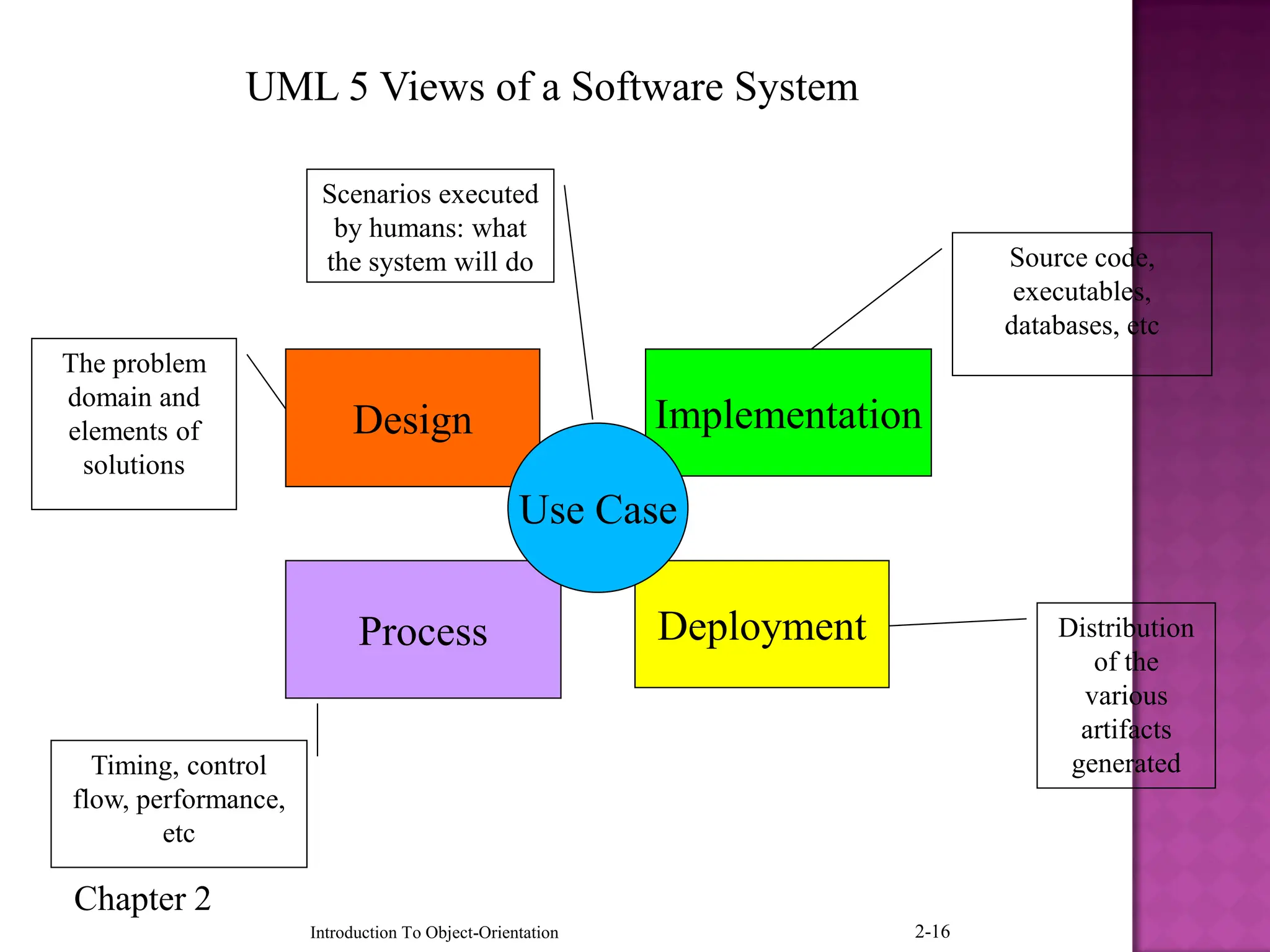

Design
Process
Implementation
Deployment
Use Case
UML 5 Views of a Software System
The problem
domain and
elements of
solutions
Scenarios executed
by humans: what
the system will do Source code,
executables,
databases, etc
Distribution
of the
various
artifacts
generated
Timing, control
flow, performance,
etc

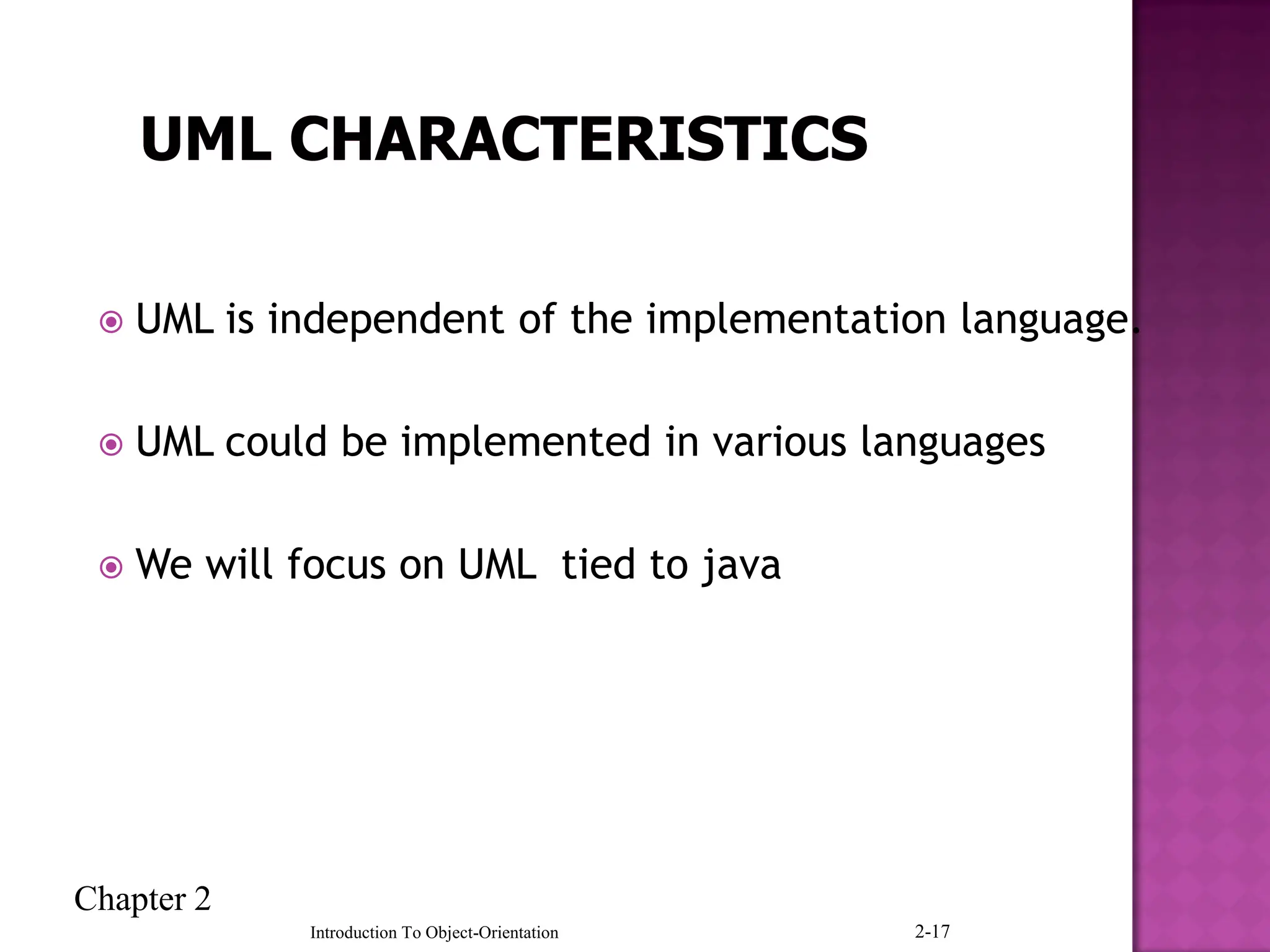

17. Chapter 2
Introduction To Object-Orientation 2-17
 UML is independent of the implementation language.
 UML could be implemented in various languages
 We will focus on UML tied to java

18. Chapter 2

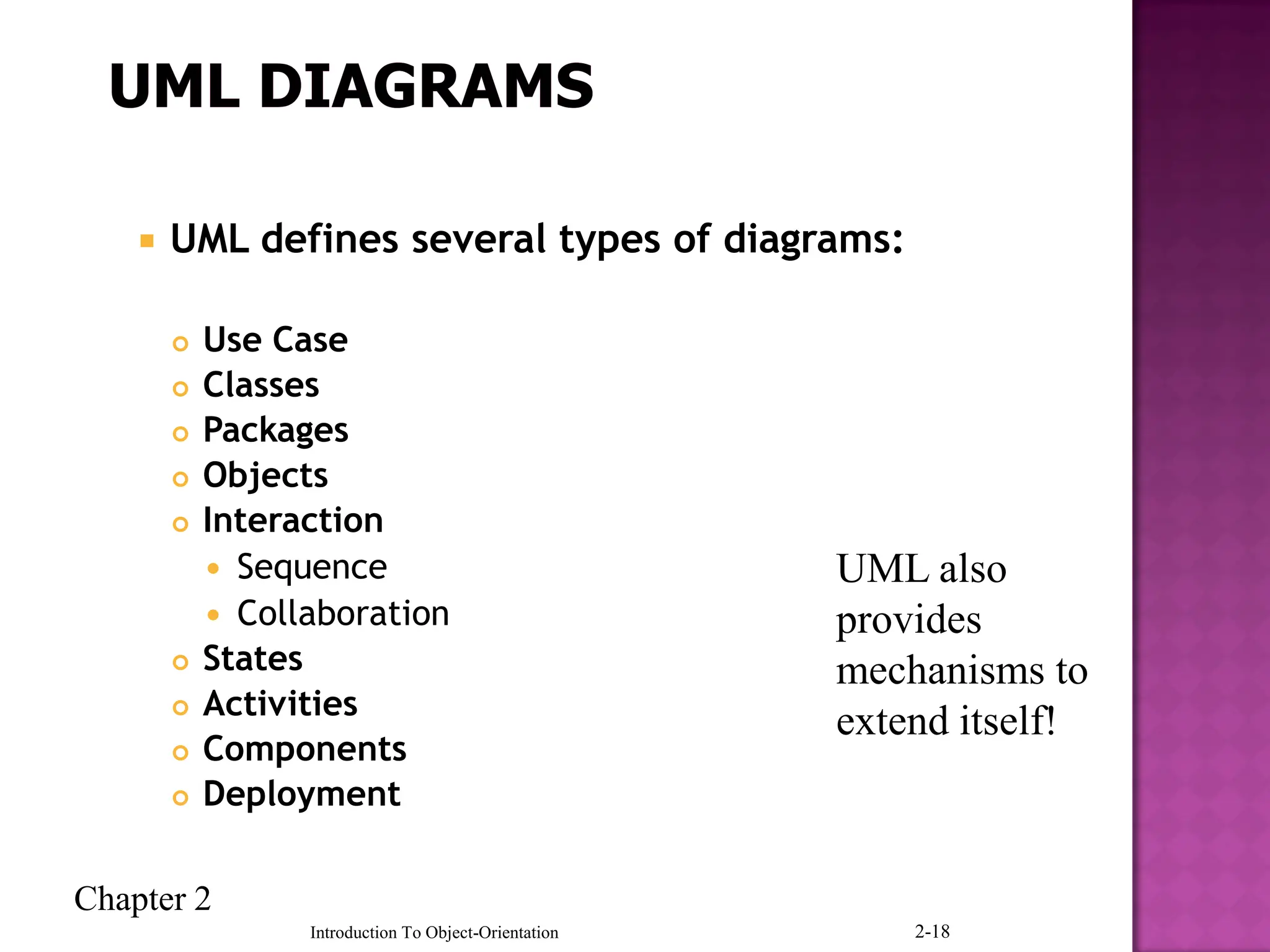

Introduction To Object-Orientation 2-18
 UML defines several types of diagrams:
 Use Case
 Classes
 Packages
 Objects
 Interaction
 Sequence
 Collaboration
 States
 Activities
 Components
 Deployment
UML also
provides
mechanisms to
extend itself!

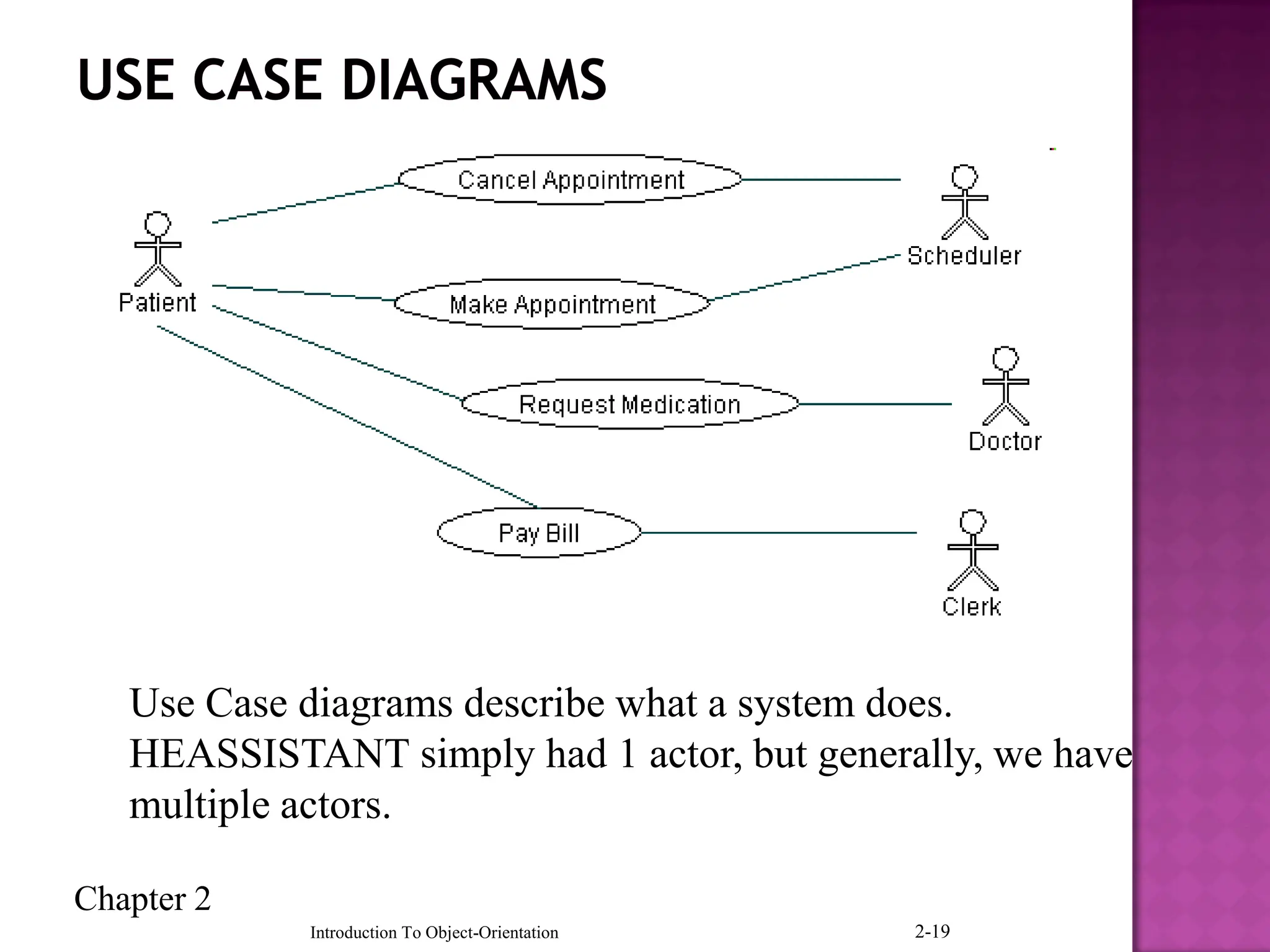

19. Chapter 2
Introduction To Object-Orientation 2-19
Use Case diagrams describe what a system does.
HEASSISTANT simply had 1 actor, but generally, we have
multiple actors.

20. Chapter 2
Introduction To Object-Orientation 2-20

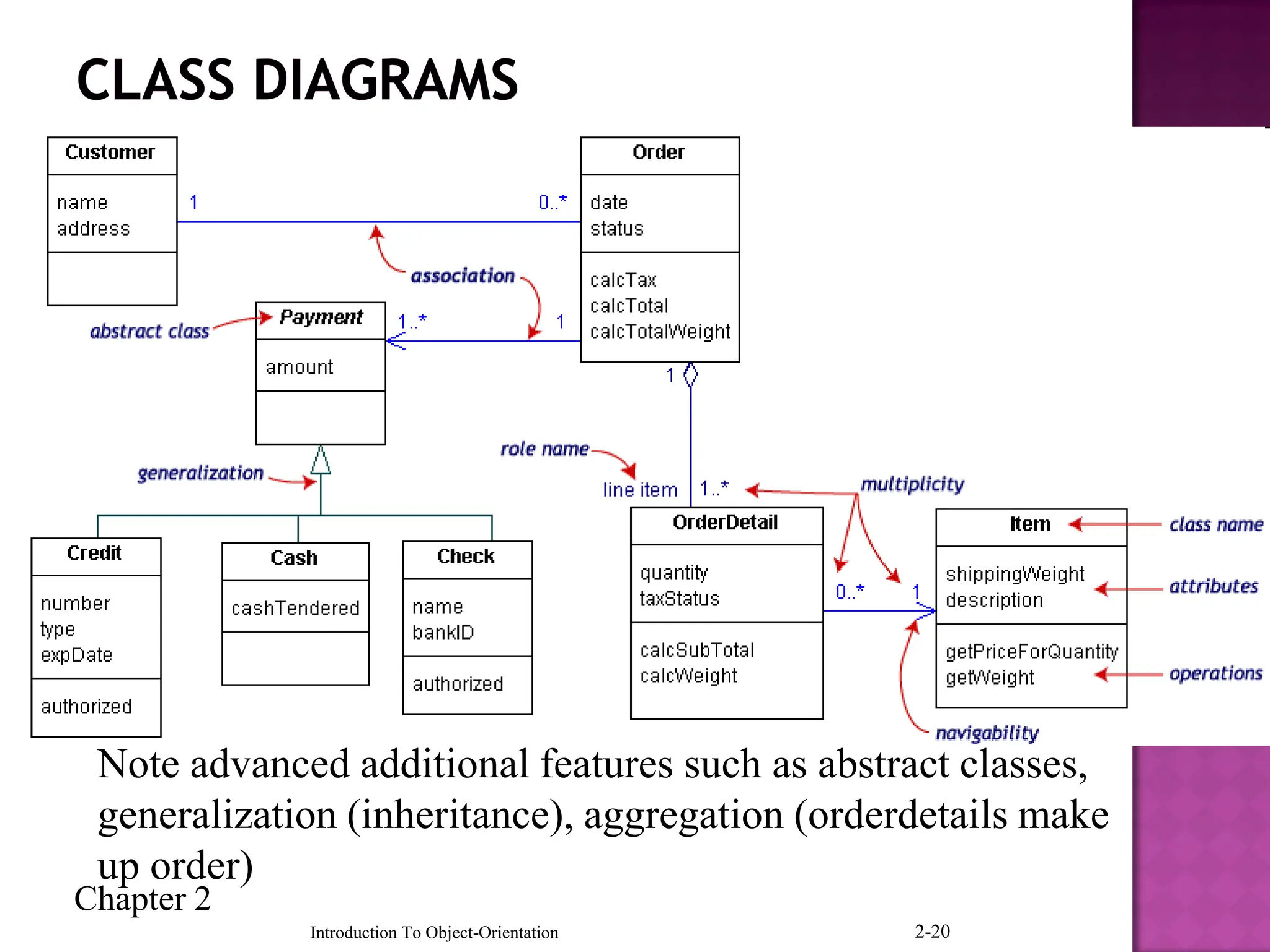

Note advanced additional features such as abstract classes,
generalization (inheritance), aggregation (orderdetails make
up order)

21. Chapter 2

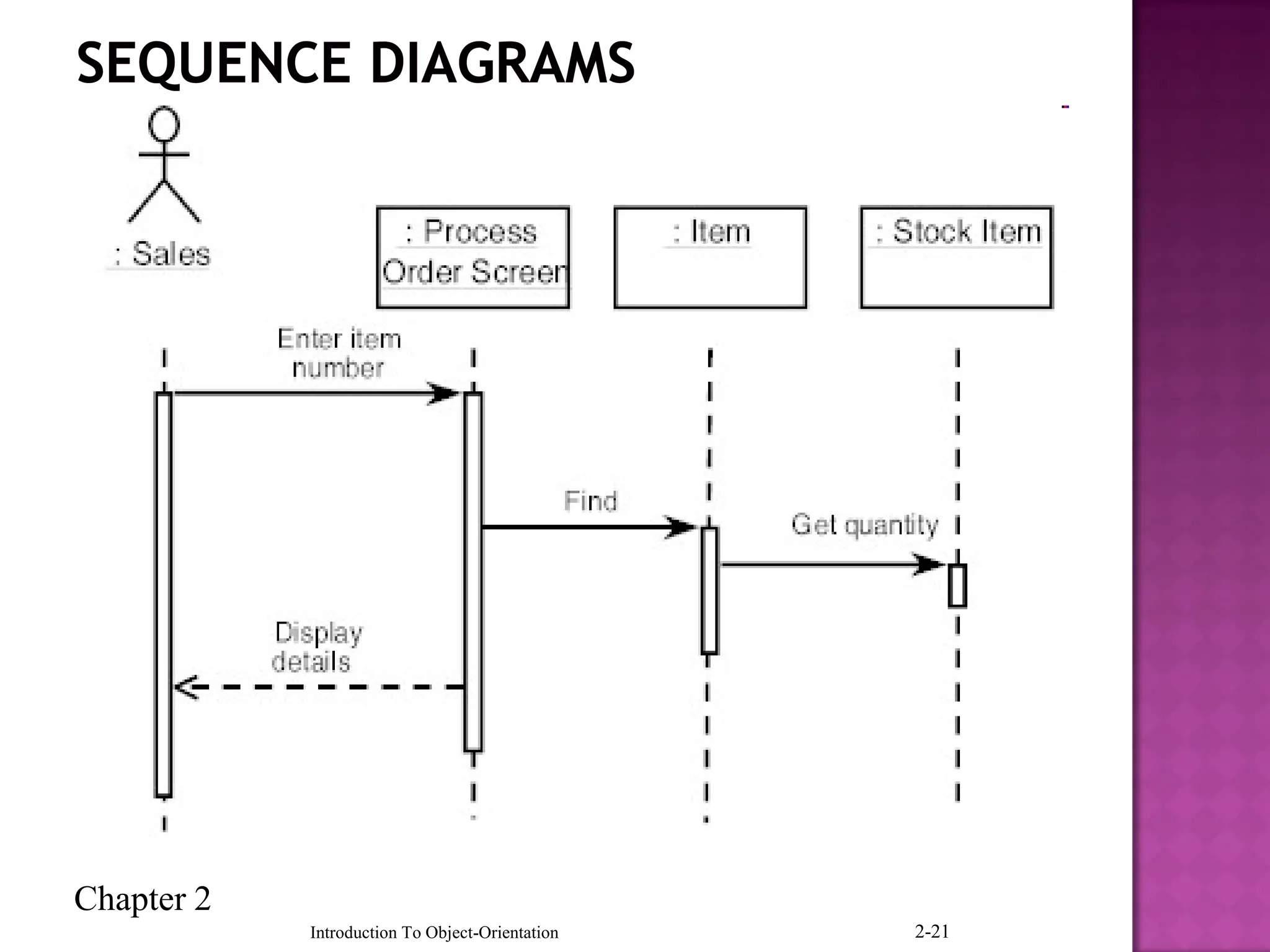

Introduction To Object-Orientation 2-21

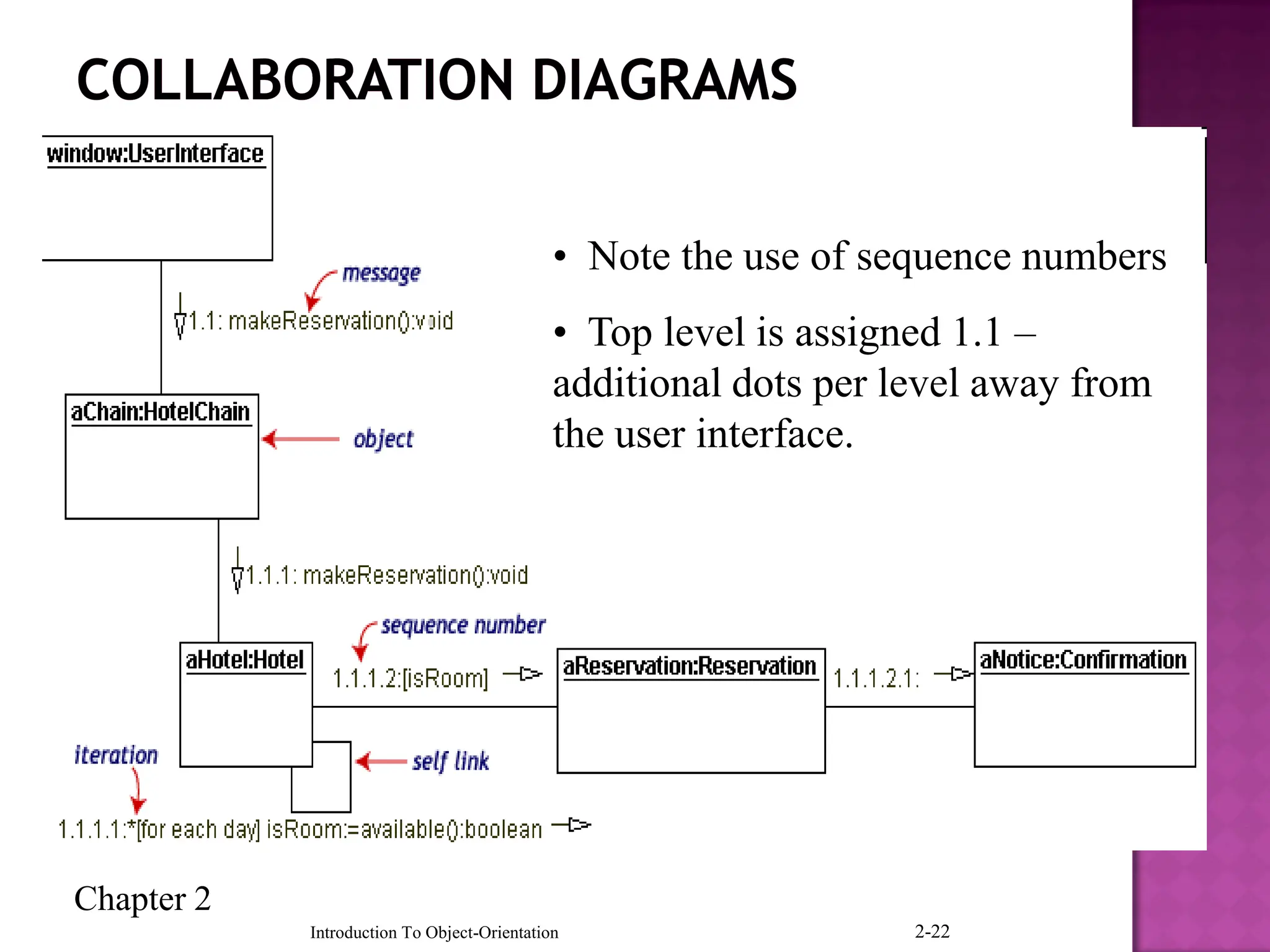

22. Chapter 2
Introduction To Object-Orientation 2-22
• Note the use of sequence numbers
• Top level is assigned 1.1 –
additional dots per level away from
the user interface.

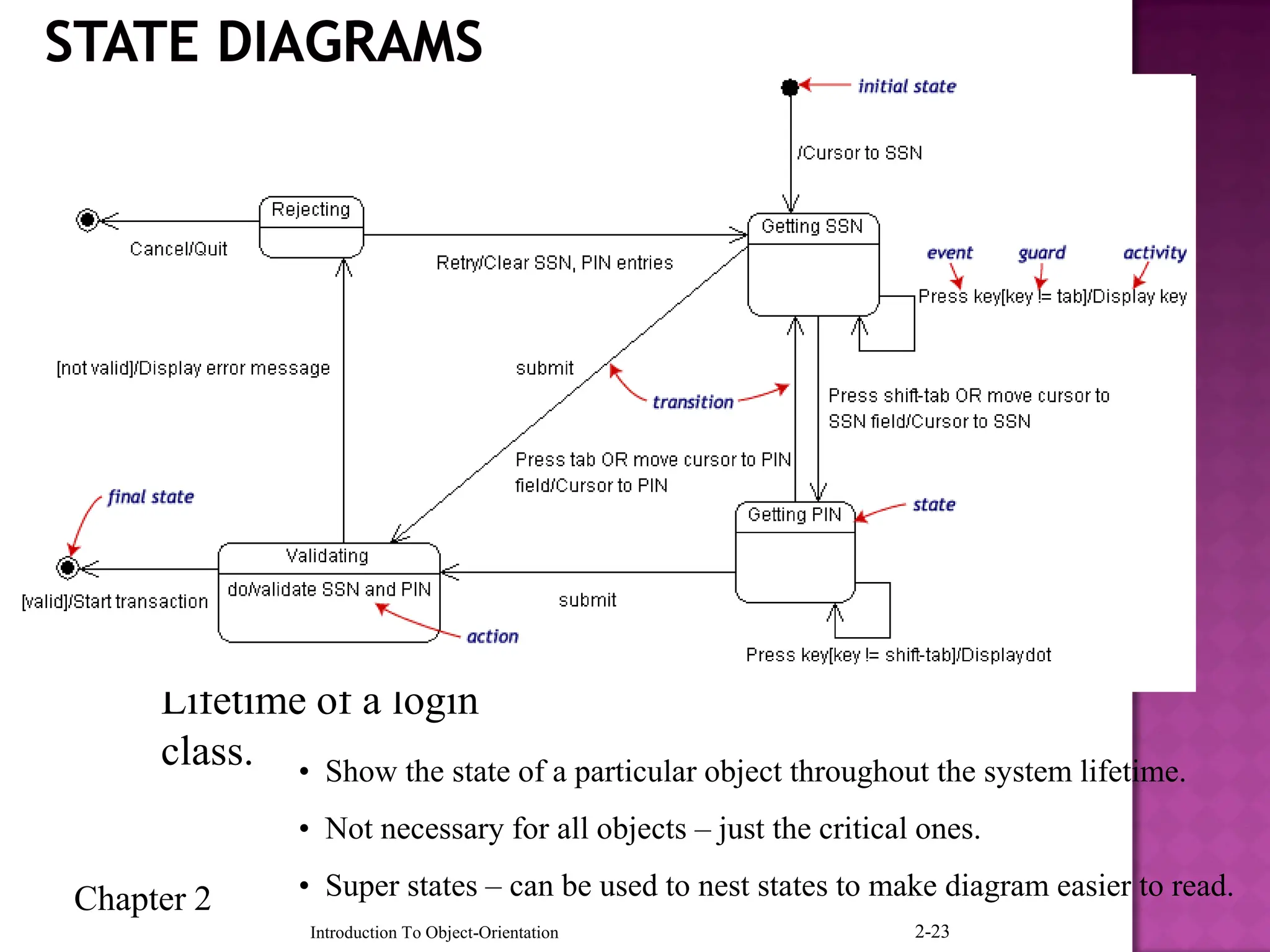

23. Chapter 2
Introduction To Object-Orientation 2-23

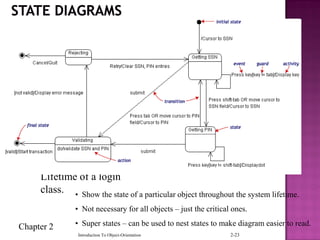

• Show the state of a particular object throughout the system lifetime.
• Not necessary for all objects – just the critical ones.
• Super states – can be used to nest states to make diagram easier to read.
Lifetime of a login
class.

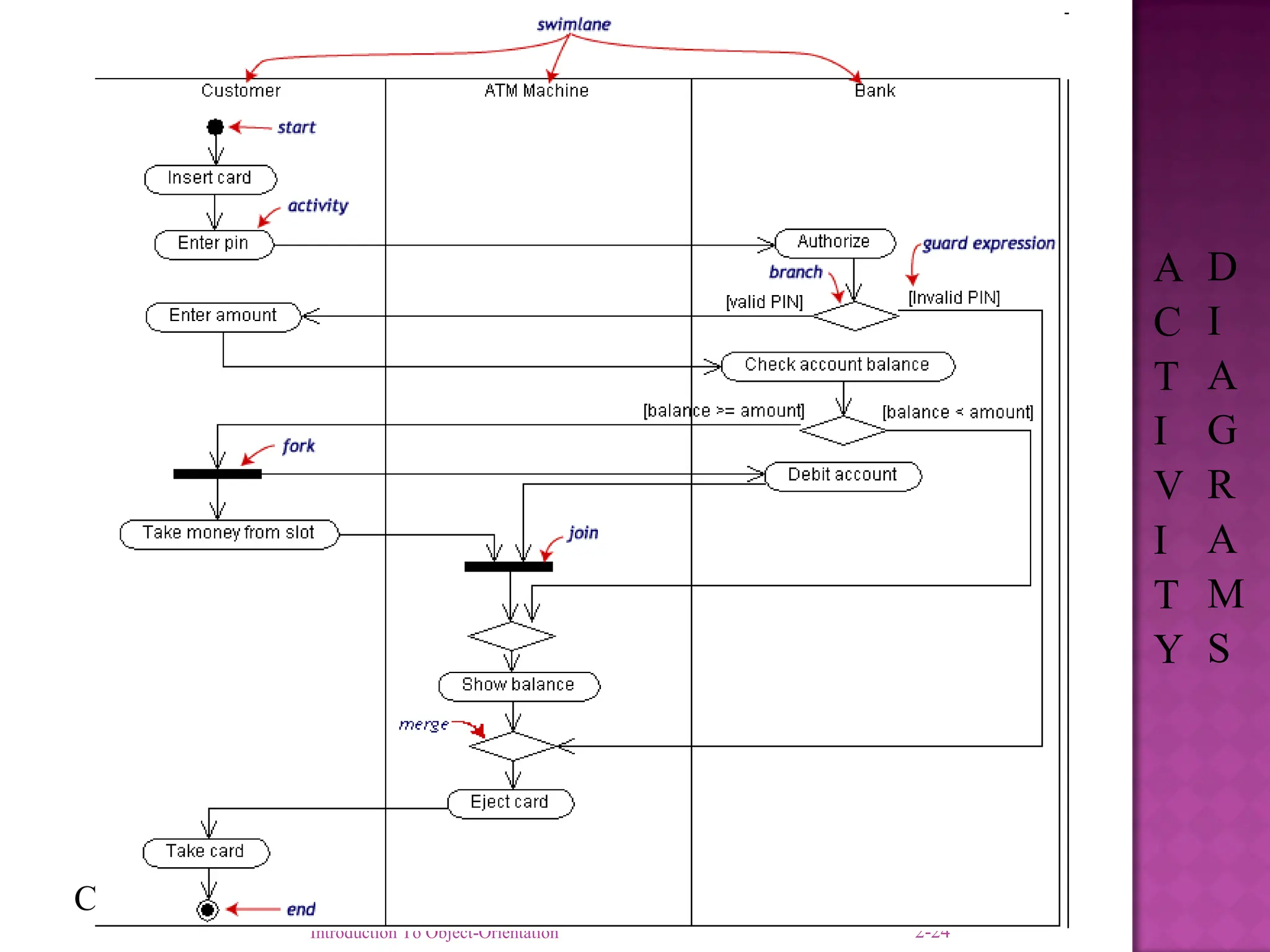

24. Chapter 2
Introduction To Object-Orientation 2-24

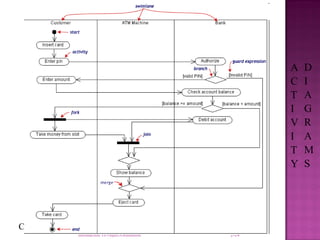

A
C
T
I
V
I
T
Y
D
I
A
G
R
A
M
S

25. Chapter 2
Introduction To Object-Orientation 2-25

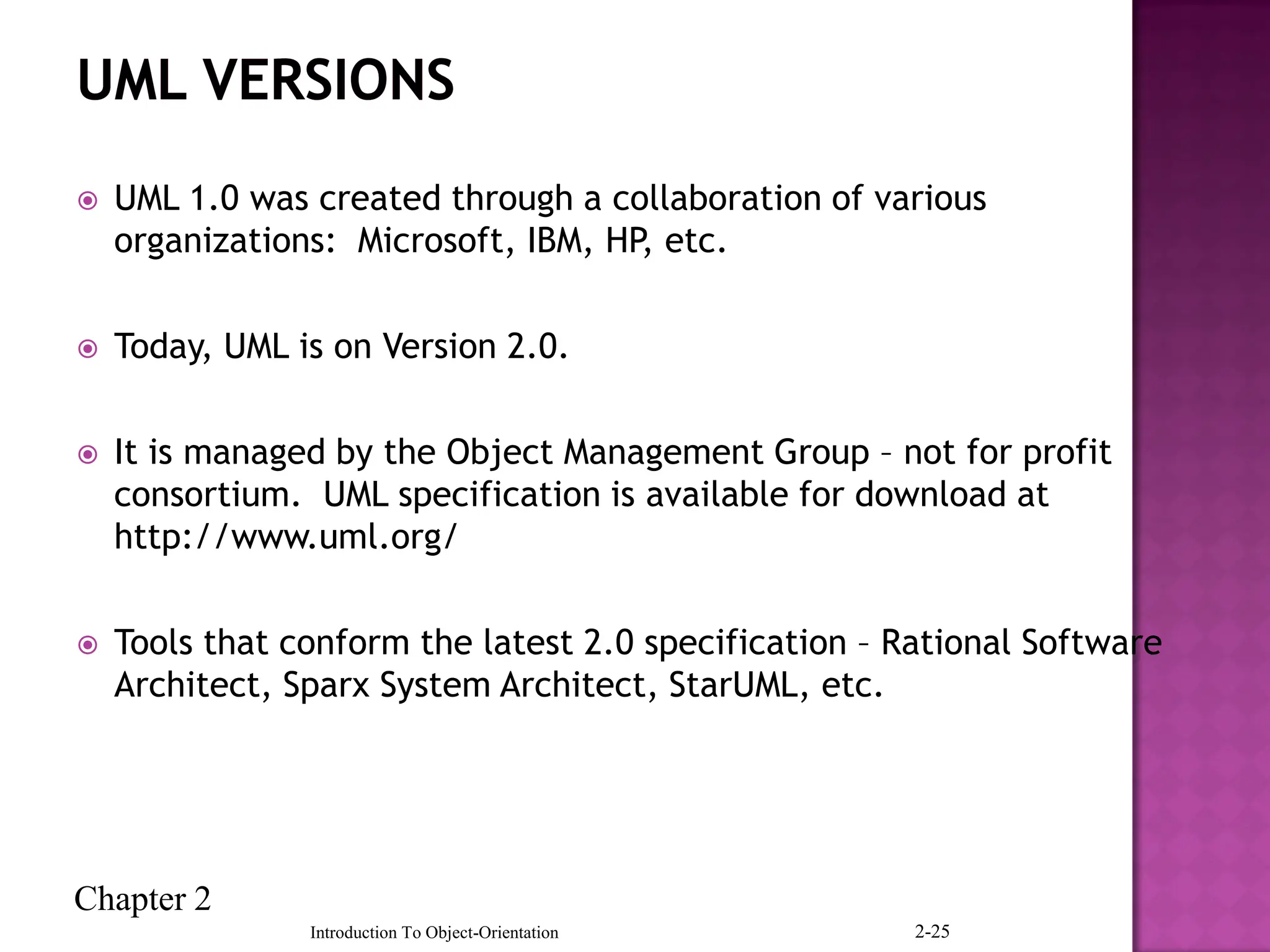

 UML 1.0 was created through a collaboration of various
organizations: Microsoft, IBM, HP, etc.
 Today, UML is on Version 2.0.
 It is managed by the Object Management Group – not for profit
consortium. UML specification is available for download at
http://www.uml.org/
 Tools that conform the latest 2.0 specification – Rational Software
Architect, Sparx System Architect, StarUML, etc.

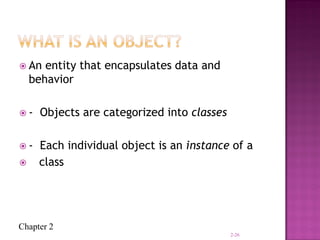

26. Chapter 2

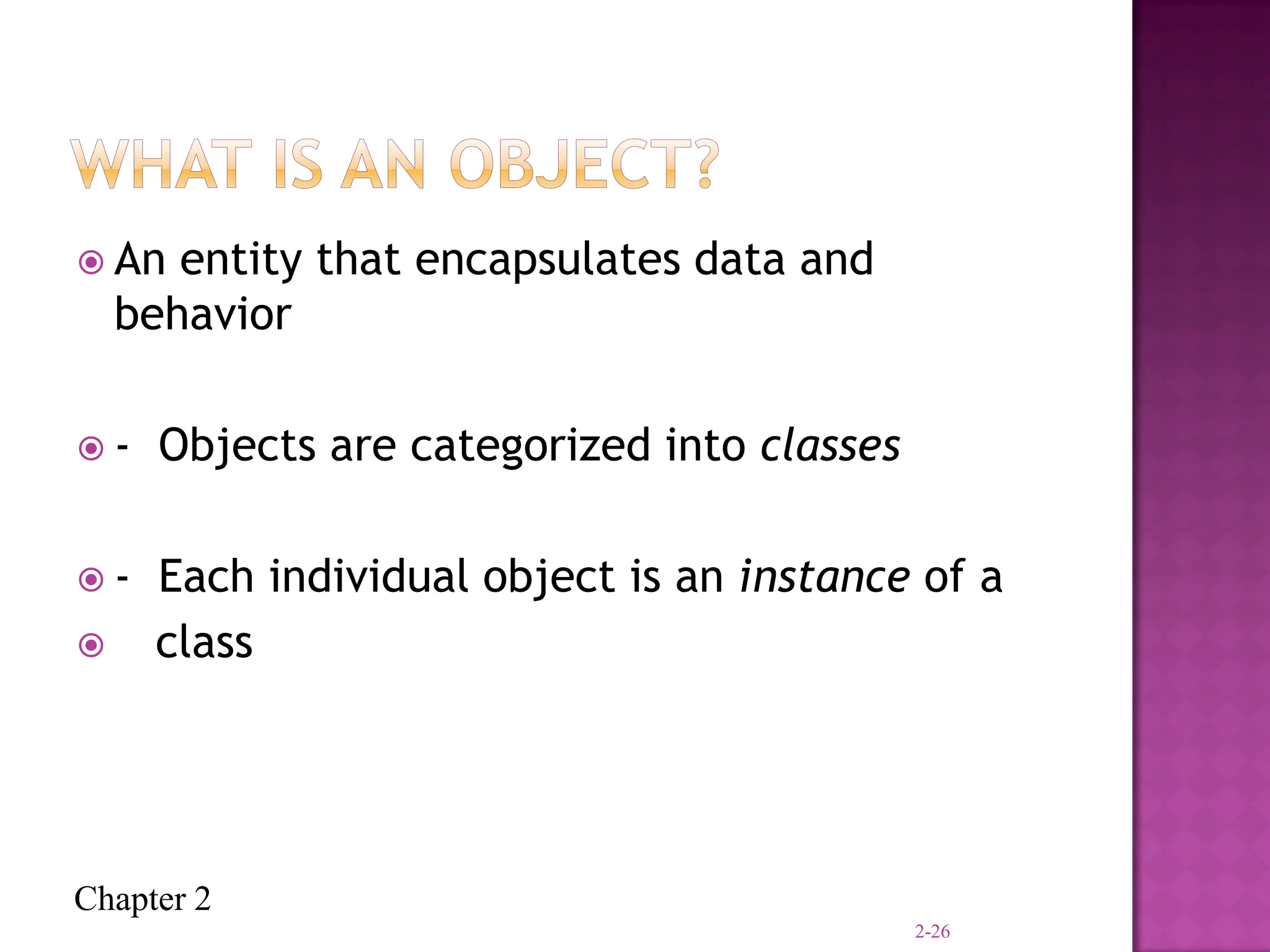

 An entity that encapsulates data and
behavior
 - Objects are categorized into classes
 - Each individual object is an instance of a
 class
2-26

27. Chapter 2
2-27

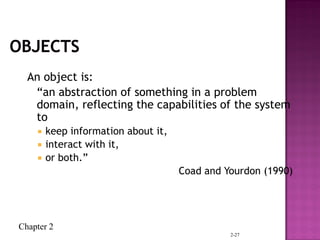

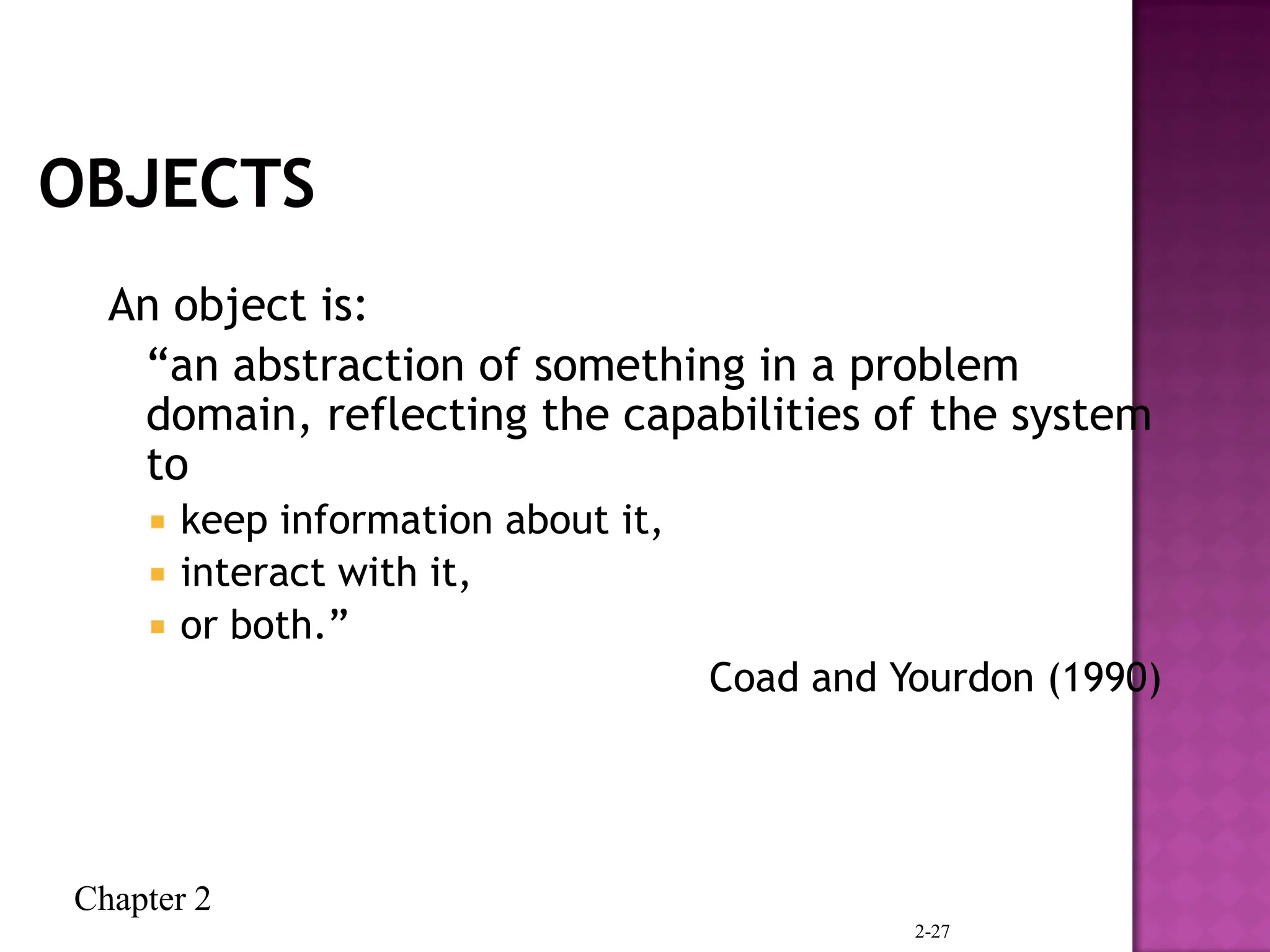

An object is:
“an abstraction of something in a problem
domain, reflecting the capabilities of the system
to
 keep information about it,
 interact with it,
 or both.”
Coad and Yourdon (1990)

28. Chapter 2
2-28

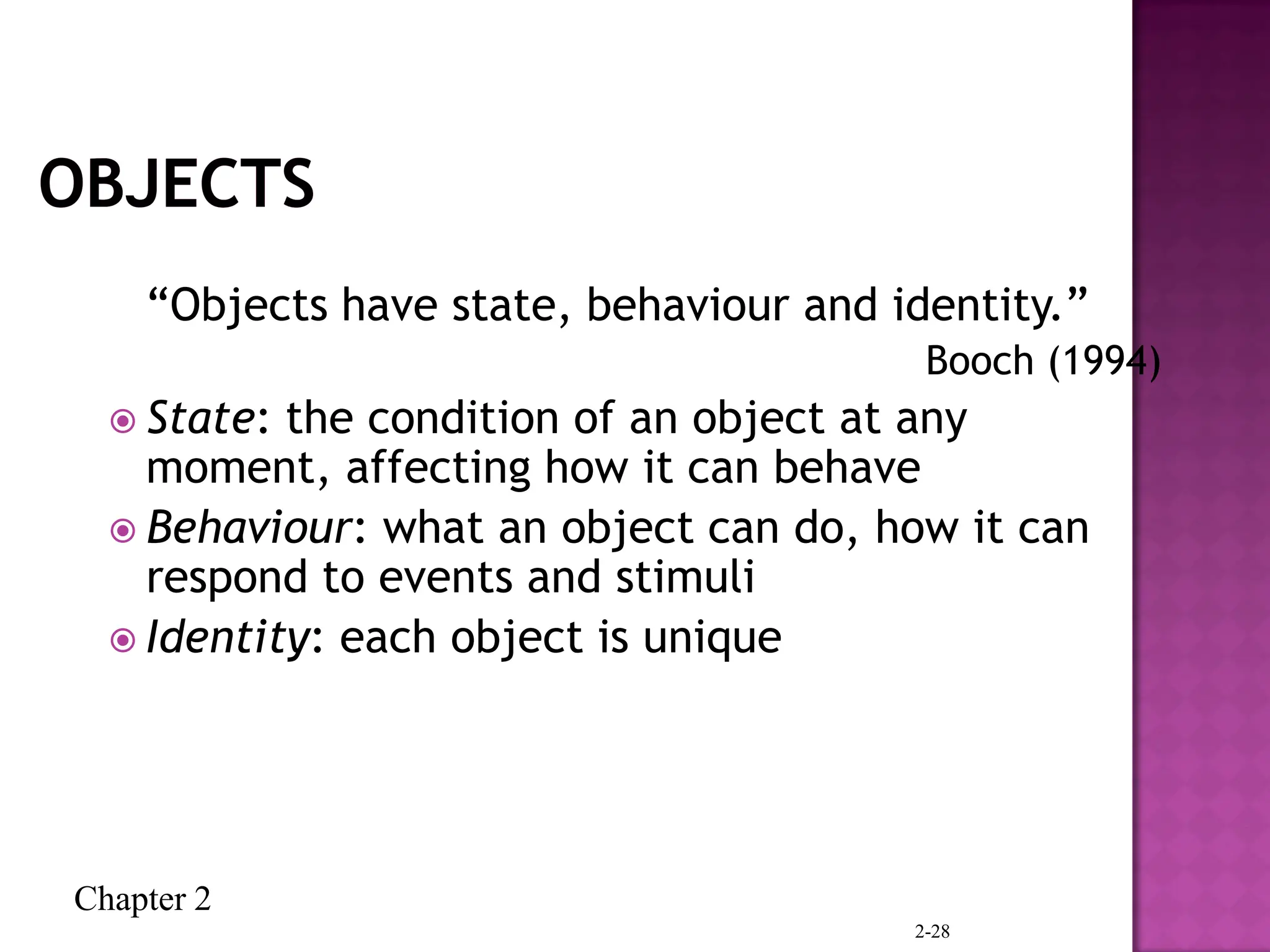

“Objects have state, behaviour and identity.”
Booch (1994)
 State: the condition of an object at any
moment, affecting how it can behave
 Behaviour: what an object can do, how it can
respond to events and stimuli
 Identity: each object is unique

29. Chapter 2
2-29

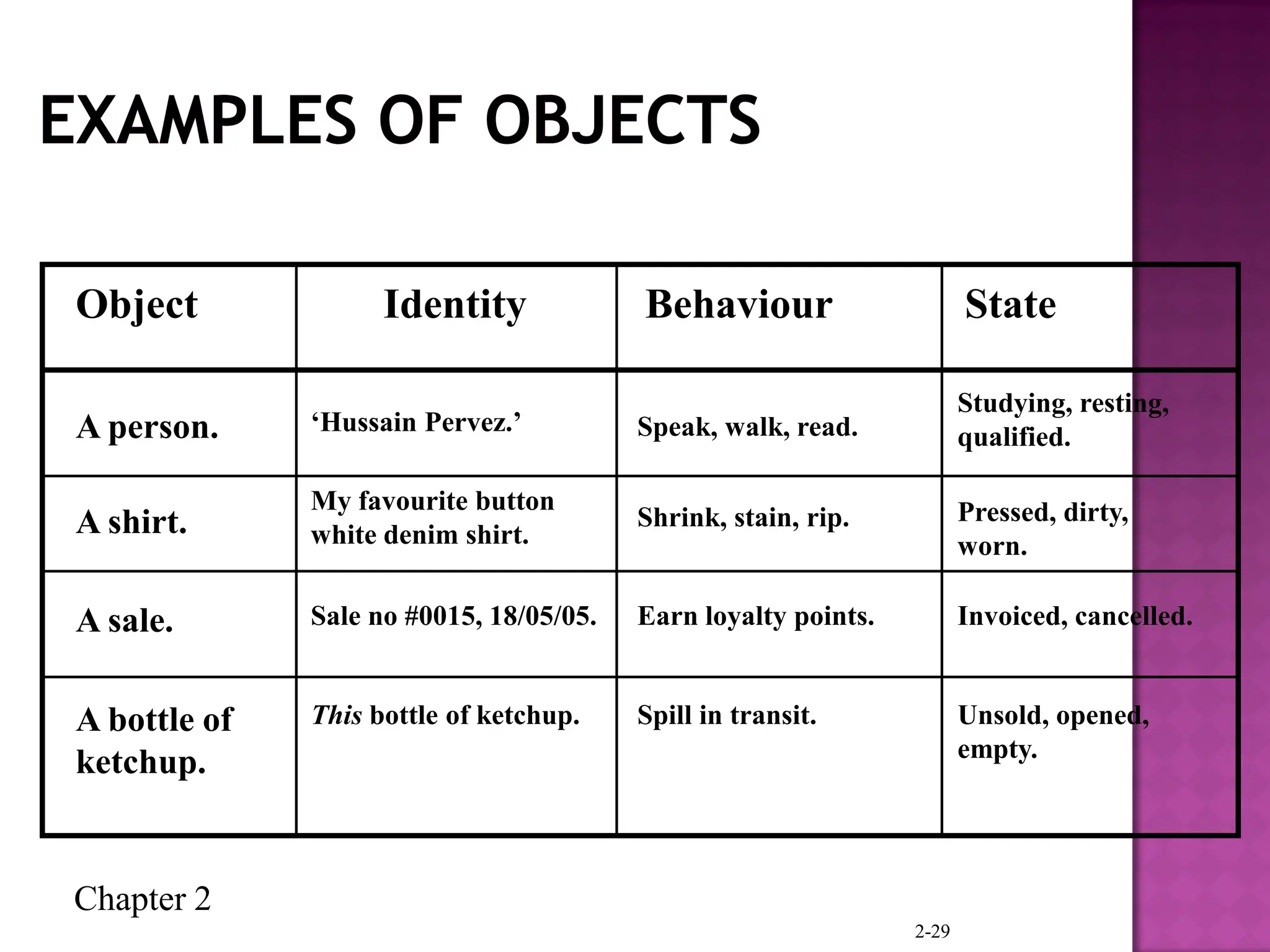

Object
A person. ‘Hussain Pervez.’ Speak, walk, read.
Studying, resting,
qualified.
A shirt.
My favourite button
white denim shirt.
Shrink, stain, rip. Pressed, dirty,
worn.
A sale. Sale no #0015, 18/05/05. Earn loyalty points. Invoiced, cancelled.
Identity Behaviour State
A bottle of
ketchup.
This bottle of ketchup. Spill in transit. Unsold, opened,
empty.

30. Chapter 2

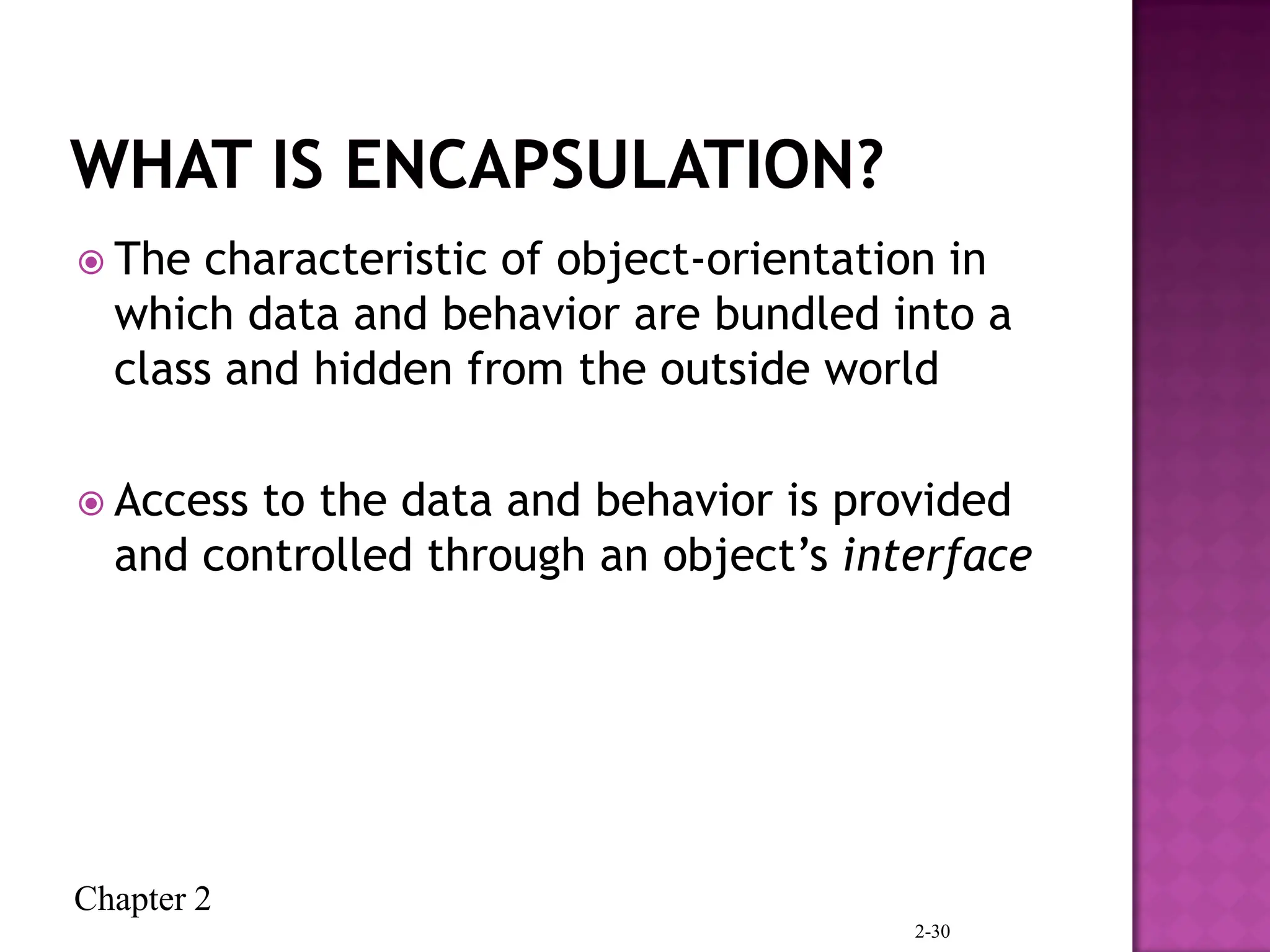

 The characteristic of object-orientation in
which data and behavior are bundled into a
class and hidden from the outside world
 Access to the data and behavior is provided
and controlled through an object’s interface
2-30

31. Chapter 2
2-31

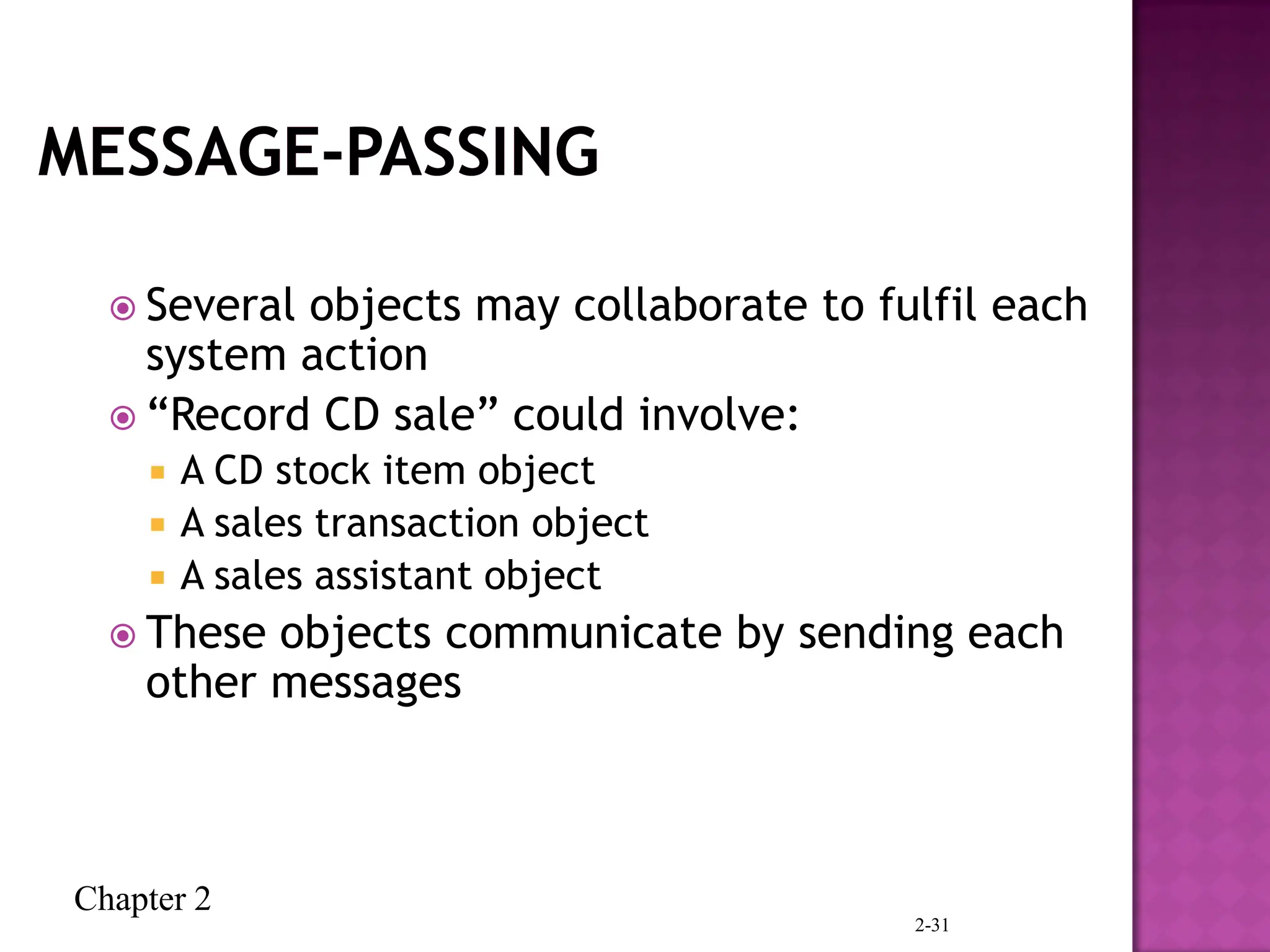

 Several objects may collaborate to fulfil each
system action
 “Record CD sale” could involve:
 A CD stock item object
 A sales transaction object
 A sales assistant object
 These objects communicate by sending each
other messages

32. Chapter 2
2-32

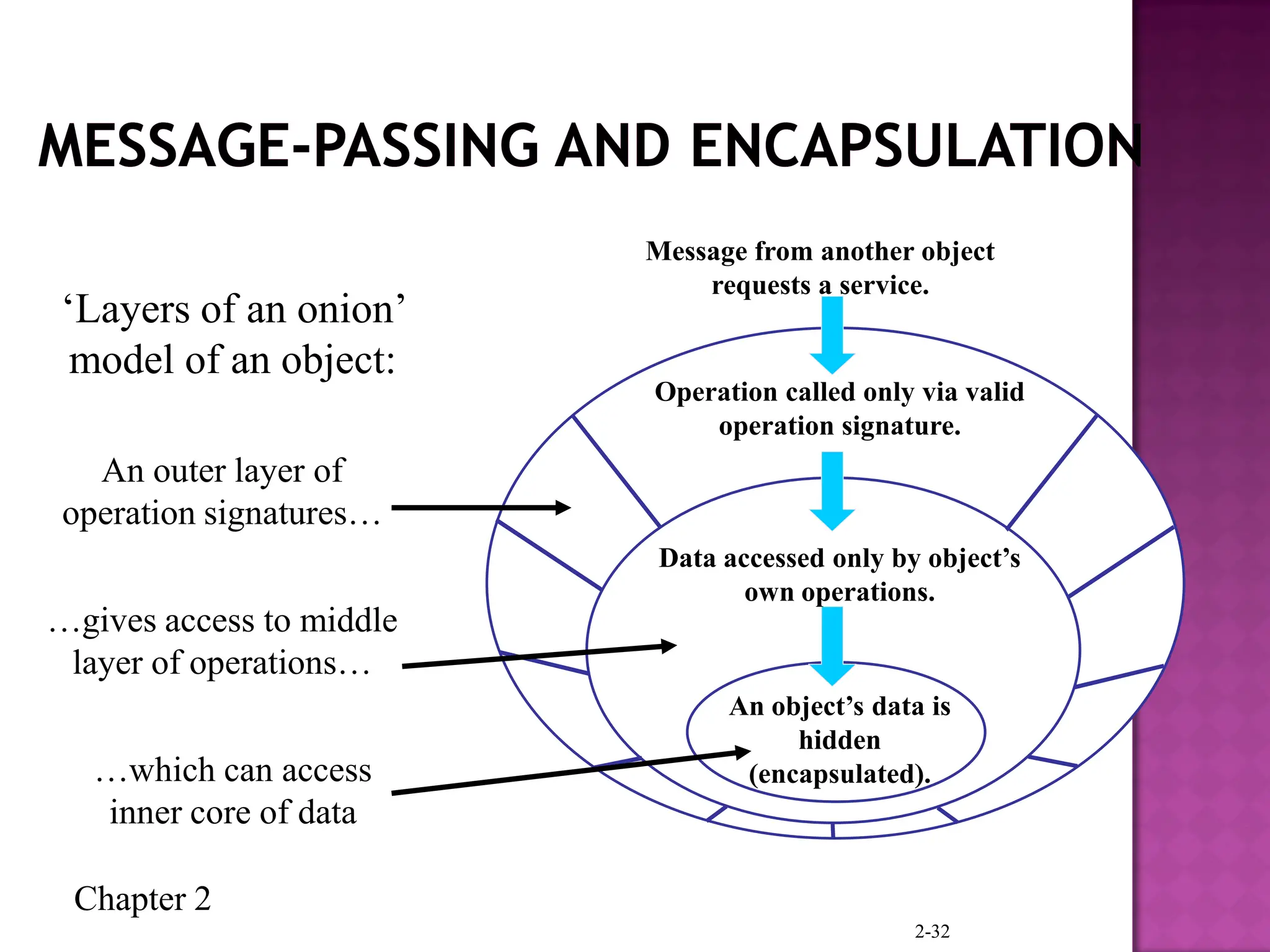

Message from another object
requests a service.
Operation called only via valid
operation signature.
Data accessed only by object’s
own operations.
An object’s data is
hidden
(encapsulated).
‘Layers of an onion’
model of an object:
An outer layer of
operation signatures…
…gives access to middle
layer of operations…
…which can access
inner core of data

33. Chapter 2

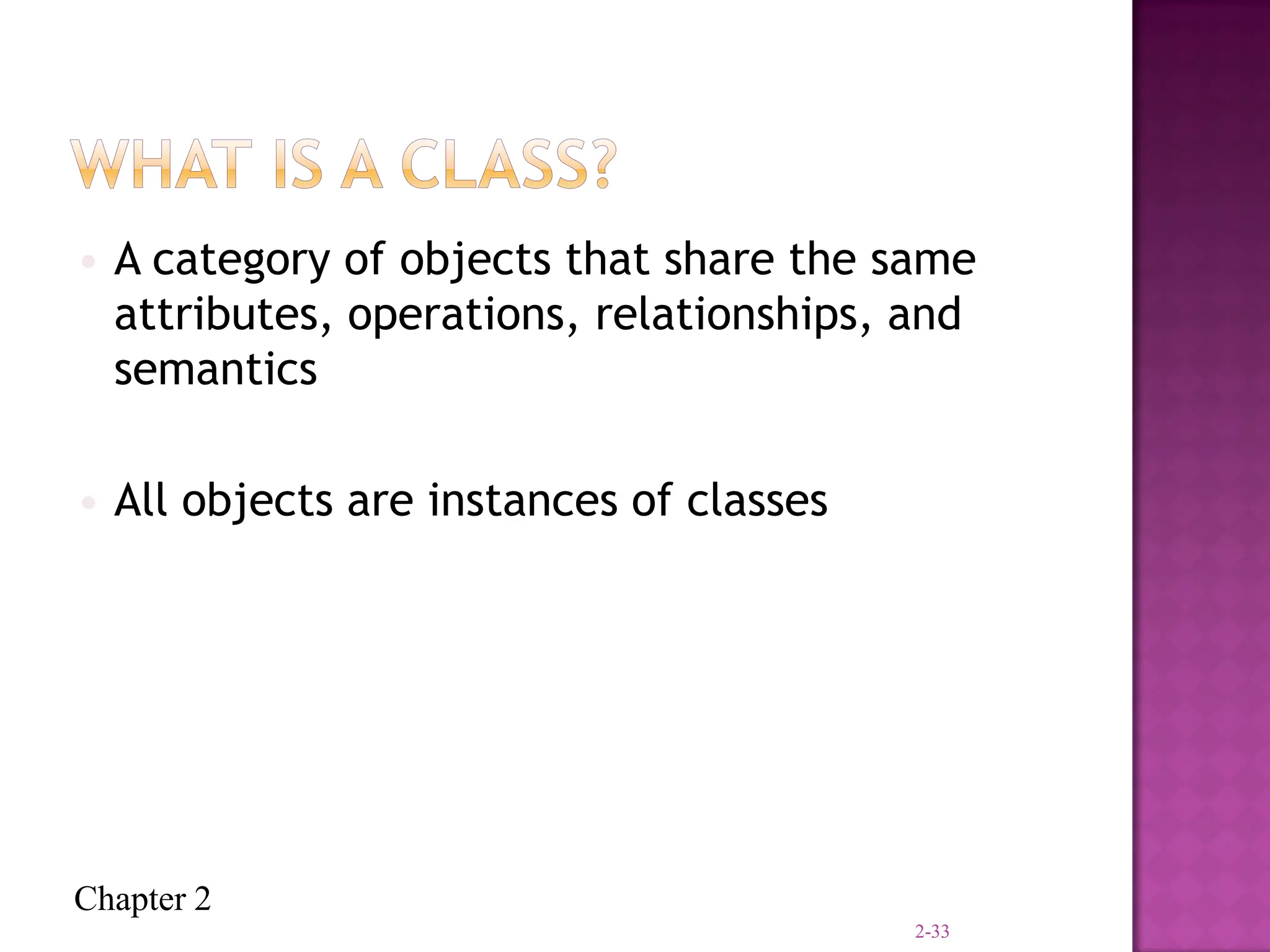

• A category of objects that share the same
attributes, operations, relationships, and
semantics
• All objects are instances of classes
2-33

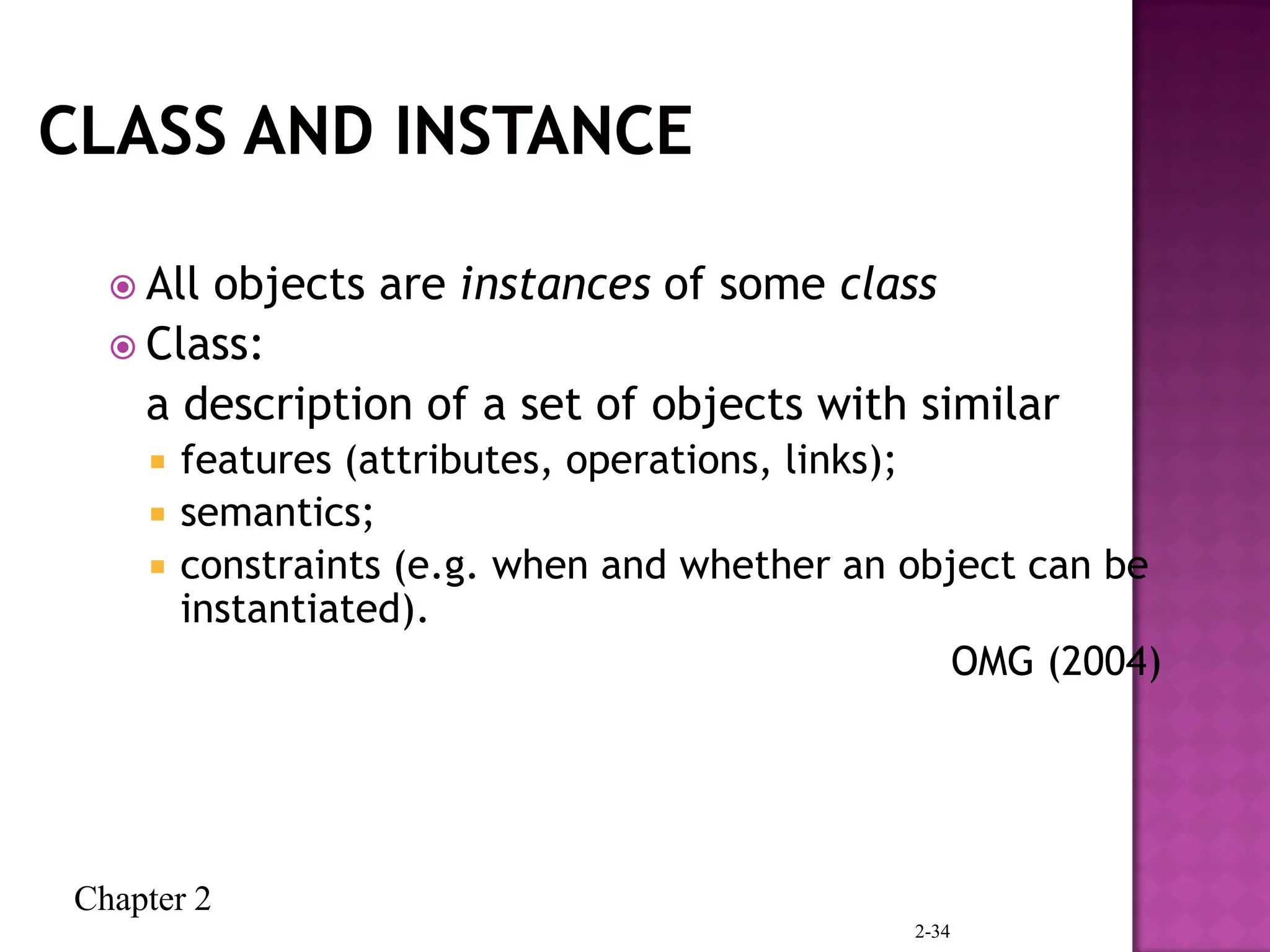

34. Chapter 2
2-34
 All objects are instances of some class
 Class:
a description of a set of objects with similar
 features (attributes, operations, links);
 semantics;
 constraints (e.g. when and whether an object can be
instantiated).
OMG (2004)

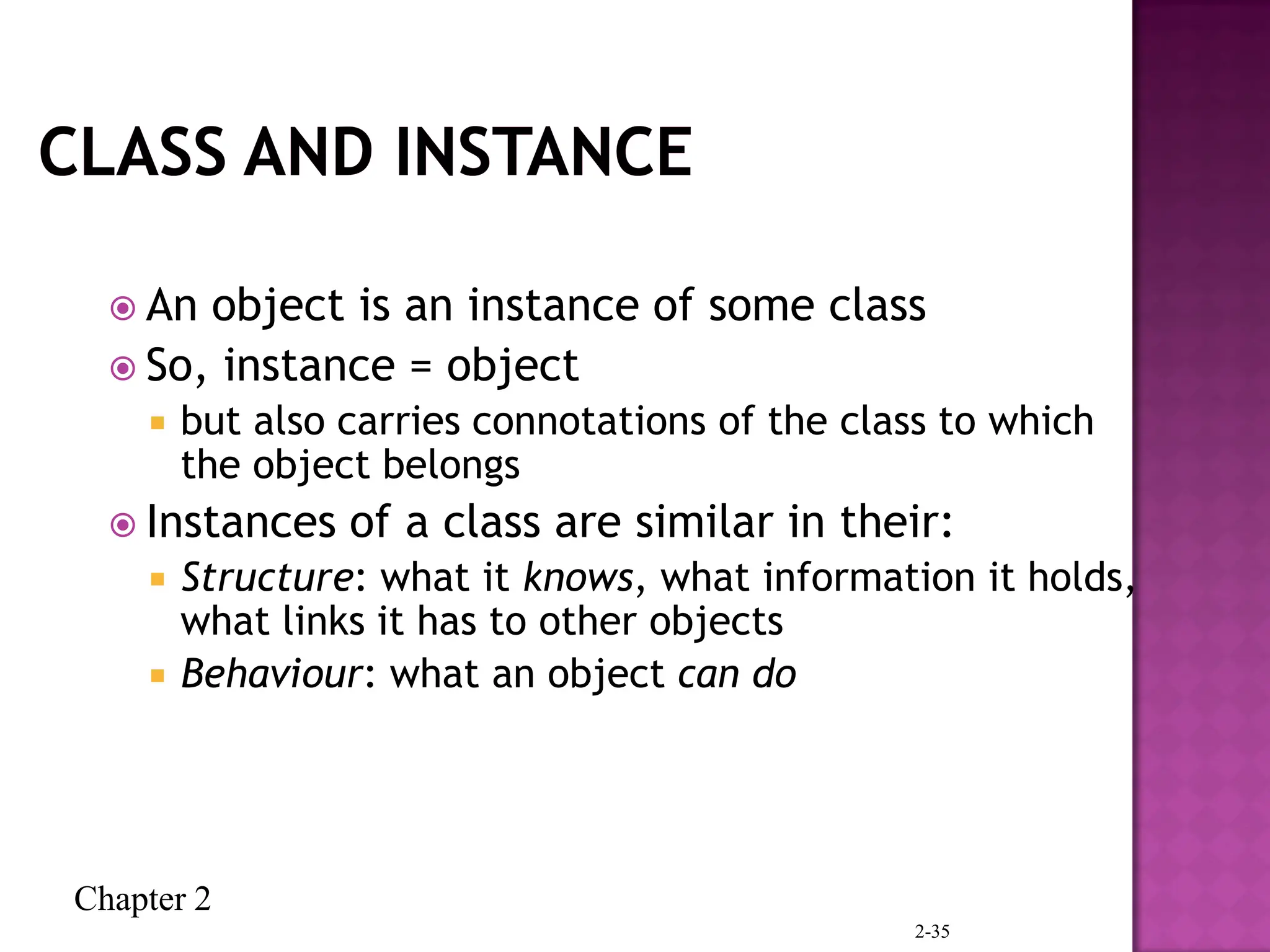

35. Chapter 2
2-35
 An object is an instance of some class
 So, instance = object
 but also carries connotations of the class to which
the object belongs
 Instances of a class are similar in their:
 Structure: what it knows, what information it holds,
what links it has to other objects
 Behaviour: what an object can do

36. Chapter 2

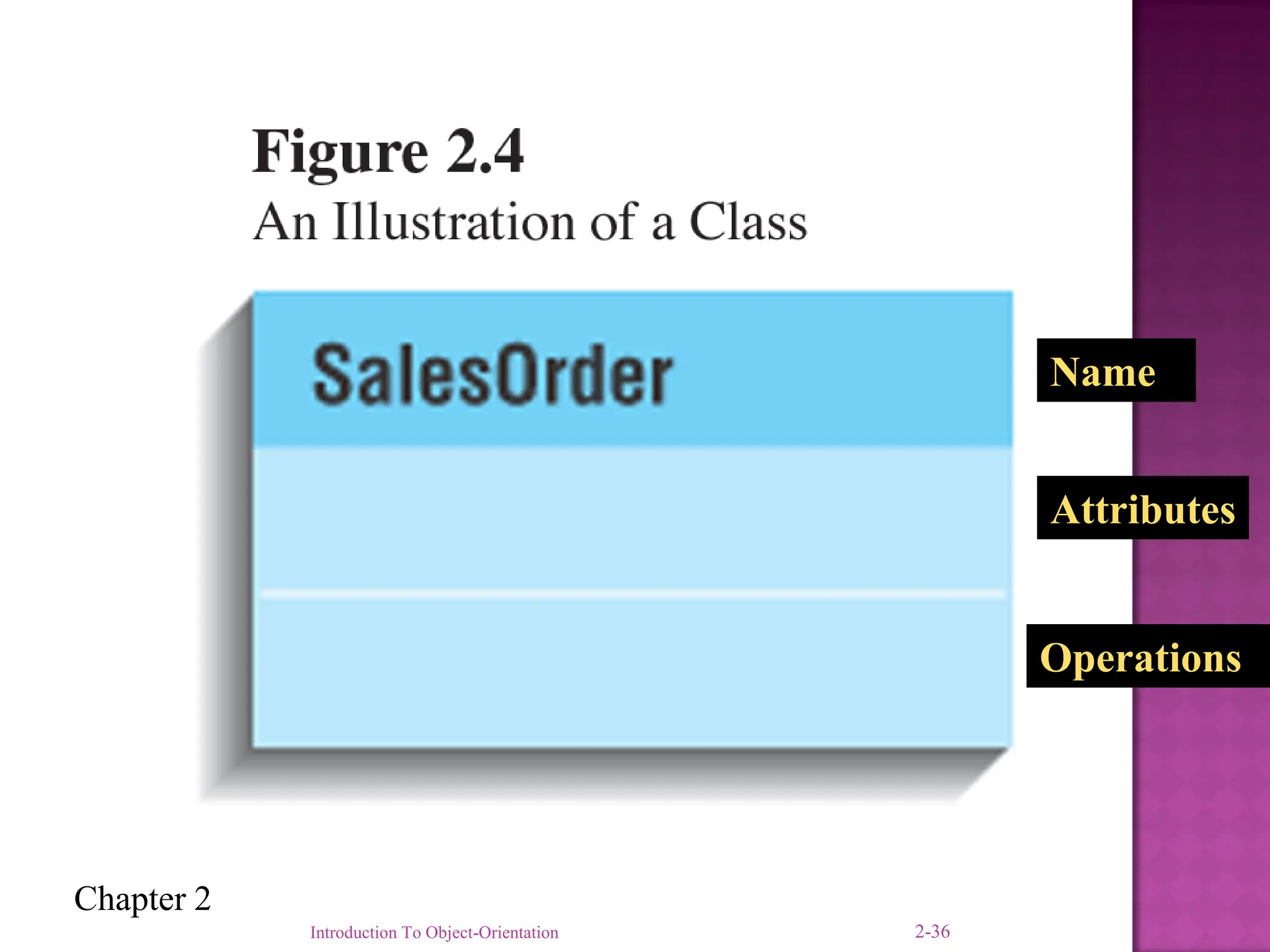

Name
Attributes
Operations
Introduction To Object-Orientation 2-36

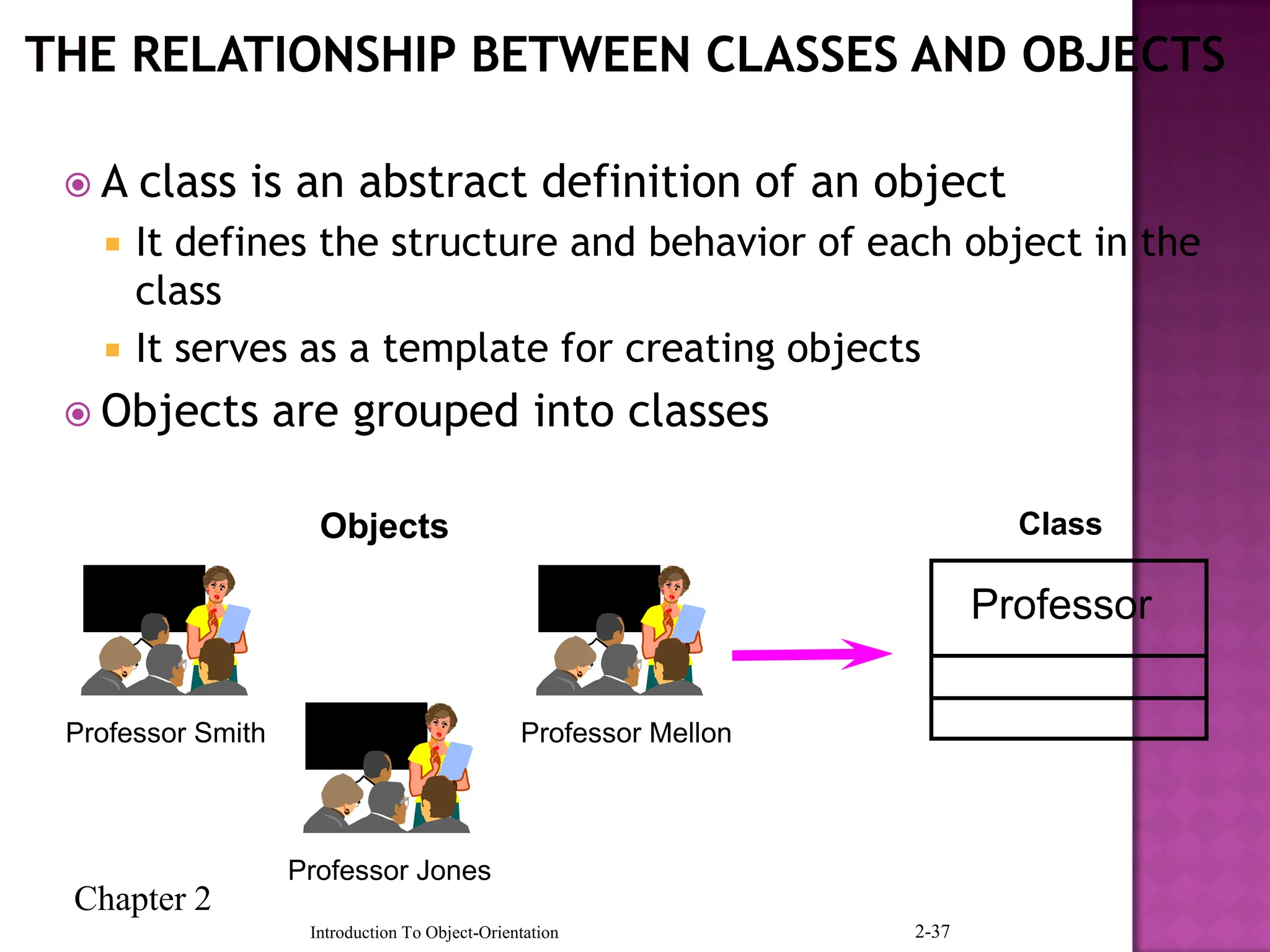

37. Chapter 2
Introduction To Object-Orientation 2-37
Objects Class
Professor Smith
Professor Jones
Professor Mellon
Professor
 A class is an abstract definition of an object
 It defines the structure and behavior of each object in the
class
 It serves as a template for creating objects
 Objects are grouped into classes

38. Chapter 2

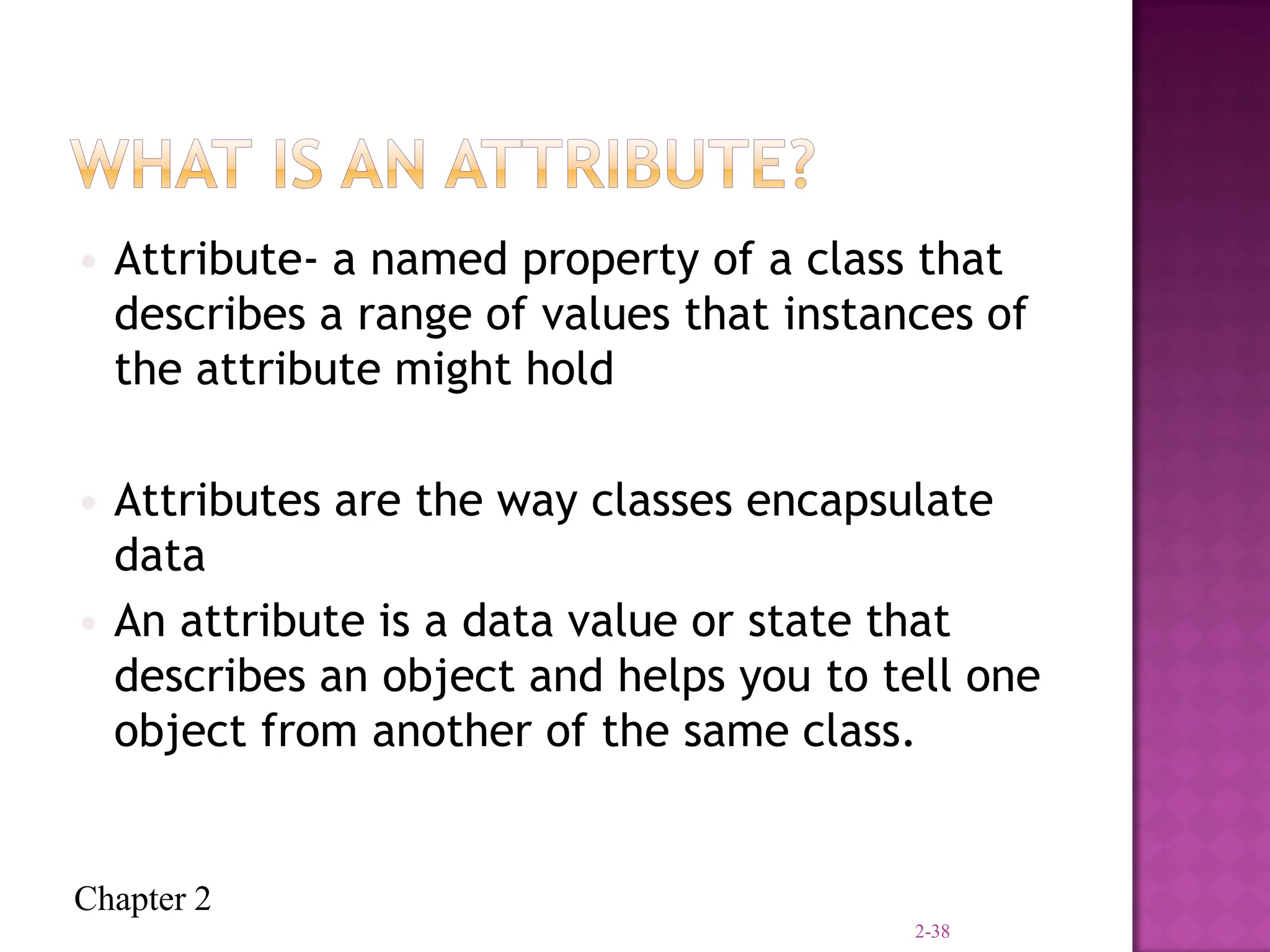

• Attribute- a named property of a class that
describes a range of values that instances of
the attribute might hold
• Attributes are the way classes encapsulate
data
• An attribute is a data value or state that
describes an object and helps you to tell one
object from another of the same class.
2-38

39. Chapter 2
Attributes
are
properties
containing
values
Minus
sign
indicates
these are
private
(hidden)
Introduction To Object-Orientation 2-39

40. Chapter 2
 A behavior of an object
 Implemented in classes are methods
 Methods are identified and invoked by their
signatures, including name, parameters, and
return type
2-40

41. Chapter 2

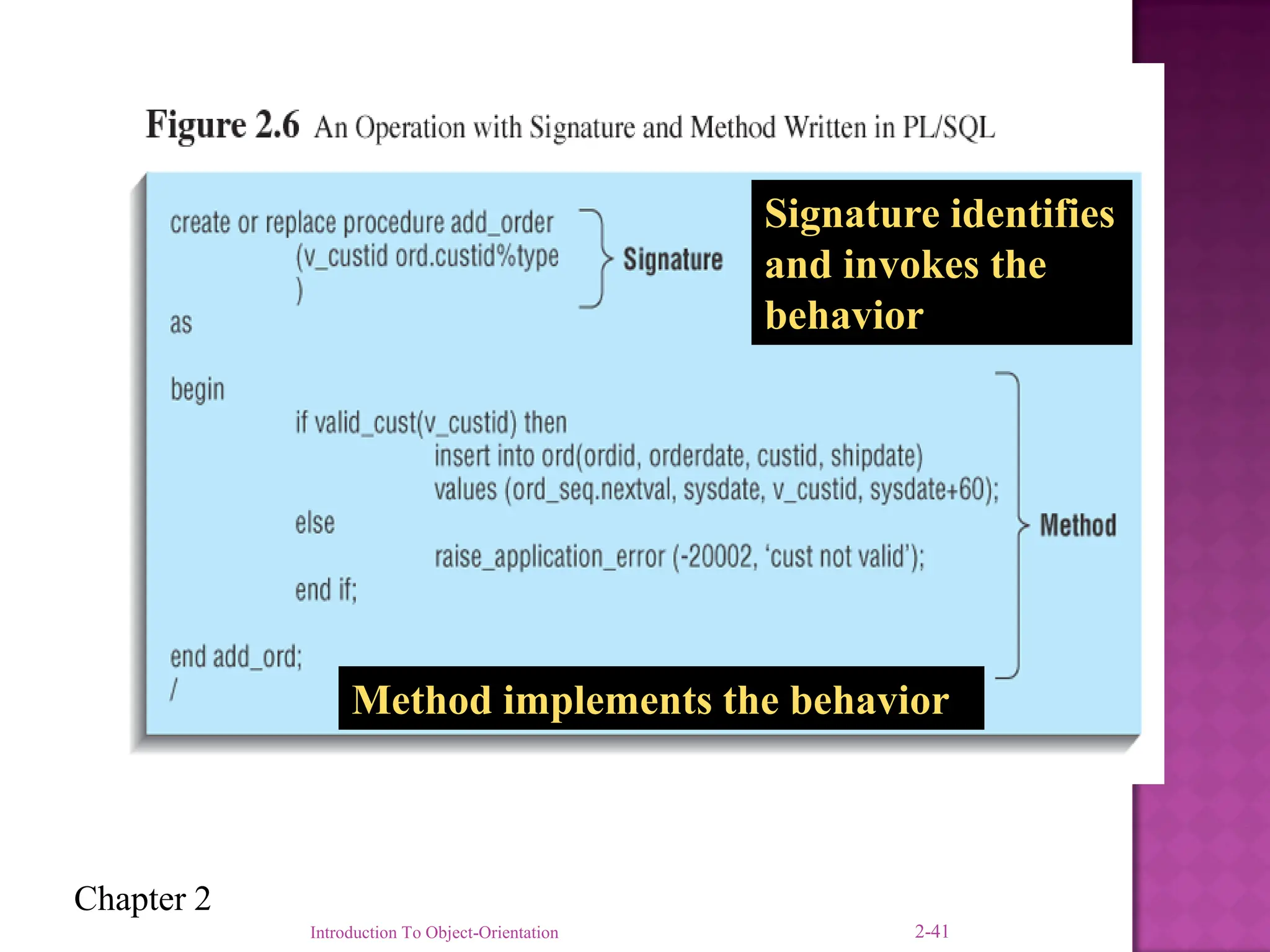

Signature identifies
and invokes the
behavior
Method implements the behavior
Introduction To Object-Orientation 2-41

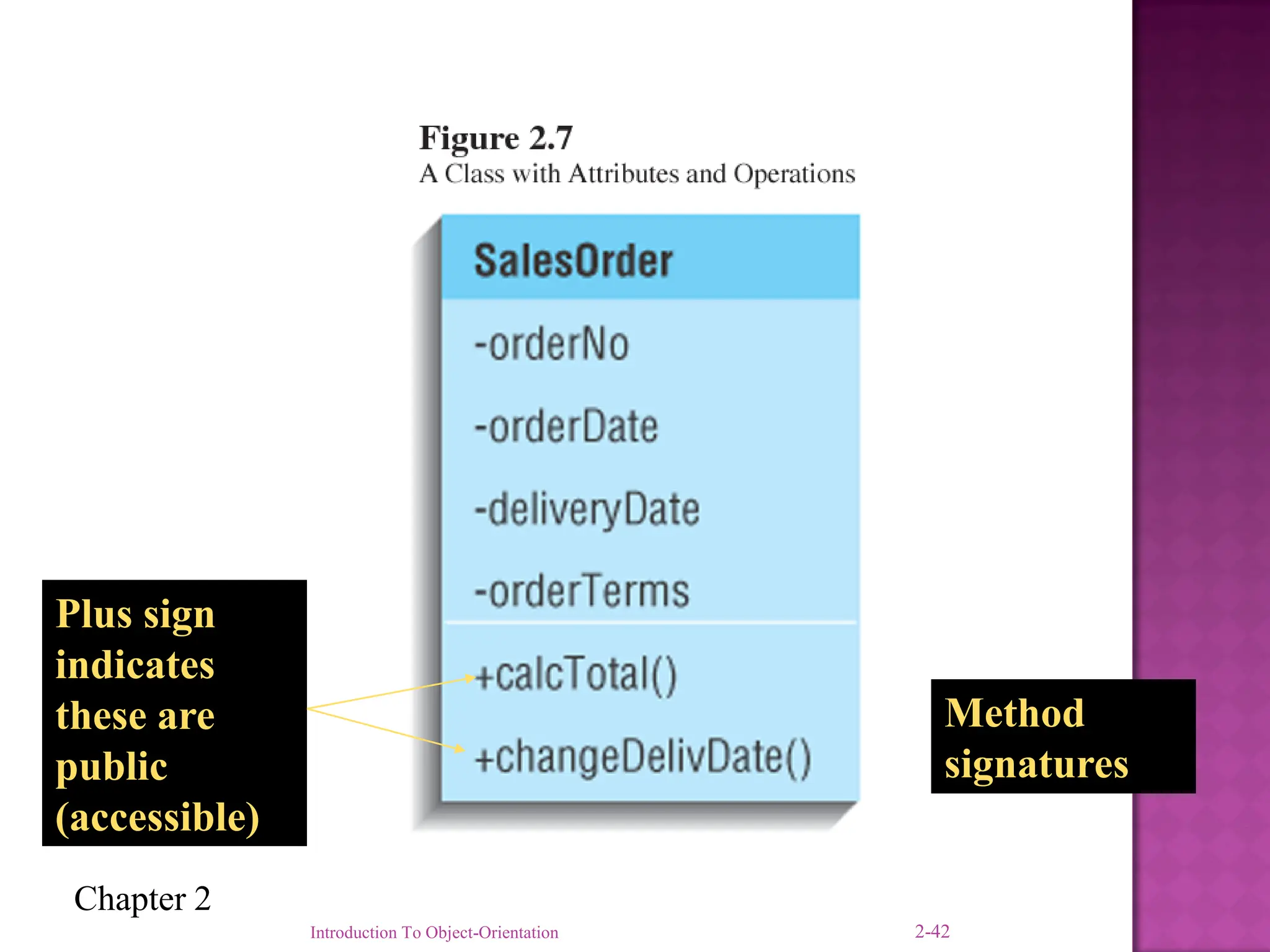

42. Chapter 2
Method
signatures
Plus sign
indicates
these are
public
(accessible)
Introduction To Object-Orientation 2-42

43. Chapter 2

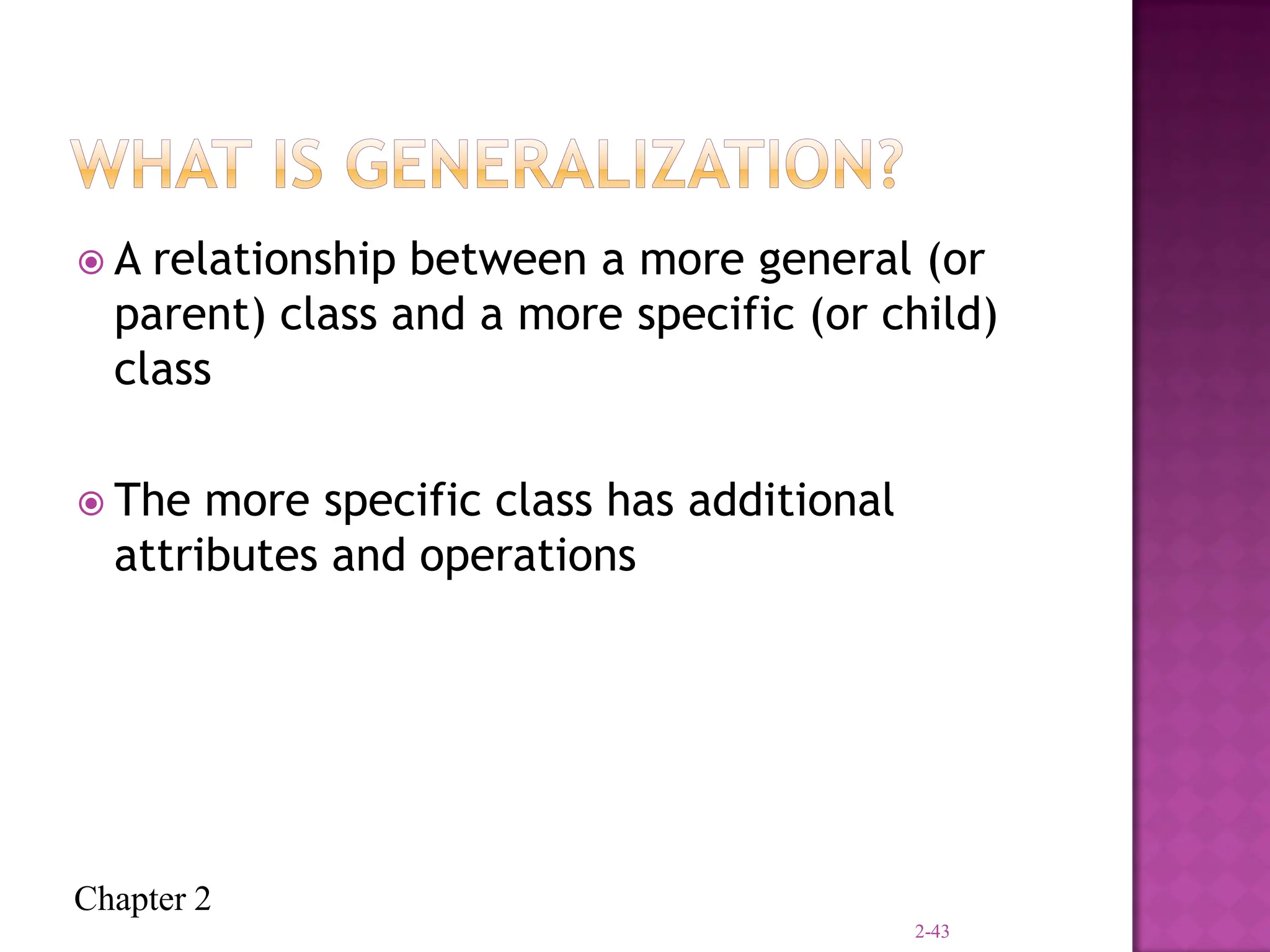

 A relationship between a more general (or
parent) class and a more specific (or child)
class
 The more specific class has additional
attributes and operations
2-43

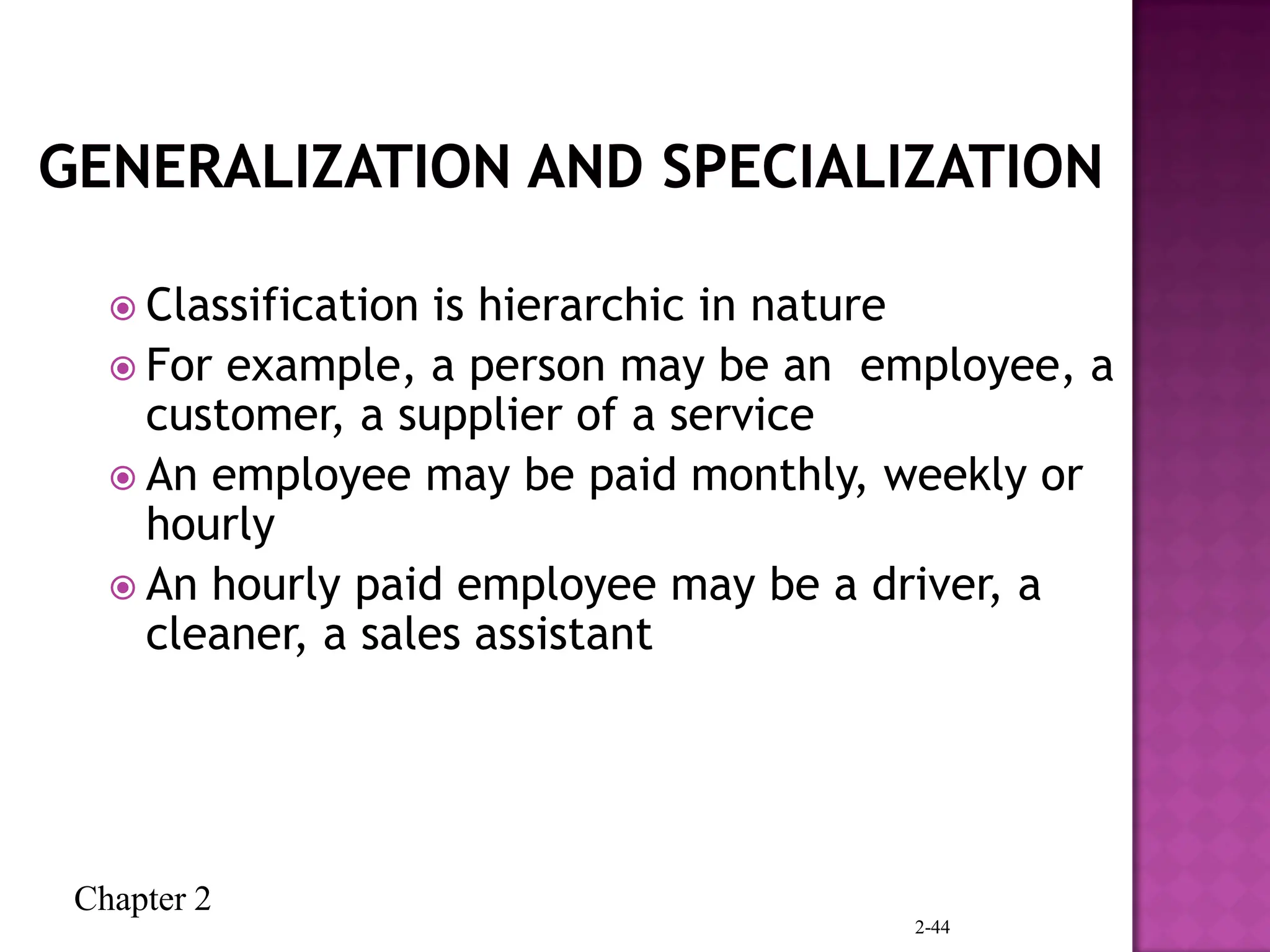

44. Chapter 2
2-44

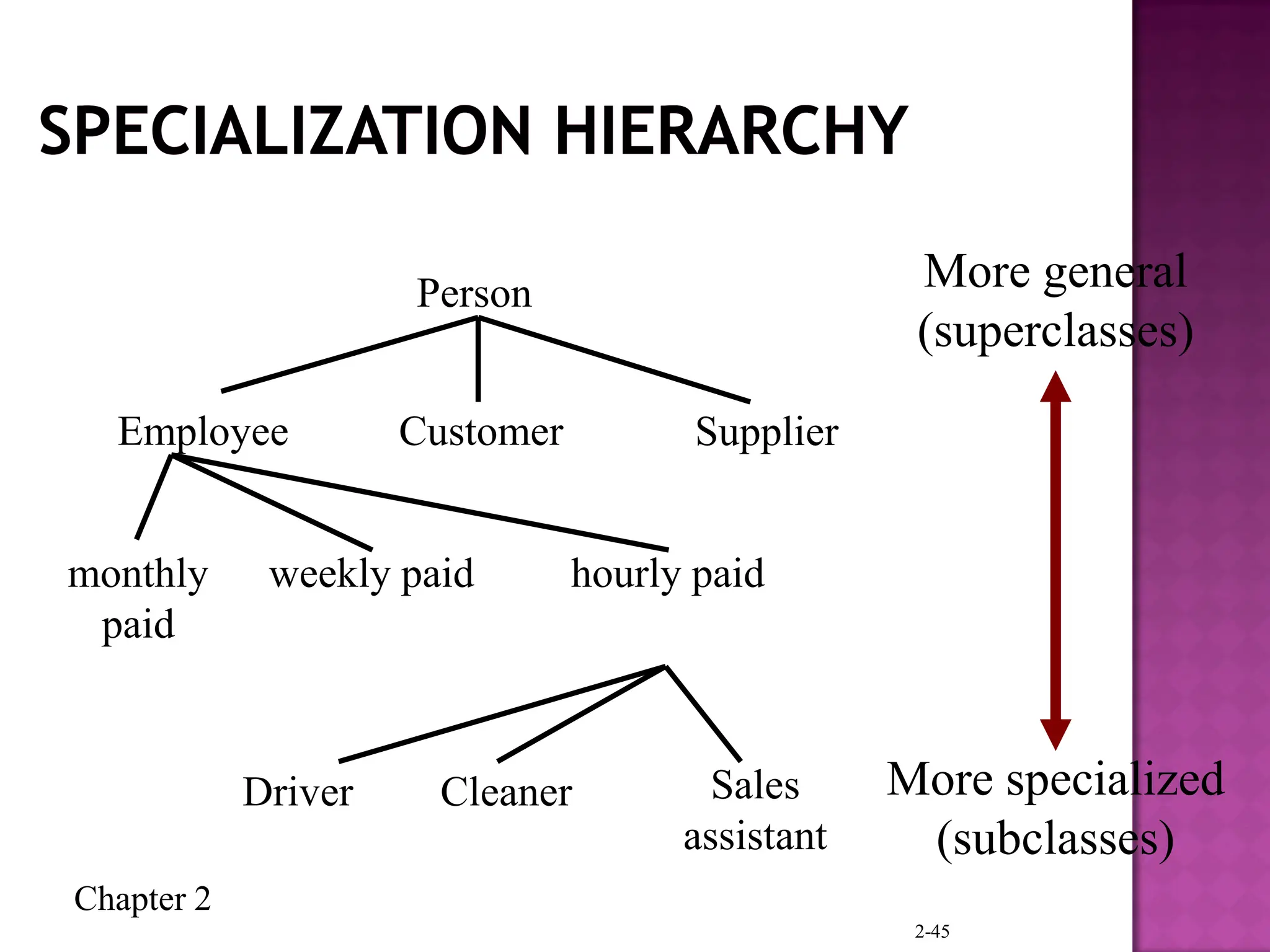

 Classification is hierarchic in nature
 For example, a person may be an employee, a
customer, a supplier of a service
 An employee may be paid monthly, weekly or
hourly
 An hourly paid employee may be a driver, a
cleaner, a sales assistant

45. Chapter 2
2-45
Person
Employee Customer Supplier
monthly
paid
weekly paid hourly paid
Driver Cleaner Sales
assistant
More general
(superclasses)
More specialized
(subclasses)

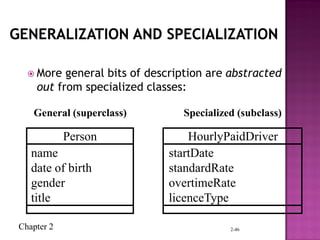

46. Chapter 2 2-46

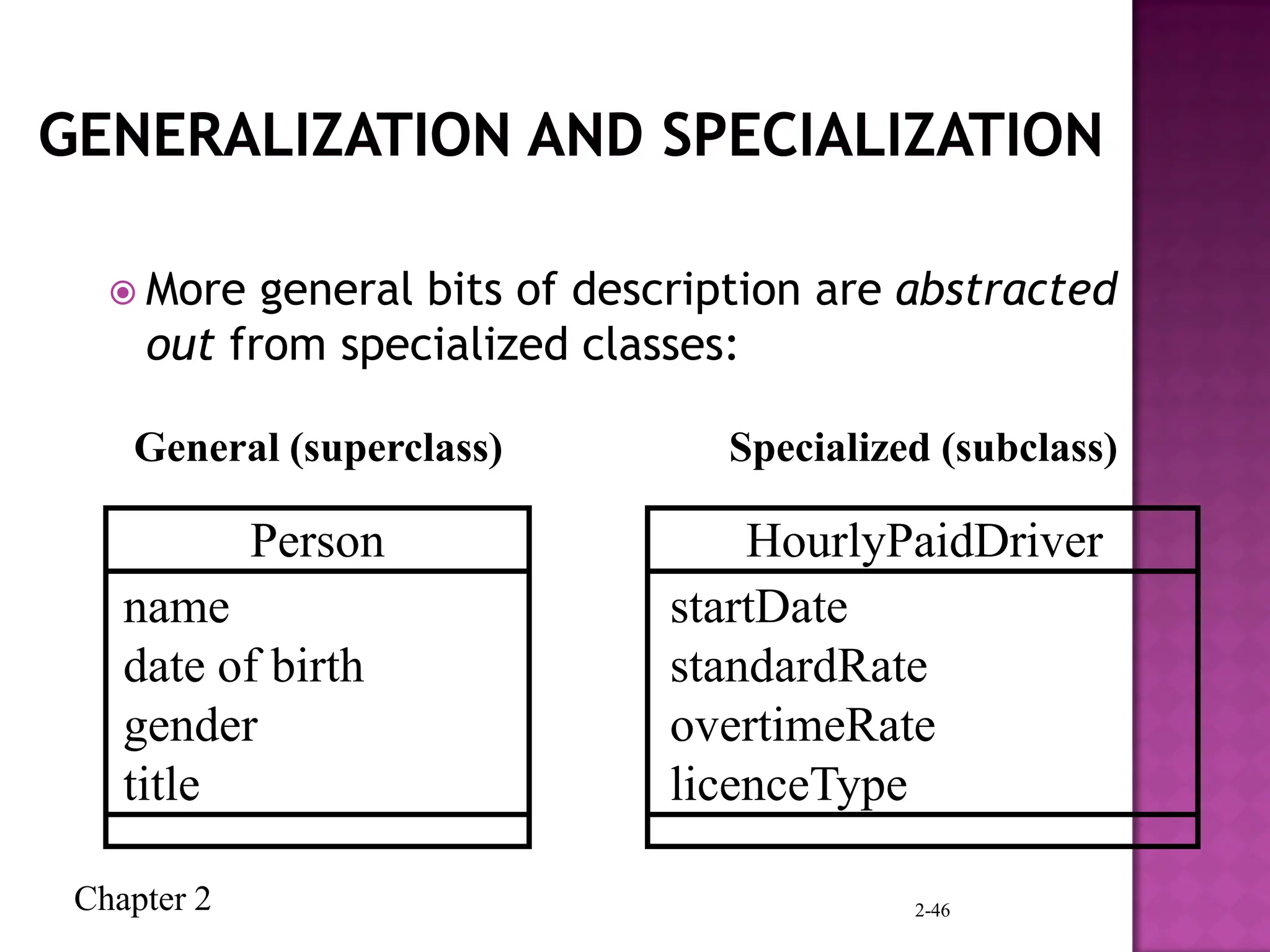

 More general bits of description are abstracted
out from specialized classes:
Person
name
date of birth
gender
title
HourlyPaidDriver
startDate
standardRate
overtimeRate
licenceType
General (superclass) Specialized (subclass)

47. Chapter 2

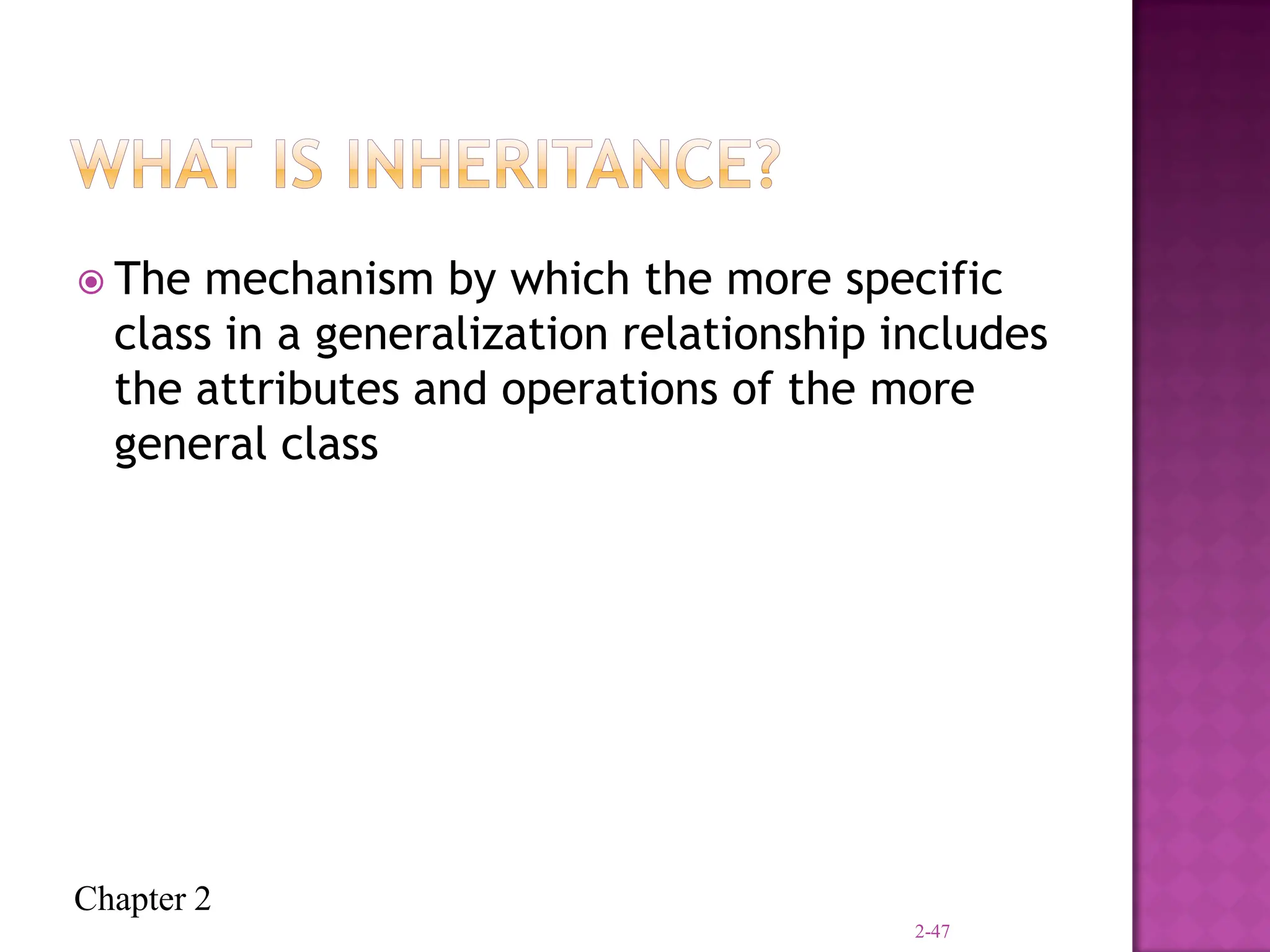

 The mechanism by which the more specific
class in a generalization relationship includes
the attributes and operations of the more
general class
2-47

48. Chapter 2
Generalization
represented by
arrows from
subclass to
superclass
Subclasses
inherit all
attributes and
operations of
superclasses
Introduction To Object-Orientation 2-48

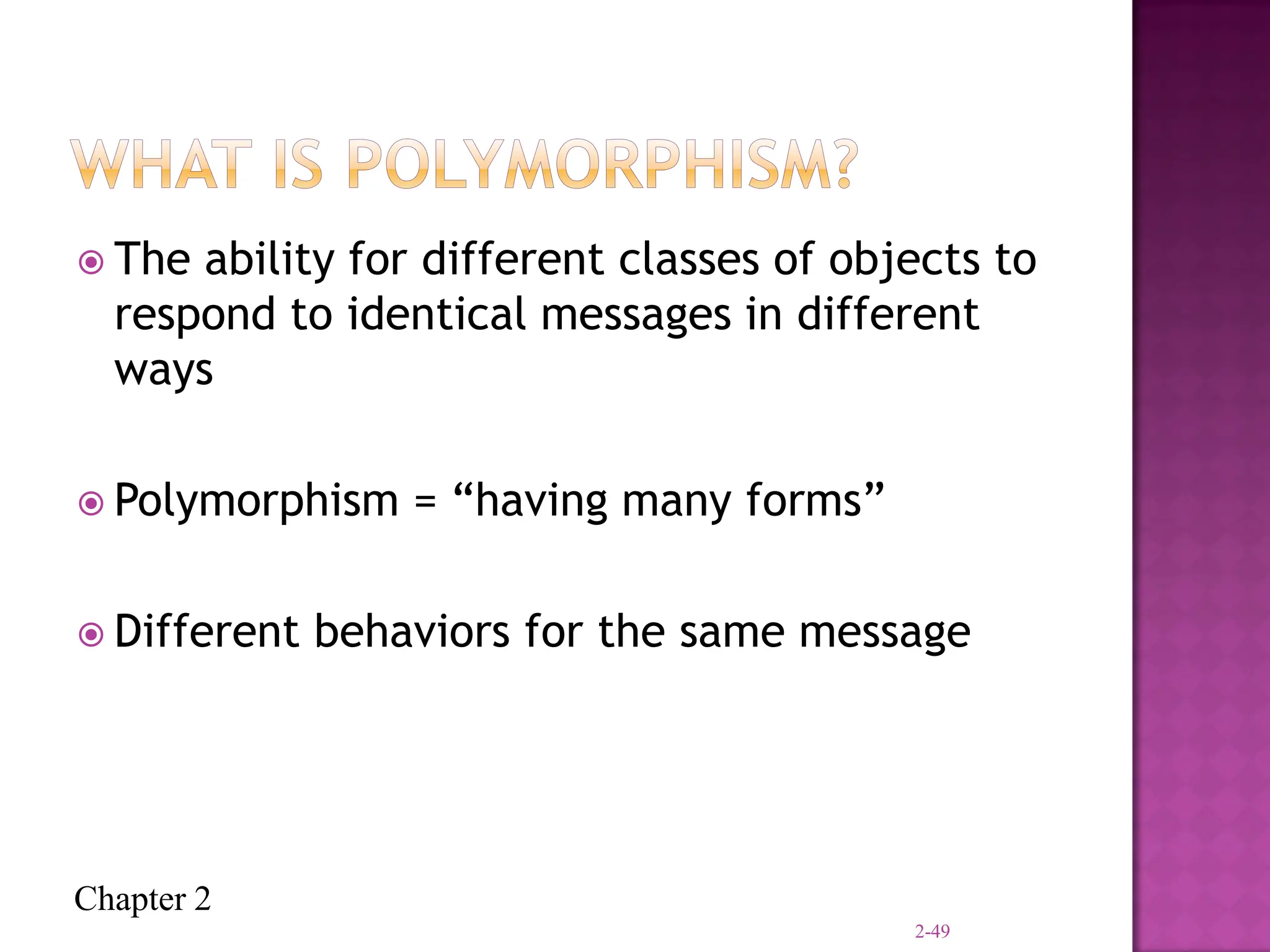

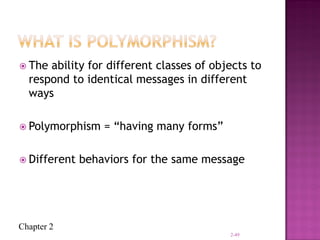

49. Chapter 2
 The ability for different classes of objects to
respond to identical messages in different
ways
 Polymorphism = “having many forms”
 Different behaviors for the same message
2-49

50. Chapter 2
2-50

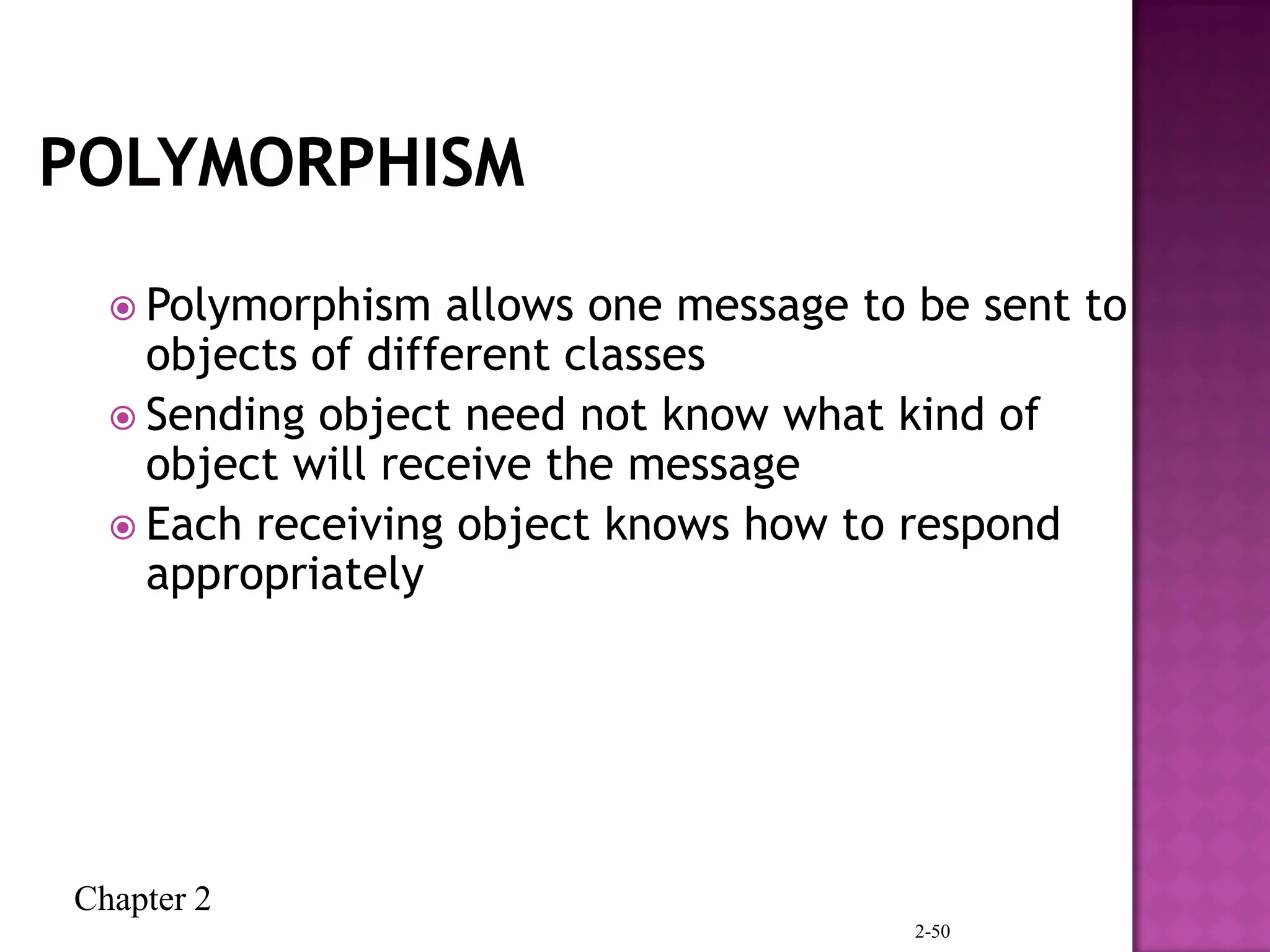

 Polymorphism allows one message to be sent to
objects of different classes
 Sending object need not know what kind of
object will receive the message
 Each receiving object knows how to respond
appropriately

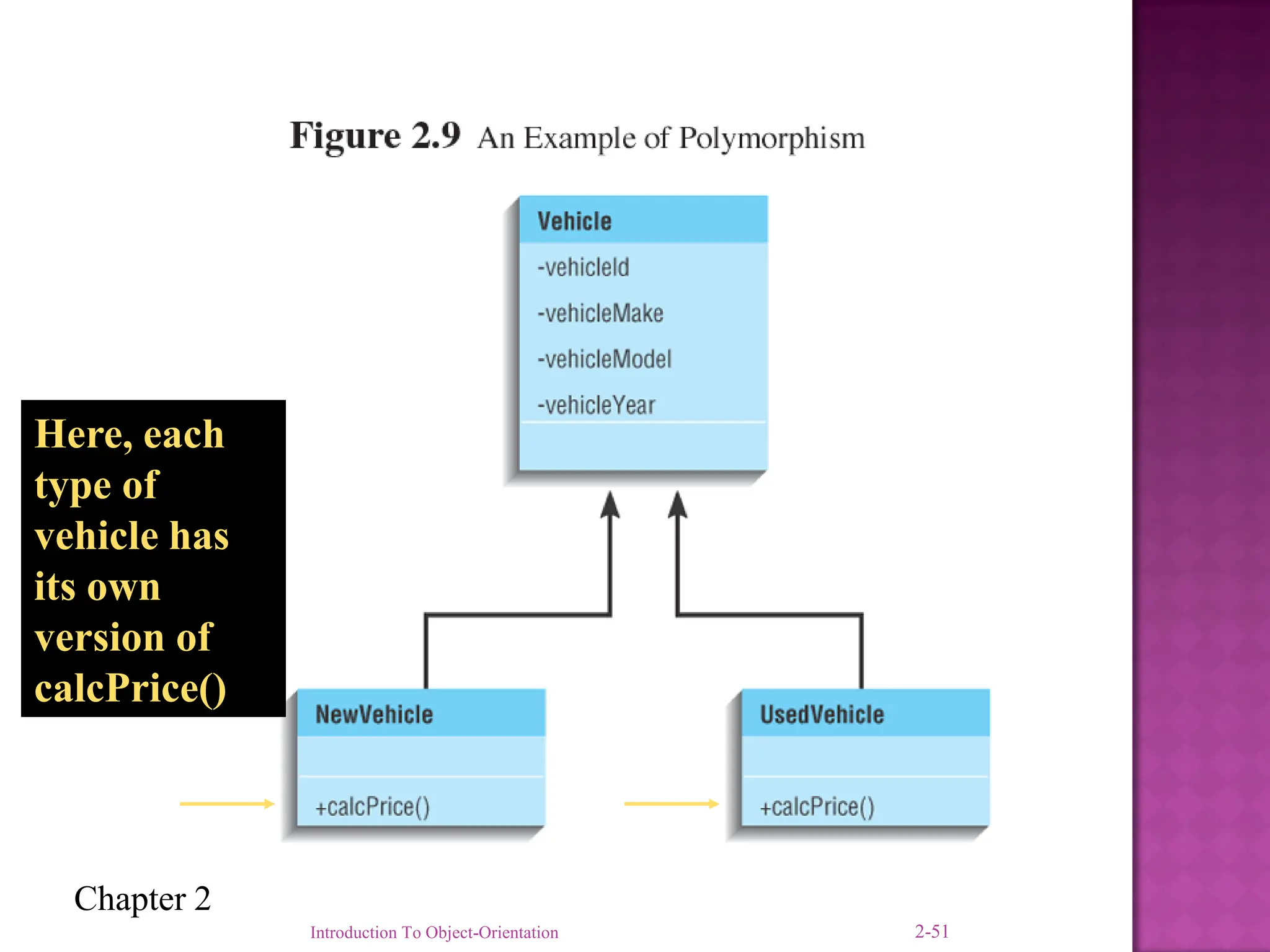

51. Chapter 2
Here, each
type of
vehicle has
its own
version of
calcPrice()
Introduction To Object-Orientation 2-51

52. Chapter 2
Introduction To Object-Orientation 2-52
52
• Polymorphism (“many forms”)
4The ability to hide different implementations
behind a common interface.
4The ability for two or more objects to respond to
the same request, each in its own way.
 H O = water, ice, steam (liquid, solid, vapor)
 Eating
2
versus
Door
#1
Door
#2
Door
#3
Door
#1
#2
#3

53. Chapter 2
Introduction To Object-Orientation 2-53

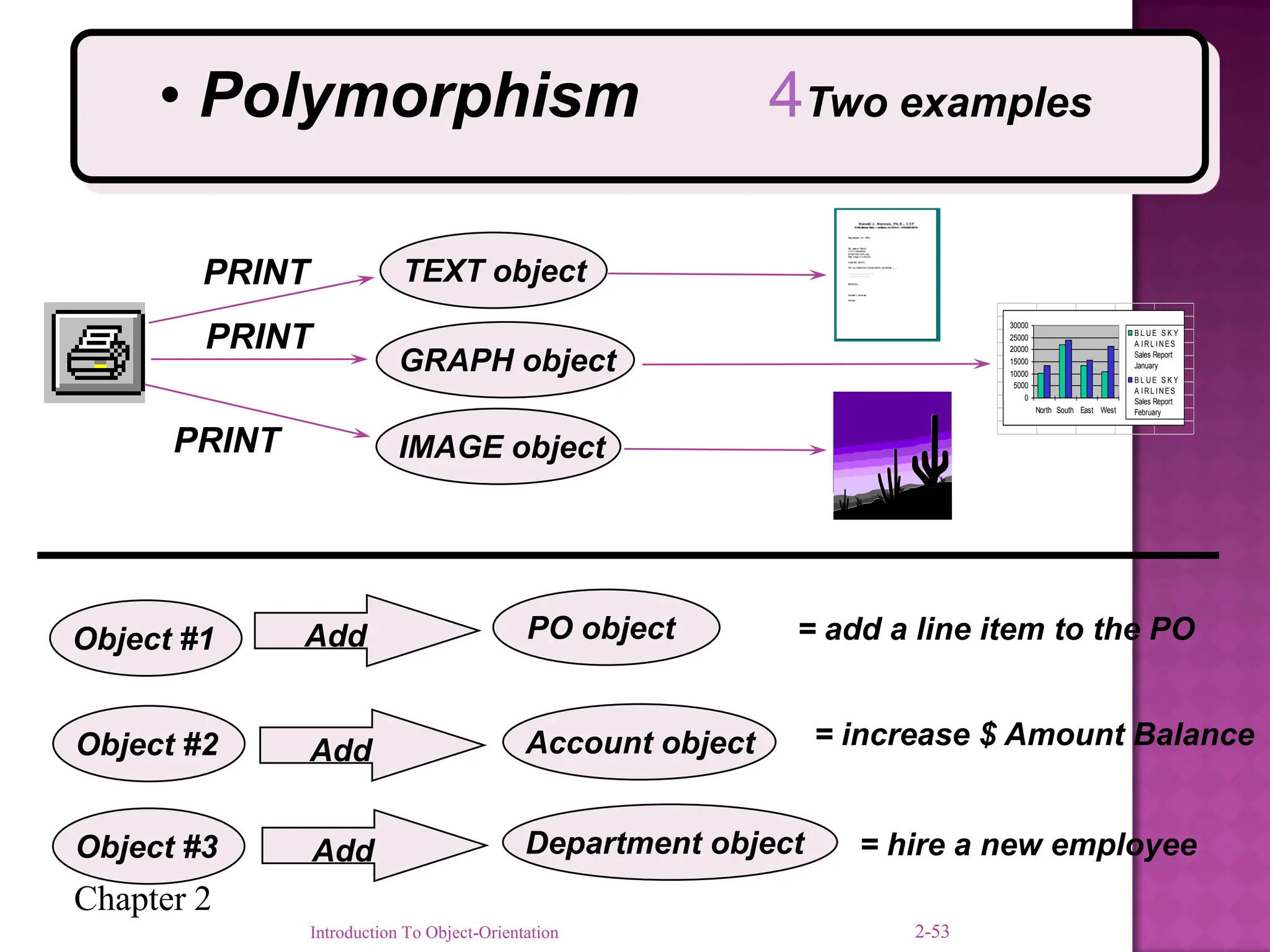

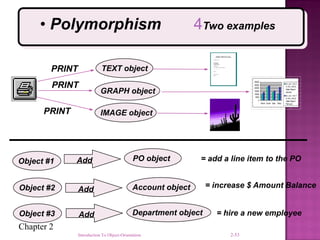

• Polymorphism 4Two examples
PRINT
0
5000
10000
15000
20000
25000
30000
North South East West
B L UE S K Y
A IRL INES
Sales Report
January
B L UE S K Y
A IRL INES
Sales Report
February
PRINT
PRINT
TEXT object
GRAPH object
IMAGE object
Object #1 PO object
Account object
Department object
Object #2
Object #3
Add
Add
Add
= add a line item to the PO
= increase $ Amount Balance
= hire a new employee

54. Chapter 2

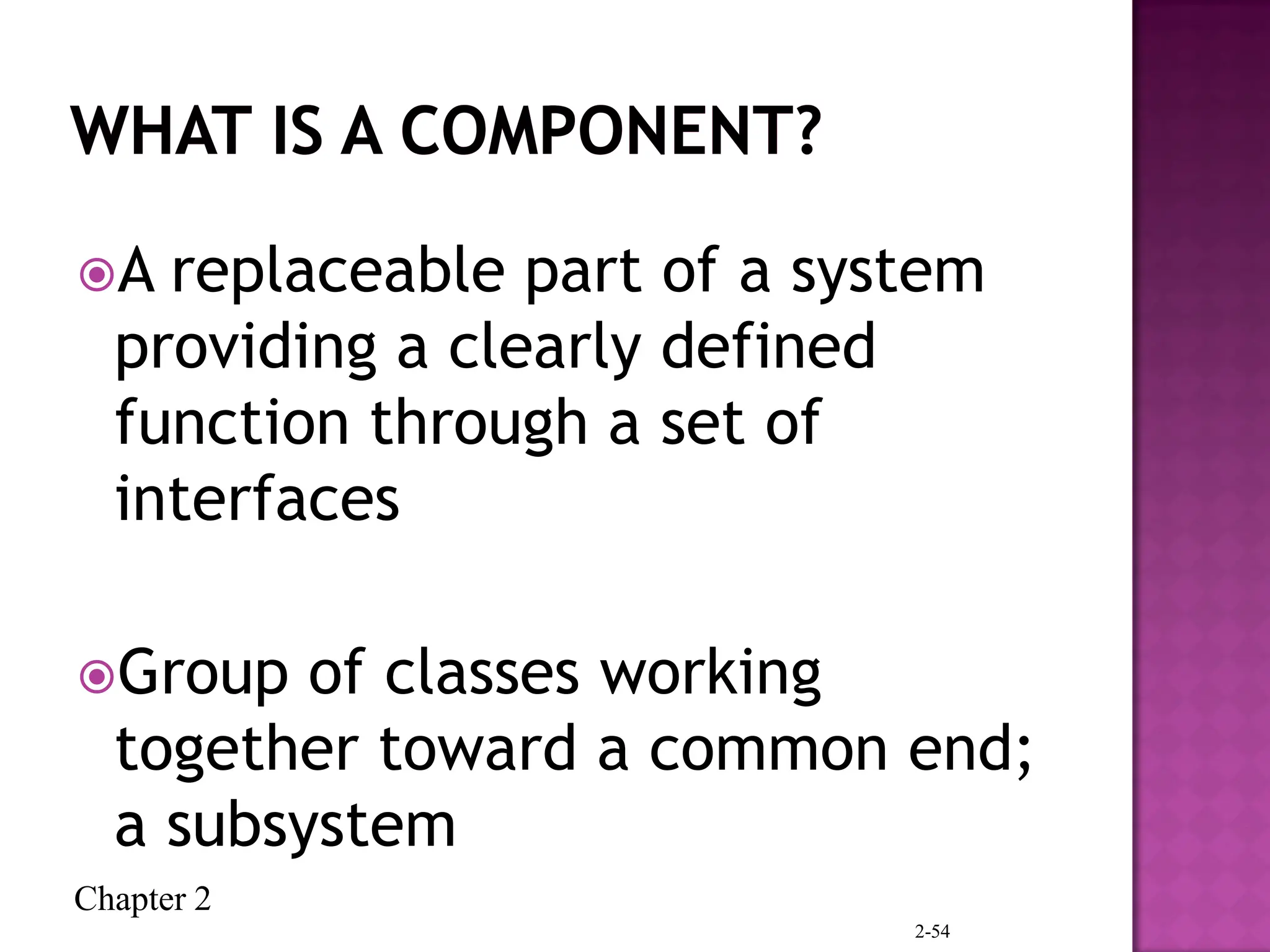

A replaceable part of a system
providing a clearly defined
function through a set of
interfaces
Group of classes working
together toward a common end;
a subsystem
2-54

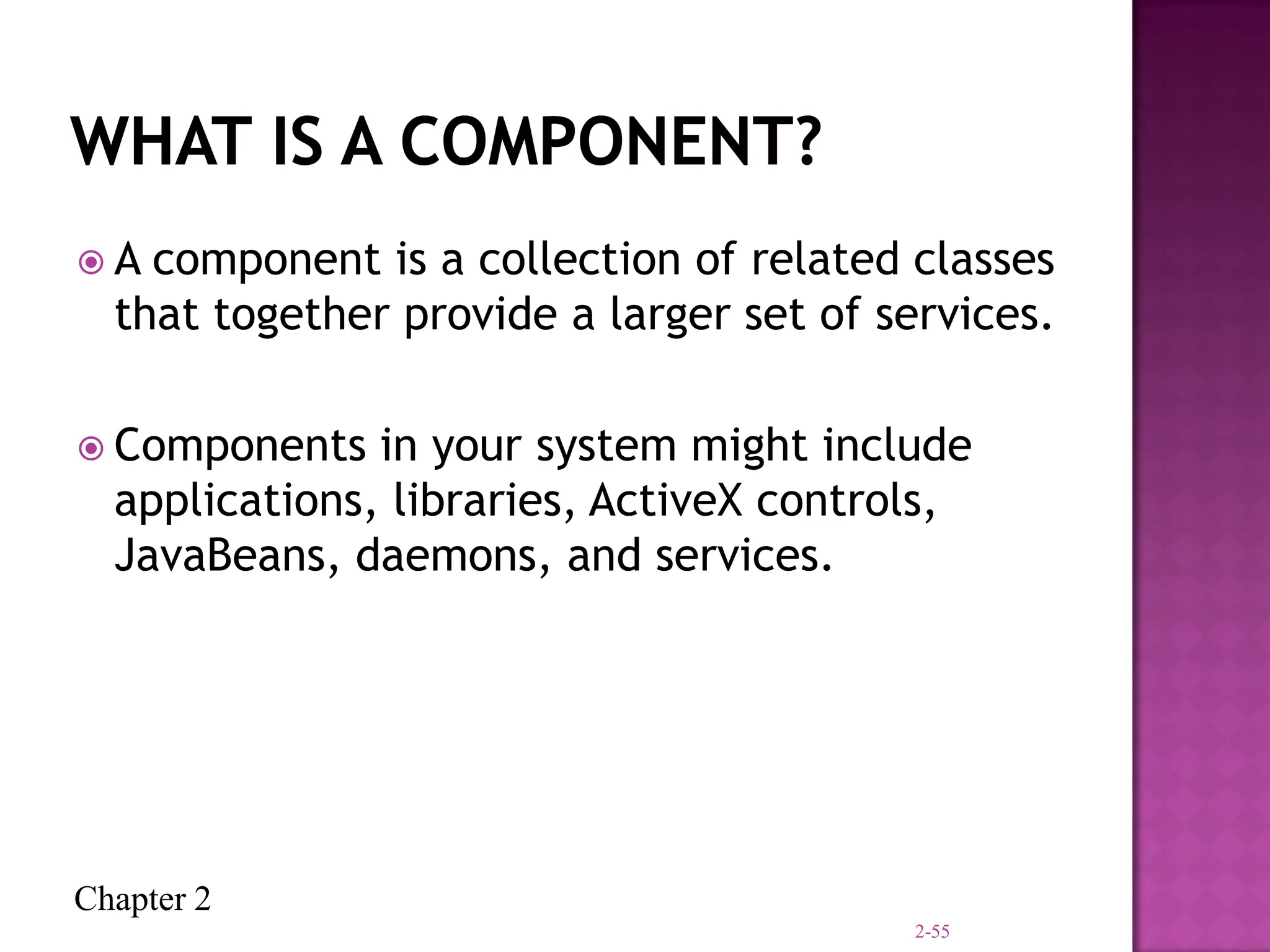

55. Chapter 2
 A component is a collection of related classes
that together provide a larger set of services.
 Components in your system might include
applications, libraries, ActiveX controls,
JavaBeans, daemons, and services.
2-55

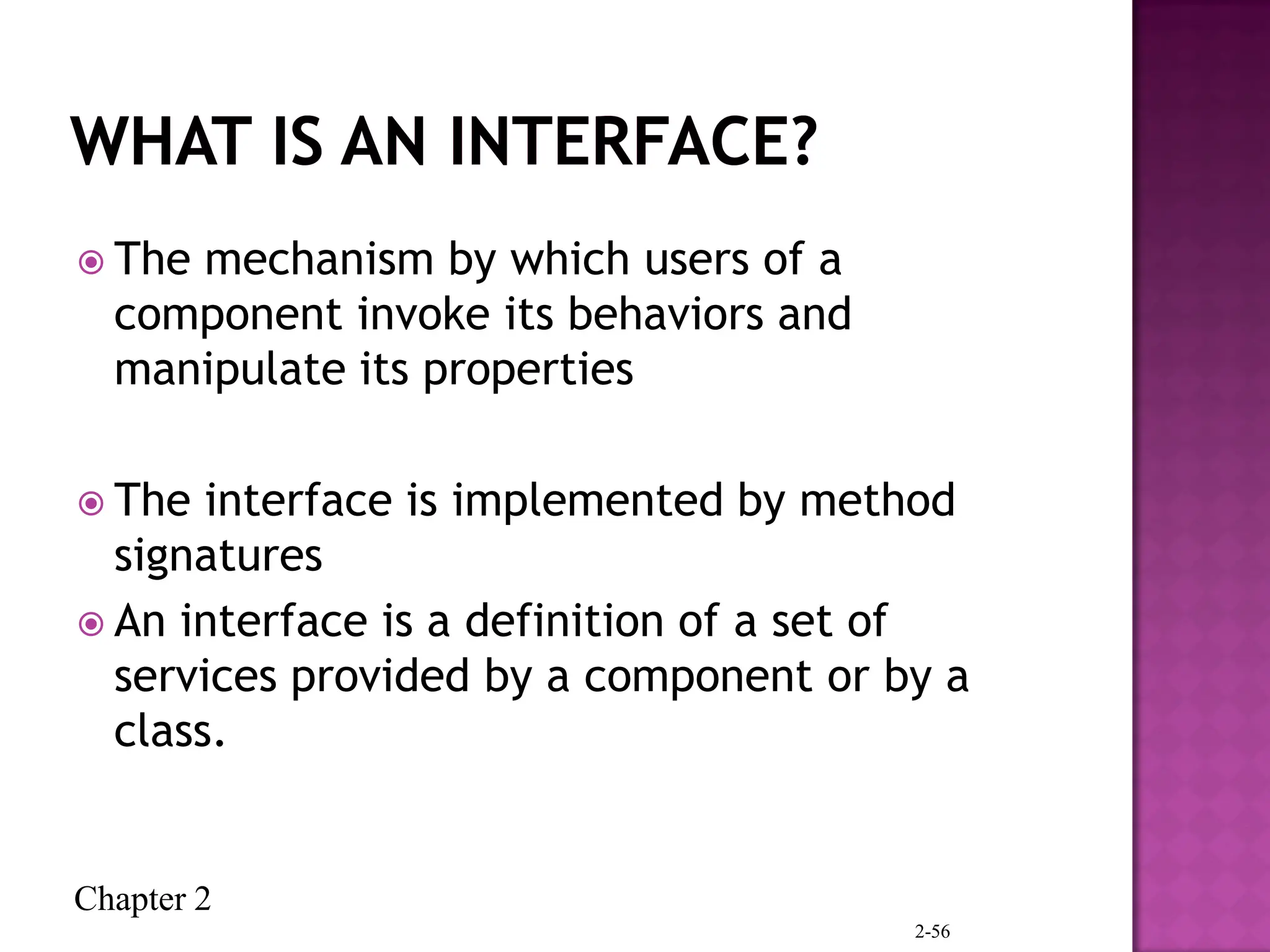

56. Chapter 2
 The mechanism by which users of a
component invoke its behaviors and
manipulate its properties
 The interface is implemented by method
signatures
 An interface is a definition of a set of
services provided by a component or by a
class.
2-56

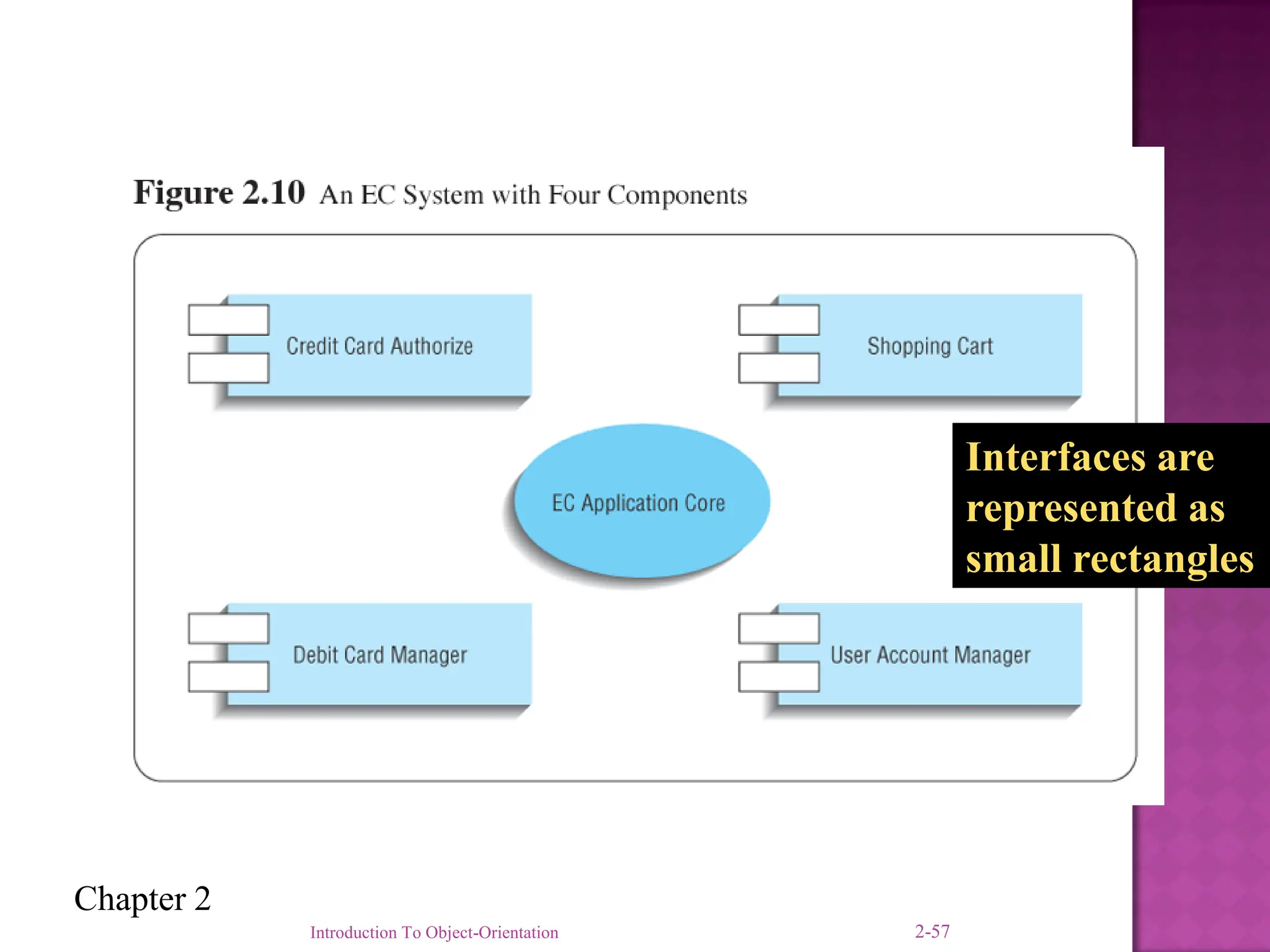

57. Chapter 2
Interfaces are
represented as
small rectangles
Introduction To Object-Orientation 2-57

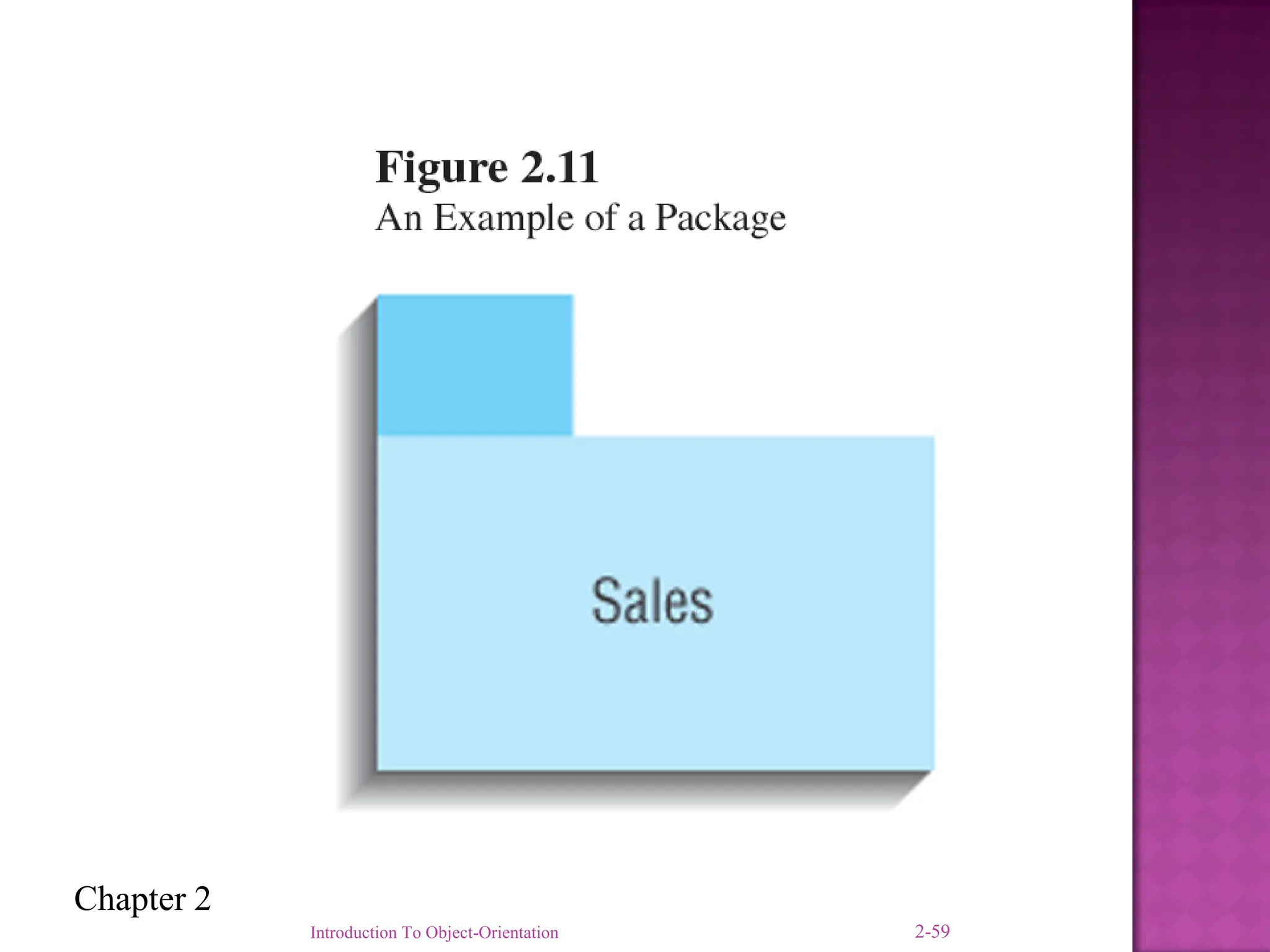

58. Chapter 2

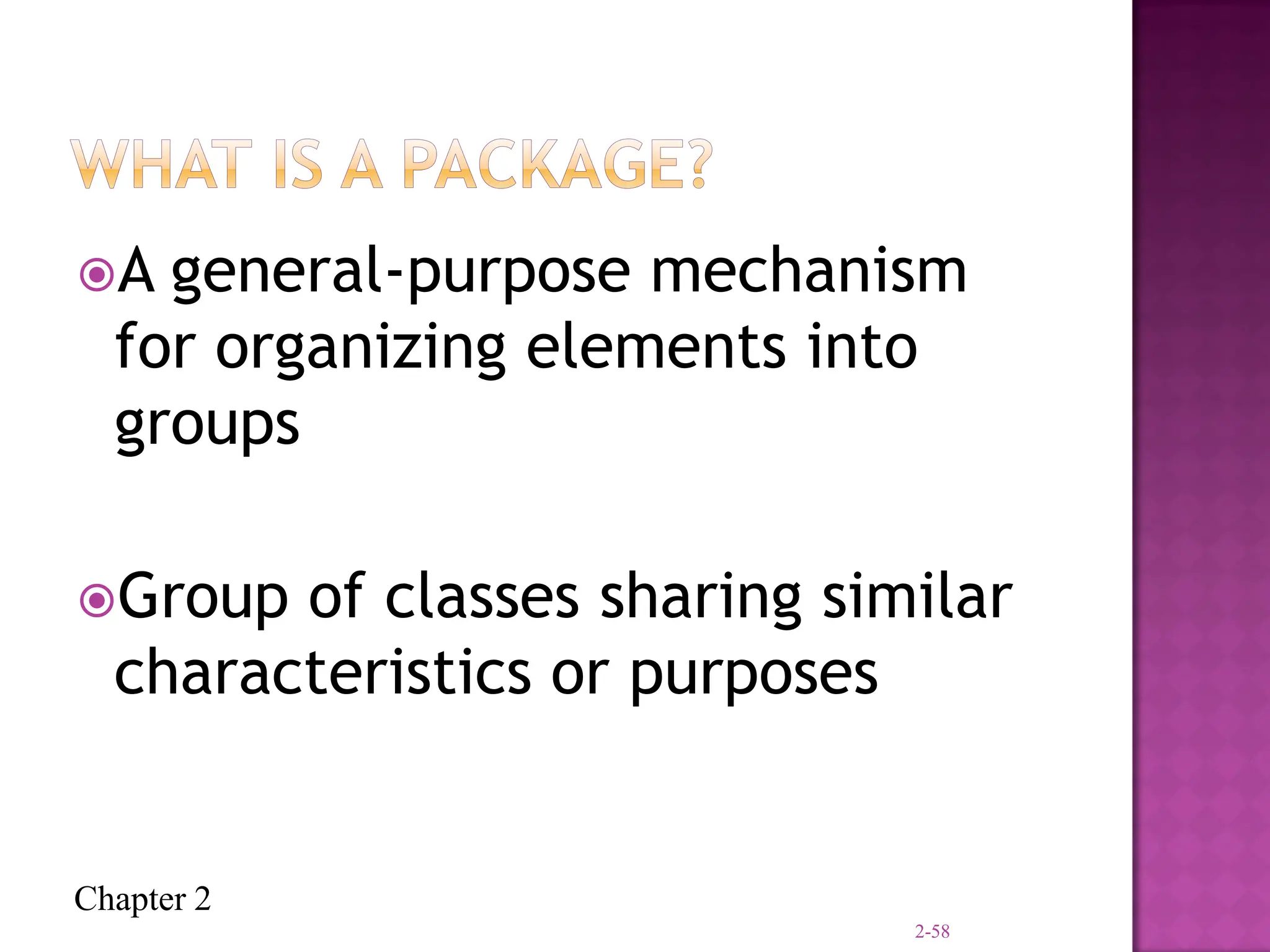

A general-purpose mechanism
for organizing elements into
groups
Group of classes sharing similar
characteristics or purposes
2-58

59. Chapter 2
Introduction To Object-Orientation 2-59

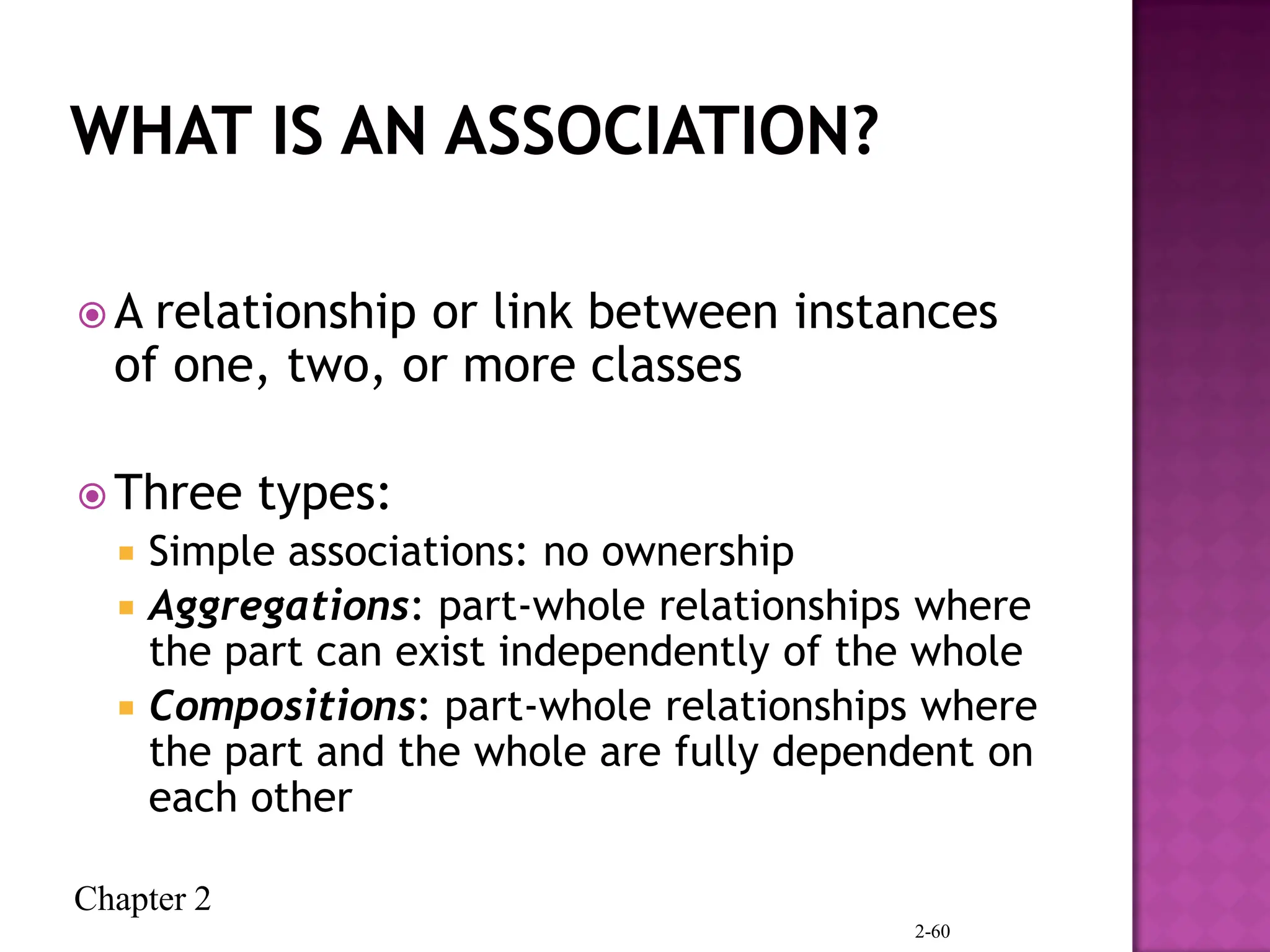

60. Chapter 2
 A relationship or link between instances
of one, two, or more classes
 Three types:
 Simple associations: no ownership
 Aggregations: part-whole relationships where
the part can exist independently of the whole
 Compositions: part-whole relationships where
the part and the whole are fully dependent on
each other
2-60

61. Chapter 2

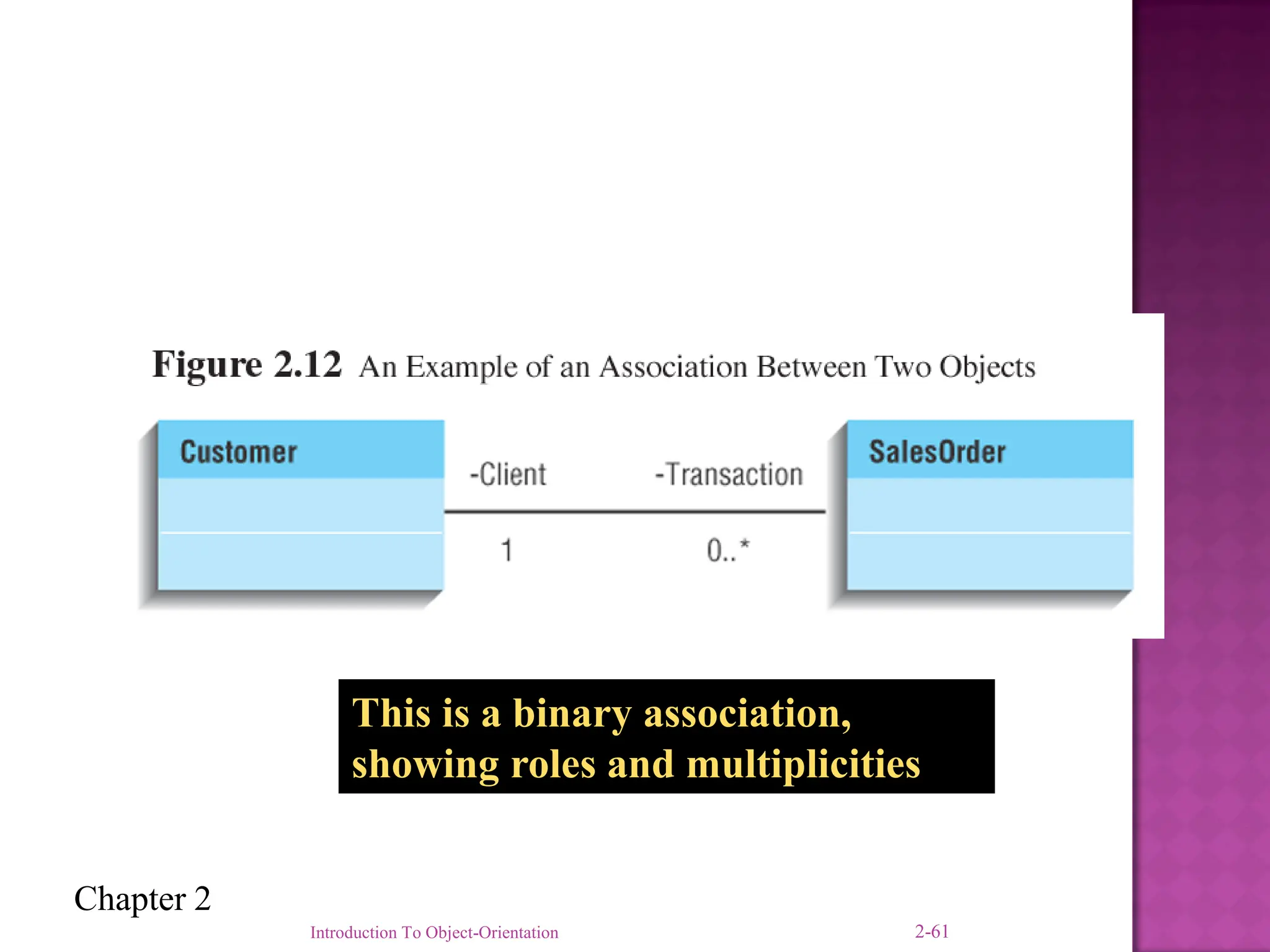

This is a binary association,
showing roles and multiplicities
Introduction To Object-Orientation 2-61

62. Chapter 2
 After studying this chapter we learned to:
 Define an object.
 Understand the terms class, attribute, and
operations.
 Explain generalization, polymorphism, and
inheritance.
 Define association.
 Describe modeling and the Unified Modeling
Language.
2-62
